ioWriteGml.c File Reference

#include "ioAbc.h"

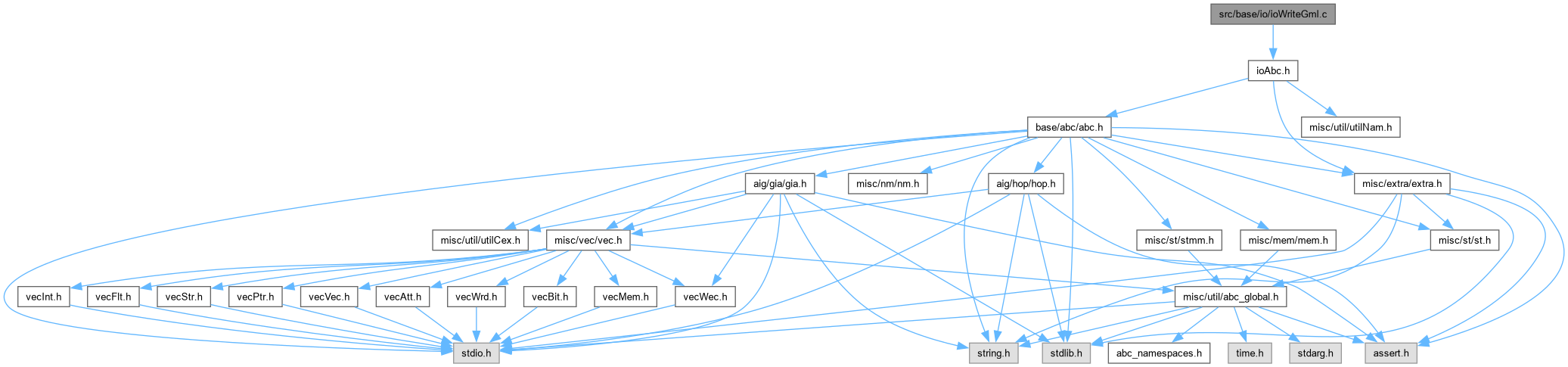

Include dependency graph for ioWriteGml.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Io_WriteGml (Abc_Ntk_t *pNtk, char *pFileName)
	DECLARATIONS ///.

Function Documentation

Io_WriteGml()

ABC_NAMESPACE_IMPL_START void Io_WriteGml	(	Abc_Ntk_t *	pNtk,
		char *	pFileName )

DECLARATIONS ///.

CFile****************************************************************

FileName [ioWriteGml.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Command processing package.]

Synopsis [Procedures to write the graph structure of AIG in GML.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

ioWriteGml.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Writes the graph structure of AIG in GML.]

Description [Useful for graph visualization using tools such as yEd: http://www.yworks.com/]

SideEffects []

SeeAlso []

Definition at line 46 of file ioWriteGml.c.

{
    FILE * pFile;
    Abc_Obj_t * pObj, * pFanin;
    int i, k;

    assert( Abc_NtkIsStrash(pNtk) || Abc_NtkIsLogic(pNtk)  );

    // start the output stream
    pFile = fopen( pFileName, "w" );
    if ( pFile == NULL )
    {
        fprintf( stdout, "Io_WriteGml(): Cannot open the output file \"%s\".\n", pFileName );
        return;
    }
    fprintf( pFile, "# GML for \"%s\" written by ABC on %s\n", pNtk->pName, Extra_TimeStamp() );
    fprintf( pFile, "graph [\n" );

    // output constant node in the AIG if it has fanouts
    if ( Abc_NtkIsStrash(pNtk) )
    {
        pObj = Abc_AigConst1( pNtk );
        if ( Abc_ObjFanoutNum(pObj) > 0 )
        {
            fprintf( pFile, "\n" );
            fprintf( pFile, "    node [ id %5d label \"%s\"\n", pObj->Id, Abc_ObjName(pObj) );
            fprintf( pFile, "        graphics [ type \"ellipse\" fill \"#CCCCFF\" ]\n" );   // grey
            fprintf( pFile, "    ]\n" );
        }
    }
    // output the POs
    fprintf( pFile, "\n" );
    Abc_NtkForEachPo( pNtk, pObj, i )
    {
        fprintf( pFile, "    node [ id %5d label \"%s\"\n", pObj->Id, Abc_ObjName(pObj) );
        fprintf( pFile, "        graphics [ type \"triangle\" fill \"#00FFFF\" ]\n" );   // blue
        fprintf( pFile, "    ]\n" );
    }
    // output the PIs
    fprintf( pFile, "\n" );
    Abc_NtkForEachPi( pNtk, pObj, i )
    {
        fprintf( pFile, "    node [ id %5d label \"%s\"\n", pObj->Id, Abc_ObjName(pObj) );
        fprintf( pFile, "        graphics [ type \"triangle\" fill \"#00FF00\" ]\n" );   // green
        fprintf( pFile, "    ]\n" );
    }
    // output the latches
    fprintf( pFile, "\n" );
    Abc_NtkForEachLatch( pNtk, pObj, i )
    {
        fprintf( pFile, "    node [ id %5d label \"%s\"\n", pObj->Id, Abc_ObjName(pObj) );
        fprintf( pFile, "        graphics [ type \"rectangle\" fill \"#FF0000\" ]\n" );   // red
        fprintf( pFile, "    ]\n" );
    }
    // output the nodes
    fprintf( pFile, "\n" );
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        fprintf( pFile, "    node [ id %5d label \"%s\"\n", pObj->Id, Abc_ObjName(pObj) );
        fprintf( pFile, "        graphics [ type \"ellipse\" fill \"#CCCCFF\" ]\n" );     // grey
        fprintf( pFile, "    ]\n" );
    }

    // output the edges
    fprintf( pFile, "\n" );
    Abc_NtkForEachObj( pNtk, pObj, i )
    {
        Abc_ObjForEachFanin( pObj, pFanin, k )
        {
            fprintf( pFile, "    edge [ source %5d   target %5d\n", pObj->Id, pFanin->Id );
            fprintf( pFile, "        graphics [ type \"line\" arrow \"first\" ]\n" );
            fprintf( pFile, "    ]\n" );
        }
    }

    fprintf( pFile, "]\n" );
    fprintf( pFile, "\n" );
    fclose( pFile );
}

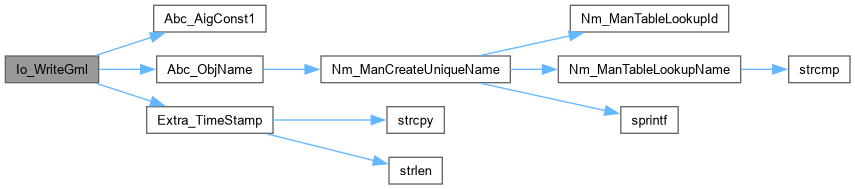

Here is the call graph for this function:

Here is the caller graph for this function:
