ioWriteList.c File Reference

#include "ioAbc.h"

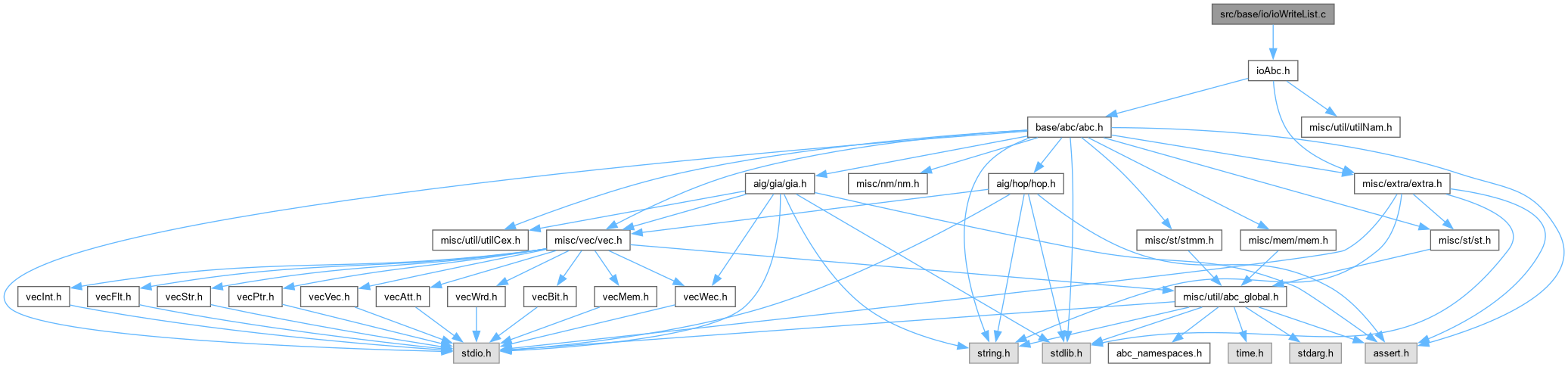

Include dependency graph for ioWriteList.c:

Go to the source code of this file.

Functions
void	Io_WriteList (Abc_Ntk_t *pNtk, char *pFileName, int fUseHost)
	FUNCTION DEFINITIONS ///.
void	Io_WriteCellNet (Abc_Ntk_t *pNtk, char *pFileName)

Function Documentation

Io_WriteCellNet()

void Io_WriteCellNet	(	Abc_Ntk_t *	pNtk,
		char *	pFileName )

Function*************************************************************

Synopsis [Writes the adjacency list for a sequential AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 221 of file ioWriteList.c.

{
    FILE * pFile;
    Abc_Obj_t * pObj, * pFanout;
    int i, k;

    assert( Abc_NtkIsLogic(pNtk)  );

    // start the output stream
    pFile = fopen( pFileName, "w" );
    if ( pFile == NULL )
    {
        fprintf( stdout, "Io_WriteCellNet(): Cannot open the output file \"%s\".\n", pFileName );
        return;
    }

    fprintf( pFile, "# CellNet file for network \"%s\" written by ABC on %s\n", pNtk->pName, Extra_TimeStamp() );

    // the only tricky part with writing is handling latches:
    // each latch comes with (a) single-input latch-input node, (b) latch proper, (c) single-input latch-output node
    // we arbitrarily decide to use the interger ID of the latch-input node to represent the latch in the file
    // (this ID is used for both the cell and the net driven by that cell)

    // write the PIs
    Abc_NtkForEachPi( pNtk, pObj, i )
        fprintf( pFile, "cell %d is 0\n", pObj->Id );
    // write the POs
    Abc_NtkForEachPo( pNtk, pObj, i )
        fprintf( pFile, "cell %d is 1\n", pObj->Id );
    // write the latches (use the ID of latch input)
    Abc_NtkForEachLatch( pNtk, pObj, i )
        fprintf( pFile, "cell %d is 2\n", Abc_ObjFanin0(pObj)->Id );
    // write the logic nodes
    Abc_NtkForEachNode( pNtk, pObj, i )
        fprintf( pFile, "cell %d is %d\n", pObj->Id, 3+Abc_ObjFaninNum(pObj) );

    // write the nets driven by PIs
    Abc_NtkForEachPi( pNtk, pObj, i )
    {
        fprintf( pFile, "net %d  %d 0", pObj->Id, pObj->Id );
        Abc_ObjForEachFanout( pObj, pFanout, k )
            fprintf( pFile, "  %d %d", pFanout->Id, 1 + Abc_ObjFanoutFaninNum(pFanout, pObj) );
        fprintf( pFile, "\n" );
    }
    // write the nets driven by latches
    Abc_NtkForEachLatch( pNtk, pObj, i )
    {
        fprintf( pFile, "net %d  %d 0", Abc_ObjFanin0(pObj)->Id, Abc_ObjFanin0(pObj)->Id );
        pObj = Abc_ObjFanout0(pObj);
        Abc_ObjForEachFanout( pObj, pFanout, k )
            fprintf( pFile, "  %d %d", pFanout->Id, 1 + Abc_ObjFanoutFaninNum(pFanout, pObj) );
        fprintf( pFile, "\n" );
    }
    // write the nets driven by nodes
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        fprintf( pFile, "net %d  %d 0", pObj->Id, pObj->Id );
        Abc_ObjForEachFanout( pObj, pFanout, k )
            fprintf( pFile, "  %d %d", pFanout->Id, 1 + Abc_ObjFanoutFaninNum(pFanout, pObj) );
        fprintf( pFile, "\n" );
    }

    fprintf( pFile, "\n" );
    fclose( pFile );
}

Here is the call graph for this function:

Io_WriteList()

void Io_WriteList	(	Abc_Ntk_t *	pNtk,
		char *	pFileName,
		int	fUseHost )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Writes the adjacency list for a sequential AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 102 of file ioWriteList.c.

{
    FILE * pFile;
    Abc_Obj_t * pObj;
    int i;

//    assert( Abc_NtkIsSeq(pNtk)  );

    // start the output stream
    pFile = fopen( pFileName, "w" );
    if ( pFile == NULL )
    {
        fprintf( stdout, "Io_WriteList(): Cannot open the output file \"%s\".\n", pFileName );
        return;
    }

    fprintf( pFile, "# Adjacency list for sequential AIG \"%s\"\n", pNtk->pName );
    fprintf( pFile, "# written by ABC on %s\n", Extra_TimeStamp() );

    // write the constant node
    if ( Abc_ObjFanoutNum( Abc_AigConst1(pNtk) ) > 0 )
        Io_WriteListEdge( pFile, Abc_AigConst1(pNtk) );

    // write the PI edges
    Abc_NtkForEachPi( pNtk, pObj, i )
        Io_WriteListEdge( pFile, pObj );

    // write the internal nodes
    Abc_AigForEachAnd( pNtk, pObj, i )
        Io_WriteListEdge( pFile, pObj );

    // write the host node
    if ( fUseHost )
        Io_WriteListHost( pFile, pNtk );
    else
        Abc_NtkForEachPo( pNtk, pObj, i )
            Io_WriteListEdge( pFile, pObj );

    fprintf( pFile, "\n" );
    fclose( pFile );
}

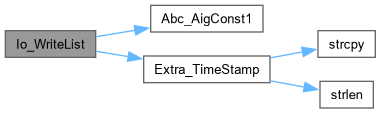

Here is the call graph for this function:
