mfsGia.c File Reference

#include "mfsInt.h"
#include "aig/gia/giaAig.h"

Include dependency graph for mfsGia.c:

Go to the source code of this file.

Functions
Gia_Man_t *	Gia_ManCreateResubMiter (Aig_Man_t *p)
	FUNCTION DEFINITIONS ///.
void	Abc_NtkMfsConstructGia (Mfs_Man_t *p)
void	Abc_NtkMfsDeconstructGia (Mfs_Man_t *p)
void	Abc_NtkMfsResimulate (Gia_Man_t *p, Vec_Int_t *vCex)
int	Abc_NtkMfsTryResubOnceGia (Mfs_Man_t *p, int *pCands, int nCands)

Function Documentation

Abc_NtkMfsConstructGia()

void Abc_NtkMfsConstructGia

(

Mfs_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 120 of file mfsGia.c.

{
    int nBTLimit = 500;
    // prepare AIG
    assert( p->pGia == NULL );
    p->pGia = Gia_ManCreateResubMiter( p->pAigWin );
    // prepare AIG
    Gia_ManCreateRefs( p->pGia );
    Gia_ManCleanMark0( p->pGia );
    Gia_ManCleanMark1( p->pGia );
    Gia_ManFillValue ( p->pGia ); // maps nodes into trail ids
    Gia_ManCleanPhase( p->pGia );
    // prepare solver
    p->pTas = Tas_ManAlloc( p->pGia, nBTLimit );
    p->vCex = Tas_ReadModel( p->pTas );
    p->vGiaLits = Vec_PtrAlloc( 100 );
}

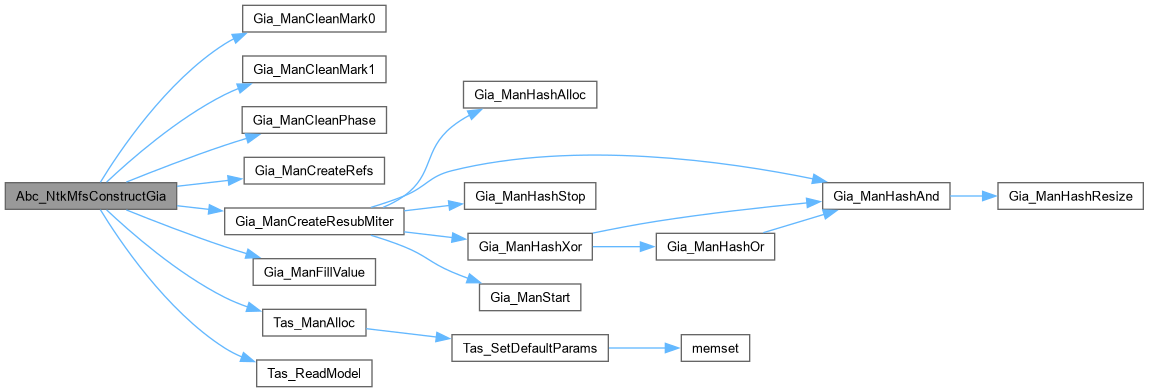

Here is the call graph for this function:

Abc_NtkMfsDeconstructGia()

void Abc_NtkMfsDeconstructGia

(

Mfs_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 150 of file mfsGia.c.

{
    assert( p->pGia != NULL );
    Gia_ManStop( p->pGia ); p->pGia = NULL;
    Tas_ManStop( p->pTas ); p->pTas = NULL;
    Vec_PtrFree( p->vGiaLits );
}

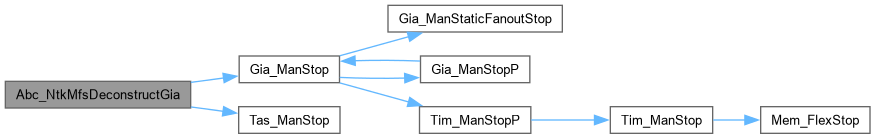

Here is the call graph for this function:

Abc_NtkMfsResimulate()

void Abc_NtkMfsResimulate	(	Gia_Man_t *	p,
		Vec_Int_t *	vCex )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 169 of file mfsGia.c.

{
    Gia_Obj_t * pObj;
    int i, Entry;
//    Gia_ManCleanMark1( p );
    Gia_ManConst0(p)->fMark1 = 0;
    Gia_ManForEachCi( p, pObj, i )
        pObj->fMark1 = 0;
//        pObj->fMark1 = Gia_ManRandom(0);
    Vec_IntForEachEntry( vCex, Entry, i )
    {
        pObj = Gia_ManCi( p, Gia_Lit2Var(Entry) );
        pObj->fMark1 = !Gia_LitIsCompl(Entry);
    }
    Gia_ManForEachAnd( p, pObj, i )
        pObj->fMark1 = (Gia_ObjFanin0(pObj)->fMark1 ^ Gia_ObjFaninC0(pObj)) &
                       (Gia_ObjFanin1(pObj)->fMark1 ^ Gia_ObjFaninC1(pObj));
    Gia_ManForEachCo( p, pObj, i )
        pObj->fMark1 =  Gia_ObjFanin0(pObj)->fMark1 ^ Gia_ObjFaninC0(pObj);
}

Here is the caller graph for this function:

Abc_NtkMfsTryResubOnceGia()

int Abc_NtkMfsTryResubOnceGia	(	Mfs_Man_t *	p,
		int *	pCands,
		int	nCands )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 204 of file mfsGia.c.

{
    int fVeryVerbose = 0;
    int fUseGia = 1;
    unsigned * pData;
    int i, iVar, status, iOut;
    clock_t clk = clock();
    p->nSatCalls++;
//    return -1;
    assert( p->pGia != NULL );
    assert( p->pTas != NULL );
    // convert to literals
    Vec_PtrClear( p->vGiaLits );
    // create the first four literals
    Vec_PtrPush( p->vGiaLits, Gia_ObjChild0(Gia_ManPo(p->pGia, 0)) );
    Vec_PtrPush( p->vGiaLits, Gia_ObjChild0(Gia_ManPo(p->pGia, 1)) );
    Vec_PtrPush( p->vGiaLits, Gia_ObjChild0(Gia_ManPo(p->pGia, 2)) );
    Vec_PtrPush( p->vGiaLits, Gia_ObjChild0(Gia_ManPo(p->pGia, 3)) );
    for ( i = 0; i < nCands; i++ )
    {
        // get the output number
        iOut = Gia_Lit2Var(pCands[i]) - 2 * p->pCnf->nVars;
        // write the literal
        Vec_PtrPush( p->vGiaLits, Gia_ObjChild0(Gia_ManPo(p->pGia, 4 + iOut)) );
    }
    // perform SAT solving
    status = Tas_ManSolveArray( p->pTas, p->vGiaLits );
    if ( status == -1 )
    {
        p->nTimeOuts++;
        if ( fVeryVerbose )
        printf( "t" );
//        p->nSatUndec++;
//        p->nConfUndec += p->Pars.nBTThis;
//        Cec_ManSatAddToStore( vCexStore, NULL, i ); // timeout
//        p->timeSatUndec += clock() - clk;
    }
    else if ( status == 1 )
    {
        if ( fVeryVerbose )
        printf( "u" );
//        p->nSatUnsat++;
//        p->nConfUnsat += p->Pars.nBTThis;
//        p->timeSatUnsat += clock() - clk;
    }
    else
    {
        p->nSatCexes++;
        if ( fVeryVerbose )
        printf( "s" );
//        p->nSatSat++;
//        p->nConfSat += p->Pars.nBTThis;
//        Gia_SatVerifyPattern( pAig, pRoot, vCex, vVisit );
//        Cec_ManSatAddToStore( vCexStore, vCex, i );
//        p->timeSatSat += clock() - clk;

        // resimulate the counter-example
        Abc_NtkMfsResimulate( p->pGia, Tas_ReadModel(p->pTas) );

        if ( fUseGia )
        {
/*
            int Val0 = Gia_ManPo(p->pGia, 0)->fMark1;
            int Val1 = Gia_ManPo(p->pGia, 1)->fMark1;
            int Val2 = Gia_ManPo(p->pGia, 2)->fMark1;
            int Val3 = Gia_ManPo(p->pGia, 3)->fMark1;
            assert( Val0 == 1 );
            assert( Val1 == 1 );
            assert( Val2 == 1 );
            assert( Val3 == 1 );
*/
            // store the counter-example
            Vec_IntForEachEntry( p->vProjVarsSat, iVar, i )
            {
                pData = (unsigned *)Vec_PtrEntry( p->vDivCexes, i );
                iOut = iVar - 2 * p->pCnf->nVars;
//                if ( !Gia_ManPo( p->pGia, 4 + iOut )->fMark1 ) // remove 0s!!!
                if ( Gia_ManPo( p->pGia, 4 + iOut )->fMark1 ) // remove 0s!!!  - rememeber complemented attribute
                {
                    assert( Aig_InfoHasBit(pData, p->nCexes) );
                    Aig_InfoXorBit( pData, p->nCexes );
                }
            }
            p->nCexes++;
        }

    }
    return status;
}

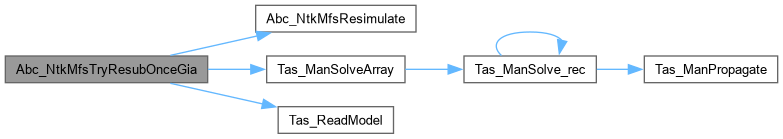

Here is the call graph for this function:

Gia_ManCreateResubMiter()

Gia_Man_t * Gia_ManCreateResubMiter

(

Aig_Man_t *

p

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Derives the resubstitution miter as an GIA.]

Description []

SideEffects []

SeeAlso []

Definition at line 53 of file mfsGia.c.

{
    Gia_Man_t * pNew;//, * pTemp;
    Aig_Obj_t * pObj;
    int i, * pOuts0, * pOuts1;
    Aig_ManSetPioNumbers( p );
    // create the new manager
    pNew = Gia_ManStart( Aig_ManObjNum(p) );
    pNew->pName = Gia_UtilStrsav( p->pName );
    pNew->pSpec = Gia_UtilStrsav( p->pSpec );
    Gia_ManHashAlloc( pNew );
    // create the objects
    pOuts0 = ABC_ALLOC( int, Aig_ManPoNum(p) );
    Aig_ManForEachObj( p, pObj, i )
    {
        if ( Aig_ObjIsAnd(pObj) )
            pObj->iData = Gia_ManHashAnd( pNew, Gia_ObjChild0Copy(pObj), Gia_ObjChild1Copy(pObj) );
        else if ( Aig_ObjIsPi(pObj) )
            pObj->iData = Gia_ManAppendCi( pNew );
        else if ( Aig_ObjIsPo(pObj) )
            pOuts0[ Aig_ObjPioNum(pObj) ] = Gia_ObjChild0Copy(pObj);
        else if ( Aig_ObjIsConst1(pObj) )
            pObj->iData = 1;
        else
            assert( 0 );
    }
    // create the objects
    pOuts1 = ABC_ALLOC( int, Aig_ManPoNum(p) );
    Aig_ManForEachObj( p, pObj, i )
    {
        if ( Aig_ObjIsAnd(pObj) )
            pObj->iData = Gia_ManHashAnd( pNew, Gia_ObjChild0Copy(pObj), Gia_ObjChild1Copy(pObj) );
        else if ( Aig_ObjIsPi(pObj) )
            pObj->iData = Gia_ManAppendCi( pNew );
        else if ( Aig_ObjIsPo(pObj) )
            pOuts1[ Aig_ObjPioNum(pObj) ] = Gia_ObjChild0Copy(pObj);
        else if ( Aig_ObjIsConst1(pObj) )
            pObj->iData = 1;
        else
            assert( 0 );
    }
    // add the outputs
    Gia_ManAppendCo( pNew, pOuts0[0] );
    Gia_ManAppendCo( pNew, pOuts1[0] );
    Gia_ManAppendCo( pNew, pOuts0[1] );
    Gia_ManAppendCo( pNew, Gia_LitNot(pOuts1[1]) );
    for ( i = 2; i < Aig_ManPoNum(p); i++ )
        Gia_ManAppendCo( pNew, Gia_LitNot( Gia_ManHashXor(pNew, pOuts0[i], pOuts1[i]) ) );
    Gia_ManHashStop( pNew );
    ABC_FREE( pOuts0 );
    ABC_FREE( pOuts1 );
//    pNew = Gia_ManCleanup( pTemp = pNew );
//    Gia_ManStop( pTemp );
    return pNew;
}

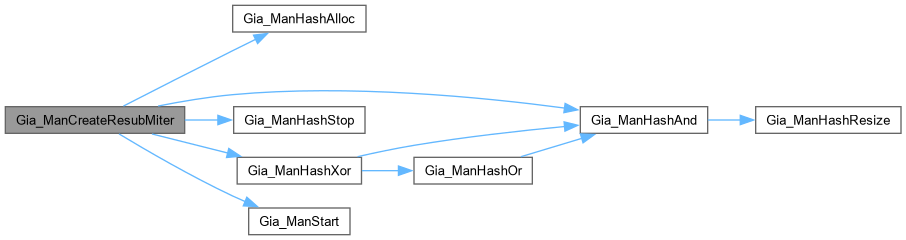

Here is the call graph for this function:

Here is the caller graph for this function:
