mio.c File Reference

#include <unistd.h>
#include "base/main/main.h"
#include "mio.h"
#include "map/mapper/mapper.h"
#include "map/amap/amap.h"

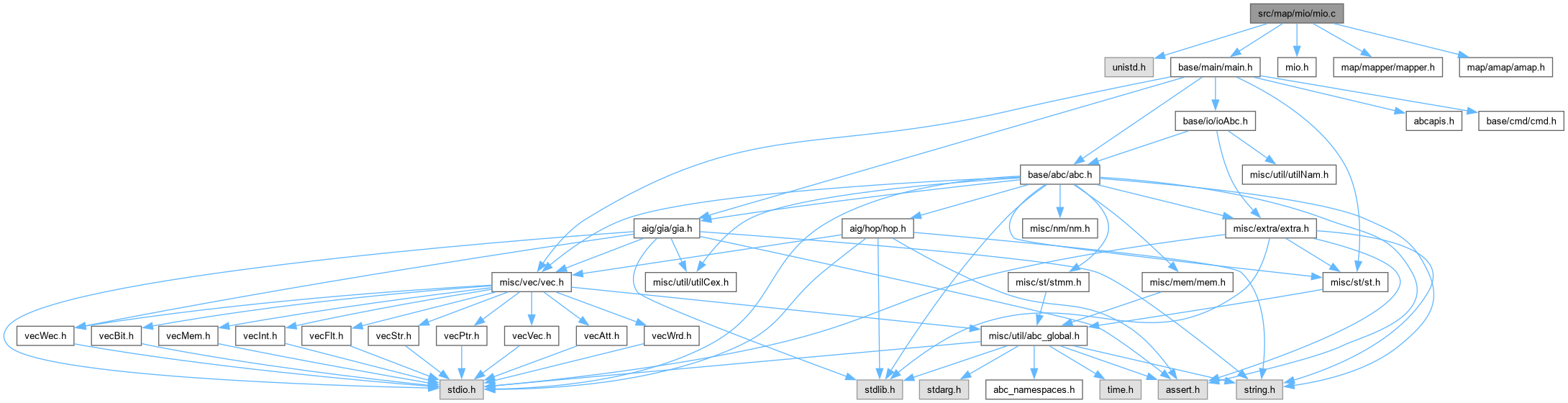

Include dependency graph for mio.c:

Go to the source code of this file.

Macros
#define	_DEFAULT_SOURCE

Functions
void	Mio_IntallAndLibrary ()
	FUNCTION DEFINITIONS ///.
void	Mio_IntallSimpleLibrary ()
void	Mio_IntallSimpleLibrary2 ()
void	Mio_Init (Abc_Frame_t *pAbc)
void	Mio_End (Abc_Frame_t *pAbc)
void	Mio_UpdateGenlib (Mio_Library_t *pLib)
	FUNCTION DEFINITIONS ///.
int	Mio_UpdateGenlib2 (Vec_Str_t *vStr, Vec_Str_t *vStr2, char *pFileName, int fVerbose)

Macro Definition Documentation

_DEFAULT_SOURCE

#define _DEFAULT_SOURCE

CFile****************************************************************

pFileName [mio.c]

PackageName [MVSIS 1.3: Multi-valued logic synthesis system.]

Synopsis [File reading/writing for technology mapping.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - August 18, 2003.]

Revision [

Id

mio.c,v 1.4 2004/08/05 18:34:51 satrajit Exp

]

Definition at line 23 of file mio.c.

Function Documentation

Mio_End()

void Mio_End

(

Abc_Frame_t *

pAbc

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 226 of file mio.c.

{
    Mio_LibraryDelete( (Mio_Library_t *)Abc_FrameReadLibGen() );
    Amap_LibFree( (Amap_Lib_t *)Abc_FrameReadLibGen2() );
}

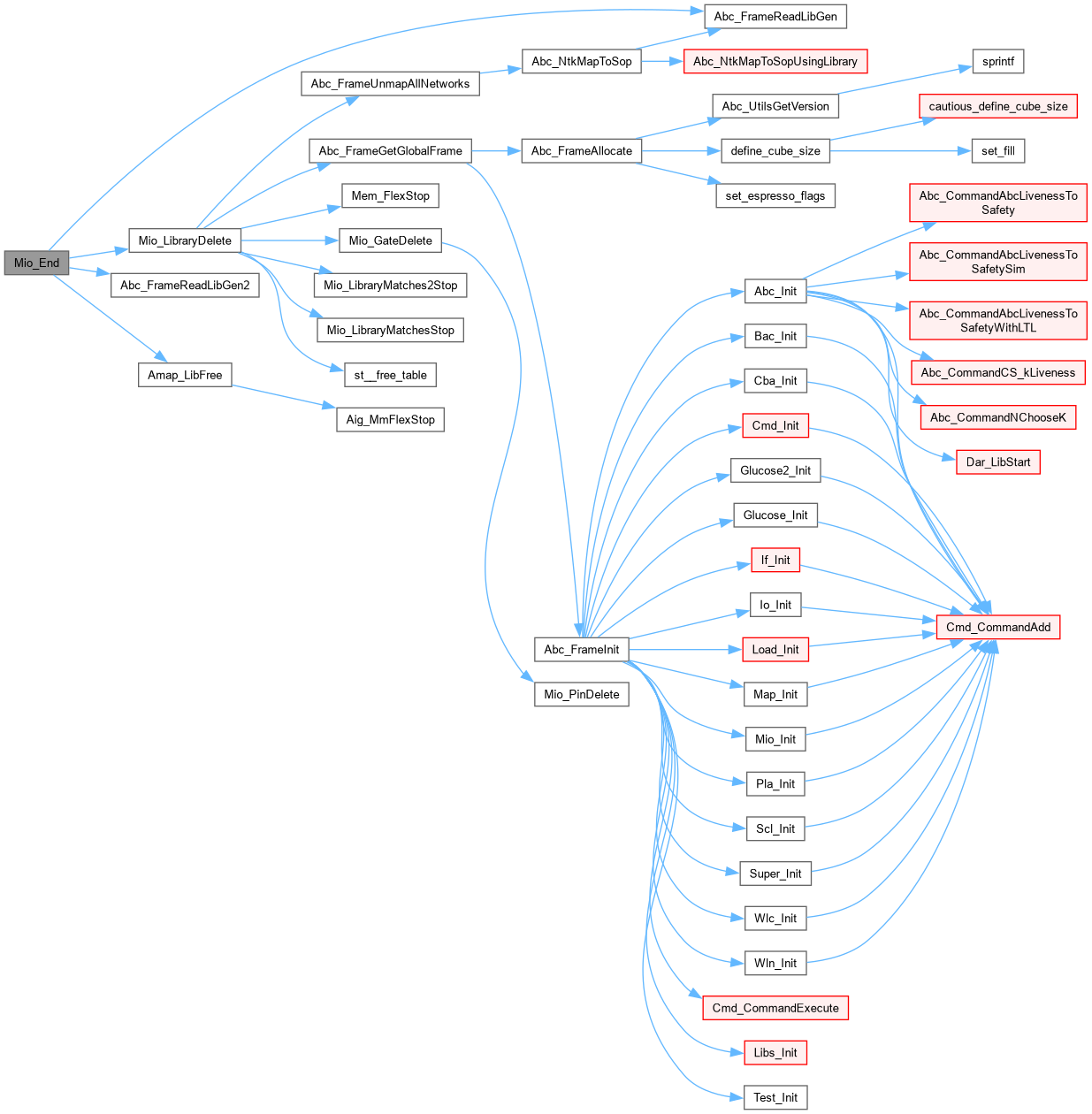

Here is the call graph for this function:

Here is the caller graph for this function:

Mio_Init()

void Mio_Init

(

Abc_Frame_t *

pAbc

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 198 of file mio.c.

{
//    Cmd_CommandAdd( pAbc, "SC mapping", "read_liberty",   Mio_CommandReadLiberty,  0 );

    Cmd_CommandAdd( pAbc, "SC mapping", "read_genlib",    Mio_CommandReadGenlib,  0 );
    Cmd_CommandAdd( pAbc, "SC mapping", "write_genlib",   Mio_CommandWriteGenlib, 0 );
    Cmd_CommandAdd( pAbc, "SC mapping", "print_genlib",   Mio_CommandPrintGenlib, 0 );

    Cmd_CommandAdd( pAbc, "SC mapping", "read_profile",   Mio_CommandReadProfile,  0 );
    Cmd_CommandAdd( pAbc, "SC mapping", "write_profile",  Mio_CommandWriteProfile, 0 );
    Cmd_CommandAdd( pAbc, "SC mapping", "print_profile",  Mio_CommandPrintProfile, 0 );

    Cmd_CommandAdd( pAbc, "SC mapping", "read_library",   Mio_CommandReadGenlib,  0 );
    Cmd_CommandAdd( pAbc, "SC mapping", "write_library",  Mio_CommandWriteGenlib, 0 );
    Cmd_CommandAdd( pAbc, "SC mapping", "print_library",  Mio_CommandPrintGenlib, 0 );
}

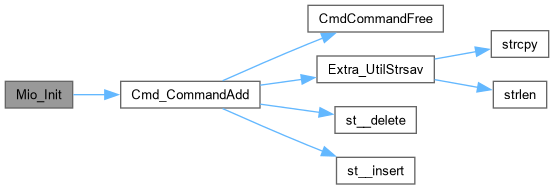

Here is the call graph for this function:

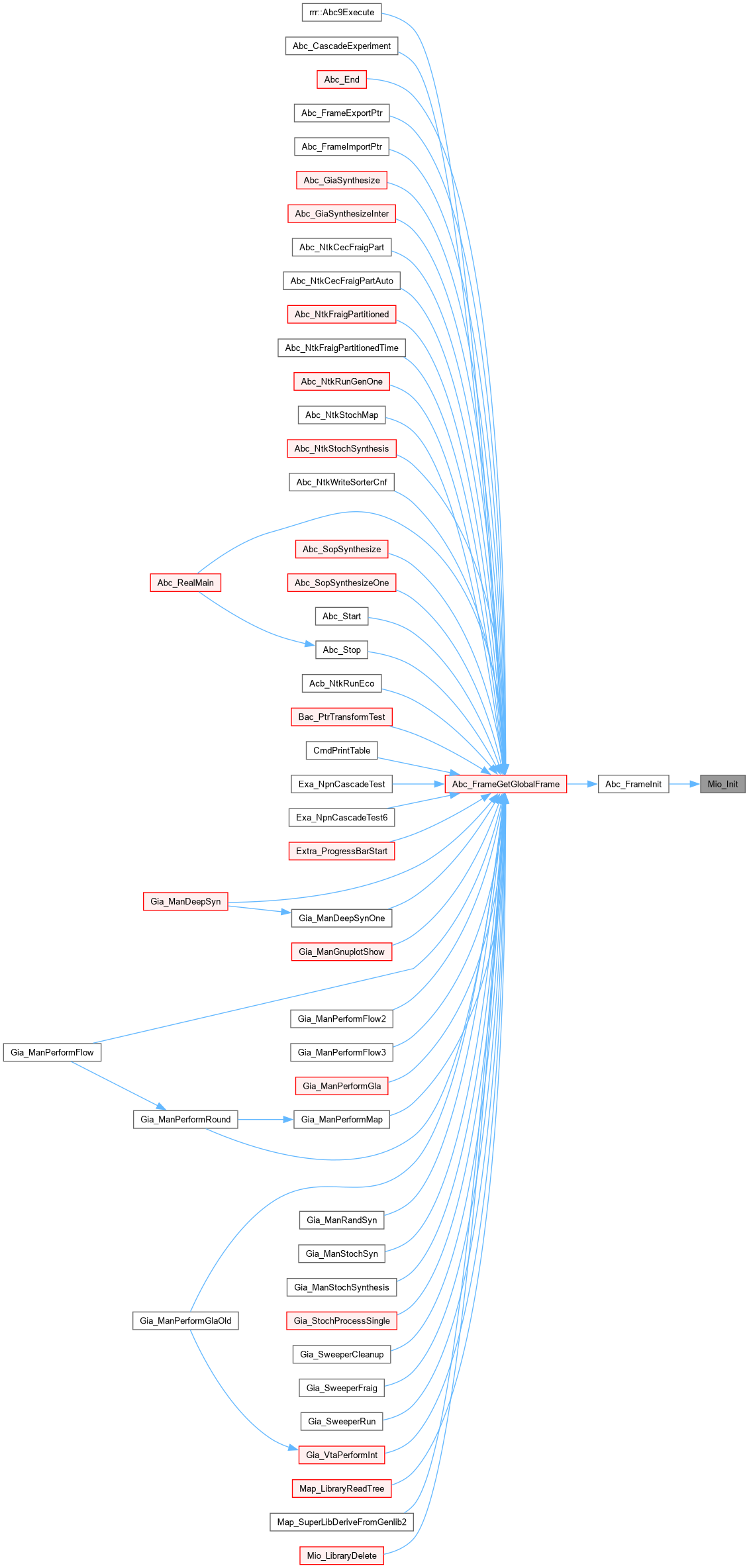

Here is the caller graph for this function:

Mio_IntallAndLibrary()

void Mio_IntallAndLibrary

(

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 146 of file mio.c.

{
    extern Mio_Library_t * Mio_LibraryReadBuffer( char * pBuffer, int fExtendedFormat, st__table * tExcludeGate, int nFaninLimit, int fVerbose );
    Vec_Str_t * vLibStr = Vec_StrAlloc( 1000 );
    for ( int i = 0; pAndGenlib[i]; i++ )
        Vec_StrAppend( vLibStr, pAndGenlib[i] );
    Vec_Str_t * vLibStr2 = Vec_StrDup( vLibStr );
    Vec_StrAppend( vLibStr2, ".end\n" );
    Vec_StrPush( vLibStr2, '\0' );
    Vec_StrPush( vLibStr, '\0' );
    Mio_UpdateGenlib2( vLibStr, vLibStr2, "and.genlib", 0 );
    Vec_StrFree( vLibStr );
    Vec_StrFree( vLibStr2 );
}

Here is the call graph for this function:

Mio_IntallSimpleLibrary()

void Mio_IntallSimpleLibrary

(

)

Definition at line 160 of file mio.c.

{
    extern Mio_Library_t * Mio_LibraryReadBuffer( char * pBuffer, int fExtendedFormat, st__table * tExcludeGate, int nFaninLimit, int fVerbose );
    Mio_Library_t * pLib;  int i;
    Vec_Str_t * vLibStr = Vec_StrAlloc( 1000 );
    for ( i = 0; pSimpleGenlib[i]; i++ )
        Vec_StrAppend( vLibStr, pSimpleGenlib[i] );
    Vec_StrPush( vLibStr, '\0' );
    pLib = Mio_LibraryReadBuffer( Vec_StrArray(vLibStr), 0, NULL, 0, 0 );
    Mio_LibrarySetName( pLib, Abc_UtilStrsav("simple.genlib") );
    Mio_UpdateGenlib( pLib );
    Vec_StrFree( vLibStr );
}

Here is the call graph for this function:

Mio_IntallSimpleLibrary2()

void Mio_IntallSimpleLibrary2

(

)

Definition at line 173 of file mio.c.

{
    extern Mio_Library_t * Mio_LibraryReadBuffer( char * pBuffer, int fExtendedFormat, st__table * tExcludeGate, int nFaninLimit, int fVerbose );
    Mio_Library_t * pLib;  int i;
    Vec_Str_t * vLibStr = Vec_StrAlloc( 1000 );
    for ( i = 0; pSimpleGenlib2[i]; i++ )
        Vec_StrAppend( vLibStr, pSimpleGenlib2[i] );
    Vec_StrPush( vLibStr, '\0' );
    pLib = Mio_LibraryReadBuffer( Vec_StrArray(vLibStr), 0, NULL, 0, 0 );
    Mio_LibrarySetName( pLib, Abc_UtilStrsav("simple2.genlib") );
    Mio_UpdateGenlib( pLib );
    Vec_StrFree( vLibStr );
}

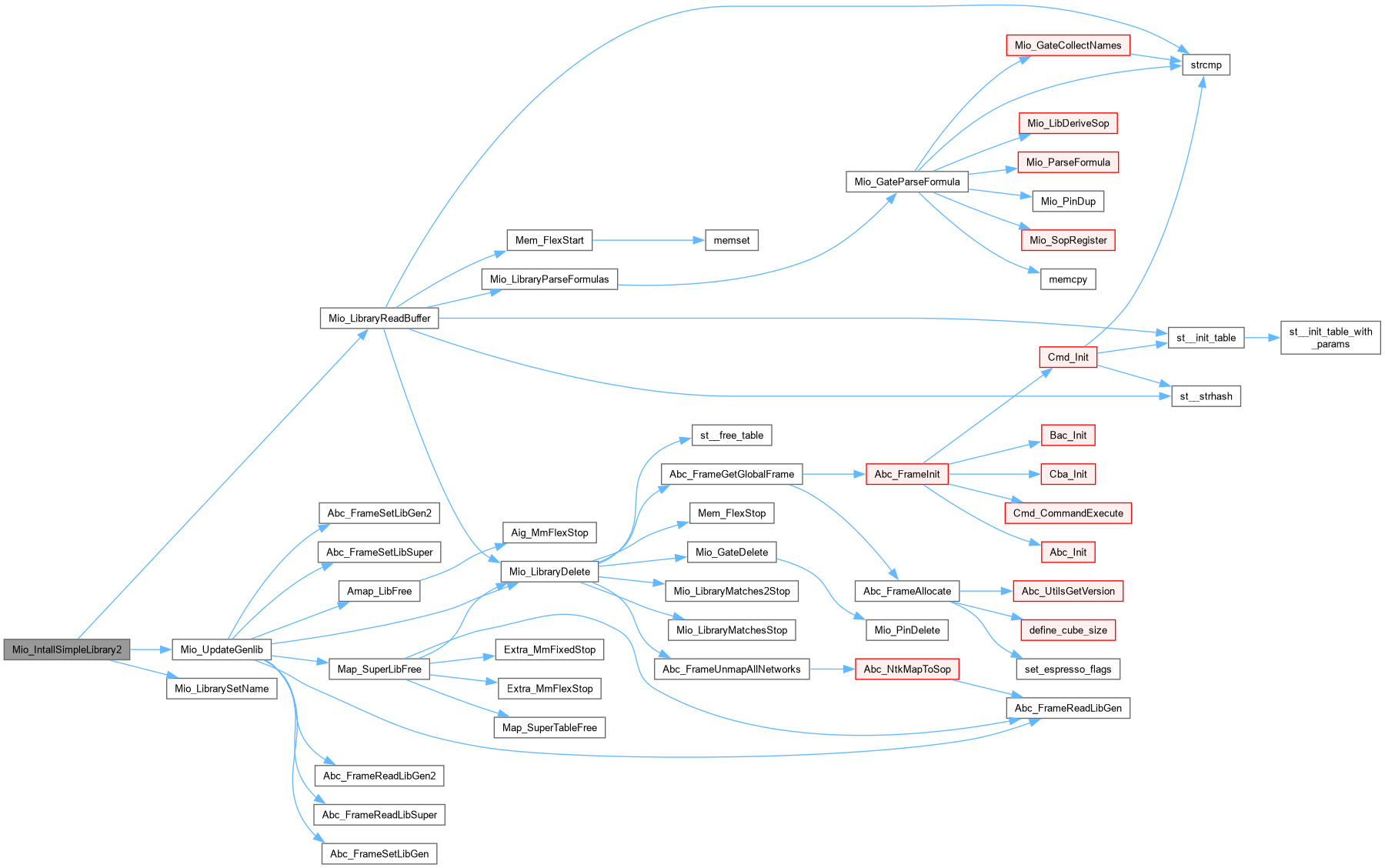

Here is the call graph for this function:

Mio_UpdateGenlib()

void Mio_UpdateGenlib

(

Mio_Library_t *

pLib

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 243 of file mio.c.

{
    // free the current superlib because it depends on the old Mio library
    if ( Abc_FrameReadLibSuper() )
    {
        Map_SuperLibFree( (Map_SuperLib_t *)Abc_FrameReadLibSuper() );
        Abc_FrameSetLibSuper( NULL );
    }

    // replace the current library
    Mio_LibraryDelete( (Mio_Library_t *)Abc_FrameReadLibGen() );
    Abc_FrameSetLibGen( pLib );

    // replace the current library
    Amap_LibFree( (Amap_Lib_t *)Abc_FrameReadLibGen2() );
    Abc_FrameSetLibGen2( NULL );
}

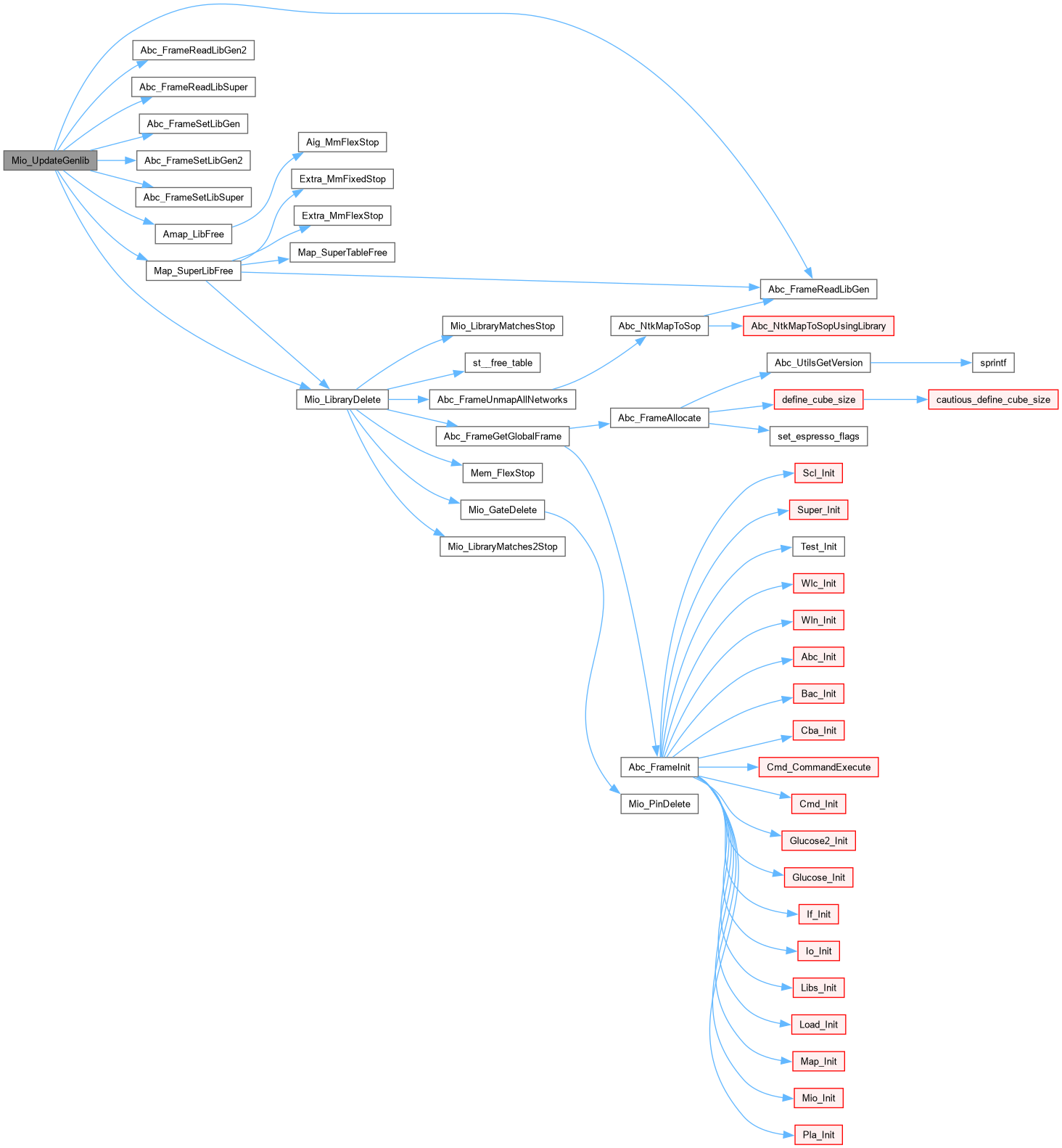

Here is the call graph for this function:

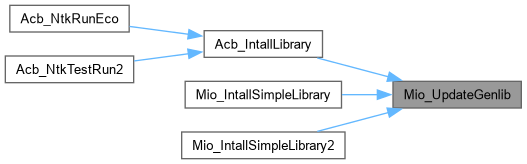

Here is the caller graph for this function:

Mio_UpdateGenlib2()

int Mio_UpdateGenlib2	(	Vec_Str_t *	vStr,
		Vec_Str_t *	vStr2,
		char *	pFileName,
		int	fVerbose )

Definition at line 260 of file mio.c.

{
    Mio_Library_t * pLib;
    // set the new network
    pLib = Mio_LibraryRead( pFileName, Vec_StrArray(vStr), NULL, 0, fVerbose );
    if ( pLib == NULL )
        return 0;

    // free the current superlib because it depends on the old Mio library
    if ( Abc_FrameReadLibSuper() )
    {
        Map_SuperLibFree( (Map_SuperLib_t *)Abc_FrameReadLibSuper() );
        Abc_FrameSetLibSuper( NULL );
    }

    // replace the current library
    Mio_LibraryDelete( (Mio_Library_t *)Abc_FrameReadLibGen() );
    Abc_FrameSetLibGen( pLib );

    // set the new network
    pLib = (Mio_Library_t *)Amap_LibReadAndPrepare( pFileName, Vec_StrArray(vStr2), 0, 0 );
    if ( pLib == NULL )
        return 0;

    // replace the current library
    Amap_LibFree( (Amap_Lib_t *)Abc_FrameReadLibGen2() );
    Abc_FrameSetLibGen2( pLib );
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:
