msatSolverCore.c File Reference

#include "msatInt.h"

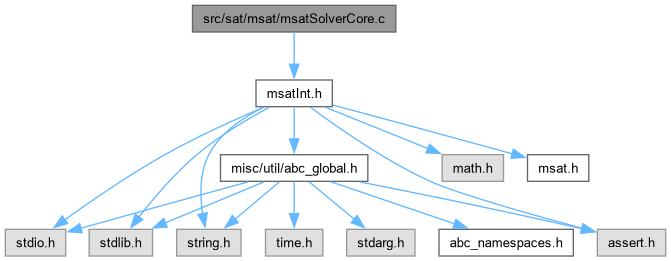

Include dependency graph for msatSolverCore.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Msat_SolverAddVar (Msat_Solver_t *p, int Level)
	DECLARATIONS ///.
int	Msat_SolverAddClause (Msat_Solver_t *p, Msat_IntVec_t *vLits)
double	Msat_SolverProgressEstimate (Msat_Solver_t *p)
void	Msat_SolverPrintStats (Msat_Solver_t *p)
int	Msat_SolverSolve (Msat_Solver_t *p, Msat_IntVec_t *vAssumps, int nBackTrackLimit, int nTimeLimit)

Function Documentation

Msat_SolverAddClause()

int Msat_SolverAddClause	(	Msat_Solver_t *	p,
		Msat_IntVec_t *	vLits )

Function*************************************************************

Synopsis [Adds one clause to the solver's clause database.]

Description []

SideEffects []

SeeAlso []

Definition at line 65 of file msatSolverCore.c.

{
    Msat_Clause_t * pC;
    int  Value;
    Value = Msat_ClauseCreate( p, vLits, 0, &pC );
    if ( pC != NULL )
        Msat_ClauseVecPush( p->vClauses, pC );
//    else if ( p->fProof )
//        Msat_ClauseCreateFake( p, vLits );
    return Value;
}

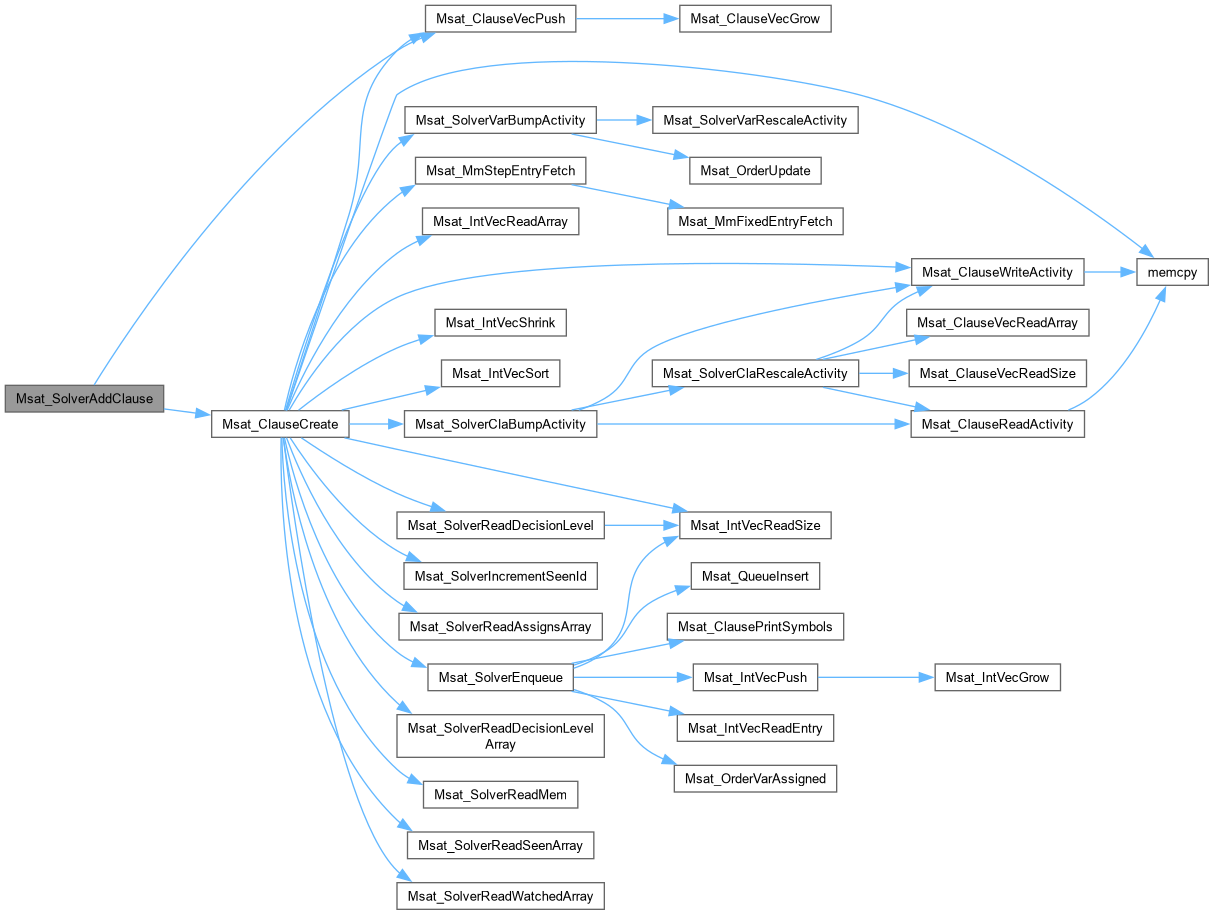

Here is the call graph for this function:

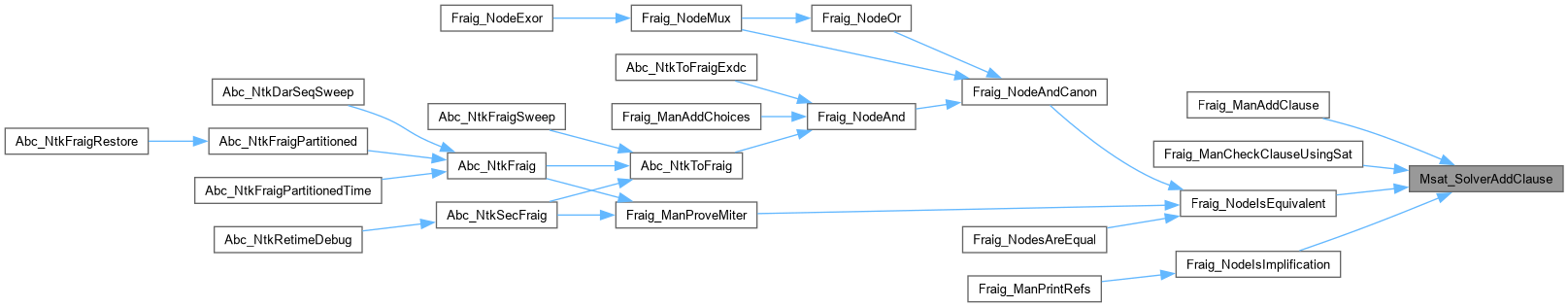

Here is the caller graph for this function:

Msat_SolverAddVar()

ABC_NAMESPACE_IMPL_START int Msat_SolverAddVar	(	Msat_Solver_t *	p,
		int	Level )

DECLARATIONS ///.

CFile****************************************************************

FileName [msatSolverCore.c]

PackageName [A C version of SAT solver MINISAT, originally developed in C++ by Niklas Een and Niklas Sorensson, Chalmers University of Technology, Sweden: http://www.cs.chalmers.se/~een/Satzoo.]

Synopsis [The SAT solver core procedures.]

Author [Alan Mishchenko alanm.nosp@m.i@ee.nosp@m.cs.be.nosp@m.rkel.nosp@m.ey.ed.nosp@m.u]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - January 1, 2004.]

Revision [

Id

msatSolverCore.c,v 1.2 2004/05/12 03:37:40 satrajit Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Adds one variable to the solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file msatSolverCore.c.

{
    if ( p->nVars == p->nVarsAlloc )
        Msat_SolverResize( p, 2 * p->nVarsAlloc );
    p->pLevel[p->nVars] = Level;
    p->nVars++;
    return 1;
}

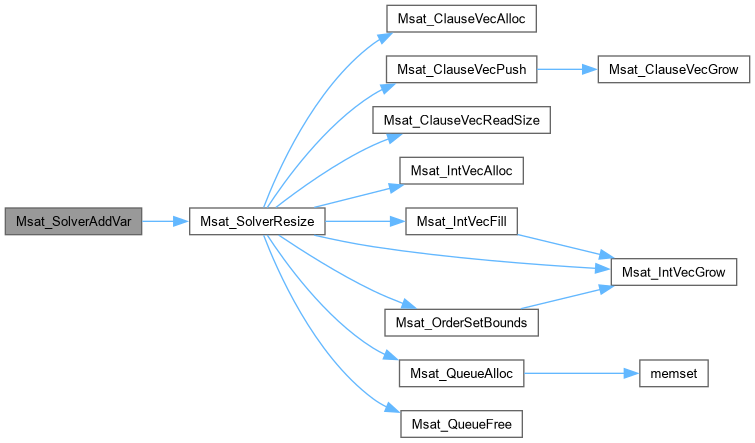

Here is the call graph for this function:

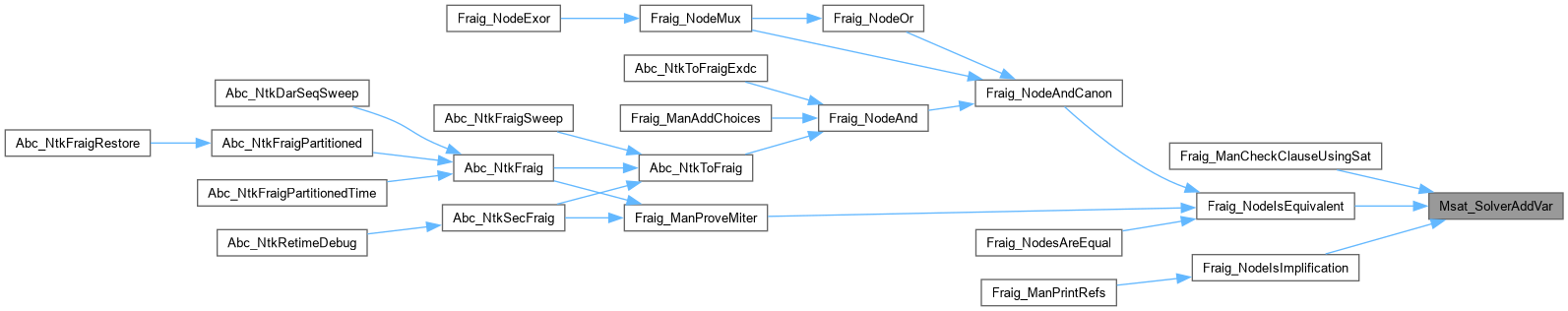

Here is the caller graph for this function:

Msat_SolverPrintStats()

void Msat_SolverPrintStats

(

Msat_Solver_t *

p

)

Function*************************************************************

Synopsis [Prints statistics about the solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 110 of file msatSolverCore.c.

{
    printf("C solver (%d vars; %d clauses; %d learned):\n",
        p->nVars, Msat_ClauseVecReadSize(p->vClauses), Msat_ClauseVecReadSize(p->vLearned) );
    printf("starts        : %d\n", (int)p->Stats.nStarts);
    printf("conflicts     : %d\n", (int)p->Stats.nConflicts);
    printf("decisions     : %d\n", (int)p->Stats.nDecisions);
    printf("propagations  : %d\n", (int)p->Stats.nPropagations);
    printf("inspects      : %d\n", (int)p->Stats.nInspects);
}

Here is the call graph for this function:

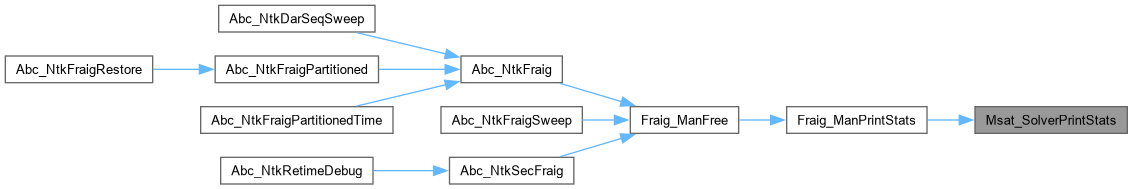

Here is the caller graph for this function:

Msat_SolverProgressEstimate()

double Msat_SolverProgressEstimate

(

Msat_Solver_t *

p

)

Function*************************************************************

Synopsis [Returns search-space coverage. Not extremely reliable.]

Description []

SideEffects []

SeeAlso []

Definition at line 88 of file msatSolverCore.c.

{
    double dProgress = 0.0;
    double dF = 1.0 / p->nVars;
    int i;
    for ( i = 0; i < p->nVars; i++ )
        if ( p->pAssigns[i] != MSAT_VAR_UNASSIGNED )
            dProgress += pow( dF, p->pLevel[i] );
    return dProgress / p->nVars;
}

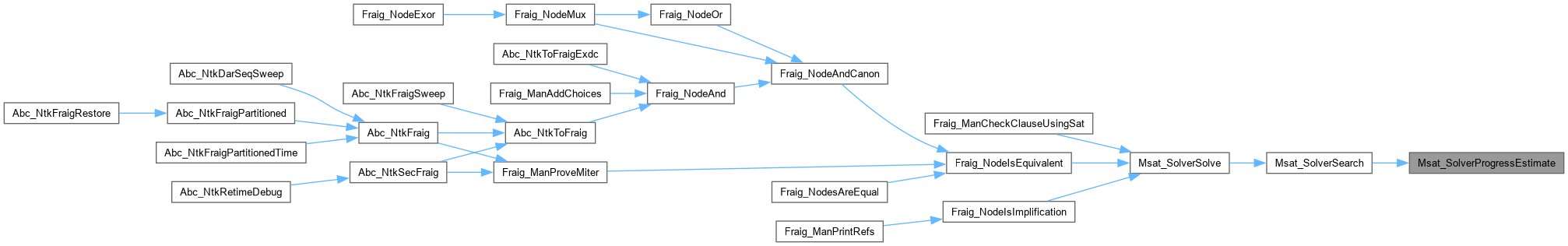

Here is the caller graph for this function:

Msat_SolverSolve()

int Msat_SolverSolve	(	Msat_Solver_t *	p,
		Msat_IntVec_t *	vAssumps,
		int	nBackTrackLimit,
		int	nTimeLimit )

Function*************************************************************

Synopsis [Top-level solve.]

Description [If using assumptions (non-empty 'assumps' vector), you must call 'simplifyDB()' first to see that no top-level conflict is present (which would put the solver in an undefined state. If the last argument is given (vProj), the solver enumerates through the satisfying solutions, which are projected on the variables listed in this array. Note that the variables in the array may be complemented, in which case the derived assignment for the variable is complemented.]

SideEffects []

SeeAlso []

Definition at line 138 of file msatSolverCore.c.

{
    Msat_SearchParams_t Params = { 0.95, 0.999 };
    double nConflictsLimit, nLearnedLimit;
    Msat_Type_t Status;
    abctime timeStart = Abc_Clock();

//    p->pFreq = ABC_ALLOC( int, p->nVarsAlloc );
//    memset( p->pFreq, 0, sizeof(int) * p->nVarsAlloc );

    if ( vAssumps )
    {
        int * pAssumps, nAssumps, i;

        assert( Msat_IntVecReadSize(p->vTrailLim) == 0 );

        nAssumps = Msat_IntVecReadSize( vAssumps );
        pAssumps = Msat_IntVecReadArray( vAssumps );
        for ( i = 0; i < nAssumps; i++ )
        {
            if ( !Msat_SolverAssume(p, pAssumps[i]) || Msat_SolverPropagate(p) )
            {
                Msat_QueueClear( p->pQueue );
                Msat_SolverCancelUntil( p, 0 );
                return MSAT_FALSE;
            }
        }
    }
    p->nLevelRoot   = Msat_SolverReadDecisionLevel(p);
    p->nClausesInit = Msat_ClauseVecReadSize( p->vClauses );
    nConflictsLimit = 100;
    nLearnedLimit   = Msat_ClauseVecReadSize(p->vClauses) / 3;
    Status = MSAT_UNKNOWN;
    p->nBackTracks = (int)p->Stats.nConflicts;
    while ( Status == MSAT_UNKNOWN )
    {
        if ( p->fVerbose )
            printf("Solving -- conflicts=%d   learnts=%d   progress=%.4f %%\n",
                (int)nConflictsLimit, (int)nLearnedLimit, p->dProgress*100);
        Status = Msat_SolverSearch( p, (int)nConflictsLimit, (int)nLearnedLimit, nBackTrackLimit, &Params );
        nConflictsLimit *= 1.5;
        nLearnedLimit   *= 1.1;
        // if the limit on the number of backtracks is given, quit the restart loop
        if ( nBackTrackLimit > 0 && (int)p->Stats.nConflicts - p->nBackTracks > nBackTrackLimit )
            break;
        // if the runtime limit is exceeded, quit the restart loop
        if ( nTimeLimit > 0 && Abc_Clock() - timeStart >= nTimeLimit * CLOCKS_PER_SEC )
            break;
    }
    Msat_SolverCancelUntil( p, 0 );
    p->nBackTracks = (int)p->Stats.nConflicts - p->nBackTracks;
/*
    ABC_PRT( "True solver runtime", Abc_Clock() - timeStart );
    // print the statistics
    {
        int i, Counter = 0;
        for ( i = 0; i < p->nVars; i++ )
            if ( p->pFreq[i] > 0 )
            {
                printf( "%d ", p->pFreq[i] );
                Counter++;
            }
        if ( Counter )
            printf( "\n" );
        printf( "Total = %d. Used = %d.  Decisions = %d. Imps = %d. Conflicts = %d. ", p->nVars, Counter, (int)p->Stats.nDecisions, (int)p->Stats.nPropagations, (int)p->Stats.nConflicts );
        ABC_PRT( "Time", Abc_Clock() - timeStart );
    }
*/
    return Status;
}

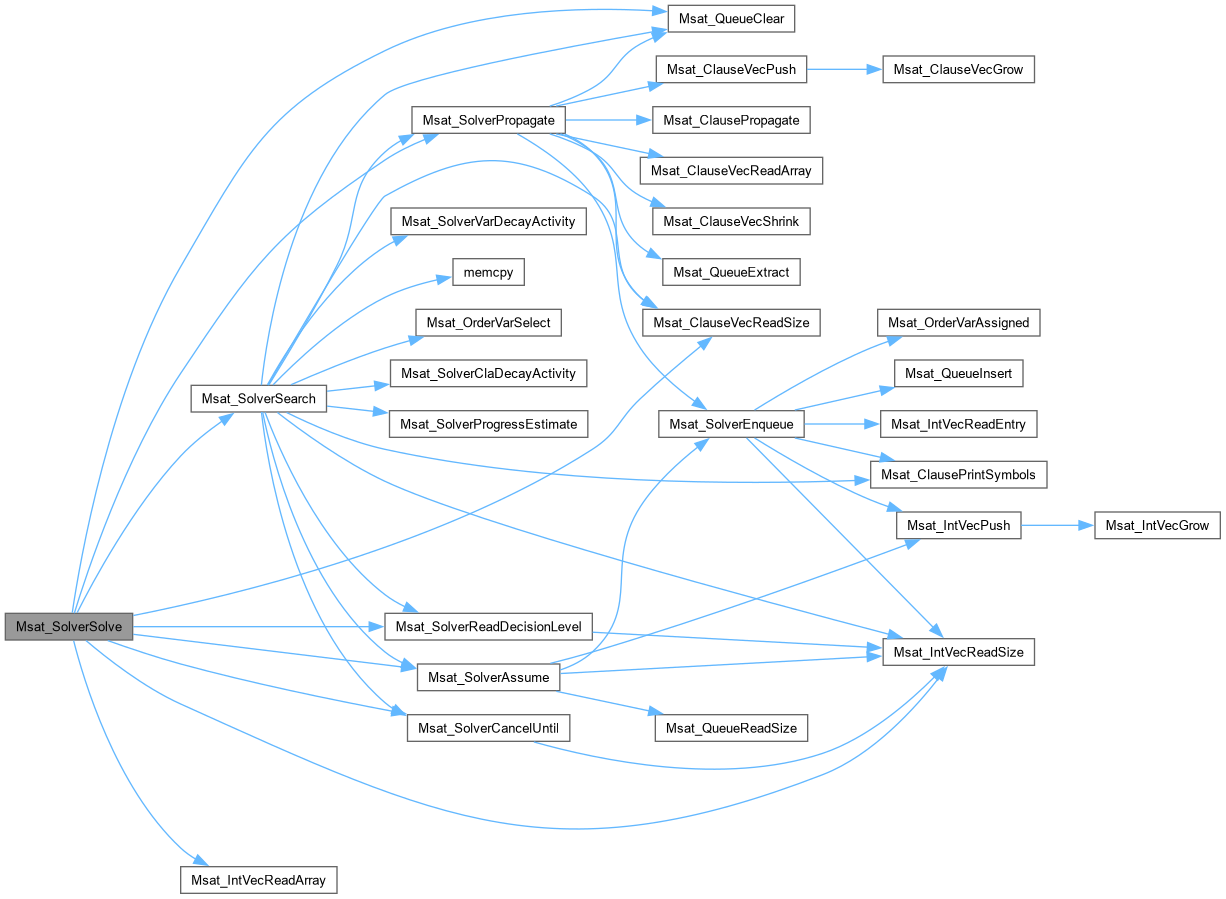

Here is the call graph for this function:

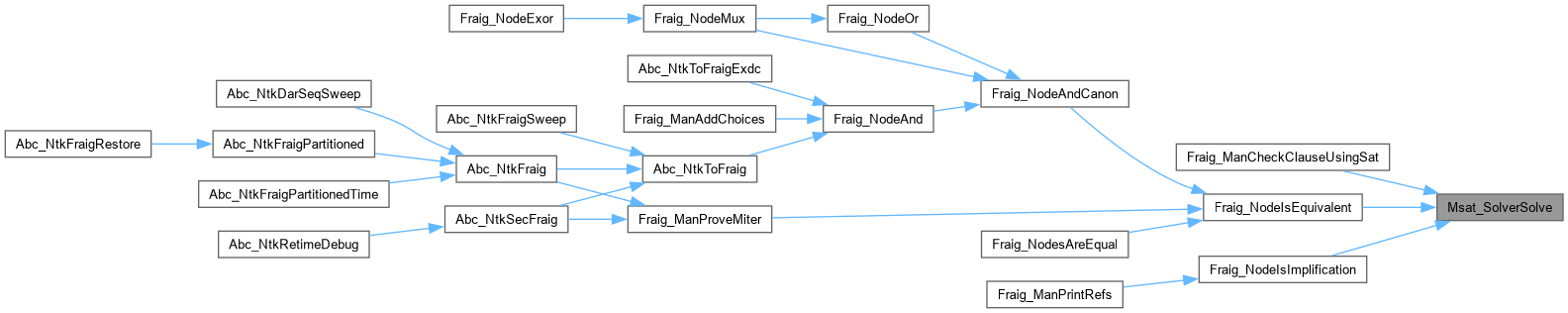

Here is the caller graph for this function:
