resStrash.c File Reference

#include "base/abc/abc.h"
#include "resInt.h"

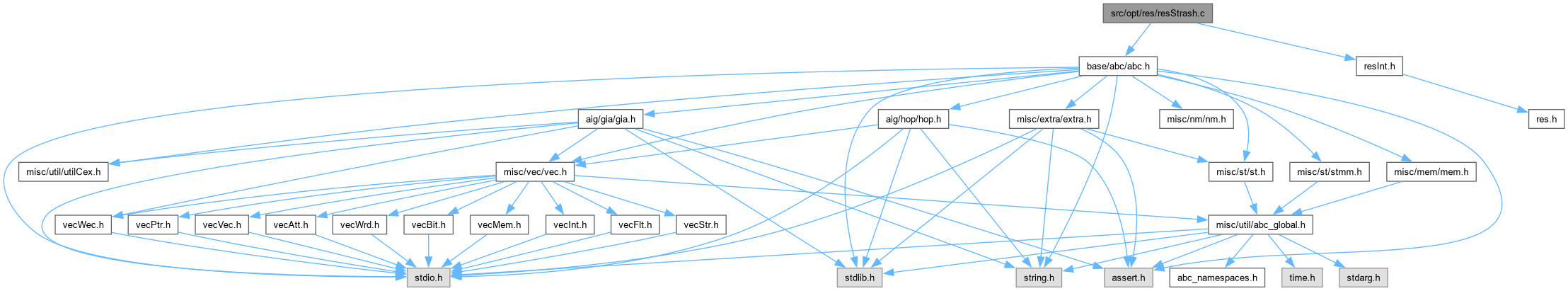

Include dependency graph for resStrash.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Abc_Obj_t *	Abc_ConvertAigToAig (Abc_Ntk_t *pAig, Abc_Obj_t *pObjOld)
	DECLARATIONS ///.
Abc_Ntk_t *	Res_WndStrash (Res_Win_t *p)
	FUNCTION DEFINITIONS ///.

Function Documentation

Abc_ConvertAigToAig()

ABC_NAMESPACE_IMPL_START Abc_Obj_t * Abc_ConvertAigToAig ( Abc_Ntk_t * pNtkAig, Abc_Obj_t * pObjOld )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [resStrash.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Resynthesis package.]

Synopsis [Structural hashing of the nodes in the window.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - January 15, 2007.]

Revision [

Id

resStrash.c,v 1.00 2007/01/15 00:00:00 alanmi Exp

]

Function*************************************************************

Synopsis [Converts the network from AIG to BDD representation.]

Description []

SideEffects []

SeeAlso []

Definition at line 1157 of file abcFunc.c.

{
    Hop_Man_t * pHopMan;
    Hop_Obj_t * pRoot;
    Abc_Obj_t * pFanin;
    int i;
    // get the local AIG
    pHopMan = (Hop_Man_t *)pObjOld->pNtk->pManFunc;
    pRoot = (Hop_Obj_t *)pObjOld->pData;
    // check the case of a constant
    if ( Hop_ObjIsConst1( Hop_Regular(pRoot) ) )
        return Abc_ObjNotCond( Abc_AigConst1(pNtkAig), Hop_IsComplement(pRoot) );
    // assign the fanin nodes
    Abc_ObjForEachFanin( pObjOld, pFanin, i )
    {
        assert( pFanin->pCopy != NULL );
        Hop_ManPi(pHopMan, i)->pData = pFanin->pCopy;
    }
    // construct the AIG
    Abc_ConvertAigToAig_rec( pNtkAig, Hop_Regular(pRoot) );
    Hop_ConeUnmark_rec( Hop_Regular(pRoot) );
    // return the result
    return Abc_ObjNotCond( (Abc_Obj_t *)Hop_Regular(pRoot)->pData, Hop_IsComplement(pRoot) );
}

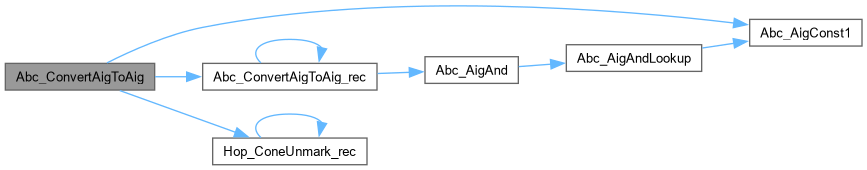

Here is the call graph for this function:

Here is the caller graph for this function:

Res_WndStrash()

Abc_Ntk_t * Res_WndStrash

(

Res_Win_t *

p

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Structurally hashes the given window.]

Description [The first PO is the observability condition. The second is the node's function. The remaining POs are the candidate divisors.]

SideEffects []

SeeAlso []

Definition at line 49 of file resStrash.c.

{
    Vec_Ptr_t * vPairs;
    Abc_Ntk_t * pAig;
    Abc_Obj_t * pObj, * pMiter;
    int i;
    assert( Abc_NtkHasAig(p->pNode->pNtk) );
//    Abc_NtkCleanCopy( p->pNode->pNtk );
    // create the network
    pAig = Abc_NtkAlloc( ABC_NTK_STRASH, ABC_FUNC_AIG, 1 );
    pAig->pName = Extra_UtilStrsav( "window" );
    // create the inputs
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vLeaves, pObj, i )
        pObj->pCopy = Abc_NtkCreatePi( pAig );
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vBranches, pObj, i )
        pObj->pCopy = Abc_NtkCreatePi( pAig );
    // go through the nodes in the topological order
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vNodes, pObj, i )
    {
        pObj->pCopy = Abc_ConvertAigToAig( pAig, pObj );
        if ( pObj == p->pNode )
            pObj->pCopy = Abc_ObjNot( pObj->pCopy );
    }
    // collect the POs
    vPairs = Vec_PtrAlloc( 2 * Vec_PtrSize(p->vRoots) );
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vRoots, pObj, i )
    {
        Vec_PtrPush( vPairs, pObj->pCopy );
        Vec_PtrPush( vPairs, NULL );
    }
    // mark the TFO of the node
    Abc_NtkIncrementTravId( p->pNode->pNtk );
    Res_WinSweepLeafTfo_rec( p->pNode, (int)p->pNode->Level + p->nWinTfoMax );
    // update strashing of the node
    p->pNode->pCopy = Abc_ObjNot( p->pNode->pCopy );
    Abc_NodeSetTravIdPrevious( p->pNode );
    // redo strashing in the TFO
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vNodes, pObj, i )
    {
        if ( Abc_NodeIsTravIdCurrent(pObj) )
            pObj->pCopy = Abc_ConvertAigToAig( pAig, pObj );
    }
    // collect the POs
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vRoots, pObj, i )
        Vec_PtrWriteEntry( vPairs, 2 * i + 1, pObj->pCopy );
    // add the miter
    pMiter = Abc_AigMiter( (Abc_Aig_t *)pAig->pManFunc, vPairs, 0 );
    Abc_ObjAddFanin( Abc_NtkCreatePo(pAig), pMiter );
    Vec_PtrFree( vPairs );
    // add the node
    Abc_ObjAddFanin( Abc_NtkCreatePo(pAig), p->pNode->pCopy );
    // add the fanins
    Abc_ObjForEachFanin( p->pNode, pObj, i )
        Abc_ObjAddFanin( Abc_NtkCreatePo(pAig), pObj->pCopy );
    // add the divisors
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vDivs, pObj, i )
        Abc_ObjAddFanin( Abc_NtkCreatePo(pAig), pObj->pCopy );
    // add the names
    Abc_NtkAddDummyPiNames( pAig );
    Abc_NtkAddDummyPoNames( pAig );
    // check the resulting network
    if ( !Abc_NtkCheck( pAig ) )
        fprintf( stdout, "Res_WndStrash(): Network check has failed.\n" );
    return pAig;
}

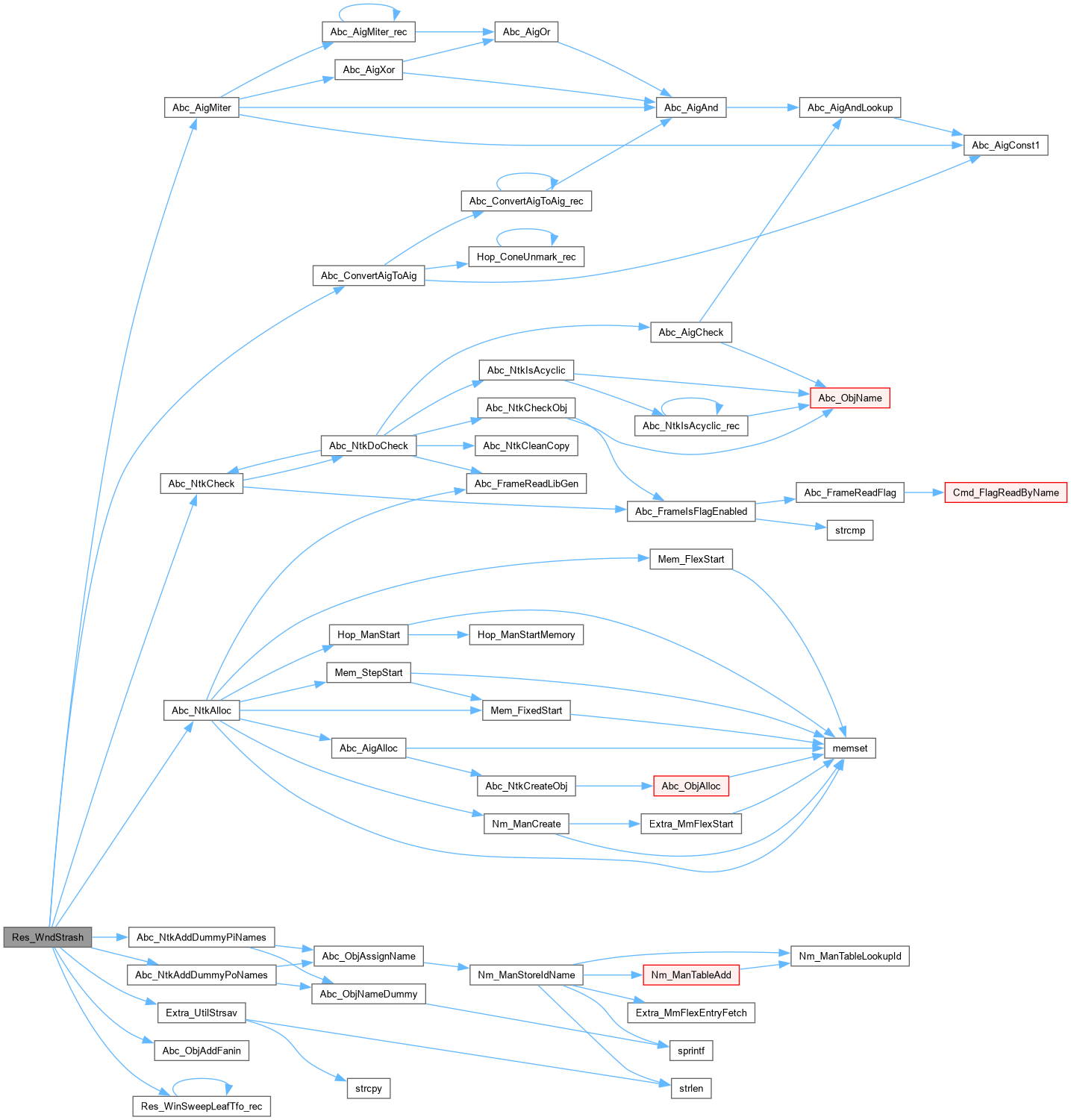

Here is the call graph for this function:

Here is the caller graph for this function:
