retIncrem.c File Reference

#include "retInt.h"

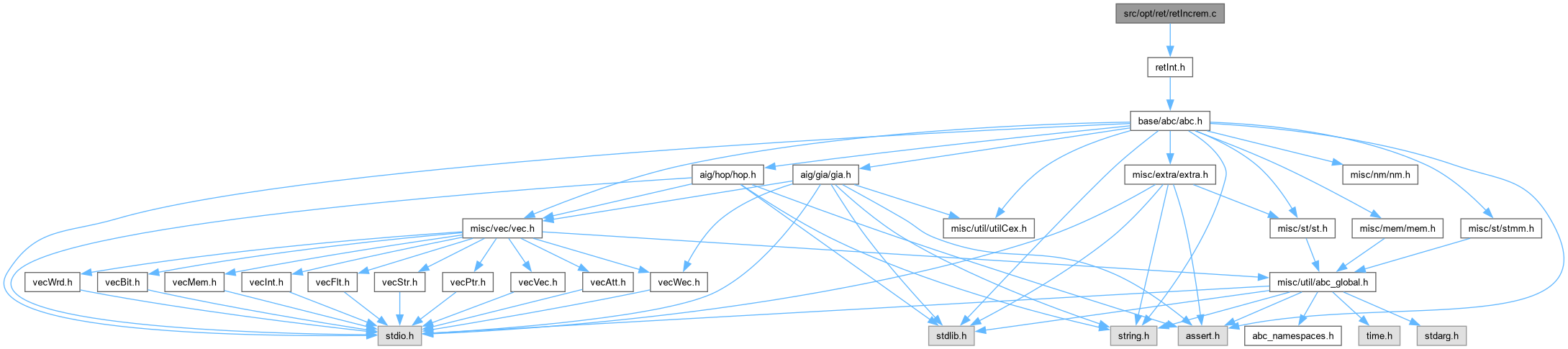

Include dependency graph for retIncrem.c:

Go to the source code of this file.

Functions
int	Abc_NtkRetimeIncremental (Abc_Ntk_t *pNtk, int nDelayLim, int fForward, int fMinDelay, int fOneStep, int fUseOldNames, int fVerbose)
	FUNCTION DEFINITIONS ///.
st__table *	Abc_NtkRetimePrepareLatches (Abc_Ntk_t *pNtk)
int	Abc_NtkRetimeFinalizeLatches (Abc_Ntk_t *pNtk, st__table *tLatches, int nIdMaxStart, int fUseOldNames)
int	Abc_NtkRetimeNodeIsEnabled (Abc_Obj_t *pObj, int fForward)
void	Abc_NtkRetimeNode (Abc_Obj_t *pObj, int fForward, int fInitial)
int	Abc_NtkRetimeCheckCompatibleLatchFanouts (Abc_Obj_t *pObj)
void	Abc_NtkRetimeShareLatches (Abc_Ntk_t *pNtk, int fInitial)

Function Documentation

Abc_NtkRetimeCheckCompatibleLatchFanouts()

int Abc_NtkRetimeCheckCompatibleLatchFanouts

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Returns the number of compatible fanout latches.]

Description []

SideEffects []

SeeAlso []

Definition at line 406 of file retIncrem.c.

{
    Abc_Obj_t * pFanout;
    int i, nLatches = 0, Init = -1;
    Abc_ObjForEachFanout( pObj, pFanout, i )
    {
        if ( !Abc_ObjIsLatch(pFanout) )
            continue;
        if ( Init == -1 )
        {
            Init = (int)(ABC_PTRUINT_T)pObj->pData;
            nLatches++;
        }
        else if ( Init == (int)(ABC_PTRUINT_T)pObj->pData )
            nLatches++;
    }
    return nLatches;
}

Here is the caller graph for this function:

Abc_NtkRetimeFinalizeLatches()

int Abc_NtkRetimeFinalizeLatches	(	Abc_Ntk_t *	pNtk,
		st__table *	tLatches,
		int	nIdMaxStart,
		int	fUseOldNames )

Function*************************************************************

Synopsis [Finalizes the latches after retiming.]

Description [Reuses the LIs/LOs for old latches.]

SideEffects []

SeeAlso []

Definition at line 146 of file retIncrem.c.

{
    Vec_Ptr_t * vCisOld, * vCosOld, * vBoxesOld, * vCisNew, * vCosNew, * vBoxesNew;
    Abc_Obj_t * pObj, * pLatch, * pLatchIn, * pLatchOut;
    int i, Index;
    // create new arrays
    vCisOld   = pNtk->vCis;    pNtk->vCis   = NULL;  vCisNew   = Vec_PtrAlloc( 100 );
    vCosOld   = pNtk->vCos;    pNtk->vCos   = NULL;  vCosNew   = Vec_PtrAlloc( 100 );
    vBoxesOld = pNtk->vBoxes;  pNtk->vBoxes = NULL;  vBoxesNew = Vec_PtrAlloc( 100 );
    // copy boxes and their CIs/COs
    Vec_PtrForEachEntryStop( Abc_Obj_t *, vCisOld, pObj, i, Vec_PtrSize(vCisOld) - st__count(tLatches) )
        Vec_PtrPush( vCisNew, pObj );
    Vec_PtrForEachEntryStop( Abc_Obj_t *, vCosOld, pObj, i, Vec_PtrSize(vCosOld) - st__count(tLatches) )
        Vec_PtrPush( vCosNew, pObj );
    Vec_PtrForEachEntryStop( Abc_Obj_t *, vBoxesOld, pObj, i, Vec_PtrSize(vBoxesOld) - st__count(tLatches) )
        Vec_PtrPush( vBoxesNew, pObj );
    // go through the latches
    Abc_NtkForEachObj( pNtk, pLatch, i )
    {
        if ( !Abc_ObjIsLatch(pLatch) )
            continue;
        if ( Abc_ObjId(pLatch) >= (unsigned)nIdMaxStart )
        {
            // this is a new latch
            pLatchIn  = Abc_NtkCreateBi(pNtk);
            pLatchOut = Abc_NtkCreateBo(pNtk);

            if ( fUseOldNames )
            {
                Abc_ObjAssignName( pLatchOut, Abc_ObjName(pLatch), "_out" );
                Abc_ObjAssignName( pLatchIn,  Abc_ObjName(pLatch), "_in" );
            }
            else
            {
                Abc_ObjAssignName( pLatchOut, Abc_ObjName(Abc_ObjFanin0(pLatch)), "_o2" );
                Abc_ObjAssignName( pLatchIn,  Abc_ObjName(Abc_ObjFanin0(pLatch)), "_i2" );
            }
        }
        else
        {
            // this is an old latch
            // get its number in the original order
            if ( ! st__lookup_int( tLatches, (char *)pLatch, &Index ) )
            {
                printf( "Abc_NtkRetimeFinalizeLatches(): Internal error.\n" );
                return 0;
            }
            assert( pLatch == Vec_PtrEntry(vBoxesOld, Vec_PtrSize(vBoxesOld) - st__count(tLatches) + Index) );
            // reconnect with the old LIs/LOs
            pLatchIn  = (Abc_Obj_t *)Vec_PtrEntry( vCosOld, Vec_PtrSize(vCosOld) - st__count(tLatches) + Index );
            pLatchOut = (Abc_Obj_t *)Vec_PtrEntry( vCisOld, Vec_PtrSize(vCisOld) - st__count(tLatches) + Index );
        }
        // connect
        Abc_ObjAddFanin( pLatchIn, Abc_ObjFanin0(pLatch) );
        Abc_ObjPatchFanin( pLatch, Abc_ObjFanin0(pLatch), pLatchIn );
        if ( Abc_ObjFanoutNum(pLatch) > 0 )
            Abc_ObjTransferFanout( pLatch, pLatchOut );
        Abc_ObjAddFanin( pLatchOut, pLatch );
        // add to the arrays
        Vec_PtrPush( vCisNew, pLatchOut );
        Vec_PtrPush( vCosNew, pLatchIn );
        Vec_PtrPush( vBoxesNew, pLatch );
    }
    // free useless Cis/Cos
    Vec_PtrForEachEntry( Abc_Obj_t *, vCisOld, pObj, i )
        if ( !Abc_ObjIsPi(pObj) && Abc_ObjFaninNum(pObj) == 0 && Abc_ObjFanoutNum(pObj) == 0 )
            Abc_NtkDeleteObj(pObj);
    Vec_PtrForEachEntry( Abc_Obj_t *, vCosOld, pObj, i )
        if ( !Abc_ObjIsPo(pObj) && Abc_ObjFaninNum(pObj) == 0 && Abc_ObjFanoutNum(pObj) == 0 )
            Abc_NtkDeleteObj(pObj);
    // set the new arrays
    pNtk->vCis   = vCisNew;   Vec_PtrFree( vCisOld );
    pNtk->vCos   = vCosNew;   Vec_PtrFree( vCosOld );
    pNtk->vBoxes = vBoxesNew; Vec_PtrFree( vBoxesOld );
    return 1;
}

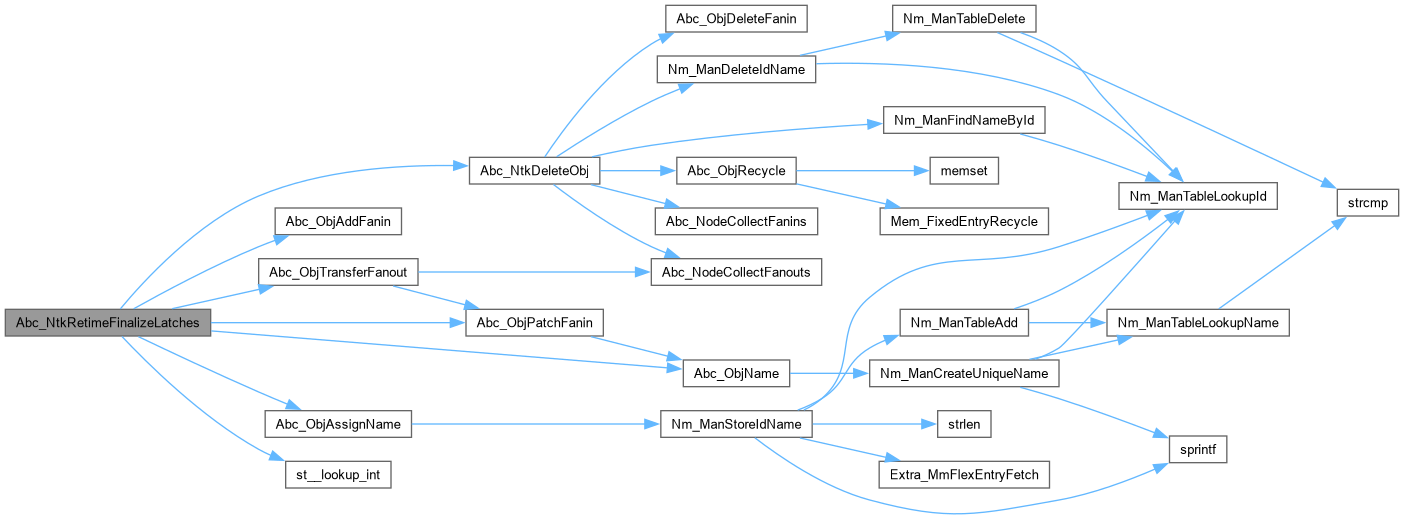

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRetimeIncremental()

int Abc_NtkRetimeIncremental	(	Abc_Ntk_t *	pNtk,
		int	nDelayLim,
		int	fForward,
		int	fMinDelay,
		int	fOneStep,
		int	fUseOldNames,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs retiming in one direction.]

Description [Currently does not retime over black boxes.]

SideEffects []

SeeAlso []

Definition at line 47 of file retIncrem.c.

{
    Abc_Ntk_t * pNtkCopy = NULL;
    Vec_Ptr_t * vBoxes;
    st__table * tLatches;
    int nLatches = Abc_NtkLatchNum(pNtk);
    int nIdMaxStart = Abc_NtkObjNumMax(pNtk);
    int RetValue;
    int nIterLimit = -1; // Suppress "might be used uninitialized"
    if ( Abc_NtkNodeNum(pNtk) == 0 )
        return 0;
    // reorder CI/CO/latch inputs
    Abc_NtkOrderCisCos( pNtk );
    if ( fMinDelay )
    {
        nIterLimit = fOneStep? 1 : 2 * Abc_NtkLevel(pNtk);
        pNtkCopy = Abc_NtkDup( pNtk );
        tLatches = Abc_NtkRetimePrepareLatches( pNtkCopy );
        st__free_table( tLatches );
    }
    // collect latches and remove CIs/COs
    tLatches = Abc_NtkRetimePrepareLatches( pNtk );
    // share the latches
    Abc_NtkRetimeShareLatches( pNtk, 0 );
    // save boxes
    vBoxes = pNtk->vBoxes;  pNtk->vBoxes = NULL;
    // perform the retiming
    if ( fMinDelay )
        Abc_NtkRetimeMinDelay( pNtk, pNtkCopy, nDelayLim, nIterLimit, fForward, fVerbose );
    else
        Abc_NtkRetimeOneWay( pNtk, fForward, fVerbose );
    if ( fMinDelay )
        Abc_NtkDelete( pNtkCopy );
    // share the latches
    Abc_NtkRetimeShareLatches( pNtk, 0 );
    // restore boxes
    pNtk->vBoxes = vBoxes;
    // finalize the latches
    RetValue = Abc_NtkRetimeFinalizeLatches( pNtk, tLatches, nIdMaxStart, fUseOldNames );
    st__free_table( tLatches );
    if ( RetValue == 0 )
        return 0;
    // fix the COs
//    Abc_NtkLogicMakeSimpleCos( pNtk, 0 );
    // check for correctness
    if ( !Abc_NtkCheck( pNtk ) )
        fprintf( stdout, "Abc_NtkRetimeForward(): Network check has failed.\n" );
    // return the number of latches saved
    return nLatches - Abc_NtkLatchNum(pNtk);
}

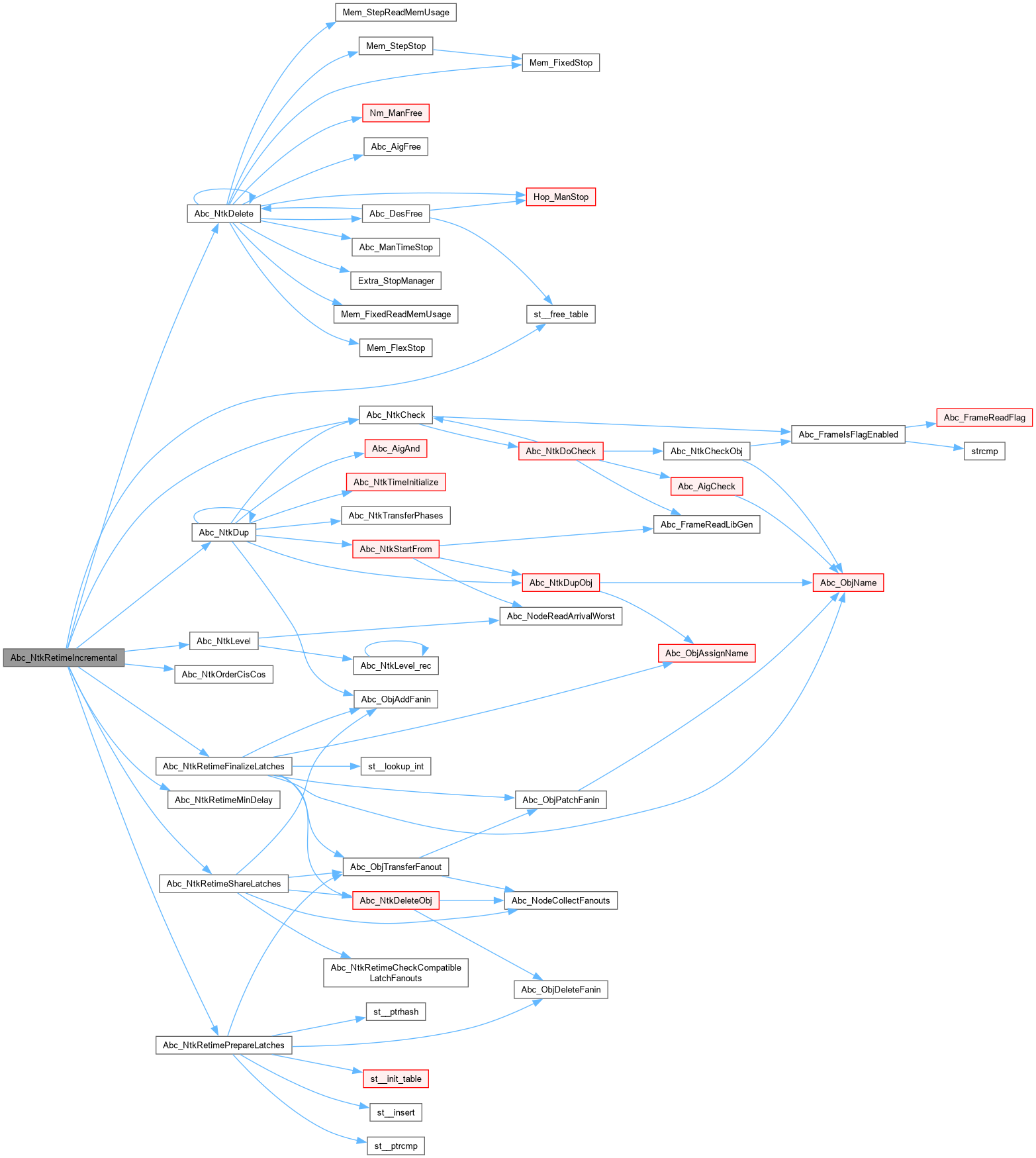

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRetimeNode()

void Abc_NtkRetimeNode	(	Abc_Obj_t *	pObj,
		int	fForward,
		int	fInitial )

Function*************************************************************

Synopsis [Retimes the node backward or forward.]

Description []

SideEffects []

SeeAlso []

Definition at line 324 of file retIncrem.c.

{
    Abc_Ntk_t * pNtkNew = NULL;
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pNext, * pLatch;
    int i;
    vNodes = Vec_PtrAlloc( 10 );
    if ( fForward )
    {
        // compute the initial value
        if ( fInitial )
            pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)Abc_ObjSopSimulate( pObj );
        // collect fanins
        Abc_NodeCollectFanins( pObj, vNodes );
        // make the node point to the fanins fanins
        Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNext, i )
        {
            assert( Abc_ObjIsLatch(pNext) );
            Abc_ObjPatchFanin( pObj, pNext, Abc_ObjFanin0(pNext) );
            if ( Abc_ObjFanoutNum(pNext) == 0 )
                Abc_NtkDeleteObj(pNext);
        }
        // add a new latch on top
        pNext = Abc_NtkCreateLatch(pObj->pNtk);
        if ( Abc_ObjFanoutNum(pObj) > 0 )
            Abc_ObjTransferFanout( pObj, pNext );
        Abc_ObjAddFanin( pNext, pObj );
        // set the initial value
        if ( fInitial )
            pNext->pCopy = pObj->pCopy;
    }
    else
    {
        // compute the initial value
        if ( fInitial )
        {
            pNtkNew = Abc_ObjFanout0(pObj)->pCopy->pNtk;
            Abc_NtkDupObj( pNtkNew, pObj, 0 );
            Abc_ObjForEachFanout( pObj, pNext, i )
            {
                assert( Abc_ObjFaninNum(pNext->pCopy) == 0 );
                Abc_ObjAddFanin( pNext->pCopy, pObj->pCopy );
            }
        }
        // collect fanouts
        Abc_NodeCollectFanouts( pObj, vNodes );
        // make the fanouts fanouts point to the node
        Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNext, i )
        {
            assert( Abc_ObjIsLatch(pNext) );
            Abc_ObjTransferFanout( pNext, pObj );
            Abc_NtkDeleteObj( pNext );
        }
        // add new latches to the fanins
        Abc_ObjForEachFanin( pObj, pNext, i )
        {
            pLatch = Abc_NtkCreateLatch(pObj->pNtk);
            Abc_ObjPatchFanin( pObj, pNext, pLatch );
            Abc_ObjAddFanin( pLatch, pNext );
            // create buffer isomorphic to this latch
            if ( fInitial )
            {
                pLatch->pCopy = Abc_NtkCreateNodeBuf( pNtkNew, NULL );
                Abc_ObjAssignName( pLatch->pCopy, Abc_ObjName(pNext), "_buf" );
                Abc_ObjAddFanin( pObj->pCopy, pLatch->pCopy );
            }
        }
    }
    Vec_PtrFree( vNodes );
}

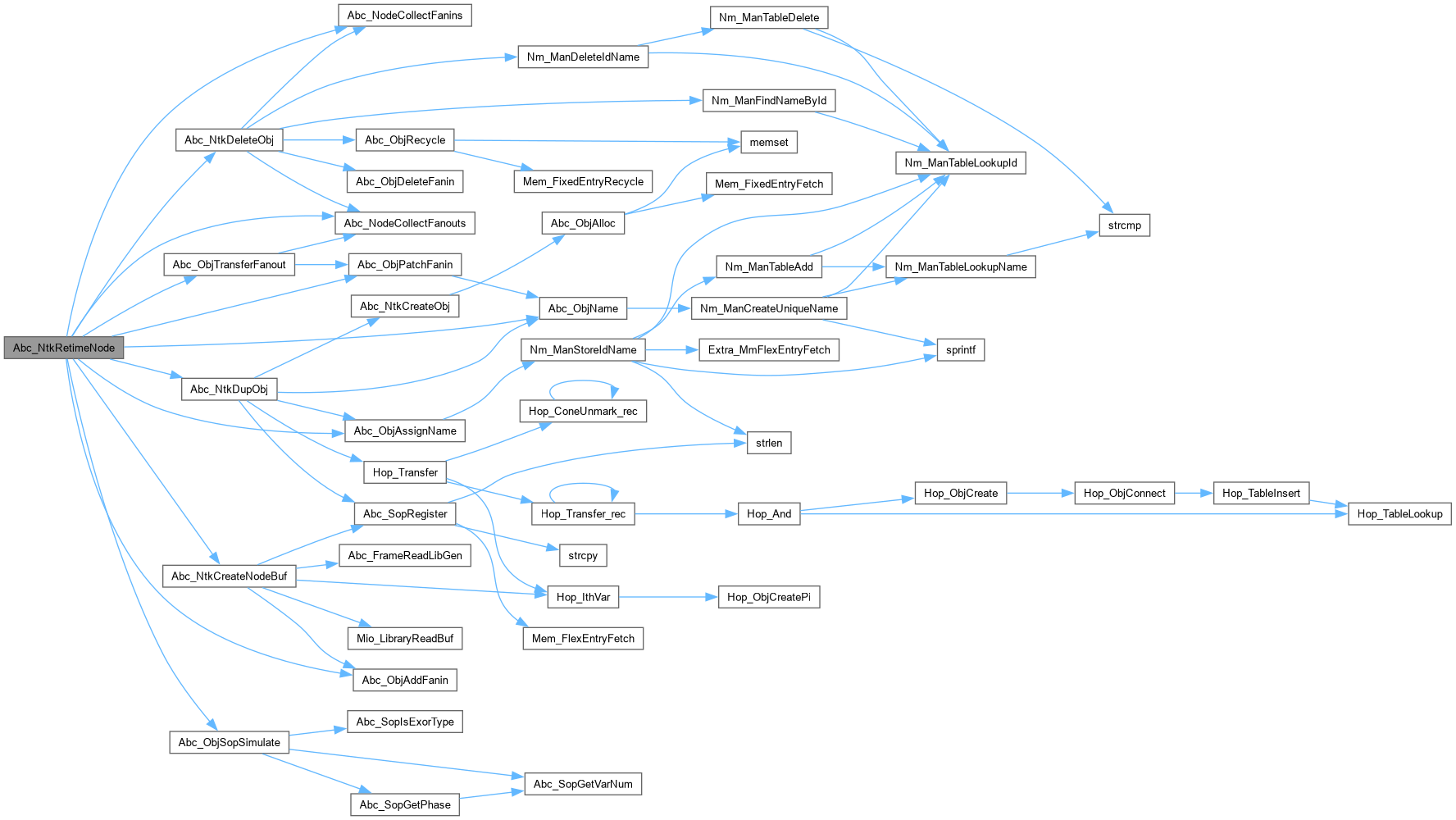

Here is the call graph for this function:

Abc_NtkRetimeNodeIsEnabled()

int Abc_NtkRetimeNodeIsEnabled	(	Abc_Obj_t *	pObj,
		int	fForward )

Function*************************************************************

Synopsis [Returns 1 if retiming forward/backward is possible.]

Description []

SideEffects []

SeeAlso []

Definition at line 293 of file retIncrem.c.

{
    Abc_Obj_t * pNext;
    int i;
    assert( Abc_ObjIsNode(pObj) );
    if ( fForward )
    {
        Abc_ObjForEachFanin( pObj, pNext, i )
            if ( !Abc_ObjIsLatch(pNext) )
                return 0;
    }
    else
    {
        Abc_ObjForEachFanout( pObj, pNext, i )
            if ( !Abc_ObjIsLatch(pNext) )
                return 0;
    }
    return 1;
}

Abc_NtkRetimePrepareLatches()

st__table * Abc_NtkRetimePrepareLatches

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Prepares the network for retiming.]

Description [Hash latches into their number in the original network.]

SideEffects []

SeeAlso []

Definition at line 109 of file retIncrem.c.

{
    st__table * tLatches;
    Abc_Obj_t * pLatch, * pLatchIn, * pLatchOut, * pFanin;
    int i, nOffSet = Abc_NtkBoxNum(pNtk) - Abc_NtkLatchNum(pNtk);
    // collect latches and remove CIs/COs
    tLatches = st__init_table( st__ptrcmp, st__ptrhash );
    Abc_NtkForEachLatch( pNtk, pLatch, i )
    {
        // map latch into its true number
        st__insert( tLatches, (char *)(ABC_PTRUINT_T)pLatch, (char *)(ABC_PTRUINT_T)(i-nOffSet) );
        // disconnect LI
        pLatchIn = Abc_ObjFanin0(pLatch);
        pFanin = Abc_ObjFanin0(pLatchIn);
        Abc_ObjTransferFanout( pLatchIn, pFanin );
        Abc_ObjDeleteFanin( pLatchIn, pFanin );
        // disconnect LO
        pLatchOut = Abc_ObjFanout0(pLatch);
        pFanin = Abc_ObjFanin0(pLatchOut);
        if ( Abc_ObjFanoutNum(pLatchOut) > 0 )
            Abc_ObjTransferFanout( pLatchOut, pFanin );
        Abc_ObjDeleteFanin( pLatchOut, pFanin );
    }
    return tLatches;
}

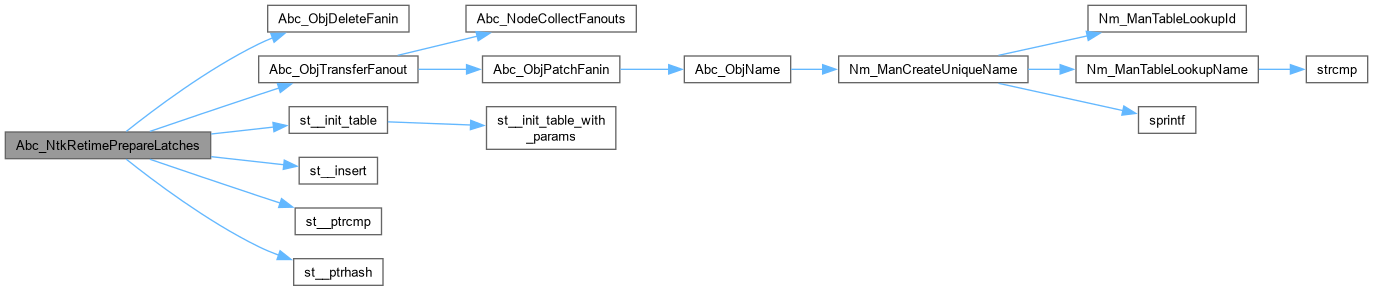

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRetimeShareLatches()

void Abc_NtkRetimeShareLatches	(	Abc_Ntk_t *	pNtk,
		int	fInitial )

Function*************************************************************

Synopsis [Retimes the node backward or forward.]

Description []

SideEffects []

SeeAlso []

Definition at line 436 of file retIncrem.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pFanin, * pLatchTop, * pLatchCur;
    int i, k;
    vNodes = Vec_PtrAlloc( 10 );
    // consider latch fanins
    Abc_NtkForEachObj( pNtk, pFanin, i )
    {
        if ( Abc_NtkRetimeCheckCompatibleLatchFanouts(pFanin) <= 1 )
            continue;
        // get the first latch
        pLatchTop = NULL;
        Abc_ObjForEachFanout( pFanin, pLatchTop, k )
            if ( Abc_ObjIsLatch(pLatchTop) )
                break;
        assert( pLatchTop && Abc_ObjIsLatch(pLatchTop) );
        // redirect compatible fanout latches to the first latch
        Abc_NodeCollectFanouts( pFanin, vNodes );
        Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pLatchCur, k )
        {
            if ( !Abc_ObjIsLatch(pLatchCur) )
                continue;
            if ( pLatchCur == pLatchTop )
                continue;
            if ( pLatchCur->pData != pLatchTop->pData )
                continue;
            // connect the initial state
            if ( fInitial )
                Abc_ObjAddFanin( pLatchCur->pCopy, pLatchTop->pCopy );
            // redirect the fanouts
            Abc_ObjTransferFanout( pLatchCur, pLatchTop );
            Abc_NtkDeleteObj(pLatchCur);
        }
    }
    Vec_PtrFree( vNodes );
}

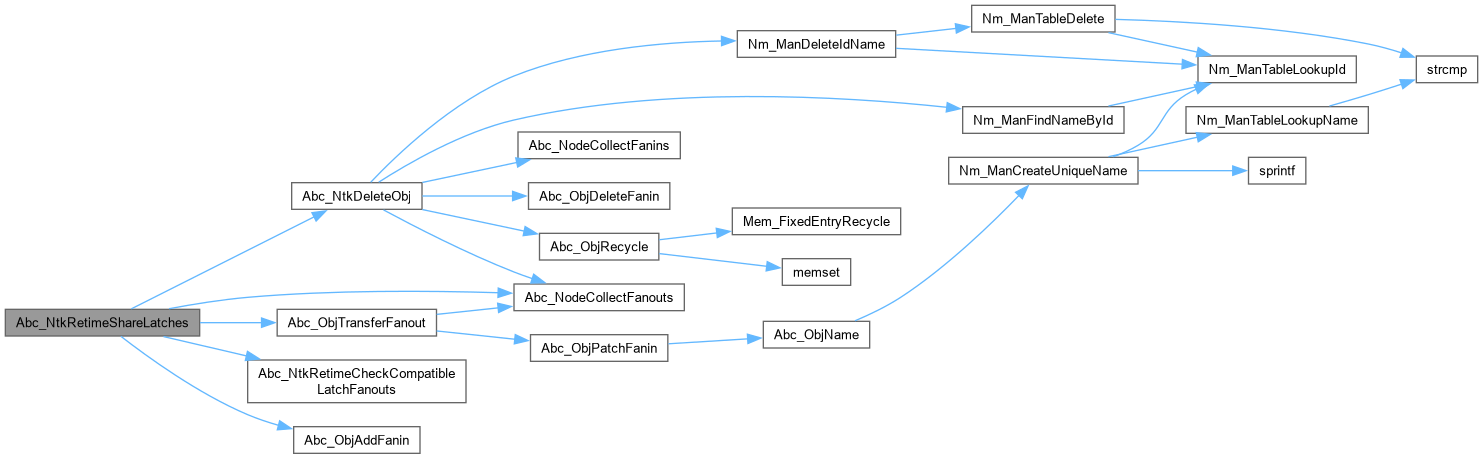

Here is the call graph for this function:

Here is the caller graph for this function:
