satInterP.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include "satStore.h"
#include "misc/vec/vec.h"

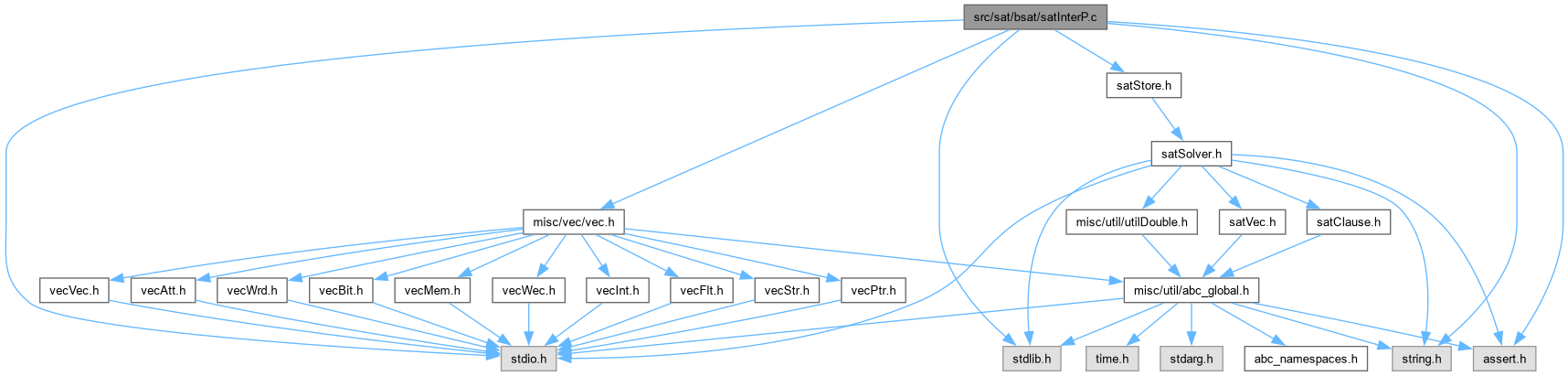

Include dependency graph for satInterP.c:

Go to the source code of this file.

Classes
struct	Intp_Man_t_

Functions
Intp_Man_t *	Intp_ManAlloc ()
	FUNCTION DEFINITIONS ///.
void	Intp_ManResize (Intp_Man_t *p)
void	Intp_ManFree (Intp_Man_t *p)
void	Intp_ManPrintClause (Intp_Man_t *p, Sto_Cls_t *pClause)
void	Intp_ManPrintResolvent (lit *pResLits, int nResLits)
void	Intp_ManPrintInterOne (Intp_Man_t *p, Sto_Cls_t *pClause)
Sto_Cls_t *	Intp_ManPropagate (Intp_Man_t *p, int Start)
void	Intp_ManProofWriteOne (Intp_Man_t *p, Sto_Cls_t *pClause)
int	Intp_ManProofTraceOne (Intp_Man_t *p, Sto_Cls_t *pConflict, Sto_Cls_t *pFinal)
int	Intp_ManProofRecordOne (Intp_Man_t *p, Sto_Cls_t *pClause)
int	Intp_ManProcessRoots (Intp_Man_t *p)
void	Intp_ManUnsatCoreVerify (Sto_Man_t *pCnf, Vec_Int_t *vCore)
void	Intp_ManUnsatCore_rec (Vec_Ptr_t *vAntClas, int iThis, Vec_Int_t *vCore, int nRoots, Vec_Str_t *vVisited, int fLearned)
void *	Intp_ManUnsatCore (Intp_Man_t *p, Sto_Man_t *pCnf, int fLearned, int fVerbose)
void	Intp_ManUnsatCorePrintForBmc (FILE *pFile, Sto_Man_t *pCnf, void *vCore0, void *vVarMap0)

Function Documentation

Intp_ManAlloc()

Intp_Man_t * Intp_ManAlloc

(

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Allocate proof manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 96 of file satInterP.c.

{
    Intp_Man_t * p;
    // allocate the manager
    p = (Intp_Man_t *)ABC_ALLOC( char, sizeof(Intp_Man_t) );
    memset( p, 0, sizeof(Intp_Man_t) );
    // verification
    p->nResLitsAlloc = (1<<16);
    p->pResLits = ABC_ALLOC( lit, p->nResLitsAlloc );
    // proof recording
//    p->vAnties = Vec_IntAlloc( 1000 );
//    p->vBreaks = Vec_IntAlloc( 1000 );
    p->vAntClas = Vec_PtrAlloc( 1000 );
    p->nAntStart = 0;
    // parameters
    p->fProofWrite = 0;
    p->fProofVerif = 1;
    return p;
}

Here is the call graph for this function:

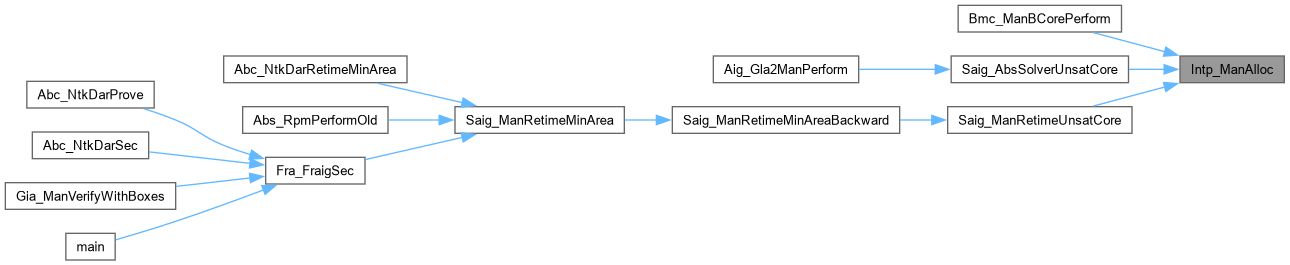

Here is the caller graph for this function:

Intp_ManFree()

void Intp_ManFree

(

Intp_Man_t *

p

)

Function*************************************************************

Synopsis [Deallocate proof manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 178 of file satInterP.c.

{
/*
    printf( "Runtime stats:\n" );
ABC_PRT( "BCP     ", p->timeBcp   );
ABC_PRT( "Trace   ", p->timeTrace );
ABC_PRT( "TOTAL   ", p->timeTotal );
*/
//    Vec_IntFree( p->vAnties );
//    Vec_IntFree( p->vBreaks );
    Vec_VecFree( (Vec_Vec_t *)p->vAntClas );
//    ABC_FREE( p->pInters );
    ABC_FREE( p->pProofNums );
    ABC_FREE( p->pTrail );
    ABC_FREE( p->pAssigns );
    ABC_FREE( p->pSeens );
//    ABC_FREE( p->pVarTypes );
    ABC_FREE( p->pReasons );
    ABC_FREE( p->pWatches );
    ABC_FREE( p->pResLits );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Intp_ManPrintClause()

void Intp_ManPrintClause	(	Intp_Man_t *	p,
		Sto_Cls_t *	pClause )

Function*************************************************************

Synopsis [Prints the clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 215 of file satInterP.c.

{
    int i;
    printf( "Clause ID = %d. Proof = %d. {", pClause->Id, Intp_ManProofGet(p, pClause) );
    for ( i = 0; i < (int)pClause->nLits; i++ )
        printf( " %d", pClause->pLits[i] );
    printf( " }\n" );
}

Here is the caller graph for this function:

Intp_ManPrintInterOne()

void Intp_ManPrintInterOne	(	Intp_Man_t *	p,
		Sto_Cls_t *	pClause )

Function*************************************************************

Synopsis [Prints the interpolant for one clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 255 of file satInterP.c.

{
    printf( "Clause %2d :  ", pClause->Id );
//    Extra_PrintBinary___( stdout, Intp_ManAigRead(p, pClause), (1 << p->nVarsAB) );
    printf( "\n" );
}

Intp_ManPrintResolvent()

void Intp_ManPrintResolvent	(	lit *	pResLits,
		int	nResLits )

Function*************************************************************

Synopsis [Prints the resolvent.]

Description []

SideEffects []

SeeAlso []

Definition at line 235 of file satInterP.c.

{
    int i;
    printf( "Resolvent: {" );
    for ( i = 0; i < nResLits; i++ )
        printf( " %d", pResLits[i] );
    printf( " }\n" );
}

Here is the caller graph for this function:

Intp_ManProcessRoots()

int Intp_ManProcessRoots

(

Intp_Man_t *

p

)

Function*************************************************************

Synopsis [Propagate the root clauses.]

Description []

SideEffects []

SeeAlso []

Definition at line 782 of file satInterP.c.

{
    Sto_Cls_t * pClause;
    int Counter;

    // make sure the root clauses are preceeding the learnt clauses
    Counter = 0;
    Sto_ManForEachClause( p->pCnf, pClause )
    {
        assert( (int)pClause->fA    == (Counter < (int)p->pCnf->nClausesA) );
        assert( (int)pClause->fRoot == (Counter < (int)p->pCnf->nRoots)    );
        Counter++;
    }
    assert( p->pCnf->nClauses == Counter );

    // make sure the last clause if empty
    assert( p->pCnf->pTail->nLits == 0 );

    // go through the root unit clauses
    p->nTrailSize = 0;
    Sto_ManForEachClauseRoot( p->pCnf, pClause )
    {
        // create watcher lists for the root clauses
        if ( pClause->nLits > 1 )
        {
            Intp_ManWatchClause( p, pClause, pClause->pLits[0] );
            Intp_ManWatchClause( p, pClause, pClause->pLits[1] );
        }
        // empty clause and large clauses
        if ( pClause->nLits != 1 )
            continue;
        // unit clause
        assert( lit_check(pClause->pLits[0], p->pCnf->nVars) );
        if ( !Intp_ManEnqueue( p, pClause->pLits[0], pClause ) )
        {
            // detected root level conflict
//            printf( "Error in Intp_ManProcessRoots(): Detected a root-level conflict too early!\n" );
//            assert( 0 );
            // detected root level conflict
            Intp_ManProofTraceOne( p, pClause, p->pCnf->pEmpty );
            if ( p->fVerbose )
                printf( "Found root level conflict!\n" );
            return 0;
        }
    }

    // propagate the root unit clauses
    pClause = Intp_ManPropagate( p, 0 );
    if ( pClause )
    {
        // detected root level conflict
        Intp_ManProofTraceOne( p, pClause, p->pCnf->pEmpty );
        if ( p->fVerbose )
            printf( "Found root level conflict!\n" );
        return 0;
    }

    // set the root level
    p->nRootSize = p->nTrailSize;
    return 1;
}

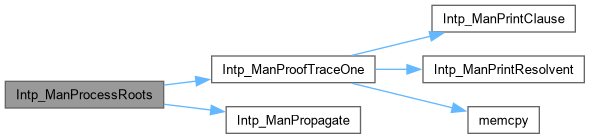

Here is the call graph for this function:

Here is the caller graph for this function:

Intp_ManProofRecordOne()

int Intp_ManProofRecordOne	(	Intp_Man_t *	p,
		Sto_Cls_t *	pClause )

Function*************************************************************

Synopsis [Records the proof for one clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 668 of file satInterP.c.

{
    Sto_Cls_t * pConflict;
    int i;

    // empty clause never ends up there
    assert( pClause->nLits > 0 );
    if ( pClause->nLits == 0 )
        printf( "Error: Empty clause is attempted.\n" );

    assert( !pClause->fRoot );
    assert( p->nTrailSize == p->nRootSize );

    // if any of the clause literals are already assumed
    // it means that the clause is redundant and can be skipped
    for ( i = 0; i < (int)pClause->nLits; i++ )
        if ( p->pAssigns[lit_var(pClause->pLits[i])] == pClause->pLits[i] )
        {
//            Vec_IntPush( p->vBreaks, Vec_IntSize(p->vAnties) );
            Vec_PtrPush( p->vAntClas, Vec_IntAlloc(0) );
            return 1;
        }

    // add assumptions to the trail
    for ( i = 0; i < (int)pClause->nLits; i++ )
        if ( !Intp_ManEnqueue( p, lit_neg(pClause->pLits[i]), NULL ) )
        {
            assert( 0 ); // impossible
            return 0;
        }

    // propagate the assumptions
    pConflict = Intp_ManPropagate( p, p->nRootSize );
    if ( pConflict == NULL )
    {
        assert( 0 ); // cannot prove
        return 0;
    }

    // skip the clause if it is weaker or the same as the conflict clause
    if ( pClause->nLits >= pConflict->nLits )
    {
        // check if every literal of conflict clause can be found in the given clause
        int j;
        for ( i = 0; i < (int)pConflict->nLits; i++ )
        {
            for ( j = 0; j < (int)pClause->nLits; j++ )
                if ( pConflict->pLits[i] == pClause->pLits[j] )
                    break;
            if ( j == (int)pClause->nLits ) // literal pConflict->pLits[i] is not found
                break;
        }
        if ( i == (int)pConflict->nLits ) // all lits are found
        {
            // undo to the root level
            Intp_ManCancelUntil( p, p->nRootSize );
//            Vec_IntPush( p->vBreaks, Vec_IntSize(p->vAnties) );
            Vec_PtrPush( p->vAntClas, Vec_IntAlloc(0) );
            return 1;
        }
    }

    // construct the proof
    Intp_ManProofTraceOne( p, pConflict, pClause );

    // undo to the root level
    Intp_ManCancelUntil( p, p->nRootSize );

    // add large clauses to the watched lists
    if ( pClause->nLits > 1 )
    {
        Intp_ManWatchClause( p, pClause, pClause->pLits[0] );
        Intp_ManWatchClause( p, pClause, pClause->pLits[1] );
        return 1;
    }
    assert( pClause->nLits == 1 );

    // if the clause proved is unit, add it and propagate
    if ( !Intp_ManEnqueue( p, pClause->pLits[0], pClause ) )
    {
        assert( 0 ); // impossible
        return 0;
    }

    // propagate the assumption
    pConflict = Intp_ManPropagate( p, p->nRootSize );
    if ( pConflict )
    {
        // insert place-holders till the empty clause
        while ( Vec_PtrSize(p->vAntClas) < p->pCnf->pEmpty->Id - p->nAntStart )
            Vec_PtrPush( p->vAntClas, Vec_IntAlloc(0) );
        // construct the proof for the empty clause
        Intp_ManProofTraceOne( p, pConflict, p->pCnf->pEmpty );
//        if ( p->fVerbose )
//            printf( "Found last conflict after adding unit clause number %d!\n", pClause->Id );
        return 0;
    }

    // update the root level
    p->nRootSize = p->nTrailSize;
    return 1;
}

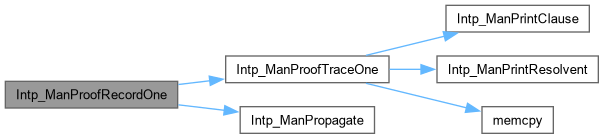

Here is the call graph for this function:

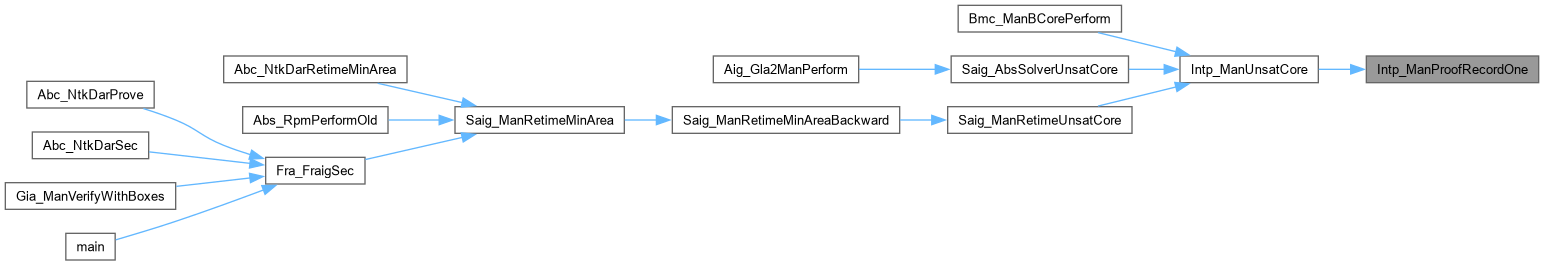

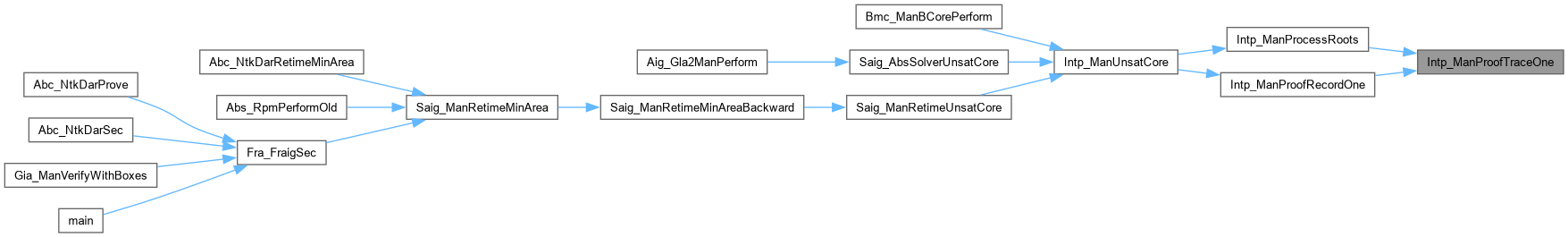

Here is the caller graph for this function:

Intp_ManProofTraceOne()

int Intp_ManProofTraceOne	(	Intp_Man_t *	p,
		Sto_Cls_t *	pConflict,
		Sto_Cls_t *	pFinal )

Function*************************************************************

Synopsis [Traces the proof for one clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 473 of file satInterP.c.

{
    Sto_Cls_t * pReason;
    int i, v, Var, PrevId;
    int fPrint = 0;
    abctime clk = Abc_Clock();

    // collect resolvent literals
    if ( p->fProofVerif )
    {
        assert( (int)pConflict->nLits <= p->nResLitsAlloc );
        memcpy( p->pResLits, pConflict->pLits, sizeof(lit) * pConflict->nLits );
        p->nResLits = pConflict->nLits;
    }

    // mark all the variables in the conflict as seen
    for ( v = 0; v < (int)pConflict->nLits; v++ )
        p->pSeens[lit_var(pConflict->pLits[v])] = 1;

    // start the anticedents
//    pFinal->pAntis = Vec_PtrAlloc( 32 );
//    Vec_PtrPush( pFinal->pAntis, pConflict );

//    assert( pFinal->Id == Vec_IntSize(p->vBreaks) );
//    Vec_IntPush( p->vBreaks, Vec_IntSize(p->vAnties) );
//    Vec_IntPush( p->vAnties, pConflict->Id );
    {
        Vec_Int_t * vAnts = Vec_IntAlloc( 16 );
        assert( Vec_PtrSize(p->vAntClas) == pFinal->Id - p->nAntStart );
        Vec_IntPush( vAnts, pConflict->Id );
        Vec_PtrPush( p->vAntClas, vAnts );
    }

//    if ( p->pCnf->nClausesA )
//        Intp_ManAigCopy( p, Intp_ManAigRead(p, pFinal), Intp_ManAigRead(p, pConflict) );

    // follow the trail backwards
    PrevId = Intp_ManProofGet(p, pConflict);
    for ( i = p->nTrailSize - 1; i >= 0; i-- )
    {
        // skip literals that are not involved
        Var = lit_var(p->pTrail[i]);
        if ( !p->pSeens[Var] )
            continue;
        p->pSeens[Var] = 0;

        // skip literals of the resulting clause
        pReason = p->pReasons[Var];
        if ( pReason == NULL )
            continue;
        assert( p->pTrail[i] == pReason->pLits[0] );

        // add the variables to seen
        for ( v = 1; v < (int)pReason->nLits; v++ )
            p->pSeens[lit_var(pReason->pLits[v])] = 1;


        // record the reason clause
        assert( Intp_ManProofGet(p, pReason) > 0 );
        p->Counter++;
        if ( p->fProofWrite )
            fprintf( p->pFile, "%d * %d %d 0\n", p->Counter, PrevId, Intp_ManProofGet(p, pReason) );
        PrevId = p->Counter;

//        if ( p->pCnf->nClausesA )
//       {
//            if ( p->pVarTypes[Var] == 1 ) // var of A
//                Intp_ManAigOr( p, Intp_ManAigRead(p, pFinal), Intp_ManAigRead(p, pReason) );
//            else
//                Intp_ManAigAnd( p, Intp_ManAigRead(p, pFinal), Intp_ManAigRead(p, pReason) );
//        }

        // resolve the temporary resolvent with the reason clause
        if ( p->fProofVerif )
        {
            int v1, v2;
            if ( fPrint )
                Intp_ManPrintResolvent( p->pResLits, p->nResLits );
            // check that the var is present in the resolvent
            for ( v1 = 0; v1 < p->nResLits; v1++ )
                if ( lit_var(p->pResLits[v1]) == Var )
                    break;
            if ( v1 == p->nResLits )
                printf( "Recording clause %d: Cannot find variable %d in the temporary resolvent.\n", pFinal->Id, Var );
            if ( p->pResLits[v1] != lit_neg(pReason->pLits[0]) )
                printf( "Recording clause %d: The resolved variable %d is in the wrong polarity.\n", pFinal->Id, Var );
            // remove this variable from the resolvent
            assert( lit_var(p->pResLits[v1]) == Var );
            p->nResLits--;
            for ( ; v1 < p->nResLits; v1++ )
                p->pResLits[v1] = p->pResLits[v1+1];
            // add variables of the reason clause
            for ( v2 = 1; v2 < (int)pReason->nLits; v2++ )
            {
                for ( v1 = 0; v1 < p->nResLits; v1++ )
                    if ( lit_var(p->pResLits[v1]) == lit_var(pReason->pLits[v2]) )
                        break;
                // if it is a new variable, add it to the resolvent
                if ( v1 == p->nResLits )
                {
                    if ( p->nResLits == p->nResLitsAlloc )
                        printf( "Recording clause %d: Ran out of space for intermediate resolvent.\n", pFinal->Id );
                    p->pResLits[ p->nResLits++ ] = pReason->pLits[v2];
                    continue;
                }
                // if the variable is the same, the literal should be the same too
                if ( p->pResLits[v1] == pReason->pLits[v2] )
                    continue;
                // the literal is different
                printf( "Recording clause %d: Trying to resolve the clause with more than one opposite literal.\n", pFinal->Id );
            }
        }

//        Vec_PtrPush( pFinal->pAntis, pReason );
//        Vec_IntPush( p->vAnties, pReason->Id );
        Vec_IntPush( (Vec_Int_t *)Vec_PtrEntryLast(p->vAntClas), pReason->Id );
    }

    // unmark all seen variables
//    for ( i = p->nTrailSize - 1; i >= 0; i-- )
//        p->pSeens[lit_var(p->pTrail[i])] = 0;
    // check that the literals are unmarked
//    for ( i = p->nTrailSize - 1; i >= 0; i-- )
//        assert( p->pSeens[lit_var(p->pTrail[i])] == 0 );

    // use the resulting clause to check the correctness of resolution
    if ( p->fProofVerif )
    {
        int v1, v2;
        if ( fPrint )
            Intp_ManPrintResolvent( p->pResLits, p->nResLits );
        for ( v1 = 0; v1 < p->nResLits; v1++ )
        {
            for ( v2 = 0; v2 < (int)pFinal->nLits; v2++ )
                if ( pFinal->pLits[v2] == p->pResLits[v1] )
                    break;
            if ( v2 < (int)pFinal->nLits )
                continue;
            break;
        }
        if ( v1 < p->nResLits )
        {
            printf( "Recording clause %d: The final resolvent is wrong.\n", pFinal->Id );
            Intp_ManPrintClause( p, pConflict );
            Intp_ManPrintResolvent( p->pResLits, p->nResLits );
            Intp_ManPrintClause( p, pFinal );
        }

        // if there are literals in the clause that are not in the resolvent
        // it means that the derived resolvent is stronger than the clause
        // we can replace the clause with the resolvent by removing these literals
        if ( p->nResLits != (int)pFinal->nLits )
        {
            for ( v1 = 0; v1 < (int)pFinal->nLits; v1++ )
            {
                for ( v2 = 0; v2 < p->nResLits; v2++ )
                    if ( pFinal->pLits[v1] == p->pResLits[v2] )
                        break;
                if ( v2 < p->nResLits )
                    continue;
                // remove literal v1 from the final clause
                pFinal->nLits--;
                for ( v2 = v1; v2 < (int)pFinal->nLits; v2++ )
                    pFinal->pLits[v2] = pFinal->pLits[v2+1];
                v1--;
            }
            assert( p->nResLits == (int)pFinal->nLits );
        }
    }
p->timeTrace += Abc_Clock() - clk;

    // return the proof pointer
//    if ( p->pCnf->nClausesA )
//    {
//        Intp_ManPrintInterOne( p, pFinal );
//    }
    Intp_ManProofSet( p, pFinal, p->Counter );
    // make sure the same proof ID is not asssigned to two consecutive clauses
    assert( p->pProofNums[pFinal->Id-1] != p->Counter );
//    if ( p->pProofNums[pFinal->Id] == p->pProofNums[pFinal->Id-1] )
//        p->pProofNums[pFinal->Id] = p->pProofNums[pConflict->Id];
    return p->Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Intp_ManProofWriteOne()

void Intp_ManProofWriteOne	(	Intp_Man_t *	p,
		Sto_Cls_t *	pClause )

Function*************************************************************

Synopsis [Writes one root clause into a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 448 of file satInterP.c.

{
    Intp_ManProofSet( p, pClause, ++p->Counter );

    if ( p->fProofWrite )
    {
        int v;
        fprintf( p->pFile, "%d", Intp_ManProofGet(p, pClause) );
        for ( v = 0; v < (int)pClause->nLits; v++ )
            fprintf( p->pFile, " %d", lit_print(pClause->pLits[v]) );
        fprintf( p->pFile, " 0 0\n" );
    }
}

Here is the caller graph for this function:

Intp_ManPropagate()

Sto_Cls_t * Intp_ManPropagate	(	Intp_Man_t *	p,
		int	Start )

Function*************************************************************

Synopsis [Propagate the current assignments.]

Description []

SideEffects []

SeeAlso []

Definition at line 418 of file satInterP.c.

{
    Sto_Cls_t * pClause;
    int i;
    abctime clk = Abc_Clock();
    for ( i = Start; i < p->nTrailSize; i++ )
    {
        pClause = Intp_ManPropagateOne( p, p->pTrail[i] );
        if ( pClause )
        {
p->timeBcp += Abc_Clock() - clk;
            return pClause;
        }
    }
p->timeBcp += Abc_Clock() - clk;
    return NULL;
}

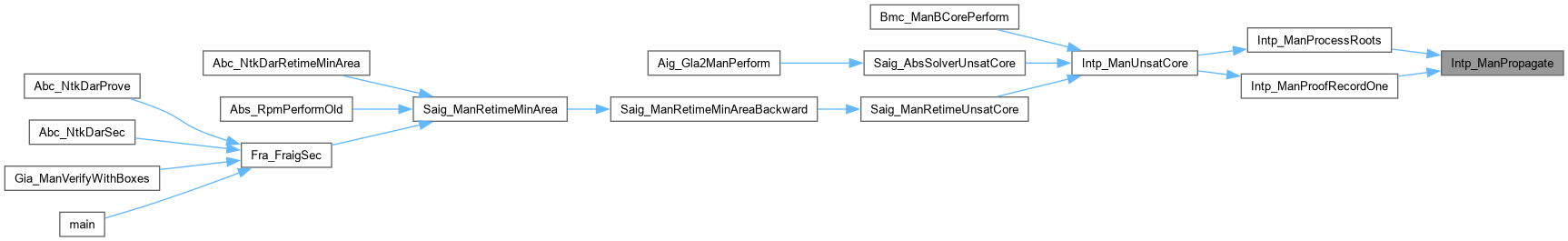

Here is the caller graph for this function:

Intp_ManResize()

void Intp_ManResize

(

Intp_Man_t *

p

)

Function*************************************************************

Synopsis [Resize proof manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 127 of file satInterP.c.

{
    // check if resizing is needed
    if ( p->nVarsAlloc < p->pCnf->nVars )
    {
        // find the new size
        if ( p->nVarsAlloc == 0 )
            p->nVarsAlloc = 1;
        while ( p->nVarsAlloc < p->pCnf->nVars )
            p->nVarsAlloc *= 2;
        // resize the arrays
        p->pTrail    = ABC_REALLOC(lit,         p->pTrail,    p->nVarsAlloc );
        p->pAssigns  = ABC_REALLOC(lit,         p->pAssigns,  p->nVarsAlloc );
        p->pSeens    = ABC_REALLOC(char,        p->pSeens,    p->nVarsAlloc );
//        p->pVarTypes = ABC_REALLOC(int,         p->pVarTypes, p->nVarsAlloc );
        p->pReasons  = ABC_REALLOC(Sto_Cls_t *, p->pReasons,  p->nVarsAlloc );
        p->pWatches  = ABC_REALLOC(Sto_Cls_t *, p->pWatches,  p->nVarsAlloc*2 );
    }

    // clean the free space
    memset( p->pAssigns , 0xff, sizeof(lit) * p->pCnf->nVars );
    memset( p->pSeens   , 0,    sizeof(char) * p->pCnf->nVars );
//    memset( p->pVarTypes, 0,    sizeof(int) * p->pCnf->nVars );
    memset( p->pReasons , 0,    sizeof(Sto_Cls_t *) * p->pCnf->nVars );
    memset( p->pWatches , 0,    sizeof(Sto_Cls_t *) * p->pCnf->nVars*2 );

    // check if resizing of clauses is needed
    if ( p->nClosAlloc < p->pCnf->nClauses )
    {
        // find the new size
        if ( p->nClosAlloc == 0 )
            p->nClosAlloc = 1;
        while ( p->nClosAlloc < p->pCnf->nClauses )
            p->nClosAlloc *= 2;
        // resize the arrays
        p->pProofNums = ABC_REALLOC( int, p->pProofNums,  p->nClosAlloc );
    }
    memset( p->pProofNums, 0, sizeof(int) * p->pCnf->nClauses );
}

Here is the call graph for this function:

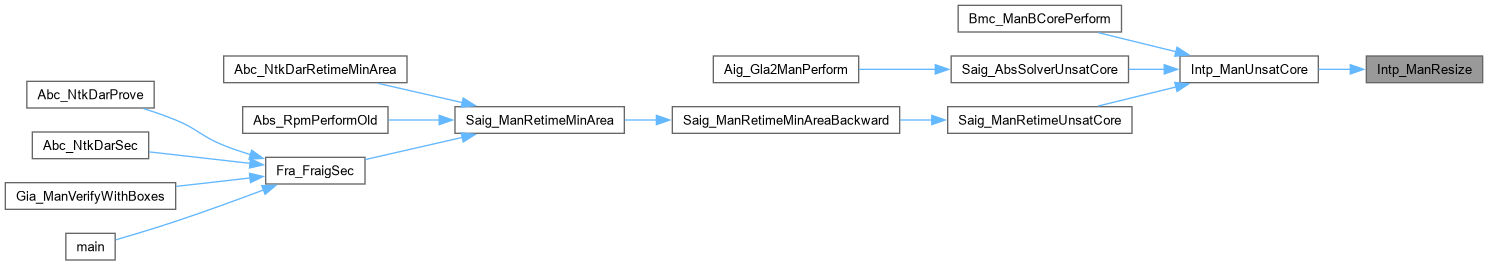

Here is the caller graph for this function:

Intp_ManUnsatCore()

void * Intp_ManUnsatCore	(	Intp_Man_t *	p,
		Sto_Man_t *	pCnf,
		int	fLearned,
		int	fVerbose )

Function*************************************************************

Synopsis [Computes UNSAT core of the satisfiablity problem.]

Description [Takes the interpolation manager, the CNF derived by the SAT solver, which includes the root clauses and the learned clauses. Returns the array of integers representing the number of root clauses that are in the UNSAT core.]

SideEffects []

SeeAlso []

Definition at line 963 of file satInterP.c.

{
    Vec_Int_t * vCore;
    Vec_Str_t * vVisited;
    Sto_Cls_t * pClause;
    int RetValue = 1;
    abctime clkTotal = Abc_Clock();

    // check that the CNF makes sense
    assert( pCnf->nVars > 0 && pCnf->nClauses > 0 );
    p->pCnf = pCnf;
    p->fVerbose = fVerbose;

    // adjust the manager
    Intp_ManResize( p );

    // construct proof for each clause
    // start the proof
    if ( p->fProofWrite )
    {
        p->pFile = fopen( "proof.cnf_", "w" );
        p->Counter = 0;
    }

    // write the root clauses
//    Vec_IntClear( p->vAnties );
//    Vec_IntFill( p->vBreaks, p->pCnf->nRoots, 0 );
    Vec_PtrClear( p->vAntClas );
    p->nAntStart = p->pCnf->nRoots;

    Sto_ManForEachClauseRoot( p->pCnf, pClause )
        Intp_ManProofWriteOne( p, pClause );

    // propagate root level assignments
    if ( Intp_ManProcessRoots( p ) )
    {
        // if there is no conflict, consider learned clauses
        Sto_ManForEachClause( p->pCnf, pClause )
        {
            if ( pClause->fRoot )
                continue;
            if ( !Intp_ManProofRecordOne( p, pClause ) )
            {
                RetValue = 0;
                break;
            }
        }
    }

    // add the last breaker
//    assert( p->pCnf->pEmpty->Id == Vec_IntSize(p->vBreaks) - 1 );
//    Vec_IntPush( p->vBreaks, Vec_IntSize(p->vAnties) );
    assert( p->pCnf->pEmpty->Id - p->nAntStart == Vec_PtrSize(p->vAntClas) - 1 );
    Vec_PtrPush( p->vAntClas, Vec_IntAlloc(0) );

    // stop the proof
    if ( p->fProofWrite )
    {
        fclose( p->pFile );
//        Sat_ProofChecker( "proof.cnf_" );
        p->pFile = NULL;
    }

    if ( fVerbose )
    {
//        ABC_PRT( "Core", Abc_Clock() - clkTotal );
    printf( "Vars = %d. Roots = %d. Learned = %d. Resol steps = %d.  Ave = %.2f.  Mem = %.2f MB\n",
        p->pCnf->nVars, p->pCnf->nRoots, p->pCnf->nClauses-p->pCnf->nRoots, p->Counter,
        1.0*(p->Counter-p->pCnf->nRoots)/(p->pCnf->nClauses-p->pCnf->nRoots),
        1.0*Sto_ManMemoryReport(p->pCnf)/(1<<20) );
p->timeTotal += Abc_Clock() - clkTotal;
    }

    // derive the UNSAT core
    vCore = Vec_IntAlloc( 1000 );
    vVisited = Vec_StrStart( p->pCnf->pEmpty->Id+1 );
    Intp_ManUnsatCore_rec( p->vAntClas, p->pCnf->pEmpty->Id, vCore, p->pCnf->nRoots, vVisited, fLearned );
    Vec_StrFree( vVisited );
    if ( fVerbose )
        printf( "Root clauses = %d. Learned clauses = %d. UNSAT core size = %d.\n",
            p->pCnf->nRoots, p->pCnf->nClauses-p->pCnf->nRoots, Vec_IntSize(vCore) );
//    Intp_ManUnsatCoreVerify( p->pCnf, vCore );
    return vCore;
}

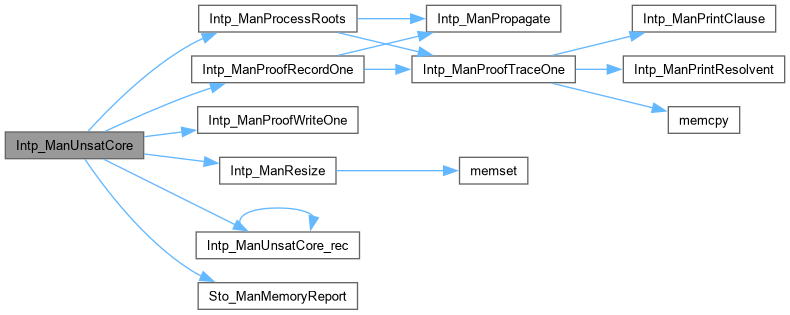

Here is the call graph for this function:

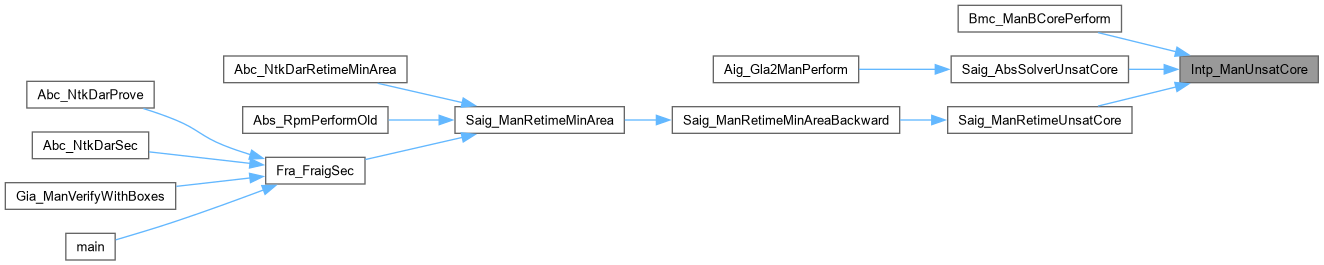

Here is the caller graph for this function:

Intp_ManUnsatCore_rec()

void Intp_ManUnsatCore_rec	(	Vec_Ptr_t *	vAntClas,
		int	iThis,
		Vec_Int_t *	vCore,
		int	nRoots,
		Vec_Str_t *	vVisited,
		int	fLearned )

Function*************************************************************

Synopsis [Recursively computes the UNSAT core.]

Description []

SideEffects []

SeeAlso []

Definition at line 919 of file satInterP.c.

{
//    int i, iStop, iStart;
    Vec_Int_t * vAnt;
    int i, Entry;
    // skip visited clauses
    if ( Vec_StrEntry( vVisited, iThis ) )
        return;
    Vec_StrWriteEntry( vVisited, iThis, 1 );
    // add a root clause to the core
    if ( iThis < nRoots )
    {
        if ( !fLearned )
            Vec_IntPush( vCore, iThis );
        return;
    }
    // iterate through the clauses
//    iStart = Vec_IntEntry( vBreaks, iThis );
//    iStop = Vec_IntEntry( vBreaks, iThis+1 );
//    assert( iStop != -1 );
//    for ( i = iStart; i < iStop; i++ )
    vAnt = (Vec_Int_t *)Vec_PtrEntry( vAntClas, iThis - nRoots );
    Vec_IntForEachEntry( vAnt, Entry, i )
//        Intp_ManUnsatCore_rec( vAntClas, Vec_IntEntry(vAnties, i), vCore, nRoots, vVisited );
        Intp_ManUnsatCore_rec( vAntClas, Entry, vCore, nRoots, vVisited, fLearned );
    // collect learned clause
    if ( fLearned )
        Vec_IntPush( vCore, iThis );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Intp_ManUnsatCorePrintForBmc()

void Intp_ManUnsatCorePrintForBmc	(	FILE *	pFile,
		Sto_Man_t *	pCnf,
		void *	vCore0,
		void *	vVarMap0 )

Function*************************************************************

Synopsis [Prints learned clauses in terms of original problem varibles.]

Description []

SideEffects []

SeeAlso []

Definition at line 1059 of file satInterP.c.

{
    Vec_Int_t * vCore   = (Vec_Int_t *)vCore0;
    Vec_Int_t * vVarMap = (Vec_Int_t *)vVarMap0;
    Vec_Ptr_t * vClaMap;
    Sto_Cls_t * pClause;
    int v, i, iClause, fCompl, iObj, iFrame;
    // create map of clause
    vClaMap = Vec_PtrAlloc( pCnf->nClauses );
    Sto_ManForEachClause( pCnf, pClause )
        Vec_PtrPush( vClaMap, pClause );
    // print clauses
    fprintf( pFile, "UNSAT contains %d learned clauses:\n", Vec_IntSize(vCore) );
    Vec_IntForEachEntry( vCore, iClause, i )
    {
        pClause = (Sto_Cls_t *)Vec_PtrEntry(vClaMap, iClause);
        fprintf( pFile, "%6d : %6d : ", i, iClause - pCnf->nRoots );
        for ( v = 0; v < (int)pClause->nLits; v++ )
        {
            fCompl = Abc_LitIsCompl(pClause->pLits[v]);
            iObj   = Vec_IntEntry(vVarMap, 2*Abc_Lit2Var(pClause->pLits[v]));
            iFrame = Vec_IntEntry(vVarMap, 2*Abc_Lit2Var(pClause->pLits[v])+1);
            fprintf( pFile, "%s%d(%d) ", fCompl ? "!":"", iObj, iFrame );
        }
        if ( pClause->nLits == 0 )
            fprintf( pFile, "Empty" );
        fprintf( pFile, "\n" );
    }
    Vec_PtrFree( vClaMap );
}

Here is the caller graph for this function:

Intp_ManUnsatCoreVerify()

void Intp_ManUnsatCoreVerify	(	Sto_Man_t *	pCnf,
		Vec_Int_t *	vCore )

Function*************************************************************

Synopsis [Verifies the UNSAT core.]

Description [Takes the interpolation manager, the CNF derived by the SAT solver, which includes the root clauses and the learned clauses. Returns the array of integers representing the number of root clauses that are in the UNSAT core.]

SideEffects []

SeeAlso []

Definition at line 859 of file satInterP.c.

{
    int fVerbose = 0;
    int nConfMax = 1000000;
    sat_solver * pSat;
    Sto_Cls_t * pClause;
    Vec_Ptr_t * vClauses;
    int i, iClause, RetValue;
    abctime clk = Abc_Clock();
    // collect the clauses
    vClauses = Vec_PtrAlloc( 1000 );
    Sto_ManForEachClauseRoot( pCnf, pClause )
    {
        assert( Vec_PtrSize(vClauses) == pClause->Id );
        Vec_PtrPush( vClauses, pClause );
    }
    // create new SAT solver
    pSat = sat_solver_new();
//    sat_solver_setnvars( pSat, nSatVars );
    Vec_IntForEachEntry( vCore, iClause, i )
    {
        pClause = (Sto_Cls_t *)Vec_PtrEntry( vClauses, iClause );
        if ( !sat_solver_addclause( pSat, pClause->pLits, pClause->pLits+pClause->nLits ) )
        {
            printf( "The core verification problem is trivially UNSAT.\n" );
            break;
        }
    }
    Vec_PtrFree( vClauses );
    // solve the problem
    RetValue = sat_solver_solve( pSat, NULL, NULL, (ABC_INT64_T)nConfMax, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
    sat_solver_delete( pSat );
    if ( fVerbose )
    {
        if ( RetValue == l_Undef )
            printf( "Conflict limit is reached.  " );
        else if ( RetValue == l_True )
            printf( "UNSAT core verification FAILED.  " );
        else
            printf( "UNSAT core verification succeeded.  " );
        ABC_PRT( "Time", Abc_Clock() - clk );
    }
    else
    {
        if ( RetValue == l_True )
            printf( "UNSAT core verification FAILED.  \n" );
    }
}

Here is the call graph for this function:
