sbdCore.c File Reference

#include "sbdInt.h"
#include "opt/dau/dau.h"
#include "misc/tim/tim.h"

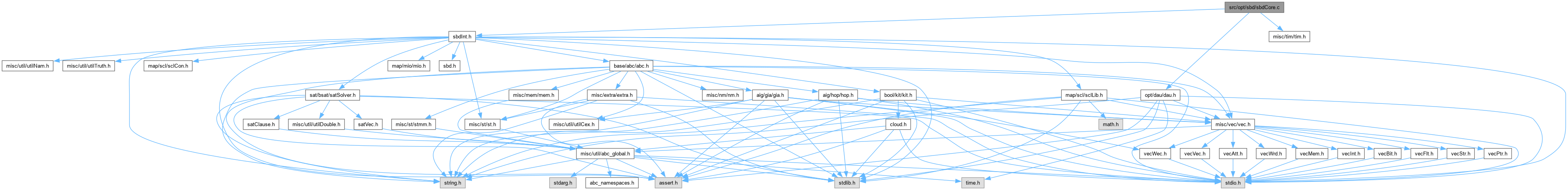

Include dependency graph for sbdCore.c:

Go to the source code of this file.

Classes
struct	Sbd_Man_t_

Macros
#define	SBD_MAX_LUTSIZE   6
	DECLARATIONS ///.

Typedefs
typedef struct Sbd_Man_t_	Sbd_Man_t

Functions
void	Sbd_ParSetDefault (Sbd_Par_t *pPars)
	FUNCTION DEFINITIONS ///.

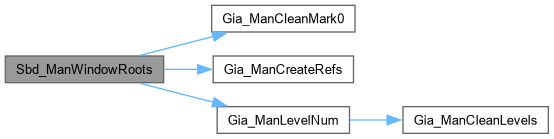

Vec_Wec_t *	Sbd_ManWindowRoots (Gia_Man_t *p, int nTfoLevels, int nTfoFanMax)

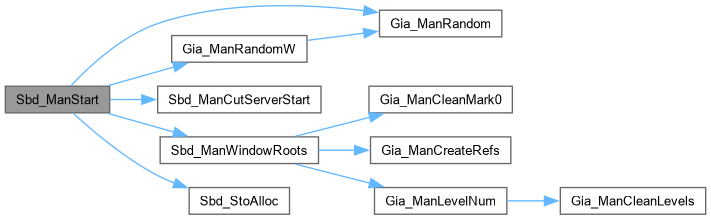

Sbd_Man_t *	Sbd_ManStart (Gia_Man_t *pGia, Sbd_Par_t *pPars)
void	Sbd_ManStop (Sbd_Man_t *p)
void	Sbd_ManPropagateControlOne (Sbd_Man_t *p, int Node)
void	Sbd_ManPropagateControl (Sbd_Man_t *p, int Pivot)
void	Sbd_ManUpdateOrder (Sbd_Man_t *p, int Pivot)
void	Sbd_ManWindowSim_rec (Sbd_Man_t *p, int NodeInit)
int	Sbd_ManWindow (Sbd_Man_t *p, int Pivot)
int	Sbd_ManCheckConst (Sbd_Man_t *p, int Pivot)
void	Sbd_ManPrintObj (Sbd_Man_t *p, int Pivot)
void	Sbd_ManMatrPrint (Sbd_Man_t *p, word Cover[], int nCol, int nRows)
int	Sbd_ManExplore (Sbd_Man_t *p, int Pivot, word *pTruth)
int	Sbd_ManExplore2 (Sbd_Man_t *p, int Pivot, word *pTruth)

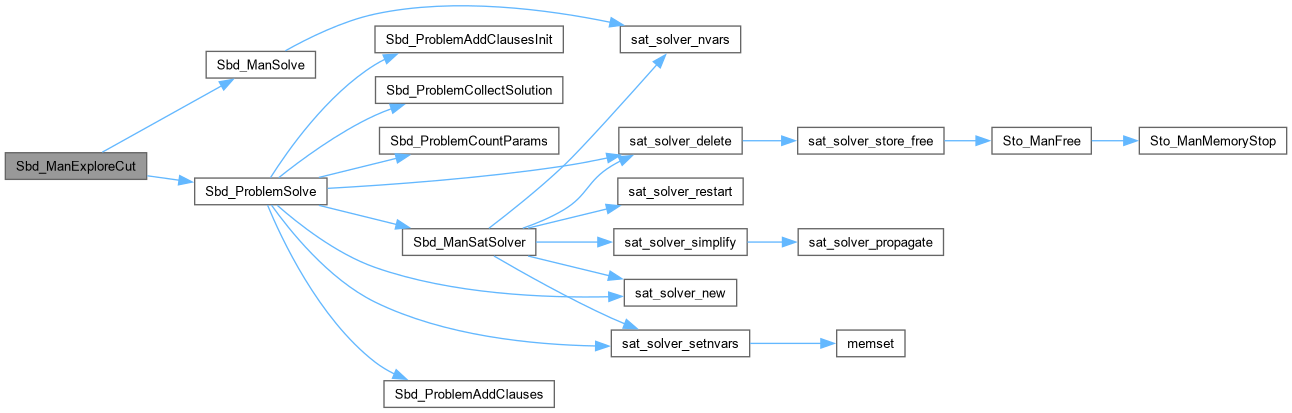

int	Sbd_ManExploreCut (Sbd_Man_t *p, int Pivot, int nLeaves, int *pLeaves, int *pnStrs, Sbd_Str_t *Strs, int *pFreeVar)
int	Sbd_ManExplore3 (Sbd_Man_t *p, int Pivot, int *pnStrs, Sbd_Str_t *Strs)
int	Sbd_CutMergeSimple (Sbd_Man_t *p, int *pCut1, int *pCut2, int *pCut)
int	Sbd_ManMergeCuts (Sbd_Man_t *p, int Node)
int	Sbd_ManDelay (Sbd_Man_t *p)
void	Sbd_ManMergeTest (Sbd_Man_t *p)
void	Sbd_ManFindCut_rec (Gia_Man_t *p, Gia_Obj_t *pObj)
void	Sbd_ManFindCutUnmark_rec (Gia_Man_t *p, Gia_Obj_t *pObj)

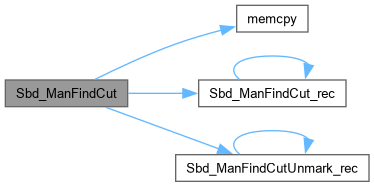

void	Sbd_ManFindCut (Sbd_Man_t *p, int Node, Vec_Int_t *vCutLits)
int	Sbd_ManImplement (Sbd_Man_t *p, int Pivot, word Truth)
int	Sbd_ManImplement2 (Sbd_Man_t *p, int Pivot, int nStrs, Sbd_Str_t *pStrs)
void	Sbd_ManDeriveMapping_rec (Sbd_Man_t *p, Gia_Man_t *pNew, int iObj)
void	Sbd_ManDeriveMapping (Sbd_Man_t *p, Gia_Man_t *pNew)
void	Sbd_ManDerive_rec (Gia_Man_t *pNew, Gia_Man_t *p, int Node, Vec_Int_t *vMirrors)
Gia_Man_t *	Sbd_ManDerive (Sbd_Man_t *pMan, Gia_Man_t *p, Vec_Int_t *vMirrors)

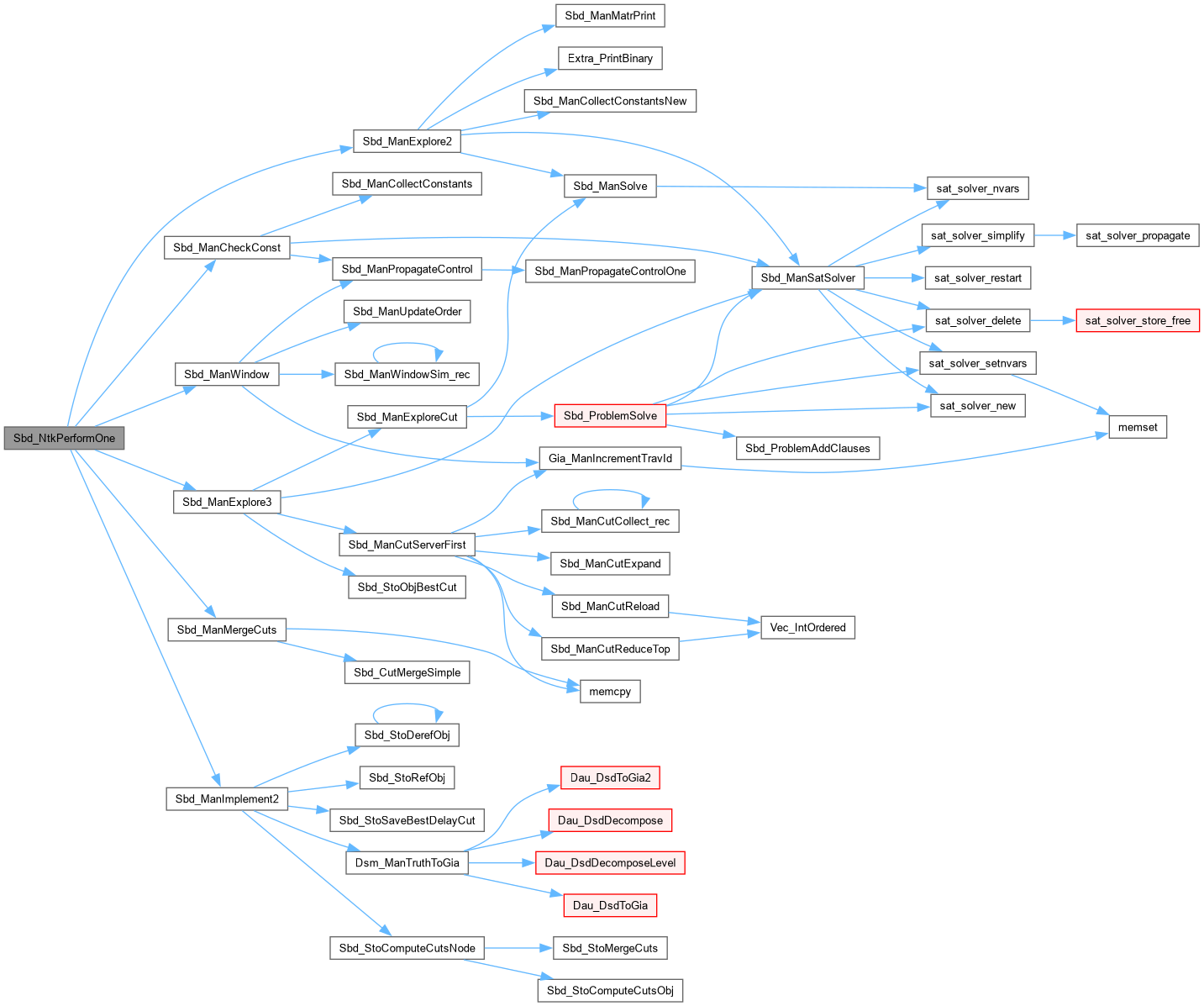

void	Sbd_NtkPerformOne (Sbd_Man_t *p, int Pivot)
Gia_Man_t *	Sbd_NtkPerform (Gia_Man_t *pGia, Sbd_Par_t *pPars)

Macro Definition Documentation

SBD_MAX_LUTSIZE

#define SBD_MAX_LUTSIZE   6

DECLARATIONS ///.

CFile****************************************************************

FileName [sbdCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [SAT-based optimization using internal don't-cares.]

Synopsis [Core procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

sbdCore.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 31 of file sbdCore.c.

Typedef Documentation

Sbd_Man_t

typedef struct Sbd_Man_t_ Sbd_Man_t

Definition at line 33 of file sbdCore.c.

Function Documentation

Sbd_CutMergeSimple()

int Sbd_CutMergeSimple	(	Sbd_Man_t *	p,
		int *	pCut1,
		int *	pCut2,
		int *	pCut )

Function*************************************************************

Synopsis [Computes delay-oriented k-feasible cut at the node.]

Description [Return 1 if node's LUT level does not exceed those of the fanins.]

SideEffects []

SeeAlso []

Definition at line 1610 of file sbdCore.c.

{
    int * pBeg  = pCut + 1;
    int * pBeg1 = pCut1 + 1;
    int * pBeg2 = pCut2 + 1;
    int * pEnd1 = pCut1 + 1 + pCut1[0];
    int * pEnd2 = pCut2 + 1 + pCut2[0];
    while ( pBeg1 < pEnd1 && pBeg2 < pEnd2 )
    {
        if ( *pBeg1 == *pBeg2 )
            *pBeg++ = *pBeg1++, pBeg2++;
        else if ( *pBeg1 < *pBeg2 )
            *pBeg++ = *pBeg1++;
        else
            *pBeg++ = *pBeg2++;
    }
    while ( pBeg1 < pEnd1 )
        *pBeg++ = *pBeg1++;
    while ( pBeg2 < pEnd2 )
        *pBeg++ = *pBeg2++;
    return (pCut[0] = pBeg - pCut - 1);
}

Here is the caller graph for this function:

Sbd_ManCheckConst()

int Sbd_ManCheckConst	(	Sbd_Man_t *	p,
		int	Pivot )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 519 of file sbdCore.c.

{
    int nMintCount = 1;
    Vec_Ptr_t * vSims;
    word * pSims = Sbd_ObjSim0( p, Pivot );
    word * pCtrl = Sbd_ObjSim2( p, Pivot );
    int PivotVar = Vec_IntEntry(p->vObj2Var, Pivot);
    int RetValue, i, iObj, Ind, fFindOnset, nCares[2] = {0};

    abctime clk = Abc_Clock();
    p->pSat = Sbd_ManSatSolver( p->pSat, p->pGia, p->vMirrors, Pivot, p->vWinObjs, p->vObj2Var, p->vTfo, p->vRoots, 0 );
    p->timeCnf += Abc_Clock() - clk;
    if ( p->pSat == NULL )
    {
        //if ( p->pPars->fVerbose )
        //    printf( "Found stuck-at-%d node %d.\n", 0, Pivot );
        Vec_IntWriteEntry( p->vLutLevs, Pivot, 0 );
        p->nLuts[0]++;
        return 0;
    }
    //return -1;
    //Sbd_ManPrintObj( p, Pivot );

    // count the number of on-set and off-set care-set minterms
    Vec_IntClear( p->vLits );
    for ( i = 0; i < 64; i++ )
        if ( Abc_TtGetBit(pCtrl, i) )
            nCares[Abc_TtGetBit(pSims, i)]++;
        else
            Vec_IntPush( p->vLits, i );
    fFindOnset = (int)(nCares[0] < nCares[1]);
    if ( nCares[0] >= nMintCount && nCares[1] >= nMintCount )
        return -1;
    // find how many do we need
    nCares[0] = nCares[0] < nMintCount ? nMintCount - nCares[0] : 0;
    nCares[1] = nCares[1] < nMintCount ? nMintCount - nCares[1] : 0;

    if ( p->pPars->fVeryVerbose )
        printf( "Computing %d offset and %d onset minterms for node %d.\n", nCares[0], nCares[1], Pivot );

    if ( Vec_IntSize(p->vLits) >= nCares[0] + nCares[1] )
        Vec_IntShrink( p->vLits, nCares[0] + nCares[1] );
    else
    {
        // collect places to insert new minterms
        for ( i = 0; i < 64 && Vec_IntSize(p->vLits) < nCares[0] + nCares[1]; i++ )
            if ( fFindOnset == Abc_TtGetBit(pSims, i) )
                Vec_IntPush( p->vLits, i );
    }
    // collect simulation pointers
    vSims = Vec_PtrAlloc( PivotVar + 1 );
    Vec_IntForEachEntry( p->vWinObjs, iObj, i )
    {
        Vec_PtrPush( vSims, Sbd_ObjSim0(p, iObj) );
        if ( iObj == Pivot )
            break;
    }
    assert( i == PivotVar );
    // compute patterns
    RetValue = Sbd_ManCollectConstants( p->pSat, nCares, PivotVar, (word **)Vec_PtrArray(vSims), p->vLits );
    // print computed miterms
    if ( 0 && RetValue < 0 )
    {
        Vec_Int_t * vPis = Vec_WecEntry(p->vDivLevels, 0);
        int i, k, Ind;
        printf( "Additional minterms:\n" );
        Vec_IntForEachEntry( p->vLits, Ind, k )
        {
            for ( i = 0; i < Vec_IntSize(vPis); i++ )
                printf( "%d", Abc_TtGetBit( (word *)Vec_PtrEntry(vSims, Vec_IntEntry(p->vWinObjs, i)), Ind ) );
            printf( "\n" );
        }
    }
    Vec_PtrFree( vSims );
    if ( RetValue >= 0 )
    {
        if ( p->pPars->fVeryVerbose )
            printf( "Found stuck-at-%d node %d.\n", RetValue, Pivot );
        Vec_IntWriteEntry( p->vLutLevs, Pivot, 0 );
        p->nLuts[0]++;
        return RetValue;
    }
    // set controlability of these minterms
    Vec_IntForEachEntry( p->vLits, Ind, i )
        Abc_TtSetBit( pCtrl, Ind );
    // propagate controlability to fanins for the TFI nodes starting from the pivot
    Sbd_ManPropagateControl( p, Pivot );
    // double check that we now have enough minterms
    for ( i = 0; i < 64; i++ )
        if ( Abc_TtGetBit(pCtrl, i) )
            nCares[Abc_TtGetBit(pSims, i)]++;
    assert( nCares[0] >= nMintCount && nCares[1] >= nMintCount );
    return -1;
}

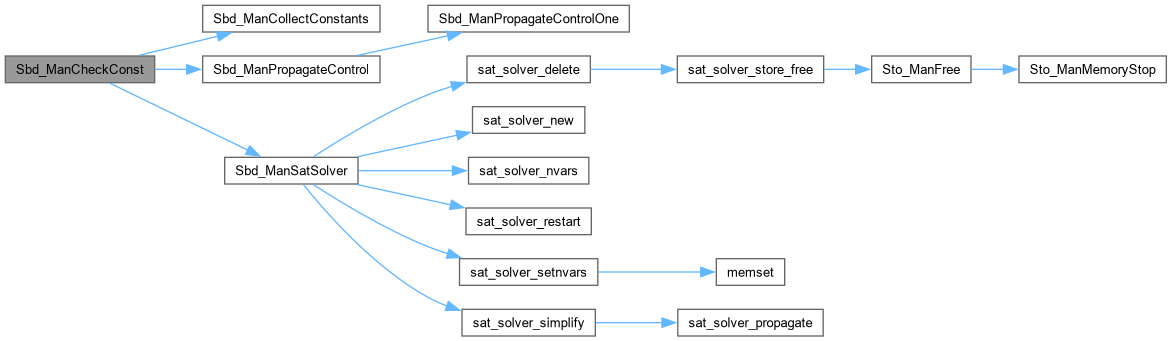

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManDelay()

int Sbd_ManDelay

(

Sbd_Man_t *

p

)

Definition at line 1718 of file sbdCore.c.

{
    int i, Id, Delay = 0;
    Gia_ManForEachCoDriverId( p->pGia, Id, i )
        Delay = Abc_MaxInt( Delay, Vec_IntEntry(p->vLutLevs, Id) );
    return Delay;
}

Here is the caller graph for this function:

Sbd_ManDerive()

Gia_Man_t * Sbd_ManDerive	(	Sbd_Man_t *	pMan,
		Gia_Man_t *	p,
		Vec_Int_t *	vMirrors )

Definition at line 2030 of file sbdCore.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i;
    Gia_ManFillValue( p );
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    if ( p->pMuxes )
        pNew->pMuxes = ABC_CALLOC( unsigned, Gia_ManObjNum(p) );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManHashAlloc( pNew );
    Gia_ManForEachCi( p, pObj, i )
        pObj->Value = Gia_ManAppendCi(pNew);
    Gia_ManForEachCo( p, pObj, i )
        Sbd_ManDerive_rec( pNew, p, Gia_ObjFaninId0p(p, pObj), vMirrors );
    Gia_ManForEachCo( p, pObj, i )
        pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Gia_ManHashStop( pNew );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    Gia_ManTransferTiming( pNew, p );
    if ( pMan->pPars->fMapping )
        Sbd_ManDeriveMapping( pMan, pNew );
    // remove dangling nodes
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManTransferTiming( pNew, pTemp );
    Gia_ManTransferMapping( pNew, pTemp );
    Gia_ManStop( pTemp );
    return pNew;
}

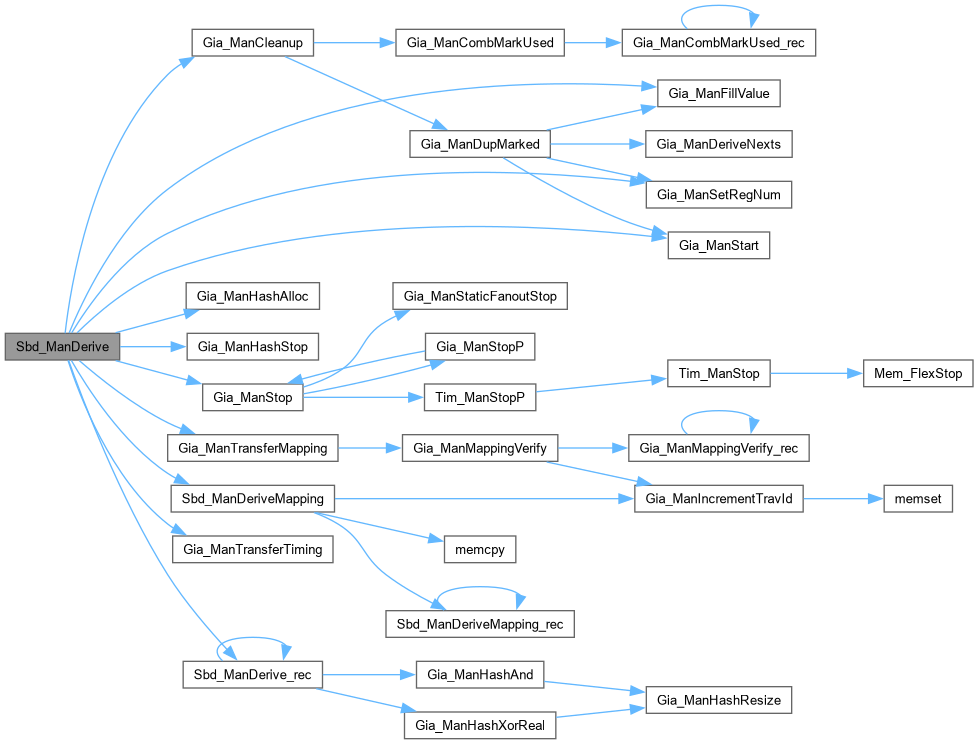

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManDerive_rec()

void Sbd_ManDerive_rec	(	Gia_Man_t *	pNew,
		Gia_Man_t *	p,
		int	Node,
		Vec_Int_t *	vMirrors )

Definition at line 2009 of file sbdCore.c.

{
    Gia_Obj_t * pObj;
    int Obj = Node;
    if ( Vec_IntEntry(vMirrors, Node) >= 0 )
        Obj = Abc_Lit2Var( Vec_IntEntry(vMirrors, Node) );
    pObj = Gia_ManObj( p, Obj );
    if ( !~pObj->Value )
    {
        assert( Gia_ObjIsAnd(pObj) );
        Sbd_ManDerive_rec( pNew, p, Gia_ObjFaninId0(pObj, Obj), vMirrors );
        Sbd_ManDerive_rec( pNew, p, Gia_ObjFaninId1(pObj, Obj), vMirrors );
        if ( Gia_ObjIsXor(pObj) )
            pObj->Value = Gia_ManHashXorReal( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        else
            pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
    }
    // set the original node as well
    if ( Obj != Node )
        Gia_ManObj(p, Node)->Value = Abc_LitNotCond( pObj->Value, Abc_LitIsCompl(Vec_IntEntry(vMirrors, Node)) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManDeriveMapping()

void Sbd_ManDeriveMapping	(	Sbd_Man_t *	p,
		Gia_Man_t *	pNew )

Definition at line 1964 of file sbdCore.c.

{
    Gia_Obj_t * pObj, * pFan;
    int i, k, iFan, iObjNew, iFanNew, * pCut, * pCutNew;
    Vec_Int_t * vLeaves = Vec_IntAlloc( 100 );
    // derive cuts for the new manager
    p->vLutCuts2 = Vec_IntStart( Gia_ManObjNum(pNew) * (p->pPars->nLutSize + 1) );
    Gia_ManForEachAnd( p->pGia, pObj, i )
    {
        if ( Vec_IntEntry(p->vMirrors, i) >= 0 )
            continue;
        if ( pObj->Value == ~0 )
            continue;
        iObjNew = Abc_Lit2Var( pObj->Value );
        if ( !Gia_ObjIsAnd(Gia_ManObj(pNew, iObjNew)) )
            continue;
        pCutNew = Sbd_ObjCut2( p, iObjNew );
        pCut    = Sbd_ObjCut( p, i );
        Vec_IntClear( vLeaves );
        for ( k = 1; k <= pCut[0]; k++ )
        {
            iFan = Vec_IntEntry(p->vMirrors, pCut[k]) >= 0 ? Abc_Lit2Var(Vec_IntEntry(p->vMirrors, pCut[k])) : pCut[k];
            pFan = Gia_ManObj( p->pGia, iFan );
            if ( pFan->Value == ~0 )
                continue;
            iFanNew = Abc_Lit2Var( pFan->Value );
            if ( iFanNew == 0 || iFanNew == iObjNew )
                continue;
            Vec_IntPushUniqueOrder( vLeaves, iFanNew );
        }
        assert( Vec_IntSize(vLeaves) <= p->pPars->nLutSize );
        //assert( Vec_IntSize(vLeaves) > 1 );
        pCutNew[0] = Vec_IntSize(vLeaves);
        memcpy( pCutNew+1, Vec_IntArray(vLeaves), sizeof(int) * Vec_IntSize(vLeaves) );
    }
    Vec_IntFree( vLeaves );
    // create new mapping
    Vec_IntFreeP( &pNew->vMapping );
    pNew->vMapping = Vec_IntAlloc( (p->pPars->nLutSize + 2) * Gia_ManObjNum(pNew) );
    Vec_IntFill( pNew->vMapping, Gia_ManObjNum(pNew), 0 );
    Gia_ManIncrementTravId( pNew );
    Gia_ManForEachCo( pNew, pObj, i )
        Sbd_ManDeriveMapping_rec( p, pNew, Gia_ObjFaninId0p(pNew, pObj) );
    Vec_IntFreeP( &p->vLutCuts2 );
}

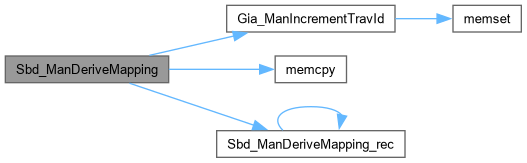

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManDeriveMapping_rec()

void Sbd_ManDeriveMapping_rec	(	Sbd_Man_t *	p,
		Gia_Man_t *	pNew,
		int	iObj )

Function*************************************************************

Synopsis [Derives new AIG after resynthesis.]

Description []

SideEffects []

SeeAlso []

Definition at line 1945 of file sbdCore.c.

{
    Gia_Obj_t * pObj; int k, * pCut;
    if ( !iObj || Gia_ObjIsTravIdCurrentId(pNew, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(pNew, iObj);
    pObj = Gia_ManObj( pNew, iObj );
    if ( Gia_ObjIsCi(pObj) )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    pCut = Sbd_ObjCut2( p, iObj );
    for ( k = 1; k <= pCut[0]; k++ )
        Sbd_ManDeriveMapping_rec( p, pNew, pCut[k] );
    // add mapping
    Vec_IntWriteEntry( pNew->vMapping, iObj, Vec_IntSize(pNew->vMapping) );
    for ( k = 0; k <= pCut[0]; k++ )
        Vec_IntPush( pNew->vMapping, pCut[k] );
    Vec_IntPush( pNew->vMapping, iObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManExplore()

int Sbd_ManExplore	(	Sbd_Man_t *	p,
		int	Pivot,
		word *	pTruth )

Definition at line 1009 of file sbdCore.c.

{
    int fVerbose = 0;
    abctime clk;
    int nIters, nItersMax = 32;

    word MatrS[64] = {0}, MatrC[2][64] = {{0}}, Cubes[2][2][64] = {{{0}}}, Cover[64] = {0}, Cube, CubeNew[2];
    int i, k, n, Node, Index, nCubes[2] = {0}, nRows = 0, nRowsOld;

    int nDivs = Vec_IntSize(p->vDivValues);
    int PivotVar = Vec_IntEntry(p->vObj2Var, Pivot);
    int FreeVar = Vec_IntSize(p->vWinObjs) + Vec_IntSize(p->vTfo) + Vec_IntSize(p->vRoots);
    int RetValue = 0;

    if ( p->pPars->fVerbose )
        printf( "Node %d.  Useful divisors = %d.\n", Pivot, nDivs );

    if ( fVerbose )
        Sbd_ManPrintObj( p, Pivot );

    // collect bit-matrices
    Vec_IntForEachEntry( p->vDivVars, Node, i )
    {
        MatrS[63-i]    = *Sbd_ObjSim0( p, Vec_IntEntry(p->vWinObjs, Node) );
        MatrC[0][63-i] = *Sbd_ObjSim2( p, Vec_IntEntry(p->vWinObjs, Node) );
        MatrC[1][63-i] = *Sbd_ObjSim3( p, Vec_IntEntry(p->vWinObjs, Node) );
    }
    MatrS[63-i]    = *Sbd_ObjSim0( p, Pivot );
    MatrC[0][63-i] = *Sbd_ObjSim2( p, Pivot );
    MatrC[1][63-i] = *Sbd_ObjSim3( p, Pivot );

    //Sbd_PrintMatrix64( MatrS );
    Sbd_TransposeMatrix64( MatrS );
    Sbd_TransposeMatrix64( MatrC[0] );
    Sbd_TransposeMatrix64( MatrC[1] );
    //Sbd_PrintMatrix64( MatrS );

    // collect cubes
    for ( i = 0; i < 64; i++ )
    {
        assert( Abc_TtGetBit(&MatrC[0][i], nDivs) == Abc_TtGetBit(&MatrC[1][i], nDivs) );
        if ( !Abc_TtGetBit(&MatrC[0][i], nDivs) )
            continue;
        Index = Abc_TtGetBit(&MatrS[i], nDivs); // Index==0 offset; Index==1 onset
        for ( n = 0; n < 2; n++ )
        {
            if ( n && MatrC[0][i] == MatrC[1][i] )
                continue;
            assert( MatrC[n][i] );
            CubeNew[0] = ~MatrS[i] & MatrC[n][i];
            CubeNew[1] =  MatrS[i] & MatrC[n][i];
            assert( CubeNew[0] || CubeNew[1] );
            nCubes[Index] = Sbd_ManAddCube2( Cubes[Index], nCubes[Index], CubeNew );
        }
    }

    if ( p->pPars->fVerbose )
        printf( "Generated matrix with %d x %d entries.\n", nCubes[0], nCubes[1] );

    if ( p->pPars->fVerbose )
    for ( n = 0; n < 2; n++ )
    {
        printf( "%s:\n", n ? "Onset" : "Offset" );
        for ( i = 0; i < nCubes[n]; i++, printf( "\n" ) )
            for ( k = 0; k < 64; k++ )
                if ( Abc_TtGetBit(&Cubes[n][0][i], k) )
                    printf( "0" );
                else if ( Abc_TtGetBit(&Cubes[n][1][i], k) )
                    printf( "1" );
                else
                    printf( "." );
        printf( "\n" );
    }

    // create covering table
    nRows = 0;
    for ( i = 0; i < nCubes[0] && nRows < 32; i++ )
    for ( k = 0; k < nCubes[1] && nRows < 32; k++ )
    {
        Cube = (Cubes[0][1][i] & Cubes[1][0][k]) | (Cubes[0][0][i] & Cubes[1][1][k]);
        assert( Cube );
        nRows = Sbd_ManAddCube1( 64, Cover, nRows, Cube );
    }

    Sbd_ManCoverReverseOrder( Cover );

    if ( p->pPars->fVerbose )
        printf( "Generated cover with %d entries.\n", nRows );

    //if ( p->pPars->fVerbose )
    //Sbd_PrintMatrix64( Cover );
    Sbd_TransposeMatrix64( Cover );
    //if ( p->pPars->fVerbose )
    //Sbd_PrintMatrix64( Cover );

    Sbd_ManCoverReverseOrder( Cover );

    nRowsOld = nRows;
    for ( nIters = 0; nIters < nItersMax && nRows < 64; nIters++ )
    {
        if ( p->pPars->fVerbose )
            Sbd_ManMatrPrint( p, Cover, nDivs, nRows );

        clk = Abc_Clock();
        if ( !Sbd_ManFindCands( p, Cover, nDivs ) )
        {
            if ( p->pPars->fVerbose )
                printf( "Cannot find a feasible cover.\n" );
            p->timeCov += Abc_Clock() - clk;
            return RetValue;
        }
        p->timeCov += Abc_Clock() - clk;

        if ( p->pPars->fVerbose )
            printf( "Candidate support:  " ),
            Vec_IntPrint( p->vDivSet );

        clk = Abc_Clock();
        *pTruth = Sbd_ManSolve( p->pSat, PivotVar, FreeVar+nIters, p->vDivSet, p->vDivVars, p->vDivValues, p->vLits );
        p->timeSat += Abc_Clock() - clk;

        if ( *pTruth == SBD_SAT_UNDEC )
            printf( "Node %d:  Undecided.\n", Pivot );
        else if ( *pTruth == SBD_SAT_SAT )
        {
            if ( p->pPars->fVerbose )
            {
                int i;
                printf( "Node %d:  SAT.\n", Pivot );
                for ( i = 0; i < nDivs; i++ )
                    printf( "%d", i % 10 );
                printf( "\n" );
                for ( i = 0; i < nDivs; i++ )
                    printf( "%c", (Vec_IntEntry(p->vDivValues, i) & 0x4) ? '0' + (Vec_IntEntry(p->vDivValues, i) & 1) : 'x' );
                printf( "\n" );
                for ( i = 0; i < nDivs; i++ )
                    printf( "%c", (Vec_IntEntry(p->vDivValues, i) & 0x8) ? '0' + ((Vec_IntEntry(p->vDivValues, i) >> 1) & 1) : 'x' );
                printf( "\n" );
            }
            // add row to the covering table
            for ( i = 0; i < nDivs; i++ )
                if ( Vec_IntEntry(p->vDivValues, i) == 0xE || Vec_IntEntry(p->vDivValues, i) == 0xD )
                    Cover[i] |= ((word)1 << nRows);
            Cover[nDivs] |= ((word)1 << nRows);
            nRows++;
        }
        else
        {
            if ( p->pPars->fVerbose )
            {
                printf( "Node %d:  UNSAT.\n", Pivot );
                Extra_PrintBinary( stdout, (unsigned *)pTruth, 1 << Vec_IntSize(p->vDivSet) ), printf( "\n" );
            }
            RetValue = 1;
            break;
        }
        //break;
    }
    return RetValue;
}

Here is the call graph for this function:

Sbd_ManExplore2()

int Sbd_ManExplore2	(	Sbd_Man_t *	p,
		int	Pivot,
		word *	pTruth )

Definition at line 1170 of file sbdCore.c.

{
    abctime clk;
    word Onset[64] = {0}, Offset[64] = {0}, Cube;
    word CoverRows[64] = {0}, CoverCols[64] = {0};
    int nIters, nItersMax = 32;
    int i, k, nRows = 0;

    int PivotVar = Vec_IntEntry(p->vObj2Var, Pivot);
    int FreeVar = Vec_IntSize(p->vWinObjs) + Vec_IntSize(p->vTfo) + Vec_IntSize(p->vRoots);
    int nDivs = Vec_IntSize( p->vDivVars );
    int nConsts = 4;
    int RetValue;

    clk = Abc_Clock();
    //sat_solver_delete_p( &p->pSat );
    p->pSat = Sbd_ManSatSolver( p->pSat, p->pGia, p->vMirrors, Pivot, p->vWinObjs, p->vObj2Var, p->vTfo, p->vRoots, 0 );
    p->timeCnf += Abc_Clock() - clk;

    assert( nConsts <= 8 );
    clk = Abc_Clock();
    RetValue = Sbd_ManCollectConstantsNew( p->pSat, p->vDivVars, nConsts, PivotVar, Onset, Offset );
    p->timeSat += Abc_Clock() - clk;
    if ( RetValue >= 0 )
    {
        if ( p->pPars->fVeryVerbose )
            printf( "Found stuck-at-%d node %d.\n", RetValue, Pivot );
        Vec_IntWriteEntry( p->vLutLevs, Pivot, 0 );
        p->nLuts[0]++;
        return RetValue;
    }
    RetValue = 0;

    // create rows of the table
    nRows = 0;
    for ( i = 0; i < nConsts; i++ )
    for ( k = 0; k < nConsts; k++ )
    {
        Cube = Onset[i] ^ Offset[k];
        assert( Cube );
        nRows = Sbd_ManAddCube1( 256, CoverRows, nRows, Cube );
    }
    assert( nRows <= 64 );

    // create columns of the table
    for ( i = 0; i < nRows; i++ )
        for ( k = 0; k <= nDivs; k++ )
            if ( (CoverRows[i] >> k) & 1 )
                Abc_TtXorBit(&CoverCols[k], i);

    // solve the covering problem
    for ( nIters = 0; nIters < nItersMax && nRows < 64; nIters++ )
    {
        if ( p->pPars->fVeryVerbose )
            Sbd_ManMatrPrint( p, CoverCols, nDivs, nRows );

        clk = Abc_Clock();
        if ( !Sbd_ManFindCands( p, CoverCols, nDivs ) )
        {
            if ( p->pPars->fVeryVerbose )
                printf( "Cannot find a feasible cover.\n" );
            p->timeCov += Abc_Clock() - clk;
            return 0;
        }
        p->timeCov += Abc_Clock() - clk;

        if ( p->pPars->fVeryVerbose )
            printf( "Candidate support:  " ),
            Vec_IntPrint( p->vDivSet );

        clk = Abc_Clock();
        *pTruth = Sbd_ManSolve( p->pSat, PivotVar, FreeVar+nIters, p->vDivSet, p->vDivVars, p->vDivValues, p->vLits );
        p->timeSat += Abc_Clock() - clk;

        if ( *pTruth == SBD_SAT_UNDEC )
            printf( "Node %d:  Undecided.\n", Pivot );
        else if ( *pTruth == SBD_SAT_SAT )
        {
            if ( p->pPars->fVeryVerbose )
            {
                int i;
                printf( "Node %d:  SAT.\n", Pivot );
                for ( i = 0; i < nDivs; i++ )
                    printf( "%d", Vec_IntEntry(p->vLutLevs, Vec_IntEntry(p->vWinObjs, Vec_IntEntry(p->vDivVars, i))) );
                printf( "\n" );
                for ( i = 0; i < nDivs; i++ )
                    printf( "%d", i % 10 );
                printf( "\n" );
                for ( i = 0; i < nDivs; i++ )
                    printf( "%c", (Vec_IntEntry(p->vDivValues, i) & 0x4) ? '0' + (Vec_IntEntry(p->vDivValues, i) & 1) : 'x' );
                printf( "\n" );
                for ( i = 0; i < nDivs; i++ )
                    printf( "%c", (Vec_IntEntry(p->vDivValues, i) & 0x8) ? '0' + ((Vec_IntEntry(p->vDivValues, i) >> 1) & 1) : 'x' );
                printf( "\n" );
            }
            // add row to the covering table
            for ( i = 0; i < nDivs; i++ )
                if ( Vec_IntEntry(p->vDivValues, i) == 0xE || Vec_IntEntry(p->vDivValues, i) == 0xD )
                    CoverCols[i] |= ((word)1 << nRows);
            CoverCols[nDivs] |= ((word)1 << nRows);
            nRows++;
        }
        else
        {
            if ( p->pPars->fVeryVerbose )
            {
                printf( "Node %d:  UNSAT.   ", Pivot );
                Extra_PrintBinary( stdout, (unsigned *)pTruth, 1 << Vec_IntSize(p->vDivSet) ), printf( "\n" );
            }
            p->nLuts[1]++;
            RetValue = 1;
            break;
        }
    }
    return RetValue;
}

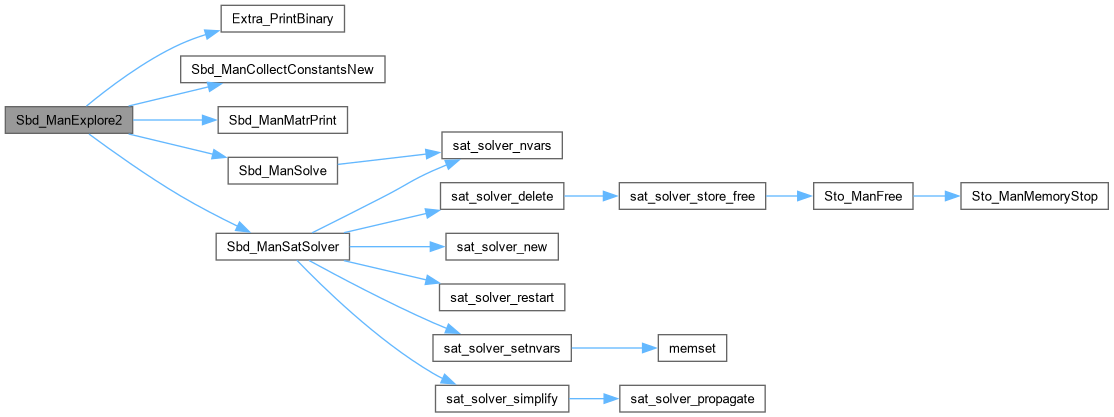

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManExplore3()

int Sbd_ManExplore3	(	Sbd_Man_t *	p,
		int	Pivot,
		int *	pnStrs,
		Sbd_Str_t *	Strs )

Definition at line 1564 of file sbdCore.c.

{
    int FreeVar = Vec_IntSize(p->vWinObjs) + Vec_IntSize(p->vTfo) + Vec_IntSize(p->vRoots);
    int FreeVarStart = FreeVar;
    int nSize, nLeaves, pLeaves[SBD_DIV_MAX];
    //sat_solver_delete_p( &p->pSat );
    abctime clk = Abc_Clock();
    p->pSat = Sbd_ManSatSolver( p->pSat, p->pGia, p->vMirrors, Pivot, p->vWinObjs, p->vObj2Var, p->vTfo, p->vRoots, 0 );
    p->timeCnf += Abc_Clock() - clk;
    // extract one cut
    if ( p->pSrv )
    {
        nLeaves = Sbd_ManCutServerFirst( p->pSrv, Pivot, pLeaves );
        if ( nLeaves == -1 )
            return 0;
        assert( nLeaves <= p->pPars->nCutSize );
        if ( Sbd_ManExploreCut( p, Pivot, nLeaves, pLeaves, pnStrs, Strs, &FreeVar ) )
            return 1;
        return 0;
    }
    // extract one cut
    for ( nSize = p->pPars->nLutSize + 1; nSize <= p->pPars->nCutSize; nSize++ )
    {
        nLeaves = Sbd_StoObjBestCut( p->pSto, Pivot, nSize, pLeaves );
        if ( nLeaves == -1 )
            continue;
        assert( nLeaves == nSize );
        if ( Sbd_ManExploreCut( p, Pivot, nLeaves, pLeaves, pnStrs, Strs, &FreeVar ) )
            return 1;
    }
    assert( FreeVar - FreeVarStart <= SBD_FVAR_MAX );
    return 0;
}

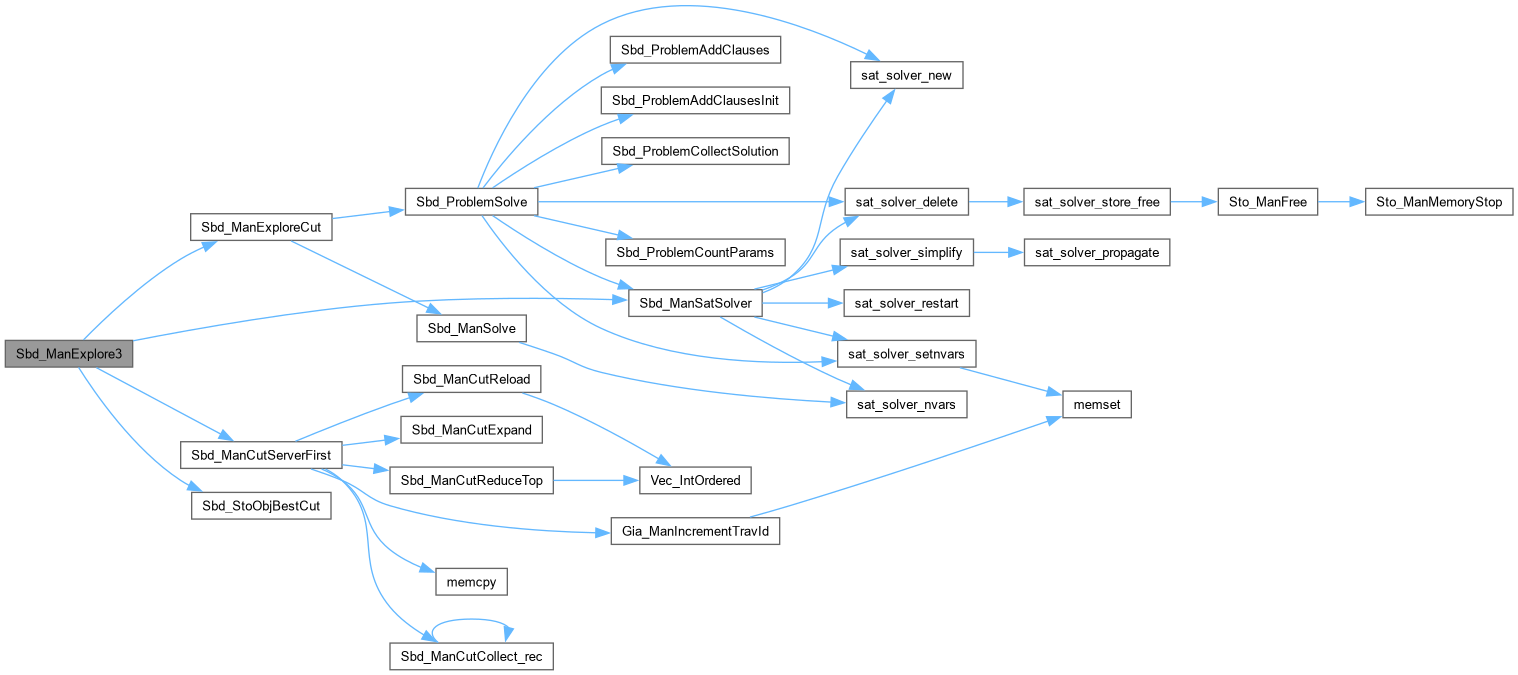

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManExploreCut()

int Sbd_ManExploreCut	(	Sbd_Man_t *	p,
		int	Pivot,
		int	nLeaves,
		int *	pLeaves,
		int *	pnStrs,
		Sbd_Str_t *	Strs,
		int *	pFreeVar )

Definition at line 1287 of file sbdCore.c.

{
    abctime clk = Abc_Clock();
    int PivotVar = Vec_IntEntry(p->vObj2Var, Pivot);
    int Delay = Vec_IntEntry( p->vLutLevs, Pivot );
    int pNodesTop[SBD_DIV_MAX], pNodesBot[SBD_DIV_MAX], pNodesBot1[SBD_DIV_MAX], pNodesBot2[SBD_DIV_MAX];
    int nNodesTop = 0, nNodesBot = 0, nNodesBot1 = 0, nNodesBot2 = 0, nNodesDiff = 0, nNodesDiff1 = 0, nNodesDiff2 = 0;
    int i, k, iObj, nIters, RetValue = 0;

    // try to remove fanins
    for ( nIters = 0; nIters < nLeaves; nIters++ )
    {
        word Truth;
        // try to remove one variable from divisors
        Vec_IntClear( p->vDivSet );
        for ( i = 0; i < nLeaves; i++ )
            if ( i != nLeaves-1-nIters && pLeaves[i] != -1 )
                Vec_IntPush( p->vDivSet, Vec_IntEntry(p->vObj2Var, pLeaves[i]) );
        assert( Vec_IntSize(p->vDivSet) < nLeaves );
        // compute truth table
        clk = Abc_Clock();
        Truth = Sbd_ManSolve( p->pSat, PivotVar, (*pFreeVar)++, p->vDivSet, p->vDivVars, p->vDivValues, p->vLits );
        p->timeSat += Abc_Clock() - clk;
        if ( Truth == SBD_SAT_UNDEC )
            printf( "Node %d:  Undecided.\n", Pivot );
        else if ( Truth == SBD_SAT_SAT )
        {
            int DelayDiff = Vec_IntEntry(p->vLutLevs, pLeaves[nLeaves-1-nIters]) - Delay;
            if ( DelayDiff > -2 )
                return 0;
        }
        else
            pLeaves[nLeaves-1-nIters] = -1;
    }
    Vec_IntClear( p->vDivSet );
    for ( i = 0; i < nLeaves; i++ )
        if ( pLeaves[i] != -1 )
            Vec_IntPush( p->vDivSet, pLeaves[i] );
    //printf( "Reduced %d -> %d\n", nLeaves, Vec_IntSize(p->vDivSet) );
    if ( Vec_IntSize(p->vDivSet) <= p->pPars->nLutSize )
    {
        word Truth;
        *pnStrs = 1;
        // remap divisors
        Vec_IntForEachEntry( p->vDivSet, iObj, i )
            Vec_IntWriteEntry( p->vDivSet, i, Vec_IntEntry(p->vObj2Var, iObj) );
        // compute truth table
        clk = Abc_Clock();
        Truth = Sbd_ManSolve( p->pSat, PivotVar, (*pFreeVar)++, p->vDivSet, p->vDivVars, p->vDivValues, p->vLits );
        p->timeSat += Abc_Clock() - clk;
        if ( Truth == SBD_SAT_SAT )
        {
            printf( "The cut at node %d is not topological.\n", p->Pivot );
            return 0;
        }
        assert( Truth != SBD_SAT_UNDEC && Truth != SBD_SAT_SAT );
        // create structure
        Strs->fLut = 1;
        Strs->nVarIns = Vec_IntSize( p->vDivSet );
        for ( i = 0; i < Strs->nVarIns; i++ )
            Strs->VarIns[i] = i;
        Strs->Res = Truth;
        p->nLuts[1]++;
        //Extra_PrintBinary( stdout, (unsigned *)&Truth, 1 << Strs->nVarIns ), printf( "\n" );
        return 1;
    }
    assert( Vec_IntSize(p->vDivSet) > p->pPars->nLutSize );

    // count number of nodes on each level
    nNodesTop = nNodesBot = nNodesBot1 = nNodesBot2 = 0;
    Vec_IntForEachEntry( p->vDivSet, iObj, i )
    {
        int DelayDiff = Vec_IntEntry(p->vLutLevs, iObj) - Delay;
        if ( DelayDiff > -2 )
            break;
        if ( DelayDiff == -2 )
            pNodesTop[nNodesTop++] = i;
        else // if ( DelayDiff < -2 )
        {
            pNodesBot[nNodesBot++] = i;
            if ( DelayDiff == -3 )
                pNodesBot1[nNodesBot1++] = i;
            else // if ( DelayDiff < -3 )
                pNodesBot2[nNodesBot2++] = i;
        }
        Vec_IntWriteEntry( p->vDivSet, i, Vec_IntEntry(p->vObj2Var, iObj) );
    }
    assert( nNodesBot == nNodesBot1 + nNodesBot2 );
    if ( i < Vec_IntSize(p->vDivSet) )
        return 0;
    if ( nNodesTop > p->pPars->nLutSize-1 )
        return 0;

    // try 44
    if ( Vec_IntSize(p->vDivSet) <= 2*p->pPars->nLutSize-1 )
    {
        int nMoved = 0;
        if ( nNodesBot > p->pPars->nLutSize ) // need to move bottom left-over to the top
        {
            while ( nNodesBot > p->pPars->nLutSize )
                pNodesTop[nNodesTop++] = pNodesBot[--nNodesBot], nMoved++;
            assert( nNodesBot == p->pPars->nLutSize );
        }
        assert( nNodesBot <= p->pPars->nLutSize );
        assert( nNodesTop <= p->pPars->nLutSize-1 );

        Strs[0].fLut = 1;
        Strs[0].nVarIns = p->pPars->nLutSize;
        for ( i = 0; i < nNodesTop; i++ )
            Strs[0].VarIns[i] = pNodesTop[i];
        for ( ; i < p->pPars->nLutSize; i++ )
            Strs[0].VarIns[i] = Vec_IntSize(p->vDivSet)+1 + i-nNodesTop;
        Strs[0].Res = 0;

        Strs[1].fLut = 1;
        Strs[1].nVarIns = nNodesBot;
        for ( i = 0; i < nNodesBot; i++ )
            Strs[1].VarIns[i] = pNodesBot[i];
        Strs[1].Res = 0;

        nNodesDiff = p->pPars->nLutSize-1 - nNodesTop;
        assert( nNodesDiff >= 0 && nNodesDiff <= 3 );
        for ( k = 0; k < nNodesDiff; k++ )
        {
            Strs[2+k].fLut = 0;
            Strs[2+k].nVarIns = nNodesBot;
            for ( i = 0; i < nNodesBot; i++ )
                Strs[2+k].VarIns[i] = pNodesBot[i];
            Strs[2+k].Res = 0;
        }

        *pnStrs = 2 + nNodesDiff;
        clk = Abc_Clock();
        RetValue = Sbd_ProblemSolve( p->pGia, p->vMirrors,   Pivot, p->vWinObjs, p->vObj2Var, p->vTfo, p->vRoots,   p->vDivSet, *pnStrs, Strs );
        p->timeQbf += Abc_Clock() - clk;
        if ( RetValue )
            p->nLuts[2]++;

        while ( nMoved-- )
            pNodesBot[nNodesBot++] = pNodesTop[--nNodesTop];
    }

    if ( RetValue )
        return RetValue;
    if ( p->pPars->nLutNum < 3 )
        return 0;
    if ( Vec_IntSize(p->vDivSet) < 2*p->pPars->nLutSize-1 )
        return 0;

    // try 444 -- LUT(LUT, LUT)
    if ( nNodesTop <= p->pPars->nLutSize-2 )
    {
        int nMoved = 0;
        if ( nNodesBot > 2*p->pPars->nLutSize ) // need to move bottom left-over to the top
        {
            while ( nNodesBot > 2*p->pPars->nLutSize )
                pNodesTop[nNodesTop++] = pNodesBot[--nNodesBot], nMoved++;
            assert( nNodesBot == 2*p->pPars->nLutSize );
        }
        assert( nNodesBot > p->pPars->nLutSize );
        assert( nNodesBot <= 2*p->pPars->nLutSize );
        assert( nNodesTop <= p->pPars->nLutSize-2 );

        Strs[0].fLut = 1;
        Strs[0].nVarIns = p->pPars->nLutSize;
        for ( i = 0; i < nNodesTop; i++ )
            Strs[0].VarIns[i] = pNodesTop[i];
        for ( ; i < p->pPars->nLutSize; i++ )
            Strs[0].VarIns[i] = Vec_IntSize(p->vDivSet)+1 + i-nNodesTop;
        Strs[0].Res = 0;

        Strs[1].fLut = 1;
        Strs[1].nVarIns = p->pPars->nLutSize;
        for ( i = 0; i < Strs[1].nVarIns; i++ )
            Strs[1].VarIns[i] = pNodesBot[i];
        Strs[1].Res = 0;

        Strs[2].fLut = 1;
        Strs[2].nVarIns = p->pPars->nLutSize;
        for ( i = 0; i < Strs[2].nVarIns; i++ )
            Strs[2].VarIns[i] = pNodesBot[nNodesBot-p->pPars->nLutSize+i];
        Strs[2].Res = 0;

        nNodesDiff = p->pPars->nLutSize-2 - nNodesTop;
        assert( nNodesDiff >= 0 && nNodesDiff <= 2 );
        for ( k = 0; k < nNodesDiff; k++ )
        {
            Strs[3+k].fLut = 0;
            Strs[3+k].nVarIns = nNodesBot;
            for ( i = 0; i < nNodesBot; i++ )
                Strs[3+k].VarIns[i] = pNodesBot[i];
            Strs[3+k].Res = 0;
        }

        *pnStrs = 3 + nNodesDiff;
        clk = Abc_Clock();
        RetValue = Sbd_ProblemSolve( p->pGia, p->vMirrors,   Pivot, p->vWinObjs, p->vObj2Var, p->vTfo, p->vRoots,   p->vDivSet, *pnStrs, Strs );
        p->timeQbf += Abc_Clock() - clk;
        if ( RetValue )
            p->nLuts[3]++;

        while ( nMoved-- )
            pNodesBot[nNodesBot++] = pNodesTop[--nNodesTop];
    }
    if ( RetValue )
        return RetValue;

    // try 444 -- LUT(LUT(LUT))
    if ( nNodesBot1 + nNodesTop <= 2*p->pPars->nLutSize-2 )
    {
        if ( nNodesBot2 > p->pPars->nLutSize ) // need to move bottom left-over to the top
        {
            while ( nNodesBot2 > p->pPars->nLutSize )
                pNodesBot1[nNodesBot1++] = pNodesBot2[--nNodesBot2];
            assert( nNodesBot2 == p->pPars->nLutSize );
        }
        if ( nNodesBot1 > p->pPars->nLutSize-1 ) // need to move bottom left-over to the top
        {
            while ( nNodesBot1 > p->pPars->nLutSize-1 )
                pNodesTop[nNodesTop++] = pNodesBot1[--nNodesBot1];
            assert( nNodesBot1 == p->pPars->nLutSize-1 );
        }
        assert( nNodesBot2 <= p->pPars->nLutSize );
        assert( nNodesBot1 <= p->pPars->nLutSize-1 );
        assert( nNodesTop <= p->pPars->nLutSize-1 );

        Strs[0].fLut = 1;
        Strs[0].nVarIns = p->pPars->nLutSize;
        for ( i = 0; i < nNodesTop; i++ )
            Strs[0].VarIns[i] = pNodesTop[i];
        Strs[0].VarIns[i++] = Vec_IntSize(p->vDivSet)+1;
        for ( ; i < p->pPars->nLutSize; i++ )
            Strs[0].VarIns[i] = Vec_IntSize(p->vDivSet)+2 + i-nNodesTop;
        Strs[0].Res = 0;
        nNodesDiff1 = p->pPars->nLutSize-1 - nNodesTop;

        Strs[1].fLut = 1;
        Strs[1].nVarIns = p->pPars->nLutSize;
        for ( i = 0; i < nNodesBot1; i++ )
            Strs[1].VarIns[i] = pNodesBot1[i];
        Strs[1].VarIns[i++] = Vec_IntSize(p->vDivSet)+2;
        for ( ; i < p->pPars->nLutSize; i++ )
            Strs[1].VarIns[i] = Vec_IntSize(p->vDivSet)+2+nNodesDiff1 + i-nNodesBot1;
        Strs[1].Res = 0;
        nNodesDiff2 = p->pPars->nLutSize-1 - nNodesBot1;

        Strs[2].fLut = 1;
        Strs[2].nVarIns = nNodesBot2;
        for ( i = 0; i < Strs[2].nVarIns; i++ )
            Strs[2].VarIns[i] = pNodesBot2[i];
        Strs[2].Res = 0;

        nNodesDiff = nNodesDiff1 + nNodesDiff2;
        assert( nNodesDiff >= 0 && nNodesDiff <= 3 );
        for ( k = 0; k < nNodesDiff; k++ )
        {
            Strs[3+k].fLut = 0;
            Strs[3+k].nVarIns = nNodesBot2;
            for ( i = 0; i < nNodesBot2; i++ )
                Strs[3+k].VarIns[i] = pNodesBot2[i];
            Strs[3+k].Res = 0;
            if ( k >= nNodesDiff1 )
                continue;
            Strs[3+k].nVarIns += nNodesBot1;
            for ( i = 0; i < nNodesBot1; i++ )
                Strs[3+k].VarIns[nNodesBot2 + i] = pNodesBot1[i];
        }

        *pnStrs = 3 + nNodesDiff;
        clk = Abc_Clock();
        RetValue = Sbd_ProblemSolve( p->pGia, p->vMirrors,   Pivot, p->vWinObjs, p->vObj2Var, p->vTfo, p->vRoots,   p->vDivSet, *pnStrs, Strs );
        p->timeQbf += Abc_Clock() - clk;
        if ( RetValue )
            p->nLuts[4]++;
    }
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManFindCut()

void Sbd_ManFindCut	(	Sbd_Man_t *	p,
		int	Node,
		Vec_Int_t *	vCutLits )

Definition at line 1755 of file sbdCore.c.

{
    int pCut[SBD_MAX_LUTSIZE+1];
    int i, LevelMax = 0;
    // label reachable nodes
    Gia_Obj_t * pTemp, * pObj = Gia_ManObj(p->pGia, Node);
    Sbd_ManFindCut_rec( p->pGia, pObj );
    // collect
    pCut[0] = 0;
    Gia_ManForEachObjVec( vCutLits, p->pGia, pTemp, i )
        if ( pTemp->fMark1 )
        {
            LevelMax = Abc_MaxInt( LevelMax, Vec_IntEntry(p->vLutLevs, Gia_ObjId(p->pGia, pTemp)) );
            pCut[1+pCut[0]++] = Gia_ObjId(p->pGia, pTemp);
        }
    assert( pCut[0] <= p->pPars->nLutSize );
    // unlabel reachable nodes
    Sbd_ManFindCutUnmark_rec( p->pGia, pObj );
    // create cut
    assert( Vec_IntEntry(p->vLutLevs, Node) == 0 );
    Vec_IntWriteEntry( p->vLutLevs, Node, LevelMax+1 );
    //Vec_IntWriteEntry( p->vLevs, Node, 1+Abc_MaxInt(Vec_IntEntry(p->vLevs, Gia_ObjFaninId0(pObj, Node)), Vec_IntEntry(p->vLevs, Gia_ObjFaninId1(pObj, Node))) );
    memcpy( Sbd_ObjCut(p, Node), pCut, sizeof(int) * (pCut[0] + 1) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManFindCut_rec()

void Sbd_ManFindCut_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Definition at line 1733 of file sbdCore.c.

{
    if ( pObj->fMark1 )
        return;
    pObj->fMark1 = 1;
    if ( pObj->fMark0 )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    Sbd_ManFindCut_rec( p, Gia_ObjFanin0(pObj) );
    Sbd_ManFindCut_rec( p, Gia_ObjFanin1(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManFindCutUnmark_rec()

void Sbd_ManFindCutUnmark_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Definition at line 1744 of file sbdCore.c.

{
    if ( !pObj->fMark1 )
        return;
    pObj->fMark1 = 0;
    if ( pObj->fMark0 )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    Sbd_ManFindCutUnmark_rec( p, Gia_ObjFanin0(pObj) );
    Sbd_ManFindCutUnmark_rec( p, Gia_ObjFanin1(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManImplement()

int Sbd_ManImplement	(	Sbd_Man_t *	p,
		int	Pivot,
		word	Truth )

Definition at line 1780 of file sbdCore.c.

{
    Gia_Obj_t * pObj;
    int i, k, w, iLit, Entry, Node;
    int iObjLast = Gia_ManObjNum(p->pGia);
    int iCurLev = Vec_IntEntry(p->vLutLevs, Pivot);
    int iNewLev;
    // collect leaf literals
    Vec_IntClear( p->vLits );
    Vec_IntForEachEntry( p->vDivSet, Node, i )
    {
        Node = Vec_IntEntry( p->vWinObjs, Node );
        if ( Vec_IntEntry(p->vMirrors, Node) >= 0 )
            Vec_IntPush( p->vLits, Vec_IntEntry(p->vMirrors, Node) );
        else
            Vec_IntPush( p->vLits, Abc_Var2Lit(Node, 0) );
    }
    // pretend to have MUXes
//    assert( p->pGia->pMuxes == NULL );
    if ( p->pGia->nXors && p->pGia->pMuxes == NULL )
        p->pGia->pMuxes = (unsigned *)p;
    // derive new function of the node
    iLit = Dsm_ManTruthToGia( p->pGia, &Truth, p->vLits, p->vCover );
    if ( p->pGia->pMuxes == (unsigned *)p )
        p->pGia->pMuxes = NULL;
    // remember this function
    assert( Vec_IntEntry(p->vMirrors, Pivot) == -1 );
    Vec_IntWriteEntry( p->vMirrors, Pivot, iLit );
    if ( p->pPars->fVerbose )
        printf( "Replacing node %d by literal %d.\n", Pivot, iLit );
    // translate literals into variables
    Vec_IntForEachEntry( p->vLits, Entry, i )
        Vec_IntWriteEntry( p->vLits, i, Abc_Lit2Var(Entry) );
    // label inputs
    Gia_ManForEachObjVec( p->vLits, p->pGia, pObj, i )
        pObj->fMark0 = 1;
    // extend data-structure to accommodate new nodes
    assert( Vec_IntSize(p->vLutLevs) == iObjLast );
    for ( i = iObjLast; i < Gia_ManObjNum(p->pGia); i++ )
    {
        Vec_IntPush( p->vLutLevs, 0 );
        Vec_IntPush( p->vObj2Var, 0 );
        Vec_IntPush( p->vMirrors, -1 );
        Vec_IntFillExtra( p->vLutCuts, Vec_IntSize(p->vLutCuts) + p->pPars->nLutSize + 1, 0 );
        Sbd_ManFindCut( p, i, p->vLits );
        for ( k = 0; k < 4; k++ )
            for ( w = 0; w < p->pPars->nWords; w++ )
                Vec_WrdPush( p->vSims[k], 0 );
    }
    // unlabel inputs
    Gia_ManForEachObjVec( p->vLits, p->pGia, pObj, i )
        pObj->fMark0 = 0;
    // make sure delay reduction is achieved
    iNewLev = Vec_IntEntry( p->vLutLevs, Abc_Lit2Var(iLit) );
    assert( iNewLev < iCurLev );
    // update delay of the initial node
    assert( Vec_IntEntry(p->vLutLevs, Pivot) == iCurLev );
    Vec_IntWriteEntry( p->vLutLevs, Pivot, iNewLev );
    //Vec_IntWriteEntry( p->vLevs, Pivot, 1+Abc_MaxInt(Vec_IntEntry(p->vLevs, Gia_ObjFaninId0(pObj, Pivot)), Vec_IntEntry(p->vLevs, Gia_ObjFaninId1(pObj, Pivot))) );
    return 0;
}

Here is the call graph for this function:

Sbd_ManImplement2()

int Sbd_ManImplement2	(	Sbd_Man_t *	p,
		int	Pivot,
		int	nStrs,
		Sbd_Str_t *	pStrs )

Definition at line 1842 of file sbdCore.c.

{
    //Gia_Obj_t * pObj = NULL;
    int i, k, w, iLit, Node;
    int iObjLast = Gia_ManObjNum(p->pGia);
    int iCurLev = Vec_IntEntry(p->vLutLevs, Pivot);
    int iNewLev;
    // collect leaf literals
    Vec_IntClear( p->vLits );
    Vec_IntForEachEntry( p->vDivSet, Node, i )
    {
        Node = Vec_IntEntry( p->vWinObjs, Node );
        if ( Vec_IntEntry(p->vMirrors, Node) >= 0 )
            Vec_IntPush( p->vLits, Vec_IntEntry(p->vMirrors, Node) );
        else
            Vec_IntPush( p->vLits, Abc_Var2Lit(Node, 0) );
    }
    // collect structure nodes
    for ( i = 0; i < nStrs; i++ )
        Vec_IntPush( p->vLits, -1 );
    // implement structures
    for ( i = nStrs-1; i >= 0; i-- )
    {
        if ( pStrs[i].fLut )
        {
            // collect local literals
            Vec_IntClear( p->vLits2 );
            for ( k = 0; k < (int)pStrs[i].nVarIns; k++ )
                Vec_IntPush( p->vLits2, Vec_IntEntry(p->vLits, pStrs[i].VarIns[k]) );
            // pretend to have MUXes
        //    assert( p->pGia->pMuxes == NULL );
            if ( p->pGia->nXors && p->pGia->pMuxes == NULL )
                p->pGia->pMuxes = (unsigned *)p;
            // derive new function of the node
            iLit = Dsm_ManTruthToGia( p->pGia, &pStrs[i].Res, p->vLits2, p->vCover );
            if ( p->pGia->pMuxes == (unsigned *)p )
                p->pGia->pMuxes = NULL;
        }
        else
        {
            iLit = Vec_IntEntry( p->vLits, (int)pStrs[i].Res );
            assert( iLit > 0 );
        }
        // update literal
        assert( Vec_IntEntry(p->vLits, Vec_IntSize(p->vLits)-nStrs+i) == -1 );
        Vec_IntWriteEntry( p->vLits, Vec_IntSize(p->vLits)-nStrs+i, iLit );
    }
    iLit = Vec_IntEntry( p->vLits, Vec_IntSize(p->vDivSet) );
    //assert( iObjLast == Gia_ManObjNum(p->pGia) || Abc_Lit2Var(iLit) == Gia_ManObjNum(p->pGia)-1 );
    // remember this function
    assert( Vec_IntEntry(p->vMirrors, Pivot) == -1 );
    Vec_IntWriteEntry( p->vMirrors, Pivot, iLit );
    if ( p->pPars->fVeryVerbose )
        printf( "Replacing node %d by literal %d.\n", Pivot, iLit );

    // extend data-structure to accommodate new nodes
    assert( Vec_IntSize(p->vLutLevs) == iObjLast );
    for ( i = iObjLast; i < Gia_ManObjNum(p->pGia); i++ )
    {
        assert( i == Vec_IntSize(p->vMirrors) );
        Vec_IntPush( p->vMirrors, -1 );
        Sbd_StoRefObj( p->pSto, i, i == Gia_ManObjNum(p->pGia)-1 ? Pivot : -1 );
    }
    Sbd_StoDerefObj( p->pSto, Pivot );
    for ( i = iObjLast; i < Gia_ManObjNum(p->pGia); i++ )
    {
        //Gia_Obj_t * pObjI = Gia_ManObj( p->pGia, i );
        abctime clk = Abc_Clock();
        int Delay = Sbd_StoComputeCutsNode( p->pSto, i );
        p->timeCut += Abc_Clock() - clk;
        assert( i == Vec_IntSize(p->vLutLevs) );
        Vec_IntPush( p->vLutLevs, Delay );
        //Vec_IntPush( p->vLevs, 1+Abc_MaxInt(Vec_IntEntry(p->vLevs, Gia_ObjFaninId0(pObjI, i)), Vec_IntEntry(p->vLevs, Gia_ObjFaninId1(pObjI, i))) );
        Vec_IntPush( p->vObj2Var, 0 );
        Vec_IntFillExtra( p->vLutCuts, Vec_IntSize(p->vLutCuts) + p->pPars->nLutSize + 1, 0 );
        Sbd_StoSaveBestDelayCut( p->pSto, i, Sbd_ObjCut(p, i) );
        //Sbd_ManFindCut( p, i, p->vLits );
        for ( k = 0; k < 4; k++ )
            for ( w = 0; w < p->pPars->nWords; w++ )
                Vec_WrdPush( p->vSims[k], 0 );
    }
    // make sure delay reduction is achieved
    iNewLev = Vec_IntEntry( p->vLutLevs, Abc_Lit2Var(iLit) );
    assert( !iNewLev || iNewLev < iCurLev );
    // update delay of the initial node
    //pObj = Gia_ManObj( p->pGia, Pivot );
    assert( Vec_IntEntry(p->vLutLevs, Pivot) == iCurLev );
    Vec_IntWriteEntry( p->vLutLevs, Pivot, iNewLev );
    //Vec_IntWriteEntry( p->vLevs, Pivot, Pivot ? 1+Abc_MaxInt(Vec_IntEntry(p->vLevs, Gia_ObjFaninId0(pObj, Pivot)), Vec_IntEntry(p->vLevs, Gia_ObjFaninId1(pObj, Pivot))) : 0 );
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManMatrPrint()

void Sbd_ManMatrPrint	(	Sbd_Man_t *	p,
		word	Cover[],
		int	nCol,
		int	nRows )

Definition at line 816 of file sbdCore.c.

{
    int i, k;
    for ( i = 0; i <= nCol; i++ )
    {
        printf( "%2d : ", i );
        printf( "%d ", i == nCol ? Vec_IntEntry(p->vLutLevs, p->Pivot) : Vec_IntEntry(p->vLutLevs, Vec_IntEntry(p->vWinObjs, Vec_IntEntry(p->vDivVars, i))) );
        for ( k = 0; k < nRows; k++ )
            printf( "%d", (int)((Cover[i] >> k) & 1) );
        printf( "\n");
    }
    printf( "\n");
}

Here is the caller graph for this function:

Sbd_ManMergeCuts()

int Sbd_ManMergeCuts	(	Sbd_Man_t *	p,
		int	Node )

Definition at line 1670 of file sbdCore.c.

{
    int pCut11[2*SBD_MAX_LUTSIZE+1];
    int pCut01[2*SBD_MAX_LUTSIZE+1];
    int pCut10[2*SBD_MAX_LUTSIZE+1];
    int pCut00[2*SBD_MAX_LUTSIZE+1];
    int iFan0   = Gia_ObjFaninId0( Gia_ManObj(p->pGia, Node), Node );
    int iFan1   = Gia_ObjFaninId1( Gia_ManObj(p->pGia, Node), Node );
    int Level0  = Vec_IntEntry( p->vLutLevs, iFan0 ) ? Vec_IntEntry( p->vLutLevs, iFan0 ) : 1;
    int Level1  = Vec_IntEntry( p->vLutLevs, iFan1 ) ? Vec_IntEntry( p->vLutLevs, iFan1 ) : 1;
    int * pCut0 = Sbd_ObjCut( p, iFan0 );
    int * pCut1 = Sbd_ObjCut( p, iFan1 );
    int Cut0[2] = {1, iFan0};
    int Cut1[2] = {1, iFan1};
    int nSize11 = Sbd_CutMergeSimple( p, pCut0, pCut1, pCut11 );
    int nSize01 = Sbd_CutMergeSimple( p,  Cut0, pCut1, pCut01 );
    int nSize10 = Sbd_CutMergeSimple( p, pCut0,  Cut1, pCut10 );
    int nSize00 = Sbd_CutMergeSimple( p,  Cut0,  Cut1, pCut00 );
    int Lev11   = nSize11 <= p->pPars->nLutSize ? Abc_MaxInt(Level0,   Level1)   : ABC_INFINITY;
    int Lev01   = nSize01 <= p->pPars->nLutSize ? Abc_MaxInt(Level0+1, Level1)   : ABC_INFINITY;
    int Lev10   = nSize10 <= p->pPars->nLutSize ? Abc_MaxInt(Level0,   Level1+1) : ABC_INFINITY;
    int Lev00   = nSize00 <= p->pPars->nLutSize ? Abc_MaxInt(Level0+1, Level1+1) : ABC_INFINITY;
    int * pCutRes = pCut11;
    int LevCur    = Lev11;
    if ( Lev01 < LevCur || (Lev01 == LevCur && pCut01[0] < pCutRes[0]) )
    {
        pCutRes = pCut01;
        LevCur  = Lev01;
    }
    if ( Lev10 < LevCur || (Lev10 == LevCur && pCut10[0] < pCutRes[0]) )
    {
        pCutRes = pCut10;
        LevCur  = Lev10;
    }
    if ( Lev00 < LevCur || (Lev00 == LevCur && pCut00[0] < pCutRes[0]) )
    {
        pCutRes = pCut00;
        LevCur  = Lev00;
    }
    assert( iFan0 != iFan1 );
    assert( Vec_IntEntry(p->vLutLevs, Node) == 0 );
    Vec_IntWriteEntry( p->vLutLevs, Node, LevCur );
    //Vec_IntWriteEntry( p->vLevs, Node, 1+Abc_MaxInt(Vec_IntEntry(p->vLevs, iFan0), Vec_IntEntry(p->vLevs, iFan1)) );
    assert( pCutRes[0] <= p->pPars->nLutSize );
    memcpy( Sbd_ObjCut(p, Node), pCutRes, sizeof(int) * (pCutRes[0] + 1) );
//printf( "Setting node %d with delay %d.\n", Node, LevCur );
    return LevCur == 1; // LevCur == Abc_MaxInt(Level0, Level1);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManMergeTest()

void Sbd_ManMergeTest

(

Sbd_Man_t *

p

)

Definition at line 1725 of file sbdCore.c.

{
    int Node;
    Gia_ManForEachAndId( p->pGia, Node )
        Sbd_ManMergeCuts( p, Node );
    printf( "Delay %d.\n", Sbd_ManDelay(p) );
}

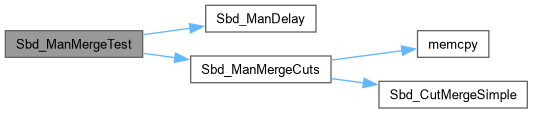

Here is the call graph for this function:

Sbd_ManPrintObj()

void Sbd_ManPrintObj	(	Sbd_Man_t *	p,
		int	Pivot )

Function*************************************************************

Synopsis [Profiling divisor candidates.]

Description []

SideEffects []

SeeAlso []

Definition at line 659 of file sbdCore.c.

{
    int nDivs = Vec_IntEntry(p->vObj2Var, Pivot) + 1;
    int i, k, k0, k1, Id, Bit0, Bit1;

    Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        printf( "%3d : ", Id ), Extra_PrintBinary( stdout, (unsigned *)Sbd_ObjSim0(p, Id), 64 ), printf( "\n" );

    assert( p->Pivot == Pivot );
    Vec_IntClear( p->vCounts[0] );
    Vec_IntClear( p->vCounts[1] );

    printf( "Node %d.  Useful divisors = %d.\n", Pivot, Vec_IntSize(p->vDivValues) );
    printf( "Lev : " );
    Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
    {
        if ( i == nDivs-1 )
            printf( " " );
        printf( "%d", Vec_IntEntry(p->vLutLevs, Id) );
    }
    printf( "\n" );
    printf( "\n" );

    if ( nDivs > 99 )
    {
        printf( "    : " );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            if ( i == nDivs-1 )
                printf( " " );
            printf( "%d", Id / 100 );
        }
        printf( "\n" );
    }
    if ( nDivs > 9 )
    {
        printf( "    : " );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            if ( i == nDivs-1 )
                printf( " " );
            printf( "%d", (Id % 100) / 10 );
        }
        printf( "\n" );
    }
    if ( nDivs > 0 )
    {
        printf( "    : " );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            if ( i == nDivs-1 )
                printf( " " );
            printf( "%d", Id % 10 );
        }
        printf( "\n" );
        printf( "\n" );
    }

    // sampling matrix
    for ( k = 0; k < p->pPars->nWords * 64; k++ )
    {
        if ( !Abc_TtGetBit(Sbd_ObjSim2(p, Pivot), k) )
            continue;

        printf( "%3d : ", k );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            word * pSims = Sbd_ObjSim0( p, Id );
            word * pCtrl = Sbd_ObjSim2( p, Id );
            if ( i == nDivs-1 )
            {
                if ( Abc_TtGetBit(pCtrl, k) )
                    Vec_IntPush( p->vCounts[Abc_TtGetBit(pSims, k)], k );
                printf( " " );
            }
            printf( "%c", Abc_TtGetBit(pCtrl, k) ? '0' + Abc_TtGetBit(pSims, k) : '.' );
        }
        printf( "\n" );

        printf( "%3d : ", k );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            word * pSims = Sbd_ObjSim0( p, Id );
            word * pCtrl = Sbd_ObjSim3( p, Id );
            if ( i == nDivs-1 )
            {
                if ( Abc_TtGetBit(pCtrl, k) )
                    Vec_IntPush( p->vCounts[Abc_TtGetBit(pSims, k)], k );
                printf( " " );
            }
            printf( "%c", Abc_TtGetBit(pCtrl, k) ? '0' + Abc_TtGetBit(pSims, k) : '.' );
        }
        printf( "\n" );

        printf( "Sims: " );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            word * pSims = Sbd_ObjSim0( p, Id );
            //word * pCtrl = Sbd_ObjSim2( p, Id );
            if ( i == nDivs-1 )
                printf( " " );
            printf( "%c", '0' + Abc_TtGetBit(pSims, k) );
        }
        printf( "\n" );

        printf( "Ctrl: " );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            //word * pSims = Sbd_ObjSim0( p, Id );
            word * pCtrl = Sbd_ObjSim2( p, Id );
            if ( i == nDivs-1 )
                printf( " " );
            printf( "%c", '0' + Abc_TtGetBit(pCtrl, k) );
        }
        printf( "\n" );


        printf( "\n" );
    }
    // covering table
    printf( "Exploring %d x %d covering table.\n", Vec_IntSize(p->vCounts[0]), Vec_IntSize(p->vCounts[1]) );
/*
    Vec_IntForEachEntryStop( p->vCounts[0], Bit0, k0, Abc_MinInt(Vec_IntSize(p->vCounts[0]), 8) )
    Vec_IntForEachEntryStop( p->vCounts[1], Bit1, k1, Abc_MinInt(Vec_IntSize(p->vCounts[1]), 8) )
    {
        printf( "%3d %3d : ", Bit0, Bit1 );
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            word * pSims = Sbd_ObjSim0( p, Id );
            word * pCtrl = Sbd_ObjSim2( p, Id );
            if ( i == nDivs-1 )
                printf( " " );
            printf( "%c", (Abc_TtGetBit(pCtrl, Bit0) && Abc_TtGetBit(pCtrl, Bit1) && Abc_TtGetBit(pSims, Bit0) != Abc_TtGetBit(pSims, Bit1)) ? '1' : '.' );
        }
        printf( "\n" );
    }
*/
    Vec_WrdClear( p->vMatrix );
    Vec_IntForEachEntryStop( p->vCounts[0], Bit0, k0, Abc_MinInt(Vec_IntSize(p->vCounts[0]), 64) )
    Vec_IntForEachEntryStop( p->vCounts[1], Bit1, k1, Abc_MinInt(Vec_IntSize(p->vCounts[1]), 64) )
    {
        word Row = 0;
        Vec_IntForEachEntryStop( p->vWinObjs, Id, i, nDivs )
        {
            word * pSims = Sbd_ObjSim0( p, Id );
            word * pCtrl = Sbd_ObjSim2( p, Id );
            if ( Abc_TtGetBit(pCtrl, Bit0) && Abc_TtGetBit(pCtrl, Bit1) && Abc_TtGetBit(pSims, Bit0) != Abc_TtGetBit(pSims, Bit1) )
                Abc_TtXorBit( &Row, i );
        }
        if ( Vec_WrdPushUnique( p->vMatrix, Row ) )
            continue;
        for ( i = 0; i < nDivs; i++ )
            printf( "%d", (int)((Row >> i) & 1) );
        printf( "\n" );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManPropagateControl()

void Sbd_ManPropagateControl	(	Sbd_Man_t *	p,
		int	Pivot )

Definition at line 322 of file sbdCore.c.

{
    abctime clk = Abc_Clock();
    int i, Node;
    Abc_TtCopy( Sbd_ObjSim3(p, Pivot), Sbd_ObjSim2(p, Pivot), p->pPars->nWords, 0 );
    // clean controlability
    for ( i = 0; i < Vec_IntEntry(p->vObj2Var, Pivot) && ((Node = Vec_IntEntry(p->vWinObjs, i)), 1); i++ )
    {
        Abc_TtClear( Sbd_ObjSim2(p, Node), p->pPars->nWords );
        Abc_TtClear( Sbd_ObjSim3(p, Node), p->pPars->nWords );
        //printf( "Clearing node %d.\n", Node );
    }
    // propagate controlability to fanins for the TFI nodes starting from the pivot
    for ( i = Vec_IntEntry(p->vObj2Var, Pivot); i >= 0 && ((Node = Vec_IntEntry(p->vWinObjs, i)), 1); i-- )
        if ( Gia_ObjIsAnd(Gia_ManObj(p->pGia, Node)) )
            Sbd_ManPropagateControlOne( p, Node );
    p->timeWin += Abc_Clock() - clk;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManPropagateControlOne()

void Sbd_ManPropagateControlOne	(	Sbd_Man_t *	p,
		int	Node )

Function*************************************************************

Synopsis [Constructing window.]

Description []

SideEffects []

SeeAlso []

Definition at line 289 of file sbdCore.c.

{
    Gia_Obj_t * pNode = Gia_ManObj(p->pGia, Node);  int w;
    int iObj0 = Gia_ObjFaninId0(pNode, Node);
    int iObj1 = Gia_ObjFaninId1(pNode, Node);

//    word * pSims  = Sbd_ObjSim0(p, Node);
//    word * pSims0 = Sbd_ObjSim0(p, iObj0);
//    word * pSims1 = Sbd_ObjSim0(p, iObj1);

    word * pCtrl  = Sbd_ObjSim2(p, Node);
    word * pCtrl0 = Sbd_ObjSim2(p, iObj0);
    word * pCtrl1 = Sbd_ObjSim2(p, iObj1);

    word * pDtrl  = Sbd_ObjSim3(p, Node);
    word * pDtrl0 = Sbd_ObjSim3(p, iObj0);
    word * pDtrl1 = Sbd_ObjSim3(p, iObj1);

//    Gia_ObjPrint( p->pGia, pNode );
//    printf( "Node %2d : %d %d\n\n", Node, (int)(pSims[0] & 1), (int)(pCtrl[0] & 1) );

    for ( w = 0; w < p->pPars->nWords; w++ )
    {
//        word Sim0 = Gia_ObjFaninC0(pNode) ? ~pSims0[w] : pSims0[w];
//        word Sim1 = Gia_ObjFaninC1(pNode) ? ~pSims1[w] : pSims1[w];

        pCtrl0[w] |= pCtrl[w];// & (pSims[w] | Sim1 | (~Sim0 & ~Sim1));
        pCtrl1[w] |= pCtrl[w];// & (pSims[w] | Sim0 | (~Sim0 & ~Sim1));

        pDtrl0[w] |= pDtrl[w];// & (pSims[w] | Sim1 | (~Sim0 & ~Sim1));
        pDtrl1[w] |= pDtrl[w];// & (pSims[w] | Sim0 | (~Sim0 & ~Sim1));
    }
}

Here is the caller graph for this function:

Sbd_ManStart()

Sbd_Man_t * Sbd_ManStart	(	Gia_Man_t *	pGia,
		Sbd_Par_t *	pPars )

Function*************************************************************

Synopsis [Manager manipulation.]

Description []

SideEffects []

SeeAlso []

Definition at line 200 of file sbdCore.c.

{
    int i, w, Id;
    Sbd_Man_t * p = ABC_CALLOC( Sbd_Man_t, 1 );
    p->timeTotal  = Abc_Clock();
    p->pPars      = pPars;
    p->pGia       = pGia;
    p->vTfos      = Sbd_ManWindowRoots( pGia, pPars->nTfoLevels, pPars->nTfoFanMax );
    p->vLutLevs   = Vec_IntStart( Gia_ManObjNum(pGia) );
    p->vLutCuts   = Vec_IntStart( Gia_ManObjNum(pGia) * (p->pPars->nLutSize + 1) );
    p->vMirrors   = Vec_IntStartFull( Gia_ManObjNum(pGia) );
    for ( i = 0; i < 4; i++ )
        p->vSims[i] = Vec_WrdStart( Gia_ManObjNum(pGia) * p->pPars->nWords );
    // target node
    p->vCover     = Vec_IntAlloc( 100 );
    p->vLits      = Vec_IntAlloc( 100 );
    p->vLits2     = Vec_IntAlloc( 100 );
    p->vRoots     = Vec_IntAlloc( 100 );
    p->vWinObjs   = Vec_IntAlloc( Gia_ManObjNum(pGia) );
    p->vObj2Var   = Vec_IntStart( Gia_ManObjNum(pGia) );
    p->vDivSet    = Vec_IntAlloc( 100 );
    p->vDivVars   = Vec_IntAlloc( 100 );
    p->vDivValues = Vec_IntAlloc( 100 );
    p->vDivLevels = Vec_WecAlloc( 100 );
    p->vCounts[0] = Vec_IntAlloc( 100 );
    p->vCounts[1] = Vec_IntAlloc( 100 );
    p->vMatrix    = Vec_WrdAlloc( 100 );
    // start input cuts
    Gia_ManForEachCiId( pGia, Id, i )
    {
        int * pCut = Sbd_ObjCut( p, Id );
        pCut[0] = 1;
        pCut[1] = Id;
    }
    // generate random input
    Gia_ManRandom( 1 );
    Gia_ManForEachCiId( pGia, Id, i )
        for ( w = 0; w < p->pPars->nWords; w++ )
            Sbd_ObjSim0(p, Id)[w] = Gia_ManRandomW( 0 );
    // cut enumeration
    if ( pPars->fMoreCuts )
        p->pSto = Sbd_StoAlloc( pGia, p->vMirrors, pPars->nLutSize, pPars->nCutSize, pPars->nCutNum, !pPars->fMapping, 1 );
    else
    {
        p->pSto = Sbd_StoAlloc( pGia, p->vMirrors, pPars->nLutSize, pPars->nLutSize, pPars->nCutNum, !pPars->fMapping, 1 );
        p->pSrv = Sbd_ManCutServerStart( pGia, p->vMirrors, p->vLutLevs, NULL, NULL, pPars->nLutSize, pPars->nCutSize, pPars->nCutNum, 0 );
    }
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManStop()

void Sbd_ManStop

(

Sbd_Man_t *

p

)

Definition at line 249 of file sbdCore.c.

{
    int i;
    Vec_WecFree( p->vTfos );
    Vec_IntFree( p->vLutLevs );
    Vec_IntFree( p->vLutCuts );
    Vec_IntFree( p->vMirrors );
    for ( i = 0; i < 4; i++ )
        Vec_WrdFree( p->vSims[i] );
    Vec_IntFree( p->vCover );
    Vec_IntFree( p->vLits );
    Vec_IntFree( p->vLits2 );
    Vec_IntFree( p->vRoots );
    Vec_IntFree( p->vWinObjs );
    Vec_IntFree( p->vObj2Var );
    Vec_IntFree( p->vDivSet );
    Vec_IntFree( p->vDivVars );
    Vec_IntFree( p->vDivValues );
    Vec_WecFree( p->vDivLevels );
    Vec_IntFree( p->vCounts[0] );
    Vec_IntFree( p->vCounts[1] );
    Vec_WrdFree( p->vMatrix );
    sat_solver_delete_p( &p->pSat );
    if ( p->pSto ) Sbd_StoFree( p->pSto );
    if ( p->pSrv ) Sbd_ManCutServerStop( p->pSrv );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManUpdateOrder()

void Sbd_ManUpdateOrder	(	Sbd_Man_t *	p,
		int	Pivot )

Definition at line 340 of file sbdCore.c.

{
    int i, k, Node;
    Vec_Int_t * vLevel;
    int nTimeValidDivs = 0;
    // collect divisors by logic level
    int LevelMax = Vec_IntEntry(p->vLutLevs, Pivot);
    Vec_WecClear( p->vDivLevels );
    Vec_WecInit( p->vDivLevels, LevelMax + 1 );
    Vec_IntForEachEntry( p->vWinObjs, Node, i )
        Vec_WecPush( p->vDivLevels, Vec_IntEntry(p->vLutLevs, Node), Node );
    // reload divisors
    Vec_IntClear( p->vWinObjs );
    Vec_WecForEachLevel( p->vDivLevels, vLevel, i )
    {
        Vec_IntSort( vLevel, 0 );
        Vec_IntForEachEntry( vLevel, Node, k )
        {
            Vec_IntWriteEntry( p->vObj2Var, Node, Vec_IntSize(p->vWinObjs) );
            Vec_IntPush( p->vWinObjs, Node );
        }
        // remember divisor cutoff
        if ( i == LevelMax - 2 )
            nTimeValidDivs = Vec_IntSize(p->vWinObjs);
    }
    assert( nTimeValidDivs > 0 );
    Vec_IntClear( p->vDivVars );
    p->DivCutoff = -1;
    Vec_IntForEachEntryStartStop( p->vWinObjs, Node, i, Abc_MaxInt(0, nTimeValidDivs-63), nTimeValidDivs )
    {
        if ( p->DivCutoff == -1 && Vec_IntEntry(p->vLutLevs, Node) == LevelMax - 2 )
            p->DivCutoff = Vec_IntSize(p->vDivVars);
        Vec_IntPush( p->vDivVars, i );
    }
    if ( p->DivCutoff == -1 )
        p->DivCutoff = 0;
    // verify
/*
    assert( Vec_IntSize(p->vDivVars) < 64 );
    Vec_IntForEachEntryStart( p->vDivVars, Node, i, p->DivCutoff )
        assert( Vec_IntEntry(p->vLutLevs, Vec_IntEntry(p->vWinObjs, Node)) == LevelMax - 2 );
    Vec_IntForEachEntryStop( p->vDivVars, Node, i, p->DivCutoff )
        assert( Vec_IntEntry(p->vLutLevs, Vec_IntEntry(p->vWinObjs, Node)) < LevelMax - 2 );
*/
    Vec_IntFill( p->vDivValues, Vec_IntSize(p->vDivVars), 0 );
    //printf( "%d ", Vec_IntSize(p->vDivVars) );
//    printf( "Node %4d :  Win = %5d.   Divs = %5d.    D1 = %5d.  D2 = %5d.\n",
//        Pivot, Vec_IntSize(p->vWinObjs), Vec_IntSize(p->vDivVars), Vec_IntSize(p->vDivVars)-p->DivCutoff, p->DivCutoff );
}

Here is the caller graph for this function:

Sbd_ManWindow()

int Sbd_ManWindow	(	Sbd_Man_t *	p,
		int	Pivot )

Definition at line 444 of file sbdCore.c.

{
    abctime clk = Abc_Clock();
    int i, Node;
    // assign pivot and TFO (assume siminfo is assigned at the PIs)
    p->Pivot = Pivot;
    p->vTfo = Vec_WecEntry( p->vTfos, Pivot );
    // add constant node
    Vec_IntClear( p->vWinObjs );
    Vec_IntWriteEntry( p->vObj2Var, 0, Vec_IntSize(p->vWinObjs) );
    Vec_IntPush( p->vWinObjs, 0 );
    // simulate TFI cone
    Gia_ManIncrementTravId( p->pGia );
    Gia_ObjSetTravIdCurrentId(p->pGia, 0);
    Sbd_ManWindowSim_rec( p, Pivot );
    if ( p->pPars->nWinSizeMax && Vec_IntSize(p->vWinObjs) > p->pPars->nWinSizeMax )
    {
        p->timeWin += Abc_Clock() - clk;
        return 0;
    }
    Sbd_ManUpdateOrder( p, Pivot );
    assert( Vec_IntSize(p->vDivVars) == Vec_IntSize(p->vDivValues) );
    assert( Vec_IntSize(p->vDivVars) < Vec_IntSize(p->vWinObjs) );
    // simulate node
    Gia_ManObj(p->pGia, Pivot)->fMark0 = 1;
    Abc_TtCopy( Sbd_ObjSim1(p, Pivot), Sbd_ObjSim0(p, Pivot), p->pPars->nWords, 1 );
    // mark TFO and simulate extended TFI without adding TFO nodes
    Vec_IntClear( p->vRoots );
    Vec_IntForEachEntry( p->vTfo, Node, i )
    {
        Gia_ManObj(p->pGia, Abc_Lit2Var(Node))->fMark0 = 1;
        if ( !Abc_LitIsCompl(Node) )
            continue;
        Sbd_ManWindowSim_rec( p, Abc_Lit2Var(Node) );
        Vec_IntPush( p->vRoots, Abc_Lit2Var(Node) );
    }
    // add TFO nodes and remove marks
    Gia_ManObj(p->pGia, Pivot)->fMark0 = 0;
    Vec_IntForEachEntry( p->vTfo, Node, i )
    {
        Gia_ManObj(p->pGia, Abc_Lit2Var(Node))->fMark0 = 0;
        Vec_IntWriteEntry( p->vObj2Var, Abc_Lit2Var(Node), Vec_IntSize(p->vWinObjs) );
        Vec_IntPush( p->vWinObjs, Abc_Lit2Var(Node) );
    }
    if ( p->pPars->nWinSizeMax && Vec_IntSize(p->vWinObjs) > p->pPars->nWinSizeMax )
    {
        p->timeWin += Abc_Clock() - clk;
        return 0;
    }
    // compute controlability for node
    if ( Vec_IntSize(p->vTfo) == 0 )
        Abc_TtFill( Sbd_ObjSim2(p, Pivot), p->pPars->nWords );
    else
        Abc_TtClear( Sbd_ObjSim2(p, Pivot), p->pPars->nWords );
    Vec_IntForEachEntry( p->vTfo, Node, i )
        if ( Abc_LitIsCompl(Node) ) // root
            Abc_TtOrXor( Sbd_ObjSim2(p, Pivot), Sbd_ObjSim0(p, Abc_Lit2Var(Node)), Sbd_ObjSim1(p, Abc_Lit2Var(Node)), p->pPars->nWords );
    p->timeWin += Abc_Clock() - clk;
    // propagate controlability to fanins for the TFI nodes starting from the pivot
    Sbd_ManPropagateControl( p, Pivot );
    assert( Vec_IntSize(p->vDivValues) <= 64 );
    return (int)(Vec_IntSize(p->vDivValues) <= 64);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManWindowRoots()

Vec_Wec_t * Sbd_ManWindowRoots	(	Gia_Man_t *	p,
		int	nTfoLevels,
		int	nTfoFanMax )

Function*************************************************************

Synopsis [Computes TFO and window roots for all nodes.]

Description [TFO does not include the node itself. If TFO is empty, it means that the node itself is its own root, which may happen if the node is pointed by a PO or if it has too many fanouts.]

SideEffects []

SeeAlso []

Definition at line 135 of file sbdCore.c.

{
    Vec_Wec_t * vTfos = Vec_WecStart( Gia_ManObjNum(p) ); // TFO nodes with roots marked
    Vec_Wec_t * vTemp = Vec_WecStart( Gia_ManObjNum(p) ); // storage
    Vec_Int_t * vNodes, * vNodes0, * vNodes1;
    Vec_Bit_t * vPoDrivers = Vec_BitStart( Gia_ManObjNum(p) );
    int i, k, k2, Id, Fan;
    Gia_ManLevelNum( p );
    Gia_ManCreateRefs( p );
    Gia_ManCleanMark0( p );
    Gia_ManForEachCiId( p, Id, i )
    {
        vNodes = Vec_WecEntry( vTemp, Id );
        Vec_IntGrow( vNodes, 1 );
        Vec_IntPush( vNodes, Id );
    }
    Gia_ManForEachCoDriverId( p, Id, i )
        Vec_BitWriteEntry( vPoDrivers, Id, 1 );
    Gia_ManForEachAndId( p, Id )
    {
        int fAlwaysRoot = Vec_BitEntry(vPoDrivers, Id) || (Gia_ObjRefNumId(p, Id) >= nTfoFanMax);
        vNodes0 = Vec_WecEntry( vTemp, Gia_ObjFaninId0(Gia_ManObj(p, Id), Id) );
        vNodes1 = Vec_WecEntry( vTemp, Gia_ObjFaninId1(Gia_ManObj(p, Id), Id) );
        vNodes = Vec_WecEntry( vTemp, Id );
        Vec_IntTwoMerge2( vNodes0, vNodes1, vNodes );
        k2 = 0;
        Vec_IntForEachEntry( vNodes, Fan, k )
        {
            int fRoot = fAlwaysRoot || (Gia_ObjLevelId(p, Id) - Gia_ObjLevelId(p, Fan) >= nTfoLevels);
            Vec_WecPush( vTfos, Fan, Abc_Var2Lit(Id, fRoot) );
            if ( !fRoot ) Vec_IntWriteEntry( vNodes, k2++, Fan );
        }
        Vec_IntShrink( vNodes, k2 );
        if ( !fAlwaysRoot )
            Vec_IntPush( vNodes, Id );
    }
    Vec_WecFree( vTemp );
    Vec_BitFree( vPoDrivers );

    // print the results
    if ( 0 )
    Vec_WecForEachLevel( vTfos, vNodes, i )
    {
        if ( !Gia_ObjIsAnd(Gia_ManObj(p, i)) )
            continue;
        printf( "Node %3d : ", i );
        Vec_IntForEachEntry( vNodes, Fan, k )
            printf( "%d%s ", Abc_Lit2Var(Fan), Abc_LitIsCompl(Fan)? "*":"" );
        printf( "\n" );
    }

    return vTfos;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ManWindowSim_rec()

void Sbd_ManWindowSim_rec	(	Sbd_Man_t *	p,
		int	NodeInit )

Definition at line 389 of file sbdCore.c.

{
    Gia_Obj_t * pObj;
    int Node = NodeInit;
    if ( Vec_IntEntry(p->vMirrors, Node) >= 0 )
        Node = Abc_Lit2Var( Vec_IntEntry(p->vMirrors, Node) );
    if ( Gia_ObjIsTravIdCurrentId(p->pGia, Node) )
        return;
    Gia_ObjSetTravIdCurrentId(p->pGia, Node);
    pObj = Gia_ManObj( p->pGia, Node );
    if ( Gia_ObjIsAnd(pObj) )
    {
        Sbd_ManWindowSim_rec( p, Gia_ObjFaninId0(pObj, Node) );
        Sbd_ManWindowSim_rec( p, Gia_ObjFaninId1(pObj, Node) );
    }
    if ( !pObj->fMark0 )
    {
        Vec_IntWriteEntry( p->vObj2Var, Node, Vec_IntSize(p->vWinObjs) );
        Vec_IntPush( p->vWinObjs, Node );
    }
    if ( Gia_ObjIsCi(pObj) )
        return;
    // simulate
    assert( Gia_ObjIsAnd(pObj) );
    if ( Gia_ObjIsXor(pObj) )
    {
        Abc_TtXor( Sbd_ObjSim0(p, Node),
            Sbd_ObjSim0(p, Gia_ObjFaninId0(pObj, Node)),
            Sbd_ObjSim0(p, Gia_ObjFaninId1(pObj, Node)),
            p->pPars->nWords,
            Gia_ObjFaninC0(pObj) ^ Gia_ObjFaninC1(pObj) );

        if ( pObj->fMark0 )
            Abc_TtXor( Sbd_ObjSim1(p, Node),
                Gia_ObjFanin0(pObj)->fMark0 ? Sbd_ObjSim1(p, Gia_ObjFaninId0(pObj, Node)) : Sbd_ObjSim0(p, Gia_ObjFaninId0(pObj, Node)),
                Gia_ObjFanin1(pObj)->fMark0 ? Sbd_ObjSim1(p, Gia_ObjFaninId1(pObj, Node)) : Sbd_ObjSim0(p, Gia_ObjFaninId1(pObj, Node)),
                p->pPars->nWords,
                Gia_ObjFaninC0(pObj) ^ Gia_ObjFaninC1(pObj) );
    }
    else
    {
        Abc_TtAndCompl( Sbd_ObjSim0(p, Node),
            Sbd_ObjSim0(p, Gia_ObjFaninId0(pObj, Node)), Gia_ObjFaninC0(pObj),
            Sbd_ObjSim0(p, Gia_ObjFaninId1(pObj, Node)), Gia_ObjFaninC1(pObj),
            p->pPars->nWords );

        if ( pObj->fMark0 )
            Abc_TtAndCompl( Sbd_ObjSim1(p, Node),
                Gia_ObjFanin0(pObj)->fMark0 ? Sbd_ObjSim1(p, Gia_ObjFaninId0(pObj, Node)) : Sbd_ObjSim0(p, Gia_ObjFaninId0(pObj, Node)), Gia_ObjFaninC0(pObj),
                Gia_ObjFanin1(pObj)->fMark0 ? Sbd_ObjSim1(p, Gia_ObjFaninId1(pObj, Node)) : Sbd_ObjSim0(p, Gia_ObjFaninId1(pObj, Node)), Gia_ObjFaninC1(pObj),
                p->pPars->nWords );
    }
    if ( Node != NodeInit )
        Abc_TtCopy( Sbd_ObjSim0(p, NodeInit), Sbd_ObjSim0(p, Node), p->pPars->nWords, Abc_LitIsCompl(Vec_IntEntry(p->vMirrors, NodeInit)) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_NtkPerform()

Gia_Man_t * Sbd_NtkPerform	(	Gia_Man_t *	pGia,
		Sbd_Par_t *	pPars )

Definition at line 2117 of file sbdCore.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj;
    Vec_Bit_t * vPath;
    Sbd_Man_t * p = Sbd_ManStart( pGia, pPars );
    int nNodesOld = Gia_ManObjNum(pGia);
    int k, Pivot;
    assert( pPars->nLutSize <= 6 );
    // prepare references
    Gia_ManForEachObj( p->pGia, pObj, Pivot )
        Sbd_StoRefObj( p->pSto, Pivot, -1 );
    //return NULL;
    vPath = (pPars->fUsePath && Gia_ManHasMapping(pGia)) ? Sbc_ManCriticalPath(pGia) : NULL;
    if ( pGia->pManTime != NULL && Tim_ManBoxNum((Tim_Man_t*)pGia->pManTime) )
    {
        Vec_Int_t * vNodes = Gia_ManOrderWithBoxes( pGia );
        Tim_Man_t * pTimOld = (Tim_Man_t *)pGia->pManTime;
        pGia->pManTime = Tim_ManDup( pTimOld, 1 );
        //Tim_ManPrint( pGia->pManTime );
        Tim_ManIncrementTravId( (Tim_Man_t *)pGia->pManTime );
        Gia_ManForEachObjVec( vNodes, pGia, pObj, k )
        {
            Pivot = Gia_ObjId( pGia, pObj );
            if ( Pivot >= nNodesOld )
                break;
            if ( Gia_ObjIsAnd(pObj) )
            {
                abctime clk = Abc_Clock();
                int Delay = Sbd_StoComputeCutsNode( p->pSto, Pivot );
                Sbd_StoSaveBestDelayCut( p->pSto, Pivot, Sbd_ObjCut(p, Pivot) );
                p->timeCut += Abc_Clock() - clk;
                Vec_IntWriteEntry( p->vLutLevs, Pivot, Delay );
                if ( Delay > 1 && (!vPath || Vec_BitEntry(vPath, Pivot)) )
                    Sbd_NtkPerformOne( p, Pivot );
            }
            else if ( Gia_ObjIsCi(pObj) )
            {
                int arrTime = Tim_ManGetCiArrival( (Tim_Man_t*)pGia->pManTime, Gia_ObjCioId(pObj) );
                Vec_IntWriteEntry( p->vLutLevs, Pivot, arrTime );
                Sbd_StoComputeCutsCi( p->pSto, Pivot, arrTime, arrTime );
            }
            else if ( Gia_ObjIsCo(pObj) )
            {
                int arrTime = Vec_IntEntry( p->vLutLevs, Gia_ObjFaninId0(pObj, Pivot) );
                Tim_ManSetCoArrival( (Tim_Man_t*)pGia->pManTime, Gia_ObjCioId(pObj), arrTime );
            }
            else if ( Gia_ObjIsConst0(pObj) )
                Sbd_StoComputeCutsConst0( p->pSto, 0 );
            else assert( 0 );
        }
        Tim_ManStop( (Tim_Man_t *)pGia->pManTime );
        pGia->pManTime = pTimOld;
        Vec_IntFree( vNodes );
    }
    else
    {
        Sbd_StoComputeCutsConst0( p->pSto, 0 );
        Gia_ManForEachObj( pGia, pObj, Pivot )
        {
            if ( Pivot >= nNodesOld )
                break;
            if ( Gia_ObjIsCi(pObj) )
                Sbd_StoComputeCutsCi( p->pSto, Pivot, 0, 0 );
            else if ( Gia_ObjIsAnd(pObj) )
            {
                abctime clk = Abc_Clock();
                int Delay = Sbd_StoComputeCutsNode( p->pSto, Pivot );
                Sbd_StoSaveBestDelayCut( p->pSto, Pivot, Sbd_ObjCut(p, Pivot) );
                p->timeCut += Abc_Clock() - clk;
                Vec_IntWriteEntry( p->vLutLevs, Pivot, Delay );
                if ( Delay > 1 && (!vPath || Vec_BitEntry(vPath, Pivot)) )
                    Sbd_NtkPerformOne( p, Pivot );
            }
            //if ( nNodesOld != Gia_ManObjNum(pGia) )
            //    break;
        }
    }
    Vec_BitFreeP( &vPath );
    p->timeTotal = Abc_Clock() - p->timeTotal;
    if ( p->pPars->fVerbose )
    {
        printf( "K = %d. S = %d. N = %d. P = %d.  ",
            p->pPars->nLutSize, p->pPars->nLutNum, p->pPars->nCutSize, p->pPars->nCutNum );
        printf( "Try = %d. Use = %d.  C = %d. 1 = %d. 2 = %d. 3a = %d. 3b = %d.  Lev = %d.  ",
            p->nTried, p->nUsed, p->nLuts[0], p->nLuts[1], p->nLuts[2], p->nLuts[3], p->nLuts[4], Sbd_ManDelay(p) );
        Abc_PrintTime( 1, "Time", p->timeTotal );
    }
    pNew = Sbd_ManDerive( p, pGia, p->vMirrors );
    // print runtime statistics
    p->timeOther = p->timeTotal - p->timeWin - p->timeCut - p->timeCov - p->timeCnf - p->timeSat - p->timeQbf;
    if ( p->pPars->fVerbose )
    {
        ABC_PRTP( "Win", p->timeWin  ,  p->timeTotal );
        ABC_PRTP( "Cut", p->timeCut  ,  p->timeTotal );
        ABC_PRTP( "Cov", p->timeCov  ,  p->timeTotal );
        ABC_PRTP( "Cnf", p->timeCnf  ,  p->timeTotal );
        ABC_PRTP( "Sat", p->timeSat  ,  p->timeTotal );
        ABC_PRTP( "Qbf", p->timeQbf  ,  p->timeTotal );
        ABC_PRTP( "Oth", p->timeOther,  p->timeTotal );
        ABC_PRTP( "ALL", p->timeTotal,  p->timeTotal );
    }
    Sbd_ManStop( p );
    return pNew;
}

Here is the call graph for this function:

Sbd_NtkPerformOne()

void Sbd_NtkPerformOne	(	Sbd_Man_t *	p,
		int	Pivot )

Function*************************************************************

Synopsis [Performs delay optimization for the given LUT size.]

Description []

SideEffects []

SeeAlso []

Definition at line 2073 of file sbdCore.c.

{
    Sbd_Str_t Strs[SBD_DIV_MAX]; word Truth = 0;
    int RetValue, nStrs = 0;
    if ( !p->pSto && Sbd_ManMergeCuts( p, Pivot ) )
        return;
    if ( !Sbd_ManWindow( p, Pivot ) )
        return;
    //if ( Vec_IntSize(p->vWinObjs) > 100 )
    //    printf( "Obj %d : Win = %d   TFO = %d.  Roots = %d.\n", Pivot, Vec_IntSize(p->vWinObjs), Vec_IntSize(p->vTfo), Vec_IntSize(p->vRoots) );
    p->nTried++;
    p->nUsed++;
    RetValue = Sbd_ManCheckConst( p, Pivot );
    if ( RetValue >= 0 )
    {
        Vec_IntWriteEntry( p->vMirrors, Pivot, RetValue );
        //if ( p->pPars->fVerbose ) printf( "Node %5d:  Detected constant %d.\n", Pivot, RetValue );
    }
    else if ( p->pPars->fFindDivs && p->pPars->nLutNum >= 1 && Sbd_ManExplore2( p, Pivot, &Truth ) )
    {
        int i;
        Strs->fLut = 1;
        Strs->nVarIns = Vec_IntSize( p->vDivSet );
        for ( i = 0; i < Strs->nVarIns; i++ )
            Strs->VarIns[i] = i;
        Strs->Res = Truth;
        Sbd_ManImplement2( p, Pivot, 1, Strs );
        //if ( p->pPars->fVerbose ) printf( "Node %5d:  Detected LUT%d\n", Pivot, p->pPars->nLutSize );
    }
    else if ( p->pPars->nLutNum >= 2 && Sbd_ManExplore3( p, Pivot, &nStrs, Strs ) )
    {
        Sbd_ManImplement2( p, Pivot, nStrs, Strs );
        if ( !p->pPars->fVerbose )
            return;
        //if ( Vec_IntSize(p->vDivSet) <= 4 )
        //    printf( "Node %5d:  Detected %d\n", Pivot, p->pPars->nLutSize );
        //else if ( Vec_IntSize(p->vDivSet) <= 6 || (Vec_IntSize(p->vDivSet) == 7 && nStrs == 2) )
        //    printf( "Node %5d:  Detected %d%d\n", Pivot, p->pPars->nLutSize, p->pPars->nLutSize );
        //else
        //    printf( "Node %5d:  Detected %d%d%d\n", Pivot, p->pPars->nLutSize, p->pPars->nLutSize, p->pPars->nLutSize );
    }
    else
        p->nUsed--;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sbd_ParSetDefault()

void Sbd_ParSetDefault

(

Sbd_Par_t *

pPars

)

FUNCTION DEFINITIONS ///.

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 100 of file sbdCore.c.

{
    memset( pPars, 0, sizeof(Sbd_Par_t) );
    pPars->nLutSize     = 4;    // target LUT size
    pPars->nLutNum      = 3;    // target LUT count
    pPars->nCutSize     = (pPars->nLutSize - 1) * pPars->nLutNum + 1;  // target cut size
    pPars->nCutNum      = 128;  // target cut count
    pPars->nTfoLevels   = 5;    // the number of TFO levels (windowing)
    pPars->nTfoFanMax   = 4;    // the max number of fanouts (windowing)
    pPars->nWinSizeMax  = 2000; // maximum window size (windowing)
    pPars->nBTLimit     = 0;    // maximum number of SAT conflicts
    pPars->nWords       = 1;    // simulation word count
    pPars->fMapping     = 1;    // generate mapping
    pPars->fMoreCuts    = 0;    // use several cuts
    pPars->fFindDivs    = 0;    // perform divisor search
    pPars->fUsePath     = 0;    // optimize only critical path
    pPars->fArea        = 0;    // area-oriented optimization
    pPars->fCover       = 0;    // use complete cover procedure
    pPars->fVerbose     = 0;    // verbose flag
    pPars->fVeryVerbose = 0;    // verbose flag
}

Here is the call graph for this function:
