#include "base/abc/abc.h"
#include "sim.h"

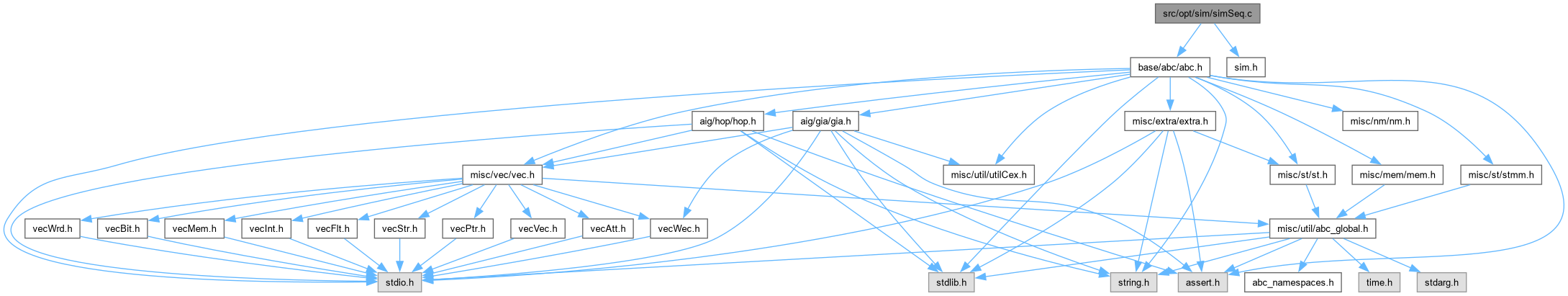

Include dependency graph for simSeq.c:

Functions
Vec_Ptr_t *	Sim_SimulateSeqRandom (Abc_Ntk_t *pNtk, int nFrames, int nWords)
	FUNCTION DEFINITIONS ///.

Vec_Ptr_t *	Sim_SimulateSeqModel (Abc_Ntk_t pNtk, int nFrames, int pModel)

Function Documentation

◆ Sim_SimulateSeqModel()

Vec_Ptr_t * Sim_SimulateSeqModel	(	Abc_Ntk_t *	pNtk,
		int	nFrames,
		int *	pModel )

Function*************************************************************

Synopsis [Simulates sequential circuit.]

Description [Takes sequential circuit (pNtk). Simulates the given number (nFrames) of the circuit with the given model. The model is assumed to contain values of PIs for each frame. The latches are initialized to the initial state. One word of data is simulated.]

SideEffects []

SeeAlso []

Definition at line 92 of file simSeq.c.

{
    Vec_Ptr_t * vInfo;
    Abc_Obj_t * pNode;
    unsigned * pUnsigned;
    int i, k;
    vInfo = Sim_UtilInfoAlloc( Abc_NtkObjNumMax(pNtk), nFrames, 0 );
    // set the constant data
    pNode = Abc_AigConst1(pNtk);
    Sim_UtilSetConst( Sim_SimInfoGet(vInfo,pNode), nFrames, 1 );
    // set the random PI data
    Abc_NtkForEachPi( pNtk, pNode, i )
    {
        pUnsigned = Sim_SimInfoGet(vInfo,pNode);
        for ( k = 0; k < nFrames; k++ )
            pUnsigned[k] = pModel[k * Abc_NtkPiNum(pNtk) + i] ? ~((unsigned)0) : 0;
    }
    // set the initial state data
    Abc_NtkForEachLatch( pNtk, pNode, i )
    {
        pUnsigned = Sim_SimInfoGet(vInfo,pNode);
        if ( Abc_LatchIsInit0(pNode) )
            pUnsigned[0] = 0;
        else if ( Abc_LatchIsInit1(pNode) )
            pUnsigned[0] = ~((unsigned)0);
        else
            pUnsigned[0] = SIM_RANDOM_UNSIGNED;
    }
    // simulate the nodes for the given number of timeframes
    for ( i = 0; i < nFrames; i++ )
        Sim_SimulateSeqFrame( vInfo, pNtk, i, 1, (int)(i < nFrames-1) );
/*
    // print the simulated values
    for ( i = 0; i < nFrames; i++ )
    {
        printf( "Frame %d : ", i+1 );
        Abc_NtkForEachPi( pNtk, pNode, k )
            printf( "%d", Sim_SimInfoGet(vInfo,pNode)[i] > 0 );
        printf( " " );
        Abc_NtkForEachLatch( pNtk, pNode, k )
            printf( "%d", Sim_SimInfoGet(vInfo,pNode)[i] > 0 );
        printf( " " );
        Abc_NtkForEachPo( pNtk, pNode, k )
            printf( "%d", Sim_SimInfoGet(vInfo,pNode)[i] > 0 );
        printf( "\n" );
    }
    printf( "\n" );
*/
    return vInfo;
}

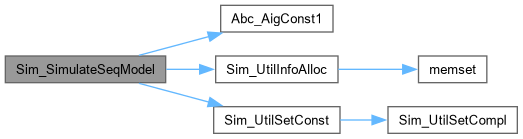

Here is the call graph for this function:

Here is the caller graph for this function:

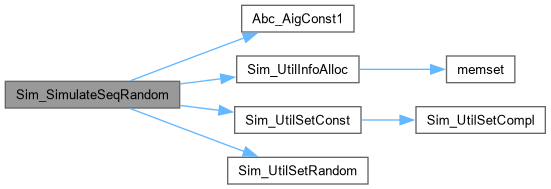

◆ Sim_SimulateSeqRandom()

Vec_Ptr_t * Sim_SimulateSeqRandom	(	Abc_Ntk_t *	pNtk,
		int	nFrames,
		int	nWords )

FUNCTION DEFINITIONS ///.
