sim.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Sym_Man_t_
struct	Sim_Man_t_
struct	Sim_Pat_t_

Macros
#define	SIM_NUM_WORDS(n)
	MACRO DEFINITIONS ///.
#define	SIM_LAST_BITS(n)
#define	SIM_MASK_FULL   (0xFFFFFFFF)
#define	SIM_MASK_BEG(n)
#define	SIM_MASK_END(n)
#define	SIM_SET_0_FROM(m, n)
#define	SIM_SET_1_FROM(m, n)
#define	SIM_RANDOM_UNSIGNED   ((((unsigned)rand()) << 24) ^ (((unsigned)rand()) << 12) ^ ((unsigned)rand()))
#define	Sim_SetBit(p, i)
#define	Sim_XorBit(p, i)
#define	Sim_HasBit(p, i)
#define	Sim_SuppStrSetVar(vSupps, pNode, v)
#define	Sim_SuppStrHasVar(vSupps, pNode, v)
#define	Sim_SuppFunSetVar(vSupps, Output, v)
#define	Sim_SuppFunHasVar(vSupps, Output, v)
#define	Sim_SimInfoSetVar(vSupps, pNode, v)
#define	Sim_SimInfoHasVar(vSupps, pNode, v)
#define	Sim_SimInfoGet(vInfo, pNode)

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Sym_Man_t_	Sym_Man_t
	INCLUDES ///.
typedef struct Sim_Man_t_	Sim_Man_t
typedef struct Sim_Pat_t_	Sim_Pat_t

Functions
Sym_Man_t *	Sym_ManStart (Abc_Ntk_t *pNtk, int fVerbose)
	FUNCTION DECLARATIONS ///.
void	Sym_ManStop (Sym_Man_t *p)
void	Sym_ManPrintStats (Sym_Man_t *p)
Sim_Man_t *	Sim_ManStart (Abc_Ntk_t *pNtk, int fLightweight)
void	Sim_ManStop (Sim_Man_t *p)
void	Sim_ManPrintStats (Sim_Man_t *p)
Sim_Pat_t *	Sim_ManPatAlloc (Sim_Man_t *p)
void	Sim_ManPatFree (Sim_Man_t *p, Sim_Pat_t *pPat)
Vec_Ptr_t *	Sim_SimulateSeqRandom (Abc_Ntk_t *pNtk, int nFrames, int nWords)
	FUNCTION DEFINITIONS ///.
Vec_Ptr_t *	Sim_SimulateSeqModel (Abc_Ntk_t *pNtk, int nFrames, int *pModel)
Vec_Ptr_t *	Sim_ComputeStrSupp (Abc_Ntk_t *pNtk)
	FUNCTION DEFINITIONS ///.
Vec_Ptr_t *	Sim_ComputeFunSupp (Abc_Ntk_t *pNtk, int fVerbose)
int	Sim_ComputeTwoVarSymms (Abc_Ntk_t *pNtk, int fVerbose)
	DECLARATIONS ///.
int	Sim_SymmsGetPatternUsingSat (Sym_Man_t *p, unsigned *pPattern)
	FUNCTION DEFINITIONS ///.
void	Sim_SymmsStructCompute (Abc_Ntk_t *pNtk, Vec_Ptr_t *vMatrs, Vec_Ptr_t *vSuppFun)
	FUNCTION DEFINITIONS ///.
void	Sim_SymmsSimulate (Sym_Man_t *p, unsigned *pPatRand, Vec_Ptr_t *vMatrsNonSym)
	FUNCTION DEFINITIONS ///.
Vec_Ptr_t *	Sim_UtilInfoAlloc (int nSize, int nWords, int fClean)
	FUNCTION DEFINITIONS ///.
void	Sim_UtilInfoFree (Vec_Ptr_t *p)
void	Sim_UtilInfoAdd (unsigned *pInfo1, unsigned *pInfo2, int nWords)
void	Sim_UtilInfoDetectDiffs (unsigned *pInfo1, unsigned *pInfo2, int nWords, Vec_Int_t *vDiffs)
void	Sim_UtilInfoDetectNews (unsigned *pInfo1, unsigned *pInfo2, int nWords, Vec_Int_t *vDiffs)
void	Sim_UtilInfoFlip (Sim_Man_t *p, Abc_Obj_t *pNode)
int	Sim_UtilInfoCompare (Sim_Man_t *p, Abc_Obj_t *pNode)
void	Sim_UtilSimulate (Sim_Man_t *p, int fFirst)
void	Sim_UtilSimulateNode (Sim_Man_t *p, Abc_Obj_t *pNode, int fType, int fType1, int fType2)
void	Sim_UtilSimulateNodeOne (Abc_Obj_t *pNode, Vec_Ptr_t *vSimInfo, int nSimWords, int nOffset)
void	Sim_UtilTransferNodeOne (Abc_Obj_t *pNode, Vec_Ptr_t *vSimInfo, int nSimWords, int nOffset, int fShift)
int	Sim_UtilCountSuppSizes (Sim_Man_t *p, int fStruct)
int	Sim_UtilCountOnes (unsigned *pSimInfo, int nSimWords)
Vec_Int_t *	Sim_UtilCountOnesArray (Vec_Ptr_t *vInfo, int nSimWords)
void	Sim_UtilSetRandom (unsigned *pPatRand, int nSimWords)
void	Sim_UtilSetCompl (unsigned *pPatRand, int nSimWords)
void	Sim_UtilSetConst (unsigned *pPatRand, int nSimWords, int fConst1)
int	Sim_UtilInfoIsEqual (unsigned *pPats1, unsigned *pPats2, int nSimWords)
int	Sim_UtilInfoIsImp (unsigned *pPats1, unsigned *pPats2, int nSimWords)
int	Sim_UtilInfoIsClause (unsigned *pPats1, unsigned *pPats2, int nSimWords)
int	Sim_UtilCountAllPairs (Vec_Ptr_t *vSuppFun, int nSimWords, Vec_Int_t *vCounters)
void	Sim_UtilCountPairsAll (Sym_Man_t *p)
int	Sim_UtilMatrsAreDisjoint (Sym_Man_t *p)

Macro Definition Documentation

Sim_HasBit

#define Sim_HasBit	(		p,
			i )

Value:

(((p)[(i)>>5]  & (1<<((i) & 31))) > 0)

Definition at line 163 of file sim.h.

SIM_LAST_BITS

#define SIM_LAST_BITS

(

n

)

Value:

((((n)&31) > 0)? (n)&31 : 32)

Definition at line 149 of file sim.h.

SIM_MASK_BEG

#define SIM_MASK_BEG

(

n

)

Value:

(SIM_MASK_FULL >> (32-n))

Definition at line 152 of file sim.h.

SIM_MASK_END

#define SIM_MASK_END

(

n

)

Value:

(SIM_MASK_FULL << (n))

Definition at line 153 of file sim.h.

SIM_MASK_FULL

#define SIM_MASK_FULL   (0xFFFFFFFF)

Definition at line 151 of file sim.h.

SIM_NUM_WORDS

#define SIM_NUM_WORDS

(

n

)

Value:

(((n)>>5) + (((n)&31) > 0))

MACRO DEFINITIONS ///.

Definition at line 148 of file sim.h.

SIM_RANDOM_UNSIGNED

#define SIM_RANDOM_UNSIGNED   ((((unsigned)rand()) << 24) ^ (((unsigned)rand()) << 12) ^ ((unsigned)rand()))

Definition at line 158 of file sim.h.

SIM_SET_0_FROM

#define SIM_SET_0_FROM	(		m,
			n )

Value:

((m) & ~SIM_MASK_BEG(n))

Definition at line 154 of file sim.h.

SIM_SET_1_FROM

#define SIM_SET_1_FROM	(		m,
			n )

Value:

((m) |  SIM_MASK_END(n))

Definition at line 155 of file sim.h.

Sim_SetBit

#define Sim_SetBit	(		p,
			i )

Value:

((p)[(i)>>5] |= (1<<((i) & 31)))

Definition at line 161 of file sim.h.

Sim_SimInfoGet

#define Sim_SimInfoGet	(		vInfo,
			pNode )

Value:

((unsigned *)((vInfo)->pArray[(pNode)->Id]))

Definition at line 172 of file sim.h.

Sim_SimInfoHasVar

#define Sim_SimInfoHasVar	(		vSupps,
			pNode,
			v )

Value:

Sim_HasBit((unsigned*)(vSupps)->pArray[(pNode)->Id],(v))

Definition at line 171 of file sim.h.

Sim_SimInfoSetVar

#define Sim_SimInfoSetVar	(		vSupps,
			pNode,
			v )

Value:

Sim_SetBit((unsigned*)(vSupps)->pArray[(pNode)->Id],(v))

Definition at line 170 of file sim.h.

Sim_SuppFunHasVar

#define Sim_SuppFunHasVar	(		vSupps,
			Output,
			v )

Value:

Sim_HasBit((unsigned*)(vSupps)->pArray[Output],(v))

Definition at line 169 of file sim.h.

Sim_SuppFunSetVar

#define Sim_SuppFunSetVar	(		vSupps,
			Output,
			v )

Value:

Sim_SetBit((unsigned*)(vSupps)->pArray[Output],(v))

Definition at line 168 of file sim.h.

Sim_SuppStrHasVar

#define Sim_SuppStrHasVar	(		vSupps,
			pNode,
			v )

Value:

Sim_HasBit((unsigned*)(vSupps)->pArray[(pNode)->Id],(v))

Definition at line 167 of file sim.h.

Sim_SuppStrSetVar

#define Sim_SuppStrSetVar	(		vSupps,
			pNode,
			v )

Value:

Sim_SetBit((unsigned*)(vSupps)->pArray[(pNode)->Id],(v))

Definition at line 166 of file sim.h.

Sim_XorBit

#define Sim_XorBit	(		p,
			i )

Value:

((p)[(i)>>5] ^= (1<<((i) & 31)))

Definition at line 162 of file sim.h.

Typedef Documentation

Sim_Man_t

typedef struct Sim_Man_t_ Sim_Man_t

Definition at line 100 of file sim.h.

Sim_Pat_t

typedef struct Sim_Pat_t_ Sim_Pat_t

Definition at line 136 of file sim.h.

Sym_Man_t

typedef typedefABC_NAMESPACE_HEADER_START struct Sym_Man_t_ Sym_Man_t

INCLUDES ///.

CFile****************************************************************

FileName [sim.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Simulation package.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

sim.h,v 1.00 2005/06/20 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 48 of file sim.h.

Function Documentation

Sim_ComputeFunSupp()

Vec_Ptr_t * Sim_ComputeFunSupp ( Abc_Ntk_t * pNtk, int fVerbose )

extern

Function*************************************************************

Synopsis [Compute functional supports.]

Description [Supports are returned as an array of bit strings, one for each CO.]

SideEffects []

SeeAlso []

Definition at line 103 of file simSupp.c.

{
    Sim_Man_t * p;
    Vec_Ptr_t * vResult;
    int nSolved, i;
    abctime clk = Abc_Clock();

    srand( 0xABC );

    // start the simulation manager
    p = Sim_ManStart( pNtk, 0 );

    // compute functional support using one round of random simulation
    Sim_UtilAssignRandom( p );
    Sim_ComputeSuppRound( p, 0 );

    // set the support targets
    Sim_ComputeSuppSetTargets( p );
    if ( fVerbose )
        printf( "Number of support targets after simulation = %5d.\n", Vec_VecSizeSize(p->vSuppTargs) );
    if ( Vec_VecSizeSize(p->vSuppTargs) == 0 )
        goto exit;

    for ( i = 0; i < 1; i++ )
    {
        // compute patterns using one round of random simulation
        Sim_UtilAssignRandom( p );
        nSolved = Sim_ComputeSuppRound( p, 1 );
        if ( Vec_VecSizeSize(p->vSuppTargs) == 0 )
            goto exit;

        if ( fVerbose )
            printf( "Targets = %5d.   Solved = %5d.  Fifo = %5d.\n",
                Vec_VecSizeSize(p->vSuppTargs), nSolved, Vec_PtrSize(p->vFifo) );
    }

    // try to solve the support targets
    while ( Vec_VecSizeSize(p->vSuppTargs) > 0 )
    {
        // solve targets until the first disproved one (which gives counter-example)
        Sim_SolveTargetsUsingSat( p, p->nSimWords/p->nSuppWords );
        // compute additional functional support
        Sim_UtilAssignFromFifo( p );
        nSolved = Sim_ComputeSuppRound( p, 1 );

if ( fVerbose )
    printf( "Targets = %5d.   Solved = %5d.  Fifo = %5d.  SAT runs = %3d.\n",
            Vec_VecSizeSize(p->vSuppTargs), nSolved, Vec_PtrSize(p->vFifo), p->nSatRuns );
    }

exit:
p->timeTotal = Abc_Clock() - clk;
    vResult = p->vSuppFun;
    //  p->vSuppFun = NULL;
    Sim_ManStop( p );
    return vResult;
}

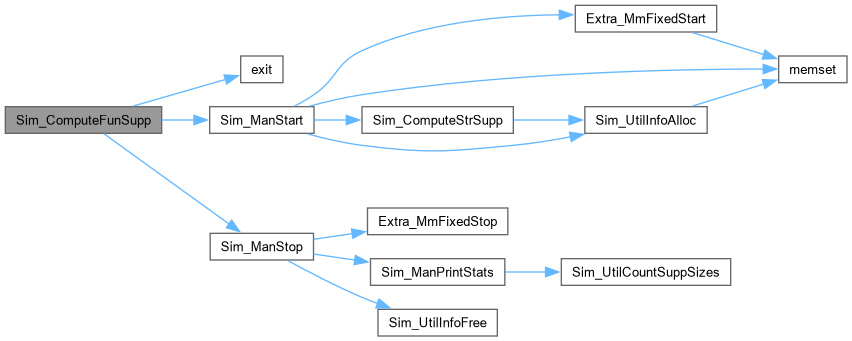

Here is the call graph for this function:

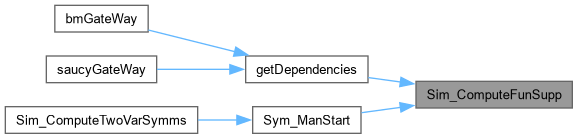

Here is the caller graph for this function:

Sim_ComputeStrSupp()

Vec_Ptr_t * Sim_ComputeStrSupp ( Abc_Ntk_t * pNtk )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Computes structural supports.]

Description [Supports are returned as an array of bit strings, one for each CO.]

SideEffects []

SeeAlso []

Definition at line 57 of file simSupp.c.

{
    Vec_Ptr_t * vSuppStr;
    Abc_Obj_t * pNode;
    unsigned * pSimmNode, * pSimmNode1, * pSimmNode2;
    int nSuppWords, i, k;
    // allocate room for structural supports
    nSuppWords = SIM_NUM_WORDS( Abc_NtkCiNum(pNtk) );
    vSuppStr   = Sim_UtilInfoAlloc( Abc_NtkObjNumMax(pNtk), nSuppWords, 1 );
    // assign the structural support to the PIs
    Abc_NtkForEachCi( pNtk, pNode, i )
        Sim_SuppStrSetVar( vSuppStr, pNode, i );
    // derive the structural supports of the internal nodes
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
//        if ( Abc_NodeIsConst(pNode) )
//            continue;
        pSimmNode  = (unsigned *)vSuppStr->pArray[ pNode->Id ];
        pSimmNode1 = (unsigned *)vSuppStr->pArray[ Abc_ObjFaninId0(pNode) ];
        pSimmNode2 = (unsigned *)vSuppStr->pArray[ Abc_ObjFaninId1(pNode) ];
        for ( k = 0; k < nSuppWords; k++ )
            pSimmNode[k] = pSimmNode1[k] | pSimmNode2[k];
    }
    // set the structural supports of the PO nodes
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        pSimmNode  = (unsigned *)vSuppStr->pArray[ pNode->Id ];
        pSimmNode1 = (unsigned *)vSuppStr->pArray[ Abc_ObjFaninId0(pNode) ];
        for ( k = 0; k < nSuppWords; k++ )
            pSimmNode[k] = pSimmNode1[k];
    }
    return vSuppStr;
}

Here is the call graph for this function:

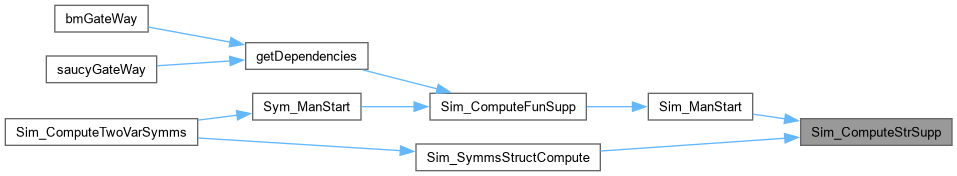

Here is the caller graph for this function:

Sim_ComputeTwoVarSymms()

int Sim_ComputeTwoVarSymms ( Abc_Ntk_t * pNtk, int fVerbose )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [simSym.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Simulation to determine two-variable symmetries.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

simSym.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Computes two variable symmetries.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file simSym.c.

{
    Sym_Man_t * p;
    Vec_Ptr_t * vResult;
    int Result;
    int i;
    abctime clk, clkTotal = Abc_Clock();

    srand( 0xABC );

    // start the simulation manager
    p = Sym_ManStart( pNtk, fVerbose );
    p->nPairsTotal = p->nPairsRem = Sim_UtilCountAllPairs( p->vSuppFun, p->nSimWords, p->vPairsTotal );
    if ( fVerbose )
        printf( "Total = %8d.  Sym = %8d.  NonSym = %8d.  Remaining = %8d.\n",
               p->nPairsTotal, p->nPairsSymm, p->nPairsNonSymm, p->nPairsRem );

    // detect symmetries using circuit structure
clk = Abc_Clock();
    Sim_SymmsStructCompute( pNtk, p->vMatrSymms, p->vSuppFun );
p->timeStruct = Abc_Clock() - clk;

    Sim_UtilCountPairsAll( p );
    p->nPairsSymmStr = p->nPairsSymm;
    if ( fVerbose )
        printf( "Total = %8d.  Sym = %8d.  NonSym = %8d.  Remaining = %8d.\n",
            p->nPairsTotal, p->nPairsSymm, p->nPairsNonSymm, p->nPairsRem );

    // detect symmetries using simulation
    for ( i = 1; i <= 1000; i++ )
    {
        // simulate this pattern
        Sim_UtilSetRandom( p->uPatRand, p->nSimWords );
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
        if ( i % 50 != 0 )
            continue;
        // check disjointness
        assert( Sim_UtilMatrsAreDisjoint( p ) );
        // count the number of pairs
        Sim_UtilCountPairsAll( p );
        if ( i % 500 != 0 )
            continue;
        if ( fVerbose )
            printf( "Total = %8d.  Sym = %8d.  NonSym = %8d.  Remaining = %8d.\n",
                p->nPairsTotal, p->nPairsSymm, p->nPairsNonSymm, p->nPairsRem );
    }

    // detect symmetries using SAT
    for ( i = 1; Sim_SymmsGetPatternUsingSat( p, p->uPatRand ); i++ )
    {
        // simulate this pattern in four polarities
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
        Sim_XorBit( p->uPatRand, p->iVar1 );
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
        Sim_XorBit( p->uPatRand, p->iVar2 );
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
        Sim_XorBit( p->uPatRand, p->iVar1 );
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
        Sim_XorBit( p->uPatRand, p->iVar2 );
/*
        // try the previuos pair
        Sim_XorBit( p->uPatRand, p->iVar1Old );
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
        Sim_XorBit( p->uPatRand, p->iVar2Old );
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
        Sim_XorBit( p->uPatRand, p->iVar1Old );
        Sim_SymmsSimulate( p, p->uPatRand, p->vMatrNonSymms );
*/
        if ( i % 10 != 0 )
            continue;
        // check disjointness
        assert( Sim_UtilMatrsAreDisjoint( p ) );
        // count the number of pairs
        Sim_UtilCountPairsAll( p );
        if ( i % 50 != 0 )
            continue;
        if ( fVerbose )
            printf( "Total = %8d.  Sym = %8d.  NonSym = %8d.  Remaining = %8d.\n",
                p->nPairsTotal, p->nPairsSymm, p->nPairsNonSymm, p->nPairsRem );
    }

    // count the number of pairs
    Sim_UtilCountPairsAll( p );
    if ( fVerbose )
        printf( "Total = %8d.  Sym = %8d.  NonSym = %8d.  Remaining = %8d.\n",
            p->nPairsTotal, p->nPairsSymm, p->nPairsNonSymm, p->nPairsRem );
//    Sim_UtilCountPairsAllPrint( p );

    Result = p->nPairsSymm;
    vResult = p->vMatrSymms;
p->timeTotal = Abc_Clock() - clkTotal;
    //  p->vMatrSymms = NULL;
    Sym_ManStop( p );
    return Result;
}

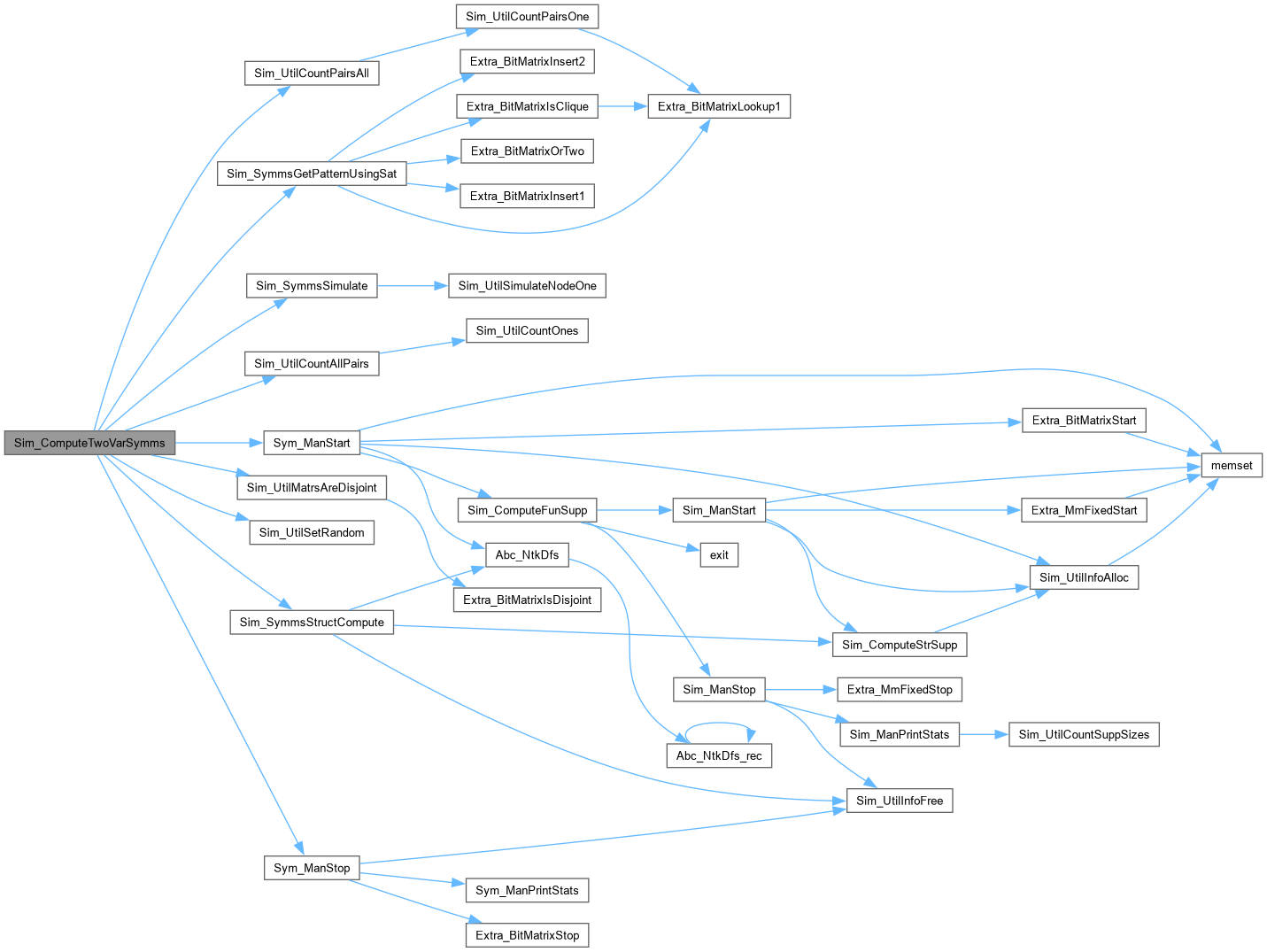

Here is the call graph for this function:

Sim_ManPatAlloc()

Sim_Pat_t * Sim_ManPatAlloc ( Sim_Man_t * p )

extern

Function*************************************************************

Synopsis [Returns one simulation pattern.]

Description []

SideEffects []

SeeAlso []

Definition at line 261 of file simMan.c.

{
    Sim_Pat_t * pPat;
    pPat = (Sim_Pat_t *)Extra_MmFixedEntryFetch( p->pMmPat );
    pPat->Output = -1;
    pPat->pData  = (unsigned *)((char *)pPat + sizeof(Sim_Pat_t));
    memset( pPat->pData, 0, p->nSuppWords * sizeof(unsigned) );
    return pPat;
}

Here is the call graph for this function:

Sim_ManPatFree()

void Sim_ManPatFree ( Sim_Man_t * p, Sim_Pat_t * pPat )

extern

Function*************************************************************

Synopsis [Returns one simulation pattern.]

Description []

SideEffects []

SeeAlso []

Definition at line 282 of file simMan.c.

{
    Extra_MmFixedEntryRecycle( p->pMmPat, (char *)pPat );
}

Here is the call graph for this function:

Sim_ManPrintStats()

void Sim_ManPrintStats ( Sim_Man_t * p )

extern

Function*************************************************************

Synopsis [Prints the manager statisticis.]

Description []

SideEffects []

SeeAlso []

Definition at line 233 of file simMan.c.

{
//    printf( "Inputs = %5d. Outputs = %5d. Sim words = %5d.\n",
//        Abc_NtkCiNum(p->pNtk), Abc_NtkCoNum(p->pNtk), p->nSimWords );
    printf( "Total func supps   = %8d.\n", Sim_UtilCountSuppSizes(p, 0) );
    printf( "Total struct supps = %8d.\n", Sim_UtilCountSuppSizes(p, 1) );
    printf( "Sat runs SAT       = %8d.\n", p->nSatRunsSat );
    printf( "Sat runs UNSAT     = %8d.\n", p->nSatRunsUnsat );
    ABC_PRT( "Simulation  ", p->timeSim );
    ABC_PRT( "Traversal   ", p->timeTrav );
    ABC_PRT( "Fraiging    ", p->timeFraig );
    ABC_PRT( "SAT         ", p->timeSat );
    ABC_PRT( "TOTAL       ", p->timeTotal );
}

Here is the call graph for this function:

Here is the caller graph for this function:

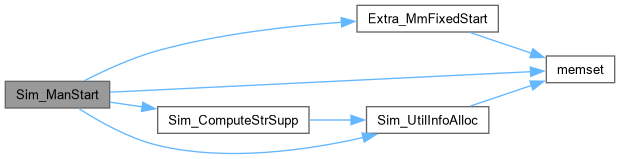

Sim_ManStart()

Sim_Man_t * Sim_ManStart ( Abc_Ntk_t * pNtk, int fLightweight )

extern

Function*************************************************************

Synopsis [Starts the simulation manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 166 of file simMan.c.

{
    Sim_Man_t * p;
    // start the manager
    p = ABC_ALLOC( Sim_Man_t, 1 );
    memset( p, 0, sizeof(Sim_Man_t) );
    p->pNtk = pNtk;
    p->nInputs    = Abc_NtkCiNum(p->pNtk);
    p->nOutputs   = Abc_NtkCoNum(p->pNtk);
    // internal simulation information
    p->nSimBits   = 2048;
    p->nSimWords  = SIM_NUM_WORDS(p->nSimBits);
    p->vSim0      = Sim_UtilInfoAlloc( Abc_NtkObjNumMax(pNtk), p->nSimWords, 0 );
    p->fLightweight = fLightweight;
    if (!p->fLightweight) {
        p->vSim1      = Sim_UtilInfoAlloc( Abc_NtkObjNumMax(pNtk), p->nSimWords, 0 );
        // support information
        p->nSuppBits  = Abc_NtkCiNum(pNtk);
        p->nSuppWords = SIM_NUM_WORDS(p->nSuppBits);
        p->vSuppStr   = Sim_ComputeStrSupp( pNtk );
        p->vSuppFun   = Sim_UtilInfoAlloc( Abc_NtkCoNum(p->pNtk),  p->nSuppWords, 1 );
        // other data
        p->pMmPat     = Extra_MmFixedStart( sizeof(Sim_Pat_t) + p->nSuppWords * sizeof(unsigned) );
        p->vFifo      = Vec_PtrAlloc( 100 );
        p->vDiffs     = Vec_IntAlloc( 100 );
        // allocate support targets (array of unresolved outputs for each input)
        p->vSuppTargs = Vec_VecStart( p->nInputs );
    }
    return p;
}

Here is the call graph for this function:

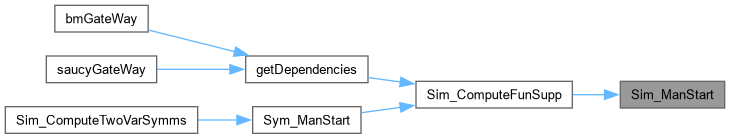

Here is the caller graph for this function:

Sim_ManStop()

void Sim_ManStop ( Sim_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops the simulation manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 208 of file simMan.c.

{
    Sim_ManPrintStats( p );
    if ( p->vSim0 )        Sim_UtilInfoFree( p->vSim0 );
    if ( p->vSim1 )        Sim_UtilInfoFree( p->vSim1 );
    if ( p->vSuppStr )     Sim_UtilInfoFree( p->vSuppStr );
//    if ( p->vSuppFun )     Sim_UtilInfoFree( p->vSuppFun );
    if ( p->vSuppTargs )   Vec_VecFree( p->vSuppTargs );
    if ( p->pMmPat )       Extra_MmFixedStop( p->pMmPat );
    if ( p->vFifo )        Vec_PtrFree( p->vFifo );
    if ( p->vDiffs )       Vec_IntFree( p->vDiffs );
    ABC_FREE( p );
}

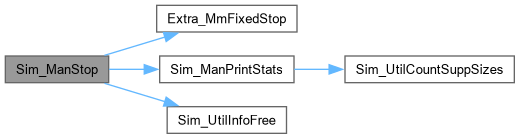

Here is the call graph for this function:

Here is the caller graph for this function:

Sim_SimulateSeqModel()

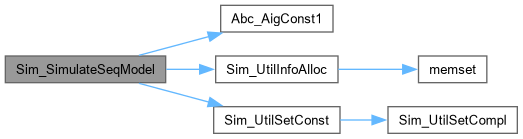

Vec_Ptr_t * Sim_SimulateSeqModel ( Abc_Ntk_t * pNtk, int nFrames, int * pModel )

extern

Function*************************************************************

Synopsis [Simulates sequential circuit.]

Description [Takes sequential circuit (pNtk). Simulates the given number (nFrames) of the circuit with the given model. The model is assumed to contain values of PIs for each frame. The latches are initialized to the initial state. One word of data is simulated.]

SideEffects []

SeeAlso []

Definition at line 92 of file simSeq.c.

{
    Vec_Ptr_t * vInfo;
    Abc_Obj_t * pNode;
    unsigned * pUnsigned;
    int i, k;
    vInfo = Sim_UtilInfoAlloc( Abc_NtkObjNumMax(pNtk), nFrames, 0 );
    // set the constant data
    pNode = Abc_AigConst1(pNtk);
    Sim_UtilSetConst( Sim_SimInfoGet(vInfo,pNode), nFrames, 1 );
    // set the random PI data
    Abc_NtkForEachPi( pNtk, pNode, i )
    {
        pUnsigned = Sim_SimInfoGet(vInfo,pNode);
        for ( k = 0; k < nFrames; k++ )
            pUnsigned[k] = pModel[k * Abc_NtkPiNum(pNtk) + i] ? ~((unsigned)0) : 0;
    }
    // set the initial state data
    Abc_NtkForEachLatch( pNtk, pNode, i )
    {
        pUnsigned = Sim_SimInfoGet(vInfo,pNode);
        if ( Abc_LatchIsInit0(pNode) )
            pUnsigned[0] = 0;
        else if ( Abc_LatchIsInit1(pNode) )
            pUnsigned[0] = ~((unsigned)0);
        else
            pUnsigned[0] = SIM_RANDOM_UNSIGNED;
    }
    // simulate the nodes for the given number of timeframes
    for ( i = 0; i < nFrames; i++ )
        Sim_SimulateSeqFrame( vInfo, pNtk, i, 1, (int)(i < nFrames-1) );
/*
    // print the simulated values
    for ( i = 0; i < nFrames; i++ )
    {
        printf( "Frame %d : ", i+1 );
        Abc_NtkForEachPi( pNtk, pNode, k )
            printf( "%d", Sim_SimInfoGet(vInfo,pNode)[i] > 0 );
        printf( " " );
        Abc_NtkForEachLatch( pNtk, pNode, k )
            printf( "%d", Sim_SimInfoGet(vInfo,pNode)[i] > 0 );
        printf( " " );
        Abc_NtkForEachPo( pNtk, pNode, k )
            printf( "%d", Sim_SimInfoGet(vInfo,pNode)[i] > 0 );
        printf( "\n" );
    }
    printf( "\n" );
*/
    return vInfo;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sim_SimulateSeqRandom()

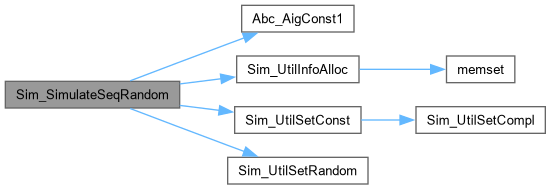

Vec_Ptr_t * Sim_SimulateSeqRandom ( Abc_Ntk_t * pNtk, int nFrames, int nWords )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Simulates sequential circuit.]

Description [Takes sequential circuit (pNtk). Simulates the given number (nFrames) of the circuit with the given number of machine words (nWords) of random simulation data, starting from the initial state. If the initial state of some latches is a don't-care, uses random input for that latch.]

SideEffects []

SeeAlso []

Definition at line 51 of file simSeq.c.

{
    Vec_Ptr_t * vInfo;
    Abc_Obj_t * pNode;
    int i;
    assert( Abc_NtkIsStrash(pNtk) );
    vInfo = Sim_UtilInfoAlloc( Abc_NtkObjNumMax(pNtk), nWords * nFrames, 0 );
    // set the constant data
    pNode = Abc_AigConst1(pNtk);
    Sim_UtilSetConst( Sim_SimInfoGet(vInfo,pNode), nWords * nFrames, 1 );
    // set the random PI data
    Abc_NtkForEachPi( pNtk, pNode, i )
        Sim_UtilSetRandom( Sim_SimInfoGet(vInfo,pNode), nWords * nFrames );
    // set the initial state data
    Abc_NtkForEachLatch( pNtk, pNode, i )
        if ( Abc_LatchIsInit0(pNode) )
            Sim_UtilSetConst( Sim_SimInfoGet(vInfo,pNode), nWords, 0 );
        else if ( Abc_LatchIsInit1(pNode) )
            Sim_UtilSetConst( Sim_SimInfoGet(vInfo,pNode), nWords, 1 );
        else
            Sim_UtilSetRandom( Sim_SimInfoGet(vInfo,pNode), nWords );
    // simulate the nodes for the given number of timeframes
    for ( i = 0; i < nFrames; i++ )
        Sim_SimulateSeqFrame( vInfo, pNtk, i, nWords, (int)(i < nFrames-1) );
    return vInfo;
}

Here is the call graph for this function:

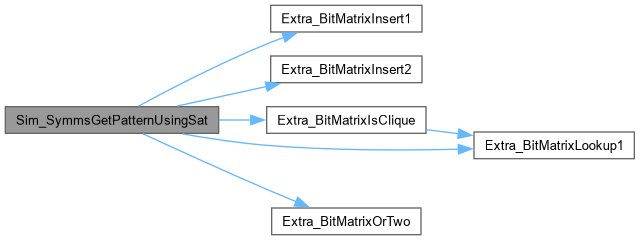

Sim_SymmsGetPatternUsingSat()

int Sim_SymmsGetPatternUsingSat ( Sym_Man_t * p, unsigned * pPattern )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Tries to prove the remaining pairs using SAT.]

Description [Continues to prove as long as it encounters symmetric pairs. Returns 1 if a non-symmetric pair is found (which gives a counter-example). Returns 0 if it finishes considering all pairs for all outputs.]

SideEffects []

SeeAlso []

Definition at line 51 of file simSymSat.c.

{
    Vec_Int_t * vSupport;
    Extra_BitMat_t * pMatSym, * pMatNonSym;
    int Index1, Index2, Index3, IndexU, IndexV;
    int v, u, i, k, b, out;

    // iterate through outputs
    for ( out = p->iOutput; out < p->nOutputs; out++ )
    {
        pMatSym    = (Extra_BitMat_t *)Vec_PtrEntry( p->vMatrSymms,    out );
        pMatNonSym = (Extra_BitMat_t *)Vec_PtrEntry( p->vMatrNonSymms, out );

        // go through the remaining variable pairs
        vSupport = Vec_VecEntryInt( p->vSupports, out );
        Vec_IntForEachEntry( vSupport, v, Index1 )
        Vec_IntForEachEntryStart( vSupport, u, Index2, Index1+1 )
        {
            if ( Extra_BitMatrixLookup1( pMatSym, v, u ) || Extra_BitMatrixLookup1( pMatNonSym, v, u ) )
                continue;
            p->nSatRuns++;

            // collect the support variables that are symmetric with u and v
            Vec_IntClear( p->vVarsU );
            Vec_IntClear( p->vVarsV );
            Vec_IntForEachEntry( vSupport, b, Index3 )
            {
                if ( Extra_BitMatrixLookup1( pMatSym, u, b ) )
                    Vec_IntPush( p->vVarsU, b );
                if ( Extra_BitMatrixLookup1( pMatSym, v, b ) )
                    Vec_IntPush( p->vVarsV, b );
            }

            if ( Sim_SymmsSatProveOne( p, out, v, u, pPattern ) )
            { // update the symmetric variable info
                p->nSatRunsUnsat++;
                Vec_IntForEachEntry( p->vVarsU, i, IndexU )
                Vec_IntForEachEntry( p->vVarsV, k, IndexV )
                {
                    Extra_BitMatrixInsert1( pMatSym,  i, k );  // Theorem 1
                    Extra_BitMatrixInsert2( pMatSym,  i, k );  // Theorem 1
                    Extra_BitMatrixOrTwo( pMatNonSym, i, k );  // Theorem 2
                }
            }
            else
            { // update the assymmetric variable info
                p->nSatRunsSat++;
                Vec_IntForEachEntry( p->vVarsU, i, IndexU )
                Vec_IntForEachEntry( p->vVarsV, k, IndexV )
                {
                    Extra_BitMatrixInsert1( pMatNonSym, i, k );   // Theorem 3
                    Extra_BitMatrixInsert2( pMatNonSym, i, k );   // Theorem 3
                }

                // remember the out
                p->iOutput = out;
                p->iVar1Old = p->iVar1;
                p->iVar2Old = p->iVar2;
                p->iVar1 = v;
                p->iVar2 = u;
                return 1;

            }
        }
        // make sure that the symmetry matrix contains only cliques
        assert( Extra_BitMatrixIsClique( pMatSym ) );
    }

    // mark that we finished all outputs
    p->iOutput = p->nOutputs;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sim_SymmsSimulate()

void Sim_SymmsSimulate ( Sym_Man_t * p, unsigned * pPat, Vec_Ptr_t * vMatrsNonSym )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Detects non-symmetric pairs using one pattern.]

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file simSymSim.c.

{
    Abc_Obj_t * pNode;
    int i, nPairsTotal, nPairsSym, nPairsNonSym;
    abctime clk;

    // create the simulation matrix
    Sim_SymmsCreateSquare( p, pPat );
    // simulate each node in the DFS order
clk = Abc_Clock();
    Vec_PtrForEachEntry( Abc_Obj_t *, p->vNodes, pNode, i )
    {
//        if ( Abc_NodeIsConst(pNode) )
//            continue;
        Sim_UtilSimulateNodeOne( pNode, p->vSim, p->nSimWords, 0 );
    }
p->timeSim += Abc_Clock() - clk;
    // collect info into the CO matrices
clk = Abc_Clock();
    Abc_NtkForEachCo( p->pNtk, pNode, i )
    {
        pNode = Abc_ObjFanin0(pNode);
//        if ( Abc_ObjIsCi(pNode) || Abc_AigNodeIsConst(pNode) )
//            continue;
        nPairsTotal  = Vec_IntEntry(p->vPairsTotal, i);
        nPairsSym    = Vec_IntEntry(p->vPairsSym,   i);
        nPairsNonSym = Vec_IntEntry(p->vPairsNonSym,i);
        assert( nPairsTotal >= nPairsSym + nPairsNonSym );
        if ( nPairsTotal == nPairsSym + nPairsNonSym )
            continue;
        Sim_SymmsDeriveInfo( p, pPat, pNode, vMatrsNonSym, i );
    }
p->timeMatr += Abc_Clock() - clk;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sim_SymmsStructCompute()

void Sim_SymmsStructCompute ( Abc_Ntk_t * pNtk, Vec_Ptr_t * vMatrs, Vec_Ptr_t * vSuppFun )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Computes symmetries for a single output function.]

Description []

SideEffects []

SeeAlso []

Definition at line 61 of file simSymStr.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pTemp;
    int * pMap, i;

    assert( Abc_NtkCiNum(pNtk) + 10 < (1<<16) );

    // get the structural support
    pNtk->vSupps = Sim_ComputeStrSupp( pNtk );
    // set elementary info for the CIs
    Abc_NtkForEachCi( pNtk, pTemp, i )
        SIM_SET_SYMMS( pTemp, Vec_IntAlloc(0) );
    // create the map of CI ids into their numbers
    pMap = Sim_SymmsCreateMap( pNtk );
    // collect the nodes in the TFI cone of this output
    vNodes = Abc_NtkDfs( pNtk, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pTemp, i )
    {
//        if ( Abc_NodeIsConst(pTemp) )
//            continue;
        Sim_SymmsStructComputeOne( pNtk, pTemp, pMap );
    }
    // collect the results for the COs;
    Abc_NtkForEachCo( pNtk, pTemp, i )
    {
//printf( "Output %d:\n", i );
        pTemp = Abc_ObjFanin0(pTemp);
        if ( Abc_ObjIsCi(pTemp) || Abc_AigNodeIsConst(pTemp) )
            continue;
        Sim_SymmsTransferToMatrix( (Extra_BitMat_t *)Vec_PtrEntry(vMatrs, i), SIM_READ_SYMMS(pTemp), (unsigned *)Vec_PtrEntry(vSuppFun, i) );
    }
    // clean the intermediate results
    Sim_UtilInfoFree( pNtk->vSupps );
    pNtk->vSupps = NULL;
    Abc_NtkForEachCi( pNtk, pTemp, i )
        Vec_IntFree( SIM_READ_SYMMS(pTemp) );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pTemp, i )
//        if ( !Abc_NodeIsConst(pTemp) )
            Vec_IntFree( SIM_READ_SYMMS(pTemp) );
    Vec_PtrFree( vNodes );
    ABC_FREE( pMap );
}

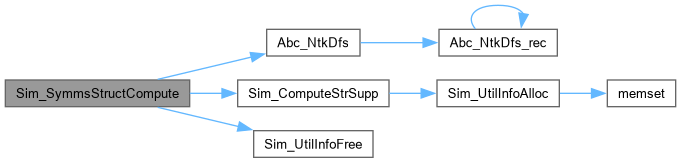

Here is the call graph for this function:

Here is the caller graph for this function:

Sim_UtilCountAllPairs()

int Sim_UtilCountAllPairs ( Vec_Ptr_t * vSuppFun, int nSimWords, Vec_Int_t * vCounters )

extern

Function*************************************************************

Synopsis [Counts the total number of pairs.]

Description []

SideEffects []

SeeAlso []

Definition at line 564 of file simUtils.c.

{
    unsigned * pSupp;
    int Counter, nOnes, nPairs, i;
    Counter = 0;
    Vec_PtrForEachEntry( unsigned *, vSuppFun, pSupp, i )
    {
        nOnes  = Sim_UtilCountOnes( pSupp, nSimWords );
        nPairs = nOnes * (nOnes - 1) / 2;
        Vec_IntWriteEntry( vCounters, i, nPairs );
        Counter += nPairs;
    }
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sim_UtilCountOnes()

int Sim_UtilCountOnes ( unsigned * pSimInfo, int nSimWords )

extern

Function*************************************************************

Synopsis [Counts the number of 1's in the bitstring.]

Description []

SideEffects []

SeeAlso []

Definition at line 403 of file simUtils.c.

{
    unsigned char * pBytes;
    int nOnes, nBytes, i;
    pBytes = (unsigned char *)pSimInfo;
    nBytes = 4 * nSimWords;
    nOnes  = 0;
    for ( i = 0; i < nBytes; i++ )
        nOnes += bit_count[ pBytes[i] ];
    return nOnes;
}

Here is the caller graph for this function:

Sim_UtilCountOnesArray()

Vec_Int_t * Sim_UtilCountOnesArray ( Vec_Ptr_t * vInfo, int nSimWords )

extern

Function*************************************************************

Synopsis [Counts the number of 1's in the bitstring.]

Description []

SideEffects []

SeeAlso []

Definition at line 426 of file simUtils.c.

{
    Vec_Int_t * vCounters;
    unsigned * pSimInfo;
    int i;
    vCounters = Vec_IntStart( Vec_PtrSize(vInfo) );
    Vec_PtrForEachEntry( unsigned *, vInfo, pSimInfo, i )
        Vec_IntWriteEntry( vCounters, i, Sim_UtilCountOnes(pSimInfo, nSimWords) );
    return vCounters;
}

Here is the call graph for this function:

Sim_UtilCountPairsAll()

void Sim_UtilCountPairsAll ( Sym_Man_t * p )

extern

Function*************************************************************

Synopsis [Counts the number of entries in the array of matrices.]

Description []

SideEffects []

SeeAlso []

Definition at line 660 of file simUtils.c.

{
    int nPairsTotal, nPairsSym, nPairsNonSym, i;
    abctime clk;
clk = Abc_Clock();
    p->nPairsSymm    = 0;
    p->nPairsNonSymm = 0;
    for ( i = 0; i < p->nOutputs; i++ )
    {
        nPairsTotal  = Vec_IntEntry(p->vPairsTotal, i);
        nPairsSym    = Vec_IntEntry(p->vPairsSym,   i);
        nPairsNonSym = Vec_IntEntry(p->vPairsNonSym,i);
        assert( nPairsTotal >= nPairsSym + nPairsNonSym );
        if ( nPairsTotal == nPairsSym + nPairsNonSym )
        {
            p->nPairsSymm    += nPairsSym;
            p->nPairsNonSymm += nPairsNonSym;
            continue;
        }
        nPairsSym    = Sim_UtilCountPairsOne( (Extra_BitMat_t *)Vec_PtrEntry(p->vMatrSymms,   i), Vec_VecEntryInt(p->vSupports, i) );
        nPairsNonSym = Sim_UtilCountPairsOne( (Extra_BitMat_t *)Vec_PtrEntry(p->vMatrNonSymms,i), Vec_VecEntryInt(p->vSupports, i) );
        assert( nPairsTotal >= nPairsSym + nPairsNonSym );
        Vec_IntWriteEntry( p->vPairsSym,    i, nPairsSym );
        Vec_IntWriteEntry( p->vPairsNonSym, i, nPairsNonSym );
        p->nPairsSymm    += nPairsSym;
        p->nPairsNonSymm += nPairsNonSym;
//        printf( "%d ", nPairsTotal - nPairsSym - nPairsNonSym );
    }
//printf( "\n" );
    p->nPairsRem = p->nPairsTotal-p->nPairsSymm-p->nPairsNonSymm;
p->timeCount += Abc_Clock() - clk;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sim_UtilCountSuppSizes()

int Sim_UtilCountSuppSizes ( Sim_Man_t * p, int fStruct )

extern

Function*************************************************************

Synopsis [Returns 1 if the simulation infos are equal.]

Description []

SideEffects []

SeeAlso []

Definition at line 372 of file simUtils.c.

{
    Abc_Obj_t * pNode, * pNodeCi;
    int i, v, Counter;
    Counter = 0;
    if ( fStruct )
    {
        Abc_NtkForEachCo( p->pNtk, pNode, i )
            Abc_NtkForEachCi( p->pNtk, pNodeCi, v )
                Counter += Sim_SuppStrHasVar( p->vSuppStr, pNode, v );
    }
    else
    {
        Abc_NtkForEachCo( p->pNtk, pNode, i )
            Abc_NtkForEachCi( p->pNtk, pNodeCi, v )
                Counter += Sim_SuppFunHasVar( p->vSuppFun, i, v );
    }
    return Counter;
}

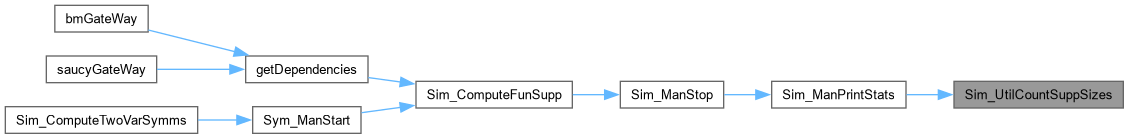

Here is the caller graph for this function:

Sim_UtilInfoAdd()

void Sim_UtilInfoAdd ( unsigned * pInfo1, unsigned * pInfo2, int nWords )

extern

Function*************************************************************

Synopsis [Adds the second supp-info the first.]

Description []

SideEffects []

SeeAlso []

Definition at line 101 of file simUtils.c.

{
    int w;
    for ( w = 0; w < nWords; w++ )
        pInfo1[w] |= pInfo2[w];
}

Sim_UtilInfoAlloc()

Vec_Ptr_t * Sim_UtilInfoAlloc ( int nSize, int nWords, int fClean )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Allocates simulation information for all nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 57 of file simUtils.c.

{
    Vec_Ptr_t * vInfo;
    int i;
    assert( nSize > 0 && nWords > 0 );
    vInfo = Vec_PtrAlloc( nSize );
    vInfo->pArray[0] = ABC_ALLOC( unsigned, (long)nSize * (long)nWords );
    assert( vInfo->pArray[0]);
    if ( fClean )
        memset( vInfo->pArray[0], 0, sizeof(unsigned) * nSize * nWords );
    for ( i = 1; i < nSize; i++ )
        vInfo->pArray[i] = ((unsigned *)vInfo->pArray[i-1]) + nWords;
    vInfo->nSize = nSize;
    return vInfo;
}

Here is the call graph for this function:

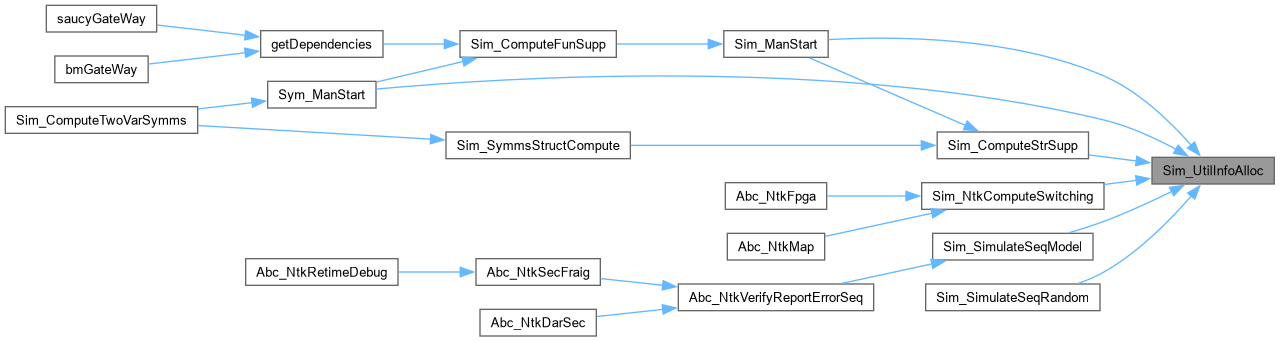

Here is the caller graph for this function:

Sim_UtilInfoCompare()

int Sim_UtilInfoCompare ( Sim_Man_t * p, Abc_Obj_t * pNode )

extern

Function*************************************************************

Synopsis [Returns 1 if the simulation infos are equal.]

Description []

SideEffects []

SeeAlso []

Definition at line 186 of file simUtils.c.

{
    unsigned * pSimInfo1, * pSimInfo2;
    int k;
    pSimInfo1 = (unsigned *)p->vSim0->pArray[pNode->Id];
    pSimInfo2 = (unsigned *)p->vSim1->pArray[pNode->Id];
    for ( k = 0; k < p->nSimWords; k++ )
        if ( pSimInfo2[k] != pSimInfo1[k] )
            return 0;
    return 1;
}

Sim_UtilInfoDetectDiffs()

void Sim_UtilInfoDetectDiffs ( unsigned * pInfo1, unsigned * pInfo2, int nWords, Vec_Int_t * vDiffs )

extern

Function*************************************************************

Synopsis [Returns the positions where pInfo2 is 1 while pInfo1 is 0.]

Description []

SideEffects []

SeeAlso []

Definition at line 119 of file simUtils.c.

{
    int w, b;
    unsigned uMask;
    vDiffs->nSize = 0;
    for ( w = 0; w < nWords; w++ )
        if ( (uMask = (pInfo2[w] ^ pInfo1[w])) )
            for ( b = 0; b < 32; b++ )
                if ( uMask & (1 << b) )
                    Vec_IntPush( vDiffs, 32*w + b );
}

Sim_UtilInfoDetectNews()

void Sim_UtilInfoDetectNews ( unsigned * pInfo1, unsigned * pInfo2, int nWords, Vec_Int_t * vDiffs )

extern

Function*************************************************************

Synopsis [Returns the positions where pInfo2 is 1 while pInfo1 is 0.]

Description []

SideEffects []

SeeAlso []

Definition at line 142 of file simUtils.c.

{
    int w, b;
    unsigned uMask;
    vDiffs->nSize = 0;
    for ( w = 0; w < nWords; w++ )
        if ( (uMask = (pInfo2[w] & ~pInfo1[w])) )
            for ( b = 0; b < 32; b++ )
                if ( uMask & (1 << b) )
                    Vec_IntPush( vDiffs, 32*w + b );
}

Sim_UtilInfoFlip()

void Sim_UtilInfoFlip ( Sim_Man_t * p, Abc_Obj_t * pNode )

extern

Function*************************************************************

Synopsis [Flips the simulation info of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 165 of file simUtils.c.

{
    unsigned * pSimInfo1, * pSimInfo2;
    int k;
    pSimInfo1 = (unsigned *)p->vSim0->pArray[pNode->Id];
    pSimInfo2 = (unsigned *)p->vSim1->pArray[pNode->Id];
    for ( k = 0; k < p->nSimWords; k++ )
        pSimInfo2[k] = ~pSimInfo1[k];
}

Sim_UtilInfoFree()

void Sim_UtilInfoFree ( Vec_Ptr_t * p )

extern

Function*************************************************************

Synopsis [Allocates simulation information for all nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 84 of file simUtils.c.

{
    ABC_FREE( p->pArray[0] );
    Vec_PtrFree( p );
}

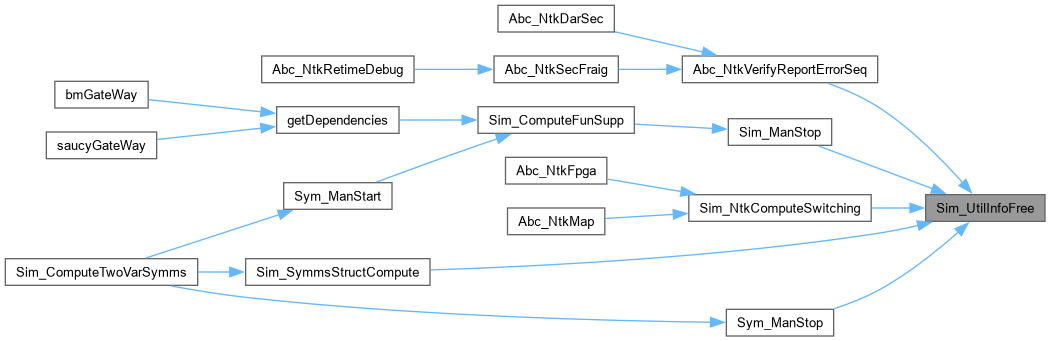

Here is the caller graph for this function:

Sim_UtilInfoIsClause()

int Sim_UtilInfoIsClause ( unsigned * pPats1, unsigned * pPats2, int nSimWords )

extern

Function*************************************************************

Synopsis [Returns 1 if Node1 v Node2 is always true.]

Description []

SideEffects []

SeeAlso []

Definition at line 544 of file simUtils.c.

{
    int k;
    for ( k = 0; k < nSimWords; k++ )
        if ( ~pPats1[k] & ~pPats2[k] )
            return 0;
    return 1;
}

Sim_UtilInfoIsEqual()

int Sim_UtilInfoIsEqual ( unsigned * pPats1, unsigned * pPats2, int nSimWords )

extern

Function*************************************************************

Synopsis [Returns 1 if equal.]

Description []

SideEffects []

SeeAlso []

Definition at line 504 of file simUtils.c.

{
    int k;
    for ( k = 0; k < nSimWords; k++ )
        if ( pPats1[k] != pPats2[k] )
            return 0;
    return 1;
}

Sim_UtilInfoIsImp()

int Sim_UtilInfoIsImp ( unsigned * pPats1, unsigned * pPats2, int nSimWords )

extern

Function*************************************************************

Synopsis [Returns 1 if Node1 implies Node2.]

Description []

SideEffects []

SeeAlso []

Definition at line 524 of file simUtils.c.

{
    int k;
    for ( k = 0; k < nSimWords; k++ )
        if ( pPats1[k] & ~pPats2[k] )
            return 0;
    return 1;
}

Sim_UtilMatrsAreDisjoint()

int Sim_UtilMatrsAreDisjoint ( Sym_Man_t * p )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 704 of file simUtils.c.

{
    int i;
    for ( i = 0; i < p->nOutputs; i++ )
        if ( !Extra_BitMatrixIsDisjoint( (Extra_BitMat_t *)Vec_PtrEntry(p->vMatrSymms,i), (Extra_BitMat_t *)Vec_PtrEntry(p->vMatrNonSymms,i) ) )
            return 0;
    return 1;
}

Here is the call graph for this function:

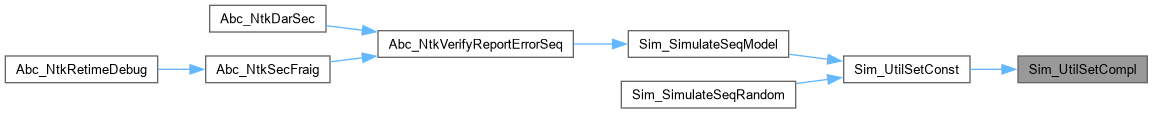

Here is the caller graph for this function:

Sim_UtilSetCompl()

void Sim_UtilSetCompl ( unsigned * pPatRand, int nSimWords )

extern

Function*************************************************************

Synopsis [Returns complemented patterns.]

Description []

SideEffects []

SeeAlso []

Definition at line 466 of file simUtils.c.

{
    int k;
    for ( k = 0; k < nSimWords; k++ )
        pPatRand[k] = ~pPatRand[k];
}

Here is the caller graph for this function:

Sim_UtilSetConst()

void Sim_UtilSetConst ( unsigned * pPatRand, int nSimWords, int fConst1 )

extern

Function*************************************************************

Synopsis [Returns constant patterns.]

Description []

SideEffects []

SeeAlso []

Definition at line 484 of file simUtils.c.

{
    int k;
    for ( k = 0; k < nSimWords; k++ )
        pPatRand[k] = 0;
    if ( fConst1 )
        Sim_UtilSetCompl( pPatRand, nSimWords );
}

Here is the call graph for this function:

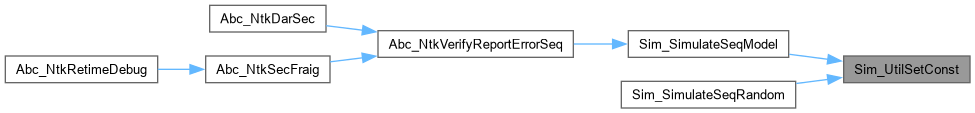

Here is the caller graph for this function:

Sim_UtilSetRandom()

void Sim_UtilSetRandom ( unsigned * pPatRand, int nSimWords )

extern

Function*************************************************************

Synopsis [Returns random patterns.]

Description []

SideEffects []

SeeAlso []

Definition at line 448 of file simUtils.c.

{
    int k;
    for ( k = 0; k < nSimWords; k++ )
        pPatRand[k] = SIM_RANDOM_UNSIGNED;
}

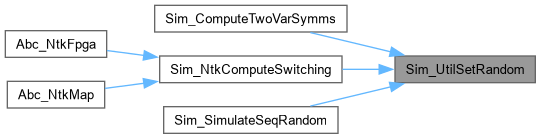

Here is the caller graph for this function:

Sim_UtilSimulate()

void Sim_UtilSimulate ( Sim_Man_t * p, int fType )

extern

Function*************************************************************

Synopsis [Simulates the internal nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 209 of file simUtils.c.

{
    Abc_Obj_t * pNode;
    int i;
    // simulate the internal nodes
    Abc_NtkForEachNode( p->pNtk, pNode, i )
        Sim_UtilSimulateNode( p, pNode, fType, fType, fType );
    // assign simulation info of the CO nodes
    Abc_NtkForEachCo( p->pNtk, pNode, i )
        Sim_UtilSimulateNode( p, pNode, fType, fType, fType );
}

Here is the call graph for this function:

Sim_UtilSimulateNode()

void Sim_UtilSimulateNode ( Sim_Man_t * p, Abc_Obj_t * pNode, int fType, int fType1, int fType2 )

extern

Function*************************************************************

Synopsis [Simulates one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 232 of file simUtils.c.

{
    unsigned * pSimmNode, * pSimmNode1, * pSimmNode2;
    int k, fComp1, fComp2;
    // simulate the internal nodes
    if ( Abc_ObjIsNode(pNode) )
    {
        if ( fType )
            pSimmNode  = (unsigned *)p->vSim1->pArray[ pNode->Id ];
        else
            pSimmNode  = (unsigned *)p->vSim0->pArray[ pNode->Id ];

        if ( fType1 )
            pSimmNode1 = (unsigned *)p->vSim1->pArray[ Abc_ObjFaninId0(pNode) ];
        else
            pSimmNode1 = (unsigned *)p->vSim0->pArray[ Abc_ObjFaninId0(pNode) ];

        if ( fType2 )
            pSimmNode2 = (unsigned *)p->vSim1->pArray[ Abc_ObjFaninId1(pNode) ];
        else
            pSimmNode2 = (unsigned *)p->vSim0->pArray[ Abc_ObjFaninId1(pNode) ];

        fComp1 = Abc_ObjFaninC0(pNode);
        fComp2 = Abc_ObjFaninC1(pNode);
        if ( fComp1 && fComp2 )
            for ( k = 0; k < p->nSimWords; k++ )
                pSimmNode[k] = ~pSimmNode1[k] & ~pSimmNode2[k];
        else if ( fComp1 && !fComp2 )
            for ( k = 0; k < p->nSimWords; k++ )
                pSimmNode[k] = ~pSimmNode1[k] &  pSimmNode2[k];
        else if ( !fComp1 && fComp2 )
            for ( k = 0; k < p->nSimWords; k++ )
                pSimmNode[k] =  pSimmNode1[k] & ~pSimmNode2[k];
        else // if ( fComp1 && fComp2 )
            for ( k = 0; k < p->nSimWords; k++ )
                pSimmNode[k] =  pSimmNode1[k] &  pSimmNode2[k];
    }
    else
    {
        assert( Abc_ObjFaninNum(pNode) == 1 );
        if ( fType )
            pSimmNode  = (unsigned *)p->vSim1->pArray[ pNode->Id ];
        else
            pSimmNode  = (unsigned *)p->vSim0->pArray[ pNode->Id ];

        if ( fType1 )
            pSimmNode1 = (unsigned *)p->vSim1->pArray[ Abc_ObjFaninId0(pNode) ];
        else
            pSimmNode1 = (unsigned *)p->vSim0->pArray[ Abc_ObjFaninId0(pNode) ];

        fComp1 = Abc_ObjFaninC0(pNode);
        if ( fComp1 )
            for ( k = 0; k < p->nSimWords; k++ )
                pSimmNode[k] = ~pSimmNode1[k];
        else
            for ( k = 0; k < p->nSimWords; k++ )
                pSimmNode[k] =  pSimmNode1[k];
    }
}

Here is the caller graph for this function:

Sim_UtilSimulateNodeOne()

void Sim_UtilSimulateNodeOne ( Abc_Obj_t * pNode, Vec_Ptr_t * vSimInfo, int nSimWords, int nOffset )

extern

Function*************************************************************

Synopsis [Simulates one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 303 of file simUtils.c.

{
    unsigned * pSimmNode, * pSimmNode1, * pSimmNode2;
    int k, fComp1, fComp2;
    // simulate the internal nodes
    assert( Abc_ObjIsNode(pNode) );
    pSimmNode  = (unsigned *)Vec_PtrEntry(vSimInfo, pNode->Id);
    pSimmNode1 = (unsigned *)Vec_PtrEntry(vSimInfo, Abc_ObjFaninId0(pNode));
    pSimmNode2 = (unsigned *)Vec_PtrEntry(vSimInfo, Abc_ObjFaninId1(pNode));
    pSimmNode  += nOffset;
    pSimmNode1 += nOffset;
    pSimmNode2 += nOffset;
    fComp1 = Abc_ObjFaninC0(pNode);
    fComp2 = Abc_ObjFaninC1(pNode);
    if ( fComp1 && fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pSimmNode[k] = ~pSimmNode1[k] & ~pSimmNode2[k];
    else if ( fComp1 && !fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pSimmNode[k] = ~pSimmNode1[k] &  pSimmNode2[k];
    else if ( !fComp1 && fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pSimmNode[k] =  pSimmNode1[k] & ~pSimmNode2[k];
    else // if ( fComp1 && fComp2 )
        for ( k = 0; k < nSimWords; k++ )
            pSimmNode[k] =  pSimmNode1[k] &  pSimmNode2[k];
}

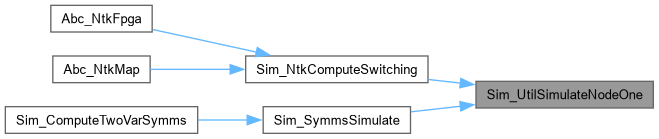

Here is the caller graph for this function:

Sim_UtilTransferNodeOne()

void Sim_UtilTransferNodeOne ( Abc_Obj_t * pNode, Vec_Ptr_t * vSimInfo, int nSimWords, int nOffset, int fShift )

extern

Function*************************************************************

Synopsis [Simulates one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 342 of file simUtils.c.

{
    unsigned * pSimmNode, * pSimmNode1;
    int k, fComp1;
    // simulate the internal nodes
    assert( Abc_ObjIsCo(pNode) );
    pSimmNode  = (unsigned *)Vec_PtrEntry(vSimInfo, pNode->Id);
    pSimmNode1 = (unsigned *)Vec_PtrEntry(vSimInfo, Abc_ObjFaninId0(pNode));
    pSimmNode  += nOffset + (fShift > 0)*nSimWords;
    pSimmNode1 += nOffset;
    fComp1 = Abc_ObjFaninC0(pNode);
    if ( fComp1 )
        for ( k = 0; k < nSimWords; k++ )
            pSimmNode[k] = ~pSimmNode1[k];
    else
        for ( k = 0; k < nSimWords; k++ )
            pSimmNode[k] =  pSimmNode1[k];
}

Sym_ManPrintStats()

void Sym_ManPrintStats ( Sym_Man_t * p )

extern

Function*************************************************************

Synopsis [Prints the manager statisticis.]

Description []

SideEffects []

SeeAlso []

Definition at line 135 of file simMan.c.

{
//    printf( "Inputs = %5d. Outputs = %5d. Sim words = %5d.\n",
//        Abc_NtkCiNum(p->pNtk), Abc_NtkCoNum(p->pNtk), p->nSimWords );
    printf( "Total symm         = %8d.\n", p->nPairsSymm );
    printf( "Structural symm    = %8d.\n", p->nPairsSymmStr );
    printf( "Total non-sym      = %8d.\n", p->nPairsNonSymm );
    printf( "Total var pairs    = %8d.\n", p->nPairsTotal );
    printf( "Sat runs SAT       = %8d.\n", p->nSatRunsSat );
    printf( "Sat runs UNSAT     = %8d.\n", p->nSatRunsUnsat );
    ABC_PRT( "Structural  ", p->timeStruct );
    ABC_PRT( "Simulation  ", p->timeSim );
    ABC_PRT( "Matrix      ", p->timeMatr );
    ABC_PRT( "Counting    ", p->timeCount );
    ABC_PRT( "Fraiging    ", p->timeFraig );
    ABC_PRT( "SAT         ", p->timeSat );
    ABC_PRT( "TOTAL       ", p->timeTotal );
}

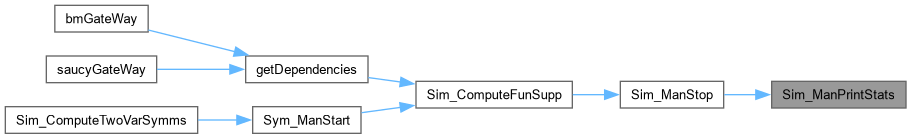

Here is the caller graph for this function:

Sym_ManStart()

Sym_Man_t * Sym_ManStart ( Abc_Ntk_t * pNtk, int fVerbose )

extern

FUNCTION DECLARATIONS ///.

FUNCTION DECLARATIONS ///.

CFile****************************************************************

FileName [simMan.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Simulation manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

simMan.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Starts the simulation manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file simMan.c.

{
    Sym_Man_t * p;
    int i, v;
    // start the manager
    p = ABC_ALLOC( Sym_Man_t, 1 );
    memset( p, 0, sizeof(Sym_Man_t) );
    p->pNtk = pNtk;
    p->vNodes     = Abc_NtkDfs( pNtk, 0 );
    p->nInputs    = Abc_NtkCiNum(p->pNtk);
    p->nOutputs   = Abc_NtkCoNum(p->pNtk);
    // internal simulation information
    p->nSimWords  = SIM_NUM_WORDS(p->nInputs);
    p->vSim       = Sim_UtilInfoAlloc( Abc_NtkObjNumMax(pNtk), p->nSimWords, 0 );
    // symmetry info for each output
    p->vMatrSymms    = Vec_PtrStart( p->nOutputs );
    p->vMatrNonSymms = Vec_PtrStart( p->nOutputs );
    p->vPairsTotal   = Vec_IntStart( p->nOutputs );
    p->vPairsSym     = Vec_IntStart( p->nOutputs );
    p->vPairsNonSym  = Vec_IntStart( p->nOutputs );
    for ( i = 0; i < p->nOutputs; i++ )
    {
        p->vMatrSymms->pArray[i]    = Extra_BitMatrixStart( p->nInputs );
        p->vMatrNonSymms->pArray[i] = Extra_BitMatrixStart( p->nInputs );
    }
    // temporary patterns
    p->uPatRand = ABC_ALLOC( unsigned, p->nSimWords );
    p->uPatCol  = ABC_ALLOC( unsigned, p->nSimWords );
    p->uPatRow  = ABC_ALLOC( unsigned, p->nSimWords );
    p->vVarsU   = Vec_IntStart( 100 );
    p->vVarsV   = Vec_IntStart( 100 );
    // compute supports
    p->vSuppFun  = Sim_ComputeFunSupp( pNtk, fVerbose );
    p->vSupports = Vec_VecStart( p->nOutputs );
    for ( i = 0; i < p->nOutputs; i++ )
        for ( v = 0; v < p->nInputs; v++ )
            if ( Sim_SuppFunHasVar( p->vSuppFun, i, v ) )
                Vec_VecPushInt( p->vSupports, i, v );
    return p;
}

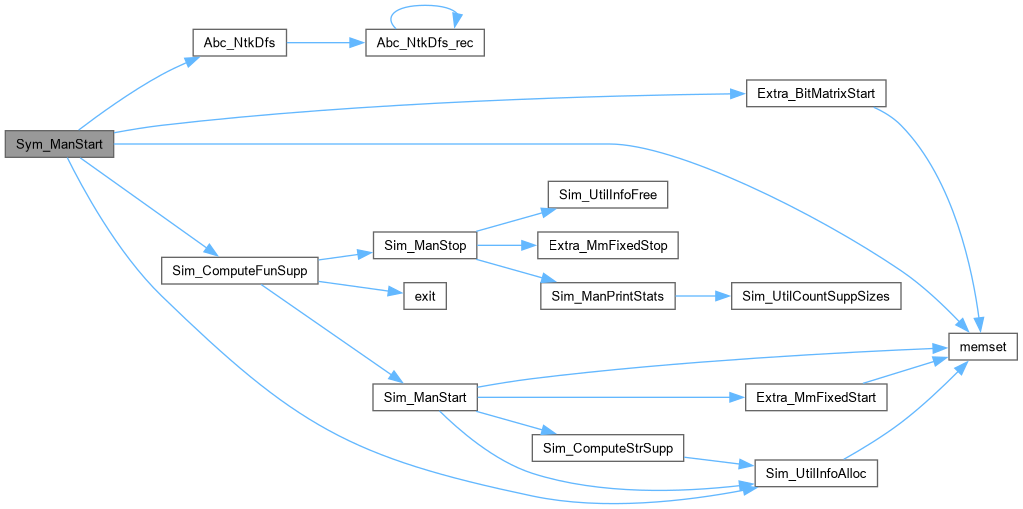

Here is the call graph for this function:

Here is the caller graph for this function:

Sym_ManStop()

void Sym_ManStop ( Sym_Man_t * p )

extern

Function*************************************************************

Synopsis [Stops the simulation manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 98 of file simMan.c.

{
    int i;
    Sym_ManPrintStats( p );
    if ( p->vSuppFun )     Sim_UtilInfoFree( p->vSuppFun );
    if ( p->vSim )         Sim_UtilInfoFree( p->vSim );
    if ( p->vNodes )       Vec_PtrFree( p->vNodes );
    if ( p->vSupports )    Vec_VecFree( p->vSupports );
    for ( i = 0; i < p->nOutputs; i++ )
    {
        Extra_BitMatrixStop( (Extra_BitMat_t *)p->vMatrSymms->pArray[i] );
        Extra_BitMatrixStop( (Extra_BitMat_t *)p->vMatrNonSymms->pArray[i] );
    }
    Vec_IntFree( p->vVarsU );
    Vec_IntFree( p->vVarsV );
    Vec_PtrFree( p->vMatrSymms );
    Vec_PtrFree( p->vMatrNonSymms );
    Vec_IntFree( p->vPairsTotal );
    Vec_IntFree( p->vPairsSym );
    Vec_IntFree( p->vPairsNonSym );
    ABC_FREE( p->uPatRand );
    ABC_FREE( p->uPatCol );
    ABC_FREE( p->uPatRow );
    ABC_FREE( p );
}

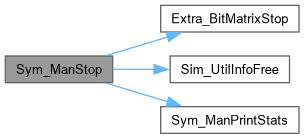

Here is the call graph for this function:

Here is the caller graph for this function:
