sswUnique.c File Reference

#include "sswInt.h"

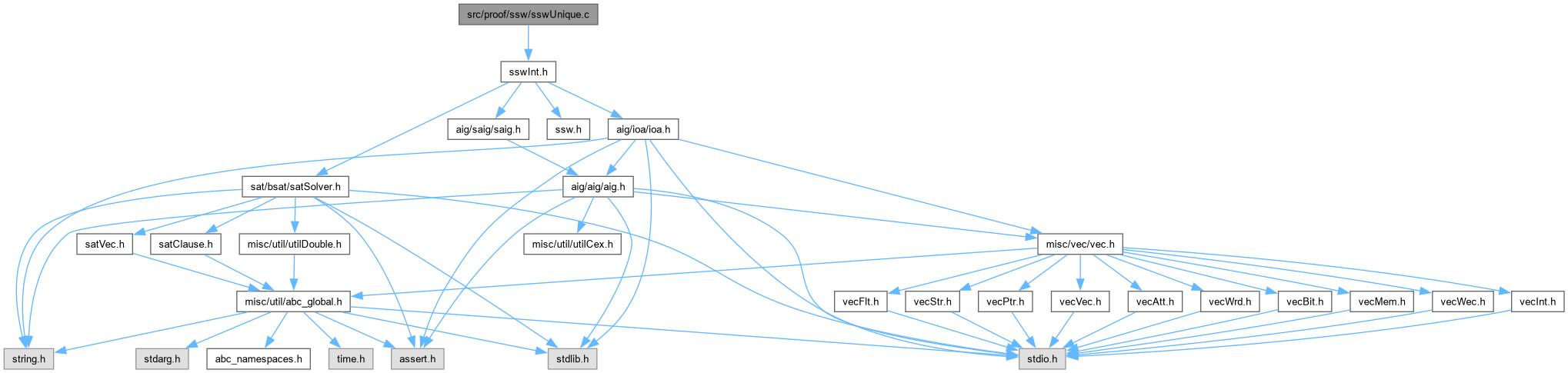

Include dependency graph for sswUnique.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Ssw_UniqueRegisterPairInfo (Ssw_Man_t *p)
	DECLARATIONS ///.
int	Ssw_ManUniqueOne (Ssw_Man_t *p, Aig_Obj_t *pRepr, Aig_Obj_t *pObj, int fVerbose)
int	Ssw_ManUniqueAddConstraint (Ssw_Man_t *p, Vec_Ptr_t *vCommon, int f1, int f2)

Function Documentation

Ssw_ManUniqueAddConstraint()

int Ssw_ManUniqueAddConstraint	(	Ssw_Man_t *	p,
		Vec_Ptr_t *	vCommon,
		int	f1,
		int	f2 )

Function*************************************************************

Synopsis [Returns the output of the uniqueness constraint.]

Description []

SideEffects []

SeeAlso []

Definition at line 151 of file sswUnique.c.

{
    Aig_Obj_t * pObj, * pObj1New, * pObj2New, * pMiter, * pTotal;
    int i, pLits[2];
//    int RetValue;
    assert( Vec_PtrSize(vCommon) > 0 );
    // generate the constraint
    pTotal = Aig_ManConst0(p->pFrames);
    Vec_PtrForEachEntry( Aig_Obj_t *, vCommon, pObj, i )
    {
        assert( Saig_ObjIsLo(p->pAig, pObj) );
        pObj1New = Ssw_ObjFrame( p, pObj, f1 );
        pObj2New = Ssw_ObjFrame( p, pObj, f2 );
        pMiter = Aig_Exor( p->pFrames, pObj1New, pObj2New );
        pTotal = Aig_Or( p->pFrames, pTotal, pMiter );
    }
    if ( Aig_ObjIsConst1(Aig_Regular(pTotal)) )
    {
//        Abc_Print( 1, "Skipped\n" );
        return 0;
    }
    // create CNF
    Ssw_CnfNodeAddToSolver( p->pMSat, Aig_Regular(pTotal) );
    // add output constraint
    pLits[0] = toLitCond( Ssw_ObjSatNum(p->pMSat,Aig_Regular(pTotal)), Aig_IsComplement(pTotal) );
/*
    RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 1 );
    assert( RetValue );
    // simplify the solver
    if ( p->pSat->qtail != p->pSat->qhead )
    {
        RetValue = sat_solver_simplify(p->pSat);
        assert( RetValue != 0 );
    }
*/
    assert( p->iOutputLit == -1 );
    p->iOutputLit = pLits[0];
    return 1;
}

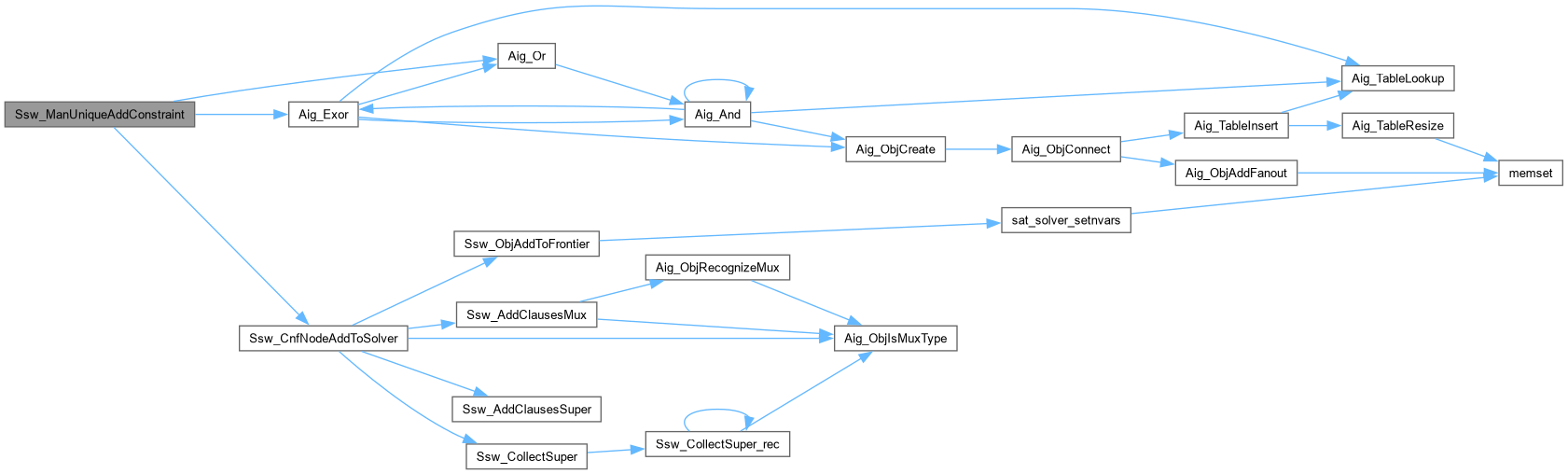

Here is the call graph for this function:

Ssw_ManUniqueOne()

int Ssw_ManUniqueOne	(	Ssw_Man_t *	p,
		Aig_Obj_t *	pRepr,
		Aig_Obj_t *	pObj,
		int	fVerbose )

Function*************************************************************

Synopsis [Returns 1 if uniqueness constraints can be added.]

Description []

SideEffects []

SeeAlso []

Definition at line 90 of file sswUnique.c.

{
    Aig_Obj_t * ppObjs[2], * pTemp;
    int i, k, Value0, Value1, RetValue, fFeasible;

    assert( p->pPars->nFramesK > 1 );
    assert( p->vDiffPairs && Vec_IntSize(p->vDiffPairs) == Saig_ManRegNum(p->pAig) );

    // compute the first support in terms of LOs
    ppObjs[0] = pRepr;
    ppObjs[1] = pObj;
    Aig_SupportNodes( p->pAig, ppObjs, 2, p->vCommon );
    // keep only LOs
    RetValue = Vec_PtrSize( p->vCommon );
    fFeasible = 0;
    k = 0;
    Vec_PtrForEachEntry( Aig_Obj_t *, p->vCommon, pTemp, i )
    {
        assert( Aig_ObjIsCi(pTemp) );
        if ( !Saig_ObjIsLo(p->pAig, pTemp) )
            continue;
        assert( Aig_ObjCioId(pTemp) > 0 );
        Vec_PtrWriteEntry( p->vCommon, k++, pTemp );
        if ( Vec_IntEntry(p->vDiffPairs, Aig_ObjCioId(pTemp) - Saig_ManPiNum(p->pAig)) )
            fFeasible = 1;
    }
    Vec_PtrShrink( p->vCommon, k );

    if ( fVerbose )
        Abc_Print( 1, "Node = %5d : Supp = %3d. Regs = %3d. Feasible = %s. ",
            Aig_ObjId(pObj), RetValue, Vec_PtrSize(p->vCommon),
            fFeasible? "yes": "no " );

    // check the current values
    RetValue = 1;
    Vec_PtrForEachEntry( Aig_Obj_t *, p->vCommon, pTemp, i )
    {
        Value0 = Ssw_ManGetSatVarValue( p, pTemp, 0 );
        Value1 = Ssw_ManGetSatVarValue( p, pTemp, 1 );
        if ( Value0 != Value1 )
            RetValue = 0;
        if ( fVerbose )
            Abc_Print( 1, "%d", Value0 ^ Value1 );
    }
    if ( fVerbose )
        Abc_Print( 1, "\n" );

    return RetValue && fFeasible;
}

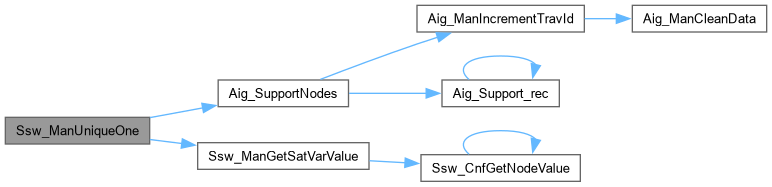

Here is the call graph for this function:

Ssw_UniqueRegisterPairInfo()

ABC_NAMESPACE_IMPL_START void Ssw_UniqueRegisterPairInfo

(

Ssw_Man_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [sswSat.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Inductive prover with constraints.]

Synopsis [On-demand uniqueness constraints.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - September 1, 2008.]

Revision [

Id

sswSat.c,v 1.00 2008/09/01 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Performs computation of signal correspondence with constraints.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file sswUnique.c.

{
    Aig_Obj_t * pObjLo, * pObj0, * pObj1;
    int i, RetValue, Counter;
    if ( p->vDiffPairs == NULL )
        p->vDiffPairs = Vec_IntAlloc( Saig_ManRegNum(p->pAig) );
    Vec_IntClear( p->vDiffPairs );
    Saig_ManForEachLo( p->pAig, pObjLo, i )
    {
        pObj0 = Ssw_ObjFrame( p, pObjLo, 0 );
        pObj1 = Ssw_ObjFrame( p, pObjLo, 1 );
        if ( pObj0 == pObj1 )
            Vec_IntPush( p->vDiffPairs, 0 );
        else if ( pObj0 == Aig_Not(pObj1) )
            Vec_IntPush( p->vDiffPairs, 1 );
//        else
//            Vec_IntPush( p->vDiffPairs, 1 );
        else if ( Aig_ObjPhaseReal(pObj0) != Aig_ObjPhaseReal(pObj1) )
            Vec_IntPush( p->vDiffPairs, 1 );
        else
        {
            RetValue = Ssw_NodesAreEquiv( p, Aig_Regular(pObj0), Aig_Regular(pObj1) );
            Vec_IntPush( p->vDiffPairs, RetValue!=1 );
        }
    }
    assert( Vec_IntSize(p->vDiffPairs) == Saig_ManRegNum(p->pAig) );
    // count the number of ones
    Counter = 0;
    Vec_IntForEachEntry( p->vDiffPairs, RetValue, i )
        Counter += RetValue;
//    Abc_Print( 1, "The number of different register pairs = %d.\n", Counter );
}

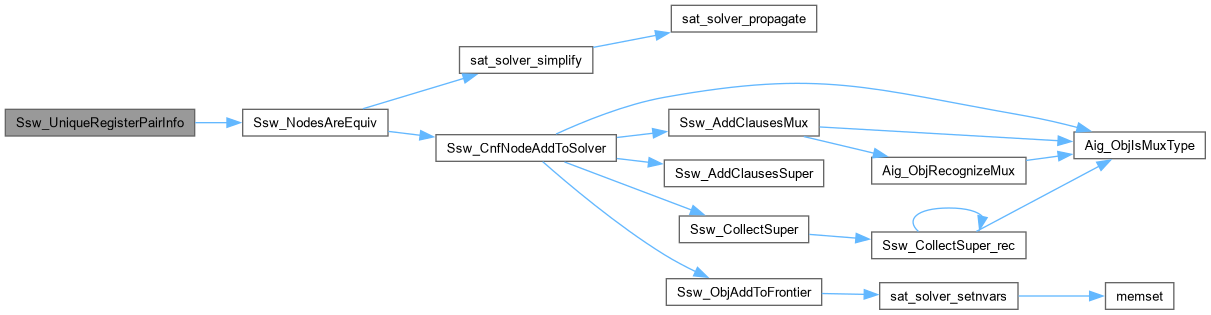

Here is the call graph for this function:
