abcAttach.c File Reference

#include "base/abc/abc.h"
#include "base/main/main.h"
#include "map/mio/mio.h"

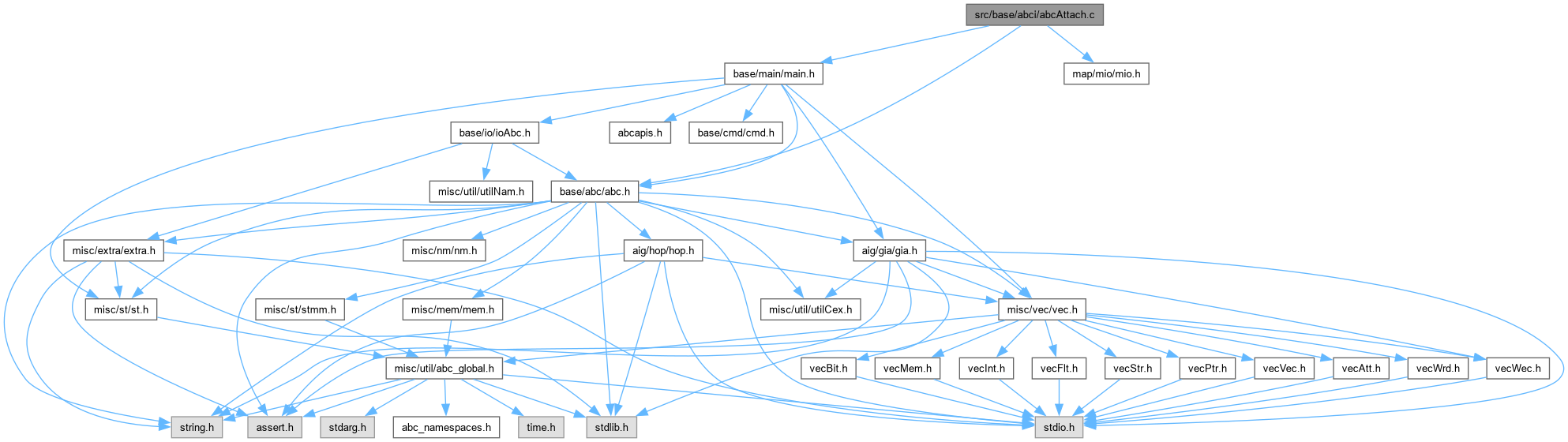

Include dependency graph for abcAttach.c:

Go to the source code of this file.

Macros
#define	ATTACH_FULL   (~((unsigned)0))
	DECLARATIONS ///.
#define	ATTACH_MASK(n)

Functions
int	Abc_NtkAttach (Abc_Ntk_t *pNtk)
	FUNCTION DEFINITIONS ///.

Macro Definition Documentation

ATTACH_FULL

#define ATTACH_FULL   (~((unsigned)0))

DECLARATIONS ///.

CFile****************************************************************

FileName [abcAttach.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Attaches the library gates to the current network.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcAttach.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 32 of file abcAttach.c.

ATTACH_MASK

#define ATTACH_MASK

(

n

)

Value:

((~((unsigned)0)) >> (32-(n)))

Definition at line 33 of file abcAttach.c.

Function Documentation

Abc_NtkAttach()

int Abc_NtkAttach

(

Abc_Ntk_t *

pNtk

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Attaches gates from the current library to the internal nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 60 of file abcAttach.c.

{
    Mio_Library_t * pGenlib;
    unsigned ** puTruthGates;
    unsigned uTruths[6][2];
    Abc_Obj_t * pNode;
    Mio_Gate_t ** ppGates;
    int nGates, nFanins, i;

    assert( Abc_NtkIsSopLogic(pNtk) );

    // check that the library is available
    pGenlib = (Mio_Library_t *)Abc_FrameReadLibGen();
    if ( pGenlib == NULL )
    {
        printf( "The current library is not available.\n" );
        return 0;
    }

    // start the truth tables
    Abc_AttachSetupTruthTables( uTruths );

    // collect all the gates
    ppGates = Mio_CollectRoots( pGenlib, 6, (float)1.0e+20, 1, &nGates, 0 );

    // derive the gate truth tables
    puTruthGates    = ABC_ALLOC( unsigned *, nGates );
    puTruthGates[0] = ABC_ALLOC( unsigned, 2 * nGates );
    for ( i = 1; i < nGates; i++ )
        puTruthGates[i] = puTruthGates[i-1] + 2;
    for ( i = 0; i < nGates; i++ )
        Mio_DeriveTruthTable( ppGates[i], uTruths, Mio_GateReadPinNum(ppGates[i]), 6, puTruthGates[i] );

    // assign the gates to pNode->pCopy
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        nFanins = Abc_ObjFaninNum(pNode);
        if ( nFanins == 0 )
        {
            if ( Abc_SopIsConst1((char *)pNode->pData) )
                pNode->pCopy = (Abc_Obj_t *)Mio_LibraryReadConst1(pGenlib);
            else
                pNode->pCopy = (Abc_Obj_t *)Mio_LibraryReadConst0(pGenlib);
        }
        else if ( nFanins == 1 )
        {
            if ( Abc_SopIsBuf((char *)pNode->pData) )
                pNode->pCopy = (Abc_Obj_t *)Mio_LibraryReadBuf(pGenlib);
            else
                pNode->pCopy = (Abc_Obj_t *)Mio_LibraryReadInv(pGenlib);
        }
        else if ( nFanins > 6 )
        {
            printf( "Cannot attach gate with more than 6 inputs to node %s.\n", Abc_ObjName(pNode) );
            ABC_FREE( puTruthGates[0] );
            ABC_FREE( puTruthGates );
            ABC_FREE( ppGates );
            return 0;
        }
        else if ( !Abc_NodeAttach( pNode, ppGates, puTruthGates, nGates, uTruths ) )
        {
            printf( "Could not attach the library gate to node %s.\n", Abc_ObjName(pNode) );
            ABC_FREE( puTruthGates[0] );
            ABC_FREE( puTruthGates );
            ABC_FREE( ppGates );
            return 0;
        }
    }
    ABC_FREE( puTruthGates[0] );
    ABC_FREE( puTruthGates );
    ABC_FREE( ppGates );
    ABC_FREE( s_pPerms );

    // perform the final transformation
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        if ( pNode->pCopy == NULL )
        {
            printf( "Some elementary gates (constant, buffer, or inverter) are missing in the library.\n" );
            return 0;
        }
    }

    // replace SOP representation by the gate representation
    Abc_NtkForEachNode( pNtk, pNode, i )
        pNode->pData = pNode->pCopy, pNode->pCopy = NULL;
    pNtk->ntkFunc = ABC_FUNC_MAP;
    Extra_MmFlexStop( (Extra_MmFlex_t *)pNtk->pManFunc );
    pNtk->pManFunc = pGenlib;

    printf( "Library gates are successfully attached to the nodes.\n" );

    // make sure that everything is okay
    if ( !Abc_NtkCheck( pNtk ) )
    {
        printf( "Abc_NtkAttach: The network check has failed.\n" );
        return 0;
    }
    return 1;
}

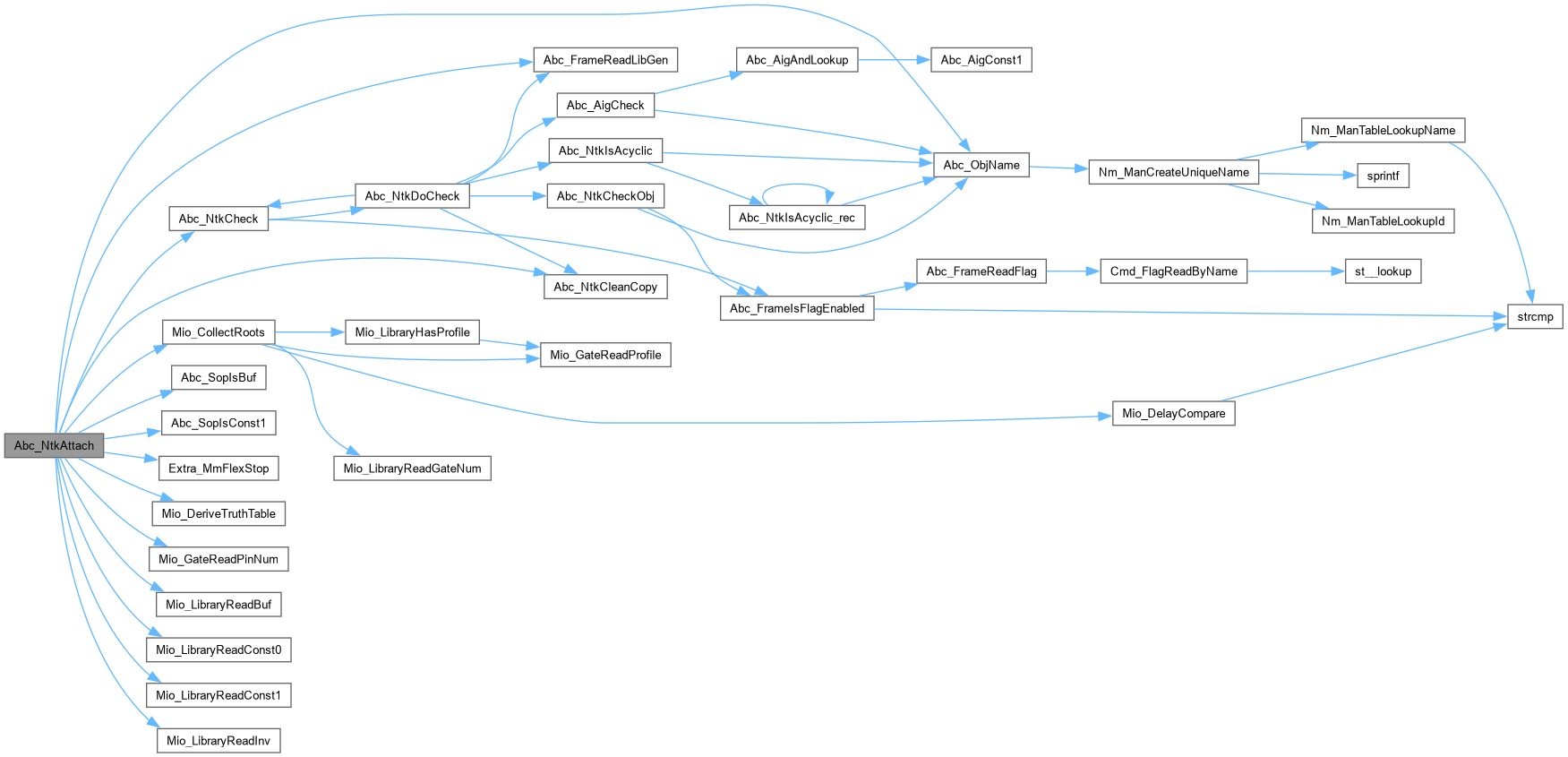

Here is the call graph for this function:
