abcDress3.c File Reference

#include "base/abc/abc.h"
#include "base/io/ioAbc.h"
#include "proof/cec/cec.h"

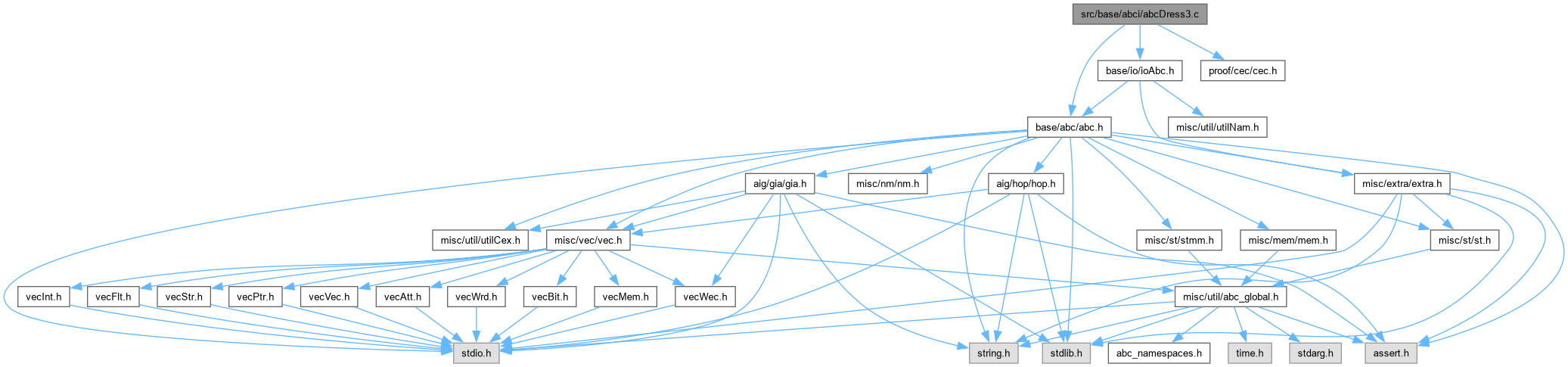

Include dependency graph for abcDress3.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Abc_ConvertHopToGia_rec1 (Gia_Man_t *p, Hop_Obj_t *pObj)
	DECLARATIONS ///.
void	Abc_ConvertHopToGia_rec2 (Hop_Obj_t *pObj)
int	Abc_ConvertHopToGia (Gia_Man_t *p, Hop_Obj_t *pRoot)
void	Abc_NtkAigToGiaOne (Gia_Man_t *p, Abc_Ntk_t *pNtk, Vec_Int_t *vMap)
Gia_Man_t *	Abc_NtkAigToGiaTwo (Abc_Ntk_t *pNtk1, Abc_Ntk_t *pNtk2, int fByName)
Vec_Int_t *	Abc_NtkCollectEquivClasses (Abc_Ntk_t *pNtks[2], Gia_Man_t *pGia)
void	Abc_NtkDumpEquivFile (char *pFileName, Vec_Int_t *vClasses, Abc_Ntk_t *pNtks[2])
void	Abc_NtkDumpEquiv (Abc_Ntk_t *pNtks[2], char *pFileName, int nConfs, int fByName, int fVerbose)

Function Documentation

Abc_ConvertHopToGia()

int Abc_ConvertHopToGia	(	Gia_Man_t *	p,
		Hop_Obj_t *	pRoot )

Definition at line 68 of file abcDress3.c.

{
    assert( !Hop_IsComplement(pRoot) );
    if ( Hop_ObjIsConst1( pRoot ) )
        return 1;
    Abc_ConvertHopToGia_rec1( p, pRoot );
    Abc_ConvertHopToGia_rec2( pRoot );
    return pRoot->iData;
}

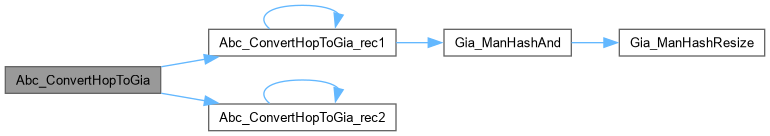

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ConvertHopToGia_rec1()

ABC_NAMESPACE_IMPL_START void Abc_ConvertHopToGia_rec1	(	Gia_Man_t *	p,
		Hop_Obj_t *	pObj )

DECLARATIONS ///.

CFile****************************************************************

FileName [abcDress3.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Transfers names from one netlist to the other.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcDress3.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Converts AIG from HOP to GIA.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file abcDress3.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || Hop_ObjIsMarkA(pObj) )
        return;
    Abc_ConvertHopToGia_rec1( p, Hop_ObjFanin0(pObj) );
    Abc_ConvertHopToGia_rec1( p, Hop_ObjFanin1(pObj) );
    pObj->iData = Gia_ManHashAnd( p, Hop_ObjChild0CopyI(pObj), Hop_ObjChild1CopyI(pObj) );
    assert( !Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjSetMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ConvertHopToGia_rec2()

void Abc_ConvertHopToGia_rec2

(

Hop_Obj_t *

pObj

)

Definition at line 58 of file abcDress3.c.

{
    assert( !Hop_IsComplement(pObj) );
    if ( !Hop_ObjIsNode(pObj) || !Hop_ObjIsMarkA(pObj) )
        return;
    Abc_ConvertHopToGia_rec2( Hop_ObjFanin0(pObj) );
    Abc_ConvertHopToGia_rec2( Hop_ObjFanin1(pObj) );
    assert( Hop_ObjIsMarkA(pObj) ); // loop detection
    Hop_ObjClearMarkA( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAigToGiaOne()

void Abc_NtkAigToGiaOne	(	Gia_Man_t *	p,
		Abc_Ntk_t *	pNtk,
		Vec_Int_t *	vMap )

Function*************************************************************

Synopsis [Add logic from pNtk to the AIG manager p.]

Description []

SideEffects []

SeeAlso []

Definition at line 89 of file abcDress3.c.

{
    Hop_Man_t * pHopMan;
    Hop_Obj_t * pHopObj;
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pNode, * pFanin;
    int i, k;
    assert( Abc_NtkIsAigLogic(pNtk) );
    pHopMan = (Hop_Man_t *)pNtk->pManFunc;
    Hop_ManConst1(pHopMan)->iData = 1;
    // image primary inputs
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkForEachCi( pNtk, pNode, i )
        pNode->iTemp = Gia_ManCiLit(p, Vec_IntEntry(vMap, i));
    // iterate through nodes used in the mapping
    vNodes = Abc_NtkDfs( pNtk, 1 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
    {
        Abc_ObjForEachFanin( pNode, pFanin, k )
            Hop_ManPi(pHopMan, k)->iData = pFanin->iTemp;
        pHopObj = Hop_Regular( (Hop_Obj_t *)pNode->pData );
        assert( Abc_ObjFaninNum(pNode) <= Hop_ManPiNum(pHopMan) );
        if ( Hop_DagSize(pHopObj) > 0 )
            Abc_ConvertHopToGia( p, pHopObj );
        pNode->iTemp = Abc_LitNotCond( pHopObj->iData, Hop_IsComplement( (Hop_Obj_t *)pNode->pData ) );
    }
    Vec_PtrFree( vNodes );
    // create primary outputs
    Abc_NtkForEachCo( pNtk, pNode, i )
        Gia_ManAppendCo( p, Abc_ObjFanin0(pNode)->iTemp );
}

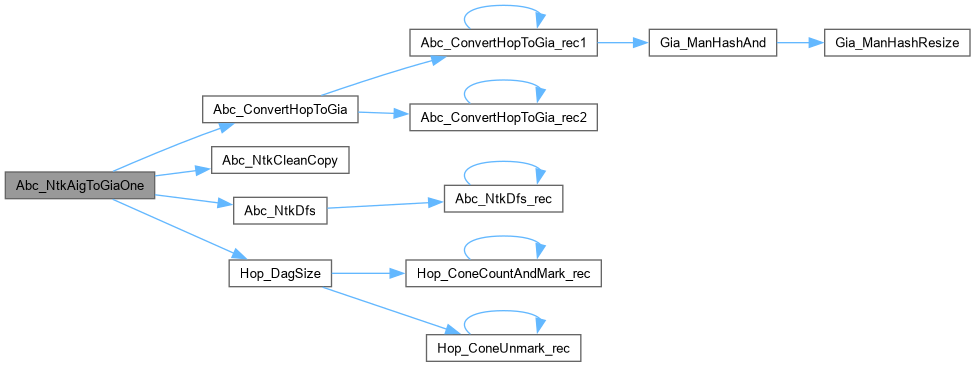

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAigToGiaTwo()

Gia_Man_t * Abc_NtkAigToGiaTwo	(	Abc_Ntk_t *	pNtk1,
		Abc_Ntk_t *	pNtk2,
		int	fByName )

Definition at line 120 of file abcDress3.c.

{
    Gia_Man_t * p;
    Gia_Obj_t * pObj;
    Abc_Obj_t * pNode;
    Vec_Int_t * vMap1, * vMap2;
    int i, Index = 0;
    assert( Abc_NtkIsAigLogic(pNtk1) );
    assert( Abc_NtkIsAigLogic(pNtk2) );
    // find common variables
    if ( fByName )
    {
        int nCommon = 0;
        vMap1 = Vec_IntStartNatural( Abc_NtkCiNum(pNtk1) );
        vMap2 = Vec_IntAlloc( Abc_NtkCiNum(pNtk2) );
        Abc_NtkForEachCi( pNtk1, pNode, i )
            pNode->iTemp = Index++;
        assert( Index == Abc_NtkCiNum(pNtk1) );
        Abc_NtkForEachCi( pNtk2, pNode, i )
        {
            int Num = Nm_ManFindIdByName( pNtk1->pManName, Abc_ObjName(pNode), ABC_OBJ_PI );
            if ( Num < 0 )
                Num = Nm_ManFindIdByName( pNtk1->pManName, Abc_ObjName(pNode), ABC_OBJ_BO );
            assert( Num < 0 || Abc_ObjIsCi(Abc_NtkObj(pNtk1, Num)) );
            if ( Num >= 0 )
                Vec_IntPush( vMap2, Abc_NtkObj(pNtk1, Num)->iTemp ), nCommon++;
            else
                Vec_IntPush( vMap2, Index++ );
        }
        // report
        printf( "Matched %d vars by name.", nCommon );
        if ( nCommon != Abc_NtkCiNum(pNtk1) )
            printf( " Netlist1 has %d unmatched vars.", Abc_NtkCiNum(pNtk1) - nCommon );
        if ( nCommon != Abc_NtkCiNum(pNtk2) )
            printf( " Netlist2 has %d unmatched vars.", Abc_NtkCiNum(pNtk2) - nCommon );
        printf( "\n" );
    }
    else
    {
        vMap1 = Vec_IntStartNatural( Abc_NtkCiNum(pNtk1) );
        vMap2 = Vec_IntStartNatural( Abc_NtkCiNum(pNtk2) );
        Index = Abc_MaxInt( Vec_IntSize(vMap1), Vec_IntSize(vMap2) );
        // report
        printf( "Matched %d vars by order.", Abc_MinInt(Abc_NtkCiNum(pNtk1), Abc_NtkCiNum(pNtk2)) );
        if ( Abc_NtkCiNum(pNtk1) < Abc_NtkCiNum(pNtk2) )
            printf( " The last %d vars of Netlist2 are unmatched vars.", Abc_NtkCiNum(pNtk2) - Abc_NtkCiNum(pNtk1) );
        if ( Abc_NtkCiNum(pNtk1) > Abc_NtkCiNum(pNtk2) )
            printf( " The last %d vars of Netlist1 are unmatched vars.", Abc_NtkCiNum(pNtk1) - Abc_NtkCiNum(pNtk2) );
        printf( "\n" );
    }
    // create new manager
    p = Gia_ManStart( 10000 );
    p->pName = Abc_UtilStrsav( Abc_NtkName(pNtk1) );
    p->pSpec = Abc_UtilStrsav( Abc_NtkSpec(pNtk1) );
    for ( i = 0; i < Index; i++ )
        Gia_ManAppendCi(p);
    // add logic
    Gia_ManHashAlloc( p );
    Abc_NtkAigToGiaOne( p, pNtk1, vMap1 );
    Abc_NtkAigToGiaOne( p, pNtk2, vMap2 );
    Gia_ManHashStop( p );
    Vec_IntFree( vMap1 );
    Vec_IntFree( vMap2 );
    // add extra POs to dangling nodes
    Gia_ManCreateValueRefs( p );
    Gia_ManForEachAnd( p, pObj, i )
        if ( pObj->Value == 0 )
            Gia_ManAppendCo( p, Abc_Var2Lit(i, 0) );
    return p;
}

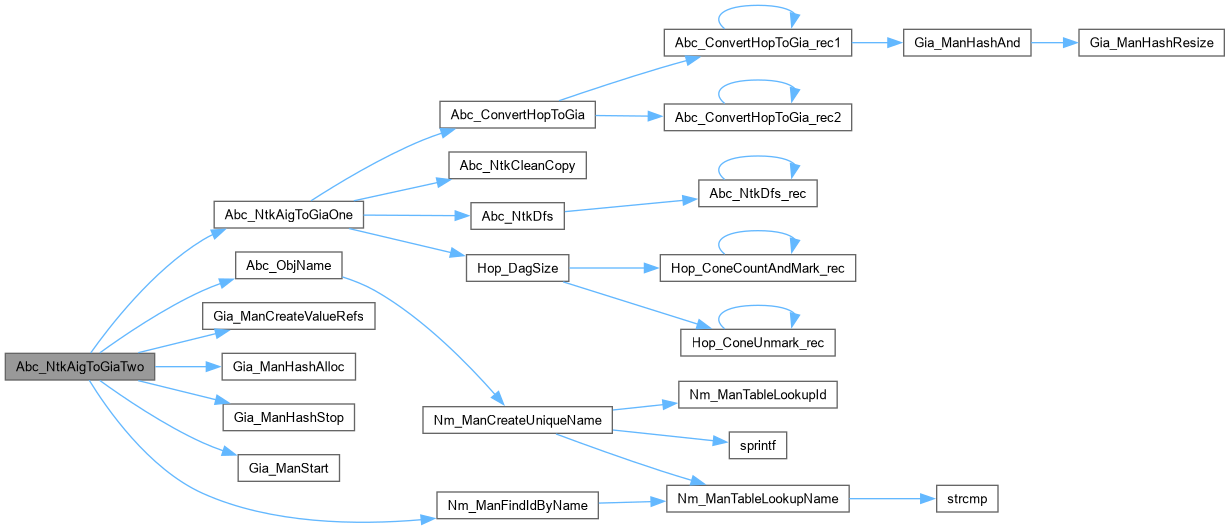

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkCollectEquivClasses()

Vec_Int_t * Abc_NtkCollectEquivClasses	(	Abc_Ntk_t *	pNtks[2],
		Gia_Man_t *	pGia )

Definition at line 213 of file abcDress3.c.

{
    Vec_Int_t * vClass = Vec_IntAlloc( 100 );
    Vec_Int_t * vClasses = Vec_IntAlloc( 1000 );
    Vec_Int_t * vGia2Cla = Vec_IntStartFull( Gia_ManObjNum(pGia) ); // mapping objId into classId
    Vec_Int_t * vNexts[2] = { Vec_IntStartFull(Abc_NtkObjNumMax(pNtks[0])), Vec_IntStartFull(Abc_NtkObjNumMax(pNtks[1])) };
    Abc_Obj_t * pObj;
    int n, i, k, Entry, fCompl;
    Abc_NtkForEachCi( pNtks[0], pObj, i )
        Abc_NtkCollectAddOne( 0, Abc_ObjId(pObj), pObj->iTemp, pGia, vGia2Cla, vNexts );
    for ( n = 0; n < 2; n++ )
        Abc_NtkForEachNode( pNtks[n], pObj, i )
            Abc_NtkCollectAddOne( n, Abc_ObjId(pObj), pObj->iTemp, pGia, vGia2Cla, vNexts );
    Vec_IntForEachEntry( vGia2Cla, Entry, i )
    {
        Vec_IntClear( vClass );
        for ( ; Entry >= 0; Entry = Vec_IntEntry(vNexts[Entry&1], Entry>>2) )
            Vec_IntPush( vClass, Entry );
        if ( Vec_IntSize(vClass) < 2 )
            continue;
        Vec_IntReverseOrder( vClass );
        fCompl = 2 & Vec_IntEntry( vClass, 0 );
        Vec_IntForEachEntry( vClass, Entry, k )
            Vec_IntWriteEntry( vClass, k, Entry ^ fCompl );
        Vec_IntPush( vClasses, Vec_IntSize(vClass) );
        Vec_IntAppend( vClasses, vClass );
    }
    Vec_IntFree( vGia2Cla );
    Vec_IntFree( vNexts[0] );
    Vec_IntFree( vNexts[1] );
    Vec_IntFree( vClass );
    return vClasses;
}

Here is the caller graph for this function:

Abc_NtkDumpEquiv()

void Abc_NtkDumpEquiv	(	Abc_Ntk_t *	pNtks[2],
		char *	pFileName,
		int	nConfs,
		int	fByName,
		int	fVerbose )

Function*************************************************************

Synopsis [Compute and dump equivalent name classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 289 of file abcDress3.c.

{
    //abctime clk = Abc_Clock();
    Gia_Man_t * pTemp;
    Vec_Int_t * vClasses;
    // derive shared AIG for the two networks
    Gia_Man_t * pGia = Abc_NtkAigToGiaTwo( pNtks[0], pNtks[1], fByName );
    if ( fVerbose )
        printf( "Computing equivalences for networks \"%s\" and \"%s\" with conflict limit %d.\n", Abc_NtkName(pNtks[0]), Abc_NtkName(pNtks[1]), nConfs );
    // compute equivalences in this AIG
    pTemp = Gia_ManComputeGiaEquivs( pGia, nConfs, fVerbose );
    Gia_ManStop( pTemp );
    //if ( fVerbose )
    //    Abc_PrintTime( 1, "Equivalence computation time", Abc_Clock() - clk );
    if ( fVerbose )
        Gia_ManPrintStats( pGia, NULL );
    // collect equivalence class information
    vClasses = Abc_NtkCollectEquivClasses( pNtks, pGia );
    Gia_ManStop( pGia );
    // dump information into the output file
    Abc_NtkDumpEquivFile( pFileName, vClasses, pNtks );
    Vec_IntFree( vClasses );
}

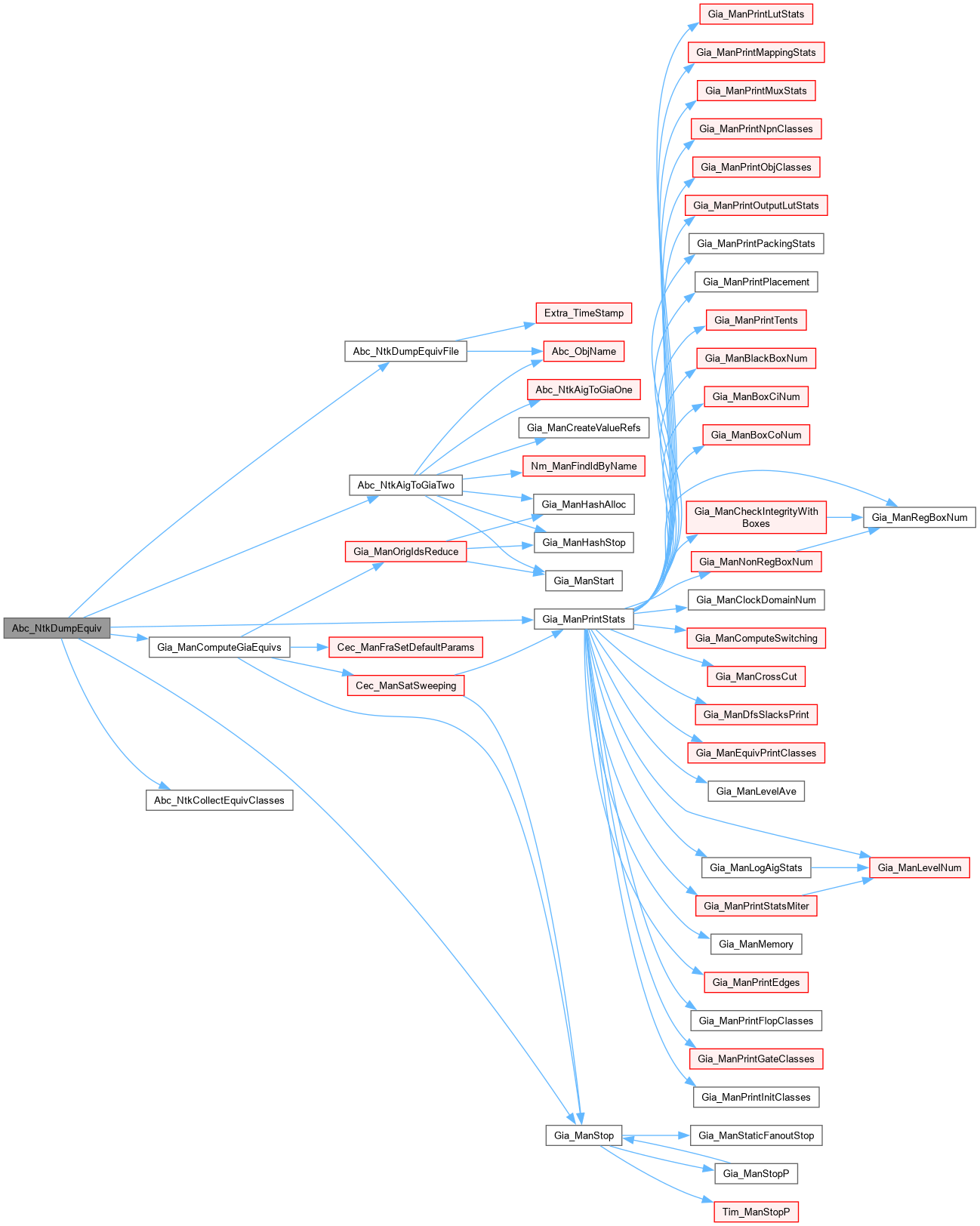

Here is the call graph for this function:

Abc_NtkDumpEquivFile()

void Abc_NtkDumpEquivFile	(	char *	pFileName,
		Vec_Int_t *	vClasses,
		Abc_Ntk_t *	pNtks[2] )

Function*************************************************************

Synopsis [Write the output file.]

Description []

SideEffects []

SeeAlso []

Definition at line 258 of file abcDress3.c.

{
    int i, c, k, Entry;
    FILE * pFile = fopen( pFileName, "wb" );
    if ( pFile == NULL ) { printf( "Cannot open file %s for writing.\n", pFileName ); return; }
    fprintf( pFile, "# Node equivalences computed by ABC for networks \"%s\" and \"%s\" on %s\n\n", Abc_NtkName(pNtks[0]), Abc_NtkName(pNtks[1]), Extra_TimeStamp() );
    for ( i = c = 0; i < Vec_IntSize(vClasses); c++, i += 1 + Vec_IntEntry(vClasses, i) )
    {
        Vec_IntForEachEntryStartStop( vClasses, Entry, k, i + 1, i + 1 + Vec_IntEntry(vClasses, i) )
        {
            Abc_Ntk_t * pNtk = pNtks[Entry & 1];
            char * pObjName = Abc_ObjName( Abc_NtkObj(pNtk, Entry>>2) );
            fprintf( pFile, "%d:%s:%s%s\n", c+1, Abc_NtkName(pNtk), (Entry&2) ? "NOT:":"", pObjName );
        }
        fprintf( pFile, "\n" );
    }
    fclose( pFile );
}

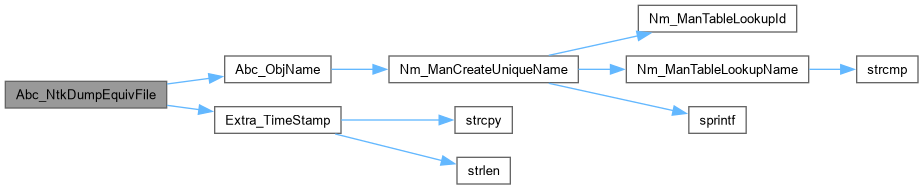

Here is the call graph for this function:

Here is the caller graph for this function:
