abcFpga.c File Reference

#include "base/abc/abc.h"
#include "map/fpga/fpgaInt.h"

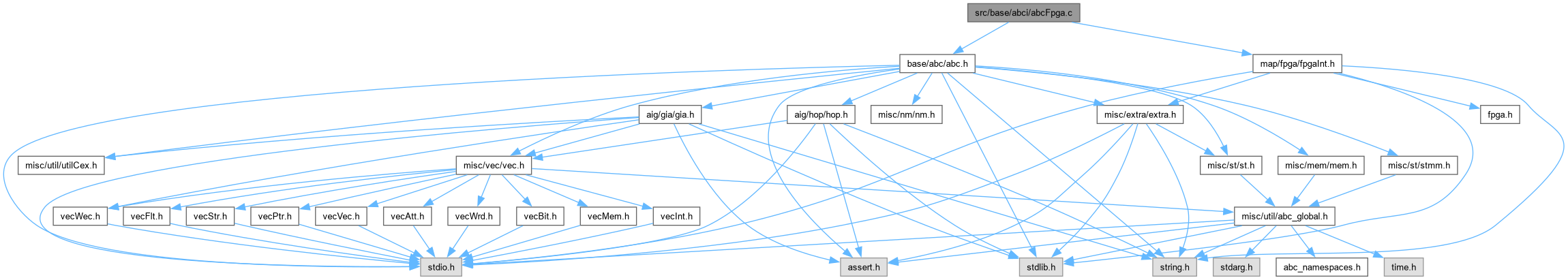

Include dependency graph for abcFpga.c:

Go to the source code of this file.

Functions
Abc_Ntk_t *	Abc_NtkFpga (Abc_Ntk_t *pNtk, float DelayTarget, int fRecovery, int fSwitching, int fLatchPaths, int fVerbose)
	FUNCTION DEFINITIONS ///.

Function Documentation

Abc_NtkFpga()

Abc_Ntk_t * Abc_NtkFpga	(	Abc_Ntk_t *	pNtk,
		float	DelayTarget,
		int	fRecovery,
		int	fSwitching,
		int	fLatchPaths,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Interface with the FPGA mapping package.]

Description []

SideEffects []

SeeAlso []

Definition at line 54 of file abcFpga.c.

{
    int fShowSwitching = 1;
    Abc_Ntk_t * pNtkNew;
    Fpga_Man_t * pMan;
    Vec_Int_t * vSwitching = NULL;
    float * pSwitching = NULL;
    int Num;

    assert( Abc_NtkIsStrash(pNtk) );

    // print a warning about choice nodes
    if ( (Num = Abc_NtkGetChoiceNum( pNtk )) )
        Abc_Print( 0, "Performing LUT mapping with %d choices.\n", Num );

    // compute switching activity
    fShowSwitching |= fSwitching;
    if ( fShowSwitching )
    {
        extern Vec_Int_t * Sim_NtkComputeSwitching( Abc_Ntk_t * pNtk, int nPatterns );
        vSwitching = Sim_NtkComputeSwitching( pNtk, 4096 );
        pSwitching = (float *)vSwitching->pArray;
    }

    // perform FPGA mapping
    pMan = Abc_NtkToFpga( pNtk, fRecovery, pSwitching, fLatchPaths, fVerbose );
    if ( pSwitching ) { assert(vSwitching); Vec_IntFree( vSwitching ); }
    if ( pMan == NULL )
        return NULL;
    Fpga_ManSetSwitching( pMan, fSwitching );
    Fpga_ManSetLatchPaths( pMan, fLatchPaths );
    Fpga_ManSetLatchNum( pMan, Abc_NtkLatchNum(pNtk) );
    Fpga_ManSetDelayTarget( pMan, DelayTarget );
    if ( !Fpga_Mapping( pMan ) )
    {
        Fpga_ManFree( pMan );
        return NULL;
    }

    // transform the result of mapping into a BDD network
    pNtkNew = Abc_NtkFromFpga( pMan, pNtk );
    if ( pNtkNew == NULL )
        return NULL;
    Fpga_ManFree( pMan );

    // make the network minimum base
    Abc_NtkMinimumBase( pNtkNew );

    if ( pNtk->pExdc )
        pNtkNew->pExdc = Abc_NtkDup( pNtk->pExdc );

    // make sure that everything is okay
    if ( !Abc_NtkCheck( pNtkNew ) )
    {
        printf( "Abc_NtkFpga: The network check has failed.\n" );
        Abc_NtkDelete( pNtkNew );
        return NULL;
    }
    return pNtkNew;
}

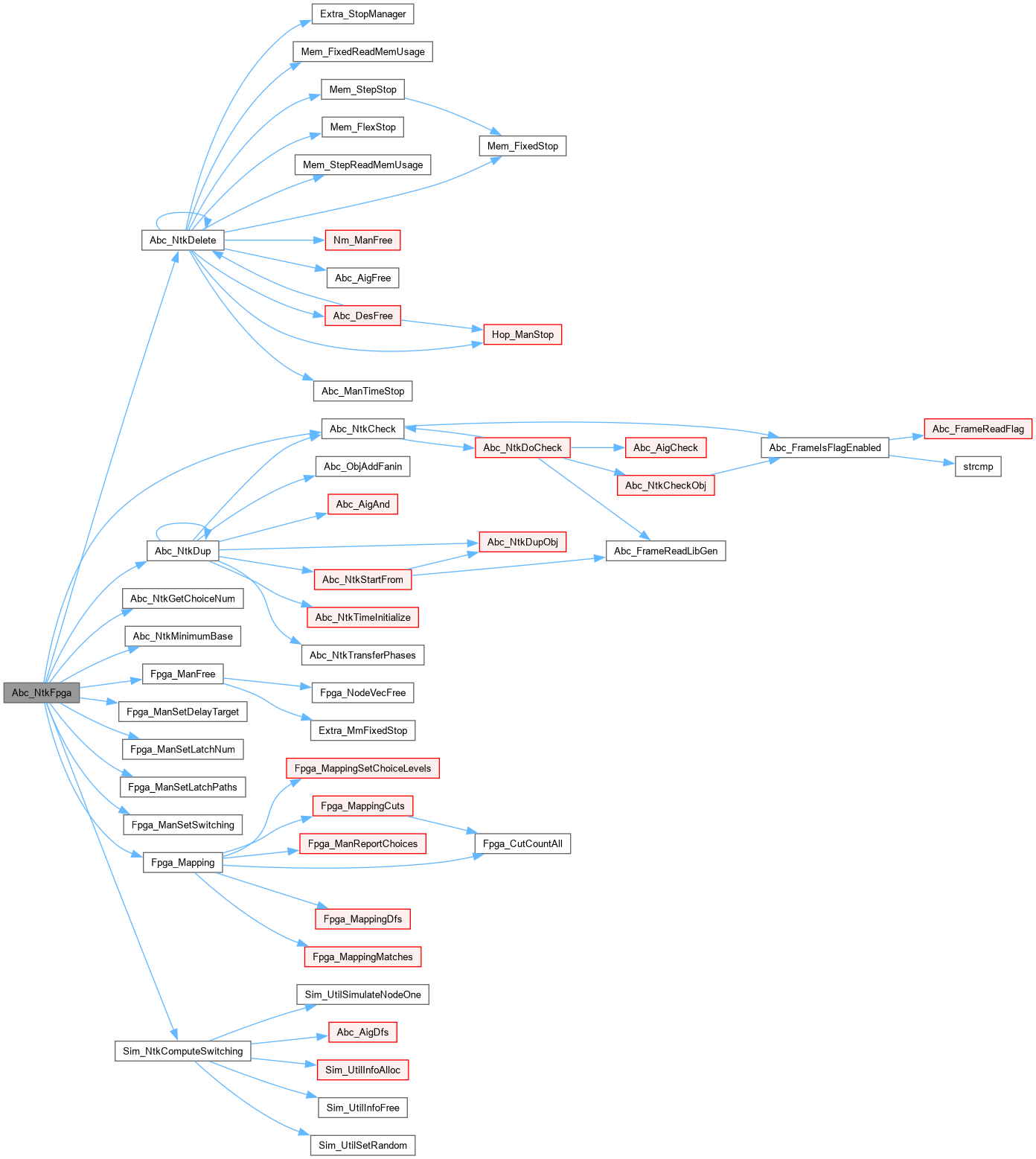

Here is the call graph for this function:
