abcHieNew.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include "misc/vec/vec.h"
#include "misc/util/utilNam.h"
#include "misc/extra/extra.h"
#include "abc.h"
#include "aig/gia/gia.h"

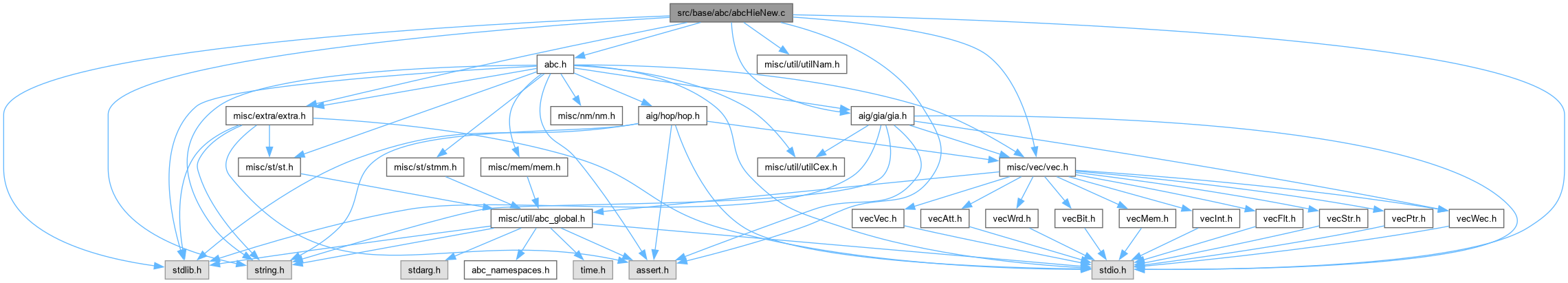

Include dependency graph for abcHieNew.c:

Go to the source code of this file.

Classes
struct	Au_Obj_t_
struct	Au_Ntk_t_
struct	Au_Man_t_

Macros
#define	AU_MAX_FANINS   0x1FFFFFFF
	DECLARATIONS ///.
#define	Au_ManForEachNtk(p, pNtk, i)
#define	Au_ManForEachNtkReverse(p, pNtk, i)
#define	Au_ObjForEachFaninId(pObj, hFanin, i)
#define	Au_BoxForEachFanoutId(pObj, hFanout, i)
#define	Au_ObjForEachFanin(pObj, pFanin, i)
#define	Au_BoxForEachFanout(pObj, pFanout, i)
#define	Au_NtkForEachPi(p, pObj, i)
#define	Au_NtkForEachPo(p, pObj, i)
#define	Au_NtkForEachObj(p, pObj, i)
#define	Au_NtkForEachNode(p, pObj, i)
#define	Au_NtkForEachBox(p, pObj, i)
#define	AU_VAL0   1
#define	AU_VAL1   2
#define	AU_VALX   3

Typedefs
typedef struct Au_Man_t_	Au_Man_t
typedef struct Au_Ntk_t_	Au_Ntk_t
typedef struct Au_Obj_t_	Au_Obj_t

Enumerations
enum	Au_Type_t {   AU_OBJ_NONE , AU_OBJ_CONST0 , AU_OBJ_PI , AU_OBJ_PO ,   AU_OBJ_FAN , AU_OBJ_FLOP , AU_OBJ_BOX , AU_OBJ_NODE ,   AU_OBJ_VOID }

Functions
void	Au_ManAddNtk (Au_Man_t *pMan, Au_Ntk_t *p)
void	Au_ManFree (Au_Man_t *p)
Au_Ntk_t *	Au_NtkAlloc (Au_Man_t *pMan, char *pName)
	FUNCTION DEFINITIONS ///.
void	Au_NtkFree (Au_Ntk_t *p)
int	Au_NtkMemUsage (Au_Ntk_t *p)
void	Au_NtkPrintStats (Au_Ntk_t *p)
void	Au_NtkCleanCopy (Au_Ntk_t *p)
int	Au_NtkNodeNumFunc (Au_Ntk_t *p, int Func)
Au_Man_t *	Au_ManAlloc (char *pName)
void	Au_ManDelete (Au_Man_t *p)
int	Au_ManFindNtk (Au_Man_t *p, char *pName)
Au_Ntk_t *	Au_ManFindNtkP (Au_Man_t *p, char *pName)
int	Au_ManMemUsage (Au_Man_t *p)
int	Au_ManMemUsageUseful (Au_Man_t *p)
void	Au_ManPrintStats (Au_Man_t *p)
void	Au_ManReorderModels_rec (Au_Ntk_t *pNtk, Vec_Int_t *vOrder)
void	Au_ManReorderModels (Au_Man_t *p, Au_Ntk_t *pRoot)
void	Au_ManCountThings (Au_Man_t *p)
int	Au_NtkCompareNames (Au_Ntk_t **p1, Au_Ntk_t **p2)
void	Au_ManPrintBoxInfo (Au_Ntk_t *pNtk)
int	Au_NtkCompareSign (Au_Ntk_t **p1, Au_Ntk_t **p2)
void	Au_ManPrintBoxInfoSorted (Au_Ntk_t *pNtk)
int	Au_NtkCheckRecursive (Au_Ntk_t *pNtk)
int	Au_ObjSuppSize_rec (Au_Ntk_t *p, int Id)
int	Au_ObjSuppSize (Au_Obj_t *pObj)
int	Au_NtkSuppSizeTest (Au_Ntk_t *p)
int	Au_NtkAllocObj (Au_Ntk_t *p, int nFanins, int Type)
int	Au_NtkCreateConst0 (Au_Ntk_t *pNtk)
int	Au_NtkCreatePi (Au_Ntk_t *pNtk)
int	Au_NtkCreatePo (Au_Ntk_t *pNtk, int iFanin)
int	Au_NtkCreateFan (Au_Ntk_t *pNtk, int iFanin, int iFanout, int iModel)
int	Au_NtkCreateNode (Au_Ntk_t *pNtk, Vec_Int_t *vFanins, int iFunc)
int	Au_NtkCreateBox (Au_Ntk_t *pNtk, Vec_Int_t *vFanins, int nFanouts, int iModel)
Au_Ntk_t *	Au_NtkParseCBlif (char *pFileName)
ABC_NAMESPACE_IMPL_END ABC_NAMESPACE_IMPL_START Vec_Ptr_t *	Abc_NtkDfsBoxes (Abc_Ntk_t *pNtk)
int	Abc_NtkDeriveFlatGiaSop (Gia_Man_t *pGia, int *gFanins, char *pSop)
int	Abc_NtkCheckRecursive (Abc_Ntk_t *pNtk)
void	Au_NtkDeriveFlatGia_rec (Gia_Man_t *pGia, Au_Ntk_t *p)
Gia_Man_t *	Au_NtkDeriveFlatGia (Au_Ntk_t *p)
void	Au_NtkTerSimulate_rec (Au_Ntk_t *p)
void	Au_NtkTerSimulate (Au_Ntk_t *p)
Au_Ntk_t *	Au_NtkDerive (Au_Man_t *pMan, Abc_Ntk_t *pNtk, Vec_Ptr_t *vOrder)
Gia_Man_t *	Au_ManDeriveTest (Abc_Ntk_t *pRoot)
Gia_Man_t *	Abc_NtkHieCecTest2 (char *pFileName, char *pModelName, int fVerbose)

Macro Definition Documentation

Au_BoxForEachFanout

#define Au_BoxForEachFanout	(		pObj,
			pFanout,
			i )

Value:

    for ( i = 0; (i < Au_BoxFanoutNum(pObj))    && (((pFanout) = Au_BoxFanout(pObj, i)), 1); i++ )

Definition at line 211 of file abcHieNew.c.

#define Au_BoxForEachFanout( pObj, pFanout, i)   \
    for ( i = 0; (i < Au_BoxFanoutNum(pObj))    && (((pFanout) = Au_BoxFanout(pObj, i)), 1); i++ )

Au_BoxForEachFanoutId

#define Au_BoxForEachFanoutId	(		pObj,
			hFanout,
			i )

Value:

    for ( i = 0; (i < Au_BoxFanoutNum(pObj))    && (((hFanout) = Au_BoxFanoutId(pObj, i)), 1); i++ )

Definition at line 206 of file abcHieNew.c.

#define Au_BoxForEachFanoutId( pObj, hFanout, i) \
    for ( i = 0; (i < Au_BoxFanoutNum(pObj))    && (((hFanout) = Au_BoxFanoutId(pObj, i)), 1); i++ )

Au_ManForEachNtk

#define Au_ManForEachNtk	(		p,
			pNtk,
			i )

Value:

    for ( i = 1; (i < Vec_PtrSize(&p->vNtks))   && (((pNtk) = Au_ManNtk(p, i)), 1); i++ )

Definition at line 199 of file abcHieNew.c.

#define Au_ManForEachNtk( p, pNtk, i )           \
    for ( i = 1; (i < Vec_PtrSize(&p->vNtks))   && (((pNtk) = Au_ManNtk(p, i)), 1); i++ )

Au_ManForEachNtkReverse

#define Au_ManForEachNtkReverse	(		p,
			pNtk,
			i )

Value:

    for ( i = Vec_PtrSize(&p->vNtks) - 1;(i>=1) && (((pNtk) = Au_ManNtk(p, i)), 1); i-- )

Definition at line 201 of file abcHieNew.c.

#define Au_ManForEachNtkReverse( p, pNtk, i )    \
    for ( i = Vec_PtrSize(&p->vNtks) - 1;(i>=1) && (((pNtk) = Au_ManNtk(p, i)), 1); i-- )

AU_MAX_FANINS

#define AU_MAX_FANINS   0x1FFFFFFF

DECLARATIONS ///.

CFile****************************************************************

FileName [abcHieNew.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [New hierarchy manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcHieNew.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 36 of file abcHieNew.c.

Au_NtkForEachBox

#define Au_NtkForEachBox	(		p,
			pObj,
			i )

Value:

    for ( i = 0; (i < Vec_IntSize(&p->vObjs))   && (((pObj) = Au_NtkObjI(p, i)), 1); i++ ) if ( !Au_ObjIsBox(pObj) ) {} else

Definition at line 222 of file abcHieNew.c.

#define Au_NtkForEachBox( p, pObj, i )           \
    for ( i = 0; (i < Vec_IntSize(&p->vObjs))   && (((pObj) = Au_NtkObjI(p, i)), 1); i++ ) if ( !Au_ObjIsBox(pObj) ) {} else

Au_NtkForEachNode

#define Au_NtkForEachNode	(		p,
			pObj,
			i )

Value:

    for ( i = 0; (i < Vec_IntSize(&p->vObjs))   && (((pObj) = Au_NtkObjI(p, i)), 1); i++ ) if ( !Au_ObjIsNode(pObj) ) {} else

Definition at line 220 of file abcHieNew.c.

#define Au_NtkForEachNode( p, pObj, i )           \
    for ( i = 0; (i < Vec_IntSize(&p->vObjs))   && (((pObj) = Au_NtkObjI(p, i)), 1); i++ ) if ( !Au_ObjIsNode(pObj) ) {} else

Au_NtkForEachObj

#define Au_NtkForEachObj	(		p,
			pObj,
			i )

Value:

    for ( i = 0; (i < Vec_IntSize(&p->vObjs))   && (((pObj) = Au_NtkObjI(p, i)), 1); i++ )

Definition at line 218 of file abcHieNew.c.

#define Au_NtkForEachObj( p, pObj, i )           \
    for ( i = 0; (i < Vec_IntSize(&p->vObjs))   && (((pObj) = Au_NtkObjI(p, i)), 1); i++ )

Au_NtkForEachPi

#define Au_NtkForEachPi	(		p,
			pObj,
			i )

Value:

    for ( i = 0; (i < Vec_IntSize(&p->vPis))    && (((pObj) = Au_NtkPi(p, i)), 1); i++ )

Definition at line 214 of file abcHieNew.c.

#define Au_NtkForEachPi( p, pObj, i )            \
    for ( i = 0; (i < Vec_IntSize(&p->vPis))    && (((pObj) = Au_NtkPi(p, i)), 1); i++ )

Au_NtkForEachPo

#define Au_NtkForEachPo	(		p,
			pObj,
			i )

Value:

    for ( i = 0; (i < Vec_IntSize(&p->vPos))    && (((pObj) = Au_NtkPo(p, i)), 1); i++ )

Definition at line 216 of file abcHieNew.c.

#define Au_NtkForEachPo( p, pObj, i )            \
    for ( i = 0; (i < Vec_IntSize(&p->vPos))    && (((pObj) = Au_NtkPo(p, i)), 1); i++ )

Au_ObjForEachFanin

#define Au_ObjForEachFanin	(		pObj,
			pFanin,
			i )

Value:

    for ( i = 0; (i < Au_ObjFaninNum(pObj))     && (((pFanin) = Au_ObjFanin(pObj, i)), 1); i++ )

Definition at line 209 of file abcHieNew.c.

#define Au_ObjForEachFanin( pObj, pFanin, i )    \
    for ( i = 0; (i < Au_ObjFaninNum(pObj))     && (((pFanin) = Au_ObjFanin(pObj, i)), 1); i++ )

Au_ObjForEachFaninId

#define Au_ObjForEachFaninId	(		pObj,
			hFanin,
			i )

Value:

    for ( i = 0; (i < Au_ObjFaninNum(pObj))     && (((hFanin) = Au_ObjFaninId(pObj, i)), 1); i++ )

Definition at line 204 of file abcHieNew.c.

#define Au_ObjForEachFaninId( pObj, hFanin, i )  \
    for ( i = 0; (i < Au_ObjFaninNum(pObj))     && (((hFanin) = Au_ObjFaninId(pObj, i)), 1); i++ )

AU_VAL0

#define AU_VAL0   1

Definition at line 1254 of file abcHieNew.c.

AU_VAL1

#define AU_VAL1   2

Definition at line 1255 of file abcHieNew.c.

AU_VALX

#define AU_VALX   3

Definition at line 1256 of file abcHieNew.c.

Typedef Documentation

Au_Man_t

typedef struct Au_Man_t_ Au_Man_t

Definition at line 51 of file abcHieNew.c.

Au_Ntk_t

typedef struct Au_Ntk_t_ Au_Ntk_t

Definition at line 52 of file abcHieNew.c.

Au_Obj_t

typedef struct Au_Obj_t_ Au_Obj_t

Definition at line 53 of file abcHieNew.c.

Enumeration Type Documentation

Au_Type_t

enum Au_Type_t

Enumerator
AU_OBJ_NONE
AU_OBJ_CONST0
AU_OBJ_PI
AU_OBJ_PO
AU_OBJ_FAN
AU_OBJ_FLOP
AU_OBJ_BOX
AU_OBJ_NODE
AU_OBJ_VOID

Definition at line 38 of file abcHieNew.c.

             {
    AU_OBJ_NONE,           // 0: non-existent object
    AU_OBJ_CONST0,         // 1: constant node
    AU_OBJ_PI,             // 2: primary input
    AU_OBJ_PO,             // 3: primary output
    AU_OBJ_FAN,            // 4: box output
    AU_OBJ_FLOP,           // 5: flip-flop
    AU_OBJ_BOX,            // 6: box
    AU_OBJ_NODE,           // 7: logic node
    AU_OBJ_VOID            // 8: placeholder
} Au_Type_t;

Function Documentation

Abc_NtkCheckRecursive()

int Abc_NtkCheckRecursive ( Abc_Ntk_t * pNtk )

extern

Function*************************************************************

Synopsis [Checks if there is a recursive definition.]

Description []

SideEffects []

SeeAlso []

Definition at line 626 of file abcHieCec.c.

{
    Vec_Ptr_t * vMods;
    Abc_Ntk_t * pModel;
    Abc_Obj_t * pObj;
    int i, k, RetValue = 0;

    assert( Abc_NtkIsNetlist(pNtk) );
    assert( !Abc_NtkLatchNum(pNtk) );

    if ( pNtk->pDesign == NULL )
        return RetValue;

    vMods = pNtk->pDesign->vModules;
    Vec_PtrForEachEntry( Abc_Ntk_t *, vMods, pModel, i )
    {
        Abc_NtkForEachObj( pModel, pObj, k )
            if ( Abc_ObjIsBox(pObj) && pObj->pData == (void *)pModel )
            {
                printf( "WARNING: Model \"%s\" contains a recursive definition.\n", Abc_NtkName(pModel) );
                RetValue = 1;
                break;
            }
    }
    return RetValue;
}

Here is the caller graph for this function:

Abc_NtkDeriveFlatGiaSop()

int Abc_NtkDeriveFlatGiaSop ( Gia_Man_t * pGia, int * gFanins, char * pSop )

extern

Function*************************************************************

Synopsis [Strashes one logic node using its SOP.]

Description []

SideEffects []

SeeAlso []

Definition at line 131 of file abcHieCec.c.

{
    char * pCube;
    int gAnd, gSum;
    int i, Value, nFanins;
    // get the number of variables
    nFanins = Abc_SopGetVarNum(pSop);
    if ( Abc_SopIsExorType(pSop) )
    {
        gSum = 0;
        for ( i = 0; i < nFanins; i++ )
            gSum = Gia_ManHashXor( pGia, gSum, gFanins[i] );
    }
    else
    {
        // go through the cubes of the node's SOP
        gSum = 0;
        Abc_SopForEachCube( pSop, nFanins, pCube )
        {
            // create the AND of literals
            gAnd = 1;
            Abc_CubeForEachVar( pCube, Value, i )
            {
                if ( Value == '1' )
                    gAnd = Gia_ManHashAnd( pGia, gAnd, gFanins[i] );
                else if ( Value == '0' )
                    gAnd = Gia_ManHashAnd( pGia, gAnd, Abc_LitNot(gFanins[i]) );
            }
            // add to the sum of cubes
            gSum = Gia_ManHashAnd( pGia, Abc_LitNot(gSum), Abc_LitNot(gAnd) );
            gSum = Abc_LitNot( gSum );
        }
    }
    // decide whether to complement the result
    if ( Abc_SopIsComplement(pSop) )
        gSum = Abc_LitNot(gSum);
    return gSum;
}

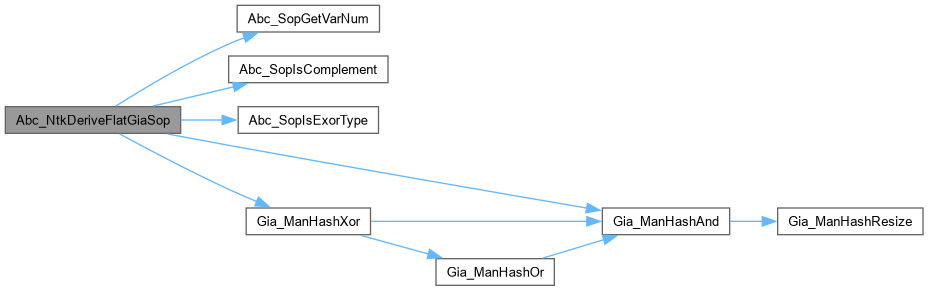

Here is the call graph for this function:

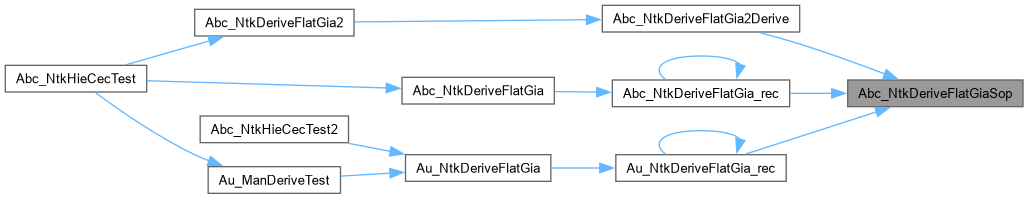

Here is the caller graph for this function:

Abc_NtkDfsBoxes()

ABC_NAMESPACE_IMPL_END ABC_NAMESPACE_IMPL_START Vec_Ptr_t * Abc_NtkDfsBoxes ( Abc_Ntk_t * pNtk )

extern

Function*************************************************************

Synopsis [Returns the array of node and boxes reachable from POs.]

Description []

SideEffects []

SeeAlso []

Definition at line 104 of file abcHieCec.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkIsNetlist(pNtk) );
    // set the traversal ID
    Abc_NtkIncrementTravId( pNtk );
    // start the array of nodes
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_NtkDfsBoxes_rec( Abc_ObjFaninReal(pObj, 0), vNodes );
    return vNodes;
}

Here is the call graph for this function:

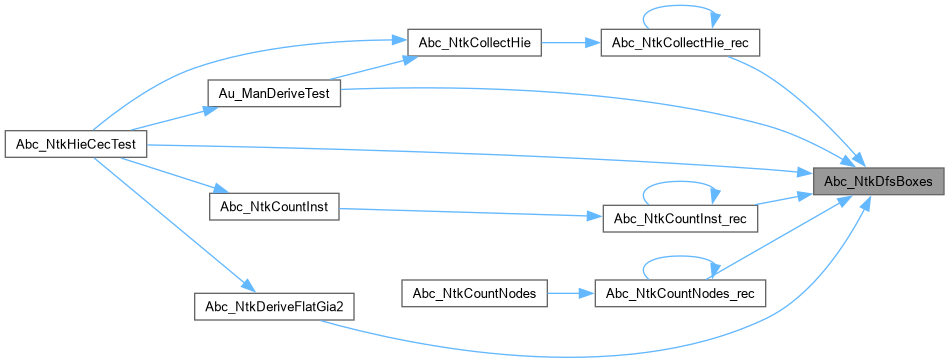

Here is the caller graph for this function:

Abc_NtkHieCecTest2()

Gia_Man_t * Abc_NtkHieCecTest2	(	char *	pFileName,
		char *	pModelName,
		int	fVerbose )

Function*************************************************************

Synopsis [Performs hierarchical equivalence checking.]

Description []

SideEffects []

SeeAlso []

Definition at line 1571 of file abcHieNew.c.

{
    int fSimulation = 0;
    Gia_Man_t * pGia = NULL;
    Au_Ntk_t * pNtk, * pNtkClp = NULL;
    abctime clk1 = 0, clk = Abc_Clock();

    // read hierarchical netlist
    pNtk = Au_NtkParseCBlif( pFileName );
    if ( pNtk == NULL )
    {
        printf( "Reading CBLIF file has failed.\n" );
        return NULL;
    }
    if ( pNtk->pMan == NULL || pNtk->pMan->vNtks.pArray == NULL )
    {
        printf( "There is no hierarchy information.\n" );
        Au_NtkFree( pNtk );
        return NULL;
    }
    Abc_PrintTime( 1, "Reading file", Abc_Clock() - clk );

    if ( fVerbose )
    {
        Au_ManPrintBoxInfo( pNtk );
//    Au_ManPrintBoxInfoSorted( pNtk );
        Au_ManPrintStats( pNtk->pMan );
    }
    Au_ManCountThings( pNtk->pMan );

    // select network
    if ( pModelName )
        pNtkClp = Au_ManFindNtkP( pNtk->pMan, pModelName );
    if ( pNtkClp == NULL )
        pNtkClp = pNtk;

    // check if the model is recursive
    Au_NtkCheckRecursive( pNtkClp );

    // collapse
    clk1 = Abc_Clock();
    if ( fSimulation )
    {
        Au_NtkTerSimulate( pNtkClp );
        Abc_PrintTime( 1, "Time sim ", Abc_Clock() - clk1 );
    }
    else
    {
        pGia = Au_NtkDeriveFlatGia( pNtkClp );
        Abc_PrintTime( 1, "Time GIA ", Abc_Clock() - clk1 );
    }

    // delete
    Au_ManDelete( pNtk->pMan );
    Abc_PrintTime( 1, "Time all ", Abc_Clock() - clk );
    return pGia;
}

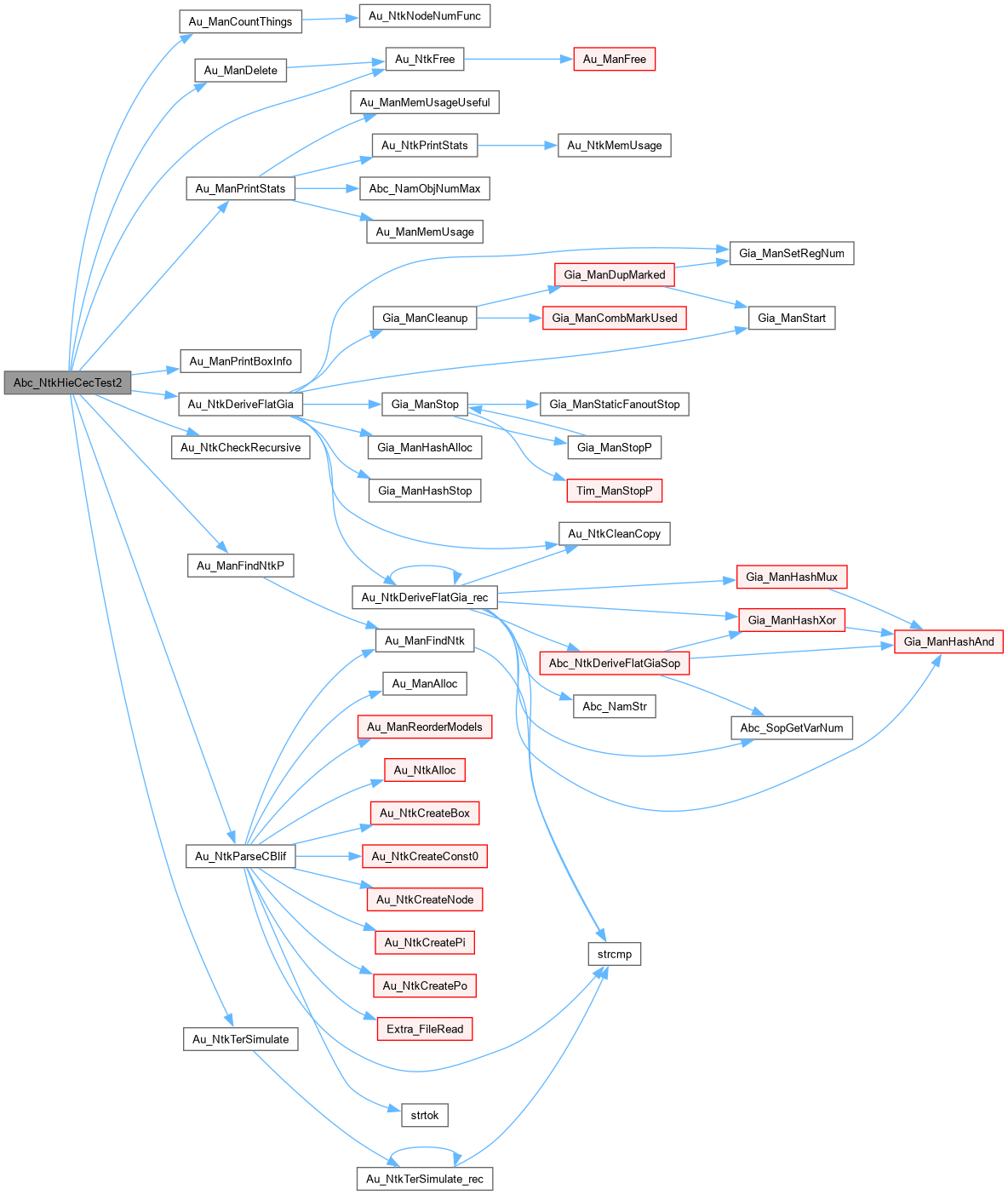

Here is the call graph for this function:

Au_ManAddNtk()

void Au_ManAddNtk ( Au_Man_t * pMan, Au_Ntk_t * p )

extern

Definition at line 370 of file abcHieNew.c.

{
    assert( Au_ManFindNtk(pMan, Au_NtkName(p)) == -1 );
    p->pMan = pMan; pMan->nRefs++;
    p->Id = Vec_PtrSize( &pMan->vNtks );
    Vec_PtrPush( &pMan->vNtks, p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManAlloc()

Au_Man_t * Au_ManAlloc

(

char *

pName

)

Function*************************************************************

Synopsis [Working with manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 327 of file abcHieNew.c.

{
    Au_Man_t * p;
    p = ABC_CALLOC( Au_Man_t, 1 );
    p->pName = Au_UtilStrsav( pName );
    Vec_PtrGrow( &p->vNtks,  111 );
    Vec_PtrPush( &p->vNtks, NULL );
    return p;
}

Here is the caller graph for this function:

Au_ManCountThings()

void Au_ManCountThings

(

Au_Man_t *

p

)

Definition at line 492 of file abcHieNew.c.

{
    Au_Ntk_t * pNtk, * pBoxModel;
    Au_Obj_t * pBox;
    int i, k;//, clk = Abc_Clock();
    Au_ManForEachNtkReverse( p, pNtk, i )
    {
        pNtk->nBoxes = Au_NtkBoxNum(pNtk);
        pNtk->nNodes = Au_NtkNodeNum(pNtk);
        pNtk->nPorts = Au_NtkPiNum(pNtk) + Au_NtkPoNum(pNtk);
        pNtk->nNodeAnds = Au_NtkNodeNumFunc( pNtk, 1 );
        pNtk->nNodeXors = Au_NtkNodeNumFunc( pNtk, 2 );
        pNtk->nNodeMuxs = Au_NtkNodeNumFunc( pNtk, 3 );
//        assert( pNtk->nNodes == pNtk->nNodeAnds + pNtk->nNodeXors + pNtk->nNodeMuxs );
//        printf( "adding %.0f nodes of model %s\n", pNtk->nNodes, Au_NtkName(pNtk) );
        Au_NtkForEachBox( pNtk, pBox, k )
        {
            pBoxModel = Au_ObjModel(pBox);
            if ( pBoxModel == NULL || pBoxModel == pNtk )
                continue;
            assert( Au_ObjFaninNum(pBox) == Au_NtkPiNum(pBoxModel) );
            assert( Au_BoxFanoutNum(pBox) == Au_NtkPoNum(pBoxModel) );
            assert( pBoxModel->Id > pNtk->Id );
            assert( pBoxModel->nPorts > 0 );
            pNtk->nBoxes += pBoxModel->nBoxes;
            pNtk->nNodes += pBoxModel->nNodes;
            pNtk->nPorts += pBoxModel->nPorts;
            pNtk->nNodeAnds += pBoxModel->nNodeAnds;
            pNtk->nNodeXors += pBoxModel->nNodeXors;
            pNtk->nNodeMuxs += pBoxModel->nNodeMuxs;
//            printf( "    adding %.0f nodes of model %s\n", pBoxModel->nNodes, Au_NtkName(pBoxModel) );
        }
//        printf( "total %.0f nodes in model %s\n", pNtk->nNodes, Au_NtkName(pNtk) );
    }
    pNtk = Au_ManNtkRoot(p);
    printf( "Total nodes = %15.0f. Total instances = %15.0f. Total ports = %15.0f.\n",
//    printf( "Total nodes = %.2e. Total instances = %.2e. Total ports = %.2e.\n",
        pNtk->nNodes, pNtk->nBoxes, pNtk->nPorts );
//    printf( "Total ANDs  = %15.0f. Total XORs      = %15.0f. Total MUXes = %15.0f.\n",
//    printf( "Total ANDs  = %.2e. Total XORs      = %.2e. Total MUXes = %.2e.  ",
//        pNtk->nNodeAnds, pNtk->nNodeXors, pNtk->nNodeMuxs );
    printf( "Total ANDs  = %15.0f.\n", pNtk->nNodeAnds );
    printf( "Total XORs  = %15.0f.\n", pNtk->nNodeXors );
    printf( "Total MUXes = %15.0f.\n", pNtk->nNodeMuxs );
//    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManDelete()

void Au_ManDelete

(

Au_Man_t *

p

)

Definition at line 347 of file abcHieNew.c.

{
    Au_Ntk_t * pNtk;
    int i;
    Au_ManForEachNtk( p, pNtk, i )
        Au_NtkFree( pNtk );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManDeriveTest()

Gia_Man_t * Au_ManDeriveTest

(

Abc_Ntk_t *

pRoot

)

Definition at line 1486 of file abcHieNew.c.

{
    extern Vec_Ptr_t * Abc_NtkCollectHie( Abc_Ntk_t * pNtk );

//    char * pModelName = NULL;
    char * pModelName = "path_0_r_x_lhs";
    Gia_Man_t * pGia = NULL;
    Vec_Ptr_t * vOrder, * vModels;
    Abc_Ntk_t * pMod;
    Au_Man_t * pMan;
    Au_Ntk_t * pNtk = NULL;
    abctime clk1, clk2 = 0, clk3 = 0, clk = Abc_Clock();
    int i;

    clk1 = Abc_Clock();
    pMan = Au_ManAlloc( pRoot->pDesign ? pRoot->pDesign->pName : pRoot->pName );
    pMan->pFuncs = Abc_NamStart( 100, 16 );
    clk2 += Abc_Clock() - clk1;

    vModels = Abc_NtkCollectHie( pRoot );
    Vec_PtrForEachEntry( Abc_Ntk_t *, vModels, pMod, i )
    {
        vOrder = Abc_NtkDfsBoxes( pMod );

        clk1 = Abc_Clock();
        pNtk = Au_NtkDerive( pMan, pMod, vOrder );
        pMod->iStep = pNtk->Id;
        pMod->pData = pNtk;
        clk2 += Abc_Clock() - clk1;

        Vec_PtrFree( vOrder );
    }
    Vec_PtrFree( vModels );
    // order models in topological order
    Au_ManReorderModels( pMan, pNtk );

    // print statistics
    Au_ManPrintStats( pMan );
    Au_ManCountThings( pNtk->pMan );

    // select network
    if ( pModelName )
    {
        pNtk = Au_ManFindNtkP( pMan, pModelName );
        if ( pNtk == NULL )
            printf( "Could not find module \"%s\".\n", pModelName );
    }
    if ( pNtk == NULL )
        pNtk = (Au_Ntk_t *)pRoot->pData;


//    if ( !Abc_NtkCheckRecursive(pRoot) )
    {
        clk1 = Abc_Clock();
        pGia = Au_NtkDeriveFlatGia( pNtk );
        clk3 = Abc_Clock() - clk1;
//        printf( "GIA objects max = %d.\n", pMan->nGiaObjMax );
    }

//    clk1 = Abc_Clock();
//    Au_NtkSuppSizeTest( (Au_Ntk_t *)pRoot->pData );
//    clk4 = Abc_Clock() - clk1;

    clk1 = Abc_Clock();
    Au_ManDelete( pMan );
    clk2 += Abc_Clock() - clk1;

    Abc_PrintTime( 1, "Time all ", Abc_Clock() - clk );
    Abc_PrintTime( 1, "Time new ", clk2 );
    Abc_PrintTime( 1, "Time GIA ", clk3 );
//    Abc_PrintTime( 1, "Time supp", clk4 );
    return pGia;
}

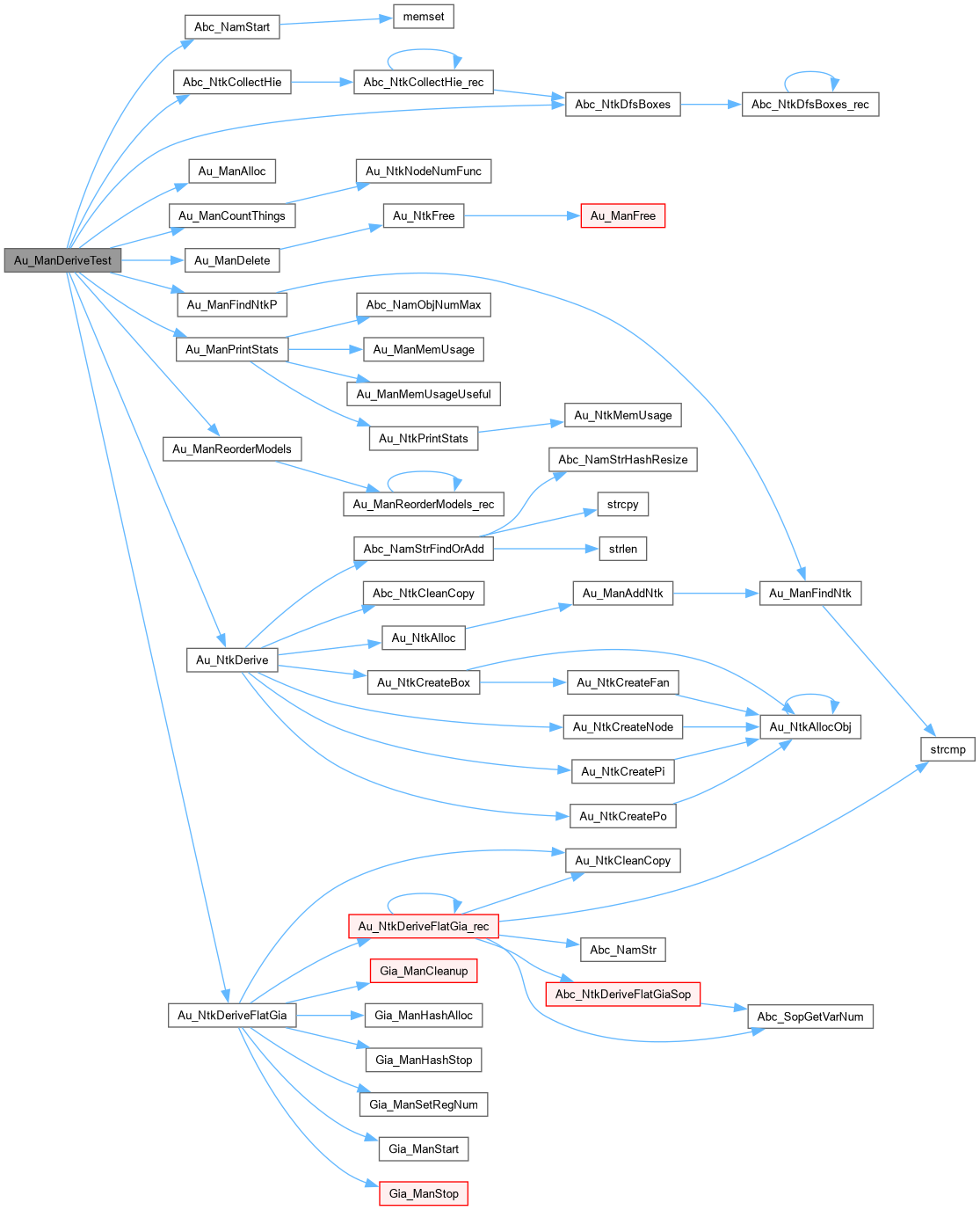

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManFindNtk()

int Au_ManFindNtk	(	Au_Man_t *	p,
		char *	pName )

Definition at line 354 of file abcHieNew.c.

{
    Au_Ntk_t * pNtk;
    int i;
    Au_ManForEachNtk( p, pNtk, i )
        if ( !strcmp(Au_NtkName(pNtk), pName) )
            return i;
    return -1;
}

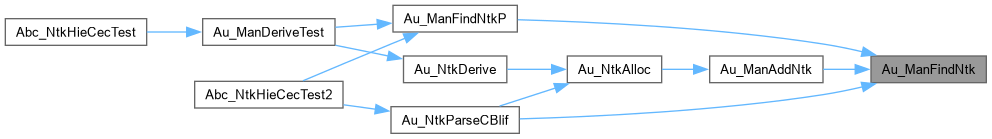

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManFindNtkP()

Au_Ntk_t * Au_ManFindNtkP	(	Au_Man_t *	p,
		char *	pName )

Definition at line 363 of file abcHieNew.c.

{
    int iNtk = Au_ManFindNtk( p, pName );
    if ( iNtk == -1 )
        return NULL;
    return Au_ManNtk( p, iNtk );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManFree()

void Au_ManFree ( Au_Man_t * p )

extern

Definition at line 336 of file abcHieNew.c.

{
    assert( p->nRefs > 0 );
    if ( --p->nRefs > 0 )
        return;
    if ( p->pFuncs )
        Abc_NamStop( p->pFuncs );
    ABC_FREE( p->vNtks.pArray );
    ABC_FREE( p->pName );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManMemUsage()

int Au_ManMemUsage

(

Au_Man_t *

p

)

Definition at line 377 of file abcHieNew.c.

{
    Au_Ntk_t * pNtk;
    int i, Mem = 0;
    Au_ManForEachNtk( p, pNtk, i )
        Mem += 16 * pNtk->nObjsAlloc;
    return Mem;
}

Here is the caller graph for this function:

Au_ManMemUsageUseful()

int Au_ManMemUsageUseful

(

Au_Man_t *

p

)

Definition at line 385 of file abcHieNew.c.

{
    Au_Ntk_t * pNtk;
    int i, Mem = 0;
    Au_ManForEachNtk( p, pNtk, i )
        Mem += 16 * pNtk->nObjsUsed;
    return Mem;
}

Here is the caller graph for this function:

Au_ManPrintBoxInfo()

void Au_ManPrintBoxInfo

(

Au_Ntk_t *

pNtk

)

Definition at line 543 of file abcHieNew.c.

{
    Vec_Ptr_t * vMods;
    Au_Ntk_t * pModel, * pBoxModel;
    Au_Obj_t * pObj;
    Vec_Int_t * vCounts;
    int i, k, Num;
    if ( pNtk->pMan == NULL )
    {
        printf( "There is no hierarchy information.\n" );
        return;
    }
    vMods = &pNtk->pMan->vNtks;

/*
    vMods->nSize--;
    vMods->pArray++;
    // sort models by name
    Vec_PtrSort( vMods, (int(*)(const void *, const void *))Au_NtkCompareNames );
    // swap the first model
    Num = Vec_PtrFind( vMods, pNtk );
    assert( Num >= 0 && Num < Vec_PtrSize(vMods) );
    pBoxModel = (Au_Ntk_t *)Vec_PtrEntry(vMods, 0);
    Vec_PtrWriteEntry(vMods, 0, (Au_Ntk_t *)Vec_PtrEntry(vMods, Num) );
    Vec_PtrWriteEntry(vMods, Num, pBoxModel );
    vMods->pArray--;
    vMods->nSize++;
*/

//    Vec_PtrForEachEntry( Au_Ntk_t *, vMods, pModel, i )
//        printf( "%s\n", Au_NtkName(pModel) );

    // print models
    vCounts = Vec_IntStart( Vec_PtrSize(vMods) );
    Vec_PtrForEachEntryStart( Au_Ntk_t *, vMods, pModel, i, 1 )
    {
        if ( Au_NtkBoxNum(pModel) == 0 )
            continue;
        Vec_IntFill( vCounts, Vec_IntSize(vCounts), 0 );
        Au_NtkForEachBox( pModel, pObj, k )
        {
            pBoxModel = Au_ObjModel(pObj);
            if ( pBoxModel == NULL || pBoxModel == pModel )
                continue;
            Num = Vec_PtrFind( vMods, pBoxModel );
            assert( Num >= 0 && Num < Vec_PtrSize(vMods) );
            Vec_IntAddToEntry( vCounts, Num, 1 );
        }

//        Au_NtkPrintStats( pModel, 0, 0, 0, 0, 0, 0, 0 );
        printf( "MODULE  " );
        printf( "%-30s : ", Au_NtkName(pModel) );
        printf( "PI=%6d ", Au_NtkPiNum(pModel) );
        printf( "PO=%6d ", Au_NtkPoNum(pModel) );
        printf( "BB=%6d ", Au_NtkBoxNum(pModel) );
        printf( "ND=%6d ", Au_NtkNodeNum(pModel) ); // sans constants
//        printf( "Lev=%5d ", Au_NtkLevel(pModel) );
        printf( "\n" );

        Vec_IntForEachEntry( vCounts, Num, k )
            if ( Num )
                printf( "%15d : %s\n", Num, Au_NtkName((Au_Ntk_t *)Vec_PtrEntry(vMods, k)) );
    }
    Vec_IntFree( vCounts );
    Vec_PtrForEachEntryStart( Au_Ntk_t *, vMods, pModel, i, 1 )
    {
        if ( Au_NtkBoxNum(pModel) != 0 )
            continue;
        printf( "MODULE  " );
        printf( "%-30s : ", Au_NtkName(pModel) );
        printf( "PI=%6d ", Au_NtkPiNum(pModel) );
        printf( "PO=%6d ", Au_NtkPoNum(pModel) );
        printf( "BB=%6d ", Au_NtkBoxNum(pModel) );
        printf( "ND=%6d ", Au_NtkNodeNum(pModel) );
//        printf( "Lev=%5d ", Au_NtkLevel(pModel) );
        printf( "\n" );
    }
}

Here is the caller graph for this function:

Au_ManPrintBoxInfoSorted()

void Au_ManPrintBoxInfoSorted

(

Au_Ntk_t *

pNtk

)

Definition at line 628 of file abcHieNew.c.

{
    Vec_Ptr_t * vMods, * vModsNew;
    Au_Ntk_t * pModel;
    int i;
    if ( pNtk->pMan == NULL )
    {
        printf( "There is no hierarchy information.\n" );
        return;
    }
    vMods = &pNtk->pMan->vNtks;

    vMods->nSize--;
    vMods->pArray++;
    vModsNew = Vec_PtrDup( vMods );
    vMods->pArray--;
    vMods->nSize++;

    Vec_PtrSort( vModsNew, (int(*)(const void *, const void *))Au_NtkCompareSign );
    Vec_PtrForEachEntryStart( Au_Ntk_t *, vModsNew, pModel, i, 1 )
    {
        printf( "MODULE  " );
        printf( "%-30s : ", Au_NtkName(pModel) );
        printf( "PI=%6d ", Au_NtkPiNum(pModel) );
        printf( "PO=%6d ", Au_NtkPoNum(pModel) );
        printf( "BB=%6d ", Au_NtkBoxNum(pModel) );
        printf( "ND=%6d ", Au_NtkNodeNum(pModel) );
        printf( "\n" );
    }
    Vec_PtrFree( vModsNew );
}

Here is the call graph for this function:

Au_ManPrintStats()

void Au_ManPrintStats

(

Au_Man_t *

p

)

Definition at line 393 of file abcHieNew.c.

{
    Au_Ntk_t * pNtk;
    int i;
    if ( Vec_PtrSize(&p->vNtks) > 2 )
        printf( "Design %-13s\n", Au_ManName(p) );
    Au_ManForEachNtk( p, pNtk, i )
        Au_NtkPrintStats( pNtk );
    printf( "Different functions = %d. ", p->pFuncs ? Abc_NamObjNumMax(p->pFuncs) : 0 );
    printf( "Memory = %.1f MB",  1.0 * Au_ManMemUsage(p) / (1 << 20) );
    printf( " %5.1f %%",       100.0 * (Au_ManMemUsage(p) - Au_ManMemUsageUseful(p)) / Au_ManMemUsage(p) );
    printf( "\n" );
//    if ( p->pFuncs )
//        Abc_NamPrint( p->pFuncs );
}

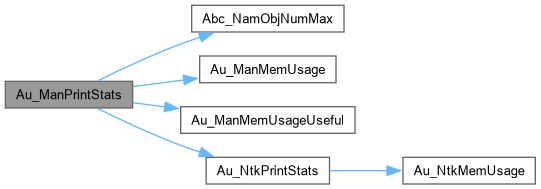

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManReorderModels()

void Au_ManReorderModels	(	Au_Man_t *	p,
		Au_Ntk_t *	pRoot )

Definition at line 426 of file abcHieNew.c.

{
    Vec_Ptr_t * vNtksNew;
    Vec_Int_t * vOrder, * vTemp;
    Au_Ntk_t * pNtk, * pBoxModel;
    Au_Obj_t * pBox, * pFan;
    int i, k, j, Entry;
    Au_ManForEachNtk( p, pNtk, i )
        pNtk->fMark = 0;
    // collect networks in the DFS order
    vOrder = Vec_IntAlloc( Au_ManNtkNum(p)+1 );
    Vec_IntPush( vOrder, 0 );
    Au_ManReorderModels_rec( pRoot, vOrder );
    assert( Vec_IntEntryLast(vOrder) == pRoot->Id );
    // add unconnected ones
    Vec_IntPop( vOrder );
    Au_ManForEachNtk( p, pNtk, i )
        if ( pNtk->fMark == 0 )
            Vec_IntPush( vOrder, pNtk->Id );
    Vec_IntPush( vOrder, pRoot->Id );
    assert( Vec_IntSize(vOrder) == Au_ManNtkNum(p)+1 );
    // reverse order
    vOrder->nSize--;
    vOrder->pArray++;
    Vec_IntReverseOrder( vOrder );
    vOrder->pArray--;
    vOrder->nSize++;
    // compute new order
    vNtksNew = Vec_PtrAlloc( Au_ManNtkNum(p)+1 );
    Vec_IntForEachEntry( vOrder, Entry, i )
        Vec_PtrPush( vNtksNew, Au_ManNtk(p, Entry) );
    // invert order
    assert( Vec_IntEntry(vOrder, 1) == pRoot->Id );
    vOrder = Vec_IntInvert( vTemp = vOrder, 0 );
    Vec_IntFree( vTemp );
    assert( Vec_IntEntry(vOrder, 1) == pRoot->Id );
    // update model numbers
    Au_ManForEachNtk( p, pNtk, i )
    {
        pNtk->Id = Vec_IntEntry( vOrder, pNtk->Id );
        Au_NtkForEachBox( pNtk, pBox, k )
        {
            pBox->Func = Vec_IntEntry( vOrder, pBox->Func );
            assert( pBox->Func > 0 );
            Au_BoxForEachFanout( pBox, pFan, j )
                pFan->Func = pBox->Func;
        }
    }
    // update
    ABC_FREE( p->vNtks.pArray );
    p->vNtks.pArray = vNtksNew->pArray;
    vNtksNew->pArray = NULL;
    Vec_PtrFree( vNtksNew );
    // verify
    Au_ManForEachNtk( p, pNtk, i )
        Au_NtkForEachBox( pNtk, pBox, k )
        {
            pBoxModel = Au_ObjModel(pBox);
            if ( pBoxModel == NULL || pBoxModel == pNtk )
                continue;
            assert( !pBox->Func || pBox->Func >= (unsigned)pNtk->Id );
            assert( Au_ObjFaninNum(pBox) == Au_NtkPiNum(pBoxModel) );
            assert( Au_BoxFanoutNum(pBox) == Au_NtkPoNum(pBoxModel) );
        }
    Vec_IntFree( vOrder );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ManReorderModels_rec()

void Au_ManReorderModels_rec	(	Au_Ntk_t *	pNtk,
		Vec_Int_t *	vOrder )

Definition at line 409 of file abcHieNew.c.

{
    Au_Ntk_t * pBoxModel;
    Au_Obj_t * pObj;
    int k;
    if ( pNtk->fMark )
        return;
    pNtk->fMark = 1;
    Au_NtkForEachBox( pNtk, pObj, k )
    {
        pBoxModel = Au_ObjModel(pObj);
        if ( pBoxModel == NULL || pBoxModel == pNtk )
            continue;
        Au_ManReorderModels_rec( pBoxModel, vOrder );
    }
    Vec_IntPush( vOrder, pNtk->Id );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkAlloc()

Au_Ntk_t * Au_NtkAlloc	(	Au_Man_t *	pMan,
		char *	pName )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Working with models.]

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file abcHieNew.c.

{
    Au_Ntk_t * p;
    p = ABC_CALLOC( Au_Ntk_t, 1 );
    p->pName = Au_UtilStrsav( pName );
    p->vChunks = Vec_PtrAlloc( 111 );
    Vec_IntGrow( &p->vPis,  111 );
    Vec_IntGrow( &p->vPos,  111 );
    Vec_IntGrow( &p->vObjs, 1111 );
    Vec_PtrGrow( &p->vPages, 11 );
    Au_ManAddNtk( pMan, p );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkAllocObj()

int Au_NtkAllocObj	(	Au_Ntk_t *	p,
		int	nFanins,
		int	Type )

Definition at line 761 of file abcHieNew.c.

{
    Au_Obj_t * pMem, * pObj, * pTemp;
    int nObjInt = ((2+nFanins) >> 2) + (((2+nFanins) & 3) > 0);
    int Id, nObjIntReal = nObjInt;
    if ( nObjInt > 63 )
        nObjInt = 63 + 64 * (((nObjInt-63) >> 6) + (((nObjInt-63) & 63) > 0));
    if ( Vec_PtrSize(&p->vPages) == 0 || p->iHandle + nObjInt > (1 << 12) )
    {
        if ( nObjInt + 64 > (1 << 12) )
            pMem = ABC_CALLOC( Au_Obj_t, nObjInt + 64 ), p->nObjsAlloc += nObjInt + 64;
        else
            pMem = ABC_CALLOC( Au_Obj_t, (1 << 12) + 64 ), p->nObjsAlloc += (1 << 12) + 64;
        Vec_PtrPush( p->vChunks, pMem );
        if ( ((ABC_PTRINT_T)pMem & 0xF) )
            pMem = (Au_Obj_t *)((char *)pMem + 16 - ((ABC_PTRINT_T)pMem & 0xF));
        assert( ((ABC_PTRINT_T)pMem & 0xF) == 0 );
        p->iHandle = (((ABC_PTRINT_T)pMem & 0x3FF) >> 4);
        if ( p->iHandle )
        {
            pMem += 64 - (p->iHandle & 63);
            p->iHandle = 0;
        }
        Vec_PtrPush( &p->vPages, pMem );
        Au_NtkInsertHeader( p );
    }
    else
    {
        pMem = (Au_Obj_t *)Vec_PtrEntryLast( &p->vPages );
        if ( (p->iHandle & 63) == 0 || nObjInt > (64 - (p->iHandle & 63)) )
        {
            if ( p->iHandle & 63 )
                p->iHandle += 64 - (p->iHandle & 63);
            Au_NtkInsertHeader( p );
        }
        if ( p->iHandle + nObjInt > (1 << 12) )
            return Au_NtkAllocObj( p, nFanins, Type );
    }
    pObj = pMem + p->iHandle;
    assert( *((int *)pObj) == 0 );
    pObj->nFanins = nFanins;
    p->nObjs[pObj->Type = Type]++;
    if ( Type == AU_OBJ_PI )
    {
        Au_ObjSetFaninLit( pObj, 0, Vec_IntSize(&p->vPis) );
        Vec_IntPush( &p->vPis, Au_ObjId(pObj) );
    }
    else if ( Type == AU_OBJ_PO )
    {
        Au_ObjSetFaninLit( pObj, 1, Vec_IntSize(&p->vPos) );
        Vec_IntPush( &p->vPos, Au_ObjId(pObj) );
    }
    p->iHandle += nObjInt;
    p->nObjsUsed += nObjIntReal;

    Id = Au_ObjId(pObj);
    Vec_IntPush( &p->vObjs, Id );
    pTemp = Au_NtkObj( p, Id );
    assert( pTemp == pObj );
    return Id;
}

Here is the call graph for this function:

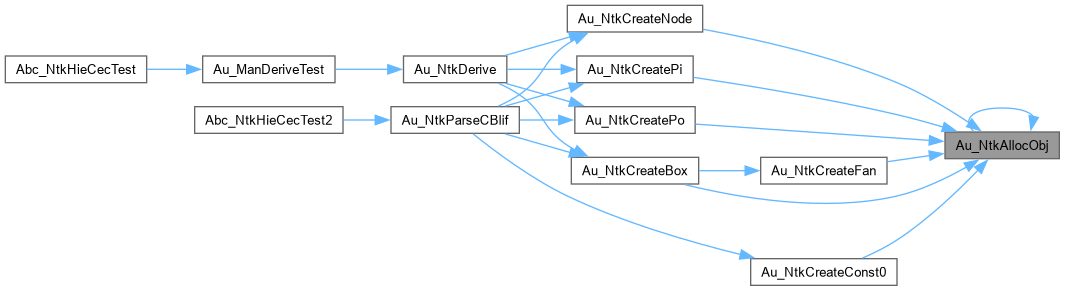

Here is the caller graph for this function:

Au_NtkCheckRecursive()

int Au_NtkCheckRecursive

(

Au_Ntk_t *

pNtk

)

Definition at line 660 of file abcHieNew.c.

{
    Vec_Ptr_t * vMods;
    Au_Ntk_t * pModel;
    Au_Obj_t * pObj;
    int i, k, RetValue = 0;

    if ( pNtk->pMan == NULL )
    {
        printf( "There is no hierarchy information.\n" );
        return RetValue;
    }

    vMods = &pNtk->pMan->vNtks;
    Vec_PtrForEachEntryStart( Au_Ntk_t *, vMods, pModel, i, 1 )
    {
        Au_NtkForEachObj( pModel, pObj, k )
            if ( Au_ObjIsBox(pObj) && Au_ObjModel(pObj) == pModel )
            {
                printf( "WARNING: Model \"%s\" contains a recursive definition.\n", Au_NtkName(pModel) );
                RetValue = 1;
                break;
            }
    }
    return RetValue;
}

Here is the caller graph for this function:

Au_NtkCleanCopy()

void Au_NtkCleanCopy

(

Au_Ntk_t *

p

)

Definition at line 297 of file abcHieNew.c.

{
    Vec_IntFill( &p->vCopies, Au_NtkObjNumMax(p), -1 );
}

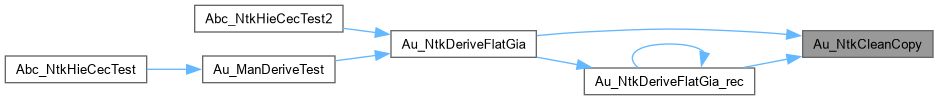

Here is the caller graph for this function:

Au_NtkCompareNames()

int Au_NtkCompareNames	(	Au_Ntk_t **	p1,
		Au_Ntk_t **	p2 )

Definition at line 539 of file abcHieNew.c.

{
    return strcmp( Au_NtkName(*p1), Au_NtkName(*p2) );
}

Here is the call graph for this function:

Au_NtkCompareSign()

int Au_NtkCompareSign	(	Au_Ntk_t **	p1,
		Au_Ntk_t **	p2 )

Definition at line 621 of file abcHieNew.c.

{
    if ( Au_NtkPiNum(*p1) - Au_NtkPiNum(*p2) != 0 )
        return Au_NtkPiNum(*p1) - Au_NtkPiNum(*p2);
    else
        return Au_NtkPoNum(*p1) - Au_NtkPoNum(*p2);
}

Here is the caller graph for this function:

Au_NtkCreateBox()

int Au_NtkCreateBox	(	Au_Ntk_t *	pNtk,
		Vec_Int_t *	vFanins,
		int	nFanouts,
		int	iModel )

Definition at line 857 of file abcHieNew.c.

{
    int i, iFanin, nFanins = Vec_IntSize(vFanins);
    int Id = Au_NtkAllocObj( pNtk, nFanins + 1 + nFanouts, AU_OBJ_BOX );
    Au_Obj_t * p = Au_NtkObj( pNtk, Id );
    Vec_IntForEachEntry( vFanins, iFanin, i )
        Au_ObjSetFaninLit( p, i, iFanin );
    Au_ObjSetFaninLit( p, nFanins, nFanouts );
    for ( i = 0; i < nFanouts; i++ )
        Au_ObjSetFaninLit( p, nFanins + 1 + i, Au_NtkCreateFan(pNtk, Au_Var2Lit(Id,0), i, iModel) );
    p->nFanins = nFanins;
    p->Func = iModel;
    assert( iModel > 0 );
    return Id;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkCreateConst0()

int Au_NtkCreateConst0

(

Au_Ntk_t *

pNtk

)

Definition at line 822 of file abcHieNew.c.

{
    return Au_NtkAllocObj( pNtk, 0, AU_OBJ_CONST0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkCreateFan()

int Au_NtkCreateFan	(	Au_Ntk_t *	pNtk,
		int	iFanin,
		int	iFanout,
		int	iModel )

Definition at line 837 of file abcHieNew.c.

{
    int Id = Au_NtkAllocObj( pNtk, 1, AU_OBJ_FAN );
    Au_Obj_t * p = Au_NtkObj( pNtk, Id );
    if ( iFanin )
        Au_ObjSetFaninLit( p, 0, iFanin );
    Au_ObjSetFaninLit( p, 1, iFanout );
    p->Func = iModel;
    return Id;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkCreateNode()

int Au_NtkCreateNode	(	Au_Ntk_t *	pNtk,
		Vec_Int_t *	vFanins,
		int	iFunc )

Definition at line 847 of file abcHieNew.c.

{
    int i, iFanin;
    int Id = Au_NtkAllocObj( pNtk, Vec_IntSize(vFanins), AU_OBJ_NODE );
    Au_Obj_t * p = Au_NtkObj( pNtk, Id );
    Vec_IntForEachEntry( vFanins, iFanin, i )
        Au_ObjSetFaninLit( p, i, iFanin );
    p->Func = iFunc;
    return Id;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkCreatePi()

int Au_NtkCreatePi

(

Au_Ntk_t *

pNtk

)

Definition at line 826 of file abcHieNew.c.

{
    return Au_NtkAllocObj( pNtk, 0, AU_OBJ_PI );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkCreatePo()

int Au_NtkCreatePo	(	Au_Ntk_t *	pNtk,
		int	iFanin )

Definition at line 830 of file abcHieNew.c.

{
    int Id = Au_NtkAllocObj( pNtk, 1, AU_OBJ_PO );
    if ( iFanin )
        Au_ObjSetFaninLit( Au_NtkObj(pNtk, Id), 0, iFanin );
    return Id;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkDerive()

Au_Ntk_t * Au_NtkDerive	(	Au_Man_t *	pMan,
		Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	vOrder )

Function*************************************************************

Synopsis [Duplicates ABC network.]

Description []

SideEffects []

SeeAlso []

Definition at line 1441 of file abcHieNew.c.

{
    Au_Ntk_t * p;
    Au_Obj_t * pAuObj;
    Abc_Obj_t * pObj, * pTerm;
//    Vec_Ptr_t * vOrder;
    Vec_Int_t * vFanins;
    int i, k, iFunc;
    assert( Abc_NtkIsNetlist(pNtk) );
    Abc_NtkCleanCopy( pNtk );
    p = Au_NtkAlloc( pMan, Abc_NtkName(pNtk) );
    // copy PIs
    Abc_NtkForEachPi( pNtk, pTerm, i )
        Abc_ObjFanout0(pTerm)->iTemp = Au_NtkCreatePi(p);
    // copy nodes and boxes
    vFanins = Vec_IntAlloc( 100 );
//    vOrder = Abc_NtkDfsBoxes( pNtk );
    Vec_PtrForEachEntry( Abc_Obj_t *, vOrder, pObj, i )
    {
        Vec_IntClear( vFanins );
        if ( Abc_ObjIsNode(pObj) )
        {
            Abc_ObjForEachFanin( pObj, pTerm, k )
                Vec_IntPush( vFanins, Au_Var2Lit(pTerm->iTemp, 0) );
            iFunc = Abc_NamStrFindOrAdd( pMan->pFuncs, (char *)pObj->pData, NULL );
            Abc_ObjFanout0(pObj)->iTemp = Au_NtkCreateNode(p, vFanins, iFunc);
            continue;
        }
        assert( Abc_ObjIsBox(pObj) );
        Abc_ObjForEachFanin( pObj, pTerm, k )
            Vec_IntPush( vFanins, Au_Var2Lit(Abc_ObjFanin0(pTerm)->iTemp, 0) );
        pObj->iTemp = Au_NtkCreateBox(p, vFanins, Abc_ObjFanoutNum(pObj), ((Abc_Ntk_t *)pObj->pData)->iStep );
        pAuObj = Au_NtkObj(p, pObj->iTemp);
        Abc_ObjForEachFanout( pObj, pTerm, k )
            Abc_ObjFanout0(pTerm)->iTemp = Au_ObjFanout(pAuObj, k);
    }
//    Vec_PtrFree( vOrder );
    Vec_IntFree( vFanins );
    // copy POs
    Abc_NtkForEachPo( pNtk, pTerm, i )
        Au_NtkCreatePo( p, Au_Var2Lit(Abc_ObjFanin0(pTerm)->iTemp, 0) );
//    Au_NtkPrintStats( p );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkDeriveFlatGia()

Gia_Man_t * Au_NtkDeriveFlatGia

(

Au_Ntk_t *

p

)

Function*************************************************************

Synopsis [Flattens the logic hierarchy of the netlist.]

Description []

SideEffects []

SeeAlso []

Definition at line 1222 of file abcHieNew.c.

{
    Gia_Man_t * pTemp, * pGia = NULL;
    Au_Obj_t * pTerm;
    int i;
    printf( "Collapsing model \"%s\"...\n", Au_NtkName(p) );
    Au_NtkCleanCopy( p );
    // start the network
    pGia = Gia_ManStart( (1<<16) );
    pGia->pName = Abc_UtilStrsav( Au_NtkName(p) );
//    pGia->pSpec = Abc_UtilStrsav( Au_NtkSpec(p) );
    Gia_ManHashAlloc( pGia );
    Gia_ManFlipVerbose( pGia );
    // create PIs
    Au_NtkForEachPi( p, pTerm, i )
        Au_ObjSetCopy( pTerm, Gia_ManAppendCi(pGia) );
    // recursively flatten hierarchy
    Au_NtkDeriveFlatGia_rec( pGia, p );
    // create POs
    Au_NtkForEachPo( p, pTerm, i )
        Gia_ManAppendCo( pGia, Au_ObjCopy(pTerm) );
    // prepare return value
//    Gia_ManHashProfile( pGia );
    Gia_ManHashStop( pGia );
    Gia_ManSetRegNum( pGia, 0 );
    pGia = Gia_ManCleanup( pTemp = pGia );
    Gia_ManStop( pTemp );
    return pGia;
}

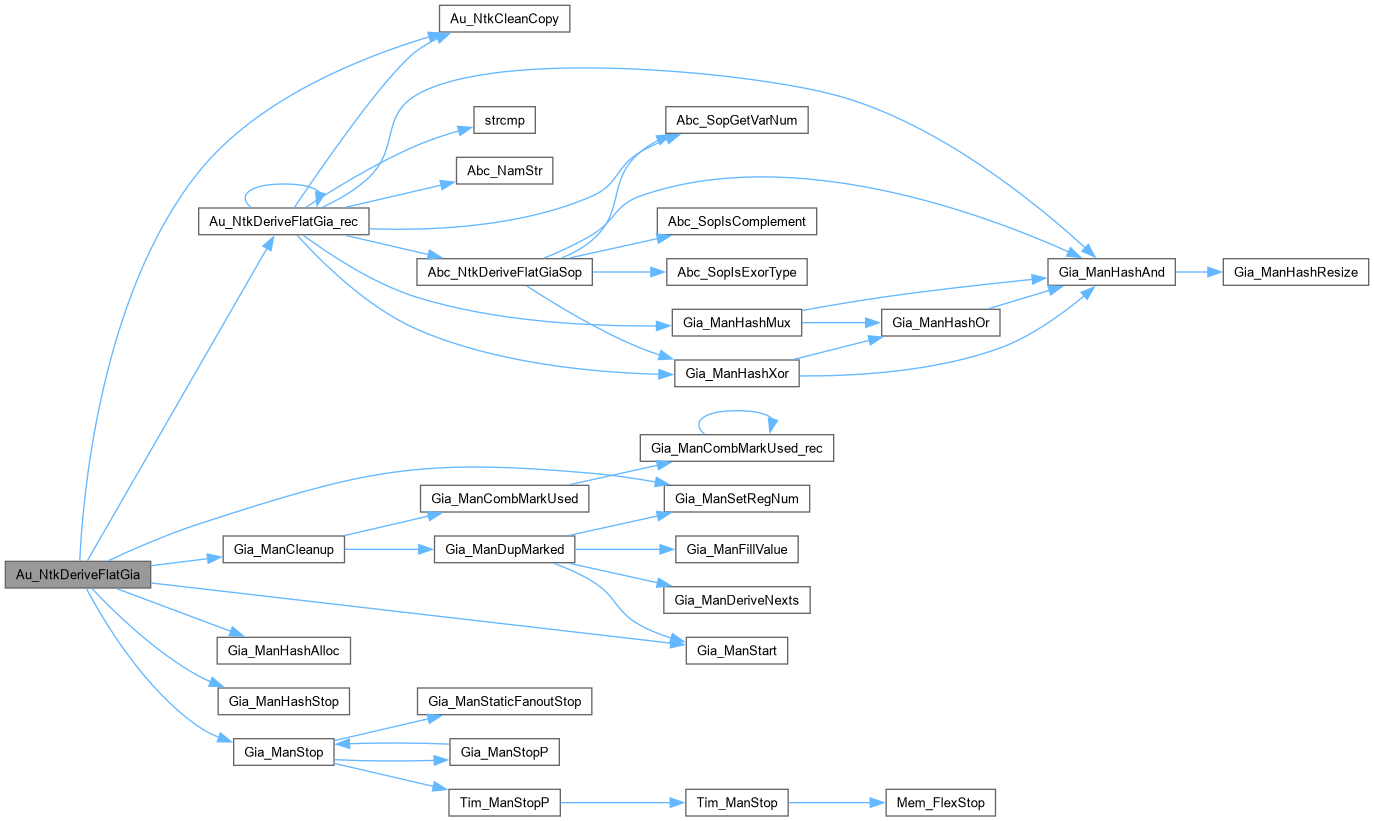

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkDeriveFlatGia_rec()

void Au_NtkDeriveFlatGia_rec	(	Gia_Man_t *	pGia,
		Au_Ntk_t *	p )

Function*************************************************************

Synopsis [Flattens the logic hierarchy of the netlist.]

Description []

SideEffects []

SeeAlso []

Definition at line 1131 of file abcHieNew.c.

{
    Au_Obj_t * pObj, * pTerm;
    int i, k, Lit = 0;
    Au_NtkForEachPi( p, pTerm, i )
        assert( Au_ObjCopy(pTerm) >= 0 );
    if ( strcmp(Au_NtkName(p), "ref_egcd") == 0 )
    {
        printf( "Replacing one instance of recursive model \"%s\" by a black box.\n", "ref_egcd" );
        Au_NtkForEachPo( p, pTerm, i )
            Au_ObjSetCopy( pTerm, Gia_ManAppendCi(pGia) );
        return;
    }
    Au_NtkForEachObj( p, pObj, i )
    {
        if ( Au_ObjIsNode(pObj) )
        {
            if ( p->pMan->pFuncs )
            {
                int gFanins[16];
                char * pSop = Abc_NamStr( p->pMan->pFuncs, pObj->Func );
                assert( Au_ObjFaninNum(pObj) <= 16 );
                assert( Au_ObjFaninNum(pObj) == Abc_SopGetVarNum(pSop) );
                Au_ObjForEachFanin( pObj, pTerm, k )
                {
                    gFanins[k] = Au_ObjCopy(pTerm);
                    assert( gFanins[k] >= 0 );
                }
                Lit = Abc_NtkDeriveFlatGiaSop( pGia, gFanins, pSop );
            }
            else
            {
                int Lit0, Lit1, Lit2;
                assert( pObj->Func >= 1 && pObj->Func <= 3 );
                Lit0 = Abc_LitNotCond( Au_ObjCopy(Au_ObjFanin0(pObj)), Au_ObjFaninC0(pObj) );
                Lit1 = Abc_LitNotCond( Au_ObjCopy(Au_ObjFanin1(pObj)), Au_ObjFaninC1(pObj) );
                if ( pObj->Func == 1 )
                    Lit = Gia_ManHashAnd( pGia, Lit0, Lit1 );
                else if ( pObj->Func == 2 )
                    Lit = Gia_ManHashXor( pGia, Lit0, Lit1 );
                else if ( pObj->Func == 3 )
                {
                    Lit2 = Abc_LitNotCond( Au_ObjCopy(Au_ObjFanin2(pObj)), Au_ObjFaninC2(pObj) );
                    Lit = Gia_ManHashMux( pGia, Lit0, Lit1, Lit2 );
                }
                else assert( 0 );
            }
            assert( Lit >= 0 );
            Au_ObjSetCopy( pObj, Lit );
        }
        else if ( Au_ObjIsBox(pObj) )
        {
            Au_Ntk_t * pModel = Au_ObjModel(pObj);
            Au_NtkCleanCopy( pModel );
            // check the match between the number of actual and formal parameters
            assert( Au_ObjFaninNum(pObj) == Au_NtkPiNum(pModel) );
            assert( Au_BoxFanoutNum(pObj) == Au_NtkPoNum(pModel) );
            // assign PIs
            Au_ObjForEachFanin( pObj, pTerm, k )
                Au_ObjSetCopy( Au_NtkPi(pModel, k), Au_ObjCopy(pTerm) );
            // call recursively
            Au_NtkDeriveFlatGia_rec( pGia, pModel );
            // assign POs
            Au_BoxForEachFanout( pObj, pTerm, k )
                Au_ObjSetCopy( pTerm, Au_ObjCopy(Au_NtkPo(pModel, k)) );
        }
        else if ( Au_ObjIsConst0(pObj) )
            Au_ObjSetCopy( pObj, 0 );

    }
    Au_NtkForEachPo( p, pTerm, i )
    {
        Lit = Abc_LitNotCond( Au_ObjCopy(Au_ObjFanin0(pTerm)), Au_ObjFaninC0(pTerm) );
        Au_ObjSetCopy( pTerm, Lit );
    }
    Au_NtkForEachPo( p, pTerm, i )
        assert( Au_ObjCopy(pTerm) >= 0 );
//    p->pMan->nGiaObjMax = Abc_MaxInt( p->pMan->nGiaObjMax, Gia_ManObjNum(pGia) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkFree()

void Au_NtkFree

(

Au_Ntk_t *

p

)

Definition at line 258 of file abcHieNew.c.

{
    Au_ManFree( p->pMan );
    Vec_PtrFreeFree( p->vChunks );
    ABC_FREE( p->vCopies.pArray );
    ABC_FREE( p->vPages.pArray );
    ABC_FREE( p->vObjs.pArray );
    ABC_FREE( p->vPis.pArray );
    ABC_FREE( p->vPos.pArray );
    ABC_FREE( p->pHTable );
    ABC_FREE( p->pName );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkMemUsage()

int Au_NtkMemUsage

(

Au_Ntk_t *

p

)

Definition at line 271 of file abcHieNew.c.

{
    int Mem = sizeof(Au_Ntk_t);
    Mem += 4 * p->vPis.nCap;
    Mem += 4 * p->vPos.nCap;
    Mem += 4 * p->vObjs.nCap;
    Mem += 16 * p->nObjsAlloc;
    return Mem;
}

Here is the caller graph for this function:

Au_NtkNodeNumFunc()

int Au_NtkNodeNumFunc	(	Au_Ntk_t *	p,
		int	Func )

Definition at line 301 of file abcHieNew.c.

{
    Au_Obj_t * pObj;
    int i, Counter = 0;
    if ( p->pMan && p->pMan->pFuncs )
        return 0;
    Au_NtkForEachNode( p, pObj, i )
    {
        Counter += (pObj->Func == (unsigned)Func);
//        printf( "%d ", pObj->Func );
    }
//    printf( "\n" );
    return Counter;
}

Here is the caller graph for this function:

Au_NtkParseCBlif()

Au_Ntk_t * Au_NtkParseCBlif

(

char *

pFileName

)

Function*************************************************************

Synopsis [Parses CBLIF file.]

Description []

SideEffects []

SeeAlso []

Definition at line 959 of file abcHieNew.c.

{
    FILE * pFile;
    Au_Man_t * pMan;
    Au_Ntk_t * pRoot = NULL;
    Au_Obj_t * pBox, * pFan;
    char * pBuffer, * pCur;
    Vec_Int_t * vLines, * vNum2Obj, * vFanins;
    int i, k, j, Id, nInputs, nOutputs;
    int Line, Num, Func;
    // read the file
    pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\".\n", pFileName );
        return NULL;
    }
    pBuffer = Extra_FileRead( pFile );
    fclose( pFile );
    // split into lines
    vLines = Vec_IntAlloc( 1000 );
    Vec_IntPush( vLines, 0 );
    for ( pCur = pBuffer; *pCur; pCur++ )
        if ( *pCur == '\n' )
        {
            *pCur = 0;
            Vec_IntPush( vLines, pCur - pBuffer + 1 );
        }
    // start the manager
    pMan = Au_ManAlloc( pFileName );
    // parse the lines
    vNum2Obj = Vec_IntAlloc( 1000 );
    vFanins = Vec_IntAlloc( 1000 );
    Vec_IntForEachEntry( vLines, Line, i )
    {
        pCur = strtok( pBuffer + Line, " \t\r" );
        if ( pCur == NULL || *pCur == '#' )
            continue;
        if ( *pCur != '.' )
        {
            printf( "Cannot read directive in line %d: \"%s\".\n", i, pBuffer + Line );
            continue;
        }
        Vec_IntClear( vFanins );
        if ( !strcmp(pCur, ".and") )
        {
            for ( k = 0; k < 2; k++ )
            {
                pCur = strtok( NULL, " \t\r" );
                Num  = atoi( pCur );
                Vec_IntPush( vFanins, Au_NtkRemapNum(vNum2Obj, Num) );
            }
            Id = Au_NtkCreateNode( pRoot, vFanins, 1 );
            Vec_IntPush( vNum2Obj, Id );
        }
        else if ( !strcmp(pCur, ".xor") )
        {
            for ( k = 0; k < 2; k++ )
            {
                pCur = strtok( NULL, " \t\r" );
                Num  = atoi( pCur );
                Vec_IntPush( vFanins, Au_NtkRemapNum(vNum2Obj, Num) );
            }
            Id = Au_NtkCreateNode( pRoot, vFanins, 2 );
            Vec_IntPush( vNum2Obj, Id );
        }
        else if ( !strcmp(pCur, ".mux") )
        {
            for ( k = 0; k < 3; k++ )
            {
                pCur = strtok( NULL, " \t\r" );
                Num  = atoi( pCur );
                Vec_IntPush( vFanins, Au_NtkRemapNum(vNum2Obj, Num) );
            }
            Id = Au_NtkCreateNode( pRoot, vFanins, 3 );
            Vec_IntPush( vNum2Obj, Id );
        }
        else if ( !strcmp(pCur, ".subckt") )
        {
            pCur = strtok( NULL, " \t\r" );
            Func = pCur - pBuffer;
            pCur = strtok( NULL, " \t\r" );
            nInputs = atoi( pCur );
            pCur = strtok( NULL, " \t\r" );
            nOutputs = atoi( pCur );
            while ( 1 )
            {
                pCur = strtok( NULL, " \t\r" );
                if ( pCur == NULL || *pCur == '#' )
                    break;
                Au_NtkParseCBlifNum( vFanins, pCur, vNum2Obj );
            }
            assert( Vec_IntSize(vFanins) == nInputs );
            Id = Au_NtkCreateBox( pRoot, vFanins, nOutputs, Func );
            pBox = Au_NtkObj( pRoot, Id );
            Au_BoxForEachFanoutId( pBox, Num, k )
                Vec_IntPush( vNum2Obj, Num );
        }
        else if ( !strcmp(pCur, ".model") )
        {
            pCur  = strtok( NULL, " \t\r" );
            pRoot = Au_NtkAlloc( pMan, pCur );
            Id    = Au_NtkCreateConst0( pRoot );
            Vec_IntClear( vNum2Obj );
            Vec_IntPush( vNum2Obj, Id );
        }
        else if ( !strcmp(pCur, ".inputs") )
        {
            pCur = strtok( NULL, " \t\r" );
            Num  = atoi( pCur );
            for ( k = 0; k < Num; k++ )
                Vec_IntPush( vNum2Obj, Au_NtkCreatePi(pRoot) );
        }
        else if ( !strcmp(pCur, ".outputs") )
        {
            pCur = strtok( NULL, " \t\r" );
            nOutputs = atoi( pCur );
            while ( 1 )
            {
                pCur = strtok( NULL, " \t\r" );
                if ( pCur == NULL || *pCur == '#' )
                    break;
                Au_NtkParseCBlifNum( vFanins, pCur, vNum2Obj );
            }
            assert( Vec_IntSize(vFanins) == nOutputs );
            Vec_IntForEachEntry( vFanins, Num, k )
                Au_NtkCreatePo( pRoot, Num );
        }
        else if ( strcmp(pCur, ".end") )
            printf( "Unknown directive in line %d: \"%s\".\n", i, pBuffer + Line );
    }
    Vec_IntFree( vFanins );
    Vec_IntFree( vNum2Obj );
    Vec_IntFree( vLines );
    // set pointers to models
    Au_ManForEachNtk( pMan, pRoot, i )
        Au_NtkForEachBox( pRoot, pBox, k )
        {
            pBox->Func = Au_ManFindNtk( pMan, pBuffer + pBox->Func );
            assert( pBox->Func > 0 );
            Au_BoxForEachFanout( pBox, pFan, j )
                pFan->Func = pBox->Func;
        }
    ABC_FREE( pBuffer );
    // order models in topological order
    pRoot = Au_ManNtkRoot( pMan );
    Au_ManReorderModels( pMan, pRoot );
    return pRoot;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkPrintStats()

void Au_NtkPrintStats

(

Au_Ntk_t *

p

)

Definition at line 280 of file abcHieNew.c.

{
    printf( "%-30s:",        Au_NtkName(p) );
    printf( " i/o =%6d/%6d", Au_NtkPiNum(p), Au_NtkPoNum(p) );
    if ( Au_NtkFlopNum(p) )
        printf( "  lat =%5d",    Au_NtkFlopNum(p) );
    printf( "  nd =%6d",     Au_NtkNodeNum(p) );
//    if ( Au_NtkBoxNum(p) )
        printf( "  box =%5d",    Au_NtkBoxNum(p) );
    printf( "  obj =%7d",    Au_NtkObjNum(p) );
//    printf( "  max =%7d",    Au_NtkObjNumMax(p) );
//    printf( "  use =%7d",    p->nObjsUsed );
    printf( " %5.1f %%",     100.0 * (Au_NtkObjNumMax(p) - Au_NtkObjNum(p)) / Au_NtkObjNumMax(p) );
    printf( " %6.1f MB",     1.0 * Au_NtkMemUsage(p) / (1 << 20) );
    printf( " %5.1f %%",     100.0 * (p->nObjsAlloc - p->nObjsUsed) / p->nObjsAlloc );
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkSuppSizeTest()

int Au_NtkSuppSizeTest

(

Au_Ntk_t *

p

)

Definition at line 731 of file abcHieNew.c.

{
    Au_Obj_t * pObj;
    int i, Counter = 0;
    Au_NtkForEachObj( p, pObj, i )
        if ( Au_ObjIsNode(pObj) )
            Counter += (Au_ObjSuppSize(pObj) <= 16);
    printf( "Nodes with small support %d (out of %d)\n", Counter, Au_NtkNodeNum(p) );
    return Counter;
}

Here is the call graph for this function:

Au_NtkTerSimulate()

void Au_NtkTerSimulate

(

Au_Ntk_t *

p

)

Function*************************************************************

Synopsis [Flattens the logic hierarchy of the netlist.]

Description []

SideEffects []

SeeAlso []

Definition at line 1402 of file abcHieNew.c.

{
    Au_Obj_t * pTerm;
    int i, Counter[2] = {0};
    assert( p->pMan->pFuncs == NULL );
    printf( "Collapsing model \"%s\"...\n", Au_NtkName(p) );
    // create PIs
    Au_NtkForEachPi( p, pTerm, i )
        Au_ObjSetXsim( pTerm, AU_VALX );
    // recursively flatten hierarchy
    p->pMan->nPortsC0 = 0;
    p->pMan->nPortsC1 = 0;
    p->pMan->nPortsNC = 0;
    Au_NtkTerSimulate_rec( p );
    // analyze outputs
    Au_NtkForEachPo( p, pTerm, i )
        if ( Au_ObjGetXsim(pTerm) == AU_VAL0 )
            Counter[0]++;
        else if ( Au_ObjGetXsim(pTerm) == AU_VAL1 )
            Counter[1]++;
    // print results
    printf( "Const0 outputs =%15d. Const1 outputs =%15d.  Total outputs =%15d.\n",
        Counter[0], Counter[1], Au_NtkPoNum(p) );
    printf( "Const0 ports =  %.0f. Const1  ports =  %.0f. Non-const ports=  %.0f.  Total ports =  %.0f.\n",
        p->pMan->nPortsC0, p->pMan->nPortsC1, p->pMan->nPortsNC, p->pMan->nPortsC0 + p->pMan->nPortsC1 + p->pMan->nPortsNC );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_NtkTerSimulate_rec()

void Au_NtkTerSimulate_rec

(

Au_Ntk_t *

p

)

Function*************************************************************

Synopsis [Flattens the logic hierarchy of the netlist.]

Description []

SideEffects []

SeeAlso []

Definition at line 1325 of file abcHieNew.c.

{
    Au_Obj_t * pObj = NULL, * pTerm;
    int i, k;
    Au_NtkForEachPi( p, pTerm, i )
    {
        assert( Au_ObjGetXsim(pTerm) > 0 );
        if ( Au_ObjGetXsim(pTerm) == AU_VALX )
            p->pMan->nPortsNC++;
        else if ( Au_ObjGetXsim(pTerm) == AU_VAL0 )
            p->pMan->nPortsC0++;
        else
            p->pMan->nPortsC1++;
    }
    if ( strcmp(Au_NtkName(p), "ref_egcd") == 0 )
    {
        printf( "Replacing one instance of recursive model \"%s\" by a black box.\n", "ref_egcd" );
        Au_NtkForEachPo( p, pTerm, i )
            Au_ObjSetXsim( pTerm, AU_VALX );
        return;
    }
    Au_NtkForEachObj( p, pObj, i )
    {
        if ( Au_ObjIsNode(pObj) )
        {
            if ( pObj->Func == 1 )
                Au_ObjSetXsim( pObj, Au_XsimAnd(Au_ObjGetXsimFan0(pObj), Au_ObjGetXsimFan1(pObj)) );
            else if ( pObj->Func == 2 )
                Au_ObjSetXsim( pObj, Au_XsimXor(Au_ObjGetXsimFan0(pObj), Au_ObjGetXsimFan1(pObj)) );
            else if ( pObj->Func == 3 )
                Au_ObjSetXsim( pObj, Au_XsimMux(Au_ObjGetXsimFan0(pObj), Au_ObjGetXsimFan1(pObj), Au_ObjGetXsimFan2(pObj)) );
            else assert( 0 );
        }
        else if ( Au_ObjIsBox(pObj) )
        {
            Au_Ntk_t * pModel = Au_ObjModel(pObj);
            // check the match between the number of actual and formal parameters
            assert( Au_ObjFaninNum(pObj) == Au_NtkPiNum(pModel) );
            assert( Au_BoxFanoutNum(pObj) == Au_NtkPoNum(pModel) );
            // assign PIs
            Au_ObjForEachFanin( pObj, pTerm, k )
                Au_ObjSetXsim( Au_NtkPi(pModel, k), Au_ObjGetXsim(pTerm) );
            // call recursively
            Au_NtkTerSimulate_rec( pModel );
            // assign POs
            Au_BoxForEachFanout( pObj, pTerm, k )
                Au_ObjSetXsim( pTerm, Au_ObjGetXsim(Au_NtkPo(pModel, k)) );
        }
        else if ( Au_ObjIsConst0(pObj) )
            Au_ObjSetXsim( pObj, AU_VAL0 );

    }
    Au_NtkForEachPo( p, pTerm, i )
        Au_ObjSetXsim( pTerm, Au_ObjGetXsimFan0(pObj) );
    Au_NtkForEachPo( p, pTerm, i )
    {
        assert( Au_ObjGetXsim(pTerm) > 0 );
        if ( Au_ObjGetXsim(pTerm) == AU_VALX )
            p->pMan->nPortsNC++;
        else if ( Au_ObjGetXsim(pTerm) == AU_VAL0 )
            p->pMan->nPortsC0++;
        else
            p->pMan->nPortsC1++;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ObjSuppSize()

int Au_ObjSuppSize

(

Au_Obj_t *

pObj

)

Definition at line 703 of file abcHieNew.c.

{
    Au_Ntk_t * p = Au_ObjNtk(pObj);
    Au_NtkIncrementTravId( p );
    return Au_ObjSuppSize_rec( p, Au_ObjId(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Au_ObjSuppSize_rec()

int Au_ObjSuppSize_rec	(	Au_Ntk_t *	p,
		int	Id )

Definition at line 688 of file abcHieNew.c.

{
    Au_Obj_t * pObj;
    int i, iFanin, Counter = 0;
    if ( Au_ObjIsTravIdCurrentId(p, Id) )
        return 0;
    Au_ObjSetTravIdCurrentId(p, Id);
    pObj = Au_NtkObj( p, Id );
    if ( Au_ObjIsPi(pObj) )
        return 1;
    assert( Au_ObjIsNode(pObj) || Au_ObjIsBox(pObj) || Au_ObjIsFan(pObj) );
    Au_ObjForEachFaninId( pObj, iFanin, i )
        Counter += Au_ObjSuppSize_rec( p, iFanin );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:
