abcNames.c File Reference

#include "abc.h"
#include "misc/util/utilNam.h"

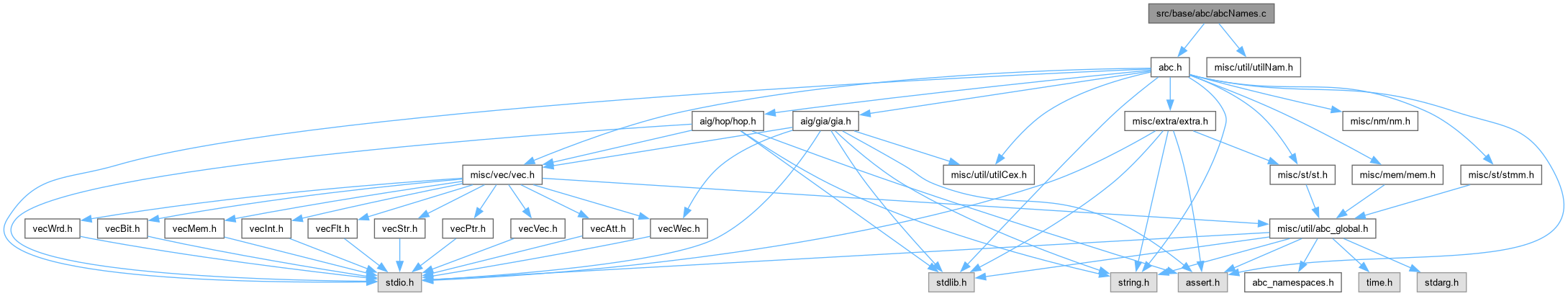

Include dependency graph for abcNames.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START char *	Abc_ObjName (Abc_Obj_t *pObj)
	DECLARATIONS ///.
char *	Abc_ObjAssignName (Abc_Obj_t *pObj, char *pName, char *pSuffix)

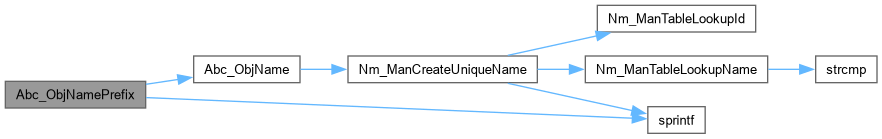

char *	Abc_ObjNamePrefix (Abc_Obj_t *pObj, char *pPrefix)
char *	Abc_ObjNameSuffix (Abc_Obj_t *pObj, char *pSuffix)

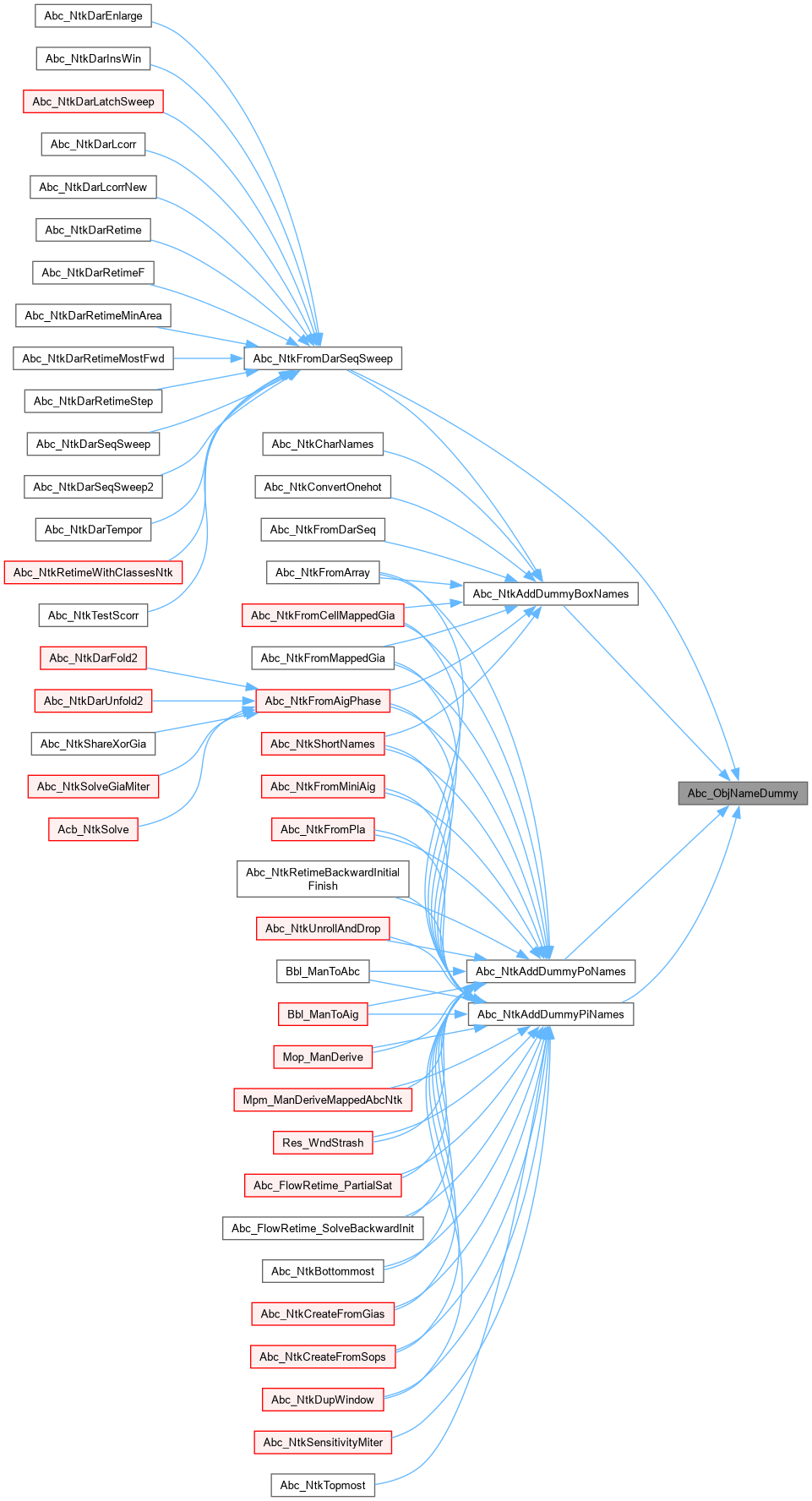

char *	Abc_ObjNameDummy (char *pPrefix, int Num, int nDigits)
char *	Abc_ObjNameChar (int Num, int fCap)

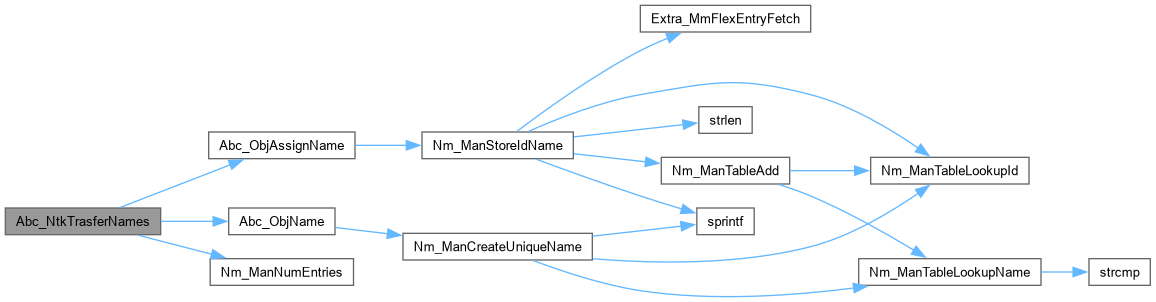

void	Abc_NtkTrasferNames (Abc_Ntk_t *pNtk, Abc_Ntk_t *pNtkNew)
void	Abc_NtkTrasferNamesNoLatches (Abc_Ntk_t *pNtk, Abc_Ntk_t *pNtkNew)
Vec_Ptr_t *	Abc_NodeGetFaninNames (Abc_Obj_t *pNode)
Vec_Ptr_t *	Abc_NodeGetFakeNames (int nNames)
void	Abc_NodeFreeNames (Vec_Ptr_t *vNames)
char **	Abc_NtkCollectCioNames (Abc_Ntk_t *pNtk, int fCollectCos)
int	Abc_NodeCompareNames (Abc_Obj_t **pp1, Abc_Obj_t **pp2)

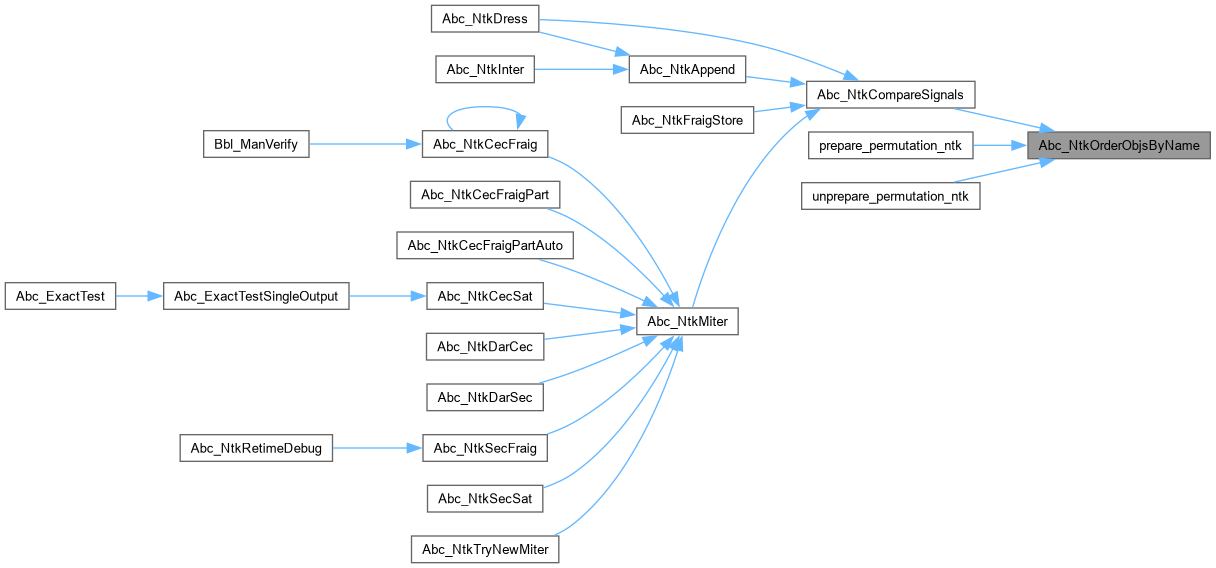

void	Abc_NtkOrderObjsByName (Abc_Ntk_t *pNtk, int fComb)
Abc_Nam_t *	Abc_NtkNameMan (Abc_Ntk_t *p, int fOuts)
int	Abc_NodeCompareIndexes (Abc_Obj_t **pp1, Abc_Obj_t **pp2)
void	Abc_NtkTransferOrder (Abc_Ntk_t *pNtkOld, Abc_Ntk_t *pNtkNew)
int	Abc_NodeCompareCiCo (Abc_Ntk_t *pNtkOld, Abc_Ntk_t *pNtkNew)
void	Abc_NtkAddDummyPiNames (Abc_Ntk_t *pNtk)
void	Abc_NtkAddCharPiNames (Abc_Ntk_t *pNtk)
void	Abc_NtkAddDummyPoNames (Abc_Ntk_t *pNtk)
void	Abc_NtkAddCharPoNames (Abc_Ntk_t *pNtk)
void	Abc_NtkAddDummyBoxNames (Abc_Ntk_t *pNtk)
void	Abc_NtkShortNames (Abc_Ntk_t *pNtk)
void	Abc_NtkCharNames (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanNames (Abc_Ntk_t *pNtk)
void	Abc_NtkRedirectCiCo (Abc_Ntk_t *pNtk)
void	Abc_NtkMoveNames (Abc_Ntk_t *pNtk, Abc_Ntk_t *pOld)
void	Abc_NtkStartNameIds (Abc_Ntk_t *p)
void	Abc_NtkTransferNameIds (Abc_Ntk_t *p, Abc_Ntk_t *pNew)

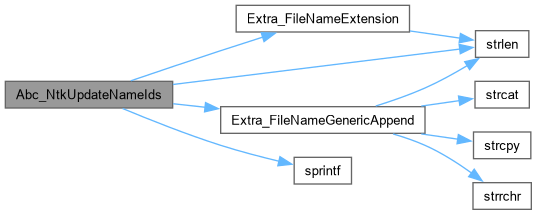

void	Abc_NtkUpdateNameIds (Abc_Ntk_t *p)

Function Documentation

Abc_NodeCompareCiCo()

int Abc_NodeCompareCiCo	(	Abc_Ntk_t *	pNtkOld,
		Abc_Ntk_t *	pNtkNew )

Function*************************************************************

Synopsis [Checks that the order and number of CI/CO is the same.]

Description []

SideEffects []

SeeAlso []

Definition at line 466 of file abcNames.c.

{
    int i;
    if ( Abc_NtkPiNum(pNtkOld) != Abc_NtkPiNum(pNtkNew) )
        return 0;
    if ( Abc_NtkPoNum(pNtkOld) != Abc_NtkPoNum(pNtkNew) )
        return 0;
    if ( Abc_NtkLatchNum(pNtkOld) != Abc_NtkLatchNum(pNtkNew) )
        return 0;
    for ( i = 0; i < Abc_NtkCiNum(pNtkOld); i++ )
        if ( strcmp(Abc_ObjName(Abc_NtkCi(pNtkOld, i)), Abc_ObjName(Abc_NtkCi(pNtkNew, i))) )
            return 0;
    for ( i = 0; i < Abc_NtkCoNum(pNtkOld); i++ )
        if ( strcmp(Abc_ObjName(Abc_NtkCo(pNtkOld, i)), Abc_ObjName(Abc_NtkCo(pNtkNew, i))) )
            return 0;
    return 1;
}

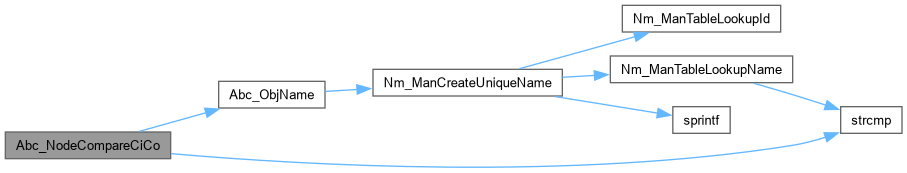

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NodeCompareIndexes()

int Abc_NodeCompareIndexes	(	Abc_Obj_t **	pp1,
		Abc_Obj_t **	pp2 )

Function*************************************************************

Synopsis [Orders PIs/POs/latches alphabetically.]

Description []

SideEffects []

SeeAlso []

Definition at line 406 of file abcNames.c.

{
    int Diff = (*pp1)->iTemp - (*pp2)->iTemp;
    if ( Diff < 0 )
        return -1;
    if ( Diff > 0 )
        return 1;
    return 0;
}

Here is the caller graph for this function:

Abc_NodeCompareNames()

int Abc_NodeCompareNames	(	Abc_Obj_t **	pp1,
		Abc_Obj_t **	pp2 )

Function*************************************************************

Synopsis [Orders PIs/POs/latches alphabetically.]

Description []

SideEffects []

SeeAlso []

Definition at line 316 of file abcNames.c.

{
    int Diff = strcmp( (char *)(*pp1)->pCopy, (char *)(*pp2)->pCopy );
    if ( Diff < 0 )
        return -1;
    if ( Diff > 0 )
        return 1;
    Diff = (*pp1)->Id - (*pp2)->Id;
    if ( Diff < 0 )
        return -1;
    if ( Diff > 0 )
        return 1;
    return 0;
}

Here is the call graph for this function:

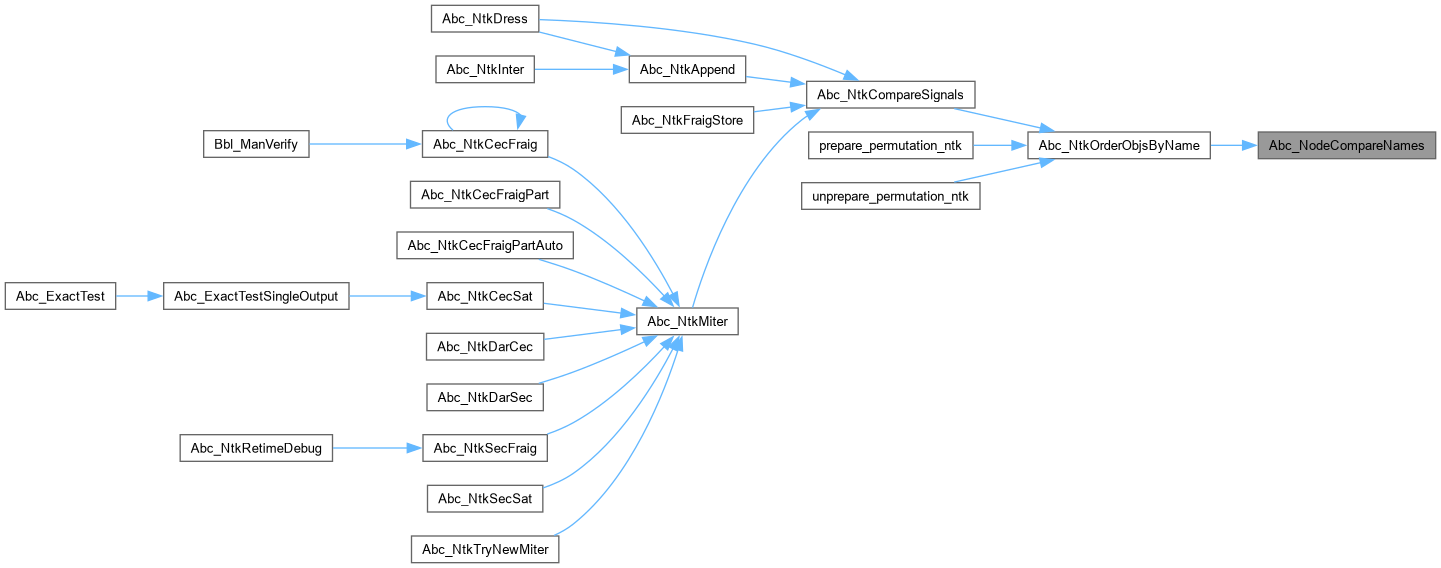

Here is the caller graph for this function:

Abc_NodeFreeNames()

void Abc_NodeFreeNames

(

Vec_Ptr_t *

vNames

)

Function*************************************************************

Synopsis [Gets fanin node names.]

Description []

SideEffects []

SeeAlso []

Definition at line 264 of file abcNames.c.

{
    int i;
    if ( vNames == NULL )
        return;
    for ( i = 0; i < vNames->nSize; i++ )
        ABC_FREE( vNames->pArray[i] );
    Vec_PtrFree( vNames );
}

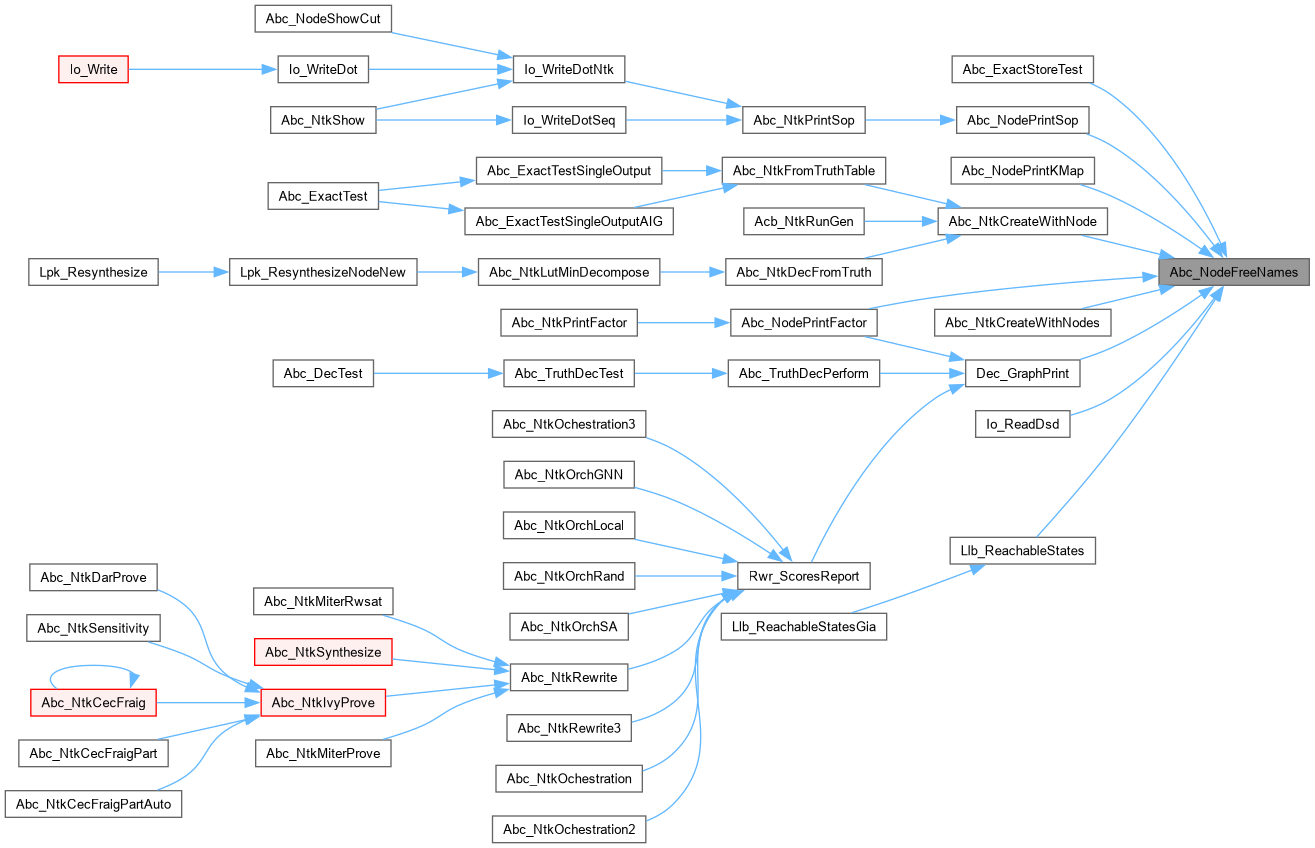

Here is the caller graph for this function:

Abc_NodeGetFakeNames()

Vec_Ptr_t * Abc_NodeGetFakeNames

(

int

nNames

)

Function*************************************************************

Synopsis [Gets fanin node names.]

Description []

SideEffects []

SeeAlso []

Definition at line 228 of file abcNames.c.

{
    Vec_Ptr_t * vNames;
    char Buffer[5];
    int i;

    vNames = Vec_PtrAlloc( nNames );
    for ( i = 0; i < nNames; i++ )
    {
        if ( nNames < 26 )
        {
            Buffer[0] = 'a' + i;
            Buffer[1] = 0;
        }
        else
        {
            Buffer[0] = 'a' + i%26;
            Buffer[1] = '0' + i/26;
            Buffer[2] = 0;
        }
        Vec_PtrPush( vNames, Extra_UtilStrsav(Buffer) );
    }
    return vNames;
}

Here is the call graph for this function:

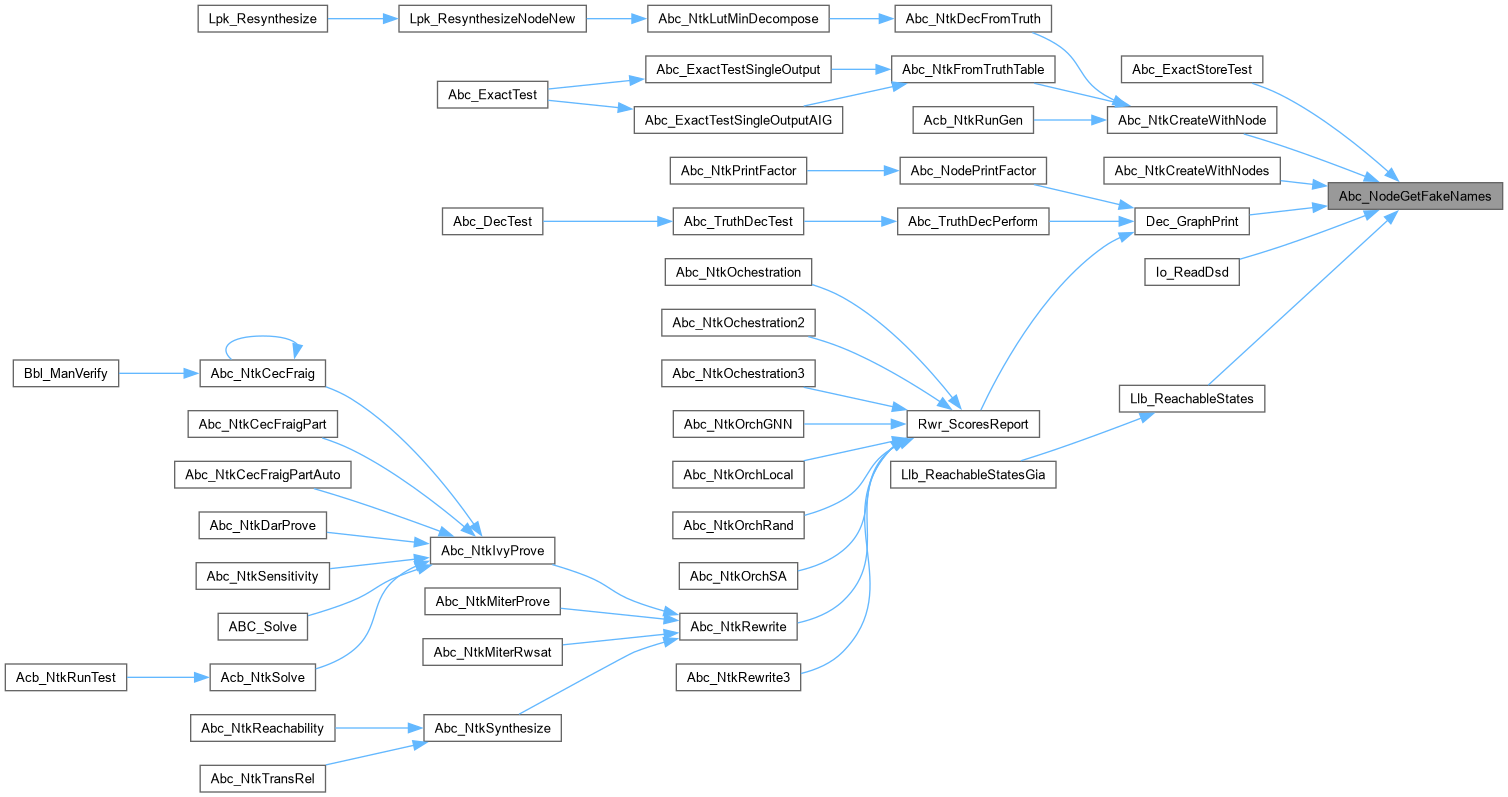

Here is the caller graph for this function:

Abc_NodeGetFaninNames()

Vec_Ptr_t * Abc_NodeGetFaninNames

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Gets fanin node names.]

Description []

SideEffects []

SeeAlso []

Definition at line 206 of file abcNames.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pFanin;
    int i;
    vNodes = Vec_PtrAlloc( 100 );
    Abc_ObjForEachFanin( pNode, pFanin, i )
        Vec_PtrPush( vNodes, Abc_UtilStrsav(Abc_ObjName(pFanin)) );
    return vNodes;
}

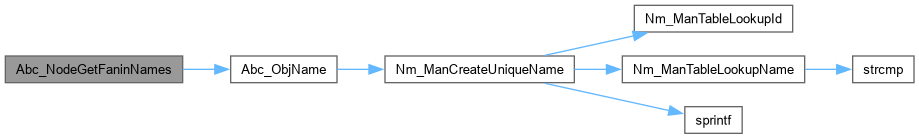

Here is the call graph for this function:

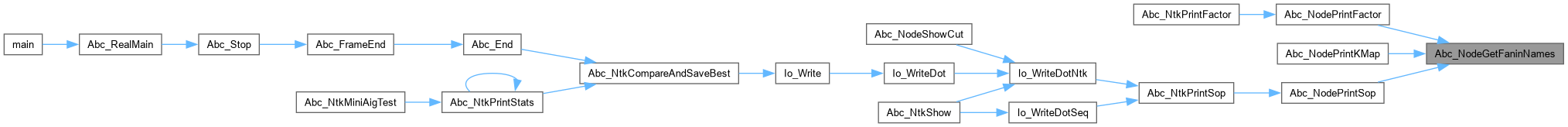

Here is the caller graph for this function:

Abc_NtkAddCharPiNames()

void Abc_NtkAddCharPiNames

(

Abc_Ntk_t *

pNtk

)

Definition at line 503 of file abcNames.c.

{
    Abc_Obj_t * pObj; int i;
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, Abc_ObjNameChar(i, 0), NULL );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAddCharPoNames()

void Abc_NtkAddCharPoNames

(

Abc_Ntk_t *

pNtk

)

Definition at line 529 of file abcNames.c.

{
    Abc_Obj_t * pObj; int i;
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, Abc_ObjNameChar(i, 1), NULL );
}

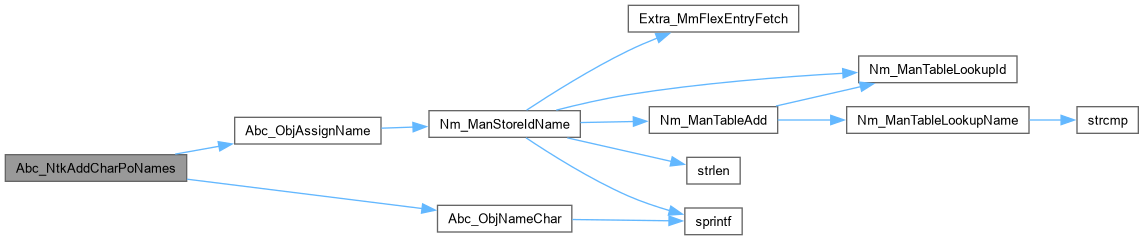

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAddDummyBoxNames()

void Abc_NtkAddDummyBoxNames

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Adds dummy names.]

Description []

SideEffects []

SeeAlso []

Definition at line 547 of file abcNames.c.

{
    char * pName, PrefLi[100], PrefLo[100];
    Abc_Obj_t * pObj;
    int nDigits, i, k, CountCur, CountMax = 0;
    // if PIs/POs already have nodes with what looks like latch names
    // we need to add different prefix for the new latches
    Abc_NtkForEachPi( pNtk, pObj, i )
    {
        CountCur = 0;
        pName = Abc_ObjName(pObj);
        for ( k = 0; pName[k]; k++ )
            if ( pName[k] == 'l' )
                CountCur++;
            else
                break;
        CountMax = Abc_MaxInt( CountMax, CountCur );
    }
    Abc_NtkForEachPo( pNtk, pObj, i )
    {
        CountCur = 0;
        pName = Abc_ObjName(pObj);
        for ( k = 0; pName[k]; k++ )
            if ( pName[k] == 'l' )
                CountCur++;
            else
                break;
        CountMax = Abc_MaxInt( CountMax, CountCur );
    }
//printf( "CountMax = %d\n", CountMax );
    assert( CountMax < 100-2 );
    for ( i = 0; i <= CountMax; i++ )
        PrefLi[i] = PrefLo[i] = 'l';
    PrefLi[i] = 'i';
    PrefLo[i] = 'o';
    PrefLi[i+1] = 0;
    PrefLo[i+1] = 0;
    // create latch names
    assert( !Abc_NtkIsNetlist(pNtk) );
    nDigits = Abc_Base10Log( Abc_NtkLatchNum(pNtk) );
    Abc_NtkForEachLatch( pNtk, pObj, i )
    {
        Abc_ObjAssignName( pObj, Abc_ObjNameDummy("l", i, nDigits), NULL );
        Abc_ObjAssignName( Abc_ObjFanin0(pObj),  Abc_ObjNameDummy(PrefLi, i, nDigits), NULL );
        Abc_ObjAssignName( Abc_ObjFanout0(pObj), Abc_ObjNameDummy(PrefLo, i, nDigits), NULL );
    }
/*
    nDigits = Abc_Base10Log( Abc_NtkBlackboxNum(pNtk) );
    Abc_NtkForEachBlackbox( pNtk, pObj, i )
    {
        pName = Abc_ObjAssignName( pObj, Abc_ObjNameDummy("B", i, nDigits), NULL );
        nDigitsF = Abc_Base10Log( Abc_ObjFaninNum(pObj) );
        Abc_ObjForEachFanin( pObj, pTerm, k )
            Abc_ObjAssignName( Abc_ObjFanin0(pObj), pName, Abc_ObjNameDummy("i", k, nDigitsF) );
        nDigitsF = Abc_Base10Log( Abc_ObjFanoutNum(pObj) );
        Abc_ObjForEachFanout( pObj, pTerm, k )
            Abc_ObjAssignName( Abc_ObjFanin0(pObj), pName, Abc_ObjNameDummy("o", k, nDigitsF) );
    }
*/
}

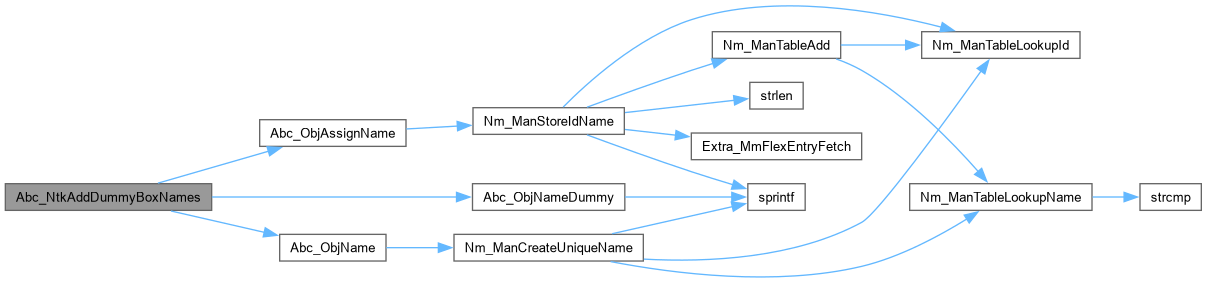

Here is the call graph for this function:

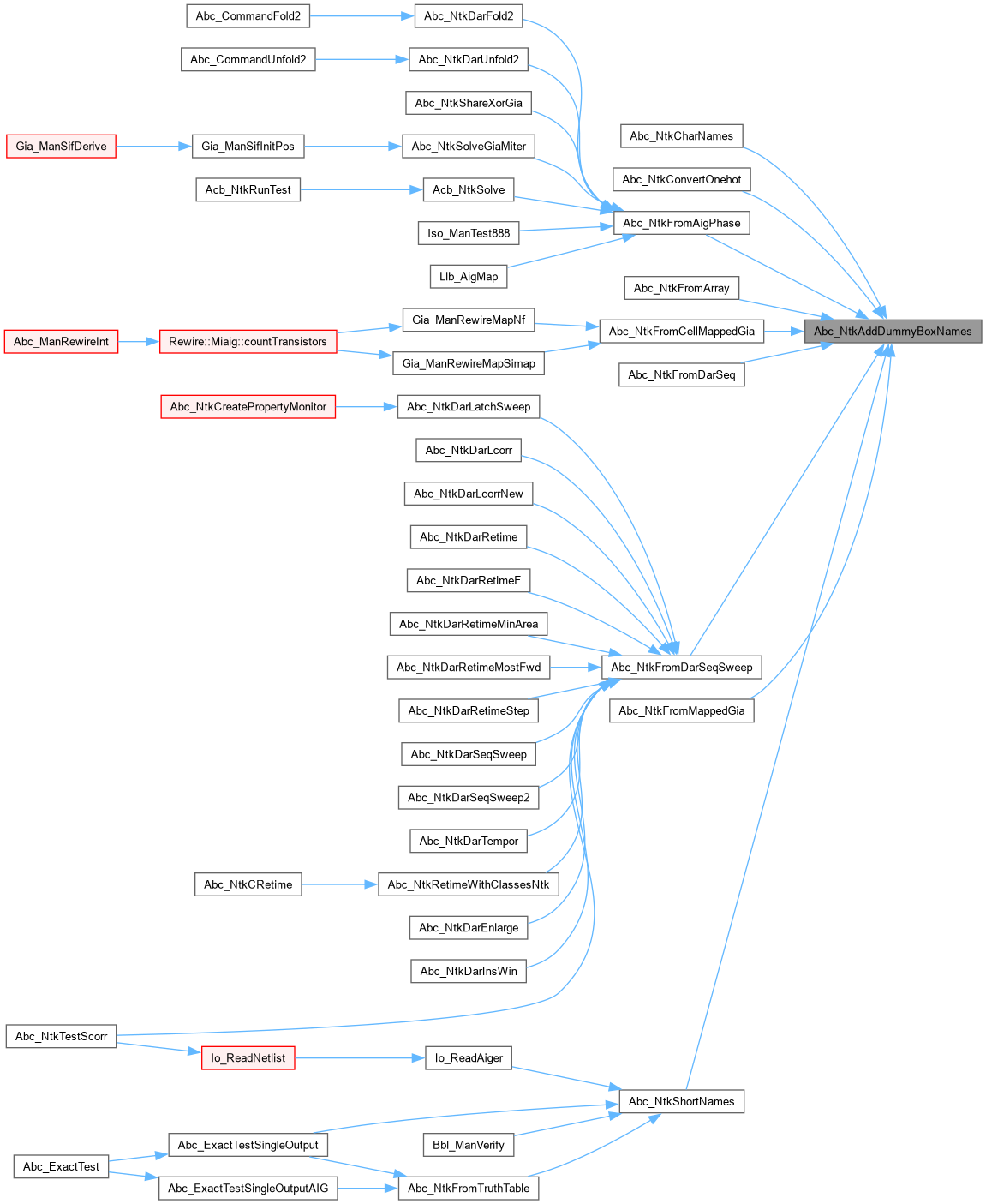

Here is the caller graph for this function:

Abc_NtkAddDummyPiNames()

void Abc_NtkAddDummyPiNames

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Adds dummy names.]

Description []

SideEffects []

SeeAlso []

Definition at line 495 of file abcNames.c.

{
    Abc_Obj_t * pObj;
    int nDigits, i;
    nDigits = Abc_Base10Log( Abc_NtkPiNum(pNtk) );
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, Abc_ObjNameDummy("pi", i, nDigits), NULL );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAddDummyPoNames()

void Abc_NtkAddDummyPoNames

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Adds dummy names.]

Description []

SideEffects []

SeeAlso []

Definition at line 521 of file abcNames.c.

{
    Abc_Obj_t * pObj;
    int nDigits, i;
    nDigits = Abc_Base10Log( Abc_NtkPoNum(pNtk) );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, Abc_ObjNameDummy("po", i, nDigits), NULL );
}

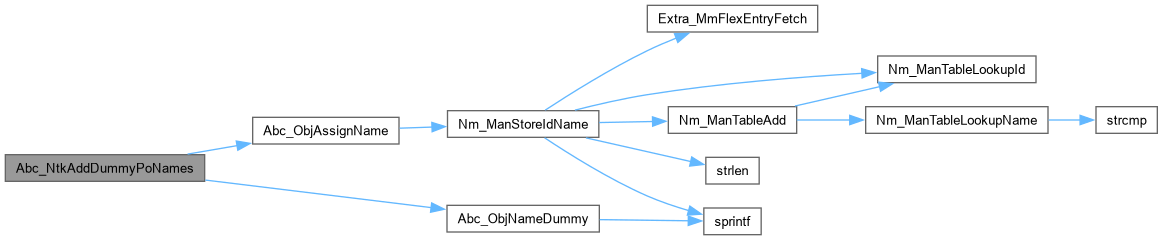

Here is the call graph for this function:

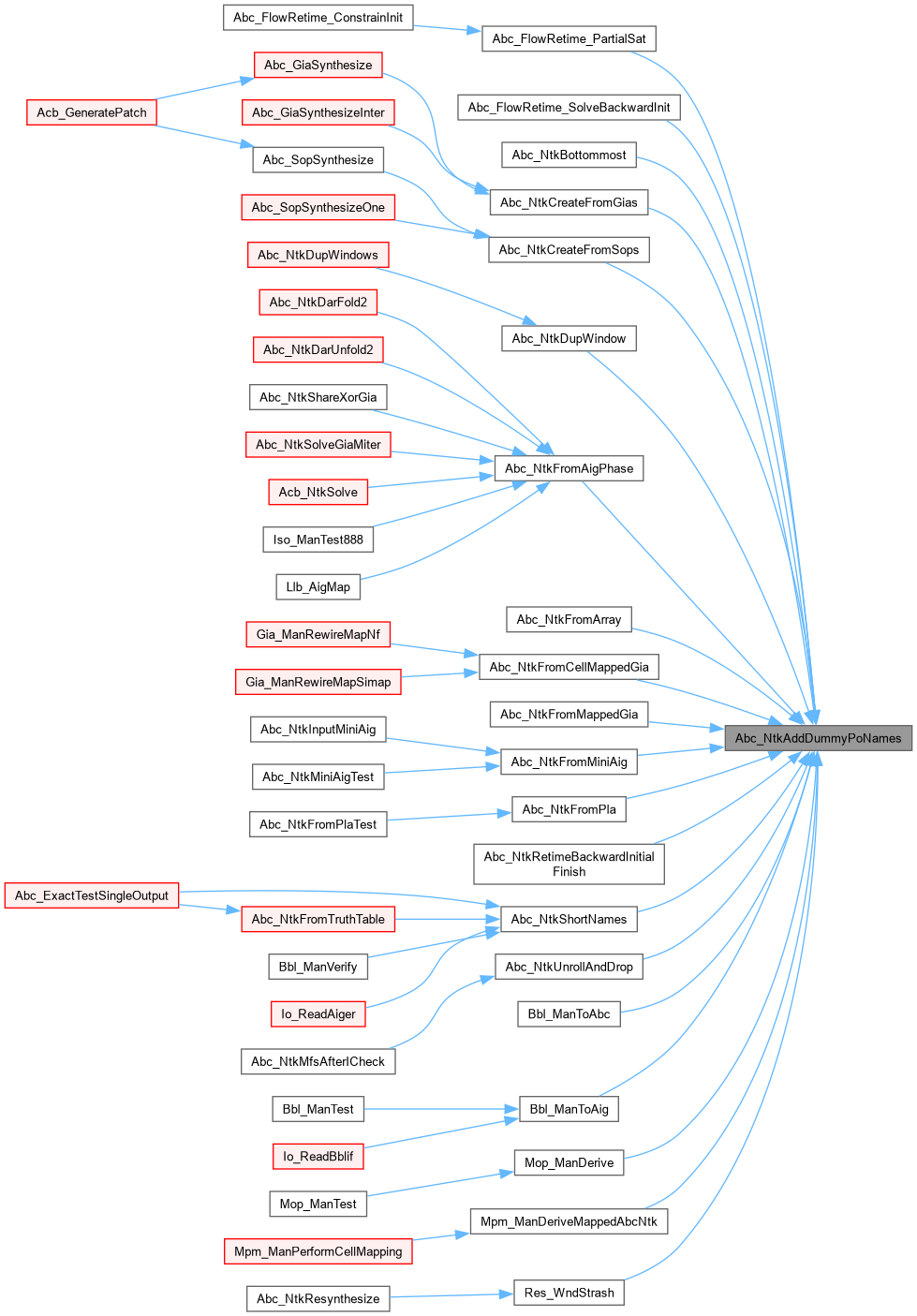

Here is the caller graph for this function:

Abc_NtkCharNames()

void Abc_NtkCharNames

(

Abc_Ntk_t *

pNtk

)

Definition at line 627 of file abcNames.c.

{
    Nm_ManFree( pNtk->pManName );
    pNtk->pManName = Nm_ManCreate( Abc_NtkCiNum(pNtk) + Abc_NtkCoNum(pNtk) + Abc_NtkBoxNum(pNtk) );
    Abc_NtkAddCharPiNames( pNtk );
    Abc_NtkAddCharPoNames( pNtk );
    Abc_NtkAddDummyBoxNames( pNtk );
}

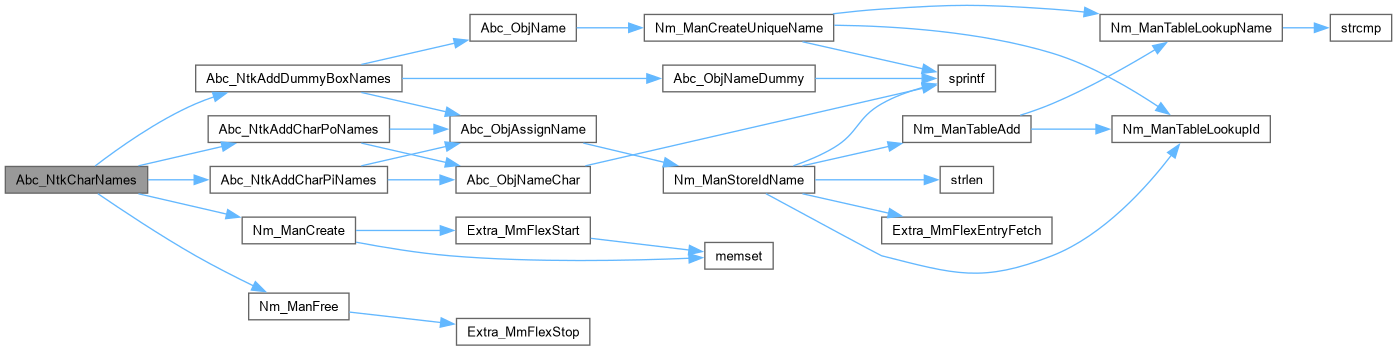

Here is the call graph for this function:

Abc_NtkCleanNames()

void Abc_NtkCleanNames

(

Abc_Ntk_t *

pNtk

)

Definition at line 635 of file abcNames.c.

{
    Abc_Obj_t * pObj; int i;
    Nm_Man_t * pManName = Nm_ManCreate( Abc_NtkCiNum(pNtk) + Abc_NtkCoNum(pNtk) + Abc_NtkBoxNum(pNtk) );
    Abc_NtkForEachCi( pNtk, pObj, i )
        Nm_ManStoreIdName( pManName, pObj->Id, pObj->Type, Abc_ObjName(pObj), NULL );
    Abc_NtkForEachCo( pNtk, pObj, i )
        Nm_ManStoreIdName( pManName, pObj->Id, pObj->Type, Abc_ObjName(pObj), NULL );
    Nm_ManFree( pNtk->pManName );
    pNtk->pManName = pManName;
}

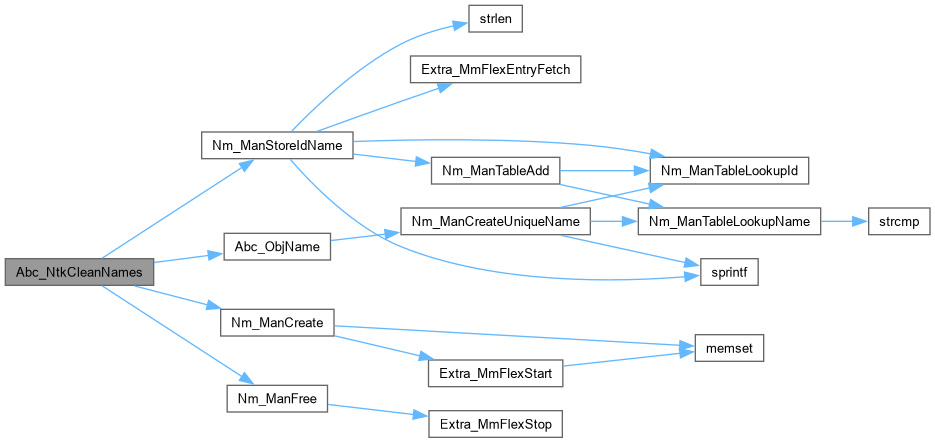

Here is the call graph for this function:

Abc_NtkCollectCioNames()

char ** Abc_NtkCollectCioNames	(	Abc_Ntk_t *	pNtk,
		int	fCollectCos )

Function*************************************************************

Synopsis [Collects the CI or CO names.]

Description []

SideEffects []

SeeAlso []

Definition at line 285 of file abcNames.c.

{
    Abc_Obj_t * pObj;
    char ** ppNames;
    int i;
    if ( fCollectCos )
    {
        ppNames = ABC_ALLOC( char *, Abc_NtkCoNum(pNtk) );
        Abc_NtkForEachCo( pNtk, pObj, i )
            ppNames[i] = Abc_ObjName(pObj);
    }
    else
    {
        ppNames = ABC_ALLOC( char *, Abc_NtkCiNum(pNtk) );
        Abc_NtkForEachCi( pNtk, pObj, i )
            ppNames[i] = Abc_ObjName(pObj);
    }
    return ppNames;
}

Here is the call graph for this function:

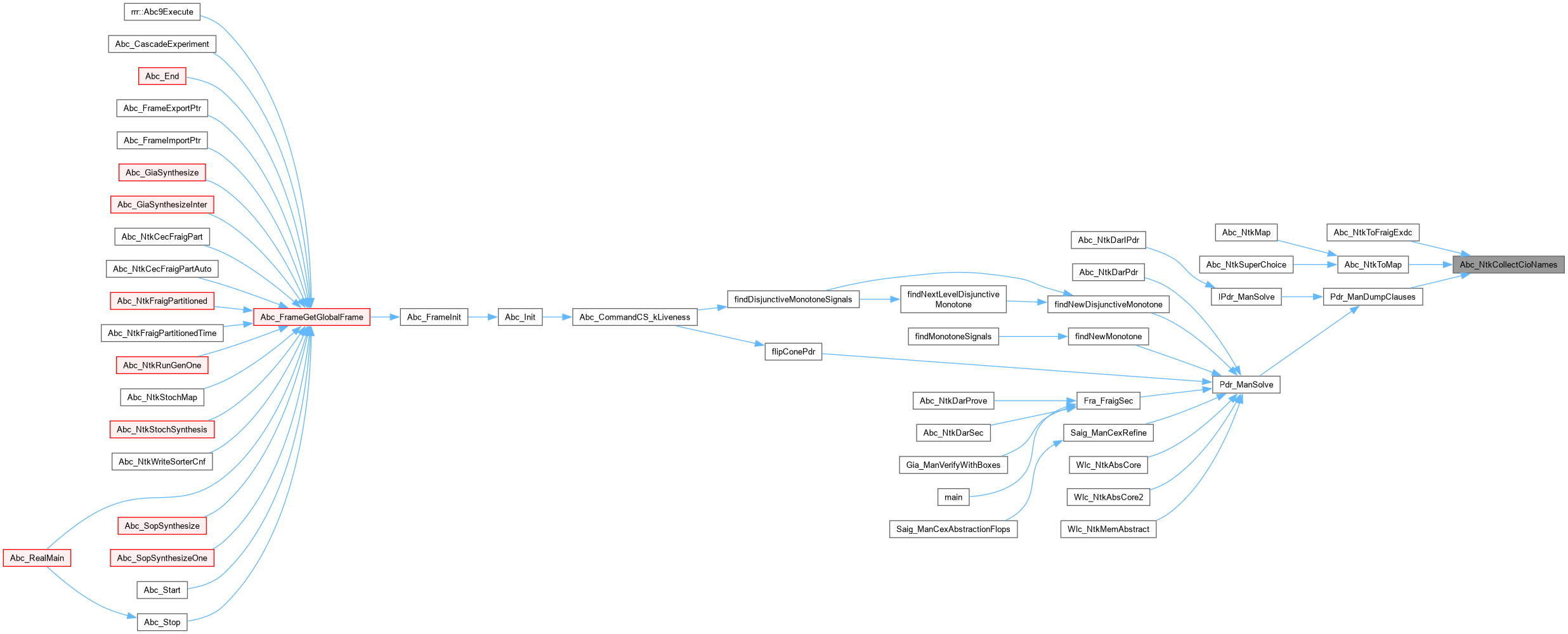

Here is the caller graph for this function:

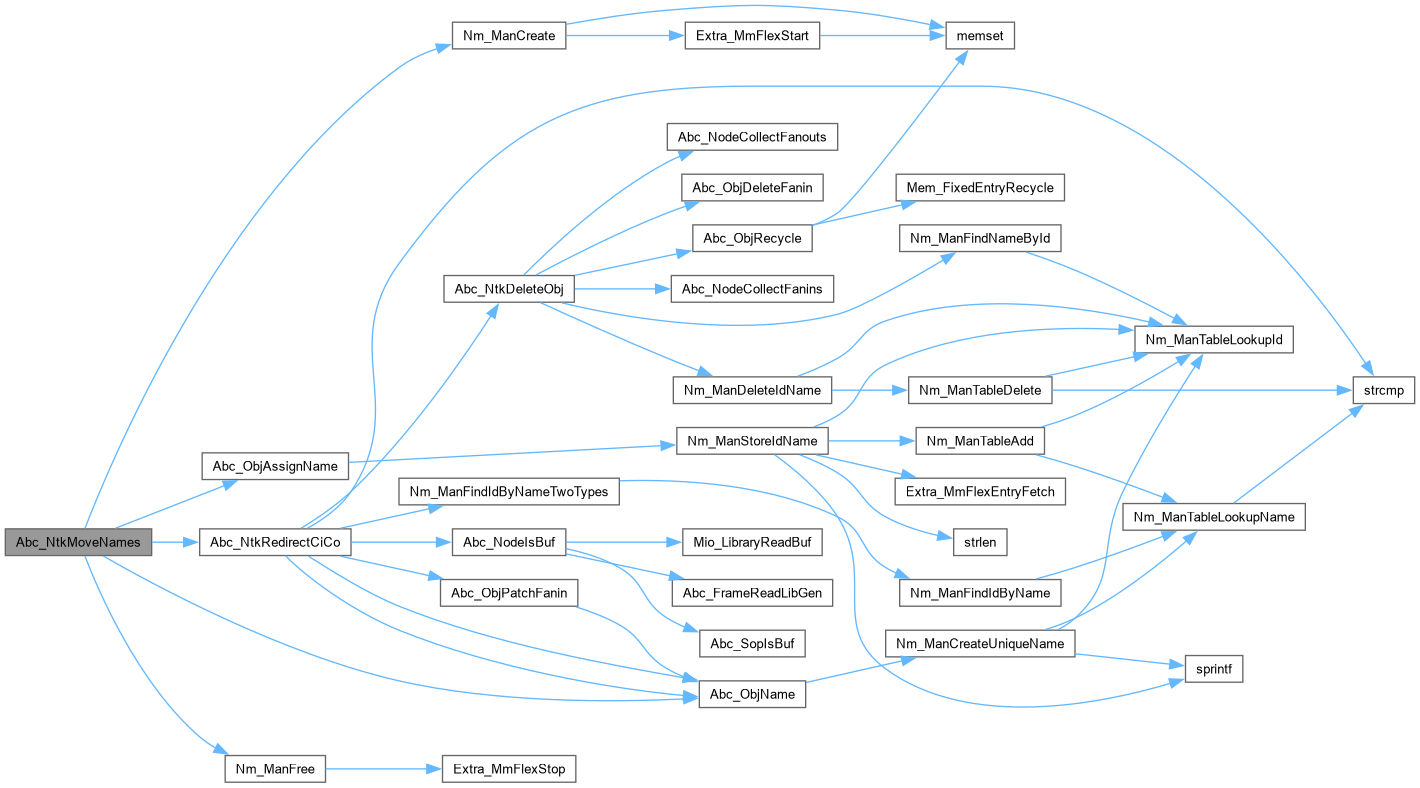

Abc_NtkMoveNames()

void Abc_NtkMoveNames	(	Abc_Ntk_t *	pNtk,
		Abc_Ntk_t *	pOld )

Definition at line 682 of file abcNames.c.

{
    Abc_Obj_t * pObj; int i;
    Nm_ManFree( pNtk->pManName );
    pNtk->pManName = Nm_ManCreate( Abc_NtkCiNum(pNtk) + Abc_NtkCoNum(pNtk) + Abc_NtkBoxNum(pNtk) );
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, Abc_ObjName(Abc_NtkPi(pOld, i)), NULL );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, Abc_ObjName(Abc_NtkPo(pOld, i)), NULL );
    Abc_NtkForEachLatch( pNtk, pObj, i )
    {
        Abc_ObjAssignName( Abc_ObjFanin0(pObj),  Abc_ObjName(Abc_ObjFanin0(Abc_NtkBox(pOld, i))),  NULL );
        Abc_ObjAssignName( Abc_ObjFanout0(pObj), Abc_ObjName(Abc_ObjFanout0(Abc_NtkBox(pOld, i))), NULL );
    }
    Abc_NtkRedirectCiCo( pNtk );
}

Here is the call graph for this function:

Abc_NtkNameMan()

Abc_Nam_t * Abc_NtkNameMan	(	Abc_Ntk_t *	p,
		int	fOuts )

Function*************************************************************

Synopsis [Creates name manager storing input/output names.]

Description []

SideEffects []

SeeAlso []

Definition at line 373 of file abcNames.c.

{
    if ( fOuts )
    {
        Abc_Obj_t * pObj;  int i;
        Abc_Nam_t * pStrsCo = Abc_NamStart( Abc_NtkCoNum(p), 24 );
        Abc_NtkForEachCo( p, pObj, i )
            Abc_NamStrFindOrAdd( pStrsCo, Abc_ObjName(pObj), NULL );
        assert( Abc_NamObjNumMax(pStrsCo) == i + 1 );
        return pStrsCo;
    }
    else
    {
        Abc_Obj_t * pObj;  int i;
        Abc_Nam_t * pStrsCi = Abc_NamStart( Abc_NtkCiNum(p), 24 );
        Abc_NtkForEachCi( p, pObj, i )
            Abc_NamStrFindOrAdd( pStrsCi, Abc_ObjName(pObj), NULL );
        assert( Abc_NamObjNumMax(pStrsCi) == i + 1 );
        return pStrsCi;
   }
}

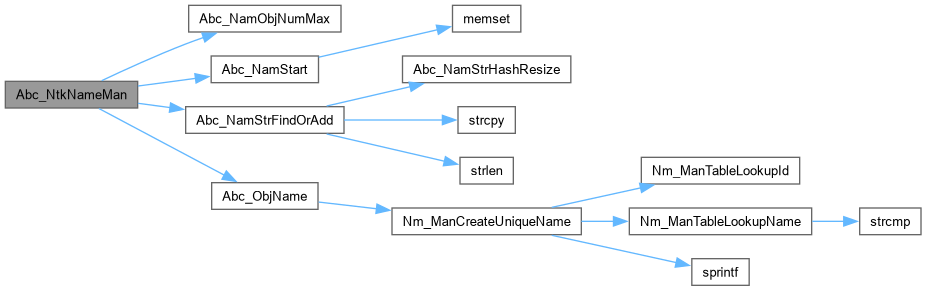

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkOrderObjsByName()

void Abc_NtkOrderObjsByName	(	Abc_Ntk_t *	pNtk,
		int	fComb )

Definition at line 330 of file abcNames.c.

{
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkHasOnlyLatchBoxes(pNtk) );
    // temporarily store the names in the copy field
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)Abc_ObjName(pObj);
    Abc_NtkForEachPo( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)Abc_ObjName(pObj);
    Abc_NtkForEachBox( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)Abc_ObjName(Abc_ObjFanout0(pObj));
    // order objects alphabetically
    qsort( (void *)Vec_PtrArray(pNtk->vPis), (size_t)Vec_PtrSize(pNtk->vPis), sizeof(Abc_Obj_t *),
        (int (*)(const void *, const void *)) Abc_NodeCompareNames );
    qsort( (void *)Vec_PtrArray(pNtk->vPos), (size_t)Vec_PtrSize(pNtk->vPos), sizeof(Abc_Obj_t *),
        (int (*)(const void *, const void *)) Abc_NodeCompareNames );
    // if the comparison if combinational (latches as PIs/POs), order them too
    if ( fComb )
        qsort( (void *)Vec_PtrArray(pNtk->vBoxes), (size_t)Vec_PtrSize(pNtk->vBoxes), sizeof(Abc_Obj_t *),
            (int (*)(const void *, const void *)) Abc_NodeCompareNames );
    // order CIs/COs first PIs/POs(Asserts) then latches
    Abc_NtkOrderCisCos( pNtk );
    // clean the copy fields
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->pCopy = NULL;
    Abc_NtkForEachPo( pNtk, pObj, i )
        pObj->pCopy = NULL;
    Abc_NtkForEachBox( pNtk, pObj, i )
        pObj->pCopy = NULL;
}

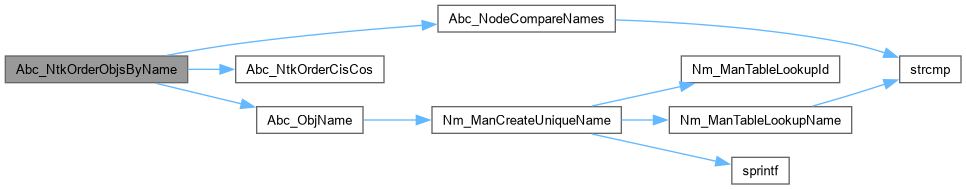

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRedirectCiCo()

void Abc_NtkRedirectCiCo

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Moves names from the other network.]

Description []

SideEffects []

SeeAlso []

Definition at line 658 of file abcNames.c.

{
    Abc_Obj_t * pObj, * pObjCi, * pFanin;
    int i, Count = 0;
    // if CO points to CI with the same name, remove buffer between them
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        int nCiId = Nm_ManFindIdByNameTwoTypes( pNtk->pManName, Abc_ObjName(pObj), ABC_OBJ_PI, ABC_OBJ_BO );
        if ( nCiId == -1 )
            continue;
        pObjCi = Abc_NtkObj( pNtk, nCiId );
        assert( !strcmp( Abc_ObjName(pObj), Abc_ObjName(pObjCi) ) );
        pFanin = Abc_ObjFanin0(pObj);
        if ( pFanin == pObjCi )
            continue;
        assert( Abc_NodeIsBuf(pFanin) );
        Abc_ObjPatchFanin( pObj, pFanin, pObjCi );
        if ( Abc_ObjFanoutNum(pFanin) == 0 )
            Abc_NtkDeleteObj( pFanin );
        Count++;
    }
    if ( Count )
        printf( "Redirected %d POs from buffers to PIs with the same name.\n", Count );
}

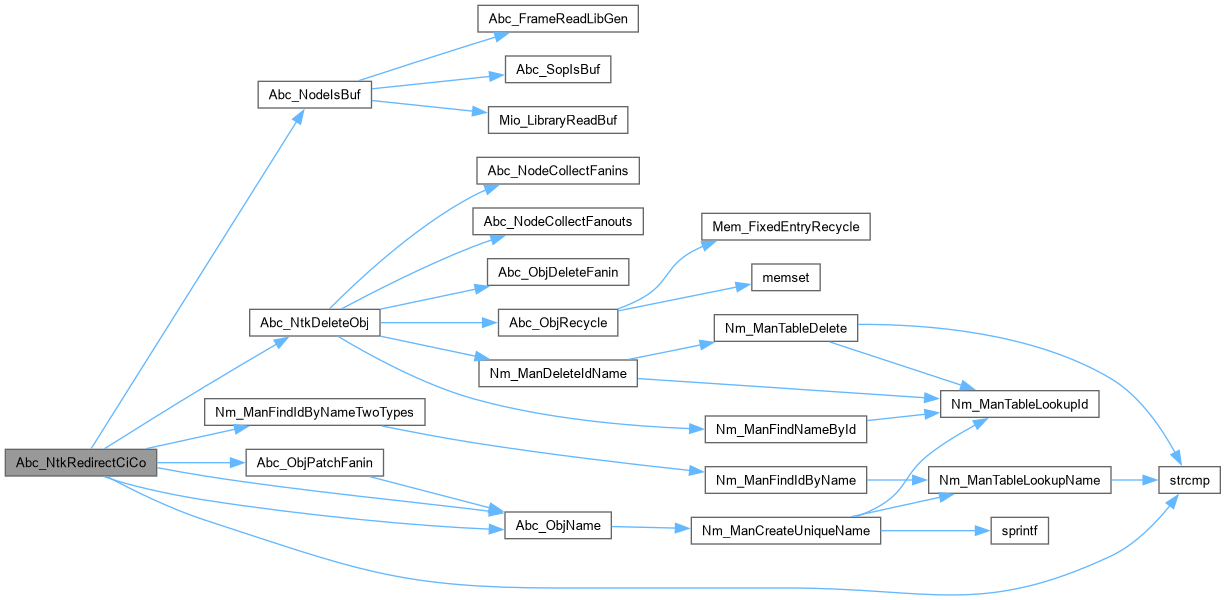

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkShortNames()

void Abc_NtkShortNames

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Replaces names by short names.]

Description []

SideEffects []

SeeAlso []

Definition at line 619 of file abcNames.c.

{
    Nm_ManFree( pNtk->pManName );
    pNtk->pManName = Nm_ManCreate( Abc_NtkCiNum(pNtk) + Abc_NtkCoNum(pNtk) + Abc_NtkBoxNum(pNtk) );
    Abc_NtkAddDummyPiNames( pNtk );
    Abc_NtkAddDummyPoNames( pNtk );
    Abc_NtkAddDummyBoxNames( pNtk );
}

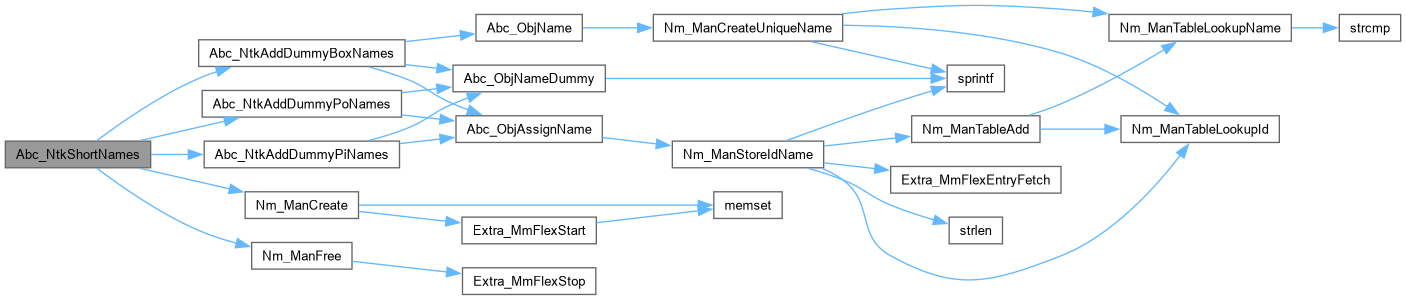

Here is the call graph for this function:

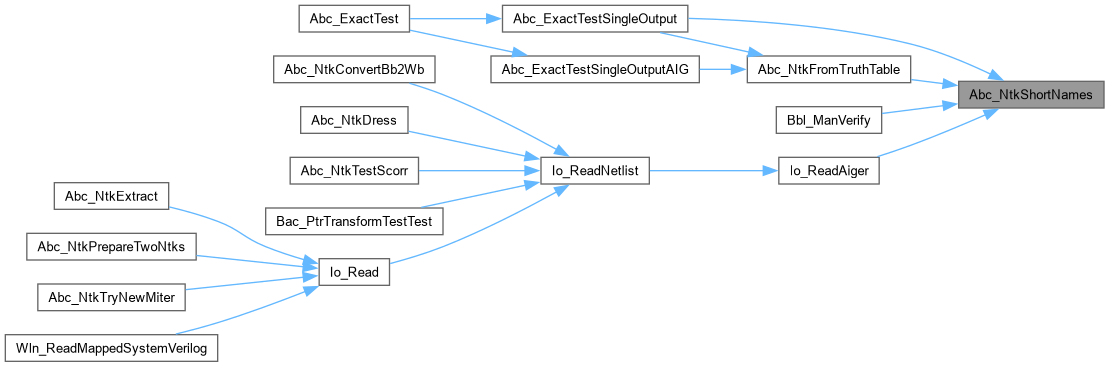

Here is the caller graph for this function:

Abc_NtkStartNameIds()

void Abc_NtkStartNameIds

(

Abc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Saves name IDs into a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 711 of file abcNames.c.

{
    char pFileName[1000];
    FILE * pFile;
    Abc_Obj_t * pObj, * pFanin;
    Vec_Ptr_t * vNodes;
    int i, Counter = 1;
    assert( Abc_NtkIsNetlist(p) );
    assert( p->vNameIds == NULL );
    assert( strlen(p->pSpec) < 1000 );
    sprintf( pFileName, "%s_%s_names.txt", Extra_FileNameGenericAppend(p->pSpec,""), Extra_FileNameExtension(p->pSpec) );
    pFile = fopen( pFileName, "wb" );
    p->vNameIds = Vec_IntStart( Abc_NtkObjNumMax(p) );
    // add inputs
    Abc_NtkForEachCi( p, pObj, i )
        fprintf( pFile, "%s            \n", Abc_ObjName(Abc_ObjFanout0(pObj)) ), Vec_IntWriteEntry(p->vNameIds, Abc_ObjId(pObj), 2*Counter++);
    // add outputs
    Abc_NtkForEachCo( p, pObj, i )
    {
        pFanin = Abc_ObjFanin0(Abc_ObjFanin0(pObj));
        if ( !Vec_IntEntry(p->vNameIds, Abc_ObjId(pFanin)) )
            fprintf( pFile, "%s            \n", Abc_ObjName(Abc_ObjFanout0(pFanin)) ), Vec_IntWriteEntry(p->vNameIds, Abc_ObjId(pFanin), 2*Counter++);
    }
    // add nodes in a topo order
    vNodes = Abc_NtkDfs( p, 1 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
        if ( !Vec_IntEntry(p->vNameIds, Abc_ObjId(pObj)) )
            fprintf( pFile, "%s            \n", Abc_ObjName(Abc_ObjFanout0(pObj)) ), Vec_IntWriteEntry(p->vNameIds, Abc_ObjId(pObj), 2*Counter++);
    Vec_PtrFree( vNodes );
    fclose( pFile );
    // transfer driver node names to COs
    Abc_NtkForEachCo( p, pObj, i )
    {
        pFanin = Abc_ObjFanin0(Abc_ObjFanin0(pObj));
        Vec_IntWriteEntry( p->vNameIds, Abc_ObjId(pObj), Vec_IntEntry(p->vNameIds, Abc_ObjId(pFanin)) );
        Vec_IntWriteEntry( p->vNameIds, Abc_ObjId(pFanin), 0 );
    }
}

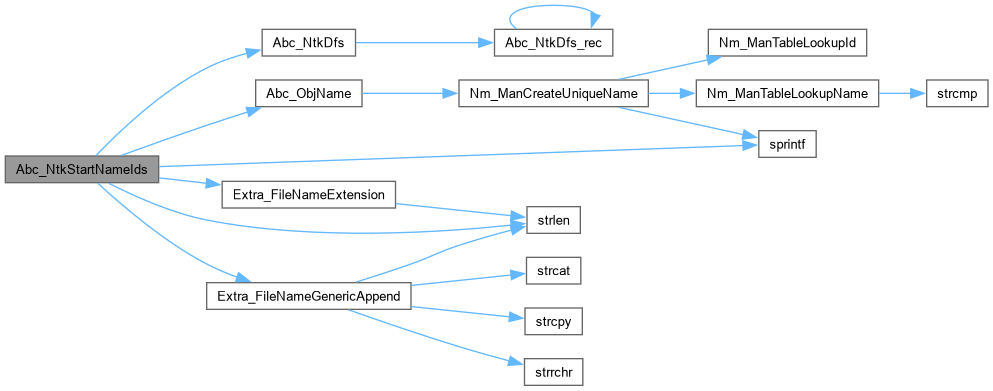

Here is the call graph for this function:

Abc_NtkTransferNameIds()

void Abc_NtkTransferNameIds	(	Abc_Ntk_t *	p,
		Abc_Ntk_t *	pNew )

Function*************************************************************

Synopsis [Remaps the AIG from the old manager into the new manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 761 of file abcNames.c.

{
    Abc_Obj_t * pObj, * pObjNew;
    int i;
    assert( p->vNameIds != NULL );
    assert( pNew->vNameIds == NULL );
    pNew->vNameIds = Vec_IntStart( Abc_NtkObjNumMax(pNew) );
//    Abc_NtkForEachCi( p, pObj, i )
//        printf( "%d ", Vec_IntEntry(p->vNameIds, Abc_ObjId(pObj)) );
//    printf( "\n" );
    Abc_NtkForEachObj( p, pObj, i )
        if ( pObj->pCopy && i < Vec_IntSize(p->vNameIds) && Vec_IntEntry(p->vNameIds, i) )
        {
            pObjNew = Abc_ObjRegular(pObj->pCopy);
            assert( Abc_ObjNtk(pObjNew) == pNew );
            if ( Abc_ObjIsCi(pObjNew) && !Abc_ObjIsCi(pObj) ) // do not overwrite CI name by internal node name
                continue;
            Vec_IntWriteEntry( pNew->vNameIds, Abc_ObjId(pObjNew), Vec_IntEntry(p->vNameIds, i) ^ Abc_ObjIsComplement(pObj->pCopy) );
        }
}

Here is the caller graph for this function:

Abc_NtkTransferOrder()

void Abc_NtkTransferOrder	(	Abc_Ntk_t *	pNtkOld,
		Abc_Ntk_t *	pNtkNew )

Definition at line 415 of file abcNames.c.

{
    Abc_Obj_t * pObj;  int i;
    Abc_Nam_t * pStrsCi = Abc_NtkNameMan( pNtkOld, 0 );
    Abc_Nam_t * pStrsCo = Abc_NtkNameMan( pNtkOld, 1 );
    assert( Abc_NtkPiNum(pNtkOld) == Abc_NtkPiNum(pNtkNew) );
    assert( Abc_NtkPoNum(pNtkOld) == Abc_NtkPoNum(pNtkNew) );
    assert( Abc_NtkLatchNum(pNtkOld) == Abc_NtkLatchNum(pNtkNew) );
    // transfer to the new network
    Abc_NtkForEachCi( pNtkNew, pObj, i )
    {
        pObj->iTemp = Abc_NamStrFind(pStrsCi, Abc_ObjName(pObj));
        assert( pObj->iTemp > 0 && pObj->iTemp <= Abc_NtkCiNum(pNtkNew) );
    }
    Abc_NtkForEachCo( pNtkNew, pObj, i )
    {
        pObj->iTemp = Abc_NamStrFind(pStrsCo, Abc_ObjName(pObj));
        assert( pObj->iTemp > 0 && pObj->iTemp <= Abc_NtkCoNum(pNtkNew) );
    }
    Abc_NamDeref( pStrsCi );
    Abc_NamDeref( pStrsCo );
    // order PI/PO
    qsort( (void *)Vec_PtrArray(pNtkNew->vPis), (size_t)Vec_PtrSize(pNtkNew->vPis), sizeof(Abc_Obj_t *),
        (int (*)(const void *, const void *)) Abc_NodeCompareIndexes );
    qsort( (void *)Vec_PtrArray(pNtkNew->vPos), (size_t)Vec_PtrSize(pNtkNew->vPos), sizeof(Abc_Obj_t *),
        (int (*)(const void *, const void *)) Abc_NodeCompareIndexes );
    // order CI/CO
    qsort( (void *)Vec_PtrArray(pNtkNew->vCis), (size_t)Vec_PtrSize(pNtkNew->vCis), sizeof(Abc_Obj_t *),
        (int (*)(const void *, const void *)) Abc_NodeCompareIndexes );
    qsort( (void *)Vec_PtrArray(pNtkNew->vCos), (size_t)Vec_PtrSize(pNtkNew->vCos), sizeof(Abc_Obj_t *),
        (int (*)(const void *, const void *)) Abc_NodeCompareIndexes );
    // order CIs/COs first PIs/POs(Asserts) then latches
    //Abc_NtkOrderCisCos( pNtk );
    // clean the copy fields
    Abc_NtkForEachCi( pNtkNew, pObj, i )
        pObj->iTemp = 0;
    Abc_NtkForEachCo( pNtkNew, pObj, i )
        pObj->iTemp = 0;
}

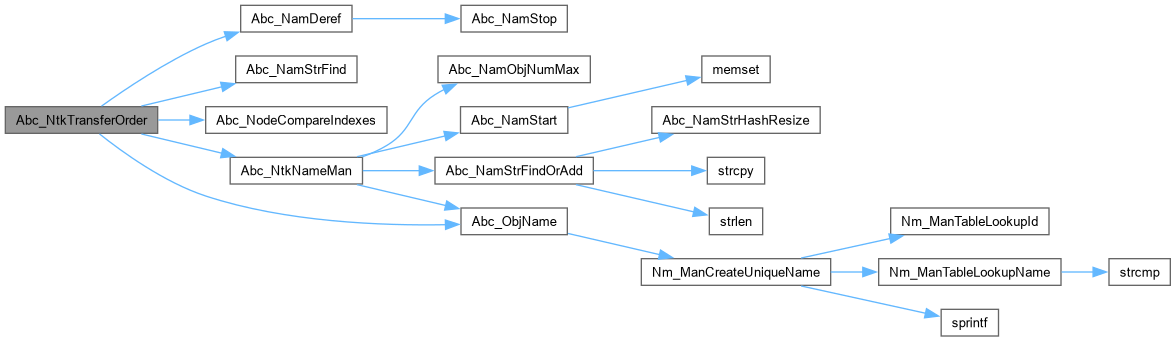

Here is the call graph for this function:

Abc_NtkTrasferNames()

void Abc_NtkTrasferNames	(	Abc_Ntk_t *	pNtk,
		Abc_Ntk_t *	pNtkNew )

Function*************************************************************

Synopsis [Tranfers names to the old network.]

Description [Assumes that the new nodes are attached using pObj->pCopy.]

SideEffects []

SeeAlso []

Definition at line 146 of file abcNames.c.

{
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkPiNum(pNtk) == Abc_NtkPiNum(pNtkNew) );
    assert( Abc_NtkPoNum(pNtk) == Abc_NtkPoNum(pNtkNew) );
    assert( Abc_NtkBoxNum(pNtk) == Abc_NtkBoxNum(pNtkNew) );
    assert( Nm_ManNumEntries(pNtk->pManName) > 0 );
    assert( Nm_ManNumEntries(pNtkNew->pManName) == 0 );
    // copy the CI/CO/box names
    Abc_NtkForEachCi( pNtk, pObj, i )
        Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(Abc_ObjFanout0Ntk(pObj)), NULL );
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(Abc_ObjFanin0Ntk(pObj)), NULL );
    Abc_NtkForEachBox( pNtk, pObj, i )
        Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(pObj), NULL );
}

Here is the call graph for this function:

Abc_NtkTrasferNamesNoLatches()

void Abc_NtkTrasferNamesNoLatches	(	Abc_Ntk_t *	pNtk,
		Abc_Ntk_t *	pNtkNew )

Function*************************************************************

Synopsis [Tranfers names to the old network.]

Description [Assumes that the new nodes are attached using pObj->pCopy.]

SideEffects []

SeeAlso []

Definition at line 175 of file abcNames.c.

{
    Abc_Obj_t * pObj;
    int i;
    assert( Abc_NtkPiNum(pNtk) == Abc_NtkPiNum(pNtkNew) );
    assert( Abc_NtkPoNum(pNtk) == Abc_NtkPoNum(pNtkNew) );
    assert( Nm_ManNumEntries(pNtk->pManName) > 0 );
    assert( Nm_ManNumEntries(pNtkNew->pManName) == 0 );
    // copy the CI/CO/box name and skip latches and theirs inputs/outputs
    Abc_NtkForEachCi( pNtk, pObj, i )
        if ( Abc_ObjFaninNum(pObj) == 0 || !Abc_ObjIsLatch(Abc_ObjFanin0(pObj)) )
            Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(Abc_ObjFanout0Ntk(pObj)), NULL );
    Abc_NtkForEachCo( pNtk, pObj, i )
        if ( Abc_ObjFanoutNum(pObj) == 0 || !Abc_ObjIsLatch(Abc_ObjFanout0(pObj)) )
            Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(Abc_ObjFanin0Ntk(pObj)), NULL );
    Abc_NtkForEachBox( pNtk, pObj, i )
        if ( !Abc_ObjIsLatch(pObj) )
            Abc_ObjAssignName( pObj->pCopy, Abc_ObjName(pObj), NULL );
}

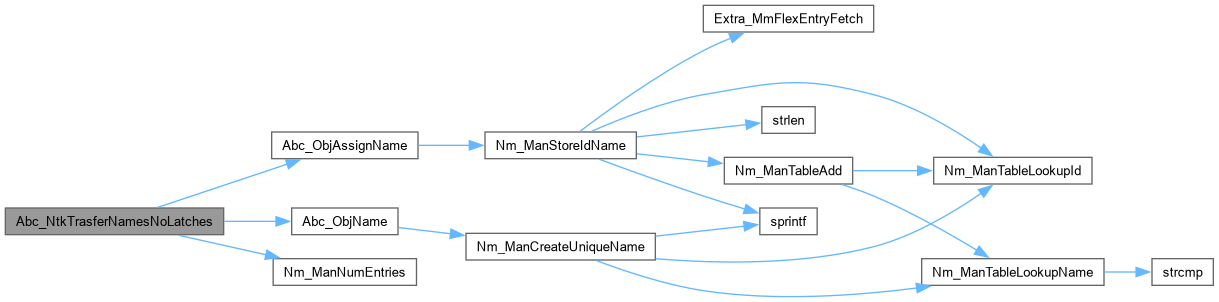

Here is the call graph for this function:

Abc_NtkUpdateNameIds()

void Abc_NtkUpdateNameIds

(

Abc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Updates file with name IDs.]

Description []

SideEffects []

SeeAlso []

Definition at line 793 of file abcNames.c.

{
    char pFileName[1000];
    Vec_Int_t * vStarts;
    Abc_Obj_t * pObj;
    FILE * pFile;
    int i, c, iVar, fCompl, fSeenSpace, Counter = 0;
    assert( !Abc_NtkIsNetlist(p) );
    assert( strlen(p->pSpec) < 1000 );
    assert( p->vNameIds != NULL );
    sprintf( pFileName, "%s_%s_names.txt", Extra_FileNameGenericAppend(p->pSpec,""), Extra_FileNameExtension(p->pSpec) );
    pFile = fopen( pFileName, "r+" );
    // collect info about lines
    fSeenSpace = 0;
    vStarts = Vec_IntAlloc( 1000 );
    Vec_IntPush( vStarts, -1 );
    while ( (c = fgetc(pFile)) != EOF && ++Counter )
        if ( c == ' ' && !fSeenSpace )
            Vec_IntPush(vStarts, Counter), fSeenSpace = 1;
        else if ( c == '\n' )
            fSeenSpace = 0;
    // add info about names
    Abc_NtkForEachObj( p, pObj, i )
    {
        if ( i == 0 || i >= Vec_IntSize(p->vNameIds) || !Vec_IntEntry(p->vNameIds, i) )
            continue;
        iVar = Abc_Lit2Var( Vec_IntEntry(p->vNameIds, i) );
        fCompl = Abc_LitIsCompl( Vec_IntEntry(p->vNameIds, i) );
        assert( iVar < Vec_IntSize(vStarts) );
        fseek( pFile, Vec_IntEntry(vStarts, iVar), SEEK_SET );
        fprintf( pFile, "%s%d", fCompl? "-":"", i );
    }
    printf( "Saved %d names into file \"%s\".\n", Vec_IntSize(vStarts)-1, pFileName );
    fclose( pFile );
    Vec_IntFree( vStarts );
    Vec_IntFreeP( &p->vNameIds );
//    Abc_NtkForEachObj( p, pObj, i )
//        Abc_ObjPrint( stdout, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ObjAssignName()

char * Abc_ObjAssignName	(	Abc_Obj_t *	pObj,
		char *	pName,
		char *	pSuffix )

Function*************************************************************

Synopsis [Assigns the given name to the object.]

Description [The object should not have a name assigned. The same name may be used for several objects, which they share the same net in the original netlist. (For example, latch output and primary output may have the same name.) This procedure returns the pointer to the internally stored representation of the given name.]

SideEffects []

SeeAlso []

Definition at line 69 of file abcNames.c.

{
    assert( pName != NULL );
    return Nm_ManStoreIdName( pObj->pNtk->pManName, pObj->Id, pObj->Type, pName, pSuffix );
}

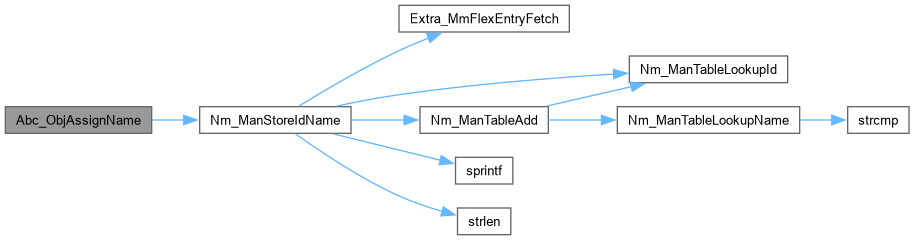

Here is the call graph for this function:

Abc_ObjName()

ABC_NAMESPACE_IMPL_START char * Abc_ObjName

(

Abc_Obj_t *

pObj

)

DECLARATIONS ///.

CFile****************************************************************

FileName [abcNames.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Procedures working with net and node names.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcNames.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Returns the unique name for the object.]

Description [If the name previously did not exist, creates a new unique name but does not assign this name to the object. The temporary unique name is stored in a static buffer inside this procedure. It is important that the name is used before the function is called again!]

SideEffects []

SeeAlso []

Definition at line 49 of file abcNames.c.

{
    return Nm_ManCreateUniqueName( pObj->pNtk->pManName, pObj->Id );
}

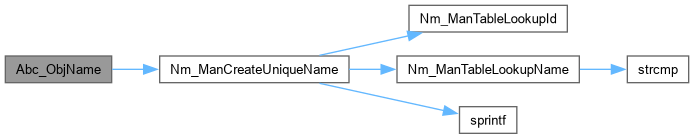

Here is the call graph for this function:

Abc_ObjNameChar()

char * Abc_ObjNameChar	(	int	Num,
		int	fCap )

Definition at line 128 of file abcNames.c.

{
    static char Buffer[2000];
    sprintf( Buffer, "%c", (fCap ? 'A':'a') + Num );
    return Buffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ObjNameDummy()

char * Abc_ObjNameDummy	(	char *	pPrefix,
		int	Num,
		int	nDigits )

Function*************************************************************

Synopsis [Returns the dummy PI name.]

Description []

SideEffects []

SeeAlso []

Definition at line 122 of file abcNames.c.

{
    static char Buffer[2000];
    sprintf( Buffer, "%s%0*d", pPrefix, nDigits, Num );
    return Buffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ObjNamePrefix()

char * Abc_ObjNamePrefix	(	Abc_Obj_t *	pObj,
		char *	pPrefix )

Function*************************************************************

Synopsis [Appends name to the prefix]

Description []

SideEffects []

SeeAlso []

Definition at line 86 of file abcNames.c.

{
    static char Buffer[2000];
    sprintf( Buffer, "%s%s", pPrefix, Abc_ObjName(pObj) );
    return Buffer;
}

Here is the call graph for this function:

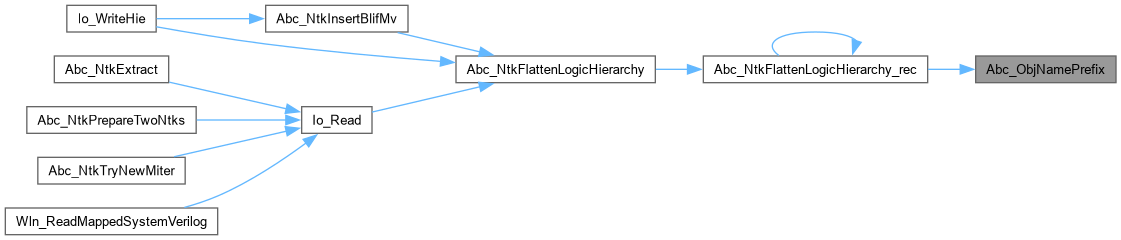

Here is the caller graph for this function:

Abc_ObjNameSuffix()

char * Abc_ObjNameSuffix	(	Abc_Obj_t *	pObj,
		char *	pSuffix )

Function*************************************************************

Synopsis [Appends suffic to the name.]

Description []

SideEffects []

SeeAlso []

Definition at line 104 of file abcNames.c.

{
    static char Buffer[2000];
    sprintf( Buffer, "%s%s", Abc_ObjName(pObj), pSuffix );
    return Buffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:
