abcRewrite.c File Reference

#include "base/abc/abc.h"
#include "opt/rwr/rwr.h"
#include "bool/dec/dec.h"

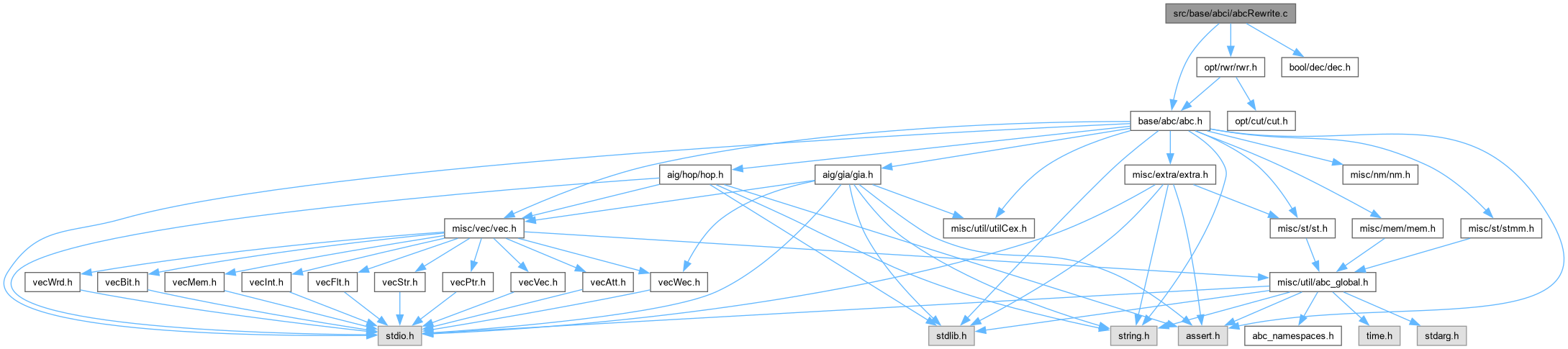

Include dependency graph for abcRewrite.c:

Go to the source code of this file.

Functions
void	Abc_PlaceBegin (Abc_Ntk_t *pNtk)
void	Abc_PlaceEnd (Abc_Ntk_t *pNtk)
void	Abc_PlaceUpdate (Vec_Ptr_t *vAddedCells, Vec_Ptr_t *vUpdatedNets)
int	Abc_NtkRewrite (Abc_Ntk_t *pNtk, int fUpdateLevel, int fUseZeros, int fVerbose, int fVeryVerbose, int fPlaceEnable)
	FUNCTION DEFINITIONS ///.
void	Abc_ManRewritePrintDivs (Vec_Ptr_t *vDivs, int nLeaves)
void	Abc_ManShowCutCone_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vDivs)
void	Abc_RwrExpWithCut_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vLeaves, int fUseA)
void	Abc_RwrExpWithCut (Abc_Obj_t *pNode, Vec_Ptr_t *vLeaves)

Function Documentation

Abc_ManRewritePrintDivs()

void Abc_ManRewritePrintDivs	(	Vec_Ptr_t *	vDivs,
		int	nLeaves )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 276 of file abcRewrite.c.

{
    Abc_Obj_t * pFanin, * pNode, * pRoot;
    int i, k;
    pRoot = (Abc_Obj_t *)Vec_PtrEntryLast(vDivs);
    // print the nodes
    Vec_PtrForEachEntry( Abc_Obj_t *, vDivs, pNode, i )
    {
        if ( i < nLeaves )
        {
            printf( "%6d : %c\n", pNode->Id, 'a'+i );
            continue;
        }
        printf( "%6d : %2d = ", pNode->Id, i );
        // find the first fanin
        Vec_PtrForEachEntry( Abc_Obj_t *, vDivs, pFanin, k )
            if ( Abc_ObjFanin0(pNode) == pFanin )
                break;
        if ( k < nLeaves )
            printf( "%c", 'a' + k );
        else
            printf( "%d", k );
        printf( "%s ", Abc_ObjFaninC0(pNode)? "\'" : "" );
        // find the second fanin
        Vec_PtrForEachEntry( Abc_Obj_t *, vDivs, pFanin, k )
            if ( Abc_ObjFanin1(pNode) == pFanin )
                break;
        if ( k < nLeaves )
            printf( "%c", 'a' + k );
        else
            printf( "%d", k );
        printf( "%s ", Abc_ObjFaninC1(pNode)? "\'" : "" );
        if ( pNode == pRoot )
            printf( " root" );
        printf( "\n" );
    }
    printf( "\n" );
}

Here is the caller graph for this function:

Abc_ManShowCutCone_rec()

void Abc_ManShowCutCone_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vDivs )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 326 of file abcRewrite.c.

{
    if ( Abc_NodeIsTravIdCurrent(pNode) )
        return;
    Abc_NodeSetTravIdCurrent(pNode);
    Abc_ManShowCutCone_rec( Abc_ObjFanin0(pNode), vDivs );
    Abc_ManShowCutCone_rec( Abc_ObjFanin1(pNode), vDivs );
    Vec_PtrPush( vDivs, pNode );
}

Here is the call graph for this function:

Here is the caller graph for this function:

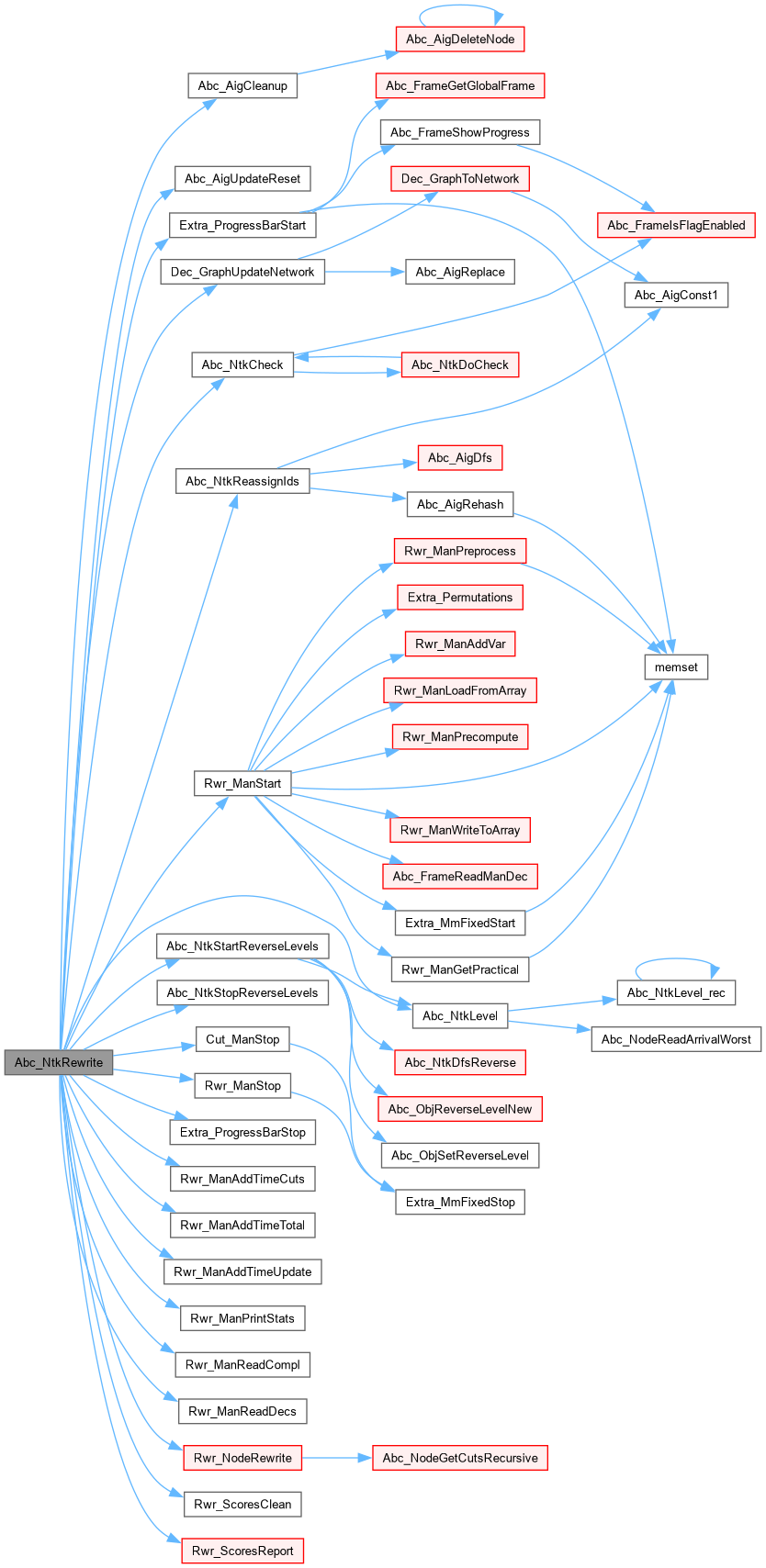

Abc_NtkRewrite()

int Abc_NtkRewrite	(	Abc_Ntk_t *	pNtk,
		int	fUpdateLevel,
		int	fUseZeros,
		int	fVerbose,
		int	fVeryVerbose,
		int	fPlaceEnable )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs incremental rewriting of the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 61 of file abcRewrite.c.

{
    extern int           Dec_GraphUpdateNetwork( Abc_Obj_t * pRoot, Dec_Graph_t * pGraph, int fUpdateLevel, int nGain );
    ProgressBar * pProgress;
    Cut_Man_t * pManCut;
    Rwr_Man_t * pManRwr;
    Abc_Obj_t * pNode;
//    Vec_Ptr_t * vAddedCells = NULL, * vUpdatedNets = NULL;
    Dec_Graph_t * pGraph;
    int i, nNodes, nGain, fCompl, RetValue = 1;
    abctime clk, clkStart = Abc_Clock();

    assert( Abc_NtkIsStrash(pNtk) );
    // cleanup the AIG
    Abc_AigCleanup((Abc_Aig_t *)pNtk->pManFunc);
/*
    {
        Vec_Vec_t * vParts;
        vParts = Abc_NtkPartitionSmart( pNtk, 50, 1 );
        Vec_VecFree( vParts );
    }
*/

    // start placement package
//    if ( fPlaceEnable )
//    {
//        Abc_PlaceBegin( pNtk );
//        vAddedCells = Abc_AigUpdateStart( pNtk->pManFunc, &vUpdatedNets );
//    }

    // start the rewriting manager
    pManRwr = Rwr_ManStart( 0 );
    if ( pManRwr == NULL )
        return 0;
    // compute the reverse levels if level update is requested
    if ( fUpdateLevel )
        Abc_NtkStartReverseLevels( pNtk, 0 );
    // start the cut manager
clk = Abc_Clock();
    pManCut = Abc_NtkStartCutManForRewrite( pNtk );
Rwr_ManAddTimeCuts( pManRwr, Abc_Clock() - clk );
    pNtk->pManCut = pManCut;

    if ( fVeryVerbose )
        Rwr_ScoresClean( pManRwr );

    // resynthesize each node once
    pManRwr->nNodesBeg = Abc_NtkNodeNum(pNtk);
    nNodes = Abc_NtkObjNumMax(pNtk);
    pProgress = Extra_ProgressBarStart( stdout, nNodes );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        Extra_ProgressBarUpdate( pProgress, i, NULL );
        // stop if all nodes have been tried once
        if ( i >= nNodes )
            break;
        // skip persistant nodes
        if ( Abc_NodeIsPersistant(pNode) )
            continue;
        // skip the nodes with many fanouts
        if ( Abc_ObjFanoutNum(pNode) > 1000 )
            continue;

        // for each cut, try to resynthesize it
        nGain = Rwr_NodeRewrite( pManRwr, pManCut, pNode, fUpdateLevel, fUseZeros, fPlaceEnable );
        if ( !(nGain > 0 || (nGain == 0 && fUseZeros)) )
            continue;
        // if we end up here, a rewriting step is accepted

        // get hold of the new subgraph to be added to the AIG
        pGraph = (Dec_Graph_t *)Rwr_ManReadDecs(pManRwr);
        fCompl = Rwr_ManReadCompl(pManRwr);

        // reset the array of the changed nodes
        if ( fPlaceEnable )
            Abc_AigUpdateReset( (Abc_Aig_t *)pNtk->pManFunc );

        // complement the FF if needed
        if ( fCompl ) Dec_GraphComplement( pGraph );
clk = Abc_Clock();
        if ( !Dec_GraphUpdateNetwork( pNode, pGraph, fUpdateLevel, nGain ) )
        {
            RetValue = -1;
            break;
        }
Rwr_ManAddTimeUpdate( pManRwr, Abc_Clock() - clk );
        if ( fCompl ) Dec_GraphComplement( pGraph );

        // use the array of changed nodes to update placement
//        if ( fPlaceEnable )
//            Abc_PlaceUpdate( vAddedCells, vUpdatedNets );
    }
    Extra_ProgressBarStop( pProgress );
Rwr_ManAddTimeTotal( pManRwr, Abc_Clock() - clkStart );
    // print stats
    pManRwr->nNodesEnd = Abc_NtkNodeNum(pNtk);
    if ( fVerbose )
        Rwr_ManPrintStats( pManRwr );
//        Rwr_ManPrintStatsFile( pManRwr );
    if ( fVeryVerbose )
        Rwr_ScoresReport( pManRwr );
    // delete the managers
    Rwr_ManStop( pManRwr );
    Cut_ManStop( pManCut );
    pNtk->pManCut = NULL;

    // start placement package
//    if ( fPlaceEnable )
//    {
//        Abc_PlaceEnd( pNtk );
//        Abc_AigUpdateStop( pNtk->pManFunc );
//    }

    // put the nodes into the DFS order and reassign their IDs
    {
//        abctime clk = Abc_Clock();
    Abc_NtkReassignIds( pNtk );
//        ABC_PRT( "time", Abc_Clock() - clk );
    }
//    Abc_AigCheckFaninOrder( pNtk->pManFunc );
    // fix the levels
    if ( RetValue >= 0 )
    {
        if ( fUpdateLevel )
            Abc_NtkStopReverseLevels( pNtk );
        else
            Abc_NtkLevel( pNtk );
        // check
        if ( !Abc_NtkCheck( pNtk ) )
        {
            printf( "Abc_NtkRewrite: The network check has failed.\n" );
            return 0;
        }
    }
    return RetValue;
}

Here is the call graph for this function:

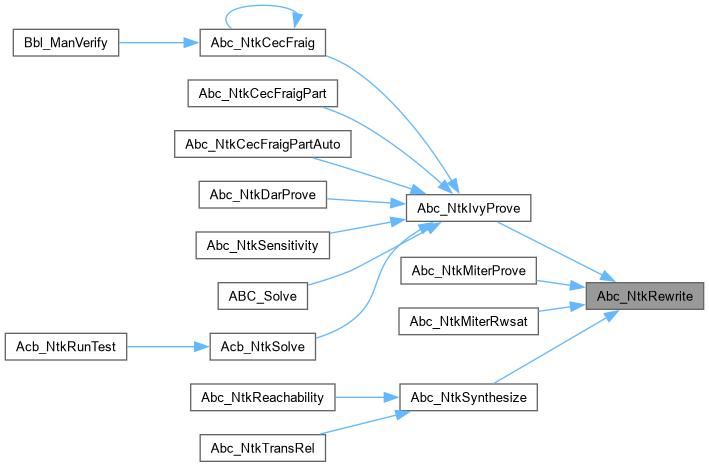

Here is the caller graph for this function:

Abc_PlaceBegin()

void Abc_PlaceBegin ( Abc_Ntk_t * pNtk )

extern

Function*************************************************************

Synopsis [This procedure is called before the writing start.]

Description []

SideEffects []

SeeAlso []

Definition at line 178 of file abcPlace.c.

{
    Abc_Obj_t * pObj;
    int i;

    // allocate and clean internal storage
    nAllocSize = 5 * Abc_NtkObjNumMax(pNtk);
    cells = REALLOC(ConcreteCell, cells, nAllocSize);
    nets  = REALLOC(ConcreteNet, nets, nAllocSize);
    memset( cells, 0, sizeof(ConcreteCell) * nAllocSize );
    memset( nets, 0, sizeof(ConcreteNet) * nAllocSize );

    // create AbstractCells
    //   1: pad
    //   2: and
    if (!abstractCells)
        abstractCells = ALLOC(AbstractCell,2);

    abstractCells[0].m_height = 1.0;
    abstractCells[0].m_width = 1.0;
    abstractCells[0].m_label = "pio";
    abstractCells[0].m_pad = 1;

    abstractCells[1].m_height = 1.0;
    abstractCells[1].m_width = 1.0;
    abstractCells[1].m_label = "and";
    abstractCells[1].m_pad = 0;

    // input pads
    Abc_NtkForEachCi( pNtk, pObj, i )
        Abc_PlaceCreateCell( pObj, 0 );

    // ouput pads
    Abc_NtkForEachCo( pNtk, pObj, i )
        Abc_PlaceCreateCell( pObj, 0 );

    // AND nodes
    Abc_AigForEachAnd( pNtk, pObj, i )
        Abc_PlaceCreateCell( pObj, 1 );

    // all nets
    Abc_NtkForEachObj( pNtk, pObj, i )
    {
        if ( !Abc_ObjIsCi(pObj) && !Abc_ObjIsNode(pObj) )
            continue;
        Abc_PlaceUpdateNet( pObj );
    }

    globalPreplace((float)0.8);
    globalPlace();
}

Abc_PlaceEnd()

void Abc_PlaceEnd ( Abc_Ntk_t * pNtk )

extern

Function*************************************************************

Synopsis [This procedure is called after the writing completes.]

Description []

SideEffects []

SeeAlso []

Definition at line 241 of file abcPlace.c.

{
    int i;


    // clean up
    for ( i = 0; i < nAllocSize; i++ )
        FREE( nets[i].m_terms );
    FREE( abstractCells );
    FREE( cells );
    FREE( nets );
}

Abc_PlaceUpdate()

void Abc_PlaceUpdate ( Vec_Ptr_t * vAddedCells, Vec_Ptr_t * vUpdatedNets )

extern

Function*************************************************************

Synopsis [Updates placement after one step of rewriting.]

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file abcPlace.c.

{
    Abc_Obj_t * pObj, * pFanin;
    int i, k;
    Vec_Ptr_t * vCells, * vNets;

    // start the arrays of new cells and nets
    vCells = Vec_PtrAlloc( 16 );
    vNets = Vec_PtrAlloc( 32 );

    // go through the new nodes
    Vec_PtrForEachEntry( Abc_Obj_t *, vAddedCells, pObj, i )
    {
        assert( !Abc_ObjIsComplement(pObj) );
        Abc_PlaceCreateCell( pObj, 1 );
        Abc_PlaceUpdateNet( pObj );

        // add the new cell and its fanin nets to temporary storage
        Vec_PtrPush( vCells, &(cells[pObj->Id]) );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Vec_PtrPushUnique( vNets, &(nets[pFanin->Id]) );
    }

    // go through the modified nets
    Vec_PtrForEachEntry( Abc_Obj_t *, vUpdatedNets, pObj, i )
    {
        assert( !Abc_ObjIsComplement(pObj) );
        if ( Abc_ObjType(pObj) == ABC_OBJ_NONE ) // dead node
            continue;
        Abc_PlaceUpdateNet( pObj );
    }

    // update the placement
//    fastPlace( Vec_PtrSize(vCells), (ConcreteCell **)Vec_PtrArray(vCells),
//               Vec_PtrSize(vNets), (ConcreteNet **)Vec_PtrArray(vNets) );

    // clean up
    Vec_PtrFree( vCells );
    Vec_PtrFree( vNets );
}

Abc_RwrExpWithCut()

void Abc_RwrExpWithCut	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vLeaves )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 403 of file abcRewrite.c.

{
    Abc_Obj_t * pObj;
    int i, CountA, CountB;
    Abc_RwrExpWithCut_rec( Abc_ObjFanin0(pNode), vLeaves, 1 );
    Abc_RwrExpWithCut_rec( Abc_ObjFanin1(pNode), vLeaves, 0 );
    CountA = CountB = 0;
    Vec_PtrForEachEntry( Abc_Obj_t *, vLeaves, pObj, i )
    {
        CountA += Abc_ObjRegular(pObj)->fMarkA;
        CountB += Abc_ObjRegular(pObj)->fMarkB;
        Abc_ObjRegular(pObj)->fMarkA = 0;
        Abc_ObjRegular(pObj)->fMarkB = 0;
    }
    printf( "(%d,%d:%d) ", CountA, CountB, CountA+CountB-Vec_PtrSize(vLeaves) );
}

Here is the call graph for this function:

Abc_RwrExpWithCut_rec()

void Abc_RwrExpWithCut_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vLeaves,
		int	fUseA )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 377 of file abcRewrite.c.

{
    if ( Vec_PtrFind(vLeaves, pNode) >= 0 || Vec_PtrFind(vLeaves, Abc_ObjNot(pNode)) >= 0 )
    {
        if ( fUseA )
            Abc_ObjRegular(pNode)->fMarkA = 1;
        else
            Abc_ObjRegular(pNode)->fMarkB = 1;
        return;
    }
    assert( Abc_ObjIsNode(pNode) );
    Abc_RwrExpWithCut_rec( Abc_ObjFanin0(pNode), vLeaves, fUseA );
    Abc_RwrExpWithCut_rec( Abc_ObjFanin1(pNode), vLeaves, fUseA );
}

Here is the call graph for this function:

Here is the caller graph for this function:
