abcRunGen.c File Reference

#include "base/abc/abc.h"
#include "base/main/main.h"
#include "base/cmd/cmd.h"
#include "misc/util/utilTruth.h"
#include <unistd.h>

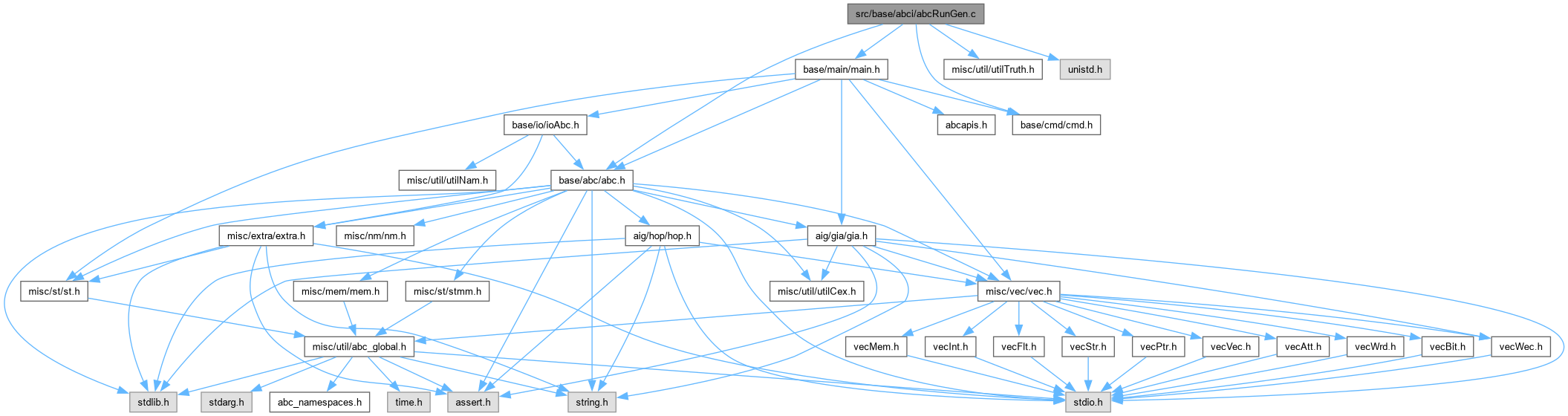

Include dependency graph for abcRunGen.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Abc_NtkRunGenOne (Abc_Ntk_t *p, char *pScript)
	DECLARATIONS ///.
void	Acb_NtkRunGen (int nInputs, int nMints, int nFuncs, int Seed, int fVerbose, char *pScript)

Function Documentation

Abc_NtkRunGenOne()

ABC_NAMESPACE_IMPL_START int Abc_NtkRunGenOne	(	Abc_Ntk_t *	p,
		char *	pScript )

DECLARATIONS ///.

CFile****************************************************************

FileName [abcRunGen.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Interface to experimental procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcRunGen.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 54 of file abcRunGen.c.

{
    Abc_FrameReplaceCurrentNetwork( Abc_FrameGetGlobalFrame(), p );
    if ( Abc_FrameIsBatchMode() )
    {
        if ( Cmd_CommandExecute(Abc_FrameGetGlobalFrame(), pScript) )
        {
            Abc_Print( 1, "Something did not work out with the command \"%s\".\n", pScript );
            return 0;
        }
    }
    else
    {
        Abc_FrameSetBatchMode( 1 );
        if ( Cmd_CommandExecute(Abc_FrameGetGlobalFrame(), pScript) )
        {
            Abc_Print( 1, "Something did not work out with the command \"%s\".\n", pScript );
            return 0;
        }
        Abc_FrameSetBatchMode( 0 );
    }
    Abc_Ntk_t * pTemp = Abc_FrameReadNtk(Abc_FrameGetGlobalFrame());
    return Abc_NtkNodeNum(pTemp);
}

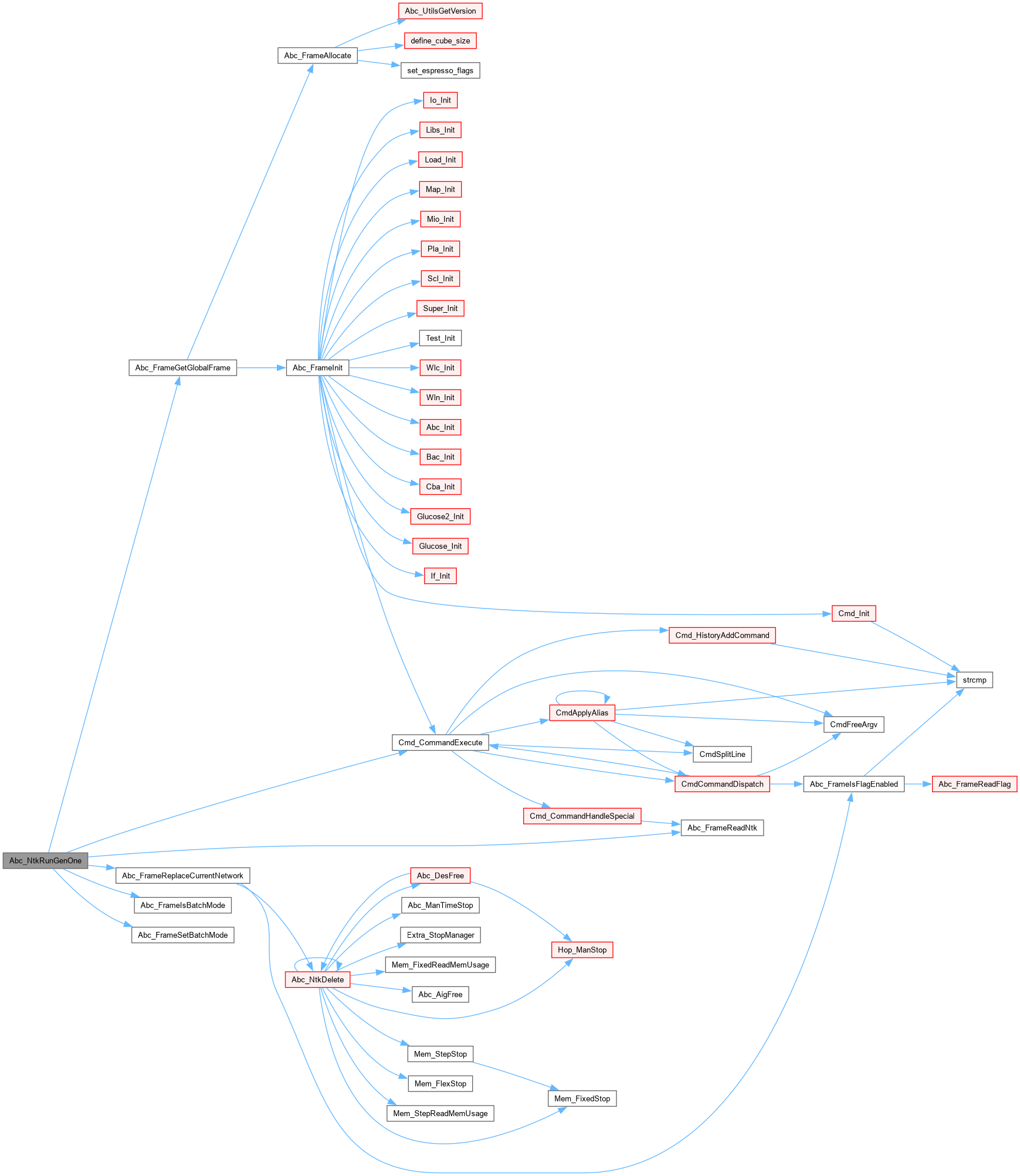

Here is the call graph for this function:

Here is the caller graph for this function:

Acb_NtkRunGen()

void Acb_NtkRunGen	(	int	nInputs,
		int	nMints,
		int	nFuncs,
		int	Seed,
		int	fVerbose,
		char *	pScript )

Definition at line 78 of file abcRunGen.c.

{
    abctime clkStart = Abc_Clock();
    Vec_Int_t * vNodes = Vec_IntAlloc( 1000 );
    int i, k, nNodes, nWords = Abc_TtWordNum(nInputs);
    word * pFun = ABC_ALLOC( word, nWords );
    Abc_Ntk_t * pNtkNew; char * pTtStr, * pSop;
    Abc_Random(1);
    for ( i = 0; i < 10+Seed; i++ )
        Abc_Random(0);
    printf( "Synthesizing %d random %d-variable functions with %d positive minterms using script \"%s\".\n", nFuncs, nInputs, nMints, pScript );
    for ( i = 0; i < nFuncs; i++ )
    {
        if ( nMints == 0 )
            for ( k = 0; k < nWords; k++ )
                pFun[k] = Abc_RandomW(0);
        else {
            Abc_TtClear( pFun, nWords );
            for ( k = 0; k < nMints; k++ ) {
                int iMint = 0;
                do iMint = Abc_Random(0) % (1 << nInputs);
                while ( Abc_TtGetBit(pFun, iMint) );
                Abc_TtSetBit( pFun, iMint );
            }
        }
        pTtStr = ABC_CALLOC( char, nInputs > 2 ? (1 << (nInputs-2)) + 1 : 2 );
        Extra_PrintHexadecimalString( pTtStr, (unsigned *)pFun, nInputs );
        pSop = Abc_SopFromTruthHex( pTtStr );
        pNtkNew = Abc_NtkCreateWithNode( pSop );
        nNodes = Abc_NtkRunGenOne( pNtkNew, pScript );
        if ( nNodes >= Vec_IntSize(vNodes) )
          Vec_IntSetEntry( vNodes, nNodes, 0 );
        Vec_IntAddToEntry( vNodes, nNodes, 1 );

        if ( fVerbose ) {
          printf( "Function %4d : ", i );
          printf( "Random function has %d positive minterms ", nMints );
          printf( "and maps into %d nodes.\n", nNodes );
          if ( fVerbose )
              printf( "Truth table : %s\n", pTtStr );
        }
        ABC_FREE( pTtStr );
        ABC_FREE( pSop );
    }
    Vec_IntForEachEntry( vNodes, i, k )
      if ( i )
          printf( "Nodes %3d :   Functions %3d   Ratio %5.2f %%\n", k, i, 100.0*i/nFuncs );
    ABC_FREE( pFun );
    Abc_PrintTime( 0, "Total time", Abc_Clock() - clkStart );
}

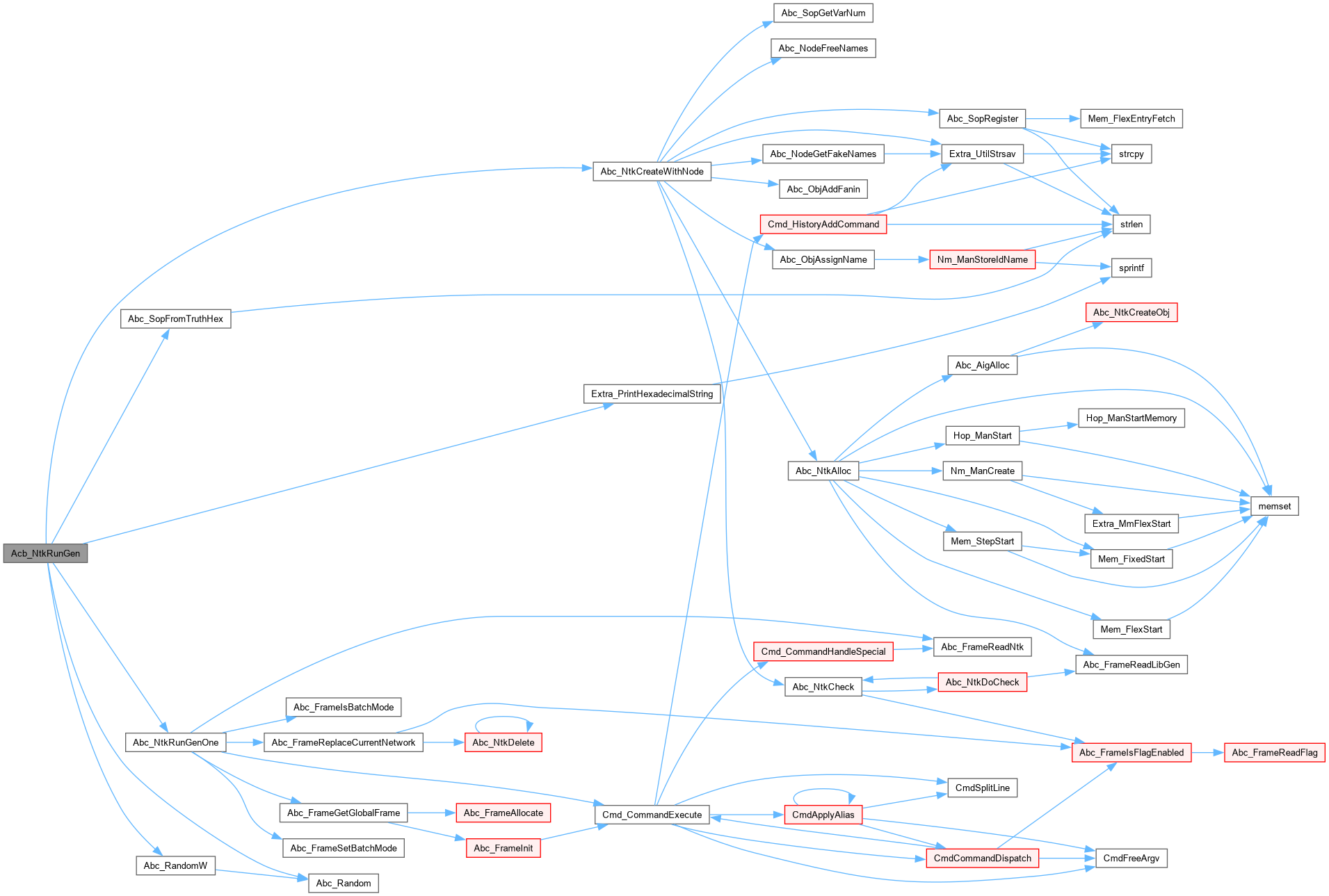

Here is the call graph for this function:
