This graph shows which files directly or indirectly include this file:

Classes
struct	Acec_ParCec_t_

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Acec_ParCec_t_	Acec_ParCec_t
	INCLUDES ///.

Functions
Gia_Man_t *	Acec_ManDecla (Gia_Man_t *pGia, int fBooth, int fVerbose)
	MACRO DEFINITIONS ///.

void	Acec_ManCecSetDefaultParams (Acec_ParCec_t *p)
	FUNCTION DEFINITIONS ///.

int	Acec_Solve (Gia_Man_t pGia0, Gia_Man_t pGia1, Acec_ParCec_t *pPars)

Vec_Int_t *	Gia_ManDetectFullAdders (Gia_Man_t p, int fVerbose, Vec_Int_t *vCutsXor2)

Vec_Int_t *	Gia_ManDetectHalfAdders (Gia_Man_t *p, int fVerbose)
	FUNCTION DEFINITIONS ///.

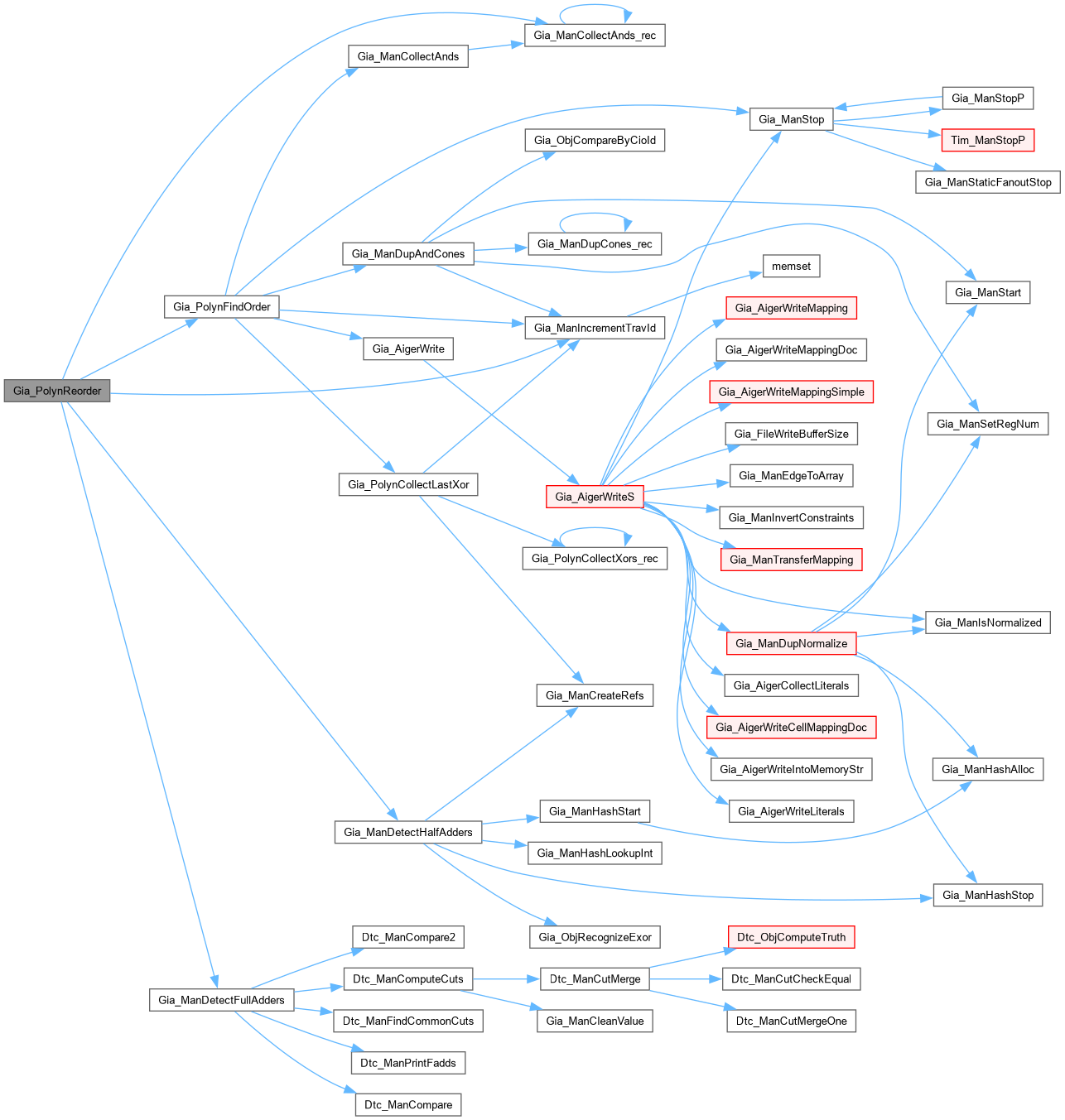

Vec_Int_t *	Gia_PolynReorder (Gia_Man_t *pGia, int fVerbose, int fVeryVerbose)

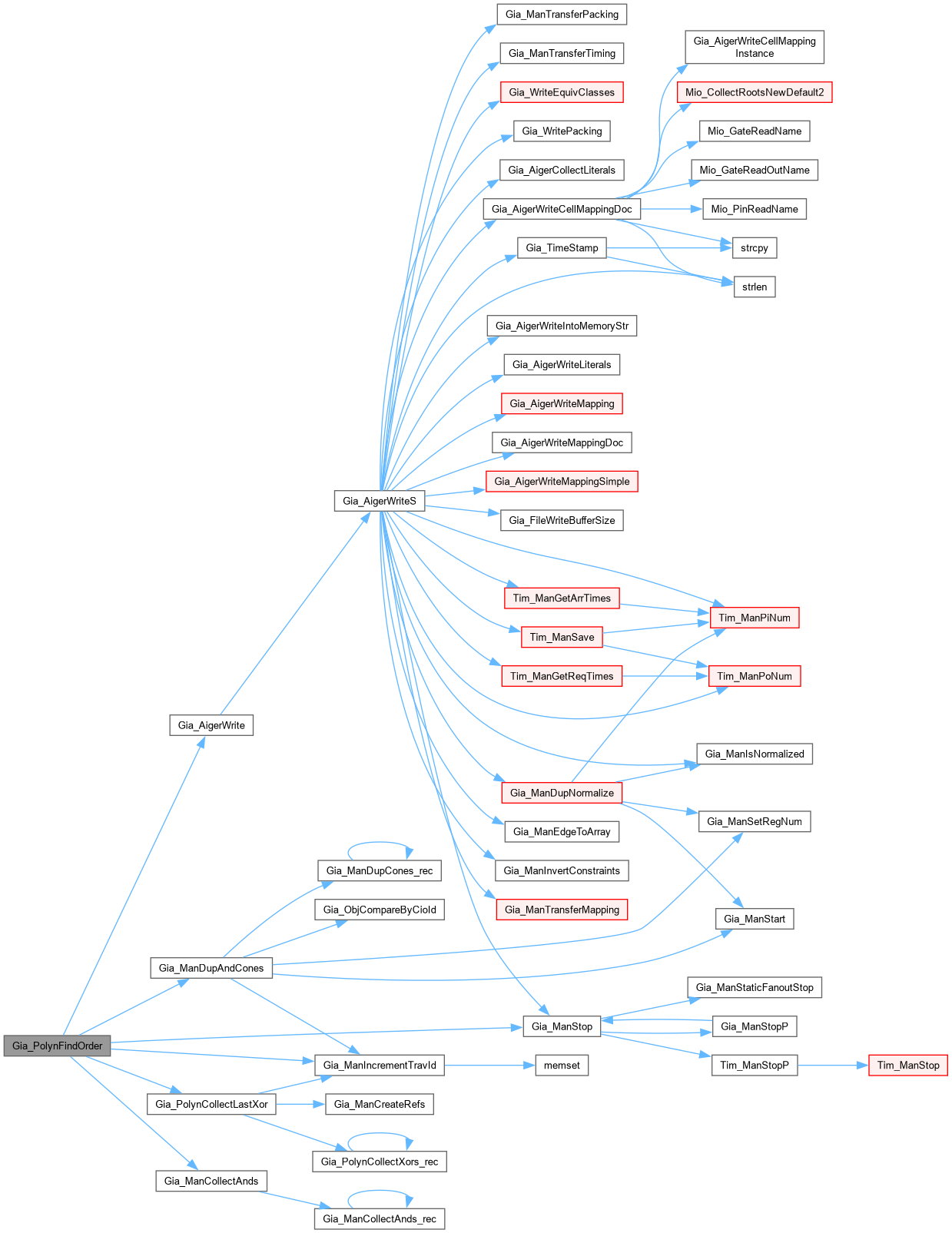

Vec_Int_t *	Gia_PolynFindOrder (Gia_Man_t pGia, Vec_Int_t vFadds, Vec_Int_t *vHadds, int fVerbose, int fVeryVerbose)
	DECLARATIONS ///.

void	Gia_PolynBuild (Gia_Man_t pGia, Vec_Int_t vOrder, int fSigned, int fVerbose, int fVeryVerbose)

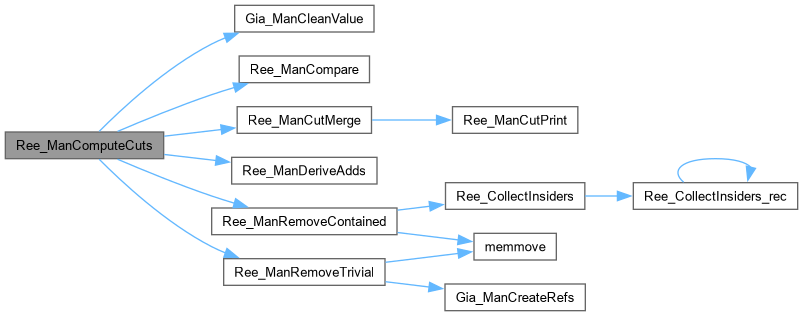

Vec_Int_t *	Ree_ManComputeCuts (Gia_Man_t p, Vec_Int_t *pvXors, int fVerbose)

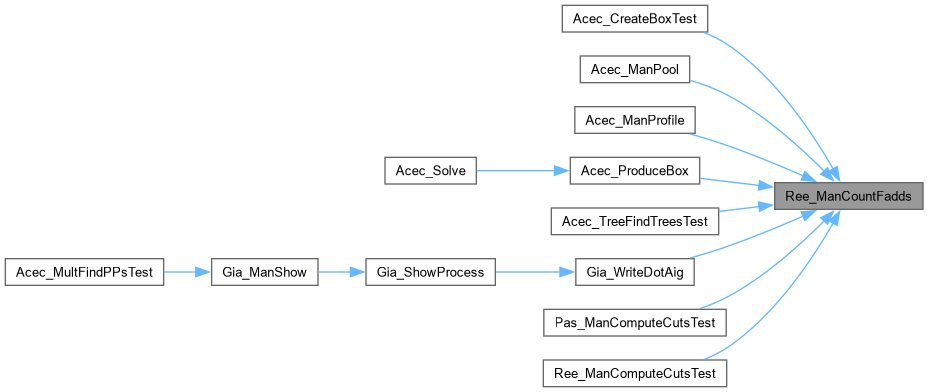

int	Ree_ManCountFadds (Vec_Int_t *vAdds)

void	Ree_ManPrintAdders (Vec_Int_t *vAdds, int fVerbose)

Gia_Man_t *	Acec_Normalize (Gia_Man_t *pGia, int fBooth, int fVerbose)

Typedef Documentation

◆ Acec_ParCec_t

typedef typedefABC_NAMESPACE_HEADER_START struct Acec_ParCec_t_ Acec_ParCec_t

INCLUDES ///.

CFile****************************************************************

FileName [acec.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [CEC for arithmetic circuits.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: acec.h,v 1.00 2005/06/20 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 42 of file acec.h.

Function Documentation

◆ Acec_ManCecSetDefaultParams()

void Acec_ManCecSetDefaultParams ( Acec_ParCec_t * p )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [This procedure sets default parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 50 of file acecCore.c.

{
    memset( p, 0, sizeof(Acec_ParCec_t) );
    p->nBTLimit       =    1000;    // conflict limit at a node
    p->TimeLimit      =       0;    // the runtime limit in seconds
    p->fMiter         =       0;    // input circuit is a miter
    p->fDualOutput    =       0;    // dual-output miter
    p->fTwoOutput     =       0;    // two-output miter
    p->fSilent        =       0;    // print no messages
    p->fVeryVerbose   =       0;    // verbose stats
    p->fVerbose       =       0;    // verbose stats
    p->iOutFail       =      -1;    // the number of failed output
}

Here is the call graph for this function:

◆ Acec_ManDecla()

Gia_Man_t * Acec_ManDecla	(	Gia_Man_t *	pGia,
		int	fBooth,
		int	fVerbose )

extern

MACRO DEFINITIONS ///.

ITERATORS /// FUNCTION DECLARATIONS ///

Definition at line 418 of file acecCl.c.

{
    abctime clk = Abc_Clock();
    Gia_Man_t * pNew = NULL;
    Vec_Bit_t * vIgnore = fBooth ? Acec_BoothFindPPG(pGia) : NULL;
    Acec_Box_t * pBox = Acec_DeriveBox( pGia, vIgnore, 0, 0, fVerbose );
    Vec_Int_t * vResult;
    Vec_BitFreeP( &vIgnore );
    if ( pBox == NULL ) // cannot match
    {
        printf( "Cannot find arithmetic boxes.\n" );
        return Gia_ManDup( pGia );
    }
    vResult = Acec_RewriteTop( pGia, pBox );
    Acec_BoxFreeP( &pBox );
    pNew = Acec_RewriteReplace( pGia, vResult );
    Vec_IntFree( vResult );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    return pNew;
}

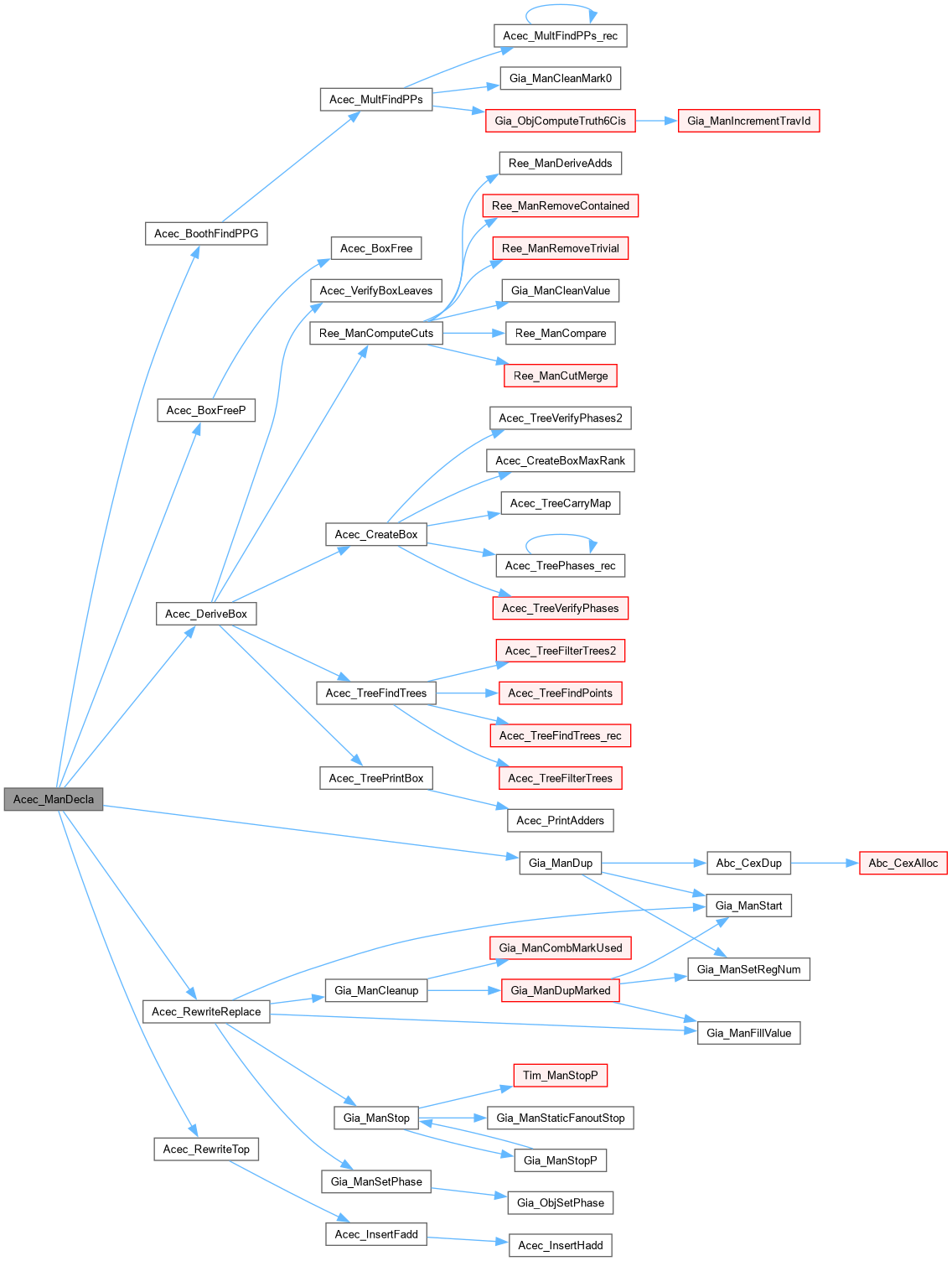

Here is the call graph for this function:

◆ Acec_Normalize()

Gia_Man_t * Acec_Normalize	(	Gia_Man_t *	pGia,
		int	fBooth,
		int	fVerbose )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 210 of file acecNorm.c.

{
    Vec_Bit_t * vIgnore = fBooth ? Acec_BoothFindPPG( pGia ) : NULL;
    Acec_Box_t * pBox = Acec_DeriveBox( pGia, vIgnore, 0, 0, fVerbose );
    Gia_Man_t * pNew  = Acec_InsertBox( pBox, 1 );
    Acec_BoxFreeP( &pBox );
    Vec_BitFreeP( &vIgnore );
    return pNew;
}

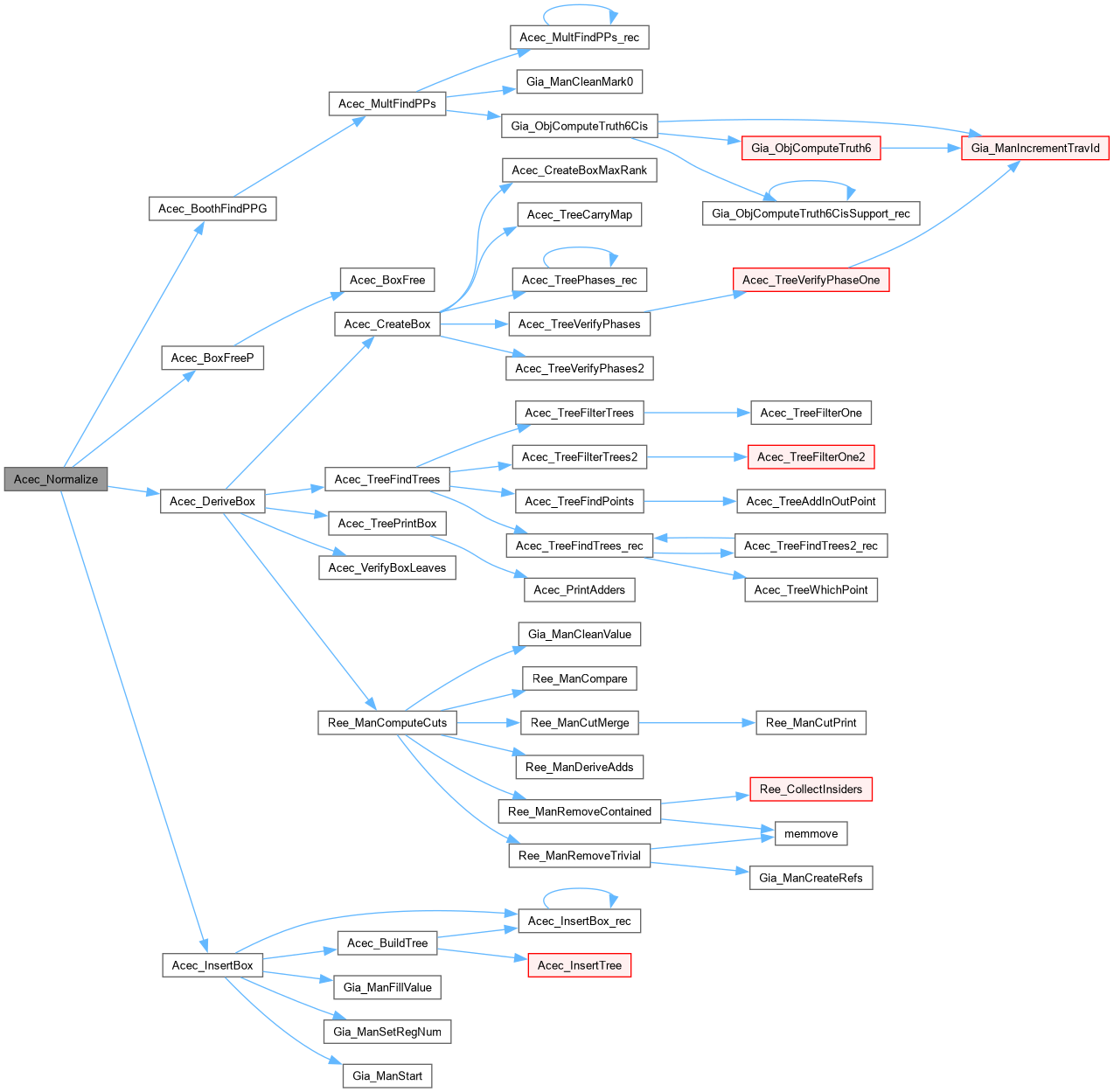

Here is the call graph for this function:

◆ Acec_Solve()

int Acec_Solve	(	Gia_Man_t *	pGia0,
		Gia_Man_t *	pGia1,
		Acec_ParCec_t *	pPars )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 488 of file acecCore.c.

{
    int status = -1;
    abctime clk = Abc_Clock();
    Gia_Man_t * pMiter;
    Gia_Man_t * pGia0n = pGia0, * pGia1n = pGia1;
    Cec_ParCec_t ParsCec, * pCecPars = &ParsCec;
//    Vec_Bit_t * vIgnore0 = pPars->fBooth ? Acec_BoothFindPPG(pGia0) : NULL;
//    Vec_Bit_t * vIgnore1 = pPars->fBooth ? Acec_BoothFindPPG(pGia1) : NULL;
//    Acec_Box_t * pBox0 = Acec_DeriveBox( pGia0, vIgnore0, 0, 0, pPars->fVerbose );
//    Acec_Box_t * pBox1 = Acec_DeriveBox( pGia1, vIgnore1, 0, 0, pPars->fVerbose );
//    Vec_BitFreeP( &vIgnore0 );
//    Vec_BitFreeP( &vIgnore1 );
    Acec_Box_t * pBox0 = Acec_ProduceBox( pGia0, pPars->fVerbose );
    Acec_Box_t * pBox1 = Acec_ProduceBox( pGia1, pPars->fVerbose );
    if ( pBox0 == NULL || pBox1 == NULL ) // cannot match
        printf( "Cannot find arithmetic boxes in both LHS and RHS. Trying regular CEC.\n" );
    else if ( !Acec_MatchBoxes( pBox0, pBox1 ) ) // cannot find matching
        printf( "Cannot match arithmetic boxes in LHS and RHS. Trying regular CEC.\n" );
    else
    {
        pGia0n = Acec_InsertBox( pBox0, 0 );
        pGia1n = Acec_InsertBox( pBox1, 0 );
        printf( "Matching of adder trees in LHS and RHS succeeded.  " );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
        // remove the last output
        Gia_ManPatchCoDriver( pGia0n, Gia_ManCoNum(pGia0n)-1, 0 );
        Gia_ManPatchCoDriver( pGia1n, Gia_ManCoNum(pGia1n)-1, 0 );

        Gia_ManPatchCoDriver( pGia0n, Gia_ManCoNum(pGia0n)-2, 0 );
        Gia_ManPatchCoDriver( pGia1n, Gia_ManCoNum(pGia1n)-2, 0 );
    }
    // solve regular CEC problem
    Cec_ManCecSetDefaultParams( pCecPars );
    pCecPars->nBTLimit = pPars->nBTLimit;
    pMiter = Gia_ManMiter( pGia0n, pGia1n, 0, 1, 0, 0, pPars->fVerbose );
    if ( pMiter )
    {
        int fDumpMiter = 0;
        if ( fDumpMiter )
        {
            Abc_Print( 0, "The verification miter is written into file \"%s\".\n", "acec_miter.aig" );
            Gia_AigerWrite( pMiter, "acec_miter.aig", 0, 0, 0 );
        }
        status = Cec_ManVerify( pMiter, pCecPars );
        ABC_SWAP( Abc_Cex_t *, pGia0->pCexComb, pMiter->pCexComb );
        Gia_ManStop( pMiter );
    }
    else
        printf( "Miter computation has failed.\n" );
    if ( pGia0n != pGia0 )
        Gia_ManStop( pGia0n );
    if ( pGia1n != pGia1 )
        Gia_ManStop( pGia1n );
    Acec_BoxFreeP( &pBox0 );
    Acec_BoxFreeP( &pBox1 );
    return status;
}

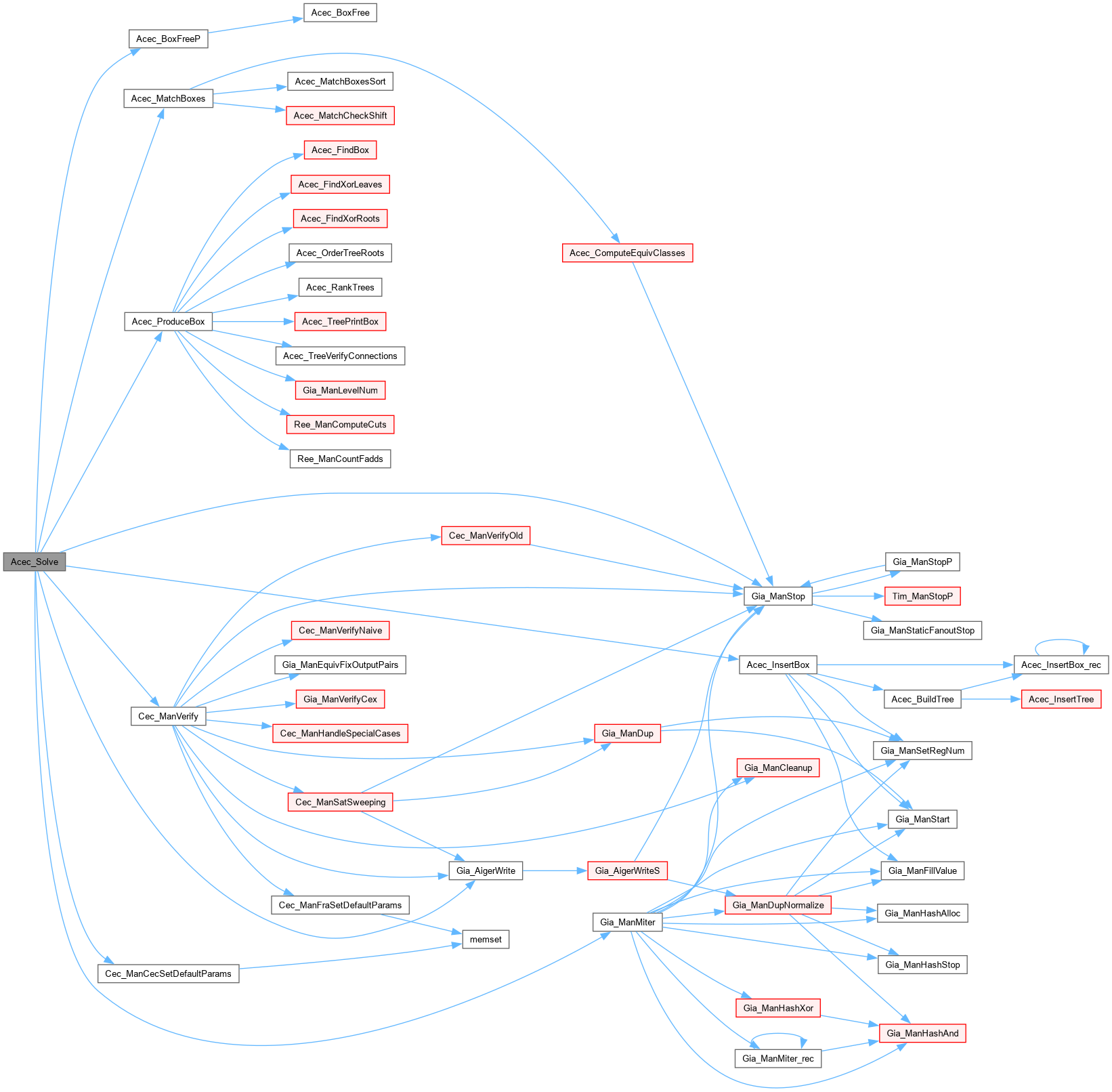

Here is the call graph for this function:

◆ Gia_ManDetectFullAdders()

Vec_Int_t * Gia_ManDetectFullAdders	(	Gia_Man_t *	p,
		int	fVerbose,
		Vec_Int_t **	vCutsXor2 )

extern

Definition at line 442 of file acecFadds.c.

{
    Vec_Int_t * vCutsXor, * vCutsMaj, * vFadds;
    Dtc_ManComputeCuts( p, pvCutsXor2, &vCutsXor, &vCutsMaj, fVerbose );
    qsort( Vec_IntArray(vCutsXor), (size_t)(Vec_IntSize(vCutsXor)/4), 16, (int (*)(const void *, const void *))Dtc_ManCompare );
    qsort( Vec_IntArray(vCutsMaj), (size_t)(Vec_IntSize(vCutsMaj)/4), 16, (int (*)(const void *, const void *))Dtc_ManCompare );
    vFadds = Dtc_ManFindCommonCuts( p, vCutsXor, vCutsMaj );
    qsort( Vec_IntArray(vFadds), (size_t)(Vec_IntSize(vFadds)/5), 20, (int (*)(const void *, const void *))Dtc_ManCompare2 );
    if ( fVerbose )
        printf( "XOR3 cuts = %d.  MAJ cuts = %d.  Full-adders = %d.\n", Vec_IntSize(vCutsXor)/4, Vec_IntSize(vCutsMaj)/4, Vec_IntSize(vFadds)/5 );
    if ( fVerbose )
        Dtc_ManPrintFadds( vFadds );
    Vec_IntFree( vCutsXor );
    Vec_IntFree( vCutsMaj );
    return vFadds;
}

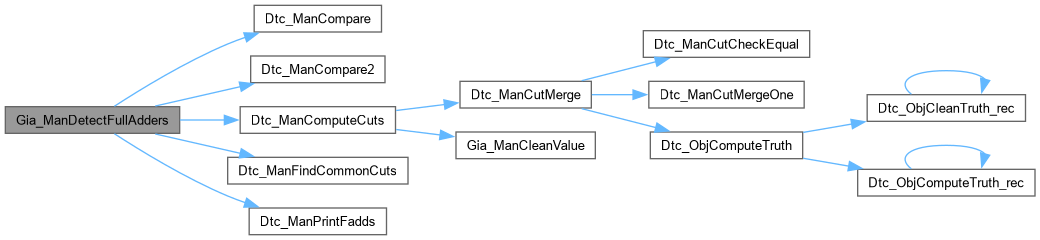

Here is the call graph for this function:

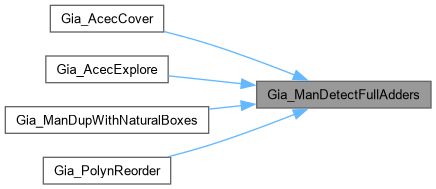

Here is the caller graph for this function:

◆ Gia_ManDetectHalfAdders()

Vec_Int_t * Gia_ManDetectHalfAdders	(	Gia_Man_t *	p,
		int	fVerbose )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Detecting HADDs in the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 50 of file acecFadds.c.

{
    Vec_Int_t * vHadds = Vec_IntAlloc( 1000 );
    Gia_Obj_t * pObj, * pFan0, * pFan1;
    int i, iLit, iFan0, iFan1, fComplDiff, Count, Counts[5] = {0};
    Gia_ManHashStart( p );
    if ( p->nXors )
    {
        Gia_ManForEachAnd( p, pObj, i )
        {
            if ( !Gia_ObjIsXor(pObj) )
                continue;
            Count = 0;
            iFan0 = Gia_ObjFaninId0(pObj, i);
            iFan1 = Gia_ObjFaninId1(pObj, i);
            if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 0), Abc_Var2Lit(iFan1, 0))) )
                Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
            if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 1), Abc_Var2Lit(iFan1, 1))) )
                Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
            if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 0), Abc_Var2Lit(iFan1, 1))) )
                Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
            if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 1), Abc_Var2Lit(iFan1, 0))) )
                Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
            Counts[Count]++;
        }
    }
    else
    {
        ABC_FREE( p->pRefs );
        Gia_ManCreateRefs( p );
        Gia_ManForEachAnd( p, pObj, i )
        {
            if ( !Gia_ObjRecognizeExor(pObj, &pFan0, &pFan1) )
                continue;
            Count = 0;
            if ( Gia_ObjRefNumId(p, Gia_ObjFaninId0(pObj, i)) > 1 )
                Vec_IntPushTwo( vHadds, i, Gia_ObjFaninId0(pObj, i) ), Count++;
            if ( Gia_ObjRefNumId(p, Gia_ObjFaninId1(pObj, i)) > 1 )
                Vec_IntPushTwo( vHadds, i, Gia_ObjFaninId1(pObj, i) ), Count++;
            iFan0 = Gia_ObjId( p, pFan0 );
            iFan1 = Gia_ObjId( p, pFan1 );
            fComplDiff =          (Gia_ObjFaninC0(Gia_ObjFanin0(pObj)) ^ Gia_ObjFaninC1(Gia_ObjFanin0(pObj)));
            assert( fComplDiff == (Gia_ObjFaninC0(Gia_ObjFanin1(pObj)) ^ Gia_ObjFaninC1(Gia_ObjFanin1(pObj))) );
            if ( fComplDiff )
            {
                if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 0), Abc_Var2Lit(iFan1, 0))) )
                    Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
                if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 1), Abc_Var2Lit(iFan1, 1))) )
                    Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
            }
            else
            {
                if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 0), Abc_Var2Lit(iFan1, 1))) )
                    Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
                if ( (iLit = Gia_ManHashLookupInt(p, Abc_Var2Lit(iFan0, 1), Abc_Var2Lit(iFan1, 0))) )
                    Vec_IntPushTwo( vHadds, i, Abc_Lit2Var(iLit) ), Count++;
            }
            Counts[Count]++;
        }
        ABC_FREE( p->pRefs );
    }
    Gia_ManHashStop( p );
    if ( fVerbose )
    {
        int iXor, iAnd;
        printf( "Found %d half-adders with XOR gates: ", Vec_IntSize(vHadds)/2 );
        for ( i = 0; i <= 4; i++ )
            printf( "%d=%d ", i, Counts[i] );
        printf( "\n" );

        Vec_IntForEachEntryDouble( vHadds, iXor, iAnd, i )
        {
            pObj = Gia_ManObj( p, iXor );
            printf( "%3d : %5d %5d -> %5d %5d\n", i, Gia_ObjFaninId0(pObj, iXor), Gia_ObjFaninId1(pObj, iXor), iXor, iAnd );
        }
    }
    return vHadds;
}

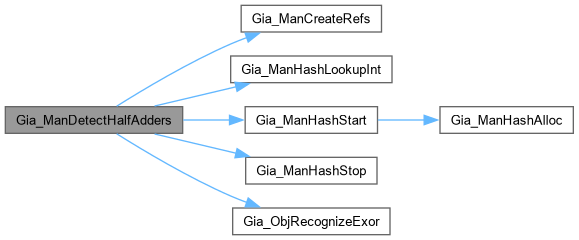

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_PolynBuild()

void Gia_PolynBuild	(	Gia_Man_t *	pGia,
		Vec_Int_t *	vOrder,
		int	fSigned,
		int	fVerbose,
		int	fVeryVerbose )

extern

Definition at line 340 of file acecPolyn.c.

{
    abctime clk = Abc_Clock();//, clk2 = 0;
    Gia_Obj_t * pObj;
    Vec_Bit_t * vPres = Vec_BitStart( Gia_ManObjNum(pGia) );
    int i, iMono, iDriver, LevPrev, LevCur, Iter, Line = 0;
    Pln_Man_t * p = Pln_ManAlloc( pGia, vOrder );
    Gia_ManForEachCoReverse( pGia, pObj, i )
    {
        Vec_IntFill( p->vTempC[0], 1,  i+1 );      //  2^i
        Vec_IntFill( p->vTempC[1], 1, -i-1 );      // -2^i

        iDriver = Gia_ObjFaninId0p( pGia, pObj );
        Vec_IntFill( p->vTempM[0], 1, iDriver );   //  Driver

        if ( fSigned && i == Gia_ManCoNum(pGia)-1 )
        {
            if ( Gia_ObjFaninC0(pObj) )
            {
                Gia_PolynBuildAdd( p, p->vTempC[1], NULL );           // -C
                Gia_PolynBuildAdd( p, p->vTempC[0], p->vTempM[0] );   //  C * Driver
            }
            else
                Gia_PolynBuildAdd( p, p->vTempC[1], p->vTempM[0] );   // -C * Driver
        }
        else
        {
            if ( Gia_ObjFaninC0(pObj) )
            {
                Gia_PolynBuildAdd( p, p->vTempC[0], NULL );           //  C
                Gia_PolynBuildAdd( p, p->vTempC[1], p->vTempM[0] );   // -C * Driver
            }
            else
                Gia_PolynBuildAdd( p, p->vTempC[0], p->vTempM[0] );   //  C * Driver
        }
    }
    LevPrev = -1;
    for ( Iter = 0; ; Iter++ )
    {
        Vec_Int_t * vTempM;
        //abctime temp = Abc_Clock();
        if ( Vec_QueSize(p->vQue) == 0 )
            break;
        iMono = Vec_QuePop(p->vQue);

        // report
        vTempM = Hsh_VecReadEntry( p->pHashM, iMono );
        //printf( "Removing var %d\n", Vec_IntEntryLast(vTempM) );
        LevCur = Vec_IntEntryLast(vTempM);
        if ( !Gia_ObjIsAnd(Gia_ManObj(pGia, LevCur)) )
            continue;

        if ( LevPrev != LevCur )
        {
            if ( Vec_BitEntry( vPres, LevCur ) && fVerbose )
                printf( "Repeating entry %d\n", LevCur );
            else
                Vec_BitSetEntry( vPres, LevCur, 1 );

            if ( fVeryVerbose )
                printf( "Line%5d   Iter%10d : Obj =%6d.  Order =%6d.  HashC =%6d. HashM =%10d.  Total =%10d. Used =%10d.\n",
                    Line++, Iter, LevCur, Vec_IntEntry(p->vOrder, LevCur), Hsh_VecSize(p->pHashC), Hsh_VecSize(p->pHashM), p->nBuilds, p->nUsed );
        }
        LevPrev = LevCur;

        Gia_PolynBuildOne( p, iMono );
        //clk2 += Abc_Clock() - temp;
    }
    //Abc_PrintTime( 1, "Time2", clk2 );
    Pln_ManPrintFinal( p, fVerbose, fVeryVerbose );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    Pln_ManStop( p );
    Vec_BitFree( vPres );
}

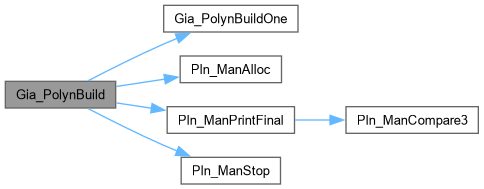

Here is the call graph for this function:

◆ Gia_PolynFindOrder()

Vec_Int_t * Gia_PolynFindOrder	(	Gia_Man_t *	pGia,
		Vec_Int_t *	vFadds,
		Vec_Int_t *	vHadds,
		int	fVerbose,
		int	fVeryVerbose )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [acecOrder.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [CEC for arithmetic circuits.]

Synopsis [Node ordering.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: acecOrder.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file acecOrder.c.

{
    int fDumpLeftOver = 0;
    int i, iXor, iMaj, iAnd, Entry, Iter, fFound, fFoundAll = 1;
    Vec_Int_t * vRecord = Vec_IntAlloc( 100 ), * vLeft, * vRecord2;
    Vec_Int_t * vMap = Vec_IntStart( Gia_ManObjNum(pGia) );
    Gia_ManForEachCoDriverId( pGia, iAnd, i )
        Vec_IntWriteEntry( vMap, iAnd, 1 );

    // collect the last XOR
    Vec_IntFreeP( &pGia->vXors );
    pGia->vXors = Gia_PolynCollectLastXor( pGia, fVerbose );
    printf( "Collected %d topmost XORs\n", Vec_IntSize(pGia->vXors) );
    //Vec_IntPrint( p->vXors );
    Vec_IntForEachEntry( pGia->vXors, iAnd, i )
    {
        Gia_Obj_t * pAnd = Gia_ManObj( pGia, iAnd );
        assert( Vec_IntEntry(vMap, iAnd) );
        Vec_IntWriteEntry( vMap, iAnd, 0 );
        Vec_IntWriteEntry( vMap, Gia_ObjFaninId0(pAnd, iAnd), 1 );
        Vec_IntWriteEntry( vMap, Gia_ObjFaninId1(pAnd, iAnd), 1 );
        Vec_IntPush( vRecord, Abc_Var2Lit2(iAnd, 3) );
        if ( fVeryVerbose )
            printf( "Recognizing %d => XXXOR(%d %d)\n", iAnd, Gia_ObjFaninId0(pAnd, iAnd), Gia_ObjFaninId1(pAnd, iAnd) );
    }

    // detect FAs and HAs
    for ( Iter = 0; fFoundAll; Iter++ )
    {
        if ( fVeryVerbose )
            printf( "Iteration %d\n", Iter );

        // check if we can extract FADDs
        fFoundAll = 0;
        do {
            fFound = 0;
            for ( i = Vec_IntSize(vFadds)/5 - 1; i >= 0; i-- )
            {
                iXor = Vec_IntEntry(vFadds, 5*i+3);
                iMaj = Vec_IntEntry(vFadds, 5*i+4);
                if ( Vec_IntEntry(vMap, iXor) && Vec_IntEntry(vMap, iMaj) )
                {
                    Vec_IntWriteEntry( vMap, iXor, 0 );
                    Vec_IntWriteEntry( vMap, iMaj, 0 );
                    Vec_IntWriteEntry( vMap, Vec_IntEntry(vFadds, 5*i+0), 1 );
                    Vec_IntWriteEntry( vMap, Vec_IntEntry(vFadds, 5*i+1), 1 );
                    Vec_IntWriteEntry( vMap, Vec_IntEntry(vFadds, 5*i+2), 1 );
                    Vec_IntPush( vRecord, Abc_Var2Lit2(i, 2) );
                    fFound = 1;
                    fFoundAll = 1;
                    if ( fVeryVerbose )
                        printf( "Recognizing (%d %d) => FA(%d %d %d)\n", iXor, iMaj, Vec_IntEntry(vFadds, 5*i+0), Vec_IntEntry(vFadds, 5*i+1), Vec_IntEntry(vFadds, 5*i+2)  );
                }
            }
        } while ( fFound );
        // check if we can extract HADDs
        do {
            fFound = 0;
            for ( i = Vec_IntSize(vHadds)/2 - 1; i >= 0; i-- )
            {
                iXor = Vec_IntEntry(vHadds, 2*i+0);
                iMaj = Vec_IntEntry(vHadds, 2*i+1);
                if ( Vec_IntEntry(vMap, iXor) && Vec_IntEntry(vMap, iMaj) )
                {
                    Gia_Obj_t * pAnd = Gia_ManObj( pGia, iMaj );
                    Vec_IntWriteEntry( vMap, iXor, 0 );
                    Vec_IntWriteEntry( vMap, iMaj, 0 );
                    Vec_IntWriteEntry( vMap, Gia_ObjFaninId0(pAnd, iMaj), 1 );
                    Vec_IntWriteEntry( vMap, Gia_ObjFaninId1(pAnd, iMaj), 1 );
                    Vec_IntPush( vRecord, Abc_Var2Lit2(i, 1) );
                    fFound = 1;
                    fFoundAll = 1;
                    if ( fVeryVerbose )
                        printf( "Recognizing (%d %d) => HA(%d %d)\n", iXor, iMaj, Gia_ObjFaninId0(pAnd, iMaj), Gia_ObjFaninId1(pAnd, iMaj) );
                }
            }
            break; // only one iter!
        } while ( fFound );
        if ( fFoundAll )
            continue;
/*
        // find the last one
        Vec_IntForEachEntryReverse( vMap, Entry, iAnd )
            if ( Entry && Gia_ObjIsAnd(Gia_ManObj(pGia, iAnd)) )//&& Vec_IntFind(vFadds, iAnd) == -1 )//&& Vec_IntFind(vHadds, iAnd) == -1 )
            {
                Gia_Obj_t * pFan0, * pFan1, * pAnd = Gia_ManObj( pGia, iAnd );
                if ( !Gia_ObjRecognizeExor(pAnd, &pFan0, &pFan1) )
                {
                    Vec_IntWriteEntry( vMap, iAnd, 0 );
                    Vec_IntWriteEntry( vMap, Gia_ObjFaninId0(pAnd, iAnd), 1 );
                    Vec_IntWriteEntry( vMap, Gia_ObjFaninId1(pAnd, iAnd), 1 );
                    Vec_IntPush( vRecord, Abc_Var2Lit2(iAnd, 0) );
                }
                else
                {
                    Vec_IntWriteEntry( vMap, iAnd, 0 );
                    Vec_IntWriteEntry( vMap, Gia_ObjId(pGia, pFan0), 1 );
                    Vec_IntWriteEntry( vMap, Gia_ObjId(pGia, pFan1), 1 );
                    Vec_IntPush( vRecord, Abc_Var2Lit2(iAnd, 0) );
                    Vec_IntPush( vRecord, Abc_Var2Lit2(Gia_ObjFaninId0(pAnd, iAnd), 0) );
                    Vec_IntPush( vRecord, Abc_Var2Lit2(Gia_ObjFaninId1(pAnd, iAnd), 0) );
                    printf( "Recognizing %d => XOR(%d %d)\n", iAnd, Gia_ObjId(pGia, pFan0), Gia_ObjId(pGia, pFan1) );
                }
                fFoundAll = 1;
                if ( fVeryVerbose )
                    printf( "Recognizing %d => AND(%d %d)\n", iAnd, Gia_ObjFaninId0(pAnd, iAnd), Gia_ObjFaninId1(pAnd, iAnd) );
                break;
            }
*/
    }
    //Vec_IntPrint( vMap );

    // collect remaining ones
    vLeft = Vec_IntAlloc( 100 );
    Vec_IntForEachEntry( vMap, Entry, i )
        if ( Entry && Gia_ObjIsAnd(Gia_ManObj(pGia, i)) )
            Vec_IntPush( vLeft, i );
    Vec_IntFree( vMap );

    // collect them in the topo order
    vRecord2 = Vec_IntAlloc( 100 );
    Gia_ManIncrementTravId( pGia );
    Gia_ManCollectAnds( pGia, Vec_IntArray(vLeft), Vec_IntSize(vLeft), vRecord2, NULL );
    Vec_IntForEachEntry( vRecord2, iAnd, i )
        Vec_IntWriteEntry( vRecord2, i, Abc_Var2Lit2(iAnd, 0) );

    // dump remaining nodes as an AIG
    if ( fDumpLeftOver )
    {
        Gia_Man_t * pNew;
        pNew = Gia_ManDupAndCones( pGia, Vec_IntArray(vLeft), Vec_IntSize(vLeft), 0 );
        Gia_AigerWrite( pNew, "leftover.aig", 0, 0, 0 );
        printf( "Leftover AIG with %d nodes is dumped into file \"%s\".\n", Gia_ManAndNum(pNew), "leftover.aig" );
        Gia_ManStop( pNew );
    }
    Vec_IntFree( vLeft );

    Vec_IntReverseOrder( vRecord );
    Vec_IntAppend( vRecord2, vRecord );
    Vec_IntFree( vRecord );
    return vRecord2;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Gia_PolynReorder()

Vec_Int_t * Gia_PolynReorder	(	Gia_Man_t *	pGia,
		int	fVerbose,
		int	fVeryVerbose )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 199 of file acecOrder.c.

{
    Vec_Int_t * vFadds  = Gia_ManDetectFullAdders( pGia, fVeryVerbose, NULL );
    Vec_Int_t * vHadds  = Gia_ManDetectHalfAdders( pGia, fVeryVerbose );
    Vec_Int_t * vRecord = Gia_PolynFindOrder( pGia, vFadds, vHadds, fVerbose, fVeryVerbose );
    Vec_Int_t * vOrder  = Vec_IntAlloc( Gia_ManAndNum(pGia) );
    Vec_Int_t * vOrder2 = Vec_IntStart( Gia_ManObjNum(pGia) );
    int i, k, Entry;

    // collect nodes
    Gia_ManIncrementTravId( pGia );
    Vec_IntForEachEntry( vRecord, Entry, i )
    {
        int Node = Abc_Lit2Var2(Entry);
        int Attr = Abc_Lit2Att2(Entry);
        if ( Attr == 2 )
        {
            int * pFanins = Vec_IntEntryP( vFadds, 5*Node );
            for ( k = 3; k < 5; k++ )
                Gia_ManCollectAnds_rec( pGia, pFanins[k], vOrder );
        }
        else if ( Attr == 1 )
        {
            int * pFanins = Vec_IntEntryP( vHadds, 2*Node );
            for ( k = 0; k < 2; k++ )
                Gia_ManCollectAnds_rec( pGia, pFanins[k], vOrder );
        }
        else
            Gia_ManCollectAnds_rec( pGia, Node, vOrder );
        //printf( "Order = %d.  Node = %d.  Size = %d ", i, Node, Vec_IntSize(vOrder) );
    }
    //printf( "\n" );
    //assert( Vec_IntSize(vOrder) == Gia_ManAndNum(pGia) );

    // remap order
    Gia_ManForEachCiId( pGia, Entry, i )
        Vec_IntWriteEntry( vOrder2, Entry, 1+i );
    Vec_IntForEachEntry( vOrder, Entry, i )
        Vec_IntWriteEntry( vOrder2, Entry, 1+Gia_ManCiNum(pGia)+i );
    //Vec_IntPrint( vOrder );

    Vec_IntFree( vRecord );
    Vec_IntFree( vFadds );
    Vec_IntFree( vHadds );
    Vec_IntFree( vOrder );
    return vOrder2;
}

Here is the call graph for this function:

◆ Ree_ManComputeCuts()

Vec_Int_t * Ree_ManComputeCuts	(	Gia_Man_t *	p,
		Vec_Int_t **	pvXors,
		int	fVerbose )

extern

Definition at line 408 of file acecRe.c.

{
    extern void Ree_ManRemoveTrivial( Gia_Man_t * p, Vec_Int_t * vAdds );
    extern void Ree_ManRemoveContained( Gia_Man_t * p, Vec_Int_t * vAdds );
    Gia_Obj_t * pObj;
    int * pList0, * pList1, i, nCuts = 0;
    Hash_IntMan_t * pHash = Hash_IntManStart( 1000 );
    Vec_Int_t * vAdds;
    Vec_Int_t * vTemp = Vec_IntAlloc( 1000 );
    Vec_Int_t * vData = Vec_IntAlloc( 1000 );
    Vec_Int_t * vCuts = Vec_IntAlloc( 30 * Gia_ManAndNum(p) );
    Vec_IntFill( vCuts, Gia_ManObjNum(p), 0 );
    Gia_ManCleanValue( p );
    Gia_ManForEachCi( p, pObj, i )
    {
        Vec_IntWriteEntry( vCuts, Gia_ObjId(p, pObj), Vec_IntSize(vCuts) );
        Vec_IntPush( vCuts, 1 );
        Vec_IntPush( vCuts, 1 );
        Vec_IntPush( vCuts, Gia_ObjId(p, pObj) );
        Vec_IntPush( vCuts, 0xAA );
    }
    if ( pvXors ) *pvXors = Vec_IntAlloc( 1000 );
    Gia_ManForEachAnd( p, pObj, i )
    {
        pList0 = Vec_IntEntryP( vCuts, Vec_IntEntry(vCuts, Gia_ObjFaninId0(pObj, i)) );
        pList1 = Vec_IntEntryP( vCuts, Vec_IntEntry(vCuts, Gia_ObjFaninId1(pObj, i)) );
        Ree_ManCutMerge( p, i, pList0, pList1, vTemp, pHash, vData, pvXors ? *pvXors : NULL );
        Vec_IntWriteEntry( vCuts, i, Vec_IntSize(vCuts) );
        Vec_IntAppend( vCuts, vTemp );
        nCuts += Vec_IntEntry( vTemp, 0 );
    }
    if ( fVerbose )
        printf( "AIG nodes = %d.  Cuts = %d.  Cuts/Node = %.2f.  Ints/Node = %.2f.\n",
            Gia_ManAndNum(p), nCuts, 1.0*nCuts/Gia_ManAndNum(p), 1.0*Vec_IntSize(vCuts)/Gia_ManAndNum(p) );
    Vec_IntFree( vTemp );
    Vec_IntFree( vCuts );
    vAdds = Ree_ManDeriveAdds( pHash, vData, fVerbose );
    qsort( Vec_IntArray(vAdds), (size_t)(Vec_IntSize(vAdds)/6), 24, (int (*)(const void *, const void *))Ree_ManCompare );
    if ( fVerbose )
        printf( "Adders = %d.  Total cuts = %d.  Hashed cuts = %d.  Hashed/Adders = %.2f.\n",
            Vec_IntSize(vAdds)/6, Vec_IntSize(vData)/3, Hash_IntManEntryNum(pHash), 6.0*Hash_IntManEntryNum(pHash)/Vec_IntSize(vAdds) );
    Vec_IntFree( vData );
    Hash_IntManStop( pHash );
    Ree_ManRemoveTrivial( p, vAdds );
    Ree_ManRemoveContained( p, vAdds );
    //Ree_ManPrintAdders( vAdds, 1 );
    return vAdds;
}

Here is the call graph for this function:

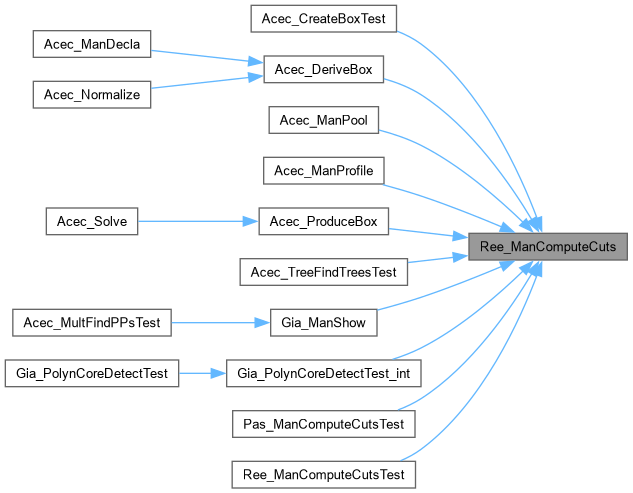

Here is the caller graph for this function:

◆ Ree_ManCountFadds()

int Ree_ManCountFadds ( Vec_Int_t * vAdds )

extern

Definition at line 556 of file acecRe.c.

{
    int i, Count = 0;
    for ( i = 0; 6*i < Vec_IntSize(vAdds); i++ )
        if ( Vec_IntEntry(vAdds, 6*i+2) != 0 )
            Count++;
    return Count;
}

Here is the caller graph for this function:

◆ Ree_ManPrintAdders()

void Ree_ManPrintAdders	(	Vec_Int_t *	vAdds,
		int	fVerbose )

extern

Definition at line 564 of file acecRe.c.

{
    int i;
    for ( i = 0; 6*i < Vec_IntSize(vAdds); i++ )
    {
        //if ( Vec_IntEntry(vAdds, 6*i+2) == 0 )
        //    continue;
        if ( !fVerbose )
            continue;
        printf( "%6d : ", i );
        printf( "%6d ", Vec_IntEntry(vAdds, 6*i+0) );
        printf( "%6d ", Vec_IntEntry(vAdds, 6*i+1) );
        printf( "%6d ", Vec_IntEntry(vAdds, 6*i+2) );
        printf( "   ->  " );
        printf( "%6d ", Vec_IntEntry(vAdds, 6*i+3) );
        printf( "%6d ", Vec_IntEntry(vAdds, 6*i+4) );
        printf( "  (%d)", Vec_IntEntry(vAdds, 6*i+5) );
        printf( "\n" );
    }
}

Here is the caller graph for this function:

Classes

Typedefs

Functions

Typedef Documentation

◆ Acec_ParCec_t

Function Documentation

◆ Acec_ManCecSetDefaultParams()

◆ Acec_ManDecla()

◆ Acec_Normalize()

◆ Acec_Solve()

◆ Gia_ManDetectFullAdders()

◆ Gia_ManDetectHalfAdders()

◆ Gia_PolynBuild()

◆ Gia_PolynFindOrder()

◆ Gia_PolynReorder()

◆ Ree_ManComputeCuts()

◆ Ree_ManCountFadds()

◆ Ree_ManPrintAdders()
