bmcLoad.c File Reference

#include "bmc.h"
#include "sat/bsat/satStore.h"

Include dependency graph for bmcLoad.c:

Go to the source code of this file.

Classes
struct	Bmc_Load_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Bmc_Load_t_	Bmc_Load_t
	DECLARATIONS ///.

Functions
int	Bmc_LoadGetSatVar (Bmc_Load_t *p, int Id)
	FUNCTION DEFINITIONS ///.
int	Bmc_LoadAddCnf (void *pMan, int iLit)
int	Bmc_LoadAddCnf_rec (Bmc_Load_t *p, int Id)
Bmc_Load_t *	Bmc_LoadStart (Gia_Man_t *pGia)
void	Bmc_LoadStop (Bmc_Load_t *p)
void	Bmc_LoadTest (Gia_Man_t *pGia, int fLoadCnf, int fVerbose)

Typedef Documentation

Bmc_Load_t

typedef typedefABC_NAMESPACE_IMPL_START struct Bmc_Load_t_ Bmc_Load_t

DECLARATIONS ///.

CFile****************************************************************

FileName [bmcLoad.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [SAT-based bounded model checking.]

Synopsis [Experiments with CNF loading.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

bmcLoad.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 31 of file bmcLoad.c.

Function Documentation

Bmc_LoadAddCnf()

int Bmc_LoadAddCnf	(	void *	pMan,
		int	iLit )

Definition at line 71 of file bmcLoad.c.

{
    Bmc_Load_t * p = (Bmc_Load_t *)pMan;
    int Lits[3], iVar = Abc_Lit2Var(iLit);
    Gia_Obj_t * pObj = Gia_ManObj( p->pGia, Vec_IntEntry(p->vSat2Id, iVar) );
    p->nCallBacks1++;
    if ( Gia_ObjIsCi(pObj) || Gia_ObjIsConst0(pObj) )
        return 0;
    assert( Gia_ObjIsAnd(pObj) );
    if ( (Abc_LitIsCompl(iLit) ? pObj->fMark1 : pObj->fMark0) )
        return 0;
    Lits[0] = Abc_LitNot(iLit);
    if ( Abc_LitIsCompl(iLit) )
    {
        Lits[1] = Abc_Var2Lit( Bmc_LoadGetSatVar(p, Gia_ObjFaninId0p(p->pGia, pObj)), !Gia_ObjFaninC0(pObj) );
        Lits[2] = Abc_Var2Lit( Bmc_LoadGetSatVar(p, Gia_ObjFaninId1p(p->pGia, pObj)), !Gia_ObjFaninC1(pObj) );
        sat_solver_clause_new( p->pSat, Lits, Lits + 3, 0 );
        pObj->fMark1 = 1;
    }
    else
    {
        Lits[1] = Abc_Var2Lit( Bmc_LoadGetSatVar(p, Gia_ObjFaninId0p(p->pGia, pObj)), Gia_ObjFaninC0(pObj) );
        sat_solver_clause_new( p->pSat, Lits, Lits + 2, 0 );
        Lits[1] = Abc_Var2Lit( Bmc_LoadGetSatVar(p, Gia_ObjFaninId1p(p->pGia, pObj)), Gia_ObjFaninC1(pObj) );
        sat_solver_clause_new( p->pSat, Lits, Lits + 2, 0 );
        pObj->fMark0 = 1;
    }
    p->nCallBacks2++;
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Bmc_LoadAddCnf_rec()

int Bmc_LoadAddCnf_rec	(	Bmc_Load_t *	p,
		int	Id )

Definition at line 101 of file bmcLoad.c.

{
    int iVar = Bmc_LoadGetSatVar( p, Id );
    Gia_Obj_t * pObj = Gia_ManObj( p->pGia, Id );
    if ( Gia_ObjIsAnd(pObj) && !(pObj->fMark0 && pObj->fMark1) )
    {
        Bmc_LoadAddCnf( p, Abc_Var2Lit(iVar, 0) );
        Bmc_LoadAddCnf( p, Abc_Var2Lit(iVar, 1) );
        Bmc_LoadAddCnf_rec( p, Gia_ObjFaninId0(pObj, Id) );
        Bmc_LoadAddCnf_rec( p, Gia_ObjFaninId1(pObj, Id) );
    }
    return iVar;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Bmc_LoadGetSatVar()

int Bmc_LoadGetSatVar	(	Bmc_Load_t *	p,
		int	Id )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Load CNF for the cone.]

Description []

SideEffects []

SeeAlso []

Definition at line 60 of file bmcLoad.c.

{
    Gia_Obj_t * pObj = Gia_ManObj( p->pGia, Id );
    if ( pObj->Value == 0 )
    {
        pObj->Value = Vec_IntSize( p->vSat2Id );
        Vec_IntPush( p->vSat2Id, Id );
        sat_solver_setnvars( p->pSat, Vec_IntSize(p->vSat2Id) );
    }
    return pObj->Value;
}

Here is the call graph for this function:

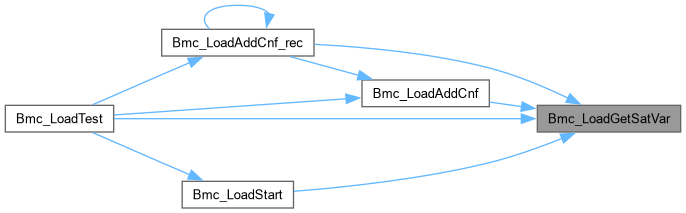

Here is the caller graph for this function:

Bmc_LoadStart()

Bmc_Load_t * Bmc_LoadStart

(

Gia_Man_t *

pGia

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 126 of file bmcLoad.c.

{
    Bmc_Load_t * p;
    int Lit;
    Gia_ManSetPhase( pGia );
    Gia_ManCleanValue( pGia );
    Gia_ManCreateRefs( pGia );
    p = ABC_CALLOC( Bmc_Load_t, 1 );
    p->pGia      = pGia;
    p->pSat      = sat_solver_new();
    p->vSat2Id   = Vec_IntAlloc( 1000 );
    Vec_IntPush( p->vSat2Id, 0 );
    // create constant node
    Lit = Abc_Var2Lit( Bmc_LoadGetSatVar(p, 0), 1 );
    sat_solver_addclause( p->pSat, &Lit, &Lit + 1 );
    return p;
}

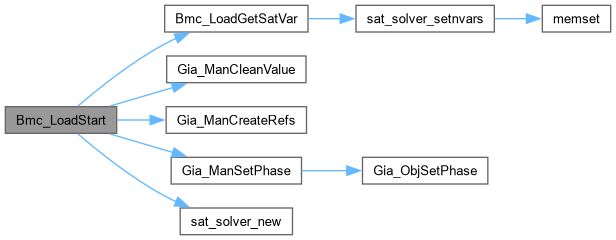

Here is the call graph for this function:

Here is the caller graph for this function:

Bmc_LoadStop()

void Bmc_LoadStop

(

Bmc_Load_t *

p

)

Definition at line 143 of file bmcLoad.c.

{
    Vec_IntFree( p->vSat2Id );
    sat_solver_delete( p->pSat );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Bmc_LoadTest()

void Bmc_LoadTest	(	Gia_Man_t *	pGia,
		int	fLoadCnf,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 161 of file bmcLoad.c.

{
    int nConfLimit = 0;
    Bmc_Load_t * p;
    Gia_Obj_t * pObj;
    int i, status, Lit;
    abctime clk = Abc_Clock();
    // create the loading manager
    p = Bmc_LoadStart( pGia );
    // add callback for CNF loading
    if ( fLoadCnf )
    {
        p->pSat->pCnfMan  = p;
        p->pSat->pCnfFunc = Bmc_LoadAddCnf;
    }
    // solve SAT problem for each PO
    Gia_ManForEachPo( pGia, pObj, i )
    {
        if ( fLoadCnf )
            Lit = Abc_Var2Lit( Bmc_LoadGetSatVar(p, Gia_ObjFaninId0p(pGia, pObj)), Gia_ObjFaninC0(pObj) );
        else
            Lit = Abc_Var2Lit( Bmc_LoadAddCnf_rec(p, Gia_ObjFaninId0p(pGia, pObj)), Gia_ObjFaninC0(pObj) );
        if ( fVerbose )
        {
            printf( "Frame%4d :  ", i );
            printf( "Vars = %6d  ", Vec_IntSize(p->vSat2Id) );
            printf( "Clas = %6d  ", sat_solver_nclauses(p->pSat) );
        }
        status = sat_solver_solve( p->pSat, &Lit, &Lit + 1, (ABC_INT64_T)nConfLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
        if ( fVerbose )
        {
            printf( "Conf = %6d  ", sat_solver_nconflicts(p->pSat) );
            if ( status == l_False )
                printf( "UNSAT  " );
            else if ( status == l_True )
                printf( "SAT    " );
            else // if ( status == l_Undec )
                printf( "UNDEC  " );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
        }
    }
    printf( "Callbacks = %d.  Loadings = %d.\n", p->nCallBacks1, p->nCallBacks2 );
    Bmc_LoadStop( p );
}

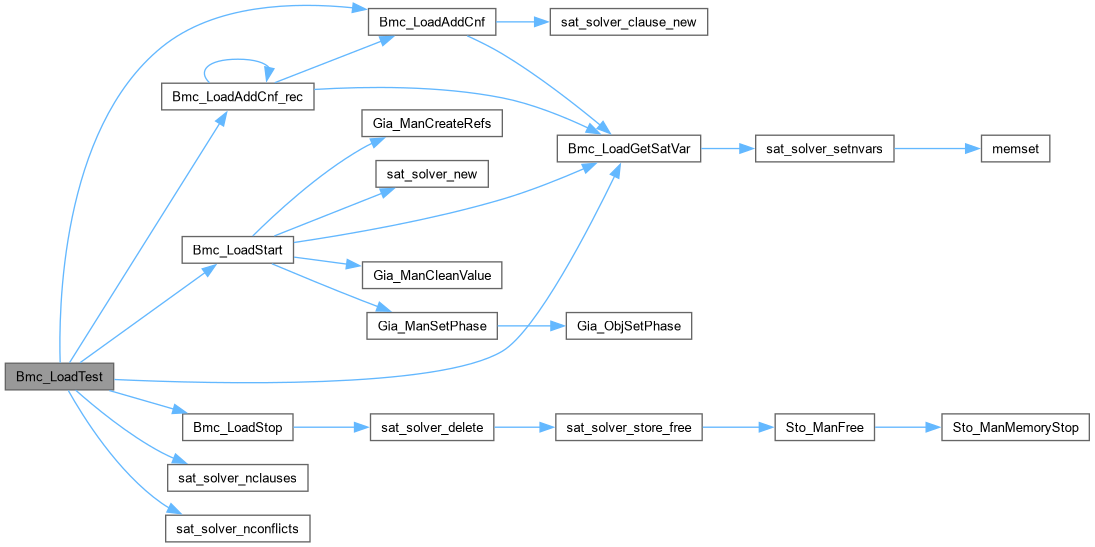

Here is the call graph for this function:
