bmcMaxi.c File Reference

#include "bmc.h"
#include "sat/cnf/cnf.h"
#include "sat/bsat/satStore.h"
#include "aig/gia/giaAig.h"

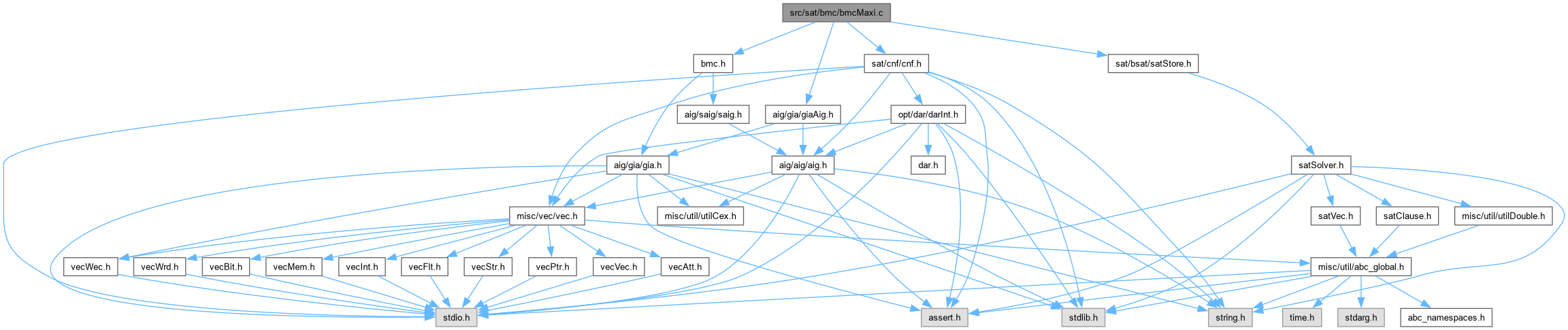

Include dependency graph for bmcMaxi.c:

Go to the source code of this file.

Functions
Gia_Man_t *	Gia_ManMaxiUnfold (Gia_Man_t *p, int nFrames, int fUseVars, Vec_Int_t *vInit)
Vec_Int_t *	Gia_ManMaxiPerform (Gia_Man_t *p, Vec_Int_t *vInit, int nFrames, int nTimeOut, int fVerbose)
Vec_Int_t *	Gia_ManMaxiTest (Gia_Man_t *p, Vec_Int_t *vInit0, int nFrames, int nWords, int nTimeOut, int fSim, int fVerbose)

Function Documentation

Gia_ManMaxiPerform()

Vec_Int_t * Gia_ManMaxiPerform	(	Gia_Man_t *	p,
		Vec_Int_t *	vInit,
		int	nFrames,
		int	nTimeOut,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 136 of file bmcMaxi.c.

{
    int nIterMax = 1000000;
    int i, iLit, Iter, status;
    int nLits, * pLits;
    abctime clkTotal = Abc_Clock();
    abctime clkSat = 0;
    Vec_Int_t * vLits, * vMap;
    sat_solver * pSat;
    Gia_Obj_t * pObj;
    Gia_Man_t * p0 = Gia_ManMaxiUnfold( p, nFrames, 0, vInit );
    Gia_Man_t * p1 = Gia_ManMaxiUnfold( p, nFrames, 1, vInit );
    Gia_Man_t * pM = Gia_ManMiter( p0, p1, 0, 0, 0, 0, 0 );
    Cnf_Dat_t * pCnf = Cnf_DeriveGiaRemapped( pM );
    Gia_ManStop( p0 );
    Gia_ManStop( p1 );
    assert( Gia_ManRegNum(p) > 0 );
    if ( fVerbose )
        printf( "Running with %d frames and %sgiven init state.\n", nFrames, vInit ? "":"no " );

    pSat = sat_solver_new();
    sat_solver_setnvars( pSat, pCnf->nVars );
    sat_solver_set_runtime_limit( pSat, nTimeOut ? nTimeOut * CLOCKS_PER_SEC + Abc_Clock(): 0 );
    for ( i = 0; i < pCnf->nClauses; i++ )
        if ( !sat_solver_addclause( pSat, pCnf->pClauses[i], pCnf->pClauses[i+1] ) )
            assert( 0 );

    // add one large OR clause
    vLits = Vec_IntAlloc( Gia_ManCoNum(p) );
    Gia_ManForEachCo( pM, pObj, i )
        Vec_IntPush( vLits, Abc_Var2Lit(pCnf->pVarNums[Gia_ObjId(pM, pObj)], 0) );
    sat_solver_addclause( pSat, Vec_IntArray(vLits), Vec_IntArray(vLits) + Vec_IntSize(vLits) );

    // create assumptions
    Vec_IntClear( vLits );
    Gia_ManForEachPi( pM, pObj, i )
        if ( i == Gia_ManRegNum(p) )
            break;
        else if ( Vec_IntEntry(vInit, i) == 0 || Vec_IntEntry(vInit, i) == 1 )
            Vec_IntPush( vLits, Abc_Var2Lit(pCnf->pVarNums[Gia_ObjId(pM, pObj)], 1) );

    if ( fVerbose )
    {
        printf( "Iter%6d : ",       0 );
        printf( "Var =%10d  ",      sat_solver_nvars(pSat) );
        printf( "Clause =%10d  ",   sat_solver_nclauses(pSat) );
        printf( "Conflict =%10d  ", sat_solver_nconflicts(pSat) );
        printf( "Subset =%6d  ",    Vec_IntSize(vLits) );
        Abc_PrintTime( 1, "Time", clkSat );
//      ABC_PRTr( "Solver time", clkSat );
    }
    for ( Iter = 0; Iter < nIterMax; Iter++ )
    {
        abctime clk = Abc_Clock();
        status = sat_solver_solve( pSat, Vec_IntArray(vLits), Vec_IntArray(vLits) + Vec_IntSize(vLits), (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
        clkSat += Abc_Clock() - clk;
        if ( status == l_Undef )
        {
//            if ( fVerbose )
//                printf( "\n" );
            printf( "Timeout reached after %d seconds and %d iterations.  ", nTimeOut, Iter );
            break;
        }
        if ( status == l_True )
        {
//            if ( fVerbose )
//                printf( "\n" );
            printf( "The problem is SAT after %d iterations.  ", Iter );
            break;
        }
        assert( status == l_False );
        nLits = sat_solver_final( pSat, &pLits );
        if ( fVerbose )
        {
            printf( "Iter%6d : ",       Iter+1 );
            printf( "Var =%10d  ",      sat_solver_nvars(pSat) );
            printf( "Clause =%10d  ",   sat_solver_nclauses(pSat) );
            printf( "Conflict =%10d  ", sat_solver_nconflicts(pSat) );
            printf( "Subset =%6d  ",    nLits );
            Abc_PrintTime( 1, "Time", clkSat );
//            ABC_PRTr( "Solver time", clkSat );
        }
        if ( Vec_IntSize(vLits) == nLits )
        {
//            if ( fVerbose )
//                printf( "\n" );
            printf( "Reached fixed point with %d entries after %d iterations.  ", Vec_IntSize(vLits), Iter+1 );
            break;
        }
        // collect used literals
        Vec_IntClear( vLits );
        for ( i = 0; i < nLits; i++ )
            Vec_IntPush( vLits, Abc_LitNot(pLits[i]) );
    }
    // create map
    vMap = Vec_IntStart( pCnf->nVars );
    Vec_IntForEachEntry( vLits, iLit, i )
        Vec_IntWriteEntry( vMap, Abc_Lit2Var(iLit), 1 );

    // create output
    Vec_IntFree( vLits );
    vLits = Vec_IntDup(vInit);
    Gia_ManForEachPi( pM, pObj, i )
        if ( i == Gia_ManRegNum(p) )
            break;
        else if ( Vec_IntEntry(vLits, i) == 4 || Vec_IntEntry(vLits, i) == 5 )
            Vec_IntWriteEntry( vLits, i, Vec_IntEntry(vLits, i) );
        else if ( (Vec_IntEntry(vLits, i) == 0 || Vec_IntEntry(vLits, i) == 1) && !Vec_IntEntry(vMap, pCnf->pVarNums[Gia_ObjId(pM, pObj)]) )
            Vec_IntWriteEntry( vLits, i, Vec_IntEntry(vLits, i) | 2 );
    Vec_IntFree( vMap );

    // cleanup
    sat_solver_delete( pSat );
    Cnf_DataFree( pCnf );
    Gia_ManStop( pM );
    Abc_PrintTime( 1, "Total runtime", Abc_Clock() - clkTotal );
    return vLits;
}

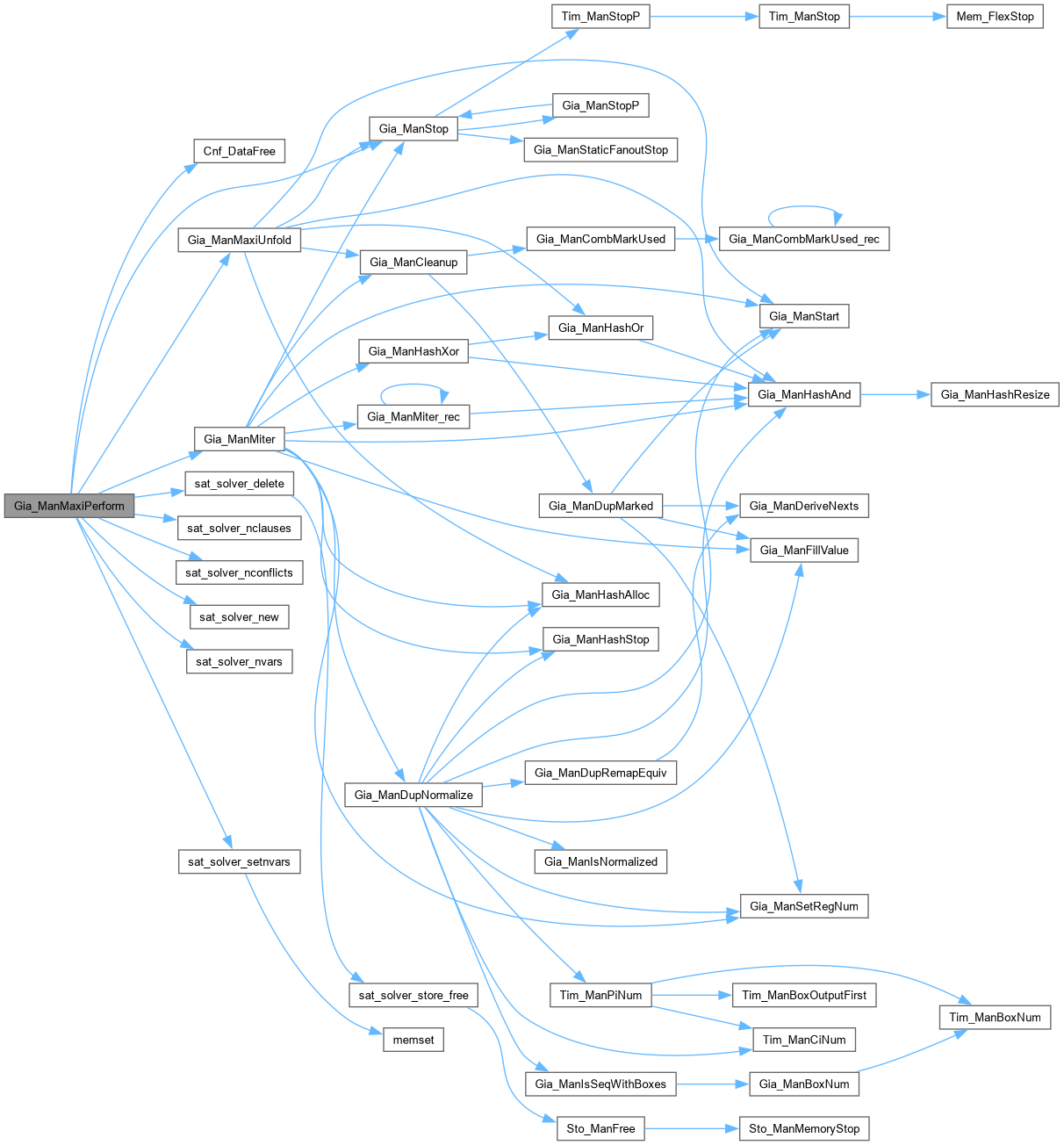

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMaxiTest()

Vec_Int_t * Gia_ManMaxiTest	(	Gia_Man_t *	p,
		Vec_Int_t *	vInit0,
		int	nFrames,
		int	nWords,
		int	nTimeOut,
		int	fSim,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 266 of file bmcMaxi.c.

{
    Vec_Int_t * vRes, * vInit;
    vInit = vInit0 ? vInit0 : Vec_IntStart( Gia_ManRegNum(p) );
    vRes = Gia_ManMaxiPerform( p, vInit, nFrames, nTimeOut, fVerbose );
    if ( vInit != vInit0 )
        Vec_IntFree( vInit );
    return vRes;
}

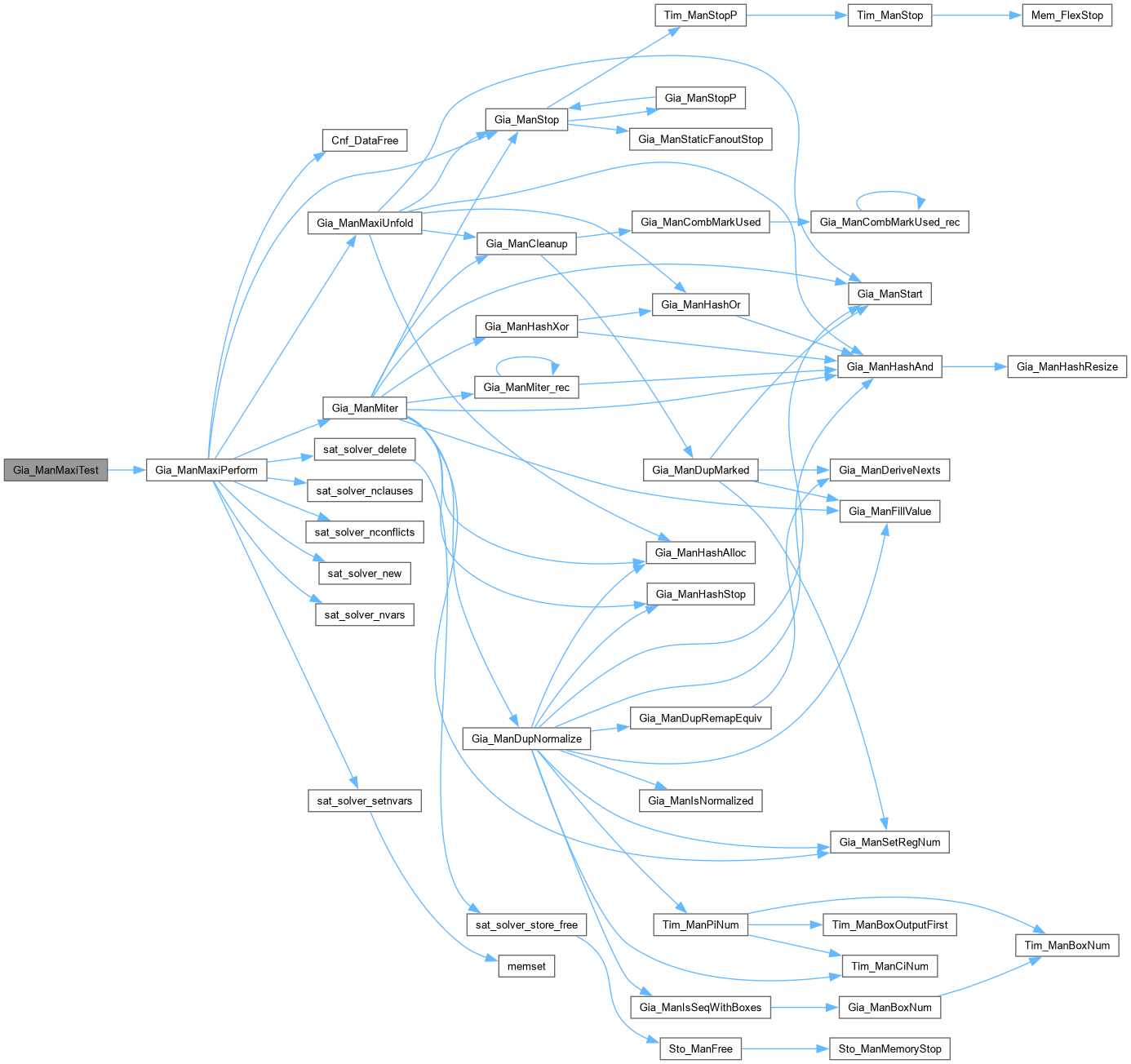

Here is the call graph for this function:

Gia_ManMaxiUnfold()

Gia_Man_t * Gia_ManMaxiUnfold	(	Gia_Man_t *	p,
		int	nFrames,
		int	fUseVars,
		Vec_Int_t *	vInit )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 69 of file bmcMaxi.c.

{
    Gia_Man_t * pNew, * pTemp;
    Gia_Obj_t * pObj;
    int i, f;
    pNew = Gia_ManStart( fUseVars * 2 * Gia_ManRegNum(p) + nFrames * Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    Gia_ManHashAlloc( pNew );
    Gia_ManConst0(p)->Value = 0;
    // control/data variables
    Gia_ManForEachRo( p, pObj, i )
        Gia_ManAppendCi( pNew );
    Gia_ManForEachRo( p, pObj, i )
        Gia_ManAppendCi( pNew );
    // build timeframes
    assert( !vInit || Vec_IntSize(vInit) == Gia_ManRegNum(p) );
    Gia_ManForEachRo( p, pObj, i )
    {
        int Value = Vec_IntEntry( vInit, i );
        int iCtrl = Gia_ManCiLit( pNew, i );
        int iData = Gia_ManCiLit( pNew, Gia_ManRegNum(p)+i );
        // decide based on Value
        if ( Value == 0 )
            pObj->Value = fUseVars ? Gia_ManHashAnd(pNew, iCtrl, iData) : 0;
        else if ( Value == 1 )
            pObj->Value = fUseVars ? Gia_ManHashOr(pNew, Abc_LitNot(iCtrl), iData) : 1;
        else if ( Value == 2 )
            pObj->Value = Gia_ManHashAnd(pNew, iCtrl, iData);
        else if ( Value == 3 )
            pObj->Value = Gia_ManHashOr(pNew, Abc_LitNot(iCtrl), iData);
        else if ( Value == 4 )
            pObj->Value = 0;
        else if ( Value == 5 )
            pObj->Value = 1;
        else assert( 0 );
    }
    for ( f = 0; f < nFrames; f++ )
    {
        Gia_ManForEachPi( p, pObj, i )
            pObj->Value = Gia_ManAppendCi( pNew );
        Gia_ManForEachAnd( p, pObj, i )
            pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        Gia_ManForEachRi( p, pObj, i )
            pObj->Value = Gia_ObjFanin0Copy(pObj);
        Gia_ManForEachRo( p, pObj, i )
            pObj->Value = Gia_ObjRoToRi(p, pObj)->Value;
    }
    Gia_ManForEachRi( p, pObj, i )
        pObj->Value = Gia_ManAppendCo( pNew, pObj->Value );
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    assert( Gia_ManPiNum(pNew) == 2 * Gia_ManRegNum(p) + nFrames * Gia_ManPiNum(p) );
    return pNew;
}

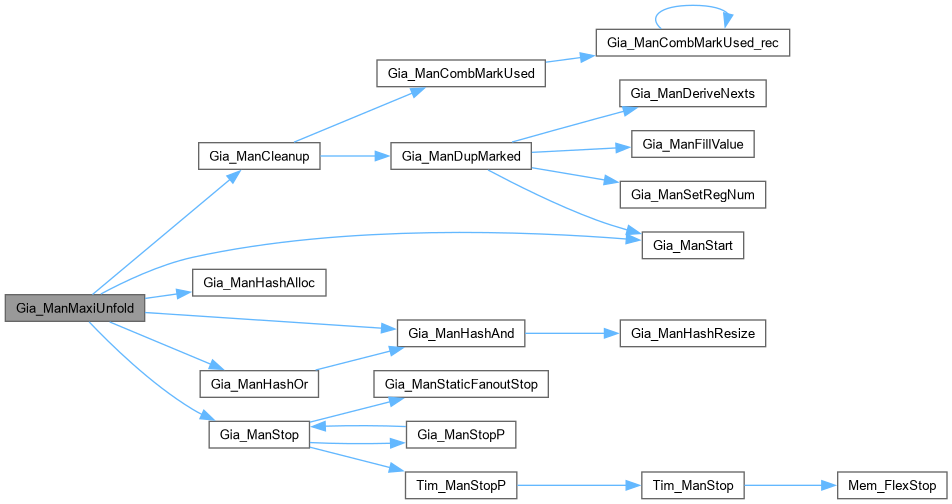

Here is the call graph for this function:

Here is the caller graph for this function:
