cecSat.c File Reference

#include "aig/gia/gia.h"
#include "misc/util/utilTruth.h"
#include "sat/satoko/satoko.h"
#include "cec.h"

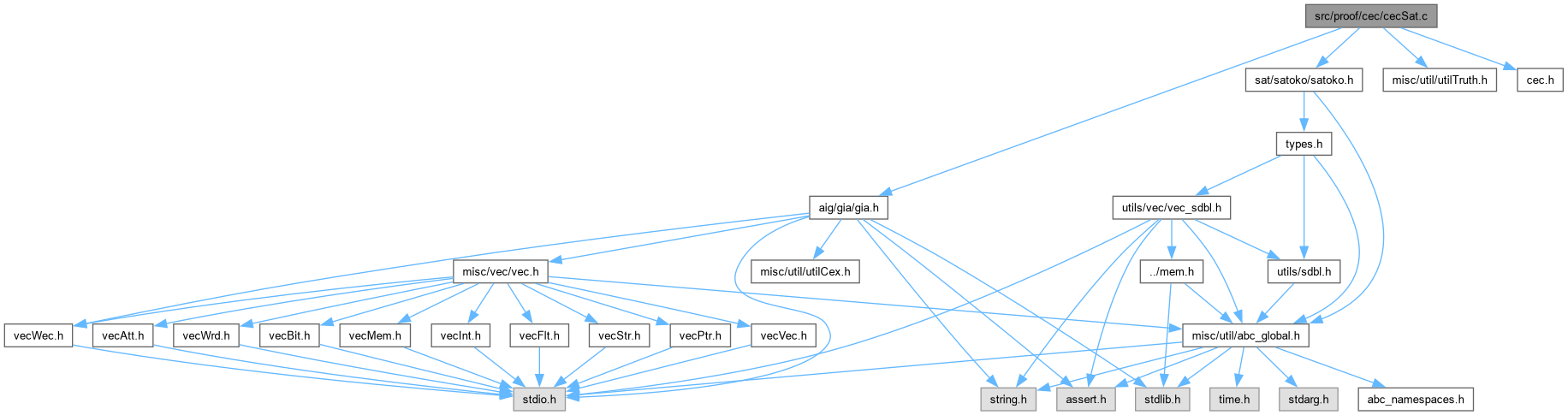

Include dependency graph for cecSat.c:

Go to the source code of this file.

Classes
struct	Cec2_Par_t_
struct	Cec2_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Cec2_Par_t_	Cec2_Par_t
	DECLARATIONS ///.
typedef struct Cec2_Man_t_	Cec2_Man_t

Functions
void	Cec2_SetDefaultParams (Cec2_Par_t *p)
	FUNCTION DEFINITIONS ///.
void	Cec2_AddClausesMux (Gia_Man_t *p, Gia_Obj_t *pNode, satoko_t *pSat)
void	Cec2_AddClausesSuper (Gia_Man_t *p, Gia_Obj_t *pNode, Vec_Ptr_t *vSuper, satoko_t *pSat)
void	Cec2_CollectSuper_rec (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Ptr_t *vSuper, int fFirst, int fUseMuxes)
void	Cec2_CollectSuper (Gia_Man_t *p, Gia_Obj_t *pObj, int fUseMuxes, Vec_Ptr_t *vSuper)
void	Cec2_ObjAddToFrontier (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Ptr_t *vFrontier, satoko_t *pSat)
int	Gia_ObjGetCnfVar (Gia_Man_t *pGia, int iObj, Vec_Ptr_t *vFrontier, Vec_Ptr_t *vFanins, satoko_t *pSat)
int	Cec2_ObjGetCnfVar (Cec2_Man_t *p, int iObj)
void	Cec2_ManSimulateCis (Gia_Man_t *p)
Abc_Cex_t *	Cec2_ManDeriveCex (Gia_Man_t *p, int iOut, int iPat)
int	Cec2_ManSimulateCos (Gia_Man_t *p)
void	Cec2_ManSaveCis (Gia_Man_t *p)
int	Cec2_ManSimulate (Gia_Man_t *p, Vec_Int_t *vTriples, Cec2_Man_t *pMan)
void	Cec2_ManSimAlloc (Gia_Man_t *p, int nWords)
int	Cec2_ManSimHashKey (word *pSim, int nSims, int nTableSize)
void	Cec2_ManSimClassRefineOne (Gia_Man_t *p, int iRepr)
void	Cec2_ManCreateClasses (Gia_Man_t *p, Cec2_Man_t *pMan)
Cec2_Man_t *	Cec2_ManCreate (Gia_Man_t *pAig, Cec2_Par_t *pPars)
void	Cec2_ManDestroy (Cec2_Man_t *p)
int	Cec2_ManVerify_rec (Gia_Man_t *p, int iObj, satoko_t *pSat)
void	Cec2_ManVerify (Gia_Man_t *p, int iObj0, int iObj1, int fPhase, satoko_t *pSat)
void	Cec2_ManCollect_rec (Cec2_Man_t *p, int iObj)
int	Cec2_ManSolveTwo (Cec2_Man_t *p, int iObj0, int iObj1, int fPhase)
int	Cec2_ManSweepNode (Cec2_Man_t *p, int iObj)
void	Cec2_ManPrintStats (Gia_Man_t *p, Cec2_Par_t *pPars, Cec2_Man_t *pMan)
int	Cec2_ManPerformSweeping (Gia_Man_t *p, Cec2_Par_t *pPars, Gia_Man_t **ppNew)
Gia_Man_t *	Cec2_ManSimulateTest (Gia_Man_t *p, Cec_ParFra_t *pPars0)

Typedef Documentation

Cec2_Man_t

typedef struct Cec2_Man_t_ Cec2_Man_t

Definition at line 47 of file cecSat.c.

Cec2_Par_t

typedef typedefABC_NAMESPACE_IMPL_START struct Cec2_Par_t_ Cec2_Par_t

DECLARATIONS ///.

CFile****************************************************************

FileName [cecSat.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Combinational equivalence checking.]

Synopsis [Detection of structural isomorphism.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cecSat.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 33 of file cecSat.c.

Function Documentation

Cec2_AddClausesMux()

void Cec2_AddClausesMux	(	Gia_Man_t *	p,
		Gia_Obj_t *	pNode,
		satoko_t *	pSat )

Function*************************************************************

Synopsis [Adds clauses to the solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 119 of file cecSat.c.

{
    int fPolarFlip = 0;
    Gia_Obj_t * pNodeI, * pNodeT, * pNodeE;
    int pLits[4], RetValue, VarF, VarI, VarT, VarE, fCompT, fCompE;

    assert( !Gia_IsComplement( pNode ) );
    assert( pNode->fMark0 );
    // get nodes (I = if, T = then, E = else)
    pNodeI = Gia_ObjRecognizeMux( pNode, &pNodeT, &pNodeE );
    // get the variable numbers
    VarF = Cec2_ObjSatId(p, pNode);
    VarI = Cec2_ObjSatId(p, pNodeI);
    VarT = Cec2_ObjSatId(p, Gia_Regular(pNodeT));
    VarE = Cec2_ObjSatId(p, Gia_Regular(pNodeE));
    // get the complementation flags
    fCompT = Gia_IsComplement(pNodeT);
    fCompE = Gia_IsComplement(pNodeE);

    // f = ITE(i, t, e)

    // i' + t' + f
    // i' + t  + f'
    // i  + e' + f
    // i  + e  + f'

    // create four clauses
    pLits[0] = Abc_Var2Lit(VarI, 1);
    pLits[1] = Abc_Var2Lit(VarT, 1^fCompT);
    pLits[2] = Abc_Var2Lit(VarF, 0);
    if ( fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = Abc_LitNot( pLits[0] );
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[1] = Abc_LitNot( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = Abc_LitNot( pLits[2] );
    }
    RetValue = satoko_add_clause( pSat, pLits, 3 );
    assert( RetValue );
    pLits[0] = Abc_Var2Lit(VarI, 1);
    pLits[1] = Abc_Var2Lit(VarT, 0^fCompT);
    pLits[2] = Abc_Var2Lit(VarF, 1);
    if ( fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = Abc_LitNot( pLits[0] );
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[1] = Abc_LitNot( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = Abc_LitNot( pLits[2] );
    }
    RetValue = satoko_add_clause( pSat, pLits, 3 );
    assert( RetValue );
    pLits[0] = Abc_Var2Lit(VarI, 0);
    pLits[1] = Abc_Var2Lit(VarE, 1^fCompE);
    pLits[2] = Abc_Var2Lit(VarF, 0);
    if ( fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = Abc_LitNot( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = Abc_LitNot( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = Abc_LitNot( pLits[2] );
    }
    RetValue = satoko_add_clause( pSat, pLits, 3 );
    assert( RetValue );
    pLits[0] = Abc_Var2Lit(VarI, 0);
    pLits[1] = Abc_Var2Lit(VarE, 0^fCompE);
    pLits[2] = Abc_Var2Lit(VarF, 1);
    if ( fPolarFlip )
    {
        if ( pNodeI->fPhase )               pLits[0] = Abc_LitNot( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = Abc_LitNot( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = Abc_LitNot( pLits[2] );
    }
    RetValue = satoko_add_clause( pSat, pLits, 3 );
    assert( RetValue );

    // two additional clauses
    // t' & e' -> f'
    // t  & e  -> f

    // t  + e   + f'
    // t' + e'  + f

    if ( VarT == VarE )
    {
//        assert( fCompT == !fCompE );
        return;
    }

    pLits[0] = Abc_Var2Lit(VarT, 0^fCompT);
    pLits[1] = Abc_Var2Lit(VarE, 0^fCompE);
    pLits[2] = Abc_Var2Lit(VarF, 1);
    if ( fPolarFlip )
    {
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[0] = Abc_LitNot( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = Abc_LitNot( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = Abc_LitNot( pLits[2] );
    }
    RetValue = satoko_add_clause( pSat, pLits, 3 );
    assert( RetValue );
    pLits[0] = Abc_Var2Lit(VarT, 1^fCompT);
    pLits[1] = Abc_Var2Lit(VarE, 1^fCompE);
    pLits[2] = Abc_Var2Lit(VarF, 0);
    if ( fPolarFlip )
    {
        if ( Gia_Regular(pNodeT)->fPhase )  pLits[0] = Abc_LitNot( pLits[0] );
        if ( Gia_Regular(pNodeE)->fPhase )  pLits[1] = Abc_LitNot( pLits[1] );
        if ( pNode->fPhase )                pLits[2] = Abc_LitNot( pLits[2] );
    }
    RetValue = satoko_add_clause( pSat, pLits, 3 );
    assert( RetValue );
}

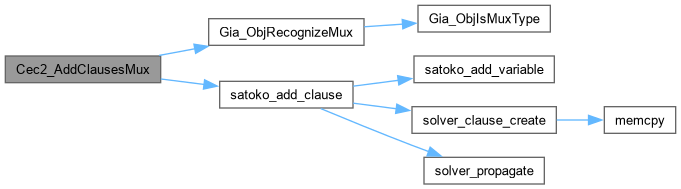

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_AddClausesSuper()

void Cec2_AddClausesSuper	(	Gia_Man_t *	p,
		Gia_Obj_t *	pNode,
		Vec_Ptr_t *	vSuper,
		satoko_t *	pSat )

Definition at line 227 of file cecSat.c.

{
    int fPolarFlip = 0;
    Gia_Obj_t * pFanin;
    int * pLits, nLits, RetValue, i;
    assert( !Gia_IsComplement(pNode) );
    assert( Gia_ObjIsAnd( pNode ) );
    // create storage for literals
    nLits = Vec_PtrSize(vSuper) + 1;
    pLits = ABC_ALLOC( int, nLits );
    // suppose AND-gate is A & B = C
    // add !A => !C   or   A + !C
    Vec_PtrForEachEntry( Gia_Obj_t *, vSuper, pFanin, i )
    {
        pLits[0] = Abc_Var2Lit(Cec2_ObjSatId(p, Gia_Regular(pFanin)), Gia_IsComplement(pFanin));
        pLits[1] = Abc_Var2Lit(Cec2_ObjSatId(p, pNode), 1);
        if ( fPolarFlip )
        {
            if ( Gia_Regular(pFanin)->fPhase )  pLits[0] = Abc_LitNot( pLits[0] );
            if ( pNode->fPhase )                pLits[1] = Abc_LitNot( pLits[1] );
        }
        RetValue = satoko_add_clause( pSat, pLits, 2 );
        assert( RetValue );
    }
    // add A & B => C   or   !A + !B + C
    Vec_PtrForEachEntry( Gia_Obj_t *, vSuper, pFanin, i )
    {
        pLits[i] = Abc_Var2Lit(Cec2_ObjSatId(p, Gia_Regular(pFanin)), !Gia_IsComplement(pFanin));
        if ( fPolarFlip )
        {
            if ( Gia_Regular(pFanin)->fPhase )  pLits[i] = Abc_LitNot( pLits[i] );
        }
    }
    pLits[nLits-1] = Abc_Var2Lit(Cec2_ObjSatId(p, pNode), 0);
    if ( fPolarFlip )
    {
        if ( pNode->fPhase )  pLits[nLits-1] = Abc_LitNot( pLits[nLits-1] );
    }
    RetValue = satoko_add_clause( pSat, pLits, nLits );
    assert( RetValue );
    ABC_FREE( pLits );
}

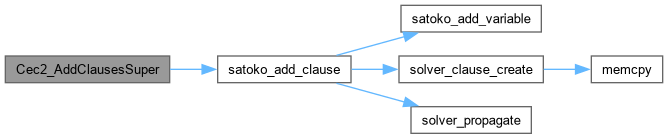

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_CollectSuper()

void Cec2_CollectSuper	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		int	fUseMuxes,
		Vec_Ptr_t *	vSuper )

Definition at line 295 of file cecSat.c.

{
    assert( !Gia_IsComplement(pObj) );
    assert( !Gia_ObjIsCi(pObj) );
    Vec_PtrClear( vSuper );
    Cec2_CollectSuper_rec( p, pObj, vSuper, 1, fUseMuxes );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_CollectSuper_rec()

void Cec2_CollectSuper_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Ptr_t *	vSuper,
		int	fFirst,
		int	fUseMuxes )

Function*************************************************************

Synopsis [Adds clauses and returns CNF variable of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 281 of file cecSat.c.

{
    // if the new node is complemented or a PI, another gate begins
    if ( Gia_IsComplement(pObj) || Gia_ObjIsCi(pObj) ||
         (!fFirst && (p->pRefs ? Gia_ObjRefNum(p, pObj) : Gia_ObjValue(pObj)) > 1) ||
         (fUseMuxes && pObj->fMark0) )
    {
        Vec_PtrPushUnique( vSuper, pObj );
        return;
    }
    // go through the branches
    Cec2_CollectSuper_rec( p, Gia_ObjChild0(pObj), vSuper, 0, fUseMuxes );
    Cec2_CollectSuper_rec( p, Gia_ObjChild1(pObj), vSuper, 0, fUseMuxes );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManCollect_rec()

void Cec2_ManCollect_rec	(	Cec2_Man_t *	p,
		int	iObj )

Function*************************************************************

Synopsis [Internal simulation APIs.]

Description []

SideEffects []

SeeAlso []

Definition at line 794 of file cecSat.c.

{
    Gia_Obj_t * pObj;
    if ( Gia_ObjIsTravIdCurrentId(p->pNew, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(p->pNew, iObj);
    pObj = Gia_ManObj( p->pNew, iObj );
    if ( Cec2_ObjSatId(p->pNew, pObj) >= 0 )
    {
        Vec_IntPush( p->vNodesNew, iObj );
        Vec_IntPush( p->vSatVars, Cec2_ObjSatId(p->pNew, pObj) );
    }
    if ( !iObj )
        return;
    if ( Gia_ObjIsAnd(pObj) )
    {
        Cec2_ManCollect_rec( p, Gia_ObjFaninId0(pObj, iObj) );
        Cec2_ManCollect_rec( p, Gia_ObjFaninId1(pObj, iObj) );
    }
    else
    {
        assert( Cec2_ObjSatId(p->pNew, pObj) >= 0 );
        Vec_IntPushTwo( p->vObjSatPairs, Gia_ManCiIdToId(p->pAig, Gia_ObjCioId(pObj)), Cec2_ObjSatId(p->pNew, pObj) ); // SAT var
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManCreate()

Cec2_Man_t * Cec2_ManCreate	(	Gia_Man_t *	pAig,
		Cec2_Par_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 676 of file cecSat.c.

{
    Cec2_Man_t * p;
    Gia_Obj_t * pObj; int i;
    satoko_opts_t Pars;
    //assert( Gia_ManRegNum(pAig) == 0 );
    p = ABC_CALLOC( Cec2_Man_t, 1 );
    memset( p, 0, sizeof(Cec2_Man_t) );
    p->timeStart    = Abc_Clock();
    p->pPars        = pPars;
    p->pAig         = pAig;
    // create new manager
    p->pNew         = Gia_ManStart( Gia_ManObjNum(pAig) );
    Gia_ManFillValue( pAig );
    Gia_ManConst0(pAig)->Value = 0;
    Gia_ManForEachCi( pAig, pObj, i )
        pObj->Value = Gia_ManAppendCi( p->pNew );
    Gia_ManHashAlloc( p->pNew );
    Vec_IntFill( &p->pNew->vCopies2, Gia_ManObjNum(p->pNew), -1 );
    // SAT solving
    memset( &Pars, 0, sizeof(satoko_opts_t) );
    p->pSat         = satoko_create();
    p->vFrontier    = Vec_PtrAlloc( 1000 );
    p->vFanins      = Vec_PtrAlloc( 100 );
    p->vNodesNew    = Vec_IntAlloc( 100 );
    p->vSatVars     = Vec_IntAlloc( 100 );
    p->vObjSatPairs = Vec_IntAlloc( 100 );
    p->vCexTriples  = Vec_IntAlloc( 100 );
    Pars.conf_limit = pPars->nConfLimit;
    satoko_configure(p->pSat, &Pars);
    // remember pointer to the solver in the AIG manager
    pAig->pData     = p->pSat;
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManCreateClasses()

void Cec2_ManCreateClasses	(	Gia_Man_t *	p,
		Cec2_Man_t *	pMan )

Definition at line 622 of file cecSat.c.

{
    abctime clk;
    Gia_Obj_t * pObj;
    int nWords = p->nSimWords;
    int * pTable, nTableSize, i, Key;
    // allocate representation
    ABC_FREE( p->pReprs );
    ABC_FREE( p->pNexts );
    p->pReprs = ABC_CALLOC( Gia_Rpr_t, Gia_ManObjNum(p) );
    p->pNexts = ABC_FALLOC( int, Gia_ManObjNum(p) );
    // hash each node by its simulation info
    nTableSize = Abc_PrimeCudd( Gia_ManObjNum(p) );
    pTable = ABC_FALLOC( int, nTableSize );
    Gia_ManForEachObj( p, pObj, i )
    {
        p->pReprs[i].iRepr = GIA_VOID;
        if ( Gia_ObjIsCo(pObj) )
            continue;
        Key = Cec2_ManSimHashKey( Cec2_ObjSim(p, i), nWords, nTableSize );
        assert( Key >= 0 && Key < nTableSize );
        if ( pTable[Key] == -1 )
            pTable[Key] = i;
        else
            Gia_ObjSetRepr( p, i, pTable[Key] );
    }
    // create classes
    for ( i = Gia_ManObjNum(p) - 1; i >= 0; i-- )
    {
        int iRepr = Gia_ObjRepr(p, i);
        if ( iRepr == GIA_VOID )
            continue;
        Gia_ObjSetNext( p, i, Gia_ObjNext(p, iRepr) );
        Gia_ObjSetNext( p, iRepr, i );
    }
    ABC_FREE( pTable );
    clk = Abc_Clock();
    Gia_ManForEachClass0( p, i )
        Cec2_ManSimClassRefineOne( p, i );
    pMan->timeRefine += Abc_Clock() - clk;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManDeriveCex()

Abc_Cex_t * Cec2_ManDeriveCex	(	Gia_Man_t *	p,
		int	iOut,
		int	iPat )

Definition at line 476 of file cecSat.c.

{
    Abc_Cex_t * pCex;
    int i, Id;
    pCex = Abc_CexAlloc( 0, Gia_ManCiNum(p), 1 );
    pCex->iPo = iOut;
    if ( iPat == -1 )
        return pCex;
    Gia_ManForEachCiId( p, Id, i )
        if ( Abc_InfoHasBit((unsigned *)Cec2_ObjSim(p, Id), iPat) )
            Abc_InfoSetBit( pCex->pData, i );
    return pCex;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManDestroy()

void Cec2_ManDestroy

(

Cec2_Man_t *

p

)

Definition at line 710 of file cecSat.c.

{
    if ( p->pPars->fVerbose )
    {
        abctime timeTotal = Abc_Clock() - p->timeStart;
        abctime timeSat   = p->timeSatSat + p->timeSatUnsat + p->timeSatUndec;
        abctime timeOther = timeTotal - timeSat - p->timeSim - p->timeRefine - p->timeExtra;
//        Abc_Print( 1, "%d\n", p->Num );
        ABC_PRTP( "SAT solving", timeSat,          timeTotal );
        ABC_PRTP( "  sat      ", p->timeSatSat,    timeTotal );
        ABC_PRTP( "  unsat    ", p->timeSatUnsat,  timeTotal );
        ABC_PRTP( "  fail     ", p->timeSatUndec,  timeTotal );
        ABC_PRTP( "Simulation ", p->timeSim,       timeTotal );
        ABC_PRTP( "Refinement ", p->timeRefine,    timeTotal );
        ABC_PRTP( "Rollback   ", p->timeExtra,     timeTotal );
        ABC_PRTP( "Other      ", timeOther,        timeTotal );
        ABC_PRTP( "TOTAL      ", timeTotal,        timeTotal );
        fflush( stdout );
    }

    Vec_WrdFreeP( &p->pAig->vSims );
    //Vec_WrdFreeP( &p->pAig->vSimsPi );
    Gia_ManCleanMark01( p->pAig );
    satoko_destroy( p->pSat );
    Gia_ManStopP( &p->pNew );
    Vec_PtrFreeP( &p->vFrontier );
    Vec_PtrFreeP( &p->vFanins );
    Vec_IntFreeP( &p->vNodesNew );
    Vec_IntFreeP( &p->vSatVars );
    Vec_IntFreeP( &p->vObjSatPairs );
    Vec_IntFreeP( &p->vCexTriples );
    ABC_FREE( p );
}

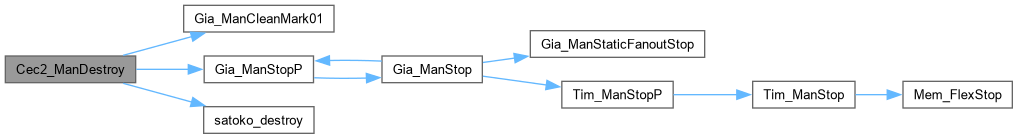

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManPerformSweeping()

int Cec2_ManPerformSweeping	(	Gia_Man_t *	p,
		Cec2_Par_t *	pPars,
		Gia_Man_t **	ppNew )

Definition at line 916 of file cecSat.c.

{
    Cec2_Man_t * pMan = Cec2_ManCreate( p, pPars );
    Gia_Obj_t * pObj, * pRepr, * pObjNew;
    int i, Iter, fDisproved = 1;

    // check if any output trivially fails under all-0 pattern
    Gia_ManRandomW( 1 );
    Gia_ManSetPhase( p );
    if ( pPars->fIsMiter )
    {
        Gia_ManForEachCo( p, pObj, i )
            if ( pObj->fPhase )
            {
                p->pCexSeq = Cec2_ManDeriveCex( p, i, -1 );
                goto finalize;
            }
    }

    // simulate one round and create classes
    Cec2_ManSimAlloc( p, pPars->nSimWords );
    Cec2_ManSimulateCis( p );
    Cec2_ManSimulate( p, NULL, pMan );
    if ( pPars->fIsMiter && !Cec2_ManSimulateCos(p) ) // cex detected
        goto finalize;
    Cec2_ManCreateClasses( p, pMan );
    Cec2_ManPrintStats( p, pPars, pMan );

    // perform additinal simulation
    for ( i = 0; i < pPars->nSimRounds; i++ )
    {
        Cec2_ManSimulateCis( p );
        Cec2_ManSimulate( p, NULL, pMan );
        if ( pPars->fIsMiter && !Cec2_ManSimulateCos(p) ) // cex detected
            goto finalize;
        Cec2_ManPrintStats( p, pPars, pMan );
    }
    // perform sweeping
    //pMan = Cec2_ManCreate( p, pPars );
    for ( Iter = 0; fDisproved && Iter < pPars->nItersMax; Iter++ )
    {
        fDisproved = 0;
        pMan->nPatterns = 0;
        Cec2_ManSimulateCis( p );
        Vec_IntClear( pMan->vCexTriples );
        Gia_ManForEachAnd( p, pObj, i )
        {
            if ( ~pObj->Value || Gia_ObjFailed(p, i) ) // skip swept nodes and failed nodes
                continue;
            if ( !~Gia_ObjFanin0(pObj)->Value || !~Gia_ObjFanin1(pObj)->Value ) // skip fanouts of non-swept nodes
                continue;
            assert( !Gia_ObjProved(p, i) && !Gia_ObjFailed(p, i) );
            // duplicate the node
            pObj->Value = Gia_ManHashAnd( pMan->pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
            if ( Vec_IntSize(&pMan->pNew->vCopies2) == Abc_Lit2Var(pObj->Value) )
            {
                pObjNew = Gia_ManObj( pMan->pNew, Abc_Lit2Var(pObj->Value) );
                pObjNew->fMark0 = Gia_ObjIsMuxType( pObjNew );
                Gia_ObjSetPhase( pMan->pNew, pObjNew );
                Vec_IntPush( &pMan->pNew->vCopies2, -1 );
            }
            assert( Vec_IntSize(&pMan->pNew->vCopies2) == Gia_ManObjNum(pMan->pNew) );
            pRepr = Gia_ObjReprObj( p, i );
            if ( pRepr == NULL || !~pRepr->Value )
                continue;
            if ( Abc_Lit2Var(pObj->Value) == Abc_Lit2Var(pRepr->Value) )
            {
                assert( (pObj->Value ^ pRepr->Value) == (pObj->fPhase ^ pRepr->fPhase) );
                Gia_ObjSetProved( p, i );
                continue;
            }
            if ( Cec2_ManSweepNode(pMan, i) )
            {
                if ( Gia_ObjProved(p, i) )
                    pObj->Value = Abc_LitNotCond( pRepr->Value, pObj->fPhase ^ pRepr->fPhase );
                continue;
            }
            pObj->Value = ~0;
            Vec_IntPushThree( pMan->vCexTriples, Gia_ObjId(p, pRepr), i, Abc_Var2Lit(p->iPatsPi, pObj->fPhase ^ pRepr->fPhase) );
            fDisproved = 1;
        }
        if ( fDisproved )
        {
            int Fails = Cec2_ManSimulate( p, pMan->vCexTriples, pMan );
            if ( Fails && pPars->fVerbose )
                printf( "Failed to resimulate %d times with pattern = %d  (total = %d).\n", Fails, pMan->nPatterns, pPars->nSimWords * 64 );
            if ( pPars->fIsMiter && !Cec2_ManSimulateCos(p) ) // cex detected
                break;
        }
        Cec2_ManPrintStats( p, pPars, pMan );
    }
    // finish the AIG, if it is not finished
    if ( ppNew )
    {
        Gia_ManForEachAnd( p, pObj, i )
            if ( !~pObj->Value )
                pObj->Value = Gia_ManHashAnd( pMan->pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        Gia_ManForEachCo( p, pObj, i )
            pObj->Value = Gia_ManAppendCo( pMan->pNew, Gia_ObjFanin0Copy(pObj) );
        *ppNew = Gia_ManCleanup( pMan->pNew );
        (*ppNew)->pName = Abc_UtilStrsav( p->pName );
        (*ppNew)->pSpec = Abc_UtilStrsav( p->pSpec );
    }
finalize:
    Cec2_ManDestroy( pMan );
    //Gia_ManEquivPrintClasses( p, 1, 0 );
    return p->pCexSeq ? 0 : 1;
}

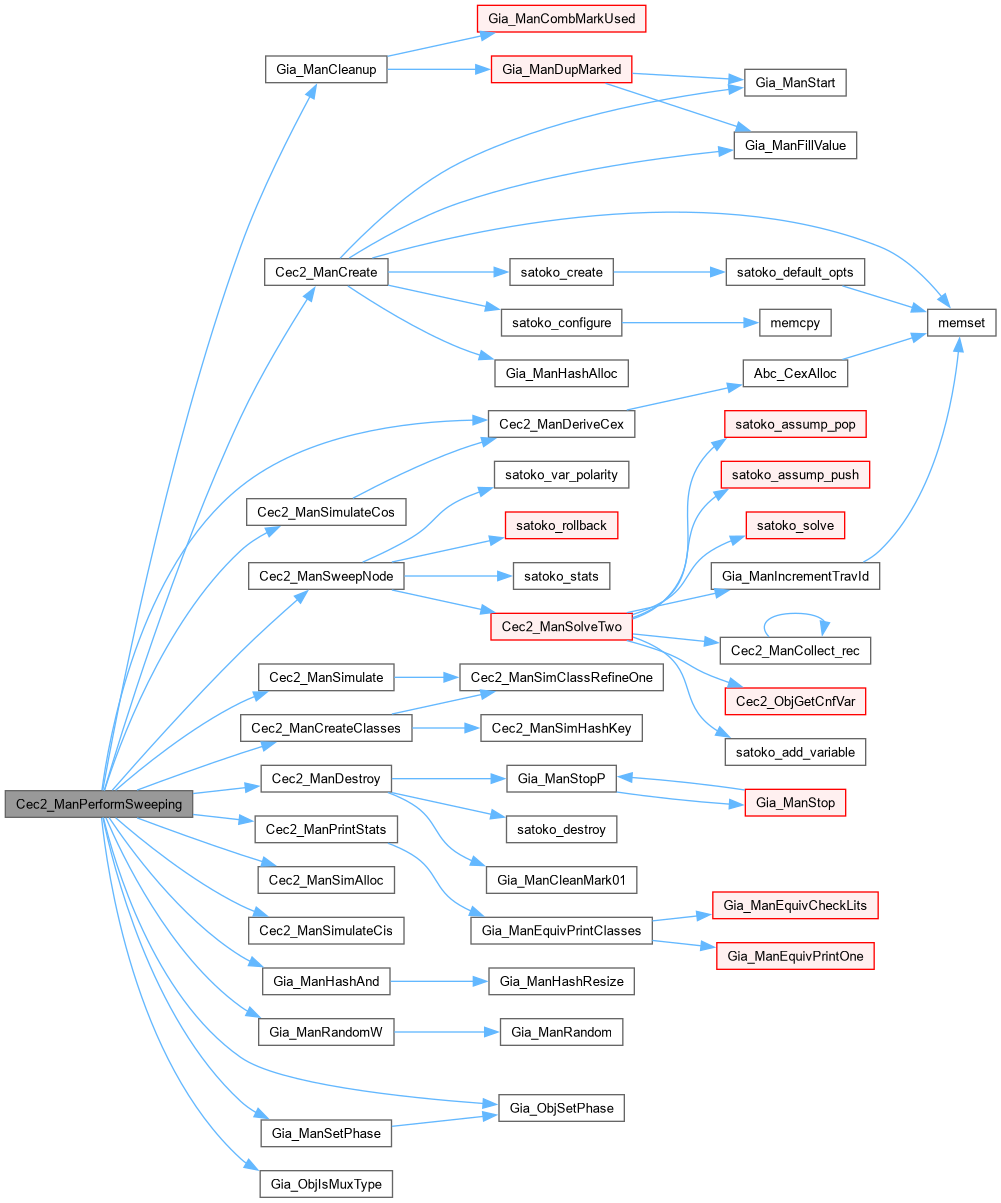

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManPrintStats()

void Cec2_ManPrintStats	(	Gia_Man_t *	p,
		Cec2_Par_t *	pPars,
		Cec2_Man_t *	pMan )

Definition at line 907 of file cecSat.c.

{
    if ( !pPars->fVerbose )
        return;
    printf( "S =%5d ", pMan ? pMan->nSatSat   : 0 );
    printf( "U =%5d ", pMan ? pMan->nSatUnsat : 0 );
    printf( "F =%5d ", pMan ? pMan->nSatUndec : 0 );
    Gia_ManEquivPrintClasses( p, pPars->fVeryVerbose, 0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManSaveCis()

void Cec2_ManSaveCis

(

Gia_Man_t *

p

)

Definition at line 503 of file cecSat.c.

{
    int w, i, Id;
    assert( p->vSimsPi != NULL );
    for ( w = 0; w < p->nSimWords; w++ )
        Gia_ManForEachCiId( p, Id, i )
            Vec_WrdPush( p->vSimsPi, Cec2_ObjSim(p, Id)[w] );
}

Cec2_ManSimAlloc()

void Cec2_ManSimAlloc	(	Gia_Man_t *	p,
		int	nWords )

Definition at line 541 of file cecSat.c.

{
    Vec_WrdFreeP( &p->vSims );
    Vec_WrdFreeP( &p->vSimsPi );
    p->vSims   = Vec_WrdStart( Gia_ManObjNum(p) * nWords );
    p->vSimsPi = Vec_WrdAlloc( Gia_ManCiNum(p) * nWords * 4 ); // storage for CI patterns
    p->nSimWords = nWords;
}

Here is the caller graph for this function:

Cec2_ManSimClassRefineOne()

void Cec2_ManSimClassRefineOne	(	Gia_Man_t *	p,
		int	iRepr )

Function*************************************************************

Synopsis [Creating initial equivalence classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 590 of file cecSat.c.

{
    int iObj, iPrev = iRepr, iPrev2, iRepr2;
    Gia_ClassForEachObj1( p, iRepr, iRepr2 )
        if ( Cec2_ObjSimEqual(p, iRepr, iRepr2) )
            iPrev = iRepr2;
        else
            break;
    if ( iRepr2 <= 0 ) // no refinement
        return;
    // relink remaining nodes of the class
    // nodes that are equal to iRepr, remain in the class of iRepr
    // nodes that are not equal to iRepr, move to the class of iRepr2
    Gia_ObjSetRepr( p, iRepr2, GIA_VOID );
    iPrev2 = iRepr2;
    for ( iObj = Gia_ObjNext(p, iRepr2); iObj > 0; iObj = Gia_ObjNext(p, iObj) )
    {
        if ( Cec2_ObjSimEqual(p, iRepr, iObj) ) // remains with iRepr
        {
            Gia_ObjSetNext( p, iPrev, iObj );
            iPrev = iObj;
        }
        else // moves to iRepr2
        {
            Gia_ObjSetRepr( p, iObj, iRepr2 );
            Gia_ObjSetNext( p, iPrev2, iObj );
            iPrev2 = iObj;
        }
    }
    Gia_ObjSetNext( p, iPrev, -1 );
    Gia_ObjSetNext( p, iPrev2, -1 );
}

Here is the caller graph for this function:

Cec2_ManSimHashKey()

int Cec2_ManSimHashKey	(	word *	pSim,
		int	nSims,
		int	nTableSize )

Function*************************************************************

Synopsis [Computes hash key of the simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 562 of file cecSat.c.

{
    static int s_Primes[16] = {
        1291, 1699, 1999, 2357, 2953, 3313, 3907, 4177,
        4831, 5147, 5647, 6343, 6899, 7103, 7873, 8147 };
    unsigned uHash = 0, * pSimU = (unsigned *)pSim;
    int i, nSimsU = 2 * nSims;
    if ( pSimU[0] & 1 )
        for ( i = 0; i < nSimsU; i++ )
            uHash ^= ~pSimU[i] * s_Primes[i & 0xf];
    else
        for ( i = 0; i < nSimsU; i++ )
            uHash ^= pSimU[i] * s_Primes[i & 0xf];
    return (int)(uHash % nTableSize);

}

Here is the caller graph for this function:

Cec2_ManSimulate()

int Cec2_ManSimulate	(	Gia_Man_t *	p,
		Vec_Int_t *	vTriples,
		Cec2_Man_t *	pMan )

Definition at line 511 of file cecSat.c.

{
    extern void Cec2_ManSimClassRefineOne( Gia_Man_t * p, int iRepr );
    abctime clk = Abc_Clock();
    Gia_Obj_t * pObj;
    int i, iRepr, iObj, Entry, Count = 0;
    //Cec2_ManSaveCis( p );
    Gia_ManForEachAnd( p, pObj, i )
        Cec2_ObjSimAnd( p, i );
    pMan->timeSim += Abc_Clock() - clk;
    if ( p->pReprs == NULL )
        return 0;
    if ( vTriples )
    {
        Vec_IntForEachEntryTriple( vTriples, iRepr, iObj, Entry, i )
        {
            word * pSim0 = Cec2_ObjSim( p, iRepr );
            word * pSim1 = Cec2_ObjSim( p, iObj );
            int iPat     = Abc_Lit2Var(Entry);
            int fPhase   = Abc_LitIsCompl(Entry);
            if ( (fPhase ^ Abc_InfoHasBit((unsigned *)pSim0, iPat)) == Abc_InfoHasBit((unsigned *)pSim1, iPat) )
                Count++;
        }
    }
    clk = Abc_Clock();
    Gia_ManForEachClass0( p, i )
        Cec2_ManSimClassRefineOne( p, i );
    pMan->timeRefine += Abc_Clock() - clk;
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManSimulateCis()

void Cec2_ManSimulateCis

(

Gia_Man_t *

p

)

Definition at line 469 of file cecSat.c.

{
    int i, Id;
    Gia_ManForEachCiId( p, Id, i )
        Cec2_ObjSimCi( p, Id );
    p->iPatsPi = 0;
}

Here is the caller graph for this function:

Cec2_ManSimulateCos()

int Cec2_ManSimulateCos

(

Gia_Man_t *

p

)

Definition at line 489 of file cecSat.c.

{
    int i, Id;
    // check outputs and generate CEX if they fail
    Gia_ManForEachCoId( p, Id, i )
    {
        Cec2_ObjSimCo( p, Id );
        if ( Cec2_ObjSimEqual(p, Id, 0) )
            continue;
        p->pCexSeq = Cec2_ManDeriveCex( p, i, Abc_TtFindFirstBit2(Cec2_ObjSim(p, Id), p->nSimWords) );
        return 0;
    }
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManSimulateTest()

Gia_Man_t * Cec2_ManSimulateTest	(	Gia_Man_t *	p,
		Cec_ParFra_t *	pPars0 )

Definition at line 1024 of file cecSat.c.

{
    Gia_Man_t * pNew = NULL;
    //abctime clk = Abc_Clock();
    Cec2_Par_t Pars, * pPars = &Pars;
    Cec2_SetDefaultParams( pPars );
    // set resource limits
//    pPars->nSimWords  = pPars0->nWords;     // simulation words
//    pPars->nSimRounds = pPars0->nRounds;    // simulation rounds
//    pPars->nItersMax  = pPars0->nItersMax;  // max number of iterations
    pPars->nConfLimit = pPars0->nBTLimit;   // conflict limit at a node
    pPars->fUseCones  = pPars0->fUseCones;
    pPars->fVerbose   = pPars0->fVerbose;
//    Gia_ManComputeGiaEquivs( p, 100000, 0 );
//    Gia_ManEquivPrintClasses( p, 1, 0 );
    Cec2_ManPerformSweeping( p, pPars, &pNew );
    //Abc_PrintTime( 1, "SAT sweeping time", Abc_Clock() - clk );
    return pNew;
}

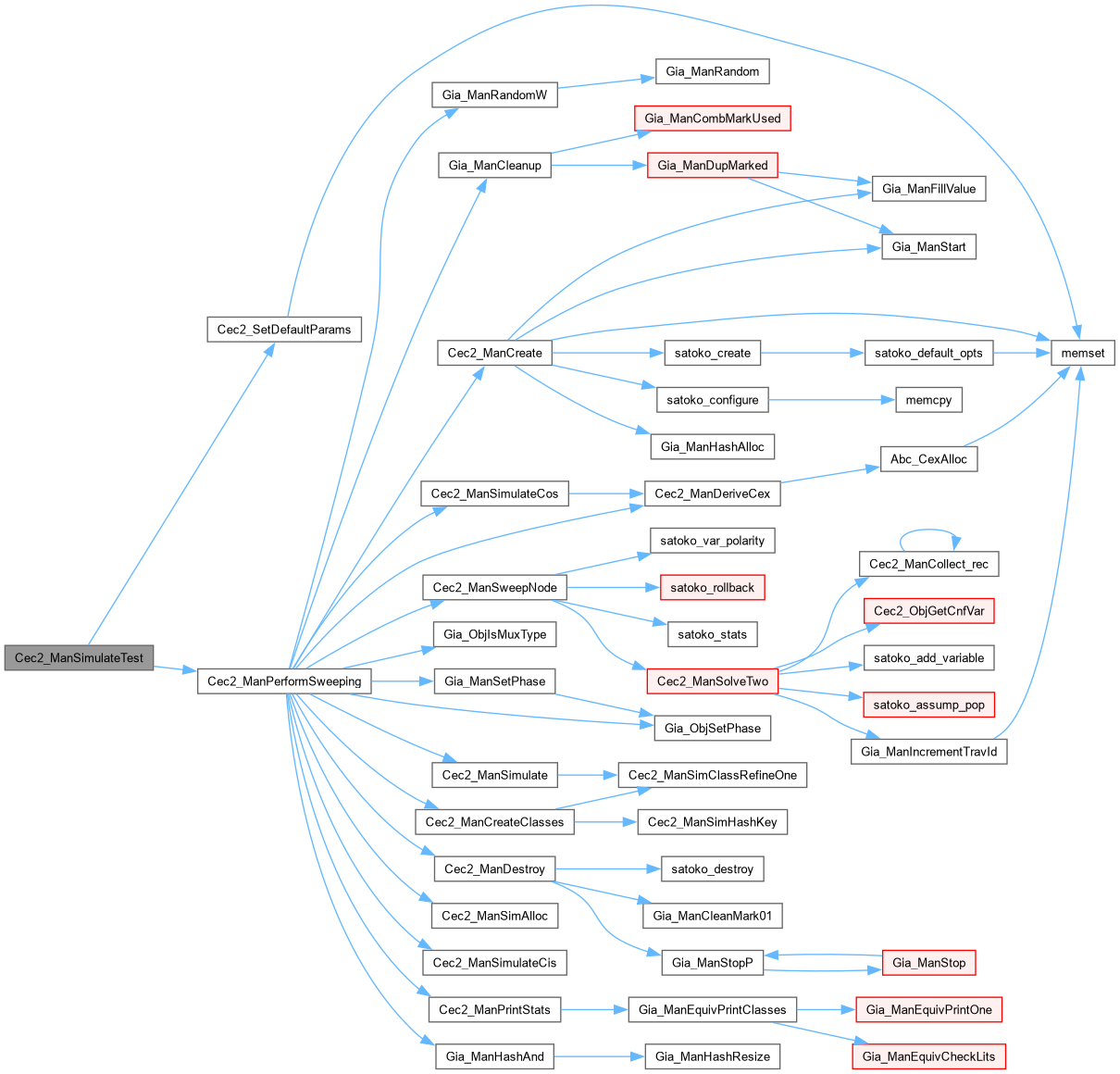

Here is the call graph for this function:

Cec2_ManSolveTwo()

int Cec2_ManSolveTwo	(	Cec2_Man_t *	p,
		int	iObj0,
		int	iObj1,
		int	fPhase )

Definition at line 819 of file cecSat.c.

{
    Gia_Obj_t * pObj;
    int status, i, iVar0, iVar1;
    if (iObj1 < iObj0)
        iObj1 ^= iObj0, iObj0 ^= iObj1, iObj1 ^= iObj0;
    assert( iObj0 < iObj1 );
    assert( p->pPars->fUseCones || satoko_varnum(p->pSat) == 0 );
    if ( !iObj0 && Cec2_ObjSatId(p->pNew, Gia_ManConst0(p->pNew)) == -1 )
        Cec2_ObjSetSatId( p->pNew, Gia_ManConst0(p->pNew), satoko_add_variable(p->pSat, 0) );
    iVar0 = Cec2_ObjGetCnfVar( p, iObj0 );
    iVar1 = Cec2_ObjGetCnfVar( p, iObj1 );
    // collect inputs and internal nodes
    Vec_IntClear( p->vNodesNew );
    Vec_IntClear( p->vSatVars );
    Vec_IntClear( p->vObjSatPairs );
    Gia_ManIncrementTravId( p->pNew );
    Cec2_ManCollect_rec( p, iObj0 );
    Cec2_ManCollect_rec( p, iObj1 );
    // solve direct
    if ( p->pPars->fUseCones )  satoko_mark_cone( p->pSat, Vec_IntArray(p->vSatVars), Vec_IntSize(p->vSatVars) );
    satoko_assump_push( p->pSat, Abc_Var2Lit(iVar0, 1) );
    satoko_assump_push( p->pSat, Abc_Var2Lit(iVar1, fPhase) );
    status = satoko_solve( p->pSat );
    satoko_assump_pop( p->pSat );
    satoko_assump_pop( p->pSat );
    if ( status == SATOKO_UNSAT && iObj0 > 0 )
    {
        // solve reverse
        satoko_assump_push( p->pSat, Abc_Var2Lit(iVar0, 0) );
        satoko_assump_push( p->pSat, Abc_Var2Lit(iVar1, !fPhase) );
        status = satoko_solve( p->pSat );
        satoko_assump_pop( p->pSat );
        satoko_assump_pop( p->pSat );
    }
    if ( p->pPars->fUseCones )  satoko_unmark_cone( p->pSat, Vec_IntArray(p->vSatVars), Vec_IntSize(p->vSatVars) );
    //if ( status == SATOKO_SAT )
    //    Cec2_ManVerify( p->pNew, iObj0, iObj1, fPhase, p->pSat );
    if ( p->pPars->fUseCones )
        return status;
    Gia_ManForEachObjVec( p->vNodesNew, p->pNew, pObj, i )
        Cec2_ObjCleanSatId( p->pNew, pObj );
    return status;
}

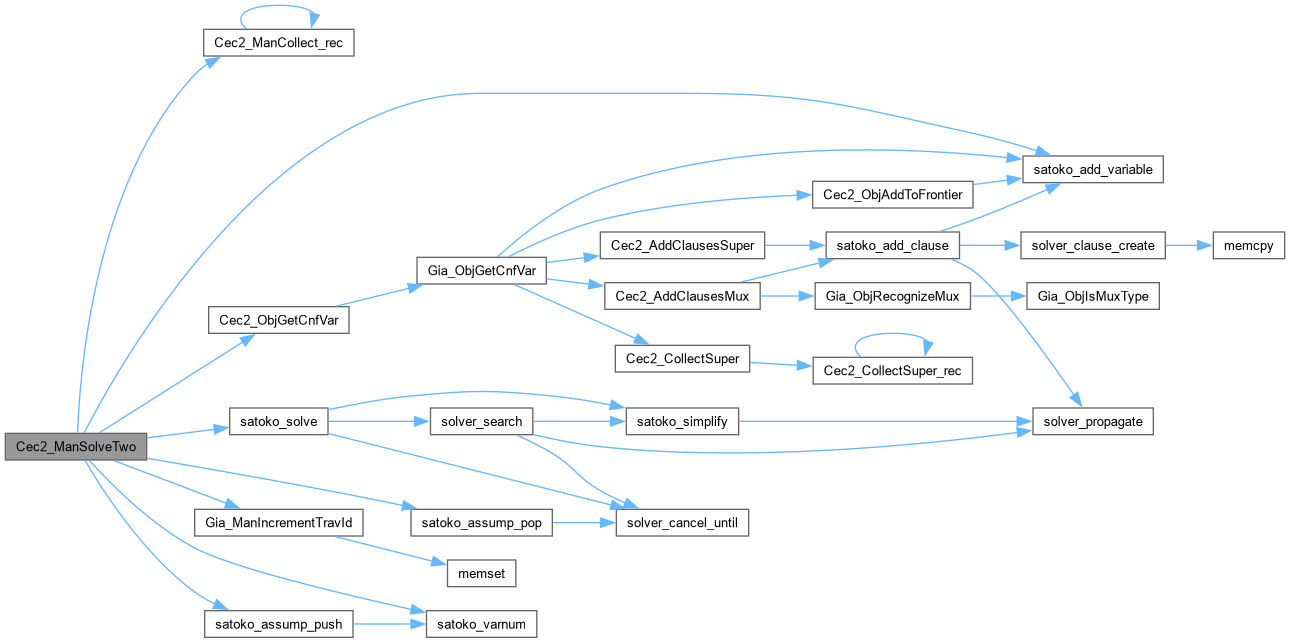

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManSweepNode()

int Cec2_ManSweepNode	(	Cec2_Man_t *	p,
		int	iObj )

Definition at line 864 of file cecSat.c.

{
    abctime clk = Abc_Clock();
    int i, IdAig, IdSat, status, RetValue = 1;
    Gia_Obj_t * pObj = Gia_ManObj( p->pAig, iObj );
    Gia_Obj_t * pRepr = Gia_ObjReprObj( p->pAig, iObj );
    int fCompl = Abc_LitIsCompl(pObj->Value) ^ Abc_LitIsCompl(pRepr->Value) ^ pObj->fPhase ^ pRepr->fPhase;
    status = Cec2_ManSolveTwo( p, Abc_Lit2Var(pRepr->Value), Abc_Lit2Var(pObj->Value), fCompl );
    if ( status == SATOKO_SAT )
    {
        p->nSatSat++;
        p->nPatterns++;
        p->pAig->iPatsPi = (p->pAig->iPatsPi == 64 * p->pAig->nSimWords - 1) ? 1 : p->pAig->iPatsPi + 1;
        assert( p->pAig->iPatsPi > 0 && p->pAig->iPatsPi < 64 * p->pAig->nSimWords );
        Vec_IntForEachEntryDouble( p->vObjSatPairs, IdAig, IdSat, i )
            Cec2_ObjSimSetInputBit( p->pAig, IdAig, satoko_var_polarity(p->pSat, IdSat) == SATOKO_LIT_TRUE );
        p->timeSatSat += Abc_Clock() - clk;
        RetValue = 0;
    }
    else if ( status == SATOKO_UNSAT )
    {
        p->nSatUnsat++;
        pObj->Value = Abc_LitNotCond( pRepr->Value, fCompl );
        Gia_ObjSetProved( p->pAig, iObj );
        p->timeSatUnsat += Abc_Clock() - clk;
        RetValue = 1;
    }
    else
    {
        p->nSatUndec++;
        assert( status == SATOKO_UNDEC );
        Gia_ObjSetFailed( p->pAig, iObj );
        p->timeSatUndec += Abc_Clock() - clk;
        RetValue = 2;
    }
    if ( p->pPars->fUseCones )
        return RetValue;
    clk = Abc_Clock();
    satoko_rollback( p->pSat );
    p->timeExtra += Abc_Clock() - clk;
    satoko_stats(p->pSat)->n_conflicts = 0;
    return RetValue;
}

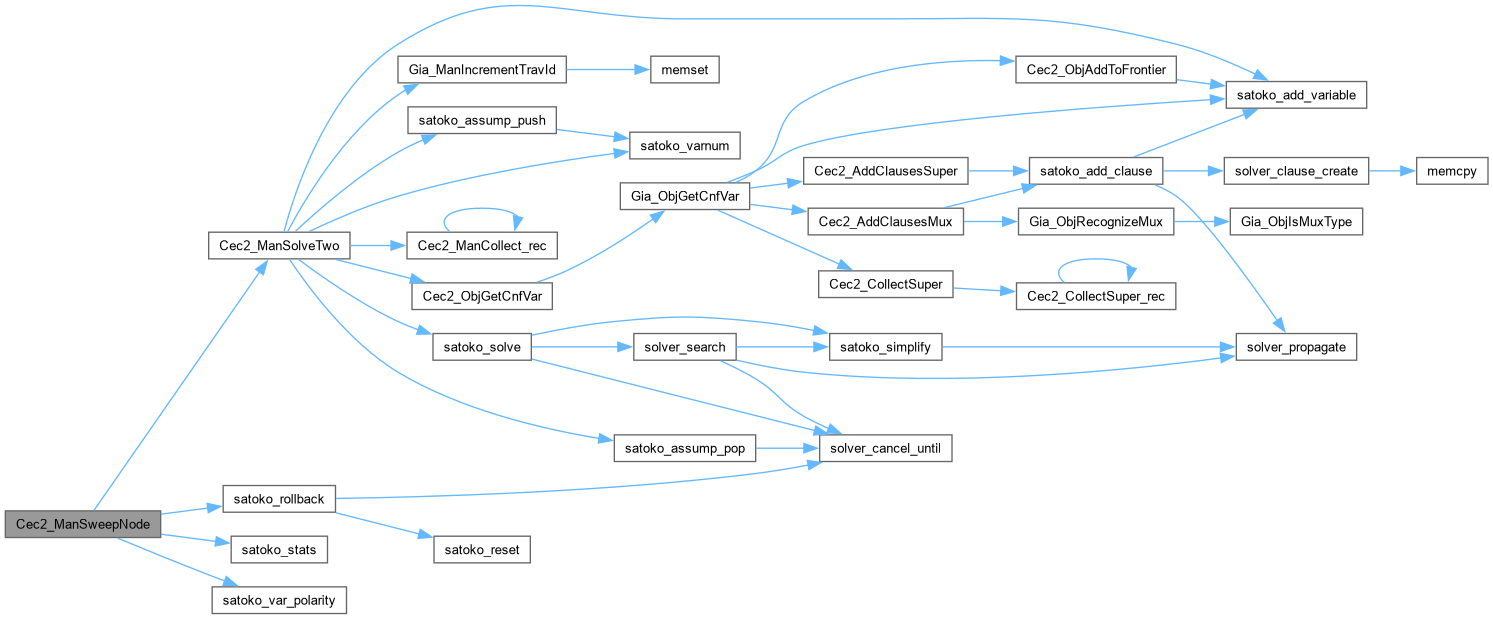

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ManVerify()

void Cec2_ManVerify	(	Gia_Man_t *	p,
		int	iObj0,
		int	iObj1,
		int	fPhase,
		satoko_t *	pSat )

Definition at line 771 of file cecSat.c.

{
    int Value0, Value1;
    Gia_ManIncrementTravId( p );
    Value0 = Cec2_ManVerify_rec( p, iObj0, pSat );
    Value1 = Cec2_ManVerify_rec( p, iObj1, pSat );
    if ( (Value0 ^ Value1) == fPhase )
        printf( "CEX verification FAILED for obj %d and obj %d.\n", iObj0, iObj1 );
//    else
//        printf( "CEX verification succeeded for obj %d and obj %d.\n", iObj0, iObj1 );;
}

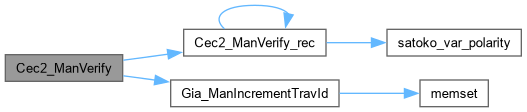

Here is the call graph for this function:

Cec2_ManVerify_rec()

int Cec2_ManVerify_rec	(	Gia_Man_t *	p,
		int	iObj,
		satoko_t *	pSat )

Function*************************************************************

Synopsis [Verify counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 756 of file cecSat.c.

{
    int Value0, Value1;
    Gia_Obj_t * pObj = Gia_ManObj( p, iObj );
    if ( iObj == 0 ) return 0;
    if ( Gia_ObjIsTravIdCurrentId(p, iObj) )
        return pObj->fMark1;
    Gia_ObjSetTravIdCurrentId(p, iObj);
    if ( Gia_ObjIsCi(pObj) )
        return pObj->fMark1 = satoko_var_polarity(pSat, Cec2_ObjSatId(p, pObj)) == SATOKO_LIT_TRUE;
    assert( Gia_ObjIsAnd(pObj) );
    Value0 = Cec2_ManVerify_rec( p, Gia_ObjFaninId0(pObj, iObj), pSat ) ^ Gia_ObjFaninC0(pObj);
    Value1 = Cec2_ManVerify_rec( p, Gia_ObjFaninId1(pObj, iObj), pSat ) ^ Gia_ObjFaninC1(pObj);
    return pObj->fMark1 = Value0 & Value1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ObjAddToFrontier()

void Cec2_ObjAddToFrontier	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj,
		Vec_Ptr_t *	vFrontier,
		satoko_t *	pSat )

Definition at line 302 of file cecSat.c.

{
    int iVar;
    assert( !Gia_IsComplement(pObj) );
    assert( !Gia_ObjIsConst0(pObj) );
    if ( Cec2_ObjSatId(p, pObj) >= 0 )
        return;
    assert( Cec2_ObjSatId(p, pObj) == -1 );
    iVar = satoko_add_variable(pSat, 0);
    if ( p->vVar2Obj )
    {
        assert( Vec_IntSize(p->vVar2Obj) == iVar );
        Vec_IntPush( p->vVar2Obj, Gia_ObjId(p, pObj) );
    }
    Cec2_ObjSetSatId( p, pObj, iVar );
    if ( Gia_ObjIsAnd(pObj) )
        Vec_PtrPush( vFrontier, pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_ObjGetCnfVar()

int Cec2_ObjGetCnfVar	(	Cec2_Man_t *	p,
		int	iObj )

Definition at line 373 of file cecSat.c.

{
    return Gia_ObjGetCnfVar( p->pNew, iObj, p->vFrontier, p->vFanins, p->pSat );
}

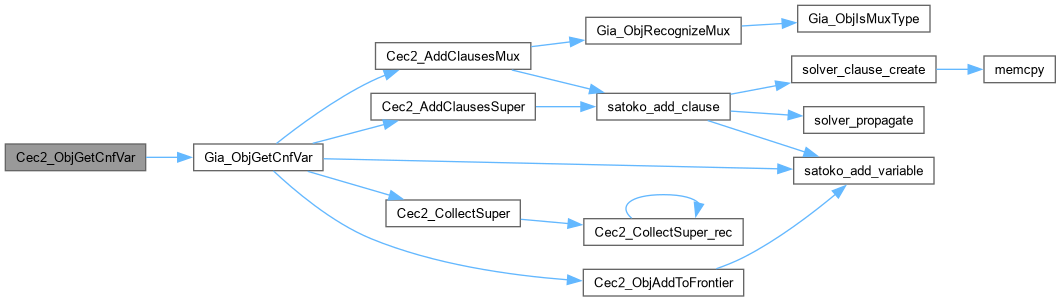

Here is the call graph for this function:

Here is the caller graph for this function:

Cec2_SetDefaultParams()

void Cec2_SetDefaultParams

(

Cec2_Par_t *

p

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Sets parameter defaults.]

Description []

SideEffects []

SeeAlso []

Definition at line 95 of file cecSat.c.

{
    memset( p, 0, sizeof(Cec2_Par_t) );
    p->nSimWords      =      12;    // simulation words
    p->nSimRounds     =       4;    // simulation rounds
    p->nItersMax      =      10;    // max number of iterations
    p->nConfLimit     =    1000;    // conflict limit at a node
    p->fIsMiter       =       0;    // this is a miter
    p->fUseCones      =       1;    // use logic cones
    p->fVeryVerbose   =       0;    // verbose stats
    p->fVerbose       =       0;    // verbose stats
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ObjGetCnfVar()

int Gia_ObjGetCnfVar	(	Gia_Man_t *	pGia,
		int	iObj,
		Vec_Ptr_t *	vFrontier,
		Vec_Ptr_t *	vFanins,
		satoko_t *	pSat )

Definition at line 320 of file cecSat.c.

{
    Gia_Obj_t * pNode, * pFanin;
    Gia_Obj_t * pObj = Gia_ManObj(pGia, iObj);
    int i, k, fUseMuxes = 1;
    if ( Vec_IntSize(&pGia->vCopies2) < Gia_ManObjNum(pGia) )
        Vec_IntFillExtra( &pGia->vCopies2, Gia_ManObjNum(pGia), -1 );
    // quit if CNF is ready
    if ( Cec2_ObjSatId(pGia,pObj) >= 0 )
        return Cec2_ObjSatId(pGia,pObj);
    assert( iObj > 0 );
    if ( Gia_ObjIsCi(pObj) )
    {
        int iVar = satoko_add_variable(pSat, 0);
        if ( pGia->vVar2Obj )
        {
            assert( Vec_IntSize(pGia->vVar2Obj) == iVar );
            Vec_IntPush( pGia->vVar2Obj, iObj );
        }
        return Cec2_ObjSetSatId( pGia, pObj, iVar );
    }
    assert( Gia_ObjIsAnd(pObj) );
    // start the frontier
    Vec_PtrClear( vFrontier );
    Cec2_ObjAddToFrontier( pGia, pObj, vFrontier, pSat );
    // explore nodes in the frontier
    Vec_PtrForEachEntry( Gia_Obj_t *, vFrontier, pNode, i )
    {
        // create the supergate
        assert( Cec2_ObjSatId(pGia,pNode) >= 0 );
        if ( fUseMuxes && pNode->fMark0 )
        {
            Vec_PtrClear( vFanins );
            Vec_PtrPushUnique( vFanins, Gia_ObjFanin0( Gia_ObjFanin0(pNode) ) );
            Vec_PtrPushUnique( vFanins, Gia_ObjFanin0( Gia_ObjFanin1(pNode) ) );
            Vec_PtrPushUnique( vFanins, Gia_ObjFanin1( Gia_ObjFanin0(pNode) ) );
            Vec_PtrPushUnique( vFanins, Gia_ObjFanin1( Gia_ObjFanin1(pNode) ) );
            Vec_PtrForEachEntry( Gia_Obj_t *, vFanins, pFanin, k )
                Cec2_ObjAddToFrontier( pGia, Gia_Regular(pFanin), vFrontier, pSat );
            Cec2_AddClausesMux( pGia, pNode, pSat );
        }
        else
        {
            Cec2_CollectSuper( pGia, pNode, fUseMuxes, vFanins );
            Vec_PtrForEachEntry( Gia_Obj_t *, vFanins, pFanin, k )
                Cec2_ObjAddToFrontier( pGia, Gia_Regular(pFanin), vFrontier, pSat );
            Cec2_AddClausesSuper( pGia, pNode, vFanins, pSat );
            //printf( "%d ", Vec_PtrSize(vFanins) );
        }
        assert( Vec_PtrSize(vFanins) > 1 );
    }
    return Cec2_ObjSatId(pGia,pObj);
}

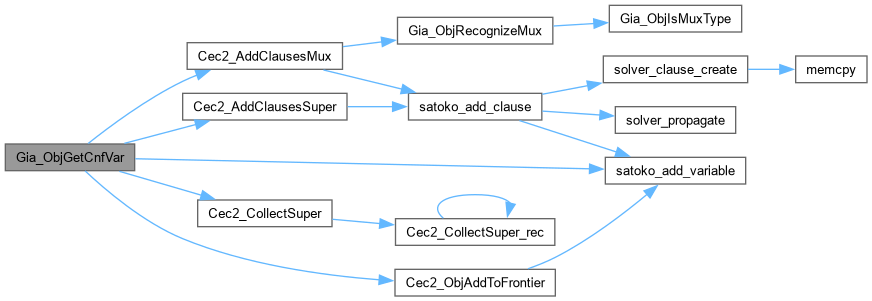

Here is the call graph for this function:

Here is the caller graph for this function:
