cgtSat.c File Reference

#include "cgtInt.h"

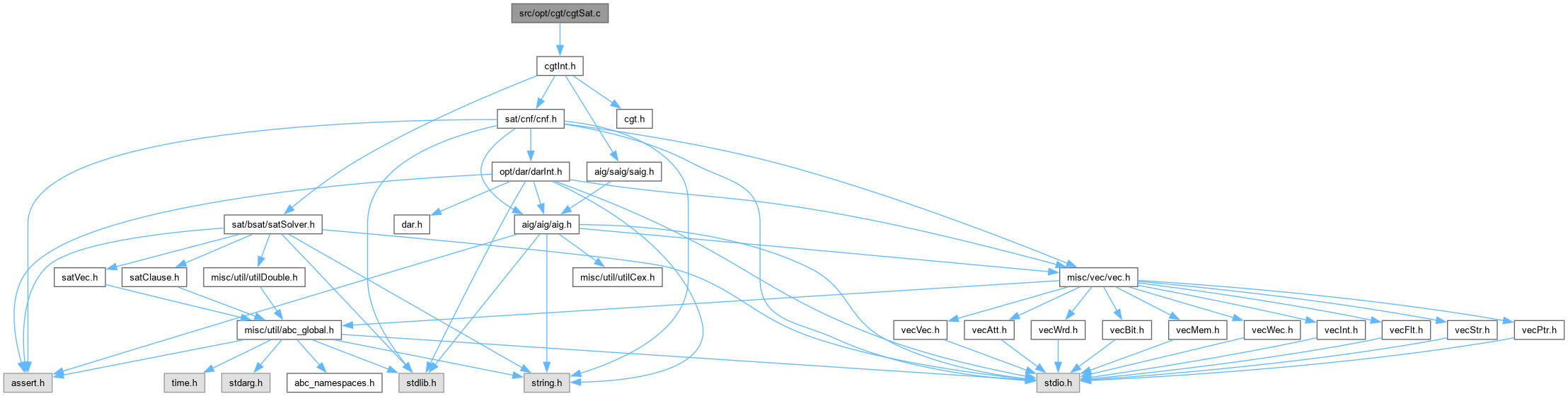

Include dependency graph for cgtSat.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Cgt_CheckImplication (Cgt_Man_t *p, Aig_Obj_t *pGate, Aig_Obj_t *pMiter)
	DECLARATIONS ///.

Function Documentation

Cgt_CheckImplication()

ABC_NAMESPACE_IMPL_START int Cgt_CheckImplication	(	Cgt_Man_t *	p,
		Aig_Obj_t *	pGate,
		Aig_Obj_t *	pMiter )

DECLARATIONS ///.

CFile****************************************************************

FileName [cgtSat.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Clock gating package.]

Synopsis [Checking implications using SAT.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cgtSat.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Runs equivalence test for the two nodes.]

Description [Both nodes should be regular and different from each other.]

SideEffects []

SeeAlso []

Definition at line 46 of file cgtSat.c.

{
    int nBTLimit = p->pPars->nConfMax;
    int pLits[2], RetValue;
    abctime clk;
    p->nCalls++;

    // sanity checks
    assert( p->pSat && p->pCnf );
    assert( !Aig_IsComplement(pMiter) );
    assert( Aig_Regular(pGate) != pMiter );

    // solve under assumptions
    // G => !M -- true     G & M -- false
    pLits[0] = toLitCond( p->pCnf->pVarNums[Aig_Regular(pGate)->Id], Aig_IsComplement(pGate) );
    pLits[1] = toLitCond( p->pCnf->pVarNums[pMiter->Id], 0 );

clk = Abc_Clock();
    RetValue = sat_solver_solve( p->pSat, pLits, pLits + 2, (ABC_INT64_T)nBTLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
p->timeSat += Abc_Clock() - clk;
    if ( RetValue == l_False )
    {
p->timeSatUnsat += Abc_Clock() - clk;
        pLits[0] = lit_neg( pLits[0] );
        pLits[1] = lit_neg( pLits[1] );
        RetValue = sat_solver_addclause( p->pSat, pLits, pLits + 2 );
        assert( RetValue );
        sat_solver_compress( p->pSat );
        p->nCallsUnsat++;
        return 1;
    }
    else if ( RetValue == l_True )
    {
p->timeSatSat += Abc_Clock() - clk;
        p->nCallsSat++;
        return 0;
    }
    else // if ( RetValue1 == l_Undef )
    {
p->timeSatUndec += Abc_Clock() - clk;
        p->nCallsUndec++;
        return -1;
    }
    return -2;
}

Here is the caller graph for this function:
