csat_apis.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_CSAT_Target_ResultT

Macros
#define	_ABC_GATE_TYPE_
#define	_ABC_STATUS_
#define	_ABC_CALLER_
#define	_ABC_OPTION_
#define	_ABC_Target_Result

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct ABC_ManagerStruct_t	ABC_Manager_t
	INCLUDES ///.
typedef struct ABC_ManagerStruct_t *	ABC_Manager
typedef struct _CSAT_Target_ResultT	CSAT_Target_ResultT

Enumerations
enum	GateType {   CSAT_CONST = 0 , CSAT_BPI , CSAT_BPPI , CSAT_BAND ,   CSAT_BNAND , CSAT_BOR , CSAT_BNOR , CSAT_BXOR ,   CSAT_BXNOR , CSAT_BINV , CSAT_BBUF , CSAT_BMUX ,   CSAT_BDFF , CSAT_BSDFF , CSAT_BTRIH , CSAT_BTRIL ,   CSAT_BBUS , CSAT_BPPO , CSAT_BPO , CSAT_BCNF ,   CSAT_BDC }
enum	CSAT_StatusT {   UNDETERMINED = 0 , UNSATISFIABLE , SATISFIABLE , TIME_OUT ,   FRAME_OUT , NO_TARGET , ABORTED , SEQ_SATISFIABLE }
enum	CSAT_CallerT { BLS = 0 , SATORI , NONE }
enum	CSAT_OptionT { BASE_LINE = 0 , IMPLICT_LEARNING , EXPLICT_LEARNING }

Functions

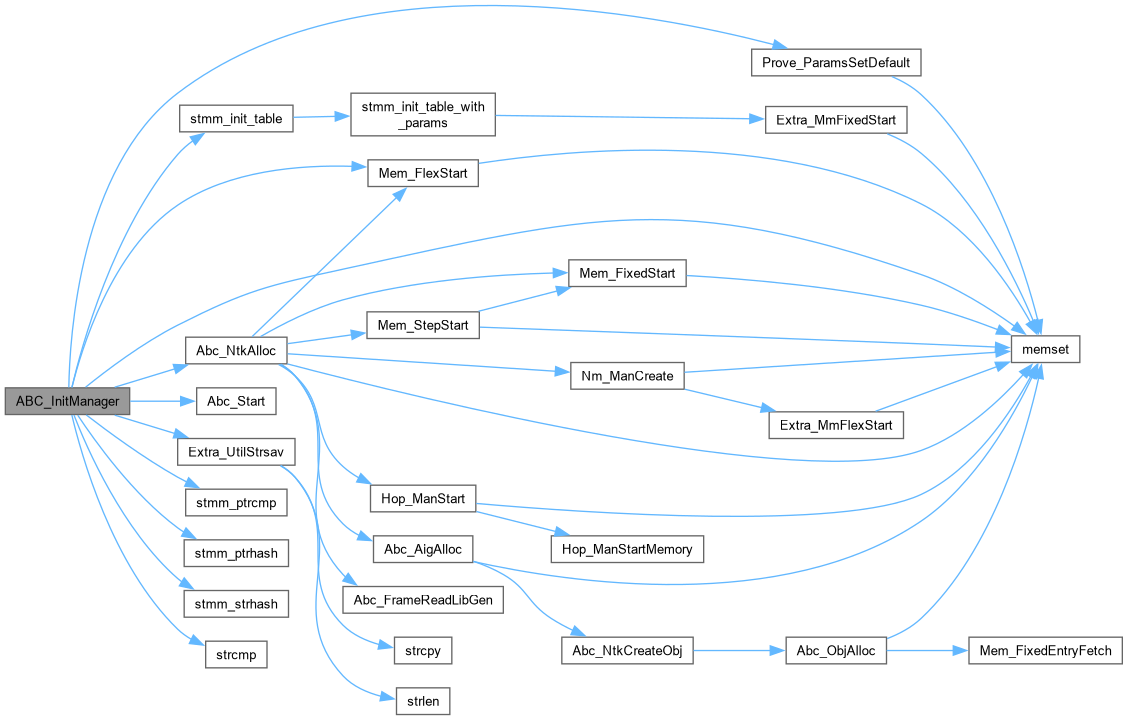

ABC_Manager	ABC_InitManager (void)
	FUNCTION DEFINITIONS ///.

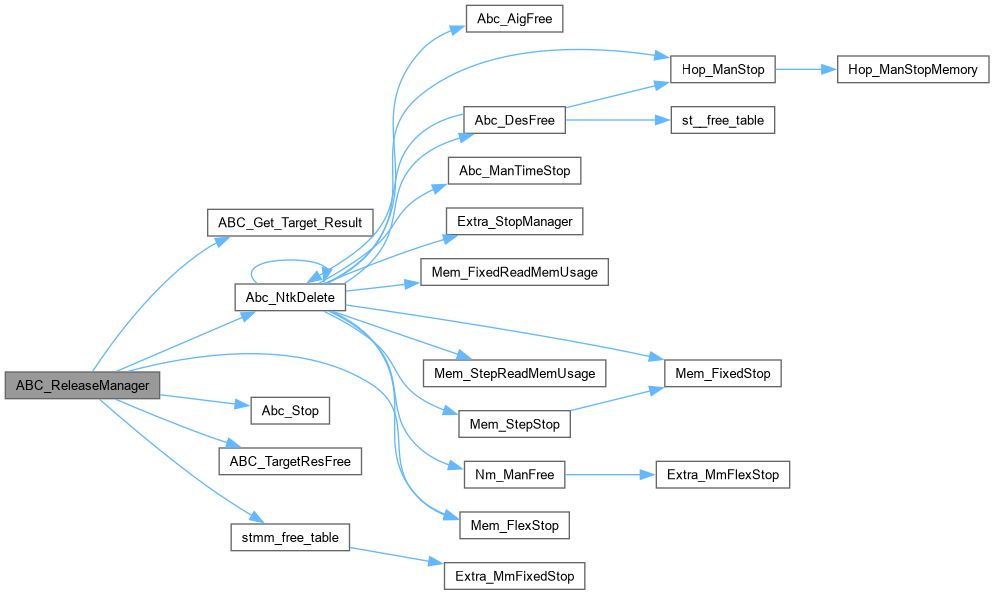

void	ABC_ReleaseManager (ABC_Manager mng)
void	ABC_SetSolveOption (ABC_Manager mng, enum CSAT_OptionT option)
void	ABC_UseOnlyCoreSatSolver (ABC_Manager mng)
int	ABC_AddGate (ABC_Manager mng, enum GateType type, char *name, int nofi, char **fanins, int dc_attr)
int	ABC_Check_Integrity (ABC_Manager mng)

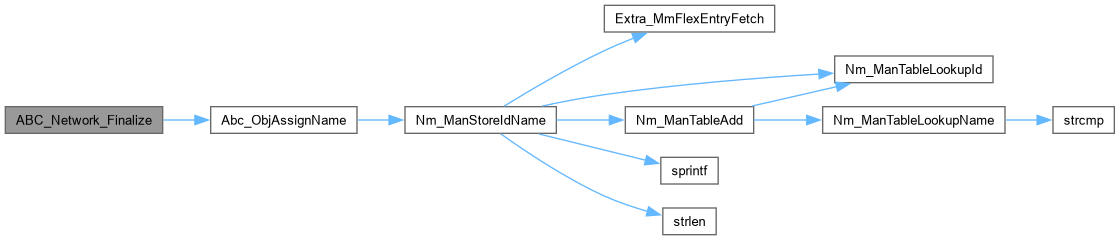

void	ABC_Network_Finalize (ABC_Manager mng)
void	ABC_SetTimeLimit (ABC_Manager mng, int runtime)
void	ABC_SetLearnLimit (ABC_Manager mng, int num)
void	ABC_SetSolveBacktrackLimit (ABC_Manager mng, int num)
void	ABC_SetLearnBacktrackLimit (ABC_Manager mng, int num)
void	ABC_EnableDump (ABC_Manager mng, char *dump_file)
void	ABC_SetTotalBacktrackLimit (ABC_Manager mng, ABC_UINT64_T num)
void	ABC_SetTotalInspectLimit (ABC_Manager mng, ABC_UINT64_T num)
ABC_UINT64_T	ABC_GetTotalBacktracksMade (ABC_Manager mng)
ABC_UINT64_T	ABC_GetTotalInspectsMade (ABC_Manager mng)
int	ABC_AddTarget (ABC_Manager mng, int nog, char **names, int *values)

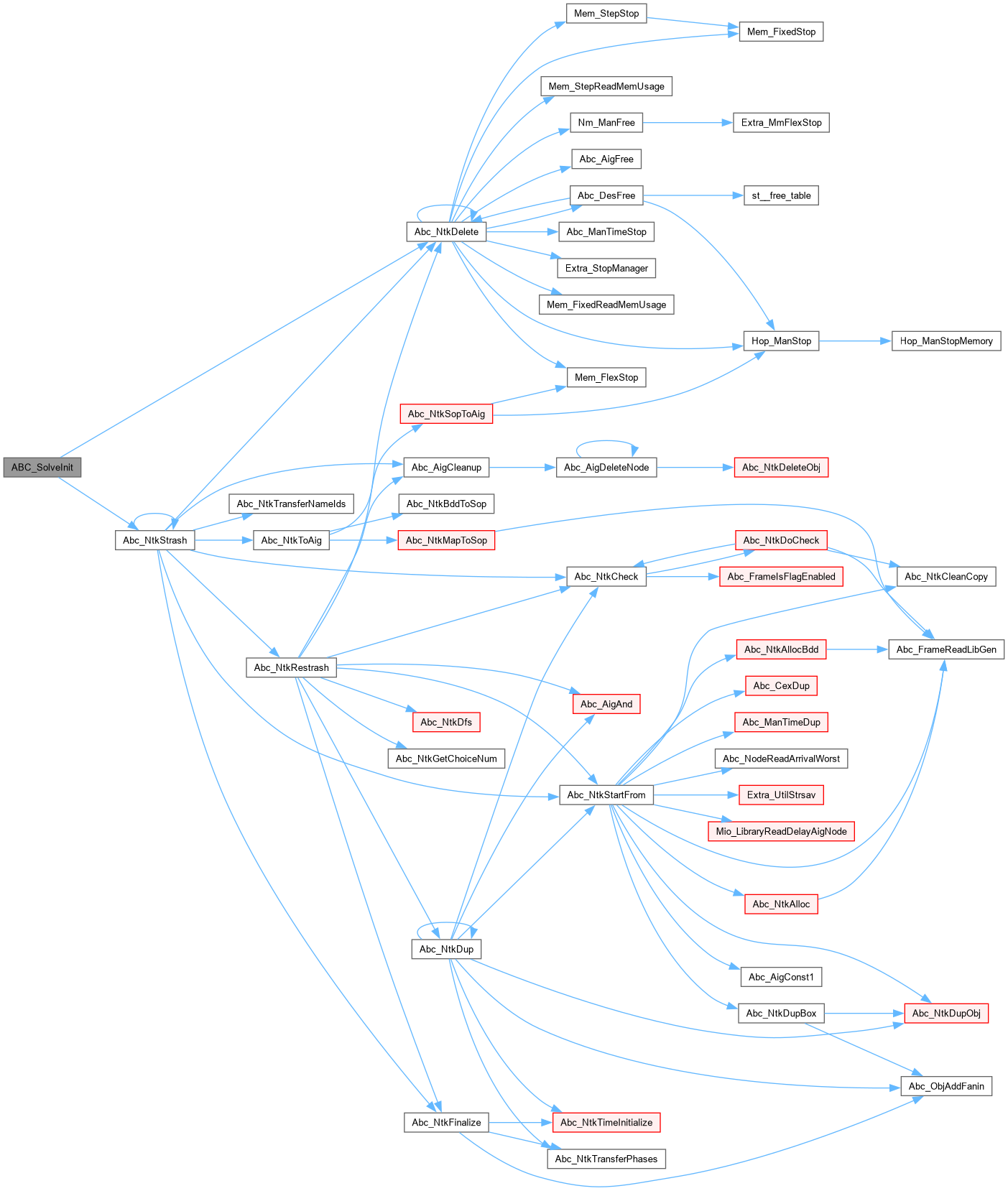

void	ABC_SolveInit (ABC_Manager mng)
void	ABC_AnalyzeTargets (ABC_Manager mng)

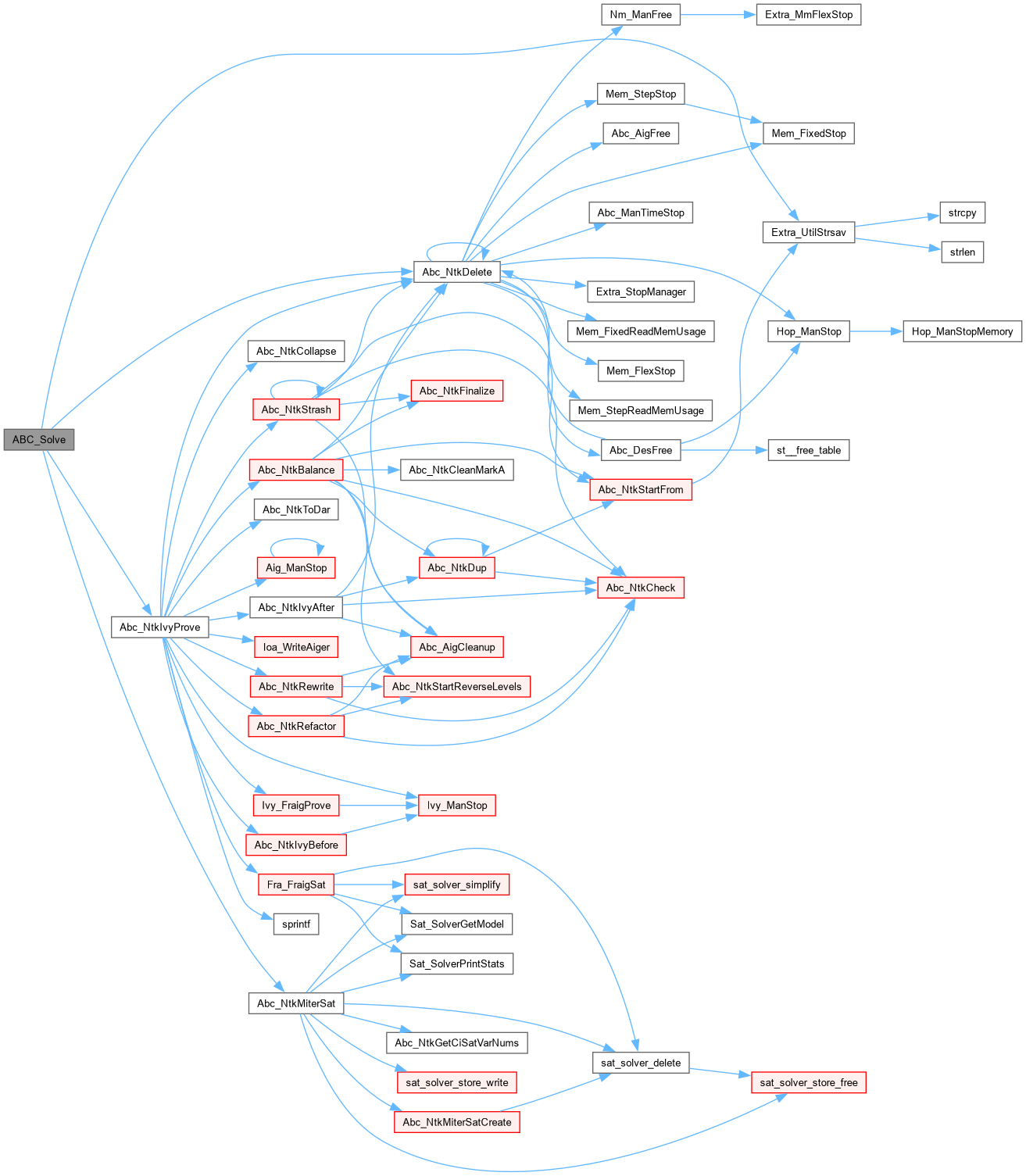

enum CSAT_StatusT	ABC_Solve (ABC_Manager mng)
CSAT_Target_ResultT *	ABC_Get_Target_Result (ABC_Manager mng, int TargetID)

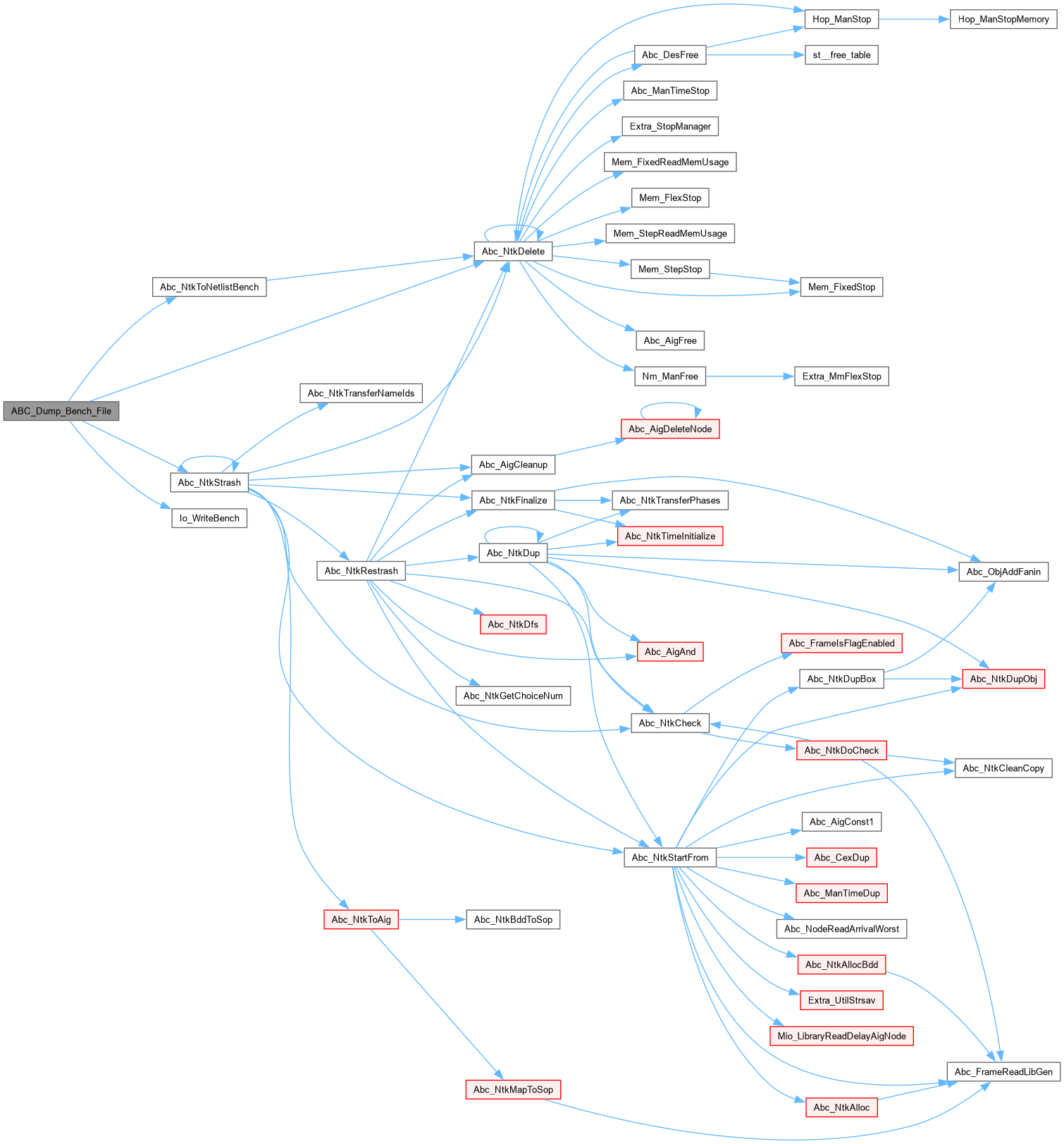

void	ABC_Dump_Bench_File (ABC_Manager mng)
void	ABC_TargetResFree (CSAT_Target_ResultT *p)
void	CSAT_SetCaller (ABC_Manager mng, enum CSAT_CallerT caller)

Macro Definition Documentation

_ABC_CALLER_

#define _ABC_CALLER_

Definition at line 95 of file csat_apis.h.

_ABC_GATE_TYPE_

#define _ABC_GATE_TYPE_

Definition at line 48 of file csat_apis.h.

_ABC_OPTION_

#define _ABC_OPTION_

Definition at line 108 of file csat_apis.h.

_ABC_STATUS_

#define _ABC_STATUS_

Definition at line 78 of file csat_apis.h.

_ABC_Target_Result

#define _ABC_Target_Result

Definition at line 119 of file csat_apis.h.

Typedef Documentation

ABC_Manager

typedef struct ABC_ManagerStruct_t* ABC_Manager

Definition at line 42 of file csat_apis.h.

ABC_Manager_t

typedef typedefABC_NAMESPACE_HEADER_START struct ABC_ManagerStruct_t ABC_Manager_t

INCLUDES ///.

CFile****************************************************************

FileName [csat_apis.h]

PackageName [Interface to CSAT.]

Synopsis [APIs, enums, and data structures expected from the use of CSAT.]

Author [Alan Mishchenko alanm.nosp@m.i@ee.nosp@m.cs.be.nosp@m.rkel.nosp@m.ey.ed.nosp@m.u]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - August 28, 2005]

Revision [

Id

csat_apis.h,v 1.5 2005/12/30 10:54:40 rmukherj Exp

] PARAMETERS /// STRUCTURE DEFINITIONS ///

Definition at line 41 of file csat_apis.h.

CSAT_Target_ResultT

typedef struct _CSAT_Target_ResultT CSAT_Target_ResultT

Definition at line 120 of file csat_apis.h.

Enumeration Type Documentation

CSAT_CallerT

enum CSAT_CallerT

Enumerator
BLS
SATORI
NONE

Definition at line 96 of file csat_apis.h.

{
    BLS = 0,
    SATORI,
    NONE
};

CSAT_OptionT

enum CSAT_OptionT

Enumerator
BASE_LINE
IMPLICT_LEARNING
EXPLICT_LEARNING

Definition at line 109 of file csat_apis.h.

{
    BASE_LINE = 0,
    IMPLICT_LEARNING, //default
    EXPLICT_LEARNING
};

CSAT_StatusT

enum CSAT_StatusT

Enumerator
UNDETERMINED
UNSATISFIABLE
SATISFIABLE
TIME_OUT
FRAME_OUT
NO_TARGET
ABORTED
SEQ_SATISFIABLE

Definition at line 79 of file csat_apis.h.

{
    UNDETERMINED = 0,
    UNSATISFIABLE,
    SATISFIABLE,
    TIME_OUT,
    FRAME_OUT,
    NO_TARGET,
    ABORTED,
    SEQ_SATISFIABLE
};

GateType

enum GateType

Enumerator
CSAT_CONST
CSAT_BPI
CSAT_BPPI
CSAT_BAND
CSAT_BNAND
CSAT_BOR
CSAT_BNOR
CSAT_BXOR
CSAT_BXNOR
CSAT_BINV
CSAT_BBUF
CSAT_BMUX
CSAT_BDFF
CSAT_BSDFF
CSAT_BTRIH
CSAT_BTRIL
CSAT_BBUS
CSAT_BPPO
CSAT_BPO
CSAT_BCNF
CSAT_BDC

Definition at line 49 of file csat_apis.h.

{
    CSAT_CONST = 0,  // constant gate
    CSAT_BPI,    // boolean PI
    CSAT_BPPI,   // bit level PSEUDO PRIMARY INPUT
    CSAT_BAND,   // bit level AND
    CSAT_BNAND,  // bit level NAND
    CSAT_BOR,    // bit level OR
    CSAT_BNOR,   // bit level NOR
    CSAT_BXOR,   // bit level XOR
    CSAT_BXNOR,  // bit level XNOR
    CSAT_BINV,   // bit level INVERTER
    CSAT_BBUF,   // bit level BUFFER
    CSAT_BMUX,   // bit level MUX --not supported
    CSAT_BDFF,   // bit level D-type FF
    CSAT_BSDFF,  // bit level scan FF --not supported
    CSAT_BTRIH,  // bit level TRISTATE gate with active high control --not supported
    CSAT_BTRIL,  // bit level TRISTATE gate with active low control --not supported
    CSAT_BBUS,   // bit level BUS --not supported
    CSAT_BPPO,   // bit level PSEUDO PRIMARY OUTPUT
    CSAT_BPO,    // boolean PO
    CSAT_BCNF,   // boolean constraint
    CSAT_BDC,    // boolean don't care gate (2 input)
};

Function Documentation

ABC_AddGate()

int ABC_AddGate ( ABC_Manager mng, enum GateType type, char * name, int nofi, char ** fanins, int dc_attr )

extern

Function*************************************************************

Synopsis [Adds a gate to the circuit.]

Description [The meaning of the parameters are: type: the type of the gate to be added name: the name of the gate to be added, name should be unique in a circuit. nofi: number of fanins of the gate to be added; fanins: the name array of fanins of the gate to be added.]

SideEffects []

SeeAlso []

Definition at line 175 of file csat_apis.c.

{
    Abc_Obj_t * pObj = NULL; // Suppress "might be used uninitialized"
    Abc_Obj_t * pFanin;
    char * pSop = NULL; // Suppress "might be used uninitialized"
    char * pNewName;
    int i;

    // save the name in the local memory manager
    pNewName = Mem_FlexEntryFetch( mng->pMmNames, strlen(name) + 1 );
    strcpy( pNewName, name );
    name = pNewName;

    // consider different cases, create the node, and map the node into the name
    switch( type )
    {
    case CSAT_BPI:
    case CSAT_BPPI:
        if ( nofi != 0 )
            { printf( "ABC_AddGate: The PI/PPI gate \"%s\" has fanins.\n", name ); return 0; }
        // create the PI
        pObj = Abc_NtkCreatePi( mng->pNtk );
        stmm_insert( mng->tNode2Name, (char *)pObj, name );
        break;
    case CSAT_CONST:
    case CSAT_BAND:
    case CSAT_BNAND:
    case CSAT_BOR:
    case CSAT_BNOR:
    case CSAT_BXOR:
    case CSAT_BXNOR:
    case CSAT_BINV:
    case CSAT_BBUF:
        // create the node
        pObj = Abc_NtkCreateNode( mng->pNtk );
        // create the fanins
        for ( i = 0; i < nofi; i++ )
        {
            if ( !stmm_lookup( mng->tName2Node, fanins[i], (char **)&pFanin ) )
                { printf( "ABC_AddGate: The fanin gate \"%s\" is not in the network.\n", fanins[i] ); return 0; }
            Abc_ObjAddFanin( pObj, pFanin );
        }
        // create the node function
        switch( type )
        {
            case CSAT_CONST:
                if ( nofi != 0 )
                    { printf( "ABC_AddGate: The constant gate \"%s\" has fanins.\n", name ); return 0; }
                pSop = Abc_SopCreateConst1( (Mem_Flex_t *)mng->pNtk->pManFunc );
                break;
            case CSAT_BAND:
                if ( nofi < 1 )
                    { printf( "ABC_AddGate: The AND gate \"%s\" no fanins.\n", name ); return 0; }
                pSop = Abc_SopCreateAnd( (Mem_Flex_t *)mng->pNtk->pManFunc, nofi, NULL );
                break;
            case CSAT_BNAND:
                if ( nofi < 1 )
                    { printf( "ABC_AddGate: The NAND gate \"%s\" no fanins.\n", name ); return 0; }
                pSop = Abc_SopCreateNand( (Mem_Flex_t *)mng->pNtk->pManFunc, nofi );
                break;
            case CSAT_BOR:
                if ( nofi < 1 )
                    { printf( "ABC_AddGate: The OR gate \"%s\" no fanins.\n", name ); return 0; }
                pSop = Abc_SopCreateOr( (Mem_Flex_t *)mng->pNtk->pManFunc, nofi, NULL );
                break;
            case CSAT_BNOR:
                if ( nofi < 1 )
                    { printf( "ABC_AddGate: The NOR gate \"%s\" no fanins.\n", name ); return 0; }
                pSop = Abc_SopCreateNor( (Mem_Flex_t *)mng->pNtk->pManFunc, nofi );
                break;
            case CSAT_BXOR:
                if ( nofi < 1 )
                    { printf( "ABC_AddGate: The XOR gate \"%s\" no fanins.\n", name ); return 0; }
                if ( nofi > 2 )
                    { printf( "ABC_AddGate: The XOR gate \"%s\" has more than two fanins.\n", name ); return 0; }
                pSop = Abc_SopCreateXor( (Mem_Flex_t *)mng->pNtk->pManFunc, nofi );
                break;
            case CSAT_BXNOR:
                if ( nofi < 1 )
                    { printf( "ABC_AddGate: The XNOR gate \"%s\" no fanins.\n", name ); return 0; }
                if ( nofi > 2 )
                    { printf( "ABC_AddGate: The XNOR gate \"%s\" has more than two fanins.\n", name ); return 0; }
                pSop = Abc_SopCreateNxor( (Mem_Flex_t *)mng->pNtk->pManFunc, nofi );
                break;
            case CSAT_BINV:
                if ( nofi != 1 )
                    { printf( "ABC_AddGate: The inverter gate \"%s\" does not have exactly one fanin.\n", name ); return 0; }
                pSop = Abc_SopCreateInv( (Mem_Flex_t *)mng->pNtk->pManFunc );
                break;
            case CSAT_BBUF:
                if ( nofi != 1 )
                    { printf( "ABC_AddGate: The buffer gate \"%s\" does not have exactly one fanin.\n", name ); return 0; }
                pSop = Abc_SopCreateBuf( (Mem_Flex_t *)mng->pNtk->pManFunc );
                break;
            default :
                break;
        }
        Abc_ObjSetData( pObj, pSop );
        break;
    case CSAT_BPPO:
    case CSAT_BPO:
        if ( nofi != 1 )
            { printf( "ABC_AddGate: The PO/PPO gate \"%s\" does not have exactly one fanin.\n", name ); return 0; }
        // create the PO
        pObj = Abc_NtkCreatePo( mng->pNtk );
        stmm_insert( mng->tNode2Name, (char *)pObj, name );
        // connect to the PO fanin
        if ( !stmm_lookup( mng->tName2Node, fanins[0], (char **)&pFanin ) )
            { printf( "ABC_AddGate: The fanin gate \"%s\" is not in the network.\n", fanins[0] ); return 0; }
        Abc_ObjAddFanin( pObj, pFanin );
        break;
    default:
        printf( "ABC_AddGate: Unknown gate type.\n" );
        break;
    }

    // map the name into the node
    if ( stmm_insert( mng->tName2Node, name, (char *)pObj ) )
        { printf( "ABC_AddGate: The same gate \"%s\" is added twice.\n", name ); return 0; }
    return 1;
}

Here is the call graph for this function:

ABC_AddTarget()

int ABC_AddTarget ( ABC_Manager mng, int nog, char ** names, int * values )

extern

Function*************************************************************

Synopsis [Adds a new target to the manager.]

Description [The meaning of the parameters are: nog: number of gates that are in the targets, names: name array of gates, values: value array of the corresponding gates given in "names" to be solved. The relation of them is AND.]

SideEffects []

SeeAlso []

Definition at line 534 of file csat_apis.c.

{
    Abc_Obj_t * pObj;
    int i;
    if ( nog < 1 )
        { printf( "ABC_AddTarget: The target has no gates.\n" ); return 0; }
    // clear storage for the target
    mng->nog = 0;
    Vec_PtrClear( mng->vNodes );
    Vec_IntClear( mng->vValues );
    // save the target
    for ( i = 0; i < nog; i++ )
    {
        if ( !stmm_lookup( mng->tName2Node, names[i], (char **)&pObj ) )
            { printf( "ABC_AddTarget: The target gate \"%s\" is not in the network.\n", names[i] ); return 0; }
        Vec_PtrPush( mng->vNodes, pObj );
        if ( values[i] < 0 || values[i] > 1 )
            { printf( "ABC_AddTarget: The value of gate \"%s\" is not 0 or 1.\n", names[i] ); return 0; }
        Vec_IntPush( mng->vValues, values[i] );
    }
    mng->nog = nog;
    return 1;
}

Here is the call graph for this function:

ABC_AnalyzeTargets()

void ABC_AnalyzeTargets ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [Currently not implemented.]

Description []

SideEffects []

SeeAlso []

Definition at line 596 of file csat_apis.c.

{
}

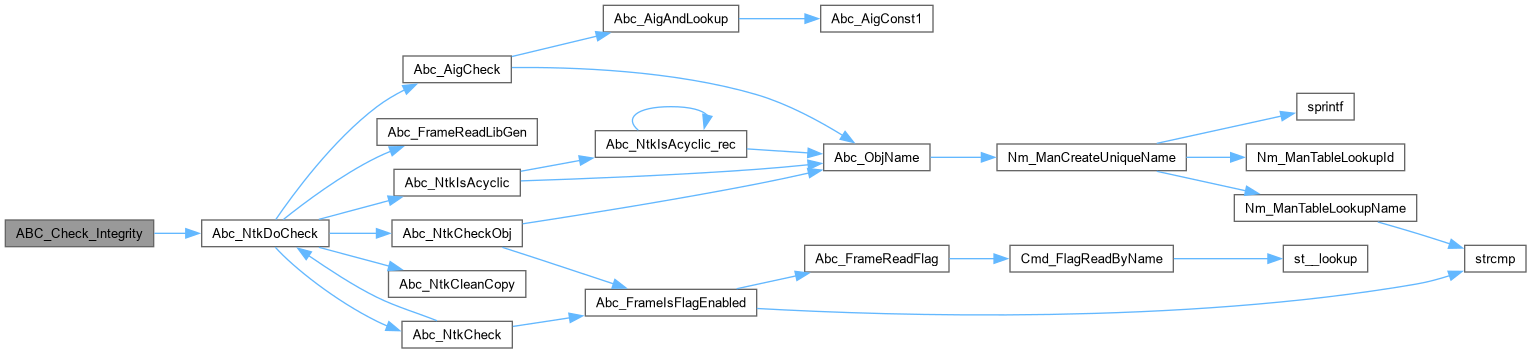

ABC_Check_Integrity()

int ABC_Check_Integrity ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [Checks integraty of the manager.]

Description [Checks if there are gates that are not used by any primary output. If no such gates exist, return 1 else return 0.]

SideEffects []

SeeAlso []

Definition at line 332 of file csat_apis.c.

{
    Abc_Ntk_t * pNtk = mng->pNtk;
    Abc_Obj_t * pObj;
    int i;

    // check that there are no dangling nodes
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        if ( i == 0 )
            continue;
        if ( Abc_ObjFanoutNum(pObj) == 0 )
        {
//            printf( "ABC_Check_Integrity: The network has dangling nodes.\n" );
            return 0;
        }
    }

    // make sure everything is okay with the network structure
    if ( !Abc_NtkDoCheck( pNtk ) )
    {
        printf( "ABC_Check_Integrity: The internal network check has failed.\n" );
        return 0;
    }
    return 1;
}

Here is the call graph for this function:

ABC_Dump_Bench_File()

void ABC_Dump_Bench_File ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [Dumps the original network into the BENCH file.]

Description [This procedure should be modified to dump the target.]

SideEffects []

SeeAlso []

Definition at line 680 of file csat_apis.c.

{
    Abc_Ntk_t * pNtkTemp, * pNtkAig;
    const char * pFileName;

    // derive the netlist
    pNtkAig = Abc_NtkStrash( mng->pNtk, 0, 0, 0 );
    pNtkTemp = Abc_NtkToNetlistBench( pNtkAig );
    Abc_NtkDelete( pNtkAig );
    if ( pNtkTemp == NULL )
        { printf( "ABC_Dump_Bench_File: Dumping BENCH has failed.\n" ); return; }
    pFileName = mng->pDumpFileName? mng->pDumpFileName: "abc_test.bench";
    Io_WriteBench( pNtkTemp, pFileName );
    Abc_NtkDelete( pNtkTemp );
}

Here is the call graph for this function:

ABC_EnableDump()

void ABC_EnableDump ( ABC_Manager mng, char * dump_file )

extern

Function*************************************************************

Synopsis [Sets the file name to dump the structurally hashed network used for solving.]

Description []

SideEffects []

SeeAlso []

Definition at line 513 of file csat_apis.c.

{
    ABC_FREE( mng->pDumpFileName );
    mng->pDumpFileName = Extra_UtilStrsav( dump_file );
}

Here is the call graph for this function:

ABC_Get_Target_Result()

CSAT_Target_ResultT * ABC_Get_Target_Result ( ABC_Manager mng, int TargetID )

extern

Function*************************************************************

Synopsis [Gets the solve status of a target.]

Description [TargetID: the target id returned by ABC_AddTarget().]

SideEffects []

SeeAlso []

Definition at line 664 of file csat_apis.c.

{
    return mng->pResult;
}

Here is the caller graph for this function:

ABC_GetTotalBacktracksMade()

ABC_UINT64_T ABC_GetTotalBacktracksMade ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 481 of file csat_apis.c.

{
    return mng->Params.nTotalBacktracksMade;
}

ABC_GetTotalInspectsMade()

ABC_UINT64_T ABC_GetTotalInspectsMade ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 497 of file csat_apis.c.

{
    return mng->Params.nTotalInspectsMade;
}

ABC_InitManager()

ABC_Manager ABC_InitManager ( void )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Creates a new manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 81 of file csat_apis.c.

{
    ABC_Manager_t * mng;
    Abc_Start();
    mng = ABC_ALLOC( ABC_Manager_t, 1 );
    memset( mng, 0, sizeof(ABC_Manager_t) );
    mng->pNtk = Abc_NtkAlloc( ABC_NTK_LOGIC, ABC_FUNC_SOP, 1 );
    mng->pNtk->pName = Extra_UtilStrsav("csat_network");
    mng->tName2Node = stmm_init_table(strcmp, stmm_strhash);
    mng->tNode2Name = stmm_init_table(stmm_ptrcmp, stmm_ptrhash);
    mng->pMmNames   = Mem_FlexStart();
    mng->vNodes     = Vec_PtrAlloc( 100 );
    mng->vValues    = Vec_IntAlloc( 100 );
    mng->mode       = 0; // set "resource-aware integration" as the default mode
    // set default parameters for CEC
    Prove_ParamsSetDefault( &mng->Params );
    // set infinite resource limit for the final mitering
//    mng->Params.nMiteringLimitLast = ABC_INFINITY;
    return mng;
}

Here is the call graph for this function:

ABC_Network_Finalize()

void ABC_Network_Finalize ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [This procedure also finalizes construction of the ABC network.]

Description []

SideEffects []

SeeAlso []

Definition at line 308 of file csat_apis.c.

{
    Abc_Ntk_t * pNtk = mng->pNtk;
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, ABC_GetNodeName(mng, pObj), NULL );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Abc_ObjAssignName( pObj, ABC_GetNodeName(mng, pObj), NULL );
    assert( Abc_NtkLatchNum(pNtk) == 0 );
}

Here is the call graph for this function:

ABC_ReleaseManager()

void ABC_ReleaseManager ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [Deletes the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 113 of file csat_apis.c.

{
    CSAT_Target_ResultT * p_res = ABC_Get_Target_Result( mng,0 );
    ABC_TargetResFree(p_res);
    if ( mng->tNode2Name ) stmm_free_table( mng->tNode2Name );
    if ( mng->tName2Node ) stmm_free_table( mng->tName2Node );
    if ( mng->pMmNames )   Mem_FlexStop( mng->pMmNames, 0 );
    if ( mng->pNtk )       Abc_NtkDelete( mng->pNtk );
    if ( mng->pTarget )    Abc_NtkDelete( mng->pTarget );
    if ( mng->vNodes )     Vec_PtrFree( mng->vNodes );
    if ( mng->vValues )    Vec_IntFree( mng->vValues );
    ABC_FREE( mng->pDumpFileName );
    ABC_FREE( mng );
    Abc_Stop();
}

Here is the call graph for this function:

ABC_SetLearnBacktrackLimit()

void ABC_SetLearnBacktrackLimit ( ABC_Manager mng, int num )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 402 of file csat_apis.c.

{
//    printf( "ABC_SetLearnBacktrackLimit: The resource limit is not implemented (warning).\n" );
}

ABC_SetLearnLimit()

void ABC_SetLearnLimit ( ABC_Manager mng, int num )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 386 of file csat_apis.c.

{
//    printf( "ABC_SetLearnLimit: The resource limit is not implemented (warning).\n" );
}

ABC_SetSolveBacktrackLimit()

void ABC_SetSolveBacktrackLimit ( ABC_Manager mng, int num )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 418 of file csat_apis.c.

{
    mng->Params.nMiteringLimitLast = num;
}

ABC_SetSolveOption()

void ABC_SetSolveOption ( ABC_Manager mng, enum CSAT_OptionT option )

extern

Function*************************************************************

Synopsis [Sets solver options for learning.]

Description []

SideEffects []

SeeAlso []

Definition at line 140 of file csat_apis.c.

{
}

ABC_SetTimeLimit()

void ABC_SetTimeLimit ( ABC_Manager mng, int runtime )

extern

Function*************************************************************

Synopsis [Sets time limit for solving a target.]

Description [Runtime: time limit (in second).]

SideEffects []

SeeAlso []

Definition at line 370 of file csat_apis.c.

{
//    printf( "ABC_SetTimeLimit: The resource limit is not implemented (warning).\n" );
}

Here is the call graph for this function:

ABC_SetTotalBacktrackLimit()

void ABC_SetTotalBacktrackLimit ( ABC_Manager mng, ABC_UINT64_T num )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 450 of file csat_apis.c.

{
    mng->Params.nTotalBacktrackLimit = num;
}

ABC_SetTotalInspectLimit()

void ABC_SetTotalInspectLimit ( ABC_Manager mng, ABC_UINT64_T num )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 466 of file csat_apis.c.

{
    mng->Params.nTotalInspectLimit = num;
}

ABC_Solve()

enum CSAT_StatusT ABC_Solve ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [Solves the targets added by ABC_AddTarget().]

Description []

SideEffects []

SeeAlso []

Definition at line 611 of file csat_apis.c.

{
    Prove_Params_t * pParams = &mng->Params;
    int RetValue, i;

    // check if the target network is available
    if ( mng->pTarget == NULL )
        { printf( "ABC_Solve: Target network is not derived by ABC_SolveInit().\n" ); return UNDETERMINED; }

    // try to prove the miter using a number of techniques
    if ( mng->mode )
        RetValue = Abc_NtkMiterSat( mng->pTarget, (ABC_INT64_T)pParams->nMiteringLimitLast, (ABC_INT64_T)0, 0, NULL, NULL );
    else
//        RetValue = Abc_NtkMiterProve( &mng->pTarget, pParams ); // old CEC engine
        RetValue = Abc_NtkIvyProve( &mng->pTarget, pParams ); // new CEC engine

    // analyze the result
    mng->pResult = ABC_TargetResAlloc( Abc_NtkCiNum(mng->pTarget) );
    if ( RetValue == -1 )
        mng->pResult->status = UNDETERMINED;
    else if ( RetValue == 1 )
        mng->pResult->status = UNSATISFIABLE;
    else if ( RetValue == 0 )
    {
        mng->pResult->status = SATISFIABLE;
        // create the array of PI names and values
        for ( i = 0; i < mng->pResult->no_sig; i++ )
        {
            mng->pResult->names[i]  = Extra_UtilStrsav( ABC_GetNodeName(mng, Abc_NtkCi(mng->pNtk, i)) );
            mng->pResult->values[i] = mng->pTarget->pModel[i];
        }
        ABC_FREE( mng->pTarget->pModel );
    }
    else assert( 0 );

    // delete the target
    Abc_NtkDelete( mng->pTarget );
    mng->pTarget = NULL;
    // return the status
    return mng->pResult->status;
}

Here is the call graph for this function:

ABC_SolveInit()

void ABC_SolveInit ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [Initialize the solver internal data structure.]

Description [Prepares the solver to work on one specific target set by calling ABC_AddTarget before.]

SideEffects []

SeeAlso []

Definition at line 570 of file csat_apis.c.

{
    // check if the target is available
    assert( mng->nog == Vec_PtrSize(mng->vNodes) );
    if ( mng->nog == 0 )
        { printf( "ABC_SolveInit: Target is not specified by ABC_AddTarget().\n" ); return; }

    // free the previous target network if present
    if ( mng->pTarget ) Abc_NtkDelete( mng->pTarget );

    // set the new target network
//    mng->pTarget = Abc_NtkCreateTarget( mng->pNtk, mng->vNodes, mng->vValues );
    mng->pTarget = Abc_NtkStrash( mng->pNtk, 0, 1, 0 );
}

Here is the call graph for this function:

ABC_TargetResFree()

void ABC_TargetResFree ( CSAT_Target_ResultT * p )

extern

Function*************************************************************

Synopsis [Deallocates the target result.]

Description []

SideEffects []

SeeAlso []

Definition at line 733 of file csat_apis.c.

{
    if ( p == NULL )
        return;
    if( p->names )
    {
        int i = 0;
        for ( i = 0; i < p->no_sig; i++ )
        {
            ABC_FREE(p->names[i]);
        }
    }
    ABC_FREE( p->names );
    ABC_FREE( p->values );
    ABC_FREE( p );
}

Here is the caller graph for this function:

ABC_UseOnlyCoreSatSolver()

void ABC_UseOnlyCoreSatSolver ( ABC_Manager mng )

extern

Function*************************************************************

Synopsis [Sets solving mode by brute-force SAT.]

Description []

SideEffects []

SeeAlso []

Definition at line 155 of file csat_apis.c.

{
    mng->mode = 1;  // switch to "brute-force SAT" as the solving option
}

CSAT_SetCaller()

void CSAT_SetCaller ( ABC_Manager mng, enum CSAT_CallerT caller )

extern
