darCore.c File Reference

#include "darInt.h"

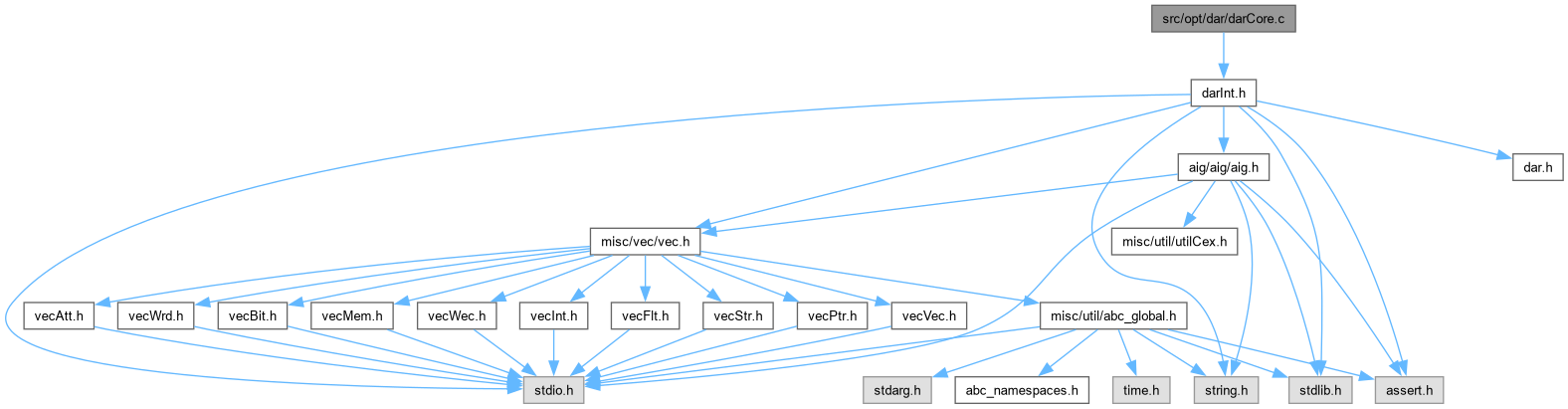

Include dependency graph for darCore.c:

Go to the source code of this file.

Macros
#define	Aig_ManForEachNodeInOrder(p, pObj)
	DECLARATIONS ///.
#define	MAX_VAL   10

Functions
void	Dar_ManDefaultRwrParams (Dar_RwrPar_t *pPars)
	FUNCTION DEFINITIONS ///.
int	Dar_ManRewrite (Aig_Man_t *pAig, Dar_RwrPar_t *pPars)
int	Dar_ManCutCount (Aig_Man_t *pAig, int *pnCutsK)
Aig_MmFixed_t *	Dar_ManComputeCuts (Aig_Man_t *pAig, int nCutsMax, int fSkipTtMin, int fVerbose)

Macro Definition Documentation

Aig_ManForEachNodeInOrder

#define Aig_ManForEachNodeInOrder	(		p,
			pObj )

Value:

    for ( assert(p->pOrderData), p->iPrev = 0, p->iNext = p->pOrderData[1];     \
          p->iNext && (((pObj) = Aig_ManObj(p, p->iNext)), 1);                  \
          p->iNext = p->pOrderData[2*p->iPrev+1] )

DECLARATIONS ///.

CFile****************************************************************

FileName [darCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [DAG-aware AIG rewriting.]

Synopsis [Core of the rewriting package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

darCore.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

]

Definition at line 31 of file darCore.c.

#define Aig_ManForEachNodeInOrder( p, pObj )                                    \
    for ( assert(p->pOrderData), p->iPrev = 0, p->iNext = p->pOrderData[1];     \
          p->iNext && (((pObj) = Aig_ManObj(p, p->iNext)), 1);                  \
          p->iNext = p->pOrderData[2*p->iPrev+1] )

MAX_VAL

#define MAX_VAL   10

Definition at line 66 of file darCore.c.

Function Documentation

Dar_ManComputeCuts()

Aig_MmFixed_t * Dar_ManComputeCuts	(	Aig_Man_t *	pAig,
		int	nCutsMax,
		int	fSkipTtMin,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 291 of file darCore.c.

{
    Dar_Man_t * p;
    Dar_RwrPar_t Pars, * pPars = &Pars;
    Aig_Obj_t * pObj;
    Aig_MmFixed_t * pMemCuts;
    int i, nNodes;
    abctime clk = Abc_Clock();
    // remove dangling nodes
    if ( (nNodes = Aig_ManCleanup( pAig )) )
    {
//        printf( "Removing %d nodes.\n", nNodes );
    }
    // create default parameters
    Dar_ManDefaultRwrParams( pPars );
    pPars->nCutsMax = nCutsMax;
    // create rewriting manager
    p = Dar_ManStart( pAig, pPars );
    // set elementary cuts for the PIs
//    Dar_ManCutsStart( p );
    Aig_MmFixedRestart( p->pMemCuts );
    Dar_ObjPrepareCuts( p, Aig_ManConst1(p->pAig) );
    Aig_ManForEachCi( pAig, pObj, i )
        Dar_ObjPrepareCuts( p, pObj );
    // compute cuts for each nodes in the topological order
    Aig_ManForEachNode( pAig, pObj, i )
        Dar_ObjComputeCuts( p, pObj, fSkipTtMin );
    // print verbose stats
    if ( fVerbose )
    {
//        Aig_Obj_t * pObj;
        int nCuts, nCutsK;//, i;
        nCuts = Dar_ManCutCount( pAig, &nCutsK );
        printf( "Nodes = %6d. Total cuts = %6d. 4-input cuts = %6d.\n",
            Aig_ManObjNum(pAig), nCuts, nCutsK );
        printf( "Cut size = %2d. Truth size = %2d. Total mem = %5.2f MB  ",
            (int)sizeof(Dar_Cut_t), (int)4, 1.0*Aig_MmFixedReadMemUsage(p->pMemCuts)/(1<<20) );
        ABC_PRT( "Runtime", Abc_Clock() - clk );
/*
        Aig_ManForEachNode( pAig, pObj, i )
            if ( i % 300 == 0 )
                Dar_ObjCutPrint( pAig, pObj );
*/
    }
    // free the cuts
    pMemCuts = p->pMemCuts;
    p->pMemCuts = NULL;
//    Dar_ManCutsFree( p );
    // stop the rewriting manager
    Dar_ManStop( p );
    return pMemCuts;
}

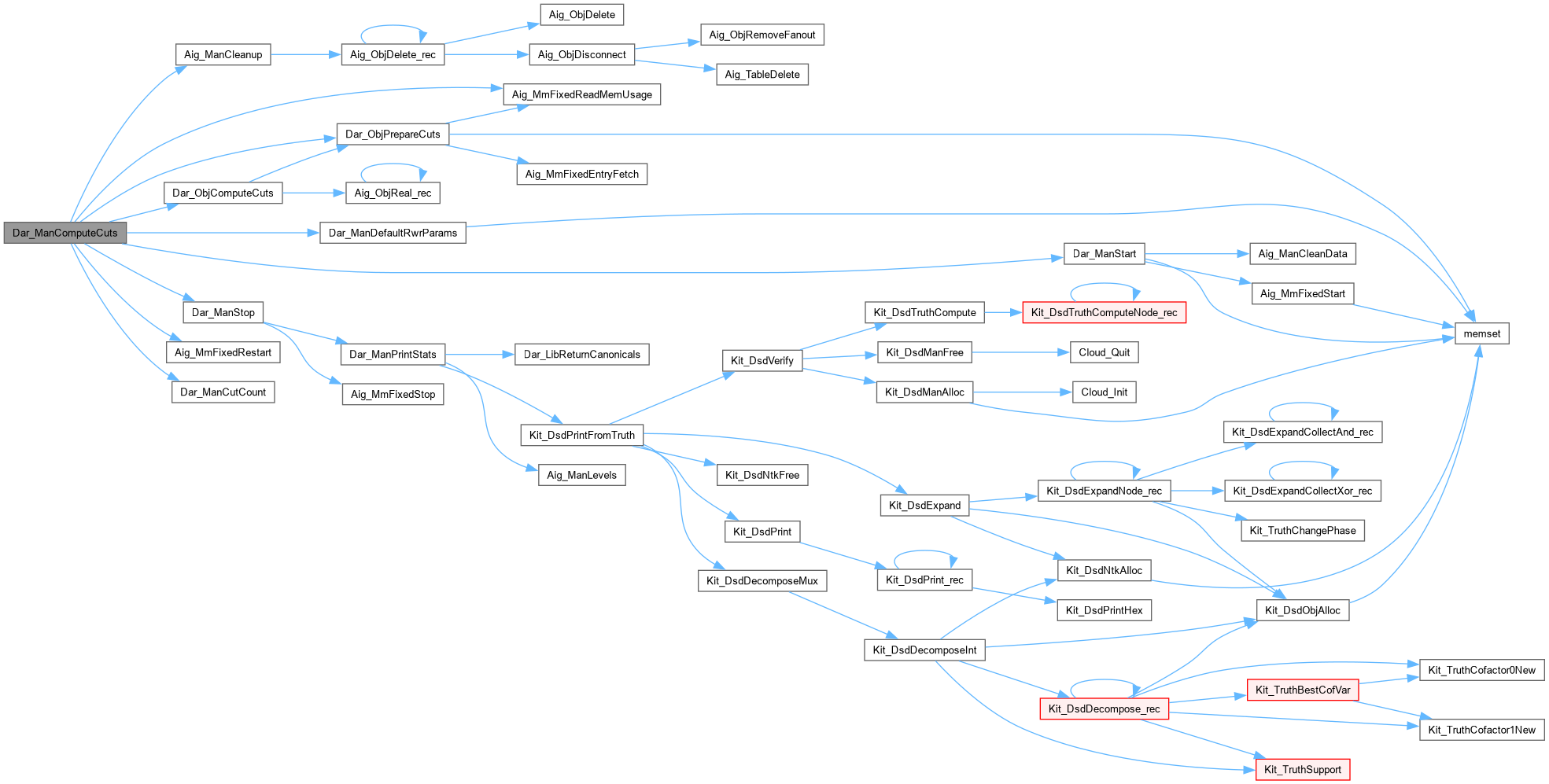

Here is the call graph for this function:

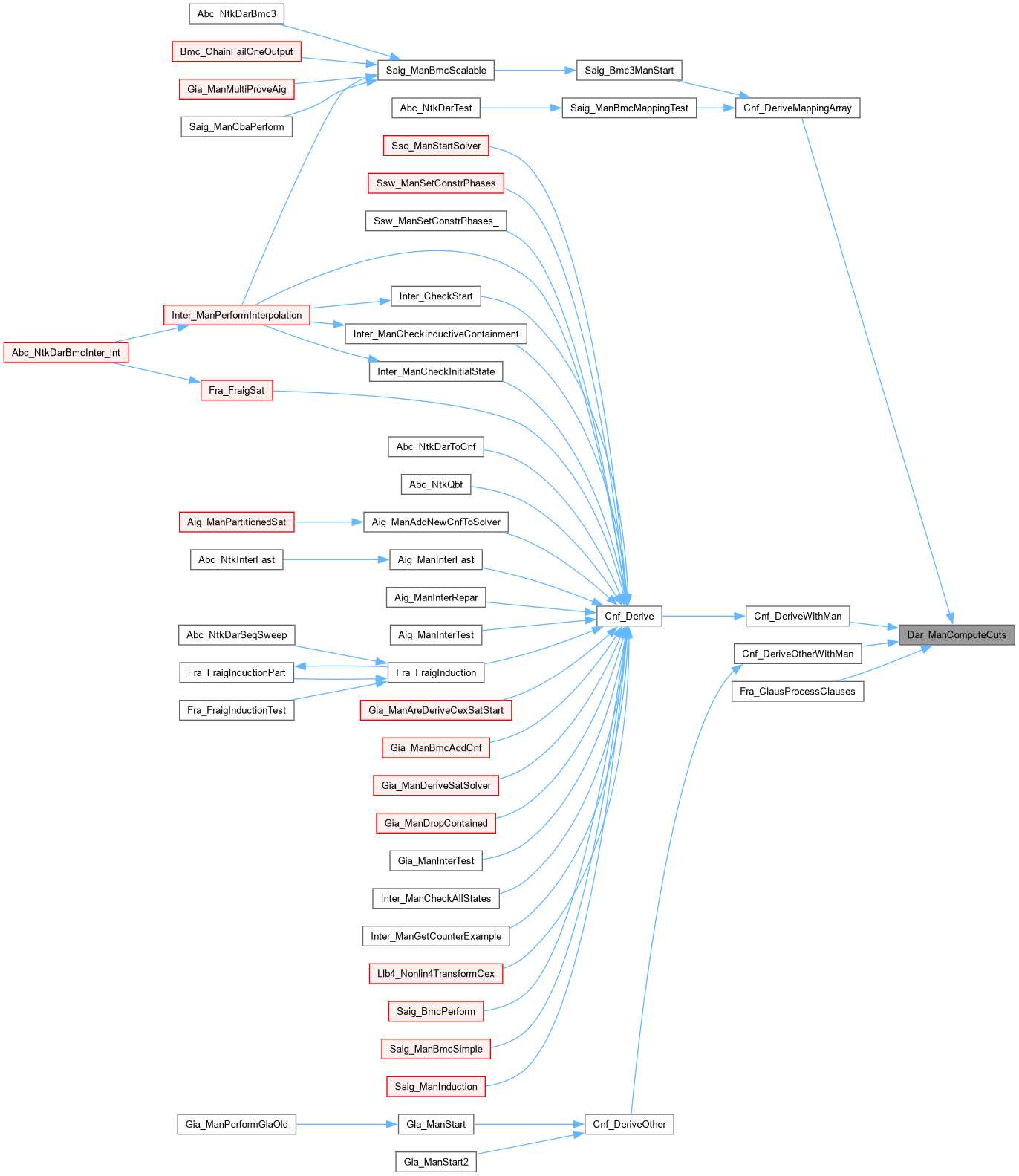

Here is the caller graph for this function:

Dar_ManCutCount()

int Dar_ManCutCount	(	Aig_Man_t *	pAig,
		int *	pnCutsK )

Function*************************************************************

Synopsis [Computes the total number of cuts.]

Description []

SideEffects []

SeeAlso []

Definition at line 263 of file darCore.c.

{
    Dar_Cut_t * pCut;
    Aig_Obj_t * pObj;
    int i, k, nCuts = 0, nCutsK = 0;
    Aig_ManForEachNode( pAig, pObj, i )
        Dar_ObjForEachCut( pObj, pCut, k )
        {
            nCuts++;
            if ( pCut->nLeaves == 4 )
                nCutsK++;
        }
    if ( pnCutsK )
        *pnCutsK = nCutsK;
    return nCuts;
}

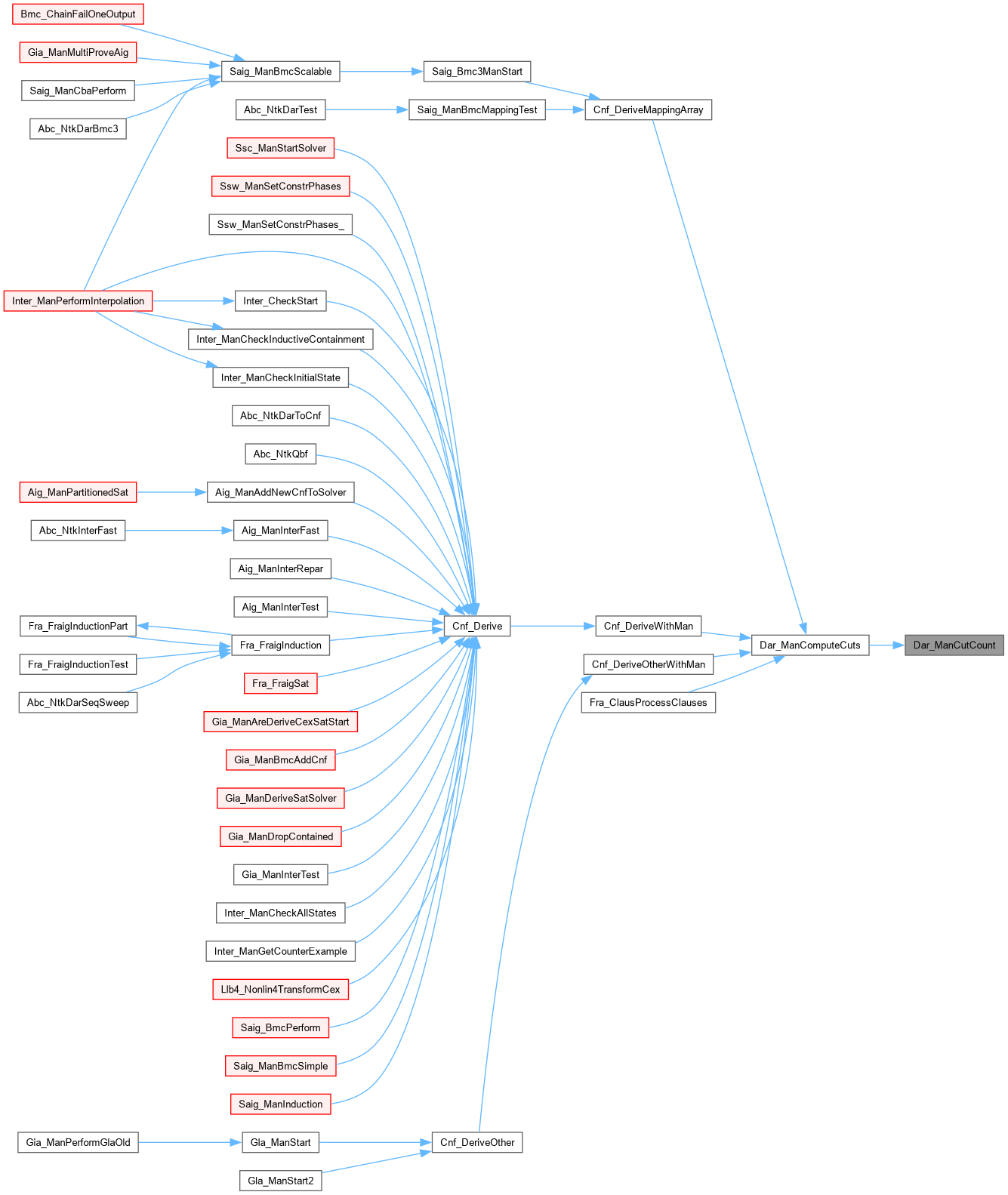

Here is the caller graph for this function:

Dar_ManDefaultRwrParams()

void Dar_ManDefaultRwrParams

(

Dar_RwrPar_t *

pPars

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns the structure with default assignment of parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 51 of file darCore.c.

{
    memset( pPars, 0, sizeof(Dar_RwrPar_t) );
    pPars->nCutsMax     =  8; // 8
    pPars->nSubgMax     =  5; // 5 is a "magic number"
    pPars->nMinSaved    =  1;
    pPars->fFanout      =  1;
    pPars->fUpdateLevel =  0;
    pPars->fUseZeros    =  0;
    pPars->fPower       =  0;
    pPars->fRecycle     =  1;
    pPars->fVerbose     =  0;
    pPars->fVeryVerbose =  0;
}

Here is the call graph for this function:

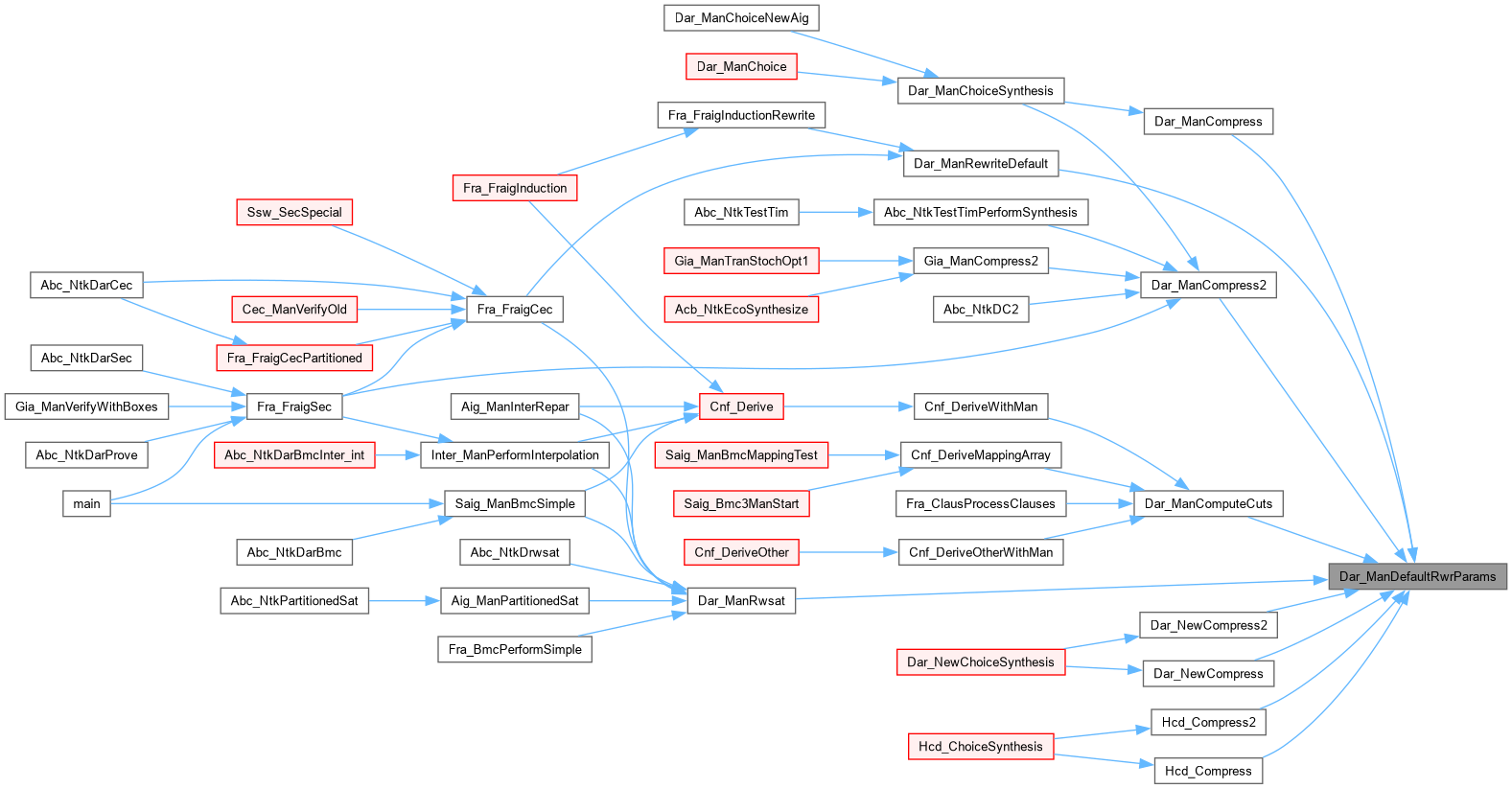

Here is the caller graph for this function:

Dar_ManRewrite()

int Dar_ManRewrite	(	Aig_Man_t *	pAig,
		Dar_RwrPar_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 79 of file darCore.c.

{
    extern Vec_Int_t * Saig_ManComputeSwitchProbs( Aig_Man_t * p, int nFrames, int nPref, int fProbOne );
    Dar_Man_t * p;
//    Bar_Progress_t * pProgress;
    Dar_Cut_t * pCut;
    Aig_Obj_t * pObj, * pObjNew;
    int i, k, nNodesOld, nNodeBefore, nNodeAfter, Required;
    abctime clk = 0, clkStart;
    int Counter = 0;
    int nMffcSize;//, nMffcGains[MAX_VAL+1][MAX_VAL+1] = {{0}};
    if ( pPars->fUseZeros )
        pPars->nMinSaved = 0;
    // prepare the library
    Dar_LibPrepare( pPars->nSubgMax );
    // create rewriting manager
    p = Dar_ManStart( pAig, pPars );
    if ( pPars->fPower )
        pAig->vProbs = Saig_ManComputeSwitchProbs( pAig, 48, 16, 1 );
    // remove dangling nodes
    Aig_ManCleanup( pAig );
    // if updating levels is requested, start fanout and timing
    if ( p->pPars->fFanout )
        Aig_ManFanoutStart( pAig );
    if ( p->pPars->fUpdateLevel )
        Aig_ManStartReverseLevels( pAig, 0 );
    // set elementary cuts for the PIs
//    Dar_ManCutsStart( p );
    // resynthesize each node once
    clkStart = Abc_Clock();
    p->nNodesInit = Aig_ManNodeNum(pAig);
    nNodesOld = Vec_PtrSize( pAig->vObjs );

//    pProgress = Bar_ProgressStart( stdout, nNodesOld );
    Aig_ManForEachObj( pAig, pObj, i )
//    pProgress = Bar_ProgressStart( stdout, 100 );
//    Aig_ManOrderStart( pAig );
//    Aig_ManForEachNodeInOrder( pAig, pObj )
    {
        if ( pAig->Time2Quit && !(i & 256) && Abc_Clock() > pAig->Time2Quit )
            break;
//        Bar_ProgressUpdate( pProgress, 100*pAig->nAndPrev/pAig->nAndTotal, NULL );
//        Bar_ProgressUpdate( pProgress, i, NULL );
        if ( !Aig_ObjIsNode(pObj) )
            continue;
        if ( i > nNodesOld )
//        if ( p->pPars->fUseZeros && i > nNodesOld )
            break;
        if ( pPars->fRecycle && ++Counter % 50000 == 0 && Aig_DagSize(pObj) < Vec_PtrSize(p->vCutNodes)/100 )
        {
//            printf( "Counter = %7d.  Node = %7d.  Dag = %5d. Vec = %5d.\n",
//                Counter, i, Aig_DagSize(pObj), Vec_PtrSize(p->vCutNodes) );
//            fflush( stdout );
            Dar_ManCutsRestart( p, pObj );
        }

        // consider freeing the cuts
//        if ( (i & 0xFFF) == 0 && Aig_MmFixedReadMemUsage(p->pMemCuts)/(1<<20) > 100 )
//            Dar_ManCutsStart( p );

        // compute cuts for the node
        p->nNodesTried++;
clk = Abc_Clock();
        Dar_ObjSetCuts( pObj, NULL );
        Dar_ObjComputeCuts_rec( p, pObj );
p->timeCuts += Abc_Clock() - clk;

        // check if there is a trivial cut
        Dar_ObjForEachCut( pObj, pCut, k )
            if ( pCut->nLeaves == 0 || (pCut->nLeaves == 1 && pCut->pLeaves[0] != pObj->Id && Aig_ManObj(p->pAig, pCut->pLeaves[0])) )
                break;
        if ( k < (int)pObj->nCuts )
        {
            assert( pCut->nLeaves < 2 );
            if ( pCut->nLeaves == 0 ) // replace by constant
            {
                assert( pCut->uTruth == 0 || pCut->uTruth == 0xFFFF );
                pObjNew = Aig_NotCond( Aig_ManConst1(p->pAig), pCut->uTruth==0 );
            }
            else
            {
                assert( pCut->uTruth == 0xAAAA || pCut->uTruth == 0x5555 );
                pObjNew = Aig_NotCond( Aig_ManObj(p->pAig, pCut->pLeaves[0]), pCut->uTruth==0x5555 );
            }
            // remove the old cuts
            Dar_ObjSetCuts( pObj, NULL );
            // replace the node
            Aig_ObjReplace( pAig, pObj, pObjNew, p->pPars->fUpdateLevel );
            continue;
        }

        // evaluate the cuts
        p->GainBest = -1;
        nMffcSize   = -1;
        Required    = pAig->vLevelR? Aig_ObjRequiredLevel(pAig, pObj) : ABC_INFINITY;
        Dar_ObjForEachCut( pObj, pCut, k )
        {
            int nLeavesOld = pCut->nLeaves;
            if ( pCut->nLeaves == 3 )
                pCut->pLeaves[pCut->nLeaves++] = 0;
            Dar_LibEval( p, pObj, pCut, Required, &nMffcSize );
            pCut->nLeaves = nLeavesOld;
        }
        // check the best gain
        //if ( !(p->GainBest > 0 || (p->GainBest == 0 && p->pPars->fUseZeros)) )
        if ( p->GainBest < p->pPars->nMinSaved )
        {
//            Aig_ObjOrderAdvance( pAig );
            continue;
        }
//        nMffcGains[p->GainBest < MAX_VAL ? p->GainBest : MAX_VAL][nMffcSize < MAX_VAL ? nMffcSize : MAX_VAL]++;
        // remove the old cuts
        Dar_ObjSetCuts( pObj, NULL );
        // if we end up here, a rewriting step is accepted
        nNodeBefore = Aig_ManNodeNum( pAig );
        pObjNew = Dar_LibBuildBest( p ); // pObjNew can be complemented!
        pObjNew = Aig_NotCond( pObjNew, Aig_ObjPhaseReal(pObjNew) ^ pObj->fPhase );
        assert( (int)Aig_Regular(pObjNew)->Level <= Required );
        // replace the node
        Aig_ObjReplace( pAig, pObj, pObjNew, p->pPars->fUpdateLevel );
        // compare the gains
        nNodeAfter = Aig_ManNodeNum( pAig );
        assert( p->GainBest <= nNodeBefore - nNodeAfter );
        // count gains of this class
        p->ClassGains[p->ClassBest] += nNodeBefore - nNodeAfter;
    }
//    Aig_ManOrderStop( pAig );
/*
    printf( "Distribution of gain (row) by MFFC size (column) %s 0-costs:\n", p->pPars->fUseZeros? "with":"without" );
    for ( k = 0; k <= MAX_VAL; k++ )
        printf( "<%4d> ", k );
    printf( "\n" );
    for ( i = 0; i <= MAX_VAL; i++ )
    {
        for ( k = 0; k <= MAX_VAL; k++ )
            printf( "%6d ", nMffcGains[i][k] );
        printf( "\n" );
    }
*/

p->timeTotal = Abc_Clock() - clkStart;
p->timeOther = p->timeTotal - p->timeCuts - p->timeEval;

//    Bar_ProgressStop( pProgress );
    Dar_ManCutsFree( p );
    // put the nodes into the DFS order and reassign their IDs
//    Aig_NtkReassignIds( p );
    // fix the levels
//    Aig_ManVerifyLevel( pAig );
    if ( p->pPars->fFanout )
        Aig_ManFanoutStop( pAig );
    if ( p->pPars->fUpdateLevel )
    {
//        Aig_ManVerifyReverseLevel( pAig );
        Aig_ManStopReverseLevels( pAig );
    }
    if ( pAig->vProbs )
    {
        Vec_IntFree( pAig->vProbs );
        pAig->vProbs = NULL;
    }
    // stop the rewriting manager
    Dar_ManStop( p );
    Aig_ManCheckPhase( pAig );
    // check
    if ( !Aig_ManCheck( pAig ) )
    {
        printf( "Aig_ManRewrite: The network check has failed.\n" );
        return 0;
    }
    return 1;
}

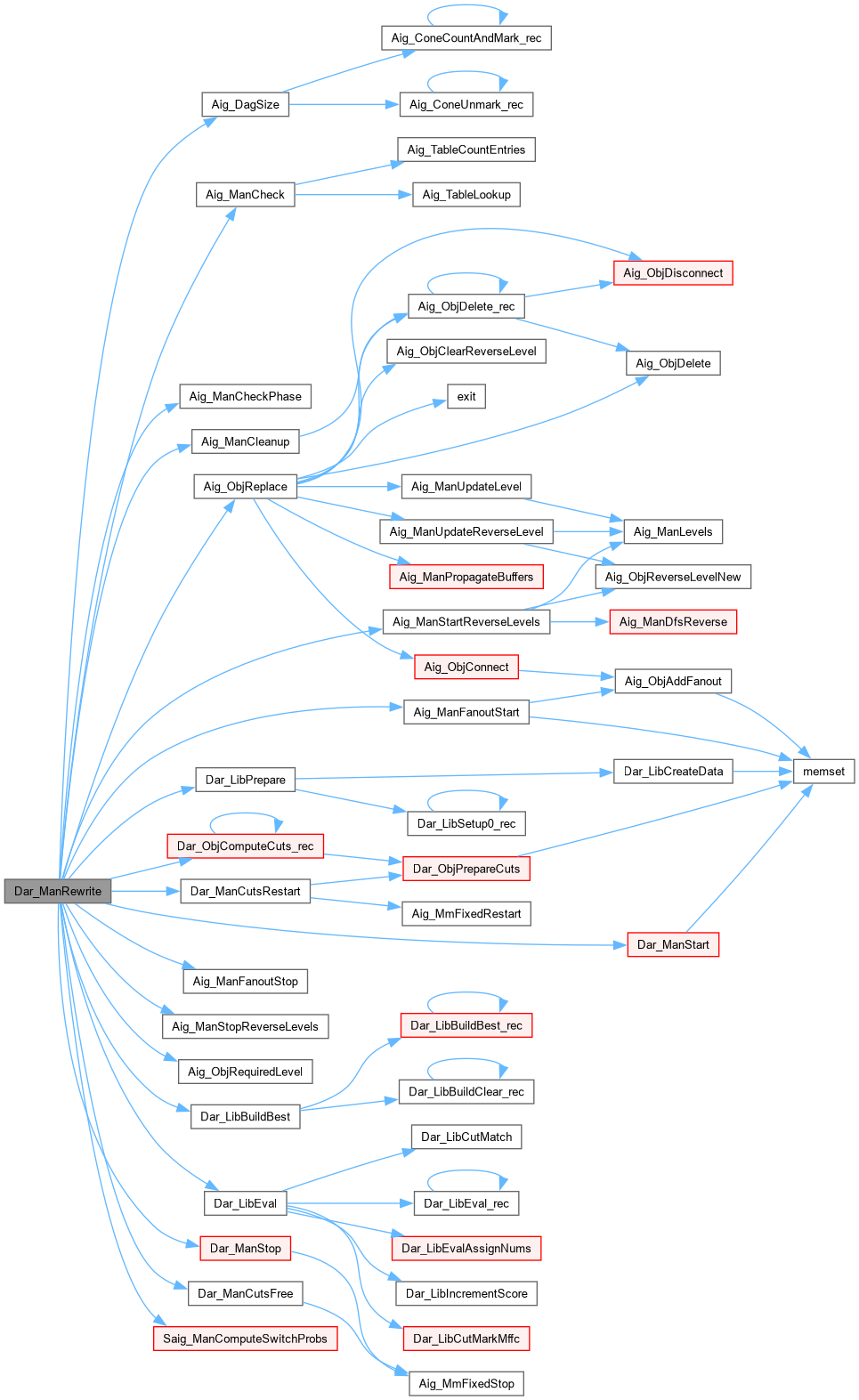

Here is the call graph for this function:

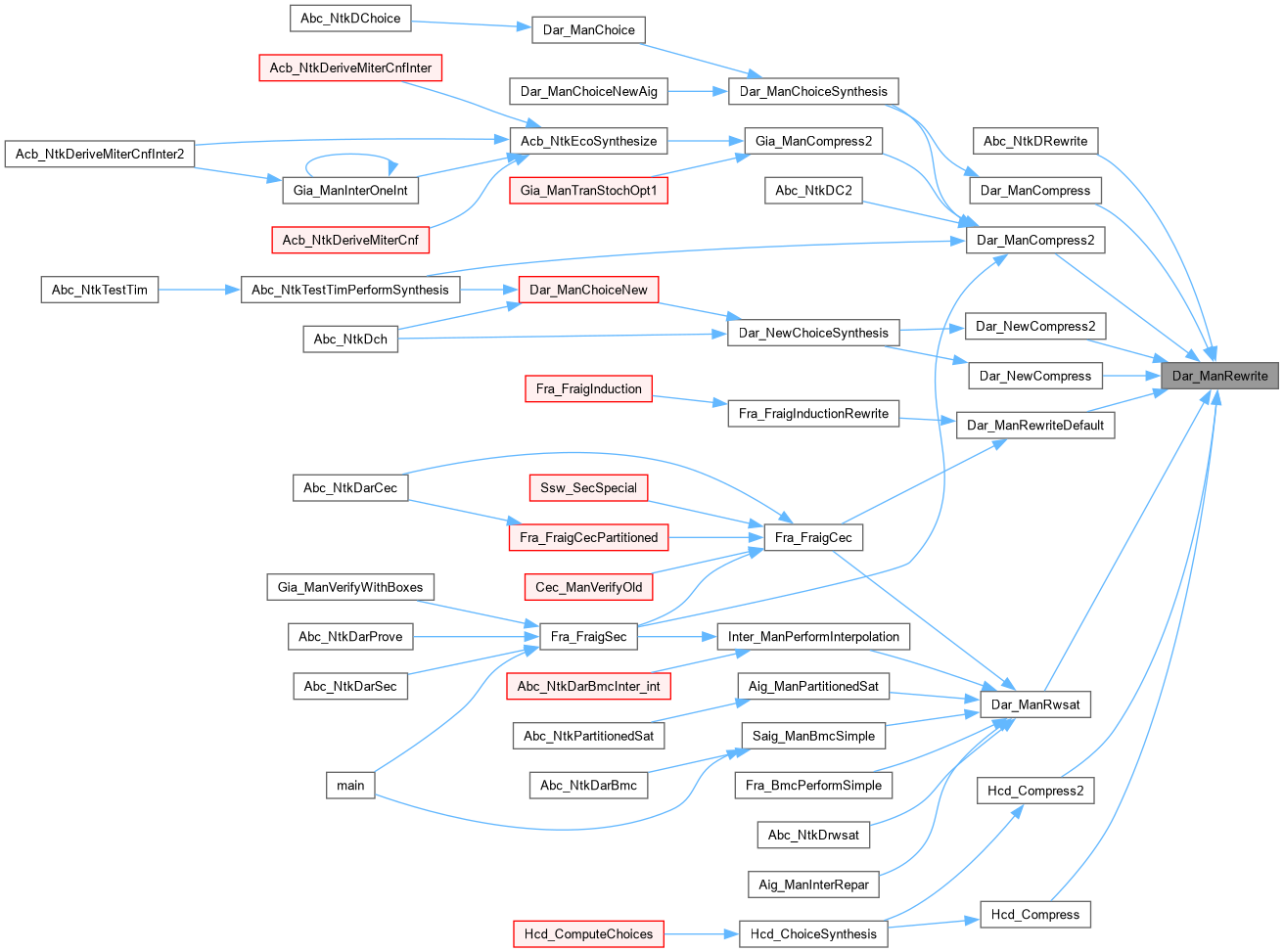

Here is the caller graph for this function:
