dar.h File Reference

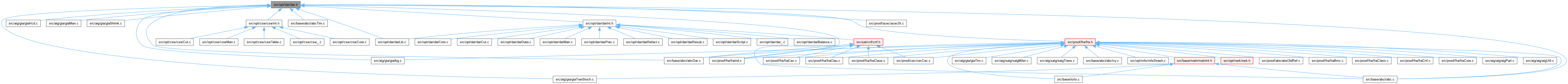

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Dar_RwrPar_t_
struct	Dar_RefPar_t_

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Dar_RwrPar_t_	Dar_RwrPar_t
	INCLUDES ///.
typedef struct Dar_RefPar_t_	Dar_RefPar_t

Functions
void	Dar_LibStart ()
	MACRO DEFINITIONS ///.
void	Dar_LibStop ()
void	Dar_LibPrepare (int nSubgraphs)
int	Dar_LibReturnClass (unsigned uTruth)
Aig_Man_t *	Dar_ManBalance (Aig_Man_t *p, int fUpdateLevel)
Aig_Man_t *	Dar_ManBalanceXor (Aig_Man_t *pAig, int fExor, int fUpdateLevel, int fVerbose)
void	Dar_BalancePrintStats (Aig_Man_t *p)
void	Dar_ManDefaultRwrParams (Dar_RwrPar_t *pPars)
	FUNCTION DEFINITIONS ///.
int	Dar_ManRewrite (Aig_Man_t *pAig, Dar_RwrPar_t *pPars)
Aig_MmFixed_t *	Dar_ManComputeCuts (Aig_Man_t *pAig, int nCutsMax, int fSkipTtMin, int fVerbose)
void	Dar_ManDefaultRefParams (Dar_RefPar_t *pPars)
	FUNCTION DEFINITIONS ///.
int	Dar_ManRefactor (Aig_Man_t *pAig, Dar_RefPar_t *pPars)
Aig_Man_t *	Dar_ManRewriteDefault (Aig_Man_t *pAig)
	DECLARATIONS ///.
Aig_Man_t *	Dar_ManRwsat (Aig_Man_t *pAig, int fBalance, int fVerbose)
	DECLARATIONS ///.
Aig_Man_t *	Dar_ManCompress (Aig_Man_t *pAig, int fBalance, int fUpdateLevel, int fPower, int fVerbose)
Aig_Man_t *	Dar_ManCompress2 (Aig_Man_t *pAig, int fBalance, int fUpdateLevel, int fFanout, int fPower, int fVerbose)
Aig_Man_t *	Dar_ManChoice (Aig_Man_t *pAig, int fBalance, int fUpdateLevel, int fConstruct, int nConfMax, int nLevelMax, int fVerbose)

Typedef Documentation

Dar_RefPar_t

typedef struct Dar_RefPar_t_ Dar_RefPar_t

Definition at line 43 of file dar.h.

Dar_RwrPar_t

typedef typedefABC_NAMESPACE_HEADER_START struct Dar_RwrPar_t_ Dar_RwrPar_t

INCLUDES ///.

CFile****************************************************************

FileName [dar.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [DAG-aware AIG rewriting.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

dar.h,v 1.00 2007/04/28 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 42 of file dar.h.

Function Documentation

Dar_BalancePrintStats()

void Dar_BalancePrintStats ( Aig_Man_t * p )

extern

Function*************************************************************

Synopsis [Inserts a new node in the order by levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 716 of file darBalance.c.

{
    Vec_Ptr_t * vSuper;
    Aig_Obj_t * pObj, * pTemp;
    int i, k;
    if ( Aig_ManExorNum(p) == 0 )
    {
        printf( "There is no EXOR gates.\n" );
        return;
    }
    Aig_ManForEachExor( p, pObj, i )
    {
        Aig_ObjFanin0(pObj)->fMarkA = 1;
        Aig_ObjFanin1(pObj)->fMarkA = 1;
        assert( !Aig_ObjFaninC0(pObj) );
        assert( !Aig_ObjFaninC1(pObj) );
    }
    vSuper = Vec_PtrAlloc( 1000 );
    Aig_ManForEachExor( p, pObj, i )
    {
        if ( pObj->fMarkA && pObj->nRefs == 1 )
            continue;
        Vec_PtrClear( vSuper );
        Dar_BalanceCone_rec( pObj, pObj, vSuper );
        Vec_PtrForEachEntry( Aig_Obj_t *, vSuper, pTemp, k )
            pTemp->fMarkB = 0;
        if ( Vec_PtrSize(vSuper) < 3 )
            continue;
        printf( "  %d(", Vec_PtrSize(vSuper) );
        Vec_PtrForEachEntry( Aig_Obj_t *, vSuper, pTemp, k )
            printf( " %d", pTemp->Level );
        printf( " )" );
    }
    Vec_PtrFree( vSuper );
    Aig_ManForEachObj( p, pObj, i )
        pObj->fMarkA = 0;
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_LibPrepare()

void Dar_LibPrepare ( int nSubgraphs )

extern

Function*************************************************************

Synopsis [Starts the library.]

Description []

SideEffects []

SeeAlso []

Definition at line 478 of file darLib.c.

{
    Dar_Lib_t * p = s_DarLib;
    int i, k, nNodes0Total;
    if ( p->nSubgraphs == nSubgraphs )
        return;

    // favor special classes:
    //  1 : F = (!d*!c*!b*!a)
    //  4 : F = (!d*!c*!(b*a))
    // 12 : F = (!d*!(c*!(!b*!a)))
    // 20 : F = (!d*!(c*b*a))

    // set the subgraph counters
    p->nSubgr0Total = 0;
    for ( i = 0; i < 222; i++ )
    {
//        if ( i == 1 || i == 4 || i == 12 || i == 20 ) // special classes
        if ( i == 1 ) // special classes
            p->nSubgr0[i] = p->nSubgr[i];
        else
            p->nSubgr0[i] = Abc_MinInt( p->nSubgr[i], nSubgraphs );
        p->nSubgr0Total += p->nSubgr0[i];
        for ( k = 0; k < p->nSubgr0[i]; k++ )
            p->pSubgr0[i][k] = p->pSubgr[i][ p->pPrios[i][k] ];
    }

    // count the number of nodes
    // clean node counters
    for ( i = 0; i < 222; i++ )
        p->nNodes0[i] = 0;
    // create traversal IDs
    for ( i = 0; i < p->iObj; i++ )
        Dar_LibObj(p, i)->Num = 0xff;
    // count nodes in each class
    // count the total number of nodes and the largest class
    p->nNodes0Total = 0;
    p->nNodes0Max = 0;
    for ( i = 0; i < 222; i++ )
    {
        for ( k = 0; k < p->nSubgr0[i]; k++ )
            Dar_LibSetup0_rec( p, Dar_LibObj(p, p->pSubgr0[i][k]), i, 0 );
        p->nNodes0Total += p->nNodes0[i];
        p->nNodes0Max = Abc_MaxInt( p->nNodes0Max, p->nNodes0[i] );
    }

    // clean node counters
    for ( i = 0; i < 222; i++ )
        p->nNodes0[i] = 0;
    // create traversal IDs
    for ( i = 0; i < p->iObj; i++ )
        Dar_LibObj(p, i)->Num = 0xff;
    // add the nodes to storage
    nNodes0Total = 0;
    for ( i = 0; i < 222; i++ )
    {
        for ( k = 0; k < p->nSubgr0[i]; k++ )
            Dar_LibSetup0_rec( p, Dar_LibObj(p, p->pSubgr0[i][k]), i, 1 );
         nNodes0Total += p->nNodes0[i];
    }
    assert( nNodes0Total == p->nNodes0Total );
     // prepare the number of the PI nodes
    for ( i = 0; i < 4; i++ )
        Dar_LibObj(p, i)->Num = i;

    // realloc the datas
    Dar_LibCreateData( p, p->nNodes0Max + 32 );
    // allocated more because Dar_LibBuildBest() sometimes requires more entries
}

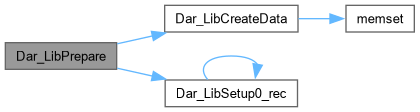

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_LibReturnClass()

int Dar_LibReturnClass ( unsigned uTruth )

extern

Function*************************************************************

Synopsis [Returns canonical truth tables.]

Description []

SideEffects []

SeeAlso []

Definition at line 194 of file darLib.c.

{
    return s_DarLib->pMap[uTruth & 0xffff];
}

Here is the caller graph for this function:

Dar_LibStart()

void Dar_LibStart ( )

extern

MACRO DEFINITIONS ///.

ITERATORS /// FUNCTION DECLARATIONS ///

Function*************************************************************

Synopsis [Starts the library.]

Description []

SideEffects []

SeeAlso []

Definition at line 593 of file darLib.c.

{
//    abctime clk = Abc_Clock();
    if ( s_DarLib != NULL )
        return;
    assert( s_DarLib == NULL );
    s_DarLib = Dar_LibRead();
//    printf( "The 4-input library started with %d nodes and %d subgraphs. ", s_DarLib->nObjs - 4, s_DarLib->nSubgrTotal );
//    ABC_PRT( "Time", Abc_Clock() - clk );
}

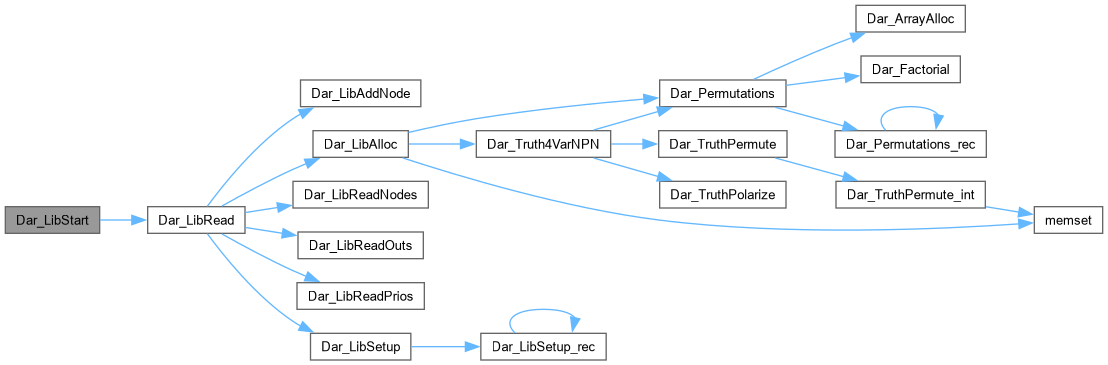

Here is the call graph for this function:

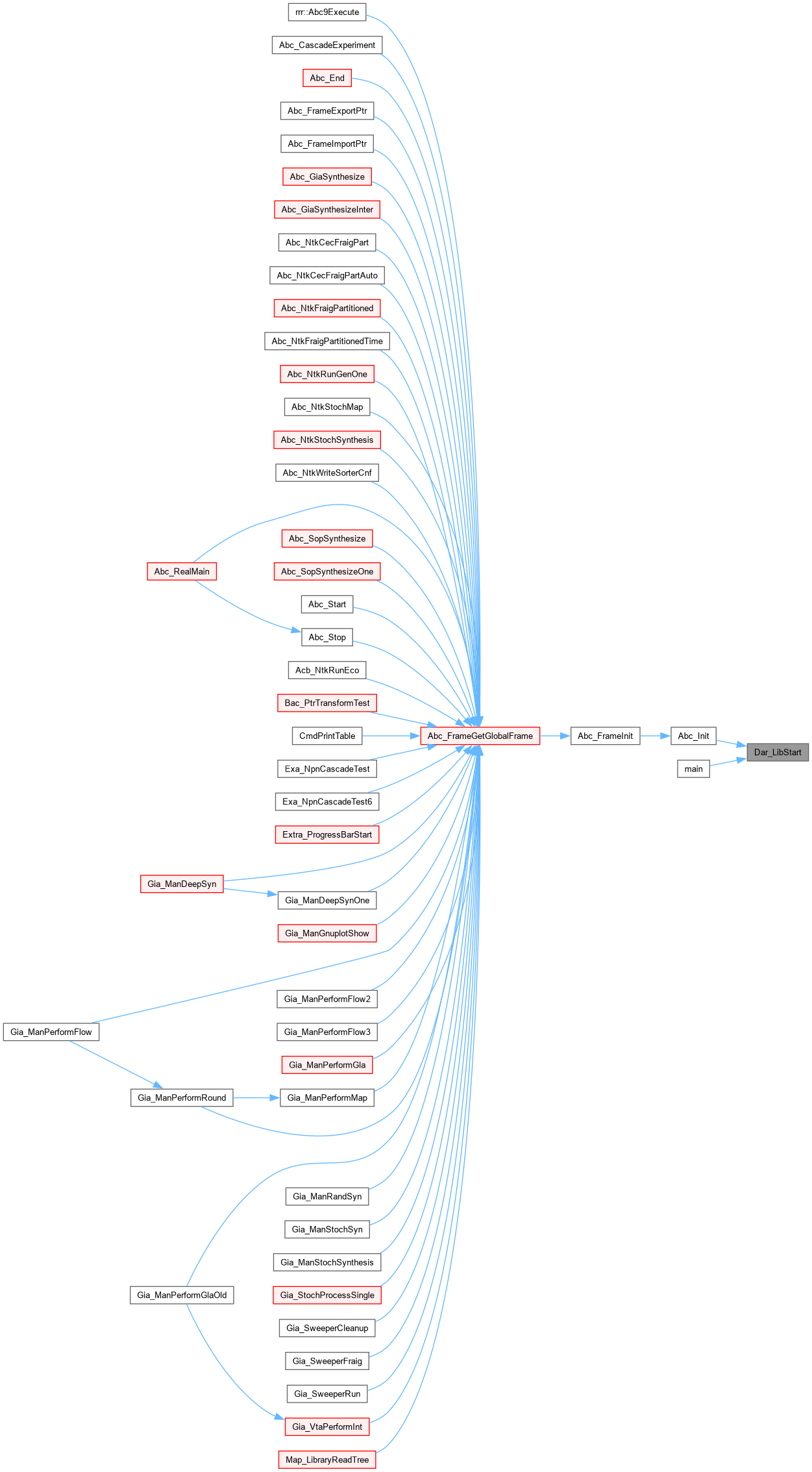

Here is the caller graph for this function:

Dar_LibStop()

void Dar_LibStop ( )

extern

Function*************************************************************

Synopsis [Stops the library.]

Description []

SideEffects []

SeeAlso []

Definition at line 615 of file darLib.c.

{
    assert( s_DarLib != NULL );
    Dar_LibFree( s_DarLib );
    s_DarLib = NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManBalance()

Aig_Man_t * Dar_ManBalance ( Aig_Man_t * p, int fUpdateLevel )

extern

Function*************************************************************

Synopsis [Performs algebraic balancing of the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 554 of file darBalance.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pObj, * pDriver, * pObjNew;
    Vec_Vec_t * vStore;
    int i;
    assert( Aig_ManVerifyTopoOrder(p) );
    // create the new manager
    pNew = Aig_ManStart( Aig_ManObjNumMax(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    pNew->nAsserts = p->nAsserts;
    pNew->nConstrs = p->nConstrs;
    pNew->nBarBufs = p->nBarBufs;
    pNew->Time2Quit = p->Time2Quit;
    if ( p->vFlopNums )
        pNew->vFlopNums = Vec_IntDup( p->vFlopNums );
    // map the PI nodes
    Aig_ManCleanData( p );
    Aig_ManConst1(p)->pData = Aig_ManConst1(pNew);
    vStore = Vec_VecAlloc( 50 );
    if ( p->pManTime != NULL )
    {
        float arrTime;
        Tim_ManIncrementTravId( (Tim_Man_t *)p->pManTime );
        Aig_ManSetCioIds( p );
        Aig_ManForEachObj( p, pObj, i )
        {
            if ( Aig_ObjIsNode(pObj) || Aig_ObjIsConst1(pObj) )
                continue;
            if ( Aig_ObjIsCi(pObj) )
            {
                // copy the PI
                pObjNew = Aig_ObjCreateCi(pNew);
                pObj->pData = pObjNew;
                // set the arrival time of the new PI
                arrTime = Tim_ManGetCiArrival( (Tim_Man_t *)p->pManTime, Aig_ObjCioId(pObj) );
                pObjNew->Level = (int)arrTime;
            }
            else if ( Aig_ObjIsCo(pObj) )
            {
                // perform balancing
                pDriver = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
                pObjNew = Dar_Balance_rec( pNew, Aig_Regular(pDriver), vStore, 0, fUpdateLevel );
                if ( pObjNew == NULL )
                {
                    Vec_VecFree( vStore );
                    Aig_ManStop( pNew );
                    return NULL;
                }
                pObjNew = Aig_NotCond( pObjNew, Aig_IsComplement(pDriver) );
                // save arrival time of the output
                arrTime = (float)Aig_Regular(pObjNew)->Level;
                Tim_ManSetCoArrival( (Tim_Man_t *)p->pManTime, Aig_ObjCioId(pObj), arrTime );
                // create PO
                pObjNew = Aig_ObjCreateCo( pNew, pObjNew );
            }
            else
                assert( 0 );
        }
        Aig_ManCleanCioIds( p );
        pNew->pManTime = Tim_ManDup( (Tim_Man_t *)p->pManTime, 0 );
    }
    else
    {
        Aig_ManForEachCi( p, pObj, i )
        {
            pObjNew = Aig_ObjCreateCi(pNew);
            pObjNew->Level = pObj->Level;
            pObj->pData = pObjNew;
        }
        if ( p->nBarBufs == 0 )
        {
            Aig_ManForEachCo( p, pObj, i )
            {
                pDriver = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
                pObjNew = Dar_Balance_rec( pNew, Aig_Regular(pDriver), vStore, 0, fUpdateLevel );
                if ( pObjNew == NULL )
                {
                    Vec_VecFree( vStore );
                    Aig_ManStop( pNew );
                    return NULL;
                }
                pObjNew = Aig_NotCond( pObjNew, Aig_IsComplement(pDriver) );
                pObjNew = Aig_ObjCreateCo( pNew, pObjNew );
            }
        }
        else
        {
            Vec_Ptr_t * vLits = Vec_PtrStart( Aig_ManCoNum(p) );
            Aig_ManForEachCo( p, pObj, i )
            {
                int k = i < p->nBarBufs ? Aig_ManCoNum(p) - p->nBarBufs + i : i - p->nBarBufs;
                pObj = Aig_ManCo( p, k );
                pDriver = Aig_ObjReal_rec( Aig_ObjChild0(pObj) );
                pObjNew = Dar_Balance_rec( pNew, Aig_Regular(pDriver), vStore, 0, fUpdateLevel );
                if ( pObjNew == NULL )
                {
                    Vec_VecFree( vStore );
                    Aig_ManStop( pNew );
                    return NULL;
                }
                pObjNew = Aig_NotCond( pObjNew, Aig_IsComplement(pDriver) );
                Vec_PtrWriteEntry( vLits, k, pObjNew );
                if ( i < p->nBarBufs )
                    Aig_ManCi(pNew, Aig_ManCiNum(p) - p->nBarBufs + i)->Level = Aig_Regular(pObjNew)->Level;
            }
            Aig_ManForEachCo( p, pObj, i )
                Aig_ObjCreateCo( pNew, (Aig_Obj_t *)Vec_PtrEntry(vLits, i) );
            Vec_PtrFree(vLits);
        }
    }
    Vec_VecFree( vStore );
    // remove dangling nodes
    Aig_ManCleanup( pNew );
    Aig_ManSetRegNum( pNew, Aig_ManRegNum(p) );
    // check the resulting AIG
    if ( !Aig_ManCheck(pNew) )
        printf( "Dar_ManBalance(): The check has failed.\n" );
    return pNew;
}

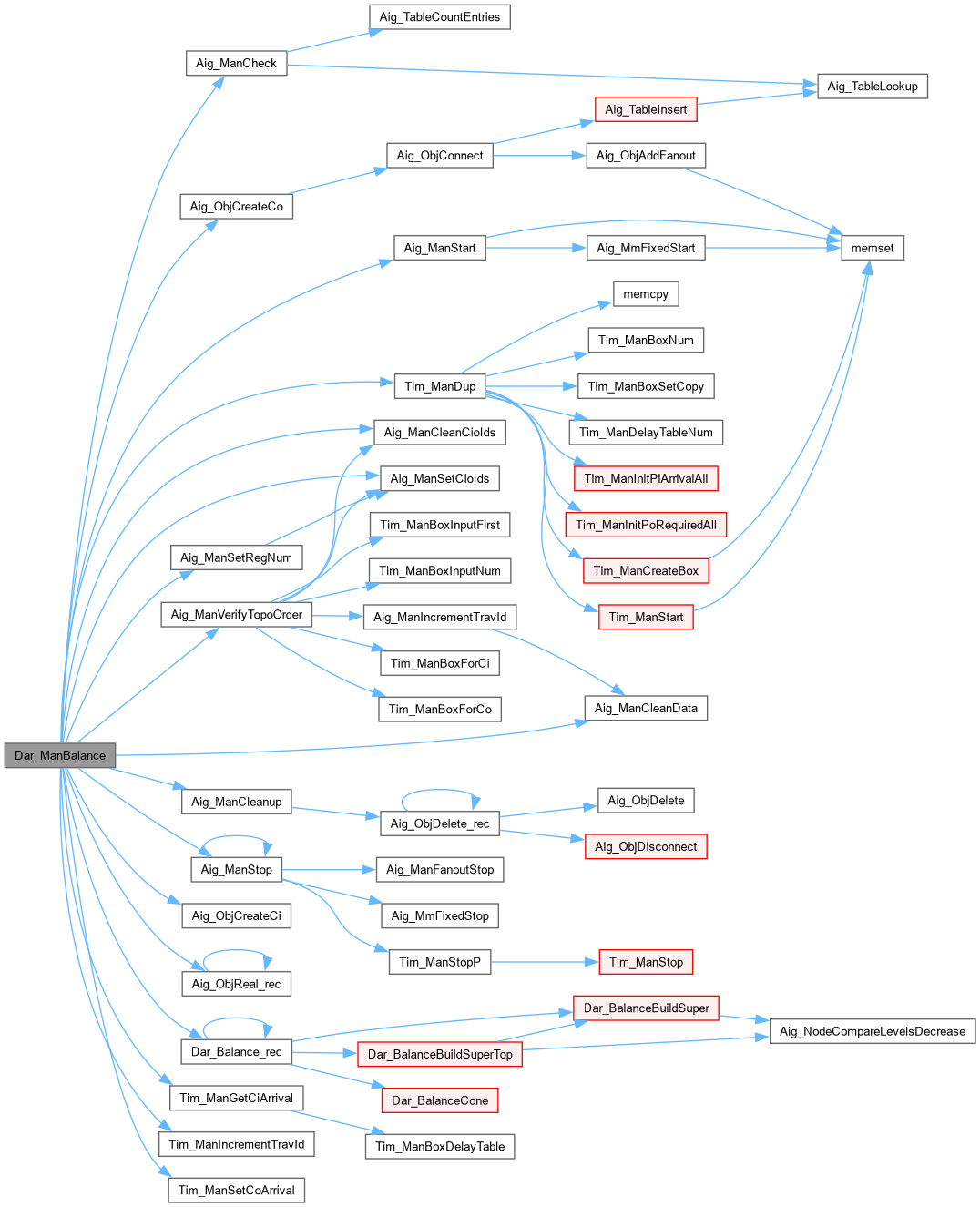

Here is the call graph for this function:

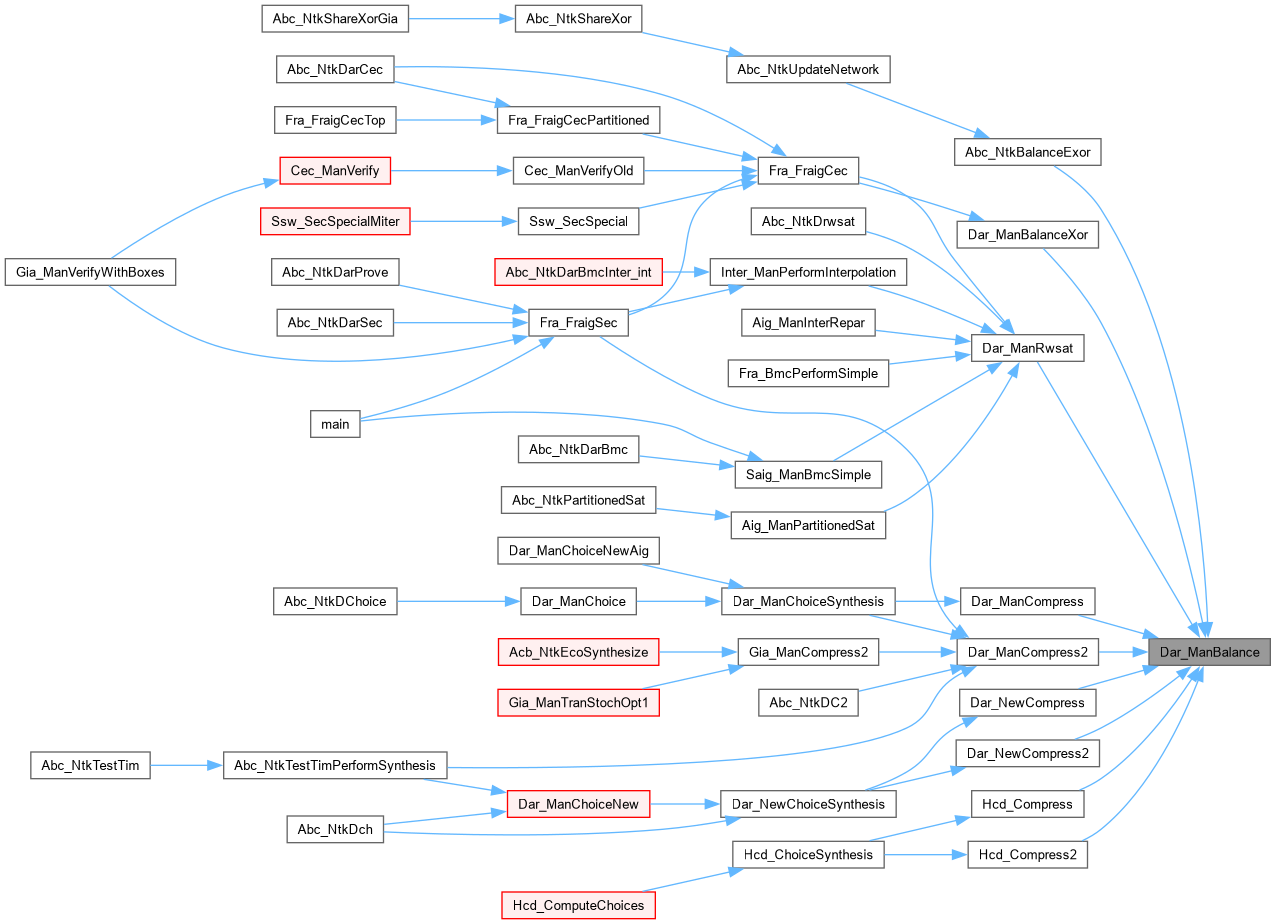

Here is the caller graph for this function:

Dar_ManBalanceXor()

Aig_Man_t * Dar_ManBalanceXor ( Aig_Man_t * pAig, int fExor, int fUpdateLevel, int fVerbose )

extern

Function*************************************************************

Synopsis [Reproduces script "compress2".]

Description []

SideEffects []

SeeAlso []

Definition at line 687 of file darBalance.c.

{
    Aig_Man_t * pAigXor, * pRes;
    if ( fExor )
    {
        pAigXor = Aig_ManDupExor( pAig );
        if ( fVerbose )
            Dar_BalancePrintStats( pAigXor );
        pRes = Dar_ManBalance( pAigXor, fUpdateLevel );
        Aig_ManStop( pAigXor );
    }
    else
    {
        pRes = Dar_ManBalance( pAig, fUpdateLevel );
    }
    return pRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManChoice()

Aig_Man_t * Dar_ManChoice ( Aig_Man_t * pAig, int fBalance, int fUpdateLevel, int fConstruct, int nConfMax, int nLevelMax, int fVerbose )

extern

Function*************************************************************

Synopsis [Reproduces script "compress2".]

Description []

SideEffects []

SeeAlso []

Definition at line 378 of file darScript.c.

{
    Aig_Man_t * pMan, * pTemp;
    Vec_Ptr_t * vAigs;
    int i;
    abctime clk;

clk = Abc_Clock();
//    vAigs = Dar_ManChoiceSynthesisExt();
    vAigs = Dar_ManChoiceSynthesis( pAig, fBalance, fUpdateLevel, 0, fVerbose );

    // swap the first and last network
    // this should lead to the primary choice being "better" because of synthesis
    // (it is also important when constructing choices)
    if ( !fConstruct )
    {
        pMan = (Aig_Man_t *)Vec_PtrPop( vAigs );
        Vec_PtrPush( vAigs, Vec_PtrEntry(vAigs,0) );
        Vec_PtrWriteEntry( vAigs, 0, pMan );
    }

if ( fVerbose )
{
ABC_PRT( "Synthesis time", Abc_Clock() - clk );
}
clk = Abc_Clock();
    if ( fConstruct )
        pMan = Aig_ManChoiceConstructive( vAigs, fVerbose );
    else
        pMan = Aig_ManChoicePartitioned( vAigs, 300, nConfMax, nLevelMax, fVerbose );
    Vec_PtrForEachEntry( Aig_Man_t *, vAigs, pTemp, i )
        Aig_ManStop( pTemp );
    Vec_PtrFree( vAigs );
if ( fVerbose )
{
ABC_PRT( "Choicing time ", Abc_Clock() - clk );
}
    return pMan;
//    return NULL;
}

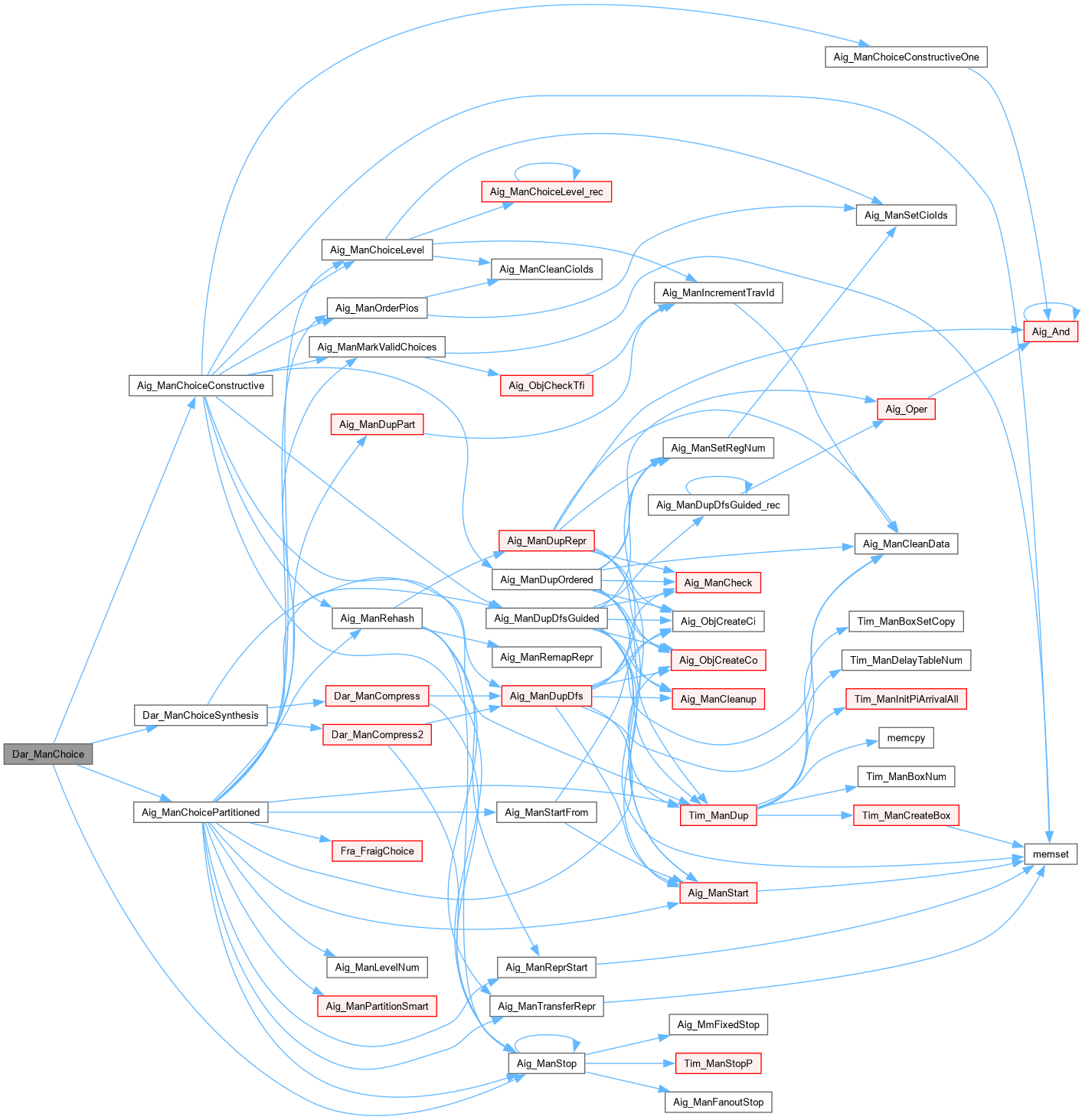

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManCompress()

Aig_Man_t * Dar_ManCompress ( Aig_Man_t * pAig, int fBalance, int fUpdateLevel, int fPower, int fVerbose )

extern

Function*************************************************************

Synopsis [Reproduces script "compress".]

Description []

SideEffects []

SeeAlso []

Definition at line 162 of file darScript.c.

{
    Aig_Man_t * pTemp;

    Dar_RwrPar_t ParsRwr, * pParsRwr = &ParsRwr;
    Dar_RefPar_t ParsRef, * pParsRef = &ParsRef;

    Dar_ManDefaultRwrParams( pParsRwr );
    Dar_ManDefaultRefParams( pParsRef );

    pParsRwr->fUpdateLevel = fUpdateLevel;
    pParsRef->fUpdateLevel = fUpdateLevel;

    pParsRwr->fPower = fPower;

    pParsRwr->fVerbose = 0;//fVerbose;
    pParsRef->fVerbose = 0;//fVerbose;

    pAig = Aig_ManDupDfs( pAig );
    if ( fVerbose ) printf( "Starting:  " ), Aig_ManPrintStats( pAig );
/*
    // balance
    if ( fBalance )
    {
    pAig = Dar_ManBalance( pTemp = pAig, fUpdateLevel );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    }
*/
    // rewrite
    Dar_ManRewrite( pAig, pParsRwr );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Rewrite:   " ), Aig_ManPrintStats( pAig );

    // refactor
    Dar_ManRefactor( pAig, pParsRef );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Refactor:  " ), Aig_ManPrintStats( pAig );

    // balance
    if ( fBalance )
    {
    pAig = Dar_ManBalance( pTemp = pAig, fUpdateLevel );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    }

    pParsRwr->fUseZeros = 1;
    pParsRef->fUseZeros = 1;

    // rewrite
    Dar_ManRewrite( pAig, pParsRwr );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "RewriteZ:  " ), Aig_ManPrintStats( pAig );

    return pAig;
}

Here is the call graph for this function:

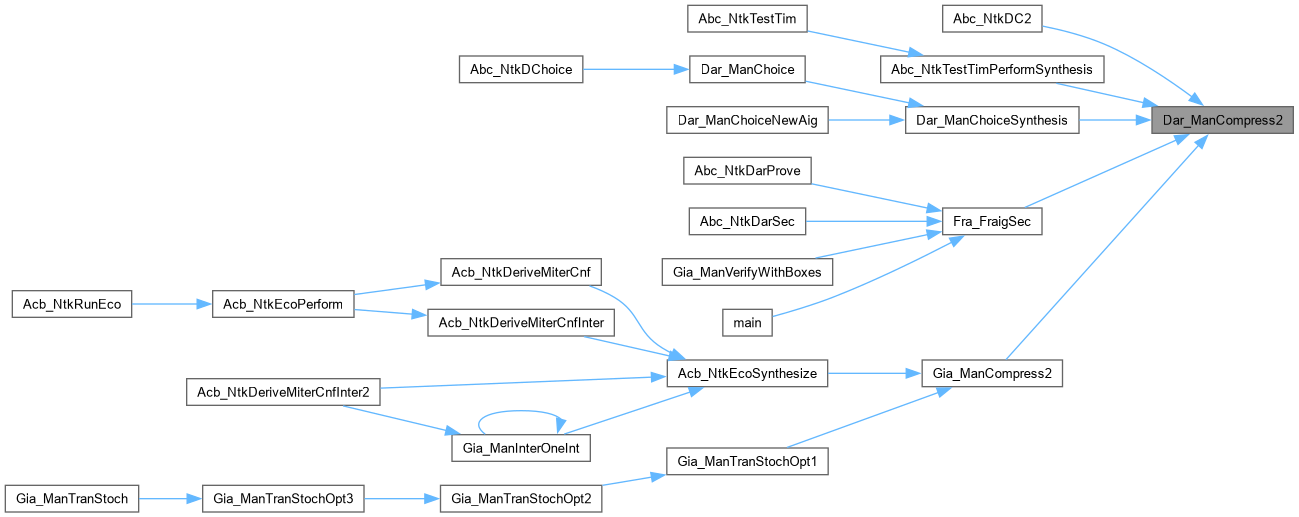

Here is the caller graph for this function:

Dar_ManCompress2()

Aig_Man_t * Dar_ManCompress2 ( Aig_Man_t * pAig, int fBalance, int fUpdateLevel, int fFanout, int fPower, int fVerbose )

extern

Function*************************************************************

Synopsis [Reproduces script "compress2".]

Description []

SideEffects []

SeeAlso []

Definition at line 235 of file darScript.c.

{
    Aig_Man_t * pTemp;

    Dar_RwrPar_t ParsRwr, * pParsRwr = &ParsRwr;
    Dar_RefPar_t ParsRef, * pParsRef = &ParsRef;

    Dar_ManDefaultRwrParams( pParsRwr );
    Dar_ManDefaultRefParams( pParsRef );

    pParsRwr->fUpdateLevel = fUpdateLevel;
    pParsRef->fUpdateLevel = fUpdateLevel;
    pParsRwr->fFanout = fFanout;
    pParsRwr->fPower = fPower;

    pParsRwr->fVerbose = 0;//fVerbose;
    pParsRef->fVerbose = 0;//fVerbose;

    pAig = Aig_ManDupDfs( pAig );
    if ( fVerbose ) printf( "Starting:  " ), Aig_ManPrintStats( pAig );
/*
    // balance
    if ( fBalance )
    {
    pAig = Dar_ManBalance( pTemp = pAig, fUpdateLevel );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    }
*/
    // rewrite
//    Dar_ManRewrite( pAig, pParsRwr );
    pParsRwr->fUpdateLevel = 0;  // disable level update
    Dar_ManRewrite( pAig, pParsRwr );
    pParsRwr->fUpdateLevel = fUpdateLevel;  // reenable level update if needed

    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Rewrite:   " ), Aig_ManPrintStats( pAig );

    // refactor
    Dar_ManRefactor( pAig, pParsRef );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Refactor:  " ), Aig_ManPrintStats( pAig );

    // balance
//    if ( fBalance )
    {
    pAig = Dar_ManBalance( pTemp = pAig, fUpdateLevel );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    }

    // rewrite
    Dar_ManRewrite( pAig, pParsRwr );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Rewrite:   " ), Aig_ManPrintStats( pAig );

    pParsRwr->fUseZeros = 1;
    pParsRef->fUseZeros = 1;

    // rewrite
    Dar_ManRewrite( pAig, pParsRwr );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "RewriteZ:  " ), Aig_ManPrintStats( pAig );

    // balance
    if ( fBalance )
    {
    pAig = Dar_ManBalance( pTemp = pAig, fUpdateLevel );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    }

    // refactor
    Dar_ManRefactor( pAig, pParsRef );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "RefactorZ: " ), Aig_ManPrintStats( pAig );

    // rewrite
    Dar_ManRewrite( pAig, pParsRwr );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "RewriteZ:  " ), Aig_ManPrintStats( pAig );

    // balance
    if ( fBalance )
    {
    pAig = Dar_ManBalance( pTemp = pAig, fUpdateLevel );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    }
    return pAig;
}

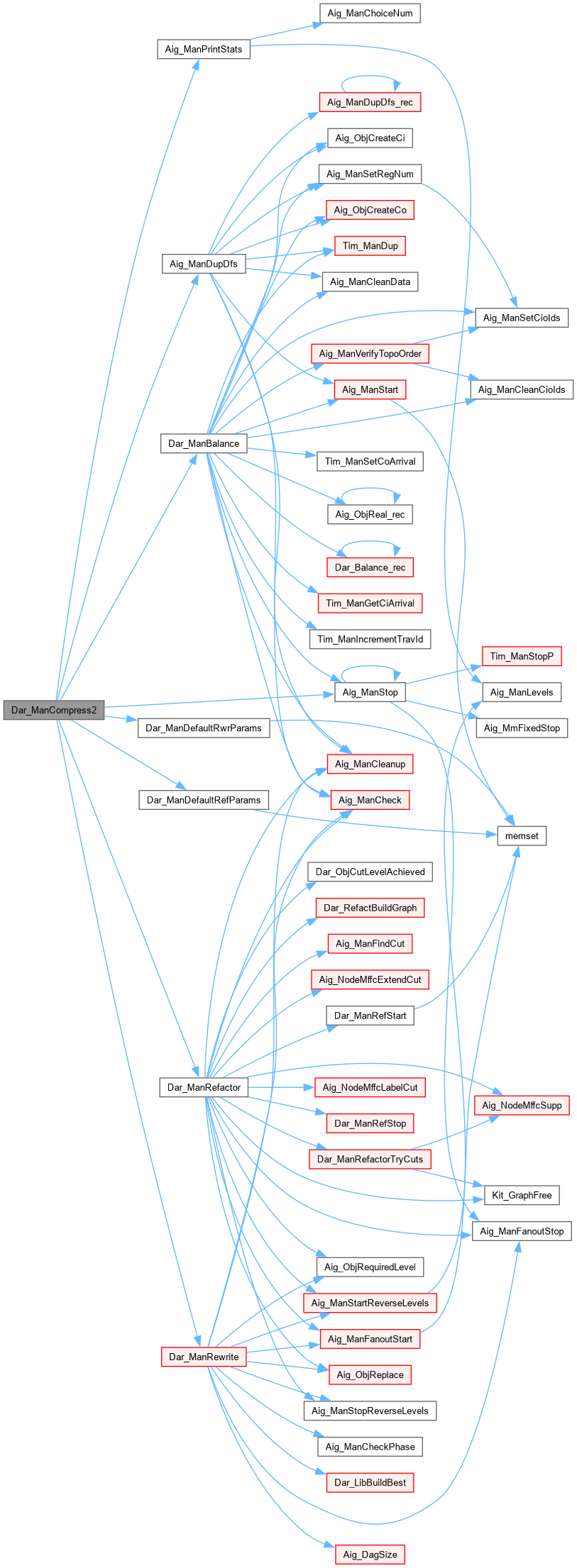

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManComputeCuts()

Aig_MmFixed_t * Dar_ManComputeCuts ( Aig_Man_t * pAig, int nCutsMax, int fSkipTtMin, int fVerbose )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 291 of file darCore.c.

{
    Dar_Man_t * p;
    Dar_RwrPar_t Pars, * pPars = &Pars;
    Aig_Obj_t * pObj;
    Aig_MmFixed_t * pMemCuts;
    int i, nNodes;
    abctime clk = Abc_Clock();
    // remove dangling nodes
    if ( (nNodes = Aig_ManCleanup( pAig )) )
    {
//        printf( "Removing %d nodes.\n", nNodes );
    }
    // create default parameters
    Dar_ManDefaultRwrParams( pPars );
    pPars->nCutsMax = nCutsMax;
    // create rewriting manager
    p = Dar_ManStart( pAig, pPars );
    // set elementary cuts for the PIs
//    Dar_ManCutsStart( p );
    Aig_MmFixedRestart( p->pMemCuts );
    Dar_ObjPrepareCuts( p, Aig_ManConst1(p->pAig) );
    Aig_ManForEachCi( pAig, pObj, i )
        Dar_ObjPrepareCuts( p, pObj );
    // compute cuts for each nodes in the topological order
    Aig_ManForEachNode( pAig, pObj, i )
        Dar_ObjComputeCuts( p, pObj, fSkipTtMin );
    // print verbose stats
    if ( fVerbose )
    {
//        Aig_Obj_t * pObj;
        int nCuts, nCutsK;//, i;
        nCuts = Dar_ManCutCount( pAig, &nCutsK );
        printf( "Nodes = %6d. Total cuts = %6d. 4-input cuts = %6d.\n",
            Aig_ManObjNum(pAig), nCuts, nCutsK );
        printf( "Cut size = %2d. Truth size = %2d. Total mem = %5.2f MB  ",
            (int)sizeof(Dar_Cut_t), (int)4, 1.0*Aig_MmFixedReadMemUsage(p->pMemCuts)/(1<<20) );
        ABC_PRT( "Runtime", Abc_Clock() - clk );
/*
        Aig_ManForEachNode( pAig, pObj, i )
            if ( i % 300 == 0 )
                Dar_ObjCutPrint( pAig, pObj );
*/
    }
    // free the cuts
    pMemCuts = p->pMemCuts;
    p->pMemCuts = NULL;
//    Dar_ManCutsFree( p );
    // stop the rewriting manager
    Dar_ManStop( p );
    return pMemCuts;
}

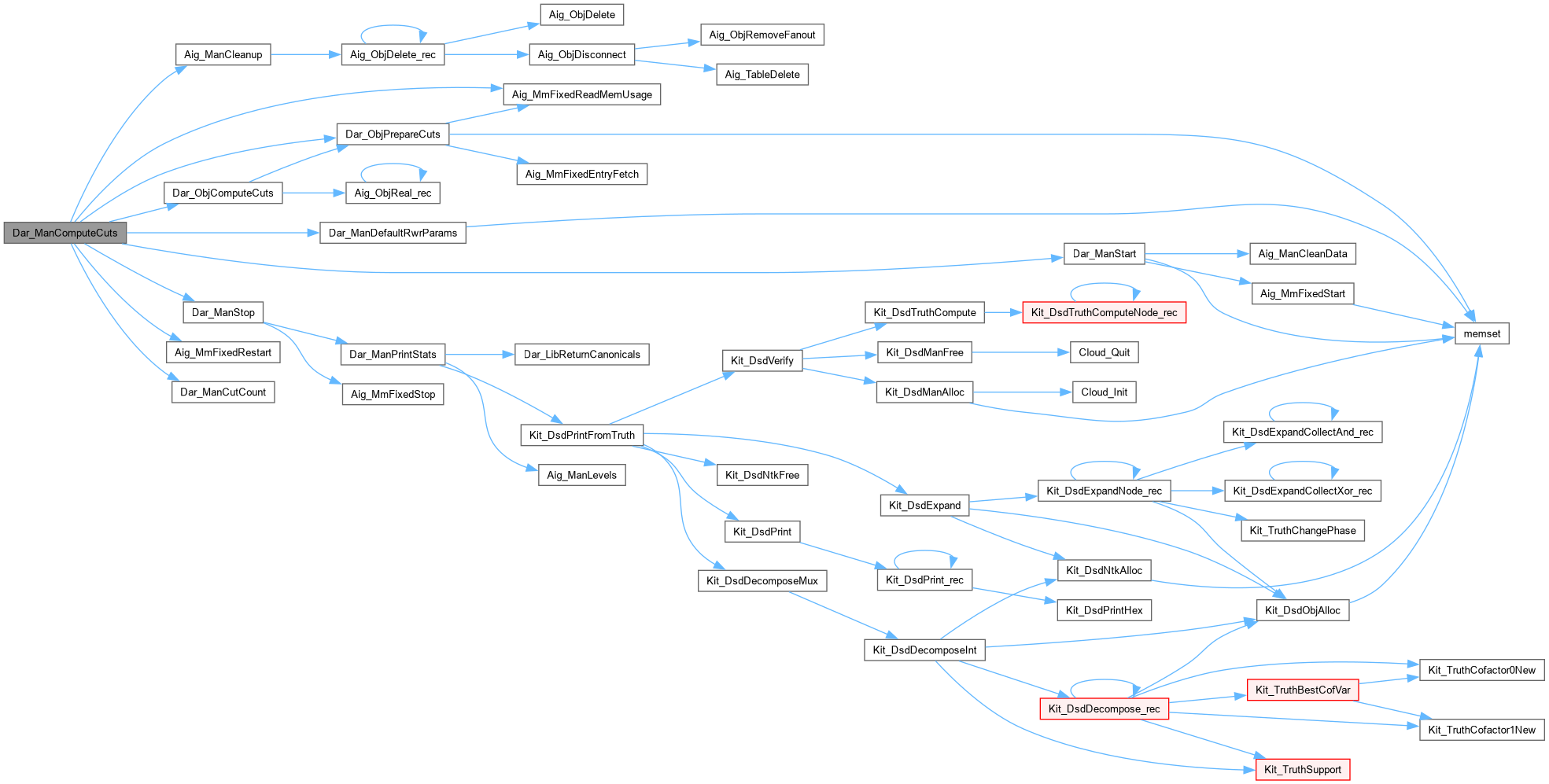

Here is the call graph for this function:

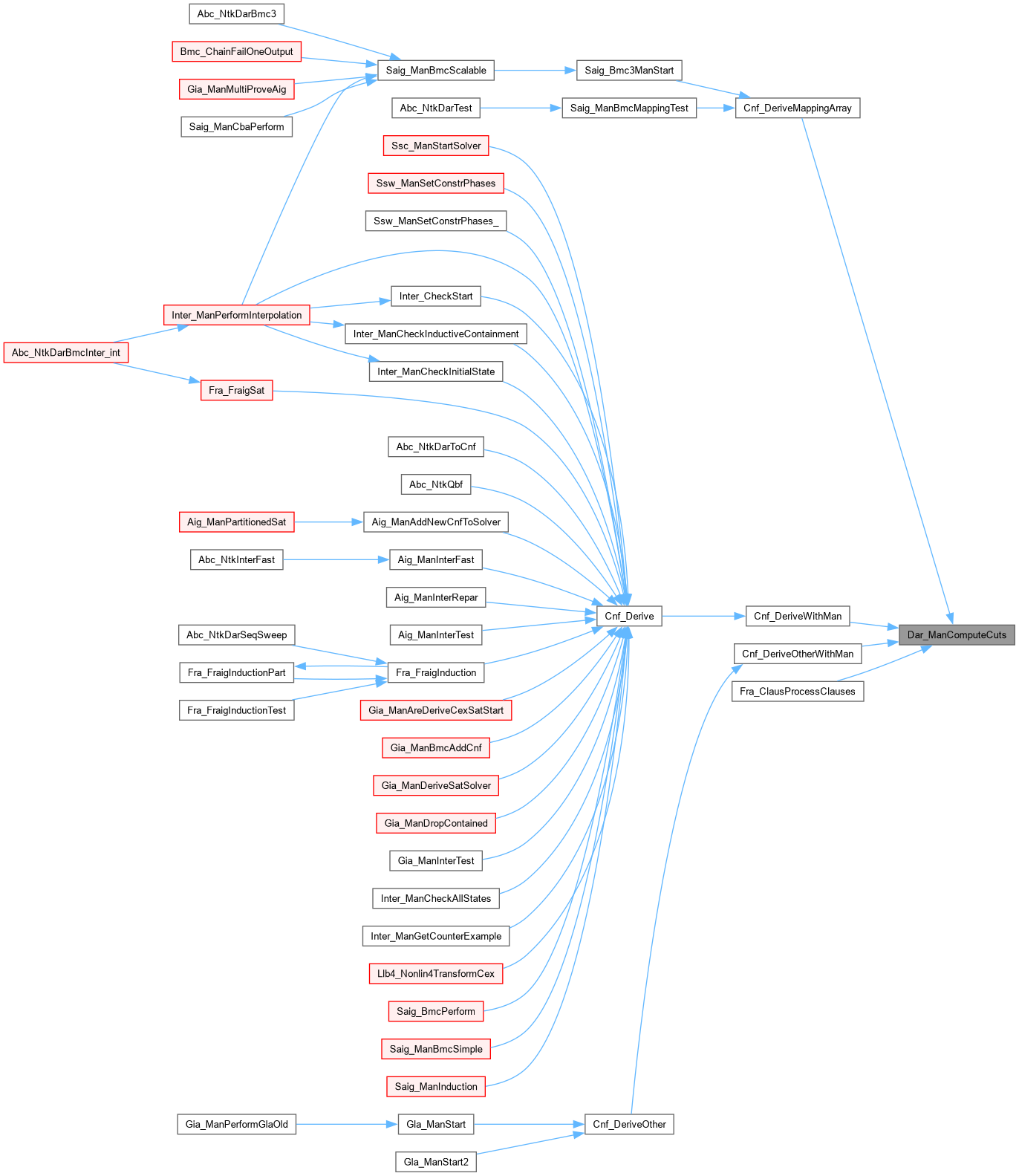

Here is the caller graph for this function:

Dar_ManDefaultRefParams()

void Dar_ManDefaultRefParams ( Dar_RefPar_t * pPars )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns the structure with default assignment of parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 85 of file darRefact.c.

{
    memset( pPars, 0, sizeof(Dar_RefPar_t) );
    pPars->nMffcMin     =  2;  // the min MFFC size for which refactoring is used
    pPars->nLeafMax     = 12;  // the max number of leaves of a cut
    pPars->nCutsMax     =  5;  // the max number of cuts to consider
    pPars->fUpdateLevel =  0;
    pPars->fUseZeros    =  0;
    pPars->fVerbose     =  0;
    pPars->fVeryVerbose =  0;
}

Here is the call graph for this function:

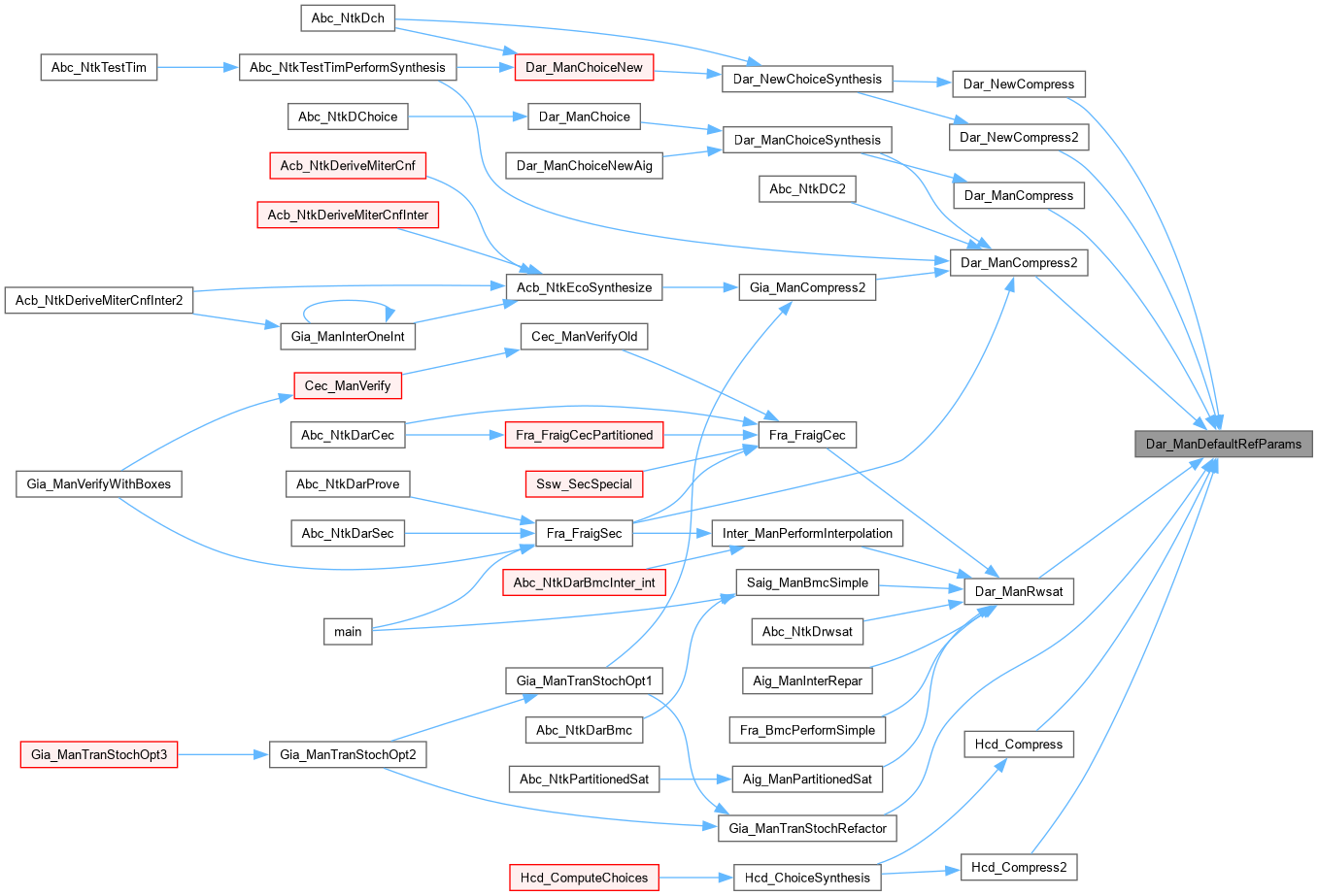

Here is the caller graph for this function:

Dar_ManDefaultRwrParams()

void Dar_ManDefaultRwrParams ( Dar_RwrPar_t * pPars )

extern

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns the structure with default assignment of parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 51 of file darCore.c.

{
    memset( pPars, 0, sizeof(Dar_RwrPar_t) );
    pPars->nCutsMax     =  8; // 8
    pPars->nSubgMax     =  5; // 5 is a "magic number"
    pPars->nMinSaved    =  1;
    pPars->fFanout      =  1;
    pPars->fUpdateLevel =  0;
    pPars->fUseZeros    =  0;
    pPars->fPower       =  0;
    pPars->fRecycle     =  1;
    pPars->fVerbose     =  0;
    pPars->fVeryVerbose =  0;
}

Here is the call graph for this function:

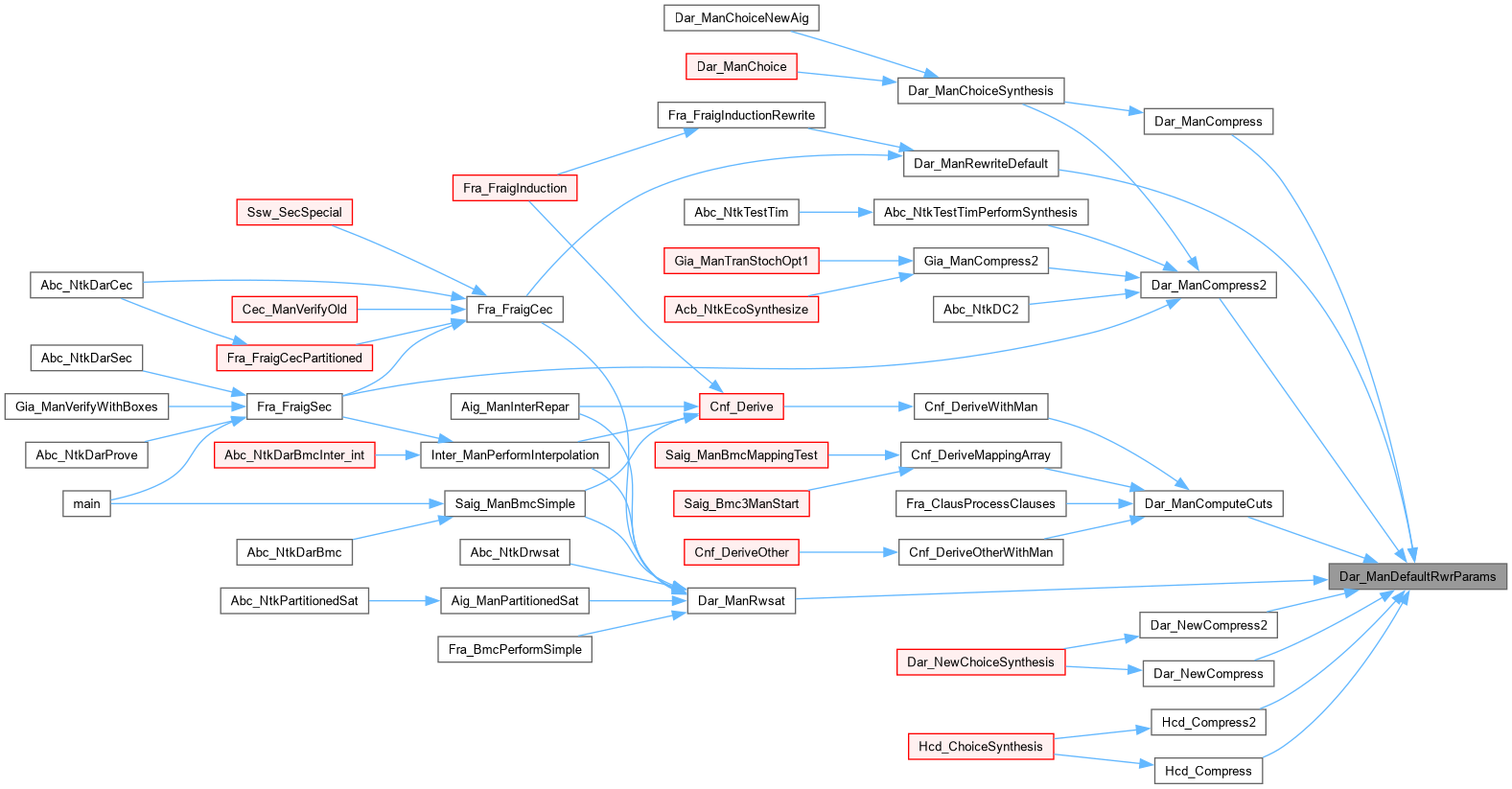

Here is the caller graph for this function:

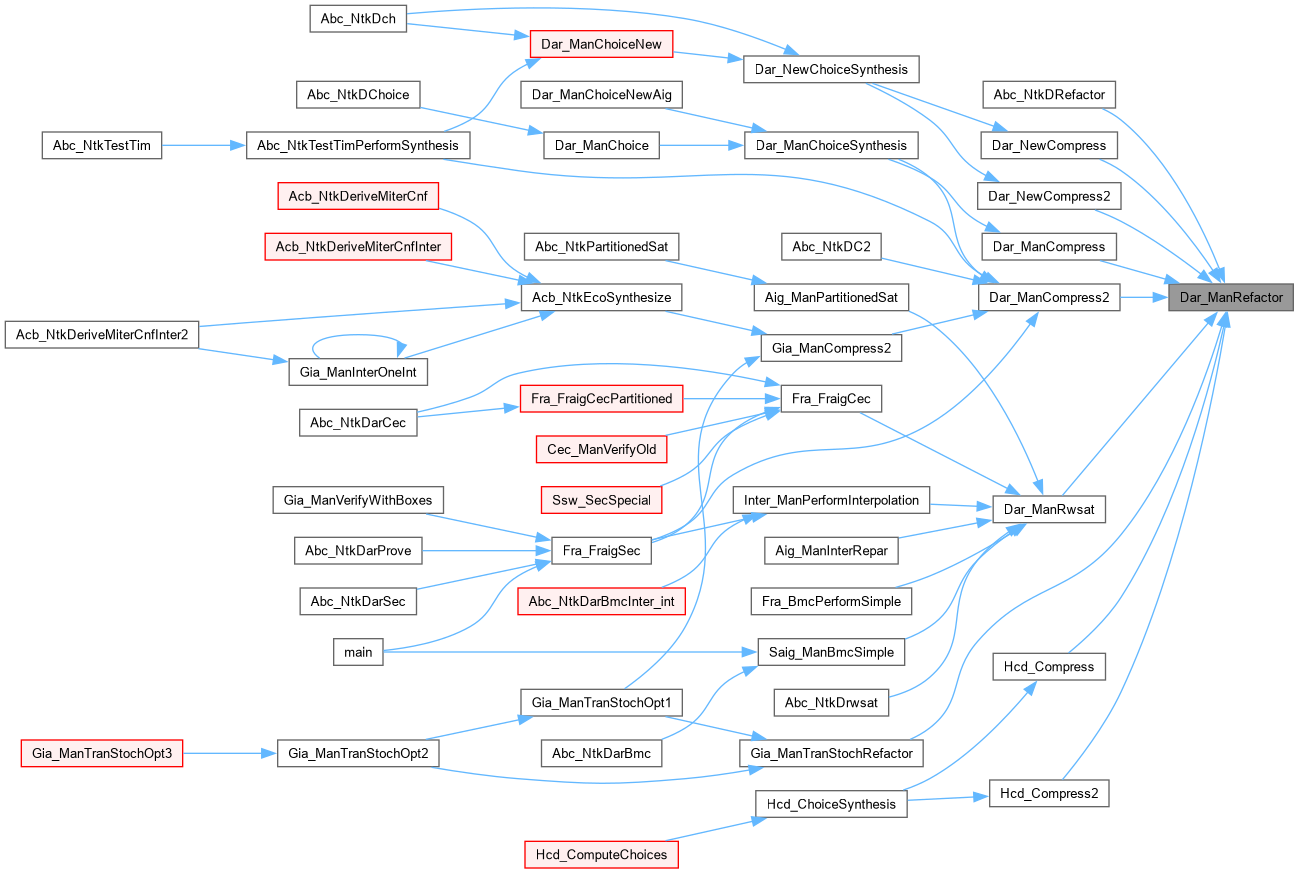

Dar_ManRefactor()

int Dar_ManRefactor ( Aig_Man_t * pAig, Dar_RefPar_t * pPars )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 496 of file darRefact.c.

{
//    Bar_Progress_t * pProgress;
    Ref_Man_t * p;
    Vec_Ptr_t * vCut, * vCut2;
    Aig_Obj_t * pObj, * pObjNew;
    int nNodesOld, nNodeBefore, nNodeAfter, nNodesSaved, nNodesSaved2;
    int i, Required, nLevelMin;
    abctime clkStart, clk;

    // start the manager
    p = Dar_ManRefStart( pAig, pPars );
    // remove dangling nodes
    Aig_ManCleanup( pAig );
    // if updating levels is requested, start fanout and timing
    Aig_ManFanoutStart( pAig );
    if ( p->pPars->fUpdateLevel )
        Aig_ManStartReverseLevels( pAig, 0 );

    // resynthesize each node once
    clkStart = Abc_Clock();
    vCut = Vec_VecEntry( p->vCuts, 0 );
    vCut2 = Vec_VecEntry( p->vCuts, 1 );
    p->nNodesInit = Aig_ManNodeNum(pAig);
    nNodesOld = Vec_PtrSize( pAig->vObjs );
//    pProgress = Bar_ProgressStart( stdout, nNodesOld );
    Aig_ManForEachObj( pAig, pObj, i )
    {
//        Bar_ProgressUpdate( pProgress, i, NULL );
        if ( !Aig_ObjIsNode(pObj) )
            continue;
        if ( i > nNodesOld )
            break;
        if ( pAig->Time2Quit && !(i & 256) && Abc_Clock() > pAig->Time2Quit )
            break;
        Vec_VecClear( p->vCuts );

//printf( "\nConsidering node %d.\n", pObj->Id );
        // get the bounded MFFC size
clk = Abc_Clock();
        nLevelMin = Abc_MaxInt( 0, Aig_ObjLevel(pObj) - 10 );
        nNodesSaved = Aig_NodeMffcSupp( pAig, pObj, nLevelMin, vCut );
        if ( nNodesSaved < p->pPars->nMffcMin ) // too small to consider
        {
p->timeCuts += Abc_Clock() - clk;
            continue;
        }
        p->nNodesTried++;
        if ( Vec_PtrSize(vCut) > p->pPars->nLeafMax ) // get one reconv-driven cut
        {
            Aig_ManFindCut( pObj, vCut, p->vCutNodes, p->pPars->nLeafMax, 50 );
            nNodesSaved = Aig_NodeMffcLabelCut( p->pAig, pObj, vCut );
        }
        else if ( Vec_PtrSize(vCut) < p->pPars->nLeafMax - 2 && p->pPars->fExtend )
        {
            if ( !Dar_ObjCutLevelAchieved(vCut, nLevelMin) )
            {
                if ( Aig_NodeMffcExtendCut( pAig, pObj, vCut, vCut2 ) )
                {
                    nNodesSaved2 = Aig_NodeMffcLabelCut( p->pAig, pObj, vCut );
                    assert( nNodesSaved2 == nNodesSaved );
                }
                if ( Vec_PtrSize(vCut2) > p->pPars->nLeafMax )
                    Vec_PtrClear(vCut2);
                if ( Vec_PtrSize(vCut2) > 0 )
                {
                    p->nNodesExten++;
//                    printf( "%d(%d) ", Vec_PtrSize(vCut), Vec_PtrSize(vCut2) );
                }
            }
            else
                p->nNodesBelow++;
        }
p->timeCuts += Abc_Clock() - clk;

        // try the cuts
clk = Abc_Clock();
        Required = pAig->vLevelR? Aig_ObjRequiredLevel(pAig, pObj) : ABC_INFINITY;
        Dar_ManRefactorTryCuts( p, pObj, nNodesSaved, Required );
p->timeEval += Abc_Clock() - clk;

        // check the best gain
        if ( !(p->GainBest > 0 || (p->GainBest == 0 && p->pPars->fUseZeros)) )
        {
            if ( p->pGraphBest )
                Kit_GraphFree( p->pGraphBest );
            continue;
        }
//printf( "\n" );

        // if we end up here, a rewriting step is accepted
        nNodeBefore = Aig_ManNodeNum( pAig );
        pObjNew = Dar_RefactBuildGraph( pAig, p->vLeavesBest, p->pGraphBest );
        //assert( (int)Aig_Regular(pObjNew)->Level <= Required );
        // replace the node
        Aig_ObjReplace( pAig, pObj, pObjNew, p->pPars->fUpdateLevel );
        // compare the gains
        nNodeAfter = Aig_ManNodeNum( pAig );
        assert( p->GainBest <= nNodeBefore - nNodeAfter );
        Kit_GraphFree( p->pGraphBest );
        p->nCutsUsed++;
//        break;
    }
p->timeTotal = Abc_Clock() - clkStart;
p->timeOther = p->timeTotal - p->timeCuts - p->timeEval;

//    Bar_ProgressStop( pProgress );
    // put the nodes into the DFS order and reassign their IDs
//    Aig_NtkReassignIds( p );
    // fix the levels
    Aig_ManFanoutStop( pAig );
    if ( p->pPars->fUpdateLevel )
        Aig_ManStopReverseLevels( pAig );
/*
    Aig_ManForEachObj( p->pAig, pObj, i )
        if ( Aig_ObjIsNode(pObj) && Aig_ObjRefs(pObj) == 0 )
        {
            printf( "Unreferenced " );
            Aig_ObjPrintVerbose( pObj, 0 );
            printf( "\n" );
        }
*/
    // remove dangling nodes (they should not be here!)
    Aig_ManCleanup( pAig );

    // stop the rewriting manager
    Dar_ManRefStop( p );
//    Aig_ManCheckPhase( pAig );
    if ( !Aig_ManCheck( pAig ) )
    {
        printf( "Dar_ManRefactor: The network check has failed.\n" );
        return 0;
    }
    return 1;

}

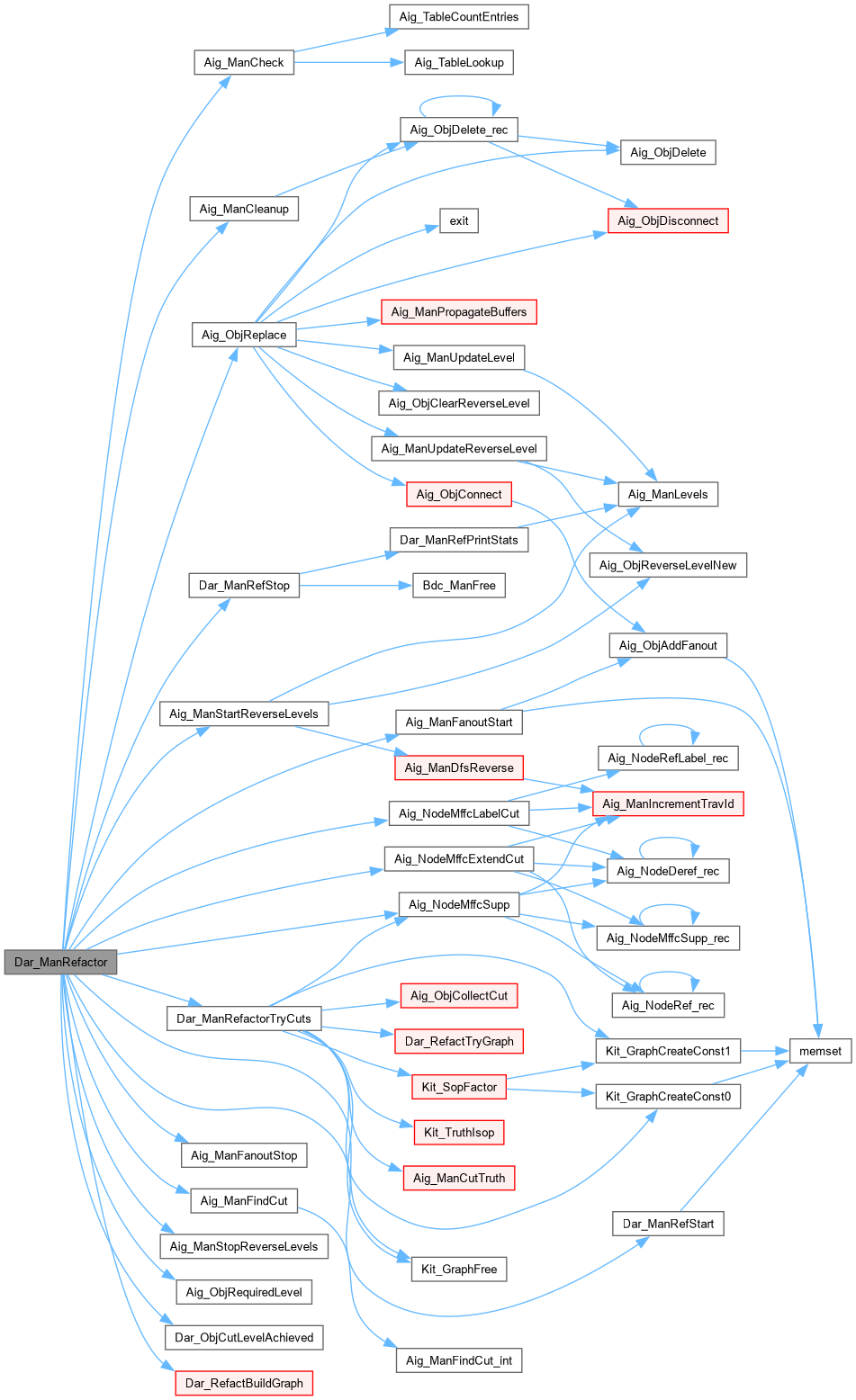

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManRewrite()

int Dar_ManRewrite ( Aig_Man_t * pAig, Dar_RwrPar_t * pPars )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 79 of file darCore.c.

{
    extern Vec_Int_t * Saig_ManComputeSwitchProbs( Aig_Man_t * p, int nFrames, int nPref, int fProbOne );
    Dar_Man_t * p;
//    Bar_Progress_t * pProgress;
    Dar_Cut_t * pCut;
    Aig_Obj_t * pObj, * pObjNew;
    int i, k, nNodesOld, nNodeBefore, nNodeAfter, Required;
    abctime clk = 0, clkStart;
    int Counter = 0;
    int nMffcSize;//, nMffcGains[MAX_VAL+1][MAX_VAL+1] = {{0}};
    if ( pPars->fUseZeros )
        pPars->nMinSaved = 0;
    // prepare the library
    Dar_LibPrepare( pPars->nSubgMax );
    // create rewriting manager
    p = Dar_ManStart( pAig, pPars );
    if ( pPars->fPower )
        pAig->vProbs = Saig_ManComputeSwitchProbs( pAig, 48, 16, 1 );
    // remove dangling nodes
    Aig_ManCleanup( pAig );
    // if updating levels is requested, start fanout and timing
    if ( p->pPars->fFanout )
        Aig_ManFanoutStart( pAig );
    if ( p->pPars->fUpdateLevel )
        Aig_ManStartReverseLevels( pAig, 0 );
    // set elementary cuts for the PIs
//    Dar_ManCutsStart( p );
    // resynthesize each node once
    clkStart = Abc_Clock();
    p->nNodesInit = Aig_ManNodeNum(pAig);
    nNodesOld = Vec_PtrSize( pAig->vObjs );

//    pProgress = Bar_ProgressStart( stdout, nNodesOld );
    Aig_ManForEachObj( pAig, pObj, i )
//    pProgress = Bar_ProgressStart( stdout, 100 );
//    Aig_ManOrderStart( pAig );
//    Aig_ManForEachNodeInOrder( pAig, pObj )
    {
        if ( pAig->Time2Quit && !(i & 256) && Abc_Clock() > pAig->Time2Quit )
            break;
//        Bar_ProgressUpdate( pProgress, 100*pAig->nAndPrev/pAig->nAndTotal, NULL );
//        Bar_ProgressUpdate( pProgress, i, NULL );
        if ( !Aig_ObjIsNode(pObj) )
            continue;
        if ( i > nNodesOld )
//        if ( p->pPars->fUseZeros && i > nNodesOld )
            break;
        if ( pPars->fRecycle && ++Counter % 50000 == 0 && Aig_DagSize(pObj) < Vec_PtrSize(p->vCutNodes)/100 )
        {
//            printf( "Counter = %7d.  Node = %7d.  Dag = %5d. Vec = %5d.\n",
//                Counter, i, Aig_DagSize(pObj), Vec_PtrSize(p->vCutNodes) );
//            fflush( stdout );
            Dar_ManCutsRestart( p, pObj );
        }

        // consider freeing the cuts
//        if ( (i & 0xFFF) == 0 && Aig_MmFixedReadMemUsage(p->pMemCuts)/(1<<20) > 100 )
//            Dar_ManCutsStart( p );

        // compute cuts for the node
        p->nNodesTried++;
clk = Abc_Clock();
        Dar_ObjSetCuts( pObj, NULL );
        Dar_ObjComputeCuts_rec( p, pObj );
p->timeCuts += Abc_Clock() - clk;

        // check if there is a trivial cut
        Dar_ObjForEachCut( pObj, pCut, k )
            if ( pCut->nLeaves == 0 || (pCut->nLeaves == 1 && pCut->pLeaves[0] != pObj->Id && Aig_ManObj(p->pAig, pCut->pLeaves[0])) )
                break;
        if ( k < (int)pObj->nCuts )
        {
            assert( pCut->nLeaves < 2 );
            if ( pCut->nLeaves == 0 ) // replace by constant
            {
                assert( pCut->uTruth == 0 || pCut->uTruth == 0xFFFF );
                pObjNew = Aig_NotCond( Aig_ManConst1(p->pAig), pCut->uTruth==0 );
            }
            else
            {
                assert( pCut->uTruth == 0xAAAA || pCut->uTruth == 0x5555 );
                pObjNew = Aig_NotCond( Aig_ManObj(p->pAig, pCut->pLeaves[0]), pCut->uTruth==0x5555 );
            }
            // remove the old cuts
            Dar_ObjSetCuts( pObj, NULL );
            // replace the node
            Aig_ObjReplace( pAig, pObj, pObjNew, p->pPars->fUpdateLevel );
            continue;
        }

        // evaluate the cuts
        p->GainBest = -1;
        nMffcSize   = -1;
        Required    = pAig->vLevelR? Aig_ObjRequiredLevel(pAig, pObj) : ABC_INFINITY;
        Dar_ObjForEachCut( pObj, pCut, k )
        {
            int nLeavesOld = pCut->nLeaves;
            if ( pCut->nLeaves == 3 )
                pCut->pLeaves[pCut->nLeaves++] = 0;
            Dar_LibEval( p, pObj, pCut, Required, &nMffcSize );
            pCut->nLeaves = nLeavesOld;
        }
        // check the best gain
        //if ( !(p->GainBest > 0 || (p->GainBest == 0 && p->pPars->fUseZeros)) )
        if ( p->GainBest < p->pPars->nMinSaved )
        {
//            Aig_ObjOrderAdvance( pAig );
            continue;
        }
//        nMffcGains[p->GainBest < MAX_VAL ? p->GainBest : MAX_VAL][nMffcSize < MAX_VAL ? nMffcSize : MAX_VAL]++;
        // remove the old cuts
        Dar_ObjSetCuts( pObj, NULL );
        // if we end up here, a rewriting step is accepted
        nNodeBefore = Aig_ManNodeNum( pAig );
        pObjNew = Dar_LibBuildBest( p ); // pObjNew can be complemented!
        pObjNew = Aig_NotCond( pObjNew, Aig_ObjPhaseReal(pObjNew) ^ pObj->fPhase );
        assert( (int)Aig_Regular(pObjNew)->Level <= Required );
        // replace the node
        Aig_ObjReplace( pAig, pObj, pObjNew, p->pPars->fUpdateLevel );
        // compare the gains
        nNodeAfter = Aig_ManNodeNum( pAig );
        assert( p->GainBest <= nNodeBefore - nNodeAfter );
        // count gains of this class
        p->ClassGains[p->ClassBest] += nNodeBefore - nNodeAfter;
    }
//    Aig_ManOrderStop( pAig );
/*
    printf( "Distribution of gain (row) by MFFC size (column) %s 0-costs:\n", p->pPars->fUseZeros? "with":"without" );
    for ( k = 0; k <= MAX_VAL; k++ )
        printf( "<%4d> ", k );
    printf( "\n" );
    for ( i = 0; i <= MAX_VAL; i++ )
    {
        for ( k = 0; k <= MAX_VAL; k++ )
            printf( "%6d ", nMffcGains[i][k] );
        printf( "\n" );
    }
*/

p->timeTotal = Abc_Clock() - clkStart;
p->timeOther = p->timeTotal - p->timeCuts - p->timeEval;

//    Bar_ProgressStop( pProgress );
    Dar_ManCutsFree( p );
    // put the nodes into the DFS order and reassign their IDs
//    Aig_NtkReassignIds( p );
    // fix the levels
//    Aig_ManVerifyLevel( pAig );
    if ( p->pPars->fFanout )
        Aig_ManFanoutStop( pAig );
    if ( p->pPars->fUpdateLevel )
    {
//        Aig_ManVerifyReverseLevel( pAig );
        Aig_ManStopReverseLevels( pAig );
    }
    if ( pAig->vProbs )
    {
        Vec_IntFree( pAig->vProbs );
        pAig->vProbs = NULL;
    }
    // stop the rewriting manager
    Dar_ManStop( p );
    Aig_ManCheckPhase( pAig );
    // check
    if ( !Aig_ManCheck( pAig ) )
    {
        printf( "Aig_ManRewrite: The network check has failed.\n" );
        return 0;
    }
    return 1;
}

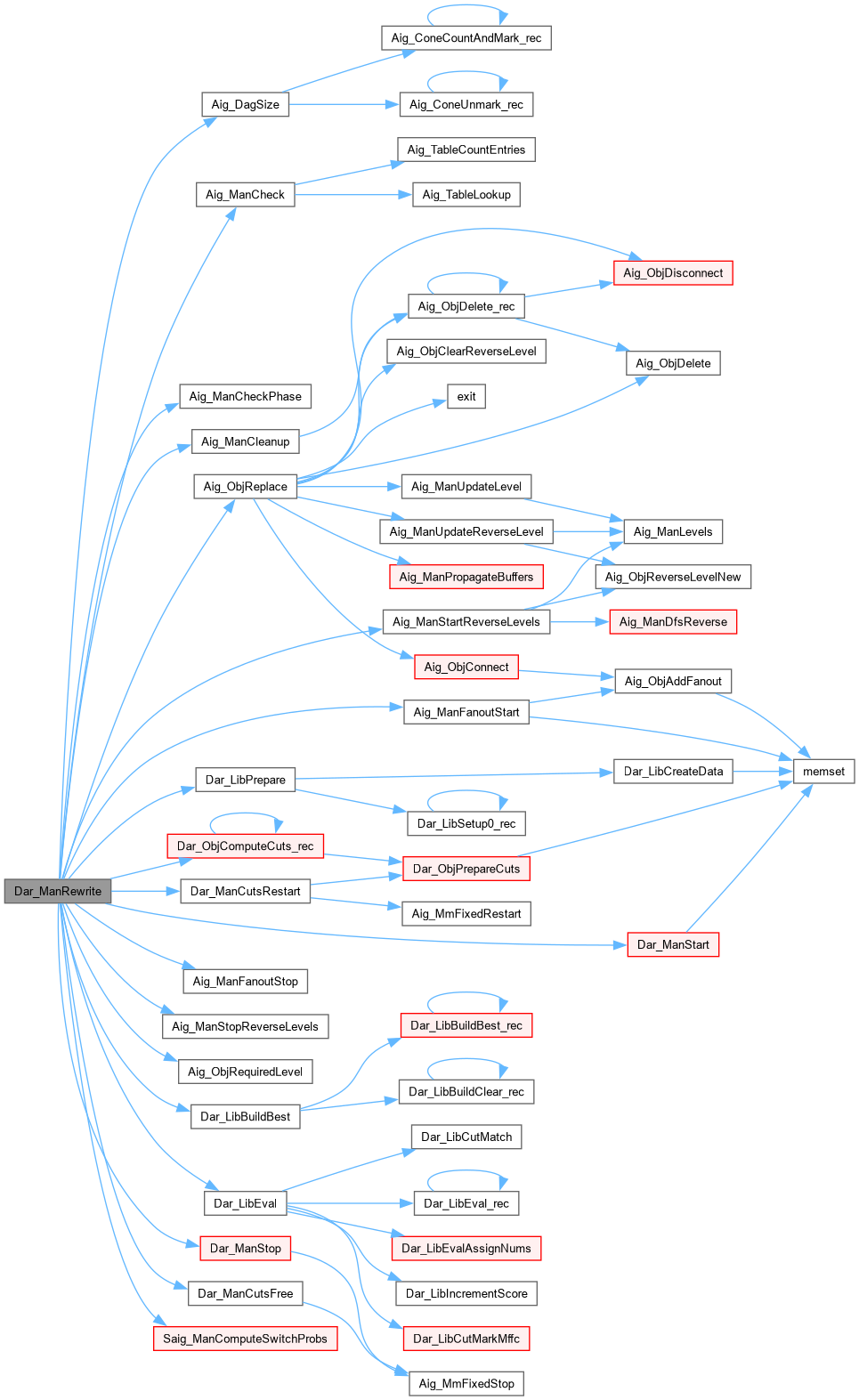

Here is the call graph for this function:

Here is the caller graph for this function:

Dar_ManRewriteDefault()

Aig_Man_t * Dar_ManRewriteDefault ( Aig_Man_t * pAig )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [darScript.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [DAG-aware AIG rewriting.]

Synopsis [Rewriting scripts.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

darScript.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Performs one iteration of AIG rewriting.]

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file darScript.c.

{
    Aig_Man_t * pTemp;
    Dar_RwrPar_t Pars, * pPars = &Pars;
    Dar_ManDefaultRwrParams( pPars );
    pAig = Aig_ManDupDfs( pAig );
    Dar_ManRewrite( pAig, pPars );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    return pAig;
}

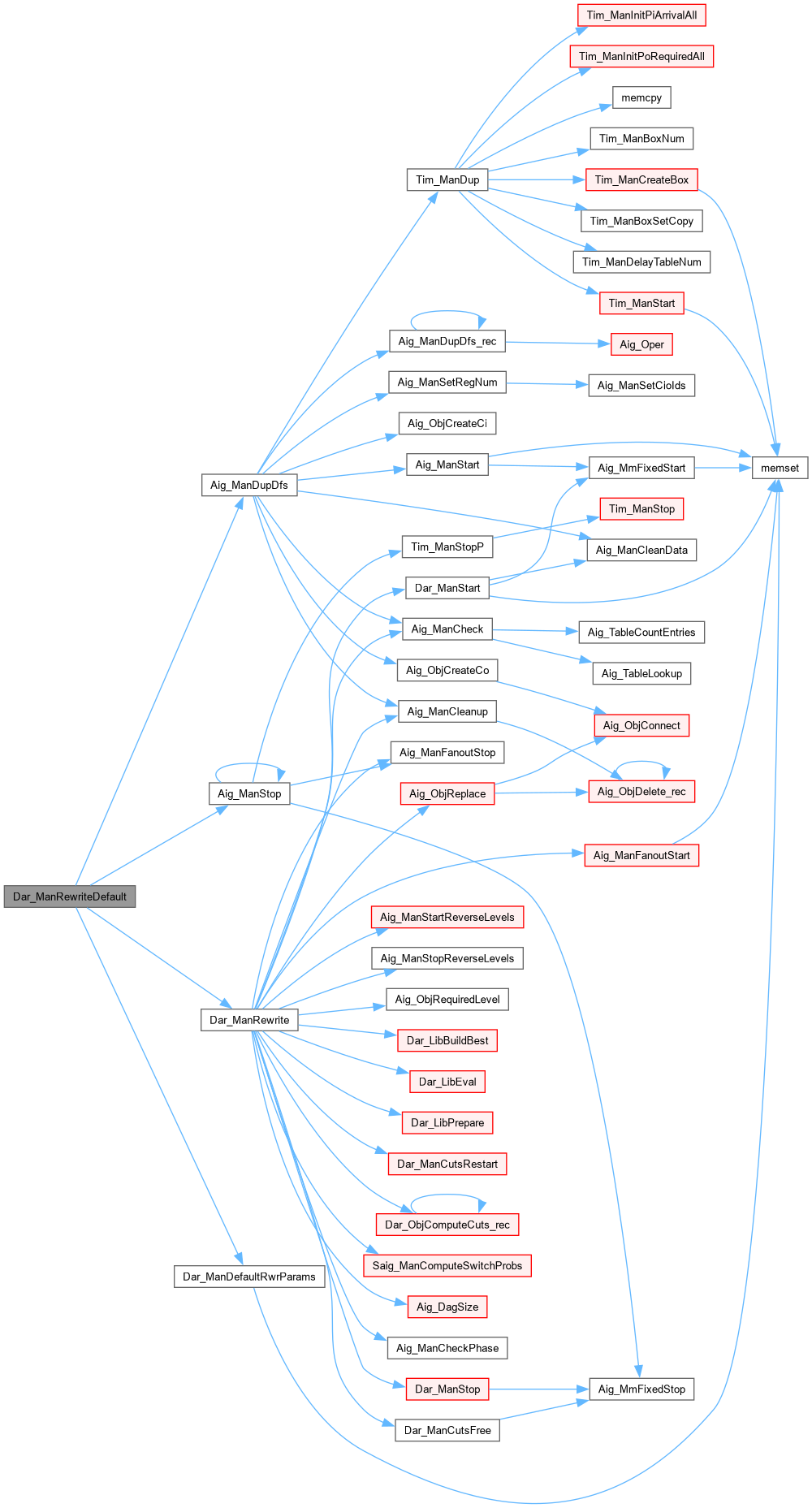

Here is the call graph for this function:

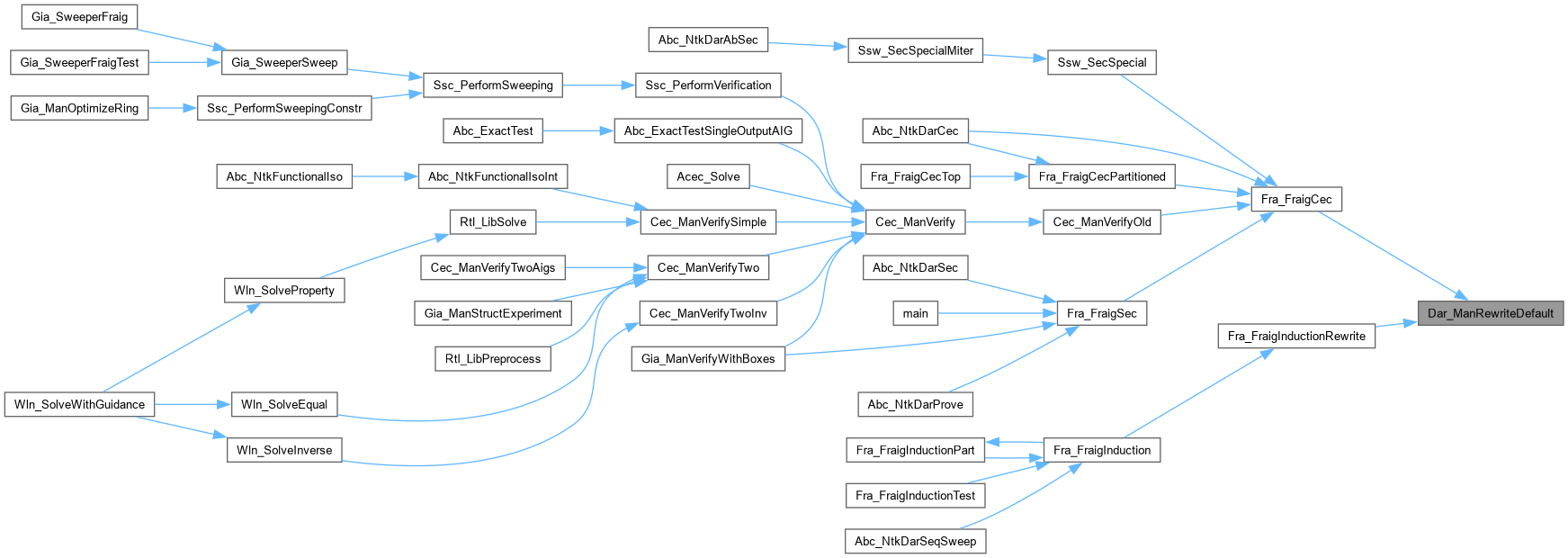

Here is the caller graph for this function:

Dar_ManRwsat()

Aig_Man_t * Dar_ManRwsat ( Aig_Man_t * pAig, int fBalance, int fVerbose )

extern

DECLARATIONS ///.

Function*************************************************************

Synopsis [Reproduces script "rwsat".]

Description []

SideEffects [This procedure does not tighten level during restructuring.]

SeeAlso []

Definition at line 71 of file darScript.c.

{
    Aig_Man_t * pTemp;
    abctime Time = pAig->Time2Quit;

    Dar_RwrPar_t ParsRwr, * pParsRwr = &ParsRwr;
    Dar_RefPar_t ParsRef, * pParsRef = &ParsRef;

    Dar_ManDefaultRwrParams( pParsRwr );
    Dar_ManDefaultRefParams( pParsRef );

    pParsRwr->fUpdateLevel = 0;
    pParsRef->fUpdateLevel = 0;

    pParsRwr->fVerbose = fVerbose;
    pParsRef->fVerbose = fVerbose;
//printf( "1" );
    pAig = Aig_ManDupDfs( pAig );
    if ( fVerbose ) printf( "Starting:  " ), Aig_ManPrintStats( pAig );

//printf( "2" );
    // balance
    if ( fBalance )
    {
    pAig->Time2Quit = Time;
    pAig = Dar_ManBalance( pTemp = pAig, 0 );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    if ( Time && Abc_Clock() > Time )
        { if ( pAig ) Aig_ManStop( pAig ); return NULL; }
    }

//Aig_ManDumpBlif( pAig, "inter.blif", NULL, NULL );
//printf( "3" );
    // rewrite
    pAig->Time2Quit = Time;
    Dar_ManRewrite( pAig, pParsRwr );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Rewrite:   " ), Aig_ManPrintStats( pAig );
    if ( Time && Abc_Clock() > Time )
        { if ( pAig ) Aig_ManStop( pAig ); return NULL; }

//printf( "4" );
    // refactor
    pAig->Time2Quit = Time;
    Dar_ManRefactor( pAig, pParsRef );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Refactor:  " ), Aig_ManPrintStats( pAig );
    if ( Time && Abc_Clock() > Time )
        { if ( pAig ) Aig_ManStop( pAig ); return NULL; }

//printf( "5" );
    // balance
    if ( fBalance )
    {
    pAig->Time2Quit = Time;
    pAig = Dar_ManBalance( pTemp = pAig, 0 );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Balance:   " ), Aig_ManPrintStats( pAig );
    if ( Time && Abc_Clock() > Time )
        { if ( pAig ) Aig_ManStop( pAig ); return NULL; }
    }

//printf( "6" );
    // rewrite
    pAig->Time2Quit = Time;
    Dar_ManRewrite( pAig, pParsRwr );
    pAig = Aig_ManDupDfs( pTemp = pAig );
    Aig_ManStop( pTemp );
    if ( fVerbose ) printf( "Rewrite:   " ), Aig_ManPrintStats( pAig );
    if ( Time && Abc_Clock() > Time )
        { if ( pAig ) Aig_ManStop( pAig ); return NULL; }

//printf( "7" );
    return pAig;
}
