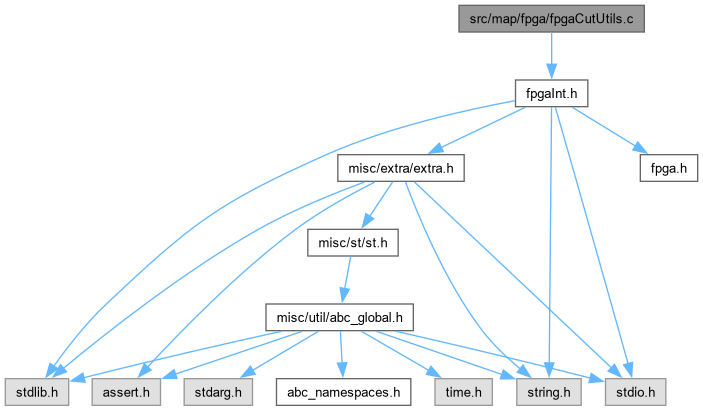

Include dependency graph for fpgaCutUtils.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Fpga_Cut_t *	Fpga_CutAlloc (Fpga_Man_t *p)
	DECLARATIONS ///.
Fpga_Cut_t *	Fpga_CutDup (Fpga_Man_t *p, Fpga_Cut_t *pCutOld)
void	Fpga_CutFree (Fpga_Man_t *p, Fpga_Cut_t *pCut)
void	Fpga_CutPrint (Fpga_Man_t *p, Fpga_Node_t *pRoot, Fpga_Cut_t *pCut)
Fpga_Cut_t *	Fpga_CutCreateSimple (Fpga_Man_t *p, Fpga_Node_t *pNode)
float	Fpga_CutGetRootArea (Fpga_Man_t *p, Fpga_Cut_t *pCut)
Fpga_Cut_t *	Fpga_CutListAppend (Fpga_Cut_t *pSetAll, Fpga_Cut_t *pSets)
void	Fpga_CutListRecycle (Fpga_Man_t *p, Fpga_Cut_t *pSetList, Fpga_Cut_t *pSave)
int	Fpga_CutListCount (Fpga_Cut_t *pSets)
void	Fpga_CutGetParameters (Fpga_Man_t *pMan, Fpga_Cut_t *pCut)
float	Fpga_CutGetAreaFlow (Fpga_Man_t *pMan, Fpga_Cut_t *pCut)
float	Fpga_CutGetAreaRefed (Fpga_Man_t *pMan, Fpga_Cut_t *pCut)
float	Fpga_CutGetAreaDerefed (Fpga_Man_t *pMan, Fpga_Cut_t *pCut)

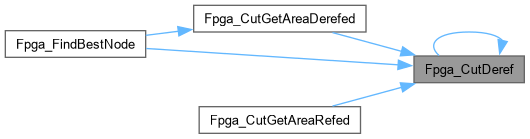

float	Fpga_CutRef (Fpga_Man_t *pMan, Fpga_Node_t *pNode, Fpga_Cut_t *pCut, int fFanouts)
float	Fpga_CutDeref (Fpga_Man_t *pMan, Fpga_Node_t *pNode, Fpga_Cut_t *pCut, int fFanouts)
void	Fpga_MappingSetUsedCuts (Fpga_Man_t *pMan)

Function Documentation

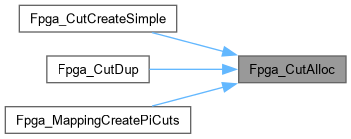

Fpga_CutAlloc()

ABC_NAMESPACE_IMPL_START Fpga_Cut_t * Fpga_CutAlloc

(

Fpga_Man_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [fpgaCutUtils.c]

PackageName [MVSIS 1.3: Multi-valued logic synthesis system.]

Synopsis [Generic technology mapping engine.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 2.0. Started - August 18, 2004.]

Revision [

Id

fpgaCutUtils.h,v 1.0 2003/09/08 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Allocates the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 43 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pCut;
    pCut = (Fpga_Cut_t *)Extra_MmFixedEntryFetch( p->mmCuts );
    memset( pCut, 0, sizeof(Fpga_Cut_t) );
    return pCut;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fpga_CutCreateSimple()

Fpga_Cut_t * Fpga_CutCreateSimple	(	Fpga_Man_t *	p,
		Fpga_Node_t *	pNode )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 123 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pCut;
    pCut = Fpga_CutAlloc( p );
    pCut->pRoot       = pNode;
    pCut->nLeaves     = 1;
    pCut->ppLeaves[0] = pNode;
    pCut->uSign = FPGA_SEQ_SIGN(pCut->ppLeaves[0]);
    return pCut;
}

Here is the call graph for this function:

Fpga_CutDeref()

float Fpga_CutDeref	(	Fpga_Man_t *	pMan,
		Fpga_Node_t *	pNode,
		Fpga_Cut_t *	pCut,
		int	fFanouts )

function*************************************************************

synopsis [Dereferences the cut.]

description [This procedure is similar to the procedure NodeRecusiveDeref.]

sideeffects []

seealso []

Definition at line 421 of file fpgaCutUtils.c.

{
    Fpga_Node_t * pNodeChild;
    float aArea;
    int i;

    // deref the fanouts
//    if ( fFanouts )
//        Fpga_CutRemoveFanouts( pMan, pNode, pCut );

    // start the area of this cut
    aArea = pMan->pLutLib->pLutAreas[(int)pCut->nLeaves];
    // go through the children
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        pNodeChild = pCut->ppLeaves[i];
        assert( pNodeChild->nRefs > 0 );
        if ( --pNodeChild->nRefs > 0 )
            continue;
        if ( !Fpga_NodeIsAnd(pNodeChild) )
            continue;
        aArea += Fpga_CutDeref( pMan, pNodeChild, pNodeChild->pCutBest, fFanouts );
    }
    return aArea;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fpga_CutDup()

Fpga_Cut_t * Fpga_CutDup	(	Fpga_Man_t *	p,
		Fpga_Cut_t *	pCutOld )

Function*************************************************************

Synopsis [Duplicates the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 62 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pCutNew;
    int i;
    pCutNew = Fpga_CutAlloc( p );
    pCutNew->pRoot   = pCutOld->pRoot;
    pCutNew->nLeaves = pCutOld->nLeaves;
    for ( i = 0; i < pCutOld->nLeaves; i++ )
        pCutNew->ppLeaves[i] = pCutOld->ppLeaves[i];
    return pCutNew;
}

Here is the call graph for this function:

Fpga_CutFree()

void Fpga_CutFree	(	Fpga_Man_t *	p,
		Fpga_Cut_t *	pCut )

Function*************************************************************

Synopsis [Deallocates the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 85 of file fpgaCutUtils.c.

{
    if ( pCut )
    Extra_MmFixedEntryRecycle( p->mmCuts, (char *)pCut );
}

Here is the call graph for this function:

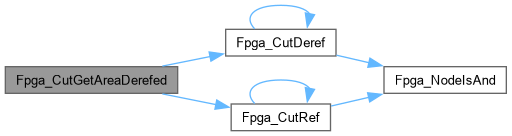

Fpga_CutGetAreaDerefed()

float Fpga_CutGetAreaDerefed	(	Fpga_Man_t *	pMan,
		Fpga_Cut_t *	pCut )

function*************************************************************

synopsis [Computes the exact area associated with the cut.]

description []

sideeffects []

seealso []

Definition at line 362 of file fpgaCutUtils.c.

{
    float aResult, aResult2;
    if ( pCut->nLeaves == 1 )
        return 0;
    aResult2 = Fpga_CutRef( pMan, NULL, pCut, 0 );
    aResult  = Fpga_CutDeref( pMan, NULL, pCut, 0 );
    assert( Fpga_FloatEqual( pMan, aResult, aResult2 ) );
    return aResult;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fpga_CutGetAreaFlow()

float Fpga_CutGetAreaFlow	(	Fpga_Man_t *	pMan,
		Fpga_Cut_t *	pCut )

function*************************************************************

synopsis [Computes the area flow of the cut.]

description []

sideeffects []

seealso []

Definition at line 314 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pCutFanin;
    int i;
    pCut->aFlow = pMan->pLutLib->pLutAreas[(int)pCut->nLeaves];
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        // get the cut implementing this phase of the fanin
        pCutFanin  = pCut->ppLeaves[i]->pCutBest;
        assert( pCutFanin );
        pCut->aFlow  += pCutFanin->aFlow / pCut->ppLeaves[i]->nRefs;
    }
    return pCut->aFlow;
}

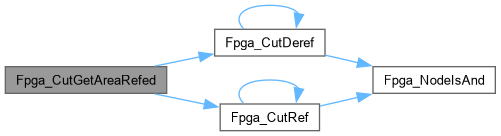

Fpga_CutGetAreaRefed()

float Fpga_CutGetAreaRefed	(	Fpga_Man_t *	pMan,
		Fpga_Cut_t *	pCut )

function*************************************************************

synopsis [Computes the exact area associated with the cut.]

description []

sideeffects []

seealso []

Definition at line 340 of file fpgaCutUtils.c.

{
    float aResult, aResult2;
    if ( pCut->nLeaves == 1 )
        return 0;
    aResult  = Fpga_CutDeref( pMan, NULL, pCut, 0 );
    aResult2 = Fpga_CutRef( pMan, NULL, pCut, 0 );
    assert( Fpga_FloatEqual( pMan, aResult, aResult2 ) );
    return aResult;
}

Here is the call graph for this function:

Fpga_CutGetParameters()

void Fpga_CutGetParameters	(	Fpga_Man_t *	pMan,
		Fpga_Cut_t *	pCut )

Function*************************************************************

Synopsis [Computes the arrival time and the area flow of the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 279 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pFaninCut;
    int i;
    pCut->tArrival = -FPGA_FLOAT_LARGE;
    pCut->aFlow    = pMan->pLutLib->pLutAreas[(int)pCut->nLeaves];
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        pFaninCut = pCut->ppLeaves[i]->pCutBest;
        if ( pCut->tArrival < pFaninCut->tArrival )
             pCut->tArrival = pFaninCut->tArrival;
        // if the fanout count is not set, assume it to be 1
        if ( pCut->ppLeaves[i]->nRefs == 0 )
            pCut->aFlow += pFaninCut->aFlow;
        else
//            pCut->aFlow += pFaninCut->aFlow / pCut->ppLeaves[i]->nRefs;
            pCut->aFlow += pFaninCut->aFlow / pCut->ppLeaves[i]->aEstFanouts;
    }
    // use the first pin to compute the delay of the LUT
    // (this mapper does not support the variable pin delay model)
    pCut->tArrival += pMan->pLutLib->pLutDelays[(int)pCut->nLeaves][0];
}

Fpga_CutGetRootArea()

float Fpga_CutGetRootArea	(	Fpga_Man_t *	p,
		Fpga_Cut_t *	pCut )

function*************************************************************

synopsis [Computes the exact area associated with the cut.]

description []

sideeffects []

seealso []

Definition at line 146 of file fpgaCutUtils.c.

{
    return p->pLutLib->pLutAreas[(int)pCut->nLeaves];
}

Fpga_CutListAppend()

Fpga_Cut_t * Fpga_CutListAppend	(	Fpga_Cut_t *	pSetAll,
		Fpga_Cut_t *	pSets )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 162 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pPrev = NULL; // Suppress "might be used uninitialized"
    Fpga_Cut_t * pTemp;
    if ( pSetAll == NULL )
        return pSets;
    if ( pSets == NULL )
        return pSetAll;
    // find the last one
    for ( pTemp = pSets; pTemp; pTemp = pTemp->pNext )
        pPrev = pTemp;
    // append all the end of the current set
    assert( pPrev->pNext == NULL );
    pPrev->pNext = pSetAll;
    return pSets;
}

Fpga_CutListCount()

int Fpga_CutListCount

(

Fpga_Cut_t *

pSets

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 211 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pTemp;
    int i;
    for ( i = 0, pTemp = pSets; pTemp; pTemp = pTemp->pNext, i++ );
    return i;
}

Fpga_CutListRecycle()

void Fpga_CutListRecycle	(	Fpga_Man_t *	p,
		Fpga_Cut_t *	pSetList,
		Fpga_Cut_t *	pSave )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 190 of file fpgaCutUtils.c.

{
    Fpga_Cut_t * pNext, * pTemp;
    for ( pTemp = pSetList, pNext = pTemp? pTemp->pNext : NULL;
          pTemp;
          pTemp = pNext, pNext = pNext? pNext->pNext : NULL )
        if ( pTemp != pSave )
            Extra_MmFixedEntryRecycle( p->mmCuts, (char *)pTemp );
}

Here is the call graph for this function:

Fpga_CutPrint()

void Fpga_CutPrint	(	Fpga_Man_t *	p,
		Fpga_Node_t *	pRoot,
		Fpga_Cut_t *	pCut )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 102 of file fpgaCutUtils.c.

{
    int i;
    printf( "CUT:  Delay = %4.2f. Area = %4.2f. Nodes = %d -> {",
        pCut->tArrival, pCut->aFlow, pRoot->Num );
    for ( i = 0; i < pCut->nLeaves; i++ )
        printf( " %d", pCut->ppLeaves[i]->Num );
    printf( " } \n" );
}

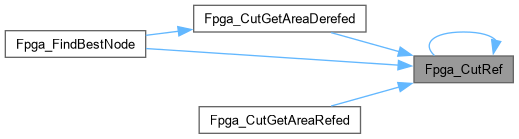

Fpga_CutRef()

float Fpga_CutRef	(	Fpga_Man_t *	pMan,
		Fpga_Node_t *	pNode,
		Fpga_Cut_t *	pCut,
		int	fFanouts )

function*************************************************************

synopsis [References the cut.]

description [This procedure is similar to the procedure NodeReclaim.]

sideeffects []

seealso []

Definition at line 384 of file fpgaCutUtils.c.

{
    Fpga_Node_t * pNodeChild;
    float aArea;
    int i;

    // deref the fanouts
//    if ( fFanouts )
//        Fpga_CutInsertFanouts( pMan, pNode, pCut );

    // start the area of this cut
    aArea = pMan->pLutLib->pLutAreas[(int)pCut->nLeaves];
    // go through the children
    for ( i = 0; i < pCut->nLeaves; i++ )
    {
        pNodeChild = pCut->ppLeaves[i];
        assert( pNodeChild->nRefs >= 0 );
        if ( pNodeChild->nRefs++ > 0 )
            continue;
        if ( !Fpga_NodeIsAnd(pNodeChild) )
            continue;
        aArea += Fpga_CutRef( pMan, pNodeChild, pNodeChild->pCutBest, fFanouts );
    }
    return aArea;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Fpga_MappingSetUsedCuts()

void Fpga_MappingSetUsedCuts

(

Fpga_Man_t *

pMan

)

Function*************************************************************

Synopsis [Sets the used cuts to be the currently selected ones.]

Description []

SideEffects []

SeeAlso []

Definition at line 459 of file fpgaCutUtils.c.

{
    int i;
    for ( i = 0; i < pMan->vNodesAll->nSize; i++ )
        if ( pMan->vNodesAll->pArray[i]->pCutOld )
        {
            pMan->vNodesAll->pArray[i]->pCutBest = pMan->vNodesAll->pArray[i]->pCutOld;
            pMan->vNodesAll->pArray[i]->pCutOld  = NULL;
        }
}
