fpgaMatch.c File Reference

#include "fpgaInt.h"

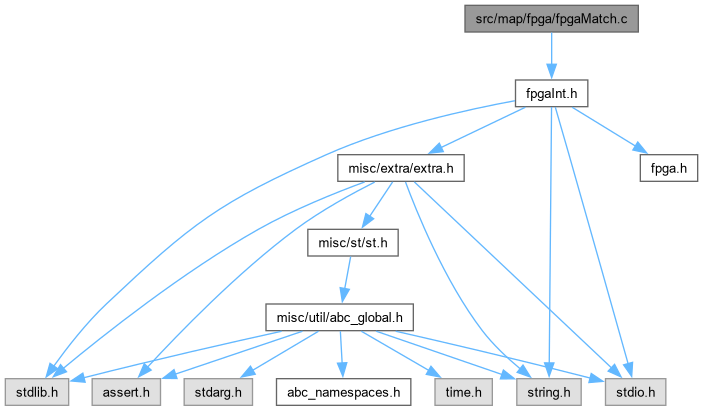

Include dependency graph for fpgaMatch.c:

Go to the source code of this file.

Functions
int	Fpga_MappingMatches (Fpga_Man_t *p, int fDelayOriented)
	FUNCTION DEFINITIONS ///.
int	Fpga_MappingMatchesArea (Fpga_Man_t *p)
int	Fpga_MappingMatchesSwitch (Fpga_Man_t *p)
float	Fpga_FindBestNode (Fpga_Man_t *p, Fpga_NodeVec_t *vNodes, Fpga_Node_t **ppNode, Fpga_Cut_t **ppCutBest)

Function Documentation

Fpga_FindBestNode()

float Fpga_FindBestNode	(	Fpga_Man_t *	p,
		Fpga_NodeVec_t *	vNodes,
		Fpga_Node_t **	ppNode,
		Fpga_Cut_t **	ppCutBest )

function*************************************************************

synopsis [Performs area minimization using a heuristic algorithm.]

description []

sideeffects []

seealso []

Definition at line 756 of file fpgaMatch.c.

{
    Fpga_Node_t * pNode;
    Fpga_Cut_t * pCut;
    float Gain, CutArea1, CutArea2, CutArea3;
    int i;

    Gain = 0;
    for ( i = 0; i < vNodes->nSize; i++ )
    {
        pNode = vNodes->pArray[i];
        // deref the current cut
        CutArea1 = Fpga_CutDeref( p, pNode, pNode->pCutBest, 0 );

        // ref all the cuts
        for ( pCut = pNode->pCuts->pNext; pCut; pCut = pCut->pNext )
        {
            if ( pCut == pNode->pCutBest )
                continue;
            if ( pCut->tArrival > pNode->tRequired )
                continue;

            CutArea2 = Fpga_CutGetAreaDerefed( p, pCut );
            if ( Gain < CutArea1 - CutArea2 )
            {
                *ppNode = pNode;
                *ppCutBest = pCut;
                Gain = CutArea1 - CutArea2;
            }
        }
        // ref the old cut
        CutArea3 = Fpga_CutRef( p, pNode, pNode->pCutBest, 0 );
        assert( CutArea1 == CutArea3 );
    }
    if ( Gain == 0 )
        printf( "Returning no gain.\n" );

    return Gain;
}

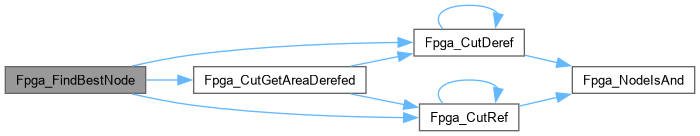

Here is the call graph for this function:

Fpga_MappingMatches()

int Fpga_MappingMatches	(	Fpga_Man_t *	p,
		int	fDelayOriented )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Finds the best delay assignment of LUTs.]

Description [This procedure iterates through all the nodes of the object graph reachable from the POs and assigns the best match to each of them. If the flag fDelayOriented is set to 1, it tries to minimize the arrival time and uses the area flow as a tie-breaker. If the flag is set to 0, it considers all the cuts, whose arrival times matches the required time at the node, and minimizes the area flow using the arrival time as a tie-breaker.

Before this procedure is called, the required times should be set and the fanout counts should be computed. In the first iteration, the required times are set to very large number (by NodeCreate) and the fanout counts are set to the number of fanouts in the AIG. In the following iterations, the required times are set by the backward traversal, while the fanouts are estimated approximately.

If the arrival times of the PI nodes are given, they should be assigned to the PIs after the cuts are computed and before this procedure is called for the first time.]

SideEffects []

SeeAlso []

Definition at line 67 of file fpgaMatch.c.

{
    ProgressBar * pProgress;
    Fpga_Node_t * pNode;
    int i, nNodes;

    // assign the arrival times of the PIs
    for ( i = 0; i < p->nInputs; i++ )
        p->pInputs[i]->pCutBest->tArrival = p->pInputArrivals[i];

    // match LUTs with nodes in the topological order
    nNodes = p->vAnds->nSize;
    pProgress = Extra_ProgressBarStart( stdout, nNodes );
    for ( i = 0; i < nNodes; i++ )
    {
        pNode = p->vAnds->pArray[i];
        if ( !Fpga_NodeIsAnd( pNode ) )
            continue;
        // skip a secondary node
        if ( pNode->pRepr )
            continue;
        // match the node
        Fpga_MatchNode( p, pNode, fDelayOriented );
        Extra_ProgressBarUpdate( pProgress, i, "Matches ..." );
    }
    Extra_ProgressBarStop( pProgress );
/*
    if ( !fDelayOriented )
    {
        float Area = 0.0;
        for ( i = 0; i < p->nOutputs; i++ )
        {
            printf( "%5.2f ", Fpga_Regular(p->pOutputs[i])->pCutBest->aFlow );
            Area += Fpga_Regular(p->pOutputs[i])->pCutBest->aFlow;
        }
        printf( "\nTotal = %5.2f\n", Area );
    }
*/
    return 1;
}

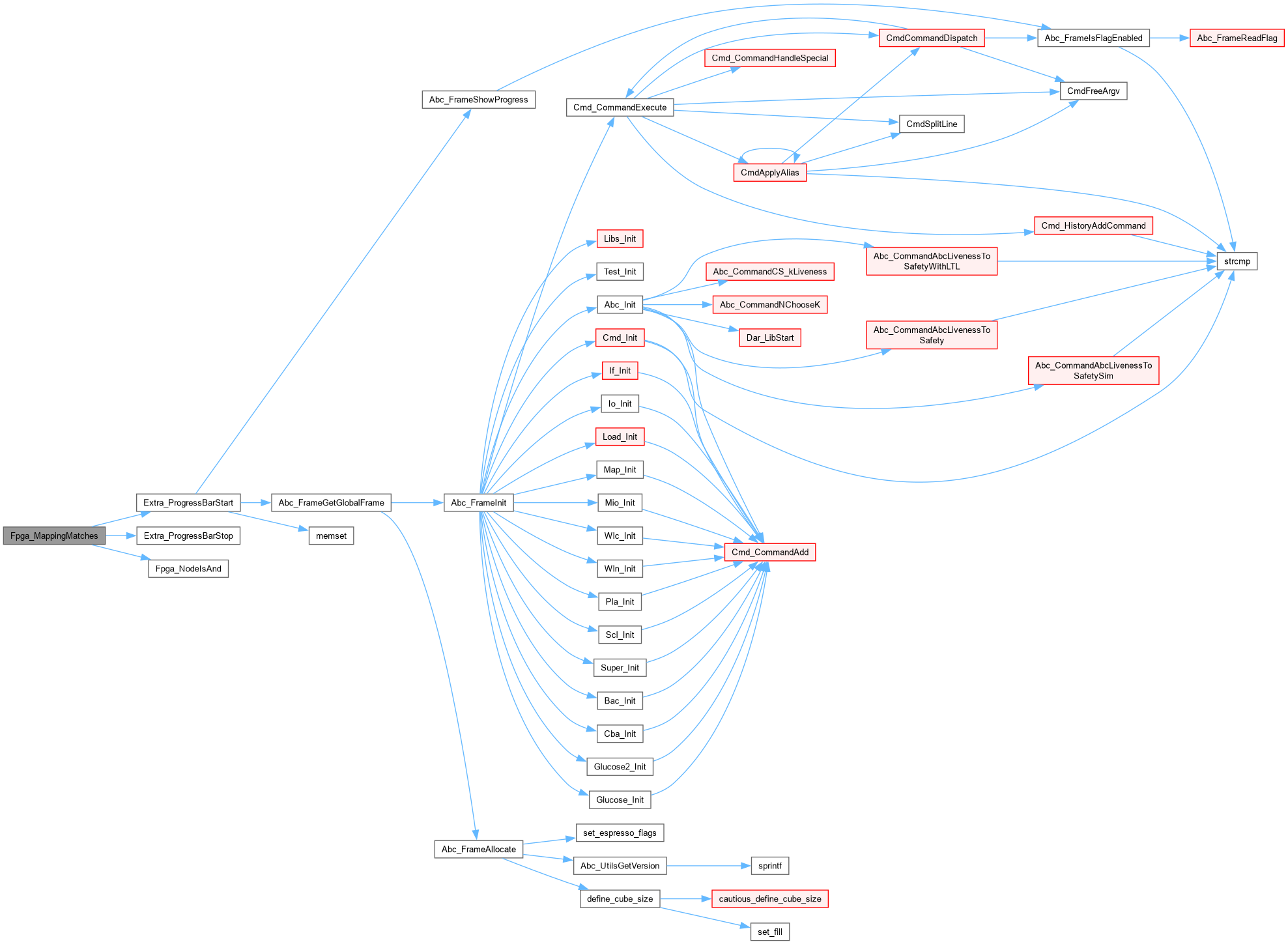

Here is the call graph for this function:

Here is the caller graph for this function:

Fpga_MappingMatchesArea()

int Fpga_MappingMatchesArea

(

Fpga_Man_t *

p

)

Function*************************************************************

Synopsis [Finds the best area assignment of LUTs.]

Description []

SideEffects []

SeeAlso []

Definition at line 196 of file fpgaMatch.c.

{
    ProgressBar * pProgress;
    Fpga_Node_t * pNode;
    int i, nNodes;

    // assign the arrival times of the PIs
    for ( i = 0; i < p->nInputs; i++ )
        p->pInputs[i]->pCutBest->tArrival = p->pInputArrivals[i];

    // match LUTs with nodes in the topological order
    nNodes = p->vAnds->nSize;
    pProgress = Extra_ProgressBarStart( stdout, nNodes );
    for ( i = 0; i < nNodes; i++ )
    {
        pNode = p->vAnds->pArray[i];
        if ( !Fpga_NodeIsAnd( pNode ) )
            continue;
        // skip a secondary node
        if ( pNode->pRepr )
            continue;
        // match the node
        Fpga_MatchNodeArea( p, pNode );
        Extra_ProgressBarUpdate( pProgress, i, "Matches ..." );
    }
    Extra_ProgressBarStop( pProgress );
    return 1;
}

Here is the call graph for this function:

Fpga_MappingMatchesSwitch()

int Fpga_MappingMatchesSwitch

(

Fpga_Man_t *

p

)

Function*************************************************************

Synopsis [Finds the best area assignment of LUTs.]

Description []

SideEffects []

SeeAlso []

Definition at line 349 of file fpgaMatch.c.

{
    ProgressBar * pProgress;
    Fpga_Node_t * pNode;
    int i, nNodes;

    // assign the arrival times of the PIs
    for ( i = 0; i < p->nInputs; i++ )
        p->pInputs[i]->pCutBest->tArrival = p->pInputArrivals[i];

    // match LUTs with nodes in the topological order
    nNodes = p->vAnds->nSize;
    pProgress = Extra_ProgressBarStart( stdout, nNodes );
    for ( i = 0; i < nNodes; i++ )
    {
        pNode = p->vAnds->pArray[i];
        if ( !Fpga_NodeIsAnd( pNode ) )
            continue;
        // skip a secondary node
        if ( pNode->pRepr )
            continue;
        // match the node
        Fpga_MatchNodeSwitch( p, pNode );
        Extra_ProgressBarUpdate( pProgress, i, "Matches ..." );
    }
    Extra_ProgressBarStop( pProgress );
    return 1;
}

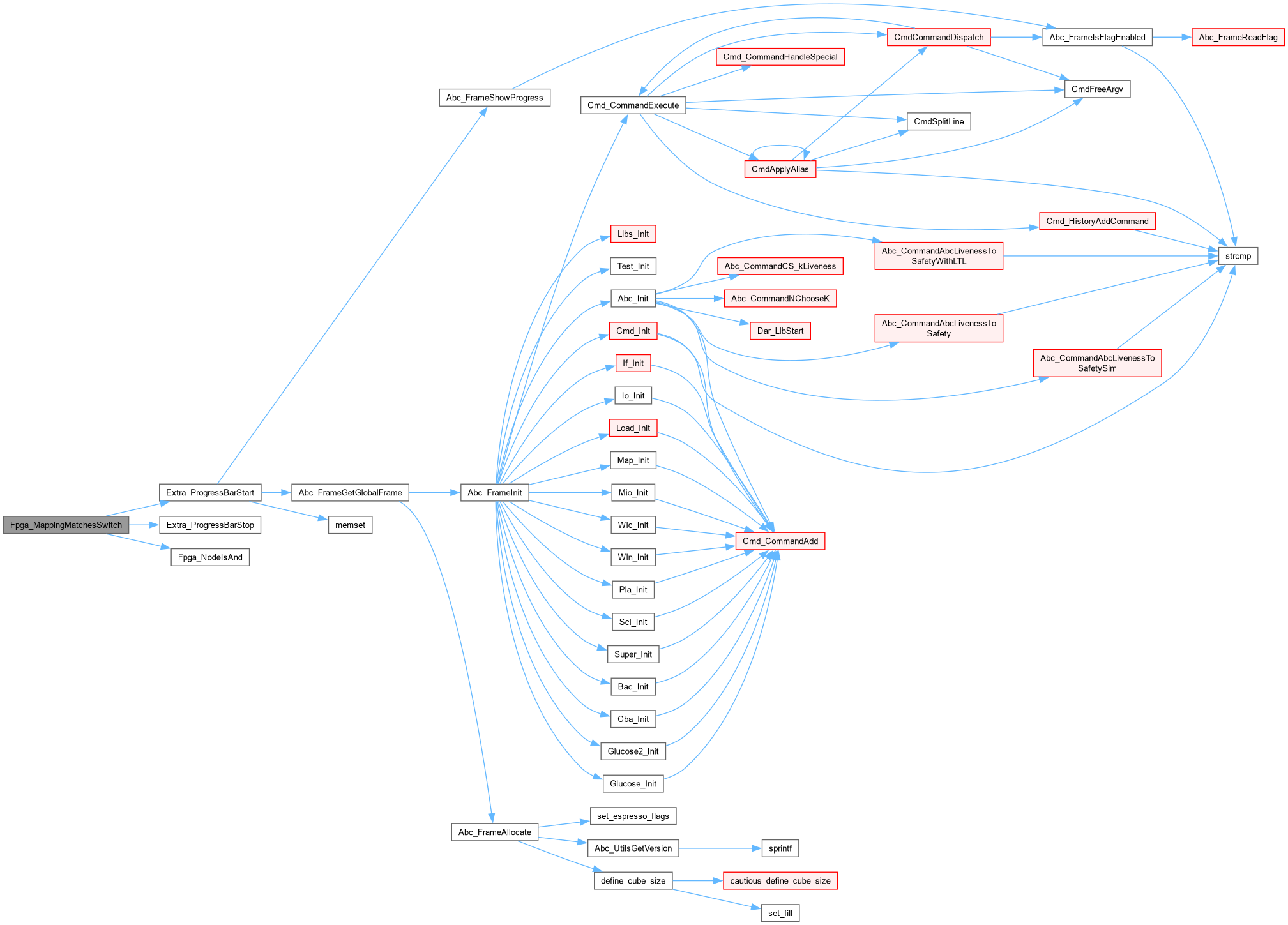

Here is the call graph for this function:
