giaCCof.c File Reference

#include "gia.h"
#include "sat/bsat/satSolver.h"

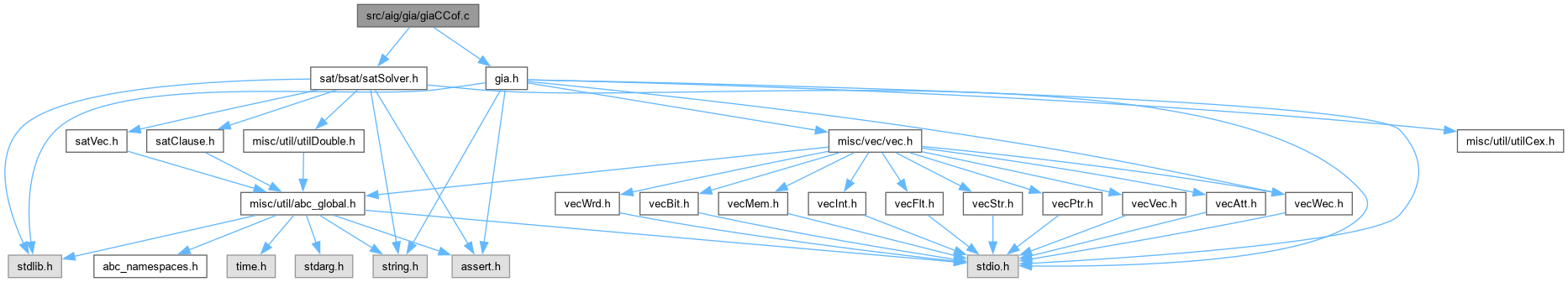

Include dependency graph for giaCCof.c:

Go to the source code of this file.

Classes
struct	Ccf_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Ccf_Man_t_	Ccf_Man_t
	DECLARATIONS ///.

Functions
Ccf_Man_t *	Ccf_ManStart (Gia_Man_t *pGia, int nFrameMax, int nConfMax, int nTimeMax, int fVerbose)
	FUNCTION DEFINITIONS ///.
void	Ccf_ManStop (Ccf_Man_t *p)
void	Gia_ManCofExtendSolver (Ccf_Man_t *p)
void	Gia_ManCofOneDerive_rec (Ccf_Man_t *p, int Id)
int	Gia_ManCofOneDerive (Ccf_Man_t *p, int LitProp)
int	Gia_ManCofGetReachable (Ccf_Man_t *p, int Lit)
Gia_Man_t *	Gia_ManCofTest (Gia_Man_t *pGia, int nFrameMax, int nConfMax, int nTimeMax, int fVerbose)

Typedef Documentation

Ccf_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Ccf_Man_t_ Ccf_Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaCCof.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Backward reachability using circuit cofactoring.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaCCof.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 31 of file giaCCof.c.

Function Documentation

Ccf_ManStart()

Ccf_Man_t * Ccf_ManStart	(	Gia_Man_t *	pGia,
		int	nFrameMax,
		int	nConfMax,
		int	nTimeMax,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Create manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 62 of file giaCCof.c.

{
    static Gia_ParFra_t Pars, * pPars = &Pars;
    Ccf_Man_t * p;
    assert( nFrameMax > 0 );
    p = ABC_CALLOC( Ccf_Man_t, 1 );
    p->pGia      = pGia;
    p->nFrameMax = nFrameMax;
    p->nConfMax  = nConfMax;
    p->nTimeMax  = nTimeMax;
    p->fVerbose  = fVerbose;
    // create unrolling manager
    memset( pPars, 0, sizeof(Gia_ParFra_t) );
    pPars->fVerbose     = fVerbose;
    pPars->nFrames      = nFrameMax;
    pPars->fSaveLastLit = 1;
    p->pUnr = Gia_ManUnrollStart( pGia, pPars );
    p->vCopies = Vec_IntAlloc( 1000 );
    // internal data
    p->pSat = sat_solver_new();
//    sat_solver_setnvars( p->pSat, 10000 );
    return p;
}

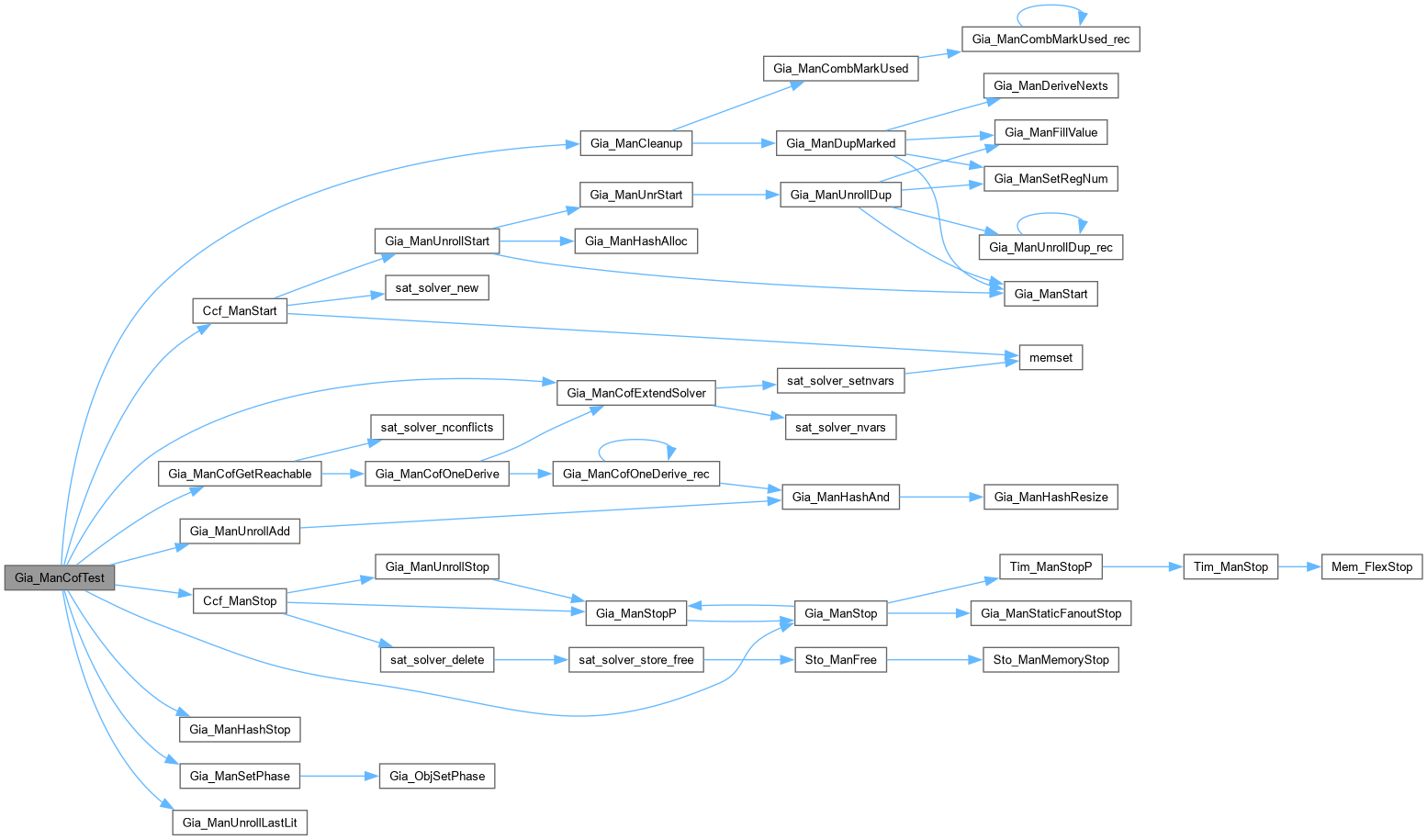

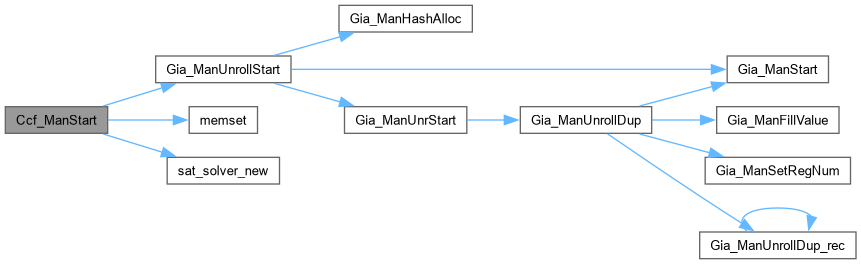

Here is the call graph for this function:

Here is the caller graph for this function:

Ccf_ManStop()

void Ccf_ManStop

(

Ccf_Man_t *

p

)

Function*************************************************************

Synopsis [Delete manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 97 of file giaCCof.c.

{
    Vec_IntFree( p->vCopies );
    Gia_ManUnrollStop( p->pUnr );
    sat_solver_delete( p->pSat );
    Gia_ManStopP( &p->pFrames );
    ABC_FREE( p );
}

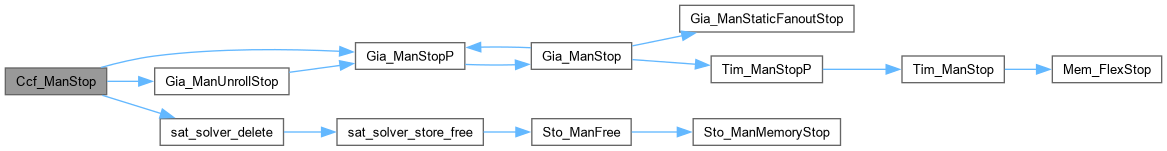

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCofExtendSolver()

void Gia_ManCofExtendSolver

(

Ccf_Man_t *

p

)

Function*************************************************************

Synopsis [Extends the solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 118 of file giaCCof.c.

{
    Gia_Obj_t * pObj;
    int i;
    // add SAT clauses
    for ( i = sat_solver_nvars(p->pSat); i < Gia_ManObjNum(p->pFrames); i++ )
    {
        pObj = Gia_ManObj( p->pFrames, i );
        if ( Gia_ObjIsAnd(pObj) )
            sat_solver_add_and( p->pSat, i,
                Gia_ObjFaninId0(pObj, i),
                Gia_ObjFaninId1(pObj, i),
                Gia_ObjFaninC0(pObj),
                Gia_ObjFaninC1(pObj), 0 );
    }
    sat_solver_setnvars( p->pSat, Gia_ManObjNum(p->pFrames) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCofGetReachable()

int Gia_ManCofGetReachable	(	Ccf_Man_t *	p,
		int	Lit )

Function*************************************************************

Synopsis [Enumerates backward reachable states.]

Description [Return -1 if resource limit is reached. Returns 1 if computation converged (there is no more reachable states). Returns 0 if no more states to enumerate.]

SideEffects []

SeeAlso []

Definition at line 220 of file giaCCof.c.

{
    int ObjPrev = 0, ConfPrev = 0;
    int Count = 0, LitOut, RetValue;
    abctime clk;
    // try solving for the first time and quit if converged
    RetValue = sat_solver_solve( p->pSat, &Lit, &Lit + 1, p->nConfMax, 0, 0, 0 );
    if ( RetValue == l_False )
        return 1;
    // iterate circuit cofactoring
    while ( RetValue == l_True )
    {
        clk = Abc_Clock();
        // derive cofactor
        LitOut = Gia_ManCofOneDerive( p, Lit );
        // add the blocking clause
        RetValue = sat_solver_addclause( p->pSat, &LitOut, &LitOut + 1 );
        assert( RetValue );
        // try solving again
        RetValue = sat_solver_solve( p->pSat, &Lit, &Lit + 1, p->nConfMax, 0, 0, 0 );
        // derive cofactors
        if ( p->fVerbose )
        {
            printf( "%3d : AIG =%7d  Conf =%7d.  ", Count++,
                Gia_ManObjNum(p->pFrames) - ObjPrev, sat_solver_nconflicts(p->pSat) - ConfPrev );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
            ObjPrev = Gia_ManObjNum(p->pFrames);
            ConfPrev = sat_solver_nconflicts(p->pSat);
        }
    }
    if ( RetValue == l_Undef )
        return -1;
    return 0;
}

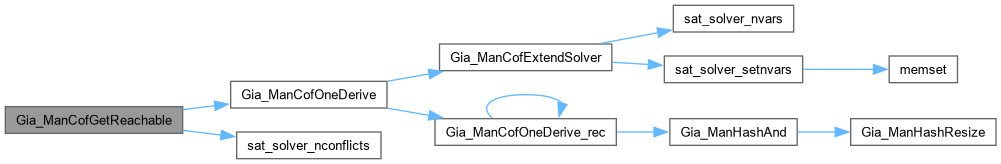

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCofOneDerive()

int Gia_ManCofOneDerive	(	Ccf_Man_t *	p,
		int	LitProp )

Function*************************************************************

Synopsis [Cofactor the circuit w.r.t. the given assignment.]

Description [Assumes that the solver has just returned SAT.]

SideEffects []

SeeAlso []

Definition at line 191 of file giaCCof.c.

{
    int LitOut;
    // derive the cofactor of the property node
    Vec_IntFill( p->vCopies, Gia_ManObjNum(p->pFrames), -1 );
    Gia_ManCofOneDerive_rec( p, Abc_Lit2Var(LitProp) );
    LitOut = Vec_IntEntry( p->vCopies, Abc_Lit2Var(LitProp) );
    LitOut = Abc_LitNotCond( LitOut, Abc_LitIsCompl(LitProp) );
    // add new PO for the cofactor
    Gia_ManAppendCo( p->pFrames, LitOut );
    // add SAT clauses
    Gia_ManCofExtendSolver( p );
    // return negative literal of the cofactor
    return Abc_LitNot(LitOut);
}

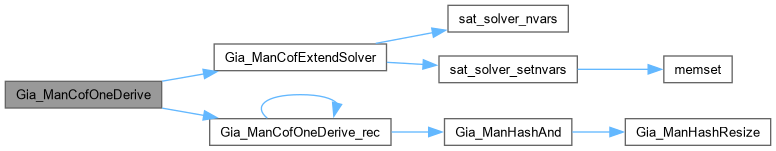

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCofOneDerive_rec()

void Gia_ManCofOneDerive_rec	(	Ccf_Man_t *	p,
		int	Id )

Function*************************************************************

Synopsis [Cofactor the circuit w.r.t. the given assignment.]

Description [Assumes that the solver has just returned SAT.]

SideEffects []

SeeAlso []

Definition at line 153 of file giaCCof.c.

{
    Gia_Obj_t * pObj;
    int Res;
    if ( Vec_IntEntry(p->vCopies, Id) != -1 )
        return;
    pObj = Gia_ManObj(p->pFrames, Id);
    assert( Gia_ObjIsCi(pObj) || Gia_ObjIsAnd(pObj) );
    if ( Gia_ObjIsAnd(pObj) )
    {
        int fCompl0 = Gia_ObjFaninC0(pObj);
        int fCompl1 = Gia_ObjFaninC1(pObj);
        int Fan0 = Gia_ObjFaninId0p(p->pFrames, pObj);
        int Fan1 = Gia_ObjFaninId1p(p->pFrames, pObj);
        Gia_ManCofOneDerive_rec( p, Fan0 );
        Gia_ManCofOneDerive_rec( p, Fan1 );
        Res = Gia_ManHashAnd( p->pFrames,
            Gia_Obj0Copy(p->vCopies, Fan0, fCompl0),
            Gia_Obj1Copy(p->vCopies, Fan1, fCompl1) );
    }
    else if ( Gia_ObjCioId(pObj) >= Gia_ManRegNum(p->pGia) ) // PI
        Res = sat_solver_var_value( p->pSat, Id );
    else
        Res = Abc_Var2Lit( Id, 0 );
    Vec_IntWriteEntry( p->vCopies, Id, Res );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCofTest()

Gia_Man_t * Gia_ManCofTest	(	Gia_Man_t *	pGia,
		int	nFrameMax,
		int	nConfMax,
		int	nTimeMax,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 266 of file giaCCof.c.

{
    Gia_Man_t * pNew;
    Ccf_Man_t * p;
    Gia_Obj_t * pObj;
    int f, i, Lit, RetValue = -1, fFailed = 0;
    abctime nTimeToStop = Abc_Clock() + nTimeMax * CLOCKS_PER_SEC;
    abctime clk = Abc_Clock();
    assert( Gia_ManPoNum(pGia) == 1 );

    // create reachability manager
    p = Ccf_ManStart( pGia, nFrameMax, nConfMax, nTimeMax, fVerbose );

    // set runtime limit
    if ( nTimeMax )
        sat_solver_set_runtime_limit( p->pSat, nTimeToStop );

    // perform backward image computation
    for ( f = 0; f < nFrameMax; f++ )
    {
        if ( fVerbose )
            printf( "ITER %3d :\n", f );
        // add to the mapping of nodes
        p->pFrames = (Gia_Man_t *)Gia_ManUnrollAdd( p->pUnr, f+1 );
        // add SAT clauses
        Gia_ManCofExtendSolver( p );
        // return output literal
        Lit = Gia_ManUnrollLastLit( p->pUnr );
        // derives cofactors of the property literal till all states are blocked
        RetValue = Gia_ManCofGetReachable( p, Lit );
        if ( RetValue )
            break;

        // check the property output
        Gia_ManSetPhase( p->pFrames );
        Gia_ManForEachPo( p->pFrames, pObj, i )
            if ( pObj->fPhase )
            {
                printf( "Property failed in frame %d.\n", f );
                fFailed = 1;
                break;
            }
        if ( i < Gia_ManPoNum(p->pFrames) )
            break;
    }

    // report the result
    if ( nTimeToStop && Abc_Clock() > nTimeToStop )
        printf( "Runtime limit (%d sec) is reached after %d frames.  ", nTimeMax, f );
    else if ( f == nFrameMax )
        printf( "Completed %d frames without converging.  ", f );
    else if ( RetValue == 1 )
        printf( "Backward reachability converged after %d iterations.  ", f-1 );
    else if ( RetValue == -1 )
        printf( "Conflict limit or timeout is reached after %d frames.  ", f-1 );
    Abc_PrintTime( 1, "Runtime", Abc_Clock() - clk );

    if ( !fFailed && RetValue == 1 )
        printf( "Property holds.\n" );
    else if ( !fFailed )
        printf( "Property is undecided.\n" );

    // get the resulting AIG manager
    Gia_ManHashStop( p->pFrames );
    pNew = p->pFrames;  p->pFrames = NULL;
    Ccf_ManStop( p );

    // cleanup
//    if ( fVerbose )
//        Gia_ManPrintStats( pNew, 0 );
    pNew = Gia_ManCleanup( pGia = pNew );
    Gia_ManStop( pGia );
//    if ( fVerbose )
//        Gia_ManPrintStats( pNew, 0 );
    return pNew;
}

Here is the call graph for this function:
