#include "gia.h"

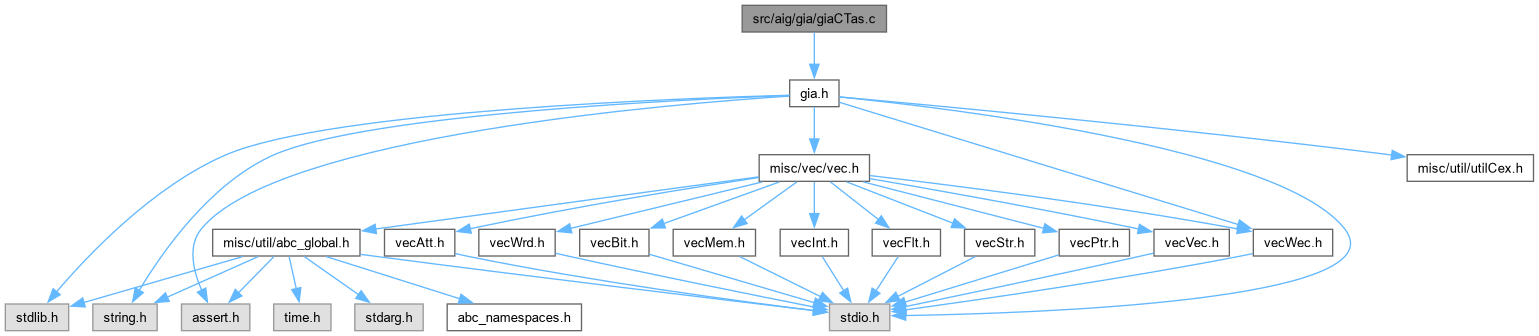

Include dependency graph for giaCTas.c:

Classes
struct	Tas_Par_t_

struct	Tas_Cls_t_

struct	Tas_Sto_t_

struct	Tas_Que_t_

struct	Tas_Man_t_

Macros
#define	Tas_QueForEachEntry(Que, pObj, i)

#define	Tas_ClauseForEachVar(p, hClause, pObj)

#define	Tas_ClauseForEachVar1(p, hClause, pObj)

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Tas_Par_t_	Tas_Par_t
	DECLARATIONS ///.

typedef struct Tas_Cls_t_	Tas_Cls_t

typedef struct Tas_Sto_t_	Tas_Sto_t

typedef struct Tas_Que_t_	Tas_Que_t

Functions
void	Tas_SetDefaultParams (Tas_Par_t *pPars)
	FUNCTION DEFINITIONS ///.

Tas_Man_t *	Tas_ManAlloc (Gia_Man_t *pAig, int nBTLimit)

void	Tas_ManStop (Tas_Man_t *p)

Vec_Int_t *	Tas_ReadModel (Tas_Man_t *p)

int	Tas_ManPropagate (Tas_Man_t *p, int Level)

int	Tas_ManSolve_rec (Tas_Man_t *p, int Level)

int	Tas_ManSolve (Tas_Man_t p, Gia_Obj_t pObj, Gia_Obj_t *pObj2)

int	Tas_ManSolveArray (Tas_Man_t p, Vec_Ptr_t vObjs)

void	Tas_ManSatPrintStats (Tas_Man_t *p)

Vec_Int_t *	Tas_ManSolveMiterNc (Gia_Man_t pAig, int nConfs, Vec_Str_t *pvStatus, int fVerbose)

int	Tas_StorePatternTry (Vec_Ptr_t vInfo, Vec_Ptr_t vPres, int iBit, int *pLits, int nLits)

int	Tas_StorePattern (Vec_Ptr_t vSimInfo, Vec_Ptr_t vPres, Vec_Int_t *vCex)

void	Tas_ManSolveMiterNc2 (Gia_Man_t pAig, int nConfs, Gia_Man_t pAigOld, Vec_Ptr_t vOldRoots, Vec_Ptr_t vSimInfo)

Variables
int	s_Counter2 = 0

int	s_Counter3 = 0

int	s_Counter4 = 0

Macro Definition Documentation

◆ Tas_ClauseForEachVar

#define Tas_ClauseForEachVar	(	p,
		hClause,
		pObj )

Value:

for ( (p)->pIter = (p)->pClauses.pData + hClause; (pObj = *pIter); (p)->pIter++ )

p

Cube * p

Definition exorList.c:222

Definition at line 142 of file giaCTas.c.

142#define Tas_ClauseForEachVar( p, hClause, pObj ) \

143 for ( (p)->pIter = (p)->pClauses.pData + hClause; (pObj = *pIter); (p)->pIter++ )

◆ Tas_ClauseForEachVar1

#define Tas_ClauseForEachVar1	(	p,
		hClause,
		pObj )

Value:

for ( (p)->pIter = (p)->pClauses.pData+hClause+1; (pObj = *pIter); (p)->pIter++ )

Definition at line 144 of file giaCTas.c.

144#define Tas_ClauseForEachVar1( p, hClause, pObj ) \

145 for ( (p)->pIter = (p)->pClauses.pData+hClause+1; (pObj = *pIter); (p)->pIter++ )

◆ Tas_QueForEachEntry

#define Tas_QueForEachEntry	(	Que,
		pObj,
		i )

Value:

for ( i = (Que).iHead; (i < (Que).iTail) && ((pObj) = (Que).pData[i]); i++ )

Definition at line 139 of file giaCTas.c.

139#define Tas_QueForEachEntry( Que, pObj, i ) \

140 for ( i = (Que).iHead; (i < (Que).iTail) && ((pObj) = (Que).pData[i]); i++ )

Typedef Documentation

◆ Tas_Cls_t

typedef struct Tas_Cls_t_ Tas_Cls_t

Definition at line 57 of file giaCTas.c.

◆ Tas_Par_t

typedef typedefABC_NAMESPACE_IMPL_START struct Tas_Par_t_ Tas_Par_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaCSat.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [A simple circuit-based solver.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: giaCSat.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

CFile****************************************************************

FileName [giaCSat2.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Circuit-based SAT solver.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: giaCSat2.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 33 of file giaCTas.c.

◆ Tas_Que_t

typedef struct Tas_Que_t_ Tas_Que_t

Definition at line 73 of file giaCTas.c.

◆ Tas_Sto_t

typedef struct Tas_Sto_t_ Tas_Sto_t

Definition at line 65 of file giaCTas.c.

Function Documentation

◆ Tas_ManAlloc()

Tas_Man_t * Tas_ManAlloc	(	Gia_Man_t *	pAig,
		int	nBTLimit )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 187 of file giaCTas.c.

{
    Tas_Man_t * p;
    p = ABC_CALLOC( Tas_Man_t, 1 );
    Tas_SetDefaultParams( &p->Pars );
    p->pAig           = pAig;
    p->Pars.nBTLimit  = nBTLimit;
    p->pProp.nSize    = p->pJust.nSize = p->pClauses.nSize = 10000;
    p->pProp.pData    = ABC_ALLOC( Gia_Obj_t *, p->pProp.nSize );
    p->pJust.pData    = ABC_ALLOC( Gia_Obj_t *, p->pJust.nSize );
    p->pClauses.pData = ABC_ALLOC( Gia_Obj_t *, p->pClauses.nSize );
    p->pClauses.iHead = p->pClauses.iTail = 1;
    p->vModel         = Vec_IntAlloc( 1000 );
    p->vLevReas       = Vec_IntAlloc( 1000 );
    p->vTemp          = Vec_PtrAlloc( 1000 );
    p->pStore.iCur    = 16;
    p->pStore.nSize   = 10000;
    p->pStore.pData   = ABC_ALLOC( int, p->pStore.nSize );
    p->pWatches       = ABC_CALLOC( int, 2 * Gia_ManObjNum(pAig) );
    p->vWatchLits     = Vec_IntAlloc( 100 );
    p->pActivity      = ABC_CALLOC( float, Gia_ManObjNum(pAig) );
    p->vActiveVars    = Vec_IntAlloc( 100 );
    return p;
}

Here is the call graph for this function:

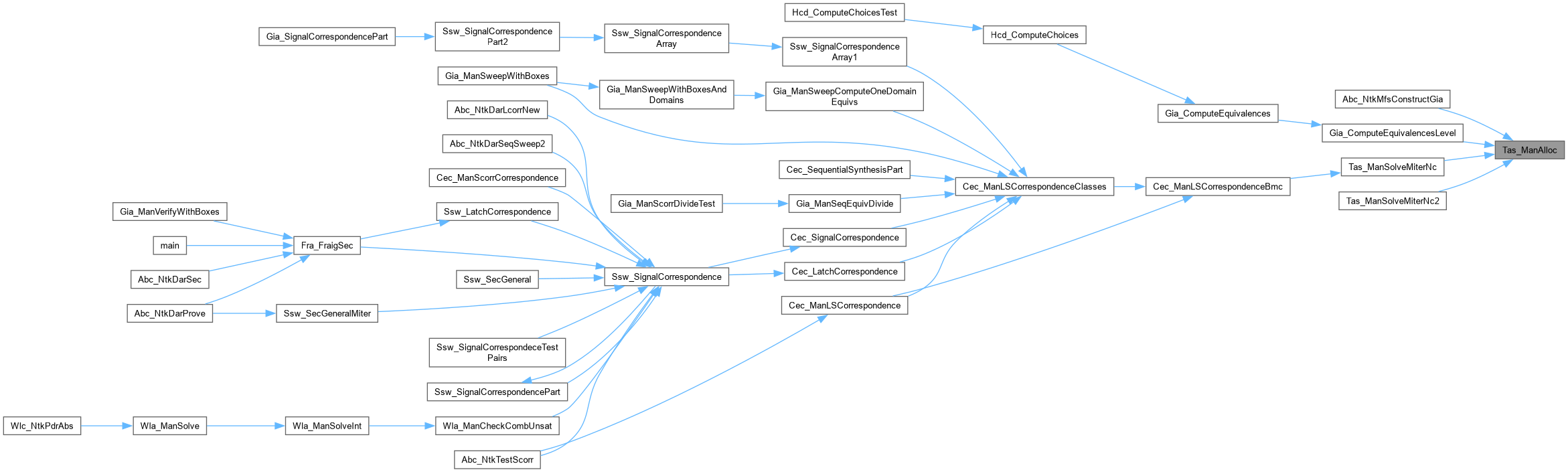

Here is the caller graph for this function:

◆ Tas_ManPropagate()

int Tas_ManPropagate	(	Tas_Man_t *	p,
		int	Level )

Function*************************************************************

Synopsis [Propagates all variables.]

Description [Returns 1 if conflict; 0 if no conflict.]

SideEffects []

SeeAlso []

Definition at line 1244 of file giaCTas.c.

{
    int hClause;
    Gia_Obj_t * pVar;
    int i, k;//, nIter = 0;
    while ( 1 )
    {
//        nIter++;
        Tas_QueForEachEntry( p->pProp, pVar, i )
        {
            if ( (hClause = Tas_ManPropagateOne( p, pVar, Level )) )
                return hClause;
        }
        p->pProp.iHead = p->pProp.iTail;
        k = p->pJust.iHead;
        Tas_QueForEachEntry( p->pJust, pVar, i )
        {
            if ( Tas_VarIsJust( pVar ) )
                p->pJust.pData[k++] = pVar;
            else if ( (hClause = Tas_ManPropagateTwo( p, pVar, Level )) )
                return hClause;
        }
        if ( k == p->pJust.iTail )
            break;
        p->pJust.iTail = k;
    }
//    printf( "%d ", nIter );
    return 0;
}

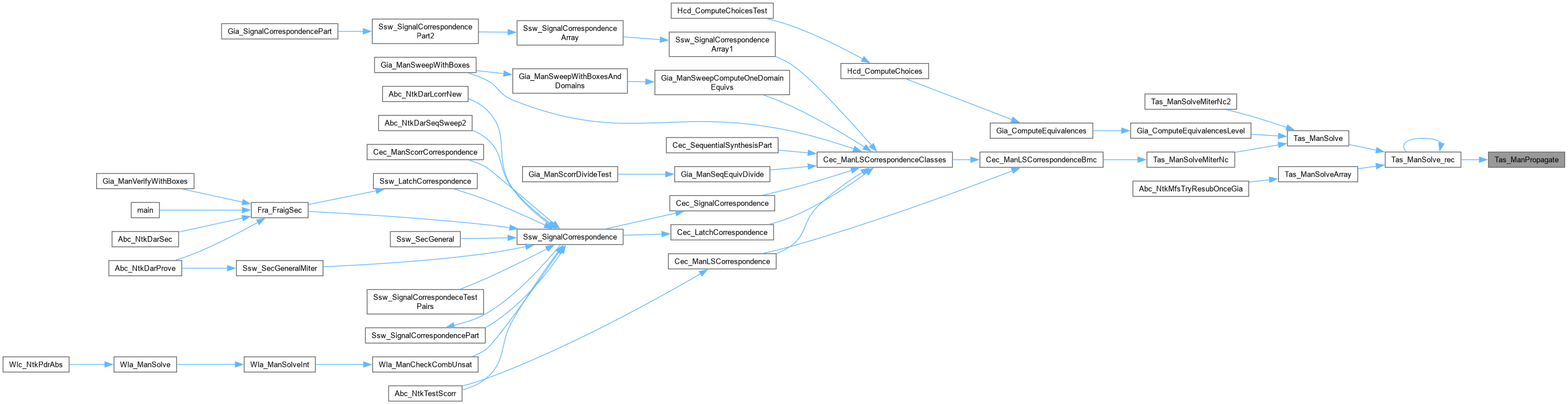

Here is the caller graph for this function:

◆ Tas_ManSatPrintStats()

void Tas_ManSatPrintStats ( Tas_Man_t * p )

Function*************************************************************

Synopsis [Prints statistics of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 1487 of file giaCTas.c.

{
    printf( "CO = %8d  ", Gia_ManCoNum(p->pAig) );
    printf( "AND = %8d  ", Gia_ManAndNum(p->pAig) );
    printf( "Conf = %6d  ", p->Pars.nBTLimit );
    printf( "JustMax = %5d  ", p->Pars.nJustLimit );
    printf( "\n" );
    printf( "Unsat calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatUnsat, p->nSatTotal? 100.0*p->nSatUnsat/p->nSatTotal :0.0, p->nSatUnsat? 1.0*p->nConfUnsat/p->nSatUnsat :0.0 );
    ABC_PRTP( "Time", p->timeSatUnsat, p->timeTotal );
    printf( "Sat   calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatSat,   p->nSatTotal? 100.0*p->nSatSat/p->nSatTotal :0.0, p->nSatSat? 1.0*p->nConfSat/p->nSatSat : 0.0 );
    ABC_PRTP( "Time", p->timeSatSat,   p->timeTotal );
    printf( "Undef calls %6d  (%6.2f %%)   Ave conf = %8.1f   ",
        p->nSatUndec, p->nSatTotal? 100.0*p->nSatUndec/p->nSatTotal :0.0, p->nSatUndec? 1.0*p->nConfUndec/p->nSatUndec : 0.0 );
    ABC_PRTP( "Time", p->timeSatUndec, p->timeTotal );
    ABC_PRT( "Total time", p->timeTotal );
}

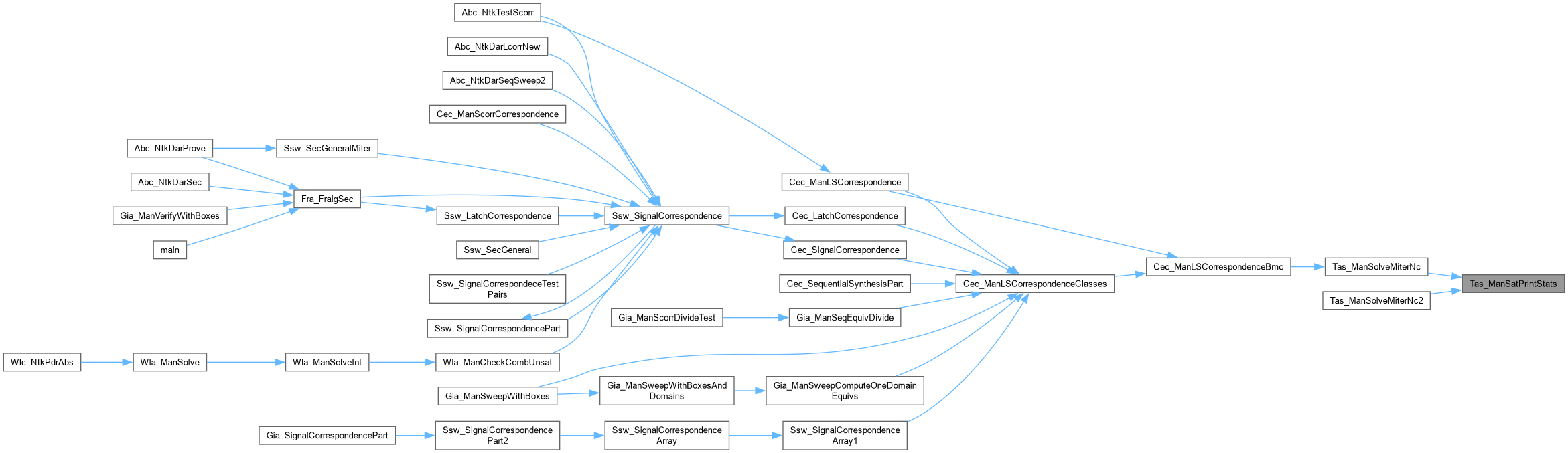

Here is the caller graph for this function:

◆ Tas_ManSolve()

int Tas_ManSolve	(	Tas_Man_t *	p,
		Gia_Obj_t *	pObj,
		Gia_Obj_t *	pObj2 )

Function*************************************************************

Synopsis [Looking for a satisfying assignment of the node.]

Description [Assumes that each node has flag pObj->fMark0 set to 0. Returns 1 if unsatisfiable, 0 if satisfiable, and -1 if undecided. The node may be complemented. ]

SideEffects []

SeeAlso []

Definition at line 1366 of file giaCTas.c.

{
    int i, Entry, RetValue = 0;
    s_Counter2 = 0;
    Vec_IntClear( p->vModel );
    if ( pObj == Gia_ManConst0(p->pAig) || pObj2 == Gia_ManConst0(p->pAig) || pObj == Gia_Not(pObj2) )
        return 1;
    if ( pObj == Gia_ManConst1(p->pAig) && (pObj2 == NULL || pObj2 == Gia_ManConst1(p->pAig)) )
        return 0;
    assert( !p->pProp.iHead && !p->pProp.iTail );
    assert( !p->pJust.iHead && !p->pJust.iTail );
    assert( p->pClauses.iHead == 1 && p->pClauses.iTail == 1 );
    p->Pars.nBTThis = p->Pars.nJustThis = p->Pars.nBTThisNc = 0;
    Tas_ManAssign( p, pObj, 0, NULL, NULL );
    if ( pObj2 && !Tas_VarIsAssigned(Gia_Regular(pObj2)) )
        Tas_ManAssign( p, pObj2, 0, NULL, NULL );
    if ( !Tas_ManSolve_rec(p, 0) && !Tas_ManCheckLimits(p) )
        Tas_ManSaveModel( p, p->vModel );
    else
        RetValue = 1;
    Tas_ManCancelUntil( p, 0 );
    p->pJust.iHead = p->pJust.iTail = 0;
    p->pClauses.iHead = p->pClauses.iTail = 1;
    // clauses
    if ( p->nClauses > 0 )
    {
        p->pStore.iCur = 16;
        Vec_IntForEachEntry( p->vWatchLits, Entry, i )
            p->pWatches[Entry] = 0;
        Vec_IntClear( p->vWatchLits );
        p->nClauses = 0;
    }
    // activity
    Vec_IntForEachEntry( p->vActiveVars, Entry, i )
        p->pActivity[Entry] = 0.0;
    Vec_IntClear( p->vActiveVars );
    // statistics
    p->Pars.nBTTotal += p->Pars.nBTThis;
    p->Pars.nJustTotal = Abc_MaxInt( p->Pars.nJustTotal, p->Pars.nJustThis );
    if ( Tas_ManCheckLimits( p ) )
        RetValue = -1;
    return RetValue;
}

Here is the call graph for this function:

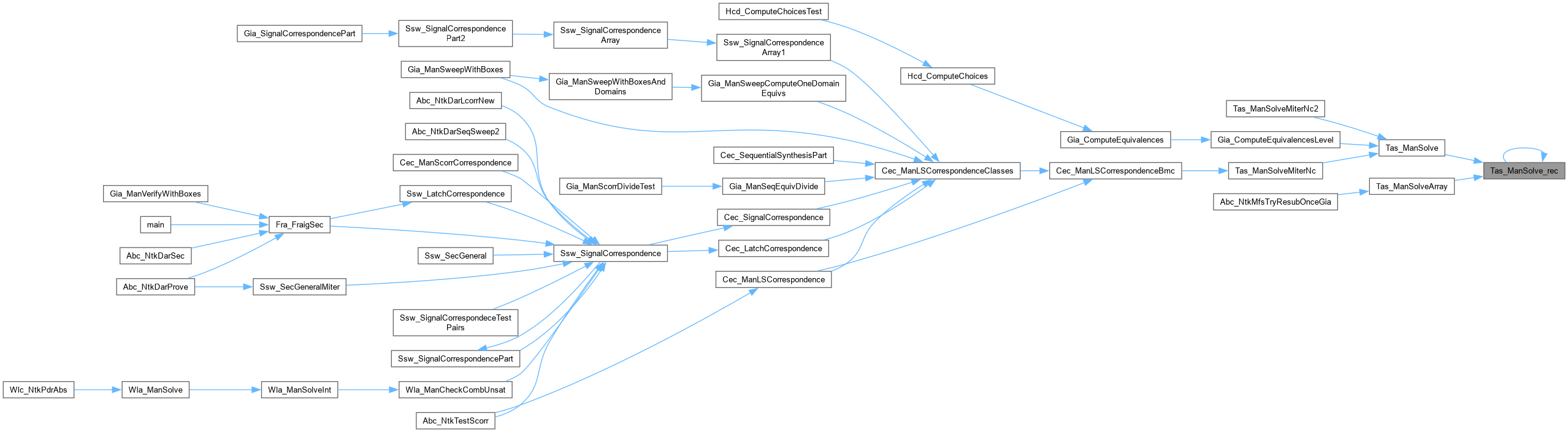

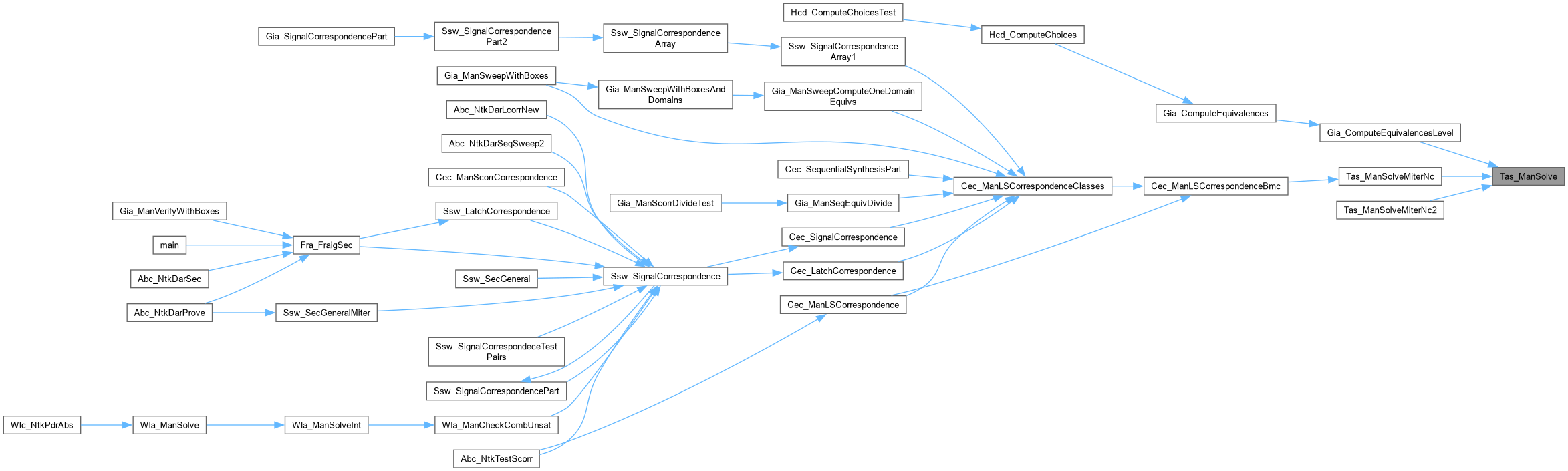

Here is the caller graph for this function:

◆ Tas_ManSolve_rec()

int Tas_ManSolve_rec	(	Tas_Man_t *	p,
		int	Level )

Function*************************************************************

Synopsis [Solve the problem recursively.]

Description [Returns learnt clause if unsat, NULL if sat or undecided.]

SideEffects []

SeeAlso []

Definition at line 1285 of file giaCTas.c.

{
    Tas_Que_t * pQue = &(p->pClauses);
    Gia_Obj_t * pVar = NULL, * pDecVar = NULL;
    int hClause, hLearn0, hLearn1;
    int iPropHead, iJustHead, iJustTail;
    // propagate assignments
    assert( !Tas_QueIsEmpty(&p->pProp) );
    if ( (hClause = Tas_ManPropagate( p, Level )) )
    {
        Tas_ManCreateCls( p, hClause );
        return hClause;
    }
    // check for satisfying assignment
    assert( Tas_QueIsEmpty(&p->pProp) );
    if ( Tas_QueIsEmpty(&p->pJust) )
        return 0;
    // quit using resource limits
    p->Pars.nJustThis = Abc_MaxInt( p->Pars.nJustThis, p->pJust.iTail - p->pJust.iHead );
    if ( Tas_ManCheckLimits( p ) )
        return 0;
    // remember the state before branching
    iPropHead = p->pProp.iHead;
    Tas_QueStore( &p->pJust, &iJustHead, &iJustTail );
    // find the decision variable
    if ( p->Pars.fUseActive )
        pVar = NULL, pDecVar = Tas_ManFindActive( p );
    else if ( p->Pars.fUseHighest )
//        pVar = NULL, pDecVar = Tas_ManDecideHighestFanin( p );
        pVar = Tas_ManDecideHighest( p );
    else if ( p->Pars.fUseLowest )
        pVar = Tas_ManDecideLowest( p );
    else if ( p->Pars.fUseMaxFF )
        pVar = Tas_ManDecideMaxFF( p );
    else assert( 0 );
    // chose decision variable using fanout count
    if ( pVar != NULL )
    {
        assert( Tas_VarIsJust( pVar ) );
        if ( Gia_ObjRefNum(p->pAig, Gia_ObjFanin0(pVar)) > Gia_ObjRefNum(p->pAig, Gia_ObjFanin1(pVar)) )
            pDecVar = Gia_Not(Gia_ObjChild0(pVar));
        else
            pDecVar = Gia_Not(Gia_ObjChild1(pVar));
//        pDecVar = Gia_NotCond( pDecVar, Gia_Regular(pDecVar)->fMark1 ^ !Gia_IsComplement(pDecVar) );
    }
    // decide on first fanin
    Tas_ManAssign( p, pDecVar, Level+1, NULL, NULL );
    if ( !(hLearn0 = Tas_ManSolve_rec( p, Level+1 )) )
        return 0;
    if ( pQue->pData[hLearn0] != Gia_Regular(pDecVar) )
        return hLearn0;
    Tas_ManCancelUntil( p, iPropHead );
    Tas_QueRestore( &p->pJust, iJustHead, iJustTail );
    // decide on second fanin
    Tas_ManAssign( p, Gia_Not(pDecVar), Level+1, NULL, NULL );
    if ( !(hLearn1 = Tas_ManSolve_rec( p, Level+1 )) )
        return 0;
    if ( pQue->pData[hLearn1] != Gia_Regular(pDecVar) )
        return hLearn1;
    hClause = Tas_ManResolve( p, Level, hLearn0, hLearn1 );
    Tas_ManCreateCls( p, hClause );
//    Tas_ManPrintClauseNew( p, Level, hClause );
//    if ( Level > Tas_ClauseDecLevel(p, hClause) )
//        p->Pars.nBTThisNc++;
    p->Pars.nBTThis++;
    return hClause;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Tas_ManSolveArray()

int Tas_ManSolveArray	(	Tas_Man_t *	p,
		Vec_Ptr_t *	vObjs )

Function*************************************************************

Synopsis [Looking for a satisfying assignment of the node.]

Description [Assumes that each node has flag pObj->fMark0 set to 0. Returns 1 if unsatisfiable, 0 if satisfiable, and -1 if undecided. The node may be complemented. ]

SideEffects []

SeeAlso []

Definition at line 1423 of file giaCTas.c.

{
    Gia_Obj_t * pObj;
    int i, Entry, RetValue = 0;
    s_Counter2 = 0;
    s_Counter3 = 0;
    s_Counter4 = 0;
    Vec_IntClear( p->vModel );
    Vec_PtrForEachEntry( Gia_Obj_t *, vObjs, pObj, i )
        if ( pObj == Gia_ManConst0(p->pAig) )
            return 1;
    assert( !p->pProp.iHead && !p->pProp.iTail );
    assert( !p->pJust.iHead && !p->pJust.iTail );
    assert( p->pClauses.iHead == 1 && p->pClauses.iTail == 1 );
    p->Pars.nBTThis = p->Pars.nJustThis = p->Pars.nBTThisNc = 0;
    Vec_PtrForEachEntry( Gia_Obj_t *, vObjs, pObj, i )
        if ( pObj != Gia_ManConst1(p->pAig) && !Tas_VarIsAssigned(Gia_Regular(pObj)) )
            Tas_ManAssign( p, pObj, 0, NULL, NULL );
    if ( !Tas_ManSolve_rec(p, 0) && !Tas_ManCheckLimits(p) )
        Tas_ManSaveModel( p, p->vModel );
    else
        RetValue = 1;
    Tas_ManCancelUntil( p, 0 );
    p->pJust.iHead = p->pJust.iTail = 0;
    p->pClauses.iHead = p->pClauses.iTail = 1;
    // clauses
    if ( p->nClauses > 0 )
    {
        p->pStore.iCur = 16;
        Vec_IntForEachEntry( p->vWatchLits, Entry, i )
            p->pWatches[Entry] = 0;
        Vec_IntClear( p->vWatchLits );
        p->nClauses = 0;
    }
    // activity
    Vec_IntForEachEntry( p->vActiveVars, Entry, i )
        p->pActivity[Entry] = 0.0;
    Vec_IntClear( p->vActiveVars );
    // statistics
    p->Pars.nBTTotal += p->Pars.nBTThis;
    p->Pars.nJustTotal = Abc_MaxInt( p->Pars.nJustTotal, p->Pars.nJustThis );
    if ( Tas_ManCheckLimits( p ) )
        RetValue = -1;

//    printf( "%d ", Gia_ManObjNum(p->pAig) );
//    printf( "%d ", p->Pars.nBTThis );
//    printf( "%d ", p->Pars.nJustThis );
//    printf( "%d ", s_Counter2 );
//    printf( "%d ", s_Counter3 );
//    printf( "%d  ", s_Counter4 );
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Tas_ManSolveMiterNc()

Vec_Int_t * Tas_ManSolveMiterNc	(	Gia_Man_t *	pAig,
		int	nConfs,
		Vec_Str_t **	pvStatus,
		int	fVerbose )

Function*************************************************************

Synopsis [Procedure to test the new SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 1517 of file giaCTas.c.

{
    extern void Gia_ManCollectTest( Gia_Man_t * pAig );
    extern void Cec_ManSatAddToStore( Vec_Int_t * vCexStore, Vec_Int_t * vCex, int Out );
    Tas_Man_t * p;
    Vec_Int_t * vCex, * vVisit, * vCexStore;
    Vec_Str_t * vStatus;
    Gia_Obj_t * pRoot;//, * pRootCopy;
//    Gia_Man_t * pAigCopy = Gia_ManDup( pAig ), * pAigTemp;

    int i, status;
    abctime clk, clkTotal = Abc_Clock();
    assert( Gia_ManRegNum(pAig) == 0 );
//    Gia_ManCollectTest( pAig );
    // prepare AIG
    Gia_ManCreateRefs( pAig );
    Gia_ManCleanMark0( pAig );
    Gia_ManCleanMark1( pAig );
    Gia_ManFillValue( pAig ); // maps nodes into trail ids
    Gia_ManCleanPhase( pAig ); // maps nodes into trail ids
    // create logic network
    p = Tas_ManAlloc( pAig, nConfs );
    p->pAig   = pAig;
    // create resulting data-structures
    vStatus   = Vec_StrAlloc( Gia_ManPoNum(pAig) );
    vCexStore = Vec_IntAlloc( 10000 );
    vVisit    = Vec_IntAlloc( 100 );
    vCex      = Tas_ReadModel( p );
    // solve for each output
    Gia_ManForEachCo( pAig, pRoot, i )
    {
//        printf( "%d=", i );

        Vec_IntClear( vCex );
        if ( Gia_ObjIsConst0(Gia_ObjFanin0(pRoot)) )
        {
            if ( Gia_ObjFaninC0(pRoot) )
            {
//                printf( "Constant 1 output of SRM!!!\n" );
                Cec_ManSatAddToStore( vCexStore, vCex, i ); // trivial counter-example
                Vec_StrPush( vStatus, 0 );
            }
            else
            {
//                printf( "Constant 0 output of SRM!!!\n" );
                Vec_StrPush( vStatus, 1 );
            }
            continue;
        }
        clk = Abc_Clock();
//        p->Pars.fUseActive  = 1;
        p->Pars.fUseHighest = 1;
        p->Pars.fUseLowest  = 0;
        status = Tas_ManSolve( p, Gia_ObjChild0(pRoot), NULL );
//        printf( "\n" );
/*
        if ( status == -1 )
        {
            p->Pars.fUseHighest = 0;
            p->Pars.fUseLowest  = 1;
            status = Tas_ManSolve( p, Gia_ObjChild0(pRoot) );
        }
*/
        Vec_StrPush( vStatus, (char)status );
        if ( status == -1 )
        {
//            printf( "Unsolved %d.\n", i );

            p->nSatUndec++;
            p->nConfUndec += p->Pars.nBTThis;
            Cec_ManSatAddToStore( vCexStore, NULL, i ); // timeout
            p->timeSatUndec += Abc_Clock() - clk;
            continue;
        }

//        pRootCopy = Gia_ManCo( pAigCopy, i );
//        pRootCopy->iDiff0 = Gia_ObjId( pAigCopy, pRootCopy );
//        pRootCopy->fCompl0 = 0;

        if ( status == 1 )
        {
            p->nSatUnsat++;
            p->nConfUnsat += p->Pars.nBTThis;
            p->timeSatUnsat += Abc_Clock() - clk;
            continue;
        }
        p->nSatSat++;
        p->nConfSat += p->Pars.nBTThis;
//        Gia_SatVerifyPattern( pAig, pRoot, vCex, vVisit );
        Cec_ManSatAddToStore( vCexStore, vCex, i );
        p->timeSatSat += Abc_Clock() - clk;

//        printf( "%d ", Vec_IntSize(vCex) );
    }
//    pAigCopy = Gia_ManCleanup( pAigTemp = pAigCopy );
//    Gia_ManStop( pAigTemp );
//    Gia_DumpAiger( pAigCopy, "test", 0, 2 );
//    Gia_ManStop( pAigCopy );

    Vec_IntFree( vVisit );
    p->nSatTotal = Gia_ManPoNum(pAig);
    p->timeTotal = Abc_Clock() - clkTotal;
    if ( fVerbose )
        Tas_ManSatPrintStats( p );
//    printf( "RecCalls = %8d.  RecClause = %8d.  RecNonChro = %8d.\n", p->nRecCall, p->nRecClause, p->nRecNonChro );
    Tas_ManStop( p );
    *pvStatus = vStatus;

//    printf( "Total number of cex literals = %d. (Ave = %d)\n",
//         Vec_IntSize(vCexStore)-2*p->nSatUndec-2*p->nSatSat,
//        (Vec_IntSize(vCexStore)-2*p->nSatUndec-2*p->nSatSat)/p->nSatSat );
    return vCexStore;
}

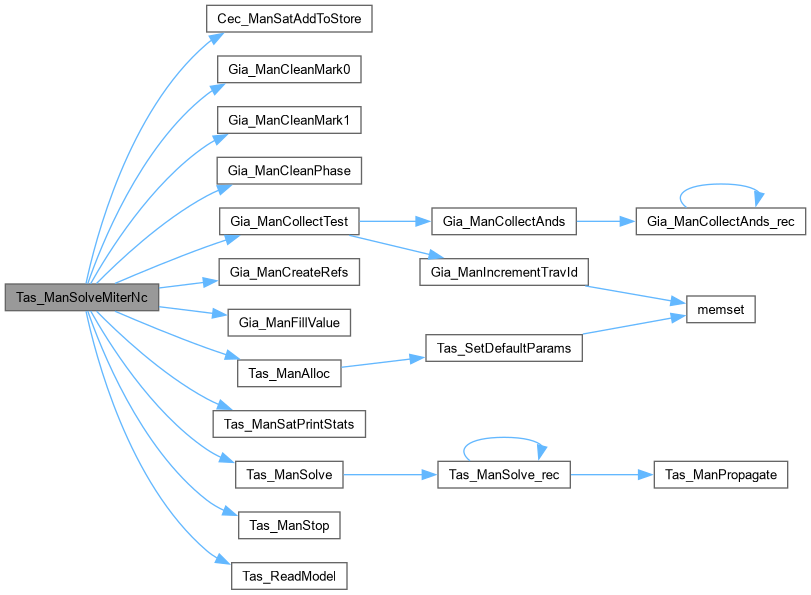

Here is the call graph for this function:

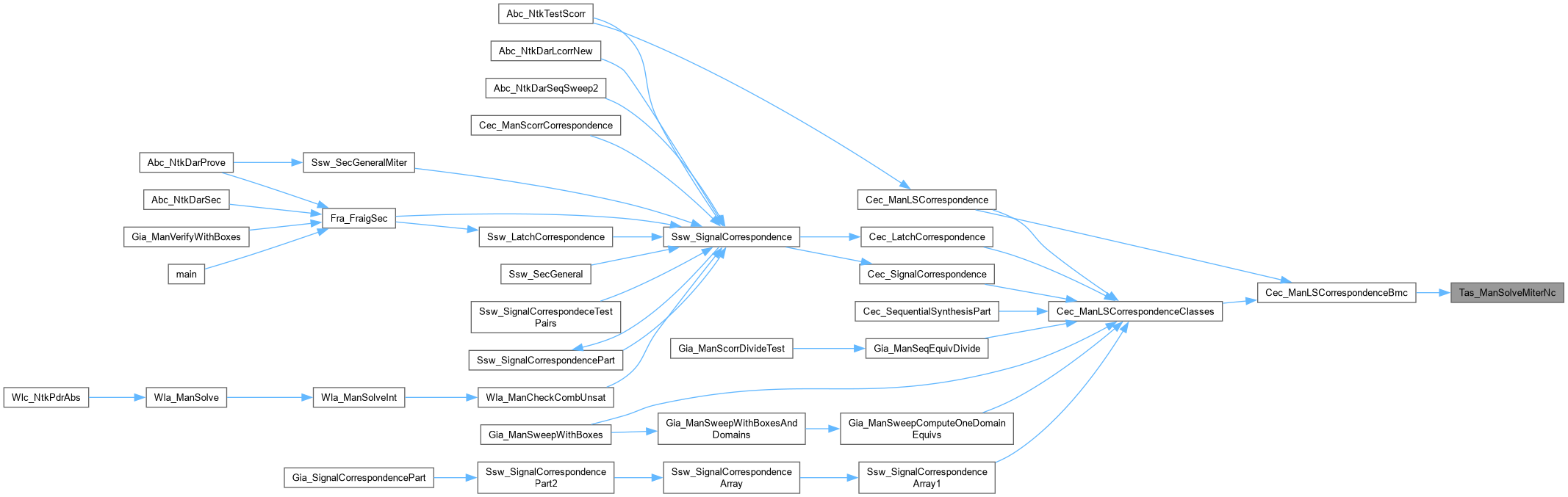

Here is the caller graph for this function:

◆ Tas_ManSolveMiterNc2()

void Tas_ManSolveMiterNc2	(	Gia_Man_t *	pAig,
		int	nConfs,
		Gia_Man_t *	pAigOld,
		Vec_Ptr_t *	vOldRoots,
		Vec_Ptr_t *	vSimInfo )

Function*************************************************************

Synopsis [Procedure to test the new SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 1696 of file giaCTas.c.

{
    int nPatMax = 1000;
    int fVerbose = 1;
    extern void Gia_ManCollectTest( Gia_Man_t * pAig );
    extern void Cec_ManSatAddToStore( Vec_Int_t * vCexStore, Vec_Int_t * vCex, int Out );
    Tas_Man_t * p;
    Vec_Ptr_t * vPres;
    Vec_Int_t * vCex, * vVisit, * vCexStore;
    Vec_Str_t * vStatus;
    Gia_Obj_t * pRoot, * pOldRoot;
    int i, status;
    abctime clk, clkTotal = Abc_Clock();
    int Tried = 0, Stored = 0, Step = Gia_ManCoNum(pAig) / nPatMax;
    assert( Gia_ManRegNum(pAig) == 0 );
//    Gia_ManCollectTest( pAig );
    // prepare AIG
    Gia_ManCreateRefs( pAig );
    Gia_ManCleanMark0( pAig );
    Gia_ManCleanMark1( pAig );
    Gia_ManFillValue( pAig ); // maps nodes into trail ids
    Gia_ManCleanPhase( pAig ); // maps nodes into trail ids
    // create logic network
    p = Tas_ManAlloc( pAig, nConfs );
    p->pAig   = pAig;
    // create resulting data-structures
    vStatus   = Vec_StrAlloc( Gia_ManPoNum(pAig) );
    vCexStore = Vec_IntAlloc( 10000 );
    vVisit    = Vec_IntAlloc( 100 );
    vCex      = Tas_ReadModel( p );
    // solve for each output
    vPres = Vec_PtrAllocSimInfo( Gia_ManCiNum(pAig), 1 );
    Vec_PtrCleanSimInfo( vPres, 0, 1 );

    Gia_ManForEachCo( pAig, pRoot, i )
    {
        assert( !Gia_ObjIsConst0(Gia_ObjFanin0(pRoot)) );
        Vec_IntClear( vCex );
        clk = Abc_Clock();
        p->Pars.fUseHighest = 1;
        p->Pars.fUseLowest  = 0;
        status = Tas_ManSolve( p, Gia_ObjChild0(pRoot), NULL );
        Vec_StrPush( vStatus, (char)status );
        if ( status == -1 )
        {
            p->nSatUndec++;
            p->nConfUndec += p->Pars.nBTThis;
//            Cec_ManSatAddToStore( vCexStore, NULL, i ); // timeout
            p->timeSatUndec += Abc_Clock() - clk;

            i += Step;
            continue;
        }
        if ( status == 1 )
        {
            p->nSatUnsat++;
            p->nConfUnsat += p->Pars.nBTThis;
            p->timeSatUnsat += Abc_Clock() - clk;
            // record proved
            pOldRoot = (Gia_Obj_t *)Vec_PtrEntry( vOldRoots, i );
            assert( !Gia_ObjProved( pAigOld, Gia_ObjId(pAigOld, pOldRoot) ) );
            Gia_ObjSetProved( pAigOld, Gia_ObjId(pAigOld, pOldRoot) );

            i += Step;
            continue;
        }
        p->nSatSat++;
        p->nConfSat += p->Pars.nBTThis;
//        Gia_SatVerifyPattern( pAig, pRoot, vCex, vVisit );
//        Cec_ManSatAddToStore( vCexStore, vCex, i );

        // save pattern
        Tried++;
        Stored += Tas_StorePattern( vSimInfo, vPres, vCex );
        p->timeSatSat += Abc_Clock() - clk;
        i += Step;
    }
    printf( "Tried = %d  Stored = %d\n", Tried, Stored );
    Vec_IntFree( vVisit );
    p->nSatTotal = Gia_ManPoNum(pAig);
    p->timeTotal = Abc_Clock() - clkTotal;
    if ( fVerbose )
        Tas_ManSatPrintStats( p );
    Tas_ManStop( p );
    Vec_PtrFree( vPres );
    Vec_StrFree( vStatus );
}

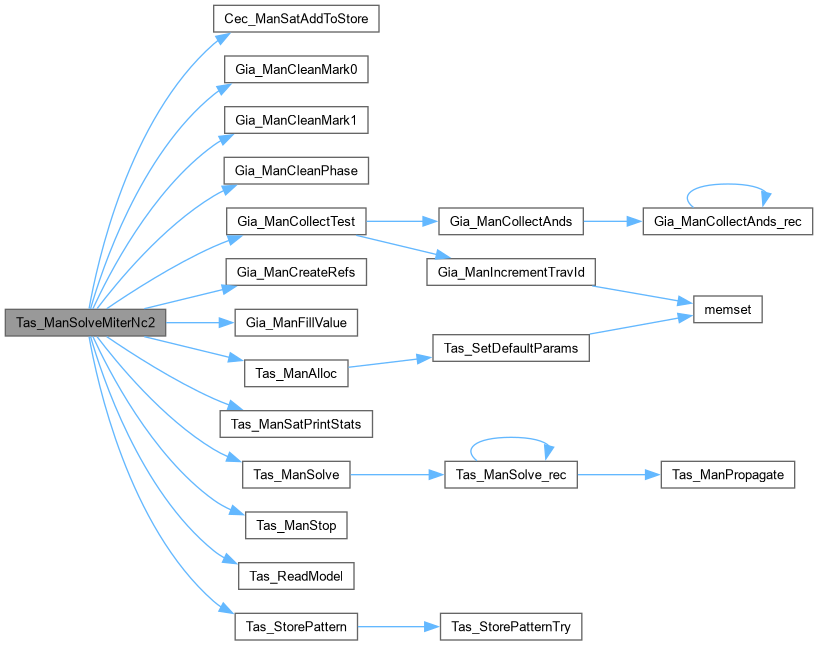

Here is the call graph for this function:

◆ Tas_ManStop()

void Tas_ManStop ( Tas_Man_t * p )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 223 of file giaCTas.c.

{
    Vec_IntFree( p->vActiveVars );
    Vec_IntFree( p->vWatchLits );
    Vec_IntFree( p->vLevReas );
    Vec_IntFree( p->vModel );
    Vec_PtrFree( p->vTemp );
    ABC_FREE( p->pActivity );
    ABC_FREE( p->pWatches );
    ABC_FREE( p->pStore.pData );
    ABC_FREE( p->pClauses.pData );
    ABC_FREE( p->pProp.pData );
    ABC_FREE( p->pJust.pData );
    ABC_FREE( p );
}

Here is the caller graph for this function:

◆ Tas_ReadModel()

Vec_Int_t * Tas_ReadModel ( Tas_Man_t * p )

Function*************************************************************

Synopsis [Returns satisfying assignment.]

Description []

SideEffects []

SeeAlso []

Definition at line 250 of file giaCTas.c.

{
    return p->vModel;
}

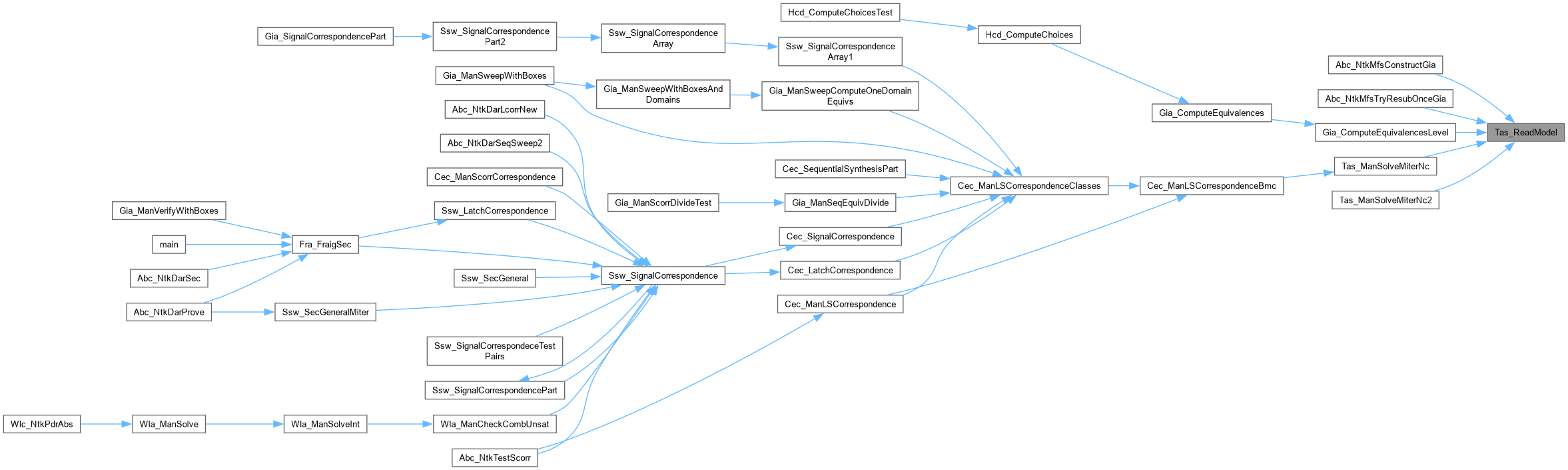

Here is the caller graph for this function:

◆ Tas_SetDefaultParams()

void Tas_SetDefaultParams ( Tas_Par_t * pPars )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Sets default values of the parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 162 of file giaCTas.c.

{
    memset( pPars, 0, sizeof(Tas_Par_t) );
    pPars->nBTLimit    =        2000;   // limit on the number of conflicts
    pPars->nJustLimit  =        2000;   // limit on the size of justification queue
    pPars->fUseActive  =           0;   // use node with the highest activity
    pPars->fUseHighest =           1;   // use node with the highest ID
    pPars->fUseLowest  =           0;   // use node with the lowest ID
    pPars->fUseMaxFF   =           0;   // use node with the largest fanin fanout
    pPars->fVerbose    =           1;   // print detailed statistics
    pPars->VarDecay    = (float)0.95;   // variable decay
    pPars->VarInc      =         1.0;   // variable increment
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Tas_StorePattern()

int Tas_StorePattern	(	Vec_Ptr_t *	vSimInfo,
		Vec_Ptr_t *	vPres,
		Vec_Int_t *	vCex )

Function*************************************************************

Synopsis [Procedure to test the new SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 1676 of file giaCTas.c.

{
    int k;
    for ( k = 1; k < 32; k++ )
        if ( Tas_StorePatternTry( vSimInfo, vPres, k, (int *)Vec_IntArray(vCex), Vec_IntSize(vCex) ) )
            break;
    return (int)(k < 32);
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Tas_StorePatternTry()

int Tas_StorePatternTry	(	Vec_Ptr_t *	vInfo,
		Vec_Ptr_t *	vPres,
		int	iBit,
		int *	pLits,
		int	nLits )

Function*************************************************************

Synopsis [Packs patterns into array of simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 1642 of file giaCTas.c.

{
    unsigned * pInfo, * pPres;
    int i;
    for ( i = 0; i < nLits; i++ )
    {
        pInfo = (unsigned *)Vec_PtrEntry(vInfo, Abc_Lit2Var(pLits[i]));
        pPres = (unsigned *)Vec_PtrEntry(vPres, Abc_Lit2Var(pLits[i]));
        if ( Abc_InfoHasBit( pPres, iBit ) &&
             Abc_InfoHasBit( pInfo, iBit ) == Abc_LitIsCompl(pLits[i]) )
             return 0;
    }
    for ( i = 0; i < nLits; i++ )
    {
        pInfo = (unsigned *)Vec_PtrEntry(vInfo, Abc_Lit2Var(pLits[i]));
        pPres = (unsigned *)Vec_PtrEntry(vPres, Abc_Lit2Var(pLits[i]));
        Abc_InfoSetBit( pPres, iBit );
        if ( Abc_InfoHasBit( pInfo, iBit ) == Abc_LitIsCompl(pLits[i]) )
            Abc_InfoXorBit( pInfo, iBit );
    }
    return 1;
}

Here is the caller graph for this function:

Variable Documentation

◆ s_Counter2

int s_Counter2 = 0

Definition at line 639 of file giaCTas.c.

◆ s_Counter3

int s_Counter3 = 0

Definition at line 640 of file giaCTas.c.

◆ s_Counter4

int s_Counter4 = 0

Definition at line 641 of file giaCTas.c.

Classes

Macros

Typedefs

Functions

Variables

Macro Definition Documentation

◆ Tas_ClauseForEachVar

◆ Tas_ClauseForEachVar1

◆ Tas_QueForEachEntry

Typedef Documentation

◆ Tas_Cls_t

◆ Tas_Par_t

◆ Tas_Que_t

◆ Tas_Sto_t

Function Documentation

◆ Tas_ManAlloc()

◆ Tas_ManPropagate()

◆ Tas_ManSatPrintStats()

◆ Tas_ManSolve()

◆ Tas_ManSolve_rec()

◆ Tas_ManSolveArray()

◆ Tas_ManSolveMiterNc()

◆ Tas_ManSolveMiterNc2()

◆ Tas_ManStop()

◆ Tas_ReadModel()

◆ Tas_SetDefaultParams()

◆ Tas_StorePattern()

◆ Tas_StorePatternTry()

Variable Documentation

◆ s_Counter2

◆ s_Counter3

◆ s_Counter4
