giaSupps.c File Reference

#include "aig/gia/gia.h"
#include "base/main/mainInt.h"
#include "base/io/ioResub.h"
#include "misc/util/utilTruth.h"
#include "misc/extra/extra.h"
#include "misc/vec/vecHsh.h"

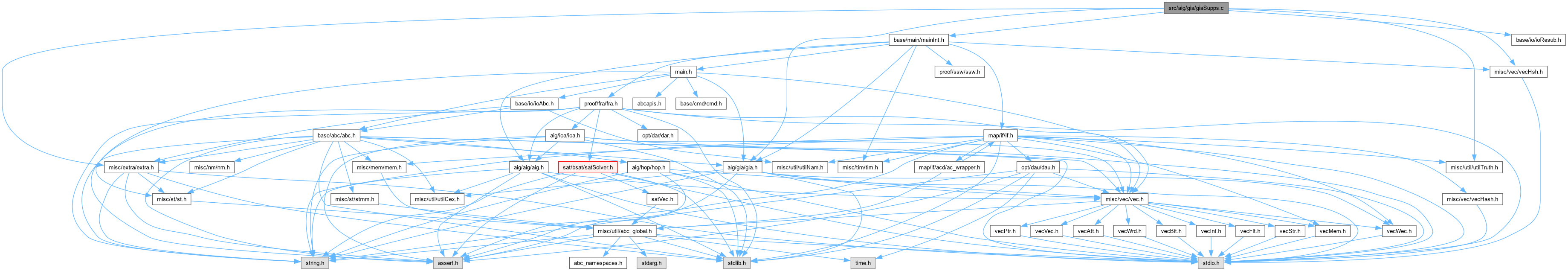

Include dependency graph for giaSupps.c:

Go to the source code of this file.

Classes
struct	Supp_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Supp_Man_t_	Supp_Man_t
	DECLARATIONS ///.

Functions
void	Extra_BitMatrixTransposeP (Vec_Wrd_t *vSimsIn, int nWordsIn, Vec_Wrd_t *vSimsOut, int nWordsOut)
	DECLARATIONS ///.
int	Supp_ManFuncInit (Vec_Wrd_t *vFuncs, int nWords)
	FUNCTION DEFINITIONS ///.
int	Supp_ManCostInit (Vec_Wrd_t *vFuncs, int nWords)
void	Supp_ManInit (Supp_Man_t *p)
int	Supp_DeriveLines (Supp_Man_t *p)
Supp_Man_t *	Supp_ManCreate (Vec_Wrd_t *vIsfs, Vec_Int_t *vCands, Vec_Int_t *vWeights, Vec_Wrd_t *vSims, Vec_Wrd_t *vSimsC, int nWords, Gia_Man_t *pGia, int nIters, int nRounds)
int	Supp_DeriveLines2 (Supp_Man_t *p)
Supp_Man_t *	Supp_ManCreate2 (Vec_Wrd_t *vIsfs, Vec_Wrd_t *vSims, Vec_Int_t *vWeights, int nWords, int nIters, int nRounds)
void	Supp_ManCleanMatrix (Supp_Man_t *p)
void	Supp_ManDelete (Supp_Man_t *p)
int	Supp_ManMemory (Supp_Man_t *p)
int	Supp_ArrayWeight (Vec_Int_t *vRes, Vec_Int_t *vWeights)
int	Supp_SetWeight (Supp_Man_t *p, int iSet)
int	Supp_SetSize (Supp_Man_t *p, int iSet)

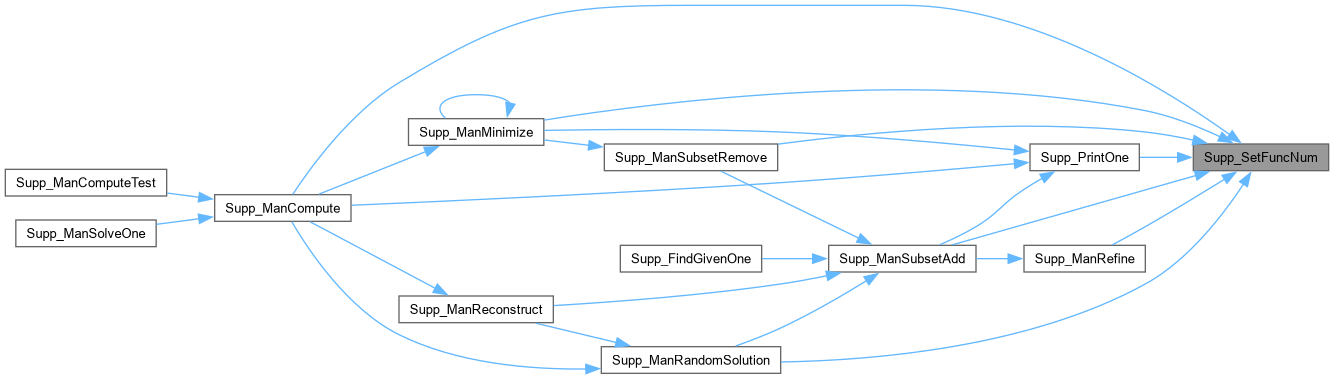

int	Supp_SetFuncNum (Supp_Man_t *p, int iSet)

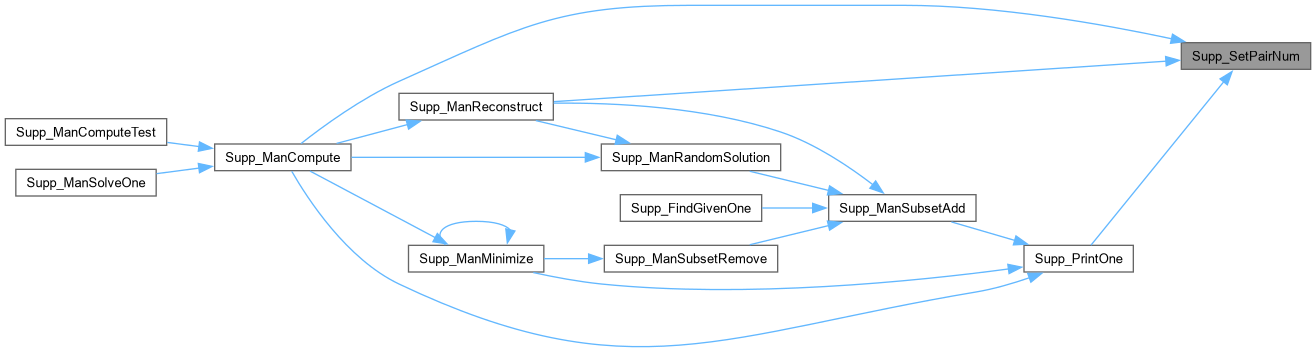

int	Supp_SetPairNum (Supp_Man_t *p, int iSet)
void	Supp_SetConvert (Vec_Int_t *vSet, Vec_Int_t *vCands)
void	Supp_PrintNodes (Gia_Man_t *pGia, Vec_Int_t *vObjs, int Skip, int Limit)
void	Supp_PrintOne (Supp_Man_t *p, int iSet)
int	Supp_ManRefine1 (Supp_Man_t *p, int iSet, int iObj)

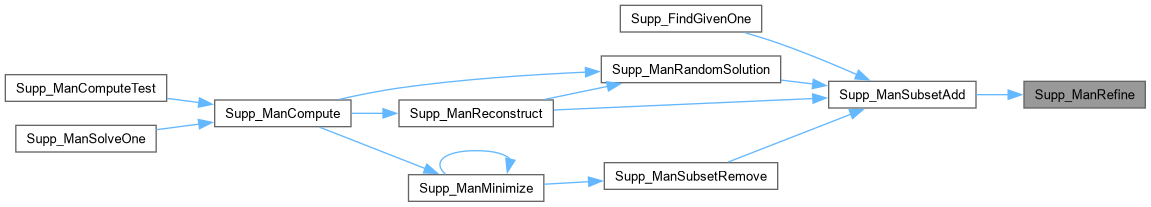

void	Supp_ManRefine (Supp_Man_t *p, int iSet, int iObj, int *pnFuncs, int *pnPairs)
int	Supp_ManSubsetAdd (Supp_Man_t *p, int iSet, int iObj, int fVerbose)
int	Supp_ComputePair1 (Supp_Man_t *p, int iSet)
int	Supp_ComputePair (Supp_Man_t *p, int iSet)
Vec_Int_t *	Supp_Compute64Pairs (Supp_Man_t *p, Vec_Int_t *vSets)
void	Supp_ManFillBlock (Supp_Man_t *p, Vec_Int_t *vPairs, Vec_Wrd_t *vRes)
void	Supp_ManAddPatterns (Supp_Man_t *p, Vec_Int_t *vSets)
Vec_Int_t *	Supp_ManCollectOnes (word *pSim, int nWords)
Vec_Int_t *	Supp_Compute64PairsFunc (Supp_Man_t *p, Vec_Int_t *vBits0, Vec_Int_t *vBits1)
void	Supp_ManAddPatternsFunc (Supp_Man_t *p, int nBatches)
int	Supp_FindNextDiv (Supp_Man_t *p, int Pair)
int	Supp_ManRandomSolution (Supp_Man_t *p, int iSet, int fVerbose)
int	Supp_ManSubsetRemove (Supp_Man_t *p, int iSet, int iPos)
int	Supp_ManMinimize (Supp_Man_t *p, int iSet0, int r, int fVerbose)
int	Supp_ManFindNextObj (Supp_Man_t *p, int fVerbose)
int	Supp_ManReconstruct (Supp_Man_t *p, int fVerbose)
void	Supp_DeriveDumpSims (FILE *pFile, Vec_Wrd_t *vDivs, int nWords)
void	Supp_DeriveDumpSimsC (FILE *pFile, Vec_Wrd_t *vDivs[2], int nWords)
void	Supp_DeriveDumpProb (Vec_Wrd_t *vIsfs, Vec_Wrd_t *vDivs, int nWords)
void	Supp_DeriveDumpProbC (Vec_Wrd_t *vIsfs, Vec_Wrd_t *vDivs[2], int nWords)
void	Supp_DeriveDumpSol (Vec_Int_t *vSet, Vec_Int_t *vRes, int nDivs)
void	Supp_DeriveDumpProb2 (Vec_Wrd_t *vIsfs, Vec_Wrd_t *vDivs, int nWords, Vec_Int_t *vSupp, Vec_Int_t *vRes)

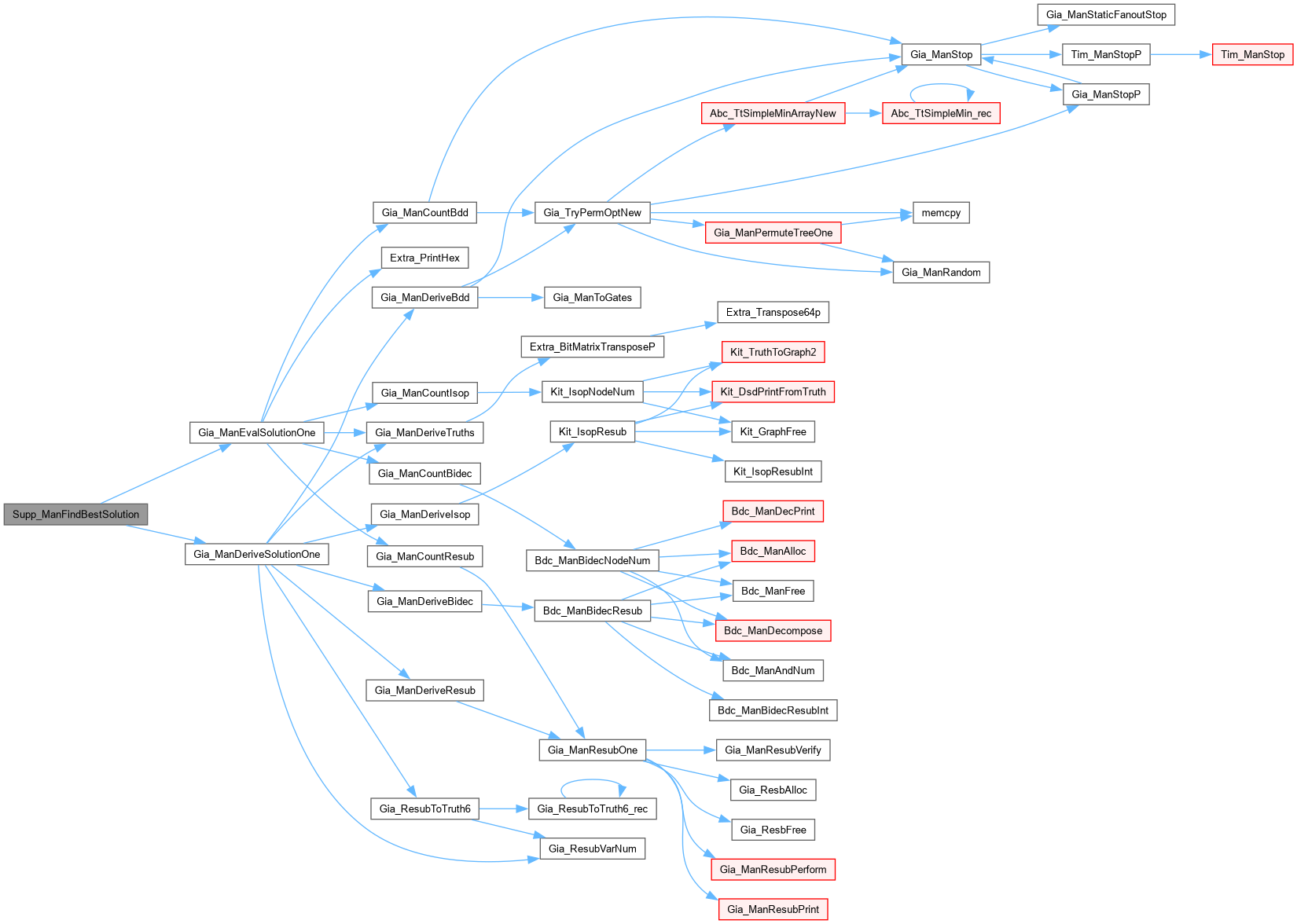

Vec_Int_t *	Supp_ManFindBestSolution (Supp_Man_t *p, Vec_Wec_t *vSols, int fVerbose, Vec_Int_t **pvDivs)
int	Supp_FindGivenOne (Supp_Man_t *p)
Vec_Int_t *	Supp_ManCompute (Vec_Wrd_t *vIsfs, Vec_Int_t *vCands, Vec_Int_t *vWeights, Vec_Wrd_t *vSims, Vec_Wrd_t *vSimsC, int nWords, Gia_Man_t *pGia, Vec_Int_t **pvDivs, int nIters, int nRounds, int fVerbose)
void	Supp_ManComputeTest (Gia_Man_t *p)
void	Supp_RecordSolution (char *pFileName, Vec_Int_t *vDivs, Vec_Int_t *vRes)
Gia_Man_t *	Supp_GenerateGia (Vec_Int_t *vRes, Vec_Int_t *vDivs)

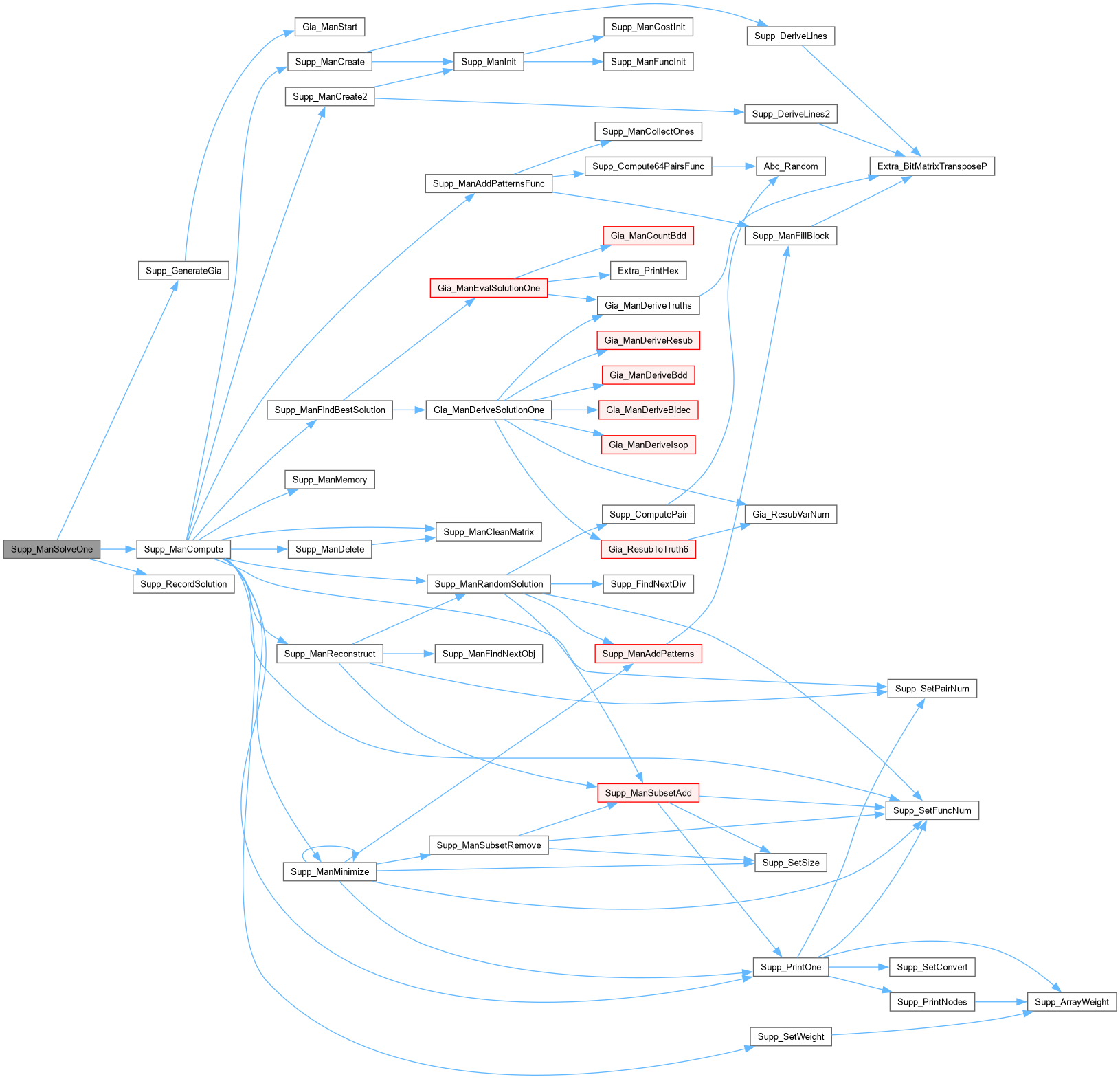

Gia_Man_t *	Supp_ManSolveOne (char *pFileName, int nIters, int nRounds, int fWriteSol, int fVerbose)

Typedef Documentation

Supp_Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Supp_Man_t_ Supp_Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [giaSupp.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Support computation manager.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaSupp.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

CFile****************************************************************

FileName [abcPart.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Output partitioning package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcPart.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 34 of file giaSupps.c.

Function Documentation

Extra_BitMatrixTransposeP()

void Extra_BitMatrixTransposeP ( Vec_Wrd_t * vSimsIn, int nWordsIn, Vec_Wrd_t * vSimsOut, int nWordsOut )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [giaDecs.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Calling various decomposition engines.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaDecs.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 2652 of file extraUtilMisc.c.

{
    word * pM[64];  int i, y, x;
    assert( Vec_WrdSize(vSimsIn) == Vec_WrdSize(vSimsOut) );
    assert( Vec_WrdSize(vSimsIn) == 64 * nWordsIn * nWordsOut );
    for ( x = 0; x < nWordsOut; x++ )
    for ( y = 0; y < nWordsIn;  y++ )
    {
        for ( i = 0; i < 64; i++ )
        {
            pM[i]    = Vec_WrdEntryP( vSimsOut, (64*y+63-i)*nWordsOut + x );
            pM[i][0] = Vec_WrdEntry ( vSimsIn,  (64*x+63-i)*nWordsIn  + y );
        }
        Extra_Transpose64p( pM );
    }
}

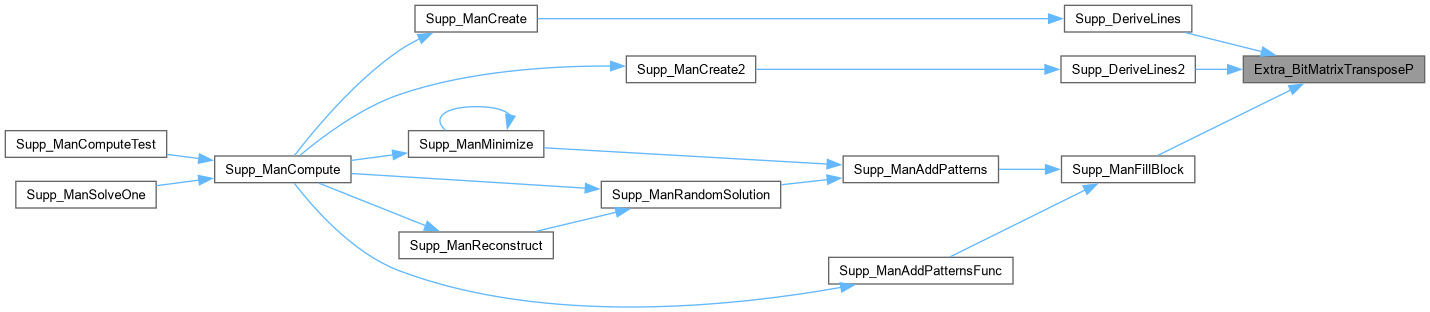

Here is the caller graph for this function:

Supp_ArrayWeight()

int Supp_ArrayWeight	(	Vec_Int_t *	vRes,
		Vec_Int_t *	vWeights )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 297 of file giaSupps.c.

{
    int i, iObj, Cost = 0;
    if ( !vWeights )
        return Vec_IntSize(vRes);
    Vec_IntForEachEntry( vRes, iObj, i )
        Cost += Vec_IntEntry(vWeights, iObj);
    return Cost;
}

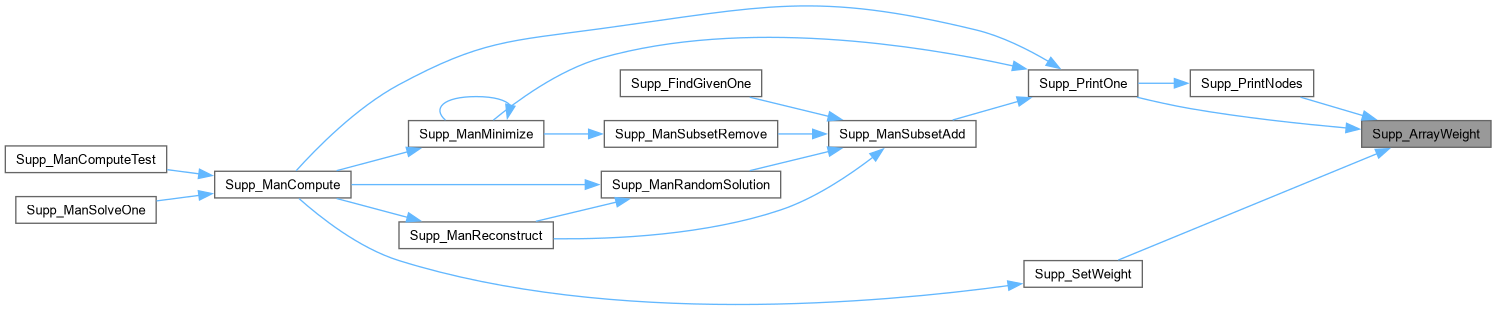

Here is the caller graph for this function:

Supp_Compute64Pairs()

Vec_Int_t * Supp_Compute64Pairs	(	Supp_Man_t *	p,
		Vec_Int_t *	vSets )

Definition at line 538 of file giaSupps.c.

{
    int i;
    Vec_IntClear( p->vTempPairs );
    for ( i = 0; i < 64; i++ )
    {
        int Rand = 0xFFFFFF & Abc_Random(0);
        int iSet = Vec_IntEntry( vSets, Rand % Vec_IntSize(vSets) );
        Vec_IntPush( p->vTempPairs, Supp_ComputePair(p, iSet) );
    }
    return p->vTempPairs;
}

Here is the call graph for this function:

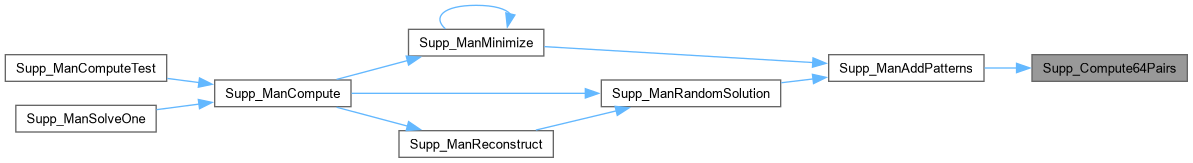

Here is the caller graph for this function:

Supp_Compute64PairsFunc()

Vec_Int_t * Supp_Compute64PairsFunc	(	Supp_Man_t *	p,
		Vec_Int_t *	vBits0,
		Vec_Int_t *	vBits1 )

Definition at line 582 of file giaSupps.c.

{
    int i;
    Vec_IntClear( p->vTempPairs );
    for ( i = 0; i < 64; i++ )
    {
        int Random = 0xFFFFFF & Abc_Random(0);
        int iBit0 = Vec_IntEntry( vBits0, (Random & 0xFFF) % Vec_IntSize(vBits0) );
        int iBit1 = Vec_IntEntry( vBits1, (Random >>   12) % Vec_IntSize(vBits1) );
        Vec_IntPush( p->vTempPairs, (iBit0 << 16) | iBit1 );
    }
    return p->vTempPairs;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ComputePair()

int Supp_ComputePair	(	Supp_Man_t *	p,
		int	iSet )

Definition at line 512 of file giaSupps.c.

{
    int Random = 0xFFFFFF & Abc_Random(0);
    int nFuncs = Vec_IntEntry(p->vSCount, iSet);
    int iFunc = Random % nFuncs;
    word * pIsf = Vec_WrdEntryP( p->vSFuncs, Vec_IntEntry(p->vSStarts, iSet) );
    word * pFunc[2] = { pIsf + (2*iFunc+0)*p->nWords, pIsf + (2*iFunc+1)*p->nWords };
    int iBit0 = ((Random >> 16) & 1) ? Abc_TtFindFirstBit2(pFunc[0], p->nWords) : Abc_TtFindLastBit2(pFunc[0], p->nWords);
    int iBit1 = ((Random >> 17) & 1) ? Abc_TtFindFirstBit2(pFunc[1], p->nWords) : Abc_TtFindLastBit2(pFunc[1], p->nWords);
    if ( 1 )
    {
        Vec_Int_t * vSet = Hsh_VecReadEntry( p->pHash, iSet ); int i, iObj;
        Vec_IntForEachEntry( vSet, iObj, i )
        {
            word * pSet0 = Vec_WrdEntryP( p->vDivs[0], iObj*p->nWords );
            word * pSet1 = Vec_WrdEntryP( p->vDivs[1], iObj*p->nWords );
            int Value00 = Abc_TtGetBit(pSet0, iBit0);
            int Value01 = Abc_TtGetBit(pSet0, iBit1);
            int Value10 = Abc_TtGetBit(pSet1, iBit0);
            int Value11 = Abc_TtGetBit(pSet1, iBit1);
            assert( !Value00 || !Value11 );
            assert( !Value01 || !Value10 );
        }
    }
    return (iBit0 << 16) | iBit1;
}

Here is the call graph for this function:

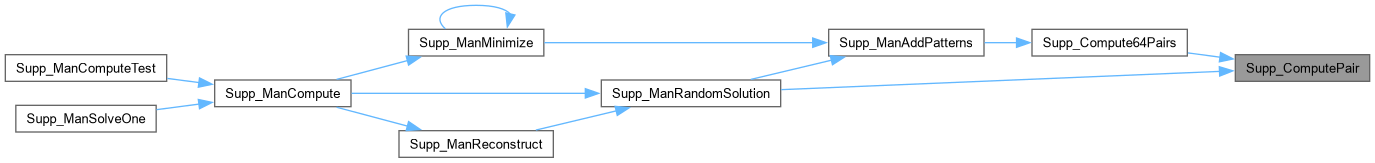

Here is the caller graph for this function:

Supp_ComputePair1()

int Supp_ComputePair1	(	Supp_Man_t *	p,
		int	iSet )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 492 of file giaSupps.c.

{
    int Random = 0xFFFFFF & Abc_Random(0);
    int nFuncs = Vec_IntEntry(p->vSCount, iSet);
    int iFunc = Random % nFuncs;
    word * pIsf = Vec_WrdEntryP( p->vSFuncs, Vec_IntEntry(p->vSStarts, iSet) );
    word * pFunc[2] = { pIsf + (2*iFunc+0)*p->nWords, pIsf + (2*iFunc+1)*p->nWords };
    int iBit0 = ((Random >> 16) & 1) ? Abc_TtFindFirstBit2(pFunc[0], p->nWords) : Abc_TtFindLastBit2(pFunc[0], p->nWords);
    int iBit1 = ((Random >> 17) & 1) ? Abc_TtFindFirstBit2(pFunc[1], p->nWords) : Abc_TtFindLastBit2(pFunc[1], p->nWords);
    if ( 1 )
    {
        Vec_Int_t * vSet = Hsh_VecReadEntry( p->pHash, iSet ); int i, iObj;
        Vec_IntForEachEntry( vSet, iObj, i )
        {
            word * pSet = Vec_WrdEntryP( p->vSims, Vec_IntEntry(p->vCands, iObj)*p->nWords );
            assert( Abc_TtGetBit(pSet, iBit0) == Abc_TtGetBit(pSet, iBit1) );
        }
    }
    return (iBit0 << 16) | iBit1;
}

Here is the call graph for this function:

Supp_DeriveDumpProb()

void Supp_DeriveDumpProb	(	Vec_Wrd_t *	vIsfs,
		Vec_Wrd_t *	vDivs,
		int	nWords )

Definition at line 759 of file giaSupps.c.

{
    char Buffer[100]; int nDivs = Vec_WrdSize(vDivs)/nWords;
    int RetValue = sprintf( Buffer, "%02d.resub", s_Counter );
    FILE * pFile = fopen( Buffer, "wb" );
    if ( pFile == NULL )
        printf( "Cannot open output file.\n" );
    fprintf( pFile, "resyn %d %d %d %d\n", 0, nDivs, 1, 64*nWords );
    //fprintf( pFile, "%d %d %d %d\n", 0, nDivs, 1, 64*nWords );
    Supp_DeriveDumpSims( pFile, vDivs, nWords );
    Supp_DeriveDumpSims( pFile, vIsfs, nWords );
    fclose ( pFile );
    RetValue = 0;
}

Here is the call graph for this function:

Supp_DeriveDumpProb2()

void Supp_DeriveDumpProb2	(	Vec_Wrd_t *	vIsfs,
		Vec_Wrd_t *	vDivs,
		int	nWords,
		Vec_Int_t *	vSupp,
		Vec_Int_t *	vRes )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 832 of file giaSupps.c.

{
    char Buffer[100]; int i, k, Temp, nDivs = Vec_WrdSize(vDivs)/nWords;
    int RetValue = sprintf( Buffer, "%02d.pla", s_Counter );
    FILE * pFile = fopen( Buffer, "wb" );
    if ( pFile == NULL )
        printf( "Cannot open output file.\n" );
//    fprintf( pFile, "resyn %d %d %d %d\n", 0, nDivs, 1, 64*nWords );
    fprintf( pFile, ".i %d\n", nDivs );
    fprintf( pFile, ".o %d\n", 1 );
    fprintf( pFile, ".p %d\n", 64*nWords );
    for ( i = 0; i < 64*nWords; i++ ) {
        for ( k = 0; k < nDivs; k++ )
            fprintf( pFile, "%d", Abc_TtGetBit(Vec_WrdEntryP(vDivs, k*nWords), i) );
//        fprintf( pFile, " %d\n", Abc_TtGetBit(Vec_WrdEntryP(vIsfs, 1*nWords), i) );
        if ( Abc_TtGetBit(Vec_WrdEntryP(vIsfs, 0*nWords), i) )
            fprintf( pFile, " 0\n" );
        else if ( Abc_TtGetBit(Vec_WrdEntryP(vIsfs, 1*nWords), i) )
            fprintf( pFile, " 1\n" );
        else
            fprintf( pFile, " -\n" );
    }
    fprintf( pFile, ".e\n" );

    fprintf( pFile, "\n.s" );
    Vec_IntForEachEntryStart( vSupp, Temp, i, 2 )
        fprintf( pFile, " %d", Temp );
    fprintf( pFile, "\n.a" );
    Vec_IntForEachEntry( vRes, Temp, i )
        fprintf( pFile, " %d", Temp );
    fprintf( pFile, "\n" );
    fclose ( pFile );
    RetValue = 0;
}

Here is the call graph for this function:

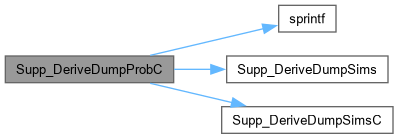

Supp_DeriveDumpProbC()

void Supp_DeriveDumpProbC	(	Vec_Wrd_t *	vIsfs,
		Vec_Wrd_t *	vDivs[2],
		int	nWords )

Definition at line 773 of file giaSupps.c.

{
    char Buffer[100]; int nDivs = Vec_WrdSize(vDivs[0])/nWords;
    int RetValue = sprintf( Buffer, "%02d.resub", s_Counter );
    FILE * pFile = fopen( Buffer, "wb" );
    if ( pFile == NULL )
        printf( "Cannot open output file.\n" );
    fprintf( pFile, "resyn %d %d %d %d\n", 0, nDivs, 1, 64*nWords );
    //fprintf( pFile, "%d %d %d %d\n", 0, nDivs, 1, 64*nWords );
    Supp_DeriveDumpSimsC( pFile, vDivs, nWords );
    Supp_DeriveDumpSims( pFile, vIsfs, nWords );
    fclose ( pFile );
    RetValue = 0;
}

Here is the call graph for this function:

Supp_DeriveDumpSims()

void Supp_DeriveDumpSims	(	FILE *	pFile,
		Vec_Wrd_t *	vDivs,
		int	nWords )

Definition at line 731 of file giaSupps.c.

{
    int i, k, nDivs = Vec_WrdSize(vDivs)/nWords;
    for ( i = 0; i < nDivs; i++ )
    {
        word * pSim = Vec_WrdEntryP(vDivs, i*nWords);
        for ( k = 0; k < 64*nWords; k++ )
            fprintf( pFile, "%c", '0'+Abc_TtGetBit(pSim, k) );
        fprintf( pFile, "\n" );
    }
}

Here is the caller graph for this function:

Supp_DeriveDumpSimsC()

void Supp_DeriveDumpSimsC	(	FILE *	pFile,
		Vec_Wrd_t *	vDivs[2],
		int	nWords )

Definition at line 742 of file giaSupps.c.

{
    int i, k, nDivs = Vec_WrdSize(vDivs[0])/nWords;
    for ( i = 0; i < nDivs; i++ )
    {
        word * pSim0 = Vec_WrdEntryP(vDivs[0], i*nWords);
        word * pSim1 = Vec_WrdEntryP(vDivs[1], i*nWords);
        for ( k = 0; k < 64*nWords; k++ )
            if ( Abc_TtGetBit(pSim0, k) )
                fprintf( pFile, "0" );
            else if ( Abc_TtGetBit(pSim1, k) )
                fprintf( pFile, "1" );
            else
                fprintf( pFile, "-" );
        fprintf( pFile, "\n" );
    }
}

Here is the caller graph for this function:

Supp_DeriveDumpSol()

void Supp_DeriveDumpSol	(	Vec_Int_t *	vSet,
		Vec_Int_t *	vRes,
		int	nDivs )

Definition at line 787 of file giaSupps.c.

{
    char Buffer[100];
    int RetValue = sprintf( Buffer, "%02d.sol", s_Counter );
    int i, iLit, iLitRes = -1, nSupp = Vec_IntSize(vSet);
    FILE * pFile = fopen( Buffer, "wb" );
    if ( pFile == NULL )
        printf( "Cannot open output file.\n" );
    fprintf( pFile, "sol name aig %d\n", Vec_IntSize(vRes)/2 );
    //Vec_IntPrint( vSet );
    //Vec_IntPrint( vRes );
    Vec_IntForEachEntry( vRes, iLit, i )
    {
        assert( iLit != 2 && iLit != 3 );
        if ( iLit < 2 )
            iLitRes = iLit;
        else if ( iLit-4 < 2*nSupp )
        {
            int iDiv = Vec_IntEntry(vSet, Abc_Lit2Var(iLit-4));
            assert( iDiv >= 0 && iDiv < nDivs );
            iLitRes = Abc_Var2Lit(1+iDiv, Abc_LitIsCompl(iLit));
        }
        else
            iLitRes = iLit + 2*((nDivs+1)-(nSupp+2));
        fprintf( pFile, "%d ", iLitRes );
    }
    if ( Vec_IntSize(vRes) & 1 )
        fprintf( pFile, "%d ", iLitRes );
    fprintf( pFile, "\n" );
    fclose( pFile );
    RetValue = 0;
    printf( "Dumped solution info file \"%s\".\n", Buffer );
}

Here is the call graph for this function:

Supp_DeriveLines()

int Supp_DeriveLines

(

Supp_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 139 of file giaSupps.c.

{
    int n, i, iObj, nWords = p->nWords;
    int nDivWords = Abc_Bit6WordNum( Vec_IntSize(p->vCands) );
    //Vec_IntPrint( p->vCands );
    for ( n = 0; n < 2; n++ )
    {
        p->vDivs[n] = Vec_WrdStart( 64*nWords*nDivWords );
        p->vPats[n] = Vec_WrdStart( 64*nWords*nDivWords );
        //p->vDivsC[n] = Vec_WrdStart( 64*nWords*nDivWords );
        if ( p->vSimsC )
            Vec_IntForEachEntry( p->vCands, iObj, i )
                Abc_TtAndSharp( Vec_WrdEntryP(p->vDivsC[n], i*nWords), Vec_WrdEntryP(p->vSimsC, iObj*nWords), Vec_WrdEntryP(p->vSims, iObj*nWords), nWords, !n );
        else
            Vec_IntForEachEntry( p->vCands, iObj, i )
                Abc_TtCopy( Vec_WrdEntryP(p->vDivs[n], i*nWords), Vec_WrdEntryP(p->vSims, iObj*nWords), nWords, !n );
        Extra_BitMatrixTransposeP( p->vDivs[n], nWords, p->vPats[n], nDivWords );
    }
    return nDivWords;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_DeriveLines2()

int Supp_DeriveLines2

(

Supp_Man_t *

p

)

Definition at line 189 of file giaSupps.c.

{
    assert( Vec_WrdSize(p->vSims) % p->nWords == 0 );
    int n, nDivWords = Abc_Bit6WordNum( Vec_WrdSize(p->vSims) / p->nWords );
    for ( n = 0; n < 2; n++ )
    {
        p->vDivs[n] = Vec_WrdStart( 64*p->nWords*nDivWords );
        p->vPats[n] = Vec_WrdStart( 64*p->nWords*nDivWords );
        Abc_TtCopy( Vec_WrdArray(p->vDivs[n]), Vec_WrdArray(p->vSims), Vec_WrdSize(p->vSims), !n );
        Extra_BitMatrixTransposeP( p->vDivs[n], p->nWords, p->vPats[n], nDivWords );
    }
    return nDivWords;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_FindGivenOne()

int Supp_FindGivenOne

(

Supp_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 942 of file giaSupps.c.

{
    int i, iObj, iSet = 0;
    Vec_Int_t * vSet = Vec_IntStart( 2 );
    //extern void Patch_GenerateSet11( Gia_Man_t * p, Vec_Int_t * vDivs, Vec_Int_t * vCands );
    //Patch_GenerateSet11( p->pGia, vSet, p->vCands );
    Vec_IntDrop( vSet, 0 );
    Vec_IntDrop( vSet, 0 );
    Vec_IntForEachEntry( vSet, iObj, i )
        iSet = Supp_ManSubsetAdd( p, iSet, iObj, 1 );
    Vec_IntFree( vSet );
    return iSet;
}

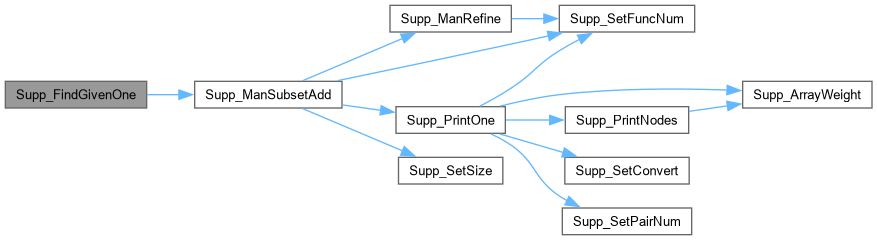

Here is the call graph for this function:

Supp_FindNextDiv()

int Supp_FindNextDiv	(	Supp_Man_t *	p,
		int	Pair )

Definition at line 610 of file giaSupps.c.

{
    int iDiv, iBit0 = Pair >> 16, iBit1 = Pair & 0xFFFF;
    word * pPat00 = Vec_WrdEntryP(p->vPats[0], iBit0*p->nDivWords);
    word * pPat01 = Vec_WrdEntryP(p->vPats[0], iBit1*p->nDivWords);
    word * pPat10 = Vec_WrdEntryP(p->vPats[1], iBit0*p->nDivWords);
    word * pPat11 = Vec_WrdEntryP(p->vPats[1], iBit1*p->nDivWords);
    int iDiv1 = Abc_TtFindFirstAndBit2( pPat00, pPat11, p->nDivWords );
    int iDiv2 = Abc_TtFindFirstAndBit2( pPat01, pPat10, p->nDivWords );
    iDiv1 = iDiv1 == -1 ? ABC_INFINITY : iDiv1;
    iDiv2 = iDiv2 == -1 ? ABC_INFINITY : iDiv2;
    iDiv = Abc_MinInt( iDiv1, iDiv2 );
    // return -1 if the pair cannot be distinguished by any divisor
    // in this case the original resub problem has no solution
    if ( iDiv == ABC_INFINITY )
        return -1;
    assert( iDiv >= 0 && iDiv < Vec_IntSize(p->vCands) );
    return iDiv;
}

Here is the caller graph for this function:

Supp_GenerateGia()

Gia_Man_t * Supp_GenerateGia	(	Vec_Int_t *	vRes,
		Vec_Int_t *	vDivs )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1109 of file giaSupps.c.

{
    int i, nAddOn = 2, nIns = Vec_IntSize(vDivs)-2;
    int iLit0, iLit1, iTopLit = Vec_IntEntryLast(vRes);
    assert( Vec_IntSize(vRes) > 0 );
    assert( Vec_IntSize(vRes) % 2 == 1 );
    Gia_Man_t * pNew = Gia_ManStart( 100 );
    pNew->pName = Abc_UtilStrsav( "resub" );
    for ( i = 0; i < nIns; i++ )
        Gia_ManAppendCi(pNew);
    Vec_IntForEachEntryDouble( vRes, iLit0, iLit1, i ) {
        if ( iLit0 < iLit1 )
            Gia_ManAppendAnd( pNew, iLit0-nAddOn, iLit1-nAddOn );
        else if ( iLit0 > iLit1 )
            Gia_ManAppendXor( pNew, iLit0-nAddOn, iLit1-nAddOn );
        else assert( 0 );
    }
    Gia_ManAppendCo(pNew, iTopLit-nAddOn);
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManAddPatterns()

void Supp_ManAddPatterns	(	Supp_Man_t *	p,
		Vec_Int_t *	vSets )

Definition at line 567 of file giaSupps.c.

{
    Vec_Int_t * vPairs = Supp_Compute64Pairs( p, vSets );
    Vec_Wrd_t * vRow = Vec_WrdStart( 64*p->nDivWords );
    Supp_ManFillBlock( p, vPairs, vRow );
    Vec_PtrPush( p->vMatrix, vRow );
}

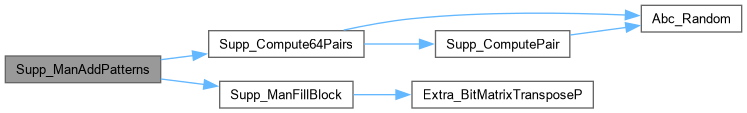

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManAddPatternsFunc()

void Supp_ManAddPatternsFunc	(	Supp_Man_t *	p,
		int	nBatches )

Definition at line 595 of file giaSupps.c.

{
    int b;
    Vec_Int_t * vBits0 = Supp_ManCollectOnes( Vec_WrdEntryP(p->vSFuncs, 0*p->nWords), p->nWords );
    Vec_Int_t * vBits1 = Supp_ManCollectOnes( Vec_WrdEntryP(p->vSFuncs, 1*p->nWords), p->nWords );
    for ( b = 0; b < nBatches; b++ )
    {
        Vec_Int_t * vPairs = Supp_Compute64PairsFunc( p, vBits0, vBits1 );
        Vec_Wrd_t * vRow = Vec_WrdStart( 64*p->nDivWords );
        Supp_ManFillBlock( p, vPairs, vRow );
        Vec_PtrPush( p->vMatrix, vRow );
    }
    Vec_IntFree( vBits0 );
    Vec_IntFree( vBits1 );
}

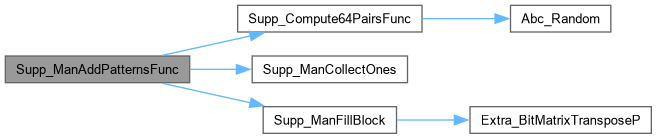

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManCleanMatrix()

void Supp_ManCleanMatrix

(

Supp_Man_t *

p

)

Definition at line 233 of file giaSupps.c.

{
    Vec_Wrd_t * vTemp; int i;
    Vec_PtrForEachEntry( Vec_Wrd_t *, p->vMatrix, vTemp, i )
        Vec_WrdFreeP( &vTemp );
    Vec_PtrClear( p->vMatrix );
}

Here is the caller graph for this function:

Supp_ManCollectOnes()

Vec_Int_t * Supp_ManCollectOnes	(	word *	pSim,
		int	nWords )

Definition at line 574 of file giaSupps.c.

{
    Vec_Int_t * vRes = Vec_IntAlloc( 100 ); int i;
    for ( i = 0; i < 64*nWords; i++ )
        if ( Abc_TtGetBit(pSim, i) )
            Vec_IntPush( vRes, i );
    return vRes;
}

Here is the caller graph for this function:

Supp_ManCompute()

Vec_Int_t * Supp_ManCompute	(	Vec_Wrd_t *	vIsfs,
		Vec_Int_t *	vCands,
		Vec_Int_t *	vWeights,
		Vec_Wrd_t *	vSims,
		Vec_Wrd_t *	vSimsC,
		int	nWords,
		Gia_Man_t *	pGia,
		Vec_Int_t **	pvDivs,
		int	nIters,
		int	nRounds,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 967 of file giaSupps.c.

{
    int fVeryVerbose = 0;
    int i, r, iSet, iBest = -1;
    abctime clk = Abc_Clock();
    Vec_Int_t * vRes = NULL;
    Supp_Man_t * p;
    if ( vCands )
        p = Supp_ManCreate( vIsfs, vCands, vWeights, vSims, vSimsC, nWords, pGia, nIters, nRounds );
    else
        p = Supp_ManCreate2( vIsfs, vSims, NULL, nWords, nIters, nRounds );
    if ( Supp_SetFuncNum(p, 0) == 0 )
    {
        Supp_ManDelete( p );
        Vec_IntClear( *pvDivs );
        Vec_IntPushTwo( *pvDivs, -1, -1 );
        vRes = Vec_IntAlloc( 1 );
        Vec_IntPush( vRes, Abc_TtIsConst0(Vec_WrdArray(vIsfs), nWords) );
        return vRes;
    }
    if ( fVerbose )
    printf( "Using %d divisors with %d words. Problem has %d functions and %d minterm pairs.\n",
        Vec_IntSize(p->vCands), p->nWords, Supp_SetFuncNum(p, 0), Supp_SetPairNum(p, 0) );
    //iBest = Supp_FindGivenOne( p );
    if ( iBest == -1 )
    for ( i = 0; i < p->nIters; i++ )
    {
        Supp_ManAddPatternsFunc( p, i );
        iSet = Supp_ManRandomSolution( p, 0, fVeryVerbose );
        if ( iSet == -1 ) {
            Supp_ManDelete( p );
            return NULL;
        }
        for ( r = 0; r < p->nRounds; r++ )
        {
            if ( fVeryVerbose )
            printf( "\n\nITER %d   ROUND %d\n", i, r );
            iSet = Supp_ManMinimize( p, iSet, r, fVeryVerbose );
            if ( iBest == -1 || Supp_SetWeight(p, iBest) > Supp_SetWeight(p, iSet) )
            //if ( Supp_SetSize(p, iBest) > Supp_SetSize(p, iSet) )
            {
                if ( fVeryVerbose )
                printf( "\nThe best solution found:\n" );
                if ( fVeryVerbose )
                Supp_PrintOne( p, iSet );
                iBest = iSet;
            }
            iSet = Supp_ManReconstruct( p, fVeryVerbose );
            if ( iSet == -1 ) {
                Supp_ManDelete( p );
                return NULL;
            }
        }
        if ( fVeryVerbose )
        printf( "Matrix size %d.\n", Vec_PtrSize(p->vMatrix) );
        Supp_ManCleanMatrix( p );
    }
    if ( fVerbose )
    {
        printf( "Explored %d divisor sets. Found %d solutions. Memory usage %.2f MB.  ",
            Hsh_VecSize(p->pHash), Vec_WecSizeSize(p->vSolutions), 1.0*Supp_ManMemory(p)/(1<<20) );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
        printf( "The best solution:  " );
        if ( iBest == -1 )
            printf( "No solution.\n" );
        else
            Supp_PrintOne( p, iBest );
    }
    vRes = Supp_ManFindBestSolution( p, p->vSolutions, fVerbose, pvDivs );
    //Vec_IntPrint( vRes );
    Supp_ManDelete( p );
//    if ( vRes && Vec_IntSize(vRes) == 0 )
//        Vec_IntFreeP( &vRes );
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManComputeTest()

void Supp_ManComputeTest

(

Gia_Man_t *

p

)

Definition at line 1042 of file giaSupps.c.

{
    Vec_Wrd_t * vSimsPi = Vec_WrdStartTruthTables( Gia_ManCiNum(p) );
    Vec_Wrd_t * vSims   = Gia_ManSimPatSimOut( p, vSimsPi, 0 );
    int i, iPoId, nWords = Vec_WrdSize(vSimsPi) / Gia_ManCiNum(p);
    Vec_Wrd_t * vIsfs = Vec_WrdStart( 2*nWords );
    Vec_Int_t * vCands = Vec_IntAlloc( 4 );
    Vec_Int_t * vRes;

//    for ( i = 0; i < Gia_ManCiNum(p)+5; i++ )
    for ( i = 0; i < Gia_ManCiNum(p); i++ )
        Vec_IntPush( vCands, 1+i );

    iPoId = Gia_ObjId(p, Gia_ManPo(p, 0));
    Abc_TtCopy( Vec_WrdEntryP(vIsfs, 0*nWords), Vec_WrdEntryP(vSims, iPoId*nWords), nWords, 1 );
    Abc_TtCopy( Vec_WrdEntryP(vIsfs, 1*nWords), Vec_WrdEntryP(vSims, iPoId*nWords), nWords, 0 );

    vRes = Supp_ManCompute( vIsfs, vCands, NULL, vSims, NULL, nWords, p, NULL, 1, 1, 0 );
    Vec_IntPrint( vRes );

    Vec_WrdFree( vSimsPi );
    Vec_WrdFree( vSims );
    Vec_WrdFree( vIsfs );
    Vec_IntFree( vCands );
    Vec_IntFree( vRes );
}

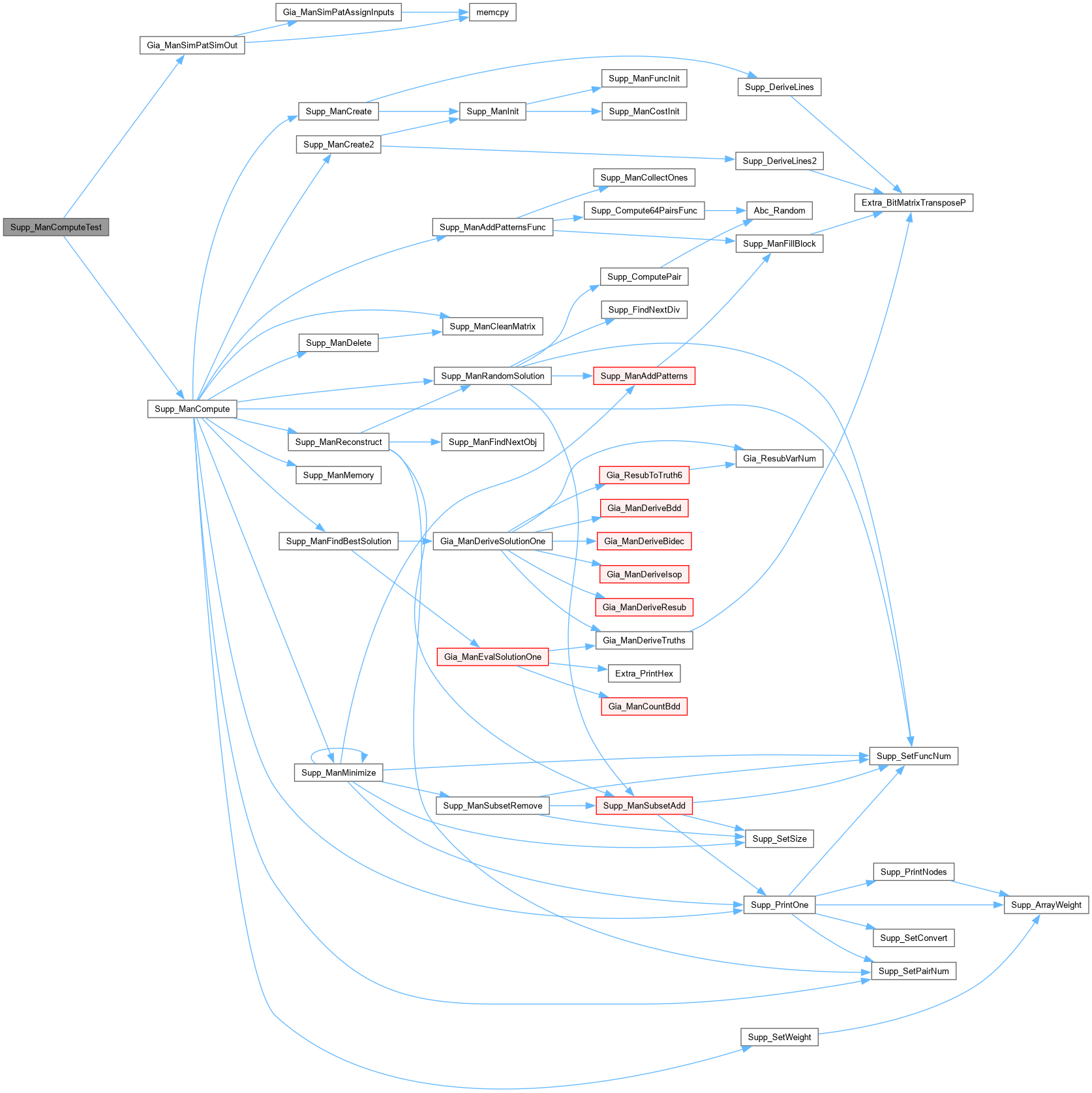

Here is the call graph for this function:

Supp_ManCostInit()

int Supp_ManCostInit	(	Vec_Wrd_t *	vFuncs,
		int	nWords )

Definition at line 101 of file giaSupps.c.

{
    int Res = 0, i, nFuncs = Vec_WrdSize(vFuncs) / nWords / 2;
    assert( 2 * nFuncs * nWords == Vec_WrdSize(vFuncs) );
    for ( i = 0; i < nFuncs; i++ )
    {
        word * pFunc0 = Vec_WrdEntryP(vFuncs, (2*i+0)*nWords);
        word * pFunc1 = Vec_WrdEntryP(vFuncs, (2*i+1)*nWords);
        Res += Abc_TtCountOnesVec(pFunc0, nWords) * Abc_TtCountOnesVec(pFunc1, nWords);
    }
    assert( nFuncs < 128 );
    assert( Res < (1 << 24) );
    return (nFuncs << 24) | Res;
}

Here is the caller graph for this function:

Supp_ManCreate()

Supp_Man_t * Supp_ManCreate	(	Vec_Wrd_t *	vIsfs,
		Vec_Int_t *	vCands,
		Vec_Int_t *	vWeights,
		Vec_Wrd_t *	vSims,
		Vec_Wrd_t *	vSimsC,
		int	nWords,
		Gia_Man_t *	pGia,
		int	nIters,
		int	nRounds )

Definition at line 159 of file giaSupps.c.

{
    Supp_Man_t * p = ABC_CALLOC( Supp_Man_t, 1 );
    p->nIters     = nIters;
    p->nRounds    = nRounds;
    p->nWords     = nWords;
    p->vIsfs      = vIsfs;
    p->vCands     = vCands;
    p->vWeights   = vWeights;
    p->vSims      = vSims;
    p->vSimsC     = vSimsC;
    p->pGia       = pGia;
    // computed data
    p->nDivWords  = Supp_DeriveLines( p );
    p->vMatrix    = Vec_PtrAlloc( 100 );
    p->vMask      = Vec_WrdAlloc( 100 );
    p->vRowTemp   = Vec_WrdStart( 64*p->nDivWords );
    p->vCosts     = Vec_IntStart( Vec_IntSize(p->vCands) );
    p->pHash      = Hsh_VecManStart( 1000 );
    p->vSFuncs    = Vec_WrdAlloc( 1000 );
    p->vSStarts   = Vec_IntAlloc( 1000 );
    p->vSCount    = Vec_IntAlloc( 1000 );
    p->vSPairs    = Vec_IntAlloc( 1000 );
    p->vSolutions = Vec_WecStart( 16 );
    p->vTemp      = Vec_IntAlloc( 10 );
    p->vTempSets  = Vec_IntAlloc( 10 );
    p->vTempPairs = Vec_IntAlloc( 10 );
    Supp_ManInit( p );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManCreate2()

Supp_Man_t * Supp_ManCreate2	(	Vec_Wrd_t *	vIsfs,
		Vec_Wrd_t *	vSims,
		Vec_Int_t *	vWeights,
		int	nWords,
		int	nIters,
		int	nRounds )

Definition at line 202 of file giaSupps.c.

{
    Supp_Man_t * p = ABC_CALLOC( Supp_Man_t, 1 );
    assert( Vec_WrdSize(vSims)%nWords == 0 );
    p->nIters     = nIters;
    p->nRounds    = nRounds;
    p->nWords     = nWords;
    p->vIsfs      = vIsfs;
    p->vCands     = Vec_IntStartNatural( Vec_WrdSize(vSims)/nWords );
    p->vWeights   = NULL;
    p->vSims      = vSims;
    p->vSimsC     = NULL;
    p->pGia       = NULL;
    // computed data
    p->nDivWords  = Supp_DeriveLines2( p );
    p->vMatrix    = Vec_PtrAlloc( 100 );
    p->vMask      = Vec_WrdAlloc( 100 );
    p->vRowTemp   = Vec_WrdStart( 64*p->nDivWords );
    p->vCosts     = Vec_IntStart( Vec_IntSize(p->vCands) );
    p->pHash      = Hsh_VecManStart( 1000 );
    p->vSFuncs    = Vec_WrdAlloc( 1000 );
    p->vSStarts   = Vec_IntAlloc( 1000 );
    p->vSCount    = Vec_IntAlloc( 1000 );
    p->vSPairs    = Vec_IntAlloc( 1000 );
    p->vSolutions = Vec_WecStart( 16 );
    p->vTemp      = Vec_IntAlloc( 10 );
    p->vTempSets  = Vec_IntAlloc( 10 );
    p->vTempPairs = Vec_IntAlloc( 10 );
    Supp_ManInit( p );
    return p;
}

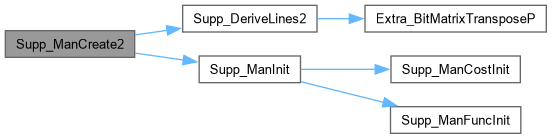

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManDelete()

void Supp_ManDelete

(

Supp_Man_t *

p

)

Definition at line 240 of file giaSupps.c.

{
    Supp_ManCleanMatrix( p );
    Vec_WrdFreeP( &p->vDivs[0] );
    Vec_WrdFreeP( &p->vDivs[1] );
    Vec_WrdFreeP( &p->vDivsC[0] );
    Vec_WrdFreeP( &p->vDivsC[1] );
    Vec_WrdFreeP( &p->vPats[0] );
    Vec_WrdFreeP( &p->vPats[1] );
    Vec_PtrFreeP( &p->vMatrix );
    Vec_WrdFreeP( &p->vMask );
    Vec_WrdFreeP( &p->vRowTemp );
    Vec_IntFreeP( &p->vCosts );
    Hsh_VecManStop( p->pHash );
    Vec_WrdFreeP( &p->vSFuncs );
    Vec_IntFreeP( &p->vSStarts );
    Vec_IntFreeP( &p->vSCount );
    Vec_IntFreeP( &p->vSPairs );
    Vec_WecFreeP( &p->vSolutions );
    Vec_IntFreeP( &p->vTemp );
    Vec_IntFreeP( &p->vTempSets );
    Vec_IntFreeP( &p->vTempPairs );
    if ( p->vSims == NULL )
        Vec_IntFreeP( &p->vCands );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManFillBlock()

void Supp_ManFillBlock	(	Supp_Man_t *	p,
		Vec_Int_t *	vPairs,
		Vec_Wrd_t *	vRes )

Definition at line 550 of file giaSupps.c.

{
    int i, Pair;
    assert( Vec_IntSize(vPairs) == 64 );
    Vec_IntForEachEntry( vPairs, Pair, i )
    {
        int iBit0 = Pair >> 16, iBit1 = Pair & 0xFFFF;
        word * pPat00 = Vec_WrdEntryP(p->vPats[0], iBit0*p->nDivWords);
        word * pPat01 = Vec_WrdEntryP(p->vPats[0], iBit1*p->nDivWords);
        word * pPat10 = Vec_WrdEntryP(p->vPats[1], iBit0*p->nDivWords);
        word * pPat11 = Vec_WrdEntryP(p->vPats[1], iBit1*p->nDivWords);
        word * pPat   = Vec_WrdEntryP(p->vRowTemp, i*p->nDivWords);
        Abc_TtAnd( pPat, pPat00, pPat11, p->nDivWords, 0 );
        Abc_TtOrAnd( pPat, pPat01, pPat10, p->nDivWords );
    }
    Extra_BitMatrixTransposeP( p->vRowTemp, p->nDivWords, vRes, 1 );
}

Here is the call graph for this function:

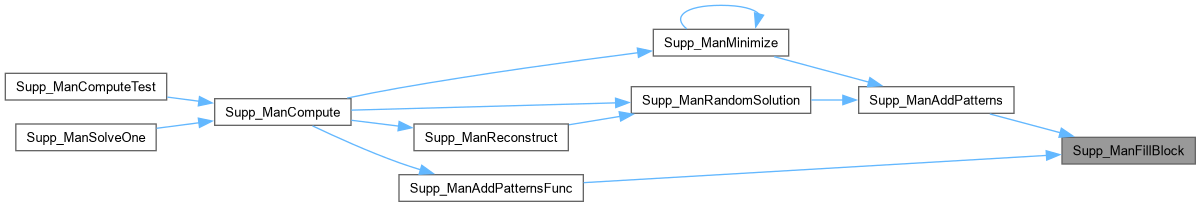

Here is the caller graph for this function:

Supp_ManFindBestSolution()

Vec_Int_t * Supp_ManFindBestSolution	(	Supp_Man_t *	p,
		Vec_Wec_t *	vSols,
		int	fVerbose,
		Vec_Int_t **	pvDivs )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 879 of file giaSupps.c.

{
    Vec_Int_t * vLevel, * vRes = NULL;
    int i, k, iSet, nFuncs = 0, Count = 0;
    int iSolBest = -1, Cost, CostBest = ABC_INFINITY;
    Vec_WecForEachLevel( vSols, vLevel, i )
    {
        Count += Vec_IntSize(vLevel) > 0;
        Vec_IntForEachEntry( vLevel, iSet, k )
        {
            if ( fVerbose )
                printf( "%3d : ", nFuncs++ );
            Cost = Gia_ManEvalSolutionOne( p->pGia, p->vSims, p->vIsfs, p->vCands, Hsh_VecReadEntry(p->pHash, iSet), p->nWords, fVerbose );
            if ( Cost == -1 )
                continue;
            if ( CostBest > Cost )
            {
                CostBest = Cost;
                iSolBest = iSet;
            }
            if ( nFuncs > 5 )
                break;
        }
        if ( Count == 2 || k < Vec_IntSize(vLevel) )
            break;
    }
    if ( iSolBest > 0 && (CostBest >> 2) < 50 )
    {
        Vec_Int_t * vDivs2 = Vec_IntAlloc( 100 );
        Vec_Int_t * vSet = Hsh_VecReadEntry( p->pHash, iSolBest ); int i, iObj;
        vRes = Gia_ManDeriveSolutionOne( p->pGia, p->vSims, p->vIsfs, p->vCands, vSet, p->nWords, CostBest & 3 );
        assert( !vRes || Vec_IntSize(vRes) == 2*(CostBest >> 2)+1 );
        if ( vRes && pvDivs )
        {
            Vec_IntClear( *pvDivs );
            Vec_IntPushTwo( *pvDivs, -1, -1 );
            Vec_IntPushTwo( vDivs2, -1, -1 );
            Vec_IntForEachEntry( vSet, iObj, i ) {
                Vec_IntPush( *pvDivs, Vec_IntEntry(p->vCands, iObj) );
                Vec_IntPush( vDivs2, iObj );
            }
        }
        //Supp_DeriveDumpProbC( p->vIsfs, p->vDivsC, p->nWords );
        //Supp_DeriveDumpProb( p->vIsfs, p->vDivs[1], p->nWords );
        //Supp_DeriveDumpSol( vSet, vRes, Vec_WrdSize(p->vDivs[1])/p->nWords );
        //Supp_DeriveDumpProb2( p->vIsfs, p->vDivs[1], p->nWords, vDivs2, vRes );
        Vec_IntFree( vDivs2 );
        s_Counter++;
    }
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManFindNextObj()

int Supp_ManFindNextObj	(	Supp_Man_t *	p,
		int	fVerbose )

Definition at line 683 of file giaSupps.c.

{
    Vec_Wrd_t * vTemp; int r, k, iDiv;
    word Sim, * pMask = Vec_WrdArray(p->vMask);
    assert( Vec_WrdSize(p->vMask) == Vec_PtrSize(p->vMatrix) );
    Vec_IntFill( p->vCosts, Vec_IntSize(p->vCosts), 0 );
    Vec_PtrForEachEntry( Vec_Wrd_t *, p->vMatrix, vTemp, r )
        Vec_WrdForEachEntryStop( vTemp, Sim, k, Vec_IntSize(p->vCosts) )
            Vec_IntAddToEntry( p->vCosts, k, Abc_TtCountOnes(Sim & pMask[r]) );
    iDiv = Vec_IntArgMax( p->vCosts );
    if ( fVerbose )
    printf( "Choosing divisor %d with weight %d.\n", iDiv, Vec_IntEntry(p->vCosts, iDiv) );
    Vec_PtrForEachEntry( Vec_Wrd_t *, p->vMatrix, vTemp, r )
        pMask[r] &= ~Vec_WrdEntry( vTemp, iDiv );
    return iDiv;
}

Here is the caller graph for this function:

Supp_ManFuncInit()

int Supp_ManFuncInit	(	Vec_Wrd_t *	vFuncs,
		int	nWords )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 84 of file giaSupps.c.

{
    int i, k = 0, nFuncs = Vec_WrdSize(vFuncs) / nWords / 2;
    assert( 2 * nFuncs * nWords == Vec_WrdSize(vFuncs) );
    for ( i = 0; i < nFuncs; i++ )
    {
        word * pFunc0 = Vec_WrdEntryP(vFuncs, (2*i+0)*nWords);
        word * pFunc1 = Vec_WrdEntryP(vFuncs, (2*i+1)*nWords);
        if ( Abc_TtIsConst0(pFunc0, nWords) || Abc_TtIsConst0(pFunc1, nWords) )
            continue;
        if ( k < i ) Abc_TtCopy( Vec_WrdEntryP(vFuncs, (2*k+0)*nWords), pFunc0, nWords, 0 );
        if ( k < i ) Abc_TtCopy( Vec_WrdEntryP(vFuncs, (2*k+1)*nWords), pFunc1, nWords, 0 );
        k++;
    }
    Vec_WrdShrink( vFuncs, 2*k*nWords );
    return k;
}

Here is the caller graph for this function:

Supp_ManInit()

void Supp_ManInit

(

Supp_Man_t *

p

)

Definition at line 115 of file giaSupps.c.

{
    int Value, nFuncs, iSet = Hsh_VecManAdd( p->pHash, p->vTemp ); // empty set
    assert( iSet == 0 );
    Vec_IntPush( p->vSStarts, Vec_WrdSize(p->vSFuncs) );
    Vec_WrdAppend( p->vSFuncs, p->vIsfs );
    nFuncs = Supp_ManFuncInit( p->vSFuncs, p->nWords );
    assert( Vec_WrdSize(p->vSFuncs) == 2 * nFuncs * p->nWords );
    Value = Supp_ManCostInit(p->vSFuncs, p->nWords);
    Vec_IntPush( p->vSCount, Value >> 24 );
    Vec_IntPush( p->vSPairs, Value & 0xFFFFFF );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManMemory()

int Supp_ManMemory

(

Supp_Man_t *

p

)

Definition at line 266 of file giaSupps.c.

{
    int nMem = sizeof(Supp_Man_t);
    nMem += 2*(int)Vec_WrdMemory( p->vDivs[0] );
    nMem += 2*(int)Vec_WrdMemory( p->vPats[0] );
    nMem += (Vec_PtrSize(p->vMatrix)+1)*(int)Vec_WrdMemory( p->vRowTemp );
    nMem += (int)Vec_WrdMemory( p->vMask );
    nMem += (int)Vec_IntMemory( p->vCosts );
    nMem += (int)Hsh_VecManMemory( p->pHash );
    nMem += (int)Vec_WrdMemory( p->vSFuncs );
    nMem += (int)Vec_IntMemory( p->vSStarts );
    nMem += (int)Vec_IntMemory( p->vSCount );
    nMem += (int)Vec_IntMemory( p->vSPairs );
    nMem += (int)Vec_WecMemory( p->vSolutions );
    nMem += (int)Vec_IntMemory( p->vTemp );
    nMem += (int)Vec_IntMemory( p->vTempSets );
    nMem += (int)Vec_IntMemory( p->vTempPairs );
    return nMem;
}

Here is the caller graph for this function:

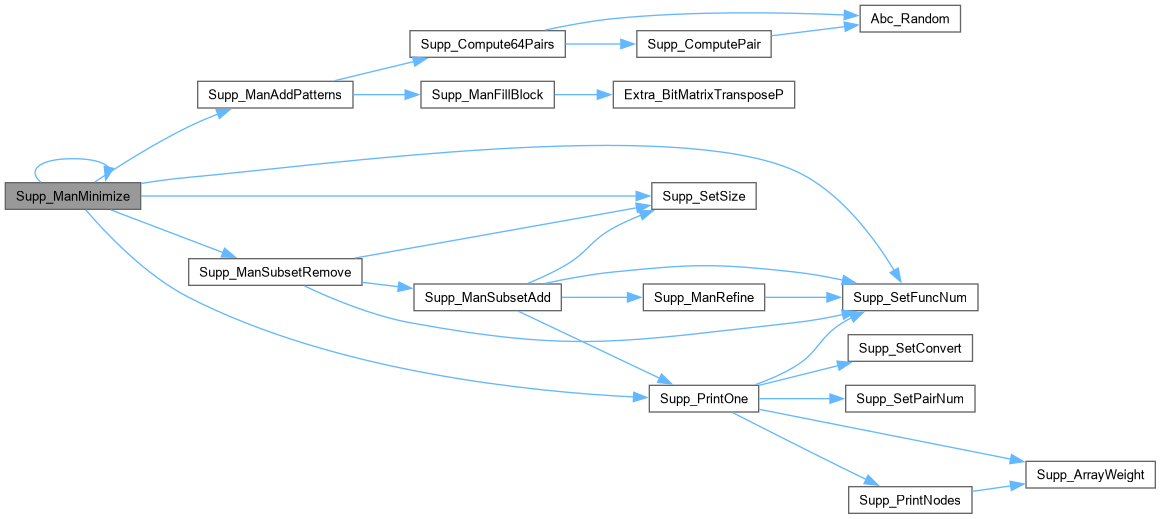

Supp_ManMinimize()

int Supp_ManMinimize	(	Supp_Man_t *	p,
		int	iSet0,
		int	r,
		int	fVerbose )

Definition at line 655 of file giaSupps.c.

{
    int i, nSize = Supp_SetSize(p, iSet0);
    Vec_Int_t * vPerm = Vec_IntStartNatural( Supp_SetSize(p, iSet0) );
    Vec_IntRandomizeOrder( vPerm );
    Vec_IntClear( p->vTempSets );
    if ( fVerbose )
    printf( "Removing items from %d:\n", iSet0 );
    // make sure we first try to remove items with higher weight
    for ( i = 0; i < nSize; i++ )
    {
        int Index = Vec_IntEntry( vPerm, i );
        int iSet = Supp_ManSubsetRemove( p, iSet0, Index );
        if ( fVerbose )
        printf( "Item %2d : ", Index );
        if ( fVerbose )
        Supp_PrintOne( p, iSet );
        if ( Supp_SetFuncNum(p, iSet) == 0 )
        {
            Vec_IntFree( vPerm );
            return Supp_ManMinimize( p, iSet, r, fVerbose );
        }
        Vec_IntPush( p->vTempSets, iSet );
    }
    Supp_ManAddPatterns( p, p->vTempSets );
    Vec_IntFree( vPerm );
    return iSet0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManRandomSolution()

int Supp_ManRandomSolution	(	Supp_Man_t *	p,
		int	iSet,
		int	fVerbose )

Definition at line 629 of file giaSupps.c.

{
    Vec_IntClear( p->vTempSets );
    while ( Supp_SetFuncNum(p, iSet) > 0 )
    {
        int Pair = Supp_ComputePair( p, iSet );
        int iDiv = Supp_FindNextDiv( p, Pair );
        if ( iDiv == -1 )
            return -1;
        iSet = Supp_ManSubsetAdd( p, iSet, iDiv, fVerbose );
        if ( Supp_SetFuncNum(p, iSet) > 0 )
            Vec_IntPush( p->vTempSets, iSet );
    }
    if ( Vec_IntSize(p->vTempSets) < 2 )
        return iSet;
    Supp_ManAddPatterns( p, p->vTempSets );
    return iSet;
}

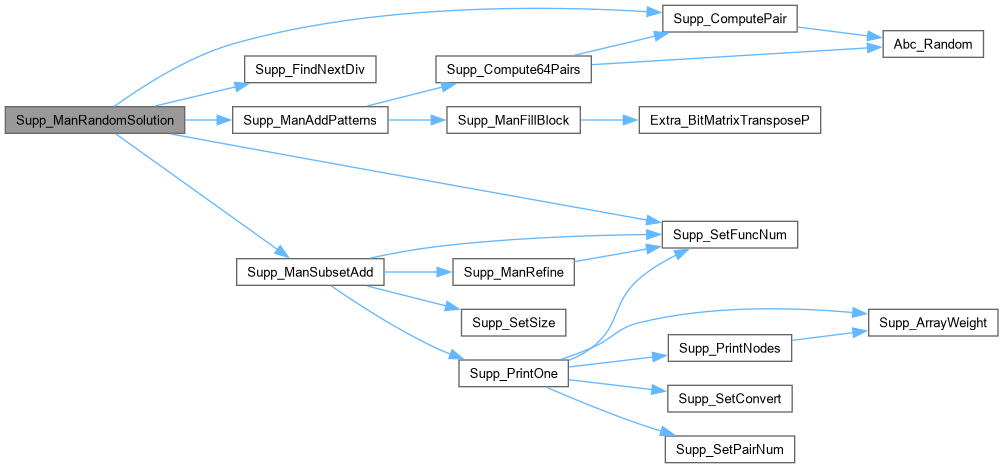

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManReconstruct()

int Supp_ManReconstruct	(	Supp_Man_t *	p,
		int	fVerbose )

Definition at line 699 of file giaSupps.c.

{
    int iSet = 0;
    Vec_WrdFill( p->vMask, Vec_PtrSize(p->vMatrix), ~(word)0 );
    if ( fVerbose )
    printf( "\nBuilding a new set:\n" );
    while ( Supp_SetPairNum(p, iSet) )
    {
        int iDiv = Supp_ManFindNextObj( p, fVerbose );
        iSet = Supp_ManSubsetAdd( p, iSet, iDiv, fVerbose );
        if ( Abc_TtIsConst0(Vec_WrdArray(p->vMask), Vec_WrdSize(p->vMask)) )
            break;
    }
    if ( fVerbose )
    printf( "Adding random part:\n" );
    return Supp_ManRandomSolution( p, iSet, fVerbose );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManRefine()

void Supp_ManRefine	(	Supp_Man_t *	p,
		int	iSet,
		int	iObj,
		int *	pnFuncs,
		int *	pnPairs )

Definition at line 401 of file giaSupps.c.

{
    word * pDivs0 = Vec_WrdEntryP( p->vDivs[0], iObj*p->nWords );
    word * pDivs1 = Vec_WrdEntryP( p->vDivs[1], iObj*p->nWords );
    word * pIsf; int nFuncs = Supp_SetFuncNum(p, iSet);
    int i, f, w, nFuncsNew = 0, Mark = Vec_WrdSize(p->vSFuncs), Res = 0;
    if ( Vec_WrdSize(p->vSFuncs) + 6*nFuncs*p->nWords > Vec_WrdCap(p->vSFuncs) )
        Vec_WrdGrow( p->vSFuncs, 2*Vec_WrdCap(p->vSFuncs) );
    if ( Vec_WrdSize(p->vSFuncs) == Vec_IntEntry(p->vSStarts, iSet) )
        pIsf = Vec_WrdLimit( p->vSFuncs );
    else
        pIsf = Vec_WrdEntryP( p->vSFuncs, Vec_IntEntry(p->vSStarts, iSet) );
    for ( i = 0; i < nFuncs; i++ )
    {
        word * pFunc[2] = { pIsf + (2*i+0)*p->nWords, pIsf + (2*i+1)*p->nWords };
        for ( f = 0; f < 3; f++ )
        {
            int nOnes[2], Start = Vec_WrdSize(p->vSFuncs);
            word * pLimit[2] = { Vec_WrdLimit(p->vSFuncs), Vec_WrdLimit(p->vSFuncs) + p->nWords };
            if ( f == 0 )
            {
                for ( w = 0; w < p->nWords; w++ )
                    Vec_WrdPush( p->vSFuncs, pFunc[0][w] &  pDivs0[w] );
                for ( w = 0; w < p->nWords; w++ )
                    Vec_WrdPush( p->vSFuncs, pFunc[1][w] & ~pDivs1[w] );
            }
            else if ( f == 1 )
            {
                for ( w = 0; w < p->nWords; w++ )
                    Vec_WrdPush( p->vSFuncs, pFunc[0][w] &  pDivs1[w] );
                for ( w = 0; w < p->nWords; w++ )
                    Vec_WrdPush( p->vSFuncs, pFunc[1][w] & ~pDivs0[w] );
            }
            else
            {
                for ( w = 0; w < p->nWords; w++ )
                    Vec_WrdPush( p->vSFuncs, pFunc[0][w] & ~pDivs0[w] & ~pDivs1[w] );
                for ( w = 0; w < p->nWords; w++ )
                    Vec_WrdPush( p->vSFuncs, pFunc[1][w] );
            }
            nOnes[0] = Abc_TtCountOnesVec( pLimit[0], p->nWords );
            nOnes[1] = Abc_TtCountOnesVec( pLimit[1], p->nWords );
            if ( nOnes[0] && nOnes[1] )
                Res += nOnes[0] * nOnes[1];
            else
                Vec_WrdShrink( p->vSFuncs, Start );
        }
    }
    assert( Res < (1 << 24) );
    nFuncsNew = (Vec_WrdSize(p->vSFuncs) - Mark)/2/p->nWords;
    *pnFuncs = nFuncsNew;
    *pnPairs = Res;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_ManRefine1()

int Supp_ManRefine1	(	Supp_Man_t *	p,
		int	iSet,
		int	iObj )

Definition at line 364 of file giaSupps.c.

{
    word * pSet = Vec_WrdEntryP( p->vSims, Vec_IntEntry(p->vCands, iObj)*p->nWords );
    word * pIsf; int nFuncs  = Vec_IntEntry(p->vSCount, iSet);
    int i, n, f, w, nFuncsNew = 0, Mark = Vec_WrdSize(p->vSFuncs), Res = 0;
    if ( Vec_WrdSize(p->vSFuncs) + 4*nFuncs*p->nWords > Vec_WrdCap(p->vSFuncs) )
        Vec_WrdGrow( p->vSFuncs, 2*Vec_WrdCap(p->vSFuncs) );
    pIsf = Vec_WrdEntryP( p->vSFuncs, Vec_IntEntry(p->vSStarts, iSet) );
    for ( i = 0; i < nFuncs; i++ )
    {
        word * pFunc[2] = { pIsf + (2*i+0)*p->nWords, pIsf + (2*i+1)*p->nWords };
        for ( f = 0; f < 2; f++ )
        {
            int nOnes[2], Start = Vec_WrdSize(p->vSFuncs);
            for ( n = 0; n < 2; n++ )
            {
                word * pLimit = Vec_WrdLimit(p->vSFuncs);
                if ( f )
                    for ( w = 0; w < p->nWords; w++ )
                        Vec_WrdPush( p->vSFuncs, pFunc[n][w] & pSet[w] );
                else
                    for ( w = 0; w < p->nWords; w++ )
                        Vec_WrdPush( p->vSFuncs, pFunc[n][w] & ~pSet[w] );
                nOnes[n] = Abc_TtCountOnesVec( pLimit, p->nWords );
            }
            if ( nOnes[0] && nOnes[1] )
                Res += nOnes[0] * nOnes[1];
            else
                Vec_WrdShrink( p->vSFuncs, Start );
        }
    }
    assert( Res < (1 << 24) );
    nFuncsNew = (Vec_WrdSize(p->vSFuncs) - Mark)/2/p->nWords;
    assert( nFuncsNew < 128 );
    assert( nFuncsNew >= 0 && nFuncsNew <= 2*nFuncs );
    return (nFuncsNew << 24) | Res;
}

Supp_ManSolveOne()

Gia_Man_t * Supp_ManSolveOne	(	char *	pFileName,
		int	nIters,
		int	nRounds,
		int	fWriteSol,
		int	fVerbose )

Definition at line 1129 of file giaSupps.c.

{
    //Abc_Random(1);
    Abc_RData_t * p = Abc_ReadPla( pFileName );
    if ( p == NULL ) return NULL;
    assert( p->nOuts == 1 );
    Vec_Int_t * vDivs = Vec_IntAlloc( 100 );
    Vec_Int_t * vRes  = Supp_ManCompute( p->vSimsOut, NULL, NULL, p->vSimsIn, NULL, p->nSimWords, NULL, &vDivs, nIters, nRounds, fVerbose );
    if ( fVerbose && vDivs ) printf( "Divisors: " ), Vec_IntPrint( vDivs );
    if ( fVerbose && vRes )  printf( "Solution: " ), Vec_IntPrint( vRes );
    Gia_Man_t * pNew = vRes ? Supp_GenerateGia( vRes, vDivs ) : NULL;
    if ( fWriteSol && vDivs && vRes )
        Supp_RecordSolution( pFileName, vDivs, vRes );
    Vec_IntFreeP( &vRes );
    Vec_IntFreeP( &vDivs );
    Abc_RDataStop( p );
    return pNew;
}

Here is the call graph for this function:

Supp_ManSubsetAdd()

int Supp_ManSubsetAdd	(	Supp_Man_t *	p,
		int	iSet,
		int	iObj,
		int	fVerbose )

Definition at line 454 of file giaSupps.c.

{
    int iSetNew, nEntries = Hsh_VecSize( p->pHash );
    Vec_Int_t * vSet = Hsh_VecReadEntry( p->pHash, iSet );
    Vec_IntClear( p->vTemp );
    Vec_IntAppend( p->vTemp, vSet );
    Vec_IntPushOrder( p->vTemp, iObj );
    assert( Vec_IntIsOrdered(p->vTemp, 0) );
    iSetNew = Hsh_VecManAdd( p->pHash, p->vTemp );
    if ( iSetNew == nEntries ) // new entry
    {
        int nFuncs, nPairs;
        Vec_IntPush( p->vSStarts, Vec_WrdSize(p->vSFuncs) );
        Supp_ManRefine( p, iSet, iObj, &nFuncs, &nPairs );
        Vec_IntPush( p->vSCount, nFuncs );
        Vec_IntPush( p->vSPairs, nPairs );
        assert( Hsh_VecSize(p->pHash) == Vec_IntSize(p->vSStarts) );
        assert( Hsh_VecSize(p->pHash) == Vec_IntSize(p->vSCount) );
        assert( Hsh_VecSize(p->pHash) == Vec_IntSize(p->vSPairs) );
        if ( Supp_SetFuncNum(p, iSetNew) == 0 && Supp_SetSize(p, iSetNew) < Vec_WecSize(p->vSolutions) )
            Vec_WecPush( p->vSolutions, Supp_SetSize(p, iSetNew), iSetNew );
        if ( fVerbose )
            Supp_PrintOne( p, iSetNew );
    }
    return iSetNew;
}

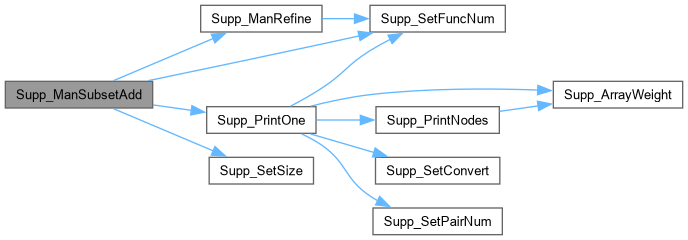

Here is the call graph for this function:

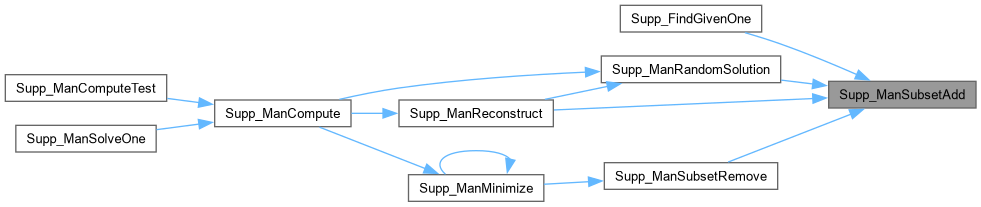

Here is the caller graph for this function:

Supp_ManSubsetRemove()

int Supp_ManSubsetRemove	(	Supp_Man_t *	p,
		int	iSet,
		int	iPos )

Definition at line 647 of file giaSupps.c.

{
    int i, iSetNew = 0, nSize = Supp_SetSize(p, iSet);
    for ( i = 0; i < nSize; i++ )
        if ( i != iPos && Supp_SetFuncNum(p, iSetNew) > 0 )
            iSetNew = Supp_ManSubsetAdd( p, iSetNew, Vec_IntEntry(Hsh_VecReadEntry(p->pHash, iSet), i), 0 );
    return iSetNew;
}

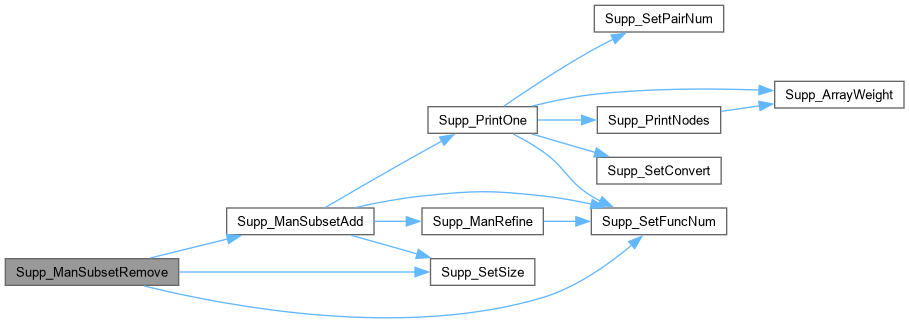

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_PrintNodes()

void Supp_PrintNodes	(	Gia_Man_t *	pGia,
		Vec_Int_t *	vObjs,
		int	Skip,
		int	Limit )

Definition at line 328 of file giaSupps.c.

{
    int i, iObj;
    //printf( "Considering %d targets: ", Vec_IntSize(vObjs) );
    Vec_IntForEachEntryStart( vObjs, iObj, i, Skip )
    {
        if ( iObj < 0 )
            continue;
        printf( "(%d)", iObj );
        if ( pGia && pGia->vWeights && Vec_IntEntry(pGia->vWeights, iObj) > 0 )
            printf( "(%d)", Vec_IntEntry(pGia->vWeights, iObj) );
        if ( pGia )
            printf( " %s  ", Gia_ObjName(pGia, iObj)+2 );
        else
            printf( " n%d  ", iObj );
        if ( i >= Limit )
        {
            printf( "...  " );
            break;
        }
    }
    printf( "Cost = %d", Supp_ArrayWeight(vObjs, pGia ? pGia->vWeights : NULL) );
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Supp_PrintOne()

void Supp_PrintOne	(	Supp_Man_t *	p,
		int	iSet )

Definition at line 352 of file giaSupps.c.

{
    Vec_Int_t * vSet = Hsh_VecReadEntry(p->pHash, iSet);
    printf( "Set %5d :  ", iSet );
    printf( "Funcs %2d  ", Supp_SetFuncNum(p, iSet) );
    printf( "Pairs %4d  ", Supp_SetPairNum(p, iSet) );
    printf( "Start %8d  ", Vec_IntEntry(p->vSStarts, iSet) );
    printf( "Weight %4d  ", Supp_ArrayWeight(vSet, p->vWeights) );
    Vec_IntClearAppend( p->vTemp, vSet );
    Supp_SetConvert( p->vTemp, p->vCands );
    Supp_PrintNodes( p->pGia, p->vTemp, 0, 6 );
}

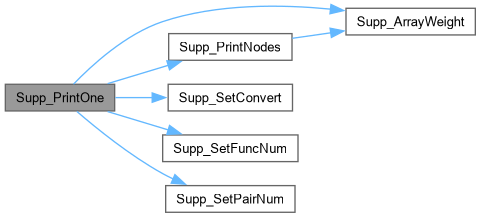

Here is the call graph for this function:

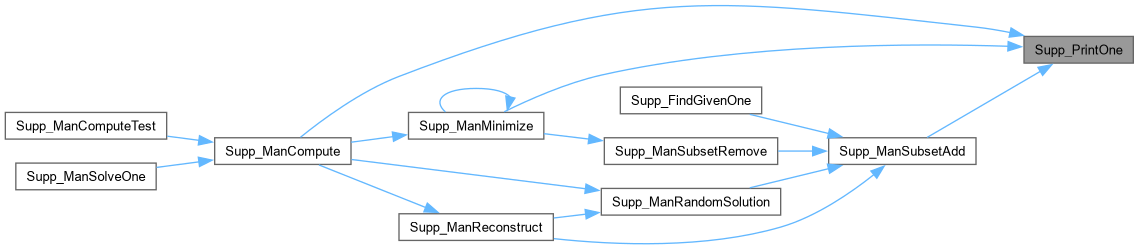

Here is the caller graph for this function:

Supp_RecordSolution()

void Supp_RecordSolution	(	char *	pFileName,
		Vec_Int_t *	vDivs,
		Vec_Int_t *	vRes )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1080 of file giaSupps.c.

{
    FILE * pFile = fopen( pFileName, "ab" );
    if ( pFile == NULL ) {
        printf( "Cannot open file \"%s\" for writing.\n", pFileName );
        return;
    }
    int i, Temp;
    fprintf( pFile, "\n.s" );
    Vec_IntForEachEntryStart( vDivs, Temp, i, 2 )
        fprintf( pFile, " %d", Temp );
    fprintf( pFile, "\n.a" );
    Vec_IntForEachEntry( vRes, Temp, i )
        fprintf( pFile, " %d", Temp-2 );
    fprintf( pFile, "\n" );
    fclose( pFile );
}

Here is the caller graph for this function:

Supp_SetConvert()

void Supp_SetConvert	(	Vec_Int_t *	vSet,
		Vec_Int_t *	vCands )

Definition at line 322 of file giaSupps.c.

{
    int i, iObj;
    Vec_IntForEachEntry( vSet, iObj, i )
        Vec_IntWriteEntry( vSet, i, Vec_IntEntry(vCands, iObj) );
}

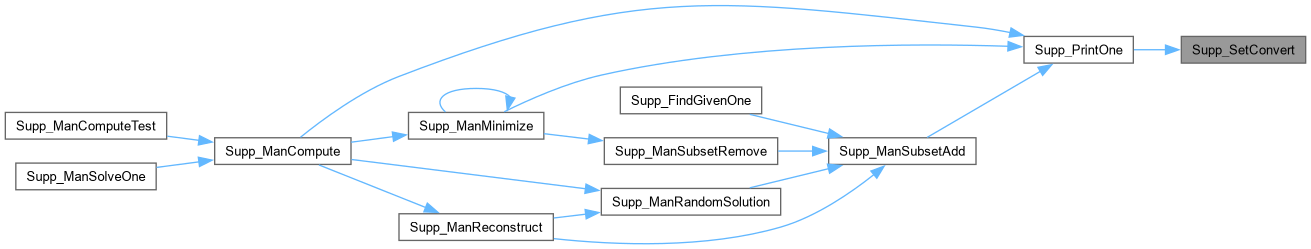

Here is the caller graph for this function:

Supp_SetFuncNum()

int Supp_SetFuncNum	(	Supp_Man_t *	p,
		int	iSet )

Definition at line 314 of file giaSupps.c.

{
    return Vec_IntEntry(p->vSCount, iSet);
}

Here is the caller graph for this function:

Supp_SetPairNum()

int Supp_SetPairNum	(	Supp_Man_t *	p,
		int	iSet )

Definition at line 318 of file giaSupps.c.

{
    return Vec_IntEntry(p->vSPairs, iSet);
}

Here is the caller graph for this function:

Supp_SetSize()

int Supp_SetSize	(	Supp_Man_t *	p,
		int	iSet )

Definition at line 310 of file giaSupps.c.

{
    return Vec_IntSize( Hsh_VecReadEntry(p->pHash, iSet) );
}

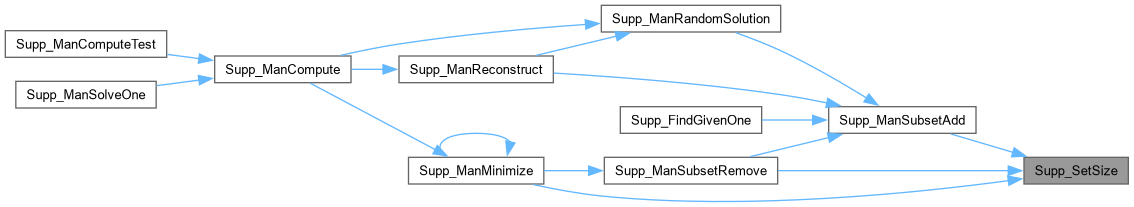

Here is the caller graph for this function:

Supp_SetWeight()

int Supp_SetWeight	(	Supp_Man_t *	p,
		int	iSet )

Definition at line 306 of file giaSupps.c.

{
    return Supp_ArrayWeight( Hsh_VecReadEntry(p->pHash, iSet), p->vWeights );
}

Here is the call graph for this function:

Here is the caller graph for this function:
