ioWriteBlif.c File Reference

#include "ioAbc.h"
#include "base/main/main.h"
#include "map/mio/mio.h"
#include "bool/kit/kit.h"
#include "map/if/if.h"

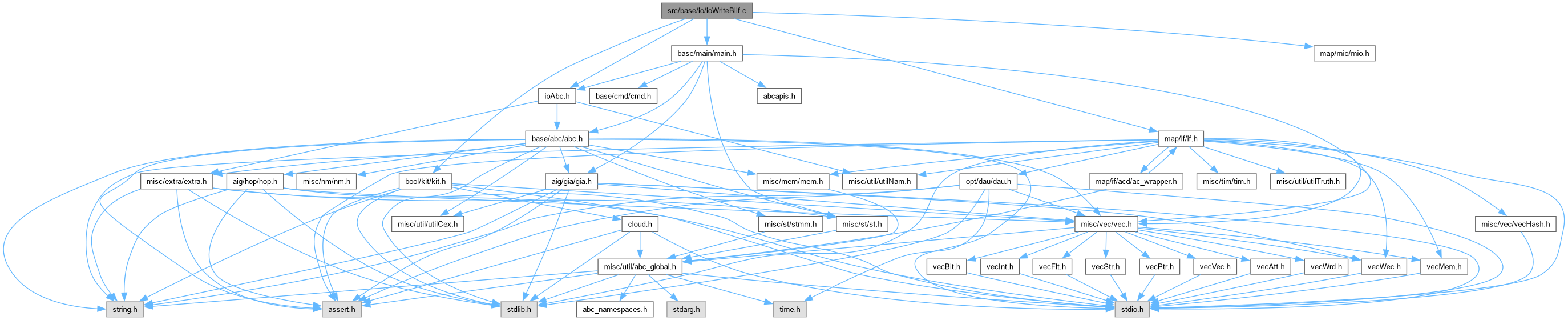

Include dependency graph for ioWriteBlif.c:

Go to the source code of this file.

Functions
void	Io_WriteBlifLogic (Abc_Ntk_t *pNtk, char *FileName, int fWriteLatches)
	FUNCTION DEFINITIONS ///.
void	Io_WriteBlif (Abc_Ntk_t *pNtk, char *FileName, int fWriteLatches, int fBb2Wb, int fSeq)
void	Io_NtkWriteConvertedBox (FILE *pFile, Abc_Ntk_t *pNtk, int fSeq)
void	Io_NtkWriteSubcktFanins (FILE *pFile, Abc_Obj_t *pNode)
int	Io_NtkWriteNodeGate (FILE *pFile, Abc_Obj_t *pNode, int Length)
int	Io_NtkWriteNodeSubckt (FILE *pFile, Abc_Obj_t *pNode, int Length)
void	Io_WriteTimingInfo (FILE *pFile, Abc_Ntk_t *pNtk)
void	Abc_NtkConvertBb2Wb (char *pFileNameIn, char *pFileNameOut, int fSeq, int fVerbose)
char *	Io_NtkDeriveSop (Mem_Flex_t *pMem, word uTruth, int nVars, Vec_Int_t *vCover)
void	Io_NtkWriteNodeInt (FILE *pFile, Abc_Obj_t *pNode, Vec_Int_t *vCover)
void	Io_NtkWriteNodeIntStruct (FILE *pFile, Abc_Obj_t *pNode, Vec_Int_t *vCover, char *pStr)
void	Io_NtkWriteModelIntStruct (FILE *pFile, Abc_Obj_t *pNode, Vec_Int_t *vCover, char *pStr)
void	Io_WriteBlifInt (Abc_Ntk_t *pNtk, char *FileName, char *pLutStruct, int fUseHie)
void	Io_WriteBlifSpecial (Abc_Ntk_t *pNtk, char *FileName, char *pLutStruct, int fUseHie)

Function Documentation

Abc_NtkConvertBb2Wb()

void Abc_NtkConvertBb2Wb	(	char *	pFileNameIn,
		char *	pFileNameOut,
		int	fSeq,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 749 of file ioWriteBlif.c.

{
    FILE * pFile;
    Abc_Ntk_t * pNetlist;
    // check the files
    pFile = fopen( pFileNameIn, "rb" );
    if ( pFile == NULL )
    {
        printf( "Input file \"%s\" cannot be opened.\n", pFileNameIn );
        return;
    }
    fclose( pFile );
    // check the files
    pFile = fopen( pFileNameOut, "wb" );
    if ( pFile == NULL )
    {
        printf( "Output file \"%s\" cannot be opened.\n", pFileNameOut );
        return;
    }
    fclose( pFile );
    // derive AIG for signal correspondence
    pNetlist = Io_ReadNetlist( pFileNameIn, Io_ReadFileType(pFileNameIn), 1 );
    if ( pNetlist == NULL )
    {
        printf( "Reading input file \"%s\" has failed.\n", pFileNameIn );
        return;
    }
    Io_WriteBlif( pNetlist, pFileNameOut, 1, 1, fSeq );
    Abc_NtkDelete( pNetlist );
}

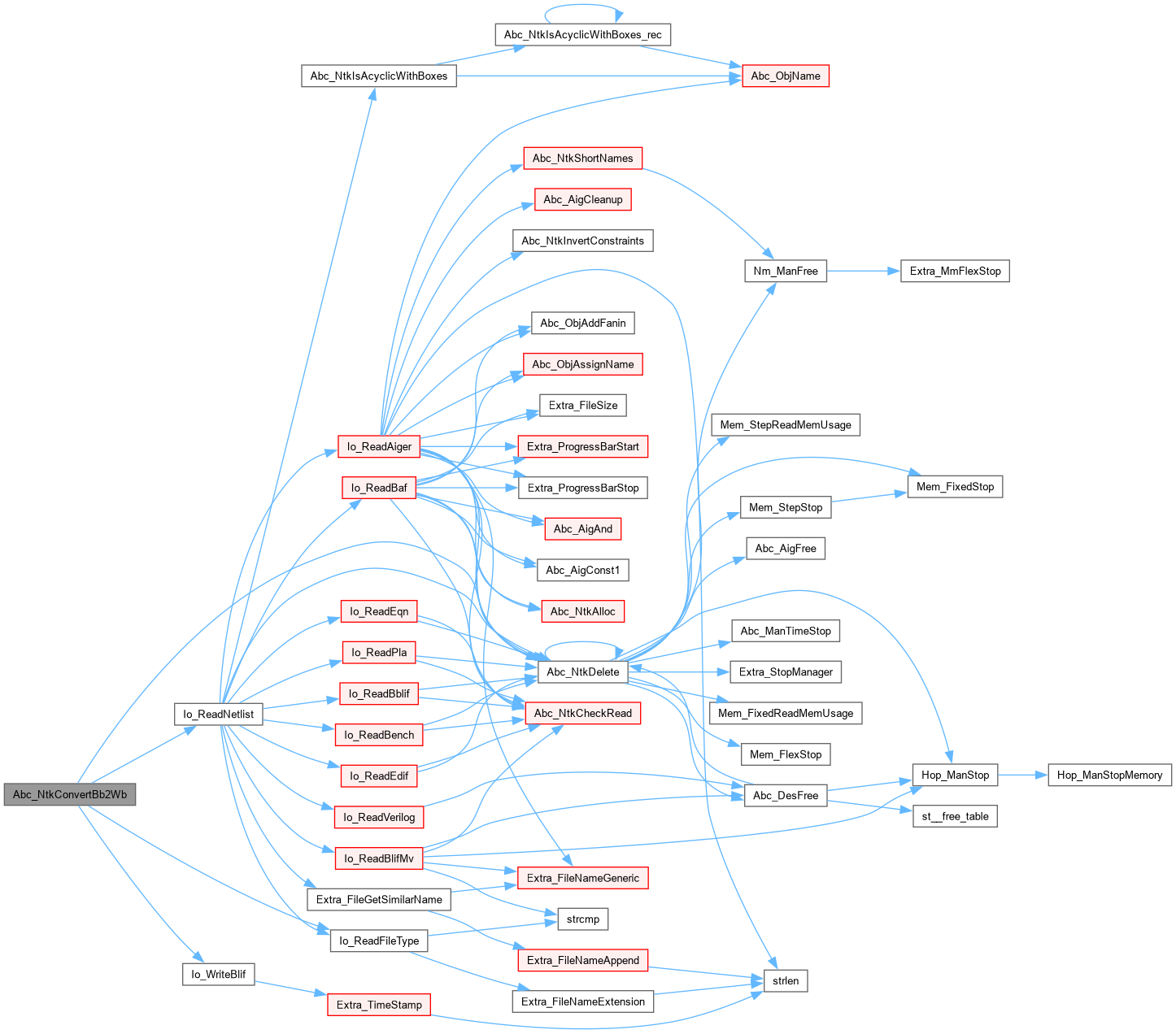

Here is the call graph for this function:

Io_NtkDeriveSop()

char * Io_NtkDeriveSop	(	Mem_Flex_t *	pMem,
		word	uTruth,
		int	nVars,
		Vec_Int_t *	vCover )

Function*************************************************************

Synopsis [Transforms truth table into an SOP.]

Description []

SideEffects []

SeeAlso []

Definition at line 796 of file ioWriteBlif.c.

{
    char * pSop;
    int RetValue = Kit_TruthIsop( (unsigned *)&uTruth, nVars, vCover, 1 );
    assert( RetValue == 0 || RetValue == 1 );
    // check the case of constant cover
    if ( Vec_IntSize(vCover) == 0 || (Vec_IntSize(vCover) == 1 && Vec_IntEntry(vCover,0) == 0) )
    {
        char * pStr0 = " 0\n", * pStr1 = " 1\n";
        assert( RetValue == 0 );
        return Vec_IntSize(vCover) == 0 ? pStr0 : pStr1;
    }
    // derive the AIG for that tree
    pSop = Abc_SopCreateFromIsop( pMem, nVars, vCover );
    if ( RetValue )
        Abc_SopComplement( pSop );
    return pSop;
}

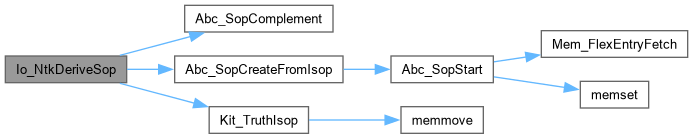

Here is the call graph for this function:

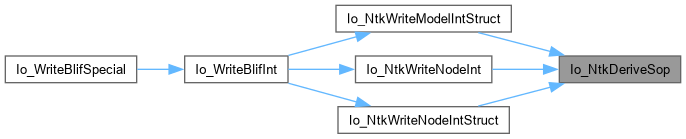

Here is the caller graph for this function:

Io_NtkWriteConvertedBox()

void Io_NtkWriteConvertedBox	(	FILE *	pFile,
		Abc_Ntk_t *	pNtk,
		int	fSeq )

Function*************************************************************

Synopsis [Write one network.]

Description []

SideEffects []

SeeAlso []

Definition at line 158 of file ioWriteBlif.c.

{
    Abc_Obj_t * pObj;
    int i, v;
    if ( fSeq )
    {
        fprintf( pFile, ".attrib white box seq\n" );
    }
    else
    {
        fprintf( pFile, ".attrib white box comb\n" );
        fprintf( pFile, ".delay 1\n" );
    }
    Abc_NtkForEachPo( pNtk, pObj, i )
    {
        // write the .names line
        fprintf( pFile, ".names" );
        Io_NtkWritePis( pFile, pNtk, 1 );
        if ( fSeq )
            fprintf( pFile, " %s_in\n", Abc_ObjName(Abc_ObjFanin0(pObj)) );
        else
            fprintf( pFile, " %s\n", Abc_ObjName(Abc_ObjFanin0(pObj)) );
        for ( v = 0; v < Abc_NtkPiNum(pNtk); v++ )
            fprintf( pFile, "1" );
        fprintf( pFile, " 1\n" );
        if ( fSeq )
            fprintf( pFile, ".latch %s_in %s 1\n", Abc_ObjName(Abc_ObjFanin0(pObj)), Abc_ObjName(Abc_ObjFanin0(pObj)) );
    }
}

Here is the call graph for this function:

Io_NtkWriteModelIntStruct()

void Io_NtkWriteModelIntStruct	(	FILE *	pFile,
		Abc_Obj_t *	pNode,
		Vec_Int_t *	vCover,
		char *	pStr )

Function*************************************************************

Synopsis [Write the node into a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 1136 of file ioWriteBlif.c.

{
    Abc_Obj_t * pNet;
    int nLeaves = Abc_ObjFaninNum(pNode);
    int i, nLutLeaf, nLutLeaf2, nLutRoot, Length;

    // write the header
    fprintf( pFile, "\n" );
    fprintf( pFile, ".model m%d\n", Abc_ObjId(pNode) );
    fprintf( pFile, ".inputs" );
    for ( i = 0; i < Abc_ObjFaninNum(pNode); i++ )
        fprintf( pFile, " %c", 'a' + i );
    fprintf( pFile, "\n" );
    fprintf( pFile, ".outputs o\n" );

    // quit if parameters are wrong
    Length = strlen(pStr);
    if ( Length != 2 && Length != 3 )
    {
        printf( "Wrong LUT struct (%s)\n", pStr );
        return;
    }
    for ( i = 0; i < Length; i++ )
        if ( pStr[i] - '0' < 3 || pStr[i] - '0' > 6 )
        {
            printf( "The LUT size (%d) should belong to {3,4,5,6}.\n", pStr[i] - '0' );
            return;
        }

    nLutLeaf  =                   pStr[0] - '0';
    nLutLeaf2 = ( Length == 3 ) ? pStr[1] - '0' : 0;
    nLutRoot  =                   pStr[Length-1] - '0';
    if ( nLeaves > nLutLeaf - 1 + (nLutLeaf2 ? nLutLeaf2 - 1 : 0) + nLutRoot )
    {
        printf( "The node size (%d) is too large for the LUT structure %s.\n", nLeaves, pStr );
        return;
    }

    // consider easy case
    if ( nLeaves <= Abc_MaxInt( nLutLeaf2, Abc_MaxInt(nLutLeaf, nLutRoot) ) )
    {
        // write the .names line
        fprintf( pFile, ".names" );
        Abc_ObjForEachFanin( pNode, pNet, i )
            fprintf( pFile, " %c", 'a' + i );
        // get the output name
        fprintf( pFile, " %s\n", "o" );
        // write the cubes
        fprintf( pFile, "%s", (char*)Abc_ObjData(pNode) );
        fprintf( pFile, ".end\n" );
        return;
    }
    else
    {
        extern int If_CluMinimumBase( word * t, int * pSupp, int nVarsAll, int * pnVars );

        static word TruthStore[16][1<<10] = {{0}}, * pTruths[16];
        word pCube[1<<10], pRes[1<<10], Func0, Func1, Func2;
        char pLut0[32], pLut1[32], pLut2[32] = {0}, * pSop;
//        int nVarsMin[3], pVars[3][20];

        if ( TruthStore[0][0] == 0 )
        {
            static word Truth6[6] = {
                ABC_CONST(0xAAAAAAAAAAAAAAAA),
                ABC_CONST(0xCCCCCCCCCCCCCCCC),
                ABC_CONST(0xF0F0F0F0F0F0F0F0),
                ABC_CONST(0xFF00FF00FF00FF00),
                ABC_CONST(0xFFFF0000FFFF0000),
                ABC_CONST(0xFFFFFFFF00000000)
            };
            int nVarsMax = 16;
            int nWordsMax = (1 << 10);
            int i, k;
            assert( nVarsMax <= 16 );
            for ( i = 0; i < nVarsMax; i++ )
                pTruths[i] = TruthStore[i];
            for ( i = 0; i < 6; i++ )
                for ( k = 0; k < nWordsMax; k++ )
                    pTruths[i][k] = Truth6[i];
            for ( i = 6; i < nVarsMax; i++ )
                for ( k = 0; k < nWordsMax; k++ )
                    pTruths[i][k] = ((k >> (i-6)) & 1) ? ~(word)0 : 0;
        }

        // collect variables
//        Abc_ObjForEachFanin( pNode, pNet, i )
//            pVars[0][i] = pVars[1][i] = pVars[2][i] = i;

        // derive truth table
        Abc_SopToTruthBig( (char*)Abc_ObjData(pNode), nLeaves, pTruths, pCube, pRes );
        if ( Kit_TruthIsConst0((unsigned *)pRes, nLeaves) || Kit_TruthIsConst1((unsigned *)pRes, nLeaves) )
        {
            fprintf( pFile, ".names %s\n %d\n", "o", Kit_TruthIsConst1((unsigned *)pRes, nLeaves) );
            fprintf( pFile, ".end\n" );
            return;
        }

//        Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
//        Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );

        // perform decomposition
        if ( Length == 2 )
        {
            if ( !If_CluCheckExt( NULL, pRes, nLeaves, nLutLeaf, nLutRoot, pLut0, pLut1, &Func0, &Func1 ) )
            {
                Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                printf( "Node \"%s\" is not decomposable. Writing BLIF has failed.\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
                return;
            }
        }
        else
        {
            if ( !If_CluCheckExt3( NULL, pRes, nLeaves, nLutLeaf, nLutLeaf2, nLutRoot, pLut0, pLut1, pLut2, &Func0, &Func1, &Func2 ) )
            {
                Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                printf( "Node \"%s\" is not decomposable. Writing BLIF has failed.\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
                return;
            }
        }

        // write leaf node
        fprintf( pFile, ".names" );
        for ( i = 0; i < pLut1[0]; i++ )
            fprintf( pFile, " %c", 'a' + pLut1[2+i] );
        fprintf( pFile, " lut1\n" );
        // write SOP
        pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc, Func1, pLut1[0], vCover );
        fprintf( pFile, "%s", pSop );

        if ( Length == 3 && pLut2[0] > 0 )
        {
            // write leaf node
            fprintf( pFile, ".names" );
            for ( i = 0; i < pLut2[0]; i++ )
                if ( pLut2[2+i] == nLeaves )
                    fprintf( pFile, " lut1" );
                else
                    fprintf( pFile, " %c", 'a' + pLut2[2+i] );
            fprintf( pFile, " lut2\n" );
            // write SOP
            pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc, Func2, pLut2[0], vCover );
            fprintf( pFile, "%s", pSop );
        }

        // write root node
        fprintf( pFile, ".names" );
        for ( i = 0; i < pLut0[0]; i++ )
            if ( pLut0[2+i] == nLeaves )
                fprintf( pFile, " lut1" );
            else if ( pLut0[2+i] == nLeaves+1 )
                fprintf( pFile, " lut2" );
            else
                fprintf( pFile, " %c", 'a' + pLut0[2+i] );
        fprintf( pFile, " %s\n", "o" );
        // write SOP
        pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc, Func0, pLut0[0], vCover );
        fprintf( pFile, "%s", pSop );
        fprintf( pFile, ".end\n" );
    }
}

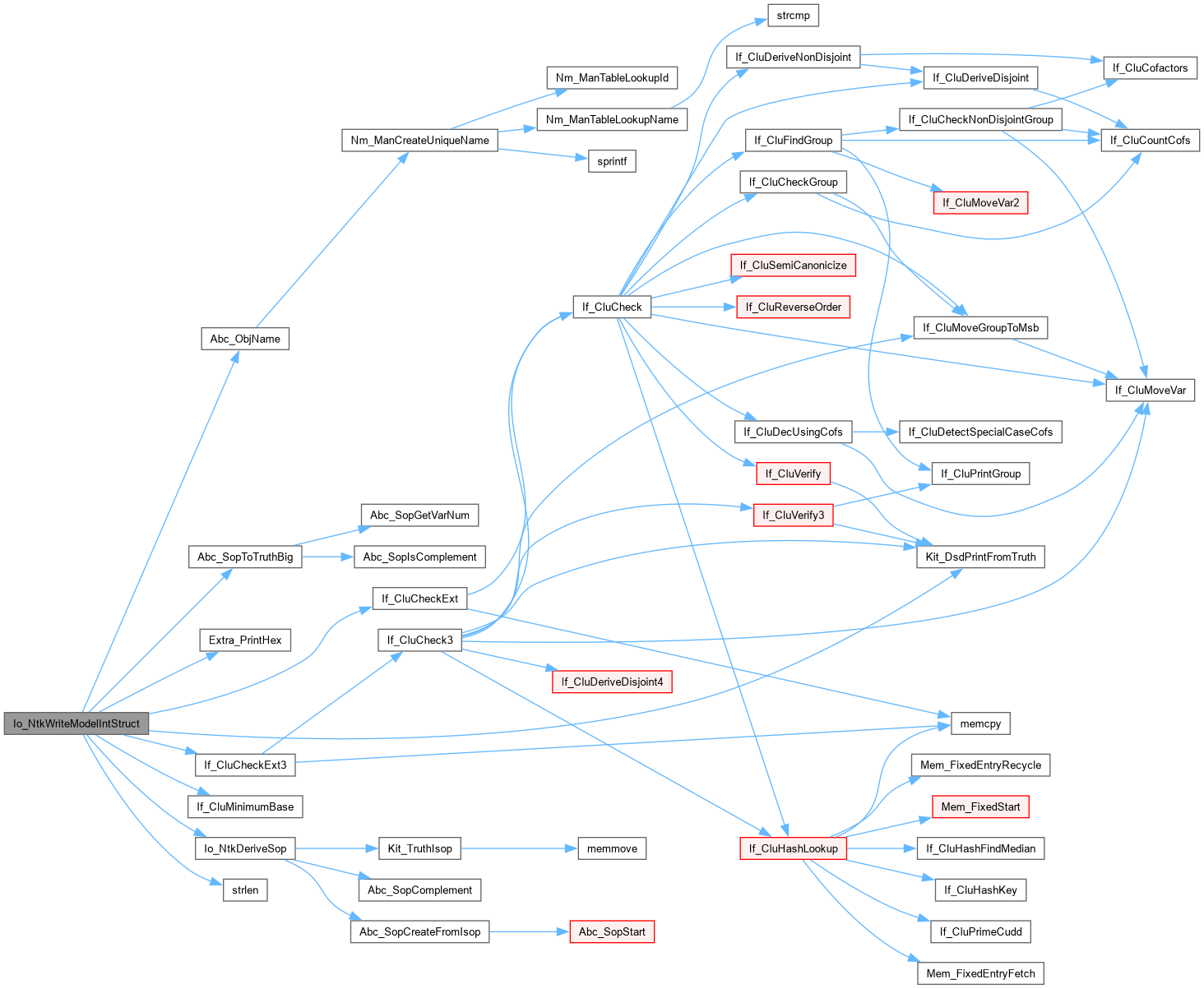

Here is the call graph for this function:

Here is the caller graph for this function:

Io_NtkWriteNodeGate()

int Io_NtkWriteNodeGate	(	FILE *	pFile,
		Abc_Obj_t *	pNode,
		int	Length )

Function*************************************************************

Synopsis [Writes the primary input list.]

Description []

SideEffects []

SeeAlso []

Definition at line 576 of file ioWriteBlif.c.

{
    static int fReport = 0;
    Mio_Gate_t * pGate = (Mio_Gate_t *)pNode->pData;
    Mio_Pin_t * pGatePin;
    Abc_Obj_t * pNode2;
    int i;
    fprintf( pFile, " %-*s ", Length, Mio_GateReadName(pGate) );
    for ( pGatePin = Mio_GateReadPins(pGate), i = 0; pGatePin; pGatePin = Mio_PinReadNext(pGatePin), i++ )
        fprintf( pFile, "%s=%s ", Mio_PinReadName(pGatePin), Abc_ObjName( Abc_ObjFanin(pNode,i) ) );
    assert ( i == Abc_ObjFaninNum(pNode) );
    fprintf( pFile, "%s=%s", Mio_GateReadOutName(pGate), Abc_ObjName( Abc_ObjFanout0(pNode) ) );
    if ( Mio_GateReadTwin(pGate) == NULL )
        return 0;
    pNode2 = Abc_NtkFetchTwinNode( pNode );
    if ( pNode2 == NULL )
    {
        if ( !fReport )
            fReport = 1, printf( "Warning: Missing second output of gate(s) \"%s\".\n", Mio_GateReadName(pGate) );
        return 0;
    }
    fprintf( pFile, " %s=%s", Mio_GateReadOutName((Mio_Gate_t *)pNode2->pData), Abc_ObjName( Abc_ObjFanout0(pNode2) ) );
    return 1;
}

Here is the call graph for this function:

Io_NtkWriteNodeInt()

void Io_NtkWriteNodeInt	(	FILE *	pFile,
		Abc_Obj_t *	pNode,
		Vec_Int_t *	vCover )

Function*************************************************************

Synopsis [Write the node into a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 826 of file ioWriteBlif.c.

{
    Abc_Obj_t * pNet;
    int i, nVars = Abc_ObjFaninNum(pNode);
    if ( nVars > 7 )
    {
        printf( "Node \"%s\" has more than 7 inputs. Writing BLIF has failed.\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        return;
    }

    fprintf( pFile, "\n" );
    if ( nVars <= 4 )
    {
        // write the .names line
        fprintf( pFile, ".names" );
        Abc_ObjForEachFanin( pNode, pNet, i )
            fprintf( pFile, " %s", Abc_ObjName(pNet) );
        // get the output name
        fprintf( pFile, " %s\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        // write the cubes
        fprintf( pFile, "%s", (char*)Abc_ObjData(pNode) );
    }
    else
    {
        extern int  If_Dec6PickBestMux( word t, word Cofs[2] );
        extern int  If_Dec7PickBestMux( word t[2], word c0r[2], word c1r[2] );
        extern word If_Dec6MinimumBase( word uTruth, int * pSupp, int nVarsAll, int * pnVars );
        extern void If_Dec7MinimumBase( word uTruth[2], int * pSupp, int nVarsAll, int * pnVars );
        extern word If_Dec6Perform( word t, int fDerive );
        extern word If_Dec7Perform( word t[2], int fDerive );

        char * pSop;
        word z, uTruth6 = 0, uTruth7[2], Cofs6[2], Cofs7[2][2];
        int c, iVar, nVarsMin[2], pVars[2][10];

        // collect variables
        Abc_ObjForEachFanin( pNode, pNet, i )
            pVars[0][i] = pVars[1][i] = i;

        // derive truth table
        if ( nVars == 7 )
        {
            Abc_SopToTruth7( (char*)Abc_ObjData(pNode), nVars, uTruth7 );
            iVar = If_Dec7PickBestMux( uTruth7, Cofs7[0], Cofs7[1] );
        }
        else
        {
            uTruth6 = Abc_SopToTruth( (char*)Abc_ObjData(pNode), nVars );
            iVar = If_Dec6PickBestMux( uTruth6, Cofs6 );
        }

        // perform MUX decomposition
        if ( iVar >= 0 )
        {
            if ( nVars == 7 )
            {
                If_Dec7MinimumBase( Cofs7[0], pVars[0], nVars, &nVarsMin[0] );
                If_Dec7MinimumBase( Cofs7[1], pVars[1], nVars, &nVarsMin[1] );
            }
            else
            {
                Cofs6[0] = If_Dec6MinimumBase( Cofs6[0], pVars[0], nVars, &nVarsMin[0] );
                Cofs6[1] = If_Dec6MinimumBase( Cofs6[1], pVars[1], nVars, &nVarsMin[1] );
            }
            assert( nVarsMin[0] < 5 );
            assert( nVarsMin[1] < 5 );
            // write MUX
            fprintf( pFile, ".names" );
            fprintf( pFile, " %s", Abc_ObjName(Abc_ObjFanin(pNode,iVar)) );
            fprintf( pFile, " %s_cascade0", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            fprintf( pFile, " %s_cascade1", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            fprintf( pFile, " %s\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            fprintf( pFile, "1-1 1\n01- 1\n" );
            // write cofactors
            for ( c = 0; c < 2; c++ )
            {
                pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc,
                    (word)(nVars == 7 ? Cofs7[c][0] : Cofs6[c]), nVarsMin[c], vCover );
                fprintf( pFile, ".names" );
                for ( i = 0; i < nVarsMin[c]; i++ )
                    fprintf( pFile, " %s", Abc_ObjName(Abc_ObjFanin(pNode,pVars[c][i])) );
                fprintf( pFile, " %s_cascade%d\n", Abc_ObjName(Abc_ObjFanout0(pNode)), c );
                fprintf( pFile, "%s", pSop );
            }
            return;
        }
        assert( nVars == 6 || nVars == 7 );

        // try cascade decomposition
        if ( nVars == 7 )
        {
            z = If_Dec7Perform( uTruth7, 1 );
            //If_Dec7Verify( uTruth7, z );
        }
        else
        {
            z = If_Dec6Perform( uTruth6, 1 );
            //If_Dec6Verify( uTruth6, z );
        }
        if ( z == 0 )
        {
            printf( "Node \"%s\" is not decomposable. Writing BLIF has failed.\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            return;
        }

        // derive nodes
        for ( c = 1; c >= 0; c-- )
        {
            // collect fanins
            uTruth7[c]  = ((c ? z >> 32 : z) & 0xffff);
            uTruth7[c] |= (uTruth7[c] << 16);
            uTruth7[c] |= (uTruth7[c] << 32);
            for ( i = 0; i < 4; i++ )
                pVars[c][i] = (z >> (c*32+16+4*i)) & 7;

            // minimize truth table
            Cofs6[c] = If_Dec6MinimumBase( uTruth7[c], pVars[c], 4, &nVarsMin[c] );

            // write the nodes
            fprintf( pFile, ".names" );
            for ( i = 0; i < nVarsMin[c]; i++ )
                if ( pVars[c][i] == 7 )
                    fprintf( pFile, " %s_cascade", Abc_ObjName(Abc_ObjFanout0(pNode)) );
                else
                    fprintf( pFile, " %s", Abc_ObjName(Abc_ObjFanin(pNode,pVars[c][i])) );
            fprintf( pFile, " %s%s\n", Abc_ObjName(Abc_ObjFanout0(pNode)), c? "" : "_cascade" );

            // write SOP
            pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc,
                (word)Cofs6[c], nVarsMin[c], vCover );
            fprintf( pFile, "%s", pSop );
        }
    }
}

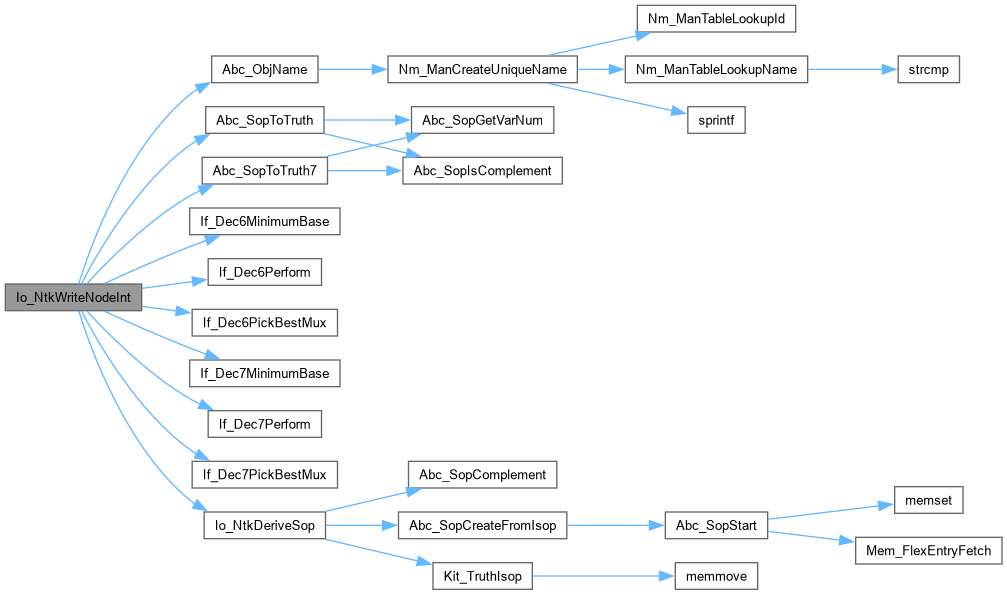

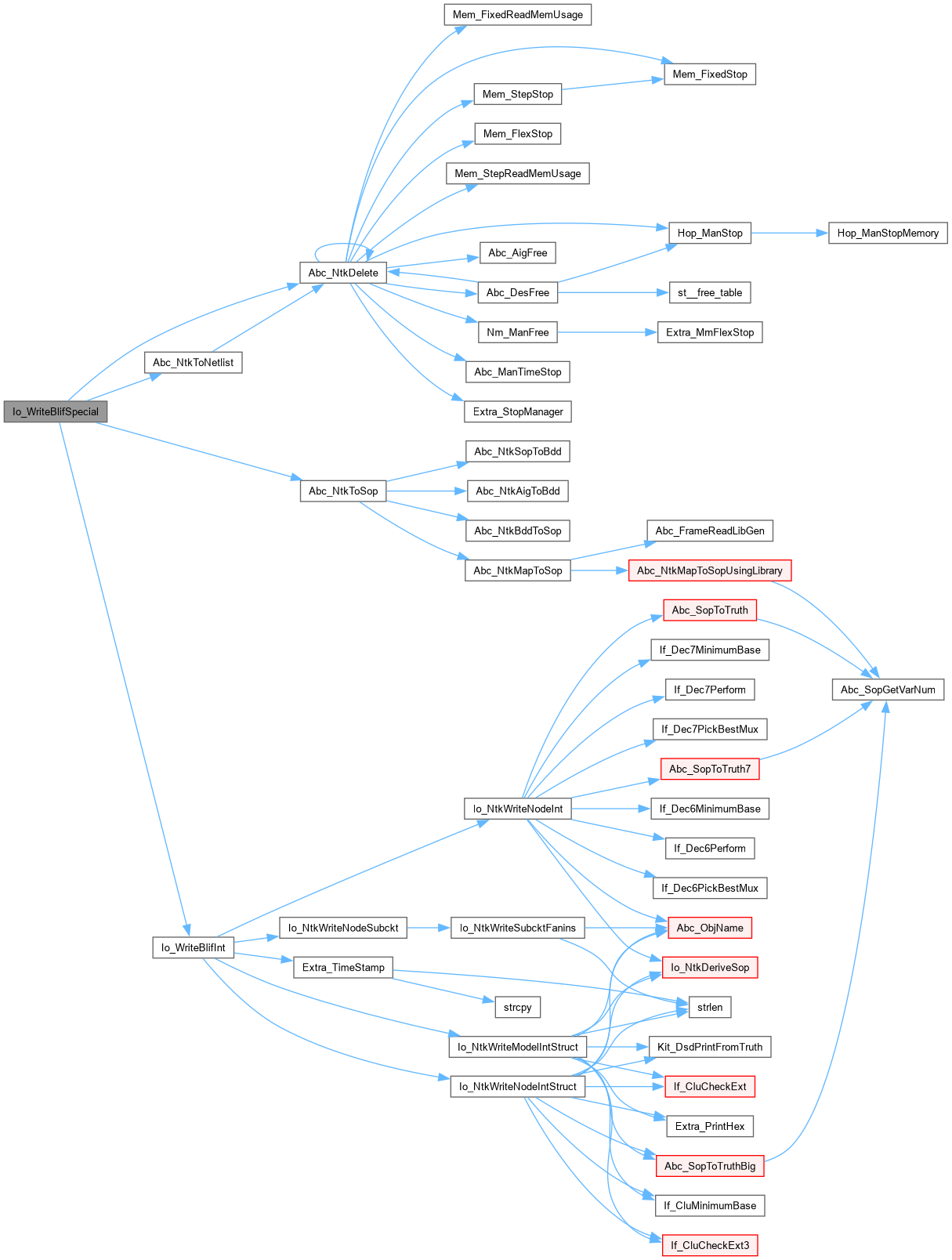

Here is the call graph for this function:

Here is the caller graph for this function:

Io_NtkWriteNodeIntStruct()

void Io_NtkWriteNodeIntStruct	(	FILE *	pFile,
		Abc_Obj_t *	pNode,
		Vec_Int_t *	vCover,
		char *	pStr )

Function*************************************************************

Synopsis [Write the node into a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 972 of file ioWriteBlif.c.

{
    Abc_Obj_t * pNet;
    int nLeaves = Abc_ObjFaninNum(pNode);
    int i, nLutLeaf, nLutLeaf2, nLutRoot, Length;

    // quit if parameters are wrong
    Length = strlen(pStr);
    if ( Length != 2 && Length != 3 )
    {
        printf( "Wrong LUT struct (%s)\n", pStr );
        return;
    }
    for ( i = 0; i < Length; i++ )
        if ( pStr[i] - '0' < 3 || pStr[i] - '0' > 6 )
        {
            printf( "The LUT size (%d) should belong to {3,4,5,6}.\n", pStr[i] - '0' );
            return;
        }

    nLutLeaf  =                   pStr[0] - '0';
    nLutLeaf2 = ( Length == 3 ) ? pStr[1] - '0' : 0;
    nLutRoot  =                   pStr[Length-1] - '0';
    if ( nLeaves > nLutLeaf - 1 + (nLutLeaf2 ? nLutLeaf2 - 1 : 0) + nLutRoot )
    {
        printf( "The node size (%d) is too large for the LUT structure %s.\n", nLeaves, pStr );
        return;
    }

    // consider easy case
    fprintf( pFile, "\n" );
    if ( nLeaves <= Abc_MaxInt( nLutLeaf2, Abc_MaxInt(nLutLeaf, nLutRoot) ) )
    {
        // write the .names line
        fprintf( pFile, ".names" );
        Abc_ObjForEachFanin( pNode, pNet, i )
            fprintf( pFile, " %s", Abc_ObjName(pNet) );
        // get the output name
        fprintf( pFile, " %s\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        // write the cubes
        fprintf( pFile, "%s", (char*)Abc_ObjData(pNode) );
        return;
    }
    else
    {
        extern int If_CluMinimumBase( word * t, int * pSupp, int nVarsAll, int * pnVars );

        static word TruthStore[16][1<<10] = {{0}}, * pTruths[16];
        word pCube[1<<10], pRes[1<<10], Func0, Func1, Func2;
        char pLut0[32], pLut1[32], pLut2[32] = {0}, * pSop;
//        int nVarsMin[3], pVars[3][20];

        if ( TruthStore[0][0] == 0 )
        {
            static word Truth6[6] = {
                ABC_CONST(0xAAAAAAAAAAAAAAAA),
                ABC_CONST(0xCCCCCCCCCCCCCCCC),
                ABC_CONST(0xF0F0F0F0F0F0F0F0),
                ABC_CONST(0xFF00FF00FF00FF00),
                ABC_CONST(0xFFFF0000FFFF0000),
                ABC_CONST(0xFFFFFFFF00000000)
            };
            int nVarsMax = 16;
            int nWordsMax = (1 << 10);
            int i, k;
            assert( nVarsMax <= 16 );
            for ( i = 0; i < nVarsMax; i++ )
                pTruths[i] = TruthStore[i];
            for ( i = 0; i < 6; i++ )
                for ( k = 0; k < nWordsMax; k++ )
                    pTruths[i][k] = Truth6[i];
            for ( i = 6; i < nVarsMax; i++ )
                for ( k = 0; k < nWordsMax; k++ )
                    pTruths[i][k] = ((k >> (i-6)) & 1) ? ~(word)0 : 0;
        }

        // collect variables
//        Abc_ObjForEachFanin( pNode, pNet, i )
//            pVars[0][i] = pVars[1][i] = pVars[2][i] = i;

        // derive truth table
        Abc_SopToTruthBig( (char*)Abc_ObjData(pNode), nLeaves, pTruths, pCube, pRes );
        if ( Kit_TruthIsConst0((unsigned *)pRes, nLeaves) || Kit_TruthIsConst1((unsigned *)pRes, nLeaves) )
        {
            fprintf( pFile, ".names %s\n %d\n", Abc_ObjName(Abc_ObjFanout0(pNode)), Kit_TruthIsConst1((unsigned *)pRes, nLeaves) );
            return;
        }

//        Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
//        Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );

        // perform decomposition
        if ( Length == 2 )
        {
            if ( !If_CluCheckExt( NULL, pRes, nLeaves, nLutLeaf, nLutRoot, pLut0, pLut1, &Func0, &Func1 ) )
            {
                Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                printf( "Node \"%s\" is not decomposable. Writing BLIF has failed.\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
                return;
            }
        }
        else
        {
            if ( !If_CluCheckExt3( NULL, pRes, nLeaves, nLutLeaf, nLutLeaf2, nLutRoot, pLut0, pLut1, pLut2, &Func0, &Func1, &Func2 ) )
            {
                Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                printf( "Node \"%s\" is not decomposable. Writing BLIF has failed.\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
                return;
            }
        }

        // write leaf node
        fprintf( pFile, ".names" );
        for ( i = 0; i < pLut1[0]; i++ )
            fprintf( pFile, " %s", Abc_ObjName(Abc_ObjFanin(pNode,pLut1[2+i])) );
        fprintf( pFile, " %s_lut1\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        // write SOP
        pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc, Func1, pLut1[0], vCover );
        fprintf( pFile, "%s", pSop );

        if ( Length == 3 && pLut2[0] > 0 )
        {
            // write leaf node
            fprintf( pFile, ".names" );
            for ( i = 0; i < pLut2[0]; i++ )
                if ( pLut2[2+i] == nLeaves )
                    fprintf( pFile, " %s_lut1", Abc_ObjName(Abc_ObjFanout0(pNode)) );
                else
                    fprintf( pFile, " %s", Abc_ObjName(Abc_ObjFanin(pNode,pLut2[2+i])) );
            fprintf( pFile, " %s_lut2\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            // write SOP
            pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc, Func2, pLut2[0], vCover );
            fprintf( pFile, "%s", pSop );
        }

        // write root node
        fprintf( pFile, ".names" );
        for ( i = 0; i < pLut0[0]; i++ )
            if ( pLut0[2+i] == nLeaves )
                fprintf( pFile, " %s_lut1", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            else if ( pLut0[2+i] == nLeaves+1 )
                fprintf( pFile, " %s_lut2", Abc_ObjName(Abc_ObjFanout0(pNode)) );
            else
                fprintf( pFile, " %s", Abc_ObjName(Abc_ObjFanin(pNode,pLut0[2+i])) );
        fprintf( pFile, " %s\n", Abc_ObjName(Abc_ObjFanout0(pNode)) );
        // write SOP
        pSop = Io_NtkDeriveSop( (Mem_Flex_t *)Abc_ObjNtk(pNode)->pManFunc, Func0, pLut0[0], vCover );
        fprintf( pFile, "%s", pSop );
    }
}

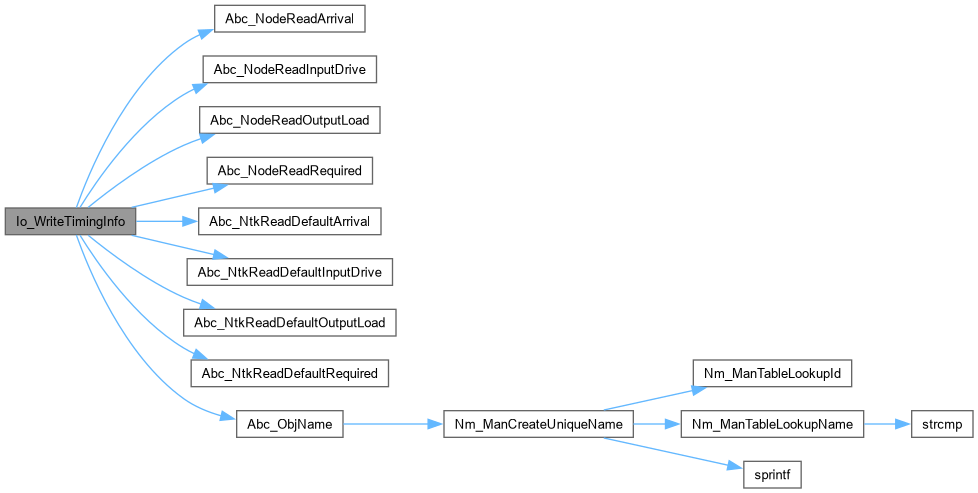

Here is the call graph for this function:

Here is the caller graph for this function:

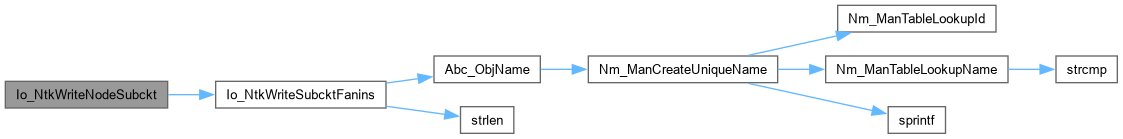

Io_NtkWriteNodeSubckt()

int Io_NtkWriteNodeSubckt	(	FILE *	pFile,
		Abc_Obj_t *	pNode,
		int	Length )

Function*************************************************************

Synopsis [Write the node into a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 654 of file ioWriteBlif.c.

{
    int RetValue = 0;
    fprintf( pFile, ".subckt" );
    Io_NtkWriteSubcktFanins( pFile, pNode );
    fprintf( pFile, "\n" );
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

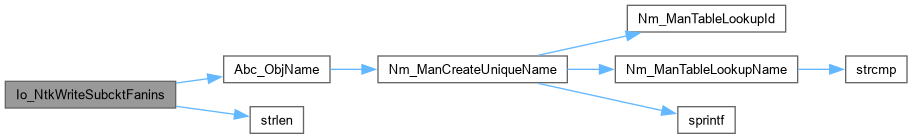

Io_NtkWriteSubcktFanins()

void Io_NtkWriteSubcktFanins	(	FILE *	pFile,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis [Writes the primary input list.]

Description []

SideEffects []

SeeAlso []

Definition at line 513 of file ioWriteBlif.c.

{
    Abc_Obj_t * pNet;
    int LineLength;
    int AddedLength;
    int NameCounter;
    char * pName;
    int i;

    LineLength  = 6;
    NameCounter = 0;

    // get the output name
    pName = Abc_ObjName(Abc_ObjFanout0(pNode));
    // get the line length after the output name is written
    AddedLength = strlen(pName) + 1;
    fprintf( pFile, " m%d", Abc_ObjId(pNode) );

    // get the input names
    Abc_ObjForEachFanin( pNode, pNet, i )
    {
        // get the fanin name
        pName = Abc_ObjName(pNet);
        // get the line length after the fanin name is written
        AddedLength = strlen(pName) + 3;
        if ( NameCounter && LineLength + AddedLength + 3 > IO_WRITE_LINE_LENGTH )
        { // write the line extender
            fprintf( pFile, " \\\n" );
            // reset the line length
            LineLength  = 0;
            NameCounter = 0;
        }
        fprintf( pFile, " %c=%s", 'a'+i, pName );
        LineLength += AddedLength;
        NameCounter++;
    }

    // get the output name
    pName = Abc_ObjName(Abc_ObjFanout0(pNode));
    // get the line length after the output name is written
    AddedLength = strlen(pName) + 3;
    if ( NameCounter && LineLength + AddedLength > 75 )
    { // write the line extender
        fprintf( pFile, " \\\n" );
        // reset the line length
        LineLength  = 0;
        NameCounter = 0;
    }
    fprintf( pFile, " %c=%s", 'o', pName );
}

Here is the call graph for this function:

Here is the caller graph for this function:

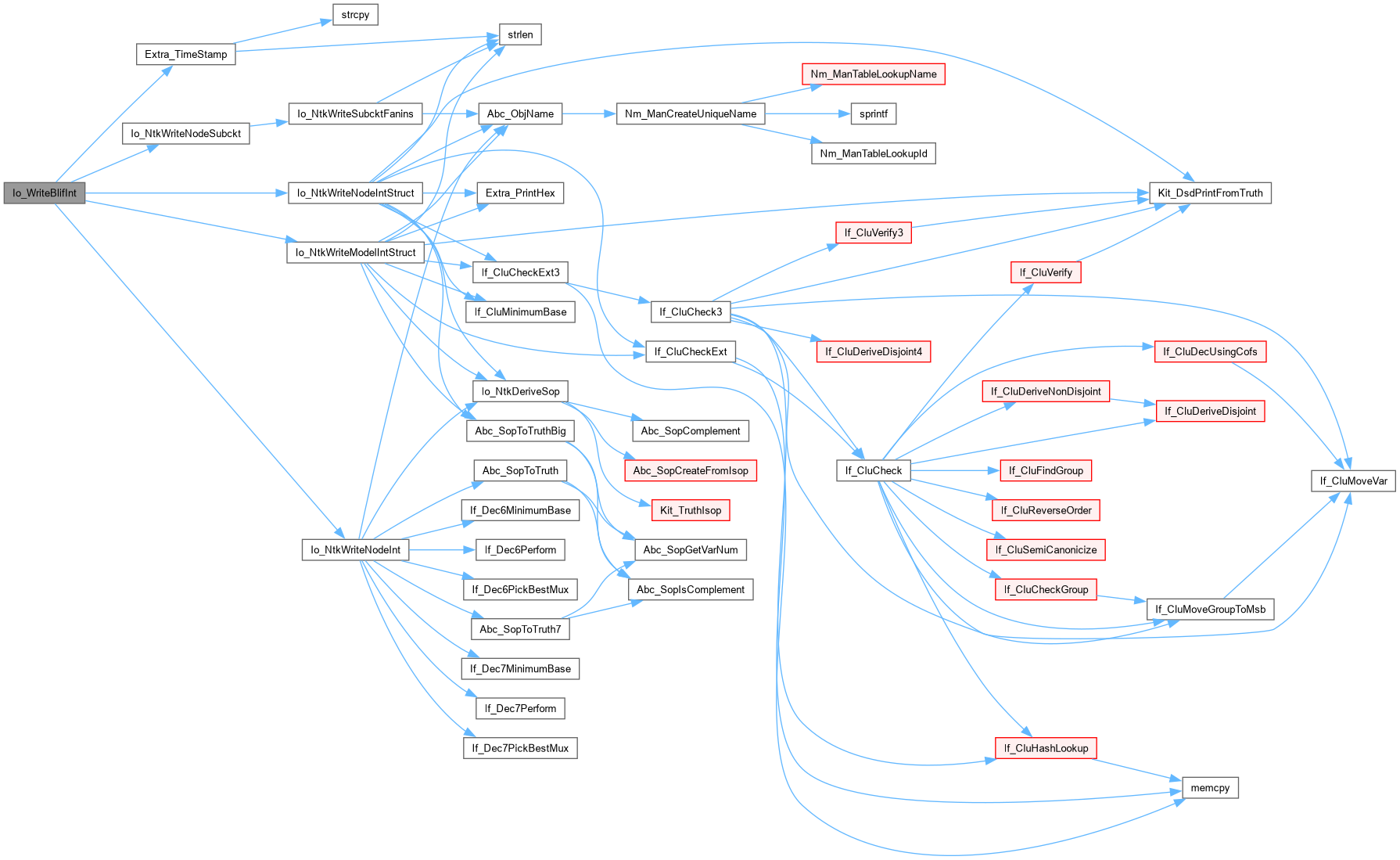

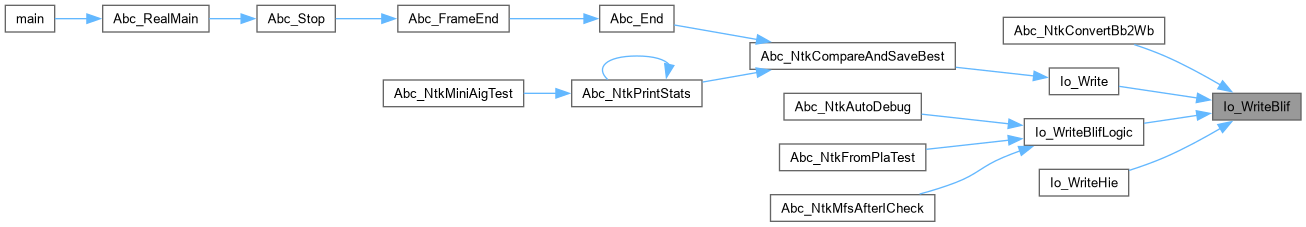

Io_WriteBlif()

void Io_WriteBlif	(	Abc_Ntk_t *	pNtk,
		char *	FileName,
		int	fWriteLatches,
		int	fBb2Wb,
		int	fSeq )

Function*************************************************************

Synopsis [Write the network into a BLIF file with the given name.]

Description []

SideEffects []

SeeAlso []

Definition at line 84 of file ioWriteBlif.c.

{
    FILE * pFile;
    Abc_Ntk_t * pNtkTemp;
    int i;
    assert( Abc_NtkIsNetlist(pNtk) );
    // start writing the file
    pFile = fopen( FileName, "w" );
    if ( pFile == NULL )
    {
        fprintf( stdout, "Io_WriteBlif(): Cannot open the output file.\n" );
        return;
    }
    fprintf( pFile, "# Benchmark \"%s\" written by ABC on %s\n", pNtk->pName, Extra_TimeStamp() );
    // write the master network
    Io_NtkWrite( pFile, pNtk, fWriteLatches, fBb2Wb, fSeq );
    // make sure there is no logic hierarchy
//    assert( Abc_NtkWhiteboxNum(pNtk) == 0 );
    // write the hierarchy if present
    if ( Abc_NtkBlackboxNum(pNtk) > 0 || Abc_NtkWhiteboxNum(pNtk) > 0 )
    {
        Vec_PtrForEachEntry( Abc_Ntk_t *, pNtk->pDesign->vModules, pNtkTemp, i )
        {
            if ( pNtkTemp == pNtk )
                continue;
            fprintf( pFile, "\n\n" );
            Io_NtkWrite( pFile, pNtkTemp, fWriteLatches, fBb2Wb, fSeq );
        }
    }
    fclose( pFile );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Io_WriteBlifInt()

void Io_WriteBlifInt	(	Abc_Ntk_t *	pNtk,
		char *	FileName,
		char *	pLutStruct,
		int	fUseHie )

Function*************************************************************

Synopsis [Write the network into a BLIF file with the given name.]

Description []

SideEffects []

SeeAlso []

Definition at line 1312 of file ioWriteBlif.c.

{
    FILE * pFile;
    Vec_Int_t * vCover;
    Abc_Obj_t * pNode, * pLatch;
    int i;
    assert( Abc_NtkIsNetlist(pNtk) );
    // start writing the file
    pFile = fopen( FileName, "w" );
    if ( pFile == NULL )
    {
        fprintf( stdout, "Io_WriteBlifInt(): Cannot open the output file.\n" );
        return;
    }
    fprintf( pFile, "# Benchmark \"%s\" written by ABC on %s\n", pNtk->pName, Extra_TimeStamp() );
    // write the model name
    fprintf( pFile, ".model %s\n", Abc_NtkName(pNtk) );
    // write the PIs
    fprintf( pFile, ".inputs" );
    Io_NtkWritePis( pFile, pNtk, 1 );
    fprintf( pFile, "\n" );
    // write the POs
    fprintf( pFile, ".outputs" );
    Io_NtkWritePos( pFile, pNtk, 1 );
    fprintf( pFile, "\n" );
    // write the latches
    if ( Abc_NtkLatchNum(pNtk) )
        fprintf( pFile, "\n" );
    Abc_NtkForEachLatch( pNtk, pLatch, i )
        Io_NtkWriteLatch( pFile, pLatch );
    if ( Abc_NtkLatchNum(pNtk) )
        fprintf( pFile, "\n" );
    // write the hierarchy
    vCover = Vec_IntAlloc( (1<<16) );
    if ( fUseHie )
    {
        // write each internal node
        fprintf( pFile, "\n" );
        Abc_NtkForEachNode( pNtk, pNode, i )
            Io_NtkWriteNodeSubckt( pFile, pNode, 0 );
        fprintf( pFile, ".end\n\n" );
        // write models
        Abc_NtkForEachNode( pNtk, pNode, i )
            Io_NtkWriteModelIntStruct( pFile, pNode, vCover, pLutStruct );
        fprintf( pFile, "\n" );
    }
    else
    {
        // write each internal node
        Abc_NtkForEachNode( pNtk, pNode, i )
        {
            if ( pLutStruct )
                Io_NtkWriteNodeIntStruct( pFile, pNode, vCover, pLutStruct );
            else
                Io_NtkWriteNodeInt( pFile, pNode, vCover );
        }
        fprintf( pFile, ".end\n\n" );
    }
    Vec_IntFree( vCover );
    fclose( pFile );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Io_WriteBlifLogic()

void Io_WriteBlifLogic	(	Abc_Ntk_t *	pNtk,
		char *	FileName,
		int	fWriteLatches )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Write the network into a BLIF file with the given name.]

Description []

SideEffects []

SeeAlso []

Definition at line 59 of file ioWriteBlif.c.

{
    Abc_Ntk_t * pNtkTemp;
    // derive the netlist
    pNtkTemp = Abc_NtkToNetlist(pNtk);
    if ( pNtkTemp == NULL )
    {
        fprintf( stdout, "Writing BLIF has failed.\n" );
        return;
    }
    Io_WriteBlif( pNtkTemp, FileName, fWriteLatches, 0, 0 );
    Abc_NtkDelete( pNtkTemp );
}

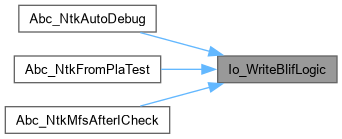

Here is the call graph for this function:

Here is the caller graph for this function:

Io_WriteBlifSpecial()

void Io_WriteBlifSpecial	(	Abc_Ntk_t *	pNtk,
		char *	FileName,
		char *	pLutStruct,
		int	fUseHie )

Function*************************************************************

Synopsis [Write the network into a BLIF file with the given name.]

Description []

SideEffects []

SeeAlso []

Definition at line 1385 of file ioWriteBlif.c.

{
    Abc_Ntk_t * pNtkTemp;
    assert( Abc_NtkIsLogic(pNtk) );
    Abc_NtkToSop( pNtk, -1, ABC_INFINITY );
    // derive the netlist
    pNtkTemp = Abc_NtkToNetlist(pNtk);
    if ( pNtkTemp == NULL )
    {
        fprintf( stdout, "Writing BLIF has failed.\n" );
        return;
    }
    if ( pLutStruct && fUseHie )
        Io_WriteBlifInt( pNtkTemp, FileName, pLutStruct, 1 );
    else
        Io_WriteBlifInt( pNtkTemp, FileName, pLutStruct, 0 );
    Abc_NtkDelete( pNtkTemp );
}

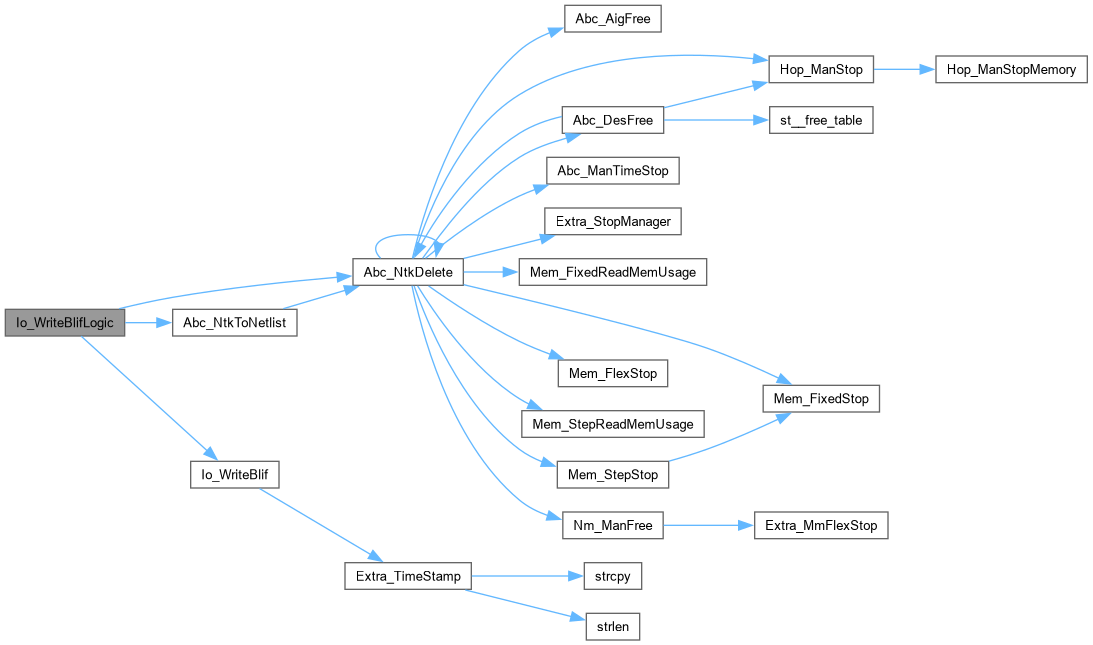

Here is the call graph for this function:

Io_WriteTimingInfo()

void Io_WriteTimingInfo	(	FILE *	pFile,
		Abc_Ntk_t *	pNtk )

Function*************************************************************

Synopsis [Writes the timing info.]

Description []

SideEffects []

SeeAlso []

Definition at line 674 of file ioWriteBlif.c.

{
    Abc_Obj_t * pNode;
    Abc_Time_t * pTime, * pTimeDefIn, * pTimeDefOut;
    int i;

    if ( pNtk->pManTime == NULL )
        return;

    fprintf( pFile, "\n" );
    if ( pNtk->AndGateDelay != 0.0 )
        fprintf( pFile, ".and_gate_delay %g\n", pNtk->AndGateDelay );
    pTimeDefIn = Abc_NtkReadDefaultArrival( pNtk );
    //if ( pTimeDefIn->Rise != 0.0 || pTimeDefIn->Fall != 0.0 )
        fprintf( pFile, ".default_input_arrival %g %g\n", pTimeDefIn->Rise, pTimeDefIn->Fall );
    pTimeDefOut = Abc_NtkReadDefaultRequired( pNtk );
    //if ( pTimeDefOut->Rise != ABC_INFINITY || pTimeDefOut->Fall != ABC_INFINITY )
        fprintf( pFile, ".default_output_required %g %g\n", pTimeDefOut->Rise, pTimeDefOut->Fall );

    fprintf( pFile, "\n" );
    Abc_NtkForEachPi( pNtk, pNode, i )
    {
        pTime = Abc_NodeReadArrival(pNode);
        if ( pTime->Rise == pTimeDefIn->Rise && pTime->Fall == pTimeDefIn->Fall )
            continue;
        fprintf( pFile, ".input_arrival %s %g %g\n", Abc_ObjName(Abc_ObjFanout0(pNode)), pTime->Rise, pTime->Fall );
    }
    Abc_NtkForEachPo( pNtk, pNode, i )
    {
        pTime = Abc_NodeReadRequired(pNode);
        if ( pTime->Rise == pTimeDefOut->Rise && pTime->Fall == pTimeDefOut->Fall )
            continue;
        fprintf( pFile, ".output_required %s %g %g\n", Abc_ObjName(Abc_ObjFanin0(pNode)), pTime->Rise, pTime->Fall );
    }

    fprintf( pFile, "\n" );
    pTimeDefIn = Abc_NtkReadDefaultInputDrive( pNtk );
    if ( pTimeDefIn->Rise != 0.0 || pTimeDefIn->Fall != 0.0 )
        fprintf( pFile, ".default_input_drive %g %g\n", pTimeDefIn->Rise, pTimeDefIn->Fall );
    if ( Abc_NodeReadInputDrive( pNtk, 0 ) )
        Abc_NtkForEachPi( pNtk, pNode, i )
        {
            pTime = Abc_NodeReadInputDrive( pNtk, i );
            if ( pTime->Rise == pTimeDefIn->Rise && pTime->Fall == pTimeDefIn->Fall )
                continue;
            fprintf( pFile, ".input_drive %s %g %g\n", Abc_ObjName(Abc_ObjFanout0(pNode)), pTime->Rise, pTime->Fall );
        }

    pTimeDefOut = Abc_NtkReadDefaultOutputLoad( pNtk );
    if ( pTimeDefOut->Rise != 0.0 || pTimeDefOut->Fall != 0.0 )
        fprintf( pFile, ".default_output_load %g %g\n", pTimeDefOut->Rise, pTimeDefOut->Fall );
    if ( Abc_NodeReadOutputLoad( pNtk, 0 ) )
        Abc_NtkForEachPo( pNtk, pNode, i )
        {
            pTime = Abc_NodeReadOutputLoad( pNtk, i );
            if ( pTime->Rise == pTimeDefOut->Rise && pTime->Fall == pTimeDefOut->Fall )
                continue;
            fprintf( pFile, ".output_load %s %g %g\n", Abc_ObjName(Abc_ObjFanin0(pNode)), pTime->Rise, pTime->Fall );
        }

    fprintf( pFile, "\n" );
}

Here is the call graph for this function:
