lpk.h File Reference

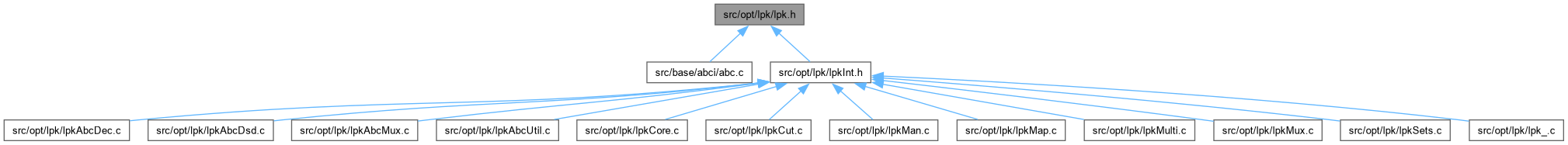

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Lpk_Par_t_

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Lpk_Par_t_	Lpk_Par_t
	INCLUDES ///.

Functions
int	Lpk_Resynthesize (Abc_Ntk_t *pNtk, Lpk_Par_t *pPars)
	MACRO DEFINITIONS ///.

Typedef Documentation

Lpk_Par_t

typedef typedefABC_NAMESPACE_HEADER_START struct Lpk_Par_t_ Lpk_Par_t

INCLUDES ///.

CFile****************************************************************

FileName [lpk.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Fast Boolean matching for LUT structures.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

lpk.h,v 1.00 2007/04/28 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 42 of file lpk.h.

Function Documentation

Lpk_Resynthesize()

int Lpk_Resynthesize ( Abc_Ntk_t * pNtk, Lpk_Par_t * pPars )

extern

MACRO DEFINITIONS ///.

ITERATORS /// FUNCTION DECLARATIONS ///

Function*************************************************************

Synopsis [Performs resynthesis for one network.]

Description []

SideEffects []

SeeAlso []

Definition at line 584 of file lpkCore.c.

{
    ProgressBar * pProgress = NULL; // Suppress "might be used uninitialized"
    Lpk_Man_t * p;
    Abc_Obj_t * pObj;
    double Delta;
//    int * pnFanouts, nObjMax;
    int i, Iter, nNodes, nNodesPrev;
    abctime clk = Abc_Clock();
    assert( Abc_NtkIsLogic(pNtk) );

    // sweep dangling nodes as a preprocessing step
    Abc_NtkSweep( pNtk, 0 );

    // get the number of inputs
    if ( Abc_FrameReadLibLut() )
        pPars->nLutSize = ((If_LibLut_t *)Abc_FrameReadLibLut())->LutMax;
    else
        pPars->nLutSize = Abc_NtkGetFaninMax( pNtk );
    if ( pPars->nLutSize > 6 )
        pPars->nLutSize = 6;
    if ( pPars->nLutSize < 3 )
        pPars->nLutSize = 3;
    // adjust the number of crossbars based on LUT size
    if ( pPars->nVarsShared > pPars->nLutSize - 2 )
        pPars->nVarsShared = pPars->nLutSize - 2;
    // get the max number of LUTs tried
    pPars->nVarsMax = pPars->nLutsMax * (pPars->nLutSize - 1) + 1; // V = N * (K-1) + 1
    while ( pPars->nVarsMax > 16 )
    {
        pPars->nLutsMax--;
        pPars->nVarsMax = pPars->nLutsMax * (pPars->nLutSize - 1) + 1;

    }
    if ( pPars->fVerbose )
    {
        printf( "Resynthesis for %d %d-LUTs with %d non-MFFC LUTs, %d crossbars, and %d-input cuts.\n",
            pPars->nLutsMax, pPars->nLutSize, pPars->nLutsOver, pPars->nVarsShared, pPars->nVarsMax );
    }


    // convert into the AIG
    if ( !Abc_NtkToAig(pNtk) )
    {
        fprintf( stdout, "Converting to BDD has failed.\n" );
        return 0;
    }
    assert( Abc_NtkHasAig(pNtk) );

    // set the number of levels
    Abc_NtkLevel( pNtk );
    Abc_NtkStartReverseLevels( pNtk, pPars->nGrowthLevel );

    // start the manager
    p = Lpk_ManStart( pPars );
    p->pNtk = pNtk;
    p->nNodesTotal = Abc_NtkNodeNum(pNtk);
    p->vLevels = Vec_VecStart( pNtk->LevelMax );
    if ( p->pPars->fSatur )
        p->vVisited = Vec_VecStart( 0 );
    if ( pPars->fVerbose )
    {
        p->nTotalNets = Abc_NtkGetTotalFanins(pNtk);
        p->nTotalNodes = Abc_NtkNodeNum(pNtk);
    }
/*
    // save the number of fanouts of all objects
    nObjMax = Abc_NtkObjNumMax( pNtk );
    pnFanouts = ABC_ALLOC( int, nObjMax );
    memset( pnFanouts, 0, sizeof(int) * nObjMax );
    Abc_NtkForEachObj( pNtk, pObj, i )
        pnFanouts[pObj->Id] = Abc_ObjFanoutNum(pObj);
*/

    // iterate over the network
    nNodesPrev = p->nNodesTotal;
    for ( Iter = 1; ; Iter++ )
    {
        // expand storage for changed nodes
        if ( p->pPars->fSatur )
            Vec_VecExpand( p->vVisited, Abc_NtkObjNumMax(pNtk) + 1 );

        // consider all nodes
        nNodes = Abc_NtkObjNumMax(pNtk);
        if ( !pPars->fVeryVerbose )
            pProgress = Extra_ProgressBarStart( stdout, nNodes );
        Abc_NtkForEachNode( pNtk, pObj, i )
        {
            // skip all except the final node
            if ( pPars->fFirst )
            {
                if ( !Abc_ObjIsCo(Abc_ObjFanout0(pObj)) )
                    continue;
            }
            if ( i >= nNodes )
                break;
            if ( !pPars->fVeryVerbose )
                Extra_ProgressBarUpdate( pProgress, i, NULL );
            // skip the nodes that did not change
            if ( p->pPars->fSatur && !Lpk_NodeHasChanged(p, pObj->Id) )
                continue;
            // resynthesize
            p->pObj = pObj;
            if ( p->pPars->fOldAlgo )
                Lpk_ResynthesizeNode( p );
            else
                Lpk_ResynthesizeNodeNew( p );
        }
        if ( !pPars->fVeryVerbose )
            Extra_ProgressBarStop( pProgress );

        // check the increase
        Delta = 100.00 * (nNodesPrev - Abc_NtkNodeNum(pNtk)) / p->nNodesTotal;
        if ( Delta < 0.05 )
            break;
        nNodesPrev = Abc_NtkNodeNum(pNtk);
        if ( !p->pPars->fSatur )
            break;

        if ( pPars->fFirst )
            break;
    }
    Abc_NtkStopReverseLevels( pNtk );
/*
    // report the fanout changes
    Abc_NtkForEachObj( pNtk, pObj, i )
    {
        if ( i >= nObjMax )
            continue;
        if ( Abc_ObjFanoutNum(pObj) - pnFanouts[pObj->Id] == 0 )
            continue;
        printf( "%d ", Abc_ObjFanoutNum(pObj) - pnFanouts[pObj->Id] );
    }
    printf( "\n" );
*/

    if ( pPars->fVerbose )
    {
//        Cloud_PrintInfo( p->pDsdMan->dd );
        p->nTotalNets2 = Abc_NtkGetTotalFanins(pNtk);
        p->nTotalNodes2 = Abc_NtkNodeNum(pNtk);
        printf( "Node gain = %5d. (%.2f %%)  ",
            p->nTotalNodes-p->nTotalNodes2, 100.0*(p->nTotalNodes-p->nTotalNodes2)/p->nTotalNodes );
        printf( "Edge gain = %5d. (%.2f %%)  ",
            p->nTotalNets-p->nTotalNets2, 100.0*(p->nTotalNets-p->nTotalNets2)/p->nTotalNets );
        printf( "Muxes = %4d. Dsds = %4d.", p->nMuxes, p->nDsds );
        printf( "\n" );
        printf( "Nodes = %5d (%3d)  Cuts = %5d (%4d)  Changes = %5d  Iter = %2d  Benefit = %d.\n",
            p->nNodesTotal, p->nNodesOver, p->nCutsTotal, p->nCutsUseful, p->nChanges, Iter, p->nBenefited );

        printf( "Non-DSD:" );
        for ( i = 3; i <= pPars->nVarsMax; i++ )
            if ( p->nBlocks[i] )
                printf( " %d=%d", i, p->nBlocks[i] );
        printf( "\n" );

        p->timeTotal = Abc_Clock() - clk;
        p->timeEval  = p->timeEval  - p->timeMap;
        p->timeOther = p->timeTotal - p->timeCuts - p->timeTruth - p->timeEval - p->timeMap;
        ABC_PRTP( "Cuts  ", p->timeCuts,  p->timeTotal );
        ABC_PRTP( "Truth ", p->timeTruth, p->timeTotal );
        ABC_PRTP( "CSupps", p->timeSupps, p->timeTotal );
        ABC_PRTP( "Eval  ", p->timeEval,  p->timeTotal );
        ABC_PRTP( " MuxAn", p->timeEvalMuxAn, p->timeEval );
        ABC_PRTP( " MuxSp", p->timeEvalMuxSp, p->timeEval );
        ABC_PRTP( " DsdAn", p->timeEvalDsdAn, p->timeEval );
        ABC_PRTP( " DsdSp", p->timeEvalDsdSp, p->timeEval );
        ABC_PRTP( " Other", p->timeEval-p->timeEvalMuxAn-p->timeEvalMuxSp-p->timeEvalDsdAn-p->timeEvalDsdSp, p->timeEval );
        ABC_PRTP( "Map   ", p->timeMap,   p->timeTotal );
        ABC_PRTP( "Other ", p->timeOther, p->timeTotal );
        ABC_PRTP( "TOTAL ", p->timeTotal, p->timeTotal );
    }

    Lpk_ManStop( p );
    // check the resulting network
    if ( !Abc_NtkCheck( pNtk ) )
    {
        printf( "Lpk_Resynthesize: The network check has failed.\n" );
        return 0;
    }
    return 1;
}

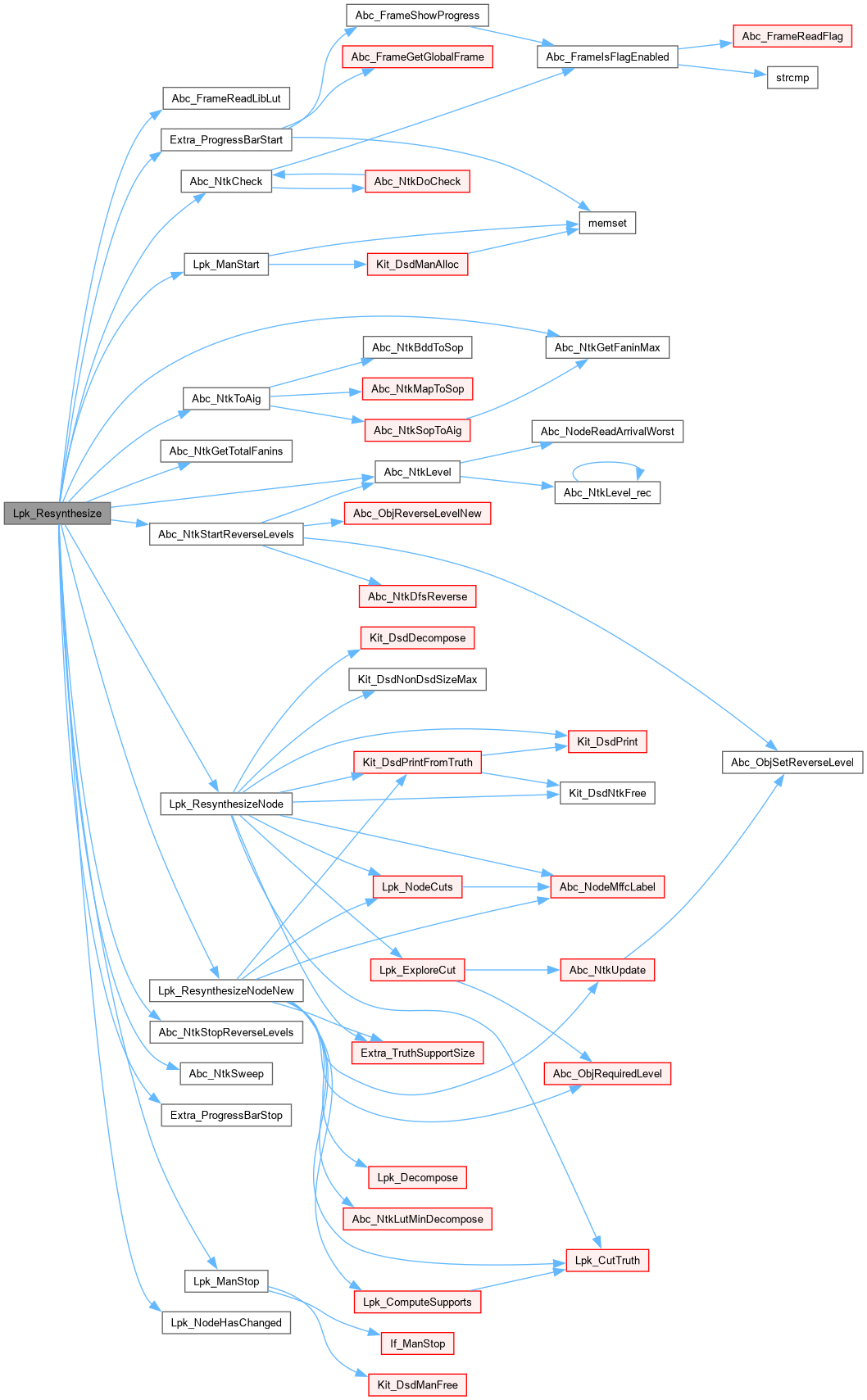

Here is the call graph for this function:
