lpkCore.c File Reference

#include "lpkInt.h"
#include "bool/kit/cloud.h"
#include "base/main/main.h"

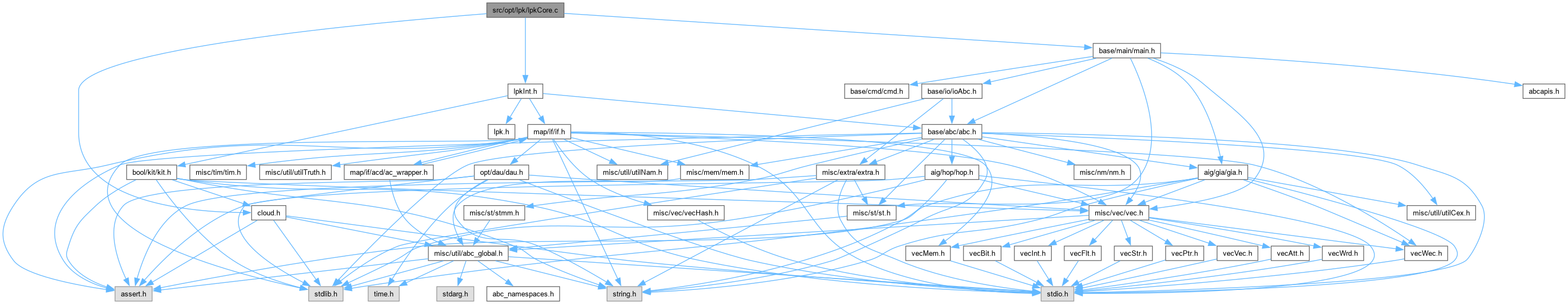

Include dependency graph for lpkCore.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Abc_Ntk_t *	Abc_NtkDecFromTruth (word *pTruth, int nVars, int nLutSize)
	DECLARATIONS ///.
Abc_Obj_t *	Abc_NtkLutMinDecompose (Abc_Ntk_t *pNtk, Vec_Ptr_t *vLeaves, word *pTruth, int nLutSize, int Required)
void	Lpk_IfManStart (Lpk_Man_t *p)
int	Lpk_NodeHasChanged (Lpk_Man_t *p, int iNode)
int	Lpk_ExploreCut (Lpk_Man_t *p, Lpk_Cut_t *pCut, Kit_DsdNtk_t *pNtk)
int	Lpk_ResynthesizeNode (Lpk_Man_t *p)
void	Lpk_ComputeSupports (Lpk_Man_t *p, Lpk_Cut_t *pCut, unsigned *pTruth)
int	Lpk_ResynthesizeNodeNew (Lpk_Man_t *p)
int	Lpk_Resynthesize (Abc_Ntk_t *pNtk, Lpk_Par_t *pPars)
	MACRO DEFINITIONS ///.

Function Documentation

Abc_NtkDecFromTruth()

ABC_NAMESPACE_IMPL_START Abc_Ntk_t * Abc_NtkDecFromTruth	(	word *	pTruth,
		int	nVars,
		int	nLutSize )

DECLARATIONS ///.

CFile****************************************************************

FileName [lpkCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Fast Boolean matching for LUT structures.]

Synopsis []

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - April 28, 2007.]

Revision [

Id

lpkCore.c,v 1.00 2007/04/28 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Returns decomposed network.]

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file lpkCore.c.

{
    extern Abc_Ntk_t * Abc_NtkLutmin( Abc_Ntk_t * pNtk, int nLutSize, int fReorder, int fVerbose );
    Vec_Int_t * vCover = Vec_IntAlloc( 1 << 16 );
    Abc_Ntk_t * pTemp = Abc_NtkAlloc( ABC_NTK_LOGIC, ABC_FUNC_SOP, 1 );
    char * pSopCover = Abc_SopCreateFromTruthIsop( (Mem_Flex_t *)pTemp->pManFunc, nVars, pTruth, vCover );
    Abc_Ntk_t * pNtk = Abc_NtkCreateWithNode( pSopCover );
    Abc_Ntk_t * pNew = Abc_NtkLutmin( pNtk, nLutSize, 1, 0 );
    Abc_NtkDelete( pTemp );
    Abc_NtkDelete( pNtk );
    Vec_IntFree( vCover );
    if ( !Abc_NtkToAig(pNew) )
    {
        Abc_NtkDelete( pNew );
        fprintf( stdout, "Converting to AIG has failed.\n" );
        return NULL;
    }
    assert( Abc_NtkHasAig(pNew) );
    return pNew;
}

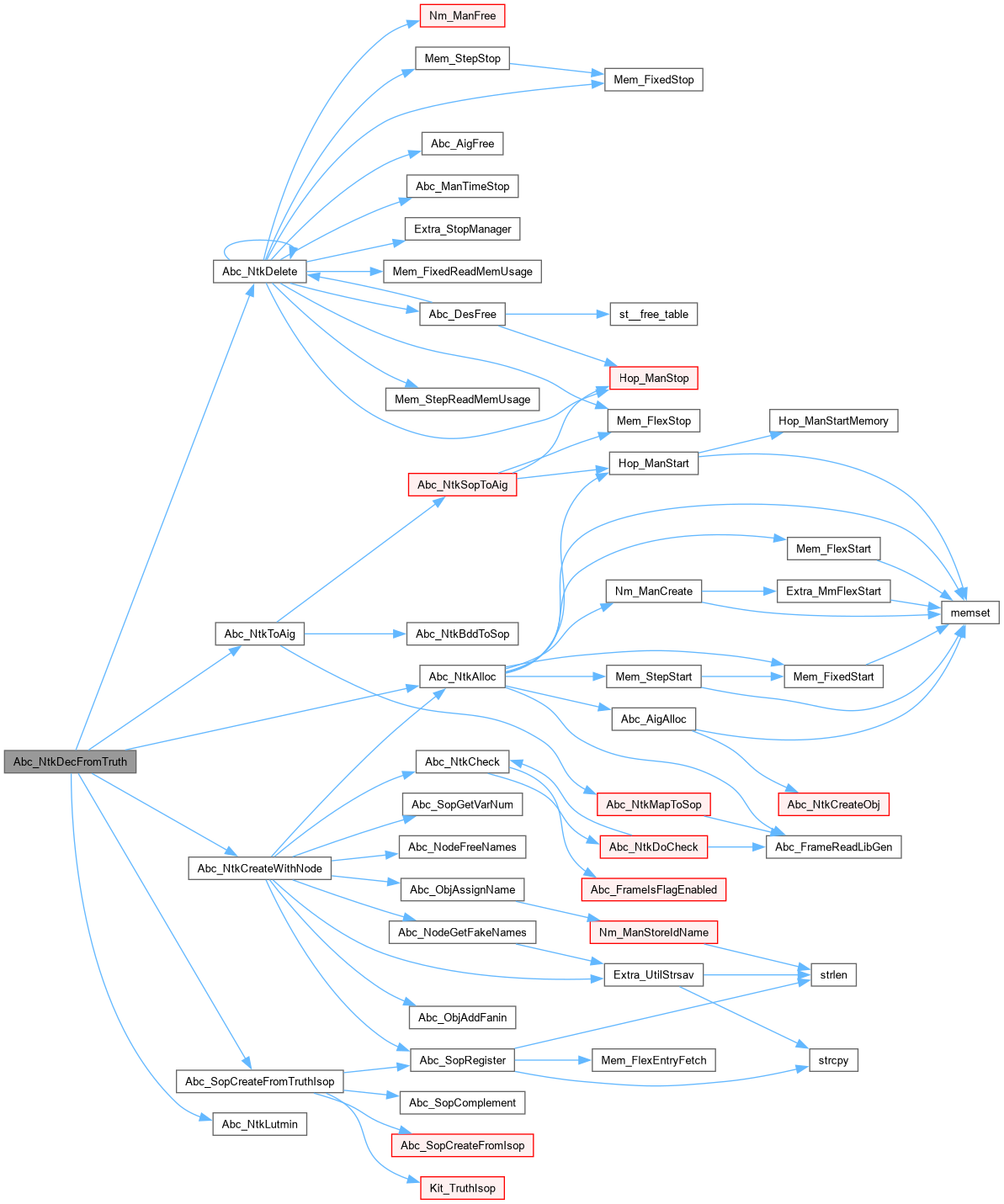

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLutMinDecompose()

Abc_Obj_t * Abc_NtkLutMinDecompose	(	Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	vLeaves,
		word *	pTruth,
		int	nLutSize,
		int	Required )

Definition at line 67 of file lpkCore.c.

{
    Abc_Obj_t * pObj = NULL, * pFanin; int i, k;
    Abc_Ntk_t * pNew = Abc_NtkDecFromTruth( pTruth, Vec_PtrSize(vLeaves), nLutSize );
    Vec_Ptr_t * vNodes = Abc_NtkDfs( pNew, 0 );
    assert( Abc_NtkHasAig(pNtk) );
    // levels
    Vec_PtrForEachEntry( Abc_Obj_t *, vLeaves, pObj, i )
        Abc_NtkCi( pNew, i )->Level = pObj->Level;
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        pObj->Level = 0;
        Abc_ObjForEachFanin( pObj, pFanin, k )
            if ( pObj->Level < pFanin->Level )
                pObj->Level = pFanin->Level;
        pObj->Level++;
    }
    if ( (int)pObj->Level > Required )
    {
        Vec_PtrFree( vNodes );
        Abc_NtkDelete( pNew );
        return NULL;
    }
    Vec_PtrForEachEntry( Abc_Obj_t *, vLeaves, pObj, i )
        Abc_NtkCi( pNew, i )->pCopy = pObj;
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        Abc_NtkDupObj( pNtk, pObj, 0 );
        pObj->pCopy->Level = 0;
        Abc_ObjForEachFanin( pObj, pFanin, k )
        {
            Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
            if ( pObj->pCopy->Level < pFanin->pCopy->Level )
                pObj->pCopy->Level = pFanin->pCopy->Level;
        }
        pObj->pCopy->Level++;
    }
    //printf( "Decomposed %d-input function, resulting in %d nodes.\n", Vec_PtrSize(vLeaves), Vec_PtrSize(vNodes) );
    pObj = pObj->pCopy;
    Vec_PtrFree( vNodes );
    Abc_NtkDelete( pNew );
    return pObj;
}

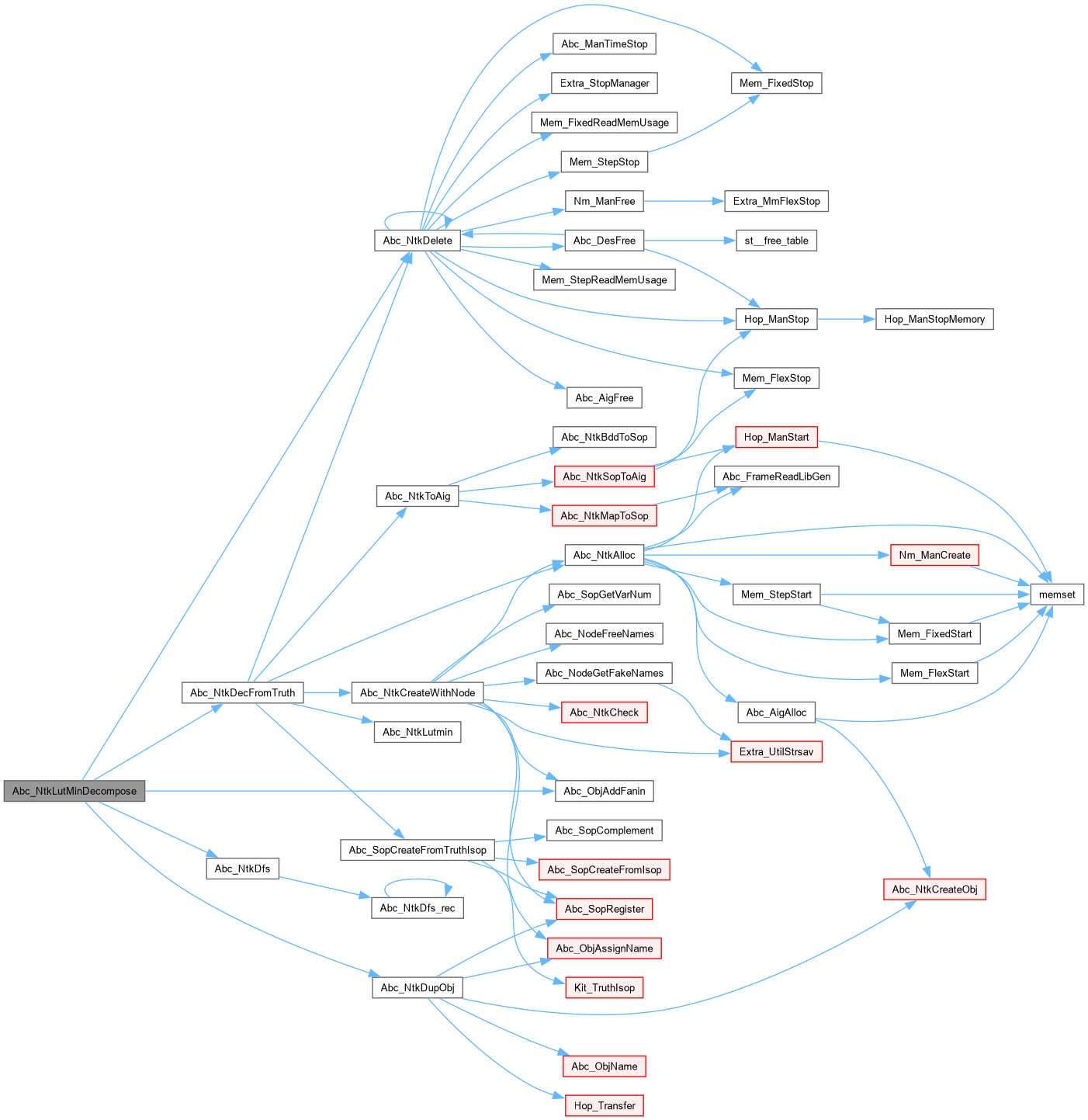

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_ComputeSupports()

void Lpk_ComputeSupports	(	Lpk_Man_t *	p,
		Lpk_Cut_t *	pCut,
		unsigned *	pTruth )

Function*************************************************************

Synopsis [Computes supports of the cofactors of the function.]

Description [This procedure should be called after Lpk_CutTruth(p,pCut,0)]

SideEffects []

SeeAlso []

Definition at line 419 of file lpkCore.c.

{
    unsigned * pTruthInv;
    int RetValue1, RetValue2;
    pTruthInv = Lpk_CutTruth( p, pCut, 1 );
    RetValue1 = Kit_CreateCloudFromTruth( p->pDsdMan->dd, pTruth, pCut->nLeaves, p->vBddDir );
    RetValue2 = Kit_CreateCloudFromTruth( p->pDsdMan->dd, pTruthInv, pCut->nLeaves, p->vBddInv );
    if ( RetValue1 && RetValue2 && Vec_IntSize(p->vBddDir) > 1 && Vec_IntSize(p->vBddInv) > 1 )
        Kit_TruthCofSupports( p->vBddDir, p->vBddInv, pCut->nLeaves, p->vMemory, p->puSupps );
    else
        p->puSupps[0] = p->puSupps[1] = 0;
}

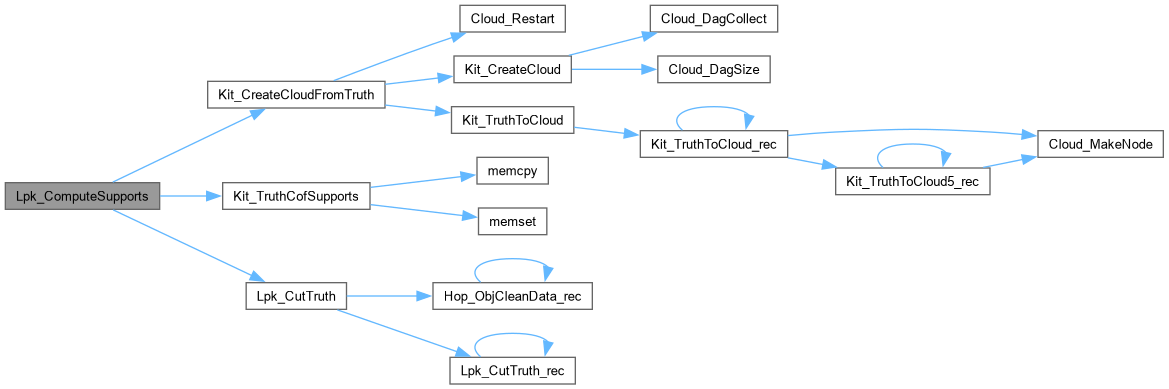

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_ExploreCut()

int Lpk_ExploreCut	(	Lpk_Man_t *	p,
		Lpk_Cut_t *	pCut,
		Kit_DsdNtk_t *	pNtk )

Function*************************************************************

Synopsis [Prepares the mapping manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 205 of file lpkCore.c.

{
    extern Abc_Obj_t * Abc_NodeFromIf_rec( Abc_Ntk_t * pNtkNew, If_Man_t * pIfMan, If_Obj_t * pIfObj, Vec_Int_t * vCover );
    Kit_DsdObj_t * pRoot;
    If_Obj_t * pDriver, * ppLeaves[16];
    Abc_Obj_t * pLeaf, * pObjNew;
    int nGain, i;
    abctime clk;
    int nNodesBef;
//    int nOldShared;

    // check special cases
    pRoot = Kit_DsdNtkRoot( pNtk );
    if ( pRoot->Type == KIT_DSD_CONST1 )
    {
        if ( Abc_LitIsCompl(pNtk->Root) )
            pObjNew = Abc_NtkCreateNodeConst0( p->pNtk );
        else
            pObjNew = Abc_NtkCreateNodeConst1( p->pNtk );
        Abc_NtkUpdate( p->pObj, pObjNew, p->vLevels );
        p->nGainTotal += pCut->nNodes - pCut->nNodesDup;
        return 1;
    }
    if ( pRoot->Type == KIT_DSD_VAR )
    {
        pObjNew = Abc_NtkObj( p->pNtk, pCut->pLeaves[ Abc_Lit2Var(pRoot->pFans[0]) ] );
        if ( Abc_LitIsCompl(pNtk->Root) ^ Abc_LitIsCompl(pRoot->pFans[0]) )
            pObjNew = Abc_NtkCreateNodeInv( p->pNtk, pObjNew );
        Abc_NtkUpdate( p->pObj, pObjNew, p->vLevels );
        p->nGainTotal += pCut->nNodes - pCut->nNodesDup;
        return 1;
    }
    assert( pRoot->Type == KIT_DSD_AND || pRoot->Type == KIT_DSD_XOR || pRoot->Type == KIT_DSD_PRIME );

    // start the mapping manager
    if ( p->pIfMan == NULL )
        Lpk_IfManStart( p );

    // prepare the mapping manager
    If_ManRestart( p->pIfMan );
    // create the PI variables
    for ( i = 0; i < p->pPars->nVarsMax; i++ )
        ppLeaves[i] = If_ManCreateCi( p->pIfMan );
    // set the arrival times
    Lpk_CutForEachLeaf( p->pNtk, pCut, pLeaf, i )
        p->pIfMan->pPars->pTimesArr[i] = (float)pLeaf->Level;
    // prepare the PI cuts
    If_ManSetupCiCutSets( p->pIfMan );
    // create the internal nodes
    p->fCalledOnce = 0;
    p->nCalledSRed = 0;
    pDriver = Lpk_MapTree_rec( p, pNtk, ppLeaves, pNtk->Root, NULL );
    if ( pDriver == NULL )
        return 0;
    // create the PO node
    If_ManCreateCo( p->pIfMan, If_Regular(pDriver) );

    // perform mapping
    p->pIfMan->pPars->fAreaOnly = 1;
clk = Abc_Clock();
    If_ManPerformMappingComb( p->pIfMan );
p->timeMap += Abc_Clock() - clk;

    // compute the gain in area
    nGain = pCut->nNodes - pCut->nNodesDup - (int)p->pIfMan->AreaGlo;
    if ( p->pPars->fVeryVerbose )
        printf( "       Mffc = %2d. Mapped = %2d. Gain = %3d. Depth increase = %d. SReds = %d.\n",
            pCut->nNodes - pCut->nNodesDup, (int)p->pIfMan->AreaGlo, nGain, (int)p->pIfMan->RequiredGlo - (int)p->pObj->Level, p->nCalledSRed );

    // quit if there is no gain
    if ( !(nGain > 0 || (p->pPars->fZeroCost && nGain == 0)) )
        return 0;

    // quit if depth increases too much
    if ( (int)p->pIfMan->RequiredGlo > Abc_ObjRequiredLevel(p->pObj) )
        return 0;

    // perform replacement
    p->nGainTotal += nGain;
    p->nChanges++;
    if ( p->nCalledSRed )
        p->nBenefited++;

    nNodesBef = Abc_NtkNodeNum(p->pNtk);
    // prepare the mapping manager
    If_ManCleanNodeCopy( p->pIfMan );
    If_ManCleanCutData( p->pIfMan );
    // set the PIs of the cut
    Lpk_CutForEachLeaf( p->pNtk, pCut, pLeaf, i )
        If_ObjSetCopy( If_ManCi(p->pIfMan, i), pLeaf );
    // get the area of mapping
    pObjNew = Abc_NodeFromIf_rec( p->pNtk, p->pIfMan, If_Regular(pDriver), p->vCover );
    pObjNew->pData = Hop_NotCond( (Hop_Obj_t *)pObjNew->pData, If_IsComplement(pDriver) );
    // perform replacement
    Abc_NtkUpdate( p->pObj, pObjNew, p->vLevels );
//printf( "%3d : %d-%d=%d(%d) \n", p->nChanges, nNodesBef, Abc_NtkNodeNum(p->pNtk), nNodesBef-Abc_NtkNodeNum(p->pNtk), nGain );
    return 1;
}

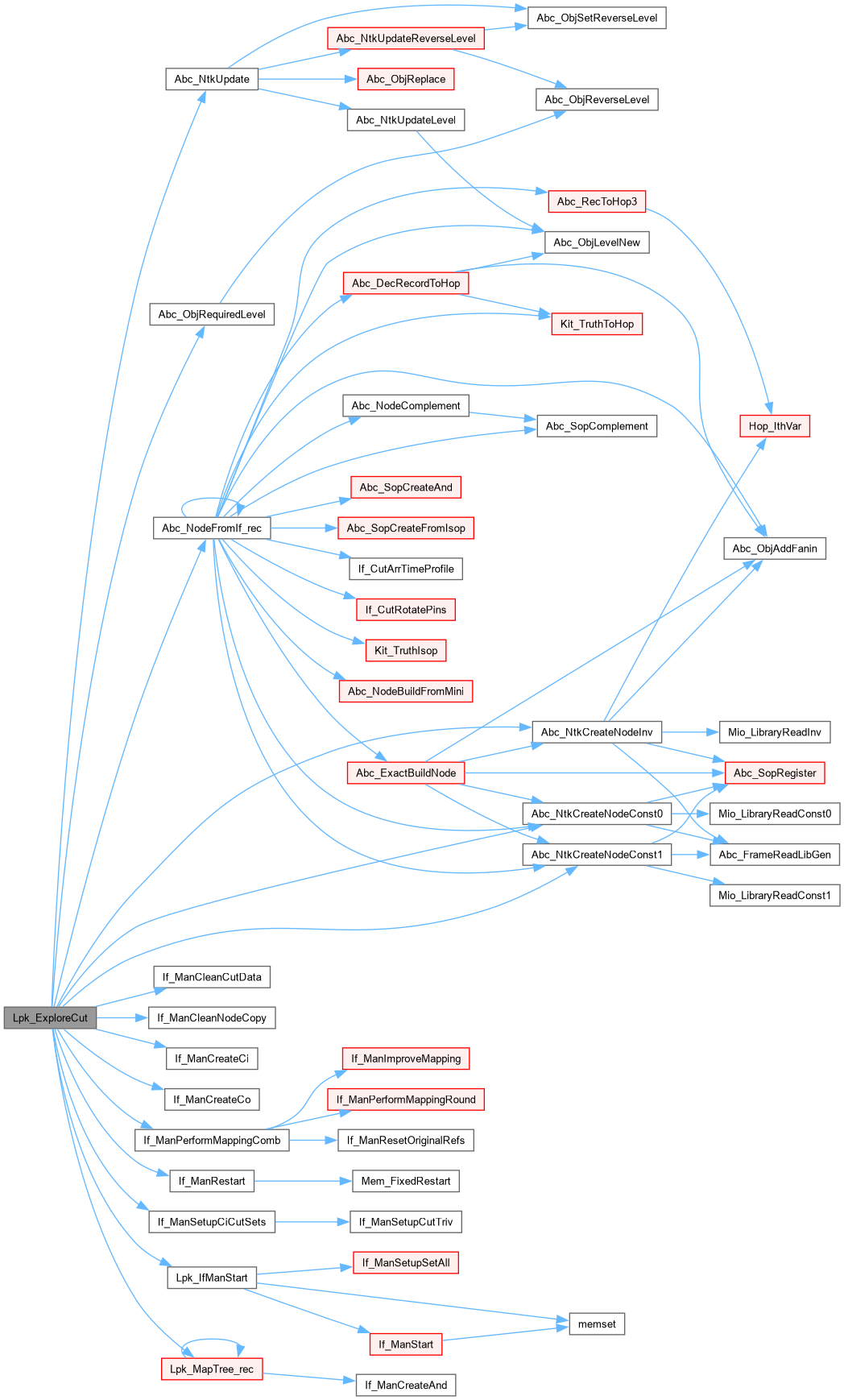

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_IfManStart()

void Lpk_IfManStart

(

Lpk_Man_t *

p

)

Function*************************************************************

Synopsis [Prepares the mapping manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 123 of file lpkCore.c.

{
    If_Par_t * pPars;
    assert( p->pIfMan == NULL );
    // set defaults
    pPars = ABC_ALLOC( If_Par_t, 1 );
    memset( pPars, 0, sizeof(If_Par_t) );
    // user-controlable paramters
    pPars->nLutSize    =  p->pPars->nLutSize;
    pPars->nCutsMax    = 16;
    pPars->nFlowIters  =  0; // 1
    pPars->nAreaIters  =  0; // 1
    pPars->DelayTarget = -1;
    pPars->Epsilon     =  (float)0.005;
    pPars->fPreprocess =  0;
    pPars->fArea       =  1;
    pPars->fFancy      =  0;
    pPars->fExpRed     =  0; //
    pPars->fLatchPaths =  0;
    pPars->fVerbose    =  0;
    // internal parameters
    pPars->fTruth      =  1;
    pPars->fUsePerm    =  0;
    pPars->nLatchesCi  =  0;
    pPars->nLatchesCo  =  0;
    pPars->pLutLib     =  NULL; // Abc_FrameReadLibLut();
    pPars->pTimesArr   =  NULL;
    pPars->pTimesArr   =  NULL;
    pPars->fUseBdds    =  0;
    pPars->fUseSops    =  0;
    pPars->fUseCnfs    =  0;
    pPars->fUseMv      =  0;
    // start the mapping manager and set its parameters
    p->pIfMan = If_ManStart( pPars );
    If_ManSetupSetAll( p->pIfMan, 1000 );
    p->pIfMan->pPars->pTimesArr = ABC_ALLOC( float, 32 );
}

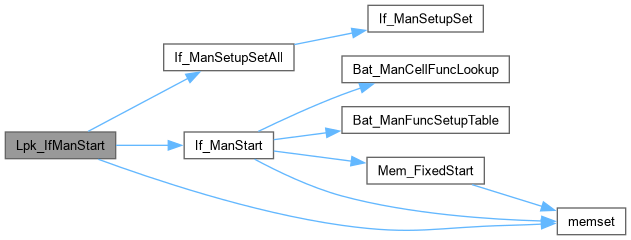

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_NodeHasChanged()

int Lpk_NodeHasChanged	(	Lpk_Man_t *	p,
		int	iNode )

Function*************************************************************

Synopsis [Returns 1 if at least one entry has changed.]

Description []

SideEffects []

SeeAlso []

Definition at line 172 of file lpkCore.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pTemp, * pTemp2;
    int i;
    vNodes = Vec_VecEntry( p->vVisited, iNode );
    if ( Vec_PtrSize(vNodes) == 0 )
        return 1;
    Vec_PtrForEachEntryDouble( Abc_Obj_t *, Abc_Obj_t *, vNodes, pTemp, pTemp2, i )
    {
        // check if the node has changed
        pTemp = Abc_NtkObj( p->pNtk, (int)(ABC_PTRUINT_T)pTemp );
        if ( pTemp == NULL )
            return 1;
        // check if the number of fanouts has changed
//        if ( Abc_ObjFanoutNum(pTemp) != (int)Vec_PtrEntry(vNodes, i+1) )
//            return 1;
//        i++;
    }
    return 0;
}

Here is the caller graph for this function:

Lpk_Resynthesize()

int Lpk_Resynthesize	(	Abc_Ntk_t *	pNtk,
		Lpk_Par_t *	pPars )

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis [Performs resynthesis for one network.]

Description []

SideEffects []

SeeAlso []

Definition at line 584 of file lpkCore.c.

{
    ProgressBar * pProgress = NULL; // Suppress "might be used uninitialized"
    Lpk_Man_t * p;
    Abc_Obj_t * pObj;
    double Delta;
//    int * pnFanouts, nObjMax;
    int i, Iter, nNodes, nNodesPrev;
    abctime clk = Abc_Clock();
    assert( Abc_NtkIsLogic(pNtk) );

    // sweep dangling nodes as a preprocessing step
    Abc_NtkSweep( pNtk, 0 );

    // get the number of inputs
    if ( Abc_FrameReadLibLut() )
        pPars->nLutSize = ((If_LibLut_t *)Abc_FrameReadLibLut())->LutMax;
    else
        pPars->nLutSize = Abc_NtkGetFaninMax( pNtk );
    if ( pPars->nLutSize > 6 )
        pPars->nLutSize = 6;
    if ( pPars->nLutSize < 3 )
        pPars->nLutSize = 3;
    // adjust the number of crossbars based on LUT size
    if ( pPars->nVarsShared > pPars->nLutSize - 2 )
        pPars->nVarsShared = pPars->nLutSize - 2;
    // get the max number of LUTs tried
    pPars->nVarsMax = pPars->nLutsMax * (pPars->nLutSize - 1) + 1; // V = N * (K-1) + 1
    while ( pPars->nVarsMax > 16 )
    {
        pPars->nLutsMax--;
        pPars->nVarsMax = pPars->nLutsMax * (pPars->nLutSize - 1) + 1;

    }
    if ( pPars->fVerbose )
    {
        printf( "Resynthesis for %d %d-LUTs with %d non-MFFC LUTs, %d crossbars, and %d-input cuts.\n",
            pPars->nLutsMax, pPars->nLutSize, pPars->nLutsOver, pPars->nVarsShared, pPars->nVarsMax );
    }


    // convert into the AIG
    if ( !Abc_NtkToAig(pNtk) )
    {
        fprintf( stdout, "Converting to BDD has failed.\n" );
        return 0;
    }
    assert( Abc_NtkHasAig(pNtk) );

    // set the number of levels
    Abc_NtkLevel( pNtk );
    Abc_NtkStartReverseLevels( pNtk, pPars->nGrowthLevel );

    // start the manager
    p = Lpk_ManStart( pPars );
    p->pNtk = pNtk;
    p->nNodesTotal = Abc_NtkNodeNum(pNtk);
    p->vLevels = Vec_VecStart( pNtk->LevelMax );
    if ( p->pPars->fSatur )
        p->vVisited = Vec_VecStart( 0 );
    if ( pPars->fVerbose )
    {
        p->nTotalNets = Abc_NtkGetTotalFanins(pNtk);
        p->nTotalNodes = Abc_NtkNodeNum(pNtk);
    }
/*
    // save the number of fanouts of all objects
    nObjMax = Abc_NtkObjNumMax( pNtk );
    pnFanouts = ABC_ALLOC( int, nObjMax );
    memset( pnFanouts, 0, sizeof(int) * nObjMax );
    Abc_NtkForEachObj( pNtk, pObj, i )
        pnFanouts[pObj->Id] = Abc_ObjFanoutNum(pObj);
*/

    // iterate over the network
    nNodesPrev = p->nNodesTotal;
    for ( Iter = 1; ; Iter++ )
    {
        // expand storage for changed nodes
        if ( p->pPars->fSatur )
            Vec_VecExpand( p->vVisited, Abc_NtkObjNumMax(pNtk) + 1 );

        // consider all nodes
        nNodes = Abc_NtkObjNumMax(pNtk);
        if ( !pPars->fVeryVerbose )
            pProgress = Extra_ProgressBarStart( stdout, nNodes );
        Abc_NtkForEachNode( pNtk, pObj, i )
        {
            // skip all except the final node
            if ( pPars->fFirst )
            {
                if ( !Abc_ObjIsCo(Abc_ObjFanout0(pObj)) )
                    continue;
            }
            if ( i >= nNodes )
                break;
            if ( !pPars->fVeryVerbose )
                Extra_ProgressBarUpdate( pProgress, i, NULL );
            // skip the nodes that did not change
            if ( p->pPars->fSatur && !Lpk_NodeHasChanged(p, pObj->Id) )
                continue;
            // resynthesize
            p->pObj = pObj;
            if ( p->pPars->fOldAlgo )
                Lpk_ResynthesizeNode( p );
            else
                Lpk_ResynthesizeNodeNew( p );
        }
        if ( !pPars->fVeryVerbose )
            Extra_ProgressBarStop( pProgress );

        // check the increase
        Delta = 100.00 * (nNodesPrev - Abc_NtkNodeNum(pNtk)) / p->nNodesTotal;
        if ( Delta < 0.05 )
            break;
        nNodesPrev = Abc_NtkNodeNum(pNtk);
        if ( !p->pPars->fSatur )
            break;

        if ( pPars->fFirst )
            break;
    }
    Abc_NtkStopReverseLevels( pNtk );
/*
    // report the fanout changes
    Abc_NtkForEachObj( pNtk, pObj, i )
    {
        if ( i >= nObjMax )
            continue;
        if ( Abc_ObjFanoutNum(pObj) - pnFanouts[pObj->Id] == 0 )
            continue;
        printf( "%d ", Abc_ObjFanoutNum(pObj) - pnFanouts[pObj->Id] );
    }
    printf( "\n" );
*/

    if ( pPars->fVerbose )
    {
//        Cloud_PrintInfo( p->pDsdMan->dd );
        p->nTotalNets2 = Abc_NtkGetTotalFanins(pNtk);
        p->nTotalNodes2 = Abc_NtkNodeNum(pNtk);
        printf( "Node gain = %5d. (%.2f %%)  ",
            p->nTotalNodes-p->nTotalNodes2, 100.0*(p->nTotalNodes-p->nTotalNodes2)/p->nTotalNodes );
        printf( "Edge gain = %5d. (%.2f %%)  ",
            p->nTotalNets-p->nTotalNets2, 100.0*(p->nTotalNets-p->nTotalNets2)/p->nTotalNets );
        printf( "Muxes = %4d. Dsds = %4d.", p->nMuxes, p->nDsds );
        printf( "\n" );
        printf( "Nodes = %5d (%3d)  Cuts = %5d (%4d)  Changes = %5d  Iter = %2d  Benefit = %d.\n",
            p->nNodesTotal, p->nNodesOver, p->nCutsTotal, p->nCutsUseful, p->nChanges, Iter, p->nBenefited );

        printf( "Non-DSD:" );
        for ( i = 3; i <= pPars->nVarsMax; i++ )
            if ( p->nBlocks[i] )
                printf( " %d=%d", i, p->nBlocks[i] );
        printf( "\n" );

        p->timeTotal = Abc_Clock() - clk;
        p->timeEval  = p->timeEval  - p->timeMap;
        p->timeOther = p->timeTotal - p->timeCuts - p->timeTruth - p->timeEval - p->timeMap;
        ABC_PRTP( "Cuts  ", p->timeCuts,  p->timeTotal );
        ABC_PRTP( "Truth ", p->timeTruth, p->timeTotal );
        ABC_PRTP( "CSupps", p->timeSupps, p->timeTotal );
        ABC_PRTP( "Eval  ", p->timeEval,  p->timeTotal );
        ABC_PRTP( " MuxAn", p->timeEvalMuxAn, p->timeEval );
        ABC_PRTP( " MuxSp", p->timeEvalMuxSp, p->timeEval );
        ABC_PRTP( " DsdAn", p->timeEvalDsdAn, p->timeEval );
        ABC_PRTP( " DsdSp", p->timeEvalDsdSp, p->timeEval );
        ABC_PRTP( " Other", p->timeEval-p->timeEvalMuxAn-p->timeEvalMuxSp-p->timeEvalDsdAn-p->timeEvalDsdSp, p->timeEval );
        ABC_PRTP( "Map   ", p->timeMap,   p->timeTotal );
        ABC_PRTP( "Other ", p->timeOther, p->timeTotal );
        ABC_PRTP( "TOTAL ", p->timeTotal, p->timeTotal );
    }

    Lpk_ManStop( p );
    // check the resulting network
    if ( !Abc_NtkCheck( pNtk ) )
    {
        printf( "Lpk_Resynthesize: The network check has failed.\n" );
        return 0;
    }
    return 1;
}

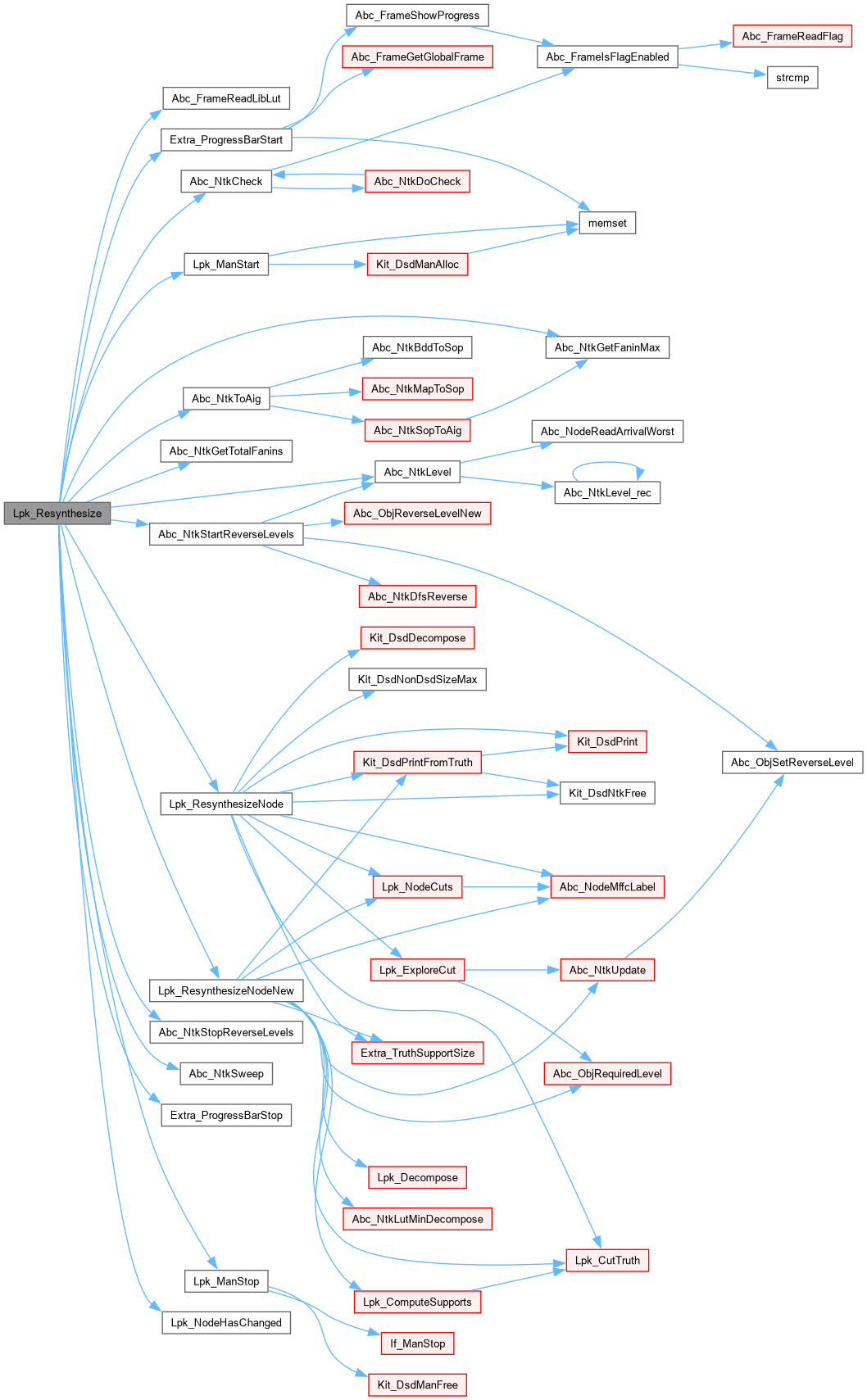

Here is the call graph for this function:

Lpk_ResynthesizeNode()

int Lpk_ResynthesizeNode

(

Lpk_Man_t *

p

)

Function*************************************************************

Synopsis [Performs resynthesis for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 315 of file lpkCore.c.

{
//    static int Count = 0;
    Kit_DsdNtk_t * pDsdNtk;
    Lpk_Cut_t * pCut;
    unsigned * pTruth;
    int i, k, nSuppSize, nCutNodes, RetValue;
    abctime clk;

    // compute the cuts
clk = Abc_Clock();
    if ( !Lpk_NodeCuts( p ) )
    {
p->timeCuts += Abc_Clock() - clk;
        return 0;
    }
p->timeCuts += Abc_Clock() - clk;

//return 0;

    if ( p->pPars->fVeryVerbose )
    printf( "Node %5d : Mffc size = %5d. Cuts = %5d.\n", p->pObj->Id, p->nMffc, p->nEvals );
    // try the good cuts
    p->nCutsTotal  += p->nCuts;
    p->nCutsUseful += p->nEvals;
    for ( i = 0; i < p->nEvals; i++ )
    {
        // get the cut
        pCut = p->pCuts + p->pEvals[i];
        if ( p->pPars->fFirst && i == 1 )
            break;

        // skip bad cuts
//        printf( "Mffc size = %d.  ", Abc_NodeMffcLabel(p->pObj) );
        for ( k = 0; k < (int)pCut->nLeaves; k++ )
            Abc_NtkObj(p->pNtk, pCut->pLeaves[k])->vFanouts.nSize++;
        nCutNodes = Abc_NodeMffcLabel(p->pObj, NULL);
//        printf( "Mffc with cut = %d.  ", nCutNodes );
        for ( k = 0; k < (int)pCut->nLeaves; k++ )
            Abc_NtkObj(p->pNtk, pCut->pLeaves[k])->vFanouts.nSize--;
//        printf( "Mffc cut = %d.  ", (int)pCut->nNodes - (int)pCut->nNodesDup );
//        printf( "\n" );
        if ( nCutNodes != (int)pCut->nNodes - (int)pCut->nNodesDup )
            continue;

        // compute the truth table
clk = Abc_Clock();
        pTruth = Lpk_CutTruth( p, pCut, 0 );
        nSuppSize = Extra_TruthSupportSize(pTruth, pCut->nLeaves);
p->timeTruth += Abc_Clock() - clk;

        pDsdNtk = Kit_DsdDecompose( pTruth, pCut->nLeaves );
//        Kit_DsdVerify( pDsdNtk, pTruth, pCut->nLeaves );
        // skip 16-input non-DSD because ISOP will not work
        if ( Kit_DsdNtkRoot(pDsdNtk)->nFans == 16 )
        {
            Kit_DsdNtkFree( pDsdNtk );
            continue;
        }

        // if DSD has nodes that require splitting to fit them into LUTs
        // we can skip those cuts that cannot lead to improvement
        // (a full DSD network requires  V = Nmin * (K-1) + 1 for improvement)
        if ( Kit_DsdNonDsdSizeMax(pDsdNtk) > p->pPars->nLutSize &&
             nSuppSize >= ((int)pCut->nNodes - (int)pCut->nNodesDup - 1) * (p->pPars->nLutSize - 1) + 1 )
        {
            Kit_DsdNtkFree( pDsdNtk );
            continue;
        }

        if ( p->pPars->fVeryVerbose )
        {
//            char * pFileName;
            printf( "  C%02d: L= %2d/%2d  V= %2d/%d  N= %d  W= %4.2f  ",
                i, pCut->nLeaves, nSuppSize, pCut->nNodes, pCut->nNodesDup, pCut->nLuts, pCut->Weight );
            Kit_DsdPrint( stdout, pDsdNtk );
            Kit_DsdPrintFromTruth( pTruth, pCut->nLeaves );
//            pFileName = Kit_TruthDumpToFile( pTruth, pCut->nLeaves, Count++ );
//            printf( "Saved truth table in file \"%s\".\n", pFileName );
        }

        // update the network
clk = Abc_Clock();
        RetValue = Lpk_ExploreCut( p, pCut, pDsdNtk );
p->timeEval += Abc_Clock() - clk;
        Kit_DsdNtkFree( pDsdNtk );
        if ( RetValue )
            break;
    }
    return 1;
}

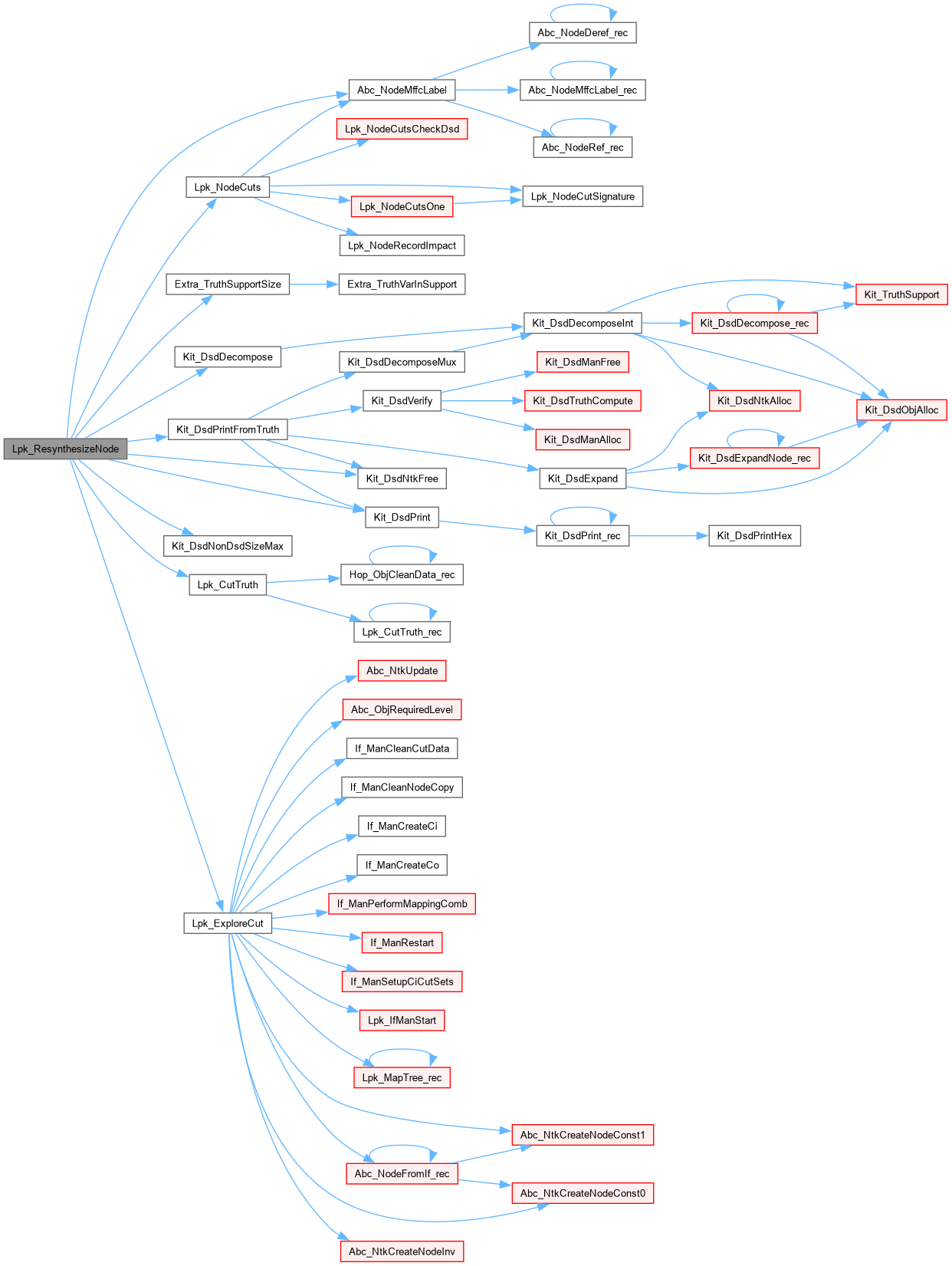

Here is the call graph for this function:

Here is the caller graph for this function:

Lpk_ResynthesizeNodeNew()

int Lpk_ResynthesizeNodeNew

(

Lpk_Man_t *

p

)

Function*************************************************************

Synopsis [Performs resynthesis for one node.]

Description []

SideEffects []

SeeAlso []

Definition at line 443 of file lpkCore.c.

{
//    static int Count = 0;
    int NodeCounts[16] = { 0, 0, 0, 0, 1, 3, 6, 14, 26, 57, 106, 230, 425, 1000000, 1000000, 1000000 };
    Abc_Obj_t * pObjNew, * pLeaf;
    Lpk_Cut_t * pCut;
    unsigned * pTruth;
    int nNodesBef, nNodesAft, nCutNodes;
    int i, k;
    abctime clk;
    int Required = Abc_ObjRequiredLevel(p->pObj);
//    CloudNode * pFun2;//, * pFun1;

    // compute the cuts
clk = Abc_Clock();
    if ( !Lpk_NodeCuts( p ) )
    {
p->timeCuts += Abc_Clock() - clk;
        return 0;
    }
p->timeCuts += Abc_Clock() - clk;

    if ( p->pPars->fVeryVerbose )
        printf( "Node %5d : Mffc size = %5d. Cuts = %5d.  Level = %2d. Req = %2d.\n",
            p->pObj->Id, p->nMffc, p->nEvals, p->pObj->Level, Required );
    // try the good cuts
    p->nCutsTotal  += p->nCuts;
    p->nCutsUseful += p->nEvals;
    for ( i = 0; i < p->nEvals; i++ )
    {
        // get the cut
        pCut = p->pCuts + p->pEvals[i];
        if ( p->pPars->fFirst && i == 1 )
            break;
//        if ( pCut->Weight < 1.05 )
//            continue;

        // skip bad cuts
//        printf( "Mffc size = %d.  ", Abc_NodeMffcLabel(p->pObj) );
        for ( k = 0; k < (int)pCut->nLeaves; k++ )
            Abc_NtkObj(p->pNtk, pCut->pLeaves[k])->vFanouts.nSize++;
        nCutNodes = Abc_NodeMffcLabel(p->pObj, NULL);
//        printf( "Mffc with cut = %d.  ", nCutNodes );
        for ( k = 0; k < (int)pCut->nLeaves; k++ )
            Abc_NtkObj(p->pNtk, pCut->pLeaves[k])->vFanouts.nSize--;
//        printf( "Mffc cut = %d.  ", (int)pCut->nNodes - (int)pCut->nNodesDup );
//        printf( "\n" );
        if ( nCutNodes != (int)pCut->nNodes - (int)pCut->nNodesDup )
            continue;

        // collect nodes into the array
        Vec_PtrClear( p->vLeaves );
        for ( k = 0; k < (int)pCut->nLeaves; k++ )
            Vec_PtrPush( p->vLeaves, Abc_NtkObj(p->pNtk, pCut->pLeaves[k]) );

        // compute the truth table
clk = Abc_Clock();
        pTruth = Lpk_CutTruth( p, pCut, 0 );
p->timeTruth += Abc_Clock() - clk;
clk = Abc_Clock();
        Lpk_ComputeSupports( p, pCut, pTruth );
p->timeSupps += Abc_Clock() - clk;
//clk = Abc_Clock();
//        pFun1 = Lpk_CutTruthBdd( p, pCut );
//p->timeTruth2 += Abc_Clock() - clk;
/*
clk = Abc_Clock();
        Cloud_Restart( p->pDsdMan->dd );
        pFun2 = Kit_TruthToCloud( p->pDsdMan->dd, pTruth, pCut->nLeaves );
        RetValue = Kit_CreateCloud( p->pDsdMan->dd, pFun2, p->vBddNodes );
p->timeTruth3 += Abc_Clock() - clk;
*/
//        if ( pFun1 != pFun2 )
//            printf( "Truth tables do not agree!\n" );
//        else
//            printf( "Fine!\n" );

        if ( p->pPars->fVeryVerbose )
        {
//            char * pFileName;
            int nSuppSize = Extra_TruthSupportSize( pTruth, pCut->nLeaves );
            printf( "  C%02d: L= %2d/%2d  V= %2d/%d  N= %d  W= %4.2f  ",
                i, pCut->nLeaves, nSuppSize, pCut->nNodes, pCut->nNodesDup, pCut->nLuts, pCut->Weight );
            Vec_PtrForEachEntry( Abc_Obj_t *, p->vLeaves, pLeaf, k )
                printf( "%c=%d ", 'a'+k, Abc_ObjLevel(pLeaf) );
            printf( "\n" );
            Kit_DsdPrintFromTruth( pTruth, pCut->nLeaves );
            printf( "\n" );
//            pFileName = Kit_TruthDumpToFile( pTruth, pCut->nLeaves, Count++ );
//            printf( "Saved truth table in file \"%s\".\n", pFileName );
        }

        // update the network
        nNodesBef = Abc_NtkNodeNum(p->pNtk);
clk = Abc_Clock();
        pObjNew = Lpk_Decompose( p, p->pNtk, p->vLeaves, pTruth, p->puSupps, p->pPars->nLutSize,
            (int)pCut->nNodes - (int)pCut->nNodesDup - 1 + (int)(p->pPars->fZeroCost > 0), Required );
        if ( pObjNew == NULL && p->pPars->nLutSize == 4 && (int)pCut->nNodes > NodeCounts[Vec_PtrSize(p->vLeaves)] + !p->pPars->fZeroCost )
            pObjNew = Abc_NtkLutMinDecompose( p->pNtk, p->vLeaves, (word *)pTruth, p->pPars->nLutSize, Required );
p->timeEval += Abc_Clock() - clk;
        nNodesAft = Abc_NtkNodeNum(p->pNtk);

        // perform replacement
        if ( pObjNew )
        {
            int nGain = (int)pCut->nNodes - (int)pCut->nNodesDup - (nNodesAft - nNodesBef);
            //assert( nGain >= 1 - p->pPars->fZeroCost );
            assert( Abc_ObjLevel(pObjNew) <= Required );
/*
            if ( nGain <= 0 )
            {
                int x = 0;
            }
            if ( Abc_ObjLevel(pObjNew) > Required )
            {
                int x = 0;
            }
*/
            p->nGainTotal += nGain;
            p->nChanges++;
            if ( p->pPars->fVeryVerbose )
                printf( "Performed resynthesis: Gain = %2d. Level = %2d. Req = %2d.\n", nGain, Abc_ObjLevel(pObjNew), Required );
            Abc_NtkUpdate( p->pObj, pObjNew, p->vLevels );
//printf( "%3d : %d-%d=%d(%d) \n", p->nChanges, nNodesBef, Abc_NtkNodeNum(p->pNtk), nNodesBef-Abc_NtkNodeNum(p->pNtk), nGain );
            break;
        }
    }
    return 1;
}

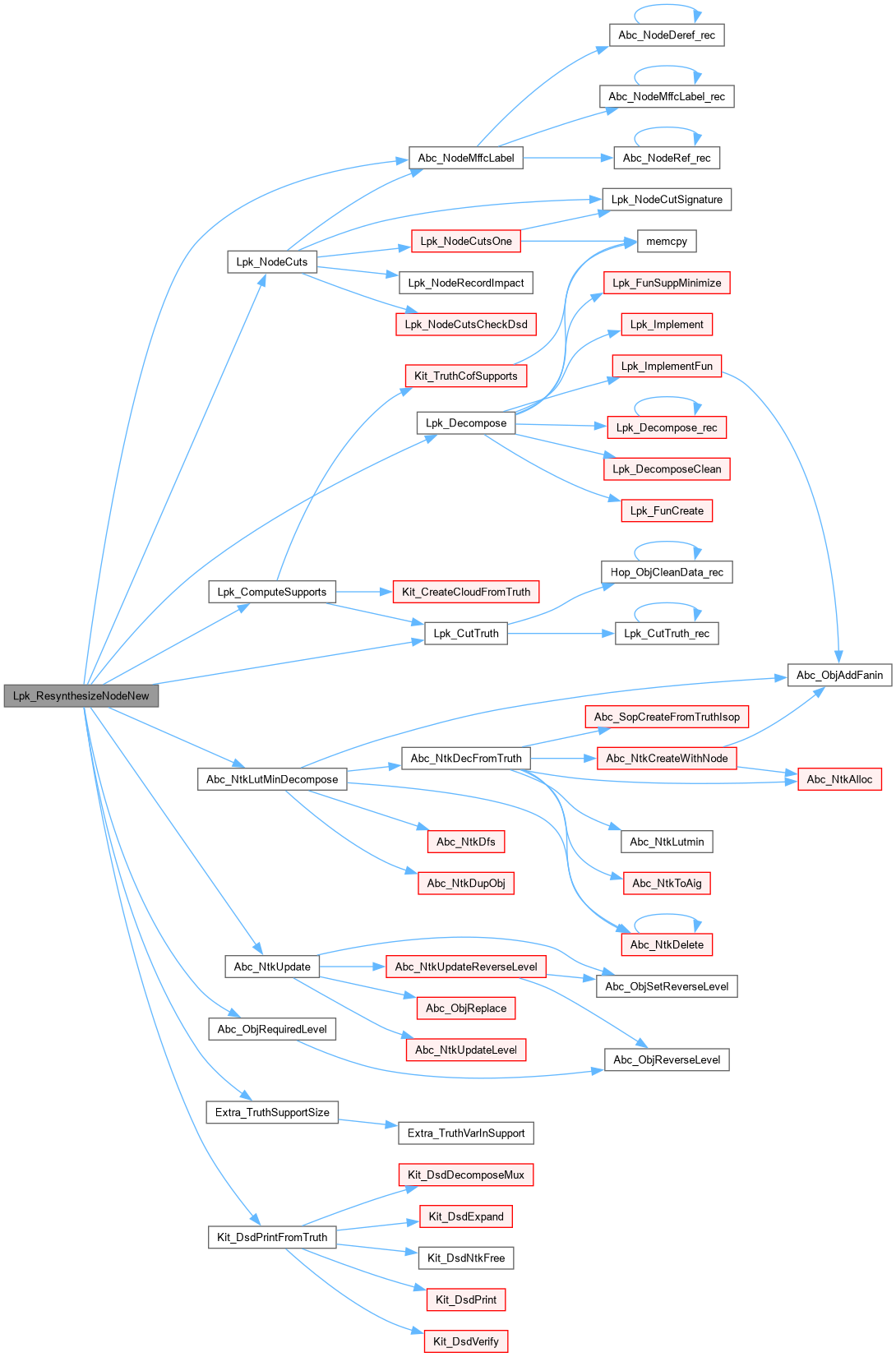

Here is the call graph for this function:

Here is the caller graph for this function:
