mapperLib.c File Reference

#include <unistd.h>
#include "mapperInt.h"
#include "map/super/super.h"

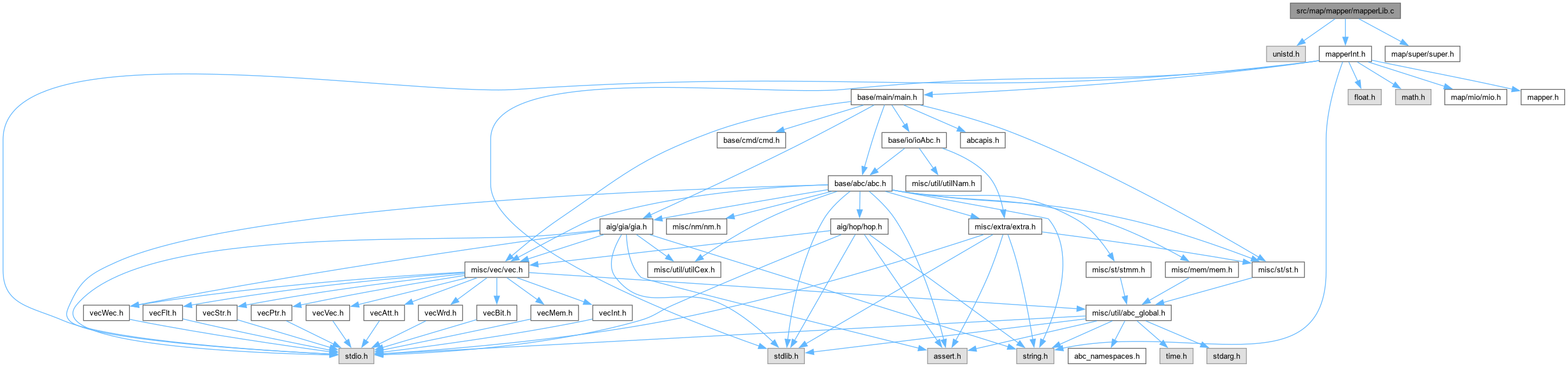

Include dependency graph for mapperLib.c:

Go to the source code of this file.

Macros
#define	_DEFAULT_SOURCE

Functions
ABC_NAMESPACE_IMPL_START Map_SuperLib_t *	Map_SuperLibCreate (Mio_Library_t *pGenlib, Vec_Str_t *vStr, char *pFileName, char *pExcludeFile, int fAlgorithm, int fVerbose)
	DECLARATIONS ///.
void	Map_SuperLibFree (Map_SuperLib_t *p)
int	Map_SuperLibDeriveFromGenlib (Mio_Library_t *pLib, int fVerbose)
int	Map_SuperLibDeriveFromGenlib2 (Mio_Library_t *pLib, int fVerbose)

Macro Definition Documentation

_DEFAULT_SOURCE

#define _DEFAULT_SOURCE

CFile****************************************************************

FileName [mapperLib.c]

PackageName [MVSIS 1.3: Multi-valued logic synthesis system.]

Synopsis [Generic technology mapping engine.]

Author [MVSIS Group]

Affiliation [UC Berkeley]

Date [Ver. 2.0. Started - June 1, 2004.]

Revision [

Id

mapperLib.c,v 1.6 2005/01/23 06:59:44 alanmi Exp

]

Definition at line 22 of file mapperLib.c.

Function Documentation

Map_SuperLibCreate()

ABC_NAMESPACE_IMPL_START Map_SuperLib_t * Map_SuperLibCreate	(	Mio_Library_t *	pGenlib,
		Vec_Str_t *	vStr,
		char *	pFileName,
		char *	pExcludeFile,
		int	fAlgorithm,
		int	fVerbose )

DECLARATIONS ///.

FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Reads in the supergate library and prepares it for use.]

Description [The supergates library comes in a .super file. This file contains descriptions of supergates along with some relevant information. This procedure reads the supergate file, canonicizes the supergates, and constructs an additional lookup table, which can be used to map truth tables of the cuts into the pair (phase, supergate). The phase indicates how the current truth table should be phase assigned to match the canonical form of the supergate. The resulting phase is the bitwise EXOR of the phase needed to canonicize the supergate and the phase needed to transform the truth table into its canonical form.]

SideEffects []

SeeAlso []

Definition at line 61 of file mapperLib.c.

{
    Map_SuperLib_t * p;
    abctime clk;

    // start the supergate library
    p = ABC_ALLOC( Map_SuperLib_t, 1 );
    memset( p, 0, sizeof(Map_SuperLib_t) );
    p->pName     = Abc_UtilStrsav(pFileName);
    p->fVerbose  = fVerbose;
    p->mmSupers  = Extra_MmFixedStart( sizeof(Map_Super_t) );
    p->mmEntries = Extra_MmFixedStart( sizeof(Map_HashEntry_t) );
    p->mmForms   = Extra_MmFlexStart();
    Map_MappingSetupTruthTables( p->uTruths );

    // start the hash table
    p->tTableC = Map_SuperTableCreate( p );
    p->tTable  = Map_SuperTableCreate( p );

    // read the supergate library from file
clk = Abc_Clock();
    if ( vStr != NULL )
    {
        // read the supergate library from file
        int Status = Map_LibraryReadFileTreeStr( p, pGenlib, vStr, pFileName );
        if ( Status == 0 )
        {
            Map_SuperLibFree( p );
            return NULL;
        }
        // prepare the info about the library
        Status = Map_LibraryDeriveGateInfo( p, NULL );
        if ( Status == 0 )
        {
            Map_SuperLibFree( p );
            return NULL;
        }
        assert( p->nVarsMax > 0 );
    }
    else if ( fAlgorithm )
    {
        if ( !Map_LibraryReadTree( p, pGenlib, pFileName, pExcludeFile ) )
        {
            Map_SuperLibFree( p );
            return NULL;
        }
    }
    else
    {
        if ( pExcludeFile != 0 )
        {
            Map_SuperLibFree( p );
            printf ("Error: Exclude file support not present for old format. Stop.\n");
            return NULL;
        }
        if ( !Map_LibraryRead( p, pFileName ) )
        {
            Map_SuperLibFree( p );
            return NULL;
        }
    }
    assert( p->nVarsMax > 0 );

    // report the stats
    if ( fVerbose )
    {
        printf( "Loaded %d unique %d-input supergates from \"%s\".  ",
            p->nSupersReal, p->nVarsMax, pFileName );
        ABC_PRT( "Time", Abc_Clock() - clk );
    }

    // assign the interver parameters
    p->pGateInv        = Mio_LibraryReadInv( p->pGenlib );
    p->tDelayInv.Rise  = Mio_LibraryReadDelayInvRise( p->pGenlib );
    p->tDelayInv.Fall  = Mio_LibraryReadDelayInvFall( p->pGenlib );
    p->tDelayInv.Worst = MAP_MAX( p->tDelayInv.Rise, p->tDelayInv.Fall );
    p->AreaInv         = Mio_LibraryReadAreaInv( p->pGenlib );
    p->AreaBuf         = Mio_LibraryReadAreaBuf( p->pGenlib );

    // assign the interver supergate
    p->pSuperInv = (Map_Super_t *)Extra_MmFixedEntryFetch( p->mmSupers );
    memset( p->pSuperInv, 0, sizeof(Map_Super_t) );
    p->pSuperInv->Num         = -1;
    p->pSuperInv->nGates      =  1;
    p->pSuperInv->nFanins     =  1;
    p->pSuperInv->nFanLimit   = 10;
    p->pSuperInv->pFanins[0]  = p->ppSupers[0];
    p->pSuperInv->pRoot       = p->pGateInv;
    p->pSuperInv->Area        = p->AreaInv;
    p->pSuperInv->tDelayMax   = p->tDelayInv;
    p->pSuperInv->tDelaysR[0].Rise = MAP_NO_VAR;
    p->pSuperInv->tDelaysR[0].Fall = p->tDelayInv.Rise;
    p->pSuperInv->tDelaysF[0].Rise = p->tDelayInv.Fall;
    p->pSuperInv->tDelaysF[0].Fall = MAP_NO_VAR;
    return p;
}

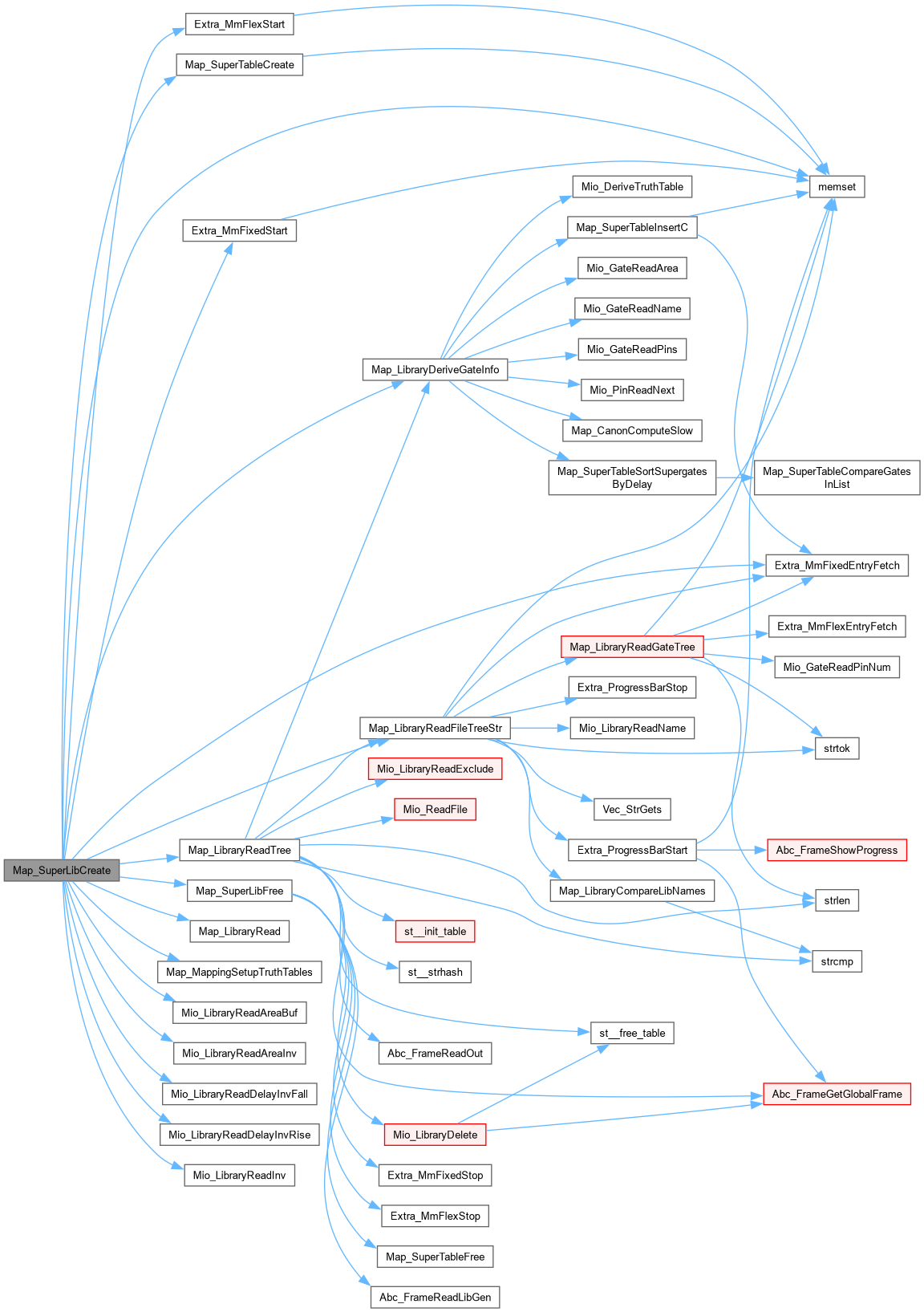

Here is the call graph for this function:

Here is the caller graph for this function:

Map_SuperLibDeriveFromGenlib()

int Map_SuperLibDeriveFromGenlib	(	Mio_Library_t *	pLib,
		int	fVerbose )

Function*************************************************************

Synopsis [Derives the library from the genlib library.]

Description []

SideEffects []

SeeAlso []

Definition at line 202 of file mapperLib.c.

{
    Map_SuperLib_t * pLibSuper;
    Vec_Str_t * vStr;
    char * pFileName;
    if ( pLib == NULL )
        return 0;

    // compute supergates
    vStr = Super_PrecomputeStr( pLib, 5, 1, 100000000, 10000000, 10000000, 100, 1, 0 );
    if ( vStr == NULL )
        return 0;

    // create supergate library
    pFileName = Extra_FileNameGenericAppend( Mio_LibraryReadName(pLib), ".super" );
    pLibSuper = Map_SuperLibCreate( pLib, vStr, pFileName, NULL, 1, 0 );
    Vec_StrFree( vStr );

    // replace the library
    Map_SuperLibFree( (Map_SuperLib_t *)Abc_FrameReadLibSuper() );
    Abc_FrameSetLibSuper( pLibSuper );
    return 1;
}

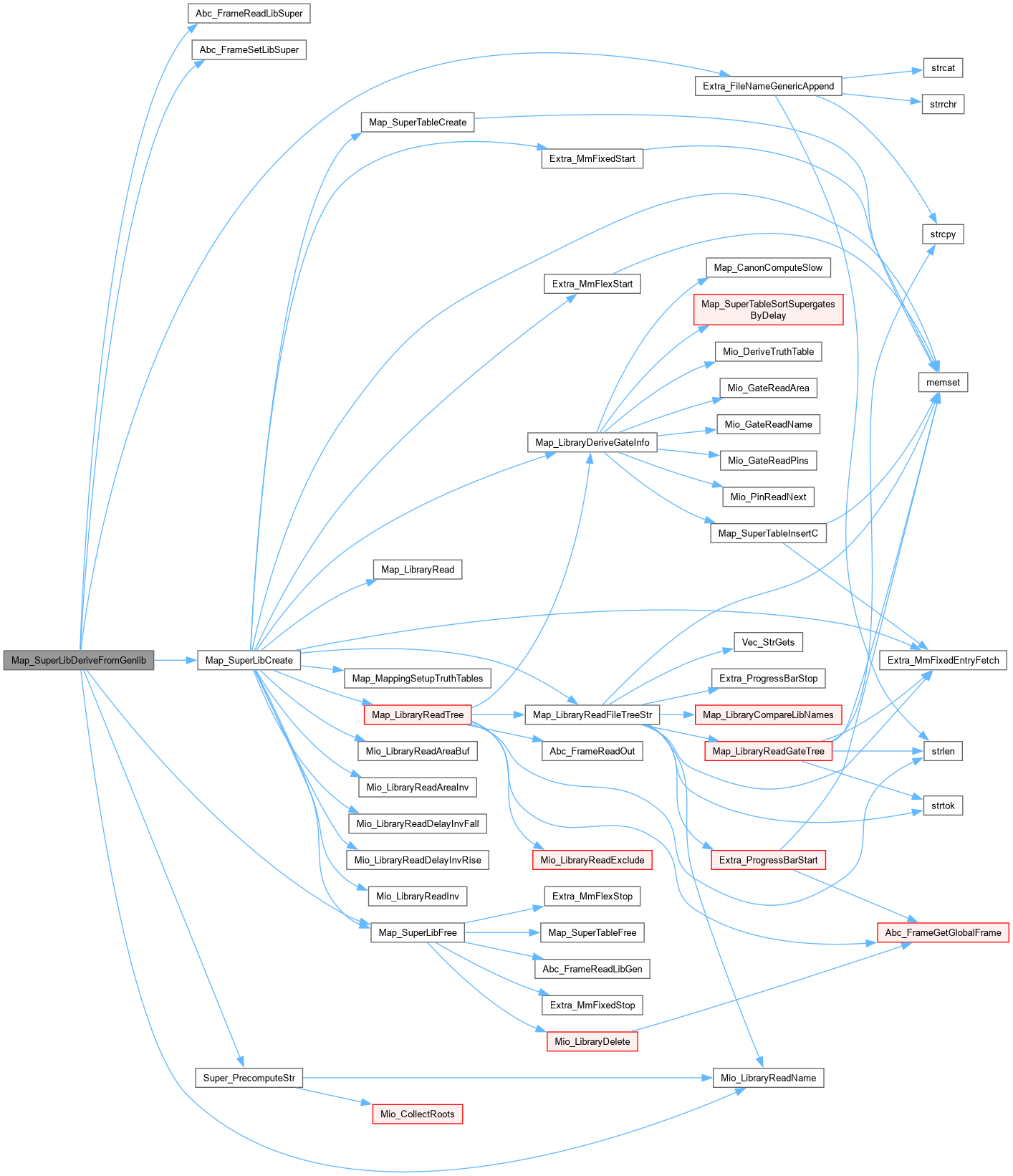

Here is the call graph for this function:

Here is the caller graph for this function:

Map_SuperLibDeriveFromGenlib2()

int Map_SuperLibDeriveFromGenlib2	(	Mio_Library_t *	pLib,
		int	fVerbose )

Function*************************************************************

Synopsis [Derives the library from the genlib library.]

Description []

SideEffects []

SeeAlso []

Definition at line 237 of file mapperLib.c.

{
    Abc_Frame_t * pAbc = Abc_FrameGetGlobalFrame();
    char * pFileName;
    if ( pLib == NULL )
        return 0;
    // compute supergates
    pFileName = Extra_FileNameGenericAppend(Mio_LibraryReadName(pLib), ".super");
    Super_Precompute( pLib, 5, 1, 100000000, 10000000, 10000000, 100, 1, 0, pFileName );
    // assuming that it terminated successfully
    if ( Cmd_CommandExecute( pAbc, pFileName ) )
    {
        fprintf( stdout, "Cannot execute command \"read_super %s\".\n", pFileName );
        return 0;
    }
    return 1;
}

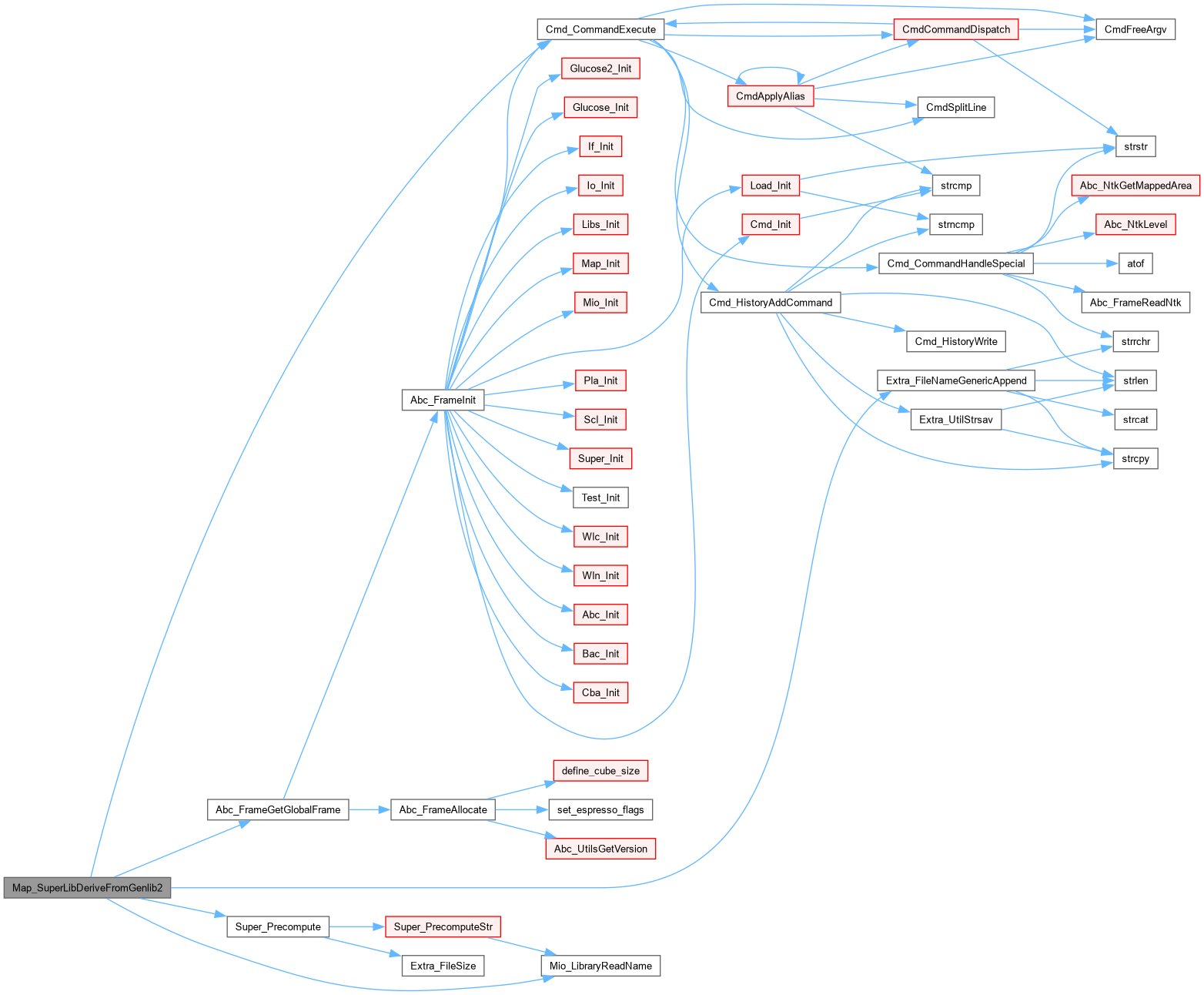

Here is the call graph for this function:

Map_SuperLibFree()

void Map_SuperLibFree

(

Map_SuperLib_t *

p

)

Function*************************************************************

Synopsis [Deallocates the supergate library.]

Description []

SideEffects []

SeeAlso []

Definition at line 170 of file mapperLib.c.

{
    if ( p == NULL ) return;
    if ( p->pGenlib )
    {
        if ( p->pGenlib != Abc_FrameReadLibGen() )
            Mio_LibraryDelete( p->pGenlib );
        p->pGenlib = NULL;
    }
    if ( p->tTableC )
        Map_SuperTableFree( p->tTableC );
    if ( p->tTable )
        Map_SuperTableFree( p->tTable );
    Extra_MmFixedStop( p->mmSupers );
    Extra_MmFixedStop( p->mmEntries );
    Extra_MmFlexStop( p->mmForms );
    ABC_FREE( p->ppSupers );
    ABC_FREE( p->pName );
    ABC_FREE( p );
}

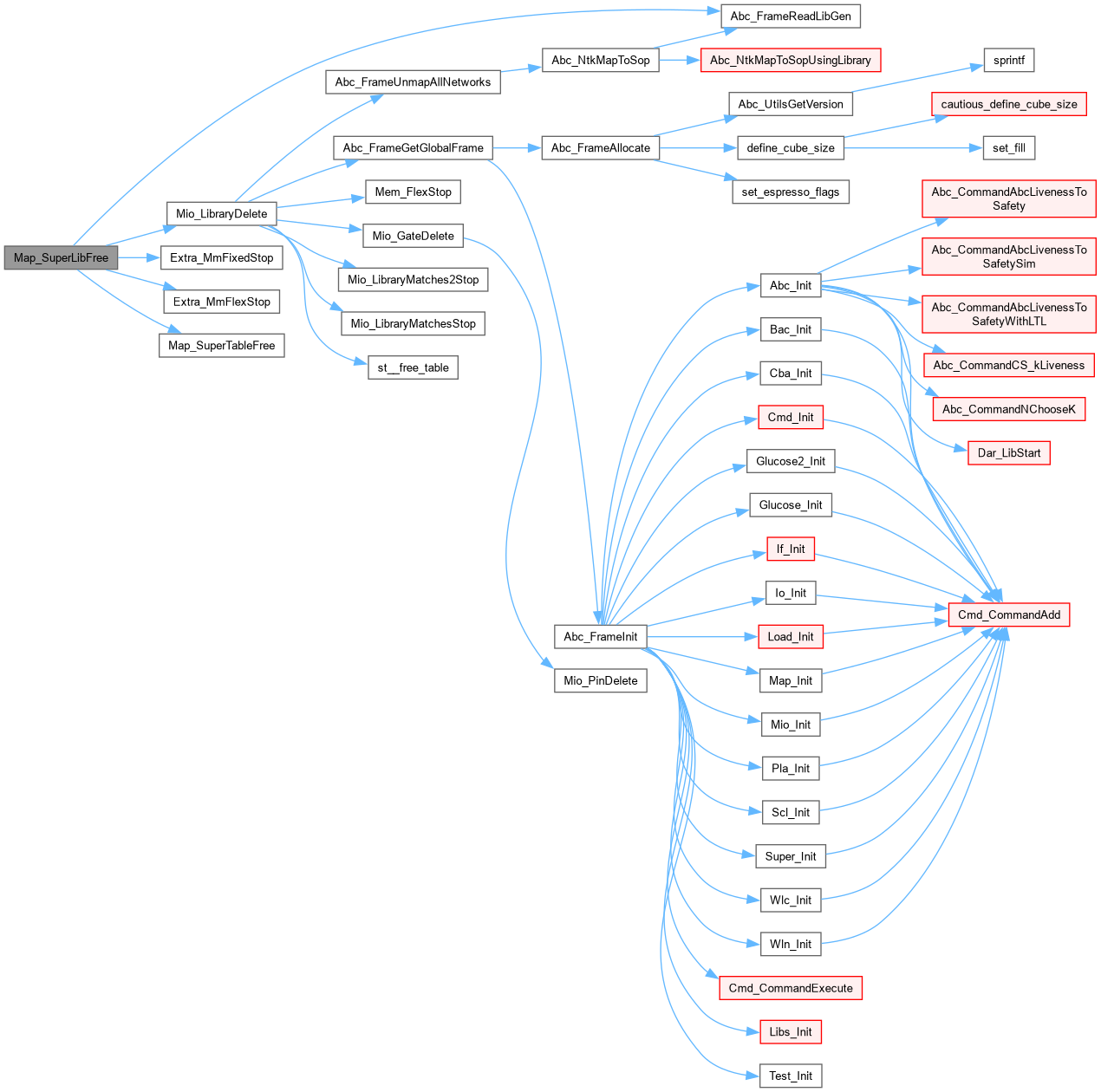

Here is the call graph for this function:

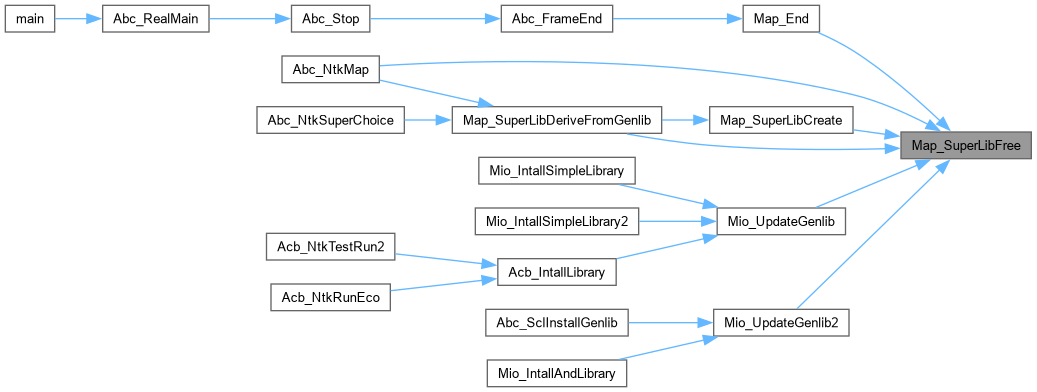

Here is the caller graph for this function:
