msatSolverSearch.c File Reference

#include "msatInt.h"

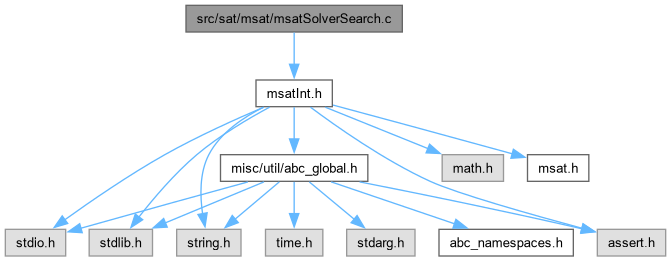

Include dependency graph for msatSolverSearch.c:

Go to the source code of this file.

Functions
int	Msat_SolverAssume (Msat_Solver_t *p, Msat_Lit_t Lit)
	FUNCTION DEFINITIONS ///.
void	Msat_SolverCancelUntil (Msat_Solver_t *p, int Level)
int	Msat_SolverEnqueue (Msat_Solver_t *p, Msat_Lit_t Lit, Msat_Clause_t *pC)
Msat_Clause_t *	Msat_SolverPropagate (Msat_Solver_t *p)
int	Msat_SolverSimplifyDB (Msat_Solver_t *p)
void	Msat_SolverRemoveLearned (Msat_Solver_t *p)
void	Msat_SolverRemoveMarked (Msat_Solver_t *p)
Msat_Type_t	Msat_SolverSearch (Msat_Solver_t *p, int nConfLimit, int nLearnedLimit, int nBackTrackLimit, Msat_SearchParams_t *pPars)

Function Documentation

Msat_SolverAssume()

int Msat_SolverAssume	(	Msat_Solver_t *	p,
		Msat_Lit_t	Lit )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Makes the next assumption (Lit).]

Description [Returns FALSE if immediate conflict.]

SideEffects []

SeeAlso []

Definition at line 51 of file msatSolverSearch.c.

{
    assert( Msat_QueueReadSize(p->pQueue) == 0 );
    if ( p->fVerbose )
        printf(L_IND "assume(" L_LIT ")\n", L_ind, L_lit(Lit));
    Msat_IntVecPush( p->vTrailLim, Msat_IntVecReadSize(p->vTrail) );
//    assert( Msat_IntVecReadSize(p->vTrailLim) <= Msat_IntVecReadSize(p->vTrail) + 1 );
//    assert( Msat_IntVecReadSize( p->vTrailLim ) < p->nVars );
    return Msat_SolverEnqueue( p, Lit, NULL );
}

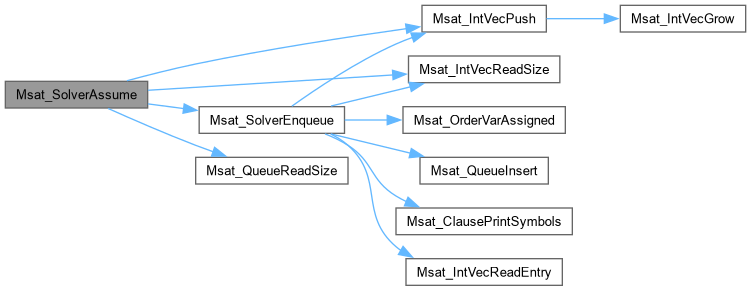

Here is the call graph for this function:

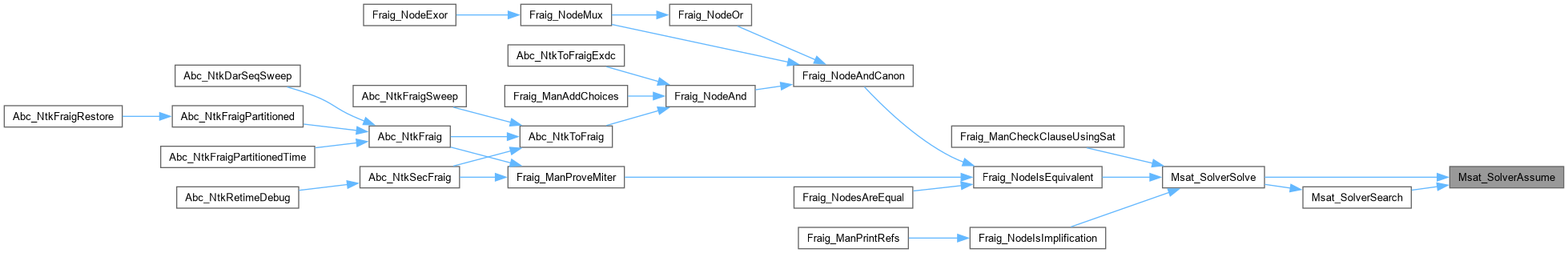

Here is the caller graph for this function:

Msat_SolverCancelUntil()

void Msat_SolverCancelUntil	(	Msat_Solver_t *	p,
		int	Level )

Function*************************************************************

Synopsis [Reverts to the state at given level.]

Description []

SideEffects []

SeeAlso []

Definition at line 128 of file msatSolverSearch.c.

{
    while ( Msat_IntVecReadSize(p->vTrailLim) > Level )
        Msat_SolverCancel(p);
}

Here is the call graph for this function:

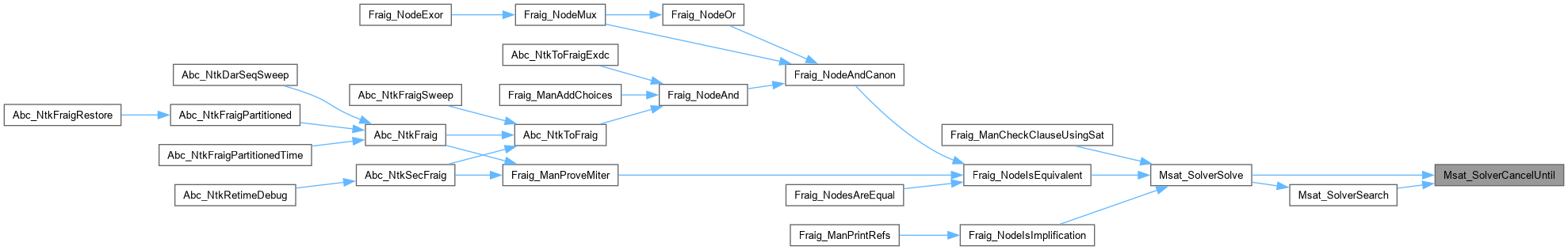

Here is the caller graph for this function:

Msat_SolverEnqueue()

int Msat_SolverEnqueue	(	Msat_Solver_t *	p,
		Msat_Lit_t	Lit,
		Msat_Clause_t *	pC )

Function*************************************************************

Synopsis [Enqueues one variable assignment.]

Description [Puts a new fact on the propagation queue and immediately updates the variable value. Should a conflict arise, FALSE is returned. Otherwise returns TRUE.]

SideEffects []

SeeAlso []

Definition at line 173 of file msatSolverSearch.c.

{
    Msat_Var_t Var = MSAT_LIT2VAR(Lit);

    // skip literals that are not in the current cone
    if ( !Msat_IntVecReadEntry( p->vVarsUsed, Var ) )
        return 1;

//    assert( Msat_QueueReadSize(p->pQueue) == Msat_IntVecReadSize(p->vTrail) );
    // if the literal is assigned
    // return 1 if the assignment is consistent
    // return 0 if the assignment is inconsistent (conflict)
    if ( p->pAssigns[Var] != MSAT_VAR_UNASSIGNED )
        return p->pAssigns[Var] == Lit;
    // new fact - store it
    if ( p->fVerbose )
    {
//        printf(L_IND"bind("L_LIT")\n", L_ind, L_lit(Lit));
        printf(L_IND "bind(" L_LIT ")  ", L_ind, L_lit(Lit));
        Msat_ClausePrintSymbols( pC );
    }
    p->pAssigns[Var] = Lit;
    p->pLevel[Var]   = Msat_IntVecReadSize(p->vTrailLim);
//    p->pReasons[Var] = p->pLevel[Var]? pC: NULL;
    p->pReasons[Var] = pC;
    Msat_IntVecPush( p->vTrail, Lit );
    Msat_QueueInsert( p->pQueue, Lit );

    Msat_OrderVarAssigned( p->pOrder, Var );
    return 1;
}

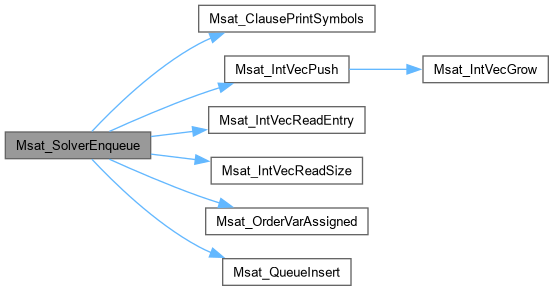

Here is the call graph for this function:

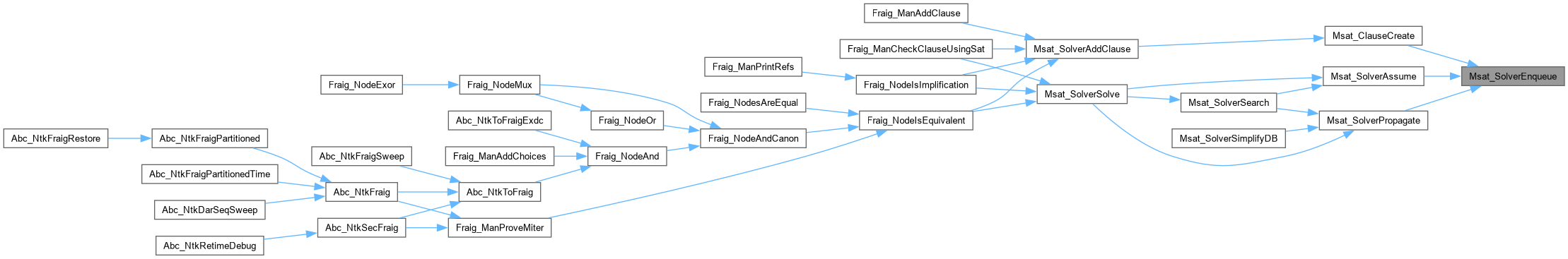

Here is the caller graph for this function:

Msat_SolverPropagate()

Msat_Clause_t * Msat_SolverPropagate

(

Msat_Solver_t *

p

)

Function*************************************************************

Synopsis [Propagates the assignments in the queue.]

Description [Propagates all enqueued facts. If a conflict arises, the conflicting clause is returned, otherwise NULL.]

SideEffects [The propagation queue is empty, even if there was a conflict.]

SeeAlso []

Definition at line 217 of file msatSolverSearch.c.

{
    Msat_ClauseVec_t ** pvWatched = p->pvWatched;
    Msat_Clause_t ** pClauses;
    Msat_Clause_t * pConflict;
    Msat_Lit_t Lit, Lit_out;
    int i, j, nClauses;

    // propagate all the literals in the queue
    while ( (Lit = Msat_QueueExtract( p->pQueue )) >= 0 )
    {
        p->Stats.nPropagations++;
        // get the clauses watched by this literal
        nClauses = Msat_ClauseVecReadSize( pvWatched[Lit] );
        pClauses = Msat_ClauseVecReadArray( pvWatched[Lit] );
        // go through the watched clauses and decide what to do with them
        for ( i = j = 0; i < nClauses; i++ )
        {
            p->Stats.nInspects++;
            // clear the returned literal
            Lit_out = -1;
            // propagate the clause
            if ( !Msat_ClausePropagate( pClauses[i], Lit, p->pAssigns, &Lit_out ) )
            {   // the clause is unit
                // "Lit_out" contains the new assignment to be enqueued
                if ( Msat_SolverEnqueue( p, Lit_out, pClauses[i] ) )
                { // consistent assignment
                    // no changes to the implication queue; the watch is the same too
                    pClauses[j++] = pClauses[i];
                    continue;
                }
                // remember the reason of conflict (will be returned)
                pConflict = pClauses[i];
                // leave the remaning clauses in the same watched list
                for ( ; i < nClauses; i++ )
                    pClauses[j++] = pClauses[i];
                Msat_ClauseVecShrink( pvWatched[Lit], j );
                // clear the propagation queue
                Msat_QueueClear( p->pQueue );
                return pConflict;
            }
            // the clause is not unit
            // in this case "Lit_out" contains the new watch if it has changed
            if ( Lit_out >= 0 )
                Msat_ClauseVecPush( pvWatched[Lit_out], pClauses[i] );
            else // the watch did not change
                pClauses[j++] = pClauses[i];
        }
        Msat_ClauseVecShrink( pvWatched[Lit], j );
    }
    return NULL;
}

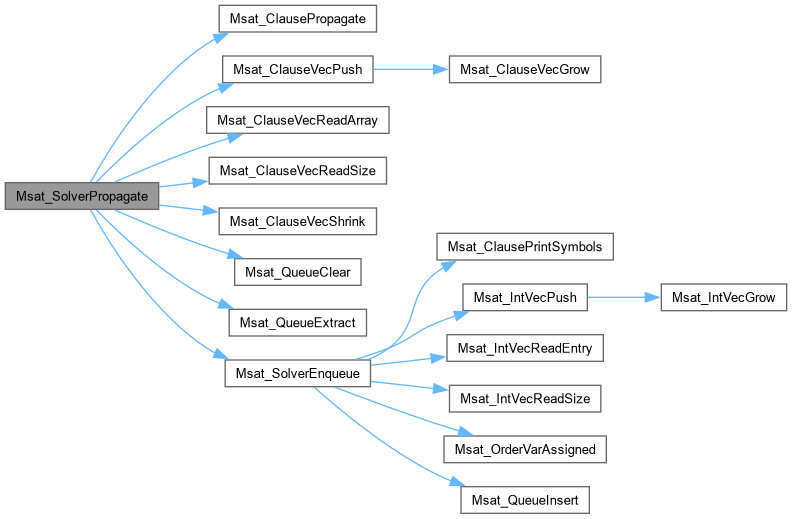

Here is the call graph for this function:

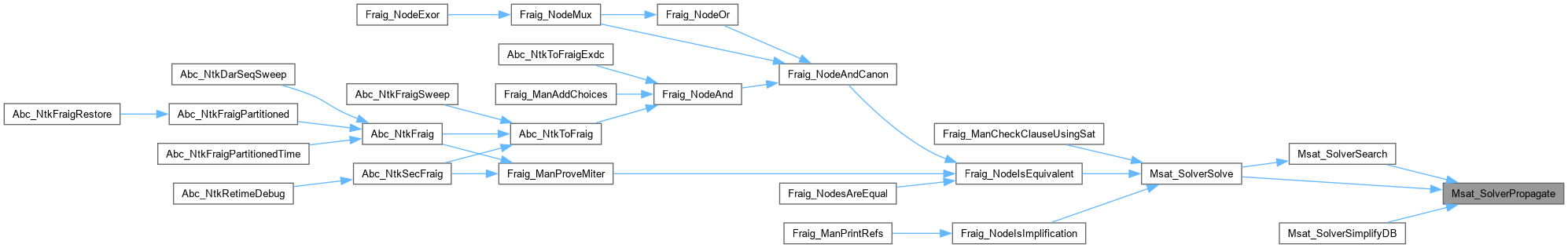

Here is the caller graph for this function:

Msat_SolverRemoveLearned()

void Msat_SolverRemoveLearned

(

Msat_Solver_t *

p

)

Function*************************************************************

Synopsis [Removes the learned clauses.]

Description []

SideEffects []

SeeAlso []

Definition at line 371 of file msatSolverSearch.c.

{
    Msat_Clause_t ** pLearned;
    int nLearned, i;

    // discard the learned clauses
    nLearned = Msat_ClauseVecReadSize( p->vLearned );
    pLearned = Msat_ClauseVecReadArray( p->vLearned );
    for ( i = 0; i < nLearned; i++ )
    {
        assert( !Msat_ClauseIsLocked( p, pLearned[i]) );

        Msat_ClauseFree( p, pLearned[i], 1 );
    }
    Msat_ClauseVecShrink( p->vLearned, 0 );
    p->nClauses = Msat_ClauseVecReadSize(p->vClauses);

    for ( i = 0; i < p->nVarsAlloc; i++ )
        p->pReasons[i] = NULL;
}

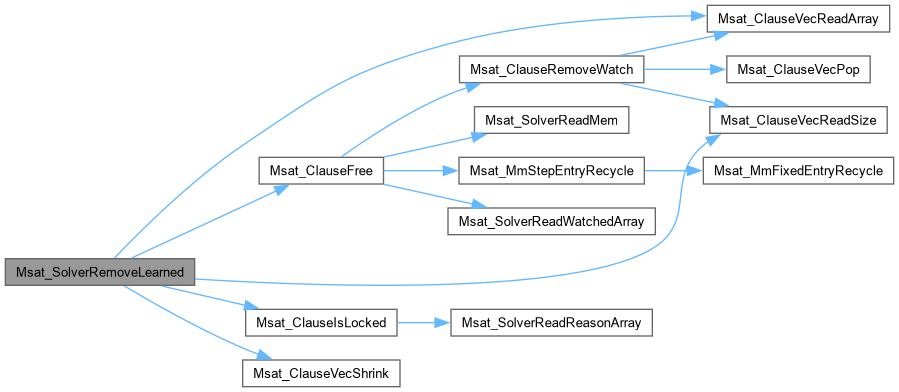

Here is the call graph for this function:

Msat_SolverRemoveMarked()

void Msat_SolverRemoveMarked

(

Msat_Solver_t *

p

)

Function*************************************************************

Synopsis [Removes the recently added clauses.]

Description []

SideEffects []

SeeAlso []

Definition at line 403 of file msatSolverSearch.c.

{
    Msat_Clause_t ** pLearned, ** pClauses;
    int nLearned, nClauses, i;

    // discard the learned clauses
    nClauses = Msat_ClauseVecReadSize( p->vClauses );
    pClauses = Msat_ClauseVecReadArray( p->vClauses );
    for ( i = p->nClausesStart; i < nClauses; i++ )
    {
//        assert( !Msat_ClauseIsLocked( p, pClauses[i]) );
        Msat_ClauseFree( p, pClauses[i], 1 );
    }
    Msat_ClauseVecShrink( p->vClauses, p->nClausesStart );

    // discard the learned clauses
    nLearned = Msat_ClauseVecReadSize( p->vLearned );
    pLearned = Msat_ClauseVecReadArray( p->vLearned );
    for ( i = 0; i < nLearned; i++ )
    {
//        assert( !Msat_ClauseIsLocked( p, pLearned[i]) );
        Msat_ClauseFree( p, pLearned[i], 1 );
    }
    Msat_ClauseVecShrink( p->vLearned, 0 );
    p->nClauses = Msat_ClauseVecReadSize(p->vClauses);
/*
    // undo the previous data
    for ( i = 0; i < p->nVarsAlloc; i++ )
    {
        p->pAssigns[i]   = MSAT_VAR_UNASSIGNED;
        p->pReasons[i]   = NULL;
        p->pLevel[i]     = -1;
        p->pdActivity[i] = 0.0;
    }
    Msat_OrderClean( p->pOrder, p->nVars, NULL );
    Msat_QueueClear( p->pQueue );
*/
}

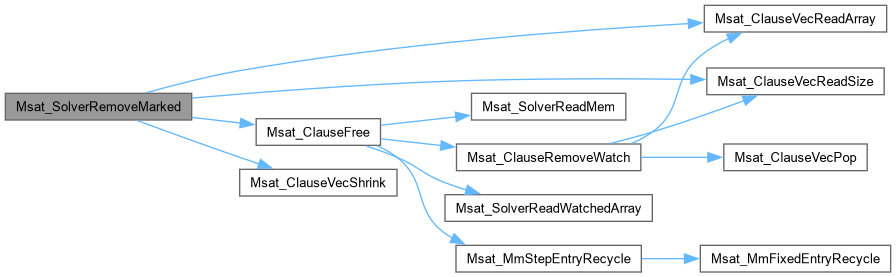

Here is the call graph for this function:

Msat_SolverSearch()

Msat_Type_t Msat_SolverSearch	(	Msat_Solver_t *	p,
		int	nConfLimit,
		int	nLearnedLimit,
		int	nBackTrackLimit,
		Msat_SearchParams_t *	pPars )

Function*************************************************************

Synopsis [The search procedure called between the restarts.]

Description [Search for a satisfying solution as long as the number of conflicts does not exceed the limit (nConfLimit) while keeping the number of learnt clauses below the provided limit (nLearnedLimit). NOTE! Use negative value for nConfLimit or nLearnedLimit to indicate infinity.]

SideEffects []

SeeAlso []

Definition at line 535 of file msatSolverSearch.c.

{
    Msat_Clause_t * pConf;
    Msat_Var_t Var;
    int nLevelBack, nConfs, nAssigns, Value;
    int i;

    assert( Msat_SolverReadDecisionLevel(p) == p->nLevelRoot );
    p->Stats.nStarts++;
    p->dVarDecay = 1 / pPars->dVarDecay;
    p->dClaDecay = 1 / pPars->dClaDecay;

    // reset the activities
    for ( i = 0; i < p->nVars; i++ )
       p->pdActivity[i] = (double)p->pFactors[i];
//       p->pdActivity[i] = 0.0;

    nConfs = 0;
    while ( 1 )
    {
        pConf = Msat_SolverPropagate( p );
        if ( pConf != NULL ){
            // CONFLICT
            if ( p->fVerbose )
            {
//                printf(L_IND"**CONFLICT**\n", L_ind);
                printf(L_IND"**CONFLICT**  ", L_ind);
                Msat_ClausePrintSymbols( pConf );
            }
            // count conflicts
            p->Stats.nConflicts++;
            nConfs++;

            // if top level, return UNSAT
            if ( Msat_SolverReadDecisionLevel(p) == p->nLevelRoot )
                return MSAT_FALSE;

            // perform conflict analysis
            Msat_SolverAnalyze( p, pConf, p->vTemp, &nLevelBack );
            Msat_SolverCancelUntil( p, (p->nLevelRoot > nLevelBack)? p->nLevelRoot : nLevelBack );
            Msat_SolverRecord( p, p->vTemp );

            // it is important that recording is done after cancelling
            // because canceling cleans the queue while recording adds to it
            Msat_SolverVarDecayActivity( p );
            Msat_SolverClaDecayActivity( p );

        }
        else{
            // NO CONFLICT
            if ( Msat_IntVecReadSize(p->vTrailLim) == 0 ) {
                // Simplify the set of problem clauses:
//                Value = Msat_SolverSimplifyDB(p);
//                assert( Value );
            }
            nAssigns = Msat_IntVecReadSize( p->vTrail );
            if ( nLearnedLimit >= 0 && Msat_ClauseVecReadSize(p->vLearned) >= nLearnedLimit + nAssigns ) {
                // Reduce the set of learnt clauses:
                Msat_SolverReduceDB(p);
            }

            Var = Msat_OrderVarSelect( p->pOrder );
            if ( Var == MSAT_ORDER_UNKNOWN ) {
                // Model found and stored in p->pAssigns
                memcpy( p->pModel, p->pAssigns, sizeof(int) * p->nVars );
                Msat_QueueClear( p->pQueue );
                Msat_SolverCancelUntil( p, p->nLevelRoot );
                return MSAT_TRUE;
            }
            if ( nConfLimit > 0 && nConfs > nConfLimit ) {
                // Reached bound on number of conflicts:
                p->dProgress = Msat_SolverProgressEstimate( p );
                Msat_QueueClear( p->pQueue );
                Msat_SolverCancelUntil( p, p->nLevelRoot );
                return MSAT_UNKNOWN;
            }
            else if ( nBackTrackLimit > 0 && (int)p->Stats.nConflicts - p->nBackTracks > nBackTrackLimit ) {
                // Reached bound on number of conflicts:
                Msat_QueueClear( p->pQueue );
                Msat_SolverCancelUntil( p, p->nLevelRoot );
                return MSAT_UNKNOWN;
            }
            else{
                // New variable decision:
                p->Stats.nDecisions++;
                assert( Var != MSAT_ORDER_UNKNOWN && Var >= 0 && Var < p->nVars );
                Value = Msat_SolverAssume(p, MSAT_VAR2LIT(Var,0) );
                assert( Value );
            }
        }
    }
}

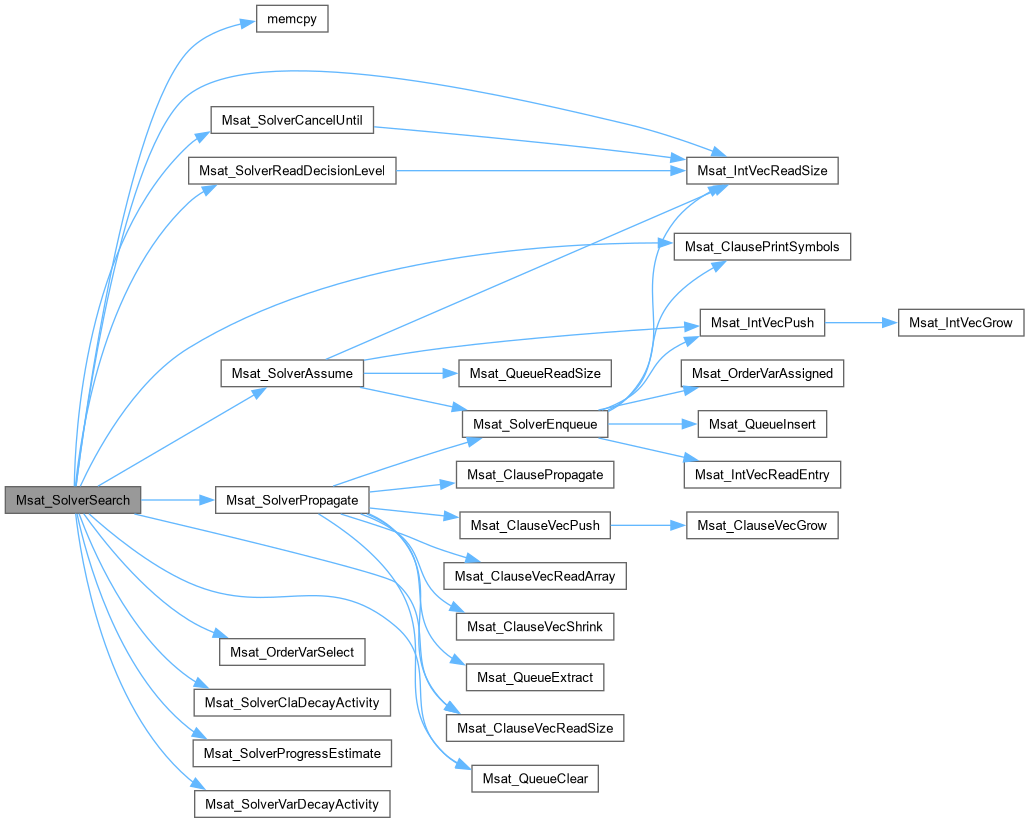

Here is the call graph for this function:

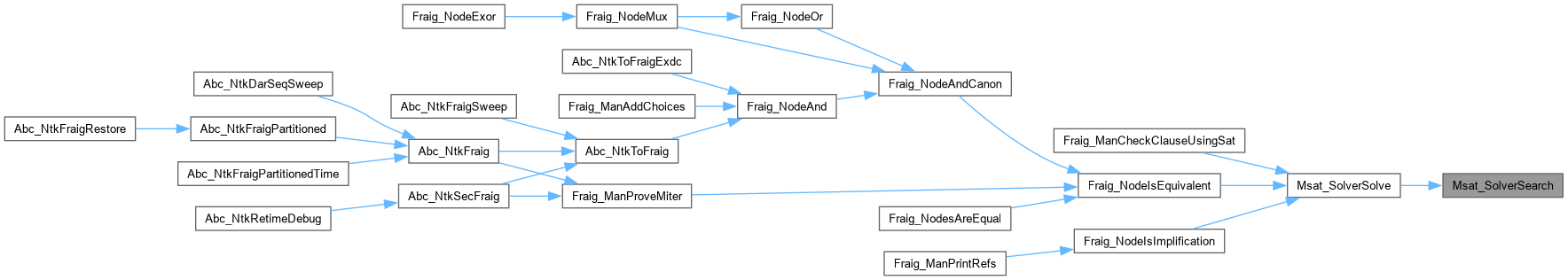

Here is the caller graph for this function:

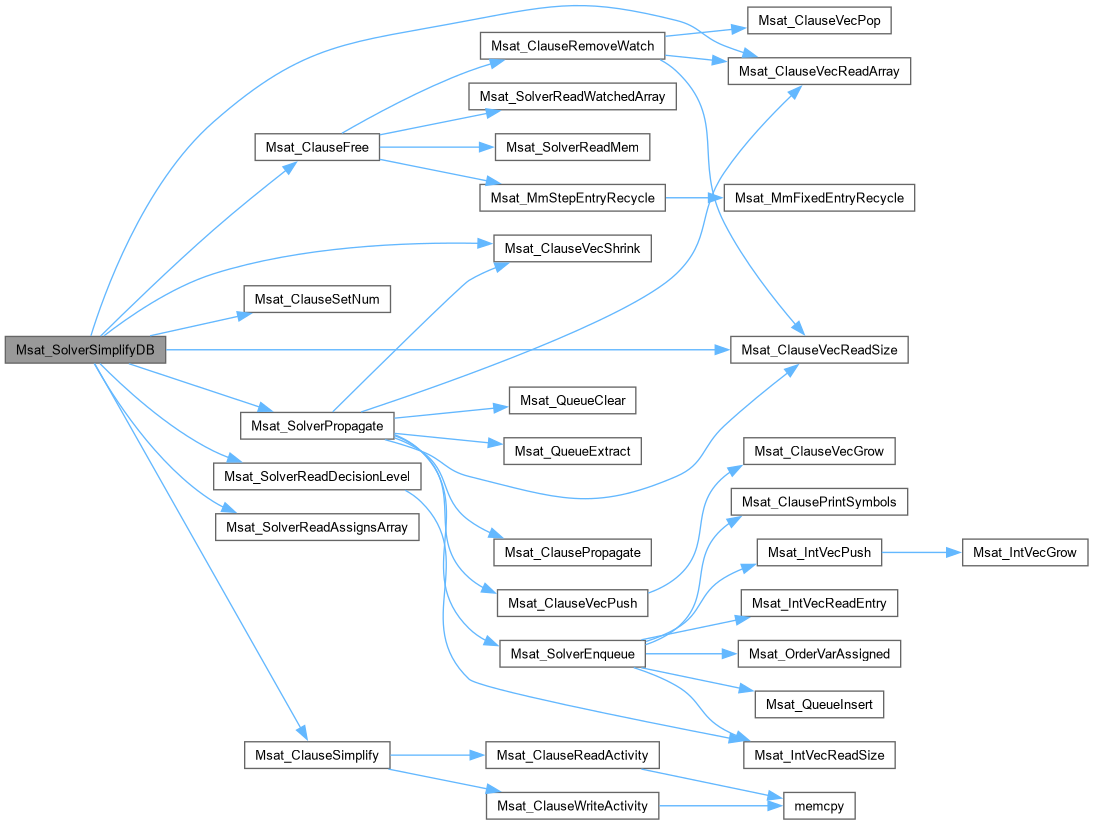

Msat_SolverSimplifyDB()

int Msat_SolverSimplifyDB

(

Msat_Solver_t *

p

)

Function*************************************************************

Synopsis [Simplifies the data base.]

Description [Simplify all constraints according to the current top-level assigment (redundant constraints may be removed altogether).]

SideEffects []

SeeAlso []

Definition at line 282 of file msatSolverSearch.c.

{
    Msat_ClauseVec_t * vClauses;
    Msat_Clause_t ** pClauses;
    int nClauses, Type, i, j;
    int * pAssigns;
    int Counter;

    assert( Msat_SolverReadDecisionLevel(p) == 0 );
    if ( Msat_SolverPropagate(p) != NULL )
        return 0;
//Msat_SolverPrintClauses( p );
//Msat_SolverPrintAssignment( p );
//printf( "Simplification\n" );

    // simplify and reassign clause numbers
    Counter = 0;
    pAssigns = Msat_SolverReadAssignsArray( p );
    for ( Type = 0; Type < 2; Type++ )
    {
        vClauses = Type? p->vLearned : p->vClauses;
        nClauses = Msat_ClauseVecReadSize( vClauses );
        pClauses = Msat_ClauseVecReadArray( vClauses );
        for ( i = j = 0; i < nClauses; i++ )
            if ( Msat_ClauseSimplify( pClauses[i], pAssigns ) )
                Msat_ClauseFree( p, pClauses[i], 1 );
            else
            {
                pClauses[j++] = pClauses[i];
                Msat_ClauseSetNum( pClauses[i], Counter++ );
            }
        Msat_ClauseVecShrink( vClauses, j );
    }
    p->nClauses = Counter;
    return 1;
}

Here is the call graph for this function:
