retArea.c File Reference

#include "retInt.h"

Include dependency graph for retArea.c:

Go to the source code of this file.

Functions
Abc_Ntk_t *	Abc_NtkAttachBottom (Abc_Ntk_t *pNtkTop, Abc_Ntk_t *pNtkBottom)
int	Abc_NtkRetimeMinArea (Abc_Ntk_t *pNtk, int fForwardOnly, int fBackwardOnly, int fUseOldNames, int fVerbose)
	FUNCTION DEFINITIONS ///.
void	Abc_NtkMarkCone_rec (Abc_Obj_t *pObj, int fForward)
void	Abc_NtkUnmarkCone_rec (Abc_Obj_t *pObj, int fForward)
int	Abc_NtkRetimeMinAreaInitValues_rec (Abc_Obj_t *pObj)
Abc_Obj_t *	Abc_NtkRetimeMinAreaConstructNtk_rec (Abc_Ntk_t *pNtkNew, Abc_Obj_t *pObj)

Function Documentation

Abc_NtkAttachBottom()

Abc_Ntk_t * Abc_NtkAttachBottom ( Abc_Ntk_t * pNtkTop, Abc_Ntk_t * pNtkBottom )

extern

Function*************************************************************

Synopsis [Attaches the second network at the bottom of the first.]

Description [Returns the first network. Deletes the second network.]

SideEffects []

SeeAlso []

Definition at line 866 of file abcNtk.c.

{
    Abc_Obj_t * pObj, * pFanin, * pBuffer;
    Vec_Ptr_t * vNodes;
    int i, k;
    assert( pNtkBottom != NULL );
    if ( pNtkTop == NULL )
        return pNtkBottom;
    // make sure the networks are combinational
    assert( Abc_NtkPiNum(pNtkTop) == Abc_NtkCiNum(pNtkTop) );
    assert( Abc_NtkPiNum(pNtkBottom) == Abc_NtkCiNum(pNtkBottom) );
    // make sure the POs of the bottom correspond to the PIs of the top
    assert( Abc_NtkPoNum(pNtkBottom) == Abc_NtkPiNum(pNtkTop) );
    assert( Abc_NtkPiNum(pNtkBottom) <  Abc_NtkPiNum(pNtkTop) );
    // add buffers for the PIs of the top - save results in the POs of the bottom
    Abc_NtkForEachPi( pNtkTop, pObj, i )
    {
        pBuffer = Abc_NtkCreateNodeBuf( pNtkTop, NULL );
        Abc_ObjTransferFanout( pObj, pBuffer );
        Abc_NtkPo(pNtkBottom, i)->pCopy = pBuffer;
    }
    // remove useless PIs of the top
    for ( i = Abc_NtkPiNum(pNtkTop) - 1; i >= Abc_NtkPiNum(pNtkBottom); i-- )
        Abc_NtkDeleteObj( Abc_NtkPi(pNtkTop, i) );
    assert( Abc_NtkPiNum(pNtkBottom) == Abc_NtkPiNum(pNtkTop) );
    // copy the bottom network
    Abc_NtkForEachPi( pNtkBottom, pObj, i )
        Abc_NtkPi(pNtkBottom, i)->pCopy = Abc_NtkPi(pNtkTop, i);
    // construct all nodes
    vNodes = Abc_NtkDfs( pNtkBottom, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        Abc_NtkDupObj(pNtkTop, pObj, 0);
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
    }
    Vec_PtrFree( vNodes );
    // connect the POs
    Abc_NtkForEachPo( pNtkBottom, pObj, i )
        Abc_ObjAddFanin( pObj->pCopy, Abc_ObjFanin0(pObj)->pCopy );
    // delete old network
    Abc_NtkDelete( pNtkBottom );
    // return the network
    if ( !Abc_NtkCheck( pNtkTop ) )
        fprintf( stdout, "Abc_NtkAttachBottom(): Network check has failed.\n" );
    return pNtkTop;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkMarkCone_rec()

void Abc_NtkMarkCone_rec	(	Abc_Obj_t *	pObj,
		int	fForward )

Function*************************************************************

Synopsis [Marks the cone with MarkA.]

Description []

SideEffects []

SeeAlso []

Definition at line 147 of file retArea.c.

{
    Abc_Obj_t * pNext;
    int i;
    if ( pObj->fMarkA )
        return;
    pObj->fMarkA = 1;
    if ( fForward )
    {
        Abc_ObjForEachFanout( pObj, pNext, i )
            Abc_NtkMarkCone_rec( pNext, fForward );
    }
    else
    {
        Abc_ObjForEachFanin( pObj, pNext, i )
            Abc_NtkMarkCone_rec( pNext, fForward );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRetimeMinArea()

int Abc_NtkRetimeMinArea	(	Abc_Ntk_t *	pNtk,
		int	fForwardOnly,
		int	fBackwardOnly,
		int	fUseOldNames,
		int	fVerbose )

FUNCTION DEFINITIONS ///.

INCLUDES ///.

Function*************************************************************

Synopsis [Performs min-area retiming.]

Description [Returns the number of latches reduced.]

SideEffects []

SeeAlso []

Definition at line 53 of file retArea.c.

{
    Abc_Ntk_t * pNtkTotal = NULL, * pNtkBottom;
    Vec_Int_t * vValuesNew = NULL, * vValues;
    int nLatches = Abc_NtkLatchNum(pNtk);
    int fOneFrame = 0;
    assert( !fForwardOnly || !fBackwardOnly );
    // there should not be black boxes
    assert( Abc_NtkIsSopLogic(pNtk) );
    assert( Abc_NtkLatchNum(pNtk) == Vec_PtrSize(pNtk->vBoxes) );
    // reorder CI/CO/latch inputs
    Abc_NtkOrderCisCos( pNtk );
    // perform forward retiming
    if ( !fBackwardOnly )
    {
        if ( fOneFrame )
            Abc_NtkRetimeMinAreaOne( pNtk, 1, fUseOldNames, fVerbose );
        else
            while ( Abc_NtkRetimeMinAreaOne( pNtk, 1, fUseOldNames, fVerbose ) );
    }
    // remember initial values
    vValues = Abc_NtkCollectLatchValues( pNtk );
    // perform backward retiming
    if ( !fForwardOnly )
    {
        if ( fOneFrame )
            pNtkTotal = Abc_NtkRetimeMinAreaOne( pNtk, 0, fUseOldNames, fVerbose );
        else
            while ( (pNtkBottom = Abc_NtkRetimeMinAreaOne( pNtk, 0, fUseOldNames, fVerbose )) )
                pNtkTotal = Abc_NtkAttachBottom( pNtkTotal, pNtkBottom );
    }
    // compute initial values
    vValuesNew = Abc_NtkRetimeInitialValues( pNtkTotal, vValues, fVerbose );
    if ( pNtkTotal ) Abc_NtkDelete( pNtkTotal );
    // insert new initial values
    Abc_NtkInsertLatchValues( pNtk, vValuesNew );
    if ( vValuesNew ) Vec_IntFree( vValuesNew );
    if ( vValues )    Vec_IntFree( vValues );
    // fix the COs (this changes the circuit structure)
//    Abc_NtkLogicMakeSimpleCos( pNtk, 0 );
    // check for correctness
    if ( !Abc_NtkCheck( pNtk ) )
        fprintf( stdout, "Abc_NtkRetimeMinArea(): Network check has failed.\n" );
    // return the number of latches saved
    return nLatches - Abc_NtkLatchNum(pNtk);
}

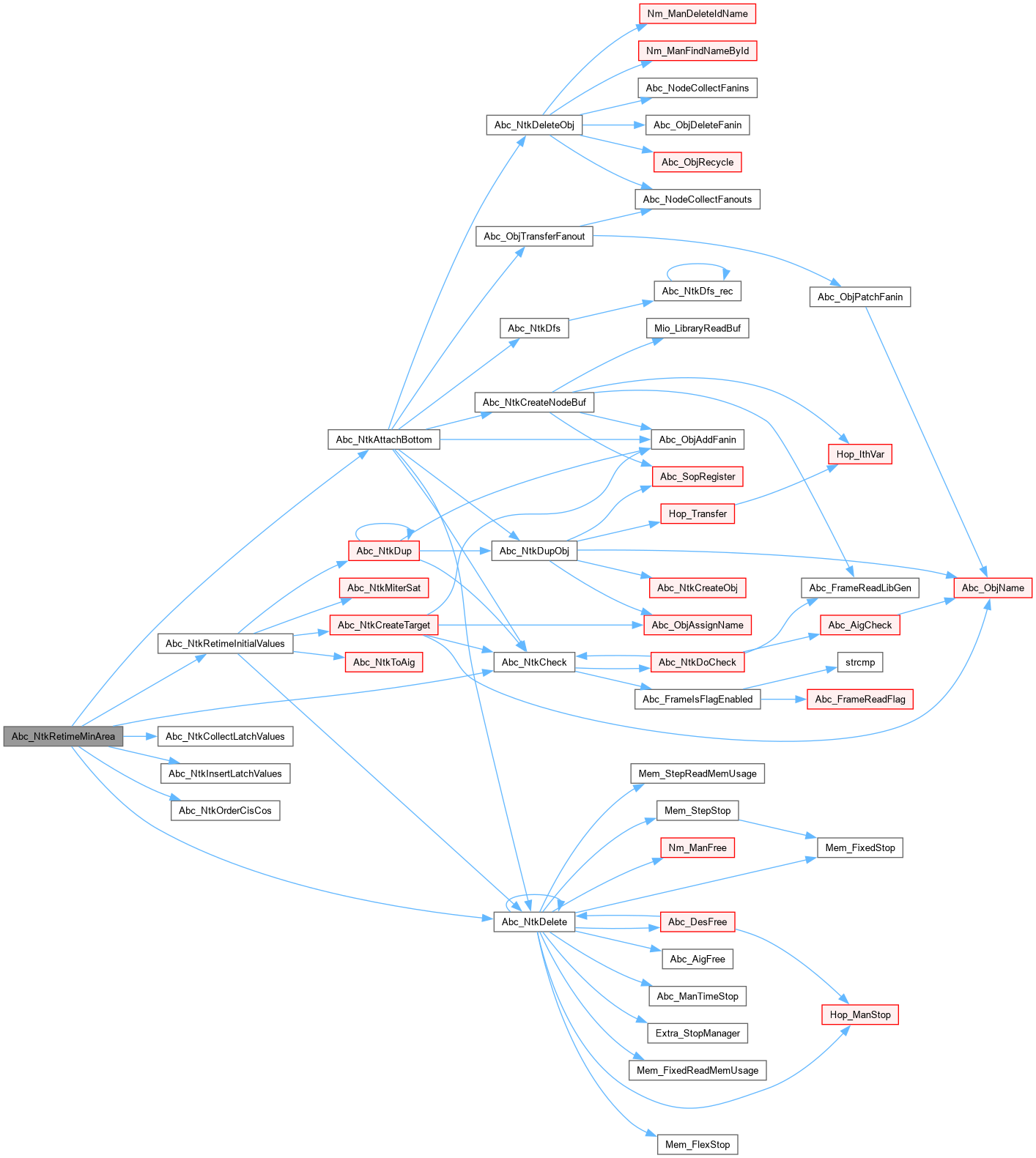

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRetimeMinAreaConstructNtk_rec()

Abc_Obj_t * Abc_NtkRetimeMinAreaConstructNtk_rec	(	Abc_Ntk_t *	pNtkNew,
		Abc_Obj_t *	pObj )

Function*************************************************************

Synopsis [Performs min-area retiming backward.]

Description []

SideEffects []

SeeAlso []

Definition at line 329 of file retArea.c.

{
    Abc_Obj_t * pFanin;
    int i;
    // skip visited nodes
    if ( Abc_NodeIsTravIdCurrent(pObj) )
        return pObj->pCopy;
    Abc_NodeSetTravIdCurrent(pObj);
    // consider the case of a latch output
    if ( Abc_ObjIsBi(pObj) )
    {
        pObj->pCopy = Abc_NtkRetimeMinAreaConstructNtk_rec( pNtkNew, Abc_ObjFanin0(pObj) );
        return pObj->pCopy;
    }
    assert( Abc_ObjIsNode(pObj) );
    // visit the fanins
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_NtkRetimeMinAreaConstructNtk_rec( pNtkNew, pFanin );
    // compute the value of the node
    Abc_NtkDupObj( pNtkNew, pObj, 0 );
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
    return pObj->pCopy;
}

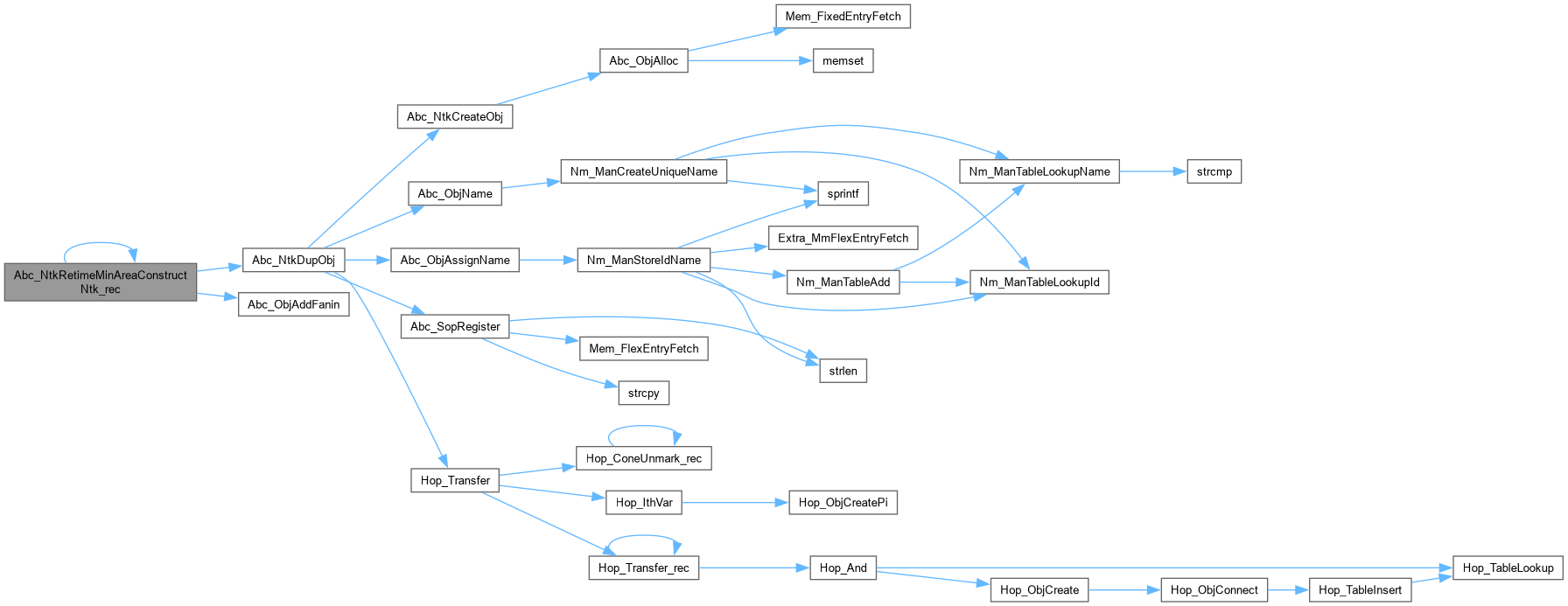

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkRetimeMinAreaInitValues_rec()

int Abc_NtkRetimeMinAreaInitValues_rec

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis [Compute initial values.]

Description []

SideEffects []

SeeAlso []

Definition at line 264 of file retArea.c.

{
    Abc_Obj_t * pFanin;
    int i;
    // skip visited nodes
    if ( Abc_NodeIsTravIdCurrent(pObj) )
        return (int)(ABC_PTRUINT_T)pObj->pCopy;
    Abc_NodeSetTravIdCurrent(pObj);
    // consider the case of a latch output
    if ( Abc_ObjIsBo(pObj) )
    {
        assert( Abc_ObjIsLatch(Abc_ObjFanin0(pObj)) );
        pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)Abc_NtkRetimeMinAreaInitValues_rec( Abc_ObjFanin0(pObj) );
        return (int)(ABC_PTRUINT_T)pObj->pCopy;
    }
    assert( Abc_ObjIsNode(pObj) );
    // visit the fanins
    Abc_ObjForEachFanin( pObj, pFanin, i )
        Abc_NtkRetimeMinAreaInitValues_rec( pFanin );
    // compute the value of the node
    pObj->pCopy = (Abc_Obj_t *)(ABC_PTRUINT_T)Abc_ObjSopSimulate(pObj);
    return (int)(ABC_PTRUINT_T)pObj->pCopy;
}

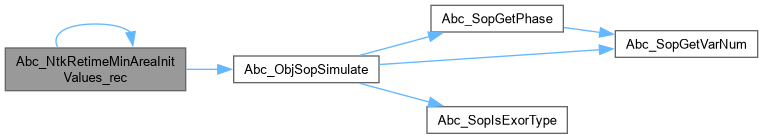

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkUnmarkCone_rec()

void Abc_NtkUnmarkCone_rec	(	Abc_Obj_t *	pObj,
		int	fForward )

Function*************************************************************

Synopsis [Marks the cone with MarkA.]

Description []

SideEffects []

SeeAlso []

Definition at line 177 of file retArea.c.

{
    Abc_Obj_t * pNext;
    int i;
    if ( !pObj->fMarkA || Abc_ObjIsLatch(pObj) )
        return;
    pObj->fMarkA = 0;
    if ( fForward )
    {
        Abc_ObjForEachFanout( pObj, pNext, i )
            Abc_NtkUnmarkCone_rec( pNext, fForward );
    }
    else
    {
        Abc_ObjForEachFanin( pObj, pNext, i )
            Abc_NtkUnmarkCone_rec( pNext, fForward );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:
