sswPart.c File Reference

#include "sswInt.h"
#include "aig/ioa/ioa.h"
#include "aig/gia/giaAig.h"
#include "proof/cec/cec.h"

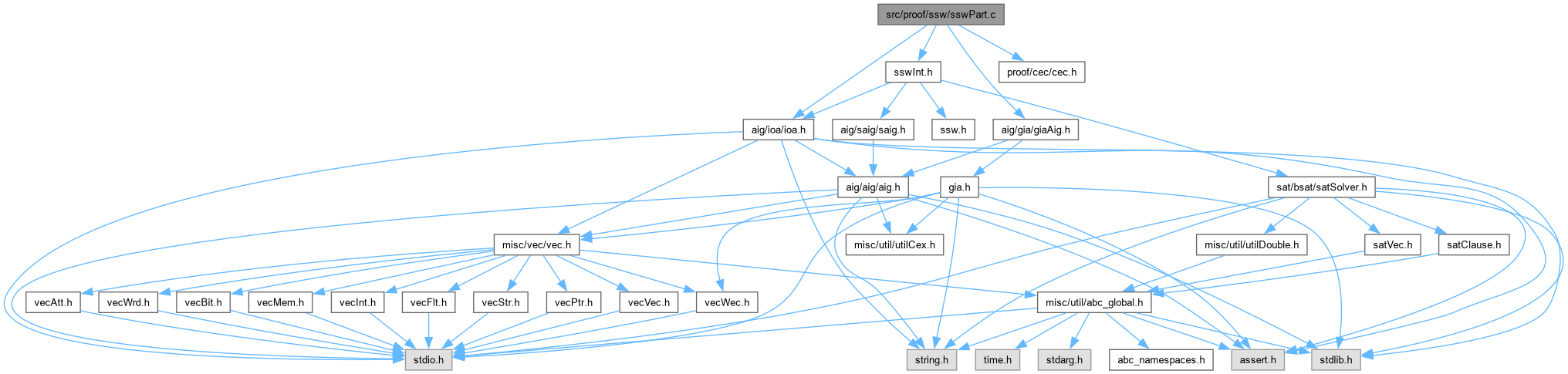

Include dependency graph for sswPart.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Ssw_SignalCorrespondenceArray1 (Vec_Ptr_t *vGias, Ssw_Pars_t *pPars)
	DECLARATIONS ///.
void	Ssw_SignalCorrespondenceArray (Vec_Ptr_t *vGias, Ssw_Pars_t *pPars)
Aig_Man_t *	Ssw_SignalCorrespondencePart (Aig_Man_t *pAig, Ssw_Pars_t *pPars)
Aig_Man_t *	Ssw_SignalCorrespondencePart2 (Aig_Man_t *pAig, Ssw_Pars_t *pPars)
void	Gia_ManRestoreNodeMapping (Aig_Man_t *pAig, Gia_Man_t *pGia)
Gia_Man_t *	Gia_SignalCorrespondencePart (Gia_Man_t *p, Cec_ParCor_t *pPars)

Function Documentation

Gia_ManRestoreNodeMapping()

void Gia_ManRestoreNodeMapping	(	Aig_Man_t *	pAig,
		Gia_Man_t *	pGia )

Definition at line 411 of file sswPart.c.

{
    Aig_Obj_t * pObjAig; int i;
    assert( Gia_ManObjNum(pGia) == Aig_ManObjNum(pAig) );
    Aig_ManForEachObj( pAig, pObjAig, i )
        pObjAig->iData = Abc_Var2Lit(i, 0);
}

Here is the caller graph for this function:

Gia_SignalCorrespondencePart()

Gia_Man_t * Gia_SignalCorrespondencePart	(	Gia_Man_t *	p,
		Cec_ParCor_t *	pPars )

Definition at line 418 of file sswPart.c.

{
    Gia_Man_t * pRes = NULL;
    Aig_Man_t * pNew = NULL;
    Aig_Man_t * pAig = Gia_ManToAigSimple(p);
    Ssw_Pars_t SswPars, * pSswPars = &SswPars;
    assert( pPars->nProcs > 0 );
    assert( pPars->nPartSize > 0 );
    Ssw_ManSetDefaultParams( pSswPars );
    pSswPars->nBTLimit  = pPars->nBTLimit;
    pSswPars->nProcs    = pPars->nProcs;
    pSswPars->nPartSize = pPars->nPartSize;
    pSswPars->fVerbose  = pPars->fVerbose;
    pNew = Ssw_SignalCorrespondencePart2( pAig, pSswPars );
    Gia_ManRestoreNodeMapping( pAig, p );
    Gia_ManReprFromAigRepr2( pAig, p );
    pRes = Gia_ManFromAigSimple(pNew);
    Aig_ManStop( pNew );
    Aig_ManStop( pAig );
    return pRes;
}

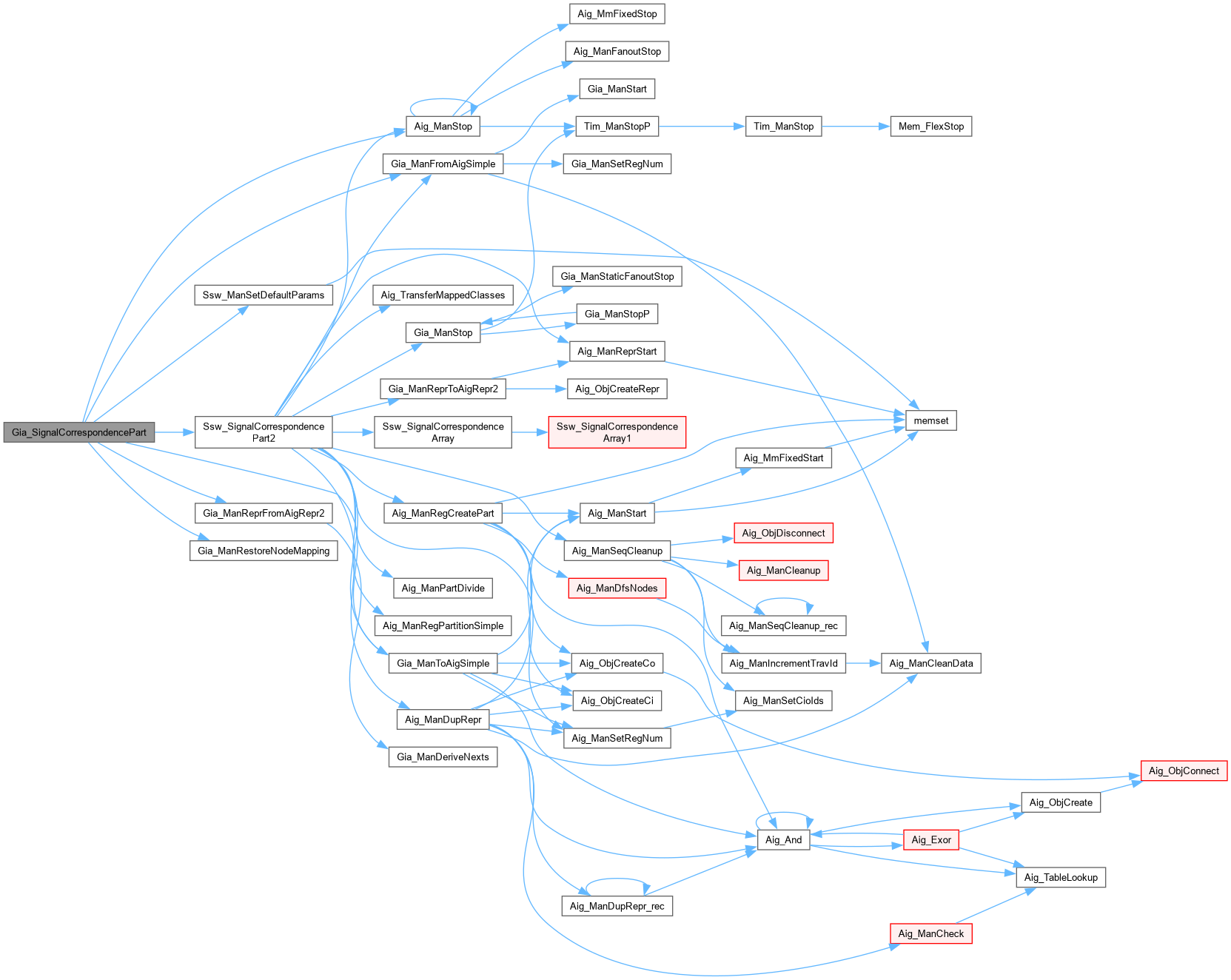

Here is the call graph for this function:

Ssw_SignalCorrespondenceArray()

void Ssw_SignalCorrespondenceArray	(	Vec_Ptr_t *	vGias,
		Ssw_Pars_t *	pPars )

Function*************************************************************

Synopsis [Performing SAT sweeping for the array of AIGs.]

Description []

SideEffects []

SeeAlso []

Definition at line 93 of file sswPart.c.

{
    Ssw_SignalCorrespondenceArray1( vGias, pPars );
}

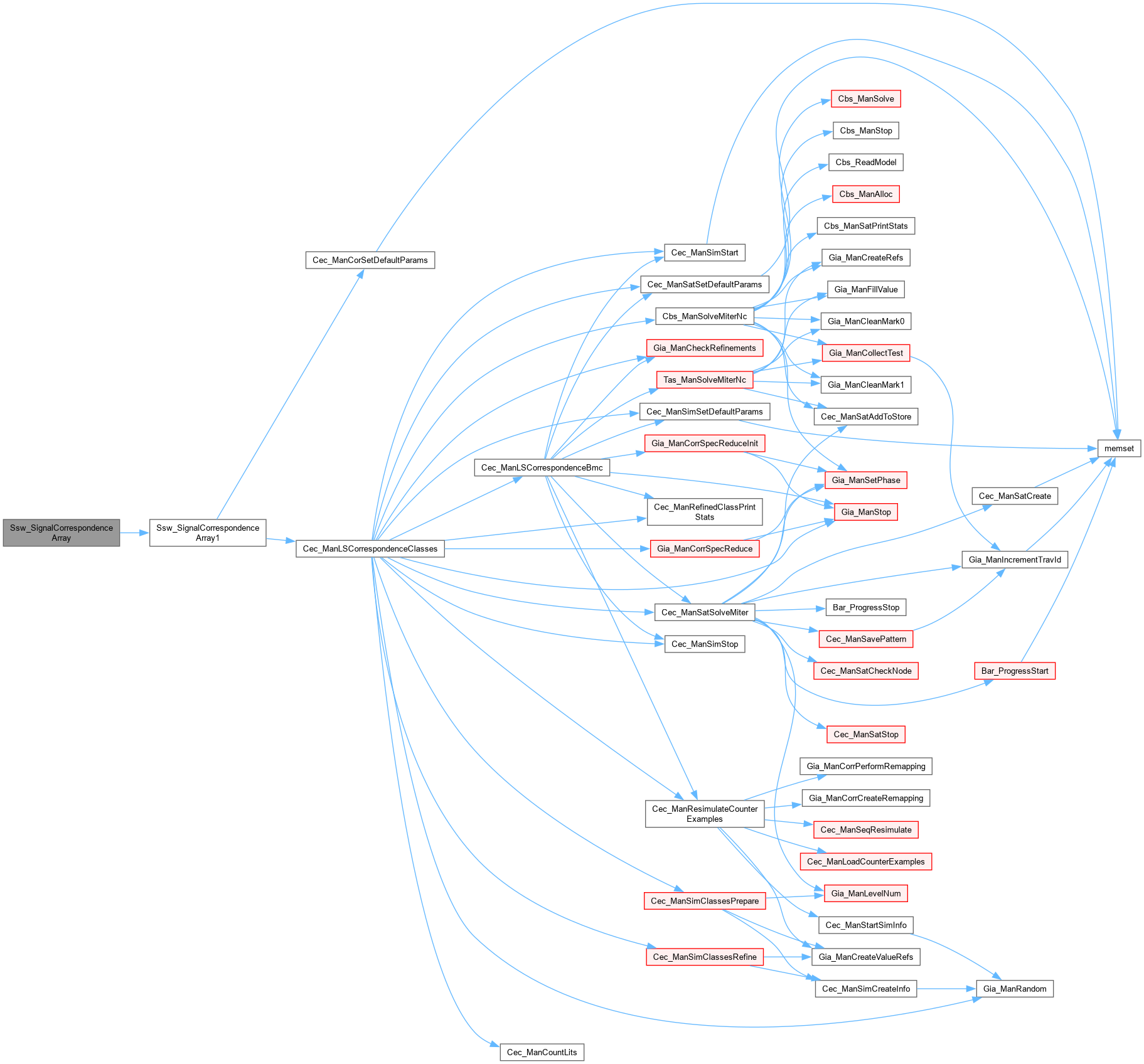

Here is the call graph for this function:

Here is the caller graph for this function:

Ssw_SignalCorrespondenceArray1()

ABC_NAMESPACE_IMPL_START void Ssw_SignalCorrespondenceArray1	(	Vec_Ptr_t *	vGias,
		Ssw_Pars_t *	pPars )

DECLARATIONS ///.

CFile****************************************************************

FileName [sswPart.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Inductive prover with constraints.]

Synopsis [Partitioned signal correspondence.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - September 1, 2008.]

Revision [

Id

sswPart.c,v 1.00 2008/09/01 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Performing SAT sweeping for the array of AIGs.]

Description []

SideEffects []

SeeAlso []

Definition at line 67 of file sswPart.c.

{
    Gia_Man_t * pGia; int i;
    Cec_ParCor_t CorPars, * pCorPars = &CorPars;
    Cec_ManCorSetDefaultParams( pCorPars );
    pCorPars->nBTLimit  = pPars->nBTLimit;
    pCorPars->fVerbose  = pPars->fVerbose;
    pCorPars->fUseCSat  = 1;
    Vec_PtrForEachEntry( Gia_Man_t *, vGias, pGia, i )
        if ( Gia_ManPiNum(pGia) > 0 )
            Cec_ManLSCorrespondenceClasses( pGia, pCorPars );
}

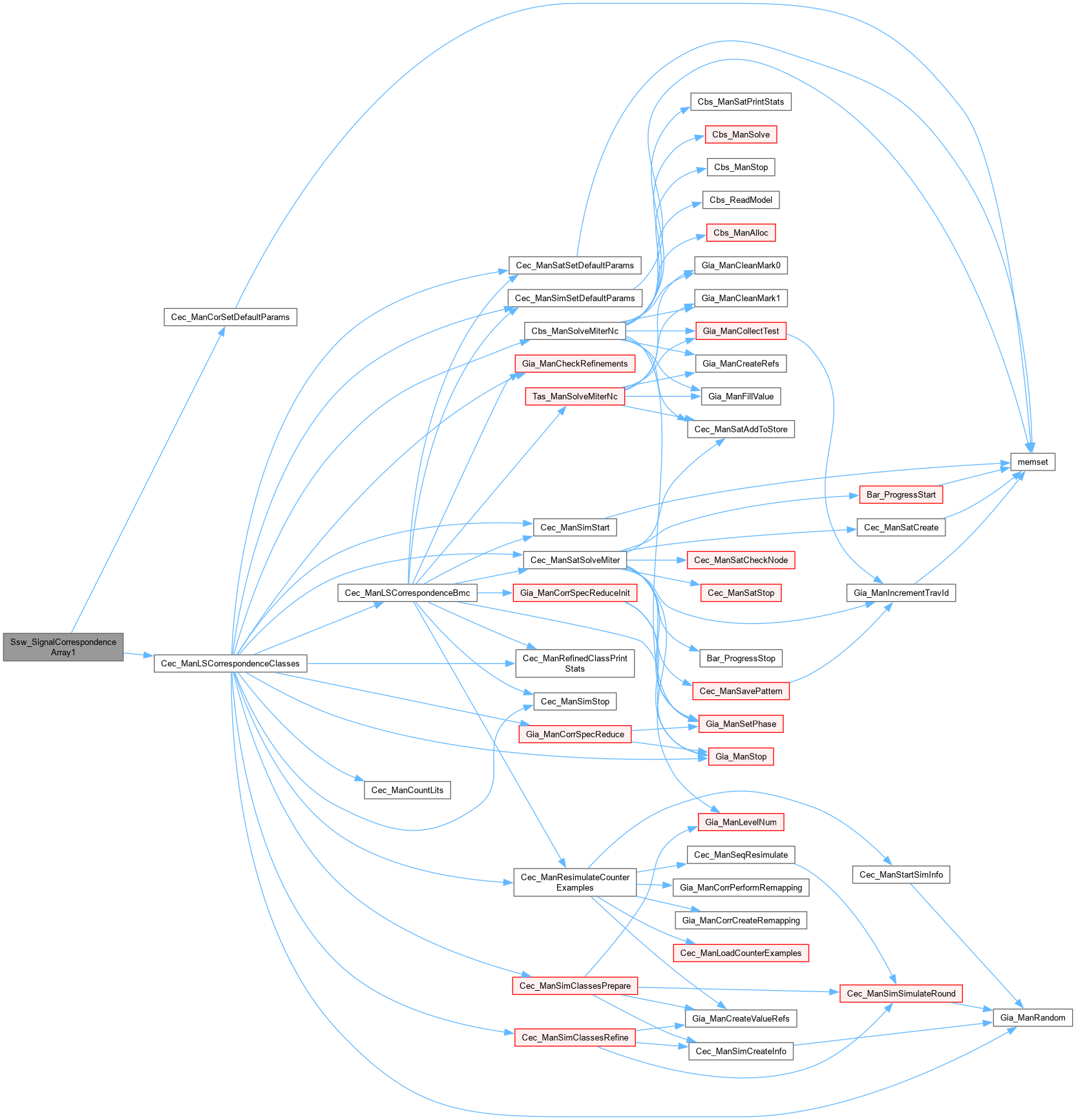

Here is the call graph for this function:

Here is the caller graph for this function:

Ssw_SignalCorrespondencePart()

Aig_Man_t * Ssw_SignalCorrespondencePart	(	Aig_Man_t *	pAig,
		Ssw_Pars_t *	pPars )

Function*************************************************************

Synopsis [Performs partitioned sequential SAT sweeping.]

Description []

SideEffects []

SeeAlso []

Definition at line 214 of file sswPart.c.

{
    int fPrintParts = 1;
    char Buffer[100];
    Aig_Man_t * pTemp, * pNew;
    Vec_Ptr_t * vResult;
    Vec_Int_t * vPart;
    int * pMapBack;
    int i, nCountPis, nCountRegs;
    int nClasses, nPartSize, fVerbose;
    abctime clk = Abc_Clock();
    if ( pPars->fConstrs )
    {
        Abc_Print( 1, "Cannot use partitioned computation with constraints.\n" );
        return NULL;
    }
    // save parameters
    nPartSize = pPars->nPartSize; pPars->nPartSize = 0;
    fVerbose  = pPars->fVerbose;  pPars->fVerbose  = 0;
    // generate partitions
    if ( pAig->vClockDoms )
    {
        // divide large clock domains into separate partitions
        vResult = Vec_PtrAlloc( 100 );
        Vec_PtrForEachEntry( Vec_Int_t *, (Vec_Ptr_t *)pAig->vClockDoms, vPart, i )
        {
            if ( nPartSize && Vec_IntSize(vPart) > nPartSize )
                Aig_ManPartDivide( vResult, vPart, nPartSize, pPars->nOverSize );
            else
                Vec_PtrPush( vResult, Vec_IntDup(vPart) );
        }
    }
    else
        vResult = Aig_ManRegPartitionSimple( pAig, nPartSize, pPars->nOverSize );
//    vResult = Aig_ManPartitionSmartRegisters( pAig, nPartSize, 0 );
//    vResult = Aig_ManRegPartitionSmart( pAig, nPartSize );
    if ( fPrintParts )
    {
        // print partitions
        Abc_Print( 1, "Simple partitioning. %d partitions are saved:\n", Vec_PtrSize(vResult) );
        Vec_PtrForEachEntry( Vec_Int_t *, vResult, vPart, i )
        {
//            extern void Ioa_WriteAiger( Aig_Man_t * pMan, char * pFileName, int fWriteSymbols, int fCompact );
            sprintf( Buffer, "part%03d.aig", i );
            pTemp = Aig_ManRegCreatePart( pAig, vPart, &nCountPis, &nCountRegs, NULL );
            Ioa_WriteAiger( pTemp, Buffer, 0, 0 );
            Abc_Print( 1, "part%03d.aig : Reg = %4d. PI = %4d. (True = %4d. Regs = %4d.) And = %5d.\n",
                i, Vec_IntSize(vPart), Aig_ManCiNum(pTemp)-Vec_IntSize(vPart), nCountPis, nCountRegs, Aig_ManNodeNum(pTemp) );
            Aig_ManStop( pTemp );
        }
    }

    // perform SSW with partitions
    Aig_ManReprStart( pAig, Aig_ManObjNumMax(pAig) );
    Vec_PtrForEachEntry( Vec_Int_t *, vResult, vPart, i )
    {
        pTemp = Aig_ManRegCreatePart( pAig, vPart, &nCountPis, &nCountRegs, &pMapBack );
        Aig_ManSetRegNum( pTemp, pTemp->nRegs );
        // create the projection of 1-hot registers
        if ( pAig->vOnehots )
            pTemp->vOnehots = Aig_ManRegProjectOnehots( pAig, pTemp, pAig->vOnehots, fVerbose );
        // run SSW
        if (nCountPis>0) {
            pNew = Ssw_SignalCorrespondence( pTemp, pPars );
            nClasses = Aig_TransferMappedClasses( pAig, pTemp, pMapBack );
            if ( fVerbose )
                Abc_Print( 1, "%3d : Reg = %4d. PI = %4d. (True = %4d. Regs = %4d.) And = %5d. It = %3d. Cl = %5d.\n",
                    i, Vec_IntSize(vPart), Aig_ManCiNum(pTemp)-Vec_IntSize(vPart), nCountPis, nCountRegs, Aig_ManNodeNum(pTemp), pPars->nIters, nClasses );
            Aig_ManStop( pNew );
        }
        Aig_ManStop( pTemp );
        ABC_FREE( pMapBack );
    }
    // remap the AIG
    pNew = Aig_ManDupRepr( pAig, 0 );
    Aig_ManSeqCleanup( pNew );
//    Aig_ManPrintStats( pAig );
//    Aig_ManPrintStats( pNew );
    Vec_VecFree( (Vec_Vec_t *)vResult );
    pPars->nPartSize = nPartSize;
    pPars->fVerbose = fVerbose;
    if ( fVerbose )
    {
        ABC_PRT( "Total time", Abc_Clock() - clk );
    }
    return pNew;
}

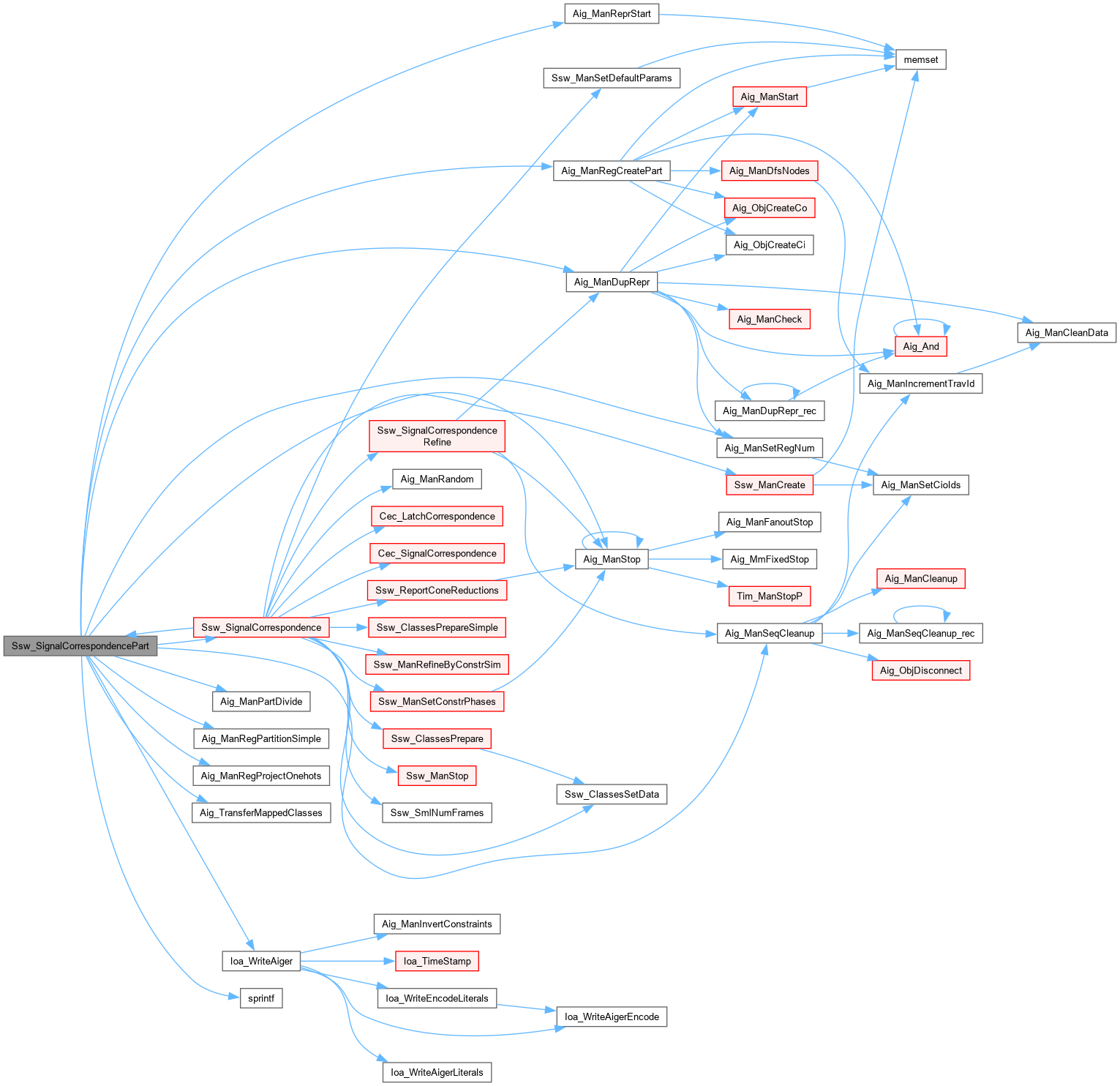

Here is the call graph for this function:

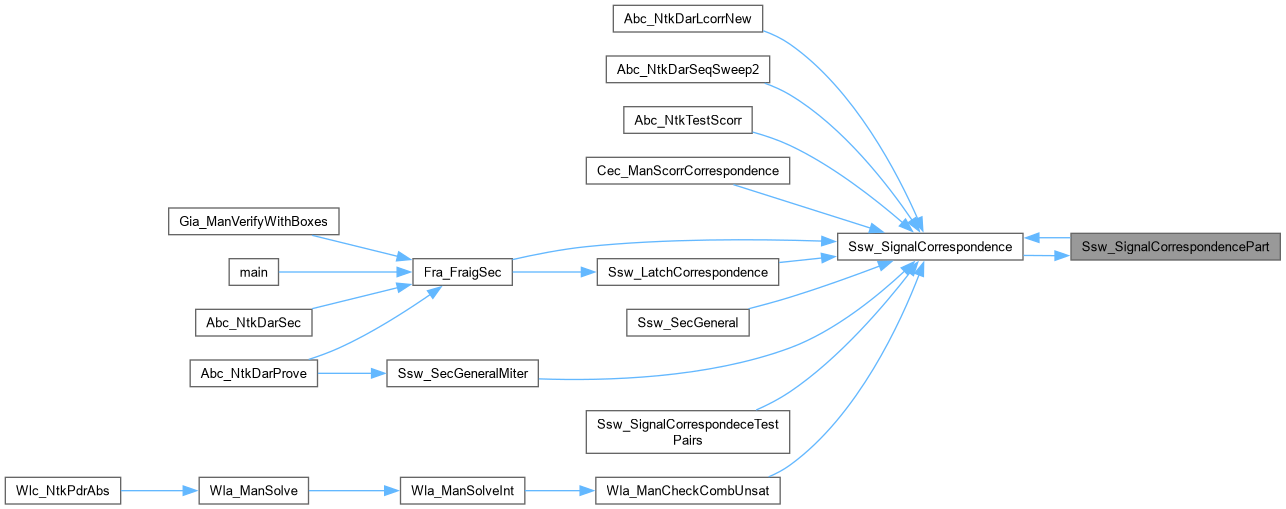

Here is the caller graph for this function:

Ssw_SignalCorrespondencePart2()

Aig_Man_t * Ssw_SignalCorrespondencePart2	(	Aig_Man_t *	pAig,
		Ssw_Pars_t *	pPars )

Function*************************************************************

Synopsis [Performs partitioned sequential SAT sweeping.]

Description []

SideEffects []

SeeAlso []

Definition at line 314 of file sswPart.c.

{
    int fPrintParts = 1;
    //char Buffer[100];
    Aig_Man_t * pTemp, * pNew;
    Vec_Ptr_t * vAigs;
    Vec_Ptr_t * vGias;
    Vec_Ptr_t * vMaps;
    Vec_Ptr_t * vResult;
    Vec_Int_t * vPart;
    int * pMapBack = NULL;
    int i, nCountPis, nCountRegs;
    int nClasses, nPartSize, fVerbose;
    abctime clk = Abc_Clock();
    if ( pPars->fConstrs )
    {
        Abc_Print( 1, "Cannot use partitioned computation with constraints.\n" );
        return NULL;
    }
    // save parameters
    nPartSize = pPars->nPartSize; pPars->nPartSize = 0;
    fVerbose  = pPars->fVerbose;  pPars->fVerbose  = 0;
    // generate partitions
    if ( pAig->vClockDoms )
    {
        // divide large clock domains into separate partitions
        vResult = Vec_PtrAlloc( 100 );
        Vec_PtrForEachEntry( Vec_Int_t *, (Vec_Ptr_t *)pAig->vClockDoms, vPart, i )
        {
            if ( nPartSize && Vec_IntSize(vPart) > nPartSize )
                Aig_ManPartDivide( vResult, vPart, nPartSize, pPars->nOverSize );
            else
                Vec_PtrPush( vResult, Vec_IntDup(vPart) );
        }
    }
    else
        vResult = Aig_ManRegPartitionSimple( pAig, nPartSize, pPars->nOverSize );
//    vResult = Aig_ManPartitionSmartRegisters( pAig, nPartSize, 0 );
//    vResult = Aig_ManRegPartitionSmart( pAig, nPartSize );
    // collect partitions
    vAigs = Vec_PtrAlloc( 100 );
    vGias = Vec_PtrAlloc( 100 );
    vMaps = Vec_PtrAlloc( 100 );
    if ( fPrintParts )
        Abc_Print( 1, "Simple partitioning. %d partitions are saved:\n", Vec_PtrSize(vResult) );
    Vec_PtrForEachEntry( Vec_Int_t *, vResult, vPart, i )
    {
        pTemp = Aig_ManRegCreatePart( pAig, vPart, &nCountPis, &nCountRegs, &pMapBack );
        Aig_ManSetRegNum( pTemp, pTemp->nRegs );
        Vec_PtrPush( vAigs, pTemp );
        Vec_PtrPush( vGias, Gia_ManFromAigSimple(pTemp) );
        Vec_PtrPush( vMaps, pMapBack );
        //sprintf( Buffer, "part%03d.aig", i );
        //Ioa_WriteAiger( pTemp, Buffer, 0, 0 );
        if ( fPrintParts )
            Abc_Print( 1, "part%03d.aig : Reg = %4d. PI = %4d. (True = %4d. Regs = %4d.) And = %5d.\n",
                i, Vec_IntSize(vPart), Aig_ManCiNum(pTemp)-Vec_IntSize(vPart), nCountPis, nCountRegs, Aig_ManNodeNum(pTemp) );
    }
    // solve partitions
    Ssw_SignalCorrespondenceArray( vGias, pPars );
    // collect the results
    Aig_ManReprStart( pAig, Aig_ManObjNumMax(pAig) );
    Vec_PtrForEachEntry( Vec_Int_t *, vResult, vPart, i )
    {
        int * pMapBack = (int *)Vec_PtrEntry( vMaps, i );
        Gia_Man_t * pGia = (Gia_Man_t *)Vec_PtrEntry( vGias, i );
        Aig_Man_t * pTemp2 = Gia_ManToAigSimple( pGia );
        pTemp = (Aig_Man_t *)Vec_PtrEntry( vAigs, i );
        Gia_ManReprToAigRepr2( pTemp2, pGia );
        // remap back
        nClasses = Aig_TransferMappedClasses( pAig, pTemp2, pMapBack );
        if ( fVerbose )
            Abc_Print( 1, "%3d : Reg = %4d. PI = %4d. (True = %4d. Regs = %4d.) And = %5d. It = %3d. Cl = %5d.\n",
                i, Vec_IntSize(vPart), Aig_ManCiNum(pTemp)-Vec_IntSize(vPart), 0, 0, Aig_ManNodeNum(pTemp), 0, nClasses );
        Aig_ManStop( pTemp );
        Aig_ManStop( pTemp2 );
        Gia_ManStop( pGia );
        ABC_FREE( pMapBack );
    }
    Vec_PtrFree( vAigs );
    Vec_PtrFree( vGias );
    Vec_PtrFree( vMaps );

    // remap the AIG
    pNew = Aig_ManDupRepr( pAig, 0 );
    Aig_ManSeqCleanup( pNew );
//    Aig_ManPrintStats( pAig );
//    Aig_ManPrintStats( pNew );
    Vec_VecFree( (Vec_Vec_t *)vResult );
    pPars->nPartSize = nPartSize;
    pPars->fVerbose = fVerbose;
    if ( fVerbose )
    {
        ABC_PRT( "Total time", Abc_Clock() - clk );
    }
    return pNew;
}

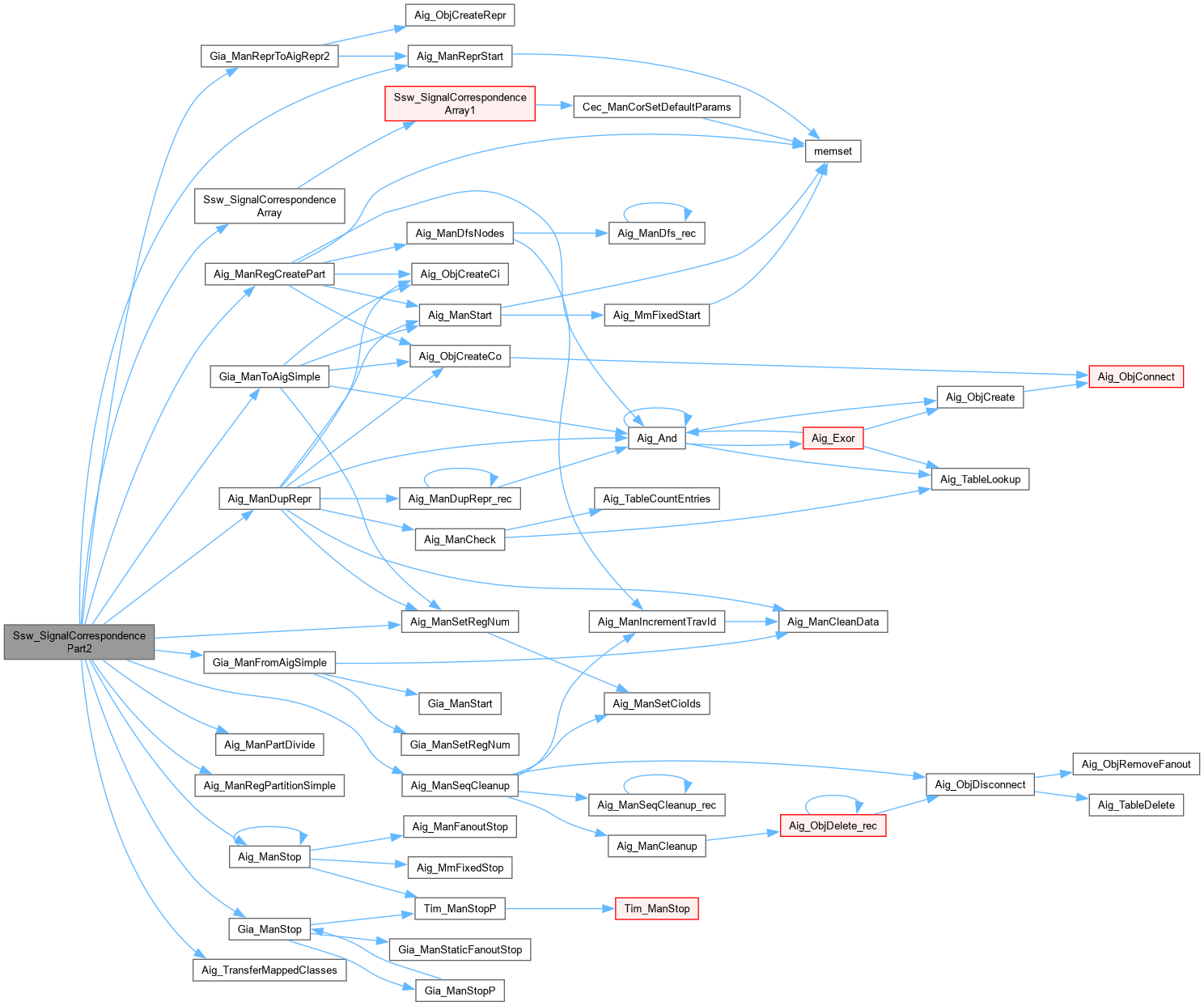

Here is the call graph for this function:

Here is the caller graph for this function:
