wlcAbs2.c File Reference

#include "wlc.h"
#include "proof/pdr/pdr.h"
#include "aig/gia/giaAig.h"
#include "sat/bmc/bmc.h"

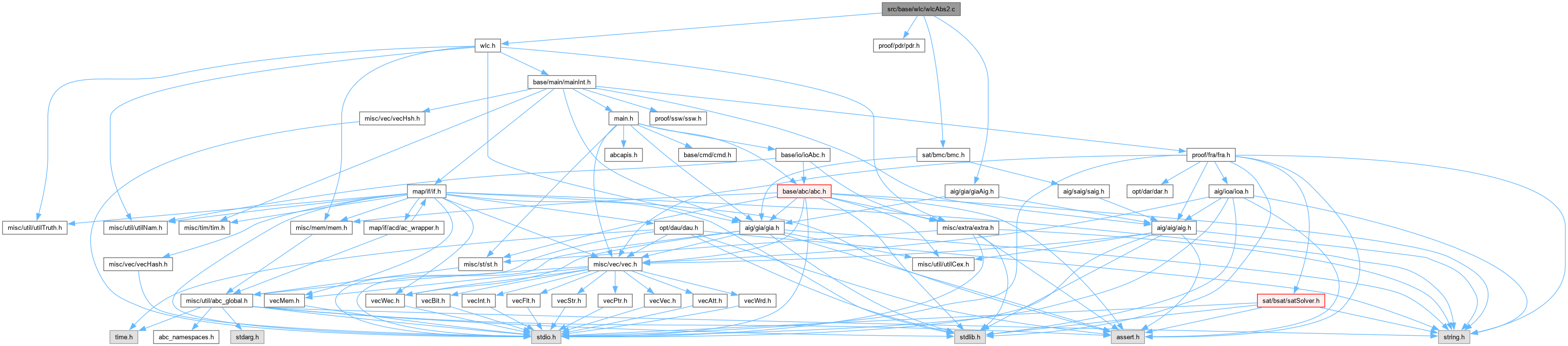

Include dependency graph for wlcAbs2.c:

Go to the source code of this file.

Functions
int	Wlc_NtkAbsCore2 (Wlc_Ntk_t *p, Wlc_Par_t *pPars)

Function Documentation

Wlc_NtkAbsCore2()

int Wlc_NtkAbsCore2	(	Wlc_Ntk_t *	p,
		Wlc_Par_t *	pPars )

Function*************************************************************

Synopsis [Performs abstraction.]

Description [Derives initial abstraction based on user-specified parameter values, which tell what is the smallest bit-width of a primitive that is being abstracted away. Currently only add/sub, mul/div, mux, and flop are supported with individual parameters. The second step is to refine the initial abstraction until the point when the property is proved.]

SideEffects []

SeeAlso []

Definition at line 302 of file wlcAbs2.c.

{
    abctime clk = Abc_Clock();
    int nIters, nNodes, nDcFlops, RetValue = -1;
    // start the bitmap to mark objects that cannot be abstracted because of refinement
    // currently, this bitmap is empty because abstraction begins without refinement
    Vec_Bit_t * vUnmark = Vec_BitStart( Wlc_NtkObjNumMax(p) );
    // set up parameters to run PDR
    Pdr_Par_t PdrPars, * pPdrPars = &PdrPars;
    Pdr_ManSetDefaultParams( pPdrPars );
    pPdrPars->fUseAbs    = 1;   // use 'pdr -t'  (on-the-fly abstraction)
    pPdrPars->fCtgs      = 1;   // use 'pdr -nc' (improved generalization)
    pPdrPars->fSkipDown  = 0;   // use 'pdr -nc' (improved generalization)
    //pPdrPars->nRestLimit = 500; // reset queue or proof-obligations when it gets larger than this
    pPdrPars->fVerbose   = pPars->fPdrVerbose;
    // perform refinement iterations
    for ( nIters = 1; nIters < pPars->nIterMax; nIters++ )
    {
        Aig_Man_t * pAig;
        Abc_Cex_t * pCex;
        Vec_Int_t * vPisNew, * vRefine;
        Gia_Man_t * pGia, * pTemp;
        Wlc_Ntk_t * pAbs;

        if ( pPars->fVerbose )
            printf( "\nIteration %d:\n", nIters );

        // get abstracted GIA and the set of pseudo-PIs (vPisNew)
        pAbs = Wlc_NtkAbs( p, pPars, vUnmark, &vPisNew, pPars->fVerbose );
        pGia = Wlc_NtkBitBlast( pAbs, NULL );

        // if the abstraction has flops with DC-init state,
        // new PIs were introduced by bit-blasting at the end of the PI list
        // here we move these variables to be *before* PPIs, because
        // PPIs are supposed to be at the end of the PI list for refinement
        nDcFlops = Wlc_NtkDcFlopNum(pAbs);
        if ( nDcFlops > 0 ) // DC-init flops are present
        {
            pGia = Gia_ManPermuteInputs( pTemp = pGia, Wlc_NtkCountObjBits(p, vPisNew), nDcFlops );
            Gia_ManStop( pTemp );
        }
        // if the word-level outputs have to be XORs, this is a place to do it
        if ( pPars->fXorOutput )
        {
            pGia = Gia_ManTransformMiter2( pTemp = pGia );
            Gia_ManStop( pTemp );
        }
        if ( pPars->fVerbose )
        {
            printf( "Derived abstraction with %d objects and %d PPIs. Bit-blasted AIG stats are:\n", Wlc_NtkObjNum(pAbs), Vec_IntSize(vPisNew) );
            Gia_ManPrintStats( pGia, NULL );
        }
        Wlc_NtkFree( pAbs );

        // try to prove abstracted GIA by converting it to AIG and calling PDR
        pAig = Gia_ManToAigSimple( pGia );
        RetValue = Pdr_ManSolve( pAig, pPdrPars );
        pCex = pAig->pSeqModel; pAig->pSeqModel = NULL;
        Aig_ManStop( pAig );

        // consider outcomes
        if ( pCex == NULL )
        {
            assert( RetValue ); // proved or undecided
            Gia_ManStop( pGia );
            Vec_IntFree( vPisNew );
            break;
        }

        // perform refinement
        vRefine = Wlc_NtkAbsRefinement( p, pGia, pCex, vPisNew );
        Gia_ManStop( pGia );
        Vec_IntFree( vPisNew );
        if ( vRefine == NULL ) // real CEX
        {
            Abc_CexFree( pCex ); // return CEX in the future
            break;
        }

        // update the set of objects to be un-abstracted
        nNodes = Wlc_NtkRemoveFromAbstraction( p, vRefine, vUnmark );
        if ( pPars->fVerbose )
            printf( "Refinement of CEX in frame %d came up with %d un-abstacted PPIs, whose MFFCs include %d objects.\n", pCex->iFrame, Vec_IntSize(vRefine), nNodes );
        Vec_IntFree( vRefine );
        Abc_CexFree( pCex );
    }
    Vec_BitFree( vUnmark );
    // report the result
    if ( pPars->fVerbose )
        printf( "\n" );
    printf( "Abstraction " );
    if ( RetValue == 0 )
        printf( "resulted in a real CEX" );
    else if ( RetValue == 1 )
        printf( "is successfully proved" );
    else
        printf( "timed out" );
    printf( " after %d iterations. ", nIters );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    return RetValue;
}

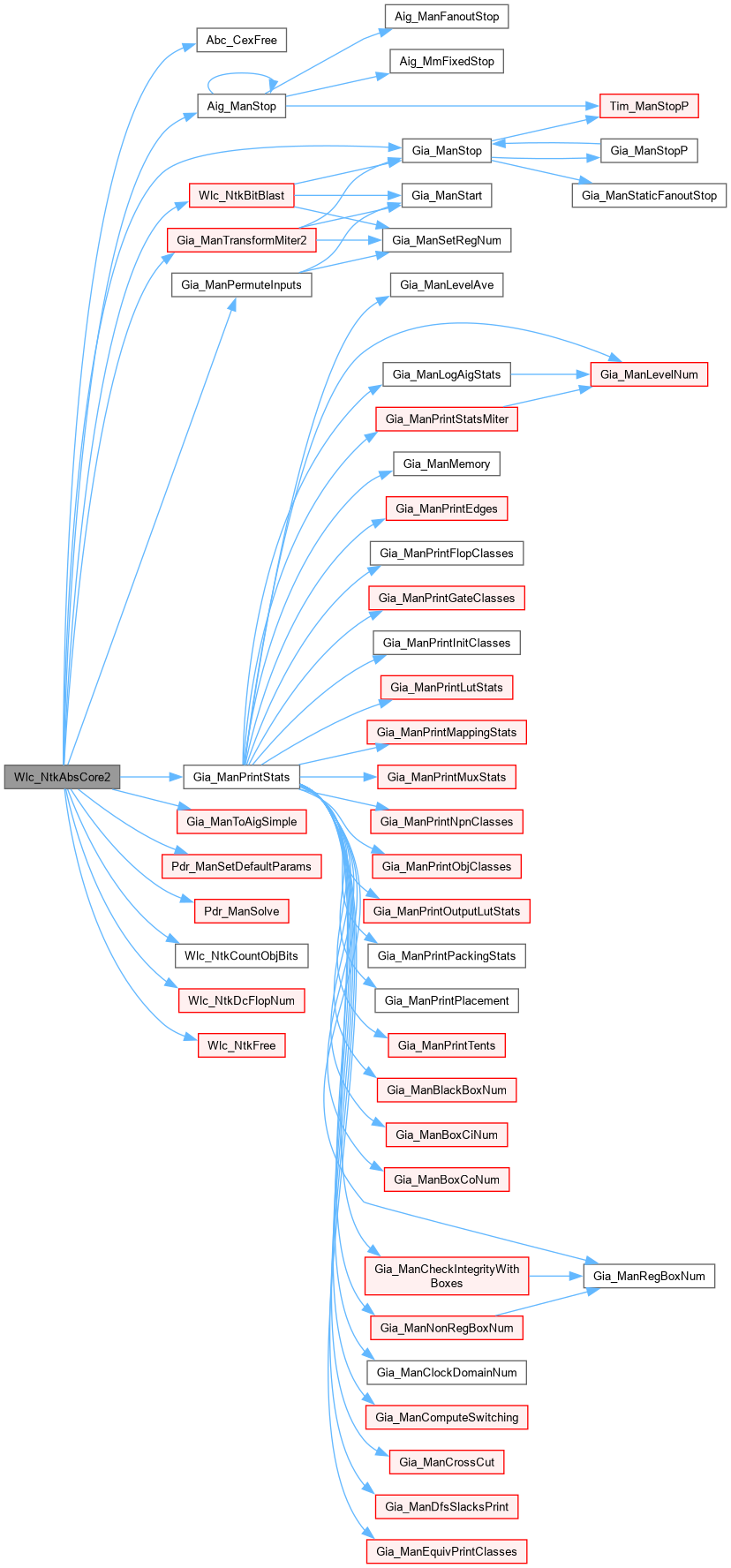

Here is the call graph for this function:
