cbaReadBlif.c File Reference

#include "cba.h"
#include "cbaPrs.h"

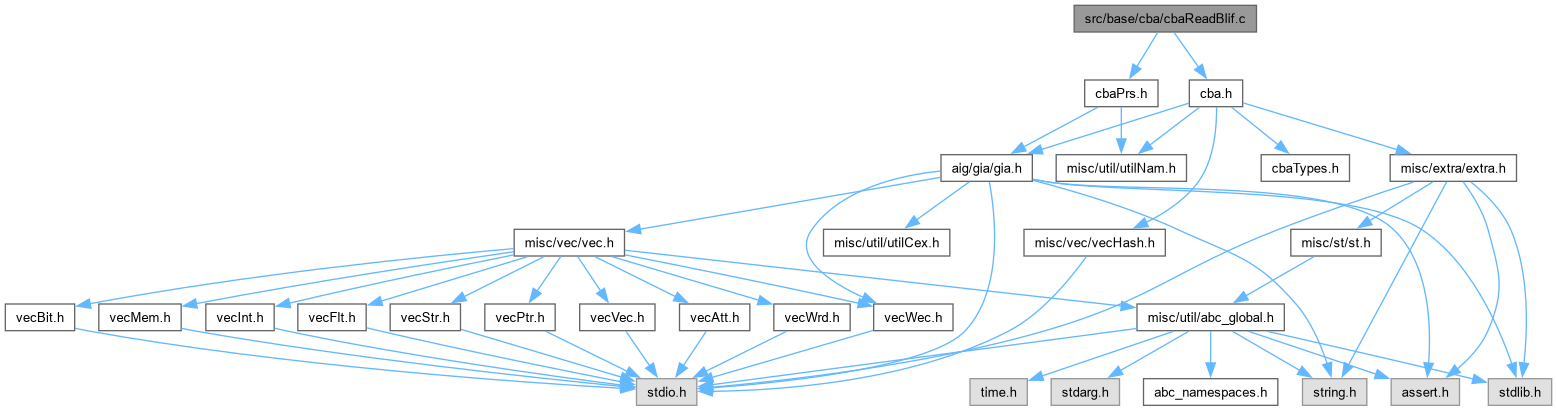

Include dependency graph for cbaReadBlif.c:

Go to the source code of this file.

Enumerations
enum	Cba_BlifType_t {   PRS_BLIF_NONE = 0 , PRS_BLIF_MODEL , PRS_BLIF_INOUTS , PRS_BLIF_INPUTS ,   PRS_BLIF_OUTPUTS , PRS_BLIF_NAMES , PRS_BLIF_SUBCKT , PRS_BLIF_GATE ,   PRS_BLIF_LATCH , PRS_BLIF_SHORT , PRS_BLIF_END , PRS_BLIF_UNKNOWN }
	DECLARATIONS ///. More...

Functions
Vec_Ptr_t *	Prs_ManReadBlif (char *pFileName)
void	Prs_ManReadBlifTest (char *pFileName)
int	Prs_CreateBlifFindFon (Cba_Ntk_t *p, int NameId)
void	Prs_CreateBlifPio (Cba_Ntk_t *p, Prs_Ntk_t *pNtk)
int	Prs_CreateBlifNtk (Cba_Ntk_t *p, Prs_Ntk_t *pNtk)
Cba_Man_t *	Prs_ManBuildCbaBlif (char *pFileName, Vec_Ptr_t *vDes)
Cba_Man_t *	Cba_ManReadBlif (char *pFileName)

Enumeration Type Documentation

Cba_BlifType_t

enum Cba_BlifType_t

DECLARATIONS ///.

CFile****************************************************************

FileName [cbaReadBlif.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Hierarchical word-level netlist.]

Synopsis [BLIF parser.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 29, 2014.]

Revision [

Id

cbaReadBlif.c,v 1.00 2014/11/29 00:00:00 alanmi Exp

]

Enumerator
PRS_BLIF_NONE
PRS_BLIF_MODEL
PRS_BLIF_INOUTS
PRS_BLIF_INPUTS
PRS_BLIF_OUTPUTS
PRS_BLIF_NAMES
PRS_BLIF_SUBCKT
PRS_BLIF_GATE
PRS_BLIF_LATCH
PRS_BLIF_SHORT
PRS_BLIF_END
PRS_BLIF_UNKNOWN

Definition at line 31 of file cbaReadBlif.c.

             {
    PRS_BLIF_NONE = 0, // 0:   unused
    PRS_BLIF_MODEL,    // 1:   .model
    PRS_BLIF_INOUTS,   // 2:   .inouts
    PRS_BLIF_INPUTS,   // 3:   .inputs
    PRS_BLIF_OUTPUTS,  // 4:   .outputs
    PRS_BLIF_NAMES,    // 5:   .names
    PRS_BLIF_SUBCKT,   // 6:   .subckt
    PRS_BLIF_GATE,     // 7:   .gate
    PRS_BLIF_LATCH,    // 8:   .latch
    PRS_BLIF_SHORT,    // 9:   .short
    PRS_BLIF_END,      // 10:  .end
    PRS_BLIF_UNKNOWN   // 11:  unknown
} Cba_BlifType_t;

Function Documentation

Cba_ManReadBlif()

Cba_Man_t * Cba_ManReadBlif

(

char *

pFileName

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 629 of file cbaReadBlif.c.

{
    Cba_Man_t * p = NULL;
    Vec_Ptr_t * vDes = Prs_ManReadBlif( pFileName );
    if ( vDes && Vec_PtrSize(vDes) )
        p = Prs_ManBuildCbaBlif( pFileName, vDes );
    if ( vDes )
        Prs_ManVecFree( vDes );
    return p;
}

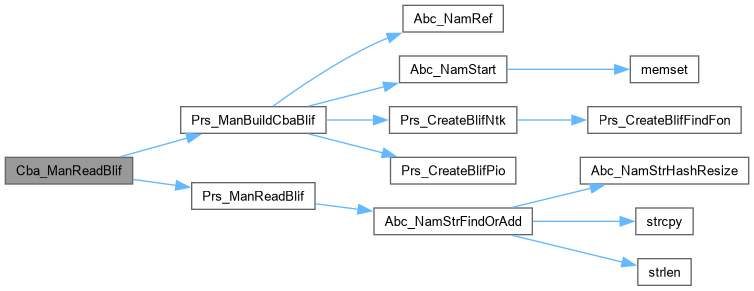

Here is the call graph for this function:

Prs_CreateBlifFindFon()

int Prs_CreateBlifFindFon	(	Cba_Ntk_t *	p,
		int	NameId )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 458 of file cbaReadBlif.c.

{
    int iFon = Cba_NtkGetMap( p, NameId );
    if ( iFon )
        return iFon;
    printf( "Network \"%s\": Signal \"%s\" is not driven.\n", Cba_NtkName(p), Cba_NtkStr(p, NameId) );
    return 0;
}

Here is the caller graph for this function:

Prs_CreateBlifNtk()

int Prs_CreateBlifNtk	(	Cba_Ntk_t *	p,
		Prs_Ntk_t *	pNtk )

Definition at line 490 of file cbaReadBlif.c.

{
    Vec_Int_t * vBox;
    int i, k, iObj, iTerm, iFon, FormId, ActId;
    // map inputs
    Cba_NtkCleanMap( p );
    Cba_NtkForEachPi( p, iObj, i )
        Cba_NtkSetMap( p, Cba_ObjName(p, iObj), Cba_ObjFon0(p, iObj) );
    // create objects
    Prs_NtkForEachBox( pNtk, vBox, i )
    {
        int FuncId = Prs_BoxNtk(pNtk, i);
        assert( Prs_BoxIONum(pNtk, i) > 0 );
        assert( Vec_IntSize(vBox) % 2 == 0 );
        if ( FuncId == -1 ) // latch
        {
            iObj = Cba_ObjAlloc( p, CBA_BOX_DFFRS, 4, 1 );
            Cba_NtkSetMap( p, Vec_IntEntry(vBox, 3), Cba_ObjFon0(p, iObj) ); // latch output
            Cba_ObjSetFunc( p, iObj, Prs_BoxName(pNtk, i)+1 ); // init + 1
        }
        else if ( Prs_BoxIsNode(pNtk, i) ) // node
        {
            iObj = Cba_ObjAlloc( p, CBA_BOX_NODE, Prs_BoxIONum(pNtk, i)-1, 1 );
            Cba_FonSetName( p, Cba_ObjFon0(p, iObj), Vec_IntEntryLast(vBox) ); // node output
            Cba_NtkSetMap( p, Vec_IntEntryLast(vBox), Cba_ObjFon0(p, iObj) );
            Cba_ObjSetFunc( p, iObj, FuncId );
        }
        else // box
        {
            Cba_Ntk_t * pBox = Cba_ManNtkFind( p->pDesign, Prs_NtkStr(pNtk, FuncId) );
            iObj = Cba_ObjAlloc( p, CBA_OBJ_BOX, Cba_NtkPiNum(pBox), Cba_NtkPoNum(pBox) );
            Cba_ObjSetFunc( p, iObj, Cba_NtkId(pBox) );
            // mark PO objects
            Cba_NtkCleanMap2( p );
            Cba_NtkForEachPo( pBox, iTerm, k )
                Cba_NtkSetMap2( p, Cba_ObjName(pBox, iTerm), k+1 );
            // map box fons
            Vec_IntForEachEntryDouble( vBox, FormId, ActId, k )
                if ( Cba_NtkGetMap2(p, FormId) )
                {
                    iFon = Cba_ObjFon(p, iObj, Cba_NtkGetMap2(p, FormId)-1);
                    Cba_FonSetName( p, iFon, ActId );
                    Cba_NtkSetMap( p, ActId, iFon );
                }
        }
    }
    // connect objects
    Prs_NtkForEachBox( pNtk, vBox, i )
    {
        iObj = Cba_NtkPiNum(p) + Cba_NtkPoNum(p) + i + 1;
        if ( Prs_BoxNtk(pNtk, i) == -1 ) // latch
        {
            assert( Cba_ObjType(p, iObj) == CBA_BOX_DFFRS );
            iFon = Prs_CreateBlifFindFon( p, Vec_IntEntry(vBox, 1) ); // latch input
            if ( iFon )
                Cba_ObjSetFinFon( p, iObj, 0, iFon );
        }
        else if ( Prs_BoxIsNode(pNtk, i) ) // node
        {
            assert( Cba_ObjType(p, iObj) == CBA_BOX_NODE );
            Vec_IntForEachEntryDouble( vBox, FormId, ActId, k )
            {
                if ( k == 2 * Cba_ObjFinNum(p, iObj) ) // stop at node output
                    break;
                iFon = Prs_CreateBlifFindFon( p, ActId );
                if ( iFon )
                    Cba_ObjSetFinFon( p, iObj, k/2, iFon );
            }
        }
        else // box
        {
            // mark PI objects
            Cba_Ntk_t * pBox = Cba_ObjNtk(p, iObj);
            assert( Cba_NtkPiNum(pBox) == Cba_ObjFinNum(p, iObj) );
            assert( Cba_NtkPoNum(pBox) == Cba_ObjFonNum(p, iObj) );
            Cba_NtkCleanMap2( p );
            Cba_NtkForEachPi( pBox, iTerm, k )
                Cba_NtkSetMap2( p, Cba_ObjName(pBox, iTerm), k+1 );
            // connect box fins
            Vec_IntForEachEntryDouble( vBox, FormId, ActId, k )
                if ( Cba_NtkGetMap2(p, FormId) )
                {
                    iFon = Prs_CreateBlifFindFon( p, ActId );
                    if ( iFon )
                        Cba_ObjSetFinFon( p, iObj, Cba_NtkGetMap2(p, FormId)-1, iFon );
                }
        }
    }
    // connect outputs
    Cba_NtkForEachPo( p, iObj, i )
    {
        iFon = Prs_CreateBlifFindFon( p, Cba_ObjName(p, iObj) );
        if ( iFon )
            Cba_ObjSetFinFon( p, iObj, 0, iFon );
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Prs_CreateBlifPio()

void Prs_CreateBlifPio	(	Cba_Ntk_t *	p,
		Prs_Ntk_t *	pNtk )

Definition at line 466 of file cbaReadBlif.c.

{
    int i, NameId, iObj, iFon;
    Cba_NtkCleanObjFuncs( p );
    Cba_NtkCleanObjNames( p );
    Cba_NtkCleanFonNames( p );
    // create inputs
    Prs_NtkForEachPi( pNtk, NameId, i )
    {
        iObj = Cba_ObjAlloc( p, CBA_OBJ_PI, 0, 1 );
        Cba_ObjSetName( p, iObj, NameId );
        iFon = Cba_ObjFon0(p, iObj);
        Cba_FonSetName( p, iFon, NameId );
        Cba_NtkSetMap( p, NameId, iFon );
        Vec_IntPush( &p->vOrder, iObj );
    }
    // create outputs
    Prs_NtkForEachPo( pNtk, NameId, i )
    {
        iObj = Cba_ObjAlloc( p, CBA_OBJ_PO, 1, 0 );
        Cba_ObjSetName( p, iObj, NameId );
        Vec_IntPush( &p->vOrder, iObj );
    }
}

Here is the caller graph for this function:

Prs_ManBuildCbaBlif()

Cba_Man_t * Prs_ManBuildCbaBlif	(	char *	pFileName,
		Vec_Ptr_t *	vDes )

Definition at line 587 of file cbaReadBlif.c.

{
    Prs_Ntk_t * pPrsNtk; int i, fError = 0;
    Prs_Ntk_t * pPrsRoot = Prs_ManRoot(vDes);
    // start the manager
    Abc_Nam_t * pStrs = Abc_NamRef(pPrsRoot->pStrs);
    Abc_Nam_t * pFuns = Abc_NamRef(pPrsRoot->pFuns);
    Abc_Nam_t * pMods = Abc_NamStart( 100, 24 );
    Cba_Man_t * p = Cba_ManAlloc( pFileName, Vec_PtrSize(vDes), pStrs, pFuns, pMods, NULL );
    // initialize networks
    Vec_PtrForEachEntry( Prs_Ntk_t *, vDes, pPrsNtk, i )
    {
        Cba_Ntk_t * pNtk = Cba_NtkAlloc( p, Prs_NtkId(pPrsNtk), Prs_NtkPiNum(pPrsNtk), Prs_NtkPoNum(pPrsNtk), Prs_NtkObjNum(pPrsNtk), 100, 100 );
        Prs_CreateBlifPio( pNtk, pPrsNtk );
        Cba_NtkAdd( p, pNtk );
    }
    // create networks
    Vec_PtrForEachEntry( Prs_Ntk_t *, vDes, pPrsNtk, i )
    {
        printf( "Elaboration module \"%s\"...\n", Prs_NtkName(pPrsNtk) );
        fError = Prs_CreateBlifNtk( Cba_ManNtk(p, i+1), pPrsNtk );
        if ( fError )
            break;
    }
    if ( fError )
        printf( "Quitting because of errors.\n" );
    else
        Cba_ManPrepareSeq( p );
    return p;
}

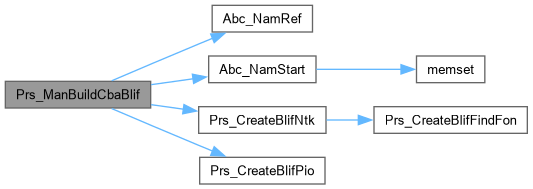

Here is the call graph for this function:

Here is the caller graph for this function:

Prs_ManReadBlif()

Vec_Ptr_t * Prs_ManReadBlif

(

char *

pFileName

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 406 of file cbaReadBlif.c.

{
    Vec_Ptr_t * vPrs = NULL;
    Prs_Man_t * p = Prs_ManAlloc( pFileName );
    if ( p == NULL )
        return NULL;
    Abc_NamStrFindOrAdd( p->pFuns, " 0\n", NULL );
    Abc_NamStrFindOrAdd( p->pFuns, " 1\n", NULL );
    Prs_NtkAddBlifDirectives( p );
    Prs_ManReadLines( p );
    if ( Prs_ManErrorPrint(p) )
        ABC_SWAP( Vec_Ptr_t *, vPrs, p->vNtks );
    Prs_ManFree( p );
    return vPrs;
}

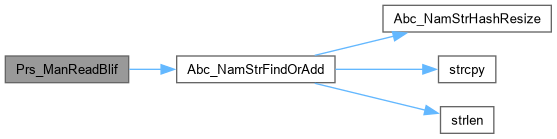

Here is the call graph for this function:

Here is the caller graph for this function:

Prs_ManReadBlifTest()

void Prs_ManReadBlifTest

(

char *

pFileName

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 433 of file cbaReadBlif.c.

{
    abctime clk = Abc_Clock();
    Vec_Ptr_t * vPrs = Prs_ManReadBlif( pFileName );
    if ( !vPrs ) return;
    printf( "Finished reading %d networks. ", Vec_PtrSize(vPrs) );
    printf( "NameIDs = %d. ", Abc_NamObjNumMax(Prs_ManNameMan(vPrs)) );
    printf( "Memory = %.2f MB. ", 1.0*Prs_ManMemory(vPrs)/(1<<20) );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
//    Abc_NamPrint( p->pStrs );
    Prs_ManWriteBlif( Extra_FileNameGenericAppend(pFileName, "_out.blif"), vPrs );
    Prs_ManVecFree( vPrs );
}

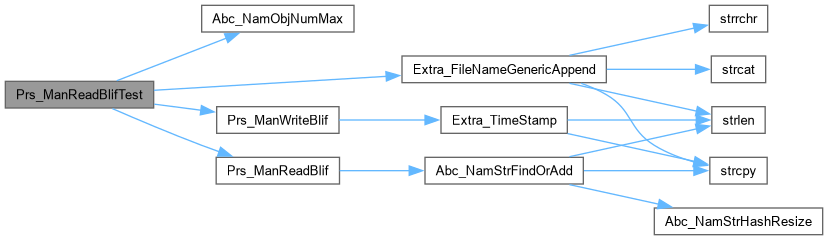

Here is the call graph for this function:
