dchMan.c File Reference

#include "dchInt.h"

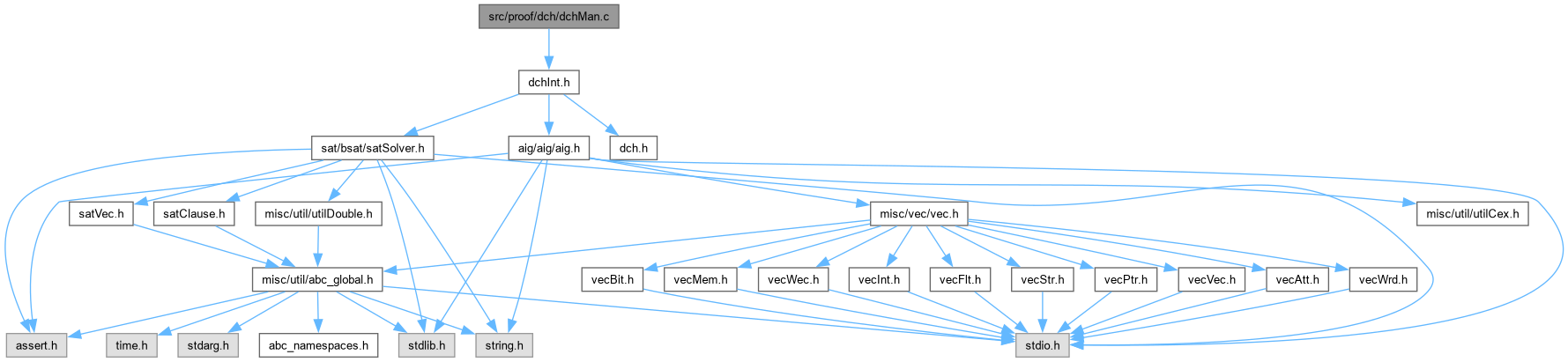

Include dependency graph for dchMan.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Dch_Man_t *	Dch_ManCreate (Aig_Man_t *pAig, Dch_Pars_t *pPars)
	DECLARATIONS ///.
void	Dch_ManPrintStats (Dch_Man_t *p)
void	Dch_ManStop (Dch_Man_t *p)
void	Dch_ManSatSolverRecycle (Dch_Man_t *p)

Function Documentation

Dch_ManCreate()

ABC_NAMESPACE_IMPL_START Dch_Man_t * Dch_ManCreate	(	Aig_Man_t *	pAig,
		Dch_Pars_t *	pPars )

DECLARATIONS ///.

CFile****************************************************************

FileName [dchMan.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Choice computation for tech-mapping.]

Synopsis [Calls to the SAT solver.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 29, 2008.]

Revision [

Id

dchMan.c,v 1.00 2008/07/29 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Creates the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file dchMan.c.

{
    Dch_Man_t * p;
    // create interpolation manager
    p = ABC_ALLOC( Dch_Man_t, 1 );
    memset( p, 0, sizeof(Dch_Man_t) );
    p->pPars        = pPars;
    p->pAigTotal    = pAig; //Dch_DeriveTotalAig( vAigs );
    Aig_ManFanoutStart( p->pAigTotal );
    // SAT solving
    p->nSatVars     = 1;
    p->pSatVars     = ABC_CALLOC( int, Aig_ManObjNumMax(p->pAigTotal) );
    p->vUsedNodes   = Vec_PtrAlloc( 1000 );
    p->vFanins      = Vec_PtrAlloc( 100 );
    p->vSimRoots    = Vec_PtrAlloc( 1000 );
    p->vSimClasses  = Vec_PtrAlloc( 1000 );
    // equivalences proved
    p->pReprsProved = ABC_CALLOC( Aig_Obj_t *, Aig_ManObjNumMax(p->pAigTotal) );
    return p;
}

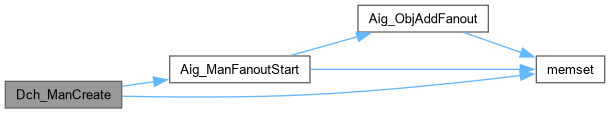

Here is the call graph for this function:

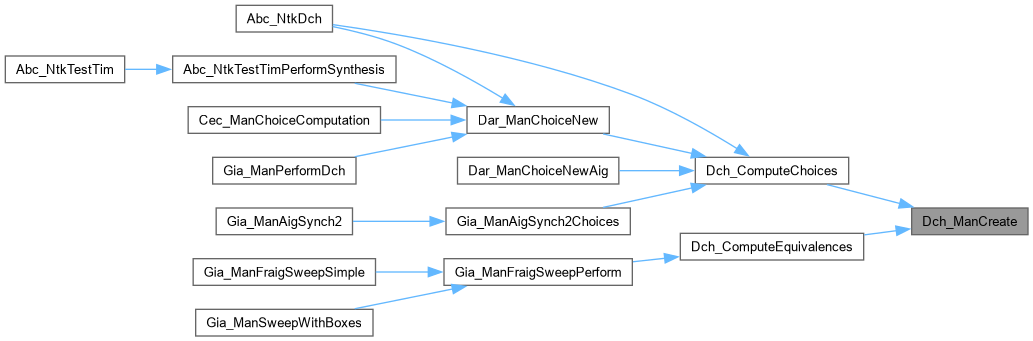

Here is the caller graph for this function:

Dch_ManPrintStats()

void Dch_ManPrintStats

(

Dch_Man_t *

p

)

Function*************************************************************

Synopsis [Prints stats of the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 77 of file dchMan.c.

{
    int nNodeNum = Aig_ManNodeNum(p->pAigTotal) / 3;
    Abc_Print( 1, "Parameters: Sim words = %d. Conf limit = %d. SAT var max = %d.\n",
        p->pPars->nWords, p->pPars->nBTLimit, p->pPars->nSatVarMax );
    Abc_Print( 1, "AIG nodes : Total = %6d. Dangling = %6d. Main = %6d. (%6.2f %%)\n",
        Aig_ManNodeNum(p->pAigTotal),
        Aig_ManNodeNum(p->pAigTotal)-nNodeNum,
        nNodeNum,
        100.0 * nNodeNum/Aig_ManNodeNum(p->pAigTotal) );
    Abc_Print( 1, "SAT solver: Vars = %d. Max cone = %d. Recycles = %d.\n",
        p->nSatVars, p->nConeMax, p->nRecycles );
    Abc_Print( 1, "SAT calls : All = %6d. Unsat = %6d. Sat = %6d. Fail = %6d.\n",
        p->nSatCalls, p->nSatCalls-p->nSatCallsSat-p->nSatFailsReal,
        p->nSatCallsSat, p->nSatFailsReal );
    Abc_Print( 1, "Choices   : Lits = %6d. Reprs = %5d. Equivs = %5d. Choices = %5d.\n",
        p->nLits, p->nReprs, p->nEquivs, p->nChoices );
    Abc_Print( 1, "Choicing runtime statistics:\n" );
    p->timeOther = p->timeTotal-p->timeSimInit-p->timeSimSat-p->timeSat-p->timeChoice;
    Abc_PrintTimeP( 1, "Sim init   ", p->timeSimInit,  p->timeTotal );
    Abc_PrintTimeP( 1, "Sim SAT    ", p->timeSimSat,   p->timeTotal );
    Abc_PrintTimeP( 1, "SAT solving", p->timeSat,      p->timeTotal );
    Abc_PrintTimeP( 1, "  sat      ", p->timeSatSat,   p->timeTotal );
    Abc_PrintTimeP( 1, "  unsat    ", p->timeSatUnsat, p->timeTotal );
    Abc_PrintTimeP( 1, "  undecided", p->timeSatUndec, p->timeTotal );
    Abc_PrintTimeP( 1, "Choice     ", p->timeChoice,   p->timeTotal );
    Abc_PrintTimeP( 1, "Other      ", p->timeOther,    p->timeTotal );
    Abc_PrintTimeP( 1, "TOTAL      ", p->timeTotal,    p->timeTotal );
    if ( p->pPars->timeSynth )
    {
    Abc_PrintTime( 1, "Synthesis  ", p->pPars->timeSynth );
    }
}

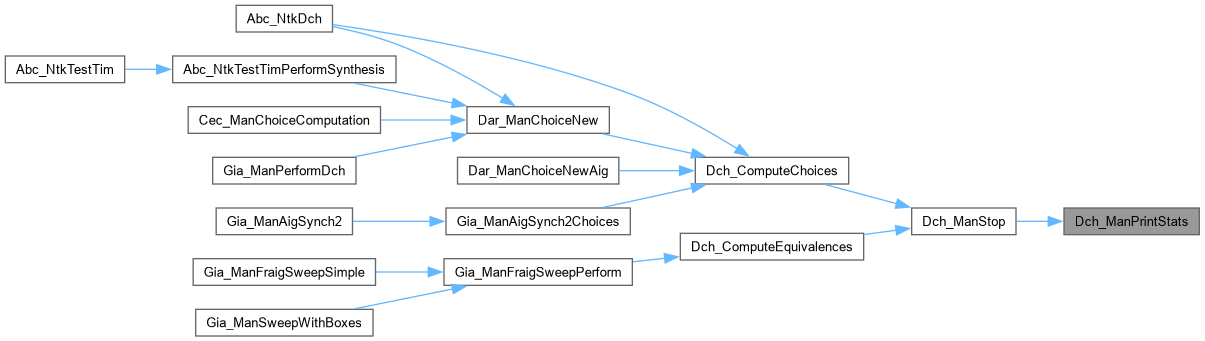

Here is the caller graph for this function:

Dch_ManSatSolverRecycle()

void Dch_ManSatSolverRecycle

(

Dch_Man_t *

p

)

Function*************************************************************

Synopsis [Recycles the SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 153 of file dchMan.c.

{
    int Lit;
    if ( p->pSat )
    {
        Aig_Obj_t * pObj;
        int i;
        Vec_PtrForEachEntry( Aig_Obj_t *, p->vUsedNodes, pObj, i )
            Dch_ObjSetSatNum( p, pObj, 0 );
        Vec_PtrClear( p->vUsedNodes );
//        memset( p->pSatVars, 0, sizeof(int) * Aig_ManObjNumMax(p->pAigTotal) );
        sat_solver_delete( p->pSat );
    }
    p->pSat = sat_solver_new();
    sat_solver_setnvars( p->pSat, 1000 );
    // var 0 is not used
    // var 1 is reserved for const1 node - add the clause
    p->nSatVars = 1;
//    p->nSatVars = 0;
    Lit = toLit( p->nSatVars );
    if ( p->pPars->fPolarFlip )
        Lit = lit_neg( Lit );
    sat_solver_addclause( p->pSat, &Lit, &Lit + 1 );
    Dch_ObjSetSatNum( p, Aig_ManConst1(p->pAigFraig), p->nSatVars++ );

    p->nRecycles++;
    p->nCallsSince = 0;
}

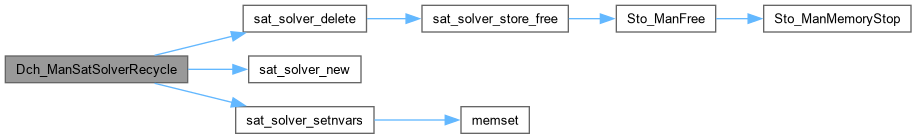

Here is the call graph for this function:

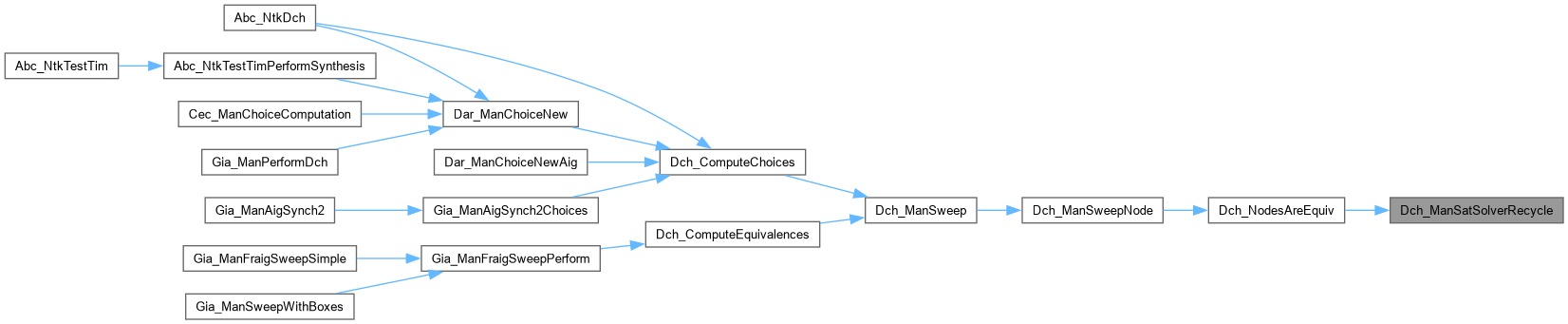

Here is the caller graph for this function:

Dch_ManStop()

void Dch_ManStop

(

Dch_Man_t *

p

)

Function*************************************************************

Synopsis [Frees the manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 122 of file dchMan.c.

{
    Aig_ManFanoutStop( p->pAigTotal );
    if ( p->pPars->fVerbose )
        Dch_ManPrintStats( p );
    if ( p->pAigFraig )
        Aig_ManStop( p->pAigFraig );
    if ( p->ppClasses )
        Dch_ClassesStop( p->ppClasses );
    if ( p->pSat )
        sat_solver_delete( p->pSat );
    Vec_PtrFree( p->vUsedNodes );
    Vec_PtrFree( p->vFanins );
    Vec_PtrFree( p->vSimRoots );
    Vec_PtrFree( p->vSimClasses );
    ABC_FREE( p->pReprsProved );
    ABC_FREE( p->pSatVars );
    ABC_FREE( p );
}

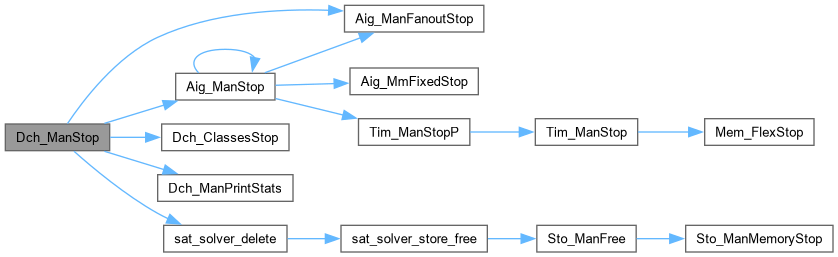

Here is the call graph for this function:

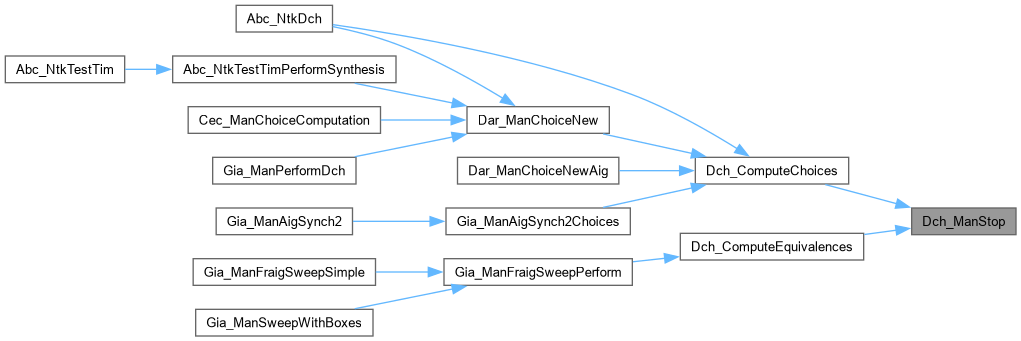

Here is the caller graph for this function:
