fraHot.c File Reference
#include "fra.h"

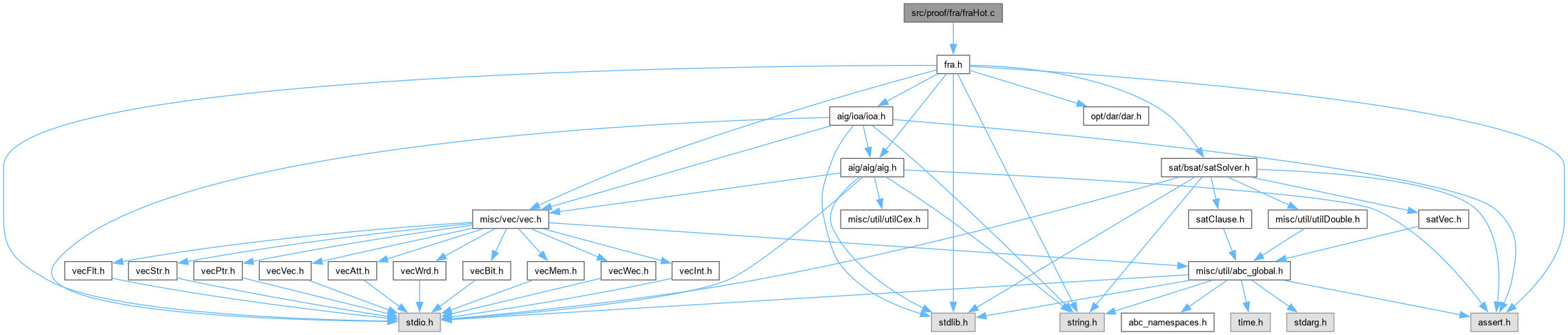

Include dependency graph for fraHot.c:

Go to the source code of this file.

Functions

int Fra_OneHotNodeIsConst (Fra_Sml_t *pSeq, Aig_Obj_t *pObj)
 FUNCTION DEFINITIONS ///.

int Fra_OneHotNodesAreEqual (Fra_Sml_t *pSeq, Aig_Obj_t *pObj0, Aig_Obj_t *pObj1)

int Fra_OneHotNodesAreClause (Fra_Sml_t *pSeq, Aig_Obj_t *pObj1, Aig_Obj_t *pObj2, int fCompl1, int fCompl2)

Vec_Int_t * Fra_OneHotCompute (Fra_Man_t *p, Fra_Sml_t *pSim)

void Fra_OneHotAssume (Fra_Man_t *p, Vec_Int_t *vOneHots)

void Fra_OneHotCheck (Fra_Man_t *p, Vec_Int_t *vOneHots)

int Fra_OneHotRefineUsingCex (Fra_Man_t *p, Vec_Int_t *vOneHots)

int Fra_OneHotCount (Fra_Man_t *p, Vec_Int_t *vOneHots)

void Fra_OneHotEstimateCoverage (Fra_Man_t *p, Vec_Int_t *vOneHots)

Aig_Man_t * Fra_OneHotCreateExdc (Fra_Man_t *p, Vec_Int_t *vOneHots)

void Fra_OneHotAddKnownConstraint (Fra_Man_t *p, Vec_Ptr_t *vOnehots)


Function Documentation

◆ Fra_OneHotAddKnownConstraint()

void Fra_OneHotAddKnownConstraint ( Fra_Man_t * p,
Vec_Ptr_t * vOnehots )

Function*************************************************************

Synopsis [Assumes one-hot implications in the SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 439 of file fraHot.c.

440{
441 Vec_Int_t * vGroup;
442 Aig_Obj_t * pObj1, * pObj2;
443 int k, i, j, Out1, Out2, pLits[2];
444 //
445 // these constrants should be added to different timeframes!
446 // (also note that PIs follow first - then registers)
447 //
448 Vec_PtrForEachEntry( Vec_Int_t *, vOnehots, vGroup, k )
449 {
450 Vec_IntForEachEntry( vGroup, Out1, i )
451 Vec_IntForEachEntryStart( vGroup, Out2, j, i+1 )
452 {
453 pObj1 = Aig_ManCi( p->pManFraig, Out1 );
454 pObj2 = Aig_ManCi( p->pManFraig, Out2 );
455 pLits[0] = toLitCond( Fra_ObjSatNum(pObj1), 1 );
456 pLits[1] = toLitCond( Fra_ObjSatNum(pObj2), 1 );
457 // add constraint to solver
458 if ( !sat_solver_addclause( p->pSat, pLits, pLits + 2 ) )
459 {
460 printf( "Fra_OneHotAddKnownConstraint(): Adding clause makes SAT solver unsat.\n" );
461 sat_solver_delete( p->pSat );
462 p->pSat = NULL;
463 return;
464 }
465 }
466 }
467}
Aig_Obj_t
struct Aig_Obj_t_ Aig_Obj_t
Definition aig.h:51
Vec_Int_t
typedefABC_NAMESPACE_IMPL_START struct Vec_Int_t_ Vec_Int_t
DECLARATIONS ///.
Definition bblif.c:37
sat_solver_addclause
#define sat_solver_addclause
Definition cecSatG2.c:37
p
Cube * p
Definition exorList.c:222
sat_solver_delete
void sat_solver_delete(sat_solver *s)
Definition satSolver.c:1341
Vec_IntForEachEntry
#define Vec_IntForEachEntry(vVec, Entry, i)
MACRO DEFINITIONS ///.
Definition vecInt.h:54
Vec_IntForEachEntryStart
#define Vec_IntForEachEntryStart(vVec, Entry, i, Start)
Definition vecInt.h:56
Vec_PtrForEachEntry
#define Vec_PtrForEachEntry(Type, vVec, pEntry, i)
MACRO DEFINITIONS ///.
Definition vecPtr.h:55
Here is the call graph for this function:

◆ Fra_OneHotAssume()

void Fra_OneHotAssume ( Fra_Man_t * p,
Vec_Int_t * vOneHots )

Function*************************************************************

Synopsis [Assumes one-hot implications in the SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 191 of file fraHot.c.

192{
193 Aig_Obj_t * pObj1, * pObj2;
194 int i, Out1, Out2, pLits[2];
195 int nPiNum = Aig_ManCiNum(p->pManFraig) - Aig_ManRegNum(p->pManFraig);
196 assert( p->pPars->nFramesK == 1 ); // add to only one frame
197 for ( i = 0; i < Vec_IntSize(vOneHots); i += 2 )
198 {
199 Out1 = Vec_IntEntry( vOneHots, i );
200 Out2 = Vec_IntEntry( vOneHots, i+1 );
201 if ( Out1 == 0 && Out2 == 0 )
202 continue;
203 pObj1 = Aig_ManCi( p->pManFraig, nPiNum + Fra_LitReg(Out1) );
204 pObj2 = Aig_ManCi( p->pManFraig, nPiNum + Fra_LitReg(Out2) );
205 pLits[0] = toLitCond( Fra_ObjSatNum(pObj1), Fra_LitSign(Out1) );
206 pLits[1] = toLitCond( Fra_ObjSatNum(pObj2), Fra_LitSign(Out2) );
207 // add constraint to solver
208 if ( !sat_solver_addclause( p->pSat, pLits, pLits + 2 ) )
209 {
210 printf( "Fra_OneHotAssume(): Adding clause makes SAT solver unsat.\n" );
211 sat_solver_delete( p->pSat );
212 p->pSat = NULL;
213 return;
214 }
215 }
216}
assert
#define assert(ex)
Definition util_old.h:213

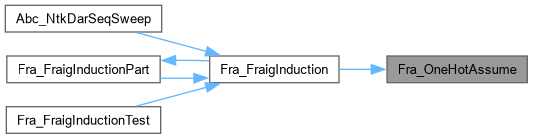

Here is the call graph for this function:

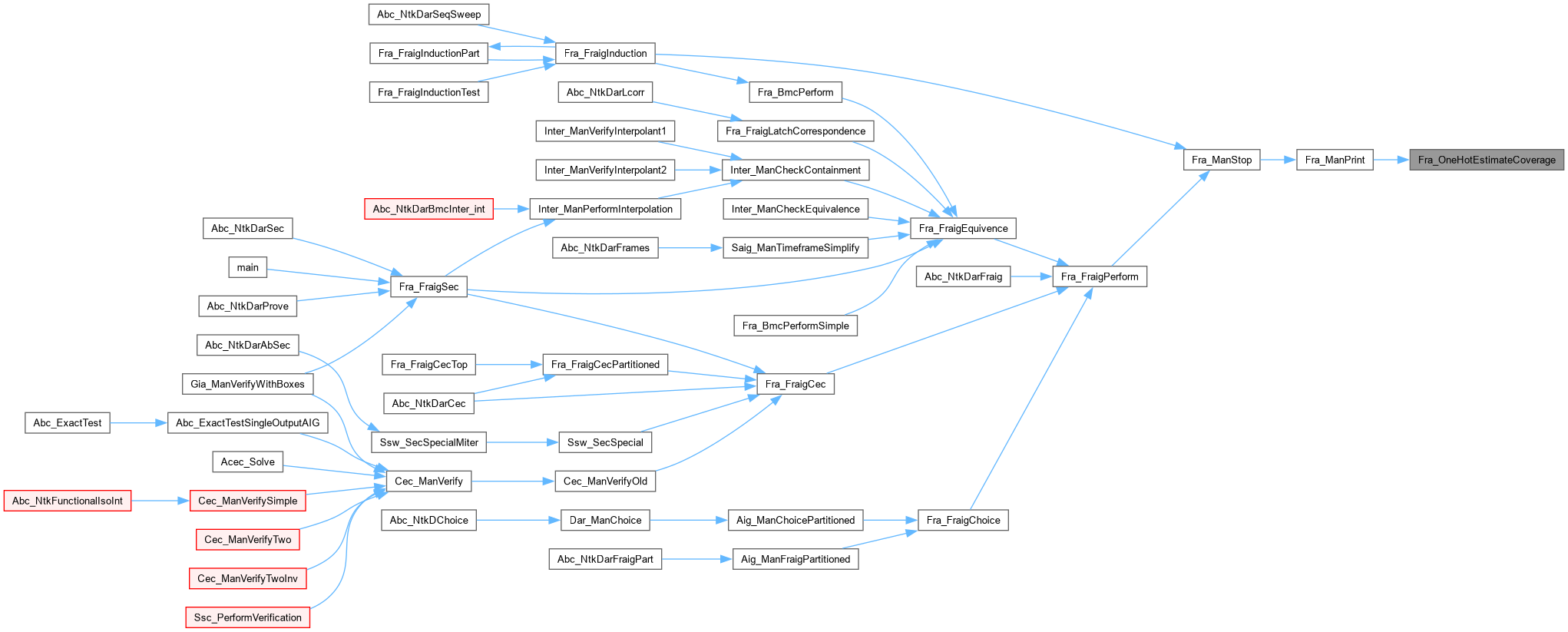

Here is the caller graph for this function:

◆ Fra_OneHotCheck()

void Fra_OneHotCheck ( Fra_Man_t * p,
Vec_Int_t * vOneHots )

Function*************************************************************

Synopsis [Checks one-hot implications.]

Description []

SideEffects []

SeeAlso []

Definition at line 229 of file fraHot.c.

230{
231 Aig_Obj_t * pObj1, * pObj2;
232 int RetValue, i, Out1, Out2;
233 int nTruePos = Aig_ManCoNum(p->pManFraig) - Aig_ManRegNum(p->pManFraig);
234 for ( i = 0; i < Vec_IntSize(vOneHots); i += 2 )
235 {
236 Out1 = Vec_IntEntry( vOneHots, i );
237 Out2 = Vec_IntEntry( vOneHots, i+1 );
238 if ( Out1 == 0 && Out2 == 0 )
239 continue;
240 pObj1 = Aig_ManCo( p->pManFraig, nTruePos + Fra_LitReg(Out1) );
241 pObj2 = Aig_ManCo( p->pManFraig, nTruePos + Fra_LitReg(Out2) );
242 RetValue = Fra_NodesAreClause( p, pObj1, pObj2, Fra_LitSign(Out1), Fra_LitSign(Out2) );
243 if ( RetValue != 1 )
244 {
245 p->pCla->fRefinement = 1;
246 if ( RetValue == 0 )
247 Fra_SmlResimulate( p );
248 if ( Vec_IntEntry(vOneHots, i) != 0 )
249 printf( "Fra_OneHotCheck(): Clause is not refined!\n" );
250 assert( Vec_IntEntry(vOneHots, i) == 0 );
251 }
252 }
253}
Fra_NodesAreClause
int Fra_NodesAreClause(Fra_Man_t *p, Aig_Obj_t *pOld, Aig_Obj_t *pNew, int fComplL, int fComplR)
Definition fraSat.c:317
Fra_SmlResimulate
void Fra_SmlResimulate(Fra_Man_t *p)
Definition fraSim.c:703

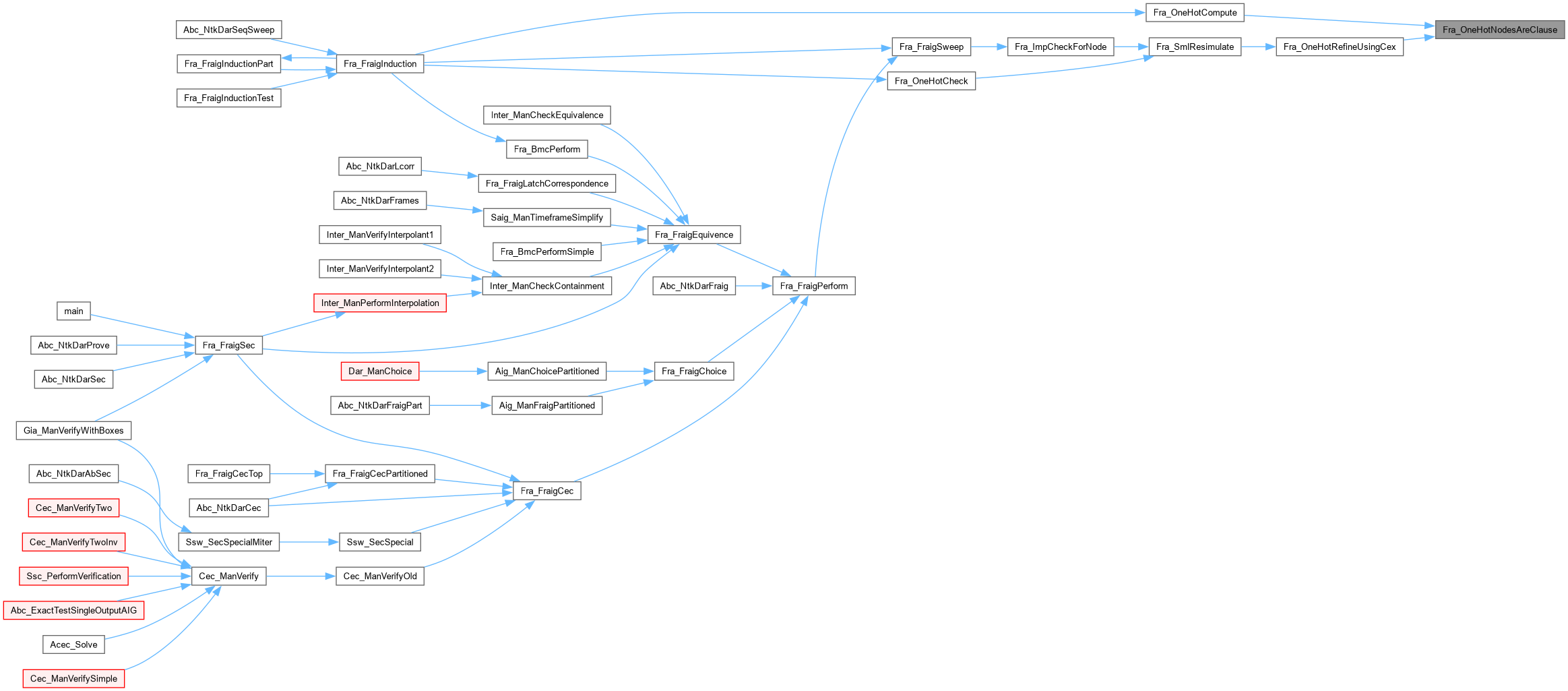

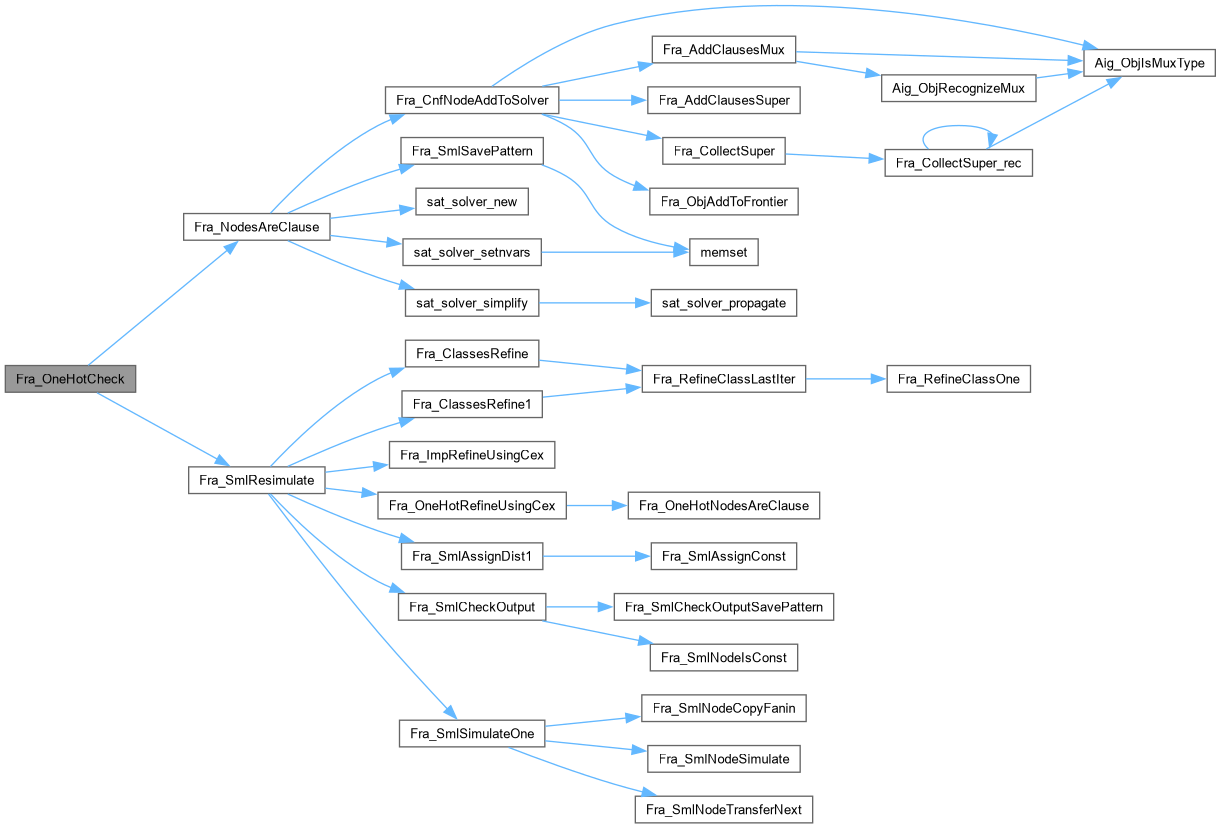

Here is the call graph for this function:

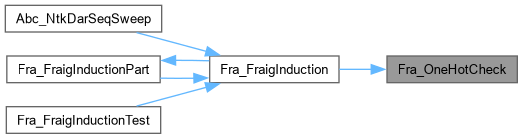

Here is the caller graph for this function:

◆ Fra_OneHotCompute()

Vec_Int_t * Fra_OneHotCompute ( Fra_Man_t * p,
Fra_Sml_t * pSim )

Function*************************************************************

Synopsis [Computes one-hot implications.]

Description []

SideEffects []

SeeAlso []

Definition at line 134 of file fraHot.c.

135{
136 int fSkipConstEqu = 1;
137 Vec_Int_t * vOneHots;
138 Aig_Obj_t * pObj1, * pObj2;
139 int i, k;
140 int nTruePis = Aig_ManCiNum(pSim->pAig) - Aig_ManRegNum(pSim->pAig);
141 assert( pSim->pAig == p->pManAig );
142 vOneHots = Vec_IntAlloc( 100 );
143 Aig_ManForEachLoSeq( pSim->pAig, pObj1, i )
144 {
145 if ( fSkipConstEqu && Fra_OneHotNodeIsConst(pSim, pObj1) )
146 continue;
147 assert( i-nTruePis >= 0 );
148// Aig_ManForEachLoSeq( pSim->pAig, pObj2, k )
149// Vec_PtrForEachEntryStart( Aig_Obj_t *, pSim->pAig->vPis, pObj2, k, Aig_ManCiNum(p)-Aig_ManRegNum(p) )
150 Vec_PtrForEachEntryStart( Aig_Obj_t *, pSim->pAig->vCis, pObj2, k, i+1 )
151 {
152 if ( fSkipConstEqu && Fra_OneHotNodeIsConst(pSim, pObj2) )
153 continue;
154 if ( fSkipConstEqu && Fra_OneHotNodesAreEqual( pSim, pObj1, pObj2 ) )
155 continue;
156 assert( k-nTruePis >= 0 );
157 if ( Fra_OneHotNodesAreClause( pSim, pObj1, pObj2, 1, 1 ) )
158 {
159 Vec_IntPush( vOneHots, Fra_RegToLit(i-nTruePis, 1) );
160 Vec_IntPush( vOneHots, Fra_RegToLit(k-nTruePis, 1) );
161 continue;
162 }
163 if ( Fra_OneHotNodesAreClause( pSim, pObj1, pObj2, 0, 1 ) )
164 {
165 Vec_IntPush( vOneHots, Fra_RegToLit(i-nTruePis, 0) );
166 Vec_IntPush( vOneHots, Fra_RegToLit(k-nTruePis, 1) );
167 continue;
168 }
169 if ( Fra_OneHotNodesAreClause( pSim, pObj1, pObj2, 1, 0 ) )
170 {
171 Vec_IntPush( vOneHots, Fra_RegToLit(i-nTruePis, 1) );
172 Vec_IntPush( vOneHots, Fra_RegToLit(k-nTruePis, 0) );
173 continue;
174 }
175 }
176 }
177 return vOneHots;
178}
Aig_ManForEachLoSeq
#define Aig_ManForEachLoSeq(p, pObj, i)
Definition aig.h:441
Fra_OneHotNodesAreEqual
int Fra_OneHotNodesAreEqual(Fra_Sml_t *pSeq, Aig_Obj_t *pObj0, Aig_Obj_t *pObj1)
Definition fraHot.c:71
Fra_OneHotNodesAreClause
int Fra_OneHotNodesAreClause(Fra_Sml_t *pSeq, Aig_Obj_t *pObj1, Aig_Obj_t *pObj2, int fCompl1, int fCompl2)
Definition fraHot.c:94
Fra_OneHotNodeIsConst
int Fra_OneHotNodeIsConst(Fra_Sml_t *pSeq, Aig_Obj_t *pObj)
FUNCTION DEFINITIONS ///.
Definition fraHot.c:49
Fra_Sml_t_::pAig
Aig_Man_t * pAig
Definition fra.h:173
Vec_PtrForEachEntryStart
#define Vec_PtrForEachEntryStart(Type, vVec, pEntry, i, Start)
Definition vecPtr.h:57
Here is the call graph for this function:

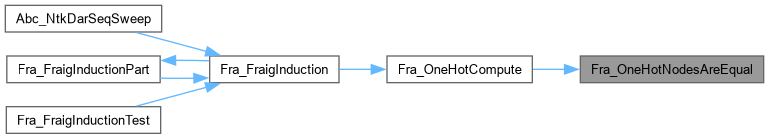

Here is the caller graph for this function:

◆ Fra_OneHotCount()

int Fra_OneHotCount ( Fra_Man_t * p,
Vec_Int_t * vOneHots )

Function*************************************************************

Synopsis [Removes those implications that no longer hold.]

Description [Returns 1 if refinement has happened.]

SideEffects []

SeeAlso []

Definition at line 303 of file fraHot.c.

304{
305 int i, Out1, Out2, Counter = 0;
306 for ( i = 0; i < Vec_IntSize(vOneHots); i += 2 )
307 {
308 Out1 = Vec_IntEntry( vOneHots, i );
309 Out2 = Vec_IntEntry( vOneHots, i+1 );
310 if ( Out1 == 0 && Out2 == 0 )
311 continue;
312 Counter++;
313 }
314 return Counter;
315}
Here is the caller graph for this function:

◆ Fra_OneHotCreateExdc()

Aig_Man_t * Fra_OneHotCreateExdc ( Fra_Man_t * p,
Vec_Int_t * vOneHots )

Function*************************************************************

Synopsis [Creates one-hotness EXDC.]

Description []

SideEffects []

SeeAlso []

Definition at line 398 of file fraHot.c.

399{
400 Aig_Man_t * pNew;
401 Aig_Obj_t * pObj1, * pObj2, * pObj;
402 int i, Out1, Out2, nTruePis;
403 pNew = Aig_ManStart( Vec_IntSize(vOneHots)/2 );
404// for ( i = 0; i < Aig_ManRegNum(p->pManAig); i++ )
405// Aig_ObjCreateCi(pNew);
406 Aig_ManForEachCi( p->pManAig, pObj, i )
407 Aig_ObjCreateCi(pNew);
408 nTruePis = Aig_ManCiNum(p->pManAig) - Aig_ManRegNum(p->pManAig);
409 for ( i = 0; i < Vec_IntSize(vOneHots); i += 2 )
410 {
411 Out1 = Vec_IntEntry( vOneHots, i );
412 Out2 = Vec_IntEntry( vOneHots, i+1 );
413 if ( Out1 == 0 && Out2 == 0 )
414 continue;
415 pObj1 = Aig_ManCi( pNew, nTruePis + Fra_LitReg(Out1) );
416 pObj2 = Aig_ManCi( pNew, nTruePis + Fra_LitReg(Out2) );
417 pObj1 = Aig_NotCond( pObj1, Fra_LitSign(Out1) );
418 pObj2 = Aig_NotCond( pObj2, Fra_LitSign(Out2) );
419 pObj = Aig_Or( pNew, pObj1, pObj2 );
420 Aig_ObjCreateCo( pNew, pObj );
421 }
422 Aig_ManCleanup(pNew);
423// printf( "Created AIG with %d nodes and %d outputs.\n", Aig_ManNodeNum(pNew), Aig_ManCoNum(pNew) );
424 return pNew;
425}
Aig_ManForEachCi
#define Aig_ManForEachCi(p, pObj, i)
ITERATORS ///.
Definition aig.h:393
Aig_ObjCreateCo
Aig_Obj_t * Aig_ObjCreateCo(Aig_Man_t *p, Aig_Obj_t *pDriver)
Definition aigObj.c:66
Aig_ManStart
Aig_Man_t * Aig_ManStart(int nNodesMax)
DECLARATIONS ///.
Definition aigMan.c:47
Aig_Man_t
typedefABC_NAMESPACE_HEADER_START struct Aig_Man_t_ Aig_Man_t
INCLUDES ///.
Definition aig.h:50
Aig_ManCleanup
int Aig_ManCleanup(Aig_Man_t *p)
Definition aigMan.c:265
Aig_ObjCreateCi
Aig_Obj_t * Aig_ObjCreateCi(Aig_Man_t *p)
DECLARATIONS ///.
Definition aigObj.c:45
Aig_Or
Aig_Obj_t * Aig_Or(Aig_Man_t *p, Aig_Obj_t *p0, Aig_Obj_t *p1)
Definition aigOper.c:259

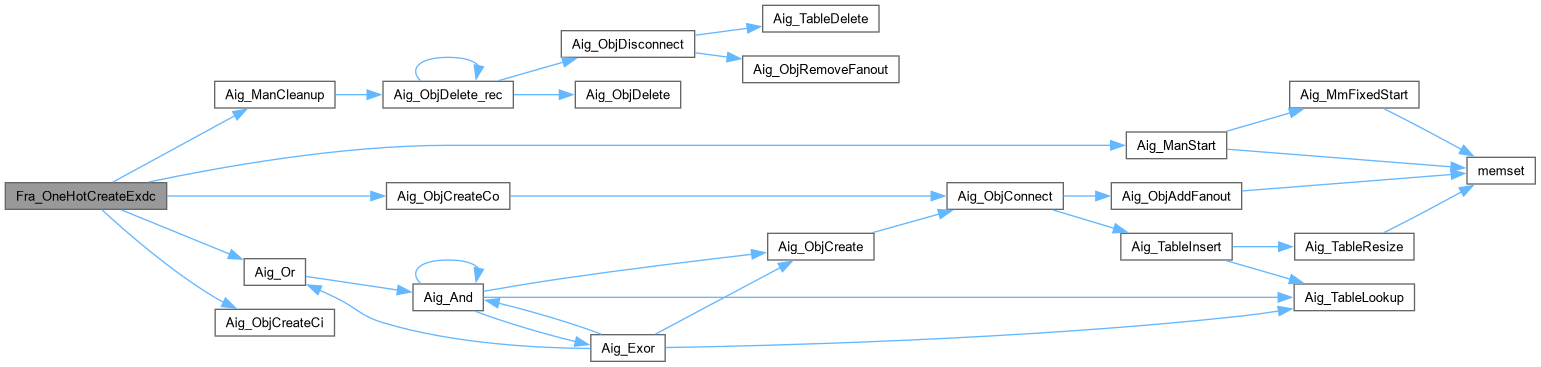

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Fra_OneHotEstimateCoverage()

void Fra_OneHotEstimateCoverage ( Fra_Man_t * p,
Vec_Int_t * vOneHots )

Function*************************************************************

Synopsis [Estimates the coverage of state space by clauses.]

Description []

SideEffects []

SeeAlso []

Definition at line 328 of file fraHot.c.

329{
330 int nSimWords = (1<<14);
331 int nRegs = Aig_ManRegNum(p->pManAig);
332 Vec_Ptr_t * vSimInfo;
333 unsigned * pSim1, * pSim2, * pSimTot;
334 int i, w, Out1, Out2, nCovered, Counter = 0;
335 abctime clk = Abc_Clock();
336
337 // generate random sim-info at register outputs
338 vSimInfo = Vec_PtrAllocSimInfo( nRegs + 1, nSimWords );
339// srand( 0xAABBAABB );
340 Aig_ManRandom(1);
341 for ( i = 0; i < nRegs; i++ )
342 {
343 pSim1 = (unsigned *)Vec_PtrEntry( vSimInfo, i );
344 for ( w = 0; w < nSimWords; w++ )
345 pSim1[w] = Fra_ObjRandomSim();
346 }
347 pSimTot = (unsigned *)Vec_PtrEntry( vSimInfo, nRegs );
348
349 // collect simulation info
350 memset( pSimTot, 0, sizeof(unsigned) * nSimWords );
351 for ( i = 0; i < Vec_IntSize(vOneHots); i += 2 )
352 {
353 Out1 = Vec_IntEntry( vOneHots, i );
354 Out2 = Vec_IntEntry( vOneHots, i+1 );
355 if ( Out1 == 0 && Out2 == 0 )
356 continue;
357//printf( "(%c%d,%c%d) ",
358//Fra_LitSign(Out1)? '-': '+', Fra_LitReg(Out1),
359//Fra_LitSign(Out2)? '-': '+', Fra_LitReg(Out2) );
360 Counter++;
361 pSim1 = (unsigned *)Vec_PtrEntry( vSimInfo, Fra_LitReg(Out1) );
362 pSim2 = (unsigned *)Vec_PtrEntry( vSimInfo, Fra_LitReg(Out2) );
363 if ( Fra_LitSign(Out1) && Fra_LitSign(Out2) )
364 for ( w = 0; w < nSimWords; w++ )
365 pSimTot[w] |= pSim1[w] & pSim2[w];
366 else if ( Fra_LitSign(Out1) )
367 for ( w = 0; w < nSimWords; w++ )
368 pSimTot[w] |= pSim1[w] & ~pSim2[w];
369 else if ( Fra_LitSign(Out2) )
370 for ( w = 0; w < nSimWords; w++ )
371 pSimTot[w] |= ~pSim1[w] & pSim2[w];
372 else
373 assert( 0 );
374 }
375//printf( "\n" );
376 // count the total number of patterns contained in the don't-care
377 nCovered = 0;
378 for ( w = 0; w < nSimWords; w++ )
379 nCovered += Aig_WordCountOnes( pSimTot[w] );
380 Vec_PtrFree( vSimInfo );
381 // print the result
382 printf( "Care states ratio = %f. ", 1.0 * (nSimWords * 32 - nCovered) / (nSimWords * 32) );
383 printf( "(%d out of %d patterns) ", nSimWords * 32 - nCovered, nSimWords * 32 );
384 ABC_PRT( "Time", Abc_Clock() - clk );
385}
abctime
ABC_INT64_T abctime
Definition abc_global.h:332
ABC_PRT
#define ABC_PRT(a, t)
Definition abc_global.h:255
Aig_ManRandom
unsigned Aig_ManRandom(int fReset)
Definition aigUtil.c:1170
memset
char * memset()
Vec_Ptr_t
typedefABC_NAMESPACE_HEADER_START struct Vec_Ptr_t_ Vec_Ptr_t
INCLUDES ///.
Definition vecPtr.h:42
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Fra_OneHotNodeIsConst()

int Fra_OneHotNodeIsConst ( Fra_Sml_t * pSeq,
Aig_Obj_t * pObj )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns 1 if simulation info is composed of all zeros.]

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file fraHot.c.

50{
51 unsigned * pSims;
52 int i;
53 pSims = Fra_ObjSim(pSeq, pObj->Id);
54 for ( i = pSeq->nWordsPref; i < pSeq->nWordsTotal; i++ )
55 if ( pSims[i] )
56 return 0;
57 return 1;
58}
Aig_Obj_t_::Id
int Id
Definition aig.h:85
Fra_Sml_t_::nWordsPref
int nWordsPref
Definition fra.h:178
Here is the caller graph for this function:

◆ Fra_OneHotNodesAreClause()

int Fra_OneHotNodesAreClause ( Fra_Sml_t * pSeq,
Aig_Obj_t * pObj1,
Aig_Obj_t * pObj2,
int fCompl1,
int fCompl2 )

Function*************************************************************

Synopsis [Returns 1 if implications holds.]

Description []

SideEffects []

SeeAlso []

Definition at line 94 of file fraHot.c.

95{
96 unsigned * pSim1, * pSim2;
97 int k;
98 pSim1 = Fra_ObjSim(pSeq, pObj1->Id);
99 pSim2 = Fra_ObjSim(pSeq, pObj2->Id);
100 if ( fCompl1 && fCompl2 )
101 {
102 for ( k = pSeq->nWordsPref; k < pSeq->nWordsTotal; k++ )
103 if ( pSim1[k] & pSim2[k] )
104 return 0;
105 }
106 else if ( fCompl1 )
107 {
108 for ( k = pSeq->nWordsPref; k < pSeq->nWordsTotal; k++ )
109 if ( pSim1[k] & ~pSim2[k] )
110 return 0;
111 }
112 else if ( fCompl2 )
113 {
114 for ( k = pSeq->nWordsPref; k < pSeq->nWordsTotal; k++ )
115 if ( ~pSim1[k] & pSim2[k] )
116 return 0;
117 }
118 else
119 assert( 0 );
120 return 1;
121}
Here is the caller graph for this function:

◆ Fra_OneHotNodesAreEqual()

int Fra_OneHotNodesAreEqual ( Fra_Sml_t * pSeq,
Aig_Obj_t * pObj0,
Aig_Obj_t * pObj1 )

Function*************************************************************

Synopsis [Returns 1 if simulation infos are equal.]

Description []

SideEffects []

SeeAlso []

Definition at line 71 of file fraHot.c.

72{
73 unsigned * pSims0, * pSims1;
74 int i;
75 pSims0 = Fra_ObjSim(pSeq, pObj0->Id);
76 pSims1 = Fra_ObjSim(pSeq, pObj1->Id);
77 for ( i = pSeq->nWordsPref; i < pSeq->nWordsTotal; i++ )
78 if ( pSims0[i] != pSims1[i] )
79 return 0;
80 return 1;
81}
Here is the caller graph for this function:

◆ Fra_OneHotRefineUsingCex()

int Fra_OneHotRefineUsingCex ( Fra_Man_t * p,
Vec_Int_t * vOneHots )

Function*************************************************************

Synopsis [Removes those implications that no longer hold.]

Description [Returns 1 if refinement has happened.]

SideEffects []

SeeAlso []

Definition at line 266 of file fraHot.c.

267{
268 Aig_Obj_t * pObj1, * pObj2;
269 int i, Out1, Out2, RetValue = 0;
270 int nPiNum = Aig_ManCiNum(p->pManAig) - Aig_ManRegNum(p->pManAig);
271 assert( p->pSml->pAig == p->pManAig );
272 for ( i = 0; i < Vec_IntSize(vOneHots); i += 2 )
273 {
274 Out1 = Vec_IntEntry( vOneHots, i );
275 Out2 = Vec_IntEntry( vOneHots, i+1 );
276 if ( Out1 == 0 && Out2 == 0 )
277 continue;
278 // get the corresponding nodes
279 pObj1 = Aig_ManCi( p->pManAig, nPiNum + Fra_LitReg(Out1) );
280 pObj2 = Aig_ManCi( p->pManAig, nPiNum + Fra_LitReg(Out2) );
281 // check if implication holds using this simulation info
282 if ( !Fra_OneHotNodesAreClause( p->pSml, pObj1, pObj2, Fra_LitSign(Out1), Fra_LitSign(Out2) ) )
283 {
284 Vec_IntWriteEntry( vOneHots, i, 0 );
285 Vec_IntWriteEntry( vOneHots, i+1, 0 );
286 RetValue = 1;
287 }
288 }
289 return RetValue;
290}

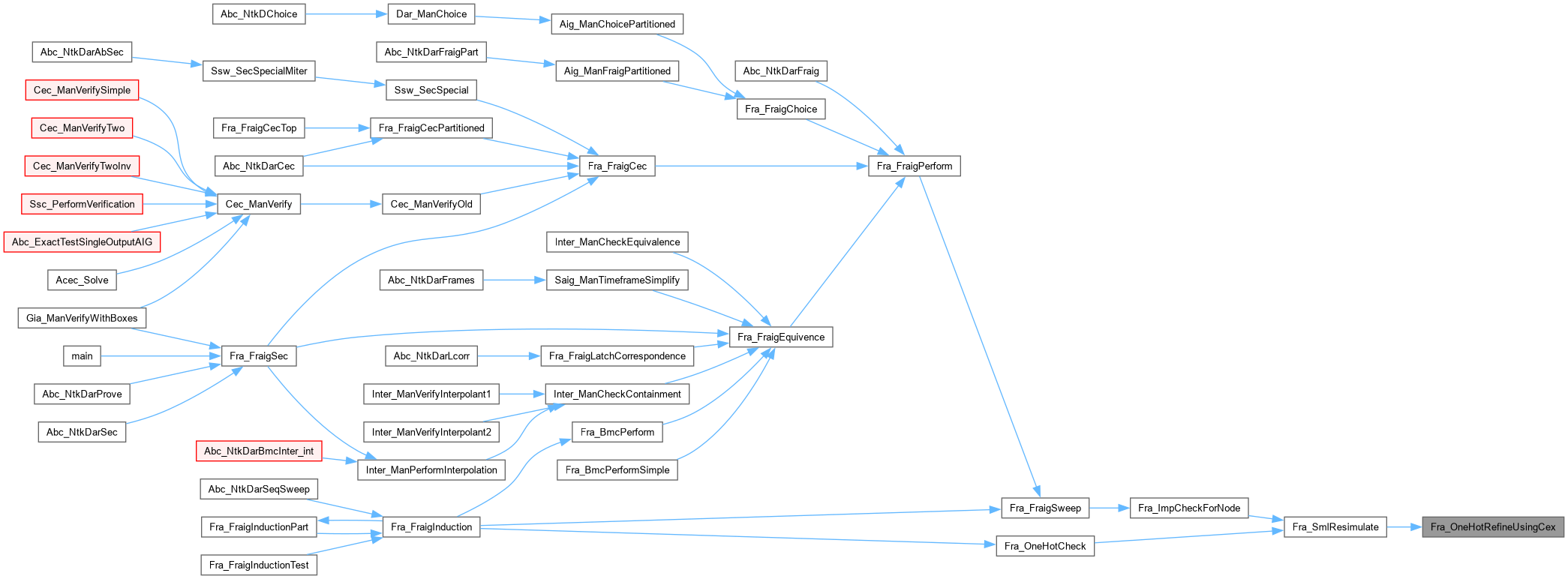

Here is the call graph for this function:
Here is the caller graph for this function:
