fraImp.c File Reference

#include "fra.h"

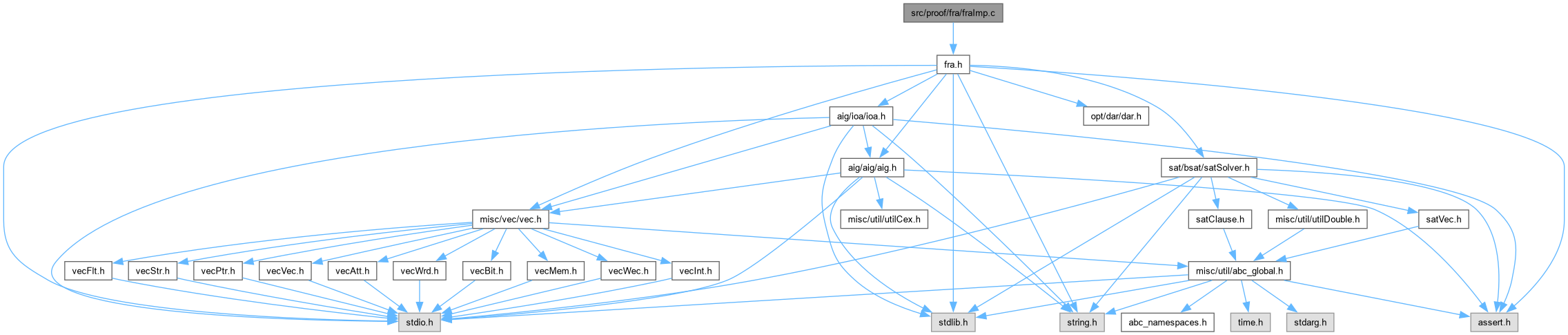

Include dependency graph for fraImp.c:

Go to the source code of this file.

Functions
Vec_Ptr_t *	Fra_SmlSortUsingOnes (Fra_Sml_t *p, int fLatchCorr)
Vec_Int_t *	Fra_SmlSelectMaxCost (Vec_Int_t *vImps, int *pCosts, int nCostMax, int nImpLimit, int *pCostRange)
int	Sml_CompareMaxId (unsigned short *pImp1, unsigned short *pImp2)
Vec_Int_t *	Fra_ImpDerive (Fra_Man_t *p, int nImpMaxLimit, int nImpUseLimit, int fLatchCorr)
void	Fra_ImpAddToSolver (Fra_Man_t *p, Vec_Int_t *vImps, int *pSatVarNums)
int	Fra_ImpCheckForNode (Fra_Man_t *p, Vec_Int_t *vImps, Aig_Obj_t *pNode, int Pos)
int	Fra_ImpRefineUsingCex (Fra_Man_t *p, Vec_Int_t *vImps)
void	Fra_ImpCompactArray (Vec_Int_t *vImps)
double	Fra_ImpComputeStateSpaceRatio (Fra_Man_t *p)
int	Fra_ImpVerifyUsingSimulation (Fra_Man_t *p)
void	Fra_ImpRecordInManager (Fra_Man_t *p, Aig_Man_t *pNew)

Function Documentation

Fra_ImpAddToSolver()

void Fra_ImpAddToSolver	(	Fra_Man_t *	p,
		Vec_Int_t *	vImps,
		int *	pSatVarNums )

Function*************************************************************

Synopsis [Add implication clauses to the SAT solver.]

Description [Note that implications should be checked in the first frame!]

SideEffects []

SeeAlso []

Definition at line 428 of file fraImp.c.

{
    sat_solver * pSat = p->pSat;
    Aig_Obj_t * pLeft, * pRight;
    Aig_Obj_t * pLeftF, * pRightF;
    int pLits[2], Imp, Left, Right, i, f, status;
    int fComplL, fComplR;
    Vec_IntForEachEntry( vImps, Imp, i )
    {
        // get the corresponding nodes
        pLeft = Aig_ManObj( p->pManAig, Fra_ImpLeft(Imp) );
        pRight = Aig_ManObj( p->pManAig, Fra_ImpRight(Imp) );
        // check if all the nodes are present
        for ( f = 0; f < p->pPars->nFramesK; f++ )
        {
            // map these info fraig
            pLeftF = Fra_ObjFraig( pLeft, f );
            pRightF = Fra_ObjFraig( pRight, f );
            if ( Aig_ObjIsNone(Aig_Regular(pLeftF)) || Aig_ObjIsNone(Aig_Regular(pRightF)) )
            {
                Vec_IntWriteEntry( vImps, i, 0 );
                break;
            }
        }
        if ( f < p->pPars->nFramesK )
            continue;
        // add constraints in each timeframe
        for ( f = 0; f < p->pPars->nFramesK; f++ )
        {
            // map these info fraig
            pLeftF = Fra_ObjFraig( pLeft, f );
            pRightF = Fra_ObjFraig( pRight, f );
            // get the corresponding SAT numbers
            Left = pSatVarNums[ Aig_Regular(pLeftF)->Id ];
            Right = pSatVarNums[ Aig_Regular(pRightF)->Id ];
            assert( Left > 0  && Left < p->nSatVars );
            assert( Right > 0 && Right < p->nSatVars );
            // get the complemented attributes
            fComplL = pLeft->fPhase ^ Aig_IsComplement(pLeftF);
            fComplR = pRight->fPhase ^ Aig_IsComplement(pRightF);
            // get the constraint
            // L => R      L' v R     (complement = L & R')
            pLits[0] = 2 * Left  + !fComplL;
            pLits[1] = 2 * Right +  fComplR;
            // add constraint to solver
            if ( !sat_solver_addclause( pSat, pLits, pLits + 2 ) )
            {
                sat_solver_delete( pSat );
                p->pSat = NULL;
                return;
            }
        }
    }
    status = sat_solver_simplify(pSat);
    if ( status == 0 )
    {
        sat_solver_delete( pSat );
        p->pSat = NULL;
    }
//    printf( "Total imps = %d. ", Vec_IntSize(vImps) );
    Fra_ImpCompactArray( vImps );
//    printf( "Valid imps = %d. \n", Vec_IntSize(vImps) );
}

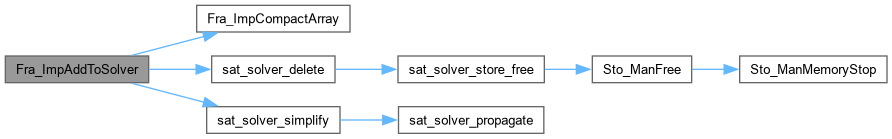

Here is the call graph for this function:

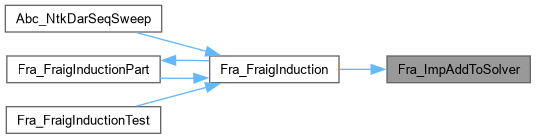

Here is the caller graph for this function:

Fra_ImpCheckForNode()

int Fra_ImpCheckForNode	(	Fra_Man_t *	p,
		Vec_Int_t *	vImps,
		Aig_Obj_t *	pNode,
		int	Pos )

Function*************************************************************

Synopsis [Check implications for the node (if they are present).]

Description [Returns the new position in the array.]

SideEffects []

SeeAlso []

Definition at line 503 of file fraImp.c.

{
    Aig_Obj_t * pLeft, * pRight;
    Aig_Obj_t * pLeftF, * pRightF;
    int i, Imp, Left, Right, Max, RetValue;
    int fComplL, fComplR;
    Vec_IntForEachEntryStart( vImps, Imp, i, Pos )
    {
        if ( Imp == 0 )
            continue;
        Left = Fra_ImpLeft(Imp);
        Right = Fra_ImpRight(Imp);
        Max = Abc_MaxInt( Left, Right );
        assert( Max >= pNode->Id );
        if ( Max > pNode->Id )
            return i;
        // get the corresponding nodes
        pLeft  = Aig_ManObj( p->pManAig, Left );
        pRight = Aig_ManObj( p->pManAig, Right );
        // get the corresponding FRAIG nodes
        pLeftF  = Fra_ObjFraig( pLeft, p->pPars->nFramesK );
        pRightF = Fra_ObjFraig( pRight, p->pPars->nFramesK );
        // get the complemented attributes
        fComplL = pLeft->fPhase ^ Aig_IsComplement(pLeftF);
        fComplR = pRight->fPhase ^ Aig_IsComplement(pRightF);
        // check equality
        if ( Aig_Regular(pLeftF) == Aig_Regular(pRightF) )
        {
            if ( fComplL == fComplR ) // x => x  - always true
                continue;
            assert( fComplL != fComplR );
            // consider 4 possibilities:
            // NOT(1) => 1    or   0 => 1  - always true
            // 1 => NOT(1)    or   1 => 0  - never true
            // NOT(x) => x    or   x       - not always true
            // x => NOT(x)    or   NOT(x)  - not always true
            if ( Aig_ObjIsConst1(Aig_Regular(pLeftF)) && fComplL ) // proved implication
                continue;
            // disproved implication
            p->pCla->fRefinement = 1;
            Vec_IntWriteEntry( vImps, i, 0 );
            continue;
        }
        // check the implication
        // - if true, a clause is added
        // - if false, a cex is simulated
        // make sure the implication is refined
        RetValue = Fra_NodesAreImp( p, Aig_Regular(pLeftF), Aig_Regular(pRightF), fComplL, fComplR );
        if ( RetValue != 1 )
        {
            p->pCla->fRefinement = 1;
            if ( RetValue == 0 )
                Fra_SmlResimulate( p );
            if ( Vec_IntEntry(vImps, i) != 0 )
                printf( "Fra_ImpCheckForNode(): Implication is not refined!\n" );
            assert( Vec_IntEntry(vImps, i) == 0 );
        }
    }
    return i;
}

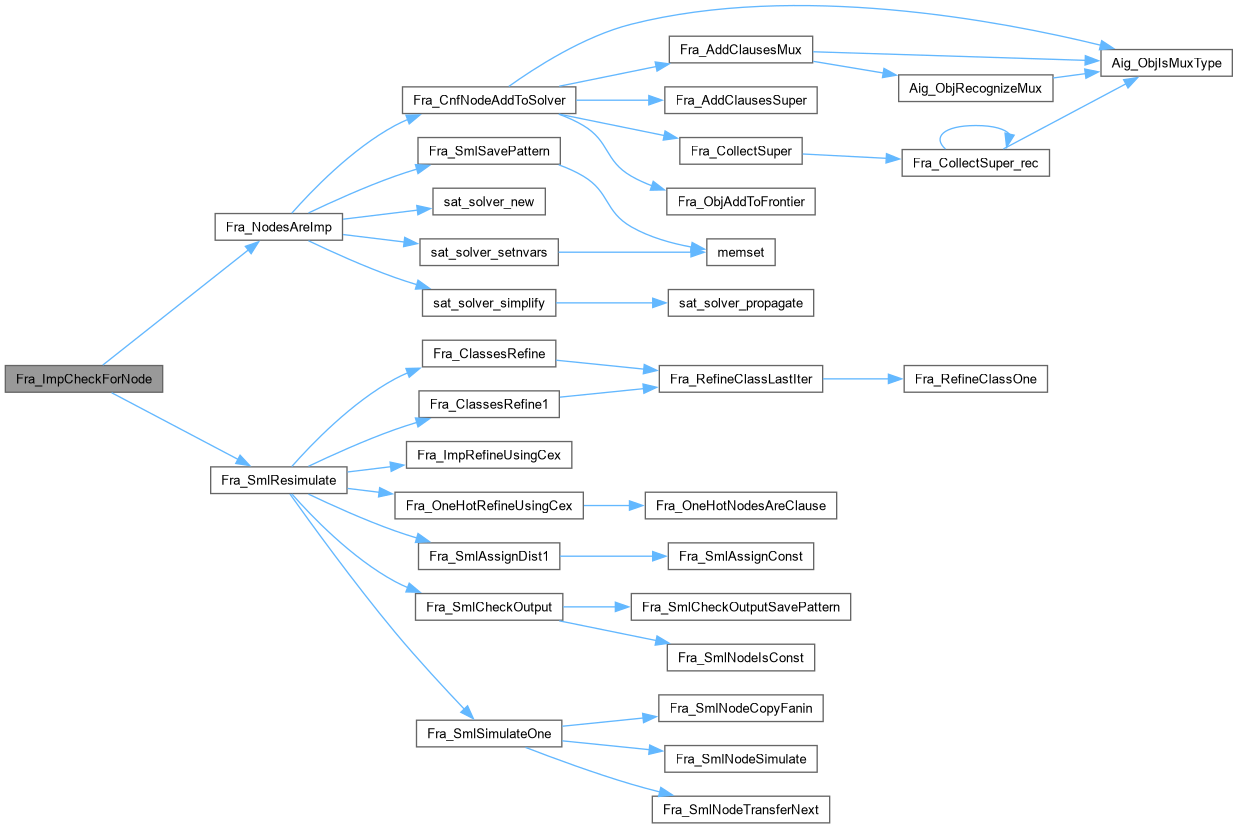

Here is the call graph for this function:

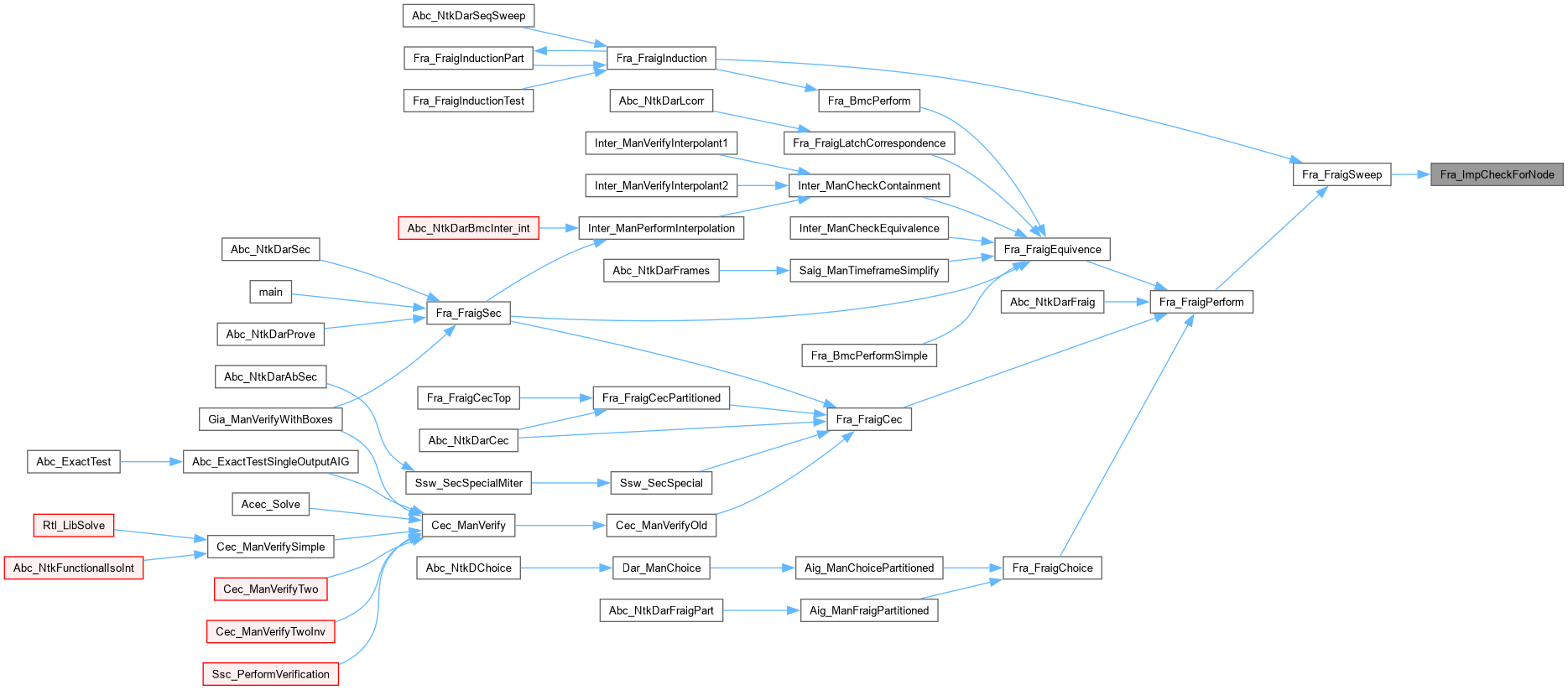

Here is the caller graph for this function:

Fra_ImpCompactArray()

void Fra_ImpCompactArray

(

Vec_Int_t *

vImps

)

Function*************************************************************

Synopsis [Removes empty implications.]

Description []

SideEffects []

SeeAlso []

Definition at line 607 of file fraImp.c.

{
    int i, k, Imp;
    k = 0;
    Vec_IntForEachEntry( vImps, Imp, i )
        if ( Imp )
            Vec_IntWriteEntry( vImps, k++, Imp );
    Vec_IntShrink( vImps, k );
}

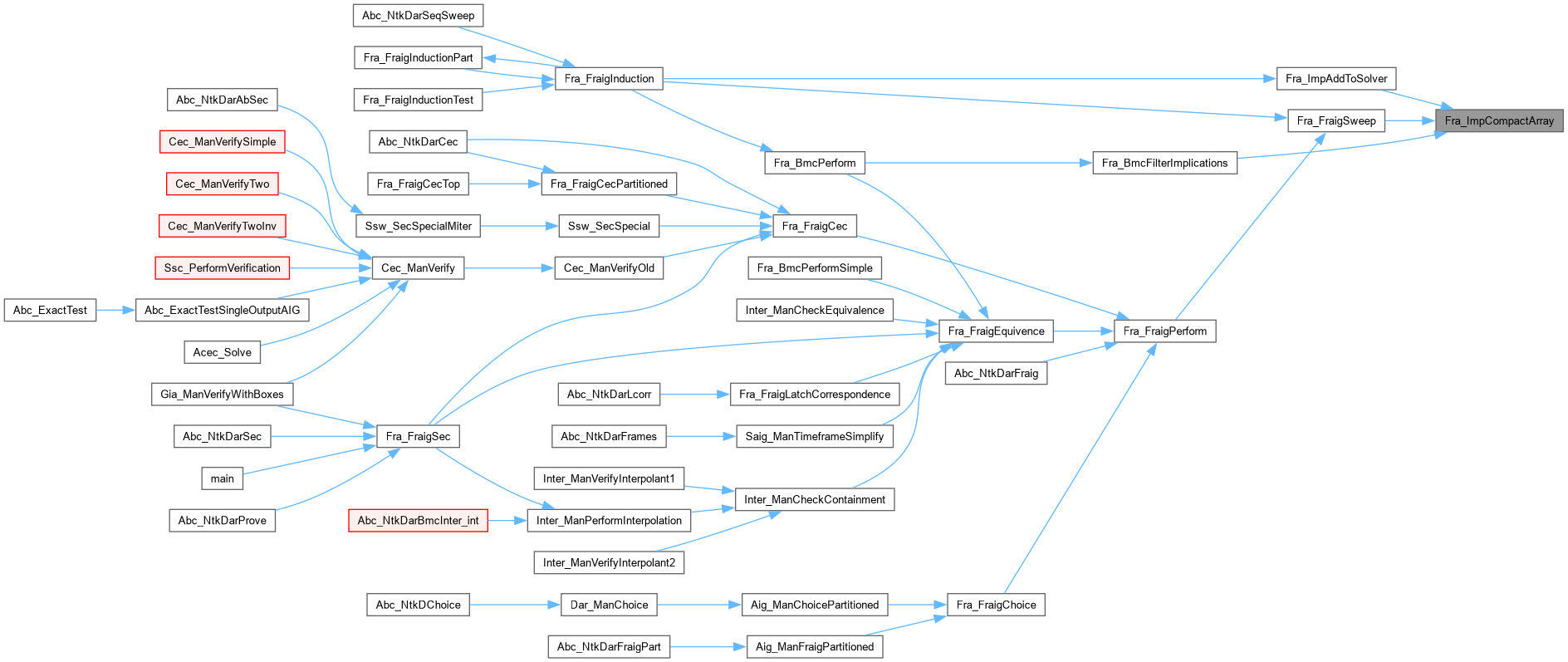

Here is the caller graph for this function:

Fra_ImpComputeStateSpaceRatio()

double Fra_ImpComputeStateSpaceRatio

(

Fra_Man_t *

p

)

Function*************************************************************

Synopsis [Determines the ratio of the state space by computed implications.]

Description []

SideEffects []

SeeAlso []

Definition at line 628 of file fraImp.c.

{
    int nSimWords = 64;
    Fra_Sml_t * pComb;
    unsigned * pResult;
    double Ratio = 0.0;
    int Left, Right, Imp, i;
    if ( p->pCla->vImps == NULL || Vec_IntSize(p->pCla->vImps) == 0 )
        return Ratio;
    // simulate the AIG manager with combinational patterns
    pComb = Fra_SmlSimulateComb( p->pManAig, nSimWords, 0 );
    // go through the implications and collect where they do not hold
    pResult = Fra_ObjSim( pComb, 0 );
    assert( pResult[0] == 0 );
    Vec_IntForEachEntry( p->pCla->vImps, Imp, i )
    {
        Left = Fra_ImpLeft(Imp);
        Right = Fra_ImpRight(Imp);
        Sml_NodeSaveNotImpPatterns( pComb, Left, Right, pResult );
    }
    // count the number of ones in this area
    Ratio = 100.0 * Fra_SmlCountOnesOne( pComb, 0 ) / (32*(pComb->nWordsTotal-pComb->nWordsPref));
    Fra_SmlStop( pComb );
    return Ratio;
}

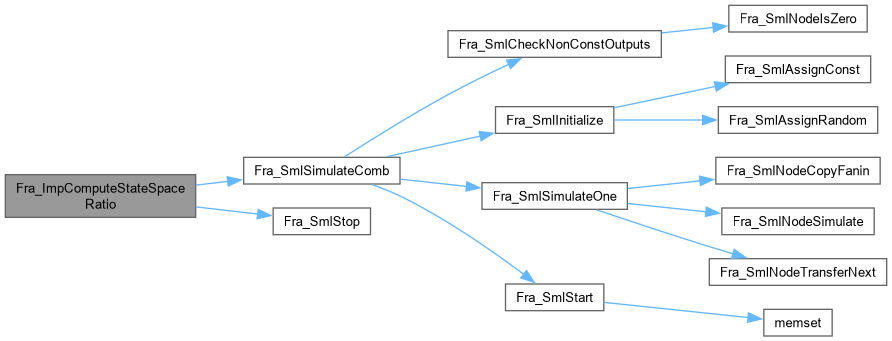

Here is the call graph for this function:

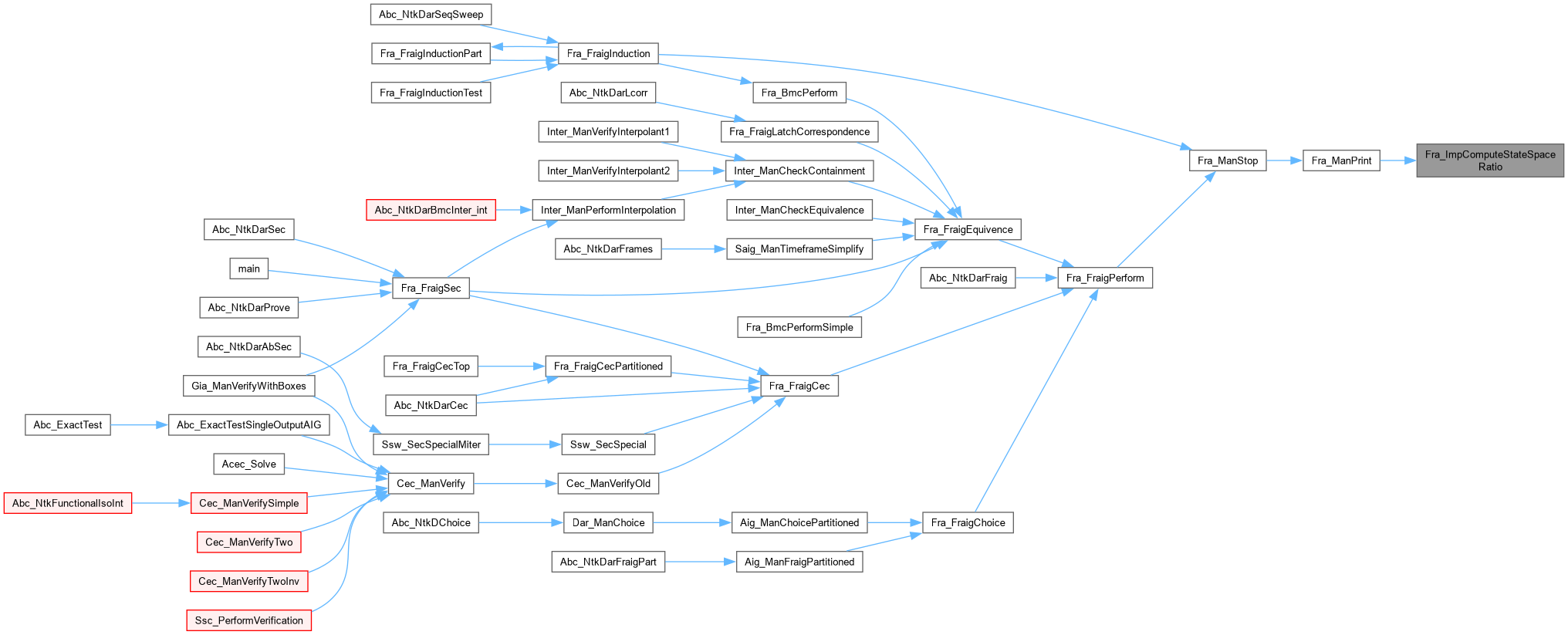

Here is the caller graph for this function:

Fra_ImpDerive()

Vec_Int_t * Fra_ImpDerive	(	Fra_Man_t *	p,
		int	nImpMaxLimit,
		int	nImpUseLimit,
		int	fLatchCorr )

Function*************************************************************

Synopsis [Derives implication candidates.]

Description [Implication candidates have the property that (1) they hold using sequential simulation information (2) they do not hold using combinational simulation information (3) they have as high expressive power as possible (heuristically) that is, they are easy to disprove combinationally meaning they cover relatively larger sequential subspace.]

SideEffects []

SeeAlso []

Definition at line 321 of file fraImp.c.

{
    int nSimWords = 64;
    Fra_Sml_t * pSeq, * pComb;
    Vec_Int_t * vImps, * vTemp;
    Vec_Ptr_t * vNodes;
    int * pImpCosts, * pNodesI, * pNodesK;
    int nImpsTotal = 0, nImpsTried = 0, nImpsNonSeq = 0, nImpsComb = 0, nImpsCollected = 0;
    int CostMin = ABC_INFINITY, CostMax = 0;
    int i, k, Imp, CostRange;
    abctime clk = Abc_Clock();
    assert( Aig_ManObjNumMax(p->pManAig) < (1 << 15) );
    assert( nImpMaxLimit > 0 && nImpUseLimit > 0 && nImpUseLimit <= nImpMaxLimit );
    // normalize both managers
    pComb = Fra_SmlSimulateComb( p->pManAig, nSimWords, 0 );
    pSeq = Fra_SmlSimulateSeq( p->pManAig, p->pPars->nFramesP, nSimWords, 1, 1 );
    // get the nodes sorted by the number of 1s
    vNodes = Fra_SmlSortUsingOnes( pSeq, fLatchCorr );
    // count the total number of implications
    for ( k = nSimWords * 32; k > 0; k-- )
    for ( i = k - 1; i > 0; i-- )
    for ( pNodesI = (int *)Vec_PtrEntry( vNodes, i ); *pNodesI; pNodesI++ )
    for ( pNodesK = (int *)Vec_PtrEntry( vNodes, k ); *pNodesK; pNodesK++ )
        nImpsTotal++;

    // compute implications and their costs
    pImpCosts = ABC_ALLOC( int, nImpMaxLimit );
    vImps = Vec_IntAlloc( nImpMaxLimit );
    for ( k = pSeq->nWordsTotal * 32; k > 0; k-- )
        for ( i = k - 1; i > 0; i-- )
        {
            // HERE WE ARE MISSING SOME POTENTIAL IMPLICATIONS (with complement!)

            for ( pNodesI = (int *)Vec_PtrEntry( vNodes, i ); *pNodesI; pNodesI++ )
            for ( pNodesK = (int *)Vec_PtrEntry( vNodes, k ); *pNodesK; pNodesK++ )
            {
                nImpsTried++;
                if ( !Sml_NodeCheckImp(pSeq, *pNodesI, *pNodesK) )
                {
                    nImpsNonSeq++;
                    continue;
                }
                if ( Sml_NodeCheckImp(pComb, *pNodesI, *pNodesK) )
                {
                    nImpsComb++;
                    continue;
                }
                nImpsCollected++;
                Imp = Fra_ImpCreate( *pNodesI, *pNodesK );
                pImpCosts[ Vec_IntSize(vImps) ] = Sml_NodeNotImpWeight(pComb, *pNodesI, *pNodesK);
                CostMin = Abc_MinInt( CostMin, pImpCosts[ Vec_IntSize(vImps) ] );
                CostMax = Abc_MaxInt( CostMax, pImpCosts[ Vec_IntSize(vImps) ] );
                Vec_IntPush( vImps, Imp );
                if ( Vec_IntSize(vImps) == nImpMaxLimit )
                    goto finish;
            }
        }
finish:
    Fra_SmlStop( pComb );
    Fra_SmlStop( pSeq );

    // select implications with the highest cost
    CostRange = CostMin;
    if ( Vec_IntSize(vImps) > nImpUseLimit )
    {
        vImps = Fra_SmlSelectMaxCost( vTemp = vImps, pImpCosts, nSimWords * 32, nImpUseLimit, &CostRange );
        Vec_IntFree( vTemp );
    }

    // dealloc
    ABC_FREE( pImpCosts );
    {
    void * pTemp = Vec_PtrEntry(vNodes, 0);
    ABC_FREE( pTemp );
    }
    Vec_PtrFree( vNodes );
    // reorder implications topologically
    qsort( (void *)Vec_IntArray(vImps), (size_t)Vec_IntSize(vImps), sizeof(int),
            (int (*)(const void *, const void *)) Sml_CompareMaxId );
if ( p->pPars->fVerbose )
{
printf( "Implications: All = %d. Try = %d. NonSeq = %d. Comb = %d. Res = %d.\n",
    nImpsTotal, nImpsTried, nImpsNonSeq, nImpsComb, nImpsCollected );
printf( "Implication weight: Min = %d. Pivot = %d. Max = %d.   ",
       CostMin, CostRange, CostMax );
ABC_PRT( "Time", Abc_Clock() - clk );
}
    return vImps;
}

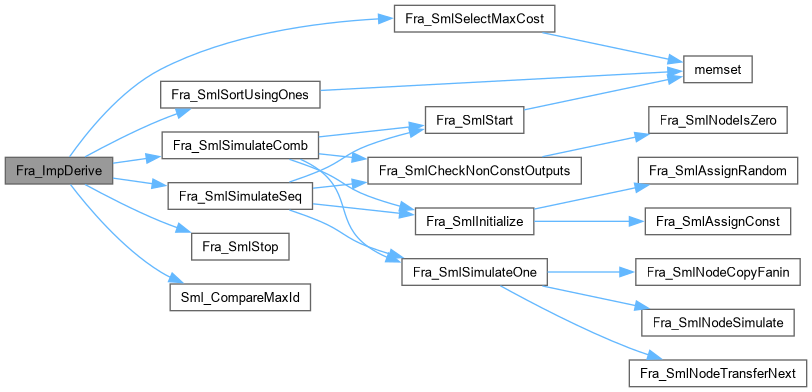

Here is the call graph for this function:

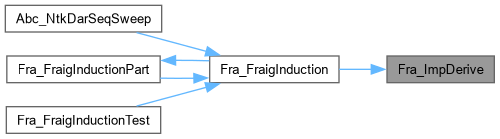

Here is the caller graph for this function:

Fra_ImpRecordInManager()

void Fra_ImpRecordInManager	(	Fra_Man_t *	p,
		Aig_Man_t *	pNew )

Function*************************************************************

Synopsis [Record proven implications in the AIG manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 705 of file fraImp.c.

{
    Aig_Obj_t * pLeft, * pRight, * pMiter;
    int nPosOld, Imp, i;
    if ( p->pCla->vImps == NULL || Vec_IntSize(p->pCla->vImps) == 0 )
        return;
    // go through the implication
    nPosOld = Aig_ManCoNum(pNew);
    Vec_IntForEachEntry( p->pCla->vImps, Imp, i )
    {
        pLeft = Aig_ManObj( p->pManAig, Fra_ImpLeft(Imp) );
        pRight = Aig_ManObj( p->pManAig, Fra_ImpRight(Imp) );
        // record the implication: L' + R
        pMiter = Aig_Or( pNew,
            Aig_NotCond((Aig_Obj_t *)pLeft->pData, !pLeft->fPhase),
            Aig_NotCond((Aig_Obj_t *)pRight->pData, pRight->fPhase) );
        Aig_ObjCreateCo( pNew, pMiter );
    }
    pNew->nAsserts = Aig_ManCoNum(pNew) - nPosOld;
}

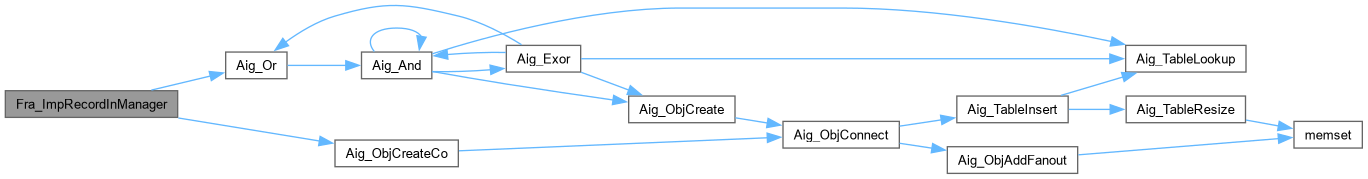

Here is the call graph for this function:

Fra_ImpRefineUsingCex()

int Fra_ImpRefineUsingCex	(	Fra_Man_t *	p,
		Vec_Int_t *	vImps )

Function*************************************************************

Synopsis [Removes those implications that no longer hold.]

Description [Returns 1 if refinement has happened.]

SideEffects []

SeeAlso []

Definition at line 575 of file fraImp.c.

{
    Aig_Obj_t * pLeft, * pRight;
    int Imp, i, RetValue = 0;
    Vec_IntForEachEntry( vImps, Imp, i )
    {
        if ( Imp == 0 )
            continue;
        // get the corresponding nodes
        pLeft = Aig_ManObj( p->pManAig, Fra_ImpLeft(Imp) );
        pRight = Aig_ManObj( p->pManAig, Fra_ImpRight(Imp) );
        // check if implication holds using this simulation info
        if ( !Sml_NodeCheckImp(p->pSml, pLeft->Id, pRight->Id) )
        {
            Vec_IntWriteEntry( vImps, i, 0 );
            RetValue = 1;
        }
    }
    return RetValue;
}

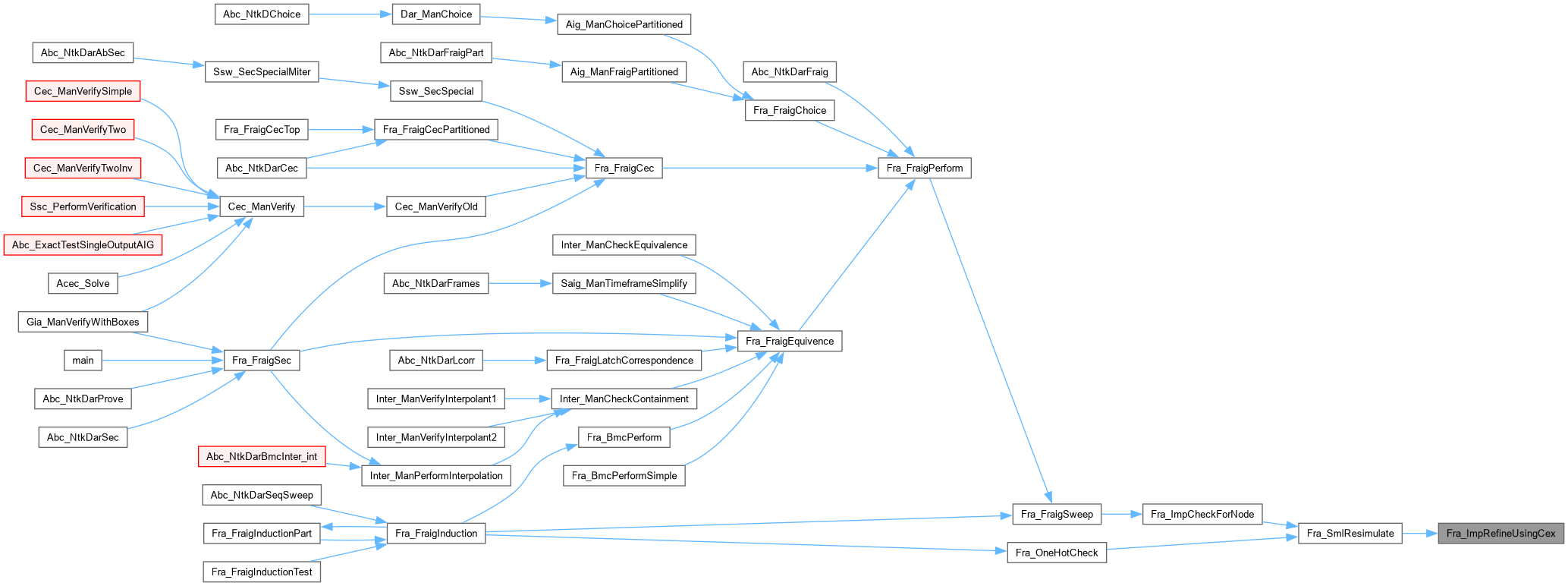

Here is the caller graph for this function:

Fra_ImpVerifyUsingSimulation()

int Fra_ImpVerifyUsingSimulation

(

Fra_Man_t *

p

)

Function*************************************************************

Synopsis [Returns the number of failed implications.]

Description []

SideEffects []

SeeAlso []

Definition at line 665 of file fraImp.c.

{
    int nFrames = 2000;
    int nSimWords = 8;
    Fra_Sml_t * pSeq;
    char * pfFails;
    int Left, Right, Imp, i, Counter;
    if ( p->pCla->vImps == NULL || Vec_IntSize(p->pCla->vImps) == 0 )
        return 0;
    // simulate the AIG manager with combinational patterns
    pSeq = Fra_SmlSimulateSeq( p->pManAig, p->pPars->nFramesP, nFrames, nSimWords, 1  );
    // go through the implications and check how many of them do not hold
    pfFails = ABC_ALLOC( char, Vec_IntSize(p->pCla->vImps) );
    memset( pfFails, 0, sizeof(char) * Vec_IntSize(p->pCla->vImps) );
    Vec_IntForEachEntry( p->pCla->vImps, Imp, i )
    {
        Left = Fra_ImpLeft(Imp);
        Right = Fra_ImpRight(Imp);
        pfFails[i] = !Sml_NodeCheckImp( pSeq, Left, Right );
    }
    // count how many has failed
    Counter = 0;
    for ( i = 0; i < Vec_IntSize(p->pCla->vImps); i++ )
        Counter += pfFails[i];
    ABC_FREE( pfFails );
    Fra_SmlStop( pSeq );
    return Counter;
}

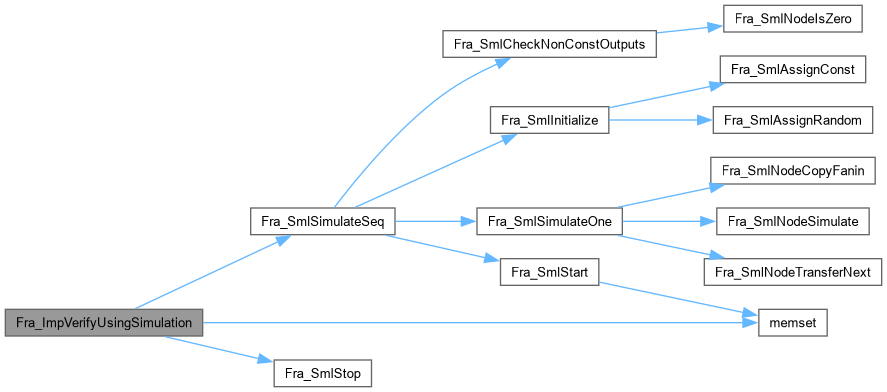

Here is the call graph for this function:

Fra_SmlSelectMaxCost()

Vec_Int_t * Fra_SmlSelectMaxCost	(	Vec_Int_t *	vImps,
		int *	pCosts,
		int	nCostMax,
		int	nImpLimit,
		int *	pCostRange )

Function*************************************************************

Synopsis [Returns the array of implications with the highest cost.]

Description []

SideEffects []

SeeAlso []

Definition at line 244 of file fraImp.c.

{
    Vec_Int_t * vImpsNew;
    int * pCostCount, nImpCount, Imp, i, c;
    assert( Vec_IntSize(vImps) >= nImpLimit );
    // count how many implications have each cost
    pCostCount = ABC_ALLOC( int, nCostMax + 1 );
    memset( pCostCount, 0, sizeof(int) * (nCostMax + 1) );
    for ( i = 0; i < Vec_IntSize(vImps); i++ )
    {
        assert( pCosts[i] <= nCostMax );
        pCostCount[ pCosts[i] ]++;
    }
    assert( pCostCount[0] == 0 );
    // select the bound on the cost (above this bound, implication will be included)
    nImpCount = 0;
    for ( c = nCostMax; c > 0; c-- )
    {
        nImpCount += pCostCount[c];
        if ( nImpCount >= nImpLimit )
            break;
    }
//    printf( "Cost range >= %d.\n", c );
    // collect implications with the given costs
    vImpsNew = Vec_IntAlloc( nImpLimit );
    Vec_IntForEachEntry( vImps, Imp, i )
    {
        if ( pCosts[i] < c )
            continue;
        Vec_IntPush( vImpsNew, Imp );
        if ( Vec_IntSize( vImpsNew ) == nImpLimit )
            break;
    }
    ABC_FREE( pCostCount );
    if ( pCostRange )
        *pCostRange = c;
    return vImpsNew;
}

Here is the call graph for this function:

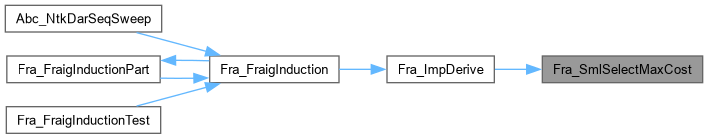

Here is the caller graph for this function:

Fra_SmlSortUsingOnes()

Vec_Ptr_t * Fra_SmlSortUsingOnes	(	Fra_Sml_t *	p,
		int	fLatchCorr )

Function*************************************************************

Synopsis [Returns the array of nodes sorted by the number of 1s.]

Description []

SideEffects []

SeeAlso []

Definition at line 154 of file fraImp.c.

{
    Aig_Obj_t * pObj;
    Vec_Ptr_t * vNodes;
    int i, nNodes, nTotal, nBits, * pnNodes, * pnBits, * pMemory;
    assert( p->nWordsTotal > 0 );
    // count 1s in each node's siminfo
    pnBits = Fra_SmlCountOnes( p );
    // count number of nodes having that many 1s
    nNodes = 0;
    nBits = p->nWordsTotal * 32;
    pnNodes = ABC_ALLOC( int, nBits + 1 );
    memset( pnNodes, 0, sizeof(int) * (nBits + 1) );
    Aig_ManForEachObj( p->pAig, pObj, i )
    {
        if ( i == 0 ) continue;
        // skip non-PI and non-internal nodes
        if ( fLatchCorr )
        {
            if ( !Aig_ObjIsCi(pObj) )
                continue;
        }
        else
        {
            if ( !Aig_ObjIsNode(pObj) && !Aig_ObjIsCi(pObj) )
                continue;
        }
        // skip nodes participating in the classes
//        if ( Fra_ClassObjRepr(pObj) )
//            continue;
        assert( pnBits[i] <= nBits ); // "<" because of normalized info
        pnNodes[pnBits[i]]++;
        nNodes++;
    }
    // allocate memory for all the nodes
    pMemory = ABC_ALLOC( int, nNodes + nBits + 1 );
    // markup the memory for each node
    vNodes = Vec_PtrAlloc( nBits + 1 );
    Vec_PtrPush( vNodes, pMemory );
    for ( i = 1; i <= nBits; i++ )
    {
        pMemory += pnNodes[i-1] + 1;
        Vec_PtrPush( vNodes, pMemory );
    }
    // add the nodes
    memset( pnNodes, 0, sizeof(int) * (nBits + 1) );
    Aig_ManForEachObj( p->pAig, pObj, i )
    {
        if ( i == 0 ) continue;
        // skip non-PI and non-internal nodes
        if ( fLatchCorr )
        {
            if ( !Aig_ObjIsCi(pObj) )
                continue;
        }
        else
        {
            if ( !Aig_ObjIsNode(pObj) && !Aig_ObjIsCi(pObj) )
                continue;
        }
        // skip nodes participating in the classes
//        if ( Fra_ClassObjRepr(pObj) )
//            continue;
        pMemory = (int *)Vec_PtrEntry( vNodes, pnBits[i] );
        pMemory[ pnNodes[pnBits[i]]++ ] = i;
    }
    // add 0s in the end
    nTotal = 0;
    Vec_PtrForEachEntry( int *, vNodes, pMemory, i )
    {
        pMemory[ pnNodes[i]++ ] = 0;
        nTotal += pnNodes[i];
    }
    assert( nTotal == nNodes + nBits + 1 );
    ABC_FREE( pnNodes );
    ABC_FREE( pnBits );
    return vNodes;
}

Here is the call graph for this function:

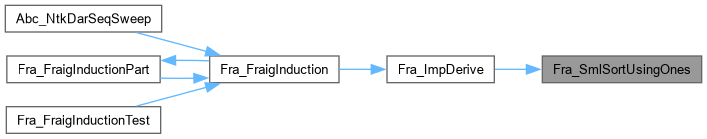

Here is the caller graph for this function:

Sml_CompareMaxId()

int Sml_CompareMaxId	(	unsigned short *	pImp1,
		unsigned short *	pImp2 )

Function*************************************************************

Synopsis [Compares two implications using their largest ID.]

Description []

SideEffects []

SeeAlso []

Definition at line 294 of file fraImp.c.

{
    int Max1 = Abc_MaxInt( pImp1[0], pImp1[1] );
    int Max2 = Abc_MaxInt( pImp2[0], pImp2[1] );
    if ( Max1 < Max2 )
        return -1;
    if ( Max1 > Max2  )
        return 1;
    return 0;
}

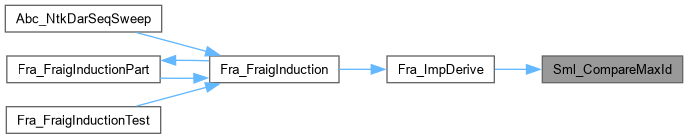

Here is the caller graph for this function:
