giaMf.c File Reference

#include "gia.h"
#include "misc/vec/vecMem.h"
#include "misc/util/utilTruth.h"
#include "misc/extra/extra.h"
#include "sat/cnf/cnf.h"
#include "opt/dau/dau.h"
#include "bool/kit/kit.h"

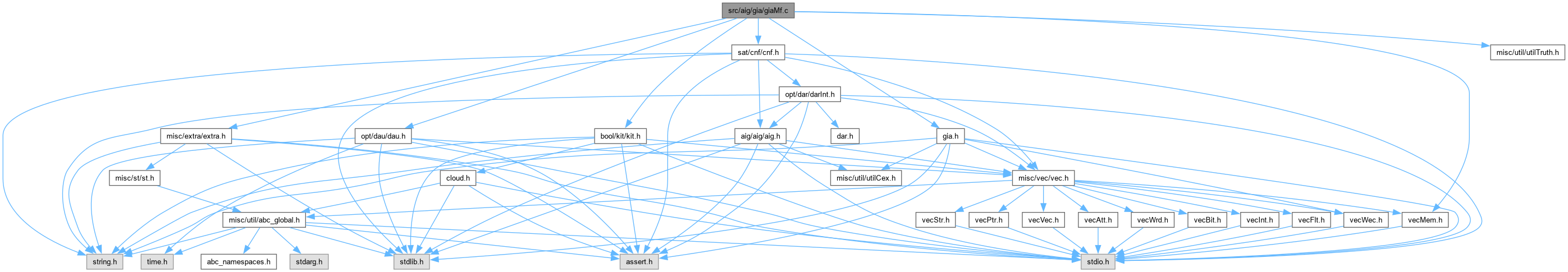

Include dependency graph for giaMf.c:

Go to the source code of this file.

Classes
struct	Mf_Cut_t_
struct	Mf_Obj_t_
struct	Mf_Man_t_

Macros
#define	MF_LEAF_MAX   10
	DECLARATIONS ///.
#define	MF_CUT_MAX   16
#define	MF_LOG_PAGE   12
#define	MF_NO_LEAF   31
#define	MF_TT_WORDS   ((MF_LEAF_MAX > 6) ? 1 << (MF_LEAF_MAX-6) : 1)
#define	MF_NO_FUNC   134217727
#define	MF_EPSILON   0.005
#define	Mf_SetForEachCut(pList, pCut, i)
#define	Mf_ObjForEachCut(pCuts, i, nCuts)

Typedefs
typedef struct Mf_Cut_t_	Mf_Cut_t
typedef struct Mf_Obj_t_	Mf_Obj_t
typedef struct Mf_Man_t_	Mf_Man_t

Functions
int	Kit_TruthToGia (Gia_Man_t *pMan, unsigned *pTruth, int nVars, Vec_Int_t *vMemory, Vec_Int_t *vLeaves, int fHash)
	DECLARATIONS ///.
int	Mf_ManTruthCanonicize (word *t, int nVars)
void	Mf_ManTruthQuit ()
Vec_Wrd_t *	Mf_ManTruthCollect (int Limit)
int	Mf_ManTruthCount ()
void	Mf_ManProfileTruths (Mf_Man_t *p)
Vec_Int_t *	Mf_ManDeriveCnfs (Mf_Man_t *p, int *pnVars, int *pnClas, int *pnLits)
Cnf_Dat_t *	Mf_ManDeriveCnf (Mf_Man_t *p, int fCnfObjIds, int fAddOrCla)
void	Mf_ObjMergeOrder (Mf_Man_t *p, int iObj)
void	Mf_ManSetFlowRefs (Gia_Man_t *p, Vec_Int_t *vRefs)
int	Mf_ManSetMapRefs (Mf_Man_t *p)
Gia_Man_t *	Mf_ManDeriveMapping (Mf_Man_t *p)
Gia_Man_t *	Mf_ManDeriveMappingCoarse (Mf_Man_t *p)
Gia_Man_t *	Mf_ManDeriveMappingGia (Mf_Man_t *p)
Mf_Man_t *	Mf_ManAlloc (Gia_Man_t *pGia, Jf_Par_t *pPars)
void	Mf_ManFree (Mf_Man_t *p)
void	Mf_ManSetDefaultPars (Jf_Par_t *pPars)
void	Mf_ManPrintStats (Mf_Man_t *p, char *pTitle)
void	Mf_ManPrintInit (Mf_Man_t *p)
void	Mf_ManPrintQuit (Mf_Man_t *p, Gia_Man_t *pNew)
void	Mf_ManComputeCuts (Mf_Man_t *p)
int	Mf_CutRef_rec (Mf_Man_t *p, int *pCut)
int	Mf_CutDeref_rec (Mf_Man_t *p, int *pCut)
int	Mf_CutRef2_rec (Mf_Man_t *p, int *pCut, Vec_Int_t *vTemp, int Limit)
int	Mf_CutDeref2_rec (Mf_Man_t *p, int *pCut, Vec_Int_t *vTemp, int Limit)
int	Mf_ManMappingFromMapping (Mf_Man_t *p)
void	Mf_ManPrintFanoutProfile (Mf_Man_t *p, Vec_Int_t *vFanCounts)
int	Mf_ManPrintMfccStats (Mf_Man_t *p, int iObj)
void	Mf_ManOptimizationOne (Mf_Man_t *p, int iObj)
void	Mf_ManOptimization (Mf_Man_t *p)
void	Mf_ManComputeMapping (Mf_Man_t *p)
Gia_Man_t *	Mf_ManPerformMapping (Gia_Man_t *pGia, Jf_Par_t *pPars)
void *	Mf_ManGenerateCnf (Gia_Man_t *pGia, int nLutSize, int fCnfObjIds, int fAddOrCla, int fMapping, int fVerbose)
void	Mf_ManDumpCnf (Gia_Man_t *p, char *pFileName, int nLutSize, int fCnfObjIds, int fAddOrCla, int fVerbose)

Macro Definition Documentation

MF_CUT_MAX

#define MF_CUT_MAX   16

Definition at line 36 of file giaMf.c.

MF_EPSILON

#define MF_EPSILON   0.005

Definition at line 41 of file giaMf.c.

MF_LEAF_MAX

#define MF_LEAF_MAX   10

DECLARATIONS ///.

CFile****************************************************************

FileName [giaMf.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Cut computation.]

Author [Alan Mishchenko]`

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaMf.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 35 of file giaMf.c.

MF_LOG_PAGE

#define MF_LOG_PAGE   12

Definition at line 37 of file giaMf.c.

MF_NO_FUNC

#define MF_NO_FUNC   134217727

Definition at line 40 of file giaMf.c.

MF_NO_LEAF

#define MF_NO_LEAF   31

Definition at line 38 of file giaMf.c.

Mf_ObjForEachCut

#define Mf_ObjForEachCut	(		pCuts,
			i,
			nCuts )

Value:

for ( i = 0, i < nCuts; i++ )

Definition at line 100 of file giaMf.c.

Mf_SetForEachCut

#define Mf_SetForEachCut	(		pList,
			pCut,
			i )

Value:

for ( i = 0, pCut = pList + 1; i < pList[0]; i++, pCut += Mf_CutSize(pCut) + 1 )

Definition at line 99 of file giaMf.c.

MF_TT_WORDS

#define MF_TT_WORDS   ((MF_LEAF_MAX > 6) ? 1 << (MF_LEAF_MAX-6) : 1)

Definition at line 39 of file giaMf.c.

Typedef Documentation

Mf_Cut_t

typedef struct Mf_Cut_t_ Mf_Cut_t

Definition at line 43 of file giaMf.c.

Mf_Man_t

typedef struct Mf_Man_t_ Mf_Man_t

Definition at line 62 of file giaMf.c.

Mf_Obj_t

typedef struct Mf_Obj_t_ Mf_Obj_t

Definition at line 53 of file giaMf.c.

Function Documentation

Kit_TruthToGia()

int Kit_TruthToGia ( Gia_Man_t * pMan, unsigned * pTruth, int nVars, Vec_Int_t * vMemory, Vec_Int_t * vLeaves, int fHash )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [giaMap.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Manipulation of mapping associated with the AIG.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaMap.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 80 of file kitHop.c.

{
    int iLit;
    Kit_Graph_t * pGraph;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
    if ( pGraph == NULL )
    {
        printf( "Kit_TruthToGia(): Converting truth table to AIG has failed for function:\n" );
        Kit_DsdPrintFromTruth( pTruth, nVars ); printf( "\n" );
    }
    // derive the AIG for the decomposition tree
    iLit = Kit_GraphToGia( pMan, pGraph, vLeaves, fHash );
    Kit_GraphFree( pGraph );
    return iLit;
}

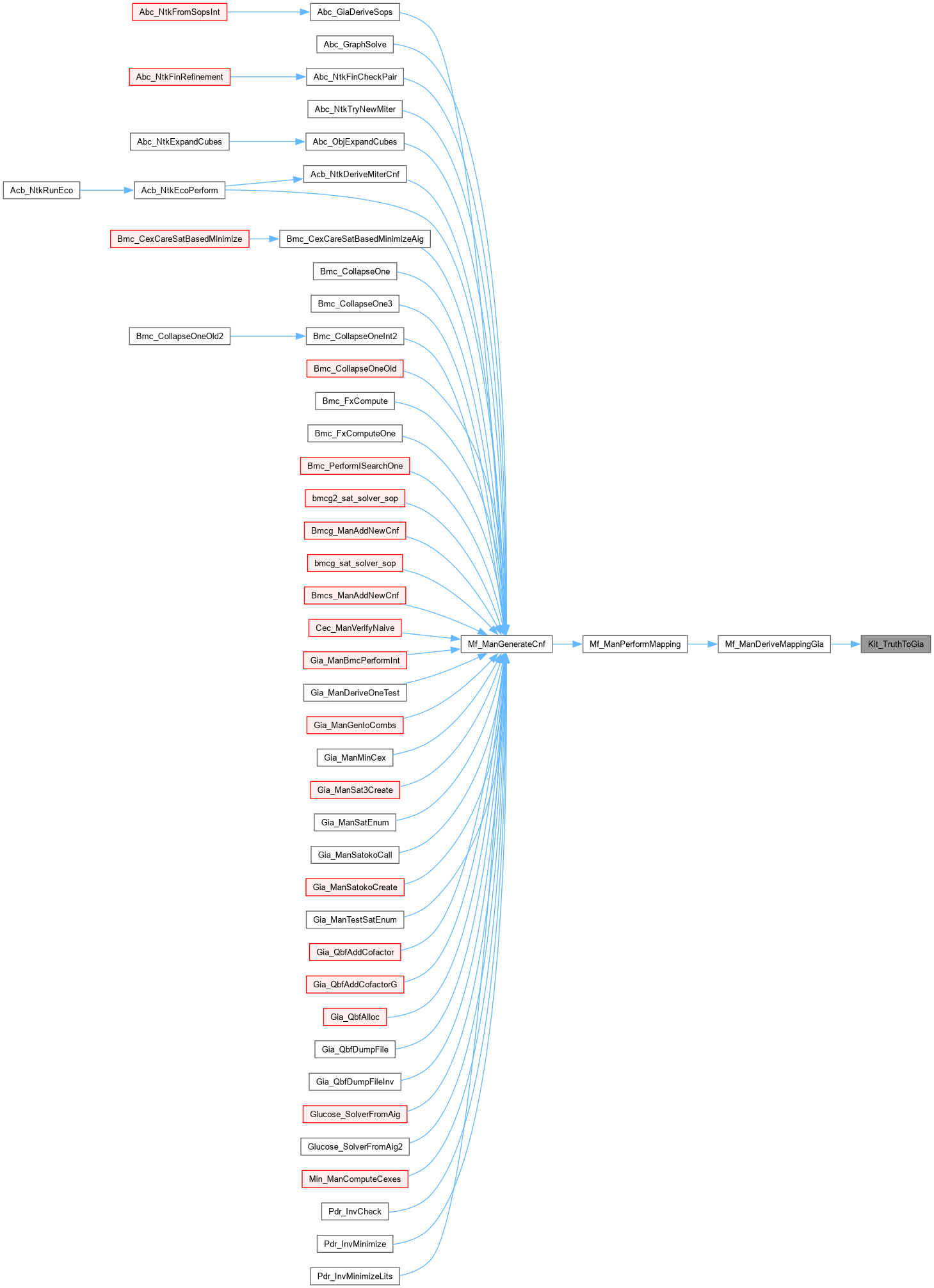

Here is the caller graph for this function:

Mf_CutDeref2_rec()

int Mf_CutDeref2_rec	(	Mf_Man_t *	p,
		int *	pCut,
		Vec_Int_t *	vTemp,
		int	Limit )

Definition at line 1600 of file giaMf.c.

{
    int i, Count = Mf_CutArea(p, Mf_CutSize(pCut), Mf_CutFunc(pCut));
    if ( Limit == 0 ) return Count;
    for ( i = 1; i <= Mf_CutSize(pCut); i++ )
    {
        Vec_IntPush( vTemp, pCut[i] );
        if ( !Mf_ObjMapRefDec(p, pCut[i]) && Mf_ManObj(p, pCut[i])->iCutSet )
            Count += Mf_CutDeref2_rec( p, Mf_ObjCutBest(p, pCut[i]), vTemp, Limit-1 );
    }
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_CutDeref_rec()

int Mf_CutDeref_rec	(	Mf_Man_t *	p,
		int *	pCut )

Definition at line 1559 of file giaMf.c.

{
    int i, Count = Mf_CutArea(p, Mf_CutSize(pCut), Mf_CutFunc(pCut));
    for ( i = 1; i <= Mf_CutSize(pCut); i++ )
        if ( !Mf_ObjMapRefDec(p, pCut[i]) && Mf_ManObj(p, pCut[i])->iCutSet )
            Count += Mf_CutDeref_rec( p, Mf_ObjCutBest(p, pCut[i]) );
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_CutRef2_rec()

int Mf_CutRef2_rec	(	Mf_Man_t *	p,
		int *	pCut,
		Vec_Int_t *	vTemp,
		int	Limit )

Definition at line 1588 of file giaMf.c.

{
    int i, Count = Mf_CutArea(p, Mf_CutSize(pCut), Mf_CutFunc(pCut));
    if ( Limit == 0 ) return Count;
    for ( i = 1; i <= Mf_CutSize(pCut); i++ )
    {
        Vec_IntPush( vTemp, pCut[i] );
        if ( !Mf_ObjMapRefInc(p, pCut[i]) && Mf_ManObj(p, pCut[i])->iCutSet )
            Count += Mf_CutRef2_rec( p, Mf_ObjCutBest(p, pCut[i]), vTemp, Limit-1 );
    }
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_CutRef_rec()

int Mf_CutRef_rec	(	Mf_Man_t *	p,
		int *	pCut )

Function*************************************************************

Synopsis [Flow and area.]

Description []

SideEffects []

SeeAlso []

Definition at line 1551 of file giaMf.c.

{
    int i, Count = Mf_CutArea(p, Mf_CutSize(pCut), Mf_CutFunc(pCut));
    for ( i = 1; i <= Mf_CutSize(pCut); i++ )
        if ( !Mf_ObjMapRefInc(p, pCut[i]) && Mf_ManObj(p, pCut[i])->iCutSet )
            Count += Mf_CutRef_rec( p, Mf_ObjCutBest(p, pCut[i]) );
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_ManAlloc()

Mf_Man_t * Mf_ManAlloc	(	Gia_Man_t *	pGia,
		Jf_Par_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1381 of file giaMf.c.

{
    Mf_Man_t * p;
    Vec_Int_t * vFlowRefs;
    int i, Entry;
    assert( pPars->nCutNum > 1  && pPars->nCutNum <= MF_CUT_MAX );
    assert( pPars->nLutSize > 1 && pPars->nLutSize <= MF_LEAF_MAX );
    ABC_FREE( pGia->pRefs );
    Vec_IntFreeP( &pGia->vMapping );
    if ( Gia_ManHasChoices(pGia) )
        Gia_ManSetPhase(pGia);
    p = ABC_CALLOC( Mf_Man_t, 1 );
    p->clkStart  = Abc_Clock();
    p->pGia      = pGia;
    p->pPars     = pPars;
    p->vTtMem    = pPars->fCutMin ? Vec_MemAllocForTT( pPars->nLutSize, 0 ) : NULL;
    p->pLfObjs   = ABC_CALLOC( Mf_Obj_t, Gia_ManObjNum(pGia) );
    p->iCur      = 2;
    Vec_PtrGrow( &p->vPages, 256 );
    if ( pPars->fGenCnf || pPars->fGenLit )
    {
        Vec_IntGrow( &p->vCnfSizes, 10000 );
        Vec_IntPush( &p->vCnfSizes, 1 );
        Vec_IntPush( &p->vCnfSizes, 2 );
        Vec_IntGrow( &p->vCnfMem, 10000 );
    }
    vFlowRefs = Vec_IntAlloc(0);
    Mf_ManSetFlowRefs( pGia, vFlowRefs );
    Vec_IntForEachEntry( vFlowRefs, Entry, i )
        p->pLfObjs[i].nFlowRefs = Entry;
    Vec_IntFree(vFlowRefs);
    return p;
}

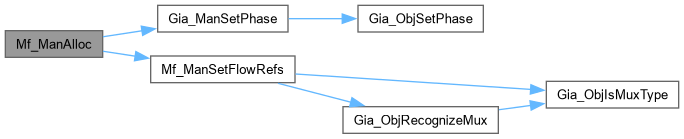

Here is the call graph for this function:

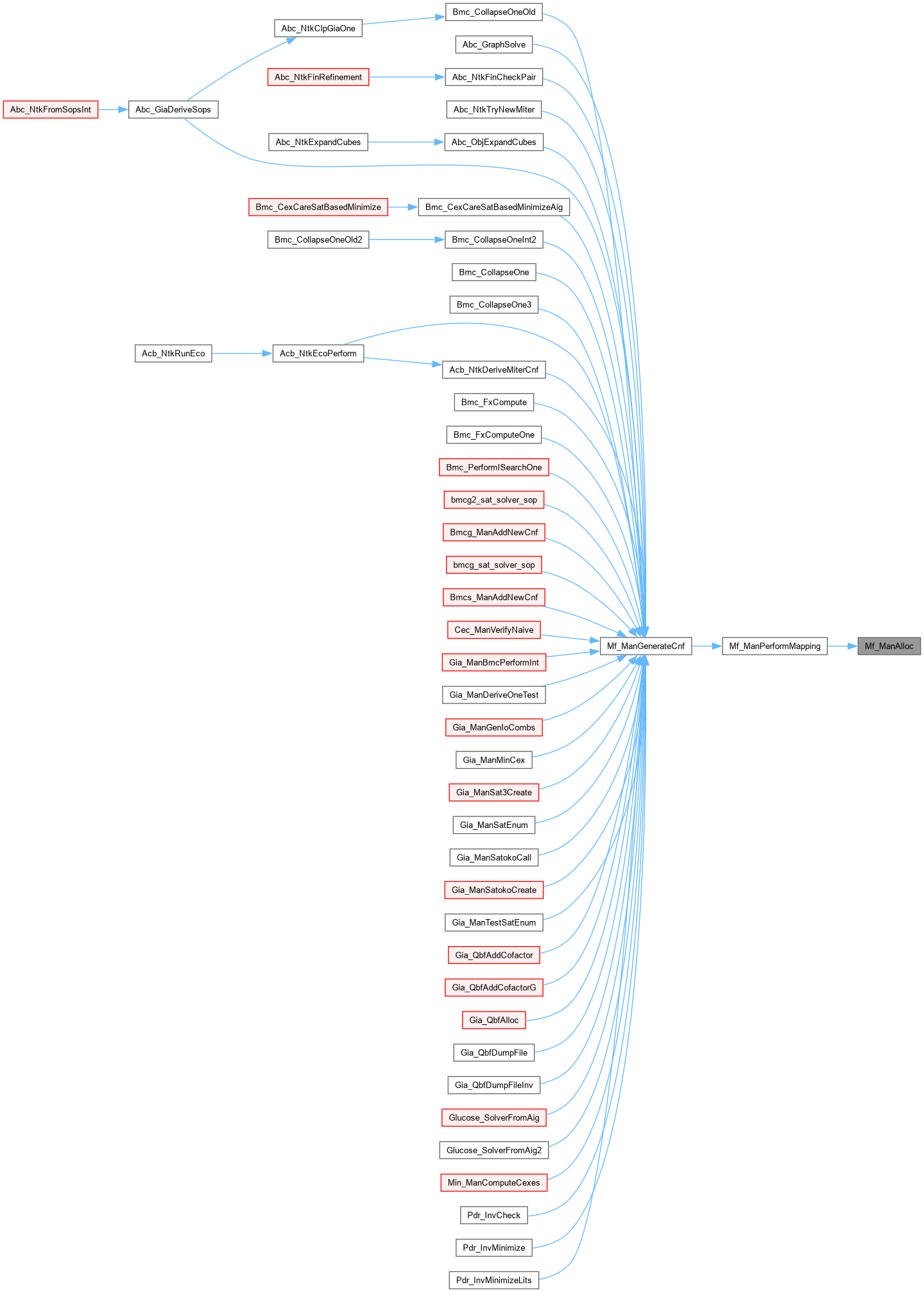

Here is the caller graph for this function:

Mf_ManComputeCuts()

void Mf_ManComputeCuts

(

Mf_Man_t *

p

)

Definition at line 1531 of file giaMf.c.

{
    int i;
    Gia_ManForEachAndId( p->pGia, i )
        Mf_ObjMergeOrder( p, i );
    Mf_ManSetMapRefs( p );
    Mf_ManPrintStats( p, (char *)(p->fUseEla ? "Ela  " : (p->Iter ? "Area " : "Delay")) );
}

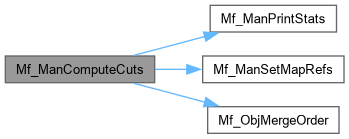

Here is the call graph for this function:

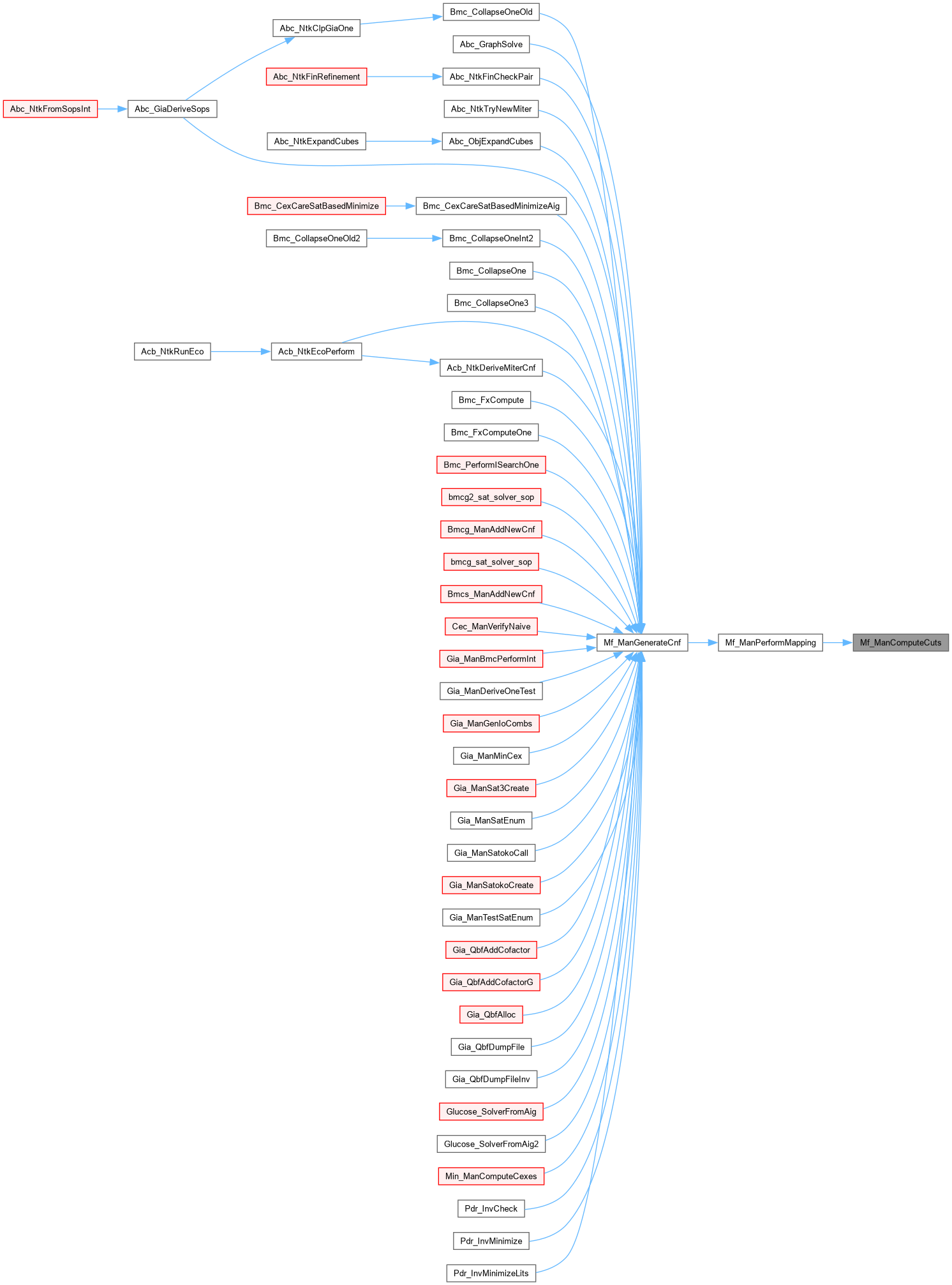

Here is the caller graph for this function:

Mf_ManComputeMapping()

void Mf_ManComputeMapping

(

Mf_Man_t *

p

)

Function*************************************************************

Synopsis [Technology mappping.]

Description []

SideEffects []

SeeAlso []

Definition at line 1814 of file giaMf.c.

{
    int i;
    Gia_ManForEachAndId( p->pGia, i )
        Mf_ObjComputeBestCut( p, i );
    Mf_ManSetMapRefs( p );
    Mf_ManPrintStats( p, (char *)(p->fUseEla ? "Ela  " : (p->Iter ? "Area " : "Delay")) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_ManDeriveCnf()

Cnf_Dat_t * Mf_ManDeriveCnf	(	Mf_Man_t *	p,
		int	fCnfObjIds,
		int	fAddOrCla )

Function*************************************************************

Synopsis [Derives CNF for the AIG using the mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 337 of file giaMf.c.

{
    Cnf_Dat_t * pCnf;
    Gia_Obj_t * pObj;
    int Id, DriId, nVars, nClas, nLits, iVar = 1, iCla = 0, iLit = 0;
    Vec_Int_t * vCnfs = Mf_ManDeriveCnfs( p, &nVars, &nClas, &nLits );
    Vec_Int_t * vCnfIds = Vec_IntStartFull( Gia_ManObjNum(p->pGia) );
    int pFanins[16], * pCut, * pCnfIds = Vec_IntArray( vCnfIds );
    int i, k, c, iFunc, nCubes, * pCubes, fComplLast;
    nVars++;  // zero-ID to remain unused
    if ( fAddOrCla )
    {
        nClas++;
        nLits += Gia_ManCoNum(p->pGia);
    }
    // create CNF IDs
    if ( fCnfObjIds )
    {
        iVar += 1 + Gia_ManCiNum(p->pGia) + Gia_ManCoNum(p->pGia);
        Gia_ManForEachCoId( p->pGia, Id, i )
            Vec_IntWriteEntry( vCnfIds, Id, Id );
        Gia_ManForEachAndReverseId( p->pGia, Id )
            if ( Mf_ObjMapRefNum(p, Id) )
                Vec_IntWriteEntry( vCnfIds, Id, Id ), iVar++;
        Vec_IntWriteEntry( vCnfIds, 0, 0 );
        Gia_ManForEachCiId( p->pGia, Id, i )
            Vec_IntWriteEntry( vCnfIds, Id, Id );
        assert( iVar == nVars );
    }
    else
    {
        Gia_ManForEachCoId( p->pGia, Id, i )
            Vec_IntWriteEntry( vCnfIds, Id, iVar++ );
        Gia_ManForEachAndReverseId( p->pGia, Id )
            if ( Mf_ObjMapRefNum(p, Id) )
                Vec_IntWriteEntry( vCnfIds, Id, iVar++ );
        Vec_IntWriteEntry( vCnfIds, 0, iVar++ );
        Gia_ManForEachCiId( p->pGia, Id, i )
            Vec_IntWriteEntry( vCnfIds, Id, iVar++ );
        assert( iVar == nVars );
    }
    // generate CNF
    pCnf = ABC_CALLOC( Cnf_Dat_t, 1 );
    pCnf->pMan        = (Aig_Man_t *)p->pGia;
    pCnf->nVars       = nVars;
    pCnf->nLiterals   = nLits;
    pCnf->nClauses    = nClas;
    pCnf->pClauses    = ABC_ALLOC( int *, nClas+1 );
    pCnf->pClauses[0] = ABC_ALLOC( int, nLits );
    // add last clause
    if ( fAddOrCla )
    {
        pCnf->pClauses[iCla++] = pCnf->pClauses[0] + iLit;
        Gia_ManForEachCoId( p->pGia, Id, i )
            pCnf->pClauses[0][iLit++] = Abc_Var2Lit(pCnfIds[Id], 0);
    }
    if ( p->pPars->fCnfMapping )
        pCnf->vMapping = Vec_IntStart( nVars );
    // add clauses for the COs
    Gia_ManForEachCo( p->pGia, pObj, i )
    {
        Id = Gia_ObjId( p->pGia, pObj );
        DriId = Gia_ObjFaninId0( pObj, Id );

        pCnf->pClauses[iCla++] = pCnf->pClauses[0] + iLit;
        pCnf->pClauses[0][iLit++] = Abc_Var2Lit(pCnfIds[Id], 0);
        pCnf->pClauses[0][iLit++] = Abc_Var2Lit(pCnfIds[DriId], !Gia_ObjFaninC0(pObj));

        pCnf->pClauses[iCla++] = pCnf->pClauses[0] + iLit;
        pCnf->pClauses[0][iLit++] = Abc_Var2Lit(pCnfIds[Id], 1);
        pCnf->pClauses[0][iLit++] = Abc_Var2Lit(pCnfIds[DriId], Gia_ObjFaninC0(pObj));
        // generate mapping
        if ( pCnf->vMapping )
        {
            Vec_IntWriteEntry( pCnf->vMapping, pCnfIds[Id], Vec_IntSize(pCnf->vMapping) );
            Vec_IntPush( pCnf->vMapping, 1 );
            Vec_IntPush( pCnf->vMapping, pCnfIds[DriId] );
            Vec_IntPush( pCnf->vMapping, Gia_ObjFaninC0(pObj) ? 0x55555555 : 0xAAAAAAAA );
        }
    }
    // add clauses for the mapping
    Gia_ManForEachAndReverseId( p->pGia, Id )
    {
        if ( !Mf_ObjMapRefNum(p, Id) )
            continue;
        pCut = Mf_ObjCutBest( p, Id );
        iFunc = Abc_Lit2Var( Mf_CutFunc(pCut) );
        fComplLast = Abc_LitIsCompl( Mf_CutFunc(pCut) );
        if ( iFunc == 0 ) // constant cut
        {
            pCnf->pClauses[iCla++] = pCnf->pClauses[0] + iLit;
            pCnf->pClauses[0][iLit++] = Abc_Var2Lit(pCnfIds[Id], !fComplLast);
            assert( pCnf->vMapping == NULL ); // bug fix does not handle generated mapping
            continue;
        }
        for ( k = 0; k < Mf_CutSize(pCut); k++ )
            pFanins[k] = pCnfIds[pCut[k+1]];
        pFanins[k++] = pCnfIds[Id];
        // get clauses
        pCubes = Vec_IntEntryP( vCnfs, Vec_IntEntry(vCnfs, iFunc) );
        nCubes = *pCubes++;
        for ( c = 0; c < nCubes; c++ )
        {
            pCnf->pClauses[iCla++] = pCnf->pClauses[0] + iLit;
            k = Mf_CutSize(pCut);
            assert( Mf_CubeLit(pCubes[c], k) );
            pCnf->pClauses[0][iLit++] = Abc_Var2Lit( pFanins[k], (Mf_CubeLit(pCubes[c], k) == 2) ^ fComplLast );
            for ( k = 0; k < Mf_CutSize(pCut); k++ )
                if ( Mf_CubeLit(pCubes[c], k) )
                    pCnf->pClauses[0][iLit++] = Abc_Var2Lit( pFanins[k], Mf_CubeLit(pCubes[c], k) == 2 );
        }
        // generate mapping
        if ( pCnf->vMapping )
        {
            word pTruth[4], * pTruthP = Vec_MemReadEntry(p->vTtMem, iFunc);
            assert( p->pPars->nLutSize <= 8 );
            Abc_TtCopy( pTruth, pTruthP, Abc_Truth6WordNum(p->pPars->nLutSize), Abc_LitIsCompl(iFunc) );
            assert( pCnfIds[Id] >= 0 && pCnfIds[Id] < nVars );
            Vec_IntWriteEntry( pCnf->vMapping, pCnfIds[Id], Vec_IntSize(pCnf->vMapping) );
            Vec_IntPush( pCnf->vMapping, Mf_CutSize(pCut) );
            for ( k = 0; k < Mf_CutSize(pCut); k++ )
                Vec_IntPush( pCnf->vMapping, pCnfIds[pCut[k+1]] );
            Vec_IntPush( pCnf->vMapping, (unsigned)pTruth[0] );
            if ( Mf_CutSize(pCut) >= 6 )
            {
                Vec_IntPush( pCnf->vMapping, (unsigned)(pTruth[0] >> 32) );
                if ( Mf_CutSize(pCut) >= 7 )
                {
                    Vec_IntPush( pCnf->vMapping, (unsigned)(pTruth[1]) );
                    Vec_IntPush( pCnf->vMapping, (unsigned)(pTruth[1] >> 32) );
                }
                if ( Mf_CutSize(pCut) >= 8 )
                {
                    Vec_IntPush( pCnf->vMapping, (unsigned)(pTruth[2]) );
                    Vec_IntPush( pCnf->vMapping, (unsigned)(pTruth[2] >> 32) );
                    Vec_IntPush( pCnf->vMapping, (unsigned)(pTruth[3]) );
                    Vec_IntPush( pCnf->vMapping, (unsigned)(pTruth[3] >> 32) );
                }
            }
        }
    }
    // constant clause
    pCnf->pClauses[iCla++] = pCnf->pClauses[0] + iLit;
    pCnf->pClauses[0][iLit++] = Abc_Var2Lit(pCnfIds[0], 1);
    assert( iCla == nClas );
    assert( iLit == nLits );
    // add closing pointer
    pCnf->pClauses[iCla++] = pCnf->pClauses[0] + iLit;
    // cleanup
    Vec_IntFree( vCnfs );
    // create mapping of objects into their clauses
    if ( fCnfObjIds )
    {
        pCnf->pObj2Clause = ABC_FALLOC( int, Gia_ManObjNum(p->pGia) );
        pCnf->pObj2Count  = ABC_FALLOC( int, Gia_ManObjNum(p->pGia) );
        for ( i = 0; i < pCnf->nClauses; i++ )
        {
            Id = Abc_Lit2Var(pCnf->pClauses[i][0]);
            if ( pCnf->pObj2Clause[Id] == -1 )
            {
                pCnf->pObj2Clause[Id] = i;
                pCnf->pObj2Count[Id] = 1;
            }
            else
            {
                assert( pCnf->pObj2Count[Id] > 0 );
                pCnf->pObj2Count[Id]++;
            }
        }
    }
    else
    {
        if ( p->pGia != p->pGia0 ) // diff managers - create map for CIs/COs
        {
            pCnf->pVarNums = ABC_FALLOC( int, Gia_ManObjNum(p->pGia0) );
            Gia_ManForEachCiId( p->pGia0, Id, i )
                pCnf->pVarNums[Id] = pCnfIds[Gia_ManCiIdToId(p->pGia, i)];
            Gia_ManForEachCoId( p->pGia0, Id, i )
                pCnf->pVarNums[Id] = pCnfIds[Gia_ManCoIdToId(p->pGia, i)];
/*
            // transform polarity of the internal nodes
            Gia_ManSetPhase( p->pGia );
            Gia_ManForEachCo( p->pGia, pObj, i )
                pObj->fPhase = 0;
            for ( i = 0; i < pCnf->nLiterals; i++ )
                if ( Gia_ManObj(p->pGia, Abc_Lit2Var(pCnf->pClauses[0][i]))->fPhase )
                    pCnf->pClauses[0][i] = Abc_LitNot( pCnf->pClauses[0][i] );
*/
        }
        else
            pCnf->pVarNums = Vec_IntReleaseArray(vCnfIds);
    }
    Vec_IntFree( vCnfIds );
    return pCnf;
}

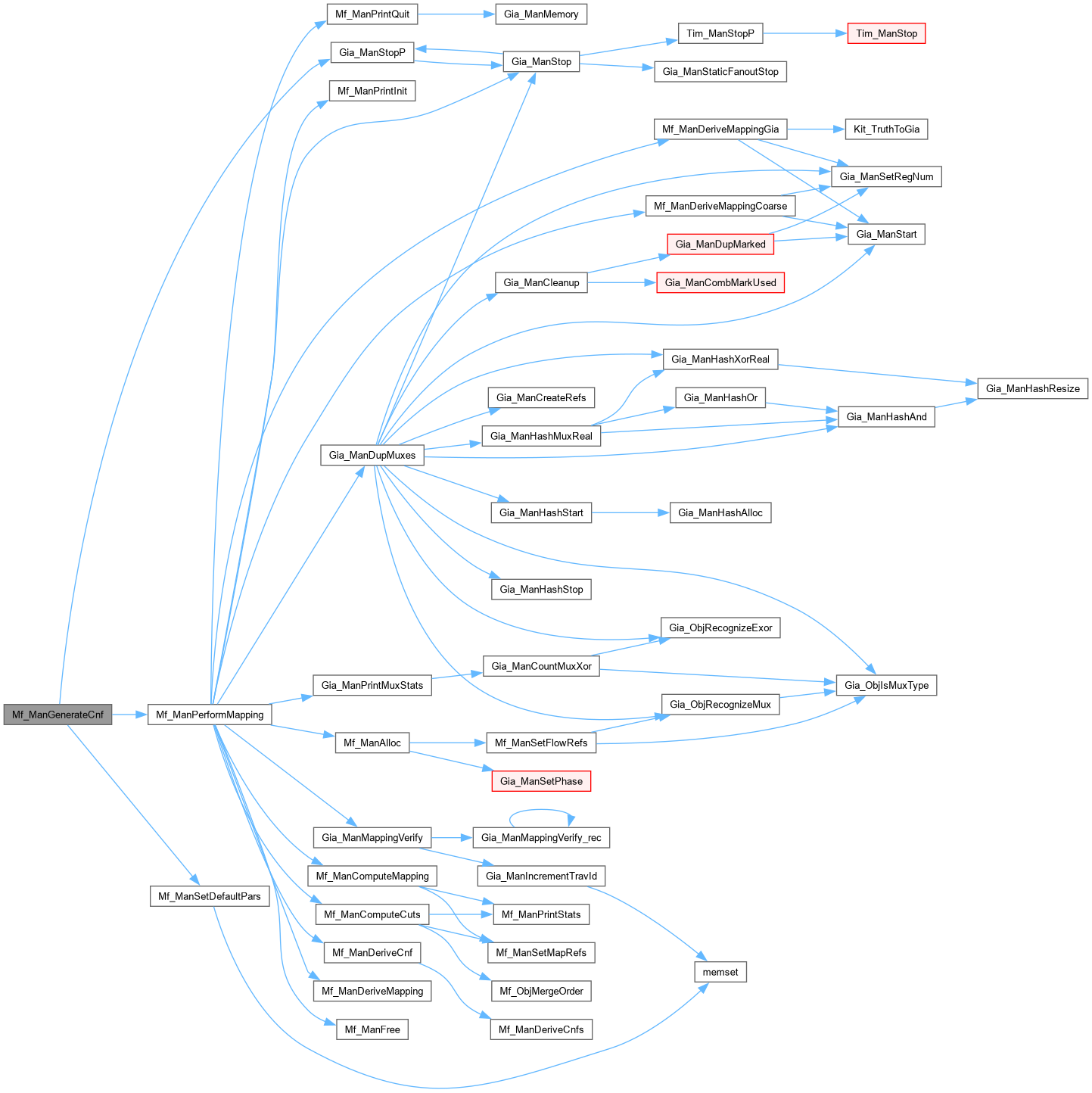

Here is the call graph for this function:

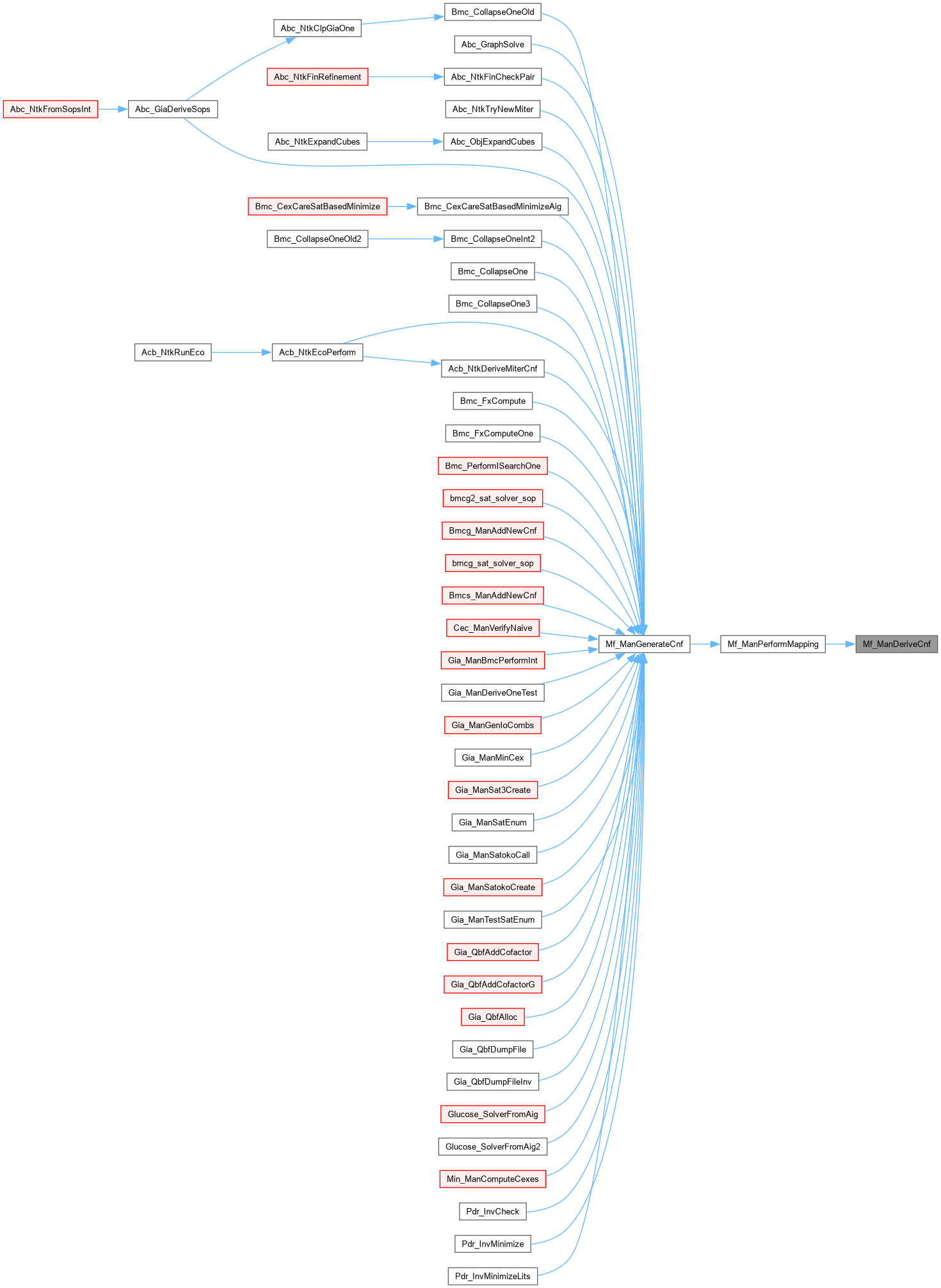

Here is the caller graph for this function:

Mf_ManDeriveCnfs()

Vec_Int_t * Mf_ManDeriveCnfs	(	Mf_Man_t *	p,
		int *	pnVars,
		int *	pnClas,
		int *	pnLits )

Definition at line 271 of file giaMf.c.

{
    int i, k, iFunc, nCubes, nLits, * pCut, pCnf[512];
    Vec_Int_t * vLits = Vec_IntStart( Vec_IntSize(&p->vCnfSizes) );
    Vec_Int_t * vCnfs = Vec_IntAlloc( 3 * Vec_IntSize(&p->vCnfSizes) );
    Vec_IntFill( vCnfs, Vec_IntSize(&p->vCnfSizes), -1 );
    assert( p->pPars->nLutSize <= 8 );
    // constant/buffer
    for ( iFunc = 0; iFunc < 2; iFunc++ )
    {
        if ( p->pPars->nLutSize <= 6 )
            nCubes = Abc_Tt6Cnf( *Vec_MemReadEntry(p->vTtMem, iFunc), iFunc, pCnf );
        else
            nCubes = Abc_Tt8Cnf( Vec_MemReadEntry(p->vTtMem, iFunc), iFunc, pCnf );
        nLits = Mf_ManCountLits( pCnf, nCubes, iFunc );
        Vec_IntWriteEntry( vLits, iFunc, nLits );
        Vec_IntWriteEntry( vCnfs, iFunc, Vec_IntSize(vCnfs) );
        Vec_IntPush( vCnfs, nCubes );
        for ( k = 0; k < nCubes; k++ )
            Vec_IntPush( vCnfs, pCnf[k] );
    }
    // other functions
    *pnVars = 1 + Gia_ManCiNum(p->pGia) + Gia_ManCoNum(p->pGia);
    *pnClas = 1 + 2 * Gia_ManCoNum(p->pGia);
    *pnLits = 1 + 4 * Gia_ManCoNum(p->pGia);
    Gia_ManForEachAndId( p->pGia, i )
    {
        if ( !Mf_ObjMapRefNum(p, i) )
            continue;
        pCut = Mf_ObjCutBest( p, i );
        //Mf_CutPrintOne( pCut );
        iFunc = Abc_Lit2Var( Mf_CutFunc(pCut) );
        if ( Vec_IntEntry(vCnfs, iFunc) == -1 )
        {
            if ( p->pPars->nLutSize <= 6 )
                nCubes = Abc_Tt6Cnf( *Vec_MemReadEntry(p->vTtMem, iFunc), Mf_CutSize(pCut), pCnf );
            else
                nCubes = Abc_Tt8Cnf( Vec_MemReadEntry(p->vTtMem, iFunc), Mf_CutSize(pCut), pCnf );
            assert( nCubes == Vec_IntEntry(&p->vCnfSizes, iFunc) );
            nLits = Mf_ManCountLits( pCnf, nCubes, Mf_CutSize(pCut) );
            // save CNF
            Vec_IntWriteEntry( vLits, iFunc, nLits );
            Vec_IntWriteEntry( vCnfs, iFunc, Vec_IntSize(vCnfs) );
            Vec_IntPush( vCnfs, nCubes );
            for ( k = 0; k < nCubes; k++ )
                Vec_IntPush( vCnfs, pCnf[k] );
        }
        *pnVars += 1;
        *pnClas += Vec_IntEntry(&p->vCnfSizes, iFunc);
        *pnLits += Vec_IntEntry(vLits, iFunc);
    }
    Vec_IntFree( vLits );
    return vCnfs;
}

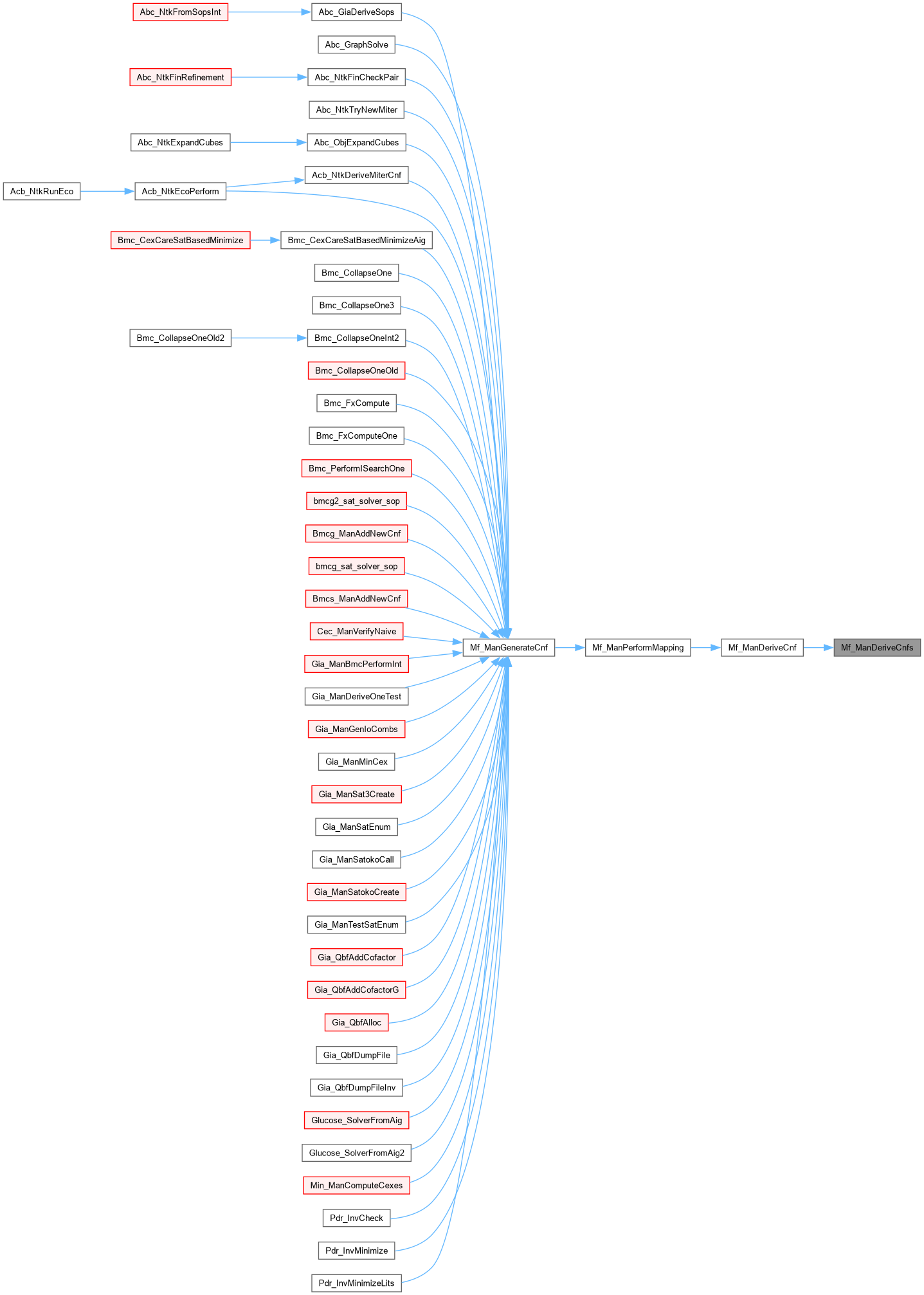

Here is the caller graph for this function:

Mf_ManDeriveMapping()

Gia_Man_t * Mf_ManDeriveMapping

(

Mf_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1229 of file giaMf.c.

{
    Vec_Int_t * vMapping;
    int i, k, * pCut;
    assert( !p->pPars->fCutMin && p->pGia->vMapping == NULL );
    vMapping = Vec_IntAlloc( Gia_ManObjNum(p->pGia) + (int)p->pPars->Edge + (int)p->pPars->Area * 2 );
    Vec_IntFill( vMapping, Gia_ManObjNum(p->pGia), 0 );
    Gia_ManForEachAndId( p->pGia, i )
    {
        if ( !Mf_ObjMapRefNum(p, i) )
            continue;
        pCut = Mf_ObjCutBest( p, i );
        Vec_IntWriteEntry( vMapping, i, Vec_IntSize(vMapping) );
        Vec_IntPush( vMapping, Mf_CutSize(pCut) );
        for ( k = 1; k <= Mf_CutSize(pCut); k++ )
            Vec_IntPush( vMapping, pCut[k] );
        Vec_IntPush( vMapping, i );
    }
    assert( Vec_IntCap(vMapping) == 16 || Vec_IntSize(vMapping) == Vec_IntCap(vMapping) );
    p->pGia->vMapping = vMapping;
    return p->pGia;
}

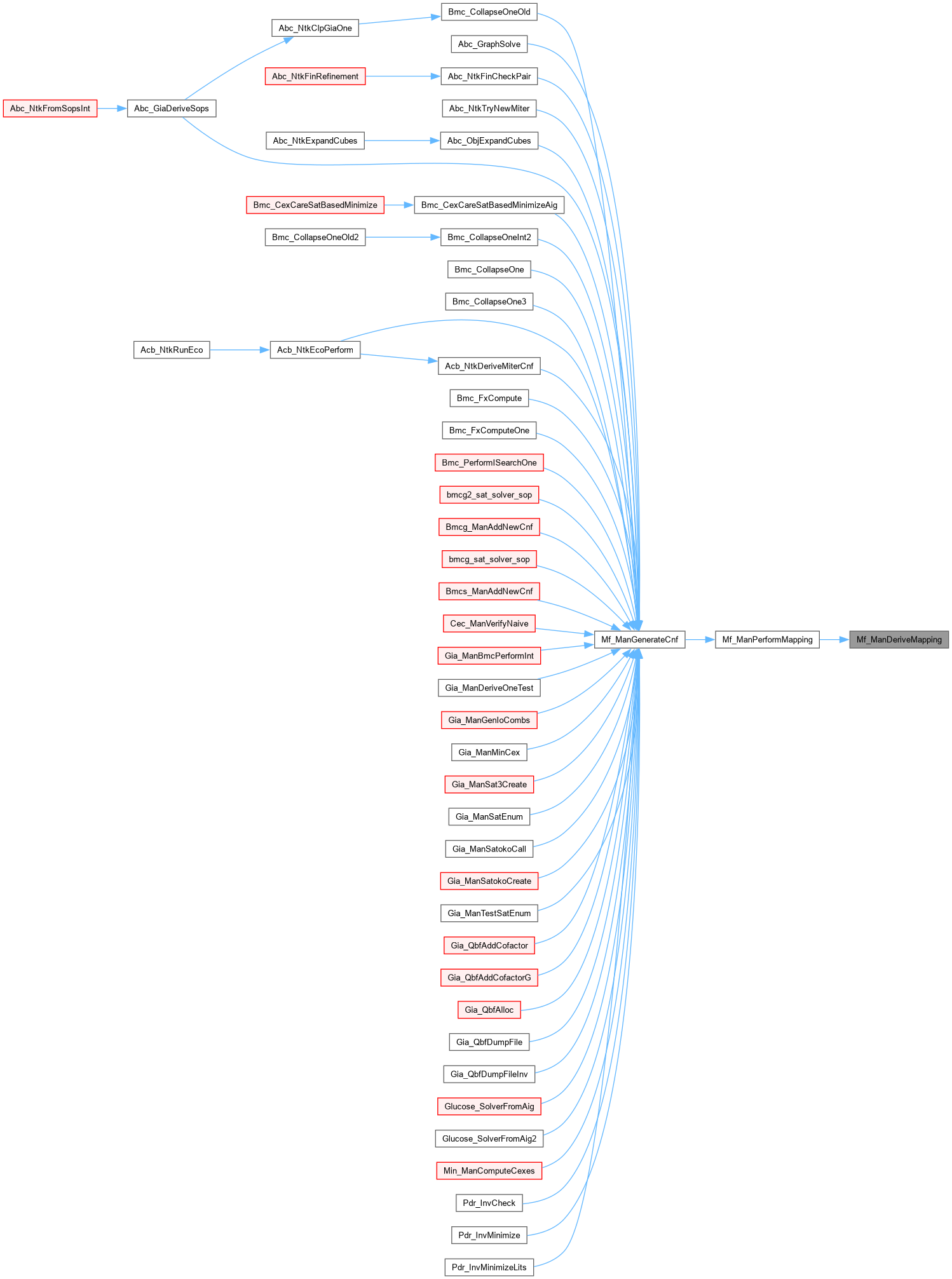

Here is the caller graph for this function:

Mf_ManDeriveMappingCoarse()

Gia_Man_t * Mf_ManDeriveMappingCoarse

(

Mf_Man_t *

p

)

Definition at line 1251 of file giaMf.c.

{
    Gia_Man_t * pNew, * pGia = p->pGia;
    Gia_Obj_t * pObj;
    int i, k, * pCut;
    assert( !p->pPars->fCutMin && pGia->pMuxes );
    // create new manager
    pNew = Gia_ManStart( Gia_ManObjNum(pGia) );
    pNew->pName = Abc_UtilStrsav( pGia->pName );
    pNew->pSpec = Abc_UtilStrsav( pGia->pSpec );
    // map primary inputs
    Gia_ManConst0(pGia)->Value = 0;
    Gia_ManForEachCi( pGia, pObj, i )
        pObj->Value = Gia_ManAppendCi( pNew );
    // start mapping
    pNew->vMapping = Vec_IntAlloc( Gia_ManObjNum(pGia) + 2*Gia_ManXorNum(pGia) + 2*Gia_ManMuxNum(pGia) + (int)p->pPars->Edge + (int)p->pPars->Area * 2 );
    Vec_IntFill( pNew->vMapping, Gia_ManObjNum(pGia) + 2*Gia_ManXorNum(pGia) + 2*Gia_ManMuxNum(pGia), 0 );
    // iterate through nodes used in the mapping
    Gia_ManForEachAnd( pGia, pObj, i )
    {
        if ( Gia_ObjIsMuxId(pGia, i) )
            pObj->Value = Gia_ManAppendMux( pNew, Gia_ObjFanin2Copy(pGia, pObj), Gia_ObjFanin1Copy(pObj), Gia_ObjFanin0Copy(pObj) );
        else if ( Gia_ObjIsXor(pObj) )
            pObj->Value = Gia_ManAppendXor( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        else
            pObj->Value = Gia_ManAppendAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
        if ( !Mf_ObjMapRefNum(p, i) )
            continue;
        pCut = Mf_ObjCutBest( p, i );
        Vec_IntWriteEntry( pNew->vMapping, Abc_Lit2Var(pObj->Value), Vec_IntSize(pNew->vMapping) );
        Vec_IntPush( pNew->vMapping, Mf_CutSize(pCut));
        for ( k = 1; k <= Mf_CutSize(pCut); k++ )
            Vec_IntPush( pNew->vMapping, Abc_Lit2Var(Gia_ManObj(pGia, pCut[k])->Value) );
        Vec_IntPush( pNew->vMapping, Abc_Lit2Var(pObj->Value) );
    }
    Gia_ManForEachCo( pGia, pObj, i )
        pObj->Value = Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(pGia) );
    assert( Vec_IntCap(pNew->vMapping) == 16 || Vec_IntSize(pNew->vMapping) == Vec_IntCap(pNew->vMapping) );
    return pNew;
}

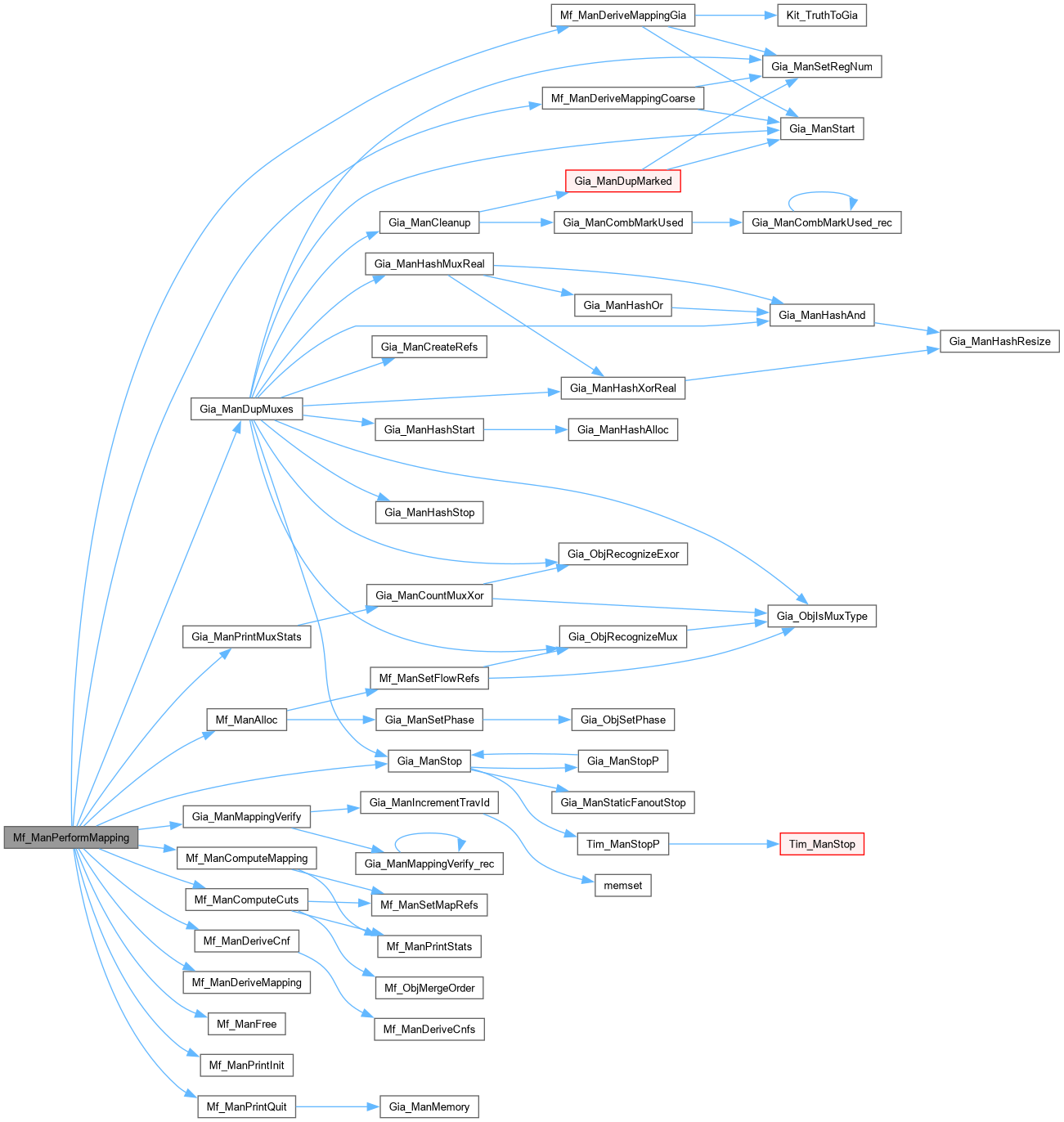

Here is the call graph for this function:

Here is the caller graph for this function:

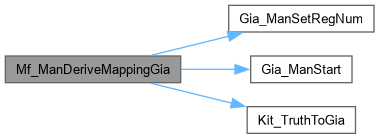

Mf_ManDeriveMappingGia()

Gia_Man_t * Mf_ManDeriveMappingGia

(

Mf_Man_t *

p

)

Definition at line 1292 of file giaMf.c.

{
    Gia_Man_t * pNew;
    Gia_Obj_t * pObj;
    Vec_Int_t * vCopies   = Vec_IntStartFull( Gia_ManObjNum(p->pGia) );
    Vec_Int_t * vMapping  = Vec_IntStart( 2 * Gia_ManObjNum(p->pGia) + (int)p->pPars->Edge + 2 * (int)p->pPars->Area );
    Vec_Int_t * vMapping2 = Vec_IntStart( (int)p->pPars->Edge + 2 * (int)p->pPars->Area + 1000 );
    Vec_Int_t * vCover    = Vec_IntAlloc( 1 << 16 );
    Vec_Int_t * vLeaves   = Vec_IntAlloc( 16 );
    int i, k, Id, iLit, * pCut;
    word uTruth = 0, * pTruth = &uTruth;
    assert( p->pPars->fCutMin );
    // create new manager
    pNew = Gia_ManStart( Gia_ManObjNum(p->pGia) );
    pNew->pName = Abc_UtilStrsav( p->pGia->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pGia->pSpec );
    // map primary inputs
    Vec_IntWriteEntry( vCopies, 0, 0 );
    Gia_ManForEachCiId( p->pGia, Id, i )
        Vec_IntWriteEntry( vCopies, Id, Gia_ManAppendCi(pNew) );
    // iterate through nodes used in the mapping
    Gia_ManForEachAnd( p->pGia, pObj, i )
    {
        if ( !Mf_ObjMapRefNum(p, i) )
            continue;
        pCut = Mf_ObjCutBest( p, i );
        if ( Mf_CutSize(pCut) == 0 )
        {
            assert( Abc_Lit2Var(Mf_CutFunc(pCut)) == 0 );
            Vec_IntWriteEntry( vCopies, i, Mf_CutFunc(pCut) );
            continue;
        }
        if ( Mf_CutSize(pCut) == 1 )
        {
            assert( Abc_Lit2Var(Mf_CutFunc(pCut)) == 1 );
            iLit = Vec_IntEntry( vCopies, pCut[1] );
            Vec_IntWriteEntry( vCopies, i, Abc_LitNotCond(iLit, Abc_LitIsCompl(Mf_CutFunc(pCut))) );
            continue;
        }
        Vec_IntClear( vLeaves );
        for ( k = 1; k <= Mf_CutSize(pCut); k++ )
            Vec_IntPush( vLeaves, Vec_IntEntry(vCopies, pCut[k]) );
        pTruth = Vec_MemReadEntry( p->vTtMem, Abc_Lit2Var(Mf_CutFunc(pCut)) );
        iLit = Kit_TruthToGia( pNew, (unsigned *)pTruth, Vec_IntSize(vLeaves), vCover, vLeaves, 0 );
        Vec_IntWriteEntry( vCopies, i, Abc_LitNotCond(iLit, Abc_LitIsCompl(Mf_CutFunc(pCut))) );
        // create mapping
        Vec_IntSetEntry( vMapping, Abc_Lit2Var(iLit), Vec_IntSize(vMapping2) );
        Vec_IntPush( vMapping2, Vec_IntSize(vLeaves) );
        Vec_IntForEachEntry( vLeaves, iLit, k )
            Vec_IntPush( vMapping2, Abc_Lit2Var(iLit) );
        Vec_IntPush( vMapping2, Abc_Lit2Var(Vec_IntEntry(vCopies, i)) );
    }
    Gia_ManForEachCo( p->pGia, pObj, i )
    {
        iLit = Vec_IntEntry( vCopies, Gia_ObjFaninId0p(p->pGia, pObj) );
        iLit = Gia_ManAppendCo( pNew, Abc_LitNotCond(iLit, Gia_ObjFaninC0(pObj)) );
    }
    Vec_IntFree( vCopies );
    Vec_IntFree( vCover );
    Vec_IntFree( vLeaves );
    // finish mapping
    if ( Vec_IntSize(vMapping) > Gia_ManObjNum(pNew) )
        Vec_IntShrink( vMapping, Gia_ManObjNum(pNew) );
    else
        Vec_IntFillExtra( vMapping, Gia_ManObjNum(pNew), 0 );
    assert( Vec_IntSize(vMapping) == Gia_ManObjNum(pNew) );
    Vec_IntForEachEntry( vMapping, iLit, i )
        if ( iLit > 0 )
            Vec_IntAddToEntry( vMapping, i, Gia_ManObjNum(pNew) );
    Vec_IntAppend( vMapping, vMapping2 );
    Vec_IntFree( vMapping2 );
    // attach mapping and packing
    assert( pNew->vMapping == NULL );
    pNew->vMapping = vMapping;
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p->pGia) );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_ManDumpCnf()

void Mf_ManDumpCnf	(	Gia_Man_t *	p,
		char *	pFileName,
		int	nLutSize,
		int	fCnfObjIds,
		int	fAddOrCla,
		int	fVerbose )

Definition at line 1895 of file giaMf.c.

{
    abctime clk = Abc_Clock();
    Cnf_Dat_t * pCnf;
    pCnf = (Cnf_Dat_t *)Mf_ManGenerateCnf( p, nLutSize, fCnfObjIds, fAddOrCla, 0, fVerbose );
    Cnf_DataWriteIntoFile( pCnf, pFileName, 0, NULL, NULL );
//    if ( fVerbose )
    {
        printf( "CNF stats: Vars = %6d. Clauses = %7d. Literals = %8d. ", pCnf->nVars, pCnf->nClauses, pCnf->nLiterals );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    }
    Cnf_DataFree(pCnf);
}

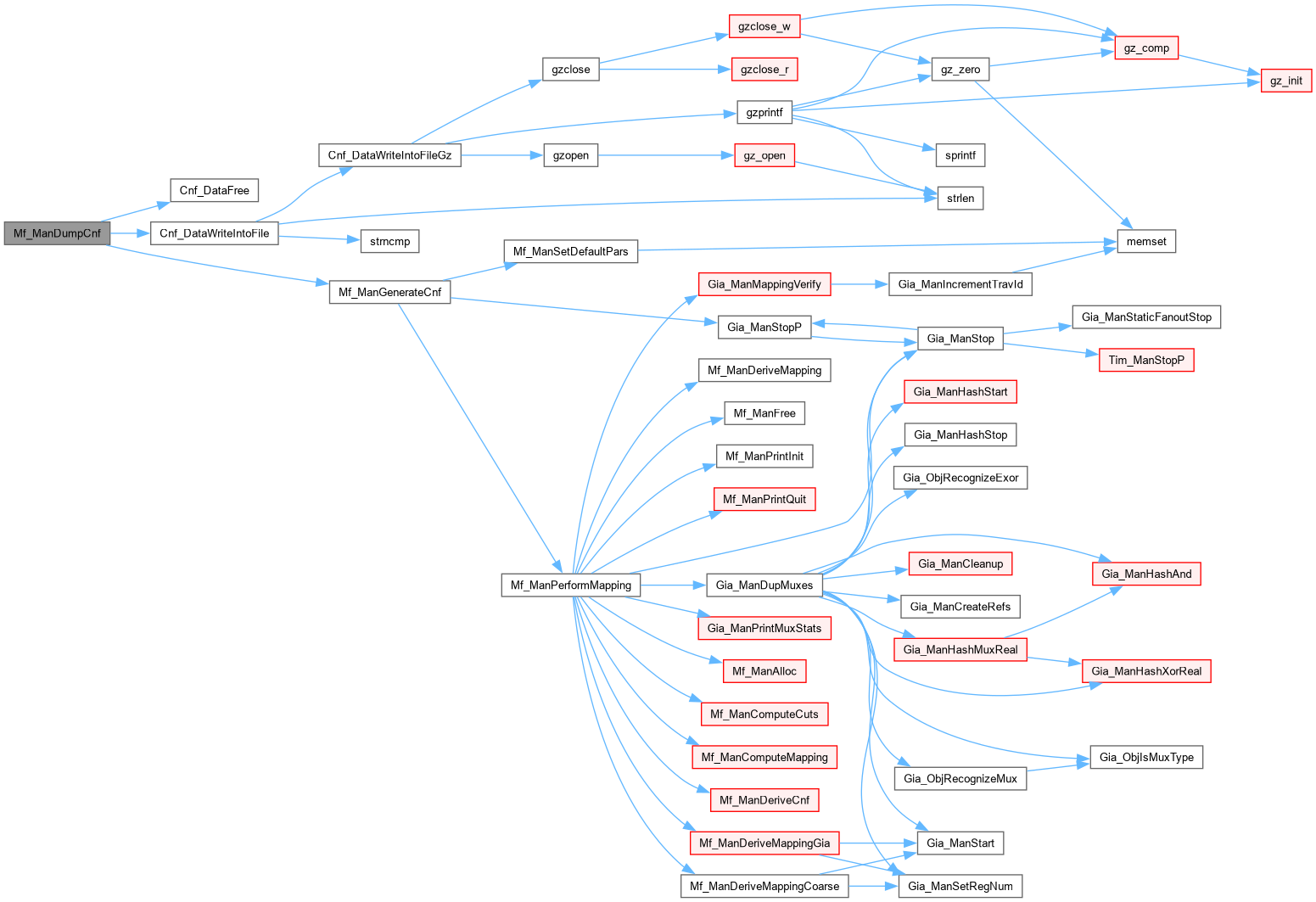

Here is the call graph for this function:

Mf_ManFree()

void Mf_ManFree

(

Mf_Man_t *

p

)

Definition at line 1414 of file giaMf.c.

{
    assert( !p->pPars->fGenCnf || !p->pPars->fGenLit || Vec_IntSize(&p->vCnfSizes) == Vec_MemEntryNum(p->vTtMem) );
    if ( p->pPars->fCutMin )
        Vec_MemHashFree( p->vTtMem );
    if ( p->pPars->fCutMin )
        Vec_MemFree( p->vTtMem );
    Vec_PtrFreeData( &p->vPages );
    ABC_FREE( p->vCnfSizes.pArray );
    ABC_FREE( p->vCnfMem.pArray );
    ABC_FREE( p->vPages.pArray );
    ABC_FREE( p->vTemp.pArray );
    ABC_FREE( p->pLfObjs );
    ABC_FREE( p );
}

Here is the caller graph for this function:

Mf_ManGenerateCnf()

void * Mf_ManGenerateCnf	(	Gia_Man_t *	pGia,
		int	nLutSize,
		int	fCnfObjIds,
		int	fAddOrCla,
		int	fMapping,
		int	fVerbose )

Function*************************************************************

Synopsis [CNF generation]

Description []

SideEffects []

SeeAlso []

Definition at line 1877 of file giaMf.c.

{
    Gia_Man_t * pNew;
    Jf_Par_t Pars, * pPars = &Pars;
    assert( nLutSize >= 3 && nLutSize <= 8 );
    Mf_ManSetDefaultPars( pPars );
    pPars->fGenCnf     = 1;
    pPars->fCoarsen    = !fCnfObjIds;
    pPars->nLutSize    = nLutSize;
    pPars->fCnfObjIds  = fCnfObjIds;
    pPars->fAddOrCla   = fAddOrCla;
    pPars->fCnfMapping = fMapping;
    pPars->fVerbose    = fVerbose;
    pNew = Mf_ManPerformMapping( pGia, pPars );
    Gia_ManStopP( &pNew );
//    Cnf_DataPrint( (Cnf_Dat_t *)pGia->pData, 1 );
    return pGia->pData;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_ManMappingFromMapping()

int Mf_ManMappingFromMapping

(

Mf_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1700 of file giaMf.c.

{
    Gia_Man_t * pGia = p->pGia0;
    Gia_Obj_t * pObj;
    int i, iObj, Count = 0;
    Vec_Int_t * vMapping = Vec_IntAlloc( 3 * Gia_ManObjNum(pGia) );
    Vec_IntFill( vMapping, Gia_ManObjNum(pGia), 0 );
    Gia_ManForEachAnd( pGia, pObj, iObj )
        if ( Mf_ObjMapRefNum(p, iObj) )
        {
            int * pCut = Mf_ObjCutBest(p, iObj);
            Vec_IntWriteEntry( vMapping, iObj, Vec_IntSize(vMapping) );
            Vec_IntPush( vMapping, Mf_CutSize(pCut) );
            for ( i = 1; i <= Mf_CutSize(pCut); i++ )
                Vec_IntPush( vMapping, pCut[i] );
            Vec_IntPush( vMapping, iObj );
            Count++;
        }
    assert( pGia->vMapping == NULL );
    pGia->vMapping = vMapping;
    printf( "Mapping is %.2fx larger than AIG manager.\n", 1.0*Vec_IntSize(vMapping)/Gia_ManObjNum(pGia) );
    return Count;
}

Here is the caller graph for this function:

Mf_ManOptimization()

void Mf_ManOptimization

(

Mf_Man_t *

p

)

Definition at line 1786 of file giaMf.c.

{
    int nOutMax = 3;
    Gia_Man_t * pGia = p->pGia0;
    int i, Count, nNodes = Mf_ManMappingFromMapping( p );
    Gia_ManLevelNum( pGia );
    Gia_ManStaticMappingFanoutStart( pGia, NULL );
    Mf_ManPrintFanoutProfile( p, pGia->vFanoutNums );
    printf( "\nIndividual logic cones for mapping with %d nodes:\n", nNodes );
    Vec_IntForEachEntry( pGia->vFanoutNums, Count, i )
        if ( Count >= 2 && Count <= nOutMax && Gia_ObjIsAnd(Gia_ManObj(pGia, i)) )
            Mf_ManOptimizationOne( p, i );
    printf( "\nFinished printing individual logic cones.\n" );
    Gia_ManStaticFanoutStop( pGia );
    Vec_IntFreeP( &pGia->vMapping );
}

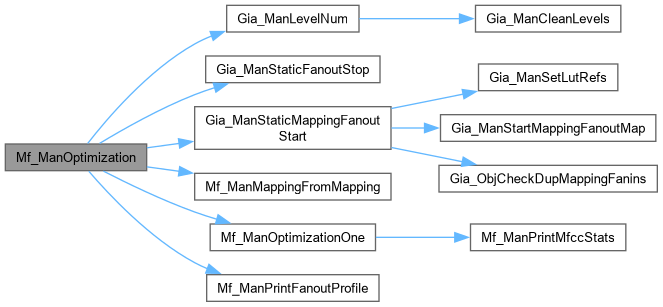

Here is the call graph for this function:

Mf_ManOptimizationOne()

void Mf_ManOptimizationOne	(	Mf_Man_t *	p,
		int	iObj )

Definition at line 1757 of file giaMf.c.

{
    Gia_Man_t * pGia = p->pGia0;
    int * ppCuts[32], nCuts = 0;
    int iFanout, i, nAreaSum = 0, nAreaBest = 0;
    // skip pivots whose MFFC fanouts are pointed to by COs
    Gia_ObjForEachFanoutStaticId( pGia, iObj, iFanout, i )
        if ( Gia_ObjIsCo(Gia_ManObj(pGia, iFanout)) )
            return;
    // the pivot is used in the mapping as well as all of its fanouts
    assert( Mf_ObjMapRefNum(p, iObj) > 1 );
    Gia_ObjForEachFanoutStaticId( pGia, iObj, iFanout, i )
        assert( Mf_ObjMapRefNum(p, iFanout) > 0 );
    // print this pivot and its fanouts
    printf( "\nPivot node = %d\n", iObj );
    printf( "Pivot " ), Mf_ManPrintMfccStats( p, iObj );
    Gia_ObjForEachFanoutStaticId( pGia, iObj, iFanout, i )
        printf( "Node  " ), nAreaSum += Mf_ManPrintMfccStats( p, iFanout );
    // calculate the shared MFFC
    Gia_ObjForEachFanoutStaticId( pGia, iObj, iFanout, i )
        Mf_ObjMapRefInc( p, iFanout );
    Gia_ObjForEachFanoutStaticId( pGia, iObj, iFanout, i )
        ppCuts[nCuts++] = Mf_ObjCutBest( p, iFanout );
    nAreaBest = Mf_CutAreaRefed2Multi( p, iObj, ppCuts, nCuts );
    Gia_ObjForEachFanoutStaticId( pGia, iObj, iFanout, i )
        Mf_ObjMapRefDec( p, iFanout );
    printf( "Sum of MFFC sizes = %d\n", nAreaSum );
    printf( "Shared MFFC size  = %d\n", nAreaBest );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_ManPerformMapping()

Gia_Man_t * Mf_ManPerformMapping	(	Gia_Man_t *	pGia,
		Jf_Par_t *	pPars )

Definition at line 1822 of file giaMf.c.

{
    Mf_Man_t * p;
    Gia_Man_t * pNew, * pCls;
    if ( pPars->fGenCnf || pPars->fGenLit )
        pPars->fCutMin = 1;
    if ( Gia_ManHasChoices(pGia) )
        pPars->fCutMin = 1, pPars->fCoarsen = 0;
    pCls = pPars->fCoarsen ? Gia_ManDupMuxes(pGia, pPars->nCoarseLimit) : pGia;
    p = Mf_ManAlloc( pCls, pPars );
    p->pGia0 = pGia;
    if ( pPars->fVerbose && pPars->fCoarsen )
    {
        printf( "Initial " );  Gia_ManPrintMuxStats( pGia );  printf( "\n" );
        printf( "Derived " );  Gia_ManPrintMuxStats( pCls );  printf( "\n" );
    }
    Mf_ManPrintInit( p );
    Mf_ManComputeCuts( p );
    for ( p->Iter = 1; p->Iter < p->pPars->nRounds; p->Iter++ )
        Mf_ManComputeMapping( p );
    p->fUseEla = 1;
    for ( ; p->Iter < p->pPars->nRounds + pPars->nRoundsEla; p->Iter++ )
        Mf_ManComputeMapping( p );
    //Mf_ManOptimization( p );
    if ( pPars->fVeryVerbose && pPars->fCutMin )
        Vec_MemDumpTruthTables( p->vTtMem, Gia_ManName(p->pGia), pPars->nLutSize );
    if ( pPars->fCutMin )
        pNew = Mf_ManDeriveMappingGia( p );
    else if ( pPars->fCoarsen )
        pNew = Mf_ManDeriveMappingCoarse( p );
    else
        pNew = Mf_ManDeriveMapping( p );
    if ( p->pPars->fGenCnf )
        pGia->pData = Mf_ManDeriveCnf( p, p->pPars->fCnfObjIds, p->pPars->fAddOrCla );
    //if ( p->pPars->fGenCnf || p->pPars->fGenLit )
    //    Mf_ManProfileTruths( p );
    Gia_ManMappingVerify( pNew );
    Mf_ManPrintQuit( p, pNew );
    Mf_ManFree( p );
    if ( pCls != pGia )
        Gia_ManStop( pCls );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_ManPrintFanoutProfile()

void Mf_ManPrintFanoutProfile	(	Mf_Man_t *	p,
		Vec_Int_t *	vFanCounts )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1735 of file giaMf.c.

{
    Gia_Man_t * pGia = p->pGia0;
    int i, Count, nMax = Vec_IntFindMax( vFanCounts );
    Vec_Int_t * vCounts = Vec_IntStart( nMax + 1 );
    Vec_IntForEachEntry( vFanCounts, Count, i )
        if ( Count && Gia_ObjIsAnd(Gia_ManObj(pGia, i)) )
            Vec_IntAddToEntry( vCounts, Count, 1 );
    printf( "\nFanout distribution for internal nodes:\n" );
    Vec_IntForEachEntry( vCounts, Count, i )
        if ( Count ) printf( "Fanout = %5d : Nodes = %5d.\n", i, Count );
    printf( "Total nodes with fanout = %d. Max fanout = %d.\n\n", Vec_IntCountPositive(vCounts), nMax );
    Vec_IntFree( vCounts );
}

Here is the caller graph for this function:

Mf_ManPrintInit()

void Mf_ManPrintInit

(

Mf_Man_t *

p

)

Definition at line 1481 of file giaMf.c.

{
    if ( !p->pPars->fVerbose )
        return;
    printf( "LutSize = %d  ", p->pPars->nLutSize );
    printf( "CutNum = %d  ",  p->pPars->nCutNum );
    printf( "Iter = %d  ",    p->pPars->nRounds + p->pPars->nRoundsEla );
    printf( "Edge = %d  ",    p->pPars->fOptEdge );
    printf( "CutMin = %d  ",  p->pPars->fCutMin );
    printf( "Coarse = %d  ",  p->pPars->fCoarsen );
    printf( "CNF = %d  ",     p->pPars->fGenCnf );
    printf( "FFL = %d  ",     p->pPars->fGenLit );
    printf( "\n" );
    printf( "Computing cuts...\r" );
    fflush( stdout );
}

Here is the caller graph for this function:

Mf_ManPrintMfccStats()

int Mf_ManPrintMfccStats	(	Mf_Man_t *	p,
		int	iObj )

Definition at line 1749 of file giaMf.c.

{
    Gia_Man_t * pGia = p->pGia0;
    int Area;
    printf( "%5d : Level = %5d  Refs = %5d  Mffc = %5d\n",
        iObj, Gia_ObjLevelId(pGia, iObj), Mf_ObjMapRefNum(p, iObj), (Area = Mf_CutAreaMffc(p, iObj)) );
    return Area;
}

Here is the caller graph for this function:

Mf_ManPrintQuit()

void Mf_ManPrintQuit	(	Mf_Man_t *	p,
		Gia_Man_t *	pNew )

Definition at line 1497 of file giaMf.c.

{
    float MemGia   = Gia_ManMemory(p->pGia) / (1<<20);
    float MemMan   = 1.0 * sizeof(Mf_Obj_t) * Gia_ManObjNum(p->pGia) / (1<<20);
    float MemCuts  = 1.0 * sizeof(int) * (1 << 16) * Vec_PtrSize(&p->vPages) / (1<<20);
    float MemTt    = p->vTtMem ? Vec_MemMemory(p->vTtMem) / (1<<20) : 0;
    float MemMap   = Vec_IntMemory(pNew->vMapping) / (1<<20);
    if ( p->CutCount[0] == 0 )
        p->CutCount[0] = 1;
    if ( !p->pPars->fVerbose )
        return;
    printf( "CutPair = %.0f  ",         p->CutCount[0] );
    printf( "Merge = %.0f (%.2f %%)  ", p->CutCount[1], 100.0*p->CutCount[1]/p->CutCount[0] );
    printf( "Eval = %.0f (%.2f %%)  ",  p->CutCount[2], 100.0*p->CutCount[2]/p->CutCount[0] );
    printf( "Cut = %.0f (%.2f %%)  ",   p->CutCount[3], 100.0*p->CutCount[3]/p->CutCount[0] );
    printf( "\n" );
    printf( "Gia = %.2f MB  ",          MemGia );
    printf( "Man = %.2f MB  ",          MemMan );
    printf( "Cut = %.2f MB   ",         MemCuts );
    printf( "Map = %.2f MB  ",          MemMap );
    printf( "TT = %.2f MB  ",           MemTt );
    printf( "Total = %.2f MB",          MemGia + MemMan + MemCuts + MemMap + MemTt );
    printf( "\n" );
    if ( 1 )
    {
        int i;
        for ( i = 0; i <= p->pPars->nLutSize; i++ )
            printf( "%d = %d  ", i, p->nCutCounts[i] );
        if ( p->vTtMem )
            printf( "TT = %d (%.2f %%)  ", Vec_MemEntryNum(p->vTtMem), 100.0 * Vec_MemEntryNum(p->vTtMem) / p->CutCount[2] );
        Abc_PrintTime( 1, "Time",    Abc_Clock() - p->clkStart );
    }
    fflush( stdout );
}

Here is the call graph for this function:

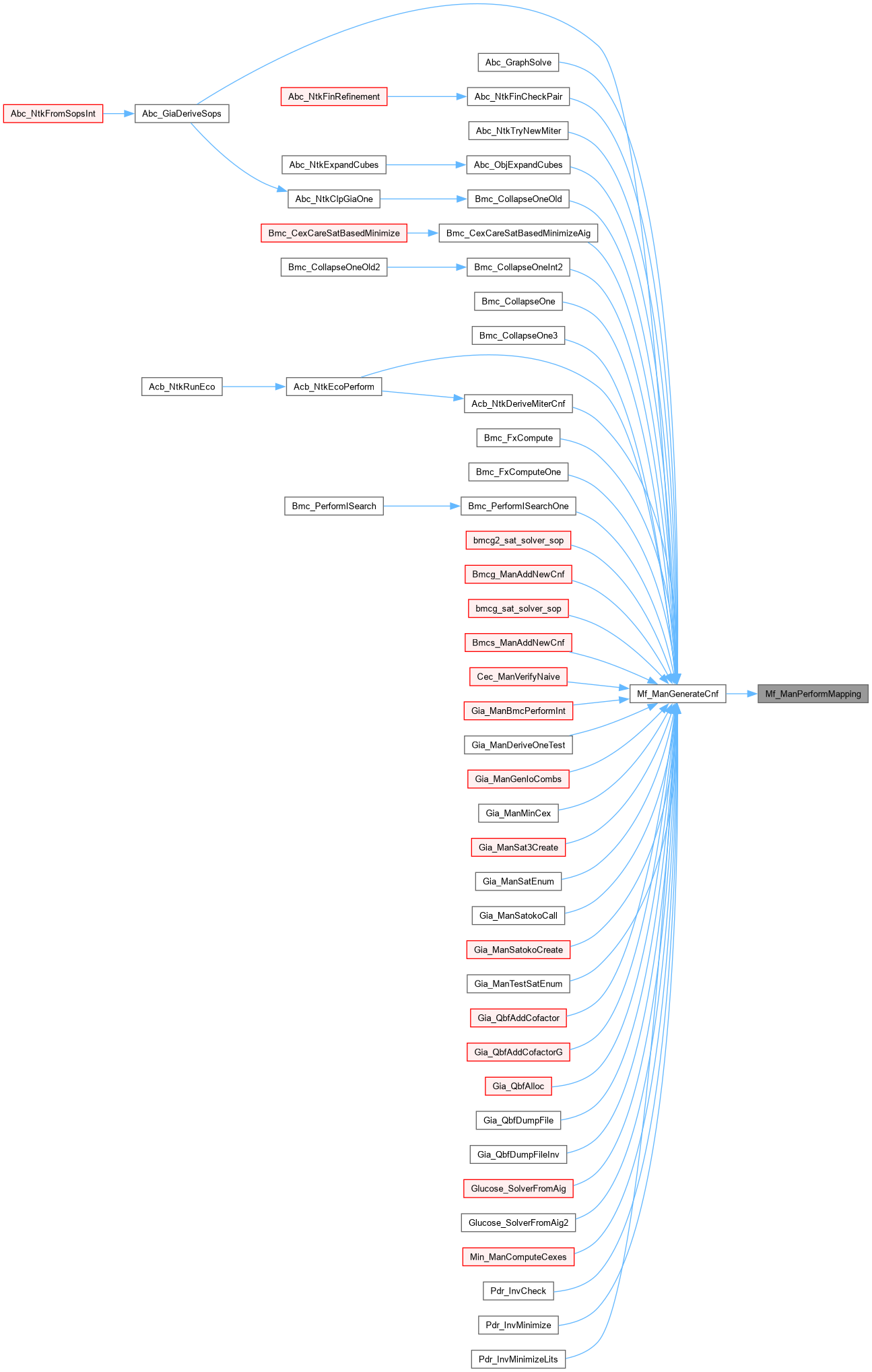

Here is the caller graph for this function:

Mf_ManPrintStats()

void Mf_ManPrintStats	(	Mf_Man_t *	p,
		char *	pTitle )

Definition at line 1466 of file giaMf.c.

{
    if ( !p->pPars->fVerbose )
        return;
    printf( "%s :  ", pTitle );
    printf( "Level =%6lu   ",   (long)p->pPars->Delay );
    printf( "Area =%9lu   ",  (long)p->pPars->Area );
    printf( "Edge =%9lu   ",  (long)p->pPars->Edge );
    if ( p->pPars->fGenCnf )
        printf( "CNF =%9lu   ", (long)p->pPars->Clause );
    if ( p->pPars->fGenLit )
        printf( "FFL =%9lu   ", (long)p->pPars->Clause );
    Abc_PrintTime( 1, "Time", Abc_Clock() - p->clkStart );
    fflush( stdout );
}

Here is the caller graph for this function:

Mf_ManProfileTruths()

void Mf_ManProfileTruths

(

Mf_Man_t *

p

)

Function*************************************************************

Synopsis [Collect truth tables used by the mapper.]

Description []

SideEffects []

SeeAlso []

Definition at line 217 of file giaMf.c.

{
    Vec_Int_t * vCounts;
    int i, Entry, * pCut, Counter = 0;
    vCounts = Vec_IntStart( Vec_IntSize(&p->vCnfSizes) );
    Gia_ManForEachAndId( p->pGia, i )
    {
        if ( !Mf_ObjMapRefNum(p, i) )
            continue;
        pCut = Mf_ObjCutBest( p, i );
        Vec_IntAddToEntry( vCounts, Abc_Lit2Var(Mf_CutFunc(pCut)), 1 );
    }
    Vec_IntForEachEntry( vCounts, Entry, i )
    {
        if ( Entry == 0 )
            continue;
        printf( "%6d : ", Counter++ );
        printf( "%6d : ", i );
        printf( "Occur = %4d  ", Entry );
        printf( "CNF size = %2d  ", Vec_IntEntry(&p->vCnfSizes, i) );
        Dau_DsdPrintFromTruth( Vec_MemReadEntry(p->vTtMem, i), p->pPars->nLutSize );
    }
    Vec_IntFree( vCounts );
}

Here is the call graph for this function:

Mf_ManSetDefaultPars()

void Mf_ManSetDefaultPars

(

Jf_Par_t *

pPars

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1441 of file giaMf.c.

{
    memset( pPars, 0, sizeof(Jf_Par_t) );
    pPars->nLutSize     =  6;
    pPars->nCutNum      =  8;
    pPars->nProcNum     =  0;
    pPars->nRounds      =  2;
    pPars->nRoundsEla   =  1;
    pPars->nRelaxRatio  =  0;
    pPars->nCoarseLimit =  3;
    pPars->nAreaTuner   =  1;
    pPars->nVerbLimit   =  5;
    pPars->DelayTarget  = -1;
    pPars->fAreaOnly    =  0;
    pPars->fOptEdge     =  1;
    pPars->fCoarsen     =  1;
    pPars->fCutMin      =  0;
    pPars->fGenCnf      =  0;
    pPars->fGenLit      =  0;
    pPars->fPureAig     =  0;
    pPars->fVerbose     =  0;
    pPars->fVeryVerbose =  0;
    pPars->nLutSizeMax  =  MF_LEAF_MAX;
    pPars->nCutNumMax   =  MF_CUT_MAX;
}

Here is the call graph for this function:

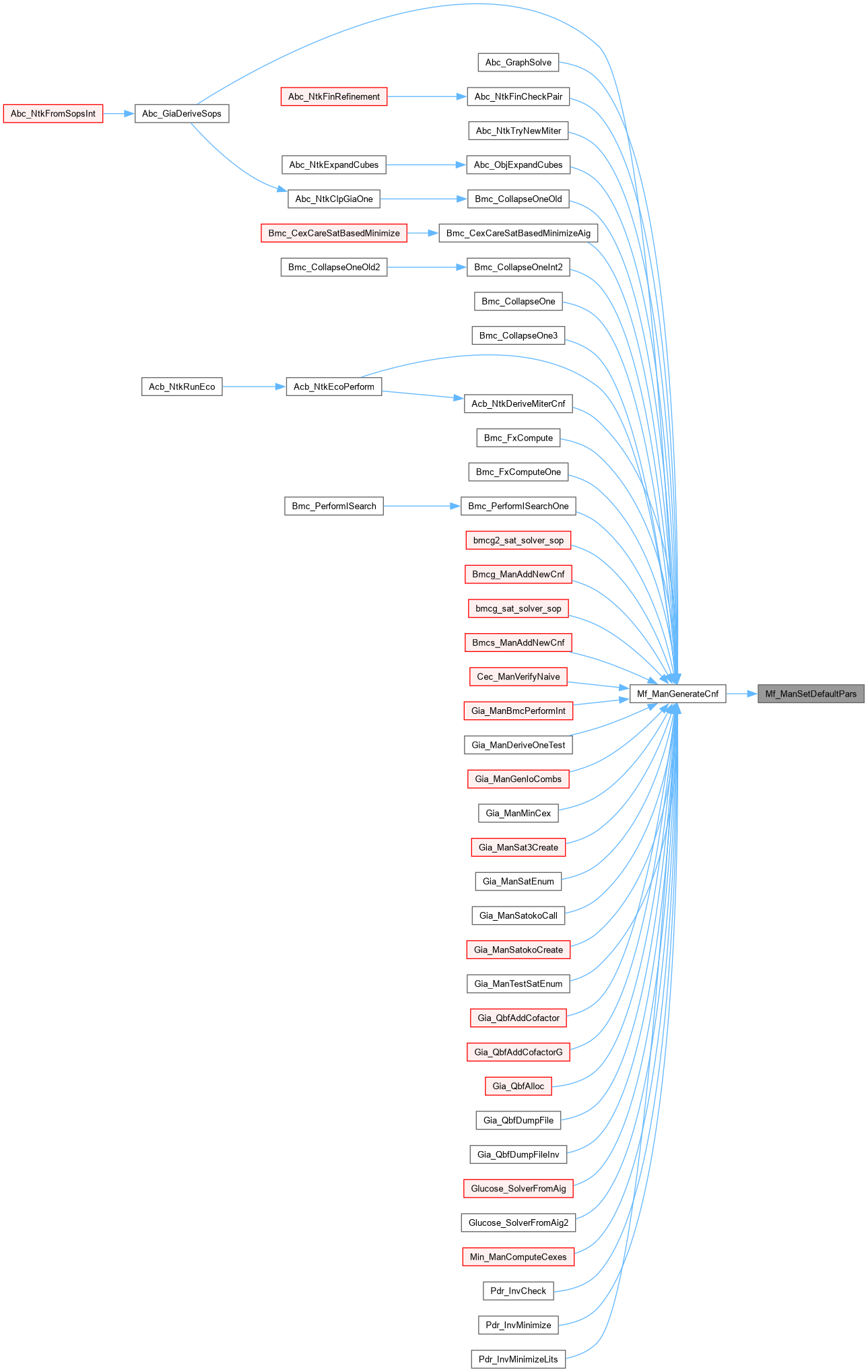

Here is the caller graph for this function:

Mf_ManSetFlowRefs()

void Mf_ManSetFlowRefs	(	Gia_Man_t *	p,
		Vec_Int_t *	vRefs )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1137 of file giaMf.c.

{
    int fDiscount = 1;
    Gia_Obj_t * pObj, * pCtrl, * pData0, * pData1;
    int i, Id;
    Vec_IntFill( vRefs, Gia_ManObjNum(p), 0 );
    Gia_ManForEachAnd( p, pObj, i )
    {
        if ( Gia_ObjIsAnd(Gia_ObjFanin0(pObj)) )
            Vec_IntAddToEntry( vRefs, Gia_ObjFaninId0(pObj, i), 1 );
        if ( Gia_ObjIsAnd(Gia_ObjFanin1(pObj)) )
            Vec_IntAddToEntry( vRefs, Gia_ObjFaninId1(pObj, i), 1 );
        if ( p->pMuxes )
        {
            if ( Gia_ObjIsMuxId(p, i) && Gia_ObjIsAnd(Gia_ObjFanin2(p, pObj)) )
                Vec_IntAddToEntry( vRefs, Gia_ObjFaninId2(p, i), 1 );
        }
        else if ( fDiscount && Gia_ObjIsMuxType(pObj) ) // discount XOR/MUX
        {
            pCtrl  = Gia_Regular(Gia_ObjRecognizeMux(pObj, &pData1, &pData0));
            pData0 = Gia_Regular(pData0);
            pData1 = Gia_Regular(pData1);
            if ( Gia_ObjIsAnd(pCtrl) )
                Vec_IntAddToEntry( vRefs, Gia_ObjId(p, pCtrl), -1 );
            if ( pData0 == pData1 && Gia_ObjIsAnd(pData0) )
                Vec_IntAddToEntry( vRefs, Gia_ObjId(p, pData0), -1 );
        }
    }
    Gia_ManForEachCoDriverId( p, Id, i )
        if ( Gia_ObjIsAnd(Gia_ManObj(p, Id)) )
            Vec_IntAddToEntry( vRefs, Id, 1 );
    for ( i = 0; i < Vec_IntSize(vRefs); i++ )
        Vec_IntUpdateEntry( vRefs, i, 1 );
}

Here is the call graph for this function:

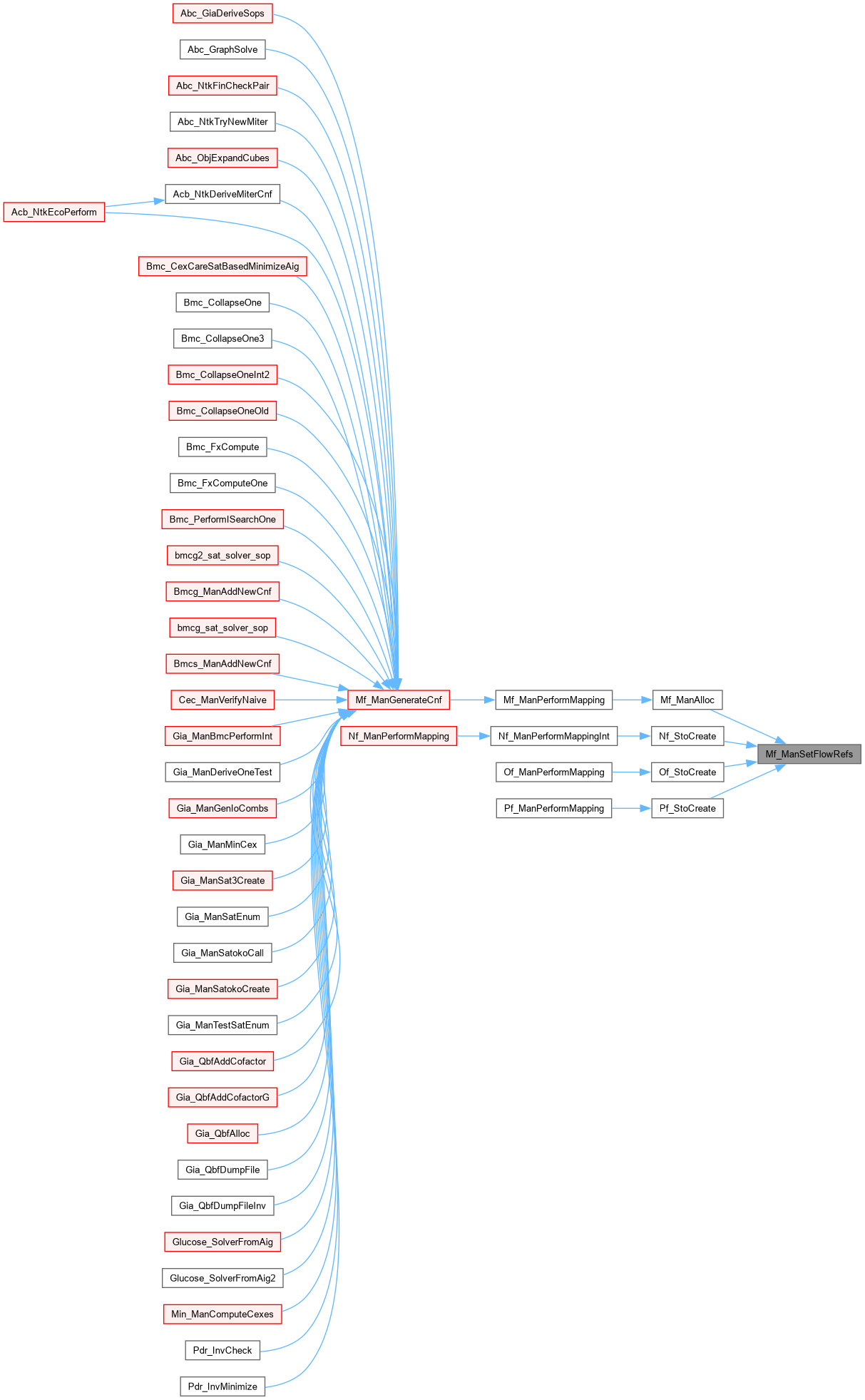

Here is the caller graph for this function:

Mf_ManSetMapRefs()

int Mf_ManSetMapRefs

(

Mf_Man_t *

p

)

Definition at line 1171 of file giaMf.c.

{
    float Coef = 1.0 / (1.0 + (p->Iter + 1) * (p->Iter + 1));
    int * pCut, i, k, Id;
    // compute delay
    int Delay = 0;
    Gia_ManForEachCoDriverId( p->pGia, Id, i )
        Delay = Abc_MaxInt( Delay, Mf_ManObj(p, Id)->Delay );
    // check delay target
    if ( p->pPars->DelayTarget == -1 && p->pPars->nRelaxRatio )
        p->pPars->DelayTarget = (int)((float)Delay * (100.0 + p->pPars->nRelaxRatio) / 100.0);
    if ( p->pPars->DelayTarget != -1 )
    {
        if ( Delay < p->pPars->DelayTarget + 0.01 )
            Delay = p->pPars->DelayTarget;
        else if ( p->pPars->nRelaxRatio == 0 )
            Abc_Print( 0, "Relaxing user-specified delay target from %d to %d.\n", p->pPars->DelayTarget, Delay );
    }
    p->pPars->Delay = Delay;
    // check references
//    Gia_ManForEachAndId( p->pGia, i )
//        assert( Mf_ManObj(p, i)->nMapRefs == 0 );
    // compute area and edges
    if ( !p->fUseEla )
        Gia_ManForEachCoDriverId( p->pGia, Id, i )
            Mf_ObjMapRefInc( p, Id );
    p->pPars->Area = p->pPars->Edge = p->pPars->Clause = 0;
    Gia_ManForEachAndReverseId( p->pGia, i )
    {
        if ( !Mf_ObjMapRefNum(p, i) )
            continue;
        pCut = Mf_ObjCutBest( p, i );
        if ( !p->fUseEla )
            for ( k = 1; k <= Mf_CutSize(pCut); k++ )
                Mf_ObjMapRefInc( p, pCut[k] );
        p->pPars->Edge += Mf_CutSize(pCut);
        p->pPars->Area++;
        if ( p->pPars->fGenCnf || p->pPars->fGenLit )
            p->pPars->Clause += Mf_CutArea(p, Mf_CutSize(pCut), Mf_CutFunc(pCut));
    }
    // blend references
    for ( i = 0; i < Gia_ManObjNum(p->pGia); i++ )
        p->pLfObjs[i].nFlowRefs = Coef * p->pLfObjs[i].nFlowRefs + (1.0 - Coef) * Abc_MaxFloat(1, p->pLfObjs[i].nMapRefs);
//        p->pLfObjs[i]. = 0.2 * p->pLfObjs[i]. + 0.8 * Abc_MaxFloat(1, p->pLfObjs[i].nMapRefs);
    return p->pPars->Area;
}

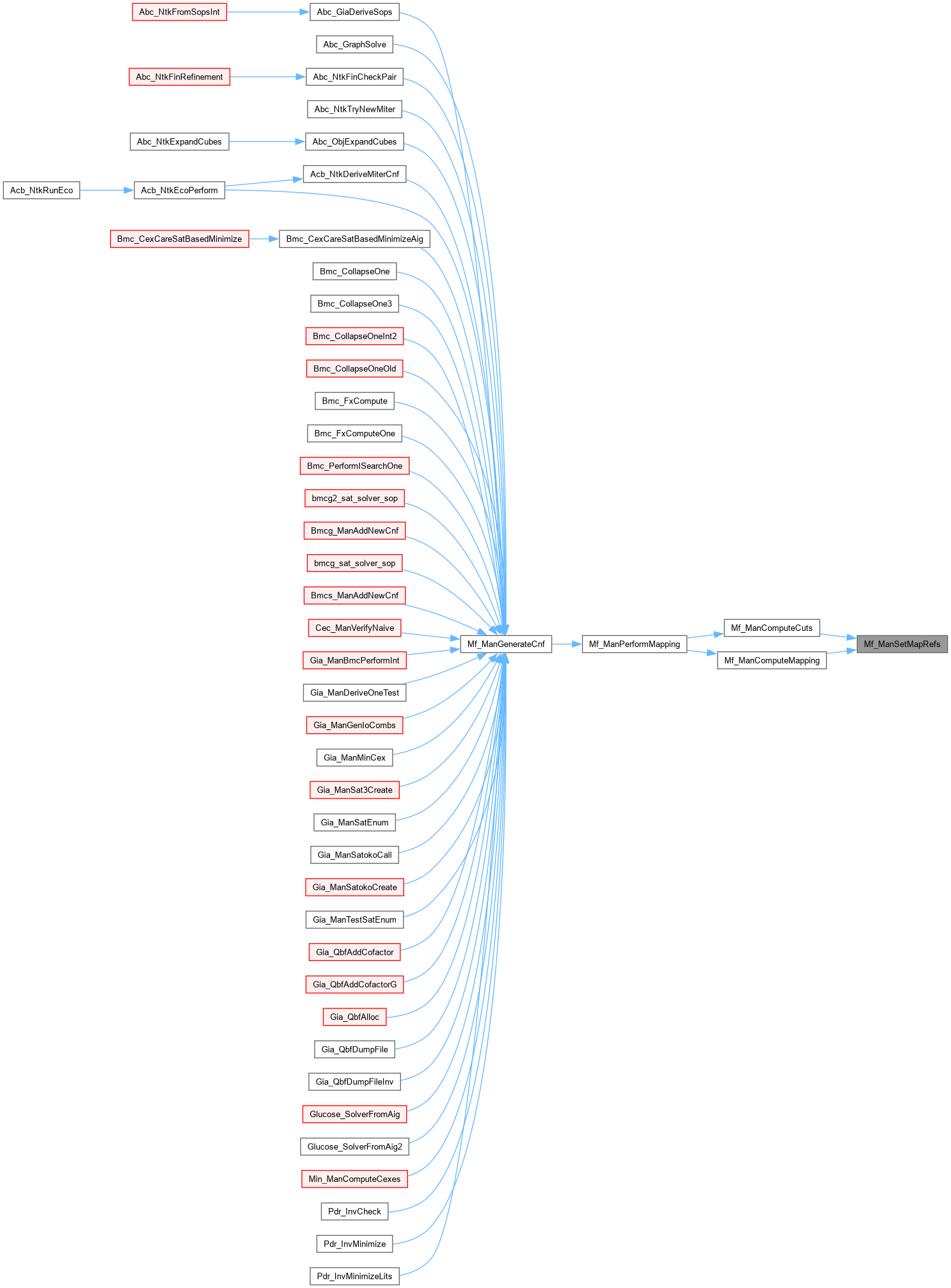

Here is the caller graph for this function:

Mf_ManTruthCanonicize()

int Mf_ManTruthCanonicize	(	word *	t,
		int	nVars )

Definition at line 121 of file giaMf.c.

{
    word Temp, Best = *t;
    int r, i, Config = 0;
    for ( r = 0; r < 1; r++ )
    {
        if ( Best > (Temp = ~Best) )
            Best = Temp, Config ^= (1 << nVars);
        for ( i = 0; i < nVars; i++ )
            if ( Best > (Temp = Abc_Tt6Flip(Best, i)) )
                Best = Temp, Config ^= (1 << i);
    }
    *t = Best;
    if ( s_vTtMem == NULL )
        s_vTtMem = Vec_MemAllocForTT( 6, 0 );
    Vec_MemHashInsert( s_vTtMem, t );
    s_nCalls++;
    return Config;
}

Here is the caller graph for this function:

Mf_ManTruthCollect()

Vec_Wrd_t * Mf_ManTruthCollect

(

int

Limit

)

Definition at line 151 of file giaMf.c.

{
    extern Vec_Wrd_t * Mpm_ManGetTruthWithCnf( int Limit );
    int * pPerm = Extra_PermSchedule( 6 );
    int * pComp = Extra_GreyCodeSchedule( 6 );
    Vec_Wrd_t * vTruths = Mpm_ManGetTruthWithCnf( Limit );
    Vec_Wrd_t * vResult = Vec_WrdAlloc( 1 << 20 );
    word uTruth, tCur, tTemp1, tTemp2;
    int i, p, c, k;
    Vec_WrdForEachEntry( vTruths, uTruth, k )
    {
        for ( i = 0; i < 2; i++ )
        {
            tCur = i ? ~uTruth : uTruth;
            tTemp1 = tCur;
            for ( p = 0; p < 720; p++ )
            {
                tTemp2 = tCur;
                for ( c = 0; c < 64; c++ )
                {
                    tCur = Abc_Tt6Flip( tCur, pComp[c] );
                    Vec_WrdPush( vResult, tCur );
                }
                assert( tTemp2 == tCur );
                tCur = Abc_Tt6SwapAdjacent( tCur, pPerm[p] );
            }
            assert( tTemp1 == tCur );
        }
    }
    ABC_FREE( pPerm );
    ABC_FREE( pComp );
    printf( "Original = %d.  ", Vec_WrdSize(vTruths) );
    Vec_WrdFree( vTruths );
    printf( "Total = %d.  ", Vec_WrdSize(vResult) );
    vTruths = Vec_WrdUniqifyHash( vResult, 1 );
    Vec_WrdFree( vResult );
    printf( "Unique = %d.  ", Vec_WrdSize(vTruths) );
    Vec_WrdForEachEntry( vTruths, uTruth, k )
    {
        Mf_ManTruthCanonicize( &uTruth, 6 );
        Vec_WrdWriteEntry( vTruths, k, uTruth );
    }
    vResult = Vec_WrdUniqifyHash( vTruths, 1 );
    Vec_WrdFree( vTruths );
    printf( "Unique = %d.  \n", Vec_WrdSize(vResult) );
    return vResult;
}

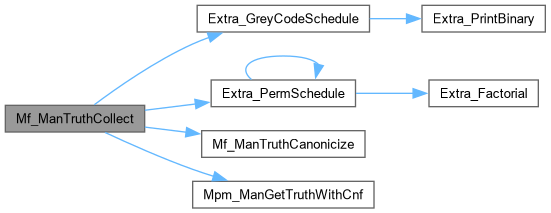

Here is the call graph for this function:

Here is the caller graph for this function:

Mf_ManTruthCount()

int Mf_ManTruthCount

(

)

Definition at line 198 of file giaMf.c.

{
    Vec_Wrd_t * vTruths = Mf_ManTruthCollect( 10 );
    int RetValue = Vec_WrdSize( vTruths );
    Vec_WrdFree( vTruths );
    return RetValue;
}

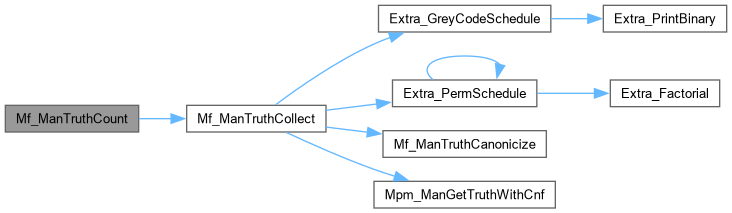

Here is the call graph for this function:

Mf_ManTruthQuit()

void Mf_ManTruthQuit

(

)

Definition at line 140 of file giaMf.c.

{
    if ( s_vTtMem == NULL )
        return;
    printf( "TT = %d (%.2f %%)\n", Vec_MemEntryNum(s_vTtMem), 100.0 * Vec_MemEntryNum(s_vTtMem) / s_nCalls );
    Vec_MemHashFree( s_vTtMem );
    Vec_MemFree( s_vTtMem );
    s_vTtMem = NULL;
    s_nCalls = 0;
}

Mf_ObjMergeOrder()

void Mf_ObjMergeOrder	(	Mf_Man_t *	p,
		int	iObj )

Definition at line 1026 of file giaMf.c.

{
    Mf_Cut_t pCuts0[MF_CUT_MAX], pCuts1[MF_CUT_MAX], pCuts[MF_CUT_MAX], * pCutsR[MF_CUT_MAX];
    Gia_Obj_t * pObj = Gia_ManObj(p->pGia, iObj);
    Mf_Obj_t * pBest = Mf_ManObj(p, iObj);
    int nLutSize = p->pPars->nLutSize;
    int nCutNum  = p->pPars->nCutNum;
    int nCuts0   = Mf_ManPrepareCuts(pCuts0, p, Gia_ObjFaninId0(pObj, iObj), 1);
    int nCuts1   = Mf_ManPrepareCuts(pCuts1, p, Gia_ObjFaninId1(pObj, iObj), 1);
    int fComp0   = Gia_ObjFaninC0(pObj);
    int fComp1   = Gia_ObjFaninC1(pObj);
    int iSibl    = Gia_ObjSibl(p->pGia, iObj);
    Mf_Cut_t * pCut0, * pCut1, * pCut0Lim = pCuts0 + nCuts0, * pCut1Lim = pCuts1 + nCuts1;
    int i, nCutsR = 0;
    for ( i = 0; i < nCutNum; i++ )
        pCutsR[i] = pCuts + i;
    if ( iSibl )
    {
        Mf_Cut_t pCuts2[MF_CUT_MAX];
        Gia_Obj_t * pObjE = Gia_ObjSiblObj(p->pGia, iObj);
        int fCompE = Gia_ObjPhase(pObj) ^ Gia_ObjPhase(pObjE);
        int nCuts2 = Mf_ManPrepareCuts(pCuts2, p, iSibl, 0);
        Mf_Cut_t * pCut2, * pCut2Lim = pCuts2 + nCuts2;
        for ( pCut2 = pCuts2; pCut2 < pCut2Lim; pCut2++ )
        {
            *pCutsR[nCutsR] = *pCut2;
            if ( pCutsR[nCutsR]->iFunc >= 0 )
                pCutsR[nCutsR]->iFunc = Abc_LitNotCond( pCutsR[nCutsR]->iFunc, fCompE );
            Mf_CutParams( p, pCutsR[nCutsR], pBest->nFlowRefs );
            nCutsR = Mf_SetAddCut( pCutsR, nCutsR, nCutNum );
        }
    }
    if ( Gia_ObjIsMuxId(p->pGia, iObj) )
    {
        Mf_Cut_t pCuts2[MF_CUT_MAX];
        int nCuts2  = Mf_ManPrepareCuts(pCuts2, p, Gia_ObjFaninId2(p->pGia, iObj), 1);
        int fComp2  = Gia_ObjFaninC2(p->pGia, pObj);
        Mf_Cut_t * pCut2, * pCut2Lim = pCuts2 + nCuts2;
        p->CutCount[0] += nCuts0 * nCuts1 * nCuts2;
        for ( pCut0 = pCuts0; pCut0 < pCut0Lim; pCut0++ )
        for ( pCut1 = pCuts1; pCut1 < pCut1Lim; pCut1++ )
        for ( pCut2 = pCuts2; pCut2 < pCut2Lim; pCut2++ )
        {
            if ( Mf_CutCountBits(pCut0->Sign | pCut1->Sign | pCut2->Sign) > nLutSize )
                continue;
            p->CutCount[1]++;
            if ( !Mf_CutMergeOrderMux(pCut0, pCut1, pCut2, pCutsR[nCutsR], nLutSize) )
                continue;
            if ( Mf_SetLastCutIsContained(pCutsR, nCutsR) )
                continue;
            p->CutCount[2]++;
            if ( p->pPars->fCutMin && Mf_CutComputeTruthMux(p, pCut0, pCut1, pCut2, fComp0, fComp1, fComp2, pCutsR[nCutsR]) )
                pCutsR[nCutsR]->Sign = Mf_CutGetSign(pCutsR[nCutsR]->pLeaves, pCutsR[nCutsR]->nLeaves);
            Mf_CutParams( p, pCutsR[nCutsR], pBest->nFlowRefs );
            nCutsR = Mf_SetAddCut( pCutsR, nCutsR, nCutNum );
        }
    }
    else
    {
        int fIsXor = Gia_ObjIsXor(pObj);
        p->CutCount[0] += nCuts0 * nCuts1;
        for ( pCut0 = pCuts0; pCut0 < pCut0Lim; pCut0++ )
        for ( pCut1 = pCuts1; pCut1 < pCut1Lim; pCut1++ )
        {
            if ( (int)(pCut0->nLeaves + pCut1->nLeaves) > nLutSize && Mf_CutCountBits(pCut0->Sign | pCut1->Sign) > nLutSize )
                continue;
            p->CutCount[1]++;
            if ( !Mf_CutMergeOrder(pCut0, pCut1, pCutsR[nCutsR], nLutSize) )
                continue;
            if ( Mf_SetLastCutIsContained(pCutsR, nCutsR) )
                continue;
            p->CutCount[2]++;
            if ( p->pPars->fCutMin && Mf_CutComputeTruth(p, pCut0, pCut1, fComp0, fComp1, pCutsR[nCutsR], fIsXor) )
                pCutsR[nCutsR]->Sign = Mf_CutGetSign(pCutsR[nCutsR]->pLeaves, pCutsR[nCutsR]->nLeaves);
            Mf_CutParams( p, pCutsR[nCutsR], pBest->nFlowRefs );
            nCutsR = Mf_SetAddCut( pCutsR, nCutsR, nCutNum );
        }
    }
    // debug printout
    if ( 0 )
//    if ( iObj % 1000 == 0 )
//    if ( iObj == 474 )
    {
        printf( "*** Obj = %d  FlowRefs = %.2f  MapRefs = %2d\n", iObj, pBest->nFlowRefs, pBest->nMapRefs );
        for ( i = 0; i < nCutsR; i++ )
            Mf_CutPrint( p, pCutsR[i] );
        printf( "\n" );
    }
    // store the cutset
    pBest->Flow = pCutsR[0]->Flow;
    pBest->Delay = pCutsR[0]->Delay;
    pBest->iCutSet = Mf_ManSaveCuts( p, pCutsR, nCutsR );
    // verify
    assert( nCutsR > 0 && nCutsR < nCutNum );
//    assert( Mf_SetCheckArray(pCutsR, nCutsR) );
    p->nCutCounts[pCutsR[0]->nLeaves]++;
    p->CutCount[3] += nCutsR;
}

Here is the caller graph for this function:
