giaOf.c File Reference

#include "gia.h"
#include "misc/st/st.h"
#include "map/mio/mio.h"
#include "misc/util/utilTruth.h"
#include "misc/extra/extra.h"
#include "base/main/main.h"
#include "misc/vec/vecMem.h"
#include "misc/vec/vecWec.h"
#include "opt/dau/dau.h"
#include "sat/bsat/satStore.h"

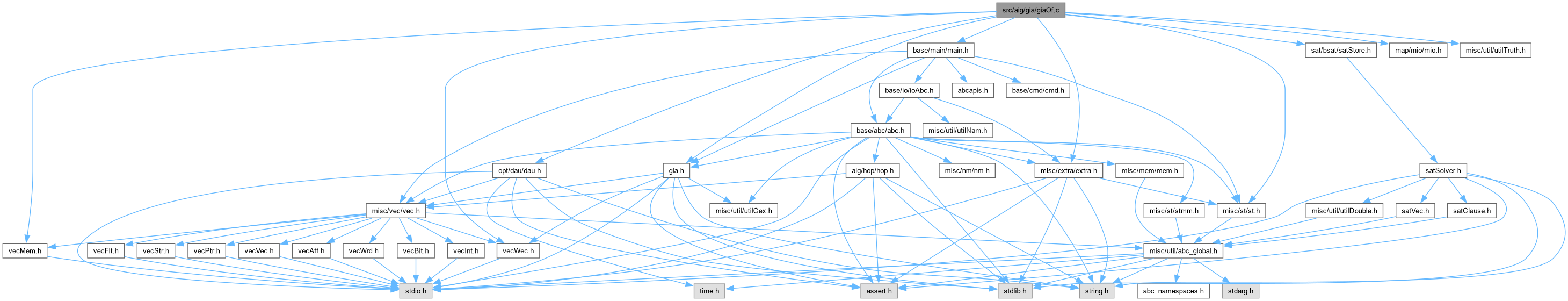

Include dependency graph for giaOf.c:

Go to the source code of this file.

Classes
struct	Of_Cut_t_
struct	Of_Obj_t_
struct	Of_Man_t_

Macros
#define	OF_LEAF_MAX   6
	DECLARATIONS ///.
#define	OF_CUT_MAX   32
#define	OF_NO_LEAF   31
#define	OF_NO_FUNC   0x7FFFFFF
#define	OF_CUT_EXTRA   4
#define	OF_NUM   10
#define	OF_NUMINV   0.1
#define	Of_SetForEachCut(pList, pCut, i)
#define	Of_ObjForEachCut(pCuts, i, nCuts)
#define	Of_CutForEachVar(pCut, iVar, i)
#define	Of_CutForEachVarFlag(pCut, iVar, Flag, i)

Typedefs
typedef struct Of_Cut_t_	Of_Cut_t
typedef struct Of_Obj_t_	Of_Obj_t
typedef struct Of_Man_t_	Of_Man_t

Functions
void	Of_ManAreaFlow (Of_Man_t *p)
	FUNCTION DEFINITIONS ///.
Of_Man_t *	Of_StoCreate (Gia_Man_t *pGia, Jf_Par_t *pPars)
void	Of_StoDelete (Of_Man_t *p)
void	Of_ObjMergeOrder (Of_Man_t *p, int iObj)
void	Of_ManComputeCuts (Of_Man_t *p)
void	Of_ManPrintStats (Of_Man_t *p, char *pTitle)
void	Of_ManPrintInit (Of_Man_t *p)
void	Of_ManPrintQuit (Of_Man_t *p)
void	Of_ManComputeForward1 (Of_Man_t *p)
int	Of_CutRef_rec (Of_Man_t *p, int *pCut)
int	Of_CutDeref_rec (Of_Man_t *p, int *pCut)
int	Of_CutRef2_rec (Of_Man_t *p, int *pCut)
void	Of_ManComputeForward2 (Of_Man_t *p)
void	Of_ManComputeBackward1 (Of_Man_t *p)
void	Of_ManComputeBackward2 (Of_Man_t *p)
void	Of_ManComputeBackward3 (Of_Man_t *p)
void	Of_ManComputeForwardDirconCut (Of_Man_t *p, int iObj, int *pCut, int *pDelay1, int *pDelay2)
int	Of_ManComputeForwardDirconObj (Of_Man_t *p, int iObj)
void	Of_ManComputeForwardDircon1 (Of_Man_t *p)
void	Of_ManComputeBackwardDircon1 (Of_Man_t *p)
void	Of_ManCreateSat (Of_Man_t *p, int nCutsAll, Vec_Int_t *vFirst, Vec_Int_t *vCutNum, Vec_Int_t *vBestNode, Vec_Int_t *vBestCut)
void	Of_ManPrintCuts (Of_Man_t *p)
void	Of_ManSetDefaultPars (Jf_Par_t *pPars)
Gia_Man_t *	Of_ManDeriveMapping (Of_Man_t *p)
Gia_Man_t *	Of_ManPerformMapping (Gia_Man_t *pGia, Jf_Par_t *pPars)

Macro Definition Documentation

OF_CUT_EXTRA

#define OF_CUT_EXTRA   4

Definition at line 42 of file giaOf.c.

OF_CUT_MAX

#define OF_CUT_MAX   32

Definition at line 39 of file giaOf.c.

Of_CutForEachVar

#define Of_CutForEachVar	(		pCut,
			iVar,
			i )

Value:

for ( i = 0; i < Of_CutSize(pCut) && (iVar = Of_CutVar(pCut,i)); i++ )

Definition at line 152 of file giaOf.c.

Of_CutForEachVarFlag

#define Of_CutForEachVarFlag	(		pCut,
			iVar,
			Flag,
			i )

Value:

for ( i = 0; i < Of_CutSize(pCut) && (iVar = Of_CutVar(pCut,i)) && ((Flag = Of_CutFlag(pCut,i)), 1); i++ )

Definition at line 153 of file giaOf.c.

OF_LEAF_MAX

#define OF_LEAF_MAX   6

DECLARATIONS ///.

CFile****************************************************************

FileName [giaOf.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [LUT structure mapper.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaOf.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 38 of file giaOf.c.

OF_NO_FUNC

#define OF_NO_FUNC   0x7FFFFFF

Definition at line 41 of file giaOf.c.

OF_NO_LEAF

#define OF_NO_LEAF   31

Definition at line 40 of file giaOf.c.

OF_NUM

#define OF_NUM   10

Definition at line 88 of file giaOf.c.

OF_NUMINV

#define OF_NUMINV   0.1

Definition at line 89 of file giaOf.c.

Of_ObjForEachCut

#define Of_ObjForEachCut	(		pCuts,
			i,
			nCuts )

Value:

for ( i = 0, i < nCuts; i++ )

Definition at line 151 of file giaOf.c.

Of_SetForEachCut

#define Of_SetForEachCut	(		pList,
			pCut,
			i )

Value:

for ( i = 0, pCut = pList + 1; i < pList[0]; i++, pCut += Of_CutSize(pCut) + OF_CUT_EXTRA )

Definition at line 150 of file giaOf.c.

Typedef Documentation

Of_Cut_t

typedef struct Of_Cut_t_ Of_Cut_t

Definition at line 44 of file giaOf.c.

Of_Man_t

typedef struct Of_Man_t_ Of_Man_t

Definition at line 66 of file giaOf.c.

Of_Obj_t

typedef struct Of_Obj_t_ Of_Obj_t

Definition at line 54 of file giaOf.c.

Function Documentation

Of_CutDeref_rec()

int Of_CutDeref_rec	(	Of_Man_t *	p,
		int *	pCut )

Definition at line 1055 of file giaOf.c.

{
    int i, Var, Count = (p->Iter & 1) ? 1 : Of_CutArea(p, Of_CutSize(pCut));
    Of_CutForEachVar( pCut, Var, i )
        if ( Of_ObjCutBest(p, Var) && !Of_ObjRefDec(p, Var) )
            Count += Of_CutDeref_rec( p, Of_ObjCutBestP(p, Var) );
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_CutRef2_rec()

int Of_CutRef2_rec	(	Of_Man_t *	p,
		int *	pCut )

Definition at line 1071 of file giaOf.c.

{
    int i, Var, Count = (p->Iter & 1) ? 1 : Of_CutArea(p, Of_CutSize(pCut));
    Of_CutForEachVar( pCut, Var, i )
    {
        if ( !Of_ObjCutBest(p, Var) )
            continue;
        Vec_IntPush( &p->vCutRefs, Var );
        if ( Of_ObjRefInc(p, Var) )
            continue;
        Count += Of_CutRef2_rec( p, Of_ObjCutBestP(p, Var) );
    }
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_CutRef_rec()

int Of_CutRef_rec	(	Of_Man_t *	p,
		int *	pCut )

Definition at line 1047 of file giaOf.c.

{
    int i, Var, Count = (p->Iter & 1) ? 1 : Of_CutArea(p, Of_CutSize(pCut));
    Of_CutForEachVar( pCut, Var, i )
        if ( Of_ObjCutBest(p, Var) && !Of_ObjRefInc(p, Var) )
            Count += Of_CutRef_rec( p, Of_ObjCutBestP(p, Var) );
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManAreaFlow()

void Of_ManAreaFlow

(

Of_Man_t *

p

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Area flow.]

Description []

SideEffects []

SeeAlso []

Definition at line 170 of file giaOf.c.

{
    int AreaUnit = 1000;
    int i, Id, Total = 0;
    Gia_Obj_t * pObj;
    assert( p->pGia->pRefs == NULL );
    Gia_ManCreateRefs( p->pGia );
    Of_ObjSetFlow( p, 0, 0 );
    Gia_ManForEachCiId( p->pGia, Id, i )
        Of_ObjSetFlow( p, Id, 0 );
    Gia_ManForEachAnd( p->pGia, pObj, Id )
        Of_ObjSetFlow( p, Id, (Gia_ObjFanin0(pObj)->Value + Gia_ObjFanin1(pObj)->Value + AreaUnit) / Gia_ObjRefNum(p->pGia, pObj) );
    Gia_ManForEachCo( p->pGia, pObj, i )
        Total += Gia_ObjFanin0(pObj)->Value;
    ABC_FREE( p->pGia->pRefs );
    if ( 1 )
        return;
    printf( "CI = %5d.  ", Gia_ManCiNum(p->pGia) );
    printf( "CO = %5d.  ", Gia_ManCoNum(p->pGia) );
    printf( "And = %8d.  ", Gia_ManAndNum(p->pGia) );
    printf( "Area = %8d.  ", Total/AreaUnit );
    printf( "\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManComputeBackward1()

void Of_ManComputeBackward1

(

Of_Man_t *

p

)

Definition at line 1166 of file giaOf.c.

{
    Gia_Obj_t * pObj;
    int DelayLut1 = p->pPars->nDelayLut1;
    int i, k, iVar, * pList, * pCut, * pCutMin;
    Of_ManComputeOutputRequired( p, 1 );
    // compute area and edges
    p->pPars->Area = p->pPars->Edge = 0;
    Gia_ManForEachAndReverse( p->pGia, pObj, i )
    {
        int CostMin, Cost, Required = Of_ObjRequired(p, i);
        if ( Gia_ObjIsBuf(pObj) )
        {
            int FaninId = Gia_ObjFaninId0(pObj, i);
            Of_ObjUpdateRequired( p, FaninId, Required );
            Of_ObjRefInc( p, FaninId );
            continue;
        }
        if ( !Of_ObjRefNum(p, i) )
            continue;
        // select the best cut
        pCutMin = NULL;
        CostMin = ABC_INFINITY;
        pList = Of_ObjCutSet( p, i );
        Of_SetForEachCut( pList, pCut, k )
        {
            if ( Of_CutDelay1(pCut) > Required )
                continue;
            Cost = Of_ManComputeBackwardCut( p, pCut );
            if ( CostMin > Cost )
            {
                CostMin = Cost;
                pCutMin = pCut;
            }
        }
        // the cut is selected
        assert( pCutMin != NULL );
        Of_ObjSetCutBestP( p, pList, i, pCutMin );
        Of_CutForEachVar( pCutMin, iVar, k )
        {
            Of_ObjUpdateRequired( p, iVar, Required - DelayLut1 );
            Of_ObjRefInc( p, iVar );
        }
        // update parameters
        p->pPars->Edge += Of_CutSize(pCutMin);
        p->pPars->Area++;
    }
}

Here is the caller graph for this function:

Of_ManComputeBackward2()

void Of_ManComputeBackward2

(

Of_Man_t *

p

)

Definition at line 1214 of file giaOf.c.

{
    Gia_Obj_t * pObj;
    int DelayLut1 = p->pPars->nDelayLut1;
    int i, k, iVar, * pCutMin;
    Of_ManComputeOutputRequired( p, 0 );
    // compute area and edges
    p->pPars->Area = p->pPars->Edge = 0;
    Gia_ManForEachAndReverse( p->pGia, pObj, i )
    {
        int Required = Of_ObjRequired(p, i);
        if ( Gia_ObjIsBuf(pObj) )
        {
            int FaninId = Gia_ObjFaninId0(pObj, i);
            Of_ObjUpdateRequired( p, FaninId, Required );
            continue;
        }
        if ( !Of_ObjRefNum(p, i) )
            continue;
        // lookup for the cut
        pCutMin = Of_ObjCutBestP( p, i );
        Of_CutForEachVar( pCutMin, iVar, k )
            Of_ObjUpdateRequired( p, iVar, Required - DelayLut1 );
        // update parameters
        p->pPars->Edge += Of_CutSize(pCutMin);
        p->pPars->Area++;
    }
}

Of_ManComputeBackward3()

void Of_ManComputeBackward3

(

Of_Man_t *

p

)

Definition at line 1242 of file giaOf.c.

{
    Gia_Obj_t * pObj;
    int DelayLut1 = p->pPars->nDelayLut1;
    int i, k, iVar, * pList, * pCut, * pCutMin;
    int AreaBef = 0, AreaAft = 0;
    Of_ManComputeOutputRequired( p, 0 );
    // compute area and edges
    p->pPars->Area = p->pPars->Edge = 0;
    Gia_ManForEachAndReverse( p->pGia, pObj, i )
    {
        int CostMin, Cost, Required = Of_ObjRequired(p, i);
        if ( Gia_ObjIsBuf(pObj) )
        {
            int FaninId = Gia_ObjFaninId0(pObj, i);
            Of_ObjUpdateRequired( p, FaninId, Required );
            continue;
        }
        if ( !Of_ObjRefNum(p, i) )
            continue;
        // deref best cut
        AreaBef = Of_CutDeref_rec( p, Of_ObjCutBestP(p, i) );
        // select the best cut
        pCutMin = NULL;
        CostMin = ABC_INFINITY;
        pList = Of_ObjCutSet( p, i );
        Of_SetForEachCut( pList, pCut, k )
        {
            if ( Of_CutDelay1(pCut) > Required )
                continue;
            Cost = Of_CutAreaDerefed2( p, pCut );
            if ( CostMin > Cost )
            {
                CostMin = Cost;
                pCutMin = pCut;
            }
        }
        // the cut is selected
        assert( pCutMin != NULL );
        Of_ObjSetCutBestP( p, pList, i, pCutMin );
        Of_CutForEachVar( pCutMin, iVar, k )
            Of_ObjUpdateRequired( p, iVar, Required - DelayLut1 );
        // ref best cut
        AreaAft = Of_CutRef_rec( p, pCutMin );
        assert( AreaAft <= AreaBef );
        // update parameters
        p->pPars->Edge += Of_CutSize(pCutMin);
        p->pPars->Area++;
    }
}

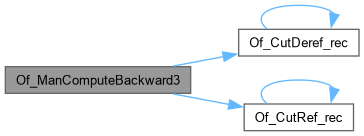

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManComputeBackwardDircon1()

void Of_ManComputeBackwardDircon1

(

Of_Man_t *

p

)

Definition at line 1409 of file giaOf.c.

{
    Gia_Obj_t * pObj;
    Vec_Bit_t * vPointed;
    int DelayLut1 = p->pPars->nDelayLut1;
    int DelayLut2 = p->pPars->nDelayLut2;
    int i, k, iVar, Flag, * pList, * pCutMin;
    int CountNodes = 0, CountEdges = 0;
    Of_ManComputeOutputRequired( p, 1 );
    printf( "Global delay =%8.2f\n", Of_Int2Flt((int)p->pPars->Delay) );
    //return;
    // compute area and edges
    vPointed = Vec_BitStart( Gia_ManObjNum(p->pGia) );
    p->pPars->Area = p->pPars->Edge = 0;
    Gia_ManForEachAndReverse( p->pGia, pObj, i )
    {
        int CostMin, fPointed, Required = Of_ObjRequired(p, i);
        if ( Gia_ObjIsBuf(pObj) )
        {
            int FaninId = Gia_ObjFaninId0(pObj, i);
            Of_ObjUpdateRequired( p, FaninId, Required );
            Of_ObjRefInc( p, FaninId );
            continue;
        }
        if ( !Of_ObjRefNum(p, i) )
            continue;
        // check if the LUT is has an outgoing dircon edge
        fPointed = Vec_BitEntry(vPointed, i);
        CountNodes += fPointed;

/*
        // select the best cut
        {
            int * pCut;
            pCutMin = NULL;
            CostMin = ABC_INFINITY;
            pList = Of_ObjCutSet( p, i );
            Of_SetForEachCut( pList, pCut, k )
            {
                int Cost;
                if ( (fPointed ? Of_CutDelay2(pCut) : Of_CutDelay1(pCut)) > Required )
                    continue;
                Cost = Of_ManComputeBackwardCut( p, pCut );
                if ( CostMin > Cost )
                {
                    CostMin = Cost;
                    pCutMin = pCut;
                }
            }
        }
*/

        if ( fPointed )
        {
            pCutMin = Of_ObjCutBestP2( p, i );
            CostMin = Of_CutDelay2(pCutMin);
            //assert( Of_CutDelay2(pCutMin) <= Required );
        }
        else
        {
            pCutMin = Of_ObjCutBestP( p, i );
            CostMin = Of_CutDelay1(pCutMin);
            //assert( Of_CutDelay1(pCutMin) <= Required );
        }

        // remove dircon markers
        //if ( fPointed )
        //    Of_CutForEachVarFlag( pCutMin, iVar, Flag, k )
        //        Of_CutSetFlag( pCutMin, k, 0 );

        // the cut is selected
        assert( pCutMin != NULL );
        pList = Of_ObjCutSet( p, i );
        Of_ObjSetCutBestP( p, pList, i, pCutMin );
        Of_CutForEachVarFlag( pCutMin, iVar, Flag, k )
        {
            Of_ObjUpdateRequired( p, iVar, Required - ((Flag && !fPointed) ? DelayLut2 : DelayLut1) );
            Of_ObjRefInc( p, iVar );
            if ( Flag && !fPointed )
            {
                Vec_BitWriteEntry( vPointed, iVar, 1 );
                CountEdges++;
            }
        }
        // update parameters
        p->pPars->Edge += Of_CutSize(pCutMin);
        p->pPars->Area++;
    }
    Vec_BitFree( vPointed );
    //printf( "Dircon nodes = %d.  Dircon edges = %d.\n", CountNodes, CountEdges );
}

Here is the caller graph for this function:

Of_ManComputeCuts()

void Of_ManComputeCuts

(

Of_Man_t *

p

)

Definition at line 780 of file giaOf.c.

{
    Gia_Obj_t * pObj; int i, iFanin;
    Gia_ManForEachAnd( p->pGia, pObj, i )
        if ( Gia_ObjIsBuf(pObj) )
        {
            iFanin = Gia_ObjFaninId0(pObj, i);
            Of_ObjSetCutFlow( p, i,  Of_ObjCutFlow(p, iFanin) );
            Of_ObjSetCutDelay( p, i, Of_ObjCutDelay(p, iFanin) );
        }
        else
            Of_ObjMergeOrder( p, i );
    Gia_ManForEachAnd( p->pGia, pObj, i )
        if ( !Gia_ObjIsBuf(pObj) )
            Of_ManLiftCuts( p, i );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManComputeForward1()

void Of_ManComputeForward1

(

Of_Man_t *

p

)

Definition at line 1036 of file giaOf.c.

{
    Gia_Obj_t * pObj; int i;
    Gia_ManForEachAnd( p->pGia, pObj, i )
        if ( Gia_ObjIsBuf(pObj) )
            Of_ObjSetDelay1( p, i, Of_ObjDelay1(p, Gia_ObjFaninId0(pObj, i)) );
        else
            Of_ManComputeForwardObj( p, i );
}

Here is the caller graph for this function:

Of_ManComputeForward2()

void Of_ManComputeForward2

(

Of_Man_t *

p

)

Definition at line 1125 of file giaOf.c.

{
    Gia_Obj_t * pObj; int i;
    Gia_ManForEachAnd( p->pGia, pObj, i )
        if ( Gia_ObjIsBuf(pObj) )
            Of_ObjSetDelay1( p, i, Of_ObjDelay1(p, Gia_ObjFaninId0(pObj, i)) );
        else
            Of_ManComputeForwardObj2( p, i );
}

Here is the caller graph for this function:

Of_ManComputeForwardDircon1()

void Of_ManComputeForwardDircon1

(

Of_Man_t *

p

)

Definition at line 1397 of file giaOf.c.

{
    Gia_Obj_t * pObj; int i;
    Gia_ManForEachAnd( p->pGia, pObj, i )
        if ( Gia_ObjIsBuf(pObj) )
        {
            Of_ObjSetDelay1( p, i, Of_ObjDelay1(p, Gia_ObjFaninId0(pObj, i)) );
            Of_ObjSetDelay2( p, i, Of_ObjDelay2(p, Gia_ObjFaninId0(pObj, i)) );
        }
        else
            Of_ManComputeForwardDirconObj( p, i );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManComputeForwardDirconCut()

void Of_ManComputeForwardDirconCut	(	Of_Man_t *	p,
		int	iObj,
		int *	pCut,
		int *	pDelay1,
		int *	pDelay2 )

Function*************************************************************

Synopsis [Technology mappping.]

Description []

SideEffects []

SeeAlso []

Definition at line 1304 of file giaOf.c.

{
    // Delay1 - main delay;  Delay2 - precomputed LUT delay in terms of Delay1 for the fanins
    int Delays[6], Perm[6] = {0, 1, 2, 3, 4, 5};
    int DelayLut1 = p->pPars->nDelayLut1;
    int DelayLut2 = p->pPars->nDelayLut2;
    int nSize = Of_CutSize(pCut);
    int k, iVar, Flag, SlowCon, Delay, DelayAfter, fDirConWorks;
    Of_CutForEachVar( pCut, iVar, k )
    {
        Delays[k] = Of_ObjDelay1(p, iVar) + DelayLut1;
//        printf( "%3d%s ", iVar, Flag ? "*" : " " );
    }
    for ( ; k < p->pPars->nLutSize; k++ )
    {
        Delays[k] = -ABC_INFINITY;
//        printf( "     " );
    }
    Vec_IntSelectSortCost2Reverse( Perm, nSize, Delays );
    assert( nSize < 2 || Delays[0] >= Delays[nSize-1] );
    assert( Delays[0] >= 0 && Delays[nSize-1] >= 0 );
    // consider speedup due to dircons
    fDirConWorks = 1;
    *pDelay1 = *pDelay2 = 0;
    SlowCon = p->pPars->nFastEdges < nSize ? Delays[p->pPars->nFastEdges] : 0;
    for ( k = 0; k < nSize; k++ )
    {
        // use dircon if the following is true
        // - the input is eligible for dircon (does not exceed the limit)
        // - there is an expected gain in delay, compared the largest delay without dircon
        // - the dircon delay is indeed lower than the largest delay without dircon
        // - all previous dircons worked out well
        // - the node is an AND-gate
        iVar = Of_CutVar( pCut, Perm[k] );
        assert( Delays[k] == Of_ObjDelay1(p, iVar) + DelayLut1 );
        DelayAfter = Of_ObjDelay2(p, iVar) + DelayLut2;
        if ( k < p->pPars->nFastEdges && Delays[k] > SlowCon && DelayAfter < Delays[k] && fDirConWorks && Gia_ObjIsAndNotBuf(Gia_ManObj(p->pGia, iVar)) )
        {
            Delay = DelayAfter;
            Of_CutSetFlag( pCut, Perm[k], 1 );
        }
        else
        {
            Delay = Delays[k];// + DelayLut2;
            Of_CutSetFlag( pCut, Perm[k], 0 );
            fDirConWorks = 0;
        }
        *pDelay1 = Abc_MaxInt( *pDelay1, Delay );
        *pDelay2 = Abc_MaxInt( *pDelay2, Delays[k] );
    }
//    printf( "   %5.2f",   Of_Int2Flt(*pDelay1) );
//    printf( "   %5.2f\n", Of_Int2Flt(*pDelay2) );
    // do not use the structure if simple LUT is better
    if ( *pDelay1 > *pDelay2 )
    {
        for ( k = 0; k < nSize; k++ )
            Of_CutSetFlag( pCut, k, 0 );
        *pDelay1 = *pDelay2;
    }
    assert( *pDelay1 <= *pDelay2 );
    Of_CutSetDelay1( pCut, *pDelay1 );
    Of_CutSetDelay2( pCut, *pDelay2 );
    // verify
    Of_CutForEachVarFlag( pCut, iVar, Flag, k )
    {
        if ( Flag )
            assert( Of_ObjDelay2(p, iVar) + DelayLut2 <= *pDelay1 );
        else
            assert( Of_ObjDelay1(p, iVar) + DelayLut1 <= *pDelay1 );
        assert( Of_ObjDelay1(p, iVar) + DelayLut1 <= *pDelay2 );
    }
}

Here is the caller graph for this function:

Of_ManComputeForwardDirconObj()

int Of_ManComputeForwardDirconObj	(	Of_Man_t *	p,
		int	iObj )

Definition at line 1376 of file giaOf.c.

{
    int Delay1 = ABC_INFINITY, Delay2 = ABC_INFINITY;
    int i, * pCut, * pCutMin = NULL, * pCutMin2 = NULL, * pList = Of_ObjCutSet(p, iObj);
    Of_SetForEachCut( pList, pCut, i )
    {
        int Delay1This, Delay2This;
        Of_ManComputeForwardDirconCut( p, iObj, pCut, &Delay1This, &Delay2This );
        if ( Delay1 > Delay1This )
            pCutMin = pCut;
        if ( Delay2 > Delay2This )
            pCutMin2 = pCut;
        Delay1 = Abc_MinInt( Delay1, Delay1This );
        Delay2 = Abc_MinInt( Delay2, Delay2This );
    }
    Of_ObjSetDelay1( p, iObj, Delay1 );
    Of_ObjSetDelay2( p, iObj, Delay2 );
    Of_ObjSetCutBestP( p, pList, iObj, pCutMin );
    Of_ObjSetCutBestP2( p, pList, iObj, pCutMin2 );
    return Delay1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManCreateSat()

void Of_ManCreateSat	(	Of_Man_t *	p,
		int	nCutsAll,
		Vec_Int_t *	vFirst,
		Vec_Int_t *	vCutNum,
		Vec_Int_t *	vBestNode,
		Vec_Int_t *	vBestCut )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1512 of file giaOf.c.

{
    extern void Cnf_AddCardinConstrPairWise( sat_solver * p, Vec_Int_t * vVars, int K, int fStrict );

    Gia_Obj_t * pObj, * pVar;
    int * pCutSet, * pCut;
    int i, k, v, c, Var, Lit, pLits[2], status, RetValue, nCutCount, nClauses;
    Vec_Int_t * vLits = Vec_IntAlloc( 100 );
    abctime clk = Abc_Clock();

    // start solver
    sat_solver * pSat = sat_solver_new();
    sat_solver_setnvars( pSat, Gia_ManAndNum(p->pGia) + nCutsAll );

    // set polarity
    Vec_IntAppend( vBestNode, vBestCut );
    //Vec_IntPrint( vBestNode );
    sat_solver_set_polarity( pSat, Vec_IntArray(vBestNode), Vec_IntSize(vBestNode) );
    Vec_IntShrink( vBestNode, Vec_IntSize(vBestNode) - Vec_IntSize(vBestCut) );

    // add clauses for nodes
    Gia_ManForEachAnd( p->pGia, pObj, i )
    {
        int iFirst = Vec_IntEntry(vFirst, i);
        int nCuts = Vec_IntEntry(vCutNum, i);
        Vec_IntClear( vLits );
        Vec_IntPush( vLits, Abc_Var2Lit(pObj->Value, 1) );
        for ( c = 0; c < nCuts; c++ )
            Vec_IntPush( vLits, Abc_Var2Lit(iFirst + c, 0) );
        RetValue = sat_solver_addclause( pSat, Vec_IntArray(vLits), Vec_IntLimit(vLits) );
        assert( RetValue );
    }

    // add clauses for cuts
    nCutCount = 0;
    Gia_ManForEachAnd( p->pGia, pObj, i )
    {
        pCutSet = Of_ObjCutSet(p, i);
        Of_SetForEachCut( pCutSet, pCut, k )
        {
            pLits[0] = Abc_Var2Lit( Gia_ManAndNum(p->pGia) + nCutCount, 1 );
            pLits[1] = Abc_Var2Lit( pObj->Value, 0 );
            RetValue = sat_solver_addclause( pSat, pLits, pLits+2 );
            assert( RetValue );
            Of_CutForEachVar( pCut, Var, v )
            {
                pVar = Gia_ManObj(p->pGia, Var);
                if ( !Gia_ObjIsAnd(pVar) )
                    continue;
                pLits[1] = Abc_Var2Lit( pVar->Value, 0 );
                RetValue = sat_solver_addclause( pSat, pLits, pLits+2 );
                assert( RetValue );
            }
            nCutCount++;
        }
    }
    assert( nCutCount == nCutsAll );

    // mark CO drivers
    Gia_ManForEachCo( p->pGia, pObj, i )
        Gia_ObjFanin0(pObj)->fMark0 = 1;
    // set used nodes to 1
    Gia_ManForEachAnd( p->pGia, pObj, i )
        if ( pObj->fMark0 )
        {
            Lit = Abc_Var2Lit( pObj->Value, 0 );
            RetValue = sat_solver_addclause( pSat, &Lit, &Lit + 1 );
            assert( RetValue );
        }
    // unmark CO drivers
    Gia_ManForEachCo( p->pGia, pObj, i )
        Gia_ObjFanin0(pObj)->fMark0 = 0;

//    Sat_SolverWriteDimacs( pSat, "temp.cnf", NULL, NULL, 0 );

    // add cardinality constraint
    nClauses = pSat->stats.clauses;
    Vec_IntClear( vLits );
    Vec_IntFillNatural( vLits, Gia_ManAndNum(p->pGia) );
    Cnf_AddCardinConstrPairWise( pSat, vLits, Vec_IntSize(vBestNode)-2, 0 );
    printf( "Problem clauses = %d.  Cardinality clauses = %d.\n", nClauses, pSat->stats.clauses - nClauses );

    // solve the problem
    status = sat_solver_solve( pSat, NULL, NULL, 1000000, 0, 0, 0 );
    if ( status == l_Undef )
        printf( "Undecided.  " );
    if ( status == l_True )
        printf( "Satisfiable.  " );
    if ( status == l_False )
        printf( "Unsatisfiable. " );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    Sat_SolverPrintStats( stdout, pSat );
    if ( status == l_True )
    {
        int nOnes = 0;
        for ( v = 0; v < Gia_ManAndNum(p->pGia); v++ )
        {
            printf( "%d", sat_solver_var_value(pSat, v) );
            nOnes += sat_solver_var_value(pSat, v);
        }
        printf( " Nodes = %d\n", nOnes );

        nOnes = 0;
        for ( ; v < Gia_ManAndNum(p->pGia) + nCutsAll; v++ )
        {
            printf( "%d", sat_solver_var_value(pSat, v) );
            nOnes += sat_solver_var_value(pSat, v);
        }
        printf( " LUTs = %d\n", nOnes );
    }

    // cleanup
    sat_solver_delete( pSat );
    Vec_IntFree( vLits );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManDeriveMapping()

Gia_Man_t * Of_ManDeriveMapping

(

Of_Man_t *

p

)

Definition at line 1725 of file giaOf.c.

{
    Vec_Int_t * vMapping, * vPacking = NULL;
    Vec_Bit_t * vPointed;
    int i, k, iVar, * pCut, Place, Flag;
    assert( !p->pPars->fCutMin && p->pGia->vMapping == NULL );
    vMapping = Vec_IntAlloc( Gia_ManObjNum(p->pGia) + (int)p->pPars->Edge + (int)p->pPars->Area * 2 );
    Vec_IntFill( vMapping, Gia_ManObjNum(p->pGia), 0 );
    if ( p->pPars->nFastEdges )
    {
        vPacking = Vec_IntAlloc( 1000 );
        Vec_IntPush( vPacking, 0 );
    }
    vPointed = Vec_BitStart( Gia_ManObjNum(p->pGia) );
    Gia_ManForEachAndId( p->pGia, i )
    {
        if ( !Of_ObjRefNum(p, i) )
            continue;
        assert( !Gia_ObjIsBuf(Gia_ManObj(p->pGia,i)) );
        pCut = Of_ObjCutBestP( p, i );
        Vec_IntWriteEntry( vMapping, i, Vec_IntSize(vMapping) );
        Vec_IntPush( vMapping, Of_CutSize(pCut) );
        Of_CutForEachVar( pCut, iVar, k )
            Vec_IntPush( vMapping, iVar );
        Vec_IntPush( vMapping, i );
        if ( vPacking == NULL || Vec_BitEntry(vPointed, i) )
            continue;
        Place = Vec_IntSize( vPacking );
        Vec_IntPush( vPacking, 0 );
        Vec_IntPush( vPacking, i );
        Of_CutForEachVarFlag( pCut, iVar, Flag, k )
            if ( Flag )
            {
                Vec_IntPush( vPacking, iVar );
                Vec_BitWriteEntry( vPointed, iVar, 1 );
            }
        Vec_IntAddToEntry( vPacking, Place, Vec_IntSize(vPacking)-Place-1 );
        Vec_IntAddToEntry( vPacking, 0, 1 );
    }
    assert( Vec_IntCap(vMapping) == 16 || Vec_IntSize(vMapping) == Vec_IntCap(vMapping) );
    p->pGia->vMapping = vMapping;
    p->pGia->vPacking = vPacking;
    Vec_BitFree( vPointed );
    return p->pGia;
}

Here is the caller graph for this function:

Of_ManPerformMapping()

Gia_Man_t * Of_ManPerformMapping	(	Gia_Man_t *	pGia,
		Jf_Par_t *	pPars )

Definition at line 1770 of file giaOf.c.

{
    Gia_Man_t * pNew = NULL, * pCls;
    Of_Man_t * p; int i, Id;
    if ( Gia_ManHasChoices(pGia) )
        pPars->fCoarsen = 0, pPars->fCutMin = 1;
    pCls = pPars->fCoarsen ? Gia_ManDupMuxes(pGia, pPars->nCoarseLimit) : pGia;
    p = Of_StoCreate( pCls, pPars );
    if ( pPars->fVerbose && pPars->fCoarsen )
    {
        printf( "Initial " );  Gia_ManPrintMuxStats( pGia );  printf( "\n" );
        printf( "Derived " );  Gia_ManPrintMuxStats( pCls );  printf( "\n" );
    }
    Of_ManPrintInit( p );
    Of_ManComputeCuts( p );
    Of_ManPrintQuit( p );

    Gia_ManForEachCiId( p->pGia, Id, i )
    {
        int Time = Of_Flt2Int(p->pGia->vInArrs ? Abc_MaxFloat(0.0, Vec_FltEntry(p->pGia->vInArrs, i)) : 0.0);
        Of_ObjSetDelay1( p, Id, Time );
        Of_ObjSetDelay2( p, Id, Time );
    }

    if ( p->pPars->nFastEdges )
    {
        p->pPars->nRounds = 1;
        for ( p->Iter = 0; p->Iter < p->pPars->nRounds; p->Iter++ )
        {
            if ( p->Iter == 0 )
            {
                Of_ManComputeForwardDircon1( p );
                Of_ManComputeBackwardDircon1( p );
                Of_ManPrintStats( p, "Delay" );
            }
            else
            {
                Of_ManComputeForwardDircon1( p );
                Of_ManComputeBackwardDircon1( p );
                Of_ManPrintStats( p, "Flow " );
            }
        }
    }
    else
    {
        for ( p->Iter = 0; p->Iter < p->pPars->nRounds; p->Iter++ )
        {
            if ( p->Iter == 0 )
            {
                Of_ManComputeForward1( p );
                Of_ManComputeBackward1( p );
                Of_ManPrintStats( p, "Delay" );
            }
            else
            {
                Of_ManComputeForward1( p );
                Of_ManComputeBackward1( p );
                Of_ManPrintStats( p, "Flow " );
            }
        }
        for ( ; p->Iter < p->pPars->nRounds + p->pPars->nRoundsEla; p->Iter++ )
        {
            if ( p->Iter < p->pPars->nRounds + p->pPars->nRoundsEla - 1 )
            {
                Of_ManComputeForward2( p );
                Of_ManComputeBackward3( p );
                Of_ManPrintStats( p, "Area " );
            }
            else
            {
                Of_ManComputeForward1( p );
                Of_ManComputeBackward3( p );
                Of_ManPrintStats( p, "Area " );
            }
        }
    }

    pNew = Of_ManDeriveMapping( p );
    Gia_ManMappingVerify( pNew );
    if ( pNew->vPacking )
        Gia_ManConvertPackingToEdges( pNew );
    //Of_ManPrintCuts( p );
    Of_StoDelete( p );
    if ( pCls != pGia )
        Gia_ManStop( pCls );
    if ( pNew == NULL )
        return Gia_ManDup( pGia );
    return pNew;
}

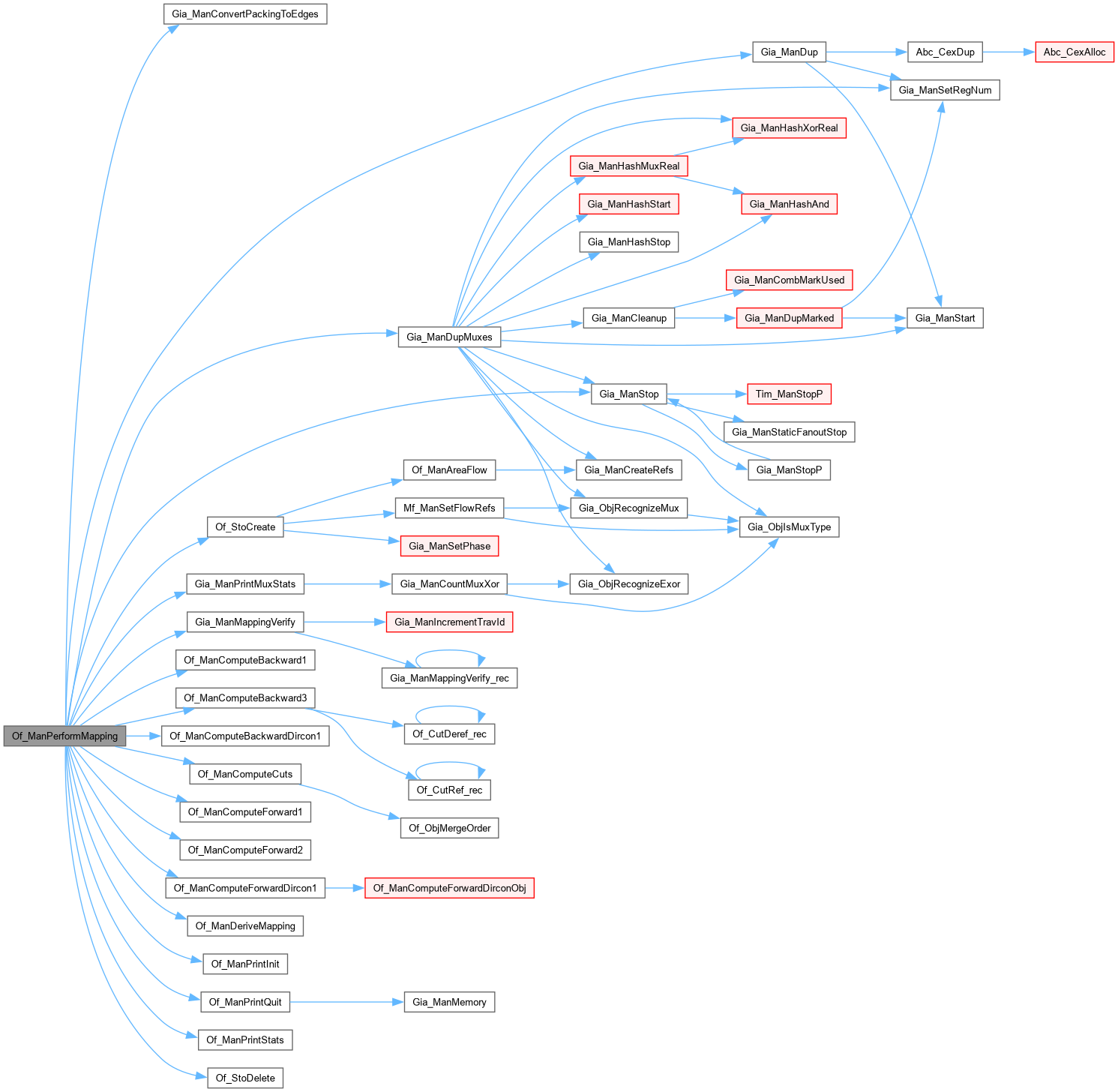

Here is the call graph for this function:

Of_ManPrintCuts()

void Of_ManPrintCuts

(

Of_Man_t *

p

)

Definition at line 1627 of file giaOf.c.

{
    int fVerbose = 0;
    Gia_Obj_t * pObj;
    int * pCutSet, * pCut, * pCutBest;
    int i, k, v, Var, nCuts;
    Vec_Int_t * vFirst  = Vec_IntStartFull( Gia_ManObjNum(p->pGia) );
    Vec_Int_t * vCutNum = Vec_IntStartFull( Gia_ManObjNum(p->pGia) );
    Vec_Int_t * vBestNode = Vec_IntAlloc( 100 );
    Vec_Int_t * vBestCut  = Vec_IntAlloc( 100 );
    int nAndsAll = 0, nCutsAll = 0, Shift = Gia_ManAndNum(p->pGia);
    Gia_ManFillValue( p->pGia );
    Gia_ManForEachAnd( p->pGia, pObj, i )
    {
        // get the best cut
        pCutBest = NULL;
        if ( Of_ObjRefNum(p, i) )
        {
            Vec_IntPush( vBestNode, nAndsAll );
            pCutBest = Of_ObjCutBestP( p, i );
        }
        pObj->Value = nAndsAll++;
        // get the cutset
        pCutSet = Of_ObjCutSet(p, i);
        // count cuts
        nCuts = 0;
        Of_SetForEachCut( pCutSet, pCut, k )
            nCuts++;
        // save
        Vec_IntWriteEntry( vFirst,  i, Shift + nCutsAll );
        Vec_IntWriteEntry( vCutNum, i, nCuts );
        // print cuts
        if ( fVerbose )
            printf( "Node %d. Cuts %d.\n", i, nCuts );
        Of_SetForEachCut( pCutSet, pCut, k )
        {
            if ( fVerbose )
            {
                printf( "{ " );
                Of_CutForEachVar( pCut, Var, v )
                    printf( "%d ", Var );
                printf( "} %s\n", pCutBest == pCut ? "best" :"" );
            }
            if ( pCutBest == pCut )
                Vec_IntPush( vBestCut, Shift + nCutsAll );
            nCutsAll++;
        }
    }
    assert( nAndsAll == Shift );
    printf( "Total:   Ands = %d.  Luts = %d.  Cuts = %d.\n", nAndsAll, Vec_IntSize(vBestNode), nCutsAll );

    // create SAT problem
    Of_ManCreateSat( p, nCutsAll, vFirst, vCutNum, vBestNode, vBestCut );

    Vec_IntFree( vFirst );
    Vec_IntFree( vCutNum );
    Vec_IntFree( vBestNode );
    Vec_IntFree( vBestCut );
}

Here is the call graph for this function:

Of_ManPrintInit()

void Of_ManPrintInit

(

Of_Man_t *

p

)

Definition at line 822 of file giaOf.c.

{
    int nChoices;
    if ( !p->pPars->fVerbose )
        return;
    printf( "LutSize = %d  ", p->pPars->nLutSize );
    printf( "CutNum = %d  ",  p->pPars->nCutNum );
    printf( "Iter = %d  ",    p->pPars->nRounds + p->pPars->nRoundsEla );
    printf( "Coarse = %d   ", p->pPars->fCoarsen );
    if ( p->pPars->fCutMin )
    printf( "Funcs = %d  ",   Vec_MemEntryNum(p->vTtMem) );
    nChoices = Gia_ManChoiceNum( p->pGia );
    if ( nChoices )
    printf( "Choices = %d  ", nChoices );
    printf( "\n" );
    printf( "Computing cuts...\r" );
    fflush( stdout );
}

Here is the caller graph for this function:

Of_ManPrintQuit()

void Of_ManPrintQuit

(

Of_Man_t *

p

)

Definition at line 840 of file giaOf.c.

{
    float MemGia  = Gia_ManMemory(p->pGia) / (1<<20);
    float MemMan  = 1.0 * sizeof(Of_Obj_t) * Gia_ManObjNum(p->pGia) / (1<<20);
    float MemCuts = 1.0 * sizeof(int) * (1 << 16) * Vec_PtrSize(&p->vPages) / (1<<20);
    float MemTt   = p->vTtMem ? Vec_MemMemory(p->vTtMem) / (1<<20) : 0;
    if ( p->CutCount[0] == 0 )
        p->CutCount[0] = 1;
    if ( !p->pPars->fVerbose )
        return;
    printf( "CutPair = %.0f  ",         p->CutCount[0] );
    printf( "Merge = %.0f (%.1f)  ",    p->CutCount[1], 1.0*p->CutCount[1]/Gia_ManAndNum(p->pGia) );
    printf( "Eval = %.0f (%.1f)  ",     p->CutCount[2], 1.0*p->CutCount[2]/Gia_ManAndNum(p->pGia) );
    printf( "Cut = %.0f (%.1f)  ",      p->CutCount[3], 1.0*p->CutCount[3]/Gia_ManAndNum(p->pGia) );
//    printf( "Use = %.0f (%.1f)  ",      p->CutCount[4], 1.0*p->CutCount[4]/Gia_ManAndNum(p->pGia) );
//    printf( "Mat = %.0f (%.1f)  ",      p->CutCount[5], 1.0*p->CutCount[5]/Gia_ManAndNum(p->pGia) );
//    printf( "Equ = %d (%.2f %%)  ",     p->nCutUseAll,  100.0*p->nCutUseAll /p->CutCount[0] );
    printf( "\n" );
    printf( "Gia = %.2f MB  ",          MemGia );
    printf( "Man = %.2f MB  ",          MemMan );
    printf( "Cut = %.2f MB   ",         MemCuts );
    if ( p->pPars->fCutMin )
    printf( "TT = %.2f MB  ",           MemTt );
    printf( "Total = %.2f MB   ",       MemGia + MemMan + MemCuts + MemTt );
//    printf( "\n" );
    Abc_PrintTime( 1, "Time", Abc_Clock() - p->clkStart );
    fflush( stdout );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Of_ManPrintStats()

void Of_ManPrintStats	(	Of_Man_t *	p,
		char *	pTitle )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 811 of file giaOf.c.

{
    if ( !p->pPars->fVerbose )
        return;
    printf( "%s :  ", pTitle );
    printf( "Delay =%8.2f ", Of_Int2Flt((int)p->pPars->Delay) );
    printf( "Area =%8d  ",   (int)p->pPars->Area );
    printf( "Edge =%9d  ",   (int)p->pPars->Edge );
    Abc_PrintTime( 1, "Time", Abc_Clock() - p->clkStart );
    fflush( stdout );
}

Here is the caller graph for this function:

Of_ManSetDefaultPars()

void Of_ManSetDefaultPars

(

Jf_Par_t *

pPars

)

Function*************************************************************

Synopsis [Technology mappping.]

Description []

SideEffects []

SeeAlso []

Definition at line 1698 of file giaOf.c.

{
    memset( pPars, 0, sizeof(Jf_Par_t) );
    pPars->nLutSize     =  4;
    pPars->nCutNum      = 16;
    pPars->nProcNum     =  0;
    pPars->nRounds      =  3;
    pPars->nRoundsEla   =  4;
    pPars->nRelaxRatio  =  0;
    pPars->nCoarseLimit =  3;
    pPars->nAreaTuner   = 10;
    pPars->DelayTarget  = -1;
    pPars->nDelayLut1   = 10;
    pPars->nDelayLut2   =  2;
    pPars->nFastEdges   =  0; //
    pPars->fAreaOnly    =  0;
    pPars->fOptEdge     =  1;
    pPars->fCoarsen     =  0;
    pPars->fCutMin      =  0;
    pPars->fGenCnf      =  0;
    pPars->fPureAig     =  0;
    pPars->fVerbose     =  0;
    pPars->fVeryVerbose =  0;
    pPars->nLutSizeMax  =  OF_LEAF_MAX;
    pPars->nCutNumMax   =  OF_CUT_MAX;
    pPars->MapDelayTarget = -1;
}

Here is the call graph for this function:

Of_ObjMergeOrder()

void Of_ObjMergeOrder	(	Of_Man_t *	p,
		int	iObj )

Definition at line 684 of file giaOf.c.

{
    Of_Cut_t pCuts0[OF_CUT_MAX], pCuts1[OF_CUT_MAX], pCuts[OF_CUT_MAX], * pCutsR[OF_CUT_MAX];
    Gia_Obj_t * pObj = Gia_ManObj(p->pGia, iObj);
    int nGiaRefs = 2*Gia_ObjRefNumId(p->pGia, iObj);
    int nLutSize = p->pPars->nLutSize;
    int nCutNum  = p->pPars->nCutNum;
    int nCuts0   = Of_ManPrepareCuts(pCuts0, p, Gia_ObjFaninId0(pObj, iObj), 1);
    int nCuts1   = Of_ManPrepareCuts(pCuts1, p, Gia_ObjFaninId1(pObj, iObj), 1);
    int fComp0   = Gia_ObjFaninC0(pObj);
    int fComp1   = Gia_ObjFaninC1(pObj);
    int iSibl    = Gia_ObjSibl(p->pGia, iObj);
    Of_Cut_t * pCut0, * pCut1, * pCut0Lim = pCuts0 + nCuts0, * pCut1Lim = pCuts1 + nCuts1;
    int i, nCutsR = 0;
    assert( !Gia_ObjIsBuf(pObj) );
    for ( i = 0; i < nCutNum; i++ )
        pCutsR[i] = pCuts + i;
    if ( iSibl )
    {
        Of_Cut_t pCuts2[OF_CUT_MAX];
        Gia_Obj_t * pObjE = Gia_ObjSiblObj(p->pGia, iObj);
        int fCompE = Gia_ObjPhase(pObj) ^ Gia_ObjPhase(pObjE);
        int nCuts2 = Of_ManPrepareCuts(pCuts2, p, iSibl, 0);
        Of_Cut_t * pCut2, * pCut2Lim = pCuts2 + nCuts2;
        for ( pCut2 = pCuts2; pCut2 < pCut2Lim; pCut2++ )
        {
            *pCutsR[nCutsR] = *pCut2;
            if ( p->pPars->fCutMin )
                pCutsR[nCutsR]->iFunc = Abc_LitNotCond( pCutsR[nCutsR]->iFunc, fCompE );
            Of_CutParams( p, pCutsR[nCutsR], nGiaRefs );
            nCutsR = Of_SetAddCut( pCutsR, nCutsR, nCutNum );
        }
    }
    if ( Gia_ObjIsMuxId(p->pGia, iObj) )
    {
        Of_Cut_t pCuts2[OF_CUT_MAX];
        int nCuts2  = Of_ManPrepareCuts(pCuts2, p, Gia_ObjFaninId2(p->pGia, iObj), 1);
        int fComp2  = Gia_ObjFaninC2(p->pGia, pObj);
        Of_Cut_t * pCut2, * pCut2Lim = pCuts2 + nCuts2;
        p->CutCount[0] += nCuts0 * nCuts1 * nCuts2;
        for ( pCut0 = pCuts0; pCut0 < pCut0Lim; pCut0++ )
        for ( pCut1 = pCuts1; pCut1 < pCut1Lim; pCut1++ )
        for ( pCut2 = pCuts2; pCut2 < pCut2Lim; pCut2++ )
        {
            if ( Of_CutCountBits(pCut0->Sign | pCut1->Sign | pCut2->Sign) > nLutSize )
                continue;
            p->CutCount[1]++;
            if ( !Of_CutMergeOrderMux(pCut0, pCut1, pCut2, pCutsR[nCutsR], nLutSize) )
                continue;
            if ( Of_SetLastCutIsContained(pCutsR, nCutsR) )
                continue;
            p->CutCount[2]++;
            if ( p->pPars->fCutMin && Of_CutComputeTruthMux6(p, pCut0, pCut1, pCut2, fComp0, fComp1, fComp2, pCutsR[nCutsR]) )
                pCutsR[nCutsR]->Sign = Of_CutGetSign(pCutsR[nCutsR]->pLeaves, pCutsR[nCutsR]->nLeaves);
            Of_CutParams( p, pCutsR[nCutsR], nGiaRefs );
            nCutsR = Of_SetAddCut( pCutsR, nCutsR, nCutNum );
        }
    }
    else
    {
        int fIsXor = Gia_ObjIsXor(pObj);
        p->CutCount[0] += nCuts0 * nCuts1;
        for ( pCut0 = pCuts0; pCut0 < pCut0Lim; pCut0++ )
        for ( pCut1 = pCuts1; pCut1 < pCut1Lim; pCut1++ )
        {
            if ( (int)(pCut0->nLeaves + pCut1->nLeaves) > nLutSize && Of_CutCountBits(pCut0->Sign | pCut1->Sign) > nLutSize )
                continue;
            p->CutCount[1]++;
            if ( !Of_CutMergeOrder(pCut0, pCut1, pCutsR[nCutsR], nLutSize) )
                continue;
            if ( Of_SetLastCutIsContained(pCutsR, nCutsR) )
                continue;
            p->CutCount[2]++;
            if ( p->pPars->fCutMin && Of_CutComputeTruth6(p, pCut0, pCut1, fComp0, fComp1, pCutsR[nCutsR], fIsXor) )
                pCutsR[nCutsR]->Sign = Of_CutGetSign(pCutsR[nCutsR]->pLeaves, pCutsR[nCutsR]->nLeaves);
            Of_CutParams( p, pCutsR[nCutsR], nGiaRefs );
            nCutsR = Of_SetAddCut( pCutsR, nCutsR, nCutNum );
        }
    }
    // debug printout
    if ( 0 )
    {
        printf( "*** Obj = %d\n", iObj );
        for ( i = 0; i < nCutsR; i++ )
            Of_Cutprintf( p, pCutsR[i] );
        printf( "\n" );
    }
    // verify
    assert( nCutsR > 0 && nCutsR < nCutNum );
    //assert( Of_SetCheckArray(pCutsR, nCutsR) );
    // store the cutset
    Of_ObjSetCutFlow( p, iObj, pCutsR[0]->Flow );
    Of_ObjSetCutDelay( p, iObj, pCutsR[0]->Delay );
    *Vec_IntEntryP(&p->vCutSets, iObj) = Of_ManSaveCuts(p, pCutsR, nCutsR);
    p->CutCount[3] += nCutsR;
}

Here is the caller graph for this function:

Of_StoCreate()

Of_Man_t * Of_StoCreate	(	Gia_Man_t *	pGia,
		Jf_Par_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 205 of file giaOf.c.

{
    extern void Mf_ManSetFlowRefs( Gia_Man_t * p, Vec_Int_t * vRefs );
    Of_Man_t * p;
    Vec_Int_t * vFlowRefs;
    int * pRefs = NULL;
    assert( pPars->nCutNum > 1  && pPars->nCutNum <= OF_CUT_MAX );
    assert( pPars->nLutSize > 1 && pPars->nLutSize <= OF_LEAF_MAX );
    ABC_FREE( pGia->pRefs );
    Vec_IntFreeP( &pGia->vCellMapping );
    if ( Gia_ManHasChoices(pGia) )
        Gia_ManSetPhase(pGia);
    // create references
    ABC_FREE( pGia->pRefs );
    vFlowRefs = Vec_IntAlloc(0);
    Mf_ManSetFlowRefs( pGia, vFlowRefs );
    pGia->pRefs= Vec_IntReleaseArray(vFlowRefs);
    Vec_IntFree(vFlowRefs);
    // create
    p = ABC_CALLOC( Of_Man_t, 1 );
    p->clkStart = Abc_Clock();
    p->pGia     = pGia;
    p->pPars    = pPars;
    p->pObjs    = ABC_CALLOC( Of_Obj_t, Gia_ManObjNum(pGia) );
    p->iCur     = 2;
    // other
    Vec_PtrGrow( &p->vPages, 256 );                                    // cut memory
    Vec_IntFill( &p->vCutSets,  Gia_ManObjNum(pGia), 0 );              // cut offsets
    Vec_IntFill( &p->vCutFlows, Gia_ManObjNum(pGia), 0 );              // cut area
    Vec_IntFill( &p->vCutDelays,Gia_ManObjNum(pGia), 0 );              // cut delay
    Vec_IntGrow( &p->vCutRefs,  1000 );                                // cut references
    if ( pPars->fCutMin )
        p->vTtMem = Vec_MemAllocForTT( 6, 0 );
    // compute area flow
    pRefs = pGia->pRefs; pGia->pRefs = NULL;
    Of_ManAreaFlow( p );
    pGia->pRefs = pRefs;
    return p;
}

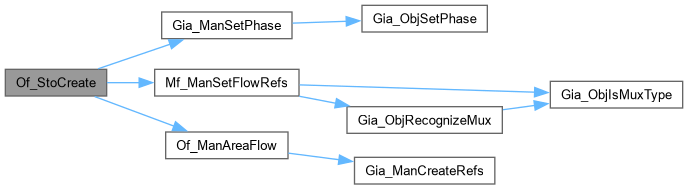

Here is the call graph for this function:

Here is the caller graph for this function:

Of_StoDelete()

void Of_StoDelete

(

Of_Man_t *

p

)

Definition at line 244 of file giaOf.c.

{
    Vec_PtrFreeData( &p->vPages );
    Vec_PtrErase( &p->vPages );
    Vec_IntErase( &p->vCutSets );
    Vec_IntErase( &p->vCutFlows );
    Vec_IntErase( &p->vCutDelays );
    Vec_IntErase( &p->vCutRefs );
    ABC_FREE( p->pObjs );
    // matching
    if ( p->pPars->fCutMin )
        Vec_MemHashFree( p->vTtMem );
    if ( p->pPars->fCutMin )
        Vec_MemFree( p->vTtMem );
    ABC_FREE( p );
}

Here is the caller graph for this function:
