giaShow.c File Reference
#include "gia.h"
#include "proof/cec/cec.h"
#include "proof/acec/acec.h"
#include "misc/extra/extra.h"

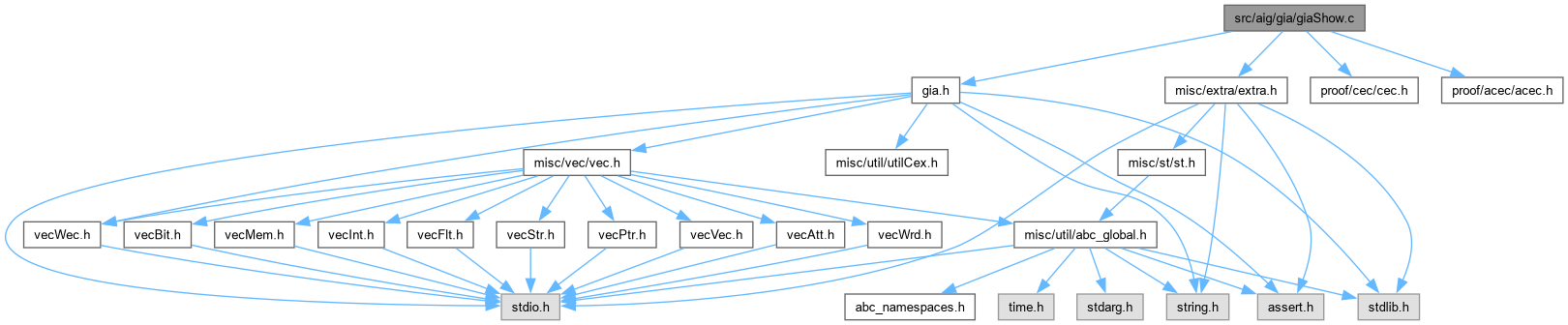

Include dependency graph for giaShow.c:

Go to the source code of this file.

Macros

#define NODE_MAX   2000
 DECLARATIONS ///.


Functions

void Gia_ShowPath (Gia_Man_t *p, char *pFileName)
 FUNCTION DEFINITIONS ///.

void Gia_WriteDotAigSimple (Gia_Man_t *p, char *pFileName, Vec_Int_t *vBold)

int Gia_ShowAddOut (Vec_Int_t *vAdds, Vec_Int_t *vMapAdds, int Node)

void Gia_WriteDotAig (Gia_Man_t *p, char *pFileName, Vec_Int_t *vBold, Vec_Int_t *vAdds, Vec_Int_t *vXors, Vec_Int_t *vMapAdds, Vec_Int_t *vMapXors, Vec_Int_t *vOrder)

Vec_Int_t * Gia_ShowMapAdds (Gia_Man_t *p, Vec_Int_t *vAdds, int fFadds, Vec_Int_t *vBold)

Vec_Int_t * Gia_ShowMapXors (Gia_Man_t *p, Vec_Int_t *vXors)

int Gia_ShowCollectObjs_rec (Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vAdds, Vec_Int_t *vXors, Vec_Int_t *vMapAdds, Vec_Int_t *vMapXors, Vec_Int_t *vOrder)

Vec_Int_t * Gia_ShowCollectObjs (Gia_Man_t *p, Vec_Int_t *vAdds, Vec_Int_t *vXors, Vec_Int_t *vMapAdds, Vec_Int_t *vMapXors)

void Gia_ShowProcess (Gia_Man_t *p, char *pFileName, Vec_Int_t *vBold, Vec_Int_t *vAdds, Vec_Int_t *vXors, int fFadds)

void Gia_ManShow (Gia_Man_t *pMan, Vec_Int_t *vBold, int fAdders, int fFadds, int fPath)


Macro Definition Documentation

◆ NODE_MAX

#define NODE_MAX   2000

DECLARATIONS ///.

CFile****************************************************************

FileName [giaShow.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [And-Inverter Graph package.]

Synopsis [AIG visualization.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - May 11, 2006.]

Revision [

Id
giaShow.c,v 1.00 2006/05/11 00:00:00 alanmi Exp

]

Definition at line 33 of file giaShow.c.

Function Documentation

◆ Gia_ManShow()

void Gia_ManShow ( Gia_Man_t * pMan,
Vec_Int_t * vBold,
int fAdders,
int fFadds,
int fPath )

Definition at line 1126 of file giaShow.c.

1127{
1128 extern void Abc_ShowFile( char * FileNameDot, int fKeepDot );
1129 char FileNameDot[200];
1130 FILE * pFile;
1131 Vec_Int_t * vXors = NULL, * vAdds = fAdders ? Ree_ManComputeCuts( pMan, &vXors, 0 ) : NULL;
1132 sprintf( FileNameDot, "%s", Extra_FileNameGenericAppend(pMan->pName ? pMan->pName : (char *)"unknown", ".dot") );
1133 // check that the file can be opened
1134 if ( (pFile = fopen( FileNameDot, "w" )) == NULL )
1135 {
1136 fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", FileNameDot );
1137 return;
1138 }
1139 fclose( pFile );
1140 // generate the file
1141 if ( fPath )
1142 Gia_ShowPath( pMan, FileNameDot );
1143 else if ( fAdders )
1144 Gia_ShowProcess( pMan, FileNameDot, vBold, vAdds, vXors, fFadds );
1145 else
1146 Gia_WriteDotAigSimple( pMan, FileNameDot, vBold );
1147 // visualize the file
1148 Abc_ShowFile( FileNameDot, 0 );
1149
1150 Vec_IntFreeP( &vAdds );
1151 Vec_IntFreeP( &vXors );
1152}
Abc_ShowFile
ABC_NAMESPACE_IMPL_START void Abc_ShowFile(char *FileNameDot, int fKeepDot)
DECLARATIONS ///.
Definition abcShow.c:326
Ree_ManComputeCuts
Vec_Int_t * Ree_ManComputeCuts(Gia_Man_t *p, Vec_Int_t **pvXors, int fVerbose)
Definition acecRe.c:408
Vec_Int_t
typedefABC_NAMESPACE_IMPL_START struct Vec_Int_t_ Vec_Int_t
DECLARATIONS ///.
Definition bblif.c:37
Extra_FileNameGenericAppend
char * Extra_FileNameGenericAppend(char *pBase, char *pSuffix)
Definition extraUtilFile.c:192
Gia_ShowProcess
void Gia_ShowProcess(Gia_Man_t *p, char *pFileName, Vec_Int_t *vBold, Vec_Int_t *vAdds, Vec_Int_t *vXors, int fFadds)
Definition giaShow.c:1116
Gia_WriteDotAigSimple
void Gia_WriteDotAigSimple(Gia_Man_t *p, char *pFileName, Vec_Int_t *vBold)
Definition giaShow.c:339
Gia_ShowPath
void Gia_ShowPath(Gia_Man_t *p, char *pFileName)
FUNCTION DEFINITIONS ///.
Definition giaShow.c:51
Gia_Man_t_::pName
char * pName
Definition gia.h:99
sprintf
char * sprintf()

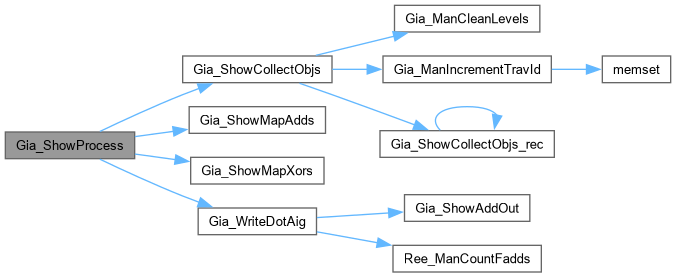

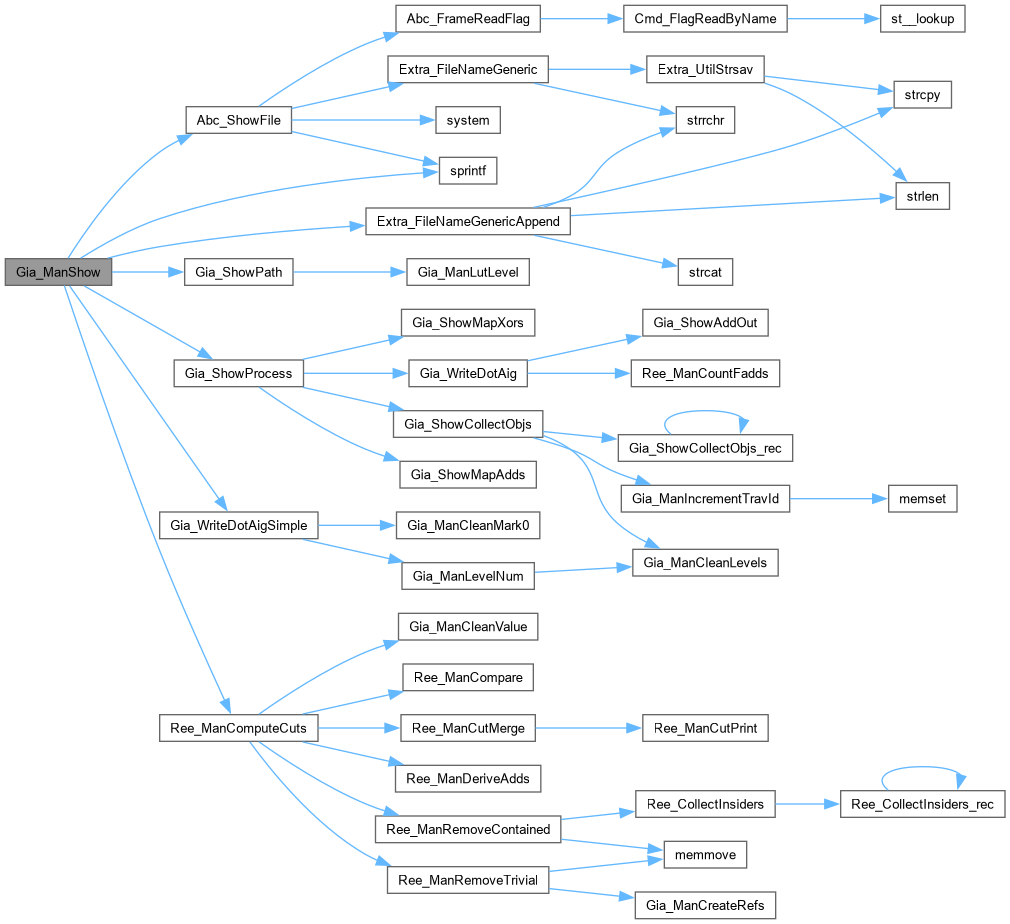

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_ShowAddOut()

int Gia_ShowAddOut ( Vec_Int_t * vAdds,
Vec_Int_t * vMapAdds,
int Node )

Function*************************************************************

Synopsis [Writes the graph structure of AIG for DOT.]

Description [Useful for graph visualization using tools such as GraphViz: http://www.graphviz.org/]

SideEffects []

SeeAlso []

Definition at line 668 of file giaShow.c.

669{
670 int iBox = Vec_IntEntry( vMapAdds, Node );
671 if ( iBox >= 0 )
672 return Vec_IntEntry( vAdds, 6*iBox+4 );
673 return Node;
674}
Here is the caller graph for this function:

◆ Gia_ShowCollectObjs()

Vec_Int_t * Gia_ShowCollectObjs ( Gia_Man_t * p,
Vec_Int_t * vAdds,
Vec_Int_t * vXors,
Vec_Int_t * vMapAdds,
Vec_Int_t * vMapXors )

Definition at line 1090 of file giaShow.c.

1091{
1092 Gia_Obj_t * pObj; int i;
1093 Vec_Int_t * vOrder = Vec_IntAlloc( 100 );
1094 Gia_ManCleanLevels( p, Gia_ManObjNum(p) );
1095 p->nLevels = 0;
1096 Gia_ManIncrementTravId( p );
1097 Gia_ObjSetTravIdCurrent(p, Gia_ManConst0(p));
1098 Gia_ManForEachCi( p, pObj, i )
1099 Gia_ObjSetTravIdCurrent(p, pObj);
1100 Gia_ManForEachCo( p, pObj, i )
1101 Gia_ShowCollectObjs_rec( p, Gia_ObjFanin0(pObj), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1102 return vOrder;
1103}
p
Cube * p
Definition exorList.c:222
Gia_ShowCollectObjs_rec
int Gia_ShowCollectObjs_rec(Gia_Man_t *p, Gia_Obj_t *pObj, Vec_Int_t *vAdds, Vec_Int_t *vXors, Vec_Int_t *vMapAdds, Vec_Int_t *vMapXors, Vec_Int_t *vOrder)
Definition giaShow.c:1046
Gia_Obj_t
struct Gia_Obj_t_ Gia_Obj_t
Definition gia.h:76
Gia_ManCleanLevels
void Gia_ManCleanLevels(Gia_Man_t *p, int Size)
Definition giaUtil.c:511
Gia_ManIncrementTravId
void Gia_ManIncrementTravId(Gia_Man_t *p)
Definition giaUtil.c:190
Gia_ManForEachCo
#define Gia_ManForEachCo(p, pObj, i)
Definition gia.h:1236
Gia_ManForEachCi
#define Gia_ManForEachCi(p, pObj, i)
Definition gia.h:1228

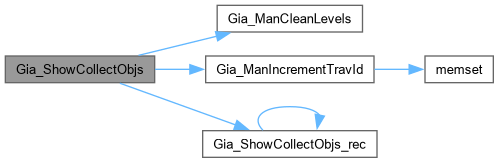

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_ShowCollectObjs_rec()

int Gia_ShowCollectObjs_rec ( Gia_Man_t * p,
Gia_Obj_t * pObj,
Vec_Int_t * vAdds,
Vec_Int_t * vXors,
Vec_Int_t * vMapAdds,
Vec_Int_t * vMapXors,
Vec_Int_t * vOrder )

Definition at line 1046 of file giaShow.c.

1047{
1048 int Level0, Level1, Level2 = 0, Level = 0;
1049 if ( Gia_ObjIsTravIdCurrent(p, pObj) )
1050 return Gia_ObjLevel(p, pObj);
1051 Gia_ObjSetTravIdCurrent(p, pObj);
1052 if ( Gia_ObjIsCi(pObj) )
1053 return 0;
1054 if ( Vec_IntEntry(vMapAdds, Gia_ObjId(p, pObj)) >= 0 )
1055 {
1056 int iBox = Vec_IntEntry(vMapAdds, Gia_ObjId(p, pObj));
1057 Gia_ObjSetTravIdCurrentId(p, Vec_IntEntry(vAdds, 6*iBox+3) );
1058 Gia_ObjSetTravIdCurrentId(p, Vec_IntEntry(vAdds, 6*iBox+4) );
1059 Level0 = Gia_ShowCollectObjs_rec( p, Gia_ManObj( p, Vec_IntEntry(vAdds, 6*iBox+0) ), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1060 Level1 = Gia_ShowCollectObjs_rec( p, Gia_ManObj( p, Vec_IntEntry(vAdds, 6*iBox+1) ), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1061 if ( Vec_IntEntry(vAdds, 6*iBox+2) )
1062 Level2 = Gia_ShowCollectObjs_rec( p, Gia_ManObj( p, Vec_IntEntry(vAdds, 6*iBox+2) ), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1063 Level = 1 + Abc_MaxInt( Abc_MaxInt(Level0, Level1), Level2 );
1064 Gia_ObjSetLevelId( p, Vec_IntEntry(vAdds, 6*iBox+3), Level );
1065 Gia_ObjSetLevelId( p, Vec_IntEntry(vAdds, 6*iBox+4), Level );
1066 pObj = Gia_ManObj( p, Vec_IntEntry(vAdds, 6*iBox+4) );
1067 }
1068 else if ( Vec_IntEntry(vMapXors, Gia_ObjId(p, pObj)) >= 0 )
1069 {
1070 int iXor = Vec_IntEntry(vMapXors, Gia_ObjId(p, pObj));
1071 Level0 = Gia_ShowCollectObjs_rec( p, Gia_ManObj( p, Vec_IntEntry(vXors, 4*iXor+1) ), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1072 Level1 = Gia_ShowCollectObjs_rec( p, Gia_ManObj( p, Vec_IntEntry(vXors, 4*iXor+2) ), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1073 if ( Vec_IntEntry(vXors, 4*iXor+3) )
1074 Level2 = Gia_ShowCollectObjs_rec( p, Gia_ManObj( p, Vec_IntEntry(vXors, 4*iXor+3) ), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1075 Level = 1 + Abc_MaxInt( Abc_MaxInt(Level0, Level1), Level2 );
1076 Gia_ObjSetLevel( p, pObj, Level );
1077 }
1078 else
1079 {
1080 assert( !Gia_ObjIsMux(p, pObj) );
1081 Level0 = Gia_ShowCollectObjs_rec( p, Gia_ObjFanin0(pObj), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1082 Level1 = Gia_ShowCollectObjs_rec( p, Gia_ObjFanin1(pObj), vAdds, vXors, vMapAdds, vMapXors, vOrder );
1083 Level = 1 + Abc_MaxInt(Level0, Level1);
1084 Gia_ObjSetLevel( p, pObj, Level );
1085 }
1086 Vec_IntPush( vOrder, Gia_ObjId(p, pObj) );
1087 p->nLevels = Abc_MaxInt( p->nLevels, Level );
1088 return Level;
1089}
assert
#define assert(ex)
Definition util_old.h:213
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_ShowMapAdds()

Vec_Int_t * Gia_ShowMapAdds ( Gia_Man_t * p,
Vec_Int_t * vAdds,
int fFadds,
Vec_Int_t * vBold )

Function*************************************************************

Synopsis [Returns DFS ordered array of objects and their levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 1020 of file giaShow.c.

1021{
1022 Vec_Bit_t * vIsBold = Vec_BitStart( Gia_ManObjNum(p) );
1023 Vec_Int_t * vMapAdds = Vec_IntStartFull( Gia_ManObjNum(p) ); int i, Entry;
1024 if ( vBold )
1025 Vec_IntForEachEntry( vBold, Entry, i )
1026 Vec_BitWriteEntry( vIsBold, Entry, 1 );
1027 for ( i = 0; 6*i < Vec_IntSize(vAdds); i++ )
1028 {
1029 if ( fFadds && Vec_IntEntry(vAdds, 6*i+2) == 0 )
1030 continue;
1031 if ( Vec_BitEntry(vIsBold, Vec_IntEntry(vAdds, 6*i+3)) || Vec_BitEntry(vIsBold, Vec_IntEntry(vAdds, 6*i+4)) )
1032 continue;
1033 Vec_IntWriteEntry( vMapAdds, Vec_IntEntry(vAdds, 6*i+3), i );
1034 Vec_IntWriteEntry( vMapAdds, Vec_IntEntry(vAdds, 6*i+4), i );
1035 }
1036 Vec_BitFree( vIsBold );
1037 return vMapAdds;
1038}
Vec_Bit_t
typedefABC_NAMESPACE_HEADER_START struct Vec_Bit_t_ Vec_Bit_t
INCLUDES ///.
Definition vecBit.h:42
Vec_IntForEachEntry
#define Vec_IntForEachEntry(vVec, Entry, i)
MACRO DEFINITIONS ///.
Definition vecInt.h:54
Here is the caller graph for this function:

◆ Gia_ShowMapXors()

Vec_Int_t * Gia_ShowMapXors ( Gia_Man_t * p,
Vec_Int_t * vXors )

Definition at line 1039 of file giaShow.c.

1040{
1041 Vec_Int_t * vMapXors = Vec_IntStartFull( Gia_ManObjNum(p) ); int i;
1042 for ( i = 0; 4*i < Vec_IntSize(vXors); i++ )
1043 Vec_IntWriteEntry( vMapXors, Vec_IntEntry(vXors, 4*i), i );
1044 return vMapXors;
1045}
Here is the caller graph for this function:

◆ Gia_ShowPath()

void Gia_ShowPath ( Gia_Man_t * p,
char * pFileName )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Writes the graph structure of AIG for DOT.]

Description [Useful for graph visualization using tools such as GraphViz: http://www.graphviz.org/]

SideEffects []

SeeAlso []

Definition at line 51 of file giaShow.c.

52{
53 FILE * pFile;
54 Gia_Obj_t * pNode;
55 Vec_Bit_t * vPath = Vec_BitStart( Gia_ManObjNum(p) );
56 int i, k, iFan, LevelMax, nLevels, * pLevels, Level, Prev;
57 int nLuts = 0, nNodes = 0, nEdges = 0;
58 assert( Gia_ManHasMapping(p) );
59
60 // set critical CO drivers
61 nLevels = Gia_ManLutLevel( p, &pLevels );
62 Gia_ManForEachCoDriverId( p, iFan, i )
63 if ( pLevels[iFan] == nLevels )
64 Vec_BitWriteEntry( vPath, iFan, 1 );
65
66 // set critical internal nodes
67 Gia_ManForEachLutReverse( p, i )
68 {
69 nLuts++;
70 if ( !Vec_BitEntry(vPath, i) )
71 continue;
72 nNodes++;
73 Gia_LutForEachFanin( p, i, iFan, k )
74 {
75 if ( pLevels[iFan] +1 < pLevels[i] )
76 continue;
77 assert( pLevels[iFan] + 1 == pLevels[i] );
78 Vec_BitWriteEntry( vPath, iFan, 1 );
79 nEdges++;
80 //printf( "%d -> %d\n", i, iFan );
81 }
82 }
83
84 if ( nNodes > NODE_MAX )
85 {
86 ABC_FREE( pLevels );
87 Vec_BitFree( vPath );
88 fprintf( stdout, "Cannot visualize AIG with more than %d critical nodes.\n", NODE_MAX );
89 return;
90 }
91 if ( (pFile = fopen( pFileName, "w" )) == NULL )
92 {
93 ABC_FREE( pLevels );
94 Vec_BitFree( vPath );
95 fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", pFileName );
96 return;
97 }
98
99 Vec_IntFreeP( &p->vLevels );
100 p->vLevels = Vec_IntAllocArray( pLevels, Gia_ManObjNum(p) );
101
102 // compute CO levels
103 LevelMax = 1 + nLevels;
104 Gia_ManForEachCo( p, pNode, i )
105 Vec_IntWriteEntry( p->vLevels, Gia_ObjId(p, pNode), LevelMax );
106
107 // write the DOT header
108 fprintf( pFile, "# %s\n", "AIG structure generated by GIA package" );
109 fprintf( pFile, "\n" );
110 fprintf( pFile, "digraph AIG {\n" );
111 fprintf( pFile, "size = \"7.5,10\";\n" );
112// fprintf( pFile, "ranksep = 0.5;\n" );
113// fprintf( pFile, "nodesep = 0.5;\n" );
114 fprintf( pFile, "center = true;\n" );
115// fprintf( pFile, "orientation = landscape;\n" );
116// fprintf( pFile, "edge [fontsize = 10];\n" );
117// fprintf( pFile, "edge [dir = none];\n" );
118 fprintf( pFile, "edge [dir = back];\n" );
119 fprintf( pFile, "\n" );
120
121 // labels on the left of the picture
122 fprintf( pFile, "{\n" );
123 fprintf( pFile, " node [shape = plaintext];\n" );
124 fprintf( pFile, " edge [style = invis];\n" );
125 fprintf( pFile, " LevelTitle1 [label=\"\"];\n" );
126 fprintf( pFile, " LevelTitle2 [label=\"\"];\n" );
127 // generate node names with labels
128 for ( Level = LevelMax; Level >= 0; Level-- )
129 {
130 // the visible node name
131 fprintf( pFile, " Level%d", Level );
132 fprintf( pFile, " [label = " );
133 // label name
134 fprintf( pFile, "\"" );
135 fprintf( pFile, "\"" );
136 fprintf( pFile, "];\n" );
137 }
138
139 // genetate the sequence of visible/invisible nodes to mark levels
140 fprintf( pFile, " LevelTitle1 -> LevelTitle2 ->" );
141 for ( Level = LevelMax; Level >= 0; Level-- )
142 {
143 // the visible node name
144 fprintf( pFile, " Level%d", Level );
145 // the connector
146 if ( Level != 0 )
147 fprintf( pFile, " ->" );
148 else
149 fprintf( pFile, ";" );
150 }
151 fprintf( pFile, "\n" );
152 fprintf( pFile, "}" );
153 fprintf( pFile, "\n" );
154 fprintf( pFile, "\n" );
155
156 // generate title box on top
157 fprintf( pFile, "{\n" );
158 fprintf( pFile, " rank = same;\n" );
159 fprintf( pFile, " LevelTitle1;\n" );
160 fprintf( pFile, " title1 [shape=plaintext,\n" );
161 fprintf( pFile, " fontsize=20,\n" );
162 fprintf( pFile, " fontname = \"Times-Roman\",\n" );
163 fprintf( pFile, " label=\"" );
164 fprintf( pFile, "%s", "AIG structure visualized by ABC" );
165 fprintf( pFile, "\\n" );
166 fprintf( pFile, "Benchmark \\\"%s\\\". ", "aig" );
167// fprintf( pFile, "Time was %s. ", Extra_TimeStamp() );
168 fprintf( pFile, "\"\n" );
169 fprintf( pFile, " ];\n" );
170 fprintf( pFile, "}" );
171 fprintf( pFile, "\n" );
172 fprintf( pFile, "\n" );
173
174 // generate statistics box
175 fprintf( pFile, "{\n" );
176 fprintf( pFile, " rank = same;\n" );
177 fprintf( pFile, " LevelTitle2;\n" );
178 fprintf( pFile, " title2 [shape=plaintext,\n" );
179 fprintf( pFile, " fontsize=18,\n" );
180 fprintf( pFile, " fontname = \"Times-Roman\",\n" );
181 fprintf( pFile, " label=\"" );
182 fprintf( pFile, "The critical path contains %d LUTs with %d critical edges and spans %d levels.", nNodes, nEdges, nLevels );
183 fprintf( pFile, "\\n" );
184 fprintf( pFile, "\"\n" );
185 fprintf( pFile, " ];\n" );
186 fprintf( pFile, "}" );
187 fprintf( pFile, "\n" );
188 fprintf( pFile, "\n" );
189
190 // generate the COs
191 fprintf( pFile, "{\n" );
192 fprintf( pFile, " rank = same;\n" );
193 // the labeling node of this level
194 fprintf( pFile, " Level%d;\n", LevelMax );
195 // generate the CO nodes
196 Gia_ManForEachCo( p, pNode, i )
197 {
198 if ( Gia_ObjLevel(p, Gia_ObjFanin0(pNode)) < nLevels )
199 continue;
200 assert( Gia_ObjLevel(p, Gia_ObjFanin0(pNode)) == nLevels );
201 fprintf( pFile, " Node%d [label = \"%d\"", Gia_ObjId(p, pNode), Gia_ObjId(p, pNode) );
202 fprintf( pFile, ", shape = %s", "invtriangle" );
203 fprintf( pFile, ", color = coral, fillcolor = coral" );
204 fprintf( pFile, "];\n" );
205 }
206 fprintf( pFile, "}" );
207 fprintf( pFile, "\n" );
208 fprintf( pFile, "\n" );
209
210 // generate nodes of each rank
211 for ( Level = LevelMax - 1; Level > 0; Level-- )
212 {
213 fprintf( pFile, "{\n" );
214 fprintf( pFile, " rank = same;\n" );
215 // the labeling node of this level
216 fprintf( pFile, " Level%d;\n", Level );
217 Gia_ManForEachObj( p, pNode, i )
218 {
219 if ( (int)Gia_ObjLevel(p, pNode) != Level || !Vec_BitEntry(vPath, i) )
220 continue;
221 fprintf( pFile, " Node%d [label = \"%d:%d\"", i, Vec_IntSize(p->vIdsOrig)?Vec_IntEntry(p->vIdsOrig,i):i, Gia_ObjIsAnd(pNode)?Gia_ObjLutSize(p, i):0 );
222 fprintf( pFile, ", shape = ellipse" );
223 if ( pNode->fMark0 )
224 fprintf( pFile, ", style = filled" );
225 fprintf( pFile, "];\n" );
226 }
227 fprintf( pFile, "}" );
228 fprintf( pFile, "\n" );
229 fprintf( pFile, "\n" );
230 }
231
232 // generate the CI nodes
233 fprintf( pFile, "{\n" );
234 fprintf( pFile, " rank = same;\n" );
235 // the labeling node of this level
236 fprintf( pFile, " Level%d;\n", 0 );
237 // generate the CI nodes
238 Gia_ManForEachCi( p, pNode, i )
239 {
240 if ( !Vec_BitEntry(vPath, Gia_ObjId(p, pNode)) )
241 continue;
242 fprintf( pFile, " Node%d [label = \"%d\"", Gia_ObjId(p, pNode), Gia_ObjId(p, pNode) );
243 fprintf( pFile, ", shape = %s", "triangle" );
244 fprintf( pFile, ", color = coral, fillcolor = coral" );
245 fprintf( pFile, "];\n" );
246 }
247 fprintf( pFile, "}" );
248 fprintf( pFile, "\n" );
249 fprintf( pFile, "\n" );
250
251 // generate invisible edges from the square down
252 fprintf( pFile, "title1 -> title2 [style = invis];\n" );
253 Gia_ManForEachCo( p, pNode, i )
254 {
255 if ( Gia_ObjLevel(p, Gia_ObjFanin0(pNode)) < nLevels )
256 continue;
257 fprintf( pFile, "title2 -> Node%d [style = invis];\n", Gia_ObjId(p, pNode) );
258 }
259 // generate invisible edges among the COs
260 Prev = -1;
261 Gia_ManForEachCo( p, pNode, i )
262 {
263 if ( Gia_ObjLevel(p, Gia_ObjFanin0(pNode)) < nLevels )
264 continue;
265 assert( Gia_ObjLevel(p, Gia_ObjFanin0(pNode)) == nLevels );
266 if ( Prev >= 0 )
267 fprintf( pFile, "Node%d -> Node%d [style = invis];\n", Prev, Gia_ObjId(p, pNode) );
268 Prev = Gia_ObjId(p, pNode);
269 }
270 // generate invisible edges among the CIs
271 Prev = -1;
272 Gia_ManForEachCi( p, pNode, i )
273 {
274 if ( !Vec_BitEntry(vPath, Gia_ObjId(p, pNode)) )
275 continue;
276 if ( Prev >= 0 )
277 fprintf( pFile, "Node%d -> Node%d [style = invis];\n", Prev, Gia_ObjId(p, pNode) );
278 Prev = Gia_ObjId(p, pNode);
279 }
280
281 // generate edges
282 Gia_ManForEachObj( p, pNode, i )
283 {
284 if ( Gia_ObjIsCo(pNode) )
285 {
286 if ( Gia_ObjLevel(p, Gia_ObjFanin0(pNode)) == nLevels )
287 {
288 // generate the edge from this node to the next
289 fprintf( pFile, "Node%d", i );
290 fprintf( pFile, " -> " );
291 fprintf( pFile, "Node%d", Gia_ObjFaninId0p(p, pNode) );
292 fprintf( pFile, " [" );
293 fprintf( pFile, "style = %s", "solid" );
294 fprintf( pFile, "]" );
295 fprintf( pFile, ";\n" );
296 }
297 continue;
298 }
299 if ( !Gia_ObjIsAnd(pNode) || !Vec_BitEntry(vPath, i) )
300 continue;
301 Gia_LutForEachFanin( p, i, iFan, k )
302 {
303 if ( pLevels[iFan] + 1 < pLevels[i] )
304 continue;
305 assert( pLevels[iFan] + 1 == pLevels[i] );
306 // generate the edge from this node to the next
307 fprintf( pFile, "Node%d", i );
308 fprintf( pFile, " -> " );
309 fprintf( pFile, "Node%d", iFan );
310 fprintf( pFile, " [" );
311 fprintf( pFile, "style = %s", "solid" );
312 fprintf( pFile, "]" );
313 fprintf( pFile, ";\n" );
314 }
315 }
316
317 fprintf( pFile, "}" );
318 fprintf( pFile, "\n" );
319 fprintf( pFile, "\n" );
320 fclose( pFile );
321
322 Vec_IntFreeP( &p->vLevels );
323 Vec_BitFree( vPath );
324}
ABC_FREE
#define ABC_FREE(obj)
Definition abc_global.h:267
NODE_MAX
#define NODE_MAX
DECLARATIONS ///.
Definition giaShow.c:33
Gia_ManForEachLutReverse
#define Gia_ManForEachLutReverse(p, i)
Definition gia.h:1159
Gia_ManLutLevel
int Gia_ManLutLevel(Gia_Man_t *p, int **ppLevels)
Definition giaIf.c:165
Gia_ManForEachCoDriverId
#define Gia_ManForEachCoDriverId(p, DriverId, i)
Definition gia.h:1246
Gia_LutForEachFanin
#define Gia_LutForEachFanin(p, i, iFan, k)
Definition gia.h:1161
Gia_ManForEachObj
#define Gia_ManForEachObj(p, pObj, i)
MACRO DEFINITIONS ///.
Definition gia.h:1190
Gia_Obj_t_::fMark0
unsigned fMark0
Definition gia.h:81
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_ShowProcess()

void Gia_ShowProcess ( Gia_Man_t * p,
char * pFileName,
Vec_Int_t * vBold,
Vec_Int_t * vAdds,
Vec_Int_t * vXors,
int fFadds )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1116 of file giaShow.c.

1117{
1118 Vec_Int_t * vMapAdds = Gia_ShowMapAdds( p, vAdds, fFadds, vBold );
1119 Vec_Int_t * vMapXors = Gia_ShowMapXors( p, vXors );
1120 Vec_Int_t * vOrder = Gia_ShowCollectObjs( p, vAdds, vXors, vMapAdds, vMapXors );
1121 Gia_WriteDotAig( p, pFileName, vBold, vAdds, vXors, vMapAdds, vMapXors, vOrder );
1122 Vec_IntFree( vMapAdds );
1123 Vec_IntFree( vMapXors );
1124 Vec_IntFree( vOrder );
1125}
Gia_ShowMapAdds
Vec_Int_t * Gia_ShowMapAdds(Gia_Man_t *p, Vec_Int_t *vAdds, int fFadds, Vec_Int_t *vBold)
Definition giaShow.c:1020
Gia_ShowMapXors
Vec_Int_t * Gia_ShowMapXors(Gia_Man_t *p, Vec_Int_t *vXors)
Definition giaShow.c:1039
Gia_ShowCollectObjs
Vec_Int_t * Gia_ShowCollectObjs(Gia_Man_t *p, Vec_Int_t *vAdds, Vec_Int_t *vXors, Vec_Int_t *vMapAdds, Vec_Int_t *vMapXors)
Definition giaShow.c:1090
Gia_WriteDotAig
void Gia_WriteDotAig(Gia_Man_t *p, char *pFileName, Vec_Int_t *vBold, Vec_Int_t *vAdds, Vec_Int_t *vXors, Vec_Int_t *vMapAdds, Vec_Int_t *vMapXors, Vec_Int_t *vOrder)
Definition giaShow.c:675
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_WriteDotAig()

void Gia_WriteDotAig ( Gia_Man_t * p,
char * pFileName,
Vec_Int_t * vBold,
Vec_Int_t * vAdds,
Vec_Int_t * vXors,
Vec_Int_t * vMapAdds,
Vec_Int_t * vMapXors,
Vec_Int_t * vOrder )

Definition at line 675 of file giaShow.c.

676{
677 FILE * pFile;
678 Gia_Obj_t * pNode;//, * pTemp, * pPrev;
679 int LevelMax, Prev, Level, i;
680 int fConstIsUsed = 0;
681 int nFadds = Ree_ManCountFadds( vAdds );
682
683 if ( Gia_ManAndNum(p) > NODE_MAX )
684 {
685 fprintf( stdout, "Cannot visualize AIG with more than %d nodes.\n", NODE_MAX );
686 return;
687 }
688 if ( (pFile = fopen( pFileName, "w" )) == NULL )
689 {
690 fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", pFileName );
691 return;
692 }
693
694 // mark the nodes
695 if ( vBold )
696 Gia_ManForEachObjVec( vBold, p, pNode, i )
697 pNode->fMark0 = 1;
698
699 // compute levels
700 LevelMax = 1 + p->nLevels;
701 Gia_ManForEachCo( p, pNode, i )
702 Vec_IntWriteEntry( p->vLevels, Gia_ObjId(p, pNode), LevelMax );
703
704 // write the DOT header
705 fprintf( pFile, "# %s\n", "AIG structure generated by GIA package" );
706 fprintf( pFile, "\n" );
707 fprintf( pFile, "digraph AIG {\n" );
708 fprintf( pFile, "size = \"7.5,10\";\n" );
709// fprintf( pFile, "ranksep = 0.5;\n" );
710// fprintf( pFile, "nodesep = 0.5;\n" );
711 fprintf( pFile, "center = true;\n" );
712// fprintf( pFile, "orientation = landscape;\n" );
713// fprintf( pFile, "edge [fontsize = 10];\n" );
714// fprintf( pFile, "edge [dir = none];\n" );
715 fprintf( pFile, "edge [dir = back];\n" );
716 fprintf( pFile, "\n" );
717
718 // labels on the left of the picture
719 fprintf( pFile, "{\n" );
720 fprintf( pFile, " node [shape = plaintext];\n" );
721 fprintf( pFile, " edge [style = invis];\n" );
722 fprintf( pFile, " LevelTitle1 [label=\"\"];\n" );
723 fprintf( pFile, " LevelTitle2 [label=\"\"];\n" );
724 // generate node names with labels
725 for ( Level = LevelMax; Level >= 0; Level-- )
726 {
727 // the visible node name
728 fprintf( pFile, " Level%d", Level );
729 fprintf( pFile, " [label = " );
730 // label name
731 fprintf( pFile, "\"" );
732 fprintf( pFile, "\"" );
733 fprintf( pFile, "];\n" );
734 }
735
736 // genetate the sequence of visible/invisible nodes to mark levels
737 fprintf( pFile, " LevelTitle1 -> LevelTitle2 ->" );
738 for ( Level = LevelMax; Level >= 0; Level-- )
739 {
740 // the visible node name
741 fprintf( pFile, " Level%d", Level );
742 // the connector
743 if ( Level != 0 )
744 fprintf( pFile, " ->" );
745 else
746 fprintf( pFile, ";" );
747 }
748 fprintf( pFile, "\n" );
749 fprintf( pFile, "}" );
750 fprintf( pFile, "\n" );
751 fprintf( pFile, "\n" );
752
753 // generate title box on top
754 fprintf( pFile, "{\n" );
755 fprintf( pFile, " rank = same;\n" );
756 fprintf( pFile, " LevelTitle1;\n" );
757 fprintf( pFile, " title1 [shape=plaintext,\n" );
758 fprintf( pFile, " fontsize=20,\n" );
759 fprintf( pFile, " fontname = \"Times-Roman\",\n" );
760 fprintf( pFile, " label=\"" );
761 fprintf( pFile, "%s", "AIG structure visualized by ABC" );
762 fprintf( pFile, "\\n" );
763 fprintf( pFile, "Benchmark \\\"%s\\\". ", "aig" );
764// fprintf( pFile, "Time was %s. ", Extra_TimeStamp() );
765 fprintf( pFile, "\"\n" );
766 fprintf( pFile, " ];\n" );
767 fprintf( pFile, "}" );
768 fprintf( pFile, "\n" );
769 fprintf( pFile, "\n" );
770
771 // generate statistics box
772 fprintf( pFile, "{\n" );
773 fprintf( pFile, " rank = same;\n" );
774 fprintf( pFile, " LevelTitle2;\n" );
775 fprintf( pFile, " title2 [shape=plaintext,\n" );
776 fprintf( pFile, " fontsize=18,\n" );
777 fprintf( pFile, " fontname = \"Times-Roman\",\n" );
778 fprintf( pFile, " label=\"" );
779 fprintf( pFile, "The AIG contains %d nodes, %d full-adders, and %d half-adders, and spans %d levels.",
780 Gia_ManAndNum(p), nFadds, Vec_IntSize(vAdds)/6-nFadds, LevelMax-1 );
781 fprintf( pFile, "\\n" );
782 fprintf( pFile, "\"\n" );
783 fprintf( pFile, " ];\n" );
784 fprintf( pFile, "}" );
785 fprintf( pFile, "\n" );
786 fprintf( pFile, "\n" );
787
788 // generate the COs
789 fprintf( pFile, "{\n" );
790 fprintf( pFile, " rank = same;\n" );
791 // the labeling node of this level
792 fprintf( pFile, " Level%d;\n", LevelMax );
793 // generate the CO nodes
794 Gia_ManForEachCo( p, pNode, i )
795 {
796 if ( Gia_ObjFaninId0p(p, pNode) == 0 )
797 fConstIsUsed = 1;
798 fprintf( pFile, " Node%d [label = \"%d\"", Gia_ObjId(p, pNode), Gia_ObjId(p, pNode) );
799
800 fprintf( pFile, ", shape = %s", "invtriangle" );
801 fprintf( pFile, ", color = coral, fillcolor = coral" );
802 fprintf( pFile, "];\n" );
803 }
804 fprintf( pFile, "}" );
805 fprintf( pFile, "\n" );
806 fprintf( pFile, "\n" );
807
808 // generate nodes of each rank
809 for ( Level = LevelMax - 1; Level > 0; Level-- )
810 {
811 fprintf( pFile, "{\n" );
812 fprintf( pFile, " rank = same;\n" );
813 // the labeling node of this level
814 fprintf( pFile, " Level%d;\n", Level );
815 Gia_ManForEachObjVec( vOrder, p, pNode, i )
816 {
817 int iNode = Gia_ObjId( p, pNode );
818 if ( (int)Gia_ObjLevel(p, pNode) != Level )
819 continue;
820/*
821 fprintf( pFile, " Node%d [label = \"%d\"", Gia_ObjId(p, pNode), Gia_ObjId(p, pNode) );
822 if ( Gia_ObjIsXor(pNode) )
823 fprintf( pFile, ", shape = doublecircle" );
824 else if ( Gia_ObjIsMux(p, pNode) )
825 fprintf( pFile, ", shape = trapezium" );
826 else
827 fprintf( pFile, ", shape = ellipse" );
828*/
829 if ( !pNode->fMark0 && Vec_IntEntry(vMapAdds, iNode) >= 0 )
830 {
831 int iBox = Vec_IntEntry(vMapAdds, iNode);
832 fprintf( pFile, " Node%d [label = \"%d_%d\"", Gia_ShowAddOut(vAdds, vMapAdds, iNode), Vec_IntEntry(vAdds, 6*iBox+3), Vec_IntEntry(vAdds, 6*iBox+4) );
833 if ( Vec_IntEntry(vAdds, 6*iBox+2) == 0 )
834 fprintf( pFile, ", shape = octagon" );
835 else
836 fprintf( pFile, ", shape = doubleoctagon" );
837 }
838 else if ( Vec_IntEntry(vMapXors, iNode) >= 0 )
839 {
840 fprintf( pFile, " Node%d [label = \"%d\"", iNode, iNode );
841 fprintf( pFile, ", shape = doublecircle" );
842 }
843 else if ( Gia_ObjIsXor(pNode) )
844 {
845 fprintf( pFile, " Node%d [label = \"%d\"", iNode, iNode );
846 fprintf( pFile, ", shape = doublecircle" );
847 }
848 else if ( Gia_ObjIsMux(p, pNode) )
849 {
850 fprintf( pFile, " Node%d [label = \"%d\"", iNode, iNode );
851 fprintf( pFile, ", shape = trapezium" );
852 }
853 else
854 {
855 fprintf( pFile, " Node%d [label = \"%d\"", iNode, iNode );
856 fprintf( pFile, ", shape = ellipse" );
857 }
858 if ( pNode->fMark0 )
859 fprintf( pFile, ", style = filled" );
860 fprintf( pFile, "];\n" );
861 }
862 fprintf( pFile, "}" );
863 fprintf( pFile, "\n" );
864 fprintf( pFile, "\n" );
865 }
866
867 // generate the CI nodes
868 fprintf( pFile, "{\n" );
869 fprintf( pFile, " rank = same;\n" );
870 // the labeling node of this level
871 fprintf( pFile, " Level%d;\n", 0 );
872 // generate constant node
873 if ( fConstIsUsed )
874 {
875 // check if the costant node is present
876 fprintf( pFile, " Node%d [label = \"Const0\"", 0 );
877 fprintf( pFile, ", shape = ellipse" );
878 fprintf( pFile, ", color = coral, fillcolor = coral" );
879 fprintf( pFile, "];\n" );
880 }
881 // generate the CI nodes
882 Gia_ManForEachCi( p, pNode, i )
883 {
884 fprintf( pFile, " Node%d [label = \"%d\"", Gia_ObjId(p, pNode), Gia_ObjId(p, pNode) );
885
886 fprintf( pFile, ", shape = %s", "triangle" );
887 fprintf( pFile, ", color = coral, fillcolor = coral" );
888 fprintf( pFile, "];\n" );
889 }
890 fprintf( pFile, "}" );
891 fprintf( pFile, "\n" );
892 fprintf( pFile, "\n" );
893
894 // generate invisible edges from the square down
895 fprintf( pFile, "title1 -> title2 [style = invis];\n" );
896 Gia_ManForEachCo( p, pNode, i )
897 fprintf( pFile, "title2 -> Node%d [style = invis];\n", Gia_ObjId(p, pNode) );
898 // generate invisible edges among the COs
899 Prev = -1;
900 Gia_ManForEachCo( p, pNode, i )
901 {
902 if ( i > 0 )
903 fprintf( pFile, "Node%d -> Node%d [style = invis];\n", Prev, Gia_ObjId(p, pNode) );
904 Prev = Gia_ObjId(p, pNode);
905 }
906 // generate invisible edges among the CIs
907 Prev = -1;
908 Gia_ManForEachCi( p, pNode, i )
909 {
910 if ( i > 0 )
911 fprintf( pFile, "Node%d -> Node%d [style = invis];\n", Prev, Gia_ObjId(p, pNode) );
912 Prev = Gia_ObjId(p, pNode);
913 }
914
915 // generate edges
916 Gia_ManForEachCo( p, pNode, i )
917 {
918 int iNode = Gia_ObjId( p, pNode );
919 fprintf( pFile, "Node%d", iNode );
920 fprintf( pFile, " -> " );
921 fprintf( pFile, "Node%d", Gia_ShowAddOut(vAdds, vMapAdds, Gia_ObjFaninId0(pNode, iNode)) );
922 fprintf( pFile, " [" );
923 fprintf( pFile, "style = %s", Gia_ObjFaninC0(pNode)? "dotted" : "solid" );
924 fprintf( pFile, "]" );
925 fprintf( pFile, ";\n" );
926 }
927 Gia_ManForEachObjVec( vOrder, p, pNode, i )
928 {
929 int iNode = Gia_ObjId( p, pNode );
930 if ( Vec_IntEntry(vMapAdds, Gia_ObjId(p, pNode)) >= 0 )
931 {
932 int k, iBox = Vec_IntEntry(vMapAdds, iNode);
933 for ( k = 0; k < 3; k++ )
934 if ( Vec_IntEntry(vAdds, 6*iBox+k) )
935 {
936 int iBox2 = Vec_IntEntry(vMapAdds, Vec_IntEntry(vAdds, 6*iBox+k));
937 int fXor2 = iBox2 >= 0 ? (int)(Vec_IntEntry(vAdds, 6*iBox2+3) == Vec_IntEntry(vAdds, 6*iBox+k)) : 0;
938 fprintf( pFile, "Node%d", Gia_ShowAddOut(vAdds, vMapAdds, iNode) );
939 fprintf( pFile, " -> " );
940 fprintf( pFile, "Node%d", Gia_ShowAddOut(vAdds, vMapAdds, Vec_IntEntry(vAdds, 6*iBox+k)) );
941 fprintf( pFile, " [" );
942 fprintf( pFile, "style = %s", fXor2? "bold" : "solid" );
943 fprintf( pFile, "]" );
944 fprintf( pFile, ";\n" );
945 }
946 continue;
947 }
948 if ( Vec_IntEntry(vMapXors, Gia_ObjId(p, pNode)) >= 0 )
949 {
950 int k, iXor = Vec_IntEntry(vMapXors, iNode);
951 for ( k = 1; k < 4; k++ )
952 if ( Vec_IntEntry(vXors, 4*iXor+k) )
953 {
954 int iXor2 = Vec_IntEntry(vMapXors, Vec_IntEntry(vXors, 4*iXor+k));
955 fprintf( pFile, "Node%d", iNode );
956 fprintf( pFile, " -> " );
957 fprintf( pFile, "Node%d", Gia_ShowAddOut(vAdds, vMapAdds, Vec_IntEntry(vXors, 4*iXor+k)) );
958 fprintf( pFile, " [" );
959 fprintf( pFile, "style = %s", iXor2 >= 0? "bold" : "solid" );
960 fprintf( pFile, "]" );
961 fprintf( pFile, ";\n" );
962 }
963 continue;
964 }
965 // generate the edge from this node to the next
966 fprintf( pFile, "Node%d", iNode );
967 fprintf( pFile, " -> " );
968 fprintf( pFile, "Node%d", Gia_ShowAddOut(vAdds, vMapAdds, Gia_ObjFaninId0(pNode, iNode)) );
969 fprintf( pFile, " [" );
970 fprintf( pFile, "style = %s", Gia_ObjFaninC0(pNode)? "dotted" : "solid" );
971 fprintf( pFile, "]" );
972 fprintf( pFile, ";\n" );
973 if ( !Gia_ObjIsAnd(pNode) )
974 continue;
975 // generate the edge from this node to the next
976 fprintf( pFile, "Node%d", iNode );
977 fprintf( pFile, " -> " );
978 fprintf( pFile, "Node%d", Gia_ShowAddOut(vAdds, vMapAdds, Gia_ObjFaninId1(pNode, iNode)) );
979 fprintf( pFile, " [" );
980 fprintf( pFile, "style = %s", Gia_ObjFaninC1(pNode)? "dotted" : "solid" );
981 fprintf( pFile, "]" );
982 fprintf( pFile, ";\n" );
983
984 if ( !Gia_ObjIsMux(p, pNode) )
985 continue;
986 // generate the edge from this node to the next
987 fprintf( pFile, "Node%d", iNode );
988 fprintf( pFile, " -> " );
989 fprintf( pFile, "Node%d", Gia_ShowAddOut(vAdds, vMapAdds, Gia_ObjFaninId2(p, iNode)) );
990 fprintf( pFile, " [" );
991 fprintf( pFile, "style = %s", Gia_ObjFaninC2(p, pNode)? "dotted" : "solid" );
992 fprintf( pFile, "]" );
993 fprintf( pFile, ";\n" );
994 }
995
996 fprintf( pFile, "}" );
997 fprintf( pFile, "\n" );
998 fprintf( pFile, "\n" );
999 fclose( pFile );
1000
1001 // unmark nodes
1002 if ( vBold )
1003 Gia_ManForEachObjVec( vBold, p, pNode, i )
1004 pNode->fMark0 = 0;
1005
1006 Vec_IntFreeP( &p->vLevels );
1007}
Ree_ManCountFadds
int Ree_ManCountFadds(Vec_Int_t *vAdds)
Definition acecRe.c:556
Gia_ShowAddOut
int Gia_ShowAddOut(Vec_Int_t *vAdds, Vec_Int_t *vMapAdds, int Node)
Definition giaShow.c:668
Gia_ManForEachObjVec
#define Gia_ManForEachObjVec(vVec, p, pObj, i)
Definition gia.h:1194
Here is the call graph for this function:
Here is the caller graph for this function:

◆ Gia_WriteDotAigSimple()

void Gia_WriteDotAigSimple ( Gia_Man_t * p,
char * pFileName,
Vec_Int_t * vBold )

Function*************************************************************

Synopsis [Writes the graph structure of AIG for DOT.]

Description [Useful for graph visualization using tools such as GraphViz: http://www.graphviz.org/]

SideEffects []

SeeAlso []

Definition at line 339 of file giaShow.c.

340{
341 FILE * pFile;
342 Gia_Obj_t * pNode;//, * pTemp, * pPrev;
343 int LevelMax, Prev, Level, i;
344 int fConstIsUsed = 0;
345
346 if ( Gia_ManAndNum(p) > NODE_MAX )
347 {
348 fprintf( stdout, "Cannot visualize AIG with more than %d nodes.\n", NODE_MAX );
349 return;
350 }
351 if ( (pFile = fopen( pFileName, "w" )) == NULL )
352 {
353 fprintf( stdout, "Cannot open the intermediate file \"%s\".\n", pFileName );
354 return;
355 }
356
357 // mark the nodes
358 if ( vBold )
359 Gia_ManForEachObjVec( vBold, p, pNode, i )
360 pNode->fMark0 = 1;
361 else if ( p->nXors || p->nMuxes )
362 Gia_ManForEachObj( p, pNode, i )
363 if ( Gia_ObjIsXor(pNode) || Gia_ObjIsMux(p, pNode) )
364 pNode->fMark0 = 1;
365
366 // compute levels
367 LevelMax = 1 + Gia_ManLevelNum( p );
368 Gia_ManForEachCo( p, pNode, i )
369 Vec_IntWriteEntry( p->vLevels, Gia_ObjId(p, pNode), LevelMax );
370
371 // write the DOT header
372 fprintf( pFile, "# %s\n", "AIG structure generated by GIA package" );
373 fprintf( pFile, "\n" );
374 fprintf( pFile, "digraph AIG {\n" );
375 fprintf( pFile, "size = \"7.5,10\";\n" );
376// fprintf( pFile, "ranksep = 0.5;\n" );
377// fprintf( pFile, "nodesep = 0.5;\n" );
378 fprintf( pFile, "center = true;\n" );
379// fprintf( pFile, "orientation = landscape;\n" );
380// fprintf( pFile, "edge [fontsize = 10];\n" );
381// fprintf( pFile, "edge [dir = none];\n" );
382 fprintf( pFile, "edge [dir = back];\n" );
383 fprintf( pFile, "\n" );
384
385 // labels on the left of the picture
386 fprintf( pFile, "{\n" );
387 fprintf( pFile, " node [shape = plaintext];\n" );
388 fprintf( pFile, " edge [style = invis];\n" );
389 fprintf( pFile, " LevelTitle1 [label=\"\"];\n" );
390 fprintf( pFile, " LevelTitle2 [label=\"\"];\n" );
391 // generate node names with labels
392 for ( Level = LevelMax; Level >= 0; Level-- )
393 {
394 // the visible node name
395 fprintf( pFile, " Level%d", Level );
396 fprintf( pFile, " [label = " );
397 // label name
398 fprintf( pFile, "\"" );
399 fprintf( pFile, "\"" );
400 fprintf( pFile, "];\n" );
401 }
402
403 // genetate the sequence of visible/invisible nodes to mark levels
404 fprintf( pFile, " LevelTitle1 -> LevelTitle2 ->" );
405 for ( Level = LevelMax; Level >= 0; Level-- )
406 {
407 // the visible node name
408 fprintf( pFile, " Level%d", Level );
409 // the connector
410 if ( Level != 0 )
411 fprintf( pFile, " ->" );
412 else
413 fprintf( pFile, ";" );
414 }
415 fprintf( pFile, "\n" );
416 fprintf( pFile, "}" );
417 fprintf( pFile, "\n" );
418 fprintf( pFile, "\n" );
419
420 // generate title box on top
421 fprintf( pFile, "{\n" );
422 fprintf( pFile, " rank = same;\n" );
423 fprintf( pFile, " LevelTitle1;\n" );
424 fprintf( pFile, " title1 [shape=plaintext,\n" );
425 fprintf( pFile, " fontsize=20,\n" );
426 fprintf( pFile, " fontname = \"Times-Roman\",\n" );
427 fprintf( pFile, " label=\"" );
428 fprintf( pFile, "%s", "AIG structure visualized by ABC" );
429 fprintf( pFile, "\\n" );
430 fprintf( pFile, "Benchmark \\\"%s\\\". ", "aig" );
431// fprintf( pFile, "Time was %s. ", Extra_TimeStamp() );
432 fprintf( pFile, "\"\n" );
433 fprintf( pFile, " ];\n" );
434 fprintf( pFile, "}" );
435 fprintf( pFile, "\n" );
436 fprintf( pFile, "\n" );
437
438 // generate statistics box
439 fprintf( pFile, "{\n" );
440 fprintf( pFile, " rank = same;\n" );
441 fprintf( pFile, " LevelTitle2;\n" );
442 fprintf( pFile, " title2 [shape=plaintext,\n" );
443 fprintf( pFile, " fontsize=18,\n" );
444 fprintf( pFile, " fontname = \"Times-Roman\",\n" );
445 fprintf( pFile, " label=\"" );
446 fprintf( pFile, "The AIG contains %d nodes and spans %d levels.", Gia_ManAndNum(p), LevelMax-1 );
447 fprintf( pFile, "\\n" );
448 fprintf( pFile, "\"\n" );
449 fprintf( pFile, " ];\n" );
450 fprintf( pFile, "}" );
451 fprintf( pFile, "\n" );
452 fprintf( pFile, "\n" );
453
454 // generate the COs
455 fprintf( pFile, "{\n" );
456 fprintf( pFile, " rank = same;\n" );
457 // the labeling node of this level
458 fprintf( pFile, " Level%d;\n", LevelMax );
459 // generate the CO nodes
460 Gia_ManForEachCo( p, pNode, i )
461 {
462 if ( Gia_ObjFaninId0p(p, pNode) == 0 )
463 fConstIsUsed = 1;
464/*
465 if ( fHaig || pNode->pEquiv == NULL )
466 fprintf( pFile, " Node%d%s [label = \"%d%s\"", pNode->Id,
467 (Gia_ObjIsLatch(pNode)? "_in":""), pNode->Id, (Gia_ObjIsLatch(pNode)? "_in":"") );
468 else
469 fprintf( pFile, " Node%d%s [label = \"%d%s(%d%s)\"", pNode->Id,
470 (Gia_ObjIsLatch(pNode)? "_in":""), pNode->Id, (Gia_ObjIsLatch(pNode)? "_in":""),
471 Gia_Regular(pNode->pEquiv)->Id, Gia_IsComplement(pNode->pEquiv)? "\'":"" );
472*/
473 fprintf( pFile, " Node%d [label = \"%d\"", Gia_ObjId(p, pNode), Gia_ObjId(p, pNode) );
474
475 fprintf( pFile, ", shape = %s", "invtriangle" );
476 fprintf( pFile, ", color = coral, fillcolor = coral" );
477 fprintf( pFile, "];\n" );
478 }
479 fprintf( pFile, "}" );
480 fprintf( pFile, "\n" );
481 fprintf( pFile, "\n" );
482
483 // generate nodes of each rank
484 for ( Level = LevelMax - 1; Level > 0; Level-- )
485 {
486 fprintf( pFile, "{\n" );
487 fprintf( pFile, " rank = same;\n" );
488 // the labeling node of this level
489 fprintf( pFile, " Level%d;\n", Level );
490 Gia_ManForEachObj( p, pNode, i )
491 {
492 if ( (int)Gia_ObjLevel(p, pNode) != Level )
493 continue;
494/*
495 if ( fHaig || pNode->pEquiv == NULL )
496 fprintf( pFile, " Node%d [label = \"%d\"", pNode->Id, pNode->Id );
497 else
498 fprintf( pFile, " Node%d [label = \"%d(%d%s)\"", pNode->Id, pNode->Id,
499 Gia_Regular(pNode->pEquiv)->Id, Gia_IsComplement(pNode->pEquiv)? "\'":"" );
500*/
501 fprintf( pFile, " Node%d [label = \"%d\"", i, i );
502
503 if ( Gia_ObjIsXor(pNode) )
504 fprintf( pFile, ", shape = doublecircle" );
505 else if ( Gia_ObjIsMux(p, pNode) )
506 fprintf( pFile, ", shape = trapezium" );
507 else
508 fprintf( pFile, ", shape = ellipse" );
509
510 if ( pNode->fMark0 )
511 fprintf( pFile, ", style = filled" );
512 fprintf( pFile, "];\n" );
513 }
514 fprintf( pFile, "}" );
515 fprintf( pFile, "\n" );
516 fprintf( pFile, "\n" );
517 }
518
519 // generate the CI nodes
520 fprintf( pFile, "{\n" );
521 fprintf( pFile, " rank = same;\n" );
522 // the labeling node of this level
523 fprintf( pFile, " Level%d;\n", 0 );
524 // generate constant node
525 if ( fConstIsUsed )
526 {
527 // check if the costant node is present
528 fprintf( pFile, " Node%d [label = \"Const0\"", 0 );
529 fprintf( pFile, ", shape = ellipse" );
530 fprintf( pFile, ", color = coral, fillcolor = coral" );
531 fprintf( pFile, "];\n" );
532 }
533 // generate the CI nodes
534 Gia_ManForEachCi( p, pNode, i )
535 {
536/*
537 if ( fHaig || pNode->pEquiv == NULL )
538 fprintf( pFile, " Node%d%s [label = \"%d%s\"", pNode->Id,
539 (Gia_ObjIsLatch(pNode)? "_out":""), pNode->Id, (Gia_ObjIsLatch(pNode)? "_out":"") );
540 else
541 fprintf( pFile, " Node%d%s [label = \"%d%s(%d%s)\"", pNode->Id,
542 (Gia_ObjIsLatch(pNode)? "_out":""), pNode->Id, (Gia_ObjIsLatch(pNode)? "_out":""),
543 Gia_Regular(pNode->pEquiv)->Id, Gia_IsComplement(pNode->pEquiv)? "\'":"" );
544*/
545 fprintf( pFile, " Node%d [label = \"%d\"", Gia_ObjId(p, pNode), Gia_ObjId(p, pNode) );
546
547 fprintf( pFile, ", shape = %s", "triangle" );
548 fprintf( pFile, ", color = coral, fillcolor = coral" );
549 fprintf( pFile, "];\n" );
550 }
551 fprintf( pFile, "}" );
552 fprintf( pFile, "\n" );
553 fprintf( pFile, "\n" );
554
555 // generate invisible edges from the square down
556 fprintf( pFile, "title1 -> title2 [style = invis];\n" );
557 Gia_ManForEachCo( p, pNode, i )
558 fprintf( pFile, "title2 -> Node%d [style = invis];\n", Gia_ObjId(p, pNode) );
559 // generate invisible edges among the COs
560 Prev = -1;
561 Gia_ManForEachCo( p, pNode, i )
562 {
563 if ( i > 0 )
564 fprintf( pFile, "Node%d -> Node%d [style = invis];\n", Prev, Gia_ObjId(p, pNode) );
565 Prev = Gia_ObjId(p, pNode);
566 }
567 // generate invisible edges among the CIs
568 Prev = -1;
569 Gia_ManForEachCi( p, pNode, i )
570 {
571 if ( i > 0 )
572 fprintf( pFile, "Node%d -> Node%d [style = invis];\n", Prev, Gia_ObjId(p, pNode) );
573 Prev = Gia_ObjId(p, pNode);
574 }
575
576 // generate edges
577 Gia_ManForEachObj( p, pNode, i )
578 {
579 if ( !Gia_ObjIsAnd(pNode) && !Gia_ObjIsCo(pNode) && !Gia_ObjIsBuf(pNode) )
580 continue;
581 // generate the edge from this node to the next
582 fprintf( pFile, "Node%d", i );
583 fprintf( pFile, " -> " );
584 fprintf( pFile, "Node%d", Gia_ObjFaninId0(pNode, i) );
585 fprintf( pFile, " [" );
586 fprintf( pFile, "style = %s", Gia_ObjFaninC0(pNode)? "dotted" : "solid" );
587// if ( Gia_NtkIsSeq(pNode->p) && Seq_ObjFaninL0(pNode) > 0 )
588// fprintf( pFile, ", label = \"%s\"", Seq_ObjFaninGetInitPrintable(pNode,0) );
589 fprintf( pFile, "]" );
590 fprintf( pFile, ";\n" );
591 if ( !Gia_ObjIsAnd(pNode) )
592 continue;
593 // generate the edge from this node to the next
594 fprintf( pFile, "Node%d", i );
595 fprintf( pFile, " -> " );
596 fprintf( pFile, "Node%d", Gia_ObjFaninId1(pNode, i) );
597 fprintf( pFile, " [" );
598 fprintf( pFile, "style = %s", Gia_ObjFaninC1(pNode)? "dotted" : "solid" );
599// if ( Gia_NtkIsSeq(pNode->p) && Seq_ObjFaninL1(pNode) > 0 )
600// fprintf( pFile, ", label = \"%s\"", Seq_ObjFaninGetInitPrintable(pNode,1) );
601 fprintf( pFile, "]" );
602 fprintf( pFile, ";\n" );
603
604 if ( !Gia_ObjIsMux(p, pNode) )
605 continue;
606 // generate the edge from this node to the next
607 fprintf( pFile, "Node%d", i );
608 fprintf( pFile, " -> " );
609 fprintf( pFile, "Node%d", Gia_ObjFaninId2(p, i) );
610 fprintf( pFile, " [" );
611 fprintf( pFile, "style = %s", Gia_ObjFaninC2(p, pNode)? "dotted" : "bold" );
612// if ( Gia_NtkIsSeq(pNode->p) && Seq_ObjFaninL1(pNode) > 0 )
613// fprintf( pFile, ", label = \"%s\"", Seq_ObjFaninGetInitPrintable(pNode,1) );
614 fprintf( pFile, "]" );
615 fprintf( pFile, ";\n" );
616
617/*
618 // generate the edges between the equivalent nodes
619 if ( fHaig && pNode->pEquiv && Gia_ObjRefs(pNode) > 0 )
620 {
621 pPrev = pNode;
622 for ( pTemp = pNode->pEquiv; pTemp != pNode; pTemp = Gia_Regular(pTemp->pEquiv) )
623 {
624 fprintf( pFile, "Node%d", pPrev->Id );
625 fprintf( pFile, " -> " );
626 fprintf( pFile, "Node%d", pTemp->Id );
627 fprintf( pFile, " [style = %s]", Gia_IsComplement(pTemp->pEquiv)? "dotted" : "solid" );
628 fprintf( pFile, ";\n" );
629 pPrev = pTemp;
630 }
631 // connect the last node with the first
632 fprintf( pFile, "Node%d", pPrev->Id );
633 fprintf( pFile, " -> " );
634 fprintf( pFile, "Node%d", pNode->Id );
635 fprintf( pFile, " [style = %s]", Gia_IsComplement(pPrev->pEquiv)? "dotted" : "solid" );
636 fprintf( pFile, ";\n" );
637 }
638*/
639 }
640
641 fprintf( pFile, "}" );
642 fprintf( pFile, "\n" );
643 fprintf( pFile, "\n" );
644 fclose( pFile );
645
646 // unmark nodes
647 if ( vBold )
648 Gia_ManForEachObjVec( vBold, p, pNode, i )
649 pNode->fMark0 = 0;
650 else if ( p->nXors || p->nMuxes )
651 Gia_ManCleanMark0( p );
652
653 Vec_IntFreeP( &p->vLevels );
654}
Gia_ManCleanMark0
void Gia_ManCleanMark0(Gia_Man_t *p)
Definition giaUtil.c:256
Gia_ManLevelNum
int Gia_ManLevelNum(Gia_Man_t *p)
Definition giaUtil.c:546
Here is the call graph for this function:
Here is the caller graph for this function:
