ioWriteCnf.c File Reference

#include "ioAbc.h"
#include "sat/bsat/satSolver.h"

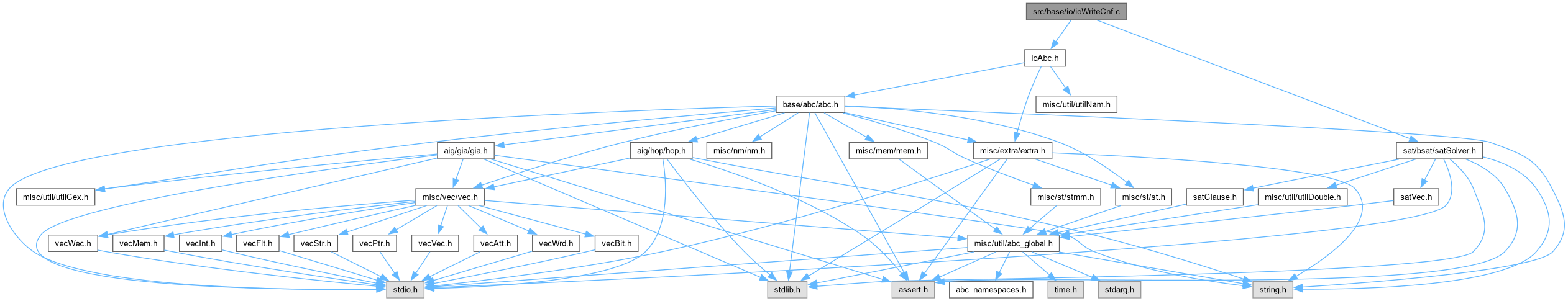

Include dependency graph for ioWriteCnf.c:

Go to the source code of this file.

Functions
int	Io_WriteCnf (Abc_Ntk_t *pNtk, char *pFileName, int fAllPrimes)
	FUNCTION DEFINITIONS ///.
void	Io_WriteCnfOutputPiMapping (FILE *pFile, int incrementVars)

Function Documentation

Io_WriteCnf()

int Io_WriteCnf	(	Abc_Ntk_t *	pNtk,
		char *	pFileName,
		int	fAllPrimes )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Write the miter cone into a CNF file for the SAT solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 48 of file ioWriteCnf.c.

{
    sat_solver * pSat;
    if ( Abc_NtkIsStrash(pNtk) )
        printf( "Io_WriteCnf() warning: Generating CNF by applying heuristic AIG to CNF conversion.\n" );
    else
        printf( "Io_WriteCnf() warning: Generating CNF by convering logic nodes into CNF clauses.\n" );
    if ( Abc_NtkPoNum(pNtk) != 1 )
    {
        fprintf( stdout, "Io_WriteCnf(): Currently can only process the miter (the network with one PO).\n" );
        return 0;
    }
    if ( Abc_NtkLatchNum(pNtk) != 0 )
    {
        fprintf( stdout, "Io_WriteCnf(): Currently can only process the miter for combinational circuits.\n" );
        return 0;
    }
    if ( Abc_NtkNodeNum(pNtk) == 0 )
    {
        fprintf( stdout, "The network has no logic nodes. No CNF file is generaled.\n" );
        return 0;
    }
    // convert to logic BDD network
    if ( Abc_NtkIsLogic(pNtk) )
        Abc_NtkToBdd( pNtk );
    // create solver with clauses
    pSat = (sat_solver *)Abc_NtkMiterSatCreate( pNtk, fAllPrimes );
    if ( pSat == NULL )
    {
        fprintf( stdout, "The problem is trivially UNSAT. No CNF file is generated.\n" );
        return 1;
    }
    // write the clauses
    s_pNtk = pNtk;
    Sat_SolverWriteDimacs( pSat, pFileName, 0, 0, 1 );
    s_pNtk = NULL;
    // free the solver
    sat_solver_delete( pSat );
    return 1;
}

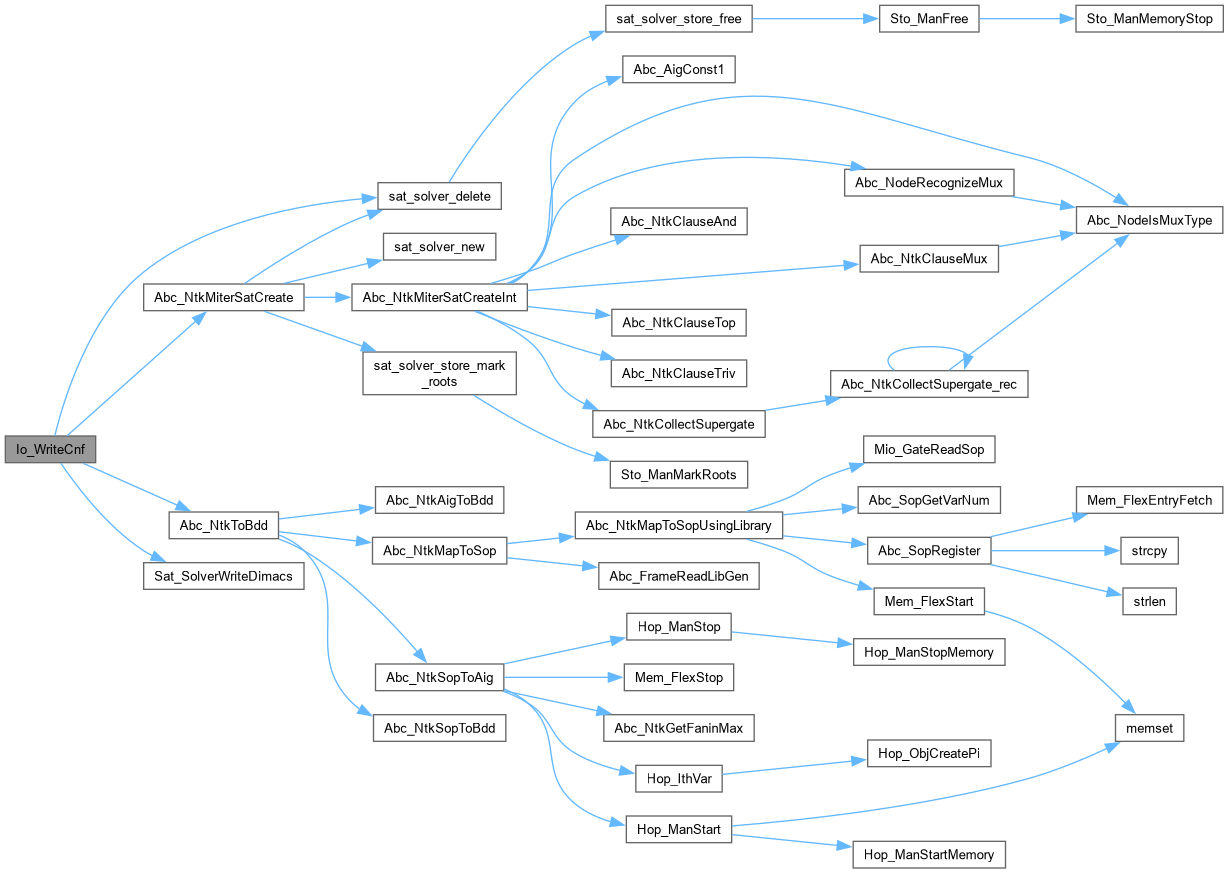

Here is the call graph for this function:

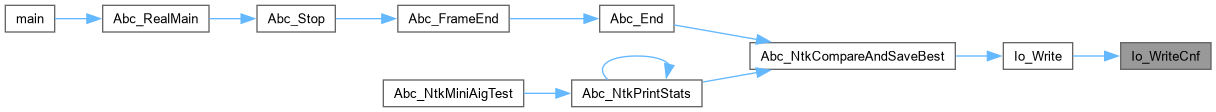

Here is the caller graph for this function:

Io_WriteCnfOutputPiMapping()

void Io_WriteCnfOutputPiMapping	(	FILE *	pFile,
		int	incrementVars )

Function*************************************************************

Synopsis [Output the mapping of PIs into variable numbers.]

Description []

SideEffects []

SeeAlso []

Definition at line 100 of file ioWriteCnf.c.

{
    extern Vec_Int_t * Abc_NtkGetCiSatVarNums( Abc_Ntk_t * pNtk );
    Abc_Ntk_t * pNtk = s_pNtk;
    Vec_Int_t * vCiIds;
    Abc_Obj_t * pObj;
    int i;
    vCiIds = Abc_NtkGetCiSatVarNums( pNtk );
    fprintf( pFile, "c PI variable numbers: <PI_name> <SAT_var_number>\n" );
    Abc_NtkForEachCi( pNtk, pObj, i )
        fprintf( pFile, "c %s %d\n", Abc_ObjName(pObj), Vec_IntEntry(vCiIds, i) + (int)(incrementVars > 0) );
    Vec_IntFree( vCiIds );
}

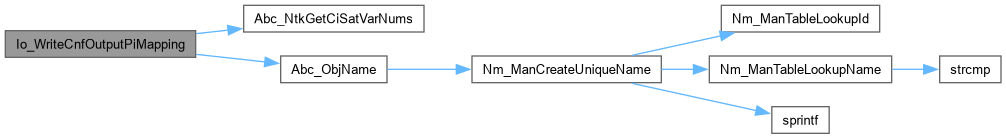

Here is the call graph for this function:
