abcSat.c File Reference

#include "base/abc/abc.h"
#include "base/main/main.h"
#include "base/cmd/cmd.h"
#include "sat/bsat/satSolver.h"
#include "aig/gia/gia.h"
#include "aig/gia/giaAig.h"

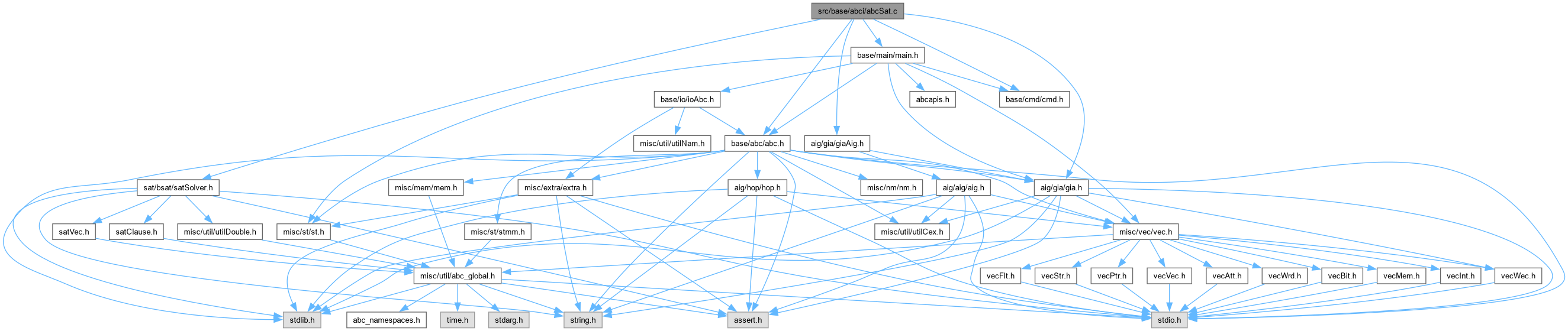

Include dependency graph for abcSat.c:

Go to the source code of this file.

Functions
Vec_Int_t *	Abc_NtkGetCiSatVarNums (Abc_Ntk_t *pNtk)
int	Abc_NtkMiterSat (Abc_Ntk_t *pNtk, ABC_INT64_T nConfLimit, ABC_INT64_T nInsLimit, int fVerbose, ABC_INT64_T *pNumConfs, ABC_INT64_T *pNumInspects)
	FUNCTION DEFINITIONS ///.
int *	Abc_NtkSolveGiaMiter (Gia_Man_t *p)
int	Abc_NtkClauseTriv (sat_solver *pSat, Abc_Obj_t *pNode, Vec_Int_t *vVars)
int	Abc_NtkClauseTop (sat_solver *pSat, Vec_Ptr_t *vNodes, Vec_Int_t *vVars)
int	Abc_NtkClauseAnd (sat_solver *pSat, Abc_Obj_t *pNode, Vec_Ptr_t *vSuper, Vec_Int_t *vVars)
int	Abc_NtkClauseMux (sat_solver *pSat, Abc_Obj_t *pNode, Abc_Obj_t *pNodeC, Abc_Obj_t *pNodeT, Abc_Obj_t *pNodeE, Vec_Int_t *vVars)
int	Abc_NtkCollectSupergate_rec (Abc_Obj_t *pNode, Vec_Ptr_t *vSuper, int fFirst, int fStopAtMux)
void	Abc_NtkCollectSupergate (Abc_Obj_t *pNode, int fStopAtMux, Vec_Ptr_t *vNodes)
int	Abc_NtkNodeFactor (Abc_Obj_t *pObj, int nLevelMax)
int	Abc_NtkMiterSatCreateInt (sat_solver *pSat, Abc_Ntk_t *pNtk)
void *	Abc_NtkMiterSatCreate (Abc_Ntk_t *pNtk, int fAllPrimes)
void	Abc_NtkWriteSorterCnf (char *pFileName, int nVars, int nQueens)

Function Documentation

Abc_NtkClauseAnd()

int Abc_NtkClauseAnd	(	sat_solver *	pSat,
		Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vSuper,
		Vec_Int_t *	vVars )

Function*************************************************************

Synopsis [Adds trivial clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 256 of file abcSat.c.

{
    int fComp1, Var, Var1, i;
//printf( "Adding AND %d.  (%d)    %d\n", pNode->Id, vSuper->nSize+1, (int)pSat->sat_solver_stats.clauses );

    assert( !Abc_ObjIsComplement( pNode ) );
    assert( Abc_ObjIsNode( pNode ) );

//    nVars = sat_solver_nvars(pSat);
    Var = (int)(ABC_PTRINT_T)pNode->pCopy;
//    Var = pNode->Id;

//    assert( Var  < nVars );
    for ( i = 0; i < vSuper->nSize; i++ )
    {
        // get the predecessor nodes
        // get the complemented attributes of the nodes
        fComp1 = Abc_ObjIsComplement((Abc_Obj_t *)vSuper->pArray[i]);
        // determine the variable numbers
        Var1 = (int)(ABC_PTRINT_T)Abc_ObjRegular((Abc_Obj_t *)vSuper->pArray[i])->pCopy;
//        Var1 = (int)Abc_ObjRegular(vSuper->pArray[i])->Id;

        // check that the variables are in the SAT manager
//        assert( Var1 < nVars );

        // suppose the AND-gate is A * B = C
        // add !A => !C   or   A + !C
    //  fprintf( pFile, "%d %d 0%c", Var1, -Var, 10 );
        vVars->nSize = 0;
        Vec_IntPush( vVars, toLitCond(Var1, fComp1) );
        Vec_IntPush( vVars, toLitCond(Var,  1     ) );
        if ( !sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize ) )
            return 0;
    }

    // add A & B => C   or   !A + !B + C
//  fprintf( pFile, "%d %d %d 0%c", -Var1, -Var2, Var, 10 );
    vVars->nSize = 0;
    for ( i = 0; i < vSuper->nSize; i++ )
    {
        // get the predecessor nodes
        // get the complemented attributes of the nodes
        fComp1 = Abc_ObjIsComplement((Abc_Obj_t *)vSuper->pArray[i]);
        // determine the variable numbers
        Var1 = (int)(ABC_PTRINT_T)Abc_ObjRegular((Abc_Obj_t *)vSuper->pArray[i])->pCopy;
//        Var1 = (int)Abc_ObjRegular(vSuper->pArray[i])->Id;
        // add this variable to the array
        Vec_IntPush( vVars, toLitCond(Var1, !fComp1) );
    }
    Vec_IntPush( vVars, toLitCond(Var, 0) );
    return sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize );
}

Here is the caller graph for this function:

Abc_NtkClauseMux()

int Abc_NtkClauseMux	(	sat_solver *	pSat,
		Abc_Obj_t *	pNode,
		Abc_Obj_t *	pNodeC,
		Abc_Obj_t *	pNodeT,
		Abc_Obj_t *	pNodeE,
		Vec_Int_t *	vVars )

Function*************************************************************

Synopsis [Adds trivial clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 320 of file abcSat.c.

{
    int VarF, VarI, VarT, VarE, fCompT, fCompE;
//printf( "Adding mux %d.         %d\n", pNode->Id, (int)pSat->sat_solver_stats.clauses );

    assert( !Abc_ObjIsComplement( pNode ) );
    assert( Abc_NodeIsMuxType( pNode ) );
    // get the variable numbers
    VarF = (int)(ABC_PTRINT_T)pNode->pCopy;
    VarI = (int)(ABC_PTRINT_T)pNodeC->pCopy;
    VarT = (int)(ABC_PTRINT_T)Abc_ObjRegular(pNodeT)->pCopy;
    VarE = (int)(ABC_PTRINT_T)Abc_ObjRegular(pNodeE)->pCopy;
//    VarF = (int)pNode->Id;
//    VarI = (int)pNodeC->Id;
//    VarT = (int)Abc_ObjRegular(pNodeT)->Id;
//    VarE = (int)Abc_ObjRegular(pNodeE)->Id;

    // get the complementation flags
    fCompT = Abc_ObjIsComplement(pNodeT);
    fCompE = Abc_ObjIsComplement(pNodeE);

    // f = ITE(i, t, e)
    // i' + t' + f
    // i' + t  + f'
    // i  + e' + f
    // i  + e  + f'
    // create four clauses
    vVars->nSize = 0;
    Vec_IntPush( vVars, toLitCond(VarI,  1) );
    Vec_IntPush( vVars, toLitCond(VarT,  1^fCompT) );
    Vec_IntPush( vVars, toLitCond(VarF,  0) );
    if ( !sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize ) )
        return 0;
    vVars->nSize = 0;
    Vec_IntPush( vVars, toLitCond(VarI,  1) );
    Vec_IntPush( vVars, toLitCond(VarT,  0^fCompT) );
    Vec_IntPush( vVars, toLitCond(VarF,  1) );
    if ( !sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize ) )
        return 0;
    vVars->nSize = 0;
    Vec_IntPush( vVars, toLitCond(VarI,  0) );
    Vec_IntPush( vVars, toLitCond(VarE,  1^fCompE) );
    Vec_IntPush( vVars, toLitCond(VarF,  0) );
    if ( !sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize ) )
        return 0;
    vVars->nSize = 0;
    Vec_IntPush( vVars, toLitCond(VarI,  0) );
    Vec_IntPush( vVars, toLitCond(VarE,  0^fCompE) );
    Vec_IntPush( vVars, toLitCond(VarF,  1) );
    if ( !sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize ) )
        return 0;

    if ( VarT == VarE )
    {
//        assert( fCompT == !fCompE );
        return 1;
    }

    // two additional clauses
    // t' & e' -> f'       t  + e   + f'
    // t  & e  -> f        t' + e'  + f
    vVars->nSize = 0;
    Vec_IntPush( vVars, toLitCond(VarT,  0^fCompT) );
    Vec_IntPush( vVars, toLitCond(VarE,  0^fCompE) );
    Vec_IntPush( vVars, toLitCond(VarF,  1) );
    if ( !sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize ) )
        return 0;
    vVars->nSize = 0;
    Vec_IntPush( vVars, toLitCond(VarT,  1^fCompT) );
    Vec_IntPush( vVars, toLitCond(VarE,  1^fCompE) );
    Vec_IntPush( vVars, toLitCond(VarF,  0) );
    return sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkClauseTop()

int Abc_NtkClauseTop	(	sat_solver *	pSat,
		Vec_Ptr_t *	vNodes,
		Vec_Int_t *	vVars )

Function*************************************************************

Synopsis [Adds trivial clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 233 of file abcSat.c.

{
    Abc_Obj_t * pNode;
    int i;
//printf( "Adding triv %d.         %d\n", Abc_ObjRegular(pNode)->Id, (int)pSat->sat_solver_stats.clauses );
    vVars->nSize = 0;
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
        Vec_IntPush( vVars, toLitCond( (int)(ABC_PTRINT_T)Abc_ObjRegular(pNode)->pCopy, Abc_ObjIsComplement(pNode) ) );
//    Vec_IntPush( vVars, toLitCond( (int)Abc_ObjRegular(pNode)->Id, Abc_ObjIsComplement(pNode) ) );
    return sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize );
}

Here is the caller graph for this function:

Abc_NtkClauseTriv()

int Abc_NtkClauseTriv	(	sat_solver *	pSat,
		Abc_Obj_t *	pNode,
		Vec_Int_t *	vVars )

Function*************************************************************

Synopsis [Adds trivial clause.]

Description []

SideEffects []

SeeAlso []

Definition at line 213 of file abcSat.c.

{
//printf( "Adding triv %d.         %d\n", Abc_ObjRegular(pNode)->Id, (int)pSat->sat_solver_stats.clauses );
    vVars->nSize = 0;
    Vec_IntPush( vVars, toLitCond( (int)(ABC_PTRINT_T)Abc_ObjRegular(pNode)->pCopy, Abc_ObjIsComplement(pNode) ) );
//    Vec_IntPush( vVars, toLitCond( (int)Abc_ObjRegular(pNode)->Id, Abc_ObjIsComplement(pNode) ) );
    return sat_solver_addclause( pSat, vVars->pArray, vVars->pArray + vVars->nSize );
}

Here is the caller graph for this function:

Abc_NtkCollectSupergate()

void Abc_NtkCollectSupergate	(	Abc_Obj_t *	pNode,
		int	fStopAtMux,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Returns the array of nodes to be combined into one multi-input AND-gate.]

Description []

SideEffects []

SeeAlso []

Definition at line 452 of file abcSat.c.

{
    int RetValue, i;
    assert( !Abc_ObjIsComplement(pNode) );
    // collect the nodes in the implication supergate
    Vec_PtrClear( vNodes );
    RetValue = Abc_NtkCollectSupergate_rec( pNode, vNodes, 1, fStopAtMux );
    assert( vNodes->nSize > 1 );
    // unmark the visited nodes
    for ( i = 0; i < vNodes->nSize; i++ )
        Abc_ObjRegular((Abc_Obj_t *)vNodes->pArray[i])->fMarkB = 0;
    // if we found the node and its complement in the same implication supergate,
    // return empty set of nodes (meaning that we should use constant-0 node)
    if ( RetValue == -1 )
        vNodes->nSize = 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkCollectSupergate_rec()

int Abc_NtkCollectSupergate_rec	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vSuper,
		int	fFirst,
		int	fStopAtMux )

Function*************************************************************

Synopsis [Returns the array of nodes to be combined into one multi-input AND-gate.]

Description []

SideEffects []

SeeAlso []

Definition at line 405 of file abcSat.c.

{
    int RetValue1, RetValue2, i;
    // check if the node is visited
    if ( Abc_ObjRegular(pNode)->fMarkB )
    {
        // check if the node occurs in the same polarity
        for ( i = 0; i < vSuper->nSize; i++ )
            if ( vSuper->pArray[i] == pNode )
                return 1;
        // check if the node is present in the opposite polarity
        for ( i = 0; i < vSuper->nSize; i++ )
            if ( vSuper->pArray[i] == Abc_ObjNot(pNode) )
                return -1;
        assert( 0 );
        return 0;
    }
    // if the new node is complemented or a PI, another gate begins
    if ( !fFirst )
        if ( Abc_ObjIsComplement(pNode) || !Abc_ObjIsNode(pNode) || Abc_ObjFanoutNum(pNode) > 1 || (fStopAtMux && Abc_NodeIsMuxType(pNode)) )
        {
            Vec_PtrPush( vSuper, pNode );
            Abc_ObjRegular(pNode)->fMarkB = 1;
            return 0;
        }
    assert( !Abc_ObjIsComplement(pNode) );
    assert( Abc_ObjIsNode(pNode) );
    // go through the branches
    RetValue1 = Abc_NtkCollectSupergate_rec( Abc_ObjChild0(pNode), vSuper, 0, fStopAtMux );
    RetValue2 = Abc_NtkCollectSupergate_rec( Abc_ObjChild1(pNode), vSuper, 0, fStopAtMux );
    if ( RetValue1 == -1 || RetValue2 == -1 )
        return -1;
    // return 1 if at least one branch has a duplicate
    return RetValue1 || RetValue2;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkGetCiSatVarNums()

Vec_Int_t * Abc_NtkGetCiSatVarNums ( Abc_Ntk_t * pNtk )

extern

Function*************************************************************

Synopsis [Returns the array of CI IDs.]

Description []

SideEffects []

SeeAlso []

Definition at line 189 of file abcSat.c.

{
    Vec_Int_t * vCiIds;
    Abc_Obj_t * pObj;
    int i;
    vCiIds = Vec_IntAlloc( Abc_NtkCiNum(pNtk) );
    Abc_NtkForEachCi( pNtk, pObj, i )
        Vec_IntPush( vCiIds, (int)(ABC_PTRINT_T)pObj->pCopy );
    return vCiIds;
}

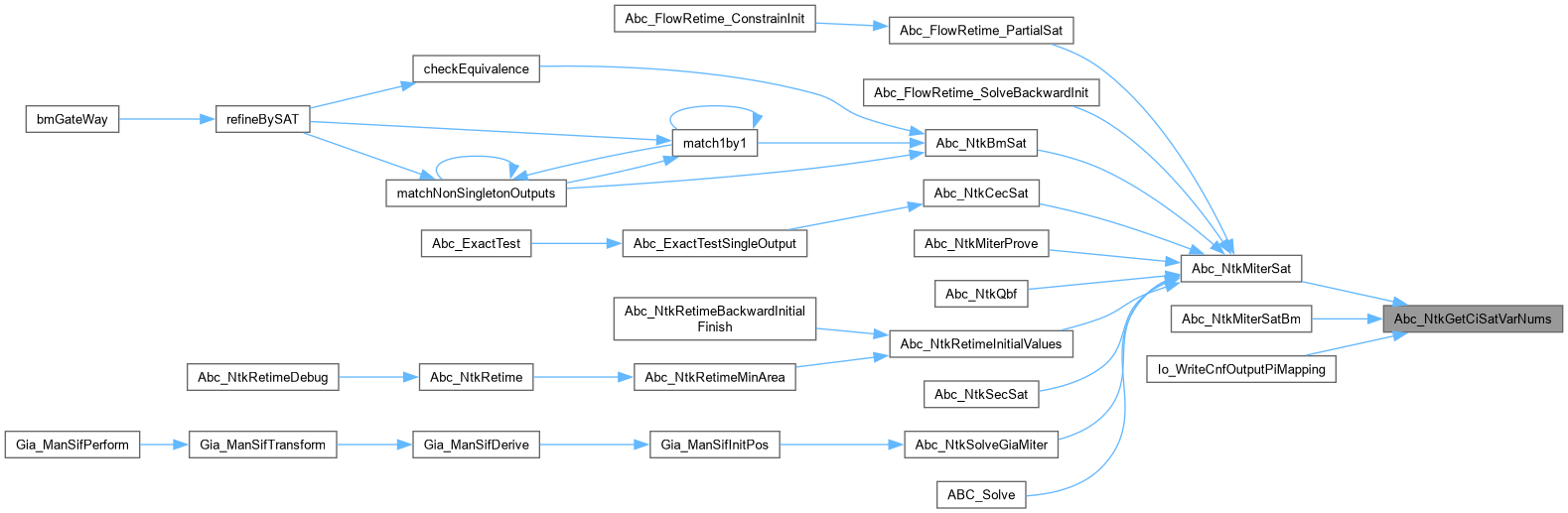

Here is the caller graph for this function:

Abc_NtkMiterSat()

int Abc_NtkMiterSat	(	Abc_Ntk_t *	pNtk,
		ABC_INT64_T	nConfLimit,
		ABC_INT64_T	nInsLimit,
		int	fVerbose,
		ABC_INT64_T *	pNumConfs,
		ABC_INT64_T *	pNumInspects )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Attempts to solve the miter using an internal SAT sat_solver.]

Description [Returns -1 if timed out; 0 if SAT; 1 if UNSAT.]

SideEffects []

SeeAlso []

Definition at line 58 of file abcSat.c.

{
    sat_solver * pSat;
    lbool   status;
    int RetValue = 0;
    abctime clk;

    if ( pNumConfs )
        *pNumConfs = 0;
    if ( pNumInspects )
        *pNumInspects = 0;

    assert( Abc_NtkLatchNum(pNtk) == 0 );

//    if ( Abc_NtkPoNum(pNtk) > 1 )
//        fprintf( stdout, "Warning: The miter has %d outputs. SAT will try to prove all of them.\n", Abc_NtkPoNum(pNtk) );

    // load clauses into the sat_solver
    clk = Abc_Clock();
    pSat = (sat_solver *)Abc_NtkMiterSatCreate( pNtk, 0 );
    if ( pSat == NULL )
        return 1;
//printf( "%d \n", pSat->clauses.size );
//sat_solver_delete( pSat );
//return 1;

//    printf( "Created SAT problem with %d variable and %d clauses. ", sat_solver_nvars(pSat), sat_solver_nclauses(pSat) );
//    ABC_PRT( "Time", Abc_Clock() - clk );

    // simplify the problem
    clk = Abc_Clock();
    status = sat_solver_simplify(pSat);
//    printf( "Simplified the problem to %d variables and %d clauses. ", sat_solver_nvars(pSat), sat_solver_nclauses(pSat) );
//    ABC_PRT( "Time", Abc_Clock() - clk );
    if ( status == 0 )
    {
        sat_solver_delete( pSat );
//        printf( "The problem is UNSATISFIABLE after simplification.\n" );
        return 1;
    }

    // solve the miter
    clk = Abc_Clock();
    if ( fVerbose )
        pSat->verbosity = 1;
    status = sat_solver_solve( pSat, NULL, NULL, (ABC_INT64_T)nConfLimit, (ABC_INT64_T)nInsLimit, (ABC_INT64_T)0, (ABC_INT64_T)0 );
    if ( status == l_Undef )
    {
//        printf( "The problem timed out.\n" );
        RetValue = -1;
    }
    else if ( status == l_True )
    {
//        printf( "The problem is SATISFIABLE.\n" );
        RetValue = 0;
    }
    else if ( status == l_False )
    {
//        printf( "The problem is UNSATISFIABLE.\n" );
        RetValue = 1;
    }
    else
        assert( 0 );
//    ABC_PRT( "SAT sat_solver time", Abc_Clock() - clk );
//    printf( "The number of conflicts = %d.\n", (int)pSat->sat_solver_stats.conflicts );

    // if the problem is SAT, get the counterexample
    if ( status == l_True )
    {
//        Vec_Int_t * vCiIds = Abc_NtkGetCiIds( pNtk );
        Vec_Int_t * vCiIds = Abc_NtkGetCiSatVarNums( pNtk );
        pNtk->pModel = Sat_SolverGetModel( pSat, vCiIds->pArray, vCiIds->nSize );
        Vec_IntFree( vCiIds );
    }
    // free the sat_solver
    if ( fVerbose )
        Sat_SolverPrintStats( stdout, pSat );

    if ( pNumConfs )
        *pNumConfs = (int)pSat->stats.conflicts;
    if ( pNumInspects )
        *pNumInspects = (int)pSat->stats.inspects;

sat_solver_store_write( pSat, "trace.cnf" );
sat_solver_store_free( pSat );

    sat_solver_delete( pSat );
    return RetValue;
}

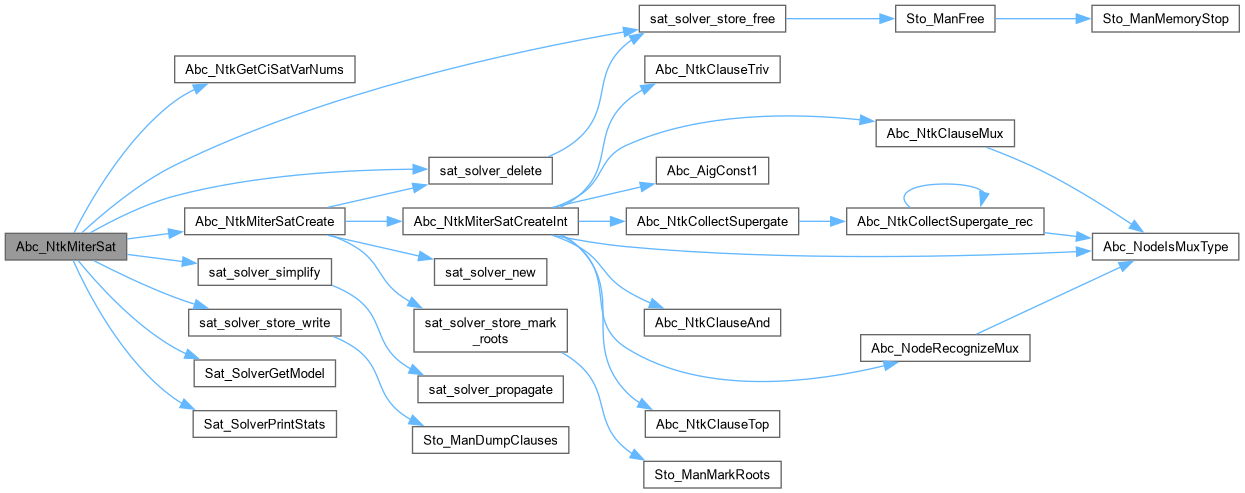

Here is the call graph for this function:

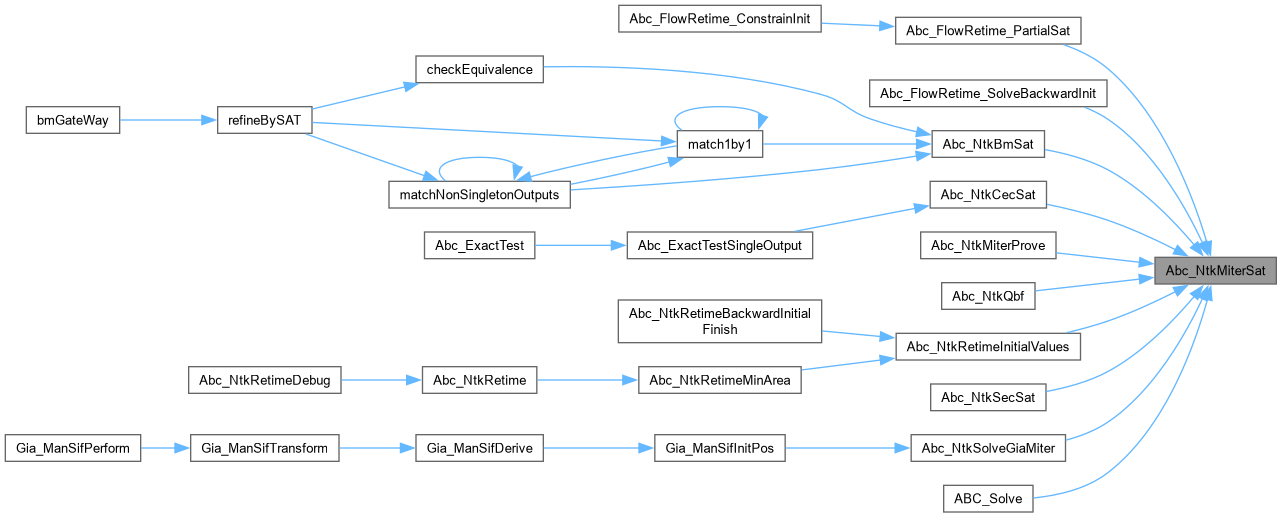

Here is the caller graph for this function:

Abc_NtkMiterSatCreate()

void * Abc_NtkMiterSatCreate	(	Abc_Ntk_t *	pNtk,
		int	fAllPrimes )

Function*************************************************************

Synopsis [Sets up the SAT sat_solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 664 of file abcSat.c.

{
    sat_solver * pSat;
    Abc_Obj_t * pNode;
    int RetValue, i; //, clk = Abc_Clock();

    assert( Abc_NtkIsStrash(pNtk) || Abc_NtkIsBddLogic(pNtk) );
    if ( Abc_NtkIsBddLogic(pNtk) )
        return Abc_NtkMiterSatCreateLogic(pNtk, fAllPrimes);

    nMuxes = 0;
    pSat = sat_solver_new();
//sat_solver_store_alloc( pSat );
    RetValue = Abc_NtkMiterSatCreateInt( pSat, pNtk );
sat_solver_store_mark_roots( pSat );

    Abc_NtkForEachObj( pNtk, pNode, i )
        pNode->fMarkA = 0;
//    ASat_SolverWriteDimacs( pSat, "temp_sat.cnf", NULL, NULL, 1 );
    if ( RetValue == 0 )
    {
        sat_solver_delete(pSat);
        return NULL;
    }
//    printf( "Ands = %6d.  Muxes = %6d (%5.2f %%).  ", Abc_NtkNodeNum(pNtk), nMuxes, 300.0*nMuxes/Abc_NtkNodeNum(pNtk) );
//    ABC_PRT( "Creating sat_solver", Abc_Clock() - clk );
    return pSat;
}

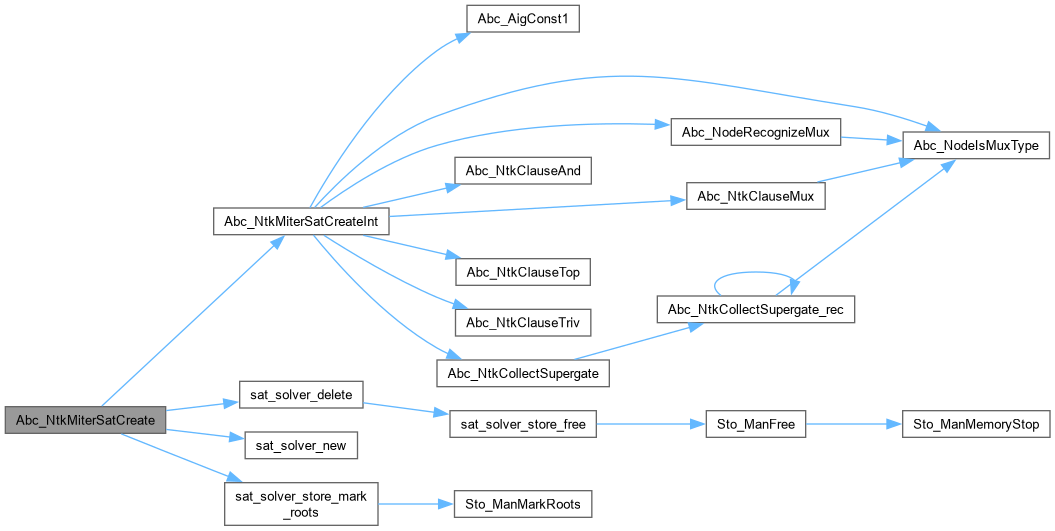

Here is the call graph for this function:

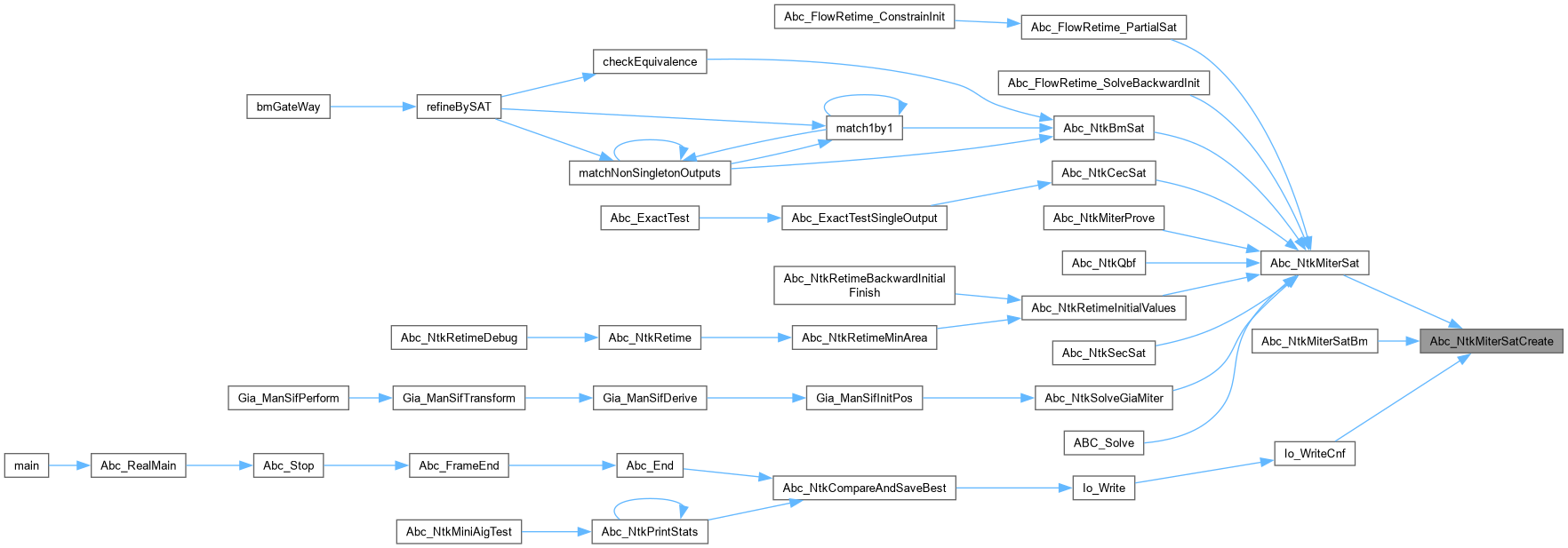

Here is the caller graph for this function:

Abc_NtkMiterSatCreateInt()

int Abc_NtkMiterSatCreateInt	(	sat_solver *	pSat,
		Abc_Ntk_t *	pNtk )

Function*************************************************************

Synopsis [Sets up the SAT sat_solver.]

Description []

SideEffects []

SeeAlso []

Definition at line 501 of file abcSat.c.

{
    Abc_Obj_t * pNode, * pFanin, * pNodeC, * pNodeT, * pNodeE;
    Vec_Ptr_t * vNodes, * vSuper;
    Vec_Int_t * vVars;
    int i, k, fUseMuxes = 1;
//    int fOrderCiVarsFirst = 0;
    int RetValue = 0;

    assert( Abc_NtkIsStrash(pNtk) );

    // clean the CI node pointers
    Abc_NtkForEachCi( pNtk, pNode, i )
        pNode->pCopy = NULL;

    // start the data structures
    vNodes  = Vec_PtrAlloc( 1000 );   // the nodes corresponding to vars in the sat_solver
    vSuper  = Vec_PtrAlloc( 100 );    // the nodes belonging to the given implication supergate
    vVars   = Vec_IntAlloc( 100 );    // the temporary array for variables in the clause

    // add the clause for the constant node
    pNode = Abc_AigConst1(pNtk);
    pNode->fMarkA = 1;
    pNode->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)vNodes->nSize;
    Vec_PtrPush( vNodes, pNode );
    Abc_NtkClauseTriv( pSat, pNode, vVars );
/*
    // add the PI variables first
    Abc_NtkForEachCi( pNtk, pNode, i )
    {
        pNode->fMarkA = 1;
        pNode->pCopy = (Abc_Obj_t *)vNodes->nSize;
        Vec_PtrPush( vNodes, pNode );
    }
*/
    // collect the nodes that need clauses and top-level assignments
    Vec_PtrClear( vSuper );
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        // get the fanin
        pFanin = Abc_ObjFanin0(pNode);
        // create the node's variable
        if ( pFanin->fMarkA == 0 )
        {
            pFanin->fMarkA = 1;
            pFanin->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)vNodes->nSize;
            Vec_PtrPush( vNodes, pFanin );
        }
        // add the trivial clause
        Vec_PtrPush( vSuper, Abc_ObjChild0(pNode) );
    }
    if ( !Abc_NtkClauseTop( pSat, vSuper, vVars ) )
        goto Quits;


    // add the clauses
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
    {
        assert( !Abc_ObjIsComplement(pNode) );
        if ( !Abc_AigNodeIsAnd(pNode) )
            continue;
//printf( "%d ", pNode->Id );

        // add the clauses
        if ( fUseMuxes && Abc_NodeIsMuxType(pNode) )
        {
            nMuxes++;

            pNodeC = Abc_NodeRecognizeMux( pNode, &pNodeT, &pNodeE );
            Vec_PtrClear( vSuper );
            Vec_PtrPush( vSuper, pNodeC );
            Vec_PtrPush( vSuper, pNodeT );
            Vec_PtrPush( vSuper, pNodeE );
            // add the fanin nodes to explore
            Vec_PtrForEachEntry( Abc_Obj_t *, vSuper, pFanin, k )
            {
                pFanin = Abc_ObjRegular(pFanin);
                if ( pFanin->fMarkA == 0 )
                {
                    pFanin->fMarkA = 1;
                    pFanin->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)vNodes->nSize;
                    Vec_PtrPush( vNodes, pFanin );
                }
            }
            // add the clauses
            if ( !Abc_NtkClauseMux( pSat, pNode, pNodeC, pNodeT, pNodeE, vVars ) )
                goto Quits;
        }
        else
        {
            // get the supergate
            Abc_NtkCollectSupergate( pNode, fUseMuxes, vSuper );
            // add the fanin nodes to explore
            Vec_PtrForEachEntry( Abc_Obj_t *, vSuper, pFanin, k )
            {
                pFanin = Abc_ObjRegular(pFanin);
                if ( pFanin->fMarkA == 0 )
                {
                    pFanin->fMarkA = 1;
                    pFanin->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)vNodes->nSize;
                    Vec_PtrPush( vNodes, pFanin );
                }
            }
            // add the clauses
            if ( vSuper->nSize == 0 )
            {
                if ( !Abc_NtkClauseTriv( pSat, Abc_ObjNot(pNode), vVars ) )
//                if ( !Abc_NtkClauseTriv( pSat, pNode, vVars ) )
                    goto Quits;
            }
            else
            {
                if ( !Abc_NtkClauseAnd( pSat, pNode, vSuper, vVars ) )
                    goto Quits;
            }
        }
    }
/*
    // set preferred variables
    if ( fOrderCiVarsFirst )
    {
        int * pPrefVars = ABC_ALLOC( int, Abc_NtkCiNum(pNtk) );
        int nVars = 0;
        Abc_NtkForEachCi( pNtk, pNode, i )
        {
            if ( pNode->fMarkA == 0 )
                continue;
            pPrefVars[nVars++] = (int)pNode->pCopy;
        }
        nVars = Abc_MinInt( nVars, 10 );
        ASat_SolverSetPrefVars( pSat, pPrefVars, nVars );
    }
*/
/*
    Abc_NtkForEachObj( pNtk, pNode, i )
    {
        if ( !pNode->fMarkA )
            continue;
        printf( "%10s : ", Abc_ObjName(pNode) );
        printf( "%3d\n", (int)pNode->pCopy );
    }
    printf( "\n" );
*/
    RetValue = 1;
Quits :
    // delete
    Vec_IntFree( vVars );
    Vec_PtrFree( vNodes );
    Vec_PtrFree( vSuper );
    return RetValue;
}

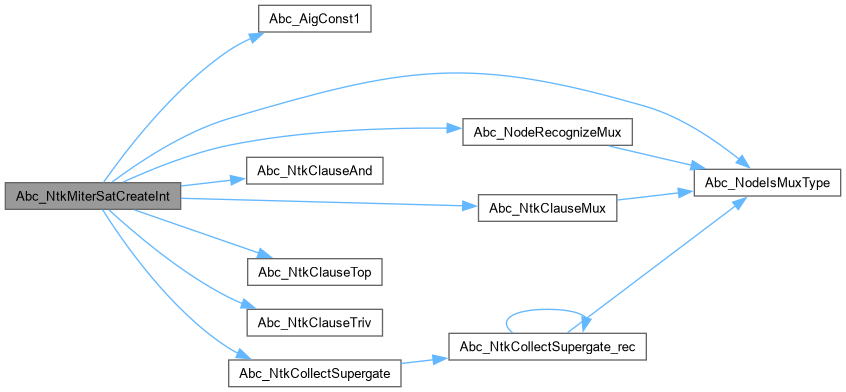

Here is the call graph for this function:

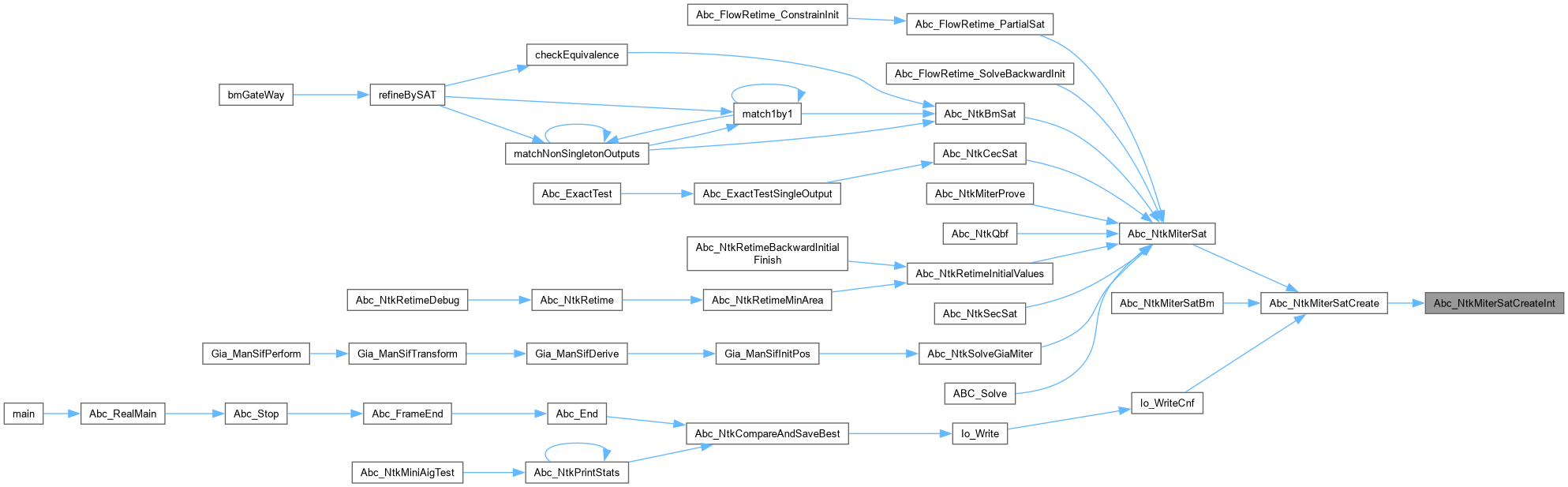

Here is the caller graph for this function:

Abc_NtkNodeFactor()

int Abc_NtkNodeFactor	(	Abc_Obj_t *	pObj,
		int	nLevelMax )

Function*************************************************************

Synopsis [Computes the factor of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 481 of file abcSat.c.

{
//  nLevelMax = ((nLevelMax)/2)*3;
    assert( (int)pObj->Level <= nLevelMax );
//    return (int)(100000000.0 * pow(0.999, nLevelMax - pObj->Level));
    return (int)(100000000.0 * (1 + 0.01 * pObj->Level));
//    return (int)(100000000.0 / ((nLevelMax)/2)*3 - pObj->Level);
}

Abc_NtkSolveGiaMiter()

int * Abc_NtkSolveGiaMiter

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 159 of file abcSat.c.

{
    extern Abc_Ntk_t * Abc_NtkFromAigPhase( Aig_Man_t * pMan );
    int RetValue = 0;
    int * pResult = NULL;
    Abc_Ntk_t * pNtk;
    Aig_Man_t * pMan;
    pMan = Gia_ManToAig( p, 0 );
    pNtk = Abc_NtkFromAigPhase( pMan );
    pNtk->pName = Extra_UtilStrsav(p->pName);
    Aig_ManStop( pMan );
    RetValue = Abc_NtkMiterSat( pNtk, 1000000, 0, 0, NULL, NULL );
    if ( RetValue == 0 ) // sat
        pResult = pNtk->pModel, pNtk->pModel = NULL;
    Abc_NtkDelete( pNtk );
    return pResult;
}

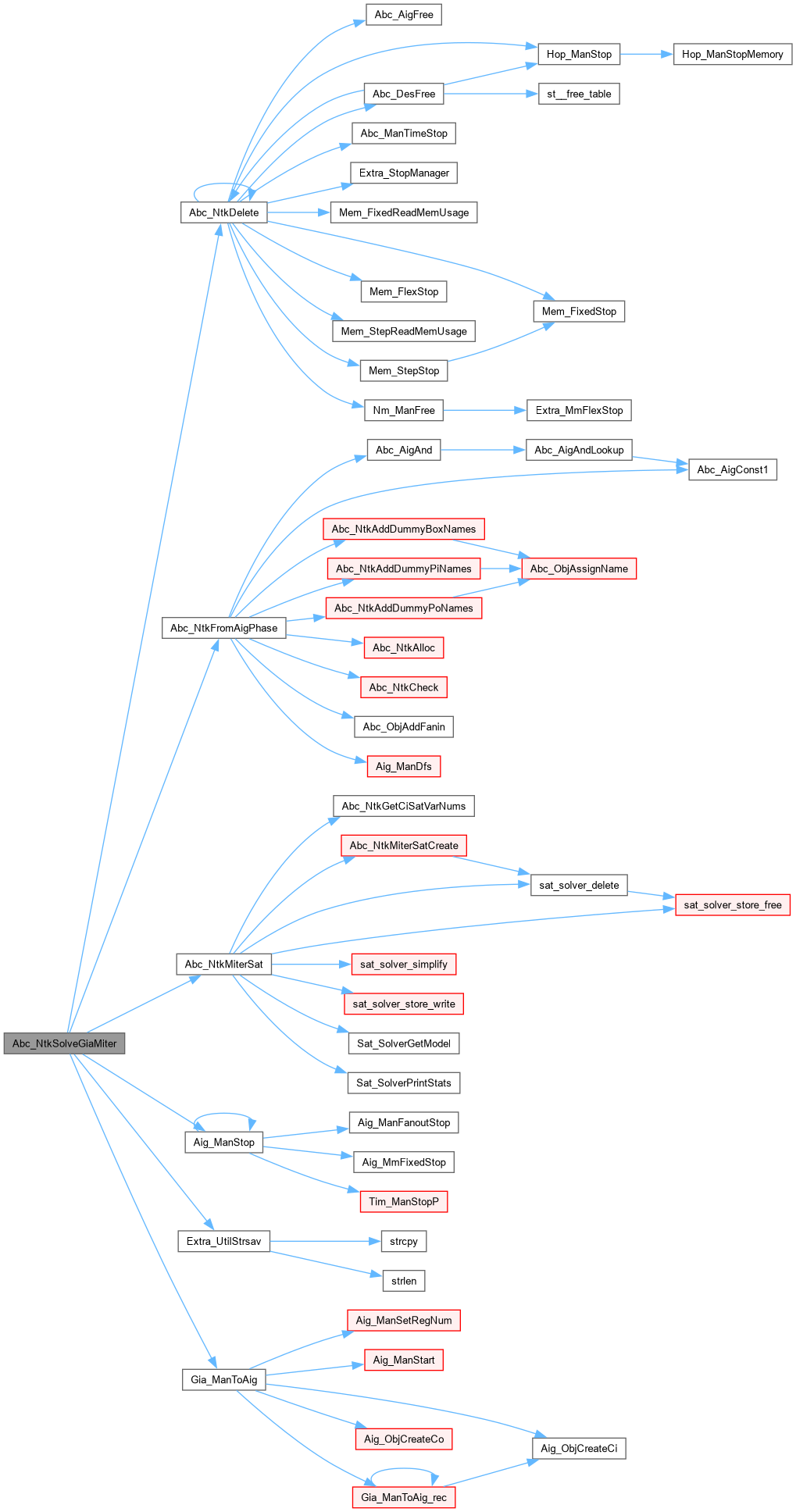

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkWriteSorterCnf()

void Abc_NtkWriteSorterCnf	(	char *	pFileName,
		int	nVars,
		int	nQueens )

Function*************************************************************

Synopsis [Writes CNF for the sorter with N inputs asserting Q ones.]

Description []

SideEffects []

SeeAlso []

Definition at line 945 of file abcSat.c.

{
    char Command[100];
    void * pAbc;
    Abc_Ntk_t * pNtk;
    Abc_Obj_t * pObj, * ppNodes[2], * ppRoots[2];
    Vec_Ptr_t * vNodes;
    FILE * pFile;
    int i, Counter;

    if ( nQueens <= 0 && nQueens >= nVars )
    {
        printf( "The number of queens (Q = %d) should belong to the interval: 0 < Q < %d.\n", nQueens, nQueens);
        return;
    }
    assert( nQueens > 0 && nQueens < nVars );
    pAbc = Abc_FrameGetGlobalFrame();
    // generate sorter
    sprintf( Command, "gen -s -N %d sorter%d.blif", nVars, nVars );
    if ( Cmd_CommandExecute( (Abc_Frame_t *)pAbc, Command ) )
    {
        fprintf( stdout, "Cannot execute command \"%s\".\n", Command );
        return;
    }
    // read the file
    sprintf( Command, "read sorter%d.blif; strash", nVars );
    if ( Cmd_CommandExecute( (Abc_Frame_t *)pAbc, Command ) )
    {
        fprintf( stdout, "Cannot execute command \"%s\".\n", Command );
        return;
    }

    // get the current network
    pNtk = Abc_FrameReadNtk((Abc_Frame_t *)pAbc);
    // collect the nodes for the given two primary outputs
    ppNodes[0] = Abc_NtkPo( pNtk, nVars - nQueens - 1 );
    ppNodes[1] = Abc_NtkPo( pNtk, nVars - nQueens );
    ppRoots[0] = Abc_ObjFanin0( ppNodes[0] );
    ppRoots[1] = Abc_ObjFanin0( ppNodes[1] );
    vNodes = Abc_NtkDfsNodes( pNtk, ppRoots, 2 );

    // assign CNF variables
    Counter = 0;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)~0;
    Abc_NtkForEachPi( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)Counter++;
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)(ABC_PTRINT_T)Counter++;

/*
        OutVar   = pCnf->pVarNums[ pObj->Id ];
        pVars[0] = pCnf->pVarNums[ Aig_ObjFanin0(pObj)->Id ];
        pVars[1] = pCnf->pVarNums[ Aig_ObjFanin1(pObj)->Id ];

        // positive phase
        *pClas++ = pLits;
        *pLits++ = 2 * OutVar;
        *pLits++ = 2 * pVars[0] + !Aig_ObjFaninC0(pObj);
        *pLits++ = 2 * pVars[1] + !Aig_ObjFaninC1(pObj);
        // negative phase
        *pClas++ = pLits;
        *pLits++ = 2 * OutVar + 1;
        *pLits++ = 2 * pVars[0] + Aig_ObjFaninC0(pObj);
        *pClas++ = pLits;
        *pLits++ = 2 * OutVar + 1;
        *pLits++ = 2 * pVars[1] + Aig_ObjFaninC1(pObj);
*/

    // add clauses for these nodes
    pFile = fopen( pFileName, "w" );
    fprintf( pFile, "c CNF for %d-bit sorter with %d bits set to 1 generated by ABC.\n", nVars, nQueens );
    fprintf( pFile, "p cnf %d %d\n", Counter, 3 * Vec_PtrSize(vNodes) + 2 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        // positive phase
        fprintf( pFile, "%d %s%d %s%d 0\n", 1+(int)(ABC_PTRINT_T)pObj->pCopy,
            Abc_ObjFaninC0(pObj)? "" : "-", 1+(int)(ABC_PTRINT_T)Abc_ObjFanin0(pObj)->pCopy,
            Abc_ObjFaninC1(pObj)? "" : "-", 1+(int)(ABC_PTRINT_T)Abc_ObjFanin1(pObj)->pCopy );
        // negative phase
        fprintf( pFile, "-%d %s%d 0\n",     1+(int)(ABC_PTRINT_T)pObj->pCopy,
            Abc_ObjFaninC0(pObj)? "-" : "", 1+(int)(ABC_PTRINT_T)Abc_ObjFanin0(pObj)->pCopy );
        fprintf( pFile, "-%d %s%d 0\n",     1+(int)(ABC_PTRINT_T)pObj->pCopy,
            Abc_ObjFaninC1(pObj)? "-" : "", 1+(int)(ABC_PTRINT_T)Abc_ObjFanin1(pObj)->pCopy );
    }
    Vec_PtrFree( vNodes );

/*
    *pClas++ = pLits;
    *pLits++ = 2 * OutVar + Aig_ObjFaninC0(pObj);
*/
    // assert the first literal to zero
    fprintf( pFile, "%s%d 0\n",
        Abc_ObjFaninC0(ppNodes[0])? "" : "-", 1+(int)(ABC_PTRINT_T)Abc_ObjFanin0(ppNodes[0])->pCopy );
    // assert the second literal to one
    fprintf( pFile, "%s%d 0\n",
        Abc_ObjFaninC0(ppNodes[1])? "-" : "", 1+(int)(ABC_PTRINT_T)Abc_ObjFanin0(ppNodes[1])->pCopy );
    fclose( pFile );
}

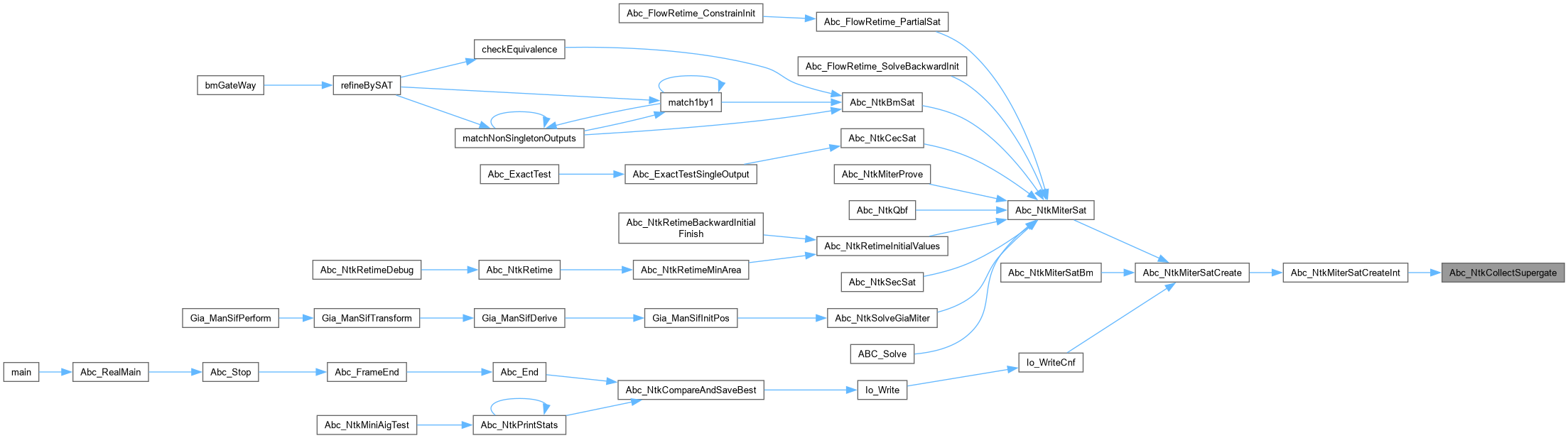

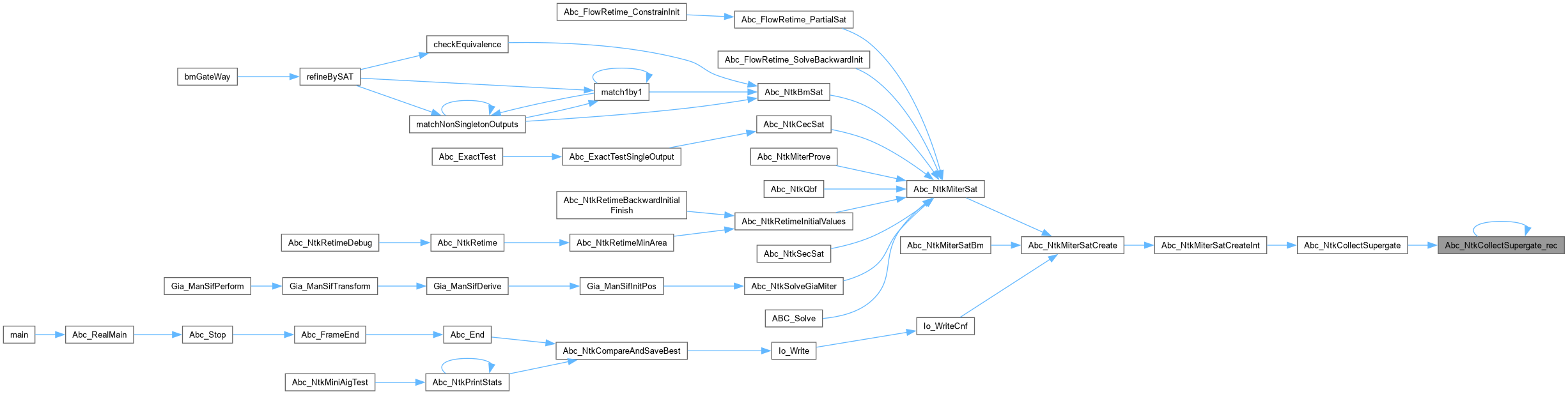

Here is the call graph for this function:
