giaMinLut.c File Reference

#include "gia.h"
#include "giaAig.h"
#include "base/main/mainInt.h"
#include "opt/sfm/sfm.h"

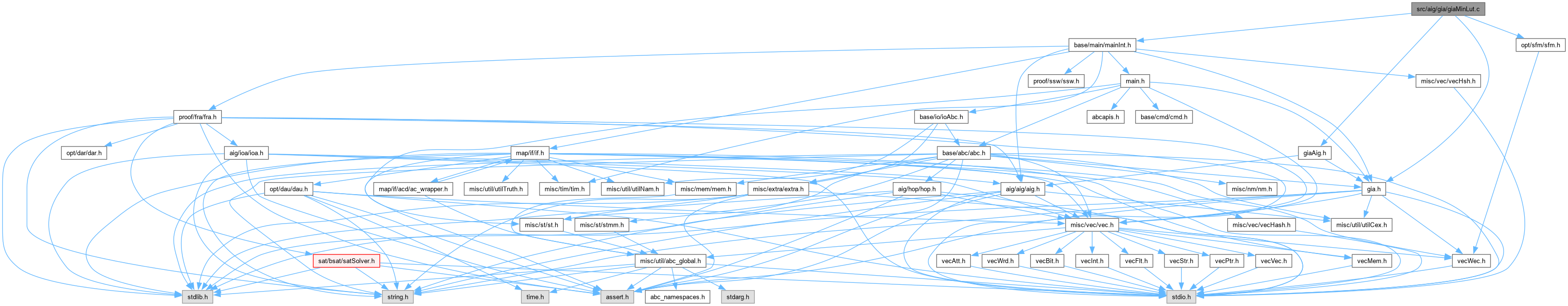

Include dependency graph for giaMinLut.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Abc_Ntk_t *	Abc_NtkFromAigPhase (Aig_Man_t *pMan)
	DECLARATIONS ///.
Vec_Wec_t *	Vec_WrdReadLayerText (char *pFileName, int *pnIns, int *pnOuts)
	FUNCTION DEFINITIONS ///.
int	Vec_WrdReadTruthTextOne (char *pFileName, int nIns, int nOuts, word *pRes)
word *	Vec_WrdReadTruthText (char *pFileName, int nIns, int nOuts, int nFiles)
Gia_Man_t *	Vec_WrdReadTest (char *pFileName)
void	Vec_WrdReadText (char *pFileName, Vec_Wrd_t **pvSimI, Vec_Wrd_t **pvSimO, int nIns, int nOuts)
int	Vec_WrdReadText2 (char *pFileName, Vec_Wrd_t **pvSimI)
Vec_Int_t *	Vec_WrdReadNumsOut (char *pFileName, int fVerbose)
Vec_Wrd_t *	Vec_WrdReadTextOut (char *pFileName, int nOuts)
void	Gia_ManReadSimInfoInputs (char *pFileName, char *pFileOut1, int fVerbose)
void	Gia_ManReadSimInfoOutputs (char *pFileName, char *pFileOut, int nOuts)
Vec_Wrd_t *	Vec_WrdZoneExtract (int ZoneSize, Vec_Wrd_t *p, int iWord, int nWords)
void	Vec_WrdZoneInsert (Vec_Wrd_t *pNew, int ZoneSize, Vec_Wrd_t *p, int iWord, int nWords)
void	Gia_ManSimInfoPrintOne (Gia_Man_t *p, Vec_Wrd_t *vSimsIn, Vec_Wrd_t *vSimsOut, int nWords, int nPats)
Vec_Wrd_t *	Gia_ManSimInfoTryOne (Gia_Man_t *p, Vec_Wrd_t *vSimI, int fPrint)
int	Gia_ManSimEvalOne (Gia_Man_t *p, Vec_Wrd_t *vSimO, Vec_Wrd_t *vSimO_new)
int	Gia_ManSimEvalOne2 (Gia_Man_t *p, Vec_Wrd_t *vSimO, Vec_Wrd_t *vSimO_new)
int	Gia_ManSimEvalMaxValue (Vec_Wrd_t *vSimO, int nWords, int nOuts, int nBits, int iPat)
int	Gia_ManSimEvalOne3 (Gia_Man_t *p, Vec_Wrd_t *vSimO, Vec_Int_t *vValues, int nBits)
Vec_Wrd_t *	Gia_ManSimInfoTry (Gia_Man_t *p, Vec_Wrd_t *vSimI)
int	Gia_ManSimInfoEval_old (Gia_Man_t *p, Vec_Wrd_t *vSimO, Vec_Wrd_t *vSimO_new)
void	Gia_ManSimInfoPassTest (Gia_Man_t *p, char *pFileName, char *pFileName2, int fVerbose)
void	Gia_ManSimInfoEval (Gia_Man_t *p, char *pFileName, char *pFileName2, int nOuts, int fVerbose)
word *	Gia_ManCountFraction (Gia_Man_t *p, Vec_Wrd_t *vSimI, Vec_Int_t *vSupp, int Thresh, int fVerbose, int *pCare)
void	Gia_ManPermuteSupp_rec (Gia_Man_t *p, int iObj, Vec_Int_t *vLevels, Vec_Int_t *vCounts)
void	Gia_ManPermuteSupp (Gia_Man_t *p, int iOut, int nOuts, Vec_Int_t *vSupp)
void	Gia_ManCollectSupp_rec (Gia_Man_t *p, int iObj, Vec_Int_t *vSupp)
Vec_Int_t *	Gia_ManCollectSupp (Gia_Man_t *p, int iOut, int nOuts)
Vec_Int_t *	Gia_ManCollectSuppNew (Gia_Man_t *p, int iOut, int nOuts)
int	Gia_ManPerformLNetOpt_rec (Gia_Man_t *pNew, Gia_Man_t *p, Gia_Obj_t *pObj)
Gia_Man_t *	Gia_ManPerformLNetOpt (Gia_Man_t *p, int fTryNew, char *pFileName, int nIns, int nOuts, int Thresh, int nRounds, int fVerbose)
Gia_Man_t *	Gia_ManPerformLNetOptNew (Gia_Man_t *p, char *pFileName, int nIns, int nOuts, int Thresh, int nRounds, int fVerbose)
Abc_Ntk_t *	Gia_ManPerformLNetMap (Gia_Man_t *p, int GroupSize, int fUseFixed, int fTryNew, int fVerbose)

Function Documentation

Abc_NtkFromAigPhase()

ABC_NAMESPACE_IMPL_START Abc_Ntk_t * Abc_NtkFromAigPhase ( Aig_Man_t * pMan )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [giaMinLut.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Collapsing AIG.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaMinLut.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Function*************************************************************

Synopsis [Converts the network from the AIG manager into ABC.]

Description [This procedure should be called after seq sweeping, which changes the number of registers.]

SideEffects []

SeeAlso []

Definition at line 595 of file abcDar.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObjNew;
    Aig_Obj_t * pObj, * pObjLo, * pObjLi;
    int i;
    assert( pMan->nAsserts == 0 );
    // perform strashing
    pNtkNew = Abc_NtkAlloc( ABC_NTK_STRASH, ABC_FUNC_AIG, 1 );
    pNtkNew->nConstrs = pMan->nConstrs;
    pNtkNew->nBarBufs = pMan->nBarBufs;
    // duplicate the name and the spec
//    pNtkNew->pName = Extra_UtilStrsav(pMan->pName);
//    pNtkNew->pSpec = Extra_UtilStrsav(pMan->pSpec);
    Aig_ManConst1(pMan)->pData = Abc_AigConst1(pNtkNew);
    // create PIs
    Aig_ManForEachPiSeq( pMan, pObj, i )
    {
        pObjNew = Abc_NtkCreatePi( pNtkNew );
//        Abc_ObjAssignName( pObjNew, Abc_ObjName(pObjNew), NULL );
        pObj->pData = pObjNew;
    }
    // create POs
    Aig_ManForEachPoSeq( pMan, pObj, i )
    {
        pObjNew = Abc_NtkCreatePo( pNtkNew );
//        Abc_ObjAssignName( pObjNew, Abc_ObjName(pObjNew), NULL );
        pObj->pData = pObjNew;
    }
    assert( Abc_NtkCiNum(pNtkNew) == Aig_ManCiNum(pMan) - Aig_ManRegNum(pMan) );
    assert( Abc_NtkCoNum(pNtkNew) == Aig_ManCoNum(pMan) - Aig_ManRegNum(pMan) );
    // create as many latches as there are registers in the manager
    Aig_ManForEachLiLoSeq( pMan, pObjLi, pObjLo, i )
    {
        pObjNew = Abc_NtkCreateLatch( pNtkNew );
        pObjLi->pData = Abc_NtkCreateBi( pNtkNew );
        pObjLo->pData = Abc_NtkCreateBo( pNtkNew );
        Abc_ObjAddFanin( pObjNew, (Abc_Obj_t *)pObjLi->pData );
        Abc_ObjAddFanin( (Abc_Obj_t *)pObjLo->pData, pObjNew );
        Abc_LatchSetInit0( pObjNew );
//        Abc_ObjAssignName( (Abc_Obj_t *)pObjLi->pData, Abc_ObjName((Abc_Obj_t *)pObjLi->pData), NULL );
//        Abc_ObjAssignName( (Abc_Obj_t *)pObjLo->pData, Abc_ObjName((Abc_Obj_t *)pObjLo->pData), NULL );
    }
    // rebuild the AIG
    vNodes = Aig_ManDfs( pMan, 1 );
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pObj, i )
        if ( Aig_ObjIsBuf(pObj) )
            pObj->pData = (Abc_Obj_t *)Aig_ObjChild0Copy(pObj);
        else
            pObj->pData = Abc_AigAnd( (Abc_Aig_t *)pNtkNew->pManFunc, (Abc_Obj_t *)Aig_ObjChild0Copy(pObj), (Abc_Obj_t *)Aig_ObjChild1Copy(pObj) );
    Vec_PtrFree( vNodes );
    // connect the PO nodes
    Aig_ManForEachCo( pMan, pObj, i )
    {
        pObjNew = (Abc_Obj_t *)Aig_ObjChild0Copy(pObj);
        Abc_ObjAddFanin( Abc_NtkCo(pNtkNew, i), pObjNew );
    }

    Abc_NtkAddDummyPiNames( pNtkNew );
    Abc_NtkAddDummyPoNames( pNtkNew );
    Abc_NtkAddDummyBoxNames( pNtkNew );

    // check the resulting AIG
    if ( !Abc_NtkCheck( pNtkNew ) )
        Abc_Print( 1, "Abc_NtkFromAigPhase(): Network check has failed.\n" );
    return pNtkNew;
}

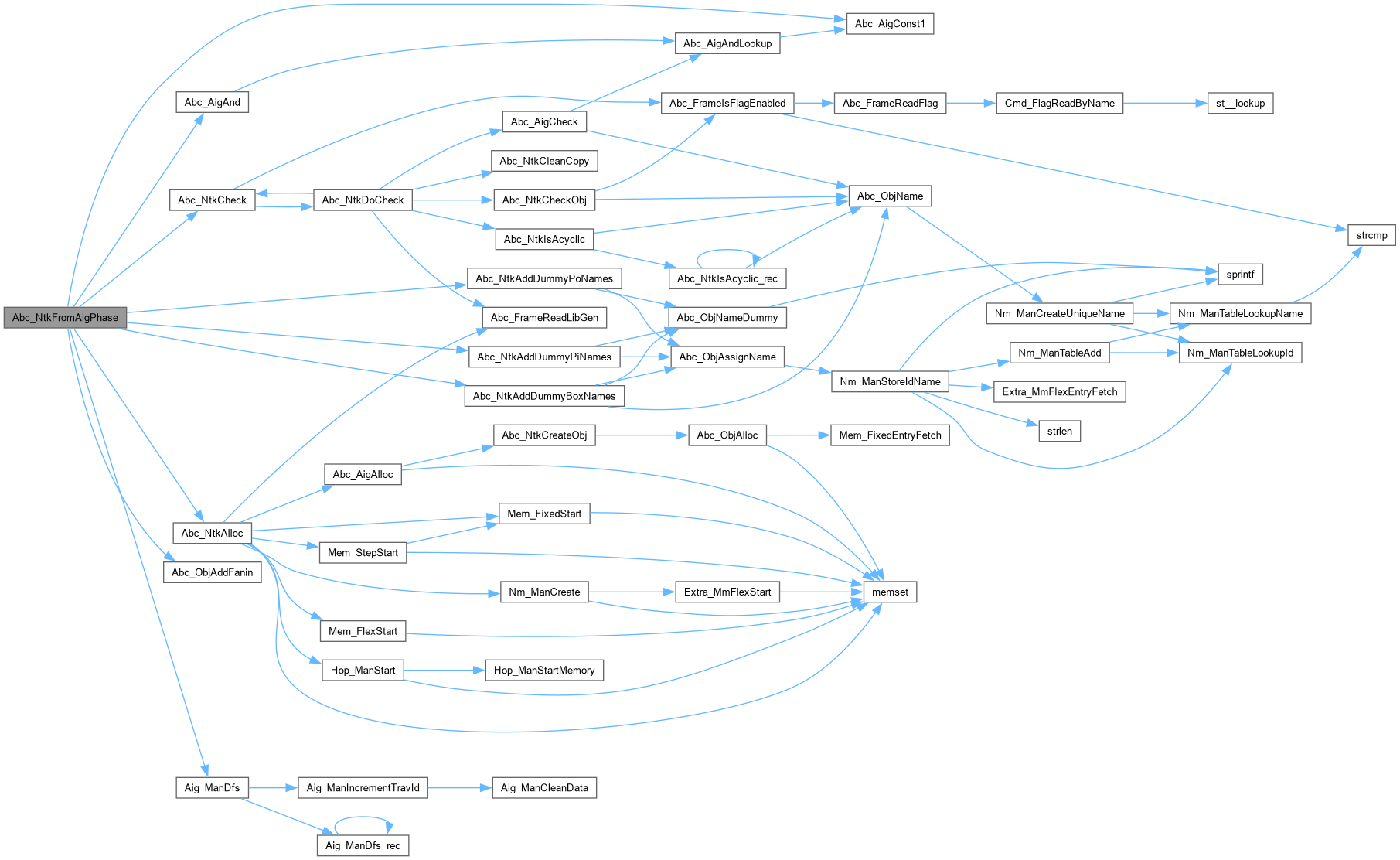

Here is the call graph for this function:

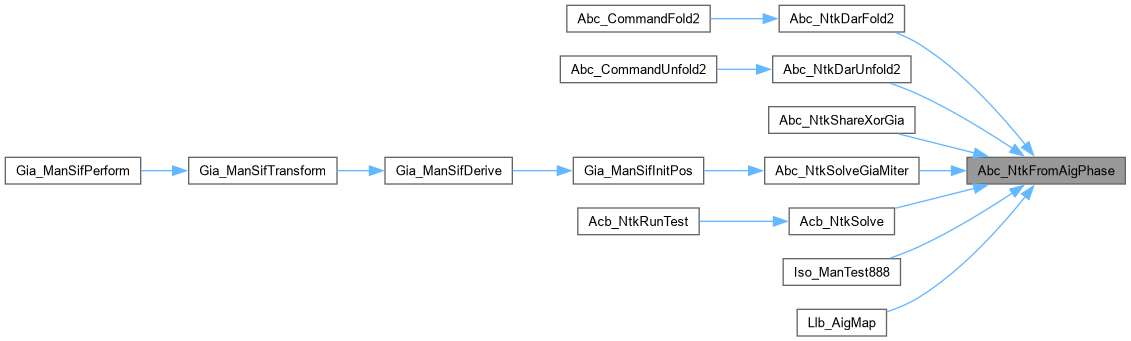

Here is the caller graph for this function:

Gia_ManCollectSupp()

Vec_Int_t * Gia_ManCollectSupp	(	Gia_Man_t *	p,
		int	iOut,
		int	nOuts )

Definition at line 624 of file giaMinLut.c.

{
    Vec_Int_t * vSupp = Vec_IntAlloc( 16 ); int i;
    Gia_ManIncrementTravId( p );
    for ( i = 0; i < nOuts; i++ )
        Gia_ManCollectSupp_rec( p, Gia_ObjFaninId0p(p, Gia_ManCo(p, iOut+i)), vSupp );
    return vSupp;
}

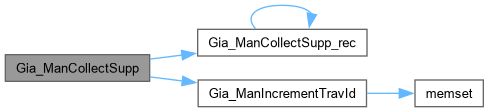

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCollectSupp_rec()

void Gia_ManCollectSupp_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Int_t *	vSupp )

Definition at line 607 of file giaMinLut.c.

{
    Gia_Obj_t * pObj;
    if ( !iObj || Gia_ObjIsTravIdCurrentId(p, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(p, iObj);
    pObj = Gia_ManObj( p, iObj );
    if ( Gia_ObjIsCi(pObj) )
    {
        //Vec_IntPush( vSupp, Gia_ObjCioId(pObj) );
        Vec_IntPush( vSupp, Gia_ObjId(p, pObj) );
        return;
    }
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ManCollectSupp_rec( p, Gia_ObjFaninId0(pObj, iObj), vSupp );
    Gia_ManCollectSupp_rec( p, Gia_ObjFaninId1(pObj, iObj), vSupp );
}

Here is the call graph for this function:

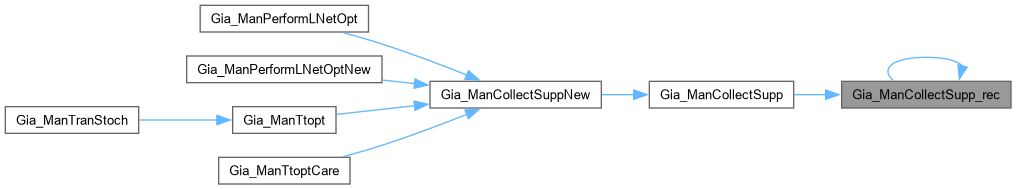

Here is the caller graph for this function:

Gia_ManCollectSuppNew()

Vec_Int_t * Gia_ManCollectSuppNew	(	Gia_Man_t *	p,
		int	iOut,
		int	nOuts )

Definition at line 632 of file giaMinLut.c.

{
    Vec_Int_t * vRes = Gia_ManCollectSupp( p, iOut, nOuts );
    Gia_ManPermuteSupp( p, iOut, nOuts, vRes );
    return vRes;
}

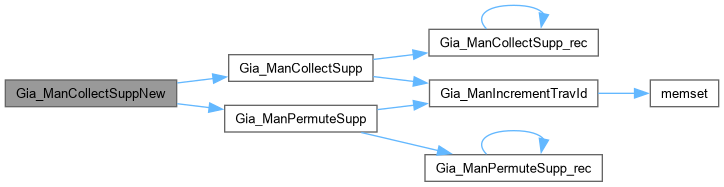

Here is the call graph for this function:

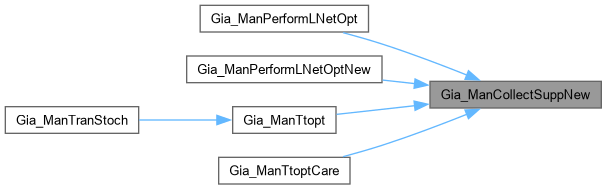

Here is the caller graph for this function:

Gia_ManCountFraction()

word * Gia_ManCountFraction	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimI,
		Vec_Int_t *	vSupp,
		int	Thresh,
		int	fVerbose,
		int *	pCare )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 531 of file giaMinLut.c.

{
    Gia_Obj_t * pObj;
    int i, k, nUsed = 0, nGood = 0;
    int nWords = Vec_WrdSize(vSimI) / Gia_ManCiNum(p);
    int nMints = 1 << Vec_IntSize(vSupp);
    word ** pSims = ABC_ALLOC( word *, Vec_IntSize(vSupp) );
    word * pRes   = ABC_CALLOC( word, Abc_Truth6WordNum(Vec_IntSize(vSupp)) );
    int * pCounts = ABC_CALLOC( int, nMints );
    Gia_ManForEachObjVec( vSupp, p, pObj, i )
        pSims[i] = Vec_WrdEntryP( vSimI, Gia_ObjCioId(pObj) * nWords );
    for ( k = 0; k < 64*nWords; k++ )
    {
        int iMint = 0;
        for ( i = 0; i < Vec_IntSize(vSupp); i++ )
            if ( Abc_TtGetBit(pSims[i], k) )
                iMint |= 1 << i;
        assert( iMint < nMints );
        pCounts[iMint]++;
    }
    for ( k = 0; k < nMints; k++ )
    {
        nUsed += (pCounts[k] > 0);
        nGood += (pCounts[k] >= Thresh);
        if ( pCounts[k] >= Thresh )
            Abc_TtXorBit( pRes, k );
        //printf( "%d ", pCounts[k] );
    }
    if ( Vec_IntSize(vSupp) < 6 )
        pRes[0] = Abc_Tt6Stretch( pRes[0], Vec_IntSize(vSupp) );
    //printf( "\n" );
    if ( fVerbose )
    printf( "Used %4d and good %4d (out of %4d).\n", nUsed, nGood, nMints );
    ABC_FREE( pSims );
    ABC_FREE( pCounts );
    *pCare = nGood;
    return pRes;
}

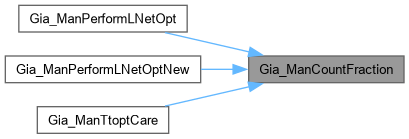

Here is the caller graph for this function:

Gia_ManPerformLNetMap()

Abc_Ntk_t * Gia_ManPerformLNetMap	(	Gia_Man_t *	p,
		int	GroupSize,
		int	fUseFixed,
		int	fTryNew,
		int	fVerbose )

Definition at line 1045 of file giaMinLut.c.

{
    return NULL;
}

Gia_ManPerformLNetOpt()

Gia_Man_t * Gia_ManPerformLNetOpt	(	Gia_Man_t *	p,
		int	fTryNew,
		char *	pFileName,
		int	nIns,
		int	nOuts,
		int	Thresh,
		int	nRounds,
		int	fVerbose )

Definition at line 647 of file giaMinLut.c.

{
    extern Gia_Man_t * Gia_TryPermOpt( word * pTruths, int nIns, int nOuts, int nWords, int nRounds, int fVerbose );
    extern Gia_Man_t * Gia_TryPermOptCare( word * pTruths, int nIns, int nOuts, int nWords, int nRounds, int fVerbose );
    extern int Kit_TruthToGia2( Gia_Man_t * p, unsigned * pTruth0, unsigned * pTruth1, int nVars, Vec_Int_t * vMemory, Vec_Int_t * vLeaves, int fHash );
    abctime clk = Abc_Clock();
    Gia_Man_t * pNew; Gia_Obj_t * pObj;
    Vec_Int_t * vMemory = Vec_IntAlloc( 1 << 18 );
    Vec_Int_t * vLeaves = Vec_IntAlloc( nIns );
    Vec_Wrd_t * vSimI = pFileName ? Vec_WrdReadBin( pFileName, fVerbose ) : NULL;
    word * pTruth0 = ABC_CALLOC( word, Abc_Truth6WordNum(nIns) );
    word * pTruth1 = ABC_CALLOC( word, Abc_Truth6WordNum(nIns) ); int g, k; float CareAve = 0;
    word * pTruthsTry = ABC_CALLOC( word, 2*nOuts*Abc_Truth6WordNum(nIns) );
    if ( vSimI && fVerbose )
    {
        //int nPats = 64*Vec_WrdSize(vSimI)/Gia_ManCiNum(p);
        printf( "Density of input  patterns %8.4f.\n", (float)Abc_TtCountOnesVec(Vec_WrdArray(vSimI), Vec_WrdSize(vSimI))/(64*Vec_WrdSize(vSimI)) );
        printf( "Using patterns with count %d and higher as cares.\n", Thresh );
    }
    Gia_ManLevelNum( p );
    Gia_ManFillValue( p );
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachCi( p, pObj, k )
        pObj->Value = Gia_ManAppendCi(pNew);
    Gia_ObjComputeTruthTableStart( p, nIns );
    Gia_ManHashStart( pNew );
    for ( g = 0; g < Gia_ManCoNum(p); g += nOuts )
    {
        Vec_Int_t * vSupp = Gia_ManCollectSuppNew( p, g, nOuts );
        int Care = 1 << Vec_IntSize(vSupp), Temp = fVerbose ? printf( "Group %3d / %3d / %3d : Supp = %3d   %s", g, nOuts, Gia_ManCoNum(p), Vec_IntSize(vSupp), vSimI ? "":"\n" ) : 0;
        word * pCare = vSimI ? Gia_ManCountFraction( p, vSimI, vSupp, Thresh, fVerbose, &Care ) : ABC_FALLOC( word, Abc_Truth6WordNum(Vec_IntSize(vSupp)) );
        int nWords = Abc_Truth6WordNum( Vec_IntSize(vSupp) );
        CareAve += 100.0*Care/(1 << Vec_IntSize(vSupp));
        assert( Vec_IntSize(vSupp) <= nIns );
        Vec_IntClear( vLeaves );
        Gia_ManForEachObjVec( vSupp, p, pObj, k )
            Vec_IntPush( vLeaves, pObj->Value );
        for ( k = 0; k < nOuts; k++ )
        {
            Gia_Obj_t * pObj = Gia_ManCo( p, g+k );
            word * pTruth = Gia_ObjComputeTruthTableCut( p, Gia_ObjFanin0(pObj), vSupp );
            Abc_TtSharp( pTruth0, pCare, pTruth, nWords );
            Abc_TtAnd( pTruth1, pCare, pTruth, nWords, 0 );
            if ( vSimI )
            {
                Abc_TtCopy( pTruthsTry + (2*k+0)*nWords, pTruth1, nWords, 0 );
                Abc_TtCopy( pTruthsTry + (2*k+1)*nWords, pTruth0, nWords, 0 );
            }
            else
                Abc_TtCopy( pTruthsTry + k*nWords, pTruth1, nWords, 0 );
            if ( !fTryNew )
            {
                pObj->Value = Kit_TruthToGia2( pNew, (unsigned *)pTruth0, (unsigned *)pTruth1, Vec_IntSize(vLeaves), vMemory, vLeaves, 1 );
                pObj->Value ^= Gia_ObjFaninC0(pObj);
            }
        }
        if ( fTryNew )
        {
            Gia_Man_t * pMin;
            if ( vSimI )
                pMin = Gia_TryPermOpt( pTruthsTry, Vec_IntSize(vSupp), 2*nOuts, nWords, nRounds, fVerbose );
            else
                pMin = Gia_TryPermOptCare( pTruthsTry, Vec_IntSize(vSupp), nOuts, nWords, nRounds, fVerbose );
            Gia_ManFillValue( pMin );
            Gia_ManConst0(pMin)->Value = 0;
            Gia_ManForEachCi( pMin, pObj, k )
                pObj->Value = Vec_IntEntry( vLeaves, k );
            for ( k = 0; k < nOuts; k++ )
            {
                Gia_Obj_t * pObj  = Gia_ManCo( p, g+k );
                Gia_Obj_t * pObj2 = Gia_ManCo( pMin, k );
                pObj->Value  = Gia_ManPerformLNetOpt_rec( pNew, pMin, Gia_ObjFanin0(pObj2) );
                pObj->Value ^= Gia_ObjFaninC0(pObj2);
                pObj->Value ^= Gia_ObjFaninC0(pObj);
            }
            Gia_ManStop( pMin );
        }
        ABC_FREE( pCare );
        Vec_IntFree( vSupp );
        Temp = 0;
    }
    CareAve /= Gia_ManCoNum(p)/nOuts;
    Gia_ManHashStop( pNew );
    Gia_ManForEachCo( p, pObj, k )
        pObj->Value = Gia_ManAppendCo( pNew, pObj->Value );
    Gia_ObjComputeTruthTableStop( p );
    ABC_FREE( pTruth0 );
    ABC_FREE( pTruth1 );
    Vec_IntFree( vLeaves );
    Vec_IntFree( vMemory );
    Vec_WrdFreeP( &vSimI );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    printf( "Using patterns with count %d and higher as cares. Average care set is %8.4f %%.  ", Thresh, CareAve );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    if ( 0 )
    {
        FILE * pTable = fopen( "stats.txt", "a+" );
        fprintf( pTable, "%0.2f ", CareAve );
        fclose( pTable );
    }
    ABC_FREE( pTruthsTry );
    return pNew;
}

Here is the call graph for this function:

Gia_ManPerformLNetOpt_rec()

int Gia_ManPerformLNetOpt_rec	(	Gia_Man_t *	pNew,
		Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Definition at line 638 of file giaMinLut.c.

{
    if ( ~pObj->Value )
        return pObj->Value;
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ManPerformLNetOpt_rec( pNew, p, Gia_ObjFanin0(pObj) );
    Gia_ManPerformLNetOpt_rec( pNew, p, Gia_ObjFanin1(pObj) );
    return pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
}

Here is the call graph for this function:

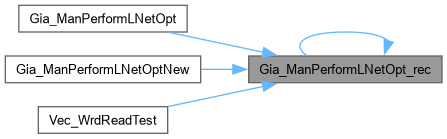

Here is the caller graph for this function:

Gia_ManPerformLNetOptNew()

Gia_Man_t * Gia_ManPerformLNetOptNew	(	Gia_Man_t *	p,
		char *	pFileName,
		int	nIns,
		int	nOuts,
		int	Thresh,
		int	nRounds,
		int	fVerbose )

Definition at line 753 of file giaMinLut.c.

{
    extern Gia_Man_t * Gia_TryPermOptNew( word * pTruths, int nIns, int nOuts, int nWords, int nRounds, int fVerbose );
    abctime clk = Abc_Clock();
    Gia_Man_t * pNew, * pMin;  Gia_Obj_t * pObj;
    Vec_Int_t * vLeaves = Vec_IntAlloc( nIns );
    Vec_Wrd_t * vSimI = pFileName ? Vec_WrdReadBin( pFileName, fVerbose ) : NULL;
    word * pTruthsTry = ABC_CALLOC( word, (nOuts+1)*Abc_Truth6WordNum(nIns) );
    int k, g;  float CareAve = 0;
    if ( vSimI && fVerbose )
    {
        //int nPats = 64*Vec_WrdSize(vSimI)/Gia_ManCiNum(p);
        printf( "Density of input  patterns %8.4f.\n", (float)Abc_TtCountOnesVec(Vec_WrdArray(vSimI), Vec_WrdSize(vSimI))/(64*Vec_WrdSize(vSimI)) );
        printf( "Using patterns with count %d and higher as cares.\n", Thresh );
    }
    Gia_ManLevelNum( p );
    Gia_ManFillValue( p );
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachCi( p, pObj, k )
        pObj->Value = Gia_ManAppendCi(pNew);
    Gia_ObjComputeTruthTableStart( p, nIns );
    Gia_ManHashStart( pNew );
    for ( g = 0; g < Gia_ManCoNum(p); g += nOuts )
    {
        for ( k = 0; k < nOuts; k++ )
            if ( Gia_ObjIsAnd(Gia_ObjFanin0(Gia_ManCo( p, g+k ))) )
                break;
        if ( k == nOuts )
        {
            for ( k = 0; k < nOuts; k++ )
            {
                Gia_Obj_t * pObj = Gia_ManCo( p, g+k );
                pObj->Value = Gia_ObjFanin0Copy(pObj);
            }
            continue;
        }
        else
        {

        Vec_Int_t * vSupp = Gia_ManCollectSuppNew( p, g, nOuts );
        int Care = 1 << Vec_IntSize(vSupp), Temp = fVerbose ? printf( "Group %3d / %3d / %3d : Supp = %3d   %s", g, nOuts, Gia_ManCoNum(p), Vec_IntSize(vSupp), vSimI ? "":"\n" ) : 0;
        word * pCare = vSimI ? Gia_ManCountFraction( p, vSimI, vSupp, Thresh, fVerbose, &Care ) : ABC_FALLOC( word, Abc_Truth6WordNum(Vec_IntSize(vSupp)) );
        int nWords = Abc_Truth6WordNum( Vec_IntSize(vSupp) );
        CareAve += 100.0*Care/(1 << Vec_IntSize(vSupp));
        assert( Vec_IntSize(vSupp) <= nIns );
        Vec_IntClear( vLeaves );
        Gia_ManForEachObjVec( vSupp, p, pObj, k )
            Vec_IntPush( vLeaves, pObj->Value );
        for ( k = 0; k < nOuts; k++ )
        {
            Gia_Obj_t * pObj = Gia_ManCo( p, g+k );
            word * pTruth = Gia_ObjComputeTruthTableCut( p, Gia_ObjFanin0(pObj), vSupp );
            Abc_TtCopy( pTruthsTry + k*nWords, pTruth, nWords, Gia_ObjFaninC0(pObj) );
        }
        Abc_TtCopy( pTruthsTry + nOuts*nWords, pCare, nWords, 0 );
        ABC_FREE( pCare );
        pMin = Gia_TryPermOptNew( pTruthsTry, Vec_IntSize(vSupp), nOuts, nWords, nRounds, fVerbose );
        Gia_ManFillValue( pMin );
        Gia_ManConst0(pMin)->Value = 0;
        Gia_ManForEachCi( pMin, pObj, k )
            pObj->Value = Vec_IntEntry( vLeaves, k );
        Gia_ManForEachCo( pMin, pObj, k )
        {
            Gia_Obj_t * pObj0 = Gia_ManCo( p, g+k );
            pObj0->Value  = Gia_ManPerformLNetOpt_rec( pNew, pMin, Gia_ObjFanin0(pObj) );
            pObj0->Value ^= Gia_ObjFaninC0(pObj);
        }
        Gia_ManStop( pMin );
        Vec_IntFree( vSupp );
        Temp = 0;

        }
    }
    CareAve /= Gia_ManCoNum(p)/nOuts;
    Gia_ManHashStop( pNew );
    Gia_ManForEachCo( p, pObj, k )
        pObj->Value = Gia_ManAppendCo( pNew, pObj->Value );
    Gia_ObjComputeTruthTableStop( p );
    Vec_IntFree( vLeaves );
    Vec_WrdFreeP( &vSimI );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    printf( "Using patterns with count %d and higher as cares. Average care set is %8.4f %%.  ", Thresh, CareAve );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    if ( 0 )
    {
        FILE * pTable = fopen( "stats.txt", "a+" );
        fprintf( pTable, "%0.2f ", CareAve );
        fclose( pTable );
    }
    ABC_FREE( pTruthsTry );
    return pNew;
}

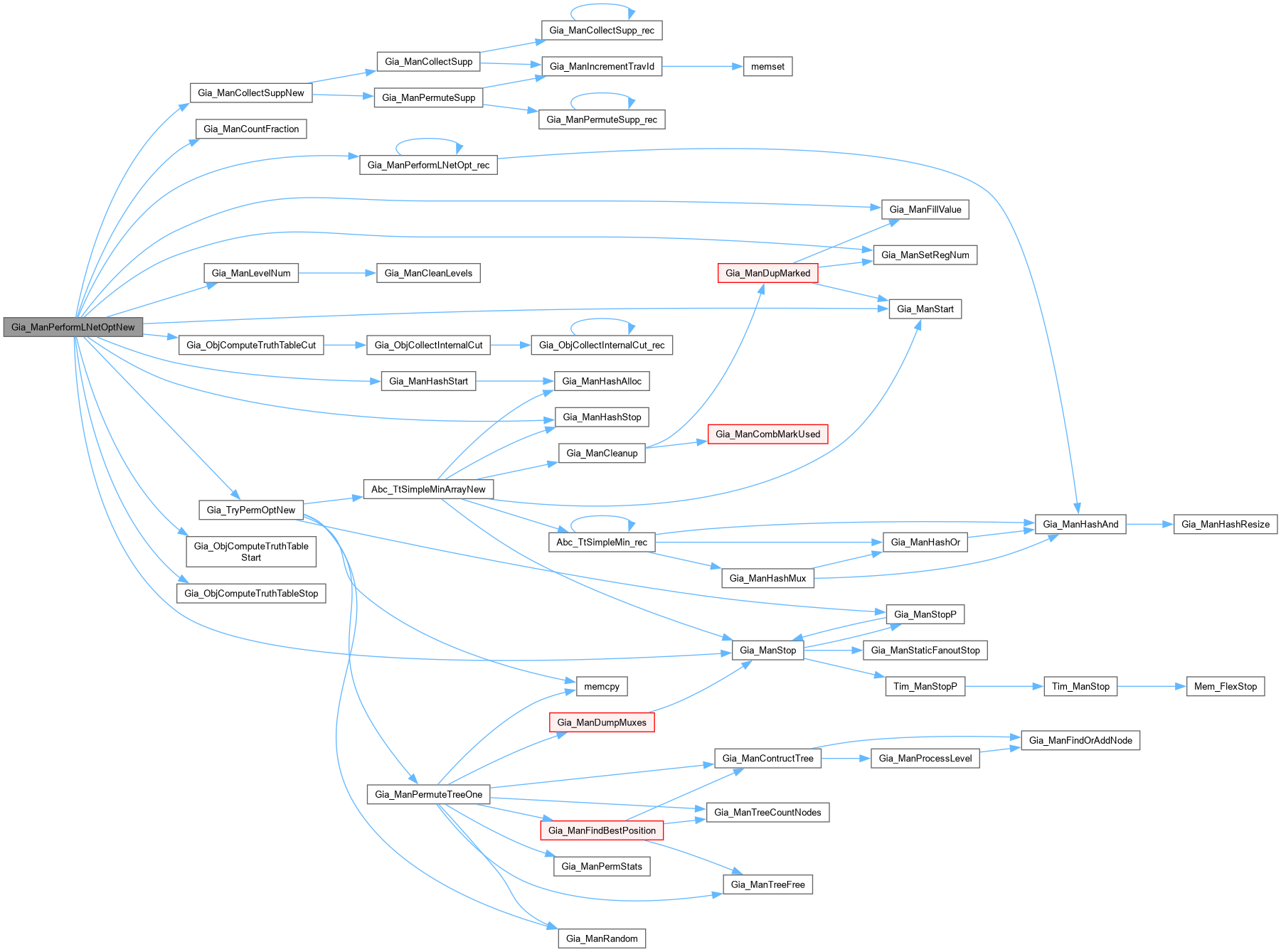

Here is the call graph for this function:

Gia_ManPermuteSupp()

void Gia_ManPermuteSupp	(	Gia_Man_t *	p,
		int	iOut,
		int	nOuts,
		Vec_Int_t *	vSupp )

Definition at line 590 of file giaMinLut.c.

{
    Vec_Int_t * vLevels = Vec_IntStart( Gia_ManCiNum(p) );
    Vec_Int_t * vCounts = Vec_IntStart( Gia_ManCiNum(p) );
    int i, * pCost = ABC_CALLOC( int, Gia_ManCiNum(p) );
    Gia_Obj_t * pObj;
    Gia_ManIncrementTravId( p );
    for ( i = 0; i < nOuts; i++ )
        Gia_ManPermuteSupp_rec( p, Gia_ObjFaninId0p(p, Gia_ManCo(p, iOut+i)), vLevels, vCounts );
    Gia_ManForEachObjVec( vSupp, p, pObj, i )
        pCost[i] = 10000 * Vec_IntEntry(vLevels, Gia_ObjCioId(pObj)) / Abc_MaxInt(1, Vec_IntEntry(vCounts, Gia_ObjCioId(pObj)));
    Vec_IntFree( vCounts );
    Vec_IntFree( vLevels );
    Vec_IntSelectSortCost2( Vec_IntArray(vSupp), Vec_IntSize(vSupp), pCost );
    assert( Vec_IntSize(vSupp) < 2 || pCost[0] <= pCost[1] );
    ABC_FREE( pCost );
}

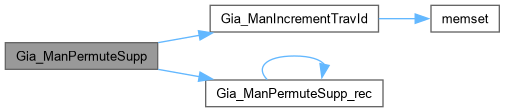

Here is the call graph for this function:

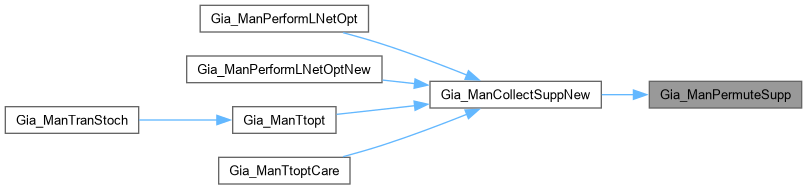

Here is the caller graph for this function:

Gia_ManPermuteSupp_rec()

void Gia_ManPermuteSupp_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Int_t *	vLevels,
		Vec_Int_t *	vCounts )

Definition at line 569 of file giaMinLut.c.

{
    Gia_Obj_t * pObj; int n;
    if ( !iObj || Gia_ObjIsTravIdCurrentId(p, iObj) )
        return;
    Gia_ObjSetTravIdCurrentId(p, iObj);
    pObj = Gia_ManObj( p, iObj );
    if ( Gia_ObjIsCi(pObj) )
        return;
    assert( Gia_ObjIsAnd(pObj) );
    Gia_ManPermuteSupp_rec( p, Gia_ObjFaninId0(pObj, iObj), vLevels, vCounts );
    Gia_ManPermuteSupp_rec( p, Gia_ObjFaninId1(pObj, iObj), vLevels, vCounts );
    for ( n = 0; n < 2; n++ )
    {
        Gia_Obj_t * pFanin = n ? Gia_ObjFanin1(pObj) : Gia_ObjFanin0(pObj);
        if ( !Gia_ObjIsCi(pFanin) )
            continue;
        Vec_IntAddToEntry( vLevels, Gia_ObjCioId(pFanin), Gia_ObjLevel(p, pObj) );
        Vec_IntAddToEntry( vCounts, Gia_ObjCioId(pFanin), 1 );
    }
}

Here is the call graph for this function:

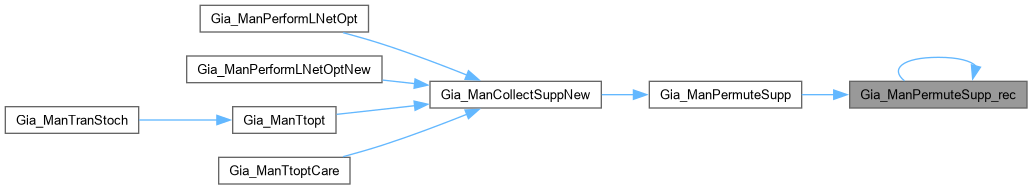

Here is the caller graph for this function:

Gia_ManReadSimInfoInputs()

void Gia_ManReadSimInfoInputs	(	char *	pFileName,
		char *	pFileOut1,
		int	fVerbose )

Definition at line 308 of file giaMinLut.c.

{
    Vec_Wrd_t * vSimI;
    Vec_WrdReadText2( pFileName, &vSimI );
    Vec_WrdDumpBin( pFileOut1, vSimI, fVerbose );
    Vec_WrdFree( vSimI );
}

Here is the call graph for this function:

Gia_ManReadSimInfoOutputs()

void Gia_ManReadSimInfoOutputs	(	char *	pFileName,
		char *	pFileOut,
		int	nOuts )

Definition at line 315 of file giaMinLut.c.

{
    Vec_Wrd_t * vSimO = Vec_WrdReadTextOut( pFileName, nOuts );
    Vec_WrdDumpBin( pFileOut, vSimO, 1 );
    Vec_WrdFree( vSimO );
}

Here is the call graph for this function:

Gia_ManSimEvalMaxValue()

int Gia_ManSimEvalMaxValue	(	Vec_Wrd_t *	vSimO,
		int	nWords,
		int	nOuts,
		int	nBits,
		int	iPat )

Definition at line 422 of file giaMinLut.c.

{
    int o, ValueMax = -1, OutMax = -1;
    for ( o = 0; o < nOuts; o++ )
    {
        int i, Value = 0;
        for ( i = 0; i < nBits; i++ )
        {
            word * pSim = Vec_WrdEntryP( vSimO, (o*nBits+i) * nWords );
            if ( Abc_TtGetBit(pSim, iPat) )
                Value |= 1 << i;
        }
        if ( ValueMax <= Value )
        {
            ValueMax = Value;
            OutMax = o;
        }
    }
    return OutMax;
}

Here is the caller graph for this function:

Gia_ManSimEvalOne()

int Gia_ManSimEvalOne	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimO,
		Vec_Wrd_t *	vSimO_new )

Definition at line 388 of file giaMinLut.c.

{
    int i, Count = 0, nWords = Vec_WrdSize(vSimO) / Gia_ManCoNum(p);
    word * pSim0 = ABC_CALLOC( word, nWords );
    assert( Vec_WrdSize(vSimO) == Vec_WrdSize(vSimO_new) );
    for ( i = 0; i < Gia_ManCoNum(p); i++ )
    {
        word * pSimGold = Vec_WrdEntryP( vSimO,     i * nWords );
        word * pSimImpl = Vec_WrdEntryP( vSimO_new, i * nWords );
        Abc_TtOrXor( pSim0, pSimImpl, pSimGold, nWords );
    }
    Count = Abc_TtCountOnesVec( pSim0, nWords );
    printf( "Number of failed patterns is %d (%8.4f %% of %d). The first one is %d.\n",
        Count, 100.0*Count/(64*nWords), 64*nWords, Abc_TtFindFirstBit2(pSim0, nWords) );
    ABC_FREE( pSim0 );
    return Count;
}

Gia_ManSimEvalOne2()

int Gia_ManSimEvalOne2	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimO,
		Vec_Wrd_t *	vSimO_new )

Definition at line 405 of file giaMinLut.c.

{
    int i, Count = 0, nWords = Vec_WrdSize(vSimO) / Gia_ManCoNum(p);
    word * pSim0 = ABC_CALLOC( word, nWords );
    assert( Vec_WrdSize(vSimO) == Vec_WrdSize(vSimO_new) );
    for ( i = 0; i < Gia_ManCoNum(p); i++ )
    {
        word * pSimGold = Vec_WrdEntryP( vSimO,     i * nWords );
        word * pSimImpl = Vec_WrdEntryP( vSimO_new, i * nWords );
        Abc_TtXor( pSim0, pSimImpl, pSimGold, nWords, 0 );
        Count += Abc_TtCountOnesVec( pSim0, nWords );
    }
    printf( "Number of failed patterns is %d (%8.4f %% of %d). The first one is %d.\n",
        Count, 100.0*Count/(64*nWords*Gia_ManCoNum(p)), 64*nWords*Gia_ManCoNum(p), Abc_TtFindFirstBit2(pSim0, nWords) );
    ABC_FREE( pSim0 );
    return Count;
}

Here is the caller graph for this function:

Gia_ManSimEvalOne3()

int Gia_ManSimEvalOne3	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimO,
		Vec_Int_t *	vValues,
		int	nBits )

Definition at line 442 of file giaMinLut.c.

{
    int i, Value, nOuts = Gia_ManCoNum(p) / nBits;
    int First = -1, Count = 0, nWords = Vec_WrdSize(vSimO) / Gia_ManCoNum(p);
    assert( Gia_ManCoNum(p) % nBits == 0 );
    assert( 64*(nWords-1) < Vec_IntSize(vValues) && Vec_IntSize(vValues) <= 64*nWords );
    Vec_IntForEachEntry( vValues, Value, i )
        if ( Value == Gia_ManSimEvalMaxValue(vSimO, nWords, nOuts, nBits, i) )
        {
            Count++;
            if ( First == -1 )
                First = i;
        }
    printf( "The accuracy is %8.4f %% (%d out of %d output are correct, for example, output number %d).\n",
        100.0*Count/Vec_IntSize(vValues), Count, Vec_IntSize(vValues), First );
    if ( 0 )
    {
        FILE * pTable = fopen( "stats.txt", "a+" );
        fprintf( pTable, "%0.2f \n", 100.0*Count/Vec_IntSize(vValues) );
        fclose( pTable );
    }
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSimInfoEval()

void Gia_ManSimInfoEval	(	Gia_Man_t *	p,
		char *	pFileName,
		char *	pFileName2,
		int	nOuts,
		int	fVerbose )

Definition at line 505 of file giaMinLut.c.

{
    abctime clk = Abc_Clock();
    Vec_Wrd_t * vSim1 = Vec_WrdReadBin( pFileName, fVerbose );
    Vec_Int_t * vNums = Vec_WrdReadNumsOut( pFileName2, fVerbose );
    assert( nOuts > 0 );
    if ( fVerbose )
    printf( "Density of input  patterns %8.4f.\n", (float)Abc_TtCountOnesVec(Vec_WrdArray(vSim1), Vec_WrdSize(vSim1))/(64*Vec_WrdSize(vSim1)) );
    Gia_ManSimEvalOne3( p, vSim1, vNums, nOuts );
    Vec_WrdFree( vSim1 );
    Vec_IntFree( vNums );
    if ( fVerbose )
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
}

Here is the call graph for this function:

Gia_ManSimInfoEval_old()

int Gia_ManSimInfoEval_old	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimO,
		Vec_Wrd_t *	vSimO_new )

Definition at line 482 of file giaMinLut.c.

{
    int nResult = Gia_ManSimEvalOne2(p, vSimO, vSimO_new);
    //Vec_WrdDumpBin( "temp.simo", vSimO_new, 1 );
    printf( "Total errors = %d.  ", nResult );
    printf( "Density of output patterns %8.4f.\n", (float)Abc_TtCountOnesVec(Vec_WrdArray(vSimO_new), Vec_WrdSize(vSimO_new))/(64*Vec_WrdSize(vSimO_new)) );
    return nResult;
}

Here is the call graph for this function:

Gia_ManSimInfoPassTest()

void Gia_ManSimInfoPassTest	(	Gia_Man_t *	p,
		char *	pFileName,
		char *	pFileName2,
		int	fVerbose )

Definition at line 490 of file giaMinLut.c.

{
    abctime clk = Abc_Clock();
    Vec_Wrd_t * vSimI = Vec_WrdReadBin( pFileName, fVerbose );
    Vec_Wrd_t * vSimO = Gia_ManSimInfoTry( p, vSimI );
    if ( fVerbose )
    printf( "Density of input  patterns %8.4f.\n", (float)Abc_TtCountOnesVec(Vec_WrdArray(vSimI), Vec_WrdSize(vSimI))/(64*Vec_WrdSize(vSimI)) );
    if ( fVerbose )
    printf( "Density of output patterns %8.4f.\n", (float)Abc_TtCountOnesVec(Vec_WrdArray(vSimO), Vec_WrdSize(vSimO))/(64*Vec_WrdSize(vSimO)) );
    Vec_WrdDumpBin( pFileName2, vSimO, fVerbose );
    Vec_WrdFree( vSimI );
    Vec_WrdFree( vSimO );
    if ( fVerbose )
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
}

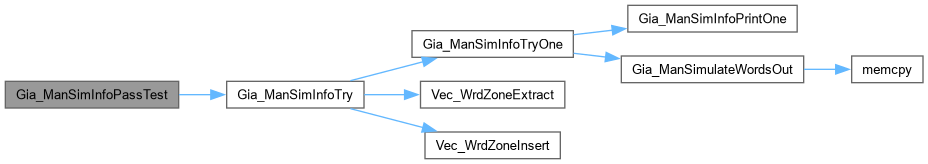

Here is the call graph for this function:

Gia_ManSimInfoPrintOne()

void Gia_ManSimInfoPrintOne	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimsIn,
		Vec_Wrd_t *	vSimsOut,
		int	nWords,
		int	nPats )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 363 of file giaMinLut.c.

{
    int Id, i, k;
    for ( k = 0; k < nPats; k++ )
    {
        Gia_ManForEachCiId( p, Id, i )
    //        printf( "%d", Vec_WrdEntry(p->vSims, p->nSimWords*Id) & 1 );
            printf( "%d", (int)(Vec_WrdEntry(vSimsIn,  nWords*i) >> k) & 1 );
        printf( " " );
        Gia_ManForEachCoId( p, Id, i )
    //        printf( "%d", Vec_WrdEntry(p->vSims, p->nSimWords*Id) & 1 );
            printf( "%d", (int)(Vec_WrdEntry(vSimsOut, nWords*i) >> k) & 1 );
        printf( "\n" );
    }
}

Here is the caller graph for this function:

Gia_ManSimInfoTry()

Vec_Wrd_t * Gia_ManSimInfoTry	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimI )

Definition at line 465 of file giaMinLut.c.

{
    int nWords = Vec_WrdSize(vSimI) / Gia_ManCiNum(p);
    int w, nWordsOne = 200, nWordBatches = (nWords + nWordsOne - 1)/nWordsOne;
    Vec_Wrd_t * vSimO_new = Vec_WrdStart( nWords * Gia_ManCoNum(p) );
    for ( w = 0; w < nWordBatches; w++ )
    {
        //int Value = printf( "%3d / %3d : ", w, nWordBatches );
        Vec_Wrd_t * vSimI_ = Vec_WrdZoneExtract( nWords, vSimI, w*nWordsOne, nWordsOne );
        Vec_Wrd_t * vSimO_ = Gia_ManSimInfoTryOne( p, vSimI_, 0 );
        Vec_WrdZoneInsert( vSimO_new, nWords, vSimO_, w*nWordsOne, nWordsOne );
        Vec_WrdFree( vSimI_ );
        Vec_WrdFree( vSimO_ );
        //Value = 0;
    }
    return vSimO_new;
}

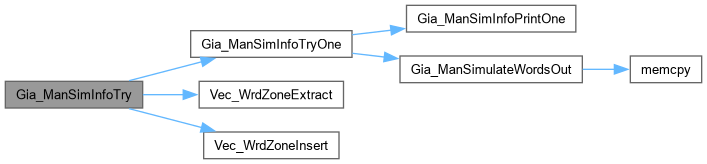

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSimInfoTryOne()

Vec_Wrd_t * Gia_ManSimInfoTryOne	(	Gia_Man_t *	p,
		Vec_Wrd_t *	vSimI,
		int	fPrint )

Definition at line 378 of file giaMinLut.c.

{
    extern Vec_Wrd_t * Gia_ManSimulateWordsOut( Gia_Man_t * p, Vec_Wrd_t * vSimsIn );
    Vec_Wrd_t * vSimsOut = Gia_ManSimulateWordsOut( p, vSimI );
    int nWords = Vec_WrdSize(vSimI) / Gia_ManCiNum(p);
    assert( Vec_WrdSize(vSimI) % Gia_ManCiNum(p) == 0 );
    if ( fPrint )
        Gia_ManSimInfoPrintOne( p, vSimI, vSimsOut, nWords, 6 );
    return vSimsOut;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Vec_WrdReadLayerText()

Vec_Wec_t * Vec_WrdReadLayerText	(	char *	pFileName,
		int *	pnIns,
		int *	pnOuts )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 54 of file giaMinLut.c.

{
    char * pThis, pLine[1000];
    Vec_Wec_t * vRes; int iLine;
    FILE * pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\" for reading.\n", pFileName );
        return NULL;
    }
    vRes = Vec_WecAlloc(100);
    for ( iLine = 0; fgets( pLine, 1000, pFile ); iLine++ )
    {
        if ( iLine == 0 )
        {
            pThis = strstr( pLine, "[" );
            *pnIns = atoi( pThis+1 ) + 1;
            pThis = strstr( pThis+1, "[" );
            *pnOuts = atoi( pThis+1 ) + 1;
        }
        else
        {
            Vec_Int_t * vLevel = NULL;
            for ( pThis = pLine; (pThis = strstr(pThis, "M0[")); pThis++ )
            {
                if ( vLevel == NULL )
                    vLevel = Vec_WecPushLevel( vRes );
                Vec_IntPush( vLevel, atoi( pThis+3 ) );
            }
            if ( vLevel )
                Vec_IntReverseOrder( vLevel );
        }
    }
    fclose( pFile );
    //Vec_WecPrint( vRes, 0 );
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Vec_WrdReadNumsOut()

Vec_Int_t * Vec_WrdReadNumsOut	(	char *	pFileName,
		int	fVerbose )

Definition at line 274 of file giaMinLut.c.

{
    char pLine[1000];
    Vec_Int_t * vNums; int iLine;
    FILE * pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\" for reading.\n", pFileName );
        return NULL;
    }
    vNums = Vec_IntAlloc( 1000 );
    for ( iLine = 0; fgets( pLine, 1000, pFile ); iLine++ )
        Vec_IntPush( vNums, atoi(pLine) );
    fclose( pFile );
    if ( fVerbose )
    printf( "Finished reading %d output values from file \"%s\".\n", Vec_IntSize(vNums), pFileName );
    return vNums;
}

Here is the caller graph for this function:

Vec_WrdReadTest()

Gia_Man_t * Vec_WrdReadTest

(

char *

pFileName

)

Definition at line 132 of file giaMinLut.c.

{
    extern int Gia_ManPerformLNetOpt_rec( Gia_Man_t * pNew, Gia_Man_t * p, Gia_Obj_t * pObj );
    extern Gia_Man_t * Gia_TryPermOptCare( word * pTruths, int nIns, int nOuts, int nWords, int nRounds, int fVerbose );
    Gia_Man_t * pPart, * pNew = NULL; Gia_Obj_t * pObj;
    int i, k, nIns, nOuts, iLit;
    Vec_Wec_t * vRes = Vec_WrdReadLayerText( pFileName, &nIns, &nOuts );
    int nBitsI = vRes ? Vec_WecMaxLevelSize(vRes) : 0;
    int nBitsO = vRes ? nOuts / Vec_WecSize(vRes) : 0;
    int nWords = Abc_TtWordNum(nBitsI);
    word * pFuncs = vRes ? Vec_WrdReadTruthText( pFileName, nBitsI, nBitsO, Vec_WecSize(vRes) ) : NULL;
    Vec_Int_t * vPart, * vLits = Vec_IntAlloc( nOuts );
    if ( vRes == NULL || pFuncs == NULL )
    {
        Vec_WecFreeP( &vRes );
        Vec_IntFreeP( &vLits );
        ABC_FREE( pFuncs );
        return NULL;
    }
    assert( nOuts % Vec_WecSize(vRes) == 0 );
    pNew = Gia_ManStart( 10000 );
    pNew->pName = Abc_UtilStrsav( pFileName );
    pNew->pSpec = NULL;
    for ( i = 0; i < nIns; i++ )
        Gia_ManAppendCi(pNew);
    Gia_ManHashStart( pNew );
    Vec_WecForEachLevel( vRes, vPart, i )
    {
        assert( Vec_IntSize(vPart) <= nBitsI );
        pPart = Gia_TryPermOptCare( pFuncs + i * nBitsO * nWords, nBitsI, nBitsO, nWords, 20, 0 );
        Gia_ManFillValue( pPart );
        Gia_ManConst0(pPart)->Value = 0;
        Gia_ManForEachCi( pPart, pObj, k )
            pObj->Value = Abc_Var2Lit( 1+Vec_IntEntry(vPart, k), 0 );
        Gia_ManForEachCo( pPart, pObj, k )
        {
            Gia_ManPerformLNetOpt_rec( pNew, pPart, Gia_ObjFanin0(pObj) );
            Vec_IntPush( vLits, Gia_ObjFanin0Copy(pObj) );
        }
        Gia_ManStop( pPart );
    }
    Gia_ManHashStop( pNew );
    Vec_IntForEachEntry( vLits, iLit, i )
        Gia_ManAppendCo( pNew, iLit );
    ABC_FREE( pFuncs );
    Vec_WecFree( vRes );
    Vec_IntFree( vLits );
    return pNew;
}

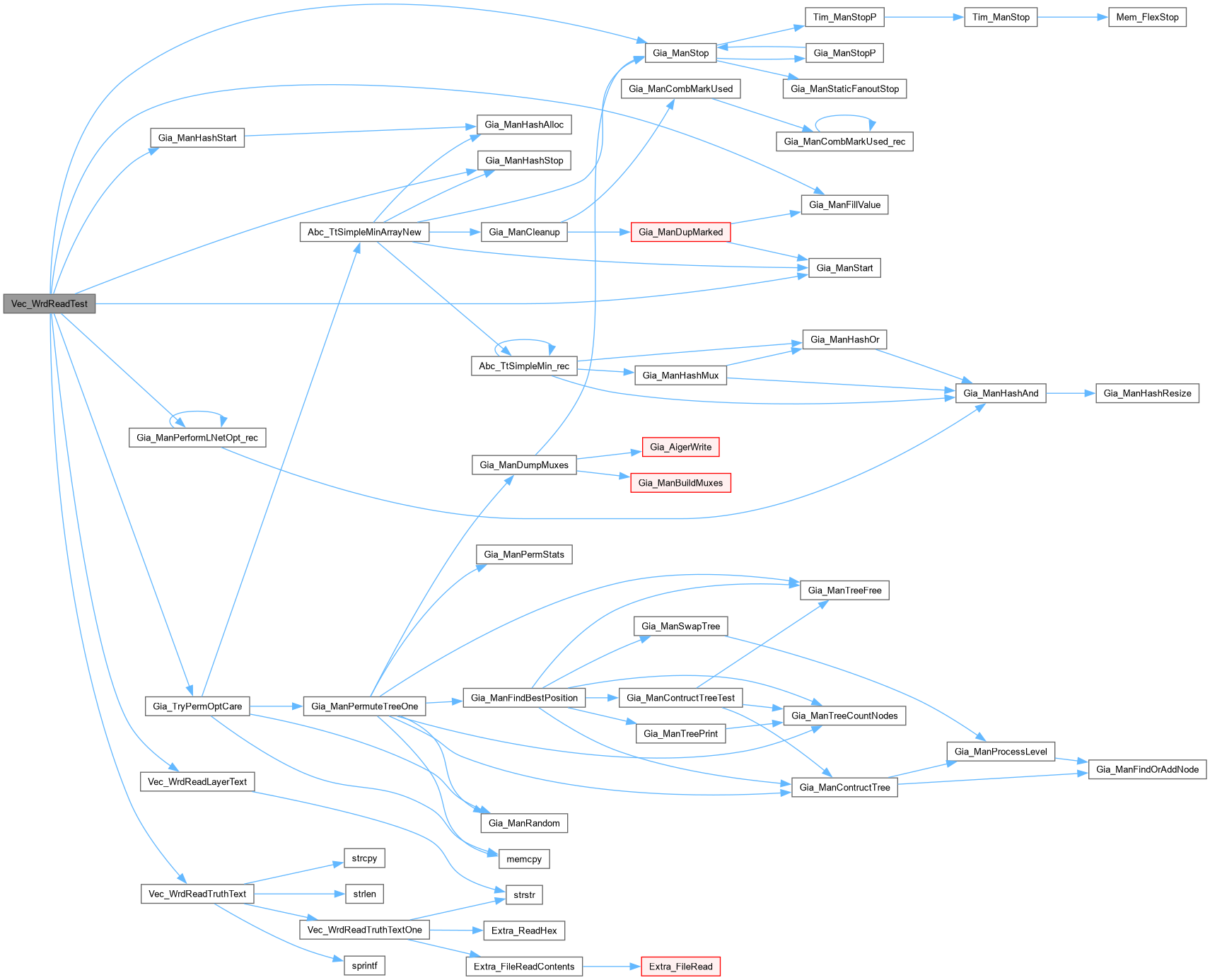

Here is the call graph for this function:

Vec_WrdReadText()

void Vec_WrdReadText	(	char *	pFileName,
		Vec_Wrd_t **	pvSimI,
		Vec_Wrd_t **	pvSimO,
		int	nIns,
		int	nOuts )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 193 of file giaMinLut.c.

{
    int i, nSize, iLine, nLines, nWords;
    char pLine[2000];
    Vec_Wrd_t * vSimI, * vSimO;
    FILE * pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\" for reading.\n", pFileName );
        return;
    }
    fseek( pFile, 0, SEEK_END );
    nSize = ftell( pFile );
    if ( nSize % (nIns + nOuts + 1) > 0 )
    {
        printf( "Cannot read file with simulation data that is not aligned at 8 bytes (remainder = %d).\n", nSize % (nIns + nOuts + 1) );
        fclose( pFile );
        return;
    }
    rewind( pFile );
    nLines = nSize / (nIns + nOuts + 1);
    nWords = (nLines + 63)/64;
    vSimI  = Vec_WrdStart( nIns *nWords );
    vSimO  = Vec_WrdStart( nOuts*nWords );
    for ( iLine = 0; fgets( pLine, 2000, pFile ); iLine++ )
    {
        for ( i = 0; i < nIns; i++ )
            if ( pLine[nIns-1-i] == '1' )
                Abc_TtXorBit( Vec_WrdArray(vSimI) + i*nWords, iLine );
            else assert( pLine[nIns-1-i] == '0' );
        for ( i = 0; i < nOuts; i++ )
            if ( pLine[nIns+nOuts-1-i] == '1' )
                Abc_TtXorBit( Vec_WrdArray(vSimO) + i*nWords, iLine );
            else assert( pLine[nIns+nOuts-1-i] == '0' );
    }
    fclose( pFile );
    *pvSimI = vSimI;
    *pvSimO = vSimO;
    printf( "Read %d words of simulation data for %d inputs and %d outputs (padded %d zero-patterns).\n", nWords, nIns, nOuts, nWords*64-nLines );
}

Here is the call graph for this function:

Vec_WrdReadText2()

int Vec_WrdReadText2	(	char *	pFileName,
		Vec_Wrd_t **	pvSimI )

Definition at line 233 of file giaMinLut.c.

{
    int i, nSize, iLine, nLines, nWords, nIns;
    char pLine[2000];
    Vec_Wrd_t * vSimI;
    FILE * pFile = fopen( pFileName, "rb" );
    if ( pFile == NULL )
    {
        printf( "Cannot open file \"%s\" for reading.\n", pFileName );
        return 0;
    }
    if ( !fgets(pLine, 2000, pFile) || (nIns = strlen(pLine)-1) < 1 )
    {
        printf( "Cannot find the number of inputs in file \"%s\".\n", pFileName );
        fclose( pFile );
        return 0;
    }
    fseek( pFile, 0, SEEK_END );
    nSize = ftell( pFile );
    if ( nSize % (nIns + 1) > 0 )
    {
        printf( "Cannot read file with simulation data that is not aligned at 8 bytes (remainder = %d).\n", nSize % (nIns + 1) );
        fclose( pFile );
        return 0;
    }
    rewind( pFile );
    nLines = nSize / (nIns + 1);
    nWords = (nLines + 63)/64;
    vSimI  = Vec_WrdStart( nIns *nWords );
    for ( iLine = 0; fgets( pLine, 2000, pFile ); iLine++ )
    {
        for ( i = 0; i < nIns; i++ )
            if ( pLine[nIns-1-i] == '1' )
                Abc_TtXorBit( Vec_WrdArray(vSimI) + i*nWords, iLine );
            else assert( pLine[nIns-1-i] == '0' );
    }
    fclose( pFile );
    *pvSimI = vSimI;
    printf( "Read %d words of simulation data for %d inputs (padded to 64-bit boundary with %d zero-patterns).\n", nWords, nIns, nWords*64-nLines );
    return nIns;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Vec_WrdReadTextOut()

Vec_Wrd_t * Vec_WrdReadTextOut	(	char *	pFileName,
		int	nOuts )

Definition at line 292 of file giaMinLut.c.

{
    int i, iLine, nLines, nWords;
    Vec_Wrd_t * vSimO;
    Vec_Int_t * vNums = Vec_WrdReadNumsOut( pFileName, 1 );
    if ( vNums == NULL )
        return NULL;
    nLines = Vec_IntSize(vNums);
    nWords = (nLines + 63)/64;
    vSimO  = Vec_WrdStart( nOuts*nWords );
    Vec_IntForEachEntry( vNums, i, iLine )
        Abc_TtXorBit( Vec_WrdArray(vSimO) + i*nWords, iLine );
    Vec_IntFree( vNums );
    printf( "Read %d words of simulation data for %d outputs (padded %d zero-patterns).\n", nWords, nOuts, nWords*64-nLines );
    return vSimO;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Vec_WrdReadTruthText()

word * Vec_WrdReadTruthText	(	char *	pFileName,
		int	nIns,
		int	nOuts,
		int	nFiles )

Definition at line 114 of file giaMinLut.c.

{
    char FileName[1000];
    int i, nWords = Abc_TtWordNum( nIns );
    word * pRes = ABC_CALLOC( word, nOuts*nFiles*nWords );
    for ( i = 0; i < nFiles; i++ )
    {
        assert( strlen(pFileName) < 900 );
        strcpy( FileName, pFileName );
        sprintf( FileName + strlen(FileName) - 2, "_N%d.bench", i );
        if ( !Vec_WrdReadTruthTextOne( FileName, nIns, nOuts, pRes + i*nOuts*nWords ) )
        {
            ABC_FREE( pRes );
            return NULL;
        }
    }
    return pRes;
}

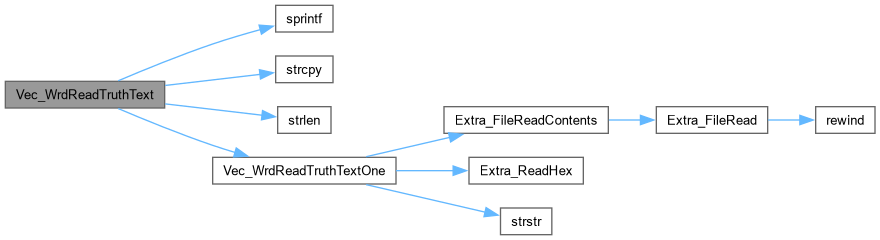

Here is the call graph for this function:

Here is the caller graph for this function:

Vec_WrdReadTruthTextOne()

int Vec_WrdReadTruthTextOne	(	char *	pFileName,
		int	nIns,
		int	nOuts,
		word *	pRes )

Definition at line 91 of file giaMinLut.c.

{
    int i, nWords = Abc_TtWordNum( nIns );
    char * pStart, * pBuffer = Extra_FileReadContents( pFileName );
    if ( pBuffer == NULL )
    {
        printf( "Cannot read file \"%s\".\n", pFileName );
        return 0;
    }
    pStart = pBuffer;
    for ( i = 0; i < nOuts; i++ )
    {
        pStart = strstr( pStart + 1, "0x" );
        if ( !Extra_ReadHex( (unsigned *)(pRes + i*nWords), pStart + 2, nWords*16 ) )
        {
            printf( "Cannot read truth table %d (out of %d) in file \"%s\".\n", i, nOuts, pFileName );
            ABC_FREE( pBuffer );
            return 0;
        }
    }
    ABC_FREE( pBuffer );
    return 1;
}

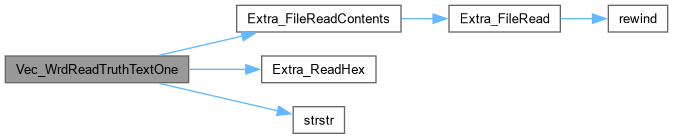

Here is the call graph for this function:

Here is the caller graph for this function:

Vec_WrdZoneExtract()

Vec_Wrd_t * Vec_WrdZoneExtract	(	int	ZoneSize,
		Vec_Wrd_t *	p,
		int	iWord,
		int	nWords )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 333 of file giaMinLut.c.

{
    int z, nZones = Vec_WrdSize(p)/ZoneSize;
    int w, Limit = Abc_MinInt( nWords, ZoneSize-iWord );
    Vec_Wrd_t * pNew = Vec_WrdStart( nZones*nWords );
    for ( z = 0; z < nZones; z++ )
        for ( w = 0; w < Limit; w++ )
            Vec_WrdWriteEntry( pNew, z*nWords + w, Vec_WrdEntry(p, z*ZoneSize + iWord + w) );
    return pNew;
}

Here is the caller graph for this function:

Vec_WrdZoneInsert()

void Vec_WrdZoneInsert	(	Vec_Wrd_t *	pNew,
		int	ZoneSize,
		Vec_Wrd_t *	p,
		int	iWord,
		int	nWords )

Definition at line 343 of file giaMinLut.c.

{
    int z, nZones = Vec_WrdSize(pNew)/ZoneSize;
    int w, Limit = Abc_MinInt( nWords, ZoneSize-iWord );
    for ( z = 0; z < nZones; z++ )
        for ( w = 0; w < Limit; w++ )
            Vec_WrdWriteEntry( pNew, z*ZoneSize + iWord + w, Vec_WrdEntry(p, z*nWords + w) );
}

Here is the caller graph for this function:
